@ionic elk in a working build the startup*.o file is here: ./ports/stm32/build-PYBV11/lib/stm32lib/CMSIS/STM32F4xx/Source/Templates/gcc/startup_stm32f405xx.o
#circuitpython-dev
tulip sleet
I don't have a cpu.* of any kind in my build, source or object
ionic elk
So I guess my question is, how is Micropython requesting that file be compiled at all?
@tulip sleet it isn't in the source list - you mentioned some kind of default setting?
tulip sleet
i'm confused, where do you see SRC_S = supervisor/cpu.s
ionic elk
must have been an old thing I copied
ionic elk
in circuitpython. stack.c calls cpu_get_regs_and_sp
tulip sleet
i guess micropython took that out (if it ever had it)
ionic elk
I mean we still have it, I know stack.c is called and somehow it is not failing
Oh I see you just mean micropython. You have cpu.s in the nrf port
Let me back up - because I cannot figure out how Micropython is actually getting the startup_stm32f405xx.s file to produce an object file that it is using, I attempted to add it to Circuitpython's SRC_S, which currently only contains cpu.s in most ports and in mine also contains a local, duplicate copy of startup_stm32f405xx that I'd like to get rid of
As in, I can get boards/startup_stm32f405xx.s to compile and be successfully added to the build via SRC_S, but I cannot replace it with st_driver/CMSIS/Device/ST/STM32$(MCU_SERIES)xx/Source/Templates/gcc/startup_$(MCU_VARIANT).s for some reason
and I cannot figure out how Micropython avoids this issue and somehow just grabs a complete object from thin air
tulip sleet
could you push your current repo to your branch so I can take a look?
ionic elk
Sure it's about ready for that anyway.
tulip sleet
ok got it
@ionic elk you have MCU_VARIANT instead of MCU_VARIANT_LOWER, did you mean the latter
tulip sleet
๐ 's ok ๐
ionic elk
thank you dan
tulip sleet
yw! we help each other
ionic elk
ugh now I'm getting the old __libc_init_array issue though
@tulip sleet the default ST files call bl __libc_init_array, which causes this error: in function "__libc_init_array": init.c:(.text.__libc_init_array+0x14): undefined reference to "_init". Clearly Micropython suppresses it somehow. This is C++ junk, right? I removed it in all my custom startup files but if I'm using the supplied ones I don't have that liberty.
I can make it go away by removing -nostdlib, is that ok?
tulip sleet
i'm not sure if it's ok, i'd see why the __libc_init_arry is showing up
slender iron
@tulip sleet how is ble bonding info restored?
@ionic elk you can't remove it because tinyusb has it in there?
manic glacierBOT
tulip sleet
@slender iron stored bonding info is retrieved by calls to bonding_load_keys() and bonding_load_cccd_info() in common-hal Connection.c, lines 286 and 310.
slender iron
kk, I think packetbuffer needs to check to see if the hvx has already been subscribed to
tulip sleet
that should happen on BLE_GAP_EVT_CONN_SEC_UPDATE. The cccd settting is stored whenever a cccd is written (after a little delay to consolidate writes), so it should get restored on BLE_GAP_EVT_CONN_SEC_UPDATE. I don't think you should need to handle this specially.
i guess you mean you might not get notified about the change
slender iron
right
tulip sleet
since it's done by sd_ble_sys_attr_set().
maybe CharacteristicBuffer has the same problem
slender iron
I don't think so because CharacteristicBuffer grabs all reads and writes
PacketBuffer tries to limit it to one connection
tulip sleet
ah isee
orchid basinBOT
timber mango
PacketBuffer tries to limit it to one connection
@slender iron That sounds very similar to what we need for the RFM69 radio stuff.
ionic elk
@tulip sleet the system files that are exported/ship with stm32 cube come with the __libc_init_array by default. We could request that tinyUSB get rid of them in the st_drivers repo
manic glacierBOT
ionic elk
Anybody else on here a language learning nerd? I had an idea today for a language device using circuitpython.
lone axle

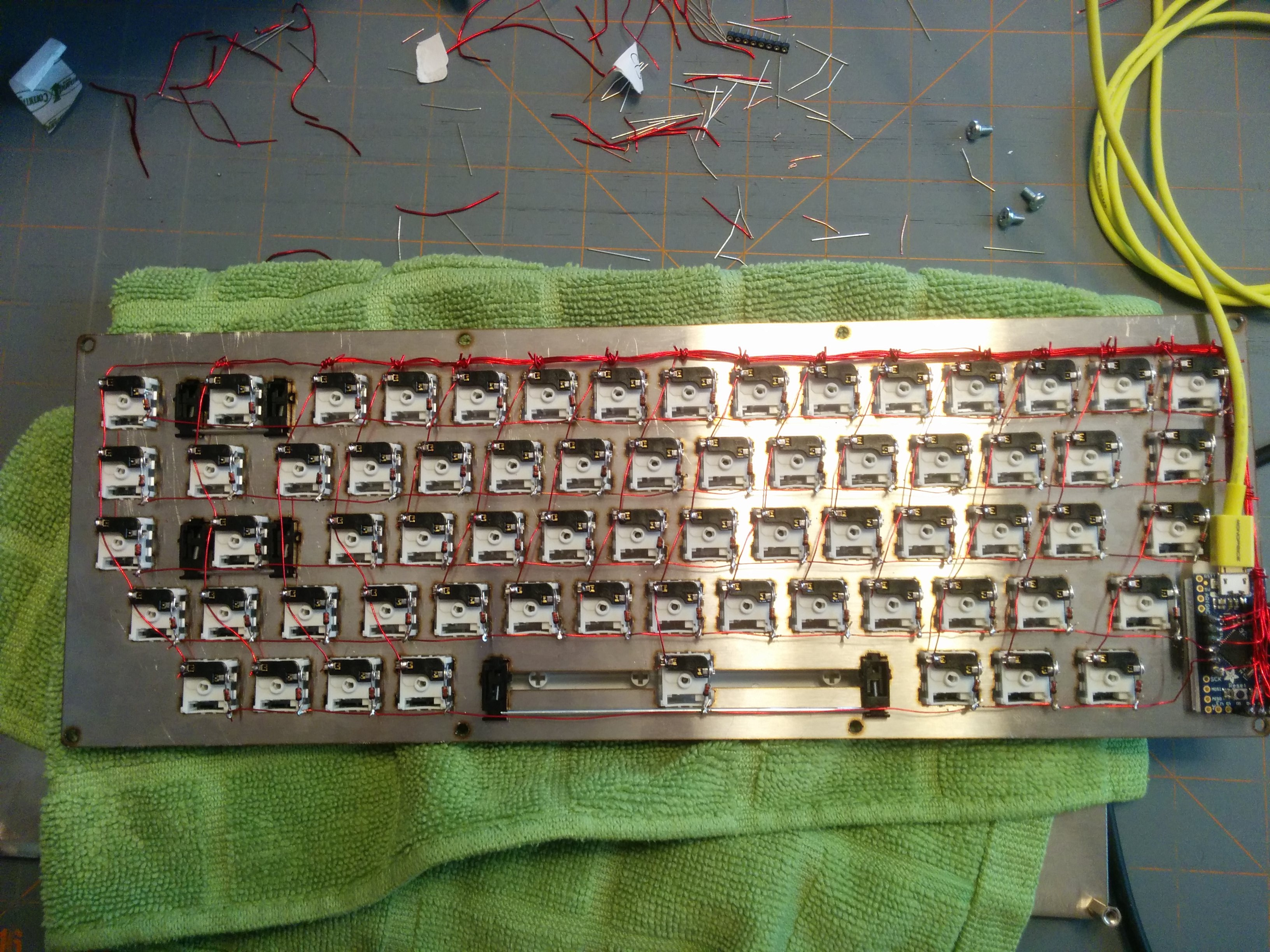

I've managed to make it through my first time building a CircuitPython uf2 file!
raven canopy
@lone axle yay!
lone axle
If I am trying to make a build with a modified library frozen into it. Do I need to do anything besides replacing my modifed version of the library repo inside the frozen directory in place of the original?
raven canopy
since it's an existing build with a frozen library, that should be all that's required.
lone axle
Where is the behavior that creates boot_out.txt defined? if I wanted to make a build that prints different information on the first line of that file how could I do that?
manic glacierBOT
solar whale
@lone axle I think this is it https://github.com/adafruit/circuitpython/blob/master/main.c#L350
lone axle
Ah. Thank you Jerryn
vague monolith
Has anyone thought of a wrapper for displayio to make it easier to design UI. Something like tkinter or kivy or any modern UI framework. Was thinking users could specify button and pack with grid or absolute spacing. UI should handle the touchscreen setup and create a default button....
I donโt have the skills or the time to implement this just a thought to inspire someone hopefully.
lone axle
There is a library for pyportal that is a sort of UI framework. It's nothing to the extent of the ones you mention but it's a start for applications with basic flow and buttons.
lone axle
@vague monolith https://github.com/adafruit/Adafruit_CircuitPython_PYOA here is a learn guide for it as well. https://learn.adafruit.com/circuit-python-your-own-adventure/overview
It is named for "making adventures" but really it is a UI layer like an older "HyperCard" system
vague monolith
Yeah the current state of UI design on pyportal is difficult for newer coffers
Coders
Also temp doesnโt seem to work like other platforms like cpx
Weird things like that Iโm sure come with time and everyoneโs tireless work.
Just providing some insight from trying to learn with my kids
Thank you all for everything you do
lone axle
Also see this guide: https://learn.adafruit.com/making-a-pyportal-user-interface-displayio
vague monolith
I wish to learn enough to contribute more someday
lone axle
That one is not really a framework but is a great resource for learning to make pyportal interfaces with the existing displayio tools.
vague monolith
Yeah that guide doesnโt work on titano, Iโm assuming due to some i2c address change on the temperature sensor. Also where this line of thought on a UI wrapper came from 700 lines of code vs something like a button class that already understands ts and just has an event callback. One day Iโll learn enough to help more
I thought I remember the cpx helper library having things like cpx.light cpx.temp etc.. I could be wrong itโs been awhile
lone axle
@vague monolith I can try to help you get it working on the titano if you want. Lets move over to #help-with-circuitpython
tepid cliff
Hi, I've been trying to write a simple driver for an SPI Flash chip (W25Q64FV) so that I can use it as a storage device using the storage.VfsFat module. I have written a very basic SPI flash driver which seems to work ok (SPIFlash) and a block-device wrapper for this (SPIFlashFS) which again seems to work ok. I am able to format the device using storage.VfsFat.mkfs however if I try to create a storage.VfsFat instance all of the methods return OSError: [Errno 19] Unsupported operation . The strange thing is that if I create a simple RAMFS driver (copying the one in ./tests/extmod/vfs_fat_ramdisk.py ) this seems to work fine as a block device and I cant really work out what is different about this and my driver. I couldnt find much documentation on blockdevices so wonder if anyone has any ideas. The code is here (this is very rough at the moment I'm just trying to get things working): https://github.com/paulc/citcuitpython-spiflash
lone axle

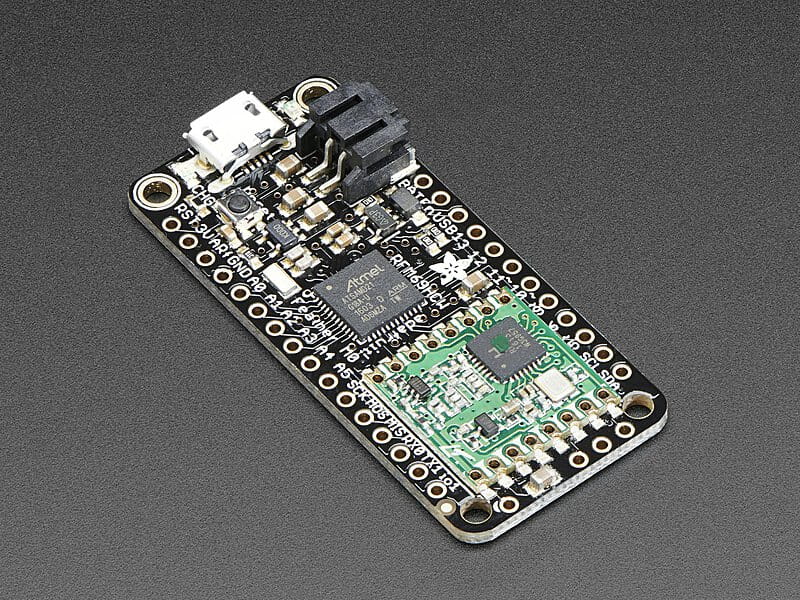

does this circuitpython version https://circuitpython.org/board/feather_m0_rfm69/ work with this device? https://www.adafruit.com/product/3177
Or does it need something different since it has a different frequency?
crimson ferry
There's a separate download for the 433MHz
solar whale
Yes. You just set the frequency when initializing the driver
There is? Where?
The CP build only has the pins defined. It does not know about the radio
crimson ferry
Is this not it? https://circuitpython.org/board/feather_m0_rfm9x/
crimson ferry
oops, sorry, 96
lone axle
Incidentally I did manage to flash the bin file from this page (first time using BOSSA ) not sure if the radio is working, but I did get a a CIRCUITPY drive.
I did the same thing mixing them up at one point anecdata.
solar whale
The library configures the radio.
It will be very tight on memory. Use the . mpy lib and you may have to run any test as code.py to get it to load
Make sure you install an antenna before trying the radio.
lone axle
Ooh thank you. Probably would have tried it out and been wondering why ๐ฉ
solar whale
@crimson ferry I wish they were not so similarly named!
lone axle
Is a length of wire soldered to the pin hole at the back labeled "Ant." sufficient?
solar whale
Yes. Thatโll be fine. The length is in the guide. Twice as long for 433 MHz as 915
16.5 cm
lone axle
Thank you
solar whale
Youโre welcome Good luck with it!
lone axle
In this section of the BOSSA buide it states about using the offset with versions greather than 1.9. If I accidentally did it without the offset and thus it failed will I have erased something important on the device?
solar whale
I donโt think so. The critical parts should be protected.
Should be able to just reload
lone axle
Okay, I seem to have ended up in a weird state. After it failed with the wrong offset I was able to run Write and Verify and both were successful
Same as I did on the first device. But on thise second one I pressed the reset button afterward and now it seems like it's bootlooping
LED 13 is blinking 3 times in a row on, then off a moment, one time on, then off... then repeat
If I double press reset I can see LED 13 start to "pulse" briefly like it's going to bootloader mode but then the blinking loop resumes
solar whale
Hmm. Not something Iโve seen. You may need to check with @tulip sleet
Do you have a JLink?
solar whale
Yes - you can reload the bootloader. Even load a uf2 bootloader.
You have to tack wires onto pads on the bottom of the board.
But hopefully there is a simpler way!
lone axle
uf2 would be nice if it's posslbe.
solar whale
IIRC it just uses the feather_m0. (Not express) bootloader. Either bossa or UF2.
lone axle
I'll have to put it down for a bit for now. nothing I can do seems to change it from it's blinking and reconnecting
solar whale
๐good luck!
lone axle
yep, thank you
solar whale
I was trying the same thing with an rfm9x M0 a few weeks ago and now that youโre explaining what you are seeing, I may have done the same thing. I ended up putting the uf2 bootloader in it. I hope you can recover it more simply.
lone axle
I've looked into getting a jlink before but never had a specific reason for one.
Looks like digikey has got lots in stock if it does come to that.
slender iron
@tepid cliff I don't know of anyone that uses VFSFat except the SD card code. Maybe look their?
manic glacierBOT
manic glacierBOT
idle owl
@vague monolith Using our products and code, and giving us feedback is one of the most important ways to contribute. I understand what you mean though.
@lone axle Congrats on the build! The EDU Mini Jlink is affordable and would do everything you need - if you decide to get one. You may need an adapter cable to go with it - I don't recall if it comes with the cable or not.
timber mango
Yes. Thatโll be fine. The length is in the guide. Twice as long for 433 MHz as 915
@solar whale @lone axle Not quite, it should a little more than twice because 915/433 > 2. Get the exact length via the wavelength formula: L=c/f where c is the speed of light and f the frequency, then for the antenna length take 1/4th of that = 17.3 cm.
lone axle
Ah thank you. Yep looks like it is a bit more than double: https://learn.adafruit.com/adafruit-feather-m0-radio-with-rfm69-packet-radio/antenna-options#wire-antenna-4-2 showing 7.8cm on the 915 and 16.5cm on the 433. Interesting to see the direct formula to calculate thank you for sharing that.
ionic elk
@slender iron do you have any suggestions for a reliable 4.2 or larger e-paper screen, after the work you were doing on them? I was thinking I'd just grab one for use with https://www.adafruit.com/product/4224, wanted to see if you had any suggestions first though.
orchid basinBOT
timber mango
I have two of the Feather M0 RFM69 boards. They are great for Arduino, but they can not do much using CircuitPython. I did manage to get just enough on them for a very small node though. There just is not enough RAM for much else.
I will be LURKING for the meeting because I am in the hospital.
idle owl
@timber mango I've added you to the notes as lurking. Hope you get well soon.
tulip sleet
@lone axle If you forget the offset it loads it at 0x000. This could overwrite the bootloader except that on most boards we have protected the bootloader from overwriting. If you double-click do you get a pulsing red led?
lone axle
@tulip sleet upon double clicking reset I can see the #13 LED start pulsing for just a second and then it goes back to the blinking pattern without any further input / action on my part.
tulip sleet
@lone axle Can you upload Arduino Blink to the board (probaby not)? A J-Link is very useful so if you can get one, great. https://www.digikey.com/product-detail/en/segger-microcontroller-systems/8-08-91-J-LINK-EDU-MINI/899-1061-ND/7387472 is fine
idle owl
CircuitPython Weekly meeting in just over two hours. Everyone is encouraged to attend! Please add your hug reports and status updates to the notes document, even if you'll be attending the meeting - it's super helpful. Looking forward to talking to you soon. Thanks! <@&356864093652516868> https://docs.google.com/document/d/1YZYYrODJwUpKD4PWWzjpPhzBAvf5Mf196r4z7uo6dns/edit
tulip sleet
@lone axle also get this: https://www.digikey.com/products/en/development-boards-kits-programmers/accessories/783?k=adafruit 2743 (see https://www.adafruit.com/product/2743), and make sure you have all the appropriate cables (I think the Edu Mini comes with the right ones but double check)
lone axle
@tulip sleet thank you. I'll try out Arduino blink a bit later, though I think you are right probably won't work because from the PC side it keeps seeing the device reconnect over and over, never staying long enough to get a COM port # any more. Thank you as well for the info on J-Link and accessories!
tulip sleet
ah I bet that's because the "fuses" have been overwritten with all one's. If they are set to all 1's then the watchdog timer is enabled with a very short timeout, and the board keeps resetting
timber mango
@lone axle Cheers. Now I wonder, though, why Adafruit lists 16.5 cm when the optimal length is 17.3 cm. Perhaps 8 mm of internal connection length? Or simply a slight miscalculation.
tulip sleet
that is pretty simple to fix with a j-link
lone axle
Hooray, glad I didn't manage to break it more permanently. I will look into getting a J-Link ordered tonight so I can get it revived.
@timber mango internal connection length seems plausible to me. But I'm still brand new to the radio world I would have to defer to someone with more knowledge of radio generally, and/or the circuit on this device.
tulip sleet
@timber mango @lone axle the antenna length is not exactly 1/4 of the wavelength due to the velocity factor of the wire https://en.wikipedia.org/wiki/Electrical_length
physical length != electrical length
but it's also true it may have to do with board trace length too
onyx hinge
I've still got at least one memory bug in protomatter, after updating code.py a few times I get a MemoryError.
tidal kiln
@lone axle just in case you haven't seen this yet:
https://learn.adafruit.com/how-to-program-samd-bootloaders/feather-m0-m4-wiring
some basic info on connecting jlink
solar whale
@timber mango there are severl "calculators" out there like this on e http://www.csgnetwork.com/antennagpcalc.html they all give the 16.5cm value in use -- they do assume there are also ground plane radials .... it's not a perfect world ๐
lone axle
@tidal kiln had not seen this yet thank you! definitely will be coming in handy.
timber mango
@tulip sleet @solar whale Thanks. So apparently the calculation is made for a velocity factor of 16.5/17.3=0.95, or effective permittivity of 1.1, which according to the page mainly depends on the surrounding dielectric i.e. the insulation around the wire. I guess if one were to use bare wire, it would be 17.3 cm.
solar whale
this one lets you tweak the velocity factor.. https://m0ukd.com/calculators/quarter-wave-ground-plane-antenna-calculator/
timber mango
@solar whale Oh! That link from @onyx hinge says the velocity factor of bare copper wire itself is 0.95... Alright. (And insulation is another factor of 0.95, apparently.)
onyx hinge
and if you forget it, you accidentally come up with a finding that neutrinos travel slightly faster than light ๐
A link from a GPS receiver to the OPERA master clock was loose, which increased the delay through the fiber. The glitch's effect was to decrease the reported flight time of the neutrinos by 73 ns, making them seem faster than light.[21][22]
OK so I don't have any element of the story I was thinking of correct. https://en.wikipedia.org/wiki/Faster-than-light_neutrino_anomaly#Measurement_errors
timber mango
Faster than light is possible for charged particles in a medium, which gives Cherenkov radiation ๐ https://en.wikipedia.org/wiki/Cherenkov_radiation
tulip sleet
@timber mango velocity factor also depends on wire diameter; I don't know if that's negligible in this case
timber mango
@tulip sleet Maybe that's the 0.95 for "bare copper wire" as per the link of @onyx hinge because normally it would be 1 for a (near) perfect conductor.
timber mango
I have a couple of 433 MHz rf modules, i think i must do an antenna length experiment now ๐ will report back, i think in 2 days.
thorny jay
Test
slender iron
@ionic elk That's the largest Adafruit carries. There is one 7" I have my eye on but I haven't tried it
ionic elk
@slender iron are you referring to the 4.2inch one in the link I posted? That doesn't actually seem to be stocked by adafruit, it's just there for the picture
If adafruit has a 4.2 inch epaper I'll get it but I don't see one
slender iron
ah, hrm
ionic elk
only has the hats
ionic elk
lol I mean I can always default back to Waveshare
Is that the 7" one you have your eye on ?
I just find their software to be ehh
ionic elk
What's the new one? I could pick it up too and test
if it's waveshare than that's exactly what I'm talking about, they make weird software decisions
I want to make a new device that puts my Anki decks on epaper
slender iron
I think that's the new one. triple check the IC to make sure the red bits are a separate array from black and white
modern wing
Good afternoon all you wonderful folks -- happily lurking today ๐
@timber mango Your mic is on ๐
Yepper!
onyx hinge
woof, grabbing a glass of water before the meeting
turbid radish
The CircuitPython Newsletter will be out tomorrow morning, Sign up at https://www.adafruitdaily.com/ - no spam, leave anytime, the list is never sold, all that good Adafruit mojo.
timber mango
lurking
wraith tiger
Just lurking...
tiny oriole
Just lurking about today as i work on some work stuff
turbid radish
I'm lurking but available for interaction as needed
errant grail
Very quiet in the studio today so I'm un-lurking for a change!
sterile bronze
lurking
half sedge
lurking
slender iron
jeff has been
modern wing
Thanks Jeff! ๐
slender iron
looks like minecraft
onyx hinge
serene warren
Lurking. Sorry late.
slender iron
๐
tiny oriole
onyx hinge
Just curious, since I was reviewing in there, is Adafruit_Python_PureIO something that would show up in the stats?
slender iron
@onyx hinge we should probably include that in the blinka stats
I don't think we're comprehensive with that though
turbid radish
Awww, thanks
modern wing
That really was a nice Show & Tell from JP
serene warren
I'm super sad I missed that miniSAT.
slender iron
yay!
onyx hinge
@slender iron if you can dive into the docs and get those names in correctly that'd be excellent. (about the 3H)
slender iron
yup yup
lapis hemlock
You have to read
raven canopy
is Adafruit_Python_PureIO something that would show up in the stats
@onyx hinge it is not included, and neither is Adafruit_Python_PlatformDetect. We could include them; just would need a little more flow-control possibly. feel free to put up an issue. ๐
slender iron
lapis hemlock
@onyx hinge Thanks!
slender iron
nice job!
modern wing
I know I'm quietly lurking, but for what I'm doing outside of Circuit Python -- aside from working, I've just picked up a first-gen Surface Book. Been a mac user for ages, and I needed a bare-metal Windows machine for some accessories I want to use for streaming.
gilded cradle
I forgot to mention what I was doing outside of CircuitPython stuff. I finished building a Prusa Bear 3D Printer.
modern wing
Smarter than the average printer ๐ /yogi
gilded cradle
๐
serene warren
Very Nice @gilded cradle , I watched Chris's Basement build his.
gilded cradle
Thanks. Mine's taller than the typical Prusa Bear
onyx hinge
my 3d printer is too small to print the face shield headbands, I'm bummed about that.
manic glacierBOT
gilded cradle
I'm having mild symptoms, so I don't want to make the problem worse by printing PPE.
onyx hinge
Print something fun instead
gilded cradle
๐
tiny oriole
Thermal Cameras are fun ๐
gilded cradle
I have the stuff to make a thermal camera on hand
modern wing
Good luck getting out of debt ๐
lone axle
๐
wraith tiger
I've been playing a lot of Minecraft - the pre-1.16 snapshots.
slender iron
haha, exactly
turbid radish
I did wire wrap too back in college & at JPL
raven canopy
at JPL...instant jealousy-mode invoked. ๐
ionic elk
I'm learning how to make bread this week lol
turbid radish
I made biscuits, sausage & gravy last night, Pillsbury biscuts
errant grail
Yum!
raven canopy
yeah, Pillsbury is about the closest i get to making bread. ๐
slender iron
@inland tusk do you have a link to the keybed?
modern wing
There are some fun dessert breads that aren't anything more than "mix a handful of things together, toss into a pan and into the oven for X minutes". I really don't enjoy the process of kneading and proving bread.
wraith tiger
I had a bread machine years ago. It was fun. I baked a few bricks while experimenting with modified recipes.
errant grail
Blueberry Buckle is classified as a "bread" in my cookbook but it's just a handful of this and mouthful of that...
onyx hinge
๐คค
tidal kiln
@tulip sleet i've had some linux lock ups also, total system freeze, requires reboot. been happening for a while. maybe related, but can could at least maybe double check what you're seeing.
turbid radish
My browser windows have all crashed, I need to reboot, I plan to be back
raven canopy
DHT. they always bring joy...
tulip sleet
@tidal kiln I'm running the Ubuntu 20.04 beta, but I was seeing hangs in 18.04. This manifests as a complete Linux hard crash if I do import storage; storage.erase_filesystem() on a SAMD21 board (might also be SAMD51 or more).
if you could try that it would be great, not on your machine right now ๐
i have a Dell Optiplex 7010 with Intel motherboard USB hubs, I think
tidal kiln
@tulip sleet yah. i'll try at some point and report back. i'm 18.04.
tulip sleet
I can't reproduce on a 20.04 Dell E5250 laptop
onyx hinge
raven canopy
@tulip sleet i've got 18.04 on a Dell Inspiron laptop, and 19.10 on an RPi3B+, if you want more testers.
tiny oriole
woooooo
inland tusk
@slender iron I don't have pictures of it yet.
Here is a link to Syntaur. They have keyboard parts. https://syntaur.com/
slender iron
neat!
modern wing
That's a nice thing, always good to unplug.
wraith tiger
I converted my Chromebook to run GalliumOS, which is based on Xubuntu.
tulip sleet
@tidal kiln @raven canopy https://bugs.launchpad.net/ubuntu/+source/linux/+bug/1871143 . The dmesg output (if you have kdump enabled) you can find in /var/crash/<date_stamp>/dmesg.<date_stamp>
@raven canopy I doubt it would crash on the RPi, and the laptop is probably ok too, but you could try. It doesn't always happen, but on the 7010 it happens most of the time.
raven canopy
any syslog hints?
onyx hinge
tulip sleet
it doesn't show up in syslog because it's crashing immediately, but the dmesg output from the crash is in the bug report in the second comment
modern wing
"A number has been divided by zero 13 times today."
serene warren
Umpteen Dozen
onyx hinge
inland tusk
You guys know how to make somebody hungry๐
crimson ferry
Pynt has its own UF2, but no board in the ports? What triggers the unique UF2 creation?
half sedge
display size?
crimson ferry
Pynt is 320x240, same as Original PyPortal
tulip sleet
some boards use the same UF2 as another, it's just a copy with a different name
crimson ferry
real question is... is it possible for a Pynt to know it's a Pynt, programmatically in user code?
tulip sleet
no
crimson ferry
ah, thanks Dan
So maybe we need a .../ports/board/... for Pynt... only difference would be board os.uname().machine
(Titano does have a unique machine name relative to Original)
tidal kiln
@crimson ferry could check for existence of ADT7410, maybe?
lone axle
Sorry if that keyboard clacking was loud =x
Is there a way to "check for" an I2C device other than initializing it and catching the exception? Like just see if an address is connected without initializing it?
crimson ferry
Can scan I2C to see if the address exists
but it could be a doppleganger, possibly
probably a way to do register-level checking...?
slender iron
thanks @turbid radish !
solar whale
Sorry -- I have to go -- have a great week all ๐
inland tusk
@solar whale have a good week
serene warren
Great meetup folks. Be safe and well.
raven canopy
Thanks everyone! Have a great week!
gilded cradle
Thanks everyone
errant grail
Thanks!
onyx hinge
see you later everyone!
lapis hemlock
๐
turbid radish
Here is the CircuitPython Newsletter repo, select the latest dated newsletter to put in a PR against https://github.com/adafruit/circuitpython-weekly-newsletter/tree/gh-pages/_drafts
crimson ferry
@lone axle fwiw, it may be just a couple of things... Pynt diffs relative to Original/Titano... #define MICROPY_HW_BOARD_NAME "Adafruit PyPortal Titano" in https://github.com/adafruit/circuitpython/blob/master/ports/atmel-samd/boards/pyportal_titano/mpconfigboard.h & USB_PRODUCT = "PyPortal Titano" in https://github.com/adafruit/circuitpython/blob/master/ports/atmel-samd/boards/pyportal_titano/mpconfigboard.mk looks like USB_PID changes too
half sedge
there is a matrix keyboard library
I used that for a C64 keyboard that is 8*8
Yes, there is one.
You give the sending lines, and receiving lines.
You cannot avoid the input pin, but there is a way to reduce the output pin number.
Something related to shift register.
See you.
lone axle
Thank you @crimson ferry
tidal kiln
@tulip sleet i got lock up to happen with Trinket M0 and Itsy M4, both running 5.1.0, doing storage.erase_filesystem(). i don't have kdump installed, but could if that would provide useful info.
tulip sleet
so just lockup, not crash; you are not running the new bootloader, so it's not the bootloader, so I don't need to hold that up
tidal kiln
total freeze. have to hold power button in to recover.
tulip sleet
I am going to talk to Thach about doing a cleaner USB shutdown on storage.erase_filesystem()
I have that too
tidal kiln
i think i've had this happen with arduino also - when it resets after upload
tulip sleet
this actual crash is something new.
Yes, I think see that sometimes too, but rarer
i think it's the MSC drive disappearing abruptly or something
but I thought it had to do with the new drive appearing, so maybe not sure about that
tidal kiln
oh - two different things happening? crash and freeze.
tulip sleet
possible; what's the model number of the machine this happened on?
i will look up which usb controller it uses
tidal kiln
some dumpster dive HP....not really sure...let me look...
idle owl
Dumpster Dive HP โข๏ธ
tulip sleet
going for a (safe) walk with my wife; will be afk for a while, but thanks!
raven canopy
@tulip sleet no hang/lock for me on the laptop w/18.04.
wraith tiger
Hmmm... I should have looked more closely at the 3.5" TFT FeatherWing before I started soldering.
I didn't reqlize the connectors were backward so you can stick a feather on the back of it.
I wanted to use the feather quadrupler but the screen will have to go on the back.
I'll figure something out.
gilded cradle
Quadrupler might work if you soldered some male pins on the underside of it.
or used these https://www.adafruit.com/product/2830
wraith tiger
Yeah, that's what I'm thinking. I had already soldered femail headers to the front. I was going to just use some unsoldered male headers between the two femail headers.
For now I've just got my M4 express stuck to the back of it. I think I'll try the displayIO learn guides before moving on.
I'll probably try learning KiCAD and designing my own board in the end if my concept works out.
I had the idea of using two of the TFT displays, one in lanscape orientation and one in portrait. That would reaquire a custom board anyway.
lone axle
Is it possible to have one Circuit Python device "talk" to another one via SPI?
slender iron
@lone axle no because we don't have SPI slave support. UART would work though
and sphinx 3.0.0 is out and broke my build
simple pulsar
@tulip sleet I noticed you'd been doing some bluetooth stuff with oximeters. I was curious how they worked (the Sa02 measurement, not the BLE bits) and eventually found https://www.robots.ox.ac.uk/~neil/teaching/lectures/med_elec/notes6.pdf
lime trellis
Any writeups for debugging CP development? I'm happy to debug over JTAG, but don't know how folks are "easily" integrating it into the build process
tulip sleet
@lime trellis https://learn.adafruit.com/debugging-the-samd21-with-gdb
https://learn.adafruit.com/circuitpython-samd-debugging-w-atmel-studio-7
Scott and I don't use Atmel Studio at all; we just use gdb via the J-Link.
Good places to set breakpoints are reset_into_safe_mode() and HardFault_Handler()
lime trellis
@tulip sleet thank you ๐ I had read through those but I'm attempting to debug a setup that may not even properly be flashing the firmware onto the external flash.
Is there a way to print out any errors the bootloader encounters when attempting to flash CP?
simple pulsar
@lime trellis From another angle, I often end up doing unit tests in "Big" Python, e.g. https://github.com/adafruit/Adafruit_Learning_System_Guides/tree/master/CLUE_Sensor_Plotter and https://github.com/adafruit/Adafruit_CircuitPython_MIDI/tree/master/tests
@lime trellis Oh, from last comment, it seems you are in it a bit deeper, in many ways
lime trellis
@simple pulsar thank you I agree big-boy python can be helpful! But yeah I don't yet have the python interpreter up and going yet haha ๐
tulip sleet
so this is for a processor without internal flash? I'd have the bootloader verify each write and complain by blinking if it failed
sorry have to be afk now
lime trellis
I'll dive into the bootloader. Thank you @tulip sleet!
slender iron
@lime trellis what do you mean flash external flash?
(the same gdb process works with the bootloader source too if you aren't getting out of it)
lime trellis
@slender iron writing the firmware.uf2 to flash
slender iron
on a samd51 that is still internal flash (imx rt is actually a separate flash chip and is why we're being pedantic)
can you flash CP with a jlink ok?
lime trellis
@slender iron I'm trying to use a very abnormal external flash (devices.h). For example I've modified external_flash.c and spi_flash.c quite heavily during my experiments.
slender iron
that shouldn't impact the bootloader
lime trellis
How I understand it is the bootloader caches the UF2 on internal, then loads it onto the external device.
I believe it's failing to communicate properly on the "load it onto the external device" step
So I'd try and use the bootloader as my debugging outlet, right?
slender iron
@lime trellis the UF2 bootloader knows nothing about the external flash on SAMD51
as the blocks of a UF2 are written to the bootloader's fake filesystem they are written to internal flash at the location the block has as metadata
lime trellis
@slender iron Ah I see your point! Ok taking a step back, then. Where do these logmsgs print to in the bootloader code? https://github.com/adafruit/uf2-samdx1/blob/b3e13dfbe0f4f1b2a4aa1bfa3ad6d153c507b8d6/src/main.c#L234
lime trellis
I'm trying to use a very abnormal external flash. micro is a SAMD51.
I have the whole setup working with standard NOR flash.
I then take the NOR flash chip off and put a NVRAM chip on. It uses most of the standard flash SPI commands and whatnot. So I then build CP for this new setup (with lots of mods to external_flash and spi_flash).
Putting the board into bootloader mode and dragging the new UF2 = nada after the file transfer.
slender iron
ok, my next step would be to use a jlink to load CP and break on main
that will rule out the bootloader (which I suspect isn't the problem)
then I'd break on reset_into_safe_mode because you might be crashing
lime trellis
ahhhh ok I see how you're approaching it. ๐ Let me give that a go.
Just to check... is this more or less where CP first tries to access the SPI flash? https://github.com/adafruit/circuitpython/blob/2900d922357e6e239f48e585f09b5a3e4bc2d972/main.c#L428
onyx hinge
@slender iron thanks for the in-response-to-review changes! Ping me if I don't report taking another look at stm32.
slender iron
@lime trellis correct
@onyx hinge np. looking at imx now
this stuff is tough because the registers don't always reset
lime trellis
@slender iron thanks again for the help! I found I'm crashing somewhere in spi_flash_flush_keep_cache. The hunt is still on ๐ but your guidance made all the difference
raven canopy
@slender iron the 500Hz returns 0 isn't surprising. It doesn't handle sub 1KHz, which is documented.
trying to remember precisely why...
raven canopy
I vaguely remember it being related to the timer overflow. it can only rely on catching a single OVF flag...
floral nacelle
This question is about a python library for discord bots called discord.py.
I made a wait_for command with this code: https://paste.pythondiscord.com/vizowasami.py
It only works for the 1st and 4th check, when the two checks are complete, it moves on
I want the wait_for to expect to always be triggered besides when the message is deleted
Any clue on how it is done?
ivory yew
Hey @floral nacelle, since that's regular Python and not circuitpython and more focused on a specific library (discord) there might not be anyone here that can help. You might have better luck on the Python discord.
crimson ferry
or Discord Testers discord, #bot-help channel nm, that's for something else
slender iron
@raven canopy ok. I can try faster. would 5k be ok?
raven canopy
should be. my test PWMOut started at 2M and doubled every few seconds.
iirc. looking
yep. started at 2M, doubled every 5 seconds.
slender iron
kk
tulip sleet
@slender iron @idle owl I'm confused; most libraries now install black as a pre-req in build.yml, but I don't see that they use it to re-format or to check.
e.g. https://github.com/adafruit/Adafruit_CircuitPython_HID/blob/master/.github/workflows/build.yml installs black but doesn't use it (unless it's hidden) in a script
idle owl
Yeah... Sommersoft caught that. We missed adding it.
It's not hidden. It's not there.
We need to patch the libs.
tulip sleet
@slender iron @idle owl. I'll fix it manually in a PR I'm doing now (scott noticed it initially)
idle owl
@tulip sleet Ok, we'll be running a patch soon on everything as well.
slender iron
thanks!
idle owl
@slender iron Tagged you on a cookiecutter PR to move black before pylint.
slender iron
@idle owl awesome! looking now
idle owl
@slender iron Dan approved it, I merged it. ๐
idle owl
yep
ionic elk
@slender iron at some point, on the topic of power, we might want to talk about the ST Hal's GPIO_SPEED_FREQ_ parameter which adjusts pin slew rates. I believe lowering it is a power saving measure, but I'm not sure what kind of interface is appropriate for it. I don't see a direct analog in the other ports.
slender iron
that's probably pretty far down the list I think because it only applies when the pin is actually in use
there is plenty of room to optimize when things are off
ionic elk
Looks like the other primary use for it is to prevent ringing EMI, but I guess that's not that relevant either, at least not until we have more audio stuff
slender iron
ah ya
I think there might be some discussion of adding drive strength to DigitalInOut
ionic elk
That would be where this would apply then yeah
idle owl
Anyone have an answer to how Tkinter is pronounced? I have listened to multiple videos and they all pronounced it differently.
ionic elk
@slender iron other quick style question. For my line differentiation blocks like
#elif (CPY_STM32F4)
#include "stm32f4xx_ll_gpio.h"
#else
#error unsupported processor
#endif
Should I always end with that unsupported processor catch? It'd only come up if we added a new line like the L4 and didn't grep every instance properly.
slender iron
@ionic elk I don't think it's needed. I presume something further down will fail without the include
raven canopy
@idle owl i've always said tee-kinter internally. ๐คท
idle owl
@raven canopy I'll take it. Thanks.
prime flower
The beginnings of CircuitPython talkin' with FONA modules (cellular on
)
golden bear
Hey everyone, I don't know if this is the place to put it, but here's my code for the handwashing timer on the circuit playground bluefruit. It uses taps instead of motion detection, however, so just wanted to point that out. I'm posting this because the tutorial of the handwash timer left out a circuitpython example on bluefruit. But Here you go:
"""
Start a 20 second hand washing timer via proximity sensor.
Countdown the seconds with text and beeps.
Display a bitmaps for waiting and washing modes.
"""
import time
import board
import pulseio
from adafruit_circuitplayground import cp
cp.pixels.brightness = 0.2
cp.detect_taps = 1
RED = (255, 0, 0)
YELLOW = (255, 150, 0)
GREEN = (0, 255, 0)
CYAN = (0, 255, 255)
BLUE = (0, 0, 255)
PURPLE = (180, 0, 255)
WHITE = (255, 255, 255)
OFF = (0, 0, 0)
def color_chase(color, wait):
for i in range(10):
cp.pixels[i] = color
time.sleep(wait)
cp.pixels.show()
time.sleep(0.5)
while True:
if cp.tapped:
color_chase(RED, 0.5) # Increase the number to slow down the color chase
color_chase(BLUE, 0.5)
color_chase(PURPLE, 0.5)
color_chase(OFF, 0.5)
(Ping me if this isn't the place, and I'll move the message to wherever)
tulip sleet
@stuck elbow et al: I'm adding bootloader download info to circuitpython.org. If you haven't done a PR to one of the bootloader repos for your board, but are instead using one of the bootloaders for another existing board, could you let me know which one, and I'll add it to the data file I'm making.
stuck elbow
@tulip sleet PewPew M4 is added to the Microsoft's repo, he ยตGame and PewPew Standalone both use the Trinket M0 bootloader
tulip sleet
@stuck elbow pewpew10 and pewpew13 are both trinket?
I'll be merging from microsoft repo pretty soon, so I'll pick that up.
tnx
slender iron
@indigo wedge where is the feather_m7_1011 schematic? I'm trying to test neopixel with my lower power changes and not having any luck
tried it on A5 and D5. the onboard neopixel doesn't light either
indigo wedge
it's a private repo that I shared with Limor, I'll add you, not sure if it should be public now or not, we never discussed it ๐
slender iron
kk
thanks!
got it. gonna test now with master to see if it's related to my changes
indigo wedge
the neopixel on my feather works just fine with my latest fix, but I am using the 2020 version, unsure if it matters
slender iron
I'm trying an external neopixel too and not getting anything
using neopixel_write
maybe I need to set the pin mode
indigo wedge
never tried with an external one tbh ๐
slender iron
it looks like it should work ๐
internal one is just dim green
nope, not working on master for me either
ok, external one works once I switch the digitalinout to out
raven canopy
PSA: adabot patch imminent. apologies for any inadvertent open PR conflicts caused.
ionic elk
@slender iron will your microtrace buffer help find the location of return statements?
I'm having trouble determining where the heck a HAL_ERROR is coming from in the ST_HAL, since they tend to just return that value on failures without actually saving any information about the error, and I can't break on returns.
I have an especially wacky case right now where a function is returning an error, but assembly breakpoints inserted before every one of it's return statements never trigger?
slender iron
@ionic elk interesting! can you push the code somewhere?
ionic elk
I'm failing here: https://github.com/hathach/st_driver/blob/3fc2e0f3db155b33177bb0705e0dd65cadb58412/STM32H7xx_HAL_Driver/Src/stm32h7xx_hal_i2c.c#L1140
but, if I add I2C_WaitOnSTOPFlagUntilTimeout as a breakpoint, it never triggers!
what the hecking heck
Oh I see, it's an optimizer issue ๐ค
lime trellis
I was able to get my crazy contraption to boot! yay! ๐
@slender iron is it feasible (with hacking) to use an SPI flash device on the QSPI interface? I've made serious progress, but I'm not sure if there's a light at the end of the tunnel
Found the datasheet validation I needed to continue my efforts ๐
lime trellis
FULLY FUNCTIONAL! woot woot! ๐๐
I'll tidy the code up and make a PR in case folks want to use standard SPI devices on the QSPI for flash memory.
Now that I think about it... this would allow an SD card attached to the QSPI bus to work as mountable CP storage as well.
slender iron
@indigo wedge my status neopixel isn't being driven to zero:
nice work @lime trellis ! sorry I was in the imx sleep weeds
lime trellis
no worries. thanks for the support!
tidal kiln
i just did a build with latest head for CLUE and displayio seems to not work, can connect to REPL, but nothing on TFT
slender iron
@tidal kiln does 5.1.0 work ok?
tidal kiln
yep
tidal kiln
i checked out 5.1.0 and built and pushed that firmware, just to make sure my build setup still works
that worked
slender iron
my brain is mush
manic glacierBOT
tidal kiln
@slender iron ^^ issue filed
simple pulsar
I've been using 5.1.0 on a CLUE btw and I've not had any problems.
manic glacierBOT
onyx hinge
@traversaro (and everyone else affected) - We've engaged the mirror hosts and they have added capacity to improve it's reliability. I'll keep this open until we can confirm the issue is resolved. Please let us know if this continues to occur. Thank you for the reports.
Maybe the Actions / azure / apt install error will be gone.. if not, I guess we can comment on https://github.com/actions/virtual-environments/issues/675 again
main meteor
I never expected to see "azure" and "Ubuntu" in the same sentence, wow.
manic glacierBOT
timber mango
I never expected to see "azure" and "Ubuntu" in the same sentence, wow.
@main meteor That does look odd...
ionic elk
@tulip sleet do we have strict standards on excluding gotos?
I need to rework the nested loops in Busio because the H7 layers new peripherals like I2C4 on top of the existing low number ones, which would needlessly require a whole new bus if used.
I can do it by stuffing them into a function that returns, or by using a Goto
tulip sleet
no, but there should be a good reason, like using it in a structured way to jump to a common error return point or something. are you trying to do a multi-level break or something like that?
ionic elk
Multi level break yeah
I need to force a nested loop to pick the first item that matches, rather than the last
tulip sleet
if it's straightforward, do it; if there's a clearer way we can suggest it in the review
ionic elk
so it doesn't use these wasteful high-number peripherals by default (I2C4, SPI6)
I think the only other way to do it is to refactor the whole nested loop into a function and have it return, which is fine structurally but I feel it reduces readability.
tulip sleet
the language doesn't provide labeled breaks or similar, so it makes sense
simple pulsar
You can also make the goto labels very descriptive to cover why they are being used and what for.
idle owl
@slender iron Do I remember there being some way to initialise all the repos inside the bundle? As in, a way to make all the folders inside of it actually have all the git repo files for all the libs.
slender iron
@idle owl should be git submodule update --init .
idle owl
Ok thanks
slender iron
@tulip sleet @ionic elk I have a strict no goto policy. just use a boolean in the loop checks to escape
timber mango
@tulip sleet @ionic elk I have a strict no goto policy. just use a boolean in the loop checks to escape
@slender iron So do I. There are quite a few ways one can avoid using the "goto." I like to use while loops.
ionic elk
yeah but to be fair for UART it's going to be like 20 lines of code vs like, 4.
slender iron
doesn't matter if the 20 lines are clearer
ionic elk
but is it really so bad for a multi line break? That's the single case where I've seen people say gotos are acceptable, because it's so easy to see what they do compared to the workarounds.
... but I'll pipe down and avoid the holy war ๐
tulip sleet
Java has break labels, C does not, so I agree that it's a solution here. But I'm not setting the policy. But it's also worth considering if it's possible to restructure the whole nested thing to be clearer.
ionic elk
I've thought a bit about these loops, but it's pretty straightforward what's happening. This is the part where it iterates through combinations of pins and sees if they're valid - I don't think there's any other decent way to do that then a simple nested loop.
I've seen some pretty bad goto spaghetti in /extmod, I'm not looking to emulate that. I just feel like goto multibreak; //breaks out of nested loop .... multibreak: isn't such horrible syntax compared to packing it in a function or having a bunch of boolean checks.
timber mango
It is not a bunch of boolean checks though. In a while loop you have one check at the top and possibly one check inside the loop if you want to exit.
slender iron
goto is an extra control flow concept that is known to be confusing. Yes, we inherited some from MicroPython. No, I don't think we should add more.
timber mango
@slender iron I agree! ๐
tulip sleet
@slender iron or @idle owl please approve https://github.com/adafruit/circuitpython-org/pull/447 so I can roll back the bootloader: seeing big problems on Windows on M0. thanks
idle owl
@tulip sleet Melissa got it.
tulip sleet
thanks
simple pulsar
@slender iron I'd say you have to take goto on a case by case basis. Based on practical experience in C, I've noted it creates phenomenal complexity if you jump back up a few hundred lines. The flip side is you can use it to jump to some housekeeping/logging then return in a short function and it's verging on elegant.
Example of latter in https://github.com/krb5/krb5/blob/master/src/kdc/kdc_audit.c#L70-L130
manic glacierBOT
lone sandalBOT
manic glacierBOT
idle owl
@pastel panther It looks like LSM303 is still in the bundle, but the repo was archived in October. Is that intentional or did it slip?
pastel panther
@idle owl probably a slip but I'll double check
idle owl
Thanks!
pastel panther
yup, it's a mistake. I can put in a PR later today
idle owl
Thank you.
slender iron
any objections to me releasing master as 5.1.1? the destabilizing stuff hasn't landed yet
idle owl
Beta?
manic glacierBOT
ionic elk
@slender iron nothing from me, everything STM-wise is pretty stable up to the F7 H7 stuff
slender iron
@idle owl no beta yet
idle owl
@slender iron Then I'm confused as to what you're asking to release.
slender iron
master has some fixes in it including one we need for ble midi
idle owl
So you want to release a new stable?
slender iron
yes
idle owl
Fair enough.
ยฏ_(ใ)_/ยฏ
Do it today if you're going to do it.
So we at least have tomorrow to field issues.
slender iron
ya, will do it later after I solder stuff
manic glacierBOT
idle owl
@tidal kiln Stumbling upon your commit messages always makes my day a little brighter. Thank you.
ionic elk
@tulip sleet anything I need to do on that UF2 issue or is it just a website thing?
tulip sleet
@ionic elk which issue?
manic glacierBOT
tulip sleet
i'm only fixing the samd21 and samd51 bootloaders. Is there an STM32 bootloader we're using?
ionic elk
@tulip sleet it's a little old I just noticed it: https://github.com/adafruit/circuitpython/issues/2702 something about the website not having the uf2 output for the Meowbit
manic glacierBOT
orchid basinBOT
idle owl
Here is the notes document for Mondayโs CircuitPython Weekly meeting. Everyone is encouraged to attend! Please add your hug reports and status updates even if youโll be attending the meeting - itโs super helpful! If you are unable to attend but would still like to include updates, feel free to include them in the notes and weโll read them off during the meeting. Hope to see you there! <@&356864093652516868> https://docs.google.com/document/d/1brXruQuOrHT1cdZ6Do-4O9wlcwYZDUV8MIQPYe_1gdo/edit
tulip sleet
@slender iron very minor typo in the release notes: MIDI baudrate is 31250, not 32150.
slender iron
@tulip sleet fixed
prime flower
@idle owl Thanks for posting the notes doc, I've been unable to attend due to a lecture at that time. Added to it!
idle owl
@prime flower Thanks for adding notes!
slender iron
ok, 5.2.0 is out
tulip sleet
yay!
spice crypt
Nice
@slender iron do you have a readme of some sort for nrf low power usage?
or example using pulsein?
slender iron
the low power stuff doesn't wake on input yet
I had enough trouble just getting sleep going on all the platforms
slender iron
ya, I had to change how it kept time since the RTC is lower resolution
spice crypt
Theoretical question, do you suppose display initialization will stay intact after recoving from sleep?
indigo wedge
Congrats!
slender iron
the current lower_power code should at least make it possible to add the wake on interrupt and other things
changing the time keeping was the hardest part
though waking up is tricky too
orchid basinBOT
manic glacierBOT
simple pulsar
Is there any work afoot to put CircuitPython on non-Adafruit Arcade devices?
tulip sleet
and i've got about 50 more to do
ivory yew
Bring it on
tulip sleet
@idle owl I did all the remaing Black reformatting PR's except for a few where I made some stylistic edits, so someone else should review my edits. Then there is one with a question about removing unnecessary pass statements, which have pylint ignores, but we could also just remove the pass statements, and get rid of the pylint exceptions.
floral nacelle
does anyone know how to check datetime.datetime.now()'s time zone?
ivory yew
tz_info
but, it's probably None.
your best bet it figure out what timezone datetime.now() is actually based in is to use dateutil.tz.localtz
onyx hinge
@floral nacelle circuitpython's time implementation isn't sophisticated enough to know about time zones. I suspect that most people set their devices to "local time", if they set them at all.
idle owl
@tulip sleet Thanks! I merged all of the ones with minor changes. Looking at the ones involving pass now. I didn't add the disables, all of that was already there.
Wondering if I should ping Bryan to find out why he did it in the first place before removing them to see if the docs build.
tulip sleet
yah, what I'm suggesting is to remove the pass and the disables. Bryan would know. I kind of like the pass to make it clear it's an empty class, but I don't like the disables: I'd rather just drop the pass if it's considered passรฉ (oy)
idle owl
@tulip sleet I understand and agree. I simply wanted to make sure there wasn't another reason he did it.
tulip sleet
yeah, that's why I didn't change it right away
idle owl
@pastel panther For LSM6DS, you have a lot of pass #pylint: disable=unnecessary-pass in empty classes. It this strictly necessary or a stylistic choice?
pastel panther
what?
pastel panther
I wrote it, but I still don't understand what the question is.
idle owl
@tulip sleet Maybe you can explain it better.
pastel panther
Just saw the above context
idle owl
@pastel panther We want to remove the pass # pylint: disable=unnecessary-pass if possible.
So I wanted to understand the reasoning before simply removing them.
pastel panther
If the pass doesn't need to be there you can remove them
idle owl
Ok I'll try it and see what happens. Thanks.
pastel panther
I'm not really a fan of that empty class in the first place, so if we can come up with something better I'm all for it
idle owl
Sphinx update was released and resolved our doc building issue! ๐
orchid basinBOT
idle owl
I will be requesting reviews from CPLibians on 8 more PRs.
Looked again: it was released 15 minutes ago. Good timing on my part checking ๐
No more open PRs! Thanks @tulip sleet @slender iron @onyx hinge for the reviews and merges!
onyx hinge
phew now I can retire
idle owl
๐ hold on, let me make 200 more just to keep you around!
onyx hinge
I only did about 10, it looked liked danh was really putting 'em away
tulip sleet
i was tired last night and reviewing trivial PR's was all I could handle; I have muscle memory now for all the clicks
idle owl
That's how it was for creating them ๐
my vision was blurry by the end of the day.
Strung my first command line commands together using && though.
I've copied and pasted others' commands before, but never did my own.
onyx hinge
watch out, you'll become (viewed as) an expert if you're not careful
idle owl
ah bugger. I HAVE NO IDEA WHAT I'M DOING.
(Maybe they'll remember me saying that instead)
tulip sleet
there was one black reformatting that was something like:
x = foo(abc, def, ghi, jkl, mno, pqr, stu)[
0
]
I thought maybe I should submit it to the black maintainers, but I forgot which one it was
idle owl
I'll admit to it taking me a minute to figure out that you simply used the alphabet and those letter groupings didn't have some special meaning.
the def threw me off ๐
tulip sleet
oh sorry, i meant stv, not stu
raven canopy
ngl, i've written a couple lines like that. its not easy to read...
onyx hinge
anybody have an itsy bitsy m4 handy? if so can you run this code and paste me the output? https://gist.github.com/jepler/43acbaf0810e0b2a0464e47c9ec3465b
rummages through the box a third time for one of these boards
tulip sleet
i have some
it is right on my desk
Adafruit CircuitPython 5.2.0 on 2020-04-09; Adafruit ItsyBitsy M4 Express with samd51g19
>>> import protomatter_pinout_guesser
Protomatter pinouts for port width 8:
7: MOSI SCK A0 A4 A1 A5 D2
8: D0(RX) D1(TX) D7 D9 D10 D11 D13 D12
Protomatter pinouts for port width 16:
11: MOSI SCK A0 A4 A1 A5 D2 SDA SCL D4 D5
8: D0(RX) D1(TX) D7 D9 D10 D11 D13 D12
Protomatter pinouts for port width 32:
19: MOSI SCK A0 A4 A1 A5 D2 SDA SCL D4 D5 D0(RX) D1(TX) D7 D9 D10 D11 D13 D12
thank you!
The only one I can "find" is the one in my keyboard, makes it hard to run code on it
ruby atlas
I need to finish inventory of what's here. and publish the code :-)
in your keyboard ?
simple pulsar
@idle owl it looks like you need either pass or a doc string so it is superfluous but probably wasn't before docs were added
idle owl
Fair enough. Thanks.
ionic elk
What's probably the best channel on this Discord for C questions that aren't Circuitpython related?
idle owl
@prime flower You have a minute?
lone axle
@ionic elk I think #help-with-projects or #general-tech are probably the closest fitting channels
simple pulsar
Maybe #help-with-arduino too as that's C/C++ but clearly specialised.
onyx hinge
@ruby atlas my keyboard runs circuitpython ๐
ruby atlas
I gathered that. Did you build a full keyboard, or modify an existing?
simple pulsar
Modded ASR-33?
onyx hinge
@ruby atlas https://www.thingiverse.com/thing:4129809
@simple pulsar that would be neat
oh ASR-33 is older than I thought. I was thinking of ADM-31.
ruby atlas
@onyx hinge that is a really cool keyboard. must have taken a long time to assemble?
onyx hinge
Yes, it's quite labor intensive.
I was surprised that there were relatively few wiring faults, because it's quite easy to be inattentive since it's fairly repetitive
I never did connect the neopixels or install all 4 strips it was designed to contain.
ruby atlas
That is a thing of beauty! I'm really impressed.
orchid basinBOT
onyx hinge
for example https://blog.b-ark.ca/archives/category/keyboards/ https://blog.b-ark.ca/assets/images/Handwired_Alpha_-_Matrix_Complete.jpg
manic glacierBOT
prime flower
@idle owl I'm around.
idle owl
@prime flower Hey! So I'm wondering a couple of things. Is there a good true "simpletest" for AdafruitIO that can go in the main examples folder, and can we rename these folders to include adafruitio_ in the name? How badly does that mess up guides? We're going to be updating the check to force inclusion of the libname in folders since the examples bundle has a lot of folders in it that are unclear. https://github.com/adafruit/Adafruit_CircuitPython_AdafruitIO/tree/master/examples
prime flower
@idle owl Addressing each point.. 1) MQTT simpletest (https://github.com/adafruit/Adafruit_CircuitPython_AdafruitIO/blob/master/examples/mqtt/adafruit_io_simpletest.py) is a good simpletest which can move into the examples root.
idle owl
Excellent.
prime flower
@idle owl 2) the only guide I know of with AIO and CircuitPython is (https://learn.adafruit.com/adafruit-io-basics-airlift/circuitpython). It would need to be updated for this example and the inclusion of MiniMQTT
idle owl
Right on. I'll take care of it. @prime flower Do you mind if I tag you on the PR for a review?
prime flower
@idle owl tag away ๐
prime flower
๐ looking
idle owl
@prime flower Thanks. Merged and guide updated.
@gilded cradle I have a sort-of-Blinka question. It's more an opinion question.
gilded cradle
ok
idle owl
Does https://github.com/adafruit/Adafruit_CircuitPython_LED_Animation make sense to put on PyPI?
As in does it make sense for use with Blinka on SBCs etc
gilded cradle
Does it require PyPixelBuf?
idle owl
No
gilded cradle
Then yeah. It might be kind of cool.
gilded cradle
yw
slender iron
thanks for making the prs @idle owl
anyone have opinions about meson or cmake as alternatives to make? esp-idf 4+ uses cmake and it'd be nice to integrate with it
idle owl
@slender iron You're welcome
slender iron
@prime flower https://forums.adafruit.com/viewtopic.php?f=60&t=164342
prime flower
@slender iron thanks for tagging, responding in a few.
stuck elbow
@slender iron the only opinion I have about alternatives to make: whichever you choose, please still have a makefile that calls them, at least with 'all' and 'install' targets.
slender iron
@stuck elbow ya, I'd like make BOARD=foo to work still
at least until folks learn the new way
lone axle
Would I need to use bootloader-feather_m0-v3.9.0.bin booloader file for the Feather M0 RFM69HCW Packet Radio - 433MHz - RadioFruit ?
or perhaps bootloader-radiofruit_m0-v3.9.0.bin ?
tulip sleet
@lone axle use feather_m0; radiofruit is something else (SAMR21), a board which we haven't producted
lone axle
Thank you
tulip sleet
@lone axle do you already have a UF2 bootloader on the board? If so and it works there is no strong reason to update that particular board. There are good reasons to update SAMD51 boards
lone axle
@tulip sleet I think that I killed the bootloader when I was attempting to use BOSSA to flash circuitpython
I failed to set the offset value properly when I did this device so it flashed with the new default (0x000) and now the board seems to just bootloop
I can double press reset and see the red LED start to pulse but just a second later it goes back to the blinky (bootloop?) pattern.
tulip sleet
you may have just erased the fuses. it is important to set those too. Did you get a j-link?
lone axle
I did
tulip sleet
or do you have an Atmel ICE?
ok, great, I can walk you through resetting the fuses if you wire up the right jumpers.
lone axle
Ok, thank you. Do I need the wires soldered to the pads on the bottom?
tulip sleet
yes. Or if you have a small piece of header you can tack that on. Let me find a picture.
header tacked to SWD pads
this is slightly tricker, but it's less fragile. You need some female jumper wires to connect to the pins
put solder on one pad, hold in place with pliers, tack, then add solder to the other pins
lone axle
Neat, okay I've got to get those soldered be back in a moment.
The feather seems to only have 2 pads on the underside
tulip sleet
yes, that's just for SWDIO and SWCLK. The other connections you can get off the breadboard (VCC, GND, and sometimes RST)
lone axle
Need to solder pins on the SWD breakout also one more moment.
tulip sleet
@lone axle when you are ready I've found a simple way using just the JLink-supplied software (don't need Atmel Studio, ec.)
lone axle
@tulip sleet Okay I've got everything soldered. I was just looking at installing Atmel studio and running into an issue with it so that is perfect actually
tulip sleet
are you on windows, mac, or linux?
lone axle
Windows7
tulip sleet
did you install the JLink software already?
lone axle
I did install this: JLink_Windows_V670c
tulip sleet
great, I want you to run Jlink.exe, wherever it is, from a CMD window
i know where it is on Linux but not windows
you should see a J-Link> prompt when you run it
tulip sleet
ok, so exit, and connect everything up. Connect the J-Link via USB, plug the multiwire cable into the J-Link and the header, and wire SWDIO on the board to SWIO on the header, and SWCLK to CLK, vref to 3.3V pin, GND to a GND pin, and RST to RST
lone axle
Running same command with everything connected I get this:
tulip sleet
say Yes
lone axle
seemed to complete successfully and I have that prompt in my terminal now:
tulip sleet
type connect
device is ATMSAD21G18 ATSAMD21G18
then do S for SWD, and choose default clock rate
lone axle
do I need to type in the default (it shows 4000) or just press enter with empty prompt?
tulip sleet
oops,sorry typo ATSAMD21G18
manic glacierBOT
lone axle
Alright seems like it worked so far:
tulip sleet
excellent, now type:
J-Link>mem32 0x804000,2 to see the fuses
lone axle
just to confirm J-Link> is the prompt, I start my command at mem32... right?
lone axle
Could not read memory.
tulip sleet
make sure you have the right number of zeros
Cortex-M0 identified.
J-Link>mem32 0x804000,2
00804000 = D8E0C7FA FFFFFC5D
J-Link>
is there a usb cable attached to the feather/
you need to power it
lone axle
There is. It's connected to wall power adapter. Should that be plugged into the same PC as the JLink?
tulip sleet
doesn't need to be, but wouldn't hurt
there'd be a common ground that way
type halt at the prompt and see what you get
lone axle
Same results with feather plugged into same USB hub as the JLink. I will double check all of my connections
tulip sleet
type st
lone axle
Ah, I missed the RST pin
same results with RST connected from the Feather to breakout.
tulip sleet
exit and restart JLink
i'm googling this, another suggestion is to do rx 0 at the prompt
lone axle
Exited and restarted, made it through the steps back to mem32 0x804000,2 but still same results.
tulip sleet
does st still show TRST=?
lone axle
Got bluescreen'd while I was looking down at the wiring. Not sure if it was related. Getting back into that prompt now.
tulip sleet
this is plain windows, right, not a VM?
lone axle
Correct
tulip sleet
I'm researching the "can't halt" problem
tulip sleet
i'm not sure exactly what that means but it might mean it's still not connected to the reset pin
lone axle
I can grab the multimeter and check
lone axle
I've got continuity on VREF <-> 3V, GND, and RST
checking the bottom ones now, gotta get it up out of the breadboard
tulip sleet
if you put those header pins on the bottom pads it might not be making great contact into the breadboard; wires would be ok
lone axle
I ended up using wires, The feather pins made it seem pretty tight to try to get a female jumper in there onto the pins.
It seems that I do have continuity on CLK and SWDIO as well
tulip sleet
i think swclk and swdio are fine because it recognizes all kinds of things about the chip. It just can't reset it for some reason. It MIGHT be because it's in a reset loop, but it should be able to grab the chip forcibly using the reset line.
lone axle
One of the GND's on the breakout seems labled slightly differently GNDd I'm not using that one, should I be? I'm using the GND pin right next to VREF
lone axle
after running st the blinking loop on the red LED stopped.
lone axle
IT did something different for sure:
tulip sleet
MUCH better. I wonder what is different now
alright let's go back to mem32 0x804000,2
lone axle
tulip sleet
ok, so the fuses are all smashed, but I just added fuse repair to the 3.9.0 bootloader. Did you download .bin for feather_m0?
i think you just had a bad connection above, or you needed to power cycle the whole mess
lone axle
I didn't download it yet, let me grab that now
tulip sleet
lone axle
Got it downloaded
tulip sleet
then do loadfile bootloader-feather_m0-v3.9.0.bin 0
normally we might have to disable the bootloader protection, but the fuses are already set to do that
obviously you have to give the right path to the file so it can find it
after you do that you can do verifybin bootloader-feather_m0-v3.9.0.bin 0 to check that it got written
lone axle
Verify Successful !
tulip sleet
woot! OK, pull the J-Link cable from the header, and power cycle the board, and double-click and see if you get a bootloader pulsing LED and FEATHERBOOT showing. You can't reset with the cable connected to the board
actually don't do that yet
my fuse fixer won't work because the first fuse word is not all 1's
so we need to fix the fuses by hand
since the fuses aren't fixed you'll still get a reset loop
so put it all back together and get back to J-LInk>
do
w4 0x804000, 0xD8E0C7FA
w4 0x804004, 0xFFFFFC5D
that writes the correct fuse values to the fuse memory locations
lone axle
Okay I haven't unplugged anything but I did blue screen again ๐ possibly power related still not certain though. Will attempt these now
tulip sleet
ohmygoodness,sorry, I don't know why it would have anything to do with this
lone axle
tulip sleet
you can do the mem32 again to verify the fuse values were written
lone axle
tulip sleet
mem32 0x804000,2 should show the rewritten fuse values
lone axle
It may be unrelated. Does happen from time to time on this laptop. But not typically over and over. I've got way less stuff running this time though ๐ค
tulip sleet
i have no idea why it's mem32 but w4. this is not exactly the greatest command interface
lone axle
Looks like those fuse values are in there now.
tulip sleet
so now if you pull the j-link cable and double-click the board you should get a good bootloader
lone axle
The red LED is no longer blinking at all after unplug and reset.
double clicking reset is blinking the yellow LED left of the USB, but no response from the red LED
lone axle
Correct, Feather M0 RFM69
tulip sleet
ok, I will try to replicate this, back in a bit
lone axle
Thank you
tulip sleet
@lone axle I have the 3.9.0 bootloader running on my Feather M0 RFM, but I put it on with the updater. Now I'll try to replicate what we did.
lone axle
The fuses seem to have gotten set back somehow:
tulip sleet
ok, I think there's a bad user program that's overwriting the flash. so to fix this...
lone axle
(I plugged everything back in and re-ran the verifybin and checked the fuses again)
tulip sleet
connect up the jlink again, and let's write zeros to disable the user program
w4 0x2000,0
w4 0x2004,0
then redo the fuses as before
then disconnect and double-click
tulip sleet
doesn't matter
lone axle
same thing as before. Yellow left LED blinks when I press reset but no response from red LED on double click
lone axle
Okay, I'm reconnected and back to JLink>
At first I was getting Couldn't read memory again checking the fuses (not sure if it's just a fluke or not). I unplugged everything and went back to feather powered from wall (which is how it was a moment ago when I wrote everything). Now I am back to the prompt again and checking the fuses they are back to FFFFF8FF FFFFFFFF
tulip sleet
can you do mem32 0x2000,2
lone axle
J-Link>mem32 0x2000,2
00002000 = 20007FF8 00024DF5
