final patrol
#

I'm working on a windowing system in my game using UI Toolkit. All windows are position:absolute and have a min-width and min-height of 150px. Problem is, when they're not maximized, they do not grow beyond their minimum size to fit their content. Like in this screenshot, see how the test test test test... text in the Terminal overflows outside of the window border.

#

In fact, the entire right and bottom border of the window is considered overflow

#

By setting the window to overflow: hidden in the debugger, they get clipped just like the text.

#

This is the UXML for all windows in the game.

<ui:UXML xmlns:ui="UnityEngine.UIElements" xmlns:uie="UnityEditor.UIElements" editor-extension-mode="False">
    <ui:VisualElement class="window">
        <ui:VisualElement name="TitleBar" style="flex-direction: row; flex-shrink: 0;">
            <ui:VisualElement name="TopLeft" />
            <ui:VisualElement name="Top" style="flex-grow: 1; flex-shrink: 0;" />
            <ui:VisualElement name="TopRight" />
            <ui:VisualElement name="Icon" style="position: absolute;" />
            <ui:VisualElement name="TitleButtons" style="position: absolute; flex-direction: row;">
                <ui:Button name="Minimize" />
                <ui:Button name="Maximize" />
                <ui:Button name="Close" />
            </ui:VisualElement>
            <ui:Label text="Label" display-tooltip-when-elided="true" name="TitleText" style="position: absolute;" />
        </ui:VisualElement>
        <ui:VisualElement style="flex-direction: row; flex-grow: 1; flex-shrink: 0;">
            <ui:VisualElement name="Left" style="flex-shrink: 0;" />
            <ui:VisualElement name="ClientBackground" style="flex-grow: 1; flex-shrink: 0;" />
            <ui:VisualElement name="Right" style="flex-shrink: 0;"/>
        </ui:VisualElement>
        <ui:VisualElement name="BottomBar" style="flex-direction: row; flex-shrink: 0;">
            <ui:VisualElement name="BottomLeft" />
            <ui:VisualElement name="Bottom" style="flex-grow: 1; flex-shrink: 0;" />
            <ui:VisualElement name="BottomRight" />
        </ui:VisualElement>
    </ui:VisualElement>
</ui:UXML>
#

Does anybody know what's going on?

#

Some notes:

  • the #ClientBackground element is where in-game program content is placed inside the window
  • The Terminal in this case is a custom VisualElement implemented entirely in C#
#

The terminal relies on the window size to figure out how many rows and columns of characters it can fit on-screen

#

If the current window size cannot fit at least 132x43 characters, the terminal sets its own min-width and min-height to force that minimum size

#

Why isn't the window growing to fit its content? I don't want to be futzing with the minimum size of the window from a client application's UI, because then I have to account for the border size and such which is controlled by the game's current theme. I don't want in-game programs to even be AWARE of anything outside the client area

final patrol
#

Hmmmmm seems to be the position: absolute. Might need to come up with a little hack for this

#

Yayyyy! First neofetch!

final patrol
#

Is it possible to get the amount by which the root panel was scaled compared to the actual screen size? My terminal's character width/height measurements aren't aware of the UI panel scaling, which is throwing the math off for determining how big the terminal should be.

#

With UGUI I would check the transform.lossyScale.x and transform.lossyScale.y for this

#

Then either multiply or divide measurements by those, depending on what I need

#

Doesn't seem to be an equivalent in UI Toolkit though

final patrol
#

Better question

#

Assuming a monospace font where all characters are the exact same width

#

How does Label arrive at its desired width given a single character?

#

Same for height

#

Putting a single ~ character in one of my terminal's lines results in it being 7.23 units wide

#

this is with Hack Regular at 11px font size

#

I tried having my terminal inherit from TextElement and using

return this.MeasureTextSize(ch.ToString(), 0, MeasureMode.Undefined, 0, MeasureMode.Undefined);

to determine the character's size based on the current style of the terminal's USS, which its Labels inherit

#

But this results in a width of 7.276402, not 7.23 like I expect

#

And since the terminal uses this width value multiplied by the minimum number of columns in characters to determine its style.minWidth, these numbers need to match

#

7.276402 * 132 is not the same as 7.23 * 132

#

They come out to 960.485064 and 954.36, respectively

#

Few units off, but it's enough to make the terminal think it needs to resize every frame... which results in a bunch of array reallocations and copies each frame

#

And the FPS drops to 0 almost instantly as a result

#

So what is Label doing internally?

final patrol
#

After extensive debugging and decompiling, I have discovered what's really going on

#

Turns out that Unity calculates two measurements when you measure text size using TextElement

#

One is the actual size of the text... this is what I'm seeing in the UI Debugger

#

The other is the size of the text aligned with the pixel grid, that's what the method returns

#

In this case I DON'T want it aligned with the grid

patent anvil
#

How do you keep a textmeshpro ui element a constant size regardless of the text?

#

I want the label to take up a constant space within the button regardless of if the text is one letter or multiple sentences (I want to disable overflow and use ellipsis if it exceeds the constant size)

#

I always want to keep the player count icon on the right at that exact spot. The server name can be any size. I want it to fill up until the red line, at which point it will use ellipsis for overflow

little yoke
#

So I made this main menu and for the background I am going to be making it using a tilemap. But when I try to put some buttons in the scene they are rendered bellow the tilemap? Any ideas on how to make them render ontop?

lean horizon
#

How can I change progress bar height ?

final patrol
#

Anyone know how to make it so mouse input passes through a VisualElement to the ones behind it, but not through its children?

lean horizon
final patrol
#

And this won't affect children right?

final patrol
#

Seems like it. Awesome.

#

what about determining if a VisualElement or any of its children have focus?

summer narwhal
#

any idea how I can add elements to a list view? Tried .Add but it did not work
InvalidOperationException: You can't add directly to this VisualElement

final patrol
#

Agh I wish I could get Unity to stop adding things like .unity-label to a Label, or .unity-button to a Button

#

Makes it really hard to have colors and fonts be inherited from parent elements but overrideable with a utility class

#

If inheriting from the default runtime theme is mandatory, then they could at least make it easier to override the default theme properties.

#

In the browser, I could do something like this

:root {
  --monospace: <some monospace font>;
  --sans-serif: <some sans-serif font>;
}

body {
    font-family: var(--sans-serif);
}

.terminal {
  font-family: var(--monospace);
}

and all of the text in a theoretical UI element with class .terminal would use monospace text instead of the sans-serif that the rest of the site would use.

#

But since this is Unity, I now need to do it like this

#
.unity-text-element {
  -unity-font-definition: var(--sans-serif);
}

.terminal .unity-text-element {
  -unity-font-definition: var(--monospace);
}
#

Gets even worse for colors

#

I could do this as a base to get all visual elements to use a dark color scheme.

VisualElement {
    background-color: black;
    color: white;
}

Throw in some font-related stuff and you get a consistent (even if not great) style across the UI.

...Except that unity-text-element defines its own color property and is more specific than VisualElement, and so it will not inherit this global style

#

There also doesn't seem to be a way to have the USS engine discard whatever a stylesheet has already set

#

You can set a property to initial and that zeroes it out, but this still trumps any styles set forth by a parent element

#

So if you try something like this

.unity-text-element {
  font-size: initial;
}

VisualElement {
  font-size: 11px;
}

.unity-text-element wins.

#

Now all your text elements have a font size of 0 :)

#

The browser sets up default styles for various HTML elements without needing to add implicit classes to them, I don't see why Unity is doing this

lapis pendant
#

Is it possible to display a 3D object in a UI Toolkit layout? The goal is to create an interface that allows the player to preview what they can select in a map editor scene.

weary jewel
weary jewel
lapis pendant
#

Hopefully it's not an issue though because id like the selection menu to have some sort of interesting 3d element to it with the models in the selections, but if it's going to kill performance maybe I just need to take some static images of the models and use those.

weary jewel
lapis pendant
wind gorge
#

the only solution is to override all unity classes with your own

#

idk why they did it this way

dark blade
#

is there CS reference for UI toolkit somwhere???, tried to search for it, but i cant found any

wind gorge
#

ctrl+click on the desired class in your ide will get you the cs reference

#

alternatively, you can try searching there

final patrol
#

Does USS not support hex color codes with alpha channels?

#

If I declare a --overlay: #f5f7fa; variable, it works fine

#

but the moment I make it a translucent color, i.e., --overlay: #f5f7fa9f;, it stops compiling. No errors or warnings either

weary jewel
final patrol
#

Yeah... yuck. I don't generally like to work with rgb() and rgba(), it's less concise

#

Plus a lot of design tools expect hex, and thus they display colors as hex

weary jewel
#

There's also an opacity element, so you could set your colours using hex, then use a separate class to define how transparent an item is.

summer narwhal
#

🤔 is there any chance to make a visual element scrollable, as container for furhter VEs?

weary jewel
summer narwhal
weary jewel
#

I'm not at my pc to check, but you add you elements to the child 'content' element of the scrollview.

I can't remember if you can do this in builder though as I populate it dynamically through a script.

gusty estuary
#

Are there any solutions for localisation?

#

but I'd like to know if there are other solutions

#

maybe Unity intended ones

celest grove
#

what is best way to clone a visual element? not using VisualTreeAsset.

gusty estuary
#

idk about inlined styles though

#

in other words, cloning is not supported

celest grove
gusty estuary
#

tbh

#

cloning part is not even required

#

if you use BEM pattern

#

all default elements and controls already use it

copper solar
#
Slider.RegisterCallback<ChangeEvent<float>>((evt) => {}
#

How to register callback only when I realease the slider and not when it moves.

#

MouseUp event dont work, Input.Mouse.waspressedThisframe and others also dont work.

#

any ideas?

gusty estuary
#

I think it implements this interface

copper solar
gusty estuary
copper solar
#
SFXSlider = rootVisualElement.Q<Slider>("SFX-slider");

SFXSlider.RegisterValueChangedCallback((evt) => {
            NotificationEvent.RaiseEvent();
        });

Sure.

gusty estuary
#

hmm, seems legit

copper solar
#

It registered value change instantly as it changes, so I guess it works as intended.

gusty estuary
#

try looking at manual page

#

about all events

#

maybe it'll have something that fits

copper solar
#

I looked over all possible events. from pointer up, pointer down, mouse up/ mouse down. I had idea to confirm data change on mouse up on that object, but it did not register normaly.

#

Maybe it is possible to do something with Bubble and tricles ... but I am dont understand them too well yet

gusty estuary
#

but the point is that it registers changes even if cursor is not on it

#

after initial click

#

it's probably written in C# somewhere

#

might want to take a look at source

copper solar
#

I mean i could always just create my own SLider element which would have its own logic. But I would assume there must be a way to do something like that 😄

fiery mountain
#

I have a strange bug, need to test in another clean project though. I have an object with some children. When I resize it, on mobile and in the device simulator. Everything disappears unless i would toggle the flex or update it's position. Anyone have an idea why this might be happening?

#

one thing to note, i set the translation of the objects not the positions

fiery mountain
#

any good resources on usage hints?

cursive quail
#

maybe Unity intended ones

lapis pendant
#

Does anyone have any recommendations or better yet examples of ui patterns that work well with the ui toolkit system? I'm reaching a point now where I'm putting together slightly more complex UIs with menus and sub menus and tab buttons to display tab content in a single ui area and I'm having trouble figuring out how to organize all the code the controls the behaviour.

#

The first thing that came to mind was to use the MVC pattern but I'm not really sure that works here, fundamentally.

copper solar
upper dirge
#

Hi. Can I populate a ListView with custom controls? Like, I want each row of the listview to have a label, a button and a textboxes. Whats the correct approach here?

#

The official example only deals with a single label for each list item

fiery mountain
#

ListView has the MakeItem. You would just return your own element

#

if you wanted to have the button and the text, you could do something like. new visual element X. Create Button B and Text T. Add t and B to X and return X. but this is all default and has no styles or anything setup. If you have a UXML doc you could reference the doc and create an instance of it. do all your bindings and return it. Or you write your own custom control which is probably my favorite for this situation

#

you'll have to setup the bind item as well to update ite, and depending on what you do you'll have to also do the unbind

upper dirge
#

@fiery mountain thanks, ill try. Can you elaborate what do you mean by "bindings"? This is a new term for me

fiery mountain
#

Basically setting the data and/or events in your elements.

grand badge
#

I have a canvas inside my player prefab but very often when I make changes inside of the prefab in isolation mode the prefab and the instance in the scene are not synced anymore. I have to go to overrides menu and reset everything in my canvas every time this happens... It's infuriating. How do you make them remain in sync when you make changes in your prefab?

upper dirge
#

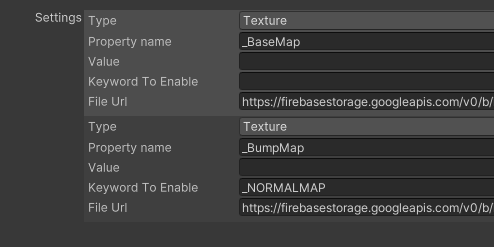

@fiery mountain Ok I pretty much did what you said - in the makeItem of a listview I first make a VisualElement and then add other controls to them. Everything works as expceted, but I noticed that I cannot edit the values of the TextField. What could explaint his? I already checked that isReadOnly is false.

upper dirge
upper dirge
fiery mountain
#

ahhh ok so not exactly runtime. So since this is editor i think you can do _textField.Bind(xxxx) and you can use the serialized property and it goes both ways i believe. I can maybe find you a nice video talking about that

#

there is a video from unity Unite2022 https://www.youtube.com/watch?v=J2KNj3bw0Bw will be super helpful for you

YouTube
Unity
Extending the Unity Editor with custom tools using UI Toolkit | Uni...

Like building your own UI tools? Here we go step by step with the UI Builder to quickly create an Inspector for real-time Play mode debug data visualization. Then we’ll enhance it using USS Transitions and the Vector API, migrate it to a custom Editor window, and finally port it to the Player/Runtime.

Learn more about the UI Toolkit: https://on...

▶ Play video
upper dirge
#

ok thanks ill take a look...although this thing really seems like a bug in uitookit as I can edit the dropdown in the listview item, but not textfields

upper dirge
#

well, maybe the video will give the answer

lapis pendant
#

is it possible to apply a transition for every property on every element in USS? Like in CSS you can do something like `* { transition: all 0.25s }' and then every single thing gets a transition any time anything updates say for example colors or position, etc.

#

want to know if its possible to do in USS.

#

god damnit this fucking system is so terrible. why is it that every single thing in unity is a struggle to figure out? why is it that you can't get a text field without it being tied to a label? why is it that the size of the label actually determines the size of the text field its tied to? why is it you cant directly chagne the styles on either the label or the text field? what the FUCK were they thinking when they made any of this?

#

i mean it shouldn't be so hard. give us a fucking text input field, plain and simple, and let us style it like we can any other given element for fucks sake

#

and don't tie it with a label

#

jesus fucking christmas

#

and so many times when i apply a class to something its not overriding the default inline styles

#

like it just straight up is the most half baked feature in a piece of software ive ever encountered and i use oracle products for my job daily

abstract igloo
#

hi! what's the preferred way to resize visual elements through script? I'm making a resizable windows system, but whenever I try to set the VisualElement.style.width property... nothing happens. I've put both VisualElement.style.left and VisualElement.style.scale assignments in the same function and those work as expected, but changing the width property through script changes absolutely nothing about the visual element at runtime. Changing width in UI Builder does work as expected though, so overall I'm confused as to why changing it through script does nothing.

abstract igloo
#

ok, i figured out that what I thought was the root component actually wasn't the root component LOL so now I can resize just fine with the right and bottom handles of the window, but with the left one its extremely unstable for some reason. Here's the code I'm using:

    Vector3 leftHandleDragPosition;
    private void LeftHandleStartDragging(PointerDownEvent evt){
        isLeftHandleDragging = true;
        leftHandleDragPosition = evt.localPosition;
        Debug.Log("Start");
    }

    private void LeftHandleEndDragging(PointerUpEvent evt){
        isLeftHandleDragging = false;
        Debug.Log("End");
    }

    private void LeftHandleOut(PointerOutEvent evt){
        if (!isLeftHandleDragging) return;
        var diff = evt.localPosition - leftHandleDragPosition;
        main.style.width = main.resolvedStyle.width - diff.x;
        root.style.left = main.resolvedStyle.left + evt.deltaPosition.x;
        Debug.Log(main.resolvedStyle.left + " Out " + evt.deltaPosition.x);
    }

    private void LeftHandleMove(PointerMoveEvent evt){
        if (!isLeftHandleDragging) return;
        var diff = evt.localPosition - leftHandleDragPosition;
        main.style.width = main.resolvedStyle.width - diff.x;
        root.style.left = main.resolvedStyle.left + evt.deltaPosition.x;
        Debug.Log(main.resolvedStyle.left + " move " + evt.deltaPosition.x);
    }```
abstract igloo
celest grove
#

when I use listview, I can scroll by scrollbar, not item. can i drag it by item?

celest grove
#

For scrolling by dragging contents, I use reflection and get the scrollView property from listview, and modify scrolloffset.

gusty estuary
#

huh

#

some dud made a MVVM binding for UI Toolkit

craggy swift
#

On the MultiColumnTreeView I am updating an item. I call RefreshItem with the item id. somewhere in the middle of the tree view it seems to work fine. But the last element doesn't seem to want to update. Anyone else experienced something like that?

upper dirge
#

@fiery mountain hi..im still struggling with my editor script - just cannot focus on textfields that are in my ListView. I dont think using .Bind() is solution as it excepts a SerializedObject as param I am not binding to stuff that exists in the editor - what my editor window does it reads stuff from Firebase and allows editing their values.

#

so this really seems like a bug in UI toolkit - I can create the TextFields and set their values, but when I click the, they do not get focus (and I have checked that focusable = true)

#

So in short, it seems that you cannot use TextField in a ListView - it seem incombatible

#

....aaaand i found the issue - I had the Focusable disabled in the ListView 🙂

#

turns out that prevents the children from being focusable, even though the child focusable = true

upper dirge
#

hey, if I have a ListView and create a new TextField in makeItem() and then RegisterValueChangedCallback() to it, where can I do the unsubsribe? Not doing the unsubscription is not a good habit...

fiery mountain
#

In unbind

#

Or whatever the opposite of make was. Forgot the name

upper dirge
#

ah, there is a destroyItem

#

and also an unbindItem

#

@fiery mountain but how do I get a reference to the TextField created in makeItem in destroyItem?

#

ah, ..i actually shouldnt, I can query it in the unbindItem. And Is hould also register the listener in bindItem, not in makeItem

fiery mountain
#

yeah that one I mixed it up

rare eagle
#

Any idea why i can backspace/delete character in a text field but not type them?

#

I can Paste text in with CTRL + V no problem

upper dirge
#

I need to have a button in my listview that does stuff to the item it is attached to. I can add the button, but what troubles me is how do implement the clicked event. Like, how do I refer to the item in the event handler?

#

nevermind, I got it, I can use the userData to store a reference to the item and I can use that in the event handler

#

(let me know if this is a weird way to do it)

surreal ember
#

About the UI ToolKit, when I touch the textField, the keyboard of mobile did not pop up through Unity remote. Anyone knows how to pop up it, thank you.
Unity UI Toolkit problem

surreal ember
#

Another problem is if I use render texture to control the game object transform, How can I limit my finger touch area in the area of the render texture, it is also a problem for UI Toolkit.Thanks

abstract igloo
#

Question: is there a way to add elements to a ListView without dealing with making delegates? I'm making a dev console, so all I actually care about is just adding text, I don't care about being able to access it or interact with it later. I just want to make sure text outside of the ListView's window isn't being constantly rendered like it would be in ScrollView.

#

Currently I'm pretty clueless as to how scripting ListViews actually works lol, its hard to find resources that actually explain whats going on instead of just telling you to copy down code

gusty estuary
abstract igloo
#

Is there really no way to add a visual element without dealing with the whole rigamarole of makeItem and bindItem?

gusty estuary
#

you can just use VisualElement as container

#

if you want simple add

abstract igloo
#

ah ok

warped dune
#

I am using a UI Document with binding the root element to a SerializedObject wrapped around a ScriptableObject. It all works until I load a new scene - the bindings get lost. The UI document elements still have all the field values, but the "binding" property is lost, so changes on the screen no longer propagate through to the data structure. I thought I was ask to see if there is a known solution. My hack (because loading a new scene is rare) is to start a new ScriptableObject and put up with losing all the user input on the form. Is there a better solution?

gusty estuary
#

Any idea what is meant approach for combining different pages/screens/windows and etc?
Should I store each on it's own UIDocument and recreate all bindings on every OnEnable while disabling UIDocument (or it's go) as soon as I close it?

Or should I have singleton UIDocument, and just add/remove screen to/from it's rootVE? While storing all screens/pages and keeping their registered callbacks in memory.

#

@cursive quail maybe you have some sort of explanation on this?

wise ravine
#

Hello,

I am currently a beginner on unity and in our project we use ToolKit.

However, I did not find a solution on the internet to make the UI usable with a controller.

Is it possible to navigate the UI with a controller? If so, how?

cursive quail
gusty estuary
cursive quail
gusty estuary
# cursive quail I'm not sure. I'm still learning the internals myself. I believe disabling and e...

one thing for certain - disbling UIDocument results in scrapping VisualElement hierarchy. And OnEnable recreates it from scratch and requires recreation of all callbacks again (with queries for elements and etc)

So while it's convinient way to control UI, it might have such perfomance drawback.
And thus I wonder, whether it's actually intended and keeping VE hierarchies in memory results in some perfomance issues

cursive quail
#

I believe they have an event update loop that may be running. They also take up memory so that may be why it's cleared on disable. You could try changing the visibility to hidden instead of disabling. Running the profiler to see what works best for your use case is probably the best course of action. Normally I would ask the team but everyone is on vacation now 😂

deep yacht
#

Hi guys. I am new to unity. I am facing a problem with Multi Display on UIToolkit. It works perfectly fine in my editor like the clip I just showed. But in my Packaged project when I run it. The 2nd display is all black

wind gorge
deep yacht
wind gorge
#

Well, yeah, you are rendering it to a canvas

deep yacht
#

🙏 Thanks. Because in editor you don't need it. So that puzzle me alittle.

surreal ember
#

A simple problem, how to change the dropdown's pop up visual element background color? UI Toolkit

#

Now is white, I want to change another color, thank you

gusty estuary
surreal ember
#

Do you know the exact class for it？or anyone

#

I'm not sure whether the class is exposed.

upper dirge
#

how does one insert a hyperlink into a Label that has rich text enabled?

#

it seems to be surprisingly difficult to find this information

#

but doesnt work

#

Im setting the text for the label in C#

rough scarab
upper dirge
serene stream
#

I've never UITollkit before, how can I make this Button interactable/call an method on Inspector?

image.png image.png
serene stream
wind gorge
serene stream
wind gorge
#

if not, It could be because the button has picking-mode=False

serene stream
wind gorge
#

are you sure OnEnable even runs?

serene stream
#

If I create an Toggle , assign it, and then set it's value to true it will call "SetPrefab"
But if there's no toggle.value = true; it won't call "SetPrefab" even if I click on the toogle in Inspector.

image.png image.png
#

I tried the same on a fresh project, but it still not working, idk why :/

tawny flax
#

Hi, how to convert from VisualElement's position to Screen position?
I know about RuntimePanelUtils.ScreenToPanel method, but can't find PanelToScreen 😦

gusty estuary
tawny flax
#

I guess it depends on panel settings scale mode

gusty estuary
#

Yoo are likely to find the one that mdtches screenspace pasition

buoyant wadi
#

Hi, I'm using a Vector2IntField like described in the samples. This looks good in the builder but not ingame. I guess it's missing the correct styles. Is this fixable without having to manually style this element?

tawny flax
#

There's a theme option at the top of Builder. Might be related. Try changing it

serene stream
buoyant wadi
buoyant wadi
#

Guess I still have to manually style it, but that's fine. Atleast I can see the correct theme now in the builder.

serene stream
buoyant wadi
#

for this to work you need a reference to your set-prefab button.

#

I don't think you need the RegisterCallback

serene stream
buoyant wadi
#

Something like this?

public class MyClass : MonoBehaviour
{
    UIDocument document;
    VisualElement root;

    Button setPrefabButton;

    private void Awake()
    {
        document = GetComponent<UIDocument>();
        root = document.rootVisualElement;

        setPrefabButton = root.Q<Button>("set-prefab");
    }

    private void OnEnable()
    {
        setPrefabButton.clicked += DoStuff;
    }

    private void OnDisable()
    {
        setPrefabButton.clicked -= DoStuff;
    }

    private void Start()
    {
        Activate();
    }

    void DoStuff() {
        Debug.Log(":)");
    }
}
#

you also don't need to explicitly set it to SetEnabled(true) since a button is enabled by default.

#

As far as I understand, don't put anything else besides initialization logic into Awake(). You should put your Activate() method into Start() instead of Awake or OnEnable.

#

I've updated the code example to include this

serene stream
buoyant wadi
#

yes, looks good to me. No errors?

serene stream
buoyant wadi
#

hmm, interesting

#

not sure if I'm missing anything, but that's how it works for me

#

I would've said to check in ui builder if the names are correct, but the button is found

#

sorry, I don't have anything else besides "have you tried turning it off and on again" :>

serene stream
gusty estuary
#

and have global styles

#

which is recommended approach

#

according to Unity manual

#

with BEM pattern

native quartz
#

I've started to learn the UI toolkit today and I can't figure out how to display an element next to another (in the area I've colored red in the screenshot)
When I try to add new elements they're always at the bottom of the left panel

gusty estuary
native quartz
#

what do i do after that

#

it doesn't seem to change much

gusty estuary
#

it changes direction in which children are positioned

native quartz
#

but it's still aligned to the bottom

gusty estuary
#

because you changed direction of wrong element

native quartz
#

so what should i do

gusty estuary
#

you should change the direction of element

#

in which you want your elements

rustic hemlock
#

got the same problem as @native quartz so if anyone found a solution for this i'll be glad to know

final patrol
#

Hey y'all, trying to create a simple dropdown menu system (think of a "File Edit View etc." menu) in UI Toolkit and having a slight problem. When I click the menu toggle button, it will un-hide the actual menu and give it focus. That way I should be able to detect when the menu loses focus and hide the menu again. But for whatever reason I can't get the BlurEvent callback to ever fire

#

Just tried to post the code but apparently I'm blocked by the server (Discord is a bug)

#

so instead you can have a screenshot of the message I tried to send

rustic hemlock
#

you can use website to copy and paste your code in, the screenshot is impossible to read

final patrol
final patrol
#

nvm. My code is fine.

#

My SCENE wasn't.

#

There was no camera, didn't notice the warning in the middle of game view

#

So there was nothing to clear the screen to black each frame

#

so, when my UI was losing focus, it'd disappear but I was still seeing a ghost of previous frames where it was visible

buoyant wadi
gusty estuary
buoyant wadi
#

Thank you very much!

hazy bobcat
#

Has anyone had major lag when upgrading to Unity 2022.2.1.f1 due to inspectors using UI Toolkit?

hazy bobcat
#

CreateInspectorGUI is being called every editor frame for the Inspector, during UnityEditor.RetainedMode.UpdateSchedulers(). This causes massive lag. Anyone encountered this yet?

Unity 2022.2.1f1

hazy bobcat
#

Thread about the issue with updates

hasty parcel
#

I would like to have a "blur" effect for the background of my UI but I can't seem to find a place to start on this. Does anyone have any advice?

ripe grail
hasty parcel
#

On an unrelated note to my question above.

I am enabling my UI Document for the first time. In my game I have an ability that fires on spacebar being pressed. For some reason, it seems that the UI Document is specifically eating this input event. WASD, shift, mouse clicks, all work but space doesn't. When the mouse is off the document, the space bar event fires like it should so I know it is the ui doc (also works when ui doc is disabled).

I've looked, but the documentation isn't great at the search on the forums seems broken at the moment (not filtering by topic.

gusty estuary
hasty parcel
#

Certain UI events even though I don't have it set to focus. Being honest, I'm not 100% sure what your question is.

gusty estuary
#

click events won't pass through

hasty parcel
#

Is there a way to change that? I have the "focusable" checkbox unlocked.

#

My clicks do pass through.

gusty estuary
#

not sure

hasty parcel
#

Hover don't.

gusty estuary
#

try to play with other value

#

it's on the top

#

and it has values

#

Ignore and Position

#

don't remember it's name

lofty niche
#

I have here 4 buttons each rotated by 90 or 270 but for some reason they dont scale properly
The anchor points for them are in each quadrant's corner but it does this weird vertical stretch instead
Appreciate any help i can get 🙏

teal belfry
#

this is a lifesaver for figuring out how to use UI Toolkit

lofty niche
lofty niche
teal belfry
teal belfry
lofty niche
#

it was "How to scale unity UI elements that are rotated 90 degrees"

teal belfry
lofty niche
#

no

teal belfry
#

ah

teal belfry
lofty niche
#

no i tried that already

#

i figured it out though

#

i just rotated the children components of my object instead

teal belfry
#

nice, I can just say it didn't work and it gives other possible fixes lol

lofty niche
teal belfry
#

Oof

final patrol
#

I may be dumb, but how do you set the min and max value of a UI Toolkit Slider? I see a Range property but it's just a float and there's no documentation in the intellisense to tell me how it should be used

#

I'm making RGB sliders, so the red, green, and blue sliders need to go between 0 and 1

light flint
#

do you guys feel like UI Toolkit is already robust enough to replace the legacy systems?

#

I'm having second thoughts after looking at how link spans and animation features are still experimental

gusty estuary
gusty estuary
#

the only thing I lack - gif/video support

#

allthough, maybe I just didn't discover proper way for doing it yet

static canyon
light flint
gusty estuary
#

Their editor interface is migrated to UI toolkit in 2022

light flint
#

which always gives me "how long til that's good to use in prod"

gusty estuary
#

which can be done through multiple ways

#

but none of them are just convinient enough

light flint
#

won't be LTS til ver. 2023 though I suppose

gusty estuary
#

I don't get what gave you an idea it's not rleased yet

#

their manual literally suggests to migrate now

#

even from uGUI

light flint
#

it just wasn't last I checked and I have the LTS version installed

#

that very much doesn't have it

gusty estuary
#

latest version is 2022

#

old versions are stuck with old manuals

light flint
#

2022 is non-LTS

#

I have been advised against using non-LTS versions

#

hmm

#

is there any good manual on how to use animations?

gusty estuary
#

in UI Toolkit there are only transition animations

#

everything else can be done by your own code

#

same as transforms

#

here examples from manual

light flint
#

anyway, more hope then that it's going to be in LTS next year

gusty estuary
#

meanwhile I can't wait when 2023 is at least beta

#

they migrate to .net clr

light flint
#

yup

#

that's the other big thing

#

I think I recently ran into missing interface issues

#

where something I really should be using was only added into .net 5

#

so you'd recommend 2022 just for UI Toolkit support alone?

gusty estuary
#

I am entities frog, so I am used to work in Beta 😅

#

but if you are just learning

#

or you are indie dev

#

you can jump into current version no problem

#

it's commercial projects that require stability

light flint
#

I feel like every time I upgrade the version it breaks something in the project irrecoverably

gusty estuary
#

just back it up and try, kek

light flint
#

the GUI I wrote in 2016 or therearound just straightup doesn't work anymore

#

I went back in yesterday looking at the links, cause that's an incredibly useful thing in putting together tooltips with rules (so that you can click and view references to other rules like it's done in CK3)

#

still no support for OpenType features though, is there?

gusty estuary
#

what is OpenType?

light flint
#

it's a fonts thing

#

opentype has cool stuff like glyph variants

gusty estuary
#

idk

#

you can take a look at feature list here

light flint
#

not even listed, though it is in TextMeshPro

solar pecan
#

is it possible to change a custom --var in USS from C#? I've tried making a custom visual element with a UxmlColorAttributeDescription with the same name but that didn't work

solar pecan
steady crater
#

Can anyone recommend a tutorial on UI toolkit it looks cool just don't know how to use it and most likely a better solution then just normal stinky unity ui

gusty estuary
solar pecan
#

My use case is as follows: I have some buttons and a tab system, I want the primary color (the background for buttons and selected tabs) to become a random color when I press a button, I don't know how themes would solve this as you can't change their variables either since they're basically a StyleSheet in code

gusty estuary
#

you don't really need variables

#

you can just change colors through code

final patrol
#

Some limitations I've had to work around, though: no runtime themeing, you can't generate USS on the fly

#

It's also extremely difficult to do custom dropdowns/pop-overs without being able to add them as top-level UI elements to the panel

#

There's no z-index property so you can't control the render order of UI elements separate from the hierarchy

#

(this is as of 2021.3.x LTS)

#

I haven't figured out how to use the Image component to do circular avatars

#

It's easy to do with a VisualElement and the background-image + border-radius properties

#

set the border radius to 100%, set the background image to the avatar you want to display, set width and height to something that's a 1:1 aspect ratio

#

But this isn't clean, I'd prefer to use the Image component. Haven't figured out how to control the actual image through USS though

light flint
#

I was thinking of an effect where the menu items appear at the edge and fly into place and I had no idea where to begin with it

#

because the manual did not have anything useful to figure it out in it

warped dune
#

UI Toolkit is quite nice! I created a first little project here https://github.com/alankent/OrdinaryCartoonMaker in case anyone interested in sample code. Its an Editor window. I created a ScriptableObject to bind the form fields too, but I am wondering if I should have created multiple binding objects (one per tab in the UI) because the SO class ended up with "everything" in it. But it worked without much effort, so overall I am happy.

GitHub
GitHub - alankent/OrdinaryCartoonMaker

Contribute to alankent/OrdinaryCartoonMaker development by creating an account on GitHub.

#

The README file on the home page of the GitHub repo has some screenshots. Simple stuff.

#

The UI toolkit files are under Assets/OrdinaryCartoonMaker/UI

plucky harness
teal belfry
#

is there a way to make UI toolkit Scrollview work for mobile?

#

or just any sort of scrollable thing on mobile?

#

from what I've found this isn't possible

#

guess its time to move to another UI system

#

F

gusty estuary
teal belfry
#

attempting to figure out all this BS about building

gusty estuary
#

Did you try?

teal belfry
#

so I still need to test it

#

stuck trying to figure out some assembly bullshit rn

teal belfry
#

is there a way to disable to visible scrollbar without breaking the scrolling?

#

cause I can't in the inspector

smoky quest
#

A good tutorial to get started from scratch building runtime GUIs with UI Toolkit?

gusty estuary
#

Just make some selectors that target scrollbar and make it it not visible

smoky quest
#

All of the tutorial I find are of the kind "let's make custom editor windows!" which is not what I am looking for

gusty estuary
#

It`s very unpopular still, so you will get very few results

#

Not much to choose from

smoky quest
gusty estuary
#

Oh yeah

#

Unity manual

#

In 2022.2 is very nice

smoky quest
#

Unity Blog actually, on the Unity Learning platform I found nothing still

gusty estuary
#

Many examples

#

Breakdown on uxml, uss. Best practices

#

It`s literally manual

smoky quest
#

Perfect then, I dive in

carmine lagoon
#

How does one Nest an array or list of Custom Elements inside a custom element?
Since there is no UxmlCustomArrayOrListAttributeDescription?

Is there any documentation about this?

gusty estuary
#

But if you want a big perfomant collection - use listview or treeview

carmine lagoon
#

Works now

gusty estuary
#

🤔

#

how do you bind array through attribute

carmine lagoon
#
public override SelectedItemContainer[] GetValueFromBag(IUxmlAttributes bag, CreationContext cc) =>
                this.GetValueFromBag<SelectedItemContainer[]>(bag, cc, (Func<string, SelectedItemContainer[], SelectedItemContainer[]>)((s, t) => t), this.defaultValue);
gusty estuary
smoky quest
#

Hi people! Quick question: Should I include the UIElementsSchema folder contents in my repository for versioning or not?

#

Is it safe to ignore it?

#

I just tried to delete it from the project folder and UI seems still working, I also closed and reopened Unity and forced reimport all, it still works and that folder is not back

#

I am wondering what's for and if it's safe to ignore it

#

NVM, I just found an official answer from two years ago 😅

teal belfry
#

for reference I want to make scrollers invisible

#

but can't make them invisible or rename here so not sure how to do that

gusty estuary
#

or style with selector #BackGround > #scroll

#

oh wait

#

damn, those names confused me 😅

#

you can just query by Scroller class

teal belfry
gusty estuary
teal belfry
#

lovely, another ui toolkit thing I didn't know 😄

gusty estuary
#

you should look at manual

#

Uss is very powerful

teal belfry
gusty estuary
#

yeah

#

this one is about stylesheets

teal belfry
#

oh wow, you can actually open stylesheets and its code stuff

#

thanks!

#

just found those docs yesterday so will be reading everything 😭

#

as you can't find almost anything else on the internet about UI toolkit lol

teal belfry
#

Pretty easy to do in code also apparently 🙂

gusty estuary
#

well yeah, but even easier to do it globally with theme

teal belfry
#

I haven't gotten that far into reading yet 😄

gusty estuary
#

sadly there is no manual on theme afaik

#

maybe they added it though

teal belfry
#

unfortunate

#

not even sure what "theme" is tbh

gusty estuary
#

open panel settings that are field in UIDocument

#

in short, theme is container for global stylesheets

teal belfry
#

oh, theme style sheet

#

hmm, yeah I can't even open that, guess its some other fancy thing lol

gusty estuary
#

default one can't be opened

#

you create your own

#

inherit from default

teal belfry
#

oh fun

gusty estuary
#

and attach to panel settings

teal belfry
#

was hoping his would work from what I'm seeing

#

but it doesn't control the scroller lol

gusty estuary
#

look at manual to see how selectors work

teal belfry
#

yep, still reading through but given that it said Styleclass there I figured maybe

#

¯_(ツ)_/¯

teal belfry
#

@gusty estuary hopefully my last question for awhile...I want my Element inside my scrollview to be 100% the scrollview's height(aka the scrollbar takes up 80% of its parent so I want my element in scrollbar to also be same size as I want it to scroll left right, not up down

#

however

#

if I do 100% for the height or flex it doesn't work

#

any ideas?

gusty estuary
#

but disable it completely

#

style.display.flex = none

teal belfry
#

atm this is just working inside the editor

#

nvm Im dumb

#

how tf

#

did I not see this before

#

sorry 😭

smoky quest
#

I just started to play with UI Tollkit today and I am having this little annoying issue that things in runtime looks slightly different than in UI Builder...
For example the first image (black background) is the Visual Element as appears in UI Builder, the second one (blue background) how it appears in runtime

image.png image.png
#

Where is my issue? I am clearly overlooking something, what could it be?

gusty estuary
smoky quest
smoky quest
#

it would be nice to have support for SVG images

#

I understand it's a bit complex and expensive to maintain, but it really marries the whole "web inspired" philosophy

gusty estuary
#

Oh btw

#

There is 2d renderer that can draw vector stuff

#

I guess it`ll require writing parser for svg

smoky quest
#

I checked around and there are already third parties packages to parse subsets of SVG

#

But... how to say... not what I meant

analog scarab
#

Silly question - but for an offscreen indicator, would that be something I do in the UI builder? or would that be a separate floating asset? Is the UI Builder just for menus and things like that?

gusty estuary
#

but I feel like you want it to be world space

#

which can onl be done with Unity UI

analog scarab
#

Ah so you can have moving UI elements in the UI builder? I'm new to UI programming

#

so thank you for the help!

#

world space is interesting... it does make that kind of calculation interesting. for a third person action game we realized that the calculation for an indicator that feels right changes depending on whether the object is behind or forward of the camera

#

this should be easier as my own project is kind of top-down

gusty estuary
#

but to achieve offscreen indicators

#

you'll need code that will move elements

#

I did it once

fast escarp
#

Hello, I have a very simple style:

    width: 40%;
    height: 100%;
    opacity: 0.8;
    background-image: url('project://database/Assets/UI%20Toolkit/UI/Textures/bg_half_slope.png?fileID=2800000&guid=f92362b0be24d6a4da425186b9230b1c&type=3#bg_half_slope');
    position: absolute;
}

The problem is it works in UI Builder but does not work in game. If I change height and width to px instead of % it works. Any idea?

gusty estuary
weary jewel
fast escarp
weary jewel
fast escarp
#

I guess it was about panel settings or smth, tried playing with some stuff but couldnt figure it out

surreal ember
#

I had used the UI Toolkit debugger, and found the Unity dropdown popup window, still not able to change the pop up window background color, it seems is fixed by system.

#

For current UI Toolkit, is it able to make a UI like above?

#

Make a UI with perspective view, seems hard

dark blade
#

background-image: url('project://database/Assets/Graphics/Block%20Level%202.png?fileID=2800000&guid=de794022c46627c4e94f7f2f23dfefc4&type=3#Block Level 2'); how i can get the path of that texture??, copy path give different path,

gusty estuary
#

Or maybe meta file has some info

gusty estuary
dark blade
#

but how??, i did that from ui builder, but that so static right??, if i want to use diferent texture, how i can get the path to it, without using ui builder just to know the path

gusty estuary
#

I just assign it all in boilder

surreal ember
#

I think maybe this is an update direction for UI Toolkit. Use the art knowledge to simulate the effect of perspective view.

gusty estuary
dark blade
# gusty estuary Why is it a must?

maybe im still to beginner for this, so my question are hard to understand, so the idea is, i want create a toggle, and for its on and off states will have different texture to show, so i need create uss for that right??, and of course the path to the texture for on and off to apply??

surreal ember
#

Perhaps, add an shape modifaction feature to visual element

gusty estuary
#

You can't just use path, it also needd some kind of guid

gusty estuary
dark blade
gusty estuary
#

Could only do it with it

surreal ember
#

You are right.

#

I sent this message to the unity UI Toolkit forum. Hope it can be done. I just like this new system

gusty estuary
#

Doubt

surreal ember
#

😅

gusty estuary
#

the way it is rendered has nothing to do with world space on which this effect relies

#

unless you figure how to achieve it with transform styles

#

don't expect it in 2-3 years

surreal ember
#

Yes, it is a bit hard to do

wind gorge
#

You can easily do worldspace UI with uitk

#

I've done it before, it's annoying to set up but it works just fine

gusty estuary
wind gorge
#

None right now, not at home

teal belfry
#

the real question

#

how is UI toolkit not able to be world space yet lol

gusty estuary
dark blade
#

i keep get this stupid error, whenever use UI Builder my unity version is 2021.3.16f1 , and tbh i dont know what is actually happens seeking from error code, but the thing for sure is, i cant assign a font to my label in UI builder, everytime i save the changes, the font keep become none

#

this from UI Builder, althought i change the font, its doesnt affect

#

and this is game view, nothing show up

uneven lodge
teal belfry
#

tmw you create an awesome page

#

but put VisualElements instead of Buttons 😦

static canyon
teal belfry
gusty estuary
#

How can I implement value changed event properly on my custom control?

pearl hamlet
#

I'm not 100% sure how I populate a tree view from script? Or manually to get a feel for how it looks, for that matter.

#

How do I do that?

#

I tried approaching it like a list view, but it doesn't really do anything.

gusty estuary
#

take a look at examples section in UI toolkit manual

pearl hamlet
#

or maybe I wasn't looking in the right place

gusty estuary
#

it's example of ListView,TreeView, MultiColumnTree/ListView

pearl hamlet
#

oh I often mix up scripting API and the manual. let me take a closer look

#

There's attributes here, but no examples for TreeView

pearl hamlet
gusty estuary
pearl hamlet
#

oh i see

#

pardon me it's about 2 am

#

okay thank you

mystic flicker
#

hi guys, how do I draw line in 2021.1 using the mesh api ? I cannot seem to find a way to change the topology of the mesh

uneven oyster
mystic flicker
#

I forgot to specify that I'm building an editor window

uneven oyster
#

making any changes to:

  • vertices
  • triangles

will change the mesh topology

mystic flicker
#

I would like to draw a grid of lines in a visual element of an editor window, my idea was to change the mesh topology in the set indices from triangle to line but it doesn't seem to be possible

#

a class inheriting from VisualElement has the generateVisualContent delegate with a parameter of type MeshGenerationContext

#

after allocating for vertices and indices, there's no way to specify the topology of the indices

#

like you would do if you had the mesh

#

private void OnGenerateVisualContent(MeshGenerationContext mgc)
{
// set up the vertices

    MeshWriteData mwd = mgc.Allocate(vertices.Length, indices.Length);

    mwd.SetAllVertices(vertices);
    mwd.SetAllIndices(indices);
}
#

here the indices are always treated in group of three

tawny flax
#

Guys, can this be considered a bug in UITK (input field)? I don't see the text I'm removing (everything's OK in old UI)
Old UI - Hierarchy
UITK - UI Toolkit Debugger

teal belfry
#
 messageText = root.Q<Label>("message-text");
 var newText = messageText.Q<Label>("text");

this would grab the Label called "message-text"
and then search underneath that label's heirarchy for another label called "text" right?

tawny flax
#

Yes

teal belfry
static canyon
teal belfry
# tawny flax Yes

if I do .instantiate from a VisualTreeAsset...everything in it will still be named the same right?

tawny flax
#

Of course, it's the same thing as instantiating prefabs

teal belfry
#

awesome thanks 🙂

tawny flax
ivory basalt
#

Does anyone know if UI-toolkit supports splitscreen?

tall brook
#

Noob question: Proper way to have overlapping elements? Like two VisualElements that are both the full screen, one will be for the bottom menu and various panels that will expand when bottom menu buttons are clicked, and another full screen VisualElement for other elements (the second should be behind panels from the first when they're open, but be otherwise clickable when they're not). Should I use two top level VisualElements with Absolute Position? Or two entirely separate UIDocuments? Or?

celest grove
#

is it possible to make custom trait for existing class such as Label or Button? I made one, it only show on ui builder, but not work, every time I change the field on uibuilder tool, the value is reset.

tall brook
#

I cannot figure out how to get overlapping elements working correctly. I'm using VisualElements as containers to assist with layout. These empty (but not hidden) VisualElements seem to block click through to buttons in other heirarchies. Picking Mode: Ignore doesn't seem to help.

tall brook
#

Finally figured it out! My containers that are only for layout should be Hidden. I thought a hidden container would hide everything in it...

gusty estuary
pearl hamlet
#

SO, I've been trying to make a tree view, but the items don't collapse properly, and tend to overwrite other things. This is it collapsed, and expanded. What is causing this? Id it with the ID? Here's the code:

//...
var goalsList = document.rootVisualElement.Q<TreeView>("quest-goals");
goalsList.makeItem = () => new Label();
goalsList.bindItem = (e, i) => (e as Label).text = goalsList.GetItemDataForId<QuestOrGoal>(i).Text(); //FIXME: tree weird
goalsList.selectionType = SelectionType.None;
goalsList.fixedItemHeight = 32;
//...
IList<TreeViewItemData<QuestOrGoal>> GoalsData(NewQuest.QuestObject qo)
{
      var steps = new List<TreeViewItemData<QuestOrGoal>>();
      int id = 0;
      foreach (var step in qo.completedSteps.Append(qo.activeStep).Reverse())
      {
          var goalsRoot = new List<TreeViewItemData<QuestOrGoal>>(step.Item2.goals.Count());
          int stepID = id++;
          foreach (var g in step.Item2.goals)
          {
               goalsRoot.Add(new TreeViewItemData<QuestOrGoal>(id++, new QuestGoalRecord(g, qo.questID))); //TODO: Formatting
          }
          steps.Add(new TreeViewItemData<QuestOrGoal>(stepID, new QuestStepRecord(qo.questID, step.Item1), goalsRoot));
      }
      return steps;
}
//...
void UpdatePreview(string id)
{
      document.rootVisualElement.Q<TreeView>("quest-goals").SetRootItems(GoalsData(QuestEngine.GetQuestObject(id)));
      document.rootVisualElement.Q<TreeView>("quest-goals").Rebuild();
}
image.png image.png
ivory basalt
#

Each player has it's own UI

unborn bluff
#

Is it possible to use UI Builder to design a custom control?

gusty estuary
#

but you can style it

#

by creating custom stylesheet for it

unborn bluff
#

Maybe I can somehow load an uxml file from code?

tawny flax
#

Yes
You can serialize your UXML with [SerializeField] VisualTreeAsset asset;
Then asset.Instantiate() it

#

If it's for Runtime

#

How to align ScrollView elements by bottom?
My ScrollView is of certain height and new elements are added to the top 😦

unborn bluff
tawny flax
#

No, I meant you can create UXML of custom element, then just instantiate it

unborn bluff
#

OK, but then I won't be able to add any meaningful behavior to this UXML with C# code and doing so is kind of the whole point of custom controls?

tawny flax
#

You can, I meant that you can structure and style your element with UI Builder, then Instantiate it in code and add custom behavior
As I understood you didn't like to structure your element through code
After instantiating your UXML, you add it to your document and add custom control through C# struct or class
Like this:

var element = asset.Instantiate();
container.Add(element);
var control = new Control(element);
/* ... */
struct Control {
  private readonly VisualElement root;

  public Control(VisualElement root) {
    this.root = root;
  }
  /* ... Custom control behavior */
}
gusty estuary
tawny flax
gusty estuary
#

way easier to just create it from code, and for styling use custom StyleSheet in resources

tawny flax
teal belfry
#

any fixes for when typing in UI toolkit is having minor lag (too much stuff inside it I believe)

pearl hamlet
pearl hamlet
#

testing has revealed that it is connected to the ID

#

but I need to figure out why it's doing this...

pearl hamlet
#

okay, so my problem is, when it repaints when I collapse or expand something, it's going down the list and getting data based on the ID to redraw. When it's all expanded, everything lines up, but when it's collapsed, it counts each of the collapsed headers as 1, which means it's trying to fetch the contents.

#

but I'm not sure how to fix this.

#

GOT IT

#

I was using GetItemDataForId instead of GetItemDataForIndex

unborn bluff
#

What are these "usings" here?

gusty estuary
#

Is there any way to tie New Input System actions with UI Toolkit callback events?

#

It's clear that UI Toollkit uses them somehow, but it's unclear how to do it customly

tawny flax
tawny flax
gusty estuary
tawny flax
#

You mean mouse clicks? There are events for that already, you don't need to do anything custom

gusty estuary
#

No, like custom input actions

#

from new input system

#

even default ones, like Cancel

#

or Submit

tawny flax
#

Hm, I see NavigationCancelEvent and NavigationSubmitEvent
Have you tried those?

gusty estuary
gaunt shadow
#

Is there a definitive state management pattern figured out for UI Toolkit yet? Or an approach the community is leaning towards?

#

my bg is from web apps, but UI Toolkit kinda feels like it's taking all the best hits of the 2010 web scene, and I can't find any good resources on managing state

gusty estuary
#

I'm using MVP design at the moment, so

#

All possible view interactions are defined in it's presentation

#

And if model needs to affect view, model can call url state request

verbal yacht
#

the ui builder starts flickering and spamming this error, but only every now and again (usually when selecting multiple things in the hierarchy), is this normal?

dire nova
gusty estuary
dire nova
gusty estuary
#

it doesn't seem like this element

#

is text element

dire nova
#

Oh

gusty estuary
#

so while it does get your style properties

#

there is no text that is affected

#

😅

dire nova
#

Makes sense i guess xD

#

How can I acess the child?

gusty estuary
#

You can't generally

#

and shouldn't

#

unity follow BEM pattern

#

so it will probably have classes

#

that you can setup yourself

dire nova
#

Sorry, this is my first time doing any UI Toolkit related stuff, any links that might help me understand that?

gusty estuary
#

UI toolkit manual

#

styles section

dire nova
gusty estuary
#

no

#

just go over whole USS section

#

it's really good knowledge

dire nova
#

Ok

dire nova
# gusty estuary and shouldn't

Like that?```css
#text-unity-input
{
-unity-background-image-tint-color: rgb(255, 255, 255);
--unity-colors-default-background: rgb(255, 255, 255);
--unity-colors-highlight-background-hover: rgb(255, 255, 255);
--unity-colors-highlight-background-hover-lighter: rgb(255, 255, 255);
--unity-colors-highlight-background-inactive: rgb(255, 255, 255);
--unity-colors-highlight-text: rgb(255, 255, 255);
--unity-colors-highlight-background: rgb(255, 255, 255);
}

gusty estuary
#

this is name selector

#

might what you want, might be not

#

I have no idea what are you looking for to change

dire nova
dire nova
#

This color

#

But the element is greyed out

gusty estuary
#

literally no new information 😅

#

inspect it in UI Builder/ Debugger

dire nova
#

Sorry, The element is greyed out and I'm trying to use stylesheets to set the color

dire nova
gusty estuary
#

you should be able to inspect it

dire nova
#

really?

gusty estuary
#

at the worst use debugger

dire nova
gusty estuary
#

yes

#

top right 3 dots

dire nova
dire nova
#

Im only able to select stuff like builder parent or mover, I have no Idea how to get to the actual inputfield

#

@gusty estuary I just found this screenshot and its also greyed out

JSRa9bViaYHdZ56k6yvsxqHVFLHyXJMF-4hp0WOWRzQJBTfxjtUeZ2iTOb2ZntP25dbB4Mdj2wygeN24lJ75zm3zGBQfK8Z5E0HpcgsfNzVYYIxbQVYv-S1rcOl78A9SLOPsEkP0.png
verbal yacht
#

wondering, is it possible to make a toggle look like a button, or to make a button act like a toggle, as i want to have a button that when pressed turns green and stays green, until clicked again, to have 2 different states like a toggle, is this possible?

weary jewel
verbal yacht
verbal yacht
#

i see that we have the ability in code to set visibility of stuff, wondering is it possible to set it as a default in the editor like other properties?

lone lark
#

How would I go about making my raycast not hit items behind UI builder buttons/components

tawny flax
tawny flax
verbal yacht
static horizon
#

Is there good basic theme for runtime UI? Default runtime theme looks horrible 😄

gusty estuary
static horizon
fallow anchor
#

Is there a reason why immediately adding a class to a spawned child doesn't seem to trigger a transition?

#

If I toggle the same class on a click callback it transitions as expected

gusty estuary
fallow anchor
#

Yes

midnight anchor
#

Hiya! Have a question on the UI Toolkit, might just need some clarification on how it works. I'm following this UI Example from Unity: https://docs.unity3d.com/Manual/UIE-HowTo-CreateRuntimeUI.html. In the example, Unity has a MainView.cs script that sets up the List Controller during the OnEnable callback. I want to set up the List Controller later on, after OnEnable, from a keystroke or item selection.

However, it seems that the input keystroke or item selection must occur 2x for Unity to actually create the list items - it sets up the ListController and runs the ExecuteCharacterList methods, but no list items are populated until the second trigger. Any ideas why this could be case?
Here's a paste of the updated MainView.cs class. Everything else from the example is unchanged.
https://gdl.space/ahezufevet.cs

verbal yacht
#

inside a visual element i have a bunch of buttons, if i wanted to set all those button's background colour, what would be the best way to do this?

gusty estuary
#

and go through it, this chapter of manual is so good

verbal yacht
#

ooh ok, i will, thanks!

gusty estuary
#

you'll know everything you need to style your UI in any way after you are done

unborn bluff
#

imgUI[i].sprite = Sprite.Create(filtered[i].normal, imgUI[i].rectTransform.rect, imgUI[i].transform.position);

Im trying to give my uimage one of my default textures types… this has no errors but isn’t working either

#

I forgot about raw img components mb

woeful glade
#

I have an element (A) that is the parent of a Label. I want the size of the parent to be determined by the Label's text. The problem is that element A is itself a child of another element (B) and is expanding to fill the entire width of B. The flex-grow value for element A and the Label are both 0. The only way I've been able to get the size of A to change is to set a specific width, but then it won't be based on the size of the Label. Any thoughts on how to go about this?

#

This is what the hierarchy looks like. TemplateContainer also has a flex-grow value of 0.

civic fiber
#

Any ideas how to go about a dynamic radial menu in ui toolkit?

gusty estuary
civic fiber
gusty estuary
#

oh

#

well, you can simple manipulate transforms of child

#

in your custom control

#

shouldn't be too complex

fringe tusk
#

I have two UI documents onscreen, and use TAB to navigate between elements. Is it possible to navigate between documents? Currently it just cycles through the active document.

agile widget
#

Are there any benchmark comparisons between UIToolkit and ugui?

gusty estuary
#

But toolkit is definetely faster

#

And more lightweight

agile widget
#

that's reassuring, thank you

viscid rain
#

Hi, I'm looking to add a custom font to my 2021.3.10 project, but the ligatures aren't working correctly (they aren't made when I type correctly those), my font works on photoshop, libreOffice and Word, but not in unity.

#

anyone has a solution ?

gusty estuary
viscid rain
#

here normaly my font will do this if I writte TA :

viscid rain
gusty estuary
#

Did you generate font asset?

viscid rain
#

normaly yes, but not sure

#

I have made a (TMP_Font asset) and plug it in a (TMP) ui asset

gusty estuary
#

I was never able to attach TMP assets to UI toolkit

viscid rain
#

I go try with unity 2022.2

viscid rain
#

ok it "works" with textMeshPro 3.2.0-pre.3 et 4 but it seems to be dificult to have everything setup.

weak wharf
#

hey i tried to start using ui toolkit today but am completely lost

#

I have a main uxml file for my main menu and this is fine

#

but i wanted to refactor some things and break up individual panels into their own uxml files to be controlled by a c# script

#

how do i link a c# script to a uxml file?

#
    {
        public new class UxmlFactory : UxmlFactory<ProfilePanel>
        {
        }

        private Label _displayNameLabel;

        public ProfilePanel()
        {

            RegisterCallback<AttachToPanelEvent>((ev) =>
            {
                var mainButton = this.Q<Button>("ButtonMain");
                mainButton.RegisterCallback<ClickEvent>(OnButtonClick);

                _displayNameLabel = this.Q<Label>();
            });
        }```
#

i have something like this but it doesnt like my initialization. gives null ptr errors obviously since the constructor is called in the editor

#

Is it possible to have a script like this handle a uxml file so it becomes a "widget" ?

#

all the examples seem to use code to add elements

#

i would like to link this and have it run on a pre made uxml layout file

weak wharf
#
    {
        public new class UxmlFactory : UxmlFactory<ProfilePanel>
        {
        }

        private readonly Label _displayNameLabel;

        public ProfilePanel()
        {
            Resources.Load<VisualTreeAsset>("UI/Layouts/ProfilePanel").CloneTree(this);
            var mainButton = this.Q<Button>("ButtonMain");
            mainButton.RegisterCallback<ClickEvent>(OnButtonClick);
            _displayNameLabel = this.Q<Label>();
        }
}```
#

this ended up being the proper code i think

gusty estuary
weak wharf
#

Almost considering just ditching thr new Ui toolkit. But I liked how it was more along the lines of UMG in unreal

gusty estuary
#

I suggest to follow UI Toolkit manual from 0 to end

#

it's really good

#

at least on version 2022.2

weak wharf
#

Wasn't much help. Lack of explanations and code that was doing more than I needed to

#

Should be as simple as loading a file like I did to the root.

gusty estuary
#

well, there is no better source of material

weak wharf
#

Unless If UI toolkit is not suitable for a basic game

gusty estuary
#

it's still pretty new and lack some features, sure

#

but you can use it

#

to make nearly anything already

#

except world space ui

#

once again, give a manual a proper read

#

Once I did it, I got answers to all my questions

weak wharf
#

Sounds good thanks for you help

candid fable
#

Hello! I'm trying to introduce a flexible space in the middle of a toolbar such that some elements get pushed to the right. Does anybody know the ideal way to do this in USS? Edit: or really at all, I mean.

rough scarab
#

Add a visual element with flex grow 1

#

@candid fable

candid fable
#

Aye that seems simple. with the toolbar spacer I couldn't figure out how to assign a dynamic width to fill the space. I'm generally out of the loop with how modern things like flexbox work lol.

#

Btw @rough scarab, your writeups are incredible.

#

Since you're looking, I'm trying to create a custom VisualElement paired to a model class and am trying to figure out where to start with this. My goal is to create a UI Toolkit component to give a visual to this class; where should I start? I'm currently looking at "Element 'MapEditorTile' has no registered factory method." and am looking for a template for how I should be doing this properly.

#
{
    public MapTileNode tileNode;

    public void OnDragRelease(Vector2 position)
    {
        tileNode.position = new Vector2Int((int)position.x, (int)position.y);
    }

    public new class UxmlFactory : UxmlFactory<MapTileVisualElement, UxmlTraits> { }

    public new class UxmlTraits : VisualElement.UxmlTraits
    {
        public override void Init(VisualElement ve, IUxmlAttributes bag, CreationContext cc)
        {
            base.Init(ve, bag, cc);
        }
    }
}```
This is probably totally wrong, but hopefully it might offer some insight into my confusion.
candid fable
surreal ember
#

A basic problem, for UI Toolkit, is it possible to make a login menu? detect the input field value's type and make a mask for the password?

#

For example, check the length, bool, integer or something else. Maybe not like UGUI, all done by codes.

candid fable
#

So for a cursory glance, it appears that password-mode character masking has an implementation.

surreal ember
#

sometimes I really feel frustrated that the document not giving enough examples for the implement

candid fable
#

@surreal ember

surreal ember
#

Thanks

candid fable
# surreal ember Thanks

No prob - I never needed a password field in UI builder, so this was my first shot at looking for one.

surreal ember
#

I am now using Unity as a develop tool for application, so comes this kind of problem

#

This is code method, good

candid fable
surreal ember
#

Yes

carmine lodge
#

Hello guys
I need help
How can I make UI buttons with rounded corners

gusty estuary
#

border-radius

dire nova
#

Hi, I want to customise my tree views branches but there's a visual element which gets selected behind the one I want to use. Can I disable it somehow?

dire nova
carmine lodge
valid bison
#

Does anyone know if there is there a really easy way to use some UITK documents just as components alongside an otherwise UGui UI? I don't have time to rebuild the whole UI using UITK but there's some new bits I need to add quickly that are so much quicker in UITK?

rough scarab
fallow anchor
#

Does the font renderer for UI toolkit just not work for small reference resolutions?

#

I have it set to 640x360, and a font size under 8 doesn't render anymore

#

Ah, it seems the issue is adding an outline at those small text sizes..

daring mortar
#

Is it possible to allow visual Element to click through it ?

dire nova
#

Is there a build in way to achieve these drop shadows?

dire nova
#

That might help

daring mortar
surreal ember
#

I am not sure whether the class PopupField still can be used in new version of Unity

#

Maybe I made a mistake, it seems some methods cannot be used anymore in new version of Unity Editor

#

Oh, I made mistake, My editor is old, needs upodate

gusty estuary
#

Is there any solution to making font size dynamic for text to fit?

surreal ember
#

Using code to load USS file, or change style by code

surreal ember
gusty estuary
#

make font size dynamic

#

based on text size

#

my text does not always fit into it's container

surreal ember
#

Here, use percentage to control

#

80%,80% may be

gusty estuary
#

you don't get it, sir

#

it's already 100%

#

but text string is just too large to fit

#

with static font size

surreal ember
#

I think you can make it small, and if the string is too long, use wrap to change to the next line

gusty estuary
#

I already use all of that 😅

surreal ember
#

And the size can also be controlled by USS or code

#

An example for loading USS file

gusty estuary
#

naaah

#

I decided to use scroller

surreal ember
#

OK

gusty estuary
#

for clarification of what I meant 😅

surreal ember
#

I think may be you can make a Setting UI to change the font size manually for the potential reader.Maybe

gusty estuary
#

maybe

fast escarp
rough scarab
fast escarp
gusty estuary
#

Not sure if this is a right place, but anyone has any recommendations for text editor for localization?

#

built in string table in Unity Localization is just horrible for this

meager talon
#

Hello, Is it the place where i can ask specific question regarding UI Toolkit?

#

Sooo I've got multiple buttons that are very similar

#

All of those buttons will launch same function, but with different value in it's paremeter. Button1 will launch action(1), Button2 will launch action(2) etc...

winged oak
#

"All of those buttons will launch same function, but with different value in it's paremeter." <- is this working already, or is that what you are trying to achieve?

meager talon
#

for now I'm adding button listener like that

#

Where FormButtonOnClicked is a function without any paremeters

#

I was just wondering if there is a some easy way to make different buttons launch same function with different value in it's paremeter, because they will launch same actions underneath, just using different paremters value

#

it may be not possible I'm just wondering if this is possible...

winged oak
#

The code you showed above in the image, this is in start() right?

meager talon
#

sorry I gotta go, I will be in some time...

winged oak
#
Button.RegisterCallback<PointerUpEvent,string>(OnPointerUp,newSlot.name);

i used this back when messing with ui toolkit, to register events, and it also allows passing in information (in above case a string- but can be easily adopted to int, bool or anything other to pass in).

winged oak
# meager talon sorry I gotta go, I will be in some time...

No problem, also check this, this example may be more suited to your case:

_formButton = _ui.rootVisualElement.Q<Button>("StageFormButton");
_formButton.RegisterCallback<ClickEvent>(ev => FormButtonClicked(yourValue));

Not sure, but maybe this also works to pass in values (not tested, i used the RegisterCallback way):

_formButton = _ui.rootVisualElement.Q<Button>("StageFormButton");
_formButton.clicked += FormButtonClicked(yourValue);

What definately works is the way via RegisterCallback..

gusty estuary
#

because it also support navigation event clicks

#

while normal click event does not

winged oak
gusty estuary
#

Does rich text's color tag work for anyone?

#

I found out it doesn't for me

#

2022.2.2f

meager talon
winged oak
weak fog
#

I made a custom control that displays a list of items. To provide the list with items it has a public Func<Item> RefreshList that I want to hook in to. What callback can I use to call RefreshList to populate my list before the UI is drawn, but after I have had time to set the callback in my main window? If I do it in the constructor it's too early since I've not bound my callback. If I do it in AttachToPanelEvent it's also too early.
Basically I'm looking for a "Pre-first draw" callback

shadow scarab
#

can anyone help me I'm a bit stuck I've made an inventory UI and when i press play it wont go away and is open on spawn

keen prism
#

How do i turn this button into a gradient?

wind gorge
keen prism
wind gorge
#

or, even better, use figma

gusty estuary
rough scarab
fast escarp
gusty estuary
#

bruh

#

turns out

#

UI Toolkit text is incompatible with shadow and outline if you want to use rich text color

#

🥲

cursive quail
#

built in string table in Unity

dire nova
#

How can I add drag and drop support to a Tree View or a List View

gusty estuary
dire nova
gusty estuary
#

it's literally part of manual

dire nova
dire nova
gusty estuary
#

but I think this is editor only

gusty estuary
#

if you want lists one

#

it's built in

#

reorder

#

otherwise - you need to implement your own

dire nova
#

Oh ok, thank you

viral sundial
#

hello I want to use my title as an Image so that the background is visible, but I don't quite understand how to do that

#

I want the jump to be on top of the sand

pearl hamlet
#

Hey, sometimes, when I use UI Toolkit during runtime, the mouse input doesn't work, but when i restart unity, sometimes it works again. But now it just stopped. How do I go about troubnleshooting this?

muted geyser
#

does the ui toolkit have the ability to control the state of the button? Like with UGui interactable

rough scarab
muted geyser
rough scarab
gusty estuary
#

does UXML support #if directives?

wind gorge
#

uxml is not a templating engine

robust scaffold
pearl hamlet
#

Okay, my mouse input detection totally broke, and so I've been trying to add a standalone input module like so, but it's giving me this error:

image.png image.png
pearl hamlet
#

oh, i fixed the error, but there's still no mouse events...

robust scaffold
pearl hamlet
pearl hamlet
#

wait. only one can be active at a time?

#

i swear i didnt change anything for this to happen

hasty parcel
#

Does anyone have an example or reference for tooltips on dynamically added UI elements? IE: I want to popup the name of an item when it gets added to an inventory.

fallow anchor
#

Since there's still no update on world space UI, is there an easy way to size elements to be constant depending on the zoom level of an orthographic camera?

#

Also, is there a better way to set a VisualElement's center point to a position other than using half the height and width?

gusty estuary
#

it will always break at scaling

fallow anchor
#

Yeah world position is less of an issue with an orthographic camera, but the zoom level will be odd

gusty estuary
#

so, I would really suggest to just use uGUI

fallow anchor
#

But it's so slow pensive

gusty estuary
#

just for runtime

#

I mean

#

world space

#

not runtime

#

😅

fallow anchor
#

Yeah I guess that's probably the best way

#

And just use UI Toolkit for screen space stuff

#

Odd that world space UI still isn't supported

gusty estuary
#

well, adding world space support

fallow anchor
#

Since that's kind of an important feature in e.g. VR games

gusty estuary
#

is as good as adding 3d

#

to 2d engine

#

due to the way UI toolkit is drawn

fallow anchor
#

I don't doubt it's difficult, but it's odd to see it so low on their priority list

gusty estuary
#

why would it be when there's already a working and well tamed solution with uGUI?

fallow anchor
#

By that logic why even add runtime UI for UI toolkit at all 😅

gusty estuary
#

Panel UI makes much more sense because it's screen space only

#

no need for transforms

#

world space will require transforms

#

so either GO one, or Entity one

fallow anchor
#

They already have transforms

gusty estuary
#

yeah, but those transforms are way more lightweight

#

because they are 2d

fallow anchor
#

I mean it's a Matrix4x4

#

that's all you need

gusty estuary
#

🤔

#

if I remember correctly

#

this matrix is generated

fallow anchor
#

It still separately stores the position, rotation and scale

gusty estuary
#

there are 2 matrices I encountered in VE

fallow anchor
#

And all as data types that work for 3d

#

(Vector3, Quaternion, Vector3)

gusty estuary
#

tbh, I doubt they use those transforms for normal stuff

#

but

#

I didn't take too much look into it

static canyon
#

I assume there’s a reason using a render texture won’t cut it for you @fallow anchor ? We used uitk on a curved menu screen in vr that way without too much hassle.

fallow anchor
#

I want to create world-positioned text that gets smaller if the camera zooms out

#

It's probably doable with some trickery but it's most likely not worth the hassle, so I'll use UGUI

hasty parcel
#

How would I make an element disabled by default?
I've tried:

        <ui:VisualElement name="CargoDisplay" class="cargo-display" style="align-self: center;" enabled="false"/>
#

enabled=false

gusty estuary
pearl hamlet
#

how does the input and event module work with multiple gameobjects?

gusty estuary
#

it does everything for you regarding dispatching input events to ui

pearl hamlet
gusty estuary
#

in scene

#

and that's it

pearl hamlet
gusty estuary
#

no

#

yeah, this on should work I guess

pearl hamlet
#

how irritating

#

what could be causing this issue?...

pearl hamlet
#

do the events from the things bubble up?

#

im just at a loss
