brazen crater
#

I only changed the value from 1000 to 2000

rustic plume
#

is seeing more of the map absolutely necessary

brazen crater
rustic plume
#

ohh i see

#

that would be cool

#

check the stats panel and see if the jumpy camera is due to low frame rate or something else

#

it’s at the top right in the game window when you press play

brazen crater
#

Im running at like 220-230 fps

rustic plume
#

huh

#

are you moving the camera in fixed update?

brazen crater
#

nope

rustic plume
#

what are you using for your rotation code

#

send the line

brazen crater
#
        float mouseX = Input.GetAxisRaw("Mouse X") * mouseSens * Time.deltaTime;
        float mouseY = Input.GetAxisRaw("Mouse Y") * mouseSens * Time.deltaTime;

        xRot -= mouseY;
        xRot = Mathf.Clamp(xRot, -90f, 90f);

        camera.transform.localRotation = Quaternion.Euler(xRot, 0f, 0f);
        transform.Rotate(Vector3.up * mouseX);
#

thats called in update

#

stole it from Brackeys

#

xRot is a float that is only changed in the lines I sent

rustic plume
#

maybe it’s jumpy bc your mouse is jumpy idk

#

if your mouse skips on the table your code will make the camera skip

brazen crater
#

Thats what I was thinking, but bumping my far clipping plane even more, it looks even more jumpy
Edit: actually I might be wrong about that

glass yacht
#

You should not multiply mouse input by deltaTime

rustic plume
#

try using lerp maybe?

rustic plume
glass yacht
#

Brackey's tutorial made that mistake, and he silently corrected it later on, and we get people continually posting here with the incorrect code 😦

brazen crater
#

ill try that

rustic plume
#

oof

#

if removing deltatime doesn’t work try lerping it

brazen crater
#

nope that seems to have fixed it

#

thanks guys, really appreciate it

young knoll
#

Does anybody know what's happening with the first screenshot's EventSystem? I get a bunch of warnings saying how the EventSystem's script is missing, but this is only a problem in this particular scene; all the other scenes (from what I understand) use the same EventSystem and have no issues.

pulsar umbra
#

Hi all. I'm trying to use the new input system to switch between action maps. I have player movement in the gameworld, and want to switch to a UI based action map at a specific point. switchactionmap command seems to work, I can debug and see it was changed, but UI controls still don't work. Wondering If anyone has links to any tutorials related to switching action maps. Would be greatly appreciated

marsh fractal
#

@austere grotto Is it possible to switch action maps when you're only using InputActionReferences? If so, how do I get access to PlayerInput? PlayerInput.all.Count is 0.

austere grotto
#

I think you can reference the InputActionMaps directly

#

if not, you can get to them through the InputActionAsset

glass yarrow
#

@austere grotto , I'm trying to get better acquainted with the new XR Input System. Do you have any favorite tutorials you'd recommend? Note: I'm building things for Quest 2.

austere grotto
#

I've never used XR anything

glass yarrow
#

crappola

austere grotto
glass yarrow
#

Okay what about your favorite input system tutorials period?

austere grotto
#

IDK never really used one

glass yarrow
#

As in you've never used a Unity input system at all?

#

Maybe I'm misspeaking.
What I mean to say is that I'm trying to convert from the old Unity input system (GetKeyDown(Keycode.A)) to their new input manager

verbal remnant
#

just be aware that input system allows you to do everything in three different ways... don't let that confuse you 😉

glass yarrow
verbal remnant
#

Well, do you want to go all the way in with a custom class, auto switching, user-config, multiple-sources or do you just want 1:1 replacements for the old system?

glass yarrow
#

Mostly the latter - I'm learning from the ground up how it works; trying to get the basics down.

dapper narwhal
glass yarrow
glass yarrow
dapper narwhal
#

the brackeys tutorial is pretty good for starting with the new input system https://www.youtube.com/watch?v=Pzd8NhcRzVo

YouTube
Brackeys
NEW INPUT SYSTEM in Unity

Let’s check out what Unity is working on for the new Input System!
► Go to https://expressvpn.com/brackeys to take back your Internet
privacy TODAY and find out how you can get 3 months free.

● Get the new input system here: https://bit.ly/2SiXsgS

👕Check out our merch! https://lineofcode.io/

♥ Support Brackeys on Patreon: http://patreon.com/b...

▶ Play video
glass yarrow
dapper narwhal
#

i will if i do

#

i haven't actually looked at any other ones lol

glass yarrow
#

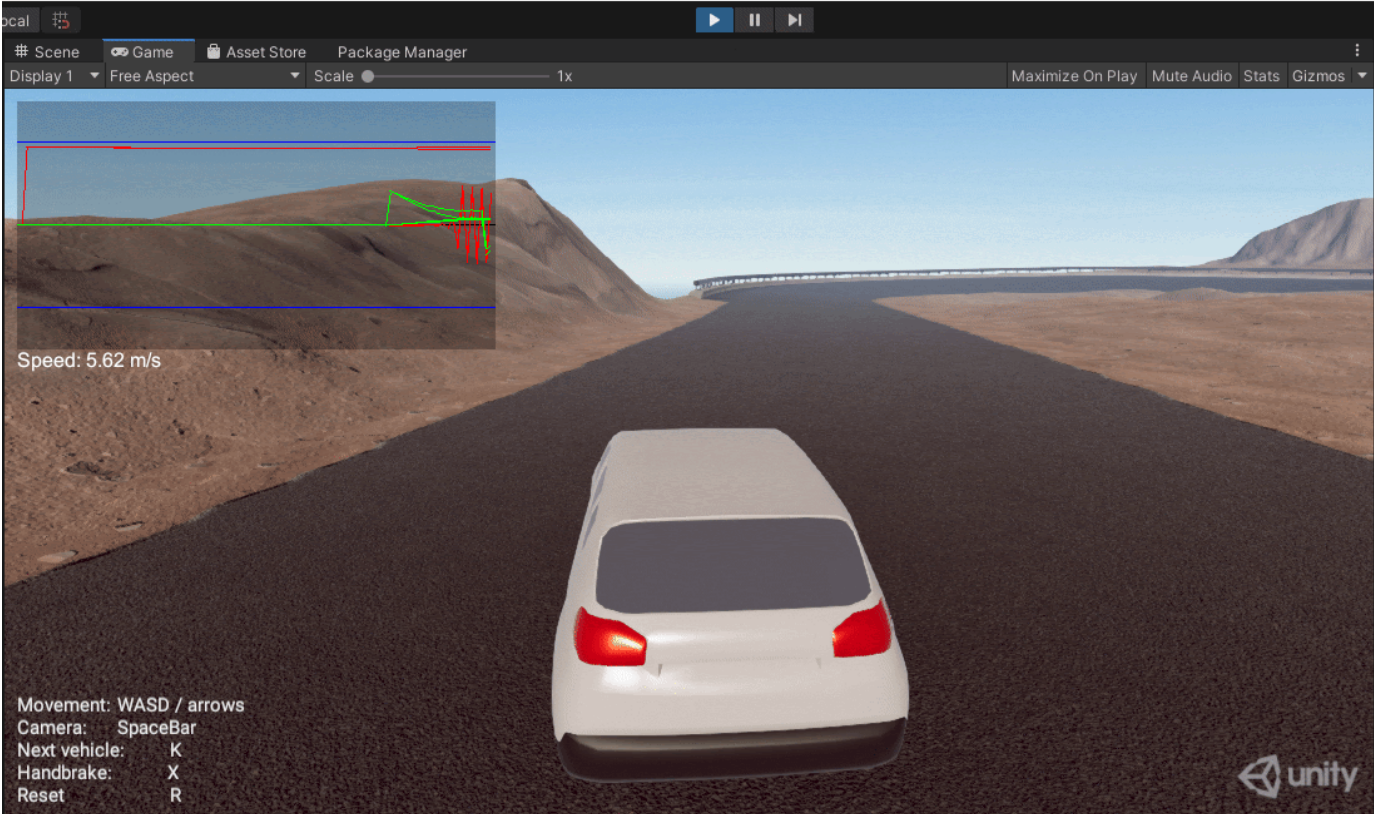

Oh? that car tutorial from Unity made it sound like there were a few cool tricks with the new input manager, but then it was't working the way the tutorial said it should

dapper narwhal
#

hmm

verbal remnant
#

if you just want to get going with the new input system, you can just do stuff like

bool mouse0 = Mouse.current.leftButton.isPressed;```
Creating a custom class with all that configurability can be more than you need (initially)
dapper narwhal
#

ye

glass yarrow
#

ahh yeah I got that down. Some basics. I can do simple WASD movement. And I was trying to head into more advanced stuff and with the XR Controllers.

dapper narwhal
#

it works fine - but it destroys the point of an event-based input system, as i said

verbal remnant
#

when using input actions, make sure to enable them before using them

glass yarrow
#

But then I'd press down the button and it wouldn't work.

dapper narwhal
dapper narwhal
verbal remnant
#

IMO the new input system is more than just firing events... it provides all sorts of ways to access the inputs and context... events aren't always best (they make code near impossible to trace)

glass yarrow
verbal remnant
#

it might even be a good idea to put an abstraction in front of input system so that your game code doesn't have to know about input system

#

and for all its generality, input system can't handle some more advanced/unique/niche input types that don't map cleanly to well established controllers/buttons/axes

glass yarrow
verbal remnant
#

you can do a lot... but some stuff is still hard... i.e. stuff that is not classic game stuff... input system doesn't handle multi touch IIRC... it provides the data, but you have to define what a gesture is in a separate custom system. Also out-of-the-box it doesn't support exotic stuff like OSC, ANT+ or your Arduino (unless you treat it like a keyboard)... you'd have to write the components for that yourself

glass yarrow
tame oracle
#

Hello, how can i do when i move forward or backward a vehicle / character (z axis) by moving the mouse up and down + left and right to turn (y axis)? In Unity3D

sudden trail
#

Has anyone figured out a way to have separate input sensitivities for controller input vs mouse input?

marsh fractal
hoary dirge
#

Hey,
I'm planning on launching a game on AndroidTV but I'm trying to find the proper input mapping for the minimal controls
I couldn't find a proper documentation for it, I'd appreciate any help.

drifting bison
#

Hi community!
Getting my hands on the new input system.
When I make a change to a setting in an input system and then save it, will it automatically generate new script for the c# class if you already have one. Or will I have to delete it, and generate it one more time?

austere grotto
drifting bison
#

thanks, yeah I did, i observed the changes. Could I follow up asking for the best way to capture the mouse position to perform a screentoworld raycast? From what I understand, its best to capture this as an action in the system manager, instead of using the old screentoworld() thing

austere grotto
#

What's the system manager?

#

You mean the EventSystem?

drifting bison
#

with the new input system manager, you cant use the old Input.something commands anymore. At least that gives me an error.
I want to move a navmesh by clicking, and need to figure out how to transfer a click in the world to the navmesh.setdestination() function

austere grotto
drifting bison
#

coordinates are way off when I click the plane with the rigidbody, is there something with the camera I might be missing, or is the screentoworldpoint() the wrong thing to be using ?

austere grotto
frosty raft
#

Huh, weird
I installed a package that had references to the new input system without my project having it
As a consequence the compiler fully broke with the error type or namespace name 'InputSystem' does not exist
That's normal but even the URP sample assets were bringing the compiler to a full stop with just

using UnityEngine.InputSystem;
#endif```
austere grotto
#

If it's perspective, you need to do a raycast

austere grotto
drifting bison
#

@austere grotto Got it working. Was really nice knowing (reimbursing) the fact that perspective = raycast. Just wanna say thanks a bunch!

steep brook
#

Are there known issues with Xbox One Controller support on Windows, specifically the new ones using USB C connection? I have a customer saying my game doesn't support his Xbox One Controller (USB C connection). My game (HopSquash!) is built with Unity 2020.3.1f1 and uses the new Input System. It works fine with Xbox 360 controllers, and according to external reports, also works fine with the original Xbox One controllers.

If anyone is willing to test my game with their Xbox one controller (USB C), I would appreciate your time, and I'll send you a free Steam key for HopSquash! so you can test it. Thanks in advance.

narrow acorn
#

Did anyone try playing 2 instances of the game at once with the new input system? Because it seems to just care about the first one that was initialised, so I can move only in one game instance, and not in the other

#

Which is really bad because I'm making a multiplayer game and that kinda forces me to test differently

steep brook
#

based off other info, I think my customer might be full of it.

tender folio
#

Usually, I get an action using playerInputs.Game.Jump. However, I want to be able to search for an action like this, playerInputs.Game["Jump"]. Unforuntately, this does not work. How can I get similar functionality?

ruby rampart
#

ive been all over the place in this server today

#

ive got this

#

and this always prints 0

#

print(carControls.Car.GrabSteeringWheelLeft.ReadValue<float>());

#

oh boy my mouse just decided it doesnt wanna click

austere grotto
ruby rampart
#

i did not

#

lmao

#

why is the new input system so complicated

austere grotto
#

With more power comes more responsibility? Or something

ruby rampart
#

i was hoping that would fix it

#

but it didnt

#

its working in the input debugger

#

it shows the right stuff

ruby rampart
#

can someone help me?

#

i have no idea how to do this

ruby rampart
#

fixed, anyone else having issues: instantiate your controls script in awake, not start

thick sapphire
#

I have setup split screen in my game, and I have an issue. Each input device controls all of the player's. I can't figure out how to assign a controller to each player(and isolate their inputs). Any help would be appreciated(send me a DM)

austere grotto
#

It instantiates player prefabs for you that have PlayerInput components on them, which are independent from one another

thick sapphire
austere grotto
thick sapphire
thick sapphire
austere grotto
#

Instead of the PlayerInput component

#

(and no they're not the same. You named your InputActionsAsset PlayerInput. I'm talking about the PlayerInput component)

thick sapphire
austere grotto
#

PlayerInputManager should be spawning a player prefab that has the PlayerInput component on it

thick sapphire
#

Gotcha, so how would you recommend doing it differently?

austere grotto
thick sapphire
novel hedge
celest orchid
#

So I'm messing around with mirror networking and the new input system, for some reason I got the host to correctly move. However, for the client, I get NullReferenceException because SendMessage isn't passing the value to the method. I'm lost on figuring out why

#

It reacts to the buttons being pressed by giving the error, but doesn't pass the InputValue variable

#

The debugger does say it is given user 0 and has the keyboard attached to it

fair roost
#

Hi guys! I noticed my WASD move action only trigger the performed callback one time(using default interaction which I believe is 'press') when the input value is CHANGED

#

so performed callback only triggered once while I'm holding the W key

#

is there a way to receive the callback every frame until the key is released?

#

like the old GetButton() equivalent?

celest orchid
#

I used a variable that holds the value then in the update method it updates movement there

fair roost
#

so that I won't need to cache the value and write my own update method

celest orchid
#

Yeah sorry, I'm not sure otherwise, if you figure out please let me know, I would rather use that than caching it.

celest orchid
candid kiln
celest orchid
candid kiln
celest orchid
#

Ah ok

candid kiln
# celest orchid Ah ok

This is for an object without a rigidbody. With rigidbody you would use FixedUpdate and move the rigidbody not the transform. Basically get the input in OnMovement and than continuously apply them in Update.

        Vector2 inputMovement = value.ReadValue<Vector2>();
        moveDirection = new Vector3(inputMovement.x, 0, inputMovement.y);
}

private void Update {
  newPosition += movementSpeed * Time.deltaTime * (transform.forward *
  moveDirection.z + transform.right * moveDirection.x);

  transform.position = Vector3.Lerp(transform.position, newPosition,
  Time.deltaTime * movementSpeed);
} ```
celest orchid
#

Ah ok thanks, I'm still relatively new to unity but in the assignment of moveDirection, is the inputMovement.y in the right spot? But yeah right now my cousin and I are making a basic MP pong game, so we are just using a 1d Axis

#

Mainly BigBadEgg needed help

#

But when I eventually need the code I'll probably use that method

candid kiln
#

If you are new, I would probably just use the old input system, as most tutorials/resources you find are with that in mind.

celest orchid
#

Yeah

steep brook
thick sapphire
obtuse laurel
#

Have a problem with InputSystem, it's not registering Joypad down presses during a pause in play

#

I would have thought (I may be wrong) FixedUpdate will run with Time.timeScale = 0.0f;

#

my InputSystem button commands are in a FixedUpdate loop and Input System Package property is set to Process in FixedUpdate

#

So I'm actually freezing FixedUpdate?

#

Are there any alternative ways of checking button presses? As far as I can see I will have to alter Input System Package properties to Check Manually and alter code

#

The solution was simple

#

Change Input System Package properties to Process in Dynamic Update
Put checking code in Update() {...}

west oracle
craggy quiver
#

hey, how can i get the right joystick on a gamepad (using the old input manager

#

preferably using getAxis but anything would do

remote otter
#

heyy, i could use some help... i made it so that i could look around with my mouse but i have the problem that the looking around is veeery ugly, it seems laggy or sth like that

austere grotto
remote otter
#

hhq2hhah yeah

#

i did

austere grotto
# remote otter i did

Remove Time.deltaTime from the mouse axis calculation. That's what's causing your weirdness.

#

it's a known issue in that video

remote otter
#

dont i have to replace it with sth?

austere grotto
#

sth?

#

no

remote otter
#

something*

austere grotto
#

no

remote otter
#

ok, thanks

austere grotto
#

mouse input is framerate _in_dependent already

#

there's no need to adjust it based on frame timing, and in fact that introduces the weirdness you're seeing

remote otter
#

makes sense o.o

#

thanks :D

#

is it ok to use comma numbers in the sensitivity?

#

nvm, i think yes, its a float

drifting bison
#

Any good practices for switching ActionMaps? Having a bit of problems enabling and disabling the correct functions. I can tell it listens on both actionMaps I have despite putting in actionmap.disable on startup.

austere grotto
#

show your code?

drifting bison
#

its a lot of it, but ive been trying to learn it watching One Wheel Stuidos tutorial on it.
So both actions maps have all their functions added and enabled OnEnable, and likewise OnDisable.
How does the OnEnable/OnDisable work contrary to Awake/Start?

Might have missed something there.

remote otter
#

mouse input is frame independent, but wasd isnt right? so i have to multiply it with deltatime right xD?

austere grotto
drifting bison
#

playerControl.General.CycleTarget.performed += CycleTarget_performed;
playerControl.General.CycleTarget.Enable ();

I havel all functions from both action maps set up like this OnEnable, and disabled OnDisable in the same script

austere grotto
drifting bison
#

how to I add a code snippet?

#

in here'

austere grotto
drifting bison
#
 public static MainPlayerControlScript controlScript;

public static void ToggleActionMap ( InputActionMap actionMap )
        {

        Debug.Log ( "setting actionmap " + actionMap );
        if (actionMap.enabled)
            { return; }
        actionMap.Enable ();
        }
#

more or less a copy from the tutorial video

austere grotto
#

that only enables it

#

how do you disable it?

#

I would expect "ToggleActionMap" to do both?

#

e.g.

        if (actionMap.enabled) actionMap.Disable();
        else actionMap.Enable ();```
drifting bison
#

I am pretty sure I had a disable function in there as well as the tutorial has. suddenly came in doubt. May have missed that part

remote otter
#

how can you disable that when you start/stop running there is a short time where you speed up/down and it just feels weird

#

.-.

austere grotto
remote otter
#

thanks...can you also just lower the accelaration time or rather not?

austere grotto
ivory estuary
#

Hey, i currently use the CrossPlatfromInput Script from the Standart Assets Asset for my Player Movement on a mobile game. I use three buttons for right, left and jump. Now i want to smooth my movement, like Input.GetAxis("Horizontal") normally does. So i wrote CrossPlatformInputManager.GetAxis("Horizontal"). But unfortunally, it doesn´t smooth my movement. Has anyone an idea why not?

wheat jasper
#

New Input System: how do i associate a specific gamepad. in the old system i could use
joystick 2 button 0
or

timber robin
#

You add a binding for something like Button East, which would be the right button on any gamepad. (Circle and A for example)

molten hill
#

hey are there some keys i'm supposed to exclude during rebind operation in .WithControlsExcluding()

#

like some os function keys that would mess up the game

tame oracle
#

hello. i have an settings menu and if i clicked some toggles and then want to click a button i cant click the button

#

does someone know how to fix this?

tame oracle
#

i think its because my cursor gets locked onto the toggles. How do i unlock them?

molten hill
#

hey guys i switched to the new input system and the buttons don't work anymore

#

i don't want to do both input systems as that would confuse me more

austere grotto
#

Time to learn the new one!

wheat jasper
#

so, anyone know how to assign specific controller numbers/ID's in the InputActions

ocean jacinth
#

http://pastie.org/p/1yHJ9KO527DreGfeGcrTIc why does this fail to trigger the deceleration code until termination of playback? ie, why does the code fail to return false on the subscription to the cancelled delegate... if it even does subscribe to the cancelled delegate.

ocean jacinth
#

okay... so I stupidly thought it was a good idea to add a hold interaction before I understood the input system thinking it would work because I'm using it for acceleration. Can anyone explain what the hold interaction actually does in layman terms?

austere grotto
#

as per those docs, canceled will only be invoked if they release the button before the specified duration (meaning before performed happens)

ocean jacinth
olive loom
#

How do you get a key binding for the currently active device?
I want to grab the string of the key that needs to be pressed for input action Inputs.Player.Interact ,for example

austere grotto
olive loom
#

oh boy eyesShake

#

isnt there a damn dark mode on unity docs

#

its burning my eyes

olive loom
#

ill have to manually find the binding of the thing then

#

isnt there a method that returns the single used binding for the device in use?

#
for (int j = 0; j < g[i].bindings.Count; j++)
                {
                    if (!g[i].bindings[j].isComposite && g[i].bindings[j].groups.Contains("Keyboard&Mouse"))
                        Debug.Log($"\t{g[i].bindings[j].path}");
                }```
Better way to get a specific binding?
snow wharf
#

HELP ME

#

So I'm following a VR game tutorial by Valem, I've been struggling a lot with downloading the Unity XR interactions toolkit package, and I finally found it but there's no install option anywhere, no buttons to press. I tried Unity help and they said something about the toolkit relying on Input System, but I don't know what that is or where to find it

#

Can anyone help a newbie please?

broken fog
#

start with escape room tutorial thats made by unity, its a good first step

ocean jacinth
#

http://pastie.org/p/3B8PTJp1vFuZBHelhQP4uH Could really do with some help here. In the pastie is my code for the input manager which is controlling all inputs through events and my car controller. For whatever reason, the button inputs work fine. The accelerator and break system work flawlessly but I'm having real bad issues with the turn input. The turn input is a value action with axis as the control type. Then the keybinds are A/D and LEFT/RIGHT each is a 1D axis. I assume (perhaps wrongly) that this will be read as a float from -1 to 1. So I set up a float input event (as I did with bool for button presses) and then try to read the value of the float according to the 1D axis. I get nothing. It doesn't log anything. It's almost as if it doesn't detect the input at all but I've checked over the input actions file and dont see any issues. I'm finding it hard to find any information online or in the docs to explain what the problem might be. Any advice?

neat marten
#

Have you tried logging in OnTurn? Maybe you forgot to add event handler
We have the same Action and it works

ocean jacinth
neat marten
#

So have you set event handler?

ocean jacinth
neat marten
#

That's strange, it's working for us in 2021.2.0b4
I can try with your setup later today

ocean jacinth
#

Thanks, I'll keep working at it to see if I can figure it out

#

I'm on 2021.1.15f1 by the way

ocean jacinth
#

turned it off and now it works. I'm not 100% sure how processors work yet

neat marten
#

Our action doesn't have processors

#

Oh yeah, haven't noticed that you have one

ocean jacinth
#

I figured it'd be the best way to allow for inverted controls when reversing but I guess I'll have to code it myself

ocean jacinth
#

Okay here we go. So I have been trying to find a way to word this for a while: The turn event cancels whenever it wants to. There's no logic to it. All I have done here is added a log of the phase of the turn event. The console shows the event starting or being performed and then cancelling. The problem is that I'm only tapping the left arrow key. I'm holding forwards and literally just tapping the left arrow key. I don't hold it down. You can see from my keycast in the bottom left that all I'm doing is tapping the key. There is no consistency to this issue and I have no idea in the slightest as to what's causing it.

austere grotto
#

the left arrow?

#

For the default interaction, the action is started/performed when you press it, and cancelled when you release it

ocean jacinth
#

my code along with the input settings are all just above. When I release the key it cancels most of the time but sometimes is acts as though it was never cancelled despite being released. So yes the left arrow

#

What makes this stranger is that it does cancel eventually but it takes what seems like a random amount of time to cancel. There's no logic to when it does cancel

ocean jacinth
# austere grotto Which one is cancelling?

in that video I press the key at just before the 18 second mark and after a very very short time (before the 19 second mark) release the key. The key press doesn't cancel until the 22 second mark

austere grotto
#

Any chance your switch pro controller is screwing it up? @ocean jacinth

#

I see that's bound as well

#

and they notoriously have the joystick drift issue...

#

Try unplugging it

ocean jacinth
#

Nope I can still replicate the issue with the binding removed

austere grotto
#

does the key up event happen immediately always?

#

Maybe your keyboard has an issue? 🤔

ocean jacinth
#

Very consistent (ignore the top few it's me taking the screenshot) So no not the keyboard. All of the events seem slow to register. Even when pressing the key to begin the turning, the perform event sometimes takes a second to kick in. Could this be an issue with event handling mixed with the input system? I've seen some people online suggest switching inputs to passthrough in case it's a disambiguation issue but if I'm ever going to make this local multiplayer, I figure I need it to be value right?

#

but it's supposed to have been fixed

#

okay it's not the same issue. Even after switching to passthrough and removing all but one of the bindings, the issue still persists

tribal rock
#

anyone know what is wrong with new input system on Linux? when i use old input system my buttons are working fine but FPS is so low for some reason, switching to new input system fixes the low FPS but my buttons sometimes works sometimes not...

#

i just feel like Unity for Linux is a mess that shouldn't exist, 2D scrolling is slow that it takes 16 seconds to manually scroll from canvas to normal object sizes, UI input is messed up... what next?

#

i never had issues like that on Windows

#

are they even testing things on Linux before releasing or it's totally ignored and they don't care?

burnt crest
#

I have a 2D axis input type which works for gamepad just fine; but for mouse and keyboard input I would like the keys QE mapped to the horizontal (I have this working) and the mouse scroll wheel mapped to the vertical axis. I tried using mouse scroll for up and down and then clamping the upper half to 0-1 and the lower half to -1-0 and inverted the lower half... This kind of worked but the input on the mouse wheel is super slow and sluggy compared with the gamepad.

#

I tried adding a scale factor to the mouse wheel input which helped a little but not very much.

#

Larger scale factor values don't seem to have any impact on the scrolling speed.

#

Also I worry that different mice will return a different value based on different scroll sensitivities.

#

How would I do this with the new input system?

austere grotto
burnt crest
#

How do games generally workaround this?

austere grotto
#

Last time I dealt with that I had to do some #IF UNITY_WINDOWS stuff to set different sensitivity multipliers on different OSs

burnt crest
#

I see; I guess the script will need to know about how the input works then

#

Perhaps just have a dedicated action type for the mouse

#

So something like this:

if (mouseScrollInput != 0f) {
    this.smoothedLookInput.y = mouseScrollInput * this.mouseScrollSensitivity;
#if !UNITY_STANDALONE_WIN
    this.smoothedLookInput.y = this.smoothedLookInput.y / 5f * 120f;
#endif
}
#

@austere grotto thank you this helped

wicked rose
#

not sure if im in the right channel, but for the inputfield, I want the placeholder text "//" to stay when I type and not disappear like it normally does-- for example:

// text

is there a setting or script for this?

grand crow
#

@wicked rose can you not just set the value of the field to '//' when it is enabled?

wicked rose
#

how do you do that? sorry if it's obvious ._.

austere grotto
wicked patrol
#

All I want is to change this part of the code to work with the new input system just someone help me please ```private void MoveCrosshair()
{
Vector3 aim = new Vector3(Input.GetAxis("AimHorizontal"), Input.GetAxis("AimVertical"), 0.0f);

    if (aim.magnitude > 0.0f)
    {
        aim.Normalize();
        aim *= 0.4f;
        crossHair.transform.localPosition = aim;
        crossHair.SetActive(true);
    }
    else crossHair.SetActive(false);
}

}

austere grotto
#

It's not a simple matter of replacing the code

#

you have to do a bunch of setup with an Input Actions Asset

wicked patrol
#

@austere grotto I already did it and made the player move with a tutorial, I only need to change that code so that it works with the new input system - Help me plis

austere grotto
#

You need to create an InputAction for the aiming

wicked patrol
#

@austere grotto I'm a very newbie, do you want me to catch you?

austere grotto
#

Please don't catch me

#

I like my freedom

wicked patrol
#

I already put what you said is called; MousePosition

ocean jacinth
# tribal rock are they even testing things on Linux before releasing or it's totally ignored a...

It's not just linux. There's reports all over the internet about unix based systems having problems with the new input system. I've posted here, on stack overflow and on the unity forums and had no response. I'm just finishing up making a test project to recreate the issue and post a bug report. I'd be interested in seeing how you're using the input system. Are you using the event system to control input?

#

I've found the problem. It's reportedly been fixed but it hasn't. So apparently having more than one keybinding for any action causes the actions to not subscribe to the performed or canceled delegates. At first I thought it was something to do with the disambiguation problem but I've just checked making the input passthrough instead with a minimal working example and I still get the same issue. I'd love if someone with a non unix based system could check the issue

fervent socket
#

why does it happed to getkey?

#

assigned implies to set x\y\z and create a vector out of it right

austere grotto
fervent socket
#

I am not coding

#

Bolt

#

coding is pretty hard and bolt is for rookies

austere grotto
#

show the... graph then?

fervent socket
#

get ready

austere grotto
fervent socket
#

I am gonna try, do not remember if already tried what you metioned

#

OF

#

made it

#

idk it's devil magic

#

check

#

you told me true things

misty zinc
#

How do I get the mouses position using the new input system? I have done as shown but don't know how to get it's position in the code.

#

I have this but it doesn't work

austere grotto
misty zinc
#

I get an error, is mouse a place holder you've used?

#

nvm I didnt have a using

tame oracle
#

How can I get the duration of holding down a key with the new input system?

austere grotto
tame oracle
austere grotto
#

which part

tame oracle
#

Timer part

austere grotto
#

just a float variable

#

either starting at 0 and adding Time.deltaTime each frrame, or just recording Time.time at the moment you press the button and comparing it to when you release

tame oracle
austere grotto
#

Just use default interaction

#

Also did you do playerControls.Enable() anywhere?

tame oracle
tame oracle
austere grotto
tame oracle
languid fox
#

Hello, I am having issues using the nintendo switch pro controller with the input system. I also dont own a newer xbox controller or a play station controller so is there any other way for me to use controller input?

devout pike
#

Hey quick question is there a GetButtonDown for an axis?

austere grotto
devout pike
#

Oh so it just counts as a button straight up, why did I think this wouldn't work lmao

#

thanks

wicked patrol
#

I would like to make an Aiming that rotates 360 degrees around the player and that the player does not turn where the Aiming points with the new input system

Can someone help me please

chrome walrus
molten hill
#

hey guys i switched to the new input system and the buttons don't work anymore

austere grotto
molten hill
#

yee

ivory willow
#

Is it possible to use the old and the new input system at the same time?

tribal rock
#

any way to make new input system more smooth? i mean now when i get Vector2 of my Action, the value is 0, 1 or -1, in old input system it was better cuz it was smoothly going from 0 to 1.

#

i already set the mode to Analog and it didn't help

molten hill
ivory willow
#

@molten hill found it. hopefully will help me achieve what im hoping for

#

thanks

#

and to access the namespace its UnityEngine.InputSystem right?

#

ah ok, for the namespace to be accessed you need to go to to Edit->External Tools-> Built-In Pacages to true and regenerate the project files

#

perfect, awesome you can actually set the mouse position now!

vale mist
#

Three quick questions!:

  1. Is there a limit on how many action maps you can have? (Or an amount that'll start showing some performance drain?) My game kinda by design needs a lot of those

  2. Is there a good way to get multiplayer transferring between scenes? Right now I have the active players set to DontDestroyOnLoad and the scenes will find and configure them to fit the scene, which works, but I was wondering if there was a more built in way? I'm definitely cool with running as is though if there's nothing.

  3. Seems Joystick does not have an option for a right stick and doesn't detect input from the right stick on my controller. I can change said controller to XInput instead and it works fine, but more compatibility the better of course, is there a way to implement that?

wicked patrol
chrome walrus
wicked patrol
chrome walrus
#

to me this looks like the cursor is following th emouse

wicked patrol
chrome walrus
wicked patrol
chrome walrus
#

okay, so did you do this already?

wicked patrol
chrome walrus
#

So what have you done yet? isometric movement, right?

wicked patrol
#

If you want, I'll give you my code

chrome walrus
#

its programming channels here, so that would be helpful not just for me, everyone trying to help if they get some code 🙂

wicked patrol
#

Where do I pass it to you?

chrome walrus
#

use hastebin for example

#

put the link here, i will be off later, but everyone can check out the code then

wicked patrol
fervent socket
#

How do I put pause button ontop of go left button (squared red is transparent)

#

so when I press pause, first button to interact is unluckily go left

#

shall I load these buttons to the scene one by one starting with pause button and after move left button?

charred hare
#

Hi developers!

I have a quick question. I have a game made for oculus quest 2, and in that i have a scoreboard. I want to make a secret reset button. So far i have created it this way:

if(OVRInput.GetDown(OVRInput.Button.One)) {
            if(OVRInput.GetDown(OVRInput.Button.Two)){
                if(OVRInput.GetDown(OVRInput.Button.Three)){
                    if(OVRInput.GetDown(OVRInput.Button.Four)){
                        provider.ResetHighScore();
                    }
                }
            }
        }

But i also gonna add a few more layers to it. Additionally i want to make sure that "provider.ResetHighScore()" wont be activated unless all the buttons have been held down for 5 seconds or longer. How can i achieve this? And is my current code structure viable?

median umbra
molten hill
#

the input system show usages instead of the buttons. help

molten hill
#

why the hell is it that everytime i ask a question nobody answers

west oracle
#

must be them

#

what Control Scheme settings are active?

molten hill
west oracle
#

if you defined a ControlScheme, the input list would be restricted to whats available from those devices

molten hill
#

weirdly enough

molten hill
#

so i'm following a tutorial by dapper dino for rebinding actions but it requires a player controller

#

and i'm doing this in the main menu

#

can i like go around this restriction or...

west oracle
#

there are a great many ways to deal w/ rebinding in InputSystem (for better or worse)

frosty raft
#

Not that I didn't try to fix it but there wasn't any solution that worked either
It was a while ago though

normal summit
#

Currently I have two cameras in my scene, with a world space canvas and a GR (graphic raycaster). The GR is defaulting camera 1 to raycast from. I cant find anywhere in the inspector or in code to change the camera that its raycasting from. I need to make it so the GR casts from camera 2 instead of camera 1. Does anyone know how I can change the camera that the GR is raycasting from? I'm using 2020.2.2

austere grotto
#

what happens if you remove the GraphicRaycaster and put a PhysicsRaycaster on the camera?

#

does that hit world space canvas graphics? Probably not right?

normal summit
#

I dont think so

#

PhysicsRaycaster is for colliders

austere grotto
normal summit
#

Yeah I was staring at that variable for a long time haha, I wanted to go in and add another parameter to the RaycastAll method but I couldnt find the BaseRaycaster class

#

They have a comment in the GraphicRaycaster class that indicates that the eventCamera is set to Camera.Main at some point

#

This line: var currentEventCamera = eventCamera; // Property can call Camera.main, so cache the reference

silver ice
#

Hi, I was wondering if someone could help me out with implementing an action through two keybinds. So i have a character who can run with w and i want it so that when shift is held with w then the character walks instead of running. I have been trying to implement this with the new input system but cant figure out how to do it. Does anyone know or have any ideas?

#

Im fairly new to the new input system, sorry if its very simple and im just dumb lol

frosty raft
#

@normal summit Not sure if it's an option for you, but you could work around this by moving the main camera instead of having two cameras
Like Cinemachine does!

normal summit
#

I appreciate the idea, but it’s unfortunately not an option as I’m working in VR. The second camera is attached to my hand to allow me to interact with the UI as a canvas pointer.

#

The first camera obviously rendering as my eyes

molten hill
#

hey how can i allow binding with the side buttons

#

currently i can't bind my side buttons at all

drifting bison
#

Good evening all!

Ive hit a snag with the input system. Ive created the c# script, and made a public variable for it in my script. Unity compiles, and refuses to create the slot for me to place the script. I dont have any other errors in other unrelated scripts, and Unity will correctly generate spaces for any other public variable I create... expect for the InputManager class. Anyone know this error?

molten hill
drifting bison
#
public class PlayerController : MonoBehaviour
    {


    public Camera mainCamera;
    public PlayerCharacter playerCharacter;
    public Rigidbody playerRB;

    public InputManager inputManager;
    // Start is called before the first frame update

    float moveSpeed;
    float jumpForce;
    private Ray ray;
    float test;

    private void Awake ( )
    ```
#

@molten hill

molten hill
#

where is the c# script

#

is it playercharacter?

drifting bison
#

then inputmanager is the script created by the input manager

molten hill
#

so can you check that "PlayerCharacter" is the exact name for the public class in the script you want to reference?

drifting bison
#

affirm, it is

#

and all those other 3 variables pop up as they should in unity editor.

#

ive tried creating new variables for testing, they compile and show as normal. Its when I try creating a variable from an InputManager it goes sour on me

#

ive tried deleting, creating new ones, dublicating.. restarting Unity... and still it refuses to accept any variable with reference to an InputActionAsset

#

or its script that is

molten hill
#

lmao i had the same problem today

#

sadly i couldn't fix it

drifting bison
#

workaround it?

molten hill
#

no i just gave up on saving rebinds

silver ice
#

Hi, I was wondering if someone could help me out with implementing an action through two keybinds. So i have a character who can run with w and i want it so that when shift is held with w then the character walks instead of running. I have been trying to implement this with the new input system but cant figure out how to do it. Does anyone know or have any ideas?

rustic plume
silver ice
#

i have that i believe @rustic plume

rustic plume
#

in that case it should work, send that section of your code

silver ice
#

inputmagnitude is for the blendd tree for the animation

#

if walkcontrol.action.triggered happens but it doesnt adjust the animation to walking nor the character walks

#

this is the variable

rustic plume
#

where do you use the speed variable you have at the end of the code you sent?

silver ice
#

the debug.log in the if statement happens but the character does not walk/nor the walking animation happens

#

i also tried using the old input system where u do if input.getkey(leftshift) and that worked. so the logic works with the old input system but im not sure why not with the new input system

#

this is the input actions asset btw

rustic plume
#

hmm idk i'm not super good with animations and movement usually i just move stuff with a rigidbody and what you have there would work for me in that situation

#

i'll defer to someone else

silver ice
#

someone help pls!

austere grotto
# silver ice

InputAction.triggered is only going to be true for one frame

silver ice
#

so how do i go about it

austere grotto
#

you want something like:

if (walkControl.action.ReadValue<float>() != 0)```
silver ice
#

ill try that

wind musk
#

I have this code (https://paste.ofcode.org/3aTuNGmQtAQEAFnweWrLfZN) in my Move method, and hooked it up to my Player actions using the default bindings that were already setup when I created my Unity project. For some reason moving with a gamepad works fine, but with wasd it doesnt, although If I press W, I get three Debug.Logs, first two saying (0, 1), and then one saying (0, 0). Anyone know whats going on?

silver ice
#

@austere grotto thank you so much!

#

could u explain wt it means: if (walkControl.action.ReadValue<float>() != 0)

austere grotto
#

In other words "if it's currently actuated"

austere grotto
#

with the joystick you will get a callback like that every time the joystick actuation changes, even slightly, with the performed phase

wind musk
#

When I press W

austere grotto
wind musk
#

will do

austere grotto
#

There's some weirdness with multiple bindings sometimes I think

wind musk
#

yep unplugging the controller did it

#

thanks

austere grotto
wind musk
#

yep i think thats it

#

I won't spend too much time looking into how to fix that right now though, I'll just use KBM for now, thanks so much for the help man

pallid karma
#

I have the same issue, so if someone finds a way to fix it, then let me know as well

regal flume
#

The variables inputhorizontal and input vertical correspond to horizontal and vertical axis inut

zinc stump
#

@regal flume Don't cross-post. And you didn't ask an actual input related question.

regal flume
#

Is it not input related?

#

I am using input after all to control the aniamtions

#

I asked this here to find out if the cause is something input related, or something else.

frigid ridge
#

With that sort of logic, what isn't input related? 😄
Probably a lot more practical to define "input related" as input collection related.

regal flume
#

Fair enough

lucid tundra
#

I can't figure out how to do the touch count for a screen. There's nothing in the input actions I can find for it for it. I know there's the Enhanced Touch API where I can get the activeTouches and activeFingers but that for some reason always returns a count of 0. (Might work in builds but that's still a problem). I feel like I'm missing something here that there's no easy way to get the count.

I do get touch button events and touch position values, so I know the actions are working. Then again Enhanced Touch doesn't use the actions at all so no idea.

Worth noting, I'm using the device simulation package, which could handle touch differently for all I know. Tried with the game view and simulate touch on too though.

fervent socket
#

how to apply image to a button? my imported png doesn't show up in there

austere grotto
fervent socket
#

yeaaahoiooooo

#

works

wispy sky
#

how can you use the new input system to invoke unity events, while assigning all the events in script instead of using the editor

austere grotto
#

the point of Unity Events is to assign them from the inspector

wispy sky
#

oh?

#

should i use like c# events or something then

#

because either way, i need to dynamically assign actions in script, without relying on the editor

misty locust
#

You can use any. Unity Events are just assigned via Inspector and C# events via script.

#

Then C# is better choice for you here. @wispy sky

wispy sky
#

ah i see

austere grotto
austere grotto
#

Just use InputActionReference directly in your code

wispy sky
#

ive been instancing playerinput everytime so it is a bit clunky

#

ill try that

austere grotto
#

Then you can do like:

InputActionReference jumpAction;

void OnEnable() {
  jumpAction.action.performed += JumpHandler;
}

void OnDisable() {
  jumpAction.action.performed -= JumpHandler;
}```
wispy sky
#

anyways thanks for the help guys

#

should be good now

deft niche
#

if I already have 2d player movement, would that be similar or very different to 3d player movement

safe forge
#

Allright so this new inputsystem is confusing. I dont like the Action/Callback thing with InputActions n all that, and I just want to take a Key and check if it is pressed or not. theres that enumeration called Key that i wanna use this for. Any help here? the quickstart guide is no help

#

Should I just create a static method that inputs a key and maps to every Keyboard.current property for all the different keys manually?

austere grotto
safe forge
#

what exactly is a KeyControl?

austere grotto
safe forge
#

thank you praetor!

#

u always a homie

austere grotto
#

you can check things like:
Keyboard.current[Key.Space].isPressed or Keyboard.current[Key.Space].wasPressedThisFrame etc.

#

basically you can do all the stuff you used to do with Input.GetKey, Input.getKeyDown etc

#

(and also a whole lot more)

safe forge
#

okay okay thats helpful to know

#

Because i want to better device recognition of the new InputSYstem but with the buttonstate things that the old one had

uneven mulch
#

Anyone here kind enough to lend a hand I'm trying to convert a Player Controller to the new input system

#

About 300 lines of code

austere grotto
uneven mulch
austere grotto
#

performed only happens when the input value changes and is still non-zero

uneven mulch
#

or simply add it to awake with .preformed?

austere grotto
uneven mulch
plush vapor
#

hello everyone, is there a way I can match an in game FPS sensitivity to a actual game (i.e. CSGO)'s sensitivity? Im trying to make an aim trainer, and I would like it to be as accurate as possible. Given that I have the yaw value of each game, it seems hard to convert into the unity mouse sensitivity...

#

is it possible to get "the number of pixels the mouse cursor would have moved on your desktop" in unity?

austere grotto
plush vapor
#

if I print it its showing around 0 - 1 value

#

I wonder if its Input.GetAxisRaw * my mouse dpi

crisp gyro
#

@plush vaporgetaxisraw returns -1, 0, or 1

#

I think you just want getAxis

#

well....

glass yacht
#

GetAxisRaw returns decimal values for joysticks and mice

#

it only returns -1, 0, 1 for button input

plush vapor
#

haha nvm, I used the software and found the Yaw of unity's sensitivity is 0.05

#

Im actually surprised that I couldnt find anything on google regarding accurate sensitivity converting on google

charred hare
#

Hi developers!

I have a quick question. I have a game made for oculus quest 2, and in that i have a scoreboard. I want to make a secret reset button. So far i have created it this way:

if(OVRInput.GetDown(OVRInput.Button.One)) {
            if(OVRInput.GetDown(OVRInput.Button.Two)){
                if(OVRInput.GetDown(OVRInput.Button.Three)){
                    if(OVRInput.GetDown(OVRInput.Button.Four)){
                        provider.ResetHighScore();
                    }
                }
            }
        }

But i also gonna add a few more layers to it. Additionally i want to make sure that "provider.ResetHighScore()" wont be activated unless all the buttons have been held down for 5 seconds or longer. How can i achieve this? And is my current code structure viable?

fossil heart
#

Why don't you just if(input1&& input 2&&input3

#

Create a bool allPressed

#

Make it true if all is pressed

charred hare
#

I did try that, but it felt like i had to press all the buttons at the exact same time

fossil heart
#

Start a timer if the bool is true

#

Then if the timer reaches zero

#

Reset

charred hare
#

That could work ye, thx

faint flicker
#

hi

i have a 3d game, i want to make a joystick for it...but i dont get it, how do i make it. i have an image and it has on-screen stick script, its set to left stick... in the tge input system have an action, the type is value and control type is vector2 i have a binding under it and its path is left stick gamepad

now what do i do next to control my player (character controller)
also i need another one for controlling rotation of camera

lucid tundra
#

Hello!
How would you get the touch count of a phone with the new system? I can't find anything in the input actions interface, and I haven't been able to get the activeTouches/activeFingers through EnhancedTouch to show anything. I feel like I'm missing something here.

jade fossil
#

trying to follow this tutorial but at this point, after 2 minutes only, the result is not this for me, my white box don't move. I tried both 1.0.2 and 1.1.3 input system, nothing change... Any tip/another tutorial available? https://youtu.be/zd75Jq37R60?t=88

YouTube
samyam
Easy Joystick for Mobile with Input System in Unity

Today we will use the new input system in Unity to add an on-screen joystick to our game. This works on both desktop and mobile phone devices.

Using an on-screen stick will pipe the values to a different control type, aka Gamepad stick, where we can then use an input action asset to read it's value in our script.

►📥 Video Source Code 📥
https:/...

▶ Play video
fallow dragon
#

I'm trying to make a top down shooter, and I want the player's gun to always track the pointer, but the player only tracks the pointer if it's position is updated. I have tried using if(context.performed) and a pass-through, but nothing I've tried has worked.

#

Unity Event:

#
public void OnPointerPosition(InputAction.CallbackContext context)
    {
        Vector2 mousePosition = playerInput.camera.ScreenToWorldPoint(context.ReadValue<Vector2>());
        lookDirection = mousePosition - rigidbody.position;
    }
#

In Update:

#
rigidbody.MoveRotation(Mathf.Atan2(lookDirection.y, lookDirection.x) * Mathf.Rad2Deg - 90f);
wispy sky
#

i setup the new input system via c# events through a script, the input seems to work fine for the most part, but then randomly freezes for a second and my player keeps moving the same direction, after a few seconds once i try to move again it goes back to normal
any ideas for what generally might be causing this?

#
void Start()
    {
        GetGlobals();

        g.inputMaster.Player.Move.performed += GetMovementInput;
        g.inputMaster.Player.Move.canceled += GetMovementInput;
        g.inputMaster.Player.Look.performed += GetCursorInput;
    }

heres some of the code, g is a saved node that just stores variables for me globally

#
public InputMaster inputMaster;

    void Awake()
    {
        inputMaster = new InputMaster();

        inputMaster.Enable();
    }

and heres the code on my globals script, that stores the input master

wispy sky
#

messing around with it more, it seems to only happen once, and for some reason only near exactly 8 seconds in

wispy sky
#

after restarting my pc it seems to be back to normal? idk unity is weird and im just not gonna question it

hollow sky
#

i'm having some trouble with getting a custom input action to show up in the inspector, anyone know what could be wrong?
public PlayerControls m_PlayerInput;
and also serializing it doesn't work either

#

also with each action, if it's a button can you check 'on press', 'on release' and 'on hold'? so far i haven't seen anything that suggests you can without having to make a new action for each case, is this true?

outer siren
#

If I set up an Input action Asset in a main control handling manager type script, then reference that asset in another script, do I still need to onEnable/onDisable in the script that's referencing, even though the asset is being enabled/disabled in the manager?

#

or is this just bad practice in general? 😄

tame oracle
#

But for the case you are describing, you should try to run it both ways so you can get conclusions.

outer siren
#

It works fine either way, I was just worried about performance issues down the line as I know you have to kinda enable and disable it. I just wondered if it was necessary if you're just referencing that asset from another a script. I'll keep on researching tho!

tame oracle
#

The reference is assigned through the editor, or code-wise?

#

Because if it is through the editor, the instance gets initiated automatically for each case.

outer siren
#

I reference it via a static InputHandler class in the script

#
        {
                      controls = new Controls();
        }

        private void OnEnable()
        {
            controls.Enable();
        }
        private void OnDisable()
        {
            controls.Disable();
        }```
#

InputHandler.controls.Gameplay.CameraMovement.performed += ctx => HandleMovementInput(ctx.ReadValue<Vector2>());

#

then do this in other script

#

but wasn't sure if I need to redo the onEnable/onDisable in the other script if it's already doing it in the InputHandler script I'm pulling it from...

charred hare
#

i am currently attempting to reset some scores if i hold down a button on the oculus quest 2 gear like this:
However, this code is very inconsistent, most of the time it doesn't work, suddenly it do. Any ideas?

public float duration = 2;
private float holdDuration = 0;

void update() {
        if(OVRInput.Get(OVRInput.Button.Start)) {
            holdDuration += Time.deltaTime;
        }
        else {
            holdDuration = 0;
        }

        if(holdDuration > duration) {
            resetScore();
            holdDuration = 0;
        }

}
outer siren
#

Just a swipe in the dark but maybe put the second if statment inside the first, after the time.delta time line? As I'd only want to check the hold duration if I'm still holding. At the moment you're checking whether you're holding the button or not. Might make zero difference, but I'd start with that!

#

Sorry if that wasn't helpful at all 😄

tame oracle
#
public class Keybinder : MonoBehaviour
{
    private Dictionary<string, KeyCode> keys = new Dictionary<string, KeyCode>();

    //public Text acc, up, down, dec;
    // Start is called before the first frame update
    void Start()
    {
        keys.Add("ACC", KeyCode.D);
        keys.Add("CCW", KeyCode.W);
        keys.Add("CW", KeyCode.S);
        keys.Add("DEC", KeyCode.A);
    }

    // Update is called once per frame
    void Update()
    {
        if (Input.GetKeyDown(keys["ACC"]))
        {
            Debug.Log("Accelerating");
        }
        if (Input.GetKeyDown(keys["CCW"]))
        {
            Debug.Log("Counter Clockwise");
        }
        if (Input.GetKeyDown(keys["CW"]))
        {
            Debug.Log("Clockwise");
        }
        if (Input.GetKeyDown(keys["DEC"]))
        {
            Debug.Log("Deceleration");
        }
    }
}
#

my keybinding code isn't working

tame oracle
#

Hey guys, I'm having an issue with my game. Right now I'm having an issue where UI Buttons would work in a specific scene, but doesn't work in others. I have no idea why, I litterally copy paste the UI elements from the scene where it works to other scenes but it still doesn't work. Anyone has any idea about what this could be?

austere grotto
tame oracle
#

I am copying the UI elements WITH the event system

austere grotto
#

wdym

tame oracle
austere grotto
#

ok

tame oracle
#

as you can see, there is an event system there

austere grotto
#

make sure your canvas has a Graphic Raycaster

tame oracle
#

but I have absolutely no idea why it doesn't work on other scenes

#

it does have one

austere grotto
#

in both scenes?

tame oracle
#

Like I said, I copy and paste the entire canvas from one scene to another

#

so yes

austere grotto
#

I can't tell from that screenshot that a canvas is being copied

#

so bear with me

tame oracle
#

Ah sorry

#

it's probably because of the name

#

MobileController is the Canvas

austere grotto
#

Have you tried having your event system selected while mousing around in the non-working scene?

#

That should show you what your mouse is hovering over

#

maybe you have something else in the other scene blocking the raycasts

#

e.g. another canvas

tame oracle
#

there is another canvas indeed

#

Though what should I do to them?

#

(the other canvases)

austere grotto
#

what's on the other canvas?

#

Is it anything you need to interact with?

tame oracle
#

No

#

it's just decorative

austere grotto
#

give it a CanvasGroup and turn off "raycast target" or "blocks raycasts" or whatever it's called

#

that will make everything in that canvas not block raycasts

tame oracle
#

Alright

austere grotto
#

(another option just for testing is to disable that canvas's GameObject just to see if that was the issue)

tame oracle
#

yeah good idea

#

Hmmm.. actually, I just got another idea

#

what if I just use one canvas instead of two?

#

It worked!!

#

I simply dragged the UI elements to one single Canvas

robust surge
fallow dragon
#

I'm trying to make a top down shooter, and I want the player's gun to always track the pointer, but the player only tracks the pointer if it's position is updated. I have tried using if(context.performed) and a pass-through, but nothing I've tried has worked.
Unity Event:cs public void OnPointerPosition(InputAction.CallbackContext context) { Vector2 mousePosition = playerInput.camera.ScreenToWorldPoint(context.ReadValue<Vector2>()); lookDirection = mousePosition - rigidbody.position; }
In Update:cs rigidbody.MoveRotation(Mathf.Atan2(lookDirection.y, lookDirection.x) * Mathf.Rad2Deg - 90f);

fast basin
sick fox
#

Are you saying your player only updates if the pointers position moves or if the players position moves?

fallow dragon
#

The pointer only moves if the pointer moves.

#

Sorry if I was uncelar

sick fox
#

What is firing the OnPointerPosition event?

fallow dragon
#

An action that is to a Vector2 Value and is the pointer position.

sick fox
#

It looks to me like the look target is only being updated when the pointer moves.

#

The spot you are looking at is dependent on the difference between your current position and the looktarget.

#

So if your player moves without the pointer moving, the looktarget is no longer accurate.

#

You have to update the looktarget every time your rigidbody.position changes.

#

instead of keeping lookDirection, update mousePosition in the OnPointerPosition and calculate lookDirection in update.

#

Basically, every Update() call, your lookDirection hasn't changed, it's just a vector pointing from your old rigidbody position, in the direction of the look target from when it was at that position. You are translating that rotation along with your movement because you aren't getting a new angle to the pointer.

#
private Vector2 mousePosition;
public void OnPointerPosition(InputAction.CallbackContext context){
    mousePosition = playerInput.camera.ScreenToWorldPoint(context.ReadValue<Vector2>());
}

public void Update(){
    Vector2 lookDirection = mousePosition - rigidbody.position;
    rigidbody.MoveRotation(Mathf.Atan2(lookDirection.y, lookDirection.x) * Mathf.Rad2Deg - 90f);
}
tame oracle
#

I'm moving my player along a X/Y plane with respect to the current angle of the camera - but each time I'm adjusting the position the player gets slightly closer to the camera.

Here's the result

#

I think I need to add some sort of minimum offset somehow, but I'm not sure how to do that (quite new to Unity sorry). Here's my code though.

public class PlayerMovement : MonoBehaviour
{
    public CharacterController controller;
    public float speed = 6f;

    // Update is called once per frame
    void Update()
    {
        var horizontal = Input.GetAxisRaw("Horizontal");
        var vertical = Input.GetAxisRaw("Vertical");
        var direction = new Vector3(horizontal, vertical, 0).normalized;

        // This is just for measuring the distance between the camera and player
        // var dist = Vector3.Distance(Camera.main.transform.position, transform.position);
        // Debug.Log(dist);

        // Adjust the input direction with the current rotation of the camera
        direction = Quaternion.Euler(0, Camera.main.transform.eulerAngles.y, 0) * direction;

        if (direction.magnitude >= 0.1f) {
            controller.Move(direction * speed * Time.deltaTime);
        }
    }
}

Any advice? Thank you in advance

sick fox
#

your camera is moving faster than your player controller moves.

#

they need to move at the same speed

#

on your camera controller script, set the distance you want to maintain as a float. in Update() where you set the camera position, check the distance to the player and make sure it stays at the offset distance.

#
Vector3 distToPlayer = player.position - transform.position;
if(maxDistance > distToPlayer.magnitude){
  move camera away from player
}
tame oracle
#

For the "move camera away from player" part, what would you recommend to do? Some sort of clamp or something?

wind musk
#

If I have a method with no arguments that I want to call when an action is performed, can I just use a lambda? or do I need to create a new method that takes the context and basically just ignores the context and calls the original method with no arguments anyway? Seems easier to just use a lambda, but will it cause any issues since the function isnt named?

#

I mean like this action.performed += context => MethodWithNoArgs();

austere grotto
#

you'd have to save it in a variable:

Action<InputAction.CallbackContext> myLambda = context => MethodWithNoArgs();

// subscribe
action.performed += myLambda;
// unsubscribe
action.performed -= myLambda;
wind musk
#

right, makes sense, thanks man

tame oracle
#

I'm having a hard time understanding how the action maps work. Actions in action maps not set as default are triggered even though the current map is different

#

Is this supposed to happen? I'm trying to only have actions in my current map trigger

austere grotto
#

it's completely independent of the Enabled or Disabled state of the action maps or the InputActionAsset itself

tame oracle
#

Oh, so what is the proper way to have the correct action perform? For example, I have the same button do different things in different action maps

austere grotto
#

enable or disable action maps as desired

#

or use the PlayerInput component to trigger all your stuff and go with the current action map thing

tame oracle
austere grotto
#

you're probably bypassing the PlayerInput component and going straight to the InputActionsAsset

#

e.g. by doing something like playerInput.actions.<anything>

tame oracle
#

In my Awake function, I use inputControls.ActionMap.Action.performed += ...

austere grotto
#

yeah that's the issue

#

What mode do you have PlayerInput set to?

tame oracle
#

Invoke Unity Events, if that's what you're asking

austere grotto
#

Then you have to set up your callbacks from the inspector for the PlayerInput

#

with the UnityEvents there

tame oracle
#

so for clarification, if I switch to c# events, i just do: public event Action<InputAction.CallbackContext> onActionTriggered ?

austere grotto
#

also wait what is inputControls?

austere grotto
tame oracle
#

oh the input controls is the input actions asset. like its the whole thing

austere grotto
#

Ok so you're confusing a bunch of things here'

#

inputControls appears to be you trying to use the generated C# class file

#

This thing

#

that's a completely separate strategy from using the PlayerInput component

#

you need to decide if you want to use PlayerInput, or use the generated C# file

#

(there are also more options but let's stick with those two for now)

#

You can't really use both together

tame oracle
#

Oh yikes, I thought they worked together

austere grotto
#

nope, they're two competing ways of doing the same thing

tame oracle
#

Huh, so I think I should delete my PlayerInput component?

austere grotto
#

basically each of them is creating their own temporary InputActionsAsset when you run the game, and the two assets are completely independent from each other

austere grotto
#

then to switch action maps you just Enable() the new one and Disable() the old one.

tame oracle
#

Ok cool, so if i do that, will i still need to change my awake functions?

austere grotto
#

no idea what's in your Awake()

tame oracle
#

the inputControls.ActionMap.Action.performed +=

glass yacht
austere grotto
#

I like putting InputActionReference in my classes that need input

#

Definitely see the appeal of the generated class, and if I had a use-case for multiple instances I might use it

#

PlayerInput is.. just annoying IMO

glass yacht
#

Yeah, I forget the InputActionReference way

#

I'd probably end up using it if I remembered

tame oracle
#

most of the videos i've seen use the .performed += ctx => kind of code. this is for the generated class right?

austere grotto
#

The only problem with InputActionReference is you still need a manager object to sanely handle enabling/disabling action maps

austere grotto
#

though I prefer to use named methods for that so you can properly unsubscribe.

tame oracle
#

is there a beginner video that goes over this kind of stuff? the videos i've seen kind of just do the same thing with putting stuff in the awake method

austere grotto
#

Uh.. not that I know of off the top of my head

tame oracle
#

Or any example code of enable/disabling actions maps or just managing them in general?

molten hill
#

so i have this line of code

//entire script copied from github

    private void SetMovementDir()
    {
        _cmd.forwardMove = Input.GetAxisRaw("Vertical");
        _cmd.rightMove   = Input.GetAxisRaw("Horizontal");
    }

and i want to make it work with the new input system using a WASD composite

chrome walrus
molten hill
#

and not one of them mentions migrating code

#

and the code i copied has a very specific type of movement that i want

#

and i am not able to rewrite all this code

#

since this discord server ain't active about the new system i'm going to brackey's discord server

chrome walrus
molten hill
#

hopefully it's not worse than this inactive channel

chrome walrus
#

being an unpolite person wont help you on brackey`s either

molten hill
#

i'm very much polite until my question is not answered for weeks

chrome walrus
#

Well, I never asked a question here about hte new input system and worked myself through it quite fast. So whos problem is it, the channels or yours not putting in enough effort? The two lines of code you got there are super easy input system code, basically two floats just parsing to your _cmd thing. https://learn.unity.com/project/using-the-input-system-in-unity this and other tutorials give you all information that is needed. If you got something worked on and are stuck, come back here. Noone got the time to hold your hand from start to finish in a personal guided live tutorial.

Unity Learn
Using the Input System in Unity - Unity Learn

In this project, you'll learn how to take advantage of Unity's new Input System.

tame oracle
molten hill
chrome walrus
molten hill
#

i have a passthrough vector2

#

and a WASD 2d vector composite set to digital

zenith cairn
#

Does anyone know if there is any way to invoke a .net action when a unity event is triggered?

sick fox
#

Just call the action normally in your event handler

west oracle
fallow dragon
#

I have a problem with a crosshair that I made lagging, but everything else moves smooth. Here is the code:

#
    private void Update()
    {
        transform.SetPositionAndRotation(pointerWorldPosition, transform.rotation);
    }
#

I can send someone a video showing the problem.

#

I don't know if it matters but I am scaling the vector using a processor.

tame oracle
west oracle
#

That's why I make them 😉

lavish zealot
#

any help on simulating touch with the mouse in the unity editor?
I use the new Input System and enabled the "Input Debugger -> Options -> Simulate Touch Input from Mouse or Pen", but it doesn't seem to work.

I am testing this on a simple UI-Button with the OnClick() of the Button set to a Method in my Script via the Unity Editor.

molten hill
mellow rain
#

How do you guys handle swapping controls between characters? Not multiplayer, but in my case i have 3 characters separated in scene, and i want 1 player to be active and rest disabled.
Do you guys put a "player input" type of script on each character? Or 1 script on a game manager type of setup?
I'm using the generated class, not the player input component also

errant inlet
#

So I'm trying to bind a control to happen when the player starts mouse wheel scrolling and again when the player stops scrolling.
This seems easy for something like a button, but I'm unsure of how to do it for something like this as I'm effectively trying to do on button press/release

median umbra
median umbra
austere grotto
mellow rain
#

@median umbra That makes sense, thanks!

errant inlet
molten hill
#
        string rebinds = playerController.playerInput.actions.SaveBindingOverridesAsJson();
        PlayerPrefs.SetString("rebinds", rebinds);

there ain't no way i'm doing this wrong
this is the exact way every single tutorial is doing it

drifting bison
#

Question: New input system.
If I have several interactions on 1 Action, can I differentiate the outcome on each interaction, or do I need to create 3 different Actions, each with 1 interaction on it?

austere grotto
#

not really even sure how multiple interactions works on a single action

#

since they all change how and when performed started and canceled happen

drifting bison
#

true, but how are we then supposed to differentiate between tap and double tap on the same key to do 2 different things?

#

like tap = walk() and double tap = run()

uneven mulch
austere grotto
uneven mulch
austere grotto
#

there is no "input manager" in the new system

uneven mulch
distant acorn
#

I was using compound axes before (continuous throttle/steering adjustment):

        controls.Player.Throttle.performed += context => throttleInput = context.ReadValue<float>();
        controls.Player.Throttle.canceled += context => throttleInput = 0f;

Now I'm using discrete buttons ("notched" throttle/steering):

        controls.Player.ThrottleUp.started += context => throttleUp = context.ReadValue<bool>();
        controls.Player.ThrottleDown.started += context => throttleDown = context.ReadValue<bool>();

I deleted the old Actions in the Input Action asset and made new actions, then unchecked "Generate C# class"→Apply→rechecked "Generate C# class", but when I press any of the bound keys, I get
Cannot read value of type 'Boolean' from control '/Keyboard/w' bound to action 'Player/ThrottleUp[/Keyboard/w]' (control is a 'KeyControl' with value type 'float') from InputActionState.cs and
InvalidOperationException while executing 'started' callbacks of 'Player/ThrottleUp[/Keyboard/w]' from DelegateHelpers.cs.

austere grotto
#

you usually would do ReadValue<float>() != 0

#

see how it's saying control is a 'KeyControl' with value type 'float'

#

the value type is float, you have to read float from it

distant acorn
#

So button presses output floats? (I haven't been able to find any documentation explicitly stating what each type outputs)

austere grotto
#

yes they output float

#

that's because KeyControl derives from InputControl<Single>

#

(float is just an alias for System.Single)

distant acorn
#

Ah, okay. So each event will output 0 if false and 1 if true.

austere grotto
#

nonzero at least. but yea

distant acorn
#

I'll check through the specific pages for each extension method. Thanks for that link!

elfin fossil
#

Ive been trying to move code to the new input system and have been following a tutorial but I cant get things to work and im not sure why (Im terrible at programming)
https://hatebin.com/erirvqmtyr
Debug.Log(mouseLook); always returns 0.0, 0.0

austere grotto
#

wait nvm you have it in OnEnable

#

Oh but you spelled OnEnable wrong

#

onEnable() -> OnEnable()

#

same with onDisable() -> OnDisable()

elfin fossil
#

Capitalization is the bane of my existance

#

thanks for the help

austere grotto
still topaz
#

Hey, so i'm struggling with some issues right now. Since i imported the Input system package my whole Visual Studio decided to go nuts and show me error for everything and stop autocompleting stuff so i'm kinda trying to work arround the issues i'm getting blind because it doesnt show me the errors. Regardless, i'm gonna try to show you the main issues.

#

So i made 2 joysticks on the screen. They are placed at the bottom of the screen and i set them up for one to control the left stick of a gamepad and the other one to control the right stick of a gamepad

austere grotto
still topaz
#

i set up movement like this. And this got me WASD and Arrows working for the movement

#

but for some reason the on screen controll i assigned to the left stick of the gamepad does nothing

still topaz
#

but the stick still doesnt move me arround

austere grotto
still topaz
#

I have a Player Input on my player. I get that component through the Script and then use that value to calculate the movement

austere grotto
#

Show the PlayerInput and the script

#

How'd you hook it up

still topaz
austere grotto
#

Also do the other bindings work?

#

Can you try removing the other bindings temporarily?

still topaz
still topaz
still topaz
still topaz
#

i feel like the issue isn't really related to the way i set up the bindings but with the On-Screen Stick script

austere grotto
#

Is the on screen stick visually responding to your touch?

still topaz
#

yhea

#

hold up, one of them fixed itself O.o no clue what i've done but i'm gonna see if i can fix the other

#

well, i fixed it but no clue how. Thanks regardless

hollow stream
#

Don’t understand the new input system how do I make player movement?

elfin fossil
gloomy moth
#

how can i fix this Cannot read value of type 'Vector2' from control using controller
if any one can help me

lavish zealot
#

i have an UI (canvas) and an Event System. I have buttons in the UI-canvas which have the onClick() defined in the Editor to call a function in my script.

My Problem is that the OnClick() fires twice, thus calling the function twice.

#

i use the new input system and dont have any hand-made listeners

#

do i have to change anything in the eventSystem -> Input System UI Input Module?
If i disable that component, no button click is registered at all.

austere grotto
#

Should just happen once

#

You shouldn't have to touch the input module

lavish zealot
#

i didnt touch anything

#

i just created the canvas for the ui and added buttons

#

i enabled both touchscreen and mouse in the input system package in project settings, if that matters

austere grotto
#

It shouldn't

#

Try changing that though?

lavish zealot
#

still the same with only mouse enabled

neon dawn
#

Anyone here know how to detect any input with the new input manager?

timber robin
neon dawn
#

Thanks!

#

I decided to use a bool instead though and set it true in my movement function

uneven mulch
#

How can i use the same button for different input options? Ex: Pressing R2 on ps4 controller shoots bullet 1 , but if player holds square first then presses R2 bullet 2 is fired. how can bullet 2 be fired with out firing bullet 1 as they both still use R2

I'm using the Input manager

mighty ivy
#

is there like a 'the way' to convert input from an axis from linear 0f- 1f to logarithmic?

#

so like half way would be 0.1 and not 0.5 but 0.9 would be similar?

austere grotto
#

if it is - shoot bullet 2, else shoot bullet 1

austere grotto
mighty ivy
#

that does look simple

carmine fjord
# hollow stream Don’t understand the new input system how do I make player movement?

https://www.youtube.com/watch?v=Yjee_e4fICc
you can also use this

YouTube
Code Monkey
How to use NEW Input System Package! (Unity Tutorial - Keyboard, M...

✅ Get the FULL course here at 80% OFF!! 🌍 https://unitycodemonkey.com/courseultimateoverview.php
👍 Learn how to make BETTER games FASTER by using all the Unity Tools and Features at your disposal!
👇
🌍 Get my Complete Courses! ✅ https://unitycodemonkey.com/courses
👍 Learn to make awesome games step-by-step from start to finish.
🎮 Get my Steam Gam...

▶ Play video
mighty ivy
#

i'll see how it handle negative values and have a play, thanks

untold moon
#

I guess this comes under input.

I have a very simple mechanic, There are 3 buttons, 1, 2, 3. If the player swipes from 1 > 2 (A Happens), 2 > 3 (B Happens), 1 > 2 > 3 (C Happens). What will be the best way to implement this?

ebon bronze
#

Any chance anyone can be my second pair of eyes? I am getting very jumpy and laggy rotations with this code and I am not sure why. For both axes, the rotation is very jumpy and laggy and overall not smooth at all. Not sure where my error is because this code worked for the old input systems mouse X and mouse Y deltas. Thanks for any help. Also, InputValue input returns the regular mouse delta from the new input manager

public void OnLookAction(InputValue input)
{
    var lookAction = input.Get<Vector2>();

    float deltaX = lookAction.x;
    float deltaY = lookAction.y;

    // checking if invert y is enabled and clamping the vertical rotation, this can be ignored
    var currentVerticalAngle = _cameraLookAtTarget.localRotation.eulerAngles.x;

    if (currentVerticalAngle > 180)
    {
        currentVerticalAngle = -(360 - currentVerticalAngle);
    }

    var invertVerticalFlag = _isInvertedY ? 1 : -1;

    Debug.Log(_cameraLookAtTarget.localRotation.eulerAngles);

    if (currentVerticalAngle >= _maximumVerticalAngle && deltaY > 0)
    {
        deltaY = 0;
    }
    if (currentVerticalAngle <= -_maximumVerticalAngle && deltaY < 0)
    {
        deltaY = 0;
    }

    // more relevant code starts here
    var verticalRotation = invertVerticalFlag * deltaY * _verticalRotationSpeed;
    var horizontalRotation = deltaX * _rotationSpeed;

    _VerticalRotation = verticalRotation;
    _HorizontalRotation = horizontalRotation;
}

private void LateUpdate()
{
    transform.Rotate(0, _HorizontalRotation * Time.deltaTime, 0);
    _cameraLookAtTarget.Rotate(_VerticalRotation * Time.deltaTime, 0, 0);
}
tame oracle
#

Hey guys, so I've been wondering about this for a while. Is there a way to make a UI button usable in conditionals?

for example if(UIButton.GetButtonDown)
or if(UiButton.GetButtonUp)

#

it would be really useful in terms of mobile input

#

as I am trying to move my game to be compatible for mobile

#

I'm thinking of using the Button.IsPressed boolean for this. Though I'm open for other ideas

#

Lol I just realized it was a protected boolean

#

welp

frosty raft
#

I'm trying to make the most basic keypress input using events
Is it normal that pressing the key once fires the method twice immediately, and then once when letting go?

#

Ah, it is normal

#

Quaint

untold moon
#

Look into Event Triggers

tame oracle
#

😅

#

I wanna be able to check UI Button input in conditionals

#

just like how you would with the keyboard

unreal crane
#

Could someone please tell me why we need a ReadValue() function to read the value?

#

Shouldn't the "Move" itself be a float already?

austere grotto
#

Check the docs and the generated code you're using.

arctic condor
#

does anyone know why this is happening?

unreal crane
chilly trench
signal bloom
#

is it possible with the new input system to do a click to move?

bronze kestrel
#

The only different code is getting the position of the mouse

#

which is Mouse.current.position.value I believe

trim hawk
#

I have a camera with a UI canvas rendering on it to a render texture at a fixed res (640x360) which I show on another camera with another UI canvas via a raw image which is scaled to the whole screen with point sampling to get me nicely scaled low res UI. My mouse over position and clicks all are scaled by the screen / texture factor IE at 1280x720 the mouse position is wrong by half, and the bottom left quarter of the screen is effectively controlling the whole screens worth of UI. This makes sense in a lot of ways. But how can I fix it?

I want to use the resolution of the UI render texture and UI canvas for mouse clicks etc. I have a Graphic Raycaster only on the UI canvas that is rendering to the render texture but it is still using the wrong mouse coordinates. It'd be nice if there was a tickbox in the canvas scaler or graphic raycaster for like "use these dimensions for mouse input" or something. Am I missing anythign that can easily fix this? If not is there somethign that can fix this in a difficult way, intercept and re-scale the mouse position before the canvas sees it? etc?

proven steppe
#

Do you guys take questions regarding the old input system? I have a function that calls Input.ResetInputAxis(). After calling this function I then start listening to input on the horizontal axis in update & debug the value of the horizontal axis if it is greater than 0. The value output isn't consistent - ranging from 0.15 all the way to 0.4. What could be causing the randomness in the acceleration speed of the horizontal axis input? Shouldn't it always begin at the same value orr how exactly does it work/what do I need to do to make that the case. Thanks

proven steppe
#

To put it more simply - this debug doesn't return consistent values

hollow stream
#

Getting expected Errors when trying to make Player movement script but it dosent show me where i got wrong when i dubble click it??

olive loom
#

What do i need to convert it to a InputActionReference?

austere grotto
tame oracle
#

How can we subscribe to an event before enabling the asset since OnEnable() is executed after Awake()?
With this script I can use the new input system but I don't know how.

austere grotto
#

doesn't have to be enabled to subscribe

#

the events just won't be fired until it is enabled

tame oracle
austere grotto
#

subscribing is like... leaving your phone number with someone and saying "call me when something happens"

#

firing the event is when something happens, and they call you

tame oracle
austere grotto
#

Writing in the log is what your event subscriber does when it gets the phone call.

tame oracle
olive loom
#

Is there no way to get the InputActionReference programatically?

tame oracle
#

Has anyone experienced lack of touch detection, through the usage of the Enhanced Touch Support, whenever the 'IL2CPP' scripting backend is used?

austere grotto
#

Generally if you're doing something programmatically you would go straight to an InputAction

olive loom
#

I have this population of actions into the UI

#

And in each card class i call the AssignAction method, calls another method for getting the key's readable string ```cs
private void SetBindingKey()
{
int bindingIndex = inputAction.GetBindingIndexForControl(inputAction.controls[0]);

    bindingNameText.text = InputControlPath.ToHumanReadableString(inputAction.bindings[bindingIndex].effectivePath, InputControlPath.HumanReadableStringOptions.OmitDevice);
}```
#

but for some reason along the way it errors out

#

@austere grotto any idea why this is happening? the action it errors out on is no different than the other last 4 that it checked....

austere grotto
olive loom
#

thats the thing, its inside the input system code

#

but by disabling code by code , i found out its the SetBindingKey method that ends up crashing it

#

aka the UI update one

austere grotto
olive loom
#
int bindingIndex = inputAction.GetBindingIndexForControl(inputAction.controls[0]);

        bindingNameText.text = InputControlPath.ToHumanReadableString(inputAction.bindings[bindingIndex].effectivePath, InputControlPath.HumanReadableStringOptions.OmitDevice);```
austere grotto
#

which line T_T

olive loom
#

err

#

im confused EyesShake

#

this?

austere grotto
#

yeah that

olive loom
#

ahh

#

122

austere grotto
#

InputKeyCard:51

#

looks like line 51

#

what's that

#

which line is that

olive loom
#

bindingNameText.text = InputControlPath.ToHumanReadableString(inputAction.bindings[bindingIndex].effectivePath, InputControlPath.HumanReadableStringOptions.OmitDevice);

austere grotto
#

so it seems like inputAction.bindings[bindingIndex] this is the problem

olive loom
#

i already said that is the code that breaks it 👀

#

how come though

austere grotto
#

bindingIndex is not within the array

olive loom
#

hmm

austere grotto
#

maybe debug what that index is

#

and how big the array is

#

it's probably returning -1 or something from GetBindingIndexForControl

olive loom
#

ok for some reason its -1 thonk

#

why the hell is it returning -1, its the literal same action than the previous one that returned just fine

austere grotto
#

The index into the action's binding array for the binding that control was resolved from or -1 if the control is not currently bound to the action.

#

So it seems the control is not currently bound to the action

olive loom
#

thats....weird

#

its the pickup one

#

both are exactly the same

#

is it because they share the same key or something?

#

ok i fixed it by getting the index by doing this
int bindingIndex = inputAction.GetBindingIndex(InputBinding.MaskByGroup("Keyboard&Mouse"));

olive loom
#

working with composite is an absolute pain....

hollow stream
#

Getting expected Errors when trying to make Player movement script but it dosent show me where i got wrong when i dubble click it??

austere grotto
olive loom
#

how do i pull the stuff inside of a composite? Both their name and key

#

i want to list them programatically

tame oracle
#

Is this possible?

austere grotto
#

isn't that just myVector.magnitude?

errant inlet
#

So I'm using WPF as an overlay on my Unity scene and my keyboard input isn't getting captured in the Unity scene after swapping to the new Input System.
Worked fine on the old system and mouse movement/click/scroll works as expected in the new system.
Also works fine in a standalone build
Any obvious things I'm missing?

tame oracle
tame oracle
errant inlet
#

It looks like the Unity scene is getting focus so that's not an issue.

proven steppe
austere grotto
#

it's framerate independent for a mouse

#

but the thing we're discussing, I think, is the "momentum"/"gravity" of GetAxis (the thing that's not present for GetAxisRaw), right?

#

If the axis is mapped to the mouse, the value is different and will not be in the range of -1...1. Instead it'll be the current mouse delta multiplied by the axis sensitivity. Typically a positive value means the mouse is moving right/down and a negative value means the mouse is moving left/up.

This is frame-rate independent; you do not need to be concerned about varying frame-rates when using this value.
^ The framerate independence thing is referring to the mouse thing. They put a paragraph break there for some reason so it may not seem obvious but that is the case

proven steppe
#

Oh that seems like some poor writing

#

Is there anything I can do to ensure consistent input across varying frame rates then?

austere grotto
proven steppe
#

That will ensure it's always consistent?

#

I'm using this value to assign velocity to an object, but the time it takes to reach a certain point varies because of varying input speed

#

Hopefully this fixes it

austere grotto
#

whatever is moving your object based on the velocity will factor in deltaTime itself

proven steppe
#

hmm then what could be causing the discrepancy in the distance it can cover within the same time frame?

austere grotto
proven steppe
#

I'll just add the velocity line to the isolated script I sent before

#

actually no

austere grotto
#

Why are you doing this whole ResetInputAxes thing and only reading input for one frame?

proven steppe
#

The player is kept suspended in the air until the first input

#

I then have them moving towards a wall

#

With a script on it that debugs the height the player hits the wall at

#

& then resets the player

#

And you can see by holding down D, the player doesn't reach the wall at the same point

austere grotto
#

Use Input.GetAxisRaw instead

#

GetAxis is never going to be consistent the way you want

#

alternatively, wait until the input is fully actuated (to 1) before starting

proven steppe
#

so the input smoothing for get axis can't be used for accurate physics?

austere grotto
#

no

#

do your own input smoothing in FixedUpdate

#

if you want

#

also Unity's physics engine isn't really deterministic

#

it's built for performance

proven steppe
#

bruh

#

aight thanks for the help

#

I guess I'll try building my own work around cos the engine can't handle consistently smoothing input

austere grotto
#

you're looking for input that's smoothed per fixed frame

#

so you'll have to do it yourself

bold matrix
#

I'm trying to set up WASD input handling for my project, and I'm running into an issue where if I hold down one of the keys (e.g. D), and then try to push a key that goes orthogonal to it (W or S), those events will not go through. This stops being the case if I additionally hold down the key that goes in the opposite direction of the first key (A). The behaviour that I expect and want is for all those events to go through, regardless of what other keys might be simultaneously pressed, so as to enable diagonal movement input. How do I achieve this?

#

Additional info: I'm using a custom behaviour script, that contains an InputActionMap that I've configured through the inspector.

austere grotto
bold matrix
#

I am using a composite binding

#

Can you tell me specifically what I should be changing?

austere grotto
bold matrix
#

That doesn't sound related to this. Like I said, the keys that block input are the orthogonal ones

sacred burrow
#

Hey, I'm trying to make a sprinting script using the new input system, how do i implement hold the button? do i need to make 2 actions? 1 for pressing the button and the other 1 to release? or is there a simpler way to implement hold key in the new input system?

austere grotto
#

but that's obviously not ideal
