Anyone know if I can change a shader setting in runtime on a tilemap?

#
gameObject.GetComponent<Renderer>().sharedMaterial.SetFloat("_YourParameter", someValue);

Something like this?

coral geyser
#

Anyone know any convenient ways to get the output of a shader graph (Processing a render texture as post-processing) to show up on the display instead of the output from a camera?

static cave
#

Guys, how do I use the roughtness map from a blender model when exporting it to unity?

eager folio
#

@static caveDepends on the shader you are using, but the built-in shaders mostly use smoothness(inverse of roughness) in the alpha channel of the metallic map.

static cave
#

so the only way is to bake manually the roughtness * -1 into the alpha, right?

#

im using URP lit

eager folio
#

not sure what other way you would want? I mean, you can do that or use a different shader with whatever inputs you prefer.

brittle temple
#

[newbie, creating an Unlit Graph]
I'm watching this tutorial and they create an Unlit Graph,

#

but, when i tried to do it in my Unity, it doesn't show 'Unlit Graph'

#

does anyone know how to get Unlit Graph, or do I have to use a similar one to that?

coral geyser
#

did you install URP asset

brittle temple
#

No. do we have to?

#

is that related to the templates you start with when starting a project?

coral geyser
#

You can install it after but it's a fair bit of a pain

#

if you've already got it up and dont' want to mess with that, let me find a tutorial for you

#

follow this boi

brittle temple
#

Alright, I'll check into this.
thanks

coral geyser
#

Np

#

now for my issue

#

one of these things is not like the other

#

🎵 only when the game is in play mode 🎵

#

got it nvm

sonic hawk
#

Hey everyone, found this super handy tutorial that does exactly what I would like (2.5d shadows), however I read the PBR Graph shader is no longer creatable. If this is the case, how am I to replicate the the PBR graph shader from the tutorial (I have 0 prior shader knowledge, I am just trying to follow the tutorial), or if this is not the case, is it possible to make a PBR graph in 2020.3. Thank you!

https://hananon.com/how-to-make-2d-sprite-cast-and-receive-shadow-in-3d-world-using-unity-shader-graph/

grizzled bolt
#

And some of the settings like transparency need to be enabled in Graph Settings in the new Graph Inspector window

sonic hawk
#

thanks! Will the rest of the steps be the same?

distant sleet
#

im working on a raymarching renderer using HLSL and I have quite a few doubts about graphical effects (ambient occlusion, emission etc) that I probably cant get a definitive answer for here

#

anyone know a good discord or forum or article on graphical programming?

grizzled bolt
sonic hawk
distant sleet
#

I might as well ask one of my doubts here in case anyone was worked with making renders from scratch

#

Im working on a raymarching renderer, and want to try some cool effects. Reflections were fairly easy but Id like to try emission.

grizzled bolt
distant sleet
#

I am able to somewhat achieve it by calculating the distance from each sphere to each emissive sphere, getting the inverse of the square of the distance and multiplying it witht he emissive and dot produc

distant sleet
distant sleet
#

does anyone know how Id achieve a more "glowing" effect like a lightbulb?

grizzled bolt
distant sleet
#

But this isnt using Unitys renderer

#

This is my own one, so I will look into post processing bloom

grizzled bolt
#

It's a generic concept
You may need to make your own bloom

distant sleet
#

but I was wondering if the actual initial render could handle that, but I will see

#

So for example a render of a lightbulb in

#

lets say blender

#

the "glowing" effect of the lightbulb is only bloom, right?

#

Ill look into it

#

thanks

grizzled bolt
distant sleet
#

Ah I see, its all post processing

#

I understand, thanks

#

I was trying to think of it from more of a real life perspective, as that gets the most photorealistic results

#

but Im guessing irl the glow on emissive objects is caused by dust particles or any other gas being lit up slightly by the surface

#

Which is too hard to exactly replicate, so post processing approximation with bloom

#

Yeah, that sounds like its the best course of action

grizzled bolt
#

Well, dust and fog can make things have a glare, but mostly the glow happens in our eyes, rather than the physical space

distant sleet
#

Yeah and that has to do with the lens according to wikipedia

#

So if there was a perfect lens pointed at a lightbulb

#

itd appear as a yellow surface without glow? interesting

grizzled bolt
#

So even in real life it's kind of a post process 😄

distant sleet
#

Yeah thats really interesting

#

I'd like to also try glass materials

#

I'm doing reflections rn by just bouncing along the normal

#

If I were to instead use the fact that IOR = sin i / sin r

grizzled bolt
#

I guess so
The light bouncing off the retina / light detecting surface and back again inside of the eye / camera can still contribute some glare even with a perfect lens

distant sleet
#

I think if I refract the light it may work

#

The problem is the way raymarching works is it moves a certain distance each iteration

#

and that distance decreases as you get closer to an object

#

so I think inside an object the raymarcher would refuse to move any more than the floating point min per iteration

#

so I'll try to tackle that. This is why raytracing is better than raymarching for spheres tho haha

#

Raymarching doesnt actually get the distance from the camera to the sphere as a vector

#

but as a float, so that means you cant really find the exact distance to each side of a sphere

#

Ahh yeah

#

an opengl tutorial shows that what Im doing is correct

#

emissive objects without bloom are just solid color

grizzled bolt
#

Indeed

#

Except for perhaps volumetric scattering but that usually comes in waay later ^^

distant sleet
#

I see

#

Yeah real life "bloom" is a combination of our eyes lens and volumetric scattering Id presume

grizzled bolt
#

Yes

distant sleet
#

Oh what the hell its just a blur?

grizzled bolt
#

Yes

distant sleet
#

Thats pretty simple lol

#

Well with raymarching I have the luxury of also obtaining the closest distance the ray hit to a shape

#

Im wondering if I could make a bloom through that

#

Let me try that real quick

grizzled bolt
#

The only important variable for bloom is the emission intensity of each pixel

distant sleet
#

In the reflection

#

It kind of works

#

But for some reason this banding is happening lol, I think its because Im only factoring the closest objects emission

#

Let me try looping through each object

#

Same result, hm

#

Somewhat

#

Definetly getting somewhere

#

For some reason despite this object having an emission of 0 its still causing bloom

#

Though it causes a really cool outline effect

#

Hell yeah

distant sleet
charred meteor
#

Hey folks, I have a question about shader properties (HLSL).

I have a shader that I am applying (via material) to multiple meshes in my game. I need to pass the dimensions of each mesh to the shader, but I am unsure the correct way to go about this.

Each mesh has different dimensions, but I was concerned that if I used the following method, the shader would execute using the dimensions of whichever script happened to execute last, rather than doing a unique pass for every mesh:
gameObject.GetComponent<Renderer>().sharedMaterial.SetFloat("_YourParameter", someValue);

Essentially what I would like to do is:

  • Run shader with dimensions of Mesh A
  • Run shader with dimensions of Mesh B
    ...
  • Run shader with dimensions of Mesh N

Is this possible?

#

Or do I just need to used .material rather than .sharedmaterial? 😂

tranquil bronze
#

is there any way of passing in a sampler into a function in hlsl

TEXTURE2D(_Tex);
SAMPLER(sampler_Tex);

void func(texture tex, sampler s)
{

}
#

something like this

distant sleet
#

are structs inside of a structuredbuffer readonly?

#
  for (int x = 0; x < numSpheres; x++)
    {
        _Objects[x].closestDist = 1.#INF;
    }```
#

I tried this code and it says

#

l-value specifies const object at kernel CSMain at Raymarcher.compute(215) (on d3d11)

#

Im guessing because its in CSMain, right

#

So I can only edit variables initialized in CSMain?

regal stag
distant sleet
#

I have a StructuredBuffer of objects in the scene

#

I need to store the list of the closest each of those objects has gotten to the camera ray

tranquil bronze
distant sleet
#

But because the size of thes tructuredbuffer is variable

#

idk what to do

regal stag
distant sleet
#

Thanks! But the problem is

#

because compute shaders do the pixels in parallel

#

I dont know if I can change the buffer in the csmain

#

As I doubt it can change a variable while another pixel si being processed

#

It no longer throws the error

#

But I think I have a logic issue

#

so my desired result isn't there, let me recheck my code

regal stag
distant sleet
#

Lol what

meager pelican
# static cave im using URP lit

not alpha. That's for color blending. Unless you want transparency using a roughness value. "Roughness/smoothness" is more about lighting calcs (the resulting color from light and albedo), not about how transparent it is.

meager pelican
distant sleet
#
  1. When lighting the object, loop through every object in the scene and check if they are emissive. If they are, find the dot product beween the object and light and multiply that by the emission and diffuse
#

That caused this

#

So the white sphere is lighting the black sphere

#

But it doesnt look very emissive

#

so the glow, in order to replicate volumetric bloom

#

I simply multiply the emission by the distance of the emissive surface to the power of -2

#

power of -2 due to the inverse square law, light falloff is proportional to the square of the distancew

distant sleet
#

so I willl try to get AO from that

dusk hatch
#

Hi,
in shader graph, there is a "blend" node, that offers similar blend modes like the ones in photoshop. I want to apply that to a texture on a canvas so that it blends with the colors behind it (the game view) is there an easy way to do this? right now I notice the blend node requires 2 inputs to blend. One of them being my texture, but how do I get it to blend with "whatever is behind it"?

distant sleet
#

What's the best way to store an iterable/collection of ints of an indefinete length in HLSL

#

That I can update in CSMain

#

Lets say the value of each int must be index * Result.x * Result.y

#

so it varies for each pixel

#

compute shader btw

meager pelican
# distant sleet I am able to somewhat achieve it by calculating the distance from each sphere to...

That's cool, and if it works, great.
What I'm confused about (not saying you're wrong, saying I'm unsure) is that since you are ray-tracing photon paths in your methodology, you should just "get" that info as you trace paths/bounces. So why would you have to add additional logic to trace all emissives? Light travels in straight lines (rays), so if a photon would come from an emissive object, it will be detected in your bounces. So eye->your-object->bounce->hits-emissive and adds color->bounce from that to another....to skybox.

distant sleet
#

What if the ray never comes into contact with the sphere and only goes near it?

#

In real life, objects dont really glow

#

They do for 2 reasons (I think correct me if I'm wrong) : The lenses of our eyes / a camera causing bloom

#

and light hitting the atmosphere and particles

#

But in my scene there is no atmosphere, its like a vacuum

#

So if a ray doesnt hit anything and only goes near an emissive, it doesnt have any bounces when in reality it'd be hitting dust particles in the atmosphere

#

Which is why fog causes lasers to be more visible for example

#

Bloom can be achieved with post processing which I may do later, as this effect is already quite intense

meager pelican
#

In real life, object don't glow, they put out photons (rays) and those dang things bounce all over the place!

But that's what you're simulating!

Think of ray-tracing as photon tracing if that helps. Imagine that one photon, doing it's thing, and hitting your eye, where the last thing it bounced off of was that pixel in question. Could be an "air" pixel near where a glowing object is. So there would be some radius of glow around the object somehow. Maybe you have to simulate that by checking all glowing sources. I don't know, that's what confuses me. Maybe you can "just" alter the bounce logic with random bounces or something instead of checking all objects. Or maybe it is faster to check all of them.

IDK, an interesting question. I'll dig a bit, I'm curious now.

distant sleet
#

Exactly, thats what I'm doing

#

Check all glowing sources, get the distance from that glowing source

#

And add color to that pixel!

#

Cause in real life, that light is bouncing off the air around the source

#

But this is a vacuum, I don't have billions or trillions of dust particles in my scene

#

But just assuming that there is a medium where light falls off at a specific amount, I can simulate how real glow looks

#

Random bounces aren't great because I'd rather simulate diffuse as a solid color randomly than random bounces like irl diffuse

distant sleet
#

Will that work? Yeah, probably to a similar extent

#

but then with multiply colors and emissive surfaces in small surfaces it doesnt look as good

#

Like a candle on a table

#

I'm still having the issue of getting the distance of the ray to each emissive surface

meager pelican
#

That's mixing techniques though. The thing is with an emissive blur pass, you're not really ray-tracing, that's for "normal" rendering.

distant sleet
#

But if I wanted to really replicate blur

meager pelican
distant sleet
#

No I dont have the issue of getting the distance

#

I have the distance

#

Idk how to store it lol

#

There are an indefinite number of emissive objects

#

And it differs for each pixel

distant sleet
distant sleet
meager pelican
distant sleet
#

Shader error in 'RayMarchingShader': race condition writing to shared resource detected, consider making this write conditional. at kernel CSMain at RayMarchingShader.compute(274) (on d3d11)

distant sleet
#

lol

#

As in, it can be 2 or 3 or 20

#

The actual emissive objects are stored in a compute buffer

#

as Im only changing them with the CPU

meager pelican
#

Oh, sorry. Misread.

distant sleet
#

but I cant do that for the GPU

#

so how do I store a number that differs for each pixel

#

And there are an indefinite number of thoise numbers? kinda stupid lol

meager pelican
#

The same way you do....get ready for it...a depth buffer.

distant sleet
#

But yeah thats the issue with gpu programming, its super optimied

distant sleet
meager pelican
#

You allocate a texture of the right size per pixel.

distant sleet
#

But that texture can only store 4 values per pixel

#

What if I have 10 light sources

distant sleet
meager pelican
#

JHCA

distant sleet
meager pelican
#

What do you want to store? Can you accumulate it/them?

distant sleet
#

Basically, in order to replicate dust particles in the air

#

the position of the visible dust particle

meager pelican
#

Jesus H. Christ Almighty [help us!] or some other exclamation. It's not really cool, but better than swearing outright.

distant sleet
#

Is just the closest distance the ray ever got to the emissive surface

distant sleet
distant sleet
#

There are 2 emissive surfaces

#

And this dot is a ray

#

The ray needs to get the closest distance it has ever gotten to the emissive surfaces

#

And store it

#

So to the white surface it got within 4 meters, black surface 3 meters lets say

#

This is unique for every ray

#

And the number of "closest distances" also varied

#

Right now I am just storing 1 single value

#

The closest distance to any shape in the scene

#

Thats how I got this pic

#

But the problem is if there are 2 light sources

#

this doesnt work

#

Or 1 light source 1 non light source

#

because the closest distance is to any object in the scene, not just to the light

#

So I need a C# list basically

#

But that isnt possible

meager pelican
#

Well, you can fix that latter by using an if.

distant sleet
#

At the very least the size of the "list" wont change

meager pelican
#

But for the idea in general

distant sleet
#

Where the closest distance is next to a non emissive source

#

dont add bloom

#

that causes this weird radius

#

of darkness

meager pelican
#

You can also build lists in shaders. But it's a PITA.

distant sleet
#

How?

#

At the very least the 1 thing is the list is of a definitive size that can be passed in by the CPU

#

Like _Objects.GetDimensions(x,y) x is the size of the list I need

meager pelican
#

How did I know that was the next post? lol.
OK, seems like I did something similar with layered transparency and accumulating a "list" of pixels, where if you exceeded a max (4?) then it just accumulated it, otherwise it added it to the list. It was probably 4 due to R, G, B, and A values in some texture.

#

Oy.

#

I wanted the top-most layers in the list for some damn reason 2 years ago.

#

I'm trying to remember...

#

lol

distant sleet
#

Im back sorry

meager pelican
#

Never apologize!

distant sleet
#

Ahh I see

distant sleet
#

Interesting, so its layered textures..?

#

I have a stupid solution to just add a limit to the light sources and making an array of 100 closest distances but nah

meager pelican
#

I think it had something to do with Order Independent Transparency (OIT).

distant sleet
#

I see

#

Interesting, I'll see if I can try something like that

#

Thank you so so much for your help

#

If there was some way to have a structuredbuffer that you could set inside the GPU thatd fix all my problems

#

but thats not how the GPU works lol

meager pelican
#

You have the idea, but I wish I had an easy answer. Maybe someone else will.

I still think it is worth investigating other techniques that are unique to ray-tracing paradigms. Like scattering methodologies, and see how they do that. Because I think you'll run into the same issues with things like AO, or smoke/fog, or other things in nature that you might wish to simulate.

#

So that randomness thing may come up in 10 different ways.

distant sleet
#

The way most raytracing does bloom is just blurs

meager pelican
#

Bah

distant sleet
#

This approach is the most similar to real life

#

As the dust particle that is most illumintated is the one most close to the emissive source

#

So Im basically saying well imagine theres a dust particle at that closest distance

#

This approach doesnt work for fog tho

#

I think for now Im just going to give up

#

and make an array of size 150 or so

meager pelican

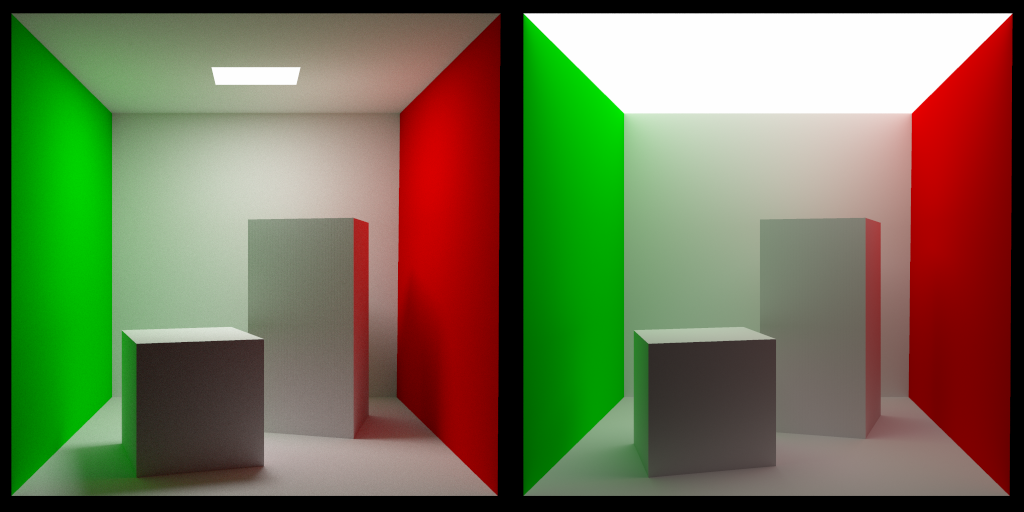

meager pelican
distant sleet
#

Yep

#

I can already achieve color bleed, but this will definetly help for soft shadows

#

Thanks

#

I can do color bleed if i just change one of the parameters in my material part of the struct

#

Right now the "reflectiveness" is a single float

#

Meaning when light bounces off a surface it loses a percentage of its total energy

#

if I change that to a floar3

#

I can make the light lose one color more than others

meager pelican
#

Yeah, it's usually the 3 values, due to that, that you are accumulating.

distant sleet
#

Yep

meager pelican
#

Because colors are absorbed.

distant sleet
#

Right now my renderer doesnt even have shadows lmao

#

Ill tackle that in a bit

#

Im interested in glass but due to the method Im using its kind of tricky

meager pelican
#

You're going to run into that randomness thing all over the place. Soft-shadows are interesting in ray-tracing.

distant sleet
#

Im using raymarching so I can define a lot more distance functions

#

But the problem is because raymarching does a step like approach it gets confused when inside objects

#

Meaning if I want to do refraction its annoying

#

I'd have to move 0.1 meters until the ray exits the object, but it has a chance of overshooting

#

Shouldnt be an issue if I move a very small amount thouigh

#

Same deal with raytracing

#

You need to move the ray slightly off the object when doing reflections

meager pelican
#

I seem to remember using SDF's and halving the distance moved until a certain error-level/nearness is achieved.

distant sleet
#

Yeah raymarching is like that except instead of halving the distance

#

you move the closest distance frm the ray to the scene

#

The thing is with raytracing to define the rays path you need to be able to get an objects position and a rays origin and direction

#

and get a Vector3 from that that is the intersection point

#

raymarching thats not the case

#

You jsut need to get the magnitude of said vector

meager pelican
#

I'm going to dig in later when I get some time. 😉
Enjoy for now. Let me know how it goes, eh?

distant sleet
#

Definetly, thanks

#

oh one thing about raymarching is

#

for raytracing you are limited which is why tris are used

#

meaning compelx volumetric shapes like fractals arent possible

#

but they are with raymarching

meager pelican
#

k

distant sleet
#

So you can experiment with pretty cool shapes

charred meteor
#

Does anyone know if it is possible to have two different game objects that share the same material have different values in their shader properties?

E.g if I had"CubeMaterial" which had a colour property, and the material was used by both CubeA and CubeB, would it be possible to have CubeA display as one colour and B as another simultaneously by setting the value of the property?

distant sleet
#

This worked but was so incredibly laggy

#

Less intense

meager pelican
#

The name is kind of bad, as it is really "instance property blocks" for a material.

normal spire
#

Hello, I've been researching a lot about adding tattoos to my character that change colour and emission.
I found this interesting post where you can literally use "shaders" to literally place the tattoo png ontop of the current mesh and thats it.
https://forum.unity.com/threads/texture-overlay-where-to-begin.141027/
Although I have no experience with shaders, I really need this to work soon, I appreciate any help I can get!

Unity Forum
texture overlay, where to begin?

I am getting a 3d model created for me, and i want a tattoo to appear on my character if the player choses to. How can I go about this, does this...

distant sleet
#

This is an issue

#

the black sphere is behind the blue ones glow

charred meteor
distant sleet
#

Cool they also reflect properly

#

the problem is now the box is a matte surface

#

Yet the reflections of the glow aren't diffuse

#

I guess it kind of makes sense as a specular

charred meteor
# meager pelican Check out per-instance properties (material property blocks). But be aware that...

Sorry to bug you again, I seem to be having an issue updating the value of my exposed property.

I defined and exposed a "color" property within my shader (TestColor), and am attempting to set this via script (with the property block). However, the value of that property is always set to the value defined by the editor inspector tool for the material, rather than the value that I define via script. Is there something specific I need to do to avoid this?

#

Shader:

    {
        _MainTex("Texture", 2D) = "" {}
        _Color2("TestColor", Color) = (1, 1, 1, 1)
    }```

Script:

```        if (propertyBlock == null)
        {
            propertyBlock = new MaterialPropertyBlock();
            _renderer = GetComponent<Renderer>();
        }

        propertyBlock.SetColor("TestColor", MaterialColor);
        _renderer.SetPropertyBlock(propertyBlock);```
#

Oh I think I may need to add [PerRendererData] to the property in the shader

regal stag
charred meteor
#

Aaaaah, thank you

#

Damn thats a hell of a gotcha, so I need to look up the symbol name of the property using quotations, not the tag defined with quotations 😂

#

Thats it working now, thanks @regal stag ❤️

meager pelican
charred meteor
#

Nice, I was wondering about that. Always suspicious when I see strings in a getter/setter

meager pelican
#

Right. It causes Unity to look it up each time, and is a waste of processing. They've probably improved the caching of it somehow, but still, it's best to use the ID# if you're not writing test code or just screwing around.

distant sleet
#

I'm kinda new to vector math so I have a doubt

#

if I had a vector N and vector A, where the angle between N and A is 60 degrees (so dot product is cos(60))

#

And I want to get vector B which is 180 degrees more to vector N than A, so 240 degrees between them

#

How would I obtain this vector

#

Should I make the vector the subject of the dot product formula?

meager pelican
#

Well, you're in luck if it is 180 degrees, because that's just the reverse direction vector. 😉

distant sleet
#

Oh well bad example then lol

#

Lets say 70 then

meager pelican
#

oh

distant sleet
#

Im doing refraction nowe

meager pelican
#

lol

distant sleet
#

so ior = sin i / sin r

#

So I gotta figure out how to translate the ray

#

I found an equation online to bounce the ray on the normal but idk how to do it for this equation

meager pelican
distant sleet
#

Tysm

#

I have a few brain cells to spare after trying to get emission to work

meager pelican
#

There's several types of formula in that post, not just matrix stuff.

distant sleet
#

lol we havent even learned matricies in school lemme see what else is nthere

meager pelican
#

The matrix stuff is 4D math. lol. Makes my head hurt, so I "just use them" mostly.

But you CAN construct such a matrix manually with just rotation in it, and then matrix-multiply. GPU's are built for matrix stuff.

distant sleet
#

Yeah

#

I guess I have to use "Rodrigues' rotation formula"

meager pelican
#

Maybe, or a matrix, Neo.

#

I mean, start with an identity matrix, and then put in the rotatoins. But if you have to convert to radians anyway, and still do sin/cos then IDK how much math is "costly" that way, vs the other way.

#

A case for bench-marking the results

#

You only have to "plug" in 3 values for the rotation...xyz.

#

Then mat-multiply.

#

I mean, somehow, Unity construct a transformation matrix with all three rotations (and transform/scale) and passes it for an object.

charred meteor
#

If I wanted to have a Vec2 as a shader property (e.g for coordinates), is it more common to have two float properties, or to use a vector property but disregard two of the contained floats? Or is there another property type that would let me store two floats?

distant sleet
#

I got the basics down but its not actually being rotated properly

#

just x += 0.1

#

i cant tell why this is happening though

#

the ray should pass through

meager pelican
distant sleet
#

for some reason

#

if I change the rays direction it sees the ball now

#

but that shouldnt be the case

#

it should be practically invisible if I dont apply a transformation to passing through rays

distant sleet
#

smh if shaders can send an image back to the cpu

#

why cant they send text

#

itd be a lot easier if I could print variables

charred meteor
midnight spade
#

Guys why are all of the shader tutorials online written in cg? I thought that we're supposed to use hlsl in urp

#

Am I missing something? I'm having a really hard time finding good ressources/documentation

dapper spade
#

in shader graph how do I find the depth of the current pixel of the camera

#

ik there SceneDepth

#

but I'm make a custom post processing shader

#

so I'm using a custom render pass

#

maybe I can set a texture2D paramter

#

from my custom render pass

#

but how do I get the depth from ScriptableRenderContext or RenderingData

distant sleet
#

WHAT THE HELL

#

HOW

#

Im so confused

timid shell
# dapper spade in shader graph how do I find the depth of the current pixel of the camera

You'd need to use an Overlay Camera. According to docs:
At the start of its render loop, an Overlay Camera receives a depth buffer containing depth data from the previous Cameras in the Camera Stack. You can choose this behavior using the Clear Depth property in the Overlay Camera Inspector.
Otherwise you'd need to figure out a way to render the scene depth to a texture and feed it to the next rendering pass.

distant sleet
#

This also is white

#

HOW

#

???????

regal stag
#

You probably need to write float3(0, 0, 1);

distant sleet
#

I need to sleep am I really that damn stupid

#

Bruh

#

thank you

#

this is why i need to sleep at normal times lmao

#

too much vector math

regal stag
#

To be fair, I'm surprised just (0, 0, 1) still actually compiles, I guess ignoring everything except the last value

distant sleet
#

Yeah exactly

#

so odd

#

Also

#

Can someone tell me the return values for sign()

#

Is it like 0 for negative 1 for positive or

regal stag
#

It returns -1 for negative values, 0 for zero and 1 for positive

distant sleet
#

Got it thanks

#

Huh I mean its kind of like refraction ig lol

distant sleet
#

i think the formula i got for vector rotation

#

i need to alter the normal axis

#

better

midnight spade
#

Wasted about an hour on it

#

Why is writing shaders so difficult?

distant sleet
distant sleet
midnight spade
#

I've been using shader graph for the last year and it's been so easy. Switched to writing shaders in code now to have more customizability and holy shit it's so hard 😢

#

I'm hoping it's worth the effort though

midnight spade
#

Say you want to use a version of the vertex color that has been modified by the vertex shader in your fragment shader

#

Can you still declare that color like so in the struct? float4 color : COLOR;

#

Or do you need to use some new semantic like float4 color : TEXCOORD1;

worldly steppe
#

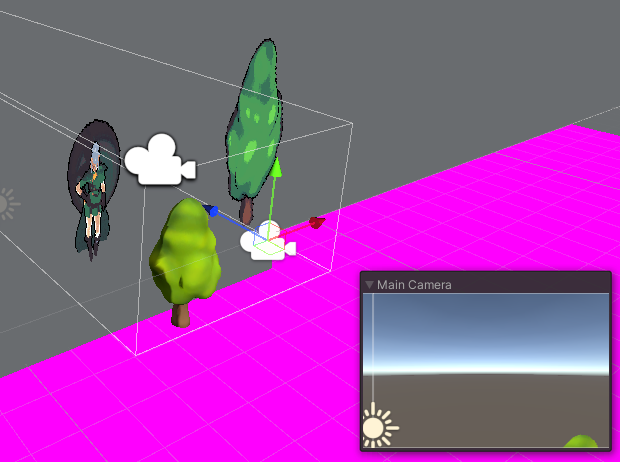

I was trying to follow this video & it seems the shadergraph version is incomplete compared to the one shown in the video which was using amplify, can anyone help me to achieve this kind of look? https://www.youtube.com/watch?v=iASMFba7GeI

YouTube
Pontus Karlsson
Fluffy stylized trees tutorial, using quadmesh-to-billboards shader...

Here's a tutorial describing the process of using a quadmesh-to-billboards approach for making foliage, and how you set up the content for it to work in your own projects.
This approach offers a streamlined way to make fluffy trees without too much of a complex setup. Once the shader is working, it can easily be applied to any mesh that is unwra...

▶ Play video
distant sleet
#

Finally

#

refractions and glass

distant sleet
#

Uhhh I think like this is too much

#

The fact that this bloom isnt post processing

#

makes the light blending work pretty well

misty vine
#

but do they emit light onto other objects in the scene? 🙂

meager pelican
meager pelican
# regal stag To be fair, I'm surprised just `(0, 0, 1)` still actually compiles, I guess igno...

OK.
In C and in Shader-C, the comma is an OPERATOR that separates expressions.
Parentheses is a grouping operator (order of operations).

So (0,0,1) evaluates to 1. A zero, then a zero, then a 1, so the result is a one after you're done evaluating the parens.
And then you assigned the resulting 1 to all components of the result, because the 1 propagates to all members.
Like saying float3 foo = 1;
You get a float3 of 1,1,1.

So it is valid syntax and the compiler cannot catch it.

#

So Cyan gave you the correct answer, you wanted to do float4(0,0,1,1);

#

Which is a "function call" (actually a statement of sorts, whatever they call that syntactically, perhaps a type converter).

#

I should mention that it isn't exactly ignoring the values...I mean if you did this
float3 foo = (bar++, 0, 1);
I assume that bar would be incremented, but foo would have a value of float3(1,1,1);

#

I haven't checked that though.

grand jolt
charred meteor
#

Hey folks, I have a question about fragment/pixel shaders.

Is there any way to have the shader affect pixels other than the one it is currently doing a pass on?

For example, if I had a simple 2x2 sprite, the shader would be run 4 times for each of the relevant screen pixels. Is there any way, during that execution to affect a pixel outside of those four?

trail geyser
#

Guys, can we expose something like this in the inspector using shader graph? a uniform property for texture and color (or tint color)

twin rose
#

Are GPU commands from the CPU put in a query (if not the immediate ones)? Specifically, I want to know if executing something like ComputeBuffer.SetCounterValue, or ComputeBuffer.CopyCount are going to force the CPU and GPU to sync, or if it's going to be put in a query of commands digested in the GPU's own clock cycle

meager pelican
#

I assume you mean queue. And usually they are queued up in sequence, IIUC.

meager pelican
# charred meteor Hey folks, I have a question about fragment/pixel shaders. Is there any way to ...

Not DIRECTLY, no. You cannot guarantee that an adjacent pixel has been process yet, or is waiting to be processed. So its value is undetermined anyway.

Indirectly, you can use multiple passes to do things that could "know" about adjacent areas at some point-in-time.

There's also group shared memory that allows a thread group to communicate between cores, but that probably won't buy you much since all cores share the same program counter and execute the program in lock-step.

#

Depends on what you want to do.

storm pine
nimble solstice
#

Hi, so there are soft particles in unity from what I understand. Is it possible to apply similar softness to regular meshes as well?

twin rose
# meager pelican I assume you mean queue. And usually they are queued up in sequence, IIUC.

Oh my bad yeah, Queues, work got my mind full of queries lol.

I got a very specific implementation question now, just want your opinion. It's regarding the GPU Tilt Brush thing.

I'm looking at two options. I can make stroke production as parallel as possible by allowing each thread-stroke to evaluate frustrum culling and generate + add points to an AppendBuffer as necessary. Only thread locking would be on atomic append commands of resulting vertices.

Other option is to try to squeeze more culling out by Z-sorting. This would be frustrum culling per thread-stroke, then Z-sorting the results (forcing it into one GPU thread), then generating meshes from that result

#

Actually, if I'm only doing 1 draw call, does Z-sorting the vertices help at all?
Note: Opaque rendering only (with cutout) and fragment function might be expensive bc cell shading

meager pelican
#

IDK, you're getting beyond my imagination when I haven't seen any of the code and have to make 1000 assumptions.

But if you have your own depth buffer, you can ignore pixels. But the thing is, the cores operate in lock step, as I just mentioned to another person above.

So all cores in a group are executing the same instructions at the same time. So in the case of an "if" type of logic, say for a z-text you're doing manually in a compute shader, unless all of the cores can skip over a conditional area, many are just "idle" (masked off as inoperative) during those cycles, while the ones that the condition apply to are executing.

That's why you'll see that "ifs are bad in shaders" statement so often, because you usually end up executing BOTH sides of the condition time-wise, but not logic wise.

So in the end, if you manually have to check a depth buffer, or do culling, it's "all on you".

IIUC.

nimble solstice
meager pelican
#

All depends on how often ALL cores can execute the same side of the if-branch.

twin rose
#

What I'm getting is that the answer is in testing, that there isn't any hard line or principle/ theoretical system that makes it go one way or the other

meager pelican
#

What you're getting is that if there are any, I don't understand your use case or simply don't know them. 😉

#

But yes, always test and bench mark.

charred meteor
# meager pelican Not DIRECTLY, no. You cannot guarantee that an adjacent pixel has been process ...

Thanks for the reply!

What I'm trying to do (Overall) is write a shader to attempt to reduce sub-pixel rendering jitter when my sprites are positioned in non pixel-perfect positions. I have a shader that is able to do this but had some limitations when dealing with texels that were at the "edges" of the overall texture.

Anyway, what I intend to do (at the edges)is to interpolate between the texel colour and a zero-alpha copy of the texel colour, using the position in the texel as the t-value.

So, this all works fine and gives the effect of the pixel fading in/out on the left and top edges, but does not work correctly on the right and bottom edges.

The reason for the error (I believe) is because a fragment is only processed if the "origin" (i.e top left) of the texel is deemed to be within the fragment. This means that (for example) on the right hand side, as a texel moves from left to right, although the left hand edge of the texel would occupy, the origin would not. This means its impossible to correctly do the "fade in" because the pixels requiring the fade are never even processed!

Apologies as its 1.30am here so this explaination probably isn't the best.

Tomorrow Im going to attempt to fix this by doing multiple passes. The first pass will be for the Left and Top edges, and will work as it currently does, the subsequent passes (Not sure how many I need yet, 1 or 2) will offset the mesh in the vertex shader by a distance equal to one texel in the X and Y positions, and then execute my edge-alpha logic in the fragment shader for the Right and Bottom edges.

Im hoping that this will give the result I desire, and will allow me to do the necessary rendering of the pixels outside of the originally positioned mesh's bounds

meager pelican
#

Interesting, and I'm not sure I've absorbed all that, but one thought is that you may wish to look at the various anti-aliasing methods for how to deal with edge cases and adjacent pixels.

charred meteor
#

Good suggestion, ill look into that too if this doesn;t work

twin rose
#

One more question. Are depth-sorting optimizations restricted on a per-mesh granularity? (Nevermind, it looks like depth-sorting is done in the fragment stage, but the mesh is drawn in vertex order so overdraw is reduced if triangles are in order of depth)

charred meteor
#

To try and super-simplify my issue, if we think about a 1x1 texture moving through the screen from left to right:

It is able to be at any floating point position, but can only be rendered by a single pixel. What I would like to do is render it in all pixels that it theoretically occupies, but with an alpha value that directly corresponds to how much of the pixel it is occupying.

E.g if it lines up perfectly, render it with alpha 1. However if it is 50% in one pixel and 50% in the subsequent, both pixels should render with an alpha of 0.5

Hopefully that makes sense.

The problem is that I can only do the rendering in one of the two pixels, because although theoretically it exists in both, the fragment shader is only executed for one of them. Whichever the "origin" of the texel resides in (Which I believe is the "top left" corner of the texel)

So, if you were to execute what I described above, what you would see as the texture moved from left to right through the game world would be a pixel with full opacity gradually fading out to fully transparent, before another fully opaque pixel appeared in the adjacent position

#

So my thinking is that if I do a second pass and translate my verticies by 1 texels worth of distance, I could run similar fading code on the adjacent pixels which should let me do what I want to

distant sleet
#

It's not using unity renderer BTW I made my own so

#

When I was lighting all objects I did a for loop for all emissive objects

brittle temple
#

does albedo have a different name in shader graph?

#

here, theres a thing called 'Albedo'
(from a youtube video, probably a older version of unity)

#

then on mines,

vocal narwhal
meager pelican
# charred meteor To try and super-simplify my issue, if we think about a 1x1 texture moving throu...

Since I'm not sure what you're doing exactly (but I get your point) I'm not sure how to respond.

Let me ask: Are you concerned about the transparency of the pixels that you sample from a texture, or the underlying color you're blending with?

Because from the example cited, you can "just" sample the texture with slightly different UV offsets to see what the "next pixel" will receive. You may need to know things like the aspect ratio you're rendering into.

You could also oversize your mesh slightly in the screen space in the vertex stage to cover the additional pixels you need to get your right/bottom sides of your texture, but you'd have to account for that in the UV calcs.

There's other things to research, like super-sampling, whereby you actually sample/render at 2x resolution and then later resolve down to the desired resolution, but that's 4x more expensive and has an extra resolve pass.

Then there's aligning the pixels to proper pixel centers in the vertex stage so that you have fewer problems to begin with. Not often done in 3D due to depth variation, but I think it is more common in 2D, and there's even a "pixel perfect" camera in Unity to do that.

Just some thoughts. Again.

What is it that you're doing with this texture? Are you 2D or 3D?

lunar grove
#

i'm trying to make a little outline shader on top of the another material but i don't know how to make it "transparent" outside the borders so that the other material shows and doesn't get colored
https://gdl.space/umogecopes.cs

meager pelican
lunar grove
#

can you tell me if it is not a problem that i'm doing this as a Surface Shader?

meager pelican
#

Maybe it is just too early for me. lol

#

Need caffeine.

#

Perhaps you're looking to clip transparent pixels...alpha cutoff?

fervent flare
#

Can anyone help me out with this Custom Shadergraph Function node?
I don't know why it's giving me this error:

Shader error in 'hidden/preview/MainLightCustomFunction_35d3009fba7948dc84710fa2acca7076': Invalid conditional expression. at Assets/Shaders/Lighting.hlsl(2)

#

^ the custom functions hlsl file in question

lunar grove
fervent flare
#

I mean line (2) is empty, there's no conditional expression on it 🥲

meager pelican
#

Lighting.hlsl is probably an include file....

meager pelican
lunar grove
#

if you look at my code: https://gdl.space/umogecopes.cs
for some reason when i add the Outline material using the shader in the code above
it adds a color on top of the sword's base texture which smth that i want to avoid

regal stag
meager pelican
lunar grove
#

yeah, i know

lunar grove
meager pelican
#

Well, I didn't write the code and I'm not loading it in to test, so this is a guess. I would have made _Hit a bool.

But I'd guess that if you have a "hit", then it is an outline, otherwise it isn't.
So near the end, you can do a discard
if (! _Hit) discard;
The code you showed doesn't even use the _Hit variable, it just calcs it. So maybe there's some code missing?
So like starting on line 75....

lunar grove
#

i see

#

i wanted to use the Hit but, it seems i will have to change _Hit value from C# script

meager pelican
#

No, that won't work either. After re-reading, hit always ends up being -1.

lunar grove
#

yeah, but i'm supposed to change after reading it

meager pelican
#

Just check the fresnel value and if it is less than some threshold, clip the pixel or zero alpha.

lunar grove
#

yeah, i'll do so

#

thx @meager pelican

meager pelican
#

Like around where line 69 is now.

lunar grove
#

Ok

meager pelican
#

Oh, and I see it is in the opaque queue, so alpha zero won't work for you.

#

I suppose you could try NOT using two materials.
drawing it once is better anyway. (Early for me here, where is my caffeine? lol)

low kettle
#

so i was wondering if there was a way to have global gradients because in the documentation it has shader.setglobalcolor but no option for a gradient?

meager pelican
#

Not that I know of. Gradient isn't a native data type in shaders. So how could it?

But you could do several things.
One would be to use an include file(s) to have your shaders calc a common gradient using a function and some variables that are global.

Another would be to us a texture2D to hold the gradient computed in C# side at startup, and then just passed to the shaders and sampled using UV.x as the 0 to 1 value.

#

Another way might be to pass some form of structured buffer or CBuffer data as the variables to the function calc.

#

Basically, "Gradient" is a calc, not a data type/value. And there's different ways to make them/calc them.

slim steppe
#

Hi my shader should be transparent but isnt

#

im setting the transperency like this:

#
Tags {"RenderType"="Transparent"}

...

col.a = _Debug;

...
grand jolt
#

Hi I have a problem to create a shader graph in unity when I create a custom function an reference my script to it I got a ‚uncleared identifier‘ ‚inverse lerp‘

#


#

Script

const static int maxLayerCount = 8;
const static float epsilon = 1E-4;

int layerCount;
float3 baseColours[maxLayerCount];
float baseStartHeights[maxLayerCount];
float baseBlends[maxLayerCount];
float baseColourStrength[maxLayerCount];
float baseTextureScales[maxLayerCount];

float3 triplanar(float3 worldPos, float scale, float3 blendAxes, Texture2DArray textures, SamplerState ss, int textureIndex) {
    float3 scaledWorldPos = worldPos / scale;
    float3 xProjection = SAMPLE_TEXTURE2D_ARRAY(textures, ss, float2(scaledWorldPos.y, scaledWorldPos.z), textureIndex) * blendAxes.x;
    float3 yProjection = SAMPLE_TEXTURE2D_ARRAY(textures, ss, float2(scaledWorldPos.x, scaledWorldPos.z), textureIndex) * blendAxes.y;
    float3 zProjection = SAMPLE_TEXTURE2D_ARRAY(textures, ss, float2(scaledWorldPos.x, scaledWorldPos.y), textureIndex) * blendAxes.z;
    return xProjection + yProjection + zProjection;
}

void layer_terrain_float(float3 worldPos, float heightPercent, float3 worldNormal, Texture2DArray textures, SamplerState ss, int layerCount, out float3 albedo) {
    float3 blendAxes = abs(worldNormal);
    blendAxes /= blendAxes.x + blendAxes.y + blendAxes.z;

    albedo = 0.0f;

    for (int i = 0; i < layerCount; i ++) {
        float drawStrength = inverseLerp(-baseBlends[i]/2 - epsilon, baseBlends[i]/2, heightPercent - baseStartHeights[i]);

        float3 baseColour = baseColours[i] * baseColourStrength[i];
        float3 textureColour = triplanar(worldPos, baseTextureScales[i], blendAxes, textures, ss, i) * (1-baseColourStrength[i]);

        albedo = albedo * (1-drawStrength) + (baseColour+textureColour) * drawStrength;
    }
} ```
Please Ping me
regal stag
slim steppe
#

Oh, I didnt know that even existed. Thanks!

regal stag
grand jolt
regal stag
#

@slim steppe You should also specify "Queue"="Transparent" in the tags too, to move the shader into the transparent queue

low kettle
slim steppe
molten jasper
#

As I understand it, Vector 2 is a float2

#

I've supplied the correct types as far as I can tell

regal stag
#

@molten jasper Shadergraph uses the newer DX10+ hlsl syntax with separate textures (e.g. Texture2D) and samplers (SamplerState) (texture.Sample(sampler, uv)) rather than DX9 sampler2D objects (used by tex2D function).

To sample a texture in a custom function you should use the ShaderLibrary macros, SAMPLE_TEXTURE2D(texture, sampler, uv2);. You'll need to pass in a SamplerState too as another input and connect a Sampler State node to it. Or alternatively, use a Sample Texture 2D node and use it's RGBA output with a Vector4 input instead of providing the Texture2D and uv.

Also of note, if you upgrade to SG v10.3+ the texture types were swapped out for structs containing both and can be accessed via texture.samplerstate so you would then be able to use SAMPLE_TEXTURE2D(SandTex, SandTex.sampler, uv);
(Bit more info on those v10.3+ changes here if interested : https://www.cyanilux.com/tutorials/intro-to-shader-graph/#better-texture-data-types)

molten jasper
#

Ah I see, tyvm

#

There isn't; by chance, a version that uses GL 3?

regal stag
#

It should be cross-compiled, but still requires the same HLSL syntax. Using the macros helps make sure it works in all targets.

grand jolt
kind zinc
#

If i'm using a shader with a texture array, is it common practice to supply the array-index by uv.w (and thus adding z coordinates to the mesh's uvs)?

#

(I want different meshs to be able to use the same material, but different textures, to save draw calls)

twin rose
#

Anyone know why the normals of two shaded, questionably identical meshes look different? The one on the right is from a MeshRenderer, the left is with Graphics.DrawProceduralInstancedIndirect

I checked the normalTS generated before going into the Phong function and they look identical

royal girder
#

hello

vernal island
#

hello. which shader to use when i want to change color of every vertices by slider/editor (for example). Compute shader is fastest right?

charred meteor
# meager pelican Since I'm not sure what you're doing exactly (but I get your point) I'm not sure...

Sorry for the late reply, I've been away today.

Let me ask: Are you concerned about the transparency of the pixels that you sample from a texture, or the underlying color you're blending with?

I'm not sure I entirely understand the question, but I'll give answering a go:
All the pixels in my texture should be opaque, so transparency in the source texture is not a concern (Aside: There are transparent pixels in the texture, but that's fine. They're not really relevant to the issue at hand). Nor am I particularly concerned with the underlying blend colour.

#

To try and describe my issue more clearly, lets presume I have a 4x1 (WxH) sprite, and for simplicity's sake, lets presume that 1 Unity unity corresponds to 1 screen pixel, and that also corresponds to 1 texel. (And lets also disregard the Y axis for now, again, just for simplicity)

If I positioned my sprite at position (0) in Unity, this would line up perfectly with screen pixels, and I would have screen pixels 0->3 rendering my sprite, with pixels 4+ rendering whatever the default background it.

If I then re-positioned my sprite at position (0.25), in the game-world my sprite would occupy a space of four units, ranging from 0.25->3.25, however (as I'm sure you are aware) it would not be rendered as such on the screen, and you can't "fractionally render" a pixel. In this instance what would likely be rendered is something visually similar (if not identical) to the first example, with the sprite being rendered in pixels 0->3

Now, what I have decided that I want to do when this situation arises is (using the above example as reference):

  • Render Pixel 0 with the colour of Texel 0, but reduce the alpha to 0.75 to accommodate for the (0.25) "offset" from the origin of the pixel (Which I believe to be the left-hand edge of the pixel)
  • Render Pixels 1,2 and 3 with the colour of Texels 1,2 and 3 respectively, and do no alpha manipulation
  • Render an additional Pixel 4 using the colour of Texel 3, but redcue the alpha to 0.25 to accommodate for the offset.

This would mean that my sprite is now rendered across 5 pixels as opposed to the 4 that it "should" be rendered in, however the increasing/decreasing transparency on the edges should help to soften this.

So, the problem that I'm encountering is that when set up the above scenario, the fragment shader does not activate for pixel 4, as (And this is an assumption/deduction based on my testing) the pixel is not deemed to be "occupied" until the left hand edge of the texel meets the left hand edge of the pixel.

#

Because of this, I need to find a way to gain access to "Pixel 4" (Or obviously, the equivalent for my actual project). I thought about doing a separate pass with offset UVs, but this breaks batching so I can't do that.

In regards to what you suggested about reading the "next" UV, I'm not sure if that would work (Though correct me if I'm wrong), as in the example, the next "UV" doesn't exist on the texture. I'm not sure how that would be handled. Perhaps differently depending on whether the texture is set to wrap/clamp etc? Regardless, its probably not a wise solution for me as the sprites in question will be on atlases, and so reading the UVs beyond their intended values may result in me sampling another (potentially entirely unrelated) sprite

#

So I'm interested in Scaling the vertexes now. If I could scale it them to the degree that they occupied an additional pixel's worth of space on the X and Y axis' that would probably get me access, but I'm not entirely sure how I would go about re-scaling the UVs to ensure that I wasn't drawing my sprite any larger than intended

#

But is it atually just something really simple, like "If I scale the verts up by 10%, scale the UVs down by 10%"? 😛

Edit:
I've figured out a way to do it, I think I'll take this approach and see where I get with it, thanks very much for the suggestion!

midnight spade
#

Hey guys, me again. I've been using vertex and fragment shaders so far but now I want to add lighting and shadows. Am I better off using a surface shader or can this be done easy enough with vertex+fragment shaders?

#

All of the tutorials online seem to show how to add lighting from a single light source that you have to define within the shader. I imagine that this would get complicated to do from scratch if I add many light sources.

stone night
#

Compute shaders:
I'm working on a pass in my custom raytracing setup to allow tonemapping. There are 3 stages to it that need to be executed in serial. Building a histogram, calculating the average, and applying the expected exposure.

I set these up as 3 separate kernels for each of the steps, and on the CPU dispatch them back to back to get it going.

It seems data is not transferring between these kernels however (uniforms and the like), and some things which have defaults are even being set to zero in different kernels instead of the default values.

For instance I have an exposure which is calculated in stage 2, and used in stage 3 to apply to everything. Simply setting the exposure to 1 in stage 2 does not actually make it to stage 3, if I set it in stage 3 it works perfectly fine.

Any ideas?

meager pelican
# midnight spade Hey guys, me again. I've been using vertex and fragment shaders so far but now I...

Surface shaders basically exist to do things like lighting for you. They have some limits, but if your shader is relatively simple, I'd try the surface shader first, it will generate all the required lighting passes and code. 🙂

You CAN do it manually though. And in fact you could use a basic surface shader, then edit the output to get a vert/frag, since shaderlab surface shaders are basically code-generators for making a vert/frag. It has a ton of "ugly" variations in it, and you may want to clean up some of the generated code, but that's an option. There's other options in many tutorials online too.

But if you can get away with it, just use a surface shader. 2-cents.

meager pelican
stone night
#

The strange thing is that I am used to having a compute shader with a single kernel, nearly everything persists.

#

Things I don't think persist are the ones I set every frame since they can change anyways, so I don't know if they do or don't XD

meager pelican
#

Well, as you've stated, they don't survive between kernel invocations, so some data storage will be needed if it cannot be set/passed directly before dispatch.

stone night
#

Hmm... Alright

meager pelican
#

I think variables are set per kernel, granularity anyway, aren't they?

#

Or are you changing some variable in the kernel, and expecting to to persist?

stone night
#

I have calculation of values in one kernel, average in second, usage in third. First and third are full image processes, second is a single thread adding an array and dividing it once.

#

They are required to run serial due to the nature of the process

meager pelican
#

You need a data buffer for that.
But the ComputeShader.setWhatever will create a CONSTANT buffer, but it will have the same values for all kernels.

#

Per that link above.

stone night
#

So I would need a buffer for the array, but what about a single float I also need to persist between 2-3?

meager pelican
#

If it's not set in C# via a constant buffer, stuff it into some RWdata buffer, since it is set on the GPU side.

IDK if you can use some shader global data somehow, because I'm stupid. I know it has thread local data. But I can't think of any RW global data (constants, sure).

#

So if I were you, I'd create a "Persistent data" struct, and put it in a RWStructuredBuffer with 1 record if that's all you need. And make sure it is set for each kernel invocation if you have to.

#

But I'm not 100% on any of this, obviously.

stone night
#

Everything was fine when I tried to write a raytracer in compute, reading from a buffer, and writing to single pixels... Then I tried to make it look nicer XD

meager pelican
#

Yep. lol

stone night
#

Introducing: Spatial filtering and tone mapping!

meager pelican
#

Sounds cool 🙂

stone night
#

It's a pain in the ass XD

meager pelican
#

Most cool stuff is.

#

😉

stone night
#

But, looks pretty, so far XD

meager pelican
#

Minecraft style!

#

(Voxel)

stone night
#

Warning: 8k screenshot inbound

#

Used to have transparent leaves, then I realized raytracing triangles is a pain, and going through the leaves and hitting on (what on the outside) is an opaque pixel, caused black pixels in my world:

meager pelican
#

BTW, SetBuffer needs a kernel index. 😉
This makes sense, since all kernels may not need to use that buffer.

stone night
#

Alright, I'll keep that in bind

meager pelican
stone night
#

I have a.... 1.2gb buffer on the GPU, just that compute shader has 1 kernel XD

meager pelican
#

Nice shadows. Reflections too? Or not (yet)?

stone night
#

No reflections yet, everything is considered perfectly rough.

molten jasper
#

In general, when working with view direction in shaders, how do I prevent this artefact?

molten jasper
stone night
#

We call them Bloxels in the voxel community

grand jolt
#

how do i make a fade in and out shader like the TARDIS dematerializing?

meager pelican
#

lol

meager pelican
stone night
#

God damn it bot

meager pelican
#

LOL

stone night
#

FUCK

#

dg9UDSpx For the voxel community, great people, great projects, if you are interested at all.

meager pelican
#

But the shader should just get passed the alpha IMO.

#

Then you can do whatever you want.

grand jolt
meager pelican
stone night
#

Bottom of server list > Add a Server > Join A Server > Paste Code
Since this server blocks Discord invites...

meager pelican
#

thx

twin rose
#

Got another compute shader question. In my setup, I assign a section of a compute buffer for each thread to work with.
Ideally the buffer is big enough so every thread gets their own sections, but what if I can't guarantee that all the space is available...
What I now know is that the threads of groups execute in lockstep, but groups can execute whenever they want? As a group is finished, I don't need those sections reserved any more, which means I can let another group use that whole section.
What I'd like to know is, what does execution look like at the group level? Can one finish and others not run yet? Or do they all generally start together but end differently?

molten jasper
midnight spade
#

Thanks

#

I'm wondering if I'll run into limitations with surface shaders like I did with shader graph. I guess it all depends on how challenging lighting is without it

ashen elm
#

Hey, is it possible to have another object as a position reference in shadergraph?

tranquil bronze
#

How do you use a glossiness / roughness map in a shader

#
float3 lightReflected = reflect(-light.direction, normal);
                float3 viewDir = normalize(_WorldSpaceCameraPos.xyz - position);
                float4 specular = pow(saturate(dot(lightReflected, viewDir)), 10);

                specular = float4(specular * light.color, 1);

I have the specular shading but I only want it to be applied based on the glossiness map, how would i do that?

mental bone
#

Sample gloss map, mul spec value by sample

meager pelican
# twin rose Got another compute shader question. In my setup, I assign a section of a comput...

Group execution is a bit more complicated than just all or none.

If the group is waiting for a result, the cores can run another group's data for a while, IIUC. So they don't "suspend" exactly if they don't have to. You don't want a GPU to stall. You want it to keep working.

So if the threads in a group are waiting for, say, a texture read which can be Sloooow....they'll go off and do some other stuff....and then come back later.

I think. That's what I think I'm seeing in the tools.
So you can't really guarantee that no other group is running, for your use-case. Because it might be, or will be, and then it will come back to the current group again.

alpine forum
#

hey everyone idk if i should ask this here but whats the matter here do i have to assign the particle system to a layer or something?

#

its like cut out if i look at it from an angle

distant sleet
#

quick question, does a compute shader return float values for textures

#

probably and if so do RenderTextures have floats for rgba or ints from 0 to 255

#

nvm I saw RenderTextureFormat

charred meteor
#

Heyo, just a quick question about efficiency. How bad is doing divisions in shaders? I know that in general we're supposed to avoid divisions wherever possible in regular coding, and I assume the same is true for shaders, however I was wondering if in a practical sense its fairly negligible, or is it going to invoke some nasty performance hit?

agile smelt
twin rose
#

You don't need a shader for that, have your sprite as a mask and add a rest behind it that changes height

open quarry
#

are integrals viable in shadergraph?

sturdy otter
#

GetComponent<MeshRenderer>().materials[0].SetFloat("__clip", 1f);

#

this is not working

grand jolt
#

Can anyone help me? I use Visual Studio for my shaders, yet it indents weirdly. Any idea why?

distant sleet
#

Hey I dont know if I can get an answer for this here but

#

If anyone has worked with sample based renderers, raymarching or raytracing or anything

#

you know that there are artifacts that fade over samples for the first few

#

like this

#

But I have a few artifacts that take minutes of sampling to go away

#

Does anyone know why these white dots form when sampling? and if theres any way to get rid of them

grand jolt
distant sleet
#

Yeah exactly

#

The original grain is fine as it dissapears within second

#

sbut those white grains are really annoying

#

Im looking into denoising techniques

#

I can do stuff like blur areas of homogenous color such as the background plane

grand jolt
#

anyways i was wondering where i post for help with the particle system

distant sleet
#

Woah

#

because of the noise

#

it can look pretty cool at times

grand jolt
distant sleet
#

i can also obtain a depth map

#

so maybe i can do some denoising using that

shadow locust
#

There are many "denoising" techniques around - one of which is just moar samples

distant sleet
#

Yeah true true

#

Alright the thing is this isnt raytracing its raymarching which is just that but you dont get the exact interception point just an estimate

#

so thank god its an issue with both of them and not just a niche problem with raymarching

#

so i can probably find some sources on it

#

Lots of places mention ai denoising but like no lol

lean lotus
#

Is there a place that tells me what kind of code to change, based on what Nvidia Nsight gpu trace says? I dont really know how to interpret what im lookin at for it, but im desperately trying to get greater performance out of a compute shader but idk what to do from here
Looking at overall stats, greatest unit throughput is SM at 52%, with L1 at 52% behind it, but idk what to do about that
In gpu trace analysis, top thing is CS warp launch stalled register allocation at 40%, but I also dont know what to do about that
any tips or pointers with this?

meager pelican
#

OK, I can't tell much from that, and I'm not an expert anyway. Besides, I use AMD. lol.

So several grains of salt, OK?

Alright, so it's stalled, that sucks. It's waiting on some resource or something, and it's stalled. Depends on what you're reading/writing, and HOW.

Also, your post mentions register allocation. So if you're vectorizing a lot of operations, maybe there's some you can try NOT vectorizing. (although that sounds like a bad idea) or re-using vector variables somehow (the optimizer should be smart, but...).

Or the other way around, make sure you're vectorizing operations if you're not doing it now. Try to free up registers (variables will be assigned to them for calcs).

Also how are you dispatching it and what are the numthreads?

#

@lean lotus

lean lotus
#

numthreads is 8, 8, 1, and what do you mean by how am I dispatching?
also throwing the compute shader into shaderplayground tells me the maximum number of VGPR used is 115
also im not sure what/how to free up different registers in code

meager pelican
#

You're in full "black arts" territory on this stuff. Optimization of that stuff is tricky.

Dispatching is how you call the kernel from C#. 8,8,1 is part of that, so that's 1/2 the info.

#

115! wow. Sounds high to me.

#

Let me look up shaderplayground's stats.

meager pelican
lean lotus
#

hheeckkk
im not sure how to apply this to my raytracing compute shader heh

brittle owl
meager pelican
#

I don't mean for this to sound flip, just literal.....but if you're ray tracing, why worry too much? It's not designed to be realtime anyway.

lean lotus
#

yeah ik but im trying to make a realtime one

grand jolt
#

how do i render a camera output onto a sprite (2d)

brittle owl
#

render texture

grand jolt
#

how?

brittle owl
#

you should be able to create a render texture asset and then in camera there should be a place to set that render texture asset

#

and then the camera will render to that texture

grand jolt
#

no how do i make a TEXTURE render a camera output so the texture displays what the camera sees

meager pelican
#

Do what he said.
Then map that RT to a sprite or quad or whatever.

#

Textures don't render, cameras do.

distant sleet
#

monkey

#

im pretty happy for this result cause im new to making a raymarcher and whatnot

#

but its so horribly noisy

meager pelican
#

Precision?

outer shuttle
#

Hi guys, in Compute shaders, is there a way to get the length of a RWStructuredBuffer ?

low lichen
zinc ravine
#

How can the graphics format return 87? There isn't even a 87 in the fomat enum

outer shuttle
#

Yes, i read that but i do not understand how it works. It asks numStrucs and stride as input and output nothing?

#

? *

zinc ravine
low lichen
outer shuttle
#

Oh allright, thank-you 🙂

zinc ravine
#

I guess I would expect something like UnityEngine.Experimental.Rendering.GraphicsFormat.B8G8R8A8_UNorm

outer shuttle
#

Yeah it works, thank-you ! 🙂

meager pelican
shadow locust
mint crow
low lichen
#

Each pass should be drawn as if the pass were its own shader+material, so if no blending is defined, it will be default no blending

mint crow
#

Thanks @low lichen - wouldn't that mean the last pass "overrides" each of the previous, and only the last pass is useful (since default = Blend Off)? I am clearly misunderstanding something since that's not what happens.

low lichen
mint crow
#

This is the shader as-is. Works as expected:

#

This is the shader if I copy/paste the last pass:

low lichen
#

That smudge looks like a clamped texture getting sampled outside of the 0,1 range

mint crow
#

Right, but the other half is...not even the same part of the texture?

#

I suspect this is not a blending issue...perhaps only one pass gets selected by culling, but if that were true, why this artifact when copying/pasting one of the passes?

low lichen
#

Can you upload the whole shader so I can take a look?

mint crow
#

Sure, let me create a minimal example, one sec.

twin rose
#

Anyone know when the length of a structurebuffer will cause problems? I asked on the Unify Forums but haven't had a response yet. Given that a vertex buffer can be billions of vertices long, I don't think there's a hard cap, but instead it's dumped out somewhere if it gets too long.
Mainly I'm wondering if the GPU capacity of a structured buffer is something to be concerned about

vernal island
#

I read on some forum/overflow. The structured buffer has bigger capacity than other graphicsbuffers.

meager pelican
vernal island
#

So I think it will not cause you some problems but I'm not that experiencedUnityChanThink

twin rose
#

Interesting

#

So I guess that means gigantic meshes are only bad at rendering because of overdraw?

mint crow
teal breach
#

Is there a way to 'ColorMask <nothing>'?

low lichen
low lichen
teal breach
#

the doc says 'Enables color writes to the R, G, B, and A channels.' for ColorMask 0

#

is the doc wrong there?

#

0 would be great if so 🙂

#

huh, yeah, so it is!

low lichen
#

Interesting

#

@mint crow Alright, my guess is Unity is checking if the skybox shader has 6 passes and draws a face for each pass in a cube

#

And if it has any other number of passes, it draws it with the regular inverted sphere and the passes just overwrite each other.

#

And you see smearing because whatever texture your last pass is drawing has its wrap mode set to clamp

#

Because the inverted skybox sphere has uvs in the range -1,1 instead of the standard 0,1 so it can sample cubemaps

mint crow
#

@low lichen good intuition, thanks!
I'm probably out of luck with this path then - I was hoping to combine ProceduralSkymap with CubemapSkymap (so I can have a nighttime texture + daytime procedural sun). Given the texture mapping, none of the skybox methods are likely if they don't allow extra rendering passes. I'll try to find another way.

molten violet
#

Can anyone help me figure out why the shader does not work correctly in runtime/build?

vernal island
#

Hello. Is here someone who knows much about shader graph? What is difference between coding shader and shader graph? (I mean which is better to use than the 2nd one) ... It's very hard to code the shaders(I mean I don't understand the computeshader language).
My task is change colours by slider in real time on mesh. Is it possible make it in shader graph? Ty 😃

shadow locust
#

it's very difficult to write manual shaders for the new render pipelines (URP/HDRP)

#

ShaderGraph is the primary way you are intended to do so

#

writing shaders manually was easier in builtin RP

molten violet
#

can no one try help me figure out why my shader is not working? I have depth turned on...

somber slate
#

you need to explain the problem to get a solution

molten violet
#

you can clearly see the problem, in the left the circles are ok, in the right not

#

I used the same shader in other things and it works

somber slate
twin rose
#

Is there anything that culls submeshes? Seems like a pretty obvious idea to put frustrum culling and depth-sorting at the GPU level on submeshes, but I can't seem to find anything online for it

molten violet
#

I use the shader to get the intersection, and in the editor windows it shows it fine, in the game/build not

somber slate
molten violet
#

it's a shader graph

somber slate
#

oh ok send that then

molten violet
somber slate
#

hol up how do i open that

#

maybe send a picture of the shadergraph instead

molten violet
#

install shader graph package

somber slate
#

hmm

#

how are you getting the rings in the scene view?

molten violet
#

a sphere with that shader

tacit parcel
pallid bluff
#

did they remove the gear from the custom function in shader graph?

neat hamlet
#

It's now a toggle in the top right corner

grizzled bolt
#

@languid jay Are your enemies on canvas? If not, I believe modifying a single object's material properties should be very straightforward

#

In fact to modify them globally there's an extra step

low lichen
distant sleet
#

Hey, I'm working on a raymarcher in HLSL

#

(its basically a raytracer with some extra steps)

#

and I want to try some meshes

#

i got the monkey to work but

#

it is so so incredibly laggy

#

like 4 seconds per frame

#

Does anyone have any sources on optimization for mesh rendering?

toxic flume
#

When we do not use SetPass, all passes in a shader run, correct? so if we want to run only one of them, we should set it in the script? what about if we would like to choose multiple passes?

pine snow
#

guys i want to make a target in the shader i have everything set up but when i press the "+" it doesn't work idk why, can someone help?

#

im using the new version of it

#

if someone can help plz i rly need it

#

nvm i fixed it by myself

worldly escarp
#

why isn't this working?

amber saffron
worldly escarp
pine snow
#

i installed URP but its not loading

#

the same probleme

amber saffron
#

And assign it in the default scriptable render pipeline asset field in the graphic section of the project settings.

pine snow
#

ill try thnx

distant sleet
#

I'm not really interested in Image effect shaders but I need one for a specific thing

pine snow
distant sleet
#

I need to add Bloom to the renderer I'm working on

pine snow
amber saffron
pine snow
distant sleet
#

Bloom but its a renderer I mae from scratch

pine snow
#

idk how to sst it up

distant sleet
#

so I cant use unities stuff

distant sleet
#

Everything that is black has an Alpha of 0

pine snow
#

@distant sleet sry idk how..

amber saffron
distant sleet
#

I need a shader that can take this emission pass, add gaussian blur and the image needs to retain its transparency

#

ie background is transparent and the blurs alpha is also not 1

pine snow
distant sleet
#

I dont wanna learn image effect shaders for this so if someone knows a gaussian shader online that retains transparency thatd be great

amber saffron
distant sleet
pine snow
distant sleet
#

I just dont know how to create the shader and I dont really want to because I mainly want to work on the compute shader part so

amber saffron
# pine snow and then?

In the Editor, go to the Project window.
Right-click in the Project window, and select Create > Rendering > URP Asset. Alternatively, navigate to the menu bar at the top, and select Assets > Create > Rendering > Universal Render Pipeline > Pipeline Asset.```
distant sleet
#

if someone already knows a gaussian shader like this

#

then Its easier for me

pine snow
amber saffron
#

you could probably get some findings for you case

amber saffron
pine snow
#

oh

distant sleet
pine snow
distant sleet
#

Hopefully this one retains alpha

#

The problem is most ones I found online didnt so the image just ended up being the blurred sphere and a black background instead of overlaying

amber saffron
#

I guess the matter is just to also include the alpha channel when bluring ?

distant sleet
#

Yeah but if this doesnt work Ill try to edit the shaders I found to do that

#

actually ill just try that assuming that this isnt too different from a hlsl compute

pine snow
#

@amber saffron ?

amber saffron
pine snow
#

@amber saffron now all my scene just gone lol

amber saffron
distant sleet
#

turns out the shader i found online did retain transparency

#

and im just uh an idiot

pine snow
amber saffron
pine snow
#

i got the colors

#

but its

#

so weird

#

@amber saffron i hope this fix it

#

@amber saffron nah its still weird ;-;

amber saffron
#

Well, we had thumbnail issues for ages now -_- ... It at least it renders properly in the scene and game views, that already nice

pine snow
#

@amber saffron ik but even the post processing got curropted or smth and the shadows r broken and... anyways thnx² lol ill try to do smth about it

amber saffron
pine snow
distant sleet
#

All the blur shaders I can find online look like this

#

hm

amber saffron
#

Simple 4 taps horizontal blur ?

distant sleet
#

Yeah but

#

I found unitys postprocessing shaders

#

Damnit

#

but it has errors for some reason

#

Is the blur shader inbuilt

#

I cant find a good gaussian shader at all

#

smh

amber saffron
distant sleet
#

OH

#

Thanks

#

All the releases are just source code

#

No unitypackage

languid zodiac
#

How to get WorldSpade Tangent and/or bitangent in Surface shader?

misty vine
#

In HLSL, is there a way to make a function that accepts a pointer to a specific place in a RWStructuredBuffer? Or array of variable size?

shadow locust
misty vine
#

I'm trying to make a generic big integer library, so in an ideal world I would want something like:

add(uint numWords, uint* destptr, uint* srcptr1, uint* srcptr2)

which would work on both arrays and buffers

#

and a mix (combination), because sometimes I pull data from the buffer, but have temporaries in a local array

#

maybe I'm asking too much. I've started working on a code-generating template mechanism so I can generate all the specializations.

sleek condor
#

Hi all ! 😄
I want to know if anyone know a way to get _CameraDepthNormalsTexture from shader graph ?
I don't use glsl so I don't how get it from a custom function node ^^

distant sleet
#

Added subsurface scattering to my raymarcher

#

Pretty cool

#

It doesnt work on meshes tho because tris are infinitely thin so the meshes are hollow

#

hm

twin rose
#

Nice

meager pelican
# distant sleet like 4 seconds per frame

4 seconds isn't bad at all. In fact, 30 seconds isn't bad. 😉 PER FRAME. Hollywood takes minutes per frame with a render-farm of GPUs.

What people don't understand (someone else mentioned real-time ray tracing too) is that for full ray tracing/marching....the technique just isn't real-time.

Even the NVidia RTX cards only do a subset of the scene and they use AI to fill in the gaps.

It's a completely different thing to ray-trace than it is to do real-time games. More like working on an oil painting, vs gaming's "Snap a photo". 😄

Just my 2cents.

brittle temple
#

[URP, making material, URP Lit]
When I create a new material, it has the shader: standard and it's fine -- see below.

#

But then, when i change the shader to URP Lit, it becomes pink and I can't change its colors and whatnot.

#

Anyone know why?

devout sun
devout sun
brittle temple
#

I've tried that but, sadly no work. Also, by 'assign', do you mean like re-drag the shader file unto the material?

#

~
Changing the shader to 'URP/Baked Lit' seems to work.

white cypress
brittle temple
#

ok, there must've been some missing files like what you guys pointed out.

I created another project from here and made sure to wait for everything to load.

#

now, it's working

pine snow
brittle temple
#

I needed to keep the 'Settings' folder that loads up with the URP template. Before, I would delete everything cause i thought they were just examples or something.

frank sigil
#

hi, is it possible to have VR support only enabled for specific shaders? I'm creating an assetbundle consisting of multiple shaders of which only one is actually used in VR, the others are on the desktop, so I'm trying to optimize here (Assuming this makes a difference, which the compiled output suggests it does)

silent harbor
#

Hello, does anyonehave any resources on shader for 2d sprite? I tried to follow one from brackeys but I think it is outdated and the tutorial is impossible to complete. https://www.youtube.com/watch?v=5dzGj9k8Qy8&ab_channel=Brackeys

YouTube
Brackeys
Get started with 2D Shader Graph in Unity - Dissolve Tutorial

Create your own 2D Shaders with Shader Graph!

► Check out Zenva's RPG Academy: https://academy.zenva.com/product/rpg-academy/?zva_src=partner-brackeys-rpg-2020-02

● Project Files: https://github.com/Brackeys/2D-Shader-Graph

Free assets used:
● Pixel Adventure 1:
https://assetstore.unity.com/packages/2d/characters/pixel-adventure-1-155360?aid=...

▶ Play video
languid jay
grand jolt
#

How can I feather out these edges? I am trying to make a darkness shader

distant sleet
#

The thing is for spheres cubes and torus whatever my thing is pretty fast and Im happy with it

#

but for meshes it doesnt have the necessary mesh optimizations so it loops through every triangle every frame

rare charm
#

I have a shadergraph that does some vertex displacement in order to create a ripple effect. I have a shader made with actual code that handles reflections and color and whatnot. How can I combine the two into one?

grand jolt
slim skiff
slim skiff
tough silo
#

Hi there I'm trying to figure out how to correctly reference the "Global" unity_InstanceID in my HLSL function but figure out how to do it, I'm declearing an uint named unity_InstanceID but it's not referencing the "Global" one

autumn quiver
#

Hey folks! looking for some advice

I made a shadergraph for my grass with wind movement that works fine. The trouble is that all of the grass meshes are moving in unison.
I need to add an offset to each instance to get a bit of variation, but without breaking instancing so i cant just set a property on each instance.

What I've tried so far is using the world position to add a random number in there, but it doesn't look right.
Any tips?

languid zodiac
autumn quiver
#

no mate I'm using vertex colors to mask verts and adding movement that way. I hadn't thought of using UV

#

@brittle temple What happened there is the built in render pipeline was still active. SRP shaders will be pink unless you set a render pipeline asset in both the graphics settings and quality settings. The template has that already. Hope that helps

grizzled bolt
meager pelican
# distant sleet but for meshes it doesnt have the necessary mesh optimizations so it loops throu...

OK, I'm with ya now.
I did a ray tracer that I added BVH trees too. Bounding Volume Hierarchy. So you have bounding box info that you send in (from C#) for the meshes. AABB's...axis aligned bounding box's...and then you can quickly decide if a tri or mesh is going to be hit or not. Because you need collision detection for your ray, of course.

I don't remember the resources though or I'd give you a link. Note that you want to either find a shader-specific one or you'll have to convert. But be warned, that the BVH tree algorithms are usually recursive, something you can't do right off in shaders.

Instead, you implement your own stack, to track the recursion, and put it in a loop, basically. (Well, sets of functions called in a loop that know about the stack). Only took I think 2 or 3 functions, IIRC. And an array and a "stack pointer" to track what node you're on.

Read up. It will help some, depending on where you're at now...assuming you're not already doing it. 😉

distant sleet
#

Ill definetly look into that

#

I see.. so it can figure out whether to detect a collision or not

#

I still need to find a good gaussian blur shader

#

to blit the emission pass onto the original for post processing bloom

tough silo
#

Is anyone familiar with HLSL, URP and GPU Instancing? I'm desperate ;-;

regal stag
tough silo
#

I'll try this out thank you so much!

tough silo
# regal stag As long as you're using instancing keywords, the URP ShaderLibrary should have a...

It says that instanceID is undeclared, probably because I'm using it outside the #if#endif, what I'm doing is that I'm using the standard URP Unlit ShaderGraph without doing custom Shaders, then since I want to declare a buffer of a struct inside the Shader, I inject a HLSL text file thought Custom Function in the graph declaring the buffer inside of it, the last step should be referencing the InstancedID but it seems that injected HLSL functions don't actually get any properties, so I trying to #include the UnityInstancing HLSL from packages to get the InstanceID reference directly from the source but it didn't work

raw pollen
#

Hey guys, I'm getting this weird black spots on my model's texture, does anyone know how to fix this? Thanks

regal stag
digital gust
raw pollen
#

Maybe I should recalculate the lighting?

regal stag
#

If you edited the model then it may have changed the generated lightmap uvs. So yeah, rebaking the lighting might fix it.

digital gust
raw pollen
#

Oh I see

#

thanks!

raw pollen
#

Well after baking this happens, what could I be doing wrong? The lights are set to baked, the objects in the scene as static...

raw pollen
#

Nvm it ended up working, I had more than one light set to baked in the scene, also set to non-directional in illumination settings, cleared baked data and it ended up working.

tough silo
# regal stag UnityInstancing.hlsl is already included automatically by Shader Graph, you don'...

Ok now what I did is declaring the functions uint out side #if#endif and then inside I re-declared uint unity_InstaceID to then assign it to my function uint, this should give me the reference I need right?

Problem is I don't actually know if it's working cause now it reports an error that says redefinition of 'unity_InstanceID' at line where I declare the uint unity_InstanceID inside #if#endif

#

Sorry I was gone, I feel asleep lol

regal stag
tough silo
#

Update : I now have a better understanding of #if#endif and now I wrote inside the function that if instancing pass the new vertexposition else keep the current one, without the need of declaring, it doesn't report any errors but it seems that things are spawning at the same place or spawing just once I'll need to check

tough silo
charred meteor
#

I've heard from a few people that nowadays its OK to put branches (ifs) within your shaders. Is that true, or should I try to work around them still?

meager pelican
meager pelican
#

(and always has).

#

The "don't use ifs" is a generalization, and that's about all it is worth.

charred meteor
tough silo
#

Help my HLSL doesn't work
My operations are wrapped like this

#ifdef SHADERGRAPH_PREVIEW
    #if UNITY_ANY_INSTANCING_ENABLED
    #else
    #endif
#else
#endif
#

The operations I get are always those in #else after UNITY_ANY_INSTANCING_ENABLED so it's saying that instancing is not enabled but the box is checked and I don't know what's wrong

meager pelican
# charred meteor As in, its dependent on the evaluation of the condition, or whats contained with...

Kind of both, but mostly the former (the condition).
If it is two nothing-ness statements, they're done all the time.
Take for example a simple ternary operation (assume "highlight" is a bool):
float3 color = (highlight) ? float3(1,1,1) : float3(0,0,1);
That's the same as

if (highlight)
   color = float3(1,1,1);
else
  color = float3(0,0,1);```

It's a conditional.  And neither side is "expensive" even if BOTH sides are evaluated by all cores time-wise.  So meh.

Now let's assume that "highlight" is a uniform value passed in by C# side.  So it's either true or false for **ALL CORES**.
You may add a [branch] attribute or not, but the complier will probably catch that it's a uniform.

So if the bool conditional is false, all cores can skip the first part, and only do the else-side.  But if even one of the cores could have a true and some have a false too, the ALL step through both sides because....this is the important part...all cores in a group are working in lock-step and they all share the same program counter.  It's just that if the condition doesn't apply to one core, it is masked off and idle while the other cores it applies to do their thing.

So the # of execution cycles stays the same for the whole group, and it appears that they all execute BOTH sides of the if.  They don't actually execute it, but the time is chewed up.

So it all depends on that condition.  If you pass in a uniform,  and it applies to all cores, you're gold if you [branch].

But if each side is just some minor assignment, who cares?  That's probably not where your bottle neck will be, you'll probably be memory bound somewhere else.
charred meteor
#

Thanks for that, very comprehensive

#

The branching I need to do is trivial computationally, so its probably fine. Its stuff like "a = x > y ? 1:0"

meager pelican
#

Yeah, pfffft.
That's already an "if". You see ternary operators used all the time in shaders. I mean, computers have to make decisions, and decisions are based on "ifs". 😉

charred meteor
#

Haha yea I know 😛

#

Thanks for explaining though, I've done software dev for about 8 years now, just never touched shaders before and had only heard in passing about branch evaluation etc. Then recently heard people saying it didn't matter anymore, just wanted to get some clarification on that

#

My game is not by any stretch of the imagination a demanding one, but I just wanted to make sure I wasnt going to be doing something inadvertantly silly just because I didn't understand/wasnt aware. Like the equivalent of doing loads of assignments and then falling victim to the GC

meager pelican
#

It's good that you think about what you're implementing when you do an if.
And it is also common to have some multiplier, but that's often assigned with a ternary, and people think they're clever, but really, that's an if too. lol. Still, you can assume that unless it is a uniform conditional, that BOTh sides will count toward the cost the majority if not all of the time.

charred meteor
#

I read (and used) some stuff regarding implementing boolean logic functions as well as functions for doing "greater than/less than/equal to etc." that just do some multiplication/division of the passed vales and return 0:1

#

But sometimes that can get a little convuluted when actually trying to apply that result to something (i.e, multiply something by the result in order to enable/disable it)

meager pelican
#

Yeah, but I'm sure people have looked at the code generated, and counted cycles. I mean, it's not all cut-and-dry. So go ahead and make your decisions for your use case, and bench-mark the results both ways in your testing. It's probably worth the time to test if you plan on keeping and maintaining the code base. Hell, throw a comment in (another thing Reddit-trained programmers ( 😉 ) think you cannot do) and explain that the ternary math stuff didn't give you any benefits over the if. For example.

But older compilers might not handle everything the same. Newer optimizers and compilers are likely doing a better jobs. So testing is something worth checking on, at least for the most critical path stuff.

charred meteor
#

Yea, that was one of my concerns

#

I'd like to make it as optimal as possible considering the script itself is fairly (computationally) simple.

#

That said, it is a fragment shader that will likely be running on every pixel, all the time, so I'd like to keep it as lightweight as I can

#

Oh just one other thing

#

Debugging has been a bit of a nightmare. I was trying to find a computed value and I ended up having to output it in the R channel of a colour, taking a screenshot and reading the value in an image editing program. Is there a better way of just seeing what I'm calculating etc?

meager pelican
#

Outputting colors is the easiest, most common way.
There are other ways.
Check RenderDoc for some types of debugging.
There's a unity manual on that.
Also visual studio has some builtin debugging for DX12, IIRC.
Then there's the vendor tools for your card. That's where the real power is, but you'll have to install them, run a debug mode build under them, and gather the information. Good for optimizing too, and seeing "waves" execute, and knowing how saturated...or not...the GPU is.
So if you want to go hard-core debug, check the vendor tools.

#

And also PIX

charred meteor
#

Thanks very much! I've heard folks at work talk about a few of those so I'll hit them up if I get stuck 🙂

#

knowing how saturated...or not...the GPU is.
I have a 3090 so I seriously hope I'm not saturating it 😂

severe slate
#

i just switched to urp do i need to upgrade my Shadershttps://docs.unity3d.com/Packages/com.unity.render-pipelines.universal@7.1/manual/upgrading-your-shaders.html

tame topaz
#

Yes

severe slate
#

ok cool

hot pond
#

any ideas why this started showing up?

chilly ocean
#

So, bit of a weird question, but since GLSL uses vec4 structures for UVs, is there any way to actually utilize all these channels in a 3D format?

misty vine
#

How does one Dispatch a ComputeShader asynchronously?
EDIT: nvm, found AsyncGPUReadback.

twin rose
#

I don't think InterlockedAdd is actually interlocked all the way... I have a basic parallel prefixed sum compute shader that adds up a list of 1s and 0s into a RWBuffer, but the sum isn't correct unless the thread size is 32 (isn't correct on 64, ends up missing a few). Thoughts?

drowsy fiber
#

Hey guys, i'm looking to create a shockwave effect that distorts the pixels around it. I know that this can be done using a custom post processing pass, but that is not supported in the URP 2D renderer. Is there a way to put the shader on a quad and have it sample the pixels behind it to achieve the distortion?

meager pelican
# twin rose I don't think InterlockedAdd is actually interlocked all the way... I have a ba...

The thread groups run in groups of <whatever> even some cores are not applicable. So make sure you're checking with if's for each core to ensure that it should be adding the values. Like for the group of 64, the last 32 of them during the last iteration might not need to add their values in. You probably are checking, but it's just a first-guess with no code or anything to go on...

#

What do you mean by "isn't correct"?

#

Too high or too low?

#

If too high, you may be doing extra work.....that you shouldn't be doing.

spare wedge
#

Hi, I would like to recreate a shader like this one and make the movement of my texture like this :
https://youtu.be/Cczp1muRtiU?t=148

but without using amplify shader, if it's possible with with the shader graph, but I don't know how would I make the texture move in the same way as in the video, I've tried to use the tiling and offset node with a position node but it doesn't seems to move the same way. I'm new to shader so I don't know a lot of feature in the shader graph maybe this is a little bit too much advanced for me, but it would be great to learn something about it.

YouTube
Hovl Studio
Урок по созданию эффекта слэша от меча в Unity 2018.1

Создание эффекта слеша от меча с помощью системы частиц на игровом движке Unity. Game effect tutorial.

Если вы подписаны на мою страницу Patreon, то готовый эффект вы можете скачать здесь: https://www.patreon.com/posts/29675650

Подпишись что б не пропустить новые видео!
Моя в групп...

▶ Play video
eager folio
# hot pond

@hot pondUsually that means you have the option selected on the camera that draws a black pixel when a shader returns NaN, instead of bugging out or crashing or whatever.

twin rose
hot pond
#

@eager folio

forest tinsel
#

I've found a hexagon distance function, and managed to make a shader using it. However, I now want to create an outline within the shader that has a separate color. I'm having some trouble figuring out the math for it. I know how I would do it with branching, but would like to avoid that. Anyone who can help out? Here's the SDF code so far:

            float hex(in float2 p){
                const float hexSize = .5;
                const float2 s = float2(1, 1.7320508);

                p = abs(p);
                return max(dot(p, s*.5), p.x) - hexSize;
            }

            fixed4 frag(v2f i) : SV_TARGET{
                float dist = hex((i.uv - 0.5) * 1.5);
                dist = smoothstep(.1, 0, dist);
                _Color.a = _Color.a * dist;
                return _Color;
            }
#

For reference, this is how I can do it with branching:

            fixed4 frag(v2f i) : SV_TARGET{
                float dist = hex((i.uv - 0.5) * 1.5);
                dist = smoothstep(_OutlineWidth, 0, dist);
                if (dist > 0 && dist < 1)
                {
                    return _OutlineColor;
                }
                _Color.a = _Color.a * dist;
                return _Color;
            }
charred meteor
# forest tinsel For reference, this is how I can do it with branching: ``` fixed4 fr...

What you may wish to do is take a look at some of the functions in this document, and implement them in your shader.
https://theorangeduck.com/page/avoiding-shader-conditionals

Then, what I would do is something along the lines of:

fixed4 finalColor = 0;
//Assign true/false to a float value
float isOutline = and(greaterthan(dist, 0), lessthan(dist,1))
//Do standard color operation
_Color.a = _Color.a * dist;
//Make _Color zero if isOutline is true
_Color *= 1-isOutline
//Add the two resulting colors together. One will be transparent, one will be "normal" depending on whether or not isOutline is true
finalColor = _Color + _OutlineColor*isOutline
return finalColor```
Avoiding Shader Conditionals

Computer Science, Machine Learning, Programming, Art, Mathematics, Philosophy, and Short Fiction

#

Just as a heads up, I found that if you copy those methods directly (and change the datatypes so it compiles. vec4 becomes float4 etc.) The Greater Than and Less Than methods didn't follow the same parameter syntax. E.g One expected the value you are comparing in the first parameter, and the other in the second. Quick fix to swap them around but it confused me for a little bit

#

finalColor isnt actually necessary, it might just make it a little more readable. Does that make sense?

#

Just to summarize, what I believe is the right way to do this is rather than to say "I only want to do X if Y is true" (i.e Branching and Ifs), we want to execute all the outcomes all the time, but then simply "void them out" by multiplying by 0 if our condition is not met. Then at the end, we just add everything together. If we've set it up corrrectly, only one of our outcomes won't be "voided", so it means thats the one that will end up getting returned

forest tinsel
charred meteor
#

No problem. Just thinking about it a bit more I think the above should work for what you need, but it might not be suitable in more complicated logic evaluation situations

forest tinsel
#

Yeah I think it is. I want to use smoothstep so I can make some soft transitions between my edges, so I'll tinker around with it a bit

#

(Although if you have a solution, feel free to post it 😄 )

charred meteor
#

Haha sorry, not sure on that one!

forest tinsel
#

Heh no worries, thanks tho!

distant sleet
#

I actually wanted to add an outline to my raymarched shapes with SDFs too
