#circuitpython-dev
tidal kiln
@slender iron any ideas?
https://forums.adafruit.com/viewtopic.php?f=60&t=174668
i can recreate. i scoped it and in the pico case it NAKs on the write setup.
tidal kiln
yah. i recreated via repl for the underlying single transaction.
Adafruit CircuitPython 6.2.0-beta.0 on 2021-01-22; Raspberry Pi Pico with rp2040
>>> import board
>>> import busio
>>> i2c = busio.I2C(board.GP27, board.GP26)
>>> i2c.try_lock()
True
>>> buffer = bytearray(2)
>>> buffer[0] = 0x01 | 0x80
>>> buffer[1] = 100
>>> i2c.writeto(0x29, buffer)
Traceback (most recent call last):
File "<stdin>", line 1, in <module>
OSError: [Errno 19] Unsupported operation
>>>
same thing works fine on itsy m4, fwiw
tulip sleet
beta.1 is just out
slender iron
thanks @tulip sleet !
I found an older talk from katie bell: https://www.youtube.com/watch?v=U33L10xoWzM
tulip sleet
yw, i just meant for @tidal kiln 🙂
slender iron
np
tidal kiln
should i just try a firmware upgrade real quick?
tulip sleet
i don't know it would fix it, but worth trying, no specific fix for that that i know of
always worth testing with latest
slender iron
they look identical to me
can you make sure and capture from power up of the sensor?
there might have been a previous transaction that messes it up (specifically the address probe method is different)
tidal kiln
ok. let me upgrade firmware and repeat experiment and report back.
could be an oddball sensor too. i sanity checked with a bme680 and that seemed to talk just fine.
slender iron
yup. the probe works the same on blinka on rpi
tidal kiln
it didn't throw the os error. but it's still NAKing.
Adafruit CircuitPython 6.2.0-beta.1 on 2021-01-27; Raspberry Pi Pico with rp2040
>>> import board
>>> import busio
>>> i2c = busio.I2C(board.GP27, board.GP26)
>>> i2c.try_lock()
True
>>> buffer = bytearray(2)
>>> buffer[0] = 0x01 | 0x80
>>> buffer[1] = 100
>>> i2c.writeto(0x29, buffer)
>>>
itsy m4 for comparison
Adafruit CircuitPython 6.1.0 on 2021-01-21; Adafruit ItsyBitsy M4 Express with samd51g19
>>> import board
>>> i2c = board.I2C()
>>> i2c.try_lock()
True
>>> buffer = bytearray(2)
>>> buffer[0] = 0x01 | 0x80
>>> buffer[1] = 100
>>> i2c.writeto(0x29, buffer)
>>>
idle owl
@lone axle @mental nexus Initial issue filed! https://github.com/adafruit/Adafruit_CircuitPython_DisplayIO_Layout/issues/1
@marble hornet Initial working version of my code for the light box. README needs to be updated 😄 https://github.com/kattni/light_box/blob/main/light_box.py
lone axle
Huzzah! I have the intial code almost ready to go. Few more CI quirks to fix up tonight.
I used this as my excuse to finally get pre-commit going locally.
marble hornet
@idle owl will take a look at it once back at my desk!
Started on a user guide (though nowhere near done but might clear up what I said) https://github.com/TG-Techie/TG-Gui-Quick-Guide
idle owl
I used this as my excuse to finally get pre-commit going locally.
Bonus!
idle owl
<@330227457296957440> will take a look at it once back at my desk!
Started o...
Nice! I'll take a look when I get a chance.
lone axle
I've just skimmed the issue so far. But you are totally right about "View" I kind of just lifted that term from my Android development background. There is not (yet) a specific displayio concept using that term that I am aware of. I will put some more thoughts in the issue tonight.
idle owl
Right on! I basically put down everything I "ran into" while using it.
It's meant for discussion for sure.
slender iron
@tidal kiln I'm out of ideas
tidal kiln
ok. i'll keep poking at it.
just wanted to make sure it wasn't something known w/ pico
thanks for looking
slender iron
nope, an issue would be good
tidal kiln
ok. np. i'll just dump the above info and link to forum thread.
marble hornet
@idle owl if/when you have the time could you snap a photo of the light_box interface?
idle owl
The GUI on the display? @marble hornet
marble hornet
Yes please , I'm having a hard time visualizing what looks like from just the code
manic glacierBOT
idle owl
@marble hornet
The way I did the color balance control is because there are only so many buttons available.
It's controlling that when the little select < is on that line.
otherwise brightness.
idle owl
@marble hornet Great start on the docs!
crimson ferry
Blinka has terminalio, but I'm guessing I should expect support to be quirky or partial? I get no exceptions. I don't see any Blinka issues or PRs for terminalio. I was hoping to do one of these:logbox = displayio.TileGrid(terminalio.FONT.bitmap, #... logterm = terminalio.Terminal(logbox, terminalio.FONT) print("TFT!", file=logterm, end='\r\n')
onyx hinge
@lone axle before I put you too terribly on the spot, do you mind if I write this in my update for next week's newsletter?
To make it work how I wanted, I had to write a function to precisely wrap text according to its width in pixels. Discord's FoamyGuy (Tim) has stepped up and plans to bring this feature to a future version of the adafruit_display_label library.
lone axle
I think termainlio in Blinka_Displayio is primarily just for FONT https://github.com/adafruit/Adafruit_Blinka_Displayio/blob/master/terminalio.py it doesn't seem to have the terminal behavior.
But also I didn't realize you could use terminalio like that in CircuitPython so that neat to me!
idle owl
@onyx hinge I call @lone axle out regularly in my update 😄
crimson ferry
@lone axle ah, thanks, so maybe I go learn purple pillow, or is there something better on RPi?
marble hornet
@idle owl 😅 the chat really helped. And that really packs a lot of control onto one page, I like the control scheme. I see how grid layout was crucial.
lone axle
@onyx hinge thank you for checking. And yep all good by me. adafruit_display_text is the library (granted though the naming is confusing at the object level with label)
onyx hinge
Corrected, thanks!
marble hornet
Isn't the Text class name reserved for paragraphs, once they're implemented?
lone axle
@crimson ferry what is the end text you are trying to end up with? would it make sense to put it in a label and update that instead of having the scrolling and print() statements?
idle owl
@marble hornet Glad it helped! Thank you very much, it took a bit of thought to manage to figure out how to control everything I wanted to in the way I wanted to.
lone axle
Hmm I'm not sure about the reservation. the existing bitmap_label works well with paragraphs I think as long as you have a big enough display and/or small enough font.
it doesn't do auto-wrapping, so you do have to add linebreaks, but there is a helper function for it in the library now (formely was in PyPortal library)
marble hornet
<@!368190919083556865> Glad it helped! Thank you very much, it took a bit of tho...
The # represents the three different panels right?
idle owl
The # represents the three different panels right?
Correct.
marble hornet
The # represents the three different panels right?
Oh, it's in the source 🤦♂️.
crimson ferry
@lone axle for now I just want the most of screen to be a console of scrolling text. I use the terminalio construct to do that in CP, so I thought I'd just cut-and-paste 😉
idle owl
Oh, it's in the source 🤦♂️.
😄 Yah but there's a lot to it.
lone axle
It would be neat functionality to have in Blinka_Displayio.
idle owl
@tulip sleet I take it this assumes a CPB? https://github.com/adafruit/Adafruit_CircuitPython_BLE_Adafruit/blob/master/adafruit_ble_adafruit/button_service.py
Context: I'm going to add Bluetooth to this project I'm working on, and wanted to use the Adafruit services if possible instead of the Nordic UART services, but it looks like I might have to go with Nordic because it's 2 buttons, and a 5-"button" joystick. (As in the joystick is coded like buttons, not a joystick.)
Oh hmm. other bits are available for future buttons and switches
lone axle
I think button service may work for at least 8 buttons because I believe there are 8 in the Bluefruit Connect app and I think it uses that.
idle owl
@lone axle I think the Bluefruit Connect app uses the Nordic UART service.
It's the Circuit Playground app that uses the Adafruit services.
lone axle
Ah I see. So the buttons are going the other way. Physical button values into the phone. Not virtual buttons in the phone telling their value to the microcontroller.
idle owl
Um... no? I've had it where a Bluefruit was looking for a button packet from the phone, and did a thing based on that...
I thought?
Or used button packets as a way for two Bluefruits to talk, but it worked with the app too.
lone axle
It's been a while since I messed with it. But on the Android Playground app at least I think it's the A/B buttons on the playground sending their value into the phone, it puts some things on the screen based on which one is pressed.
idle owl
Ok right
That's the other app, yeah
I see what you're saying though
I think. That the Adafruit services isn't for sending from the phone to the board, it's the other way around. Now that I'm looking at it, that makes sense. So I probably need the UART service anyway.
Because the ButtonService is coming from the board, not the app.
Got it. Yeah.
thorny jay
I would like to thanks the CP community and in particular @slender iron .
Thank to him and likely to the skills acquired here, I recently found a second job in electronics and I am doing good progress designing board and writing code in assembly language.
This is eating a bit my time and I will likely have a bit less time for CP now. I hope to come back stronger when I will regain some equilibrium in my free time.
I was just hired* by Shenzhen Longteng Electronics Co., Ltd.
- The game Schenzhen I/0 was hinted by Scott in his last Deep Dive when explaining the RP2040's PIO.
idle owl
@thorny jay Congratulations!
slender iron
congrats!
thorny jay
<@!681528999520108564> Congratulations!
You understand it is not a real new job, just I started playing Schenzhen I/O, a game where you are hired in that company and do electronic challenge. 🙂
idle owl
😄 Hah! Your post makes more sense now.
slender iron
haha, ok
I found it too similar to my day job
I wanted more registers than the game gives me
thorny jay
Well, it seems to be like PIO assembly, and those sleep you put.
slender iron
ya, definitely
lone axle
@marble hornet here's what I got for thoughts and tips on streaming: https://gist.github.com/FoamyGuy/96dd64865cf77f9fe100fc0f7a764543 I tried to keep it relatively short, but am happy to expand further if you're interested in something specific. Also one other thing I'll mention is so a private test stream at least a day before you intend to do the real one. Youtube I think may have a 24hr waiting period depending on your account.
marble hornet
Thanks for taking the time to write it up😁, I'll give it a read through and see if i have any clarifying question.
lone axle
would it be possible and make sense to have pre-commit take care of pylint and the sphinx build also? so that a single step can take care of more of the pre-reqs
fossil gorge
Do you mean the tidying up, or verification?
idle wharf
@prime flower I was just this weekend porting a library to CP to talk to my Bloomsky weather station and was thinking about how to handle some datetime stuff. So I REALLY appreciate you eliminating my need to think about that with your work on https://github.com/adafruit/Adafruit_CircuitPython_datetime !!
I'm going your latest PR in my library tonight.
mild fog
@slender iron Do you know if https://www.adafruit.com/product/4701 is planned to get CircuitPython support? Or, is there anything difficult or disallowing that from being possible?
mild fog
Thank you much! 🙌
prime flower
@idle wharf no problem! Feel free to review the PR thats outstanding (fixes bugs)
lone sandalBOT
manic glacierBOT
turbid radish
?serverinfo
digital shoreBOT
adafruit
manic glacierBOT
manic glacierBOT
onyx hinge
@lone axle you can do reviews right? if so can you review https://github.com/adafruit/Adafruit_Learning_System_Guides/pull/1432 for me?
lone axle
Yep, will do.
onyx hinge
Appreciate it!
uncut nexus
@slender iron - have you used DEBUG=1 build on the RP Pico with the SWD debugger?
slender iron
@uncut nexus early on I did. I followed the instructions to do swd from an rpi4. I didn’t use a jlink
uncut nexus
Did you run into an issue where an assert in the SDK function hw_claim_clear() was constantly getting triggered?
slender iron
No I didn’t see that. Sounds like it could be a bug in our code
Could also see if it was a pico-ask bug that’s been fixed. They are fixing stuff in the develop branch
uncut nexus
OK, I'll check there. It seems like the hw_claim_clear() expects the pio being cleared to already have been claimed; which is of course not true at boot
turbid radish
?serverinfo
digital shoreBOT
adafruit
manic glacierBOT
slender iron
@uncut nexus that definitely sounds like my bug then! I did swd debug very early on when I was crashing because the code ran into the file system portion of the flash. 🙂
uncut nexus
@slender iron - I posted the issue on the Raspberry Pi Pico forum - I'll see what they have to sat about it. We may need to check the claimed status before 'unclaiming' when we want to reset the state machines.
slender iron
Ya that’s fine with me if we track it too. Can probably tell with the program id
tidal kiln
hey @idle owl @gilded cradle do you know who maintains this page?
https://learn.adafruit.com/adafruit-metro-esp32-s2/circuitpython-internet-test
gilded cradle
@tidal kiln nope, I don't. Is there something that needs changing?
tidal kiln
yah. there's a weird copy edit issue. not even sure what the original intent was for the section in question.
gilded cradle
It's Kattni's guide, so it's likely on her, but I don't think she is working today or tomorrow.
tidal kiln
ok. thanks. nothing super urgent. i'll send her an email.
gilded cradle
ok
tidal kiln
@gilded cradle ok, i think this one is you?
https://learn.adafruit.com/circuitpython-display-support-using-displayio/ui-quickstart
gilded cradle
Oh yeah, things have probably changed since I made that
tidal kiln
there's one feedback thats essentially asking how to use with non-built in display boards
since it only uses board.DISPLAY syntax
gilded cradle
I think there's a number of examples in other guides, so maybe a little blurb about replacing it with the output of initializing the driver in place of that?
tidal kiln
or show both? change code to do something like:
display = board.DISPLAY
# now use display in rest of code
that way you can say something like "if you don't have a built in display, change that line to"
display = <insert external disp init here>
but the rest of the code would be the same
gilded cradle
That sounds good
gilded cradle
Ah, ok. Makes sense
cedar moth
Hi, apologies in advance for the noob question or if this is the wrong place. This is my first time trying to contribute to an open-source project, and I have read your Design Guide and tutorials on contributing using GitHub. I am working on a project (carbon monoxide monitor for a boat) that uses your Adafruit FeatherWing OLED - 128x64 OLED Add-on For Feather - STEMMA QT / Qwiic. Everything is working great, but I need to be able to sleep the display to prolong battery life and realized that the current Adafruit SH1107 driver does not have this functionality. After reviewing the SH1107 datasheet, I have figured out how to implement sleep/wake functionality and have it working on my test rig (a Feather M4 Express connected to the OLED FeatherWing). I have implemented the functionality in a forked version of your current Adafruit_CircuitPython_DisplayIO_SH1107.py driver. Since this seems like something others might want to use, I was wondering what the correct / courteous approach is to offering this work as a potential contribution to the driver? Does one simply submit a pull request out of the blue, or should I bring it up somewhere like here in Discord or on your forums first to see if you are even interested? Should I submit an issue first? Again, this is my first time trying to contribute to open-source and I haven't seen anything about typical GitHub / open-source "social protocols" so your input (and patience) is appreciated!
tulip sleet
Go ahead and make a PR to the library, with an explanation of your goals, and we'd be happy to discuss it there. You could also make an issue, but if you have suggested code, a PR is fine.
cedar moth
Thanks Dan, will do shortly. Appreciate it!
onyx hinge
@tulip sleet my PR's failing all the xtensa builds ... https://github.com/adafruit/circuitpython/pull/4084/checks?check_run_id=1786152942 I thought it was up to date on master, but I'll double check.
tulip sleet
that looks like a bad cache as before 😦
onyx hinge
subprocess.CalledProcessError: Command '['/opt/hostedtoolcache/Python/3.8.7/x64/bin/python', '-m', 'virtualenv', '/home/runner/work/circuitpython/circuitpython/.idf_tools/python_env/idf4.2_py3.8_env']' returned non-zero exit status 1.
analog bridge
<@!329766224093249548> my PR's failing all the xtensa builds ... https://github....
same with mine
#4083
tulip sleet
there were a bunch of failures yesterday due to GitHub network problems and maybe the latest cache is messed up. @onyx hinge could you change the key as usual? @analog bridge see https://github.com/adafruit/circuitpython/pull/3997 as an example
onyx hinge
@tulip sleet yes I can put in a PR to use a new cache key
tulip sleet
or just add it to your current PR, since that PR so simple and already approved.
onyx hinge
I'll do that
analog bridge
for #4083 is a merge from main needed once the key is updated or can it be ignored since the PR is regarding RP2040
tulip sleet
yes, we can ignore the xtensa failures
onyx hinge
argh, I pushed the key-changed to the wrong branch and wandered off
main furnace
How would I check board for an SPI function?
if 'SPI' in dir(board): ...?
I'm thinking about a pull request for the adafruit_seesaw package. I want to maintain the existing behavior (create a TFTShield18 object with the default board.SPI) but allow the package to load if the board doesn't have SPI (RP2040 pico I'm looking at you).
tidal kiln
>>> import board
>>> hasattr(board, "SPI")
True
>>> hasattr(board, "PANCAKES")
False
>>>
simple pulsar
>>> import board
>>> hasattr(board, "SPI")
True
>>> hasattr(board, "PANCAKES")
False
>>> hasattr(board, "CREPES")
True
mmmmmm.....crepes...
onyx hinge
@tulip sleet https://github.com/adafruit/circuitpython/pull/4084 is green now if you'd care to re-review and merge
gloomy shuttle
@tidal kiln any more thoughts on the adafruit_nunchuck library. Are you happy with the latest approach you purposed? If so, I would like to get moving on the other extension controllers like the Classic Controller, Guitar, etc. Also, I have several questions about implementation (e.g. this library vs community bundle library.
gloomy shuttle
No problem. Just thought I would check here.
tidal kiln
looks like you're getting OK performance with the classic controller now?
gloomy shuttle
Yes, using the values property works the best. The do_read with the other functions makes it pretty clean and only requires one i2c transaction.
tidal kiln
ok. cool. then i think now we're just working details of how to code it. like what you're asking about _buttons() etc.
but the basic approach seems to be working
idle wharf
Should dir(library) be sorted the way it is in CPython ? That might be a MP optimization now that I write this...
They don't mention it in their docs
tidal kiln
@gloomy shuttle added some comments over there
idle wharf
Should dir(library) be sorted the way it is in CPython ? That might be a MP opt...
Yes... MP just appends to a list and returns that.
clever wren
a few weeks ago I recall LadyADA wanting to know what projects people are wanting to do that can't be done with the current version of Circuit python. so that they knew what the community wanted to use Circuit python for. I tried to find where to send my input but couldn't find where to send/give my feed back.
fossil gorge
a few weeks ago I recall LadyADA wanting to know what projects people are wantin...
Here's the blog post about it: https://blog.adafruit.com/2021/01/01/where-should-circuitpython-go-in-2021-circuitpython2021-circuitpython/
To sum it up, post it somewhere - GitHub Gist, blog post, tweets, Adafruit Forums, etc. Tag it with #CircuitPython2021 and email a link to it to circuitpython2021@adafruit.com
gloomy shuttle
<@!517804297401008138> added some comments over there
Okay, I am going to think on it some more.
gloomy shuttle
What is the proper way to indicate a method is deprecated in a library?
cedar moth
Hi, I just submitted a PR on Adafruit_CircuitPython_DisplayIO_SH1107 and the checks failed on the Pre-commit hooks with the following error:
I don't think this is related to my code and wasn't sure how to handle it?
gloomy shuttle
Mine just did that for the first time today too, so I am curious as well
cedar moth
Glad it isn't me then... this is my first PR so I figured I probably did something wrong!
idle wharf
@cedar moth try changing latest
- repo: https://github.com/python/black
rev: latest
hooks:
- id: black
to 19.10b0
in .pre-commit-config.yaml
You didn't break it... but you can fix it 😉
Actually use "stable"
cedar moth
I will try, thanks for pointing me in the right direction.
idle wharf
In the failed actions which ran previously (prior to your PR) the error is called out.
https://github.com/adafruit/Adafruit_CircuitPython_DisplayIO_SH1107/runs/1684015020?check_suite_focus=true#step:11:12
idle wharf
Mine just did that for the first time today too, so I am curious as well
What repo were you working in ?
I'm also doing Github actions stuff for work today... might as well do them for CP too 😉
gloomy shuttle
What repo were you working in ?
idle wharf
SAK, I told you to use stable because that was the value in Nunchuk which I assumed was working... give me a few minutes to read the docs 😉
cedar moth
OK 🙂 Thanks for the help!
manic glacierBOT
idle wharf
@slender iron or @idle owl which version of these do you want on the libraries for pre-commit? You can't specify latest or stable any longer (or ever?)
https://pre-commit.com/#using-the-latest-version-for-a-repository
Which version of black? - 20.8b1 is latest
https://github.com/psf/black/releases
Which version of reuse tool? - v0.12.1 is latest
https://github.com/fsfe/reuse-tool/releases
It is 6:20pm Pacific so people might not be around...
cedar moth
Understood, I am Pacific time as well
idle wharf
@cedar moth you could try the latest versions to see if it works 😉
cedar moth
OK, will do that now.
@idle wharf This is my first PR so just want to be sure, would I make the changes to .pre-commit-config.yaml and then commit it like any other changes in my PR?
idle wharf
Yes, edit that file, commit it your branch and the PR will see it automatically and the Github action will run again.
your same branch
cedar moth
cool, thanks! I will report back when it is done...
cedar moth
Yes, got past the previous error, thank you @idle wharf !
I feel a little weird updating the license text, is that appropriate? I would use the text from a file that is passing, but am not sure if that is overstepping my bounds since it is Adafruit code?
idle wharf
@trim elm I think you added all the pre-commit checks, can you advise ? In this case, the reuse is complaining about .gitignore and .plylintrc
https://github.com/adafruit/Adafruit_CircuitPython_DisplayIO_SH1107/pull/2/checks?check_run_id=1788799231#step:11:35
cedar moth
I have to say, I am learning a ton on my first PR... thanks for all the hand holding @idle wharf , I appreciate it!
idle wharf
I see in another repo those files have
# SPDX-FileCopyrightText: 2021 ladyada for Adafruit Industries
#
# SPDX-License-Identifier: Unlicense
You can add that too @cedar moth
cedar moth
Will do it now...
idle wharf
Thanks @cedar moth !
trim elm
@idle wharf looking now, it won’t load on mobile. But if they’re just missing the copyright, then just add it to the top of the files
idle wharf
@trim elm No worries... I think we're close. Do you know which version of black and reuse-tool is preferred? pre-commit is unhappy with stable and latest.
trim elm
@idle wharf So I think I actually forgot to add the licenses like I did in other libs. If you feel comfortable running pre-commit and adding licenses, go ahead, but if you don't, I'll do it tomorrow.
idle wharf
I think SAK is doing that right now
trim elm
Ok. Sweet. I should be reasonably available the rest of the night so feel free to ping me with any more questions
idle wharf
Actually @cedar moth, looks like all these files need to be updated.
The following files have no copyright and licensing information:
- .gitignore
- .pylintrc
- examples/displayio_sh1107_game_of_life.py
- examples/displayio_sh1107_random_motion.py
- examples/displayio_sh1107_simpletest.py
If you don't want to do that, that's fine too 😉
cedar moth
I just got them all and resubmitted 🙂
idle wharf
💥 Boom ! Nice !
cedar moth
Wife just got dinner ready, will check back in a little bit to get this wrapped up.
idle wharf
When you're wanting to continue: Add a blank line to the end of .gitignore
@trim elm It also failed on black. I thought black would just change all files and pass.
black....................................................................Failed
- hook id: black
- files were modified by this hook
reformatted /home/runner/work/Adafruit_CircuitPython_DisplayIO_SH1107/Adafruit_CircuitPython_DisplayIO_SH1107/examples/displayio_sh1107_random_motion.py
reformatted /home/runner/work/Adafruit_CircuitPython_DisplayIO_SH1107/Adafruit_CircuitPython_DisplayIO_SH1107/examples/displayio_sh1107_simpletest.py
reformatted /home/runner/work/Adafruit_CircuitPython_DisplayIO_SH1107/Adafruit_CircuitPython_DisplayIO_SH1107/setup.py
All done! ✨ 🍰 ✨
3 files reformatted, 3 files left unchanged.
@idle wharf So black has to be run locally for it to pass. The command that runs on the CI just checks the files but doesn't actually modify them
idle wharf
@trim elm Gotcha... that makes sense now that I think about it.
so SAK should just run black .
trim elm
I'd personally recommend just installing pre-commit through pip and running the whole thing with pre-commit run --all-files
I'm honestly not sure. I think we may have moved to doing that (running black .), but the safest bet would be to run black --target-version=py35 .
idle wharf
Kewl.. @cedar moth when you're back. I'm a nightowl if you want help. Thanks @trim elm !
fossil gorge
You can also setup pre-commit to run as a pre-commit hook on your local repo, to get that feedback as early in the process as you can
tulip sleet
pip3 install pre-commit
cd your-repo
pre-commit install # do this in each repo
This will save you pushing multiple "fix" commits to the library
you may need pip3 install black ,etc. if you don't already ahve it
fossil gorge
you may need `pip3 install black` ,etc. if you don't already ahve it
Correct. I think "Sphinx" is the only other one that would be needed
Just make sure you use Python3/Pip3
in case you have python around that's calling to python2
tulip sleet
oh, and pylint
eventually we will document this in the "contributing libraries" guide
cedar moth
@idle wharf I am back and just got caught up. I thought I had my IDE setup to run Black automatically, but it appears to be doing it to only Python files, sorry.
cedar moth
I have Pylint and Black installed and my Python version is good (no 2.x lurking anywhere), so I will install Sphinx and pre-commit and try following the instructions above.
idle wharf
Try it without Sphinx first. I don’t think it’s required for pre commit.
To build locally yes. Hugo may know.
fossil gorge
eventually we will document this in the "contributing libraries" guide
I'm going through the "Building CircuitPython" guide, and trying to think a few things through. At this point, might it be worth having a virtualenv setup for it, that would install the pre-reqs, and possibly (prompting maybe?) also install the pre-commit hook?
cedar moth
Unfortunately I just realized that things are never simple... my Python environment is an Anaconda environment and I just checked that Pip doesn't play well with Anaconda and the pre-commit package isn't available through Anaconda.
tulip sleet
@fossil gorge I would rather just list things for people to install. A virtualenv is yet another complication, and black, Sphinx, and pylint are all things people might install for themselves anyway.
idle wharf
I'm going through the "Building CircuitPython" guide, and trying to think a few ...
esp-idf has a virtual environment within so I don’t think you can nest them.
cedar moth
I use Anaconda for work, I can look into setting a different environment up for this but I am trying to figure out if it is a rabbit hole I should go down...
idle wharf
@cedar moth only if you want to.
tulip sleet
at one point we had a vagrant environment people could use, but it aged badly, and was more trouble to set up than to just use vanilla setups
fossil gorge
<@!361158808501747735> I would rather just list things for people to install. A ...
That's a good point. I was coming at it from the "up and running quickly" side of things, and knowing me, likely as a "I read the first 3 lines, I know what I'm doing! Hold my beer!" person 😉
idle wharf
@cedar moth one of the library reviewers or adafruit folks will look at that repo and get it spiff’d up.
cedar moth
I am happy to help if I can, but I am starting to feel like some of what I would need to do might start infringing on Adafruit standard operating practices since it isn't just my code I am starting to muck with?
tulip sleet
i understand that a prepackaged thing is nice, but if we were to do that, then a self-contained dev environment with everything (e.g. the tool-chain too) might make more sense. However, everyone is different. The vagrant env depended on virtualbox, and getting that installed properly was more work than just saying "start with a clean system"
the python environment on Macs is enough of a nightmare, and the BIg Sur security lockdown is also a complication. A clean Ubuntu is a really good place to start.
gloomy shuttle
I think I have sorted out the pre-commit stuff, but now I am running into a build docs issue. adafruit_nunchuk.Nunchuk:6:Unexpected indentation.
jaunty juniper
I did debug builds on my mac using docker (and virtualbox) and a clean Ubuntu, it really helps not having to bother with installing more stuff on the mac and screwing with python and whatnot
fossil gorge
the python environment on Macs is enough of a nightmare, and the BIg Sur securit...
Sadly all too familiar with that, and my hardware isn't even "Big Sur" worthy. Nightmare is on a good day :/
blissful pollen
I am happy to help if I can, but I am starting to feel like some of what I would...
As someone relatively new to contributing the review process is always friendly and will point out anything you may not realize
fossil gorge
Probably should just setup a dedicated Linux box or VM of some flavour for this work.
cedar moth
@blissful pollen Agreed, this is my first PR and everyone has been awesome... and I am learning a ton.
gloomy shuttle
I am on not on Big Sur, but I am using a Mac as well and just set up a custom virtual environment for CP stuff and installed everything needed there and that seems to be working pretty well for me.
tulip sleet
@gloomy shuttle you removed some blank lines whic you might need to put back.
gloomy shuttle
Yeah, when I copied something they got removed. I have them added back in my local repo but the build docs is failing locally now with the spaces added back.
cedar moth
I am almost 100% certain I have run Black on the three example .py files in the repo I am working on but are failing the Black test in the PR. I don't see any specific error in the test, just that Black is reformatting those three files. On my end it doesn't seem like anything needs changing?
fossil gorge
I am almost 100% certain I have run Black on the three example .py files in the ...
Could it be whitespace changes? Such as tabs instead of spaces?
Could also be whitespace at the end of a line, or end of the file
cedar moth
I think I may have figured it out looking at what Black did on my end in the commit. What is the maximum line length standard for Adafruit?
idle wharf
That is provided by black
cedar moth
We use 120 characters for my work and that is what I have black set to. I see a case where it reformatted a statement in one of the example .py files that was originally three lines into a single line.
I believe the black default is 100 characters?
tulip sleet
we use black --target-version py35 and use the default length
idle wharf
If you let black format the files and then commit them. I think you’ll be good. Just don’t edit the files again
cedar moth
I just looked, black defaults to 88 characters
About the ONLY parameter you can muck with in black is the max line length, and I had that set to 120 for work. Let me change it back and re-blacken the files and see what happens.
gloomy shuttle
<@!517804297401008138> you removed some blank lines whic you might need to put b...
thanks, I did this and ran pre-commit and sphinx, but the issue persisted. I ran pylint again and then tried to build the docs and it succeeded.
cedar moth
Looks like the line length was the problem for the three examples, sorry about that everyone. Now onto what is wrong with setup.py...
idle wharf
Looks like the line length was the problem for the three examples, sorry about t...
Hmm what are you seeing with setup.py?
cedar moth
There were a number of Pylint errors and I seem to still be having a Black issue, the PR check says Black is reformatting the setup.py file but I can't seem to get Black to find anything on my end.
I am trying to get my IDE to pass the -t py35 parameter danh said is used to see if that could be the issue.
idle wharf
have you tried running black from the command line and doing the commit also from the command line ?
If your IDE's settings are the issue... that would work around that
cedar moth
I think I need to do that at this point... trying one last thing and then will resort to the command line.
idle wharf
this is the change it is making when it runs
install_requires=[
"Adafruit-Blinka",
],
before its all one line. After is ^^^
cedar moth
How did you see that Patrick, by running it on your local system?
idle wharf
Command-line 😉
yes. I also ran pre-commit locally. That is the only thing not passing.
with that change, all looks clear
cedar moth
So weird, I can confirm that black working on my end and reformatting the file when I put in some extra blank lines and spaces at the end of lines, but it isn't making that change.
idle wharf
black --version
black, version 20.8b1
I think but I am not 100% sure that pre-commit is running black . not with a target version.
It is true in some adafruit repos there are checks that run with that --target, but I don' think precommit does.
CP team just started rolling out pre-commit
cedar moth
I am running 19.10b0. I am going to have to setup a dedicated "working on Adafruit open-source" environment on my system since the Anaconda version environment I use for work isn't being flexible. It won't let me update Black beyond the version I have now.
I have manually made the change to setup.py and am going to push, fingers crossed!
cedar moth
Whoever reviews my PR is going to need a beer... or three 😐
idle wharf
lol... No I think your original changes are quite easy to review.
I made 7 commits today to a work repo to get github actions to set a timestamp properly... it happens. 😉
cedar moth
Hey thanks for all the help and support Patrick, I would have been dead in the water on that first error if it wasn't for you!
cedar moth
I think the biggest thing I have learned is to just take the bull by the horns on this stuff (while still knowing my place). I didn't realize how much ability to just dig into things and fixing them was an option, I thought just dealing my my code was the limit.
No, I think I got another error... are you looking at https://github.com/adafruit/Adafruit_CircuitPython_DisplayIO_SH1107/pull/2
idle wharf
You got further this time. Its building the docs
cedar moth
Looks like Sphinx completed with Error Code 2
Unexpected indentation... let me see what I did there, I have never used Sphinx before.
idle wharf
RE: Environment. If you're on MacOS. I really like pyenv to manage python environments
cedar moth
I got too fancy with the docstring formatting and overly indented the five numbered items I think.
I am on Windows
idle wharf
I used to use this on Windows https://pypi.org/project/virtualenvwrapper-win/
But there might be something new\better
cedar moth
Or four numbered items, in the sleep method.
idle wharf
Oh look... https://pypi.org/project/pyenv-win/ I've never used it
cedar moth
I will look into virtualwrapper. Anaconda works great for our work but it does tend to lag behind on release versions. On the other hand it is pretty much rock solid. I am using Visual Studio Code for the IDE and have installed the Python extension for VS Code. That should give me a separate environment from Anaconda that I can install all the required functionality into without affecting my Anaconda environment.
gloomy shuttle
lol... No I think your original changes are quite easy to review.
I made 7 comm...
Is it appropriate to rebase a draft PR to clean up a bunch of small commits before you switch to ready for review?
idle wharf
Pyenv lets you install Python, Anaconda, ... all the things side by side
idle wharf
Is it appropriate to rebase a draft PR to clean up a bunch of small commits befo...
In my experience the CP team isn't picky about commit history the way other folks are. If you know how to do it and want to that's great.
gloomy shuttle
thanks
idle wharf
The reviewer can always rebase and merge if they want..
@cedar moth... I bet it passes this time !
cedar moth
Let's hope they aren't picky... I am going to have 50 commits for just adding about 15 lines of code to a driver! 😫
idle wharf
And helping fix something that was broken
cedar moth
My fingers are sore from all the crossing! This is commit #9, though to be fair only three are directly related to my proposed addition.
idle wharf
there it is !!
The green check of external validation!! Woot !
cedar moth
Holy crap!
My first PR ever... that was a learning experience! THANK YOU @idle wharf !!!
gloomy shuttle
@idle wharf do you know the proper way to indicate a method is deprecated in a library that you don't want to remove yet?
idle wharf
My first PR ever... that was a learning experience! THANK YOU <@!62400599869633...
First of many !
cedar moth
@idle wharf If you live in the Seattle area I will buy you a beer after this COVID crap is behind us. I REALLY appreciate all the help and patience.
idle wharf
I do live in Seattle... in Ballard.
cedar moth
I am in Gig Harbor 🙂
idle wharf
@gloomy shuttle I don't know of any official way other than that when they release the change, the Major version number should be incremented. There was a liibrary where the name of the library and the class name of he object didn't match. I fixed that and that's the only thing we did. Up the Major version and put a note in the release. In the CPython world there's all kinds of ways and python decorators like @deprecated. In CP its all handled in the docs.
idle wharf
I am in Gig Harbor 🙂
Beautiful anchorage there !
OK... going to be AFK for a while. Congrats @cedar moth on your first PR !
gloomy shuttle
<@!517804297401008138> I don't know of any _official_ way other than that when ...
thanks!
cedar moth
Night, thanks again!
manic glacierBOT
fossil gorge
My first PR ever... that was a learning experience! THANK YOU <@!62400599869633...
Congrats @cedar moth! The project, and thus the community, is better from it because of your hard work 🙂
marble hornet
@idle owl I think there is an error is the lc709203f guide, here
the class should be called LC709203F but is called LC709023F with the 0 and 2 switched.
Is there a public facing interface for the community to pr changes?
(I pinged you as the guide lists you as the author, idk if that's the usual method?)
lapis hemlock
@onyx hinge Jeff, I think you can update link to ulab: https://github.com/v923z/micropython-ulab/releases/tag/1.7.2
onyx hinge
@lapis hemlock thanks for the amazingly quick bug fixing
lapis hemlock
@onyx hinge I have noticed that the github checks run much faster. Is it because you modified the script a couple of weeks ago, or has github in general become faster?
I am talking about a factor of 3-4, which is significant.
onyx hinge
I dunno, could be
lapis hemlock
I am not complaining, mind you!
onyx hinge
the adafruit/circuitpython checks are still taking quite some time
looks like #299 was quick because it failed
some kind of github checkout problem
tulip sleet
@onyx hinge I can finish this off if it runs past your break start
lapis hemlock
looks like #299 was quick because it failed
I'll look into it.
onyx hinge
I think it's just github being github..
onyx hinge
@lapis hemlock yeah I think everything is fine, the build failed for some github reason not a real reason
@tulip sleet do you know if there's a reason we're using actions/cache@v1 instead of @v2 ?
lapis hemlock
@onyx hinge Thanks for the info!
manic glacierBOT
onyx hinge
I thought maybe there was a way a "workflow_dispatch" could be used to clear an actions cache but that does not appear to be the case.
lone axle
@marble hornet, @idle owl There isn't a full PR system for learn guides. There is a Feedback? Corrections? at the bottom of the navigation links on the left. The guide authors can see the messages reported in there. In the specific case of this fuel gauge I think some portion of the library repo had the incorrect name for a while and was just recently spotted and corrected. That's likely why the guide page is now "out of sync" with the library.
tulip sleet
<@!329766224093249548> do you know if there's a reason we're using actions/cache...
not that I know of
lone axle
I had a free minute waiting on a big file to move around, and I have access to edit the guide page so I went ahead and fixed the name of the class. Thanks for reporting @marble hornet if you have a second try checking again and verify it looks good now.
marble hornet
@lone axle looks good.
lone axle
Thank you
onyx hinge
well this is an interesting attempt to work around broken caches .. https://github.com/actions/cache/issues/432#issuecomment-740376179
it ensures any successful build updates the cache, but I'm not sure that really helps once a bad cache can be retrieved..
idle wharf
@marble hornet , @idle owl Just a heads up, if I remember correctly, the lc709203f guide change request was submitted when I did the PR to fix the name in the library itself. So it is in the queue. My guess is the Adafruit team was busy on RP2040 at the time.
And I see @lone axle fixed it... nvm. 🙏
manic glacierBOT
ionic elk
Could a python-y person explain what MP_QSTR___del__ is within shared-bindings? Something is automatically closing every socket before I get to it on a soft reboot and I think this is it, but I'm not 100% sure
slender iron
that could be the finalizer
ionic elk
googles finalizer
slender iron
it requires you allocate the memory stating it has a finalizer
basically runs when the memory is cleaned up
ionic elk
gotcha, makes sense
well, now I feel foolish for engineering this whole automatic cleanup system that does nothing
slender iron
np 🙂
ionic elk
Why don't we just use finalizers for every kind of hardware object that gets reset? Seems like this could have been used for UART, I2C, PWM, etc
instead of these search and shutdown reset_all functions
slender iron
that's a good question
slender iron
finalizers are weird to use because you don't know when they run
although we do shutdown the heap well so they should run then at least
ionic elk
I just found it because I discovered something was running socket.close on soft reboot, only on my open sockets, before it hit reset
tulip sleet
they are not so useful on the python side of the world, because when they run is indeterminate.
ionic elk
so my manual reset would look for things to do, and not find any
@tulip sleet does that apply here? because I have several very clunky reset_all functions that would be made much simpler if they worked like socket does here
tulip sleet
no, because they are more guaranteed to run. But if someone pressed reset or there was a crash, they would not be run. I'm not sure that's an issue
ionic elk
I mean I'm glad to get rid of this socket tracking system - it was storing things in an array and was super messy since Sockets could have variable indexes
tulip sleet
it's just that in the python world, people don't use them a lot
ionic elk
They won't run on a crash? That... might be bad? I dunno.
tulip sleet
are the reset_all() run on startup, or do you start from a known state?
tulip sleet
is it run at the beginning of main() too?
ionic elk
and right after board_init yeah
tulip sleet
so you need them anyway?
ionic elk
so yes
I guess so
I mean for most chips having the reset at startup is probably unnecessary
I can't think of any cases in STM32 land where we'd need it. Maybe for weird edge cases somewhere
Should I keep my double-check system for closing Sockets in the event of a crash or just get rid of it?
tulip sleet
but the reset at the beginning is truly everything, so you don't need to keep track.
sockets is different, they are not hardware, unless you reset the whole chip.
in other words there is no socket state to reset on power-on
unlike, say, I2C state or pin state or whatever
but if you can do socket reset based on finalizers, that sounds nice. I would just worry about an error condition or some crash that left you without a Socket object to finalize and reset. The finalizer depends on there being a Python object.
ionic elk
I didn't do it, it was there already - I just found out about it after I realized the stuff I made wasn't actually doing anything haha
I'm currently dealing with some kind of issue where LWIP thinks there are more file descriptors in use than Python does
But I think that's something else
I wish there was some kind of global LWIP function that would give me every active file descriptor, or guarantee they were all closed, or something, but I don't see anything to that effect.
tulip sleet
i know zero about it, sorry
lapis hemlock
@slender iron @tulip sleet This is similarly priced to the joulescope: https://www.crowdsupply.com/zscircuits/zs1100a-power-meter
ionic elk
@slender iron you want me to make that hotfix for the default socket timeout?
gloomy shuttle
@tidal kiln thanks for all your help and back and forth on that nunchuck PR.
tidal kiln
np. thanks for not giving up!
gloomy shuttle
The next question I have is if I want to add support for the other extension controllers where should that go?
individual Community bundle library for each based on this one, added directly to this one, or create a new single community bundle library with all of the extension controllers?
tidal kiln
good question. not something i want to decide myself. so we'll see if we garner some discussion here and see what makes the most sense.
thorny dove
Hi everybody online! Good evening from Lisbon. I am in need of help. Wrote a CP script reading uart.readline() into a bytearray() buffer, to receive GPS AV400 sentences (short messages) from MSFS2020. Printing to the REPL window is OK, but printing to a 20x4 character LCD is garbled with non-ascii characters it are '\x00' in the bytearray(). I tried all sorts of x.decode() or struct.unpack but I did not succeed in either: filtering unwanted values or converting them. I have two screenshots. One with the output to the REPL and a second to the LCD. Anyone that can help me out please?
Output to REPL
Output to 20x4 character LCD
tidal kiln
hey @thorny dove welcome! can you please ask this in #help-with-circuitpython . this channel is more for the core firmware development questions.
thorny dove
@tidal kiln Hi, yes, sorry, I forgot to choose that group
tidal kiln
all good. no worries. thanks!
gloomy shuttle
good question. not something i want to decide myself. so we'll see if we garner ...
Okay, thanks!
manic glacierBOT
hoary moat

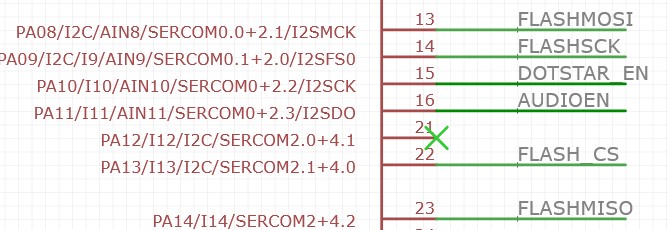

@slender iron talking about QuadSPI in deep dive reminded me of the driver I wrote a decade ago. At the time a 4-channel digital O-scope was kind of a luxury. And one that decoded bits to ASCII was $$$. Fun times.
manic glacierBOT
manic glacierBOT
timber mango
it is impossible to install micropython on MATRIXBOOT (matrix portal m4).
manic glacierBOT
lone axle
I will be streaming some CircuitPython library development this morning if any one is interested in watching along. Will drop links in #live-broadcast-chat in just a moment.
ionic elk
This line is messing up my work in Requests: del self._socket_free[sock]. The exception it throws is weird, Error sending data - try again <SSLSocket>, instead of something like Error sending data - try again Failed SSL handshake, so somehow it's returning a class as an exception? And then every call I make to requests from that point on returns the same error message
Context:
def _close_socket(self, sock):
print("REQ _close: attempt to close")
sock.close()
print("REQ _close: closed")
del self._socket_free[sock]
print("REQ _close: deleted")
@tulip sleet would you have any ideas about this? the sock.close() works, but then this wacky delete error blows up the whole program
tulip sleet
there is no guarantee that using a del statement will execute the finalizer right away. But I don't know why you would see that error.
ionic elk
The error, at least, comes out right away, because the print statement right after the del is never reached
Ie I never see print("REQ _close: deleted")
tulip sleet
if you catch and print the exception, what is it?
ionic elk
That's what's happening
code.py code is except Exception as e:, print("Error sending data - try again ", e)
and it prints Error sending data - try again <SSLSocket>
I could try catching the error locally
yeah same thing:
try:
del self._socket_free[sock]
except Exception as e:
print("explode!")
print(e)
literally prints
<SSLSocket>
tulip sleet
no, i have no idea 🙂 . I'd set a breakpoint on mp_raise or whatever to see what's being thrown from where
if the object has been returned to the heap, then maybe it's a stale pointer
ionic elk
bonus info, in shared bindings I have { MP_ROM_QSTR(MP_QSTR___del__), MP_ROM_PTR(&ssl_sslsocket_close_obj) }, but I know it never actually hits my sslsocket_close function because it would throw messages if it did
@tulip sleet sorry to keep bugging you, I'm just weirded out by this python stuff. So, print(self._socket_free) returns {<SSLSocket>: False}? Does that give you any clues to what this might mean?
_socket_free is a dict, so is this an object being used as a key?
tulip sleet
yes, exactly, that's a one-element dictionary
ionic elk
so del self._socket_free[sock] is trying to do what, delete the key or the value?
ionic elk
I've found that attempting to print(self._socket_free[sock]) causes an immediate exception returning <SSLSocket>
ionic elk
Maybe it doesn't like the objects being compared in that way? I'd like to put in a PR to Requests that fixes this, but this is all feeling super weird and out of my usual domain
tulip sleet
are SSLSockets hashable? They need to be hashaable to be used as dictionary keys.
ionic elk
I don't know what that means, unfortunately
tulip sleet
it means they have a hash() function implemented __hash__ exists
ionic elk
Hmm, that sounds promising. Maybe when porting over Socket to SSLSocket I neglected a hash-related thing
tulip sleet
did the old code have a dictionary also?
//| def __hash__(self) -> int:
//| """Returns a hash for the Socket."""
//| ...
//|
STATIC mp_obj_t socketpool_socket_unary_op(mp_unary_op_t op, mp_obj_t self_in) {
switch (op) {
case MP_UNARY_OP_HASH: {
return MP_OBJ_NEW_SMALL_INT(common_hal_socketpool_socket_get_hash(MP_OBJ_TO_PTR(self_in)));
}
default:
return MP_OBJ_NULL; // op not supported
}
}
implemented like that ^^
i can look at your PR
or is it merged already?
#4049, right?
ionic elk
Yeah
tulip sleet
//| def __hash__(self) -> int:
//| """Returns a hash for the Socket."""
//| ...
//|
STATIC mp_obj_t ssl_sslsocket_unary_op(mp_unary_op_t op, mp_obj_t self_in) {
 switch (op) {
 case MP_UNARY_OP_HASH: {
 return MP_OBJ_NEW_SMALL_INT(common_hal_ssl_sslsocket_get_hash(MP_OBJ_TO_PTR(self_in)));
 }
 default:
 return MP_OBJ_NULL; // op not supported
 }
}
Are hashes supposed to be unique and unchanging? Because right now they're derived from self->num which is going to go from a viable integer to -1 whenever the socket closes. Which it does, right before this del happens
tulip sleet
that is bad 🙂
ionic elk
Should I pass the pointer for the object, or something? That won't be changed until the object itself is destroyed
tulip sleet
that is often used for a hash. If the object moves, then that's not a good hash. I would take a look at some other hash functions in common-hal
it's not long-lived, is it? In general you have to be careful when computing hashes on mutable objects
ionic elk
I have no idea, sorry. The lifecycle of a socket, best I can tell, is that it's created as a socketpool_socket_obj_t, which is then given a ->num attribute corresponding to an internal LWIP socket. When you call sock->close(), num is set to -1.
tulip sleet
so the same issue may have occurred on regular sockets.
this is a bug. Is there any immutable value in the socket struct?
ionic elk
if it's a TLS socket, the socketpool_socket_obj_t is stored as a member of an ssl_sslsocket_obj_t, and LWIP also makes a second secret socket for MBED TLS that persists until the TLS shutdown functions are called
an immutable unique value in socketpool_socket_obj_t? no, not really, not at the moment.
I could make one, I guess?
I've never seen another hash call in common-hal, at least not in the modules I've worked on
so this is all kinda new to me
So you're saying the address of socketpool_socket_obj_t is not necessarily immutable, it could get moved around for some reason
tulip sleet
if it were long-lived, or if we implemented a compacting gc, yes. And the idea is that if two objects are ==, then their hashes are the same. We don't even have an == operator here. This use of dictionaries for sockets is not a good idea if these objects aren
aren't nicely hashable
even, if say, we remembered the original num, and used it as a hash, then when something gets looked up in the dictionary, and there are two objects with the same hash, then we try to compare them to see if they're really the same
ionic elk
I don't know when if ever a socket could be compared to another with ==
tulip sleet
they would just not be equal, because it defaults to comparing the addresses
ionic elk
If we remembered the original num and used it as a hash, could you have the scenario where a socket object is created, closed, and then another socket object is created again with the same hash since LWIP will reuse the number, and they'd be considered equivalent?
that would be bad, right?
tulip sleet
well, no, because there's no __equal__ defined. But it's an abuse of dictionaries to do this. Is there something else about a socket that's immutable, like the port number or something? I have defined a few hash functions, but hey are based on something immutable in the object, like for instance it's a BLE UUID or a BLE address, both of which don't change after creation
ionic elk
Are sockets in Cpython hashable?
tulip sleet
i have no idea, i'd have to look
tulip sleet
no, they aren't
ionic elk
so maybe this just calls for rethinking the code in Requests
There are no aspects of Socket I would consider immutable
tulip sleet
yes, so what is the dict used for, and is it the only dict?
it just says whether it's free or not, right?
ionic elk
I'm not a regular Requests contributor so I'm not totally sure, there are two dicts in Session:
self._open_sockets = {}
self._socket_free = {}
both use sockets as keys
tulip sleet
are those sets disjoint, is a socket either open or free?
ionic elk
Are there specific folks who push the development on Requests? We might want to run this by them
I don't know, that's internal lingo
tulip sleet
Yes, I would open an issue on Requests, that storing sockets in dictionaries is not a great idea
does this code come from CPython requests??
ionic elk
Yes
wait no
not Cpython sorry
I read that wrong. This is all from Adafruit_Circuitpython_Requests
Original problem is here: https://github.com/adafruit/circuitpython/issues/4061
Original issue was an uncaught exception, but solving it brought me here.
tulip sleet
@ionic elk ok, the issue is that one shouldn't use sockets as dictionary keys. This code was added recently. That shouldn't be done. You can open an issue and cite me as backup. And we should remove the hash function from sockets.
in the past there was also a socket pool, but the sockets were the values, not keys. The keys were tuples
ionic elk
@tulip sleet looks like @slender iron was the one who added it, he might have justification for it that we don't know about
(the hash function, I don't know about the requests part)
tulip sleet
I think he added it so he could put them in dicts in requests. I think he forgot that that paritcular hash might change. But it's not a good idea. They are mutable objects that don't have a reasonable hash
the idea was probably to do a quick lookup
instead of a linear list search or something
ionic elk
Ok, this all makes sense. I'm going to go grab some lunch and then I'll come back and write up an issue for the Requests lib
thanks for helping me understand all of this! I would never have gotten there without your help haha
tulip sleet
if they need a .free or .open state, that could be added as a built-in attribute. np!
tulip sleet
@ionic elk I am writing an issue for circuitpython about the hashing, and trying to figure out if there is reasonable solution or not. For user-defined classes in Python, they are hashable: the hash is the id() (which is the address), and equality is defined as whether the id's are equal.
We have had some issues about ids changing from underneath things: I will find that issue
i think if we make the hash be the id() that will be OK, though I think it's worth looking at the requests code to see if it's really necessary to have sockets as dictionary keys, since it seems to be substituting for some attributes that could be on the socket objects themselves.
ionic elk
@tulip sleet back, that sounds reasonable to me
tulip sleet
onyx hinge
@tulip sleet besides when objects are "moved" to the long-lived heap, I don't know when else an object's address would change
manic glacierBOT
tulip sleet
the only other case I know of is this: https://github.com/adafruit/circuitpython/issues/2687
manic glacierBOT
Users have seen some glitches writing NeoPixel strings on SAMD51 with CircuitPython. I took some timings in July 2020 of the NeoPixel one and zero waveforms, both for the Arduino code and neopixel_write. It seems like some SAMD51 times could be adjusted
@PaintYourDragon You mentioned recently about the "1/3 - 2/3" rule of thumb for NeoPixels, if I remember right. Do you see m...
ionic elk
@tulip sleet I did a big sum-up of everything in https://github.com/adafruit/circuitpython/issues/4061#issuecomment-770274825
manic glacierBOT
ionic elk
@tulip sleet so this hash from ID trick is just replacing return MP_OBJ_NEW_SMALL_INT(common_hal_ssl_sslsocket_get_hash(MP_OBJ_TO_PTR(self_in))); with return mp_obj_id(self_in);, right?
tulip sleet
yes, that's what I was thinking
ionic elk
How did you even know about mp_obj_id()? I can't grep it anywhere else
certainly looks a lot cleaner
tulip sleet
i looked for the implementation of the id() function by looking for QSTR_id, and then following from there.[
ionic elk
@tulip sleet it works! Nice.
lone axle
@onyx hinge I'm going to tweak the logic in the wrapping just a bit. In this main if statement that decides what happens with each word I think we don't want to set firstword = True in the last else branch:
if firstword:
partial.append(word)
firstword = False
width += wwidth
elif width + swidth + wwidth < max_width:
partial.append(" ")
partial.append(word)
width += wwidth + swidth
else:
lines.append("".join(partial))
partial = [indent1, word, ' ']
width = measure(indent1) + wwidth + swidth
firstword = True
on lines other than the first one this logic actually ends up applying to the second word which makes it "skip" the check to see if the line is too long. As is if the first two words are "too long" they won't get split
onyx hinge
I didn't test this scenario, but the intent is that "firstword" indicates it is the first word on a given line. That word needs to be placed on its line, REGARDLESS of whether it's too long (or you could break it based on individual letters instead of words)
lone axle
Ah yeah, I do now
onyx hinge
firstword must be doing double duty, preventing an extra space. maybe there's a better way.
yay I'm glad you are testing this!
lone axle
I see. Yep, by removing first word going back to true it makes the first space of the line always end up doubled.
Here we go
we can "start" the new partial with indent1, word (and no space). Then the space gets added in the next iteration before it's word.
I think we may have gotten the word-splitting across lines with hyphens in the other wrap function. I'll try to bring in a similar solution to this one.
slender iron
if they need a `.free` or `.open` state, that could be added as a built-in attri...
You can't add to the socket API without making sure CPython sockets have it.
tulip sleet
got it
i think just using id() will work. I guess you had to have that odd dictionary, though maybe it could just be a list of free sockets
@slender iron in CPython, socket.fileno() will return -1 if the socket is closed.
that is supposedly the way to tell
manic glacierBOT
Hi friends. I'll be sending a PR here and over at uf2-samdx1 to add Binary Star's configuration. Could I have a set of PIDs please? 😺
ivory yew
hah, @tulip sleet closed an issue as I was applying labels
tulip sleet
thank you for the the housekeeping 🙂
ivory yew
I was there and tried to leave it better than I found it 🙂
I'm sad that I haven't had as much time to spend with CircuitPython lately.
But I still love y'all.
tulip sleet
you are busy!
onyx hinge
you know we'll be here when you get back -- take care @ivory yew
atomic summit
My own CP repo was way behind so I pulled latest )(main) and thought I better run ./install.sh again just in case, and it hard crashes and brings down my terminal window (macOS 10.15.7)
So I went to a different Mac that has never had a CP redo on it before, cloned, ran .install/sh and again it downloaded all of the espressif tool chain stuff and then brought down my terminal window.
Anyone else seeing this? I can't complete install.sh so can't export & build.
I'm about to kill off my fork and create a brand new one... as I REALLY need to build source ASAP...
but I thought I'd ask if this was a know issue before I re-fork
hmm, rebasing my original fork (in SmartGit) is asking me for SSH credentials for use git ?
I don't have a user called git, so this would have to be one of the submodules? I've never seen this request before.
It says it's for lib/tinyusb
Ok, I killed off my fork and re-forked. Let's hope this one works ok!
atomic summit
install.sh still kills the terminal window "at some point"....
jaunty juniper
maybe something in the system log would give a hint why
atomic summit
it's probably a python version issue
jaunty juniper
I'm not sure what can kill a Terminal window, even quitting the shell doesn't
atomic summit
so a clean fork fixed those "git user" permission issues...
arctic oasis
Does anyone happen to know if Adafruit plans on stocking the USB C version of the TinyPICO?
atomic summit
@arctic oasis that's a Q for me, more than Adafruit 😉
Right now I'm only doing small production runs of TinyPICO USB-C, so I'm not distributing them through anyone but me. That might change in the future, but no plans yet.
arctic oasis
Sub-one minute response from the creator themselves, and I'm not even a customer (yet), thanks very much!
atomic summit
Ok, I tracked down what that ssh error is (I still get it)...
Warning: Permanently added the RSA host key for IP address '13.237.44.5' to the list of known hosts.
git@github.com: Permission denied (publickey).
fatal: Could not read from remote repository.
Please make sure you have the correct access rights
and the repository exists.
fatal: clone of 'git@github.com:raspberrypi/tinyusb.git' into submodule path '/Users/seon/circuitpython/ports/raspberrypi/sdk/lib/tinyusb' failed
Failed to clone 'lib/tinyusb'. Retry scheduled
Cloning into '/Users/seon/circuitpython/ports/raspberrypi/sdk/lib/tinyusb'...
git@github.com: Permission denied (publickey).
fatal: Could not read from remote repository.
Please make sure you have the correct access rights
and the repository exists.
fatal: clone of 'git@github.com:raspberrypi/tinyusb.git' into submodule path '/Users/seon/circuitpython/ports/raspberrypi/sdk/lib/tinyusb' failed
Failed to clone 'lib/tinyusb' a second time, aborting
Failed to recurse into submodule path 'ports/raspberrypi/sdk'```it seems the raspberrypi tinyusb stuff is using SSH and not https for inclusion as the submodule?
jaunty juniper
❯ cat ./ports/raspberrypi/sdk/.gitmodules
[submodule "tinyusb"]
path = lib/tinyusb
url = git@github.com:raspberrypi/tinyusb.git
branch = pico
yup
atomic summit
I've tried changing .gitmodules to:
path = lib/tinyusb
url = https://github.com/raspberrypi/tinyusb.git
branch = pico```but still get the same git@ error
Failed to clone 'lib/tinyusb'. Retry scheduled
Cloning into '/Users/seon/circuitpython/ports/raspberrypi/sdk/lib/tinyusb'...
git@github.com: Permission denied (publickey).
fatal: Could not read from remote repository.```so apparently there is such a thing as .git/modules/ports/raspberrypi/sdk/modules/tinyusb/config
oh .git/modules/ports/raspberrypi/sdk/config first
git modules are complicated
atomic summit
I just caved and setup SSH
but I'm going to open an issue for this as I don't see why it's setup like this.
I mean, it's a raspberrypi thing.... not a circuitpython one, but this is a bad stumbling block for using source.
jaunty juniper
oh yeah it's raspberrypi's sdk that uses ssh for their tinyusb fork
atomic summit
there needs to be a way to not bring down the raspberrypi stuff (I'm not using it) or to have it not be SSH (IMHO). Nothing else requires SSH.
worthy robin
hey, im new to circuitpython, can help me with the new socketpool module?
someone*
ive worked with the python socket module in the past but im having trouble creating a simple tcp socket with the socketpool module
solar whale
@idle owl in the guide for using black, it say to use black --check --target-version=py35 . Is that still correct or shout the --target-version be omitted?
tulip sleet
<@!330227457296957440> in the guide for using black, it say to use `black --chec...
Yes, we are still using that --target-version
i added a shell alias to include that all the time
solar whale
Thanks .
simple pulsar
The ESP32 ADC is frightening without correction which is what you get in Arduino-land. I just repeated my ADC test and also threw in a Raspberry Pi Pico and a random Arduino Uno Rev3 clone board I had lying around. https://forums.adafruit.com/viewtopic.php?f=60&t=174020&p=852007#p852007
crimson ferry
@simple pulsar there should probably be a note in the learn guides for S2 board about the voltage limits
@worthy robin basic calls are in place, an example is here: https://github.com/adafruit/circuitpython/pull/3854, but there are a couple of PRs not yet merged with feature and bug improvements
blissful pollen
@slender iron Looking at the displayio.parallelbus for the rp2040 seems doable, but just wondering if there's a good device to test again? I don't have a display like that so will grab one
simple pulsar
@crimson ferry The ESP32 is weirder in some ways. I've not tried MicroPython yet to see if they apply corrections to the raw ADC values.
crimson ferry
idle wharf
Yes, we are still using that `--target-version`
I incorrectly said on here the other day that precommit isn’t using the target, but actually it is and that setting is found in the pyproject.toml for libraries based on the cookie cutter. Cc: @solar whale
fossil gorge
Just a heads up since I'm not sure who would know about this, but for some reason the CP 5.x bundle doesn't have a link on the "libraries" page.
tulip sleet
@fossil gorge We have discontinued the 5.x bundle (it was the same as the 6.x bundle anyway). It is a bug that the text about it is still there. I'll look into that -- thanks.
fossil gorge
Ah, good to know. I wasn't using or needing it, but figured I'd mention something was off. I was just on the wrong side of what "off" meant!
orchid basin
solar whale
@idle wharf I'm still a bit confused. I don't see where in the repo --target-version is specified. I'm sure I am just not looking the correct place.
idle wharf
For a library, using the cookiecutter template, it is specified in the pyproject.toml which black always check.
solar whale
I'm looking at the Adafruit_CircuitPython_RFM9x lib. I don't see that file.
idle wharf
Adafruit_CircuitPython_RFM9x does not have the pyproject.toml. I'm not sure if that on purpose or not.
solar whale
ah -- so it is not in each repo.
I have no idea. It's been around a long time.
so what does it do if that file is missing?
idle wharf
It would run with Black's defaults.
tulip sleet
example:
halbert@salmonx:~/repos/adafruit/Adafruit_CircuitPython_BLE$ ag --hidden black
.github/workflows/build.yml
41: - name: Pip install pylint, black, & Sphinx
43: pip install --force-reinstall pylint black==19.10b0 Sphinx sphinx-rtd-theme
48: black --check --target-version=py35 .
Ah -- I see it in some other repos -- guess not all have been updated
tulip sleet
Note that it's in the .github dir, so you have to search in a hidden dir
solar whale
in the rfm9x repo -- the build.yaml does not call black at all ??
tulip sleet
that seems like an oversight; it might be missing from a master list of repos that has been used to do bundle-wide changes
idle wharf
@tulip sleet you added that to the cookiecutter build.yml but it was reverted because it runs in the pre-commit.
I guess the real answer is the repo's aren't all standard yet
tulip sleet
I added it? I don't remember.
solar whale
something is odd though -- it is not called out in the rfm69 repo either, but a PR yestrday failed CI due to black
idle wharf
Sorry, Kattni added it and reverted it. You merged it originally...
tulip sleet
oh yeah, there was weird trouble with it, and we reverted it quickly to stop builds from breaking
idle wharf
solar whale
it is is not in build.yaml -- is it being run from something else as part of the CI workflow?
idle wharf
Pre-Commit
Which is also run during a "test" https://github.com/adafruit/cookiecutter-adafruit-circuitpython/blob/master/.github/workflows/test.yml
solar whale
ah -- it just refers to black -- so I assume it runs without any target-version then
idle wharf
Yes, if there is no other setting in the pyproject.toml
So for that repo you mention. Its running defaults
solar whale
ok -- that clears it up -- thanks
idle wharf
Or make PRs 😉
solar whale
It is not causing any problems - just confusing me 😉
I wonder what else needs updating -- could be a can of worms!
idle wharf
I just used the cookiecutter yesterday for the first time so I just learned all this. timely questions !
oak yacht
<@!361158808501747735> We have discontinued the 5.x bundle (it was the same as t...
Is that maybe why circup is failing?
idle wharf
@oak yacht I will test that.. thanks !
@oak yacht "There was a problem downloading the bundle. Please try again in a moment." -- is what you saw ?
oak yacht
<@!572001780771323934> "There was a problem downloading the bundle. Please try a...
Yep!
idle wharf
That's my guess... fixing.
solar whale
@idle wharf It has been a long time since I created a new library so I have not used the cookie-cutter recently.
idle wharf
@oak yacht if you can to test the fix https://github.com/adafruit/circup/pull/76
Just post a comment on the PR if it works for you
idle wharf
Thanks @oak yacht for testing!
Circup 0.9.0 is live
pip uninstall circup --yes && pip install circup && circup --version
tulip iron
up sos wrong thread will re post in the help one
ornate breach
So I may have found a bug, but I'm not 100% sure if it is or not, or if I want to open an issue on it.
when using the following code:
import board
import busio
import adafruit_bus_device.i2c_device as i2c_device
i2c = busio.I2C(board.SCL,board.SDA)
i2c_addr = const(0x40)
print(i2c.try_lock())
print("trying to do this")
i2c_dev = i2c_device.I2CDevice(i2c, i2c_addr)
print("we got to this point")
buffer = bytearray(2)
i2c_dev.write_then_readinto(bytes([0x00]),buffer, in_end=None)
print(buffer)
i2c.unlock()
The code hangs on the line
i2c_dev = i2c_device.I2CDevice(i2c, i2c_addr)```I tried it on 6.1.0.beta.1.8 and also on the very latest beta build for my CP Sapling.
It hangs for all the i2c breakouts i have
I'm going to try it on a Qt Py to verify.
tidal kiln
i've seen that behavior before. not new.
ornate breach
any way around it?
tidal kiln
it's because you are passing in a locked bus.
ornate breach
ah okay
tidal kiln
I2CDevice could maybe handle that better
ornate breach
you're probably right, let me change it
tidal kiln
i've shot myself in the foot with that before when doing stuff in REPL and forgetting i called try_lock several lines prior
ornate breach
yeah it works doing this
basically just trying to check out if this temp and humidity sensor I made works
it kind of does but I'm not 100% sure so more code to verify
blissful pollen
`I2CDevice` could maybe handle that better
I thought we had put in code you could Ctrl-C out of there, does that work? I wasn't as familiar with how to keep CP going while waiting on something when I wrote it
tidal kiln
yah. i think you can....been a while.
it was more of the general behavior
it just silently sits there and never returns from the init call
so is a bit ??? when it happens
blissful pollen
yeah I gotcha, almost needs a timeout value
tidal kiln
or check if it's locked in the I2CDevice.__init()__ and throw an exception to let you know?
blissful pollen
Problem is then you're moving any logic to wait for a lock outside of the bus device which, my understanding, was trying to manage some of that
slender iron
there needs to be a way to not bring down the raspberrypi stuff (I'm not using i...
I believe this has been fixed but I'm not positive. Worth checking in tinyusb. Note, after you change the url in .gitmodules you need to run git submodule sync to update the internal state to match.
slender iron
<@!252717193496756235> Looking at the displayio.parallelbus for the rp2040 seems...
I think these three are options: https://www.adafruit.com/product/1743 https://www.adafruit.com/product/1770 https://www.adafruit.com/product/2050
blissful pollen
Thanks, I have something in place that at least doesn't crash my pico, but not sure if it is even working at all. I'll grab one of those to test on
blissful pollen
Yup, spent most of saturday pouring over the PIO docs (and some of the DMA but realized after that's built into the statemachine code you already have)
For parallel though it's a real simple PIO program at least
slender iron
nice! yup, it is
ya, good place to start
doing pulseio with the PWM peripheral is probably doable too
blissful pollen
Yeah likely, they had PWM as an example. If I can get this one going I may take a look at some of the utility modules that could use PIO
slender iron
👍
static condor
mild fog
Can one programatically shut down an M4 express board running circuitPython?
slender iron
@mild fog no
lavish saffron
What version of C python is CircuitPython / MicroPython based on at the moment?
manic glacierBOT
Hello again
Now that the internal flash build works and the board is usable, I'm trying to make the external SPI flash operational.
I'm not sure if I could ask here or open a new issue?
I use the GD25Q64CSIG chip connected with the same pins as on the Feather M0 Express :
I successfully used this setup with a SAMD21, but it looks like the SAMD51 does not detect the c...
manic glacierBOT
lavish saffron
Hi, I need a little guidance on a pull request. I have a CircuitPython PR (#4078) whose Build CI is failing on the Trinket M0 ja translation due to insufficient firmware flash. The same board builds successfully on my local machine so I am not sure how to proceed. Any and all advice gratefully received!
dull dust
I have a Pi Pico with CircuitPython noob question: I'm using the example on the Adafruit website for HID input 'A' and 'Hello World' typed as a keyboard. After getting my brain around the strict requirements for formatting indents 🙂 I managed to get the code working fine. But, how do I get it to run without having Mu present and having to press CTRL-D? Happy if you could point me in the right direction for info, if I've missed something on the website.
idle owl
<@!252717193496756235> or <@!330227457296957440> which version of these do you...
Did you get a reply to this?
idle owl
<@!368190919083556865>, <@!330227457296957440> There isn't a full PR system for...
Did this get resolved?
idle owl
<@!330227457296957440> in the guide for using black, it say to use `black --chec...
Looks like Dan answered your question?
solar whale
Yes, Thanks!
lone axle
@idle owl I think so yep. It was the fuel gauge device name being swapped around right?
lone axle
The library got updated when someone noticed the name had transposed characters. I remembered seeing that go by. More recently tg-technie noticed the guide hadn't been updated yet.
idle owl
Did the guide get updated?
lone axle
Yep I got the guide when it was mentioned here.
idle owl
Oh great! Thank you.
idle owl
And now to add to the naming confusion...... 😄
dull dust
I have a Pi Pico with CircuitPython noob question: I'm using the example on the ...
Did my question get a bit lost LOL
blissful pollen
Did my question get a bit lost LOL
They sometimes do on here, I'd ask in #help-with-circuitpython that area gets a lot more traction to answer questions most times. This tends to focus more on developing circuitpython (sorry I don't have an answer for you myself)
dull dust
Thanks for the pointer @blissful pollen I'll try there 🙂 - UPDATE Issue fixed with help from @tidal kiln and @tulip sleet with thanks.
tulip sleet
Hi, I need a little guidance on a pull request. I have a CircuitPython PR (#4078...
If your local fork has not merged from upstream recently, then there may be less code in your local version, causing it not to fail on TRANSLATION=ja. Also it may depend on which compiler you're using. I can look at your PR and suggest some changes. I am trying to simplify how we squeeze various builds.
crimson ferry
And now to add to the naming confusion...... 😄
to be fair, @atomic summit has been using that name since 2019
idle owl
@crimson ferry There was no implication that RPi came first. That name has been used ubiquitously across this field for years.
crimson ferry
yeah, it's dangerous to use any of those prefixes
idle owl
It's a fun short word that implies small. How can you not want to use it.
idle wharf
Did you get a reply to this?
Yes, I opened an issue in the cookie cutter repo. I’ll PR when I have time, maybe not today though
idle owl
@idle wharf Excellent. Thank you for following up!
idle owl
@tulip sleet Did I see we added code to default to a specific core when using microcontroller.cpu? Or did I imagine that. And if so, where did that end up?
tulip sleet
@idle owl currently you have to say microntroller.cpu[0]. temperature. That is going to get fixed but PR #4087 hasn't been merged yet.
slender iron
What version of C python is CircuitPython / MicroPython based on at the moment?
It's 3.4 plus some bonus things. CircuitPython has f-strings in most builds for example.
tulip sleet
@idle owl just merged it, so it will be fixed in beta.2
idle owl
Ok, I'll keep an eye out for the beta, and update the guide page.
manic glacierBOT
idle owl
<@&356864093652516868> Meeting in ~40 minutes. Please add your notes to the document. If you're going to be lurking, it's super appreciated if you can add your name to the doc in alphabetical order under Hug Reports and Status Updates with (lurking). Thanks much! Chat with you all soon! https://docs.google.com/document/d/1W2OIZkZ6Rkrl7se8LjBNxb2orUtyb5SmK53AmiAZkrY/edit
cedar moth
It's 3.4 plus some bonus things. CircuitPython has f-strings in most builds for ...
Is there a spot in the docs listing the “bonus things” beyond 3.4 functionality? I didn’t know CP had f-strings!
inland tusk
?show
manic glacierBOT
modern wing
Happily lurking today -- notes document updated -- snow shovel not updated. ❄️
fossil gorge
Lurking again today, as usual. I enjoy the goodness shared and the company before an architecture meeting!
errant grail
Just listening today.
idle owl
Be back in a minute.
solar whale
Nothing is ever easy.
modern wing
Unless its eggs, they go over easy.
solar whale
On in NJ, they are runny.
supple dirge
lurking
stuck elbow
lurking
thorny jay
lurking
modern wing
$4 for the Pico even 🙂
sweet ocean
hey anyone get "Unable to import 'adafruit_trellism4' when trying the blink program in adafruit learn ?
lone axle
@sweet ocean lets head over to #help-with-circuitpython
tidal kiln
** lurking **
