This an oversight on my part. File an issue and I can add it to the docs
#circuitpython-dev
slender iron
slender iron
@tulip sleet here now. need anything from me?
tulip sleet
I got two small PR's: 8.2.x merge and update frozen libs. If you review and approve those I will make an alpha.3. Howzat sound?
hybrid dragon
In C, should I return null after raising a python error?
slender iron
In C, should I return null after raising a python error?
It shouldn't get there but ya, I return after mp_raise sometimes
tulip sleet
mp_raise routines are declared NO_RETURN
@slender iron I copied the CIRCUITPY_ESP_FLASH_MODE from UM's definitions in 8.2.x. There did they matter? Maybe they didn't, except for esptool.py args, and now they do?
slender iron
right, they only used to be for esptool.py
sdkconfig would determine boot mode
now it determines the sdkconfig inclusion and the esptool.py mode is derived from them
tulip sleet
are there any dio ESP32-S3 boards?
I don't think UM has published schematics for these boards yet
@atomic summit CIRCUITPY_ESP_FLASH_MODE now matters, could you confirm what mode is used for bling and tinywatch_s3?
atomic summit
<@195765176035835904> CIRCUITPY_ESP_FLASH_MODE now matters, could you confirm wh...
All of my boards should be using QIO for flash mode. I’ll be at my desk in 20mins.
tulip sleet
All of my boards should be using QIO for flash mode. I’ll be at my desk in 20min...
that's all I need to know now, thanks
atomic summit
that's all I need to know now, thanks
Hmm, I just found some GitHub emails from you and Scott (and others) in my spam folder.. grr.
tulip sleet
@slender iron dio changed to qio ; ready for re-review
atomic summit
Scott, totally missed your request on my main line PR!!!!
And your request yesterday Dan. So sorry 😦
idle owl
Hey, folks! I scanned through the channel hoping for a resolution on the Sonoma issue, but it appears that it's still outstanding. Is that correct?
tulip sleet
Hey, folks! I scanned through the channel hoping for a resolution on the Sonoma ...
that is correct, and I've tested the latest developer beta, and it still has the same bad behavior 😦
idle owl
Oof.
slender iron
Scott, totally missed your request on my main line PR!!!!
No problem!
idle owl
At what point is the issue occurring? I'm asking in the context of, is it possible to spin up a VM with an earlier version of MacOS, and be able to work with CircuitPython again?
At least I think I can VM an earlier version....
tulip sleet
@atomic summit i didn't even realize that PR was there, so I kind of redid things, so see if there's anything in my PR that needs changing. We can close yours, or you can rebase after I merge mine, and we'll just pick up your changes to overwrite mine (after you change yours to qio)
tulip sleet
At what point is the issue occurring? I'm asking in the context of, is it possib...
yes, still works fine in Ventura. Erin downgraded her system after having considerable troubles.
the workarounds in the issue also work, but are a nuisance
tulip sleet
if there's some weird issue about how the USB devices get passed through to the VM, maybe, but I hope not.
idle owl
I might give it a try then. I'll let you know if there are issues.
mortal kernel
I gave the VM route a shot with Parallels, but the MacOS VM has no USB passthru.
idle owl
I gave the VM route a shot with Parallels, but the MacOS VM has no USB passthru.
Oh that was my plan. 😕
That means it doesn't work?
atomic summit
<@195765176035835904> i didn't even realize that PR was there, so I kind of redi...
Please just close mine. I’ll do a new PR against whatever you did, if needed. Thanks heaps for updating my stuff.
idle owl
Sorry for the obvious question.
tulip sleet
Please just close mine. I’ll do a new PR against whatever you did, if needed. T...
sure, np
mortal kernel
Yes, it doesn't work. Sorry.
idle owl
No apology needed. Thanks so much for jumping in before I went to the effort of trying. That's super frustrating.
tulip sleet
it looks like any drive 8MB or below has the problem; there are a few boards that are 16MB
mortal kernel
I wonder if contacting the MacOS news sites might help.
tulip sleet
maybe... if we could come up with a "this bothers regular consumers" story that would help. It does really mess up classroom use.
mortal kernel
That's what I was thinking, too. Apple failing education.
idle owl
I'll dig into the issue again with the purpose of finding the workarounds to see if I can integrate them into a workflow that's not absurd for me. I can understand Erin not wanting to deal with it, though. That must have been rough for her.
Thanks so much for the prompt responses. I appreciate knowing not to bother with the VM ahead of time instead of banging my head against it for however long that would have gone on.
mortal kernel
I recommend the re-mount workaround.
idle owl
Ok, I'll check that out, thank you.
I only scanned the issue previously hoping it had been resolved. I didn't look too deep into any of the workarounds.
manic glacierBOT
crimson ferry
I've been a little scarce lately... is there a description of the new memory architecture somewhere? is it across all ports? do ports besides espressif have an inner heap and outer heap (is the inner heap espidf memory)? do the gc and espidf module functions still give good indicators of memory usage? are C stack and Py stack unchanged?
tulip sleet
I've been a little scarce lately... is there a description of the new memory arc...
The outer heap is all of free RAM besides the C stack. From that the Python heap, the PYSTACK (if used) and non-Python-VM storage are allocated. If the RTOS (ESP-IDF) wants storage, it also allocates from the outer heap. Not sure about gc memory reports now.
@slender iron can correct me as needed and explicate.
manic glacierBOT
crimson ferry
The outer heap is all of free RAM besides the C stack. From that the Python heap...
Thanks, Dan. It helps to have a mental model of resources (and how they might change) when writing and debugging.
keen eagle
Mostly, I wasn't sure if Sonoma being the host OS would interfere with the VM.
I was able to run Ubuntu under Parallels on Sonoma and Ubuntu had no issues with CircuitPython devices over USB in the VM. The main pain point was having to keep the USB device assigned to the VM rather than macOS.
crimson locust
Hiii, been using circuitpython with rp2040 and stm32f411 (blackpill) from weAct. These were already in the prebuilt circuitpython downloads page so it was a breeze. I'm now trying to get circuitpython working on another board which is not listed in the official page for now with an stm32f405 mc (same as the adafruit feather express).
Where should I start and any good advices? Thanks in advance.
slender iron
Thanks, Dan. It helps to have a mental model of resources (and how they might ch...
MP found some people confused by gc.mem_free() differences. I think it’s free space in allocated python heaps + largest consecutive free space in the outer heap. Espidf functions may change because spiram is now managed by idf. This should make it easier to have more network connections and other idf uses.
wanton rampart
kinda feel dumb for that one 😆
orchid basinBOT
idle owl
I was able to run Ubuntu under Parallels on Sonoma and Ubuntu had no issues with...
Interesting. Thanks for the tip!
hybrid dragon
Before I go and do a whole lot of github actions weirdness to get grab the full circuitpython sources & build the unix micropython binary just to run tests via CI in the asyncio repo..
Is the micropython unix build hosted anywhere I could fetch instead?
Context: it's for this PR to get automated tests running -- https://github.com/adafruit/Adafruit_CircuitPython_asyncio/pull/58 -- which I wanted because I was hoping to bring CircuitPython's asyncio implementation closer in line with CPython's.. which I wanted because I could use the asyncio.wait func.. for.. a project I was doing but.. sheesh. Rabbit hole I'm down. 😅
cobalt grail
How do I get a PR accepted in a non CP repo? There doesn't even seem to a Discord channel for that?
tulip sleet
Before I go and do a whole lot of github actions weirdness to get grab the full ...
We only build the unix build to run tests, and we build the coverage variant for that:
in ports/unix:
make VARIANT=coverage test will run the tests
make VARIANT=coverage TEST_EXTRA=micropython/viper_addr.py test will run the particular test listed
tulip sleet
How do I get a PR accepted in a non CP repo? There doesn't even seem to a Discor...
which repo is it? Not sure what you mean about there not being a discord channel
hybrid dragon
Right - that all makes sense. I'll see what I can do with getting tests running in the asyncio repo, then.
tulip sleet
that is an admirable task 🙂
cobalt grail
which repo is it? Not sure what you mean about there not being a discord channel
This seems to be the only dev channel?
This is my PR. https://github.com/adafruit/Adafruit_LED_Backpack/pull/76
Seems abandoned, the earliest PR is from 2015?
tulip sleet
This seems to be the only dev channel?
This is my PR. https://github.com/adafrui...
There aren't as many people working on Arduino libraries as CIrcuitPython lbraries, and they have other primary reponsibilities, so they get addressed as time permits, which often isn't very often. If there are bugs, they'll be addressed sooner. But enhancements don't get very immediate attention. There's a large backlog of Arduino library PR's and issues, sorry.
In general the strategy has been: write a library for the new product, make sure it's debugged, and then it's "good enough".
cobalt grail
I am writing a library that depends on that library. SO what you are telling me is to look elsewhere.
tulip sleet
no, squeaky wheels can get the grease. I just reviewed it.
not always 🙂 , but this was easy
cobalt grail
I was actually planning to make a PR for the docs instead.
tulip sleet
I was actually planning to make a PR for the docs instead.
you mean the README? that would be good, but a diagram right in the .h, or at least a cross-reference, would be good. And/or in the example, since the example code is often the easiest thing to see from the Arduino IDE
you are spoiled by the CircuitPython rapid response team 🙂
cobalt grail
No, I mean the page in the learning system.
tulip sleet
No, I mean the page in the learning system.
we don't have PR's for that, but you can use the "Feedback" link in the left sidebar
the learning system is a CMS, not driven from github (except for the code in the Learning System Repo)
cobalt grail
Ah, OK.
tulip sleet
let me know when you add feedback and I will check on it.
cobalt grail
let me know when you add feedback and I will check on it.
Done!
lone sandalBOT
cobalt grail
ok, check out the edits in the guide
Oh, that is SO much better than I imagined!
main furnace
Sunday puzzle: can I install CircuitPython ESP32 on an Airlift shield?
tulip sleet
Sunday puzzle: can I install CircuitPython ESP32 on an Airlift shield?
The Saola 1 w/ WROOM port would probably be installable. You'll use esptool.py and a USB-serial adapter, or use the passthrough program on some board to make a USB-serial adapter
there are other ESP32 WROOM builds that are probably fine too
orchid basinBOT
onyx hinge
a little light-hearted link for your sunday (plays music): https://starlogs.dev/adafruit/circuitpython
main furnace
blissful pollen
a little light-hearted link for your sunday (plays music): https://starlogs.dev/...
I'm pretty sure this is how the weekly meeting should now do the reviews of the core
onyx hinge
@main furnace it looks like there's an issue with redirects in learn. that link should 301-redirect to https://learn.adafruit.com/upgrading-esp32-firmware/old-upgrade-an-external-esp32 -- and it does for me, if I'm logged in to adafruit.com. In a fresh incognito window I reproduce your behavior of a 404 page instead. I will raise this with the "learn dev" team via e-mail.
main furnace
thanks
tulip sleet
<@439129780865204259> it looks like there's an issue with redirects in learn. th...
@onyx hinge did you just fix the link? It looks OK now
onyx hinge
<@426200547024961539> did you just fix the link? It looks OK now
I've updated the link so that it goes to the current version of that content: https://learn.adafruit.com/upgrading-esp32-firmware/upgrade-external-esp32-airlift-firmware-2 -- the "old" page has been un-published, which is why it worked for me (I have editor rights on learn ). so you were "supposed" to see that 404, I guess. In the future, you can report errors like 404 using the feedback link on the left hand side of the page. (and then I got called away before sending this messge, whoops)
@main furnace (repeating myself) I've updated the link so that it goes to the current version of that content: https://learn.adafruit.com/upgrading-esp32-firmware/upgrade-external-esp32-airlift-firmware-2
manic glacierBOT
manic glacierBOT
manic glacierBOT
manic glacierBOT
onyx hinge
@tulip sleet good morning! Getting started, do you have any github issues in mind for me to start with?
tulip sleet
<@329766224093249548> good morning! Getting started, do you have any github issu...
welcome back! let me take a look
tulip sleet
<@329766224093249548> good morning! Getting started, do you have any github issu...
really anything 8.2.x or 9.0.0. It would be nice to think about the split-heap issues, but maybe we should do that with Scott. Maybe there is a pystack issue in there. We can talk at the meeting. I am just picking random ones that seem approachable and dealing with them. Assign yourself if you start on one.
onyx hinge
OK, I'll see what pops out
manic glacierBOT
I was wondering whether we should pick up the revised version of the code:
tulip sleet
@strong violet hi - I want to debug some CircuitPython crashes that happen only when CPy is used with Thonny: https://github.com/adafruit/circuitpython/issues/8038 https://github.com/adafruit/circuitpython/issues/7544
https://github.com/adafruit/circuitpython/issues/8364
The problem may occur when an exception is raised on the CPy side. We should not crash.
But I'd like to see everything that Thonny is sending to the REPL and all the replies. I turned on Debug Mode and Log Program Usage Events in the Thonny Options, but backend.log does not contain everything sent . Many months ago I added some print statements inside Thonny to try to do this, but I was not completely successful. Is there a hidden option I could set, or do you have a suggestion about what to print where? Thanks.
orchid basinBOT
slender iron
This could be interesting for running a separate program on a subsequent CPU core: https://github.com/micropython/micropython/pull/12961
wraith crow
<@397731233313849345> hi - I want to debug some CircuitPython crashes that happe...
A while back I was using one of the DVI boards with Thonny and noticed that all the Thonny back end stuff was being mirrored on the DVI output. Maybe you could plug into an HDMI capture device to grab what you're looking for.
tulip sleet
A while back I was using one of the DVI boards with Thonny and noticed that all ...
💡 thanks. or maybe any SAMD21 or nRF board with a display. CLUE is the easiest one to try first
wraith crow
There was a lot of stuff so I'm not sure you'll see what you need just on the screen
spare jacinth
is there any table listing the modules/features implemented for each port, or a list of desired functionality from standard lib (or anything else that is not port-specific)?
would like to check them to see if there's anything i could do (:
also, im planning to PR my TOML library to the community bundle, does helpers/toml sound like a good location?
spare jacinth
i was thinking more on a MCU-based than board-based table of things, but i guess that's pretty much the same, thx!
mortal kernel
Wondering if anyone has used nRF sniffer with the ItsyBisy nRF52840 Express or similar?
onyx hinge
<@&356864093652516868> Heya! we're about 35 minutes away from the weekly meeting. See you in the CircuitPython voice channel! Please add your notes to https://docs.google.com/document/d/1GChyaFlm9dC-TNY4DgkKVXk51ZxJCHfd42bJOstZmIg/edit?usp=sharing if you have them.
tulip sleet
Wondering if anyone has used nRF sniffer with the ItsyBisy nRF52840 Express or s...
have you seen https://learn.adafruit.com/ble-sniffer-with-nrf52840
i tended to use nRFConnect on Adndroid (turn it landscape for a better view), and also nRFConnect on desktop with a Nordic dev board
mortal kernel
have you seen <https://learn.adafruit.com/ble-sniffer-with-nrf52840>
Yes. That's what got me interested. OTA sniffing is just what I need about now. Hoping I could do it with what I have on hand.
tulip sleet
it might be possible to (re)install the Nordic bootloader on a non-Noridc board and have it pretend to be a PCA10056 or somethign
mortal kernel
it might be possible to (re)install the Nordic bootloader on a non-Noridc board ...
I'll give it a shot. Thanks for the tip!
tulip sleet
I'll give it a shot. Thanks for the tip!
https://www.digikey.com/en/products/detail/nordic-semiconductor-asa/NRF52840-DONGLE/9491124 is cheap and I think should work
tulip sleet
I'll give it a shot. Thanks for the tip!
above, I meant nRFConnect on an Android tablet, not Arduino
on iOS ois more limited due to iOS security restrictions
onyx hinge
hey all! I'll be back in just a few minutes to get the public meeting started.
idle owl
Right?
gilded cradle
I went through that over a year ago when moving out of my office and decided to finally sort everything.
idle owl
Hooray! 🎉
mortal kernel
don't look at my floor...
I can't see my floor.
solar whale
What's a floor?
main furnace
No floor, no dancing. 🥹
idle owl
Thanks, everyone! Thanks for hosting, Jeff!
random junco
thanks Jeff
candid sun
thanks for hosting Jeff!
lone axle
Thanks for hosting Jeff. Hope everyone has a nice week!
gilded cradle
Thanks Jeff
main furnace
slender iron
@lone axle ☝️
lone axle

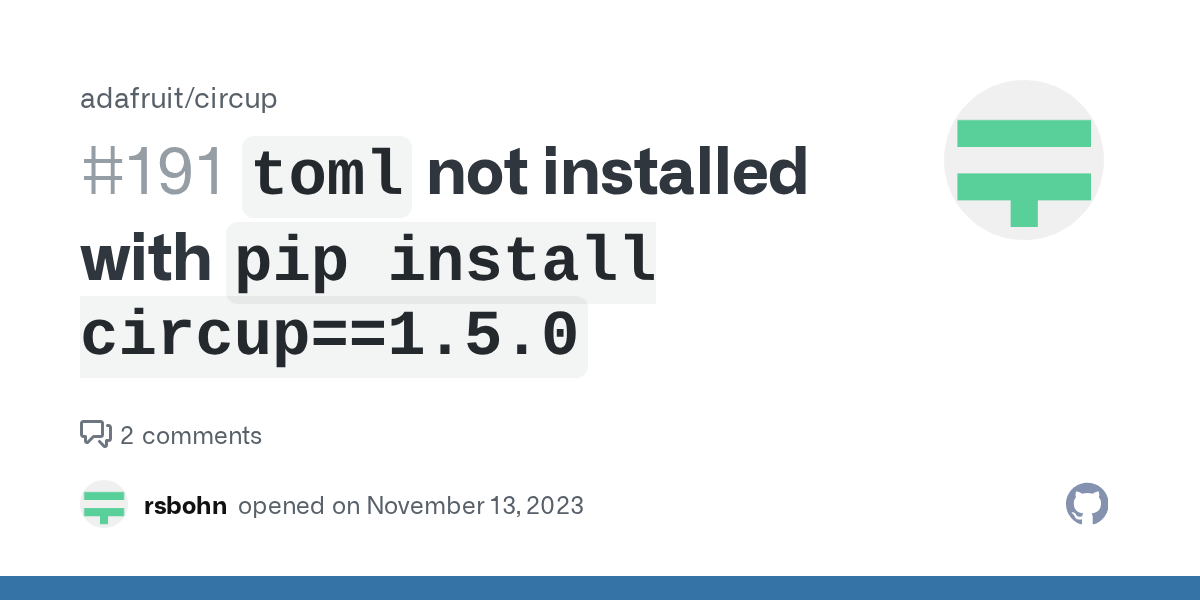

interesting, I'll take a look at that. I didn't think any adjustment would be needed for the dependencies because toml was already in requirements.txt here: https://github.com/adafruit/circup/blob/main/requirements.txt#L50
Though I also noticed some of these are pinned to very old versions. Maybe it's worth trying to unpin some of them.
Ah, I think it maybe that there is a difference in requirements.txt vs. dependencies listed in setup.py (or pyproject.toml for newer style setups.) I'll make an empty venv locally and figure out how to add it so that pip handles the install with dependencies automatically.
slender iron
I just saw this issue too
tulip sleet
interesting, I'll take a look at that. I didn't think any adjustment would be ne...
I am not sure requirements.txt is actually used for anything in circup.
lone axle
I think inside of actions it may still try installing with something akin to pip install -r requirements.txt but I don't know whether it'd break it if that file is gone. I also do not really know much about the particulars of packaging and whether it's really necessary or helpful to have both ar requirements.txt and a list inside of pyproject.toml / setup.py. If there isn't a good reason for it I do think it'd be nice to only manage 1 list.
manic glacierBOT
hybrid dragon
Oh, I missed the weekly call today, but thank you for the hug report danh!
I've been enjoying poking at it and learning - both about CircuitPython internals and asyncio internals - so a hug to everyone that's helping me learn and answering my questions. :)
lone axle
Having another set of eyes on https://github.com/adafruit/circup/pull/163 would be much appreciated. I was initially a reviewer, but ended up committing changes necessary to get the --auto functionality working, so I'm hesitant to merge on my review alone. I have tested the PR version successfully on both USB and Web workflows.
tidal meteor
Hello. I made my first pull-request and I noticed that the uncrustify of the pre-commit produced a lot of warnings :
circuitpython/tools/uncrustify.cfg:411: option 'sp_type_question' is deprecated; did you want to use 'sp_before_ptr_star' instead?
circuitpython/tools/uncrustify.cfg:905: option 'sp_before_tr_emb_cmt' is deprecated; did you want to use 'sp_before_tr_cmt' instead?
circuitpython/tools/uncrustify.cfg:908: option 'sp_num_before_tr_emb_cmt' is deprecated; did you want to use 'sp_num_before_tr_cmt' instead?
Option<NUM>: at circuitpython/tools/uncrustify.cfg:1058: Expected number , for 'indent_shift'; got 'false'
circuitpython/tools/uncrustify.cfg:1124: option 'indent_sing_line_comments' is deprecated; did you want to use 'indent_single_line_comments_before' instead?
Option<NUM>: at circuitpython/tools/uncrustify.cfg:1205: Expected number , for 'indent_comma_paren'; got 'false'
Option<NUM>: at circuitpython/tools/uncrustify.cfg:1209: Expected number , for 'indent_bool_paren'; got 'false'
circuitpython/tools/uncrustify.cfg:2044: option 'nl_func_var_def_blk' is deprecated; it has been replaced by 'nl_var_def_blk_end_func_top'.
You can also use 'nl_var_def_blk_end' for additional functionality
Option<UNUM>: at circuitpython/tools/uncrustify.cfg:2538: Expected unsigned number , for 'align_nl_cont'; got 'false'
Option<UNUM>: at circuitpython/tools/uncrustify.cfg:2727: Expected unsigned number , for 'mod_full_brace_if_chain'; got 'false'
circuitpython/tools/uncrustify.cfg:2892: option 'pp_space' is deprecated; it has been replaced by 'pp_space_after'.
Option<NUM>: at circuitpython/tools/uncrustify.cfg:2947: Expected number , for 'pp_indent_brace'; got 'true'
Is there something wrong with my configuration ? Thank you in advance for your help.
manic glacierBOT
brazen hatch
Ugly hack time!
It seems like stdout has flush issues when I don't do any ansi
So I just went ahead and spammed more ansi
lone axle
Has anyone seen a Py 3.12 issue that results in errors like this?
[INFO] Installing environment for https://github.com/pycqa/pylint.
[INFO] Once installed this environment will be reused.
[INFO] This may take a few minutes...
An unexpected error has occurred: CalledProcessError: command: ('/home/runner/.cache/pre-commit/repoxsh055ra/py_env-python3.12/bin/python', '-mpip', 'install', '.')
return code: 1
stdout:
Processing /home/runner/.cache/pre-commit/repoxsh055ra
Installing build dependencies: started
Installing build dependencies: finished with status 'done'
Getting requirements to build wheel: started
Getting requirements to build wheel: finished with status 'error'
stderr:
error: subprocess-exited-with-error
× Getting requirements to build wheel did not run successfully.
│ exit code: 1
... stacktrace ...
AttributeError: module 'pkgutil' has no attribute 'ImpImporter'. Did you mean: 'zipimporter'?
That bottom message seems to be the most relavant, but the full trace is here: https://github.com/adafruit/Adafruit_CircuitPython_TestRepo/actions/runs/6863971735/job/18664772706
Searching around online I saw threads with people having the same error while trying to install numpy and a few other things with py3.12 but haven't been able to figure out which thing our action is using that is failing. Perhaps pylint inside of pre-commit? that looks like the last thing that it was successfully working on to my eye in the log.
Some additional oddities are 1) the same commit that now raises the error actually passed successfully a week or two ago, but there was a delay until the release, and now the same action failed when it ran for release. and 2) another repo doesn't seem to exhibit the same problem currently, but to my knowledge the actions are pretty much centralized now so if it were as simple as a certain version of something not being able to install I'd have thought it would affect all library repos.
onyx hinge
Hello. I made my first pull-request and I noticed that the uncrustify of the pre...
What version of uncrustify do you have? You need uncrustify 0.71 or 0.72. older and newer versions are not OK (0.75 is mentioned as not OK in BUILDING.md, probably based on a user report).
Uncrustify-0.72.0_f
interesting thank you. I'm not sure how pip gets installed in the actions container. I'll dig a bit further later on today.
tidal meteor
```$ uncrustify --version
Uncrustify-0.72.0_f
```
Thank you @onyx hinge. You are right. I was using the version 0.77.1 of uncrustify (default on macos with homebrew). Sorry, I missed this information from the BUILDING.md file. I installed 0.72 and now it works.
onyx hinge
Thank you <@426200547024961539>. You are right. I was using the version 0.77.1 o...
I'm glad that helped you. It's hard to find all relevant information like that, no worries.
onyx hinge
interesting thank you. I'm not sure how pip gets installed in the actions contai...
@lone axle where's your actions yml file? Is it using actions/setup-python ?
tidal meteor
@onyx hinge, I have another question concerning the building process with virtualenv and ESP-IDF. Is it OK to post my question here ?
onyx hinge
Sure!
tidal meteor
Thank you. The file ports/espressif/README.rst says that we must install ESP-IDF using ./esp-idf/install.sh. I had some trouble with this because by default, it installs the tools in ~/.espressif and I already have a native installation of ESP-IDF there. I was able to solve this issue by setting the IDF_TOOLS_PATH environnement variable somewhere else than ~/.espressif.
Then the document ask to type ./esp-idf/export.sh, but I was actually used to source this file and not to just execute it. But when you source this file, you get a new virtualenv and the previous packages installed by pip3 install --upgrade -r requirements-dev.txt are no longer there. What I did was to redo the pip install in the virtual env of ESP-IDF.
For me, it was easier to do so than adding the ESP-IDF tools to the path. Is this the correct way to do it ?
onyx hinge
ports/espressif/README.rst: ./esp-idf/export.sh
This looks like a plain error and a PR to correct it would be greatly appreciated.
Yes, I have also seen that you have to re-do the "pip install" of CircuitPython's pip requirements once you've activated the esp-idf environment. This should be properly documented.
My impression was that ~/.espressif tries to organize things so that you can have multiple copies of the esp-idf on your system; for instance, it organizes each esp-idf environment in a different directory such as python_env/idf5.1_py3.11_env and each dependent tool such as tools/cmake/3.20.3/ so I'm not sure why you encountered the need to use a different environment setting to avoid interference. That said, I don't doubt you, I just don't use many non-CircuitPython esp-idf projects, so again this technique might be worth documenting even if it only is needed by some users.
goes afk for breakfast
onyx hinge
Here is the notes document for next Monday’s CircuitPython Weekly meeting. It is at the normal time of 11am Pacific / 2pm Eastern here on Discord. Everyone is encouraged to attend! Please add your hug reports and status updates even if you’ll be attending the meeting - it’s super helpful! If you are unable to attend but would still like to include updates, feel free to include them in the notes and we’ll read them off during the meeting. Hope to see you there! <@&356864093652516868>
https://docs.google.com/document/d/1wQlnIywB9v88w8W-PSWXyB9DKKyS06AnKd6TS4s87pk/edit?usp=sharing
tidal kiln
@tulip sleet weird "CIRCUITPY not showing up" issue if u have any ideas?
https://forums.adafruit.com/viewtopic.php?t=205863
tulip sleet
<@329766224093249548> weird "CIRCUITPY not showing up" issue if u have any ideas...
CIRCUITPY drive could not be found or created. safe mode is usually because there is something wrong with the external flash chip or its connections. I specifically added that check and message because figuring out the flash was bad was otherwise difficult. It looks they are using the right UF2. I would just replace as a hardware failure.
tidal kiln
`CIRCUITPY drive could not be found or created.` safe mode is usually because th...
thanks. i was starting to guess hw fail, but there's also like 5 million software/OS quirks out there 🙂
tulip sleet
it's weird it still shows up as drive, but that might be the USB code getting ahead of the rest of things
main furnace
Has anyone noticed that the clock runs fast on the Metro-M7? It gains 10m in one hour.
Adafruit CircuitPython 8.2.7 on 2023-10-19; Metro MIMXRT1011 with IMXRT1011DAE5A
tulip sleet
Has anyone noticed that the clock runs fast on the Metro-M7? It gains 10m in one...
Hmm! please file an issue!
mortal kernel
@danh I was unable to locate the bootloader binary that Nordic flashes onto their nrf52840 dongle. Tried various combos of other bootloaders and the nrf sniffer via j-link with no success. If you happen to have their bootloader binary handy, I could use it. Otherwise, I've got an official dongle on order from Digikey, so if it's an effort on your part I can wait.
onyx hinge
Has anyone noticed that the clock runs fast on the Metro-M7? It gains 10m in one...
the on board clocks are often not too precise, but 10 minutes/hour is pretty bad. Is this the time.monotonic timer or the time.localtime RTC?
tulip sleet
@danh I was unable to locate the bootloader binary that Nordic flashes onto thei...
See "Revert to production bootloader" way down the page
mortal kernel
See "Revert to production bootloader" way down the page
Got it! Thank you.
main furnace
the on board clocks are often not too precise, but 10 minutes/hour is pretty bad...
def get_time():
now = time.localtime()
a = f"{now.tm_year}-{now.tm_mon:02d}-{now.tm_mday:02d} "
a += f"{now.tm_hour:02d}:{now.tm_min:02d}:{now.tm_sec:02d}"
return a
time.localtime() on Metro M7.
slender iron
Oh, I missed the weekly call today, but thank you for the hug report danh!
I'v...
Want the circuitpythonista role? That'll get you pinged once a week about the meeting notes.
onyx hinge
tlsf_add_pool: Memory must be aligned by %u bytes.
tlsf_add_pool: Memory size must be between %u and %u bytes.```some tlsf error messages that should never occur end up embedded in the binary, because it calls printf() on them. couldn't figure out a way to change it without modifying the submodule.could we just #define printf(...) to be nothing, just in that module?
add it as a command -line arg to the compilation of lib/tlsf
slender iron
I'm ok if we fork the library. it isn't that big
hybrid dragon
Want the circuitpythonista role? That'll get you pinged once a week about the me...
Oh, that would be nice! How do I get that?
slender iron
just added you!
candid sun
@lone axle when you're around i have an android/circuitpython question for you
lone axle
<@382939733107408897> when you're around i have an android/circuitpython questio...
I am around mostly for now, whatcha got?
candid sun
I am around mostly for now, whatcha got?
so i was going to make a video talking about android support in alpha 9 but i've had issues saving an updated code.py file on android. i found your guide about your app but it looks like my phone is on a newer version of android so it can't install. i was wondering if you had any tips for being able to edit a file or get into the REPL?
mortal kernel
See "Revert to production bootloader" way down the page
That worked! Happily capturing BT LE traffic. Thank you again.
lone axle
so i was going to make a video talking about android support in alpha 9 but i've...
It has been quite a while since I've used the Android app for editing on a device. My understanding of some of the most recent changes is that they'll make it so that app and the way that it edits code via the REPL may not be neccessary any more. If I understand right I think CIRCUITPY drive can show up as a storage drive now, like it does on a PC. Then any text editor or code editor app could be used to modify and save the code.
As for REPL I think there are other Serial Terminal apps that may be able to access it. I tested with those before I ended up making that CircuitPython specific Android app.
I have a newer device I can test with. I'll try a few things and report back in a bit
candid sun
I have a newer device I can test with. I'll try a few things and report back in ...
okay, thank you! and it does show up as a device now and i can view/open files but i haven't been able to successfully save updates to code.py (tried pydroid, quickedit and Acode)
lone axle
Do they give you any specific errors? Or just fail to load the file entirely?
candid sun
Do they give you any specific errors? Or just fail to load the file entirely?
it seems to fail uploading to the board. i can tell the board is getting a save but then it blinks an error or goes into safe mode
lone axle
@candid sun I was able to access REPL with this app: https://play.google.com/store/apps/details?id=de.kai_morich.serial_usb_terminal however the stock Android soft keyboard doesn't really have the concept of control, so it's tricky to press Ctrl-C / Ctrl-D. There might be alternative soft keyboards that could be installed to get them. I ended up adding them to the editor app UI so that there would be easy access without a custom keyboard in that app.
candid sun
<@347203168121126912> I was able to access REPL with this app: https://play.goog...
okay awesome, thanks! i'll try that app
lone axle
@candid sun Does your device have Google apps on it? Like Play Store and perhaps others?
I've found that I am able to successfully save modifications to code.py using text editors but I did have to jump through some hopes so to speak. To see the contents of CIRCUITPY and to open code.py file I used this official Google "Files" app: https://play.google.com/store/apps/details?id=com.google.android.apps.nbu.files when I click on code.py in there it gives me the option to select from the text editor apps I have installed. I had success with this one: https://play.google.com/store/apps/details?id=com.simplemobiletools.filemanager.pro (it's not free, I must've bought it at some point). I'll test Quickedit as well, I tried it was but was getting some gnarly full screen tiktok ads and things mixed in by it. If the ultimately goal is to point people toward the best practices for mobile dev it'd be nice to find one that works without intrusive ads. I can poke around and try to find some other options later.
My hope is that the old Editor app won't be necessary, and I have hope that will be the case after having success editing the file on my device. But Android is a bit finicky sometimes especially with different hardware thrown into the mix. If it ends up being the case that the old Editor can work in some cases where file editing cannot I'll try to get that updated so that it can be loaded onto newer versions of Android OS.
Lastly, I also worked out that you can send Ctrl-C and Ctrl-D from that USB serial app by longpressing on the "macro buttons" that are just above the keyboard. You can set them in Hex mode and use the values 03 for Ctrl-C and 04 for Ctrl-D. I'm not sure what magic is in those numbers but it seems to work.
Strangely the "Simple File Manager" app was unable to properly load the contents of CIRCUITPY. it shows it as empty. But the Google Files app can see it's contents correctly, then will allow you to choose which editor to use when you click on a file.
candid sun
thank you! i had just started looking at the macros in the serial app and the hex mode is a great tip. i do have google play so i'll try the file manager app. i was also concerned with the ads in quick edit, i had done a search for reliable text editors on android and it came up in a few list articles but not great
lone axle
I did get a successful save from QuickEdit too, so it can at least work.
keen eagle
macOS Sonoma 14.2 beta 3 is out today. Sad to say it does not fix the issue with copying files to FAT12 drives.
random junco
macOS Sonoma 14.2 beta 3 is out today. Sad to say it does not fix the issue wit...
Boo. Thank you for testing!
slender iron
@tulip sleet ☝️ plus the pystack fix probably warrants an alpha release
tulip sleet
<@329766224093249548> ☝️ plus the pystack fix probably warrants an alpha release
looks good, yes!
slender iron
I'm getting up from my desk now but will have my laptop with me if needed
tulip sleet
i'll make another alpha tonight or tomw morning. I can test your latest PR easily
crimson ferry
I think 8590 is on the 8 branch... can it be brought up to 9? that way we can use AP+STA and restarting AP together (on raspberrypi)
tulip sleet
I think 8590 is on the 8 branch... can it be brought up to 9? that way we can us...
yes, we can re-merge from 8.x to main
i can do that before an alpha
candid sun
I did get a successful save from QuickEdit too, so it can at least work.
had some good luck with saving with jota+ (google play) and editor (fdroid). i'm planning to write up a playground note with settings and such for folks. thanks for your help!
crimson ferry
anyone seen a behavior where loading a (recent) latest UF2 onto an ESP32-S3 won't work and the bootloader just shows up again? I've quadruple-checked the UF2 is correct for the board
brazen hatch
anyone seen a behavior where loading a (recent) latest UF2 onto an ESP32-S3 won'...
nope, I have never seen that..
And I do have a pretty decent number of S3s
I only use uf2 on usb-capable boards
Not even aliexpress boards do that..
crimson ferry
i’ll erase flash and try again, it’s an adafruit board
crimson ferry
i can load 8.2.7 fine after those failures
brazen hatch
if you are super sus of the cable, you can try using the deprecated --verify idf parameter
this reads back the written things after flashing ends
manic glacierBOT
tulip sleet
anyone seen a behavior where loading a (recent) latest UF2 onto an ESP32-S3 won'...
which s3 board and what is the name of the UF2?
did it work before?
mortal kernel
macOS Sonoma 14.2 beta 3 is out today. Sad to say it does not fix the issue wit...
Thanks for giving it a try. Bummer.
crimson ferry
which s3 board and what is the name of the UF2?
QT Py ESP32-S3 N4R2 board - adafruit-circuitpython-adafruit_qtpy_esp32s3_4mbflash_2mbpsram-en_US-20231113-ed7c714.uf2 - it does it on both of my boards of that type. I'll test some other UF2s, they load 8.2.7 fine, could be just som ething funny with that particular snapshot.
tulip sleet
the qt py 8/0 and 4/2 boards are indistinguishable except by the chip markings, I think
want to make sure it's 4/2
crimson ferry
right, I bought two of the 4/2 boards... oh, they may not be what I ordered o_O
tulip sleet
we redid the sdkconfig to have a lot more defaults, so maybe the old one worked by accident, or maybe there's something really wrong. this build is past alpha.4 but it's not absolute latest. Scott just fixed a certain thing which is building now.
crimson ferry
FH4R2 on the chip```py
import gc
gc.mem_free()
2046576
try artifact from this build: https://github.com/adafruit/circuitpython/actions/runs/6868862256
merge is still building
crimson ferry
it won't take alpha.4 or absolute latest
(oh, interesting, you have to be logged in for the artifacts to be download links)
nope, adafruit-circuitpython-adafruit_qtpy_esp32s3_4mbflash_2mbpsram-en_US-20231114-95fc7e3.uf2 didn't stick either
8.2.7 is still fine, it's def 2MB PSRAM
tulip sleet
did you try erasing completely and reinstalling the bootloader? I'm grasping at straws
crimson ferry
I haven't done that yet, but will... I think I noticed these recent versions were larger files, maybe something high in bootloader flash got bonked
the only other quirk I can think of is... I usually expand filesystem on espressif boards with 4MB or less of flash (and did so on these two)
nope, same with unexpanded filesystem (no surprise)
tulip sleet
I will try it in a few minutes
crimson ferry
I'm erasing now
tulip sleet
I'm erasing now
I'm seeing the same thing, blinking blue (or purple?) and it's boot-looping
before you load the uf2, you could try loading the bin
after erasing
crimson ferry
that's actually what I'm doing
yup, bootlooping
(no lights on or blinking)
must be board-specific issue in the config somewhere? surely plenty of folks have tried other S3 boards
crimson ferry
I'll try a Metro S3
tulip sleet
works fine. I'll look at the board config files
crimson ferry
Metro S3 UF2 is fine
tulip sleet
that's in a module, the other is bare
ah ah ah
CIRCUITPY_ESP_FLASH_MODE = dio
qio on Feather. I'll check on that in a minute
crimson ferry
p.10 https://www.espressif.com/sites/default/files/documentation/esp32-s3_datasheet_en.pdf quad on ESP32-S3FH4R2
tulip sleet
that didn't use to matter (it was only used for flashing), but now we use it
rebuilding...
crimson ferry
is dio somewhere in the QT Py S3 config? I only saw qio
oh, n/m, looking at Feather
tulip sleet
also flash size is wrong
tulip sleet
i am trying qio, will revert back to dio if it doesn't work
crimson ferry
i bet fixing those two things will work
probably just a copy-pasta from the nopsram
tulip sleet
8/0 qtpy is also dio
tulip sleet
probably just a copy-pasta from the nopsram
I am not succeeding with either dio or qio, and flash size is correct. Going to take a break on this for the moment.
also tried .bin
I was debugging some analog stuff on esp32
crimson ferry
curiouser
tulip sleet
something different about this
crimson ferry
will do
manic glacierBOT
onyx hinge
@tulip sleet are these two strings intended to be identical? I noticed that the way it's written, it puts two copies in flash.. c static const char midi_in_jack_name[] = USB_INTERFACE_NAME " usb_midi.ports[0]"; static const char midi_out_jack_name[] = USB_INTERFACE_NAME " usb_midi.ports[0]";
(changing it to char *midi_{in,out}_jack_name = merges the strings; this has to do with C rules about whether the two objects are permitted to be stored at the same address, I think)
manic glacierBOT
manic glacierBOT
Silabs uses the SLC tool for generate code before build process.
In 2 examples above, code generation failed on first build:
I don't understand why, but i can try to update new version of SLC tool.
manic glacierBOT
hybrid dragon
Looking at ulab, the C parts of the code live in a separate repository - why isn't asyncio following that model?
stuck elbow
Looking at ulab, the C parts of the code live in a separate repository - why isn...
because it's not a separate project
hybrid dragon
They aren't? I'm mostly looking at modasyncio.c, not the way async & await work.
I guess they're both maintained as part of circuitpython.
stuck elbow
ulab existed before it was included in micropython
hybrid dragon
oh, that makes sense.
stuck elbow
and I think it might be used by other embedded environments too, not sure
in any case, it's maintanined by a different group of people
hybrid dragon
That makes sense that it's by different people.
Just trying to catch up on the asyncio package for historical context as I'm working on it. Thank you! :)
Was asking since the fact that it's split between part submodule & part C built into circuitpython directly makes for some odd development woes.
stuck elbow
I suppose it was done that way becuase it's easier to try things out in python, and maybe rewrite it in c later on when you know exactly what you want
adafruit_busdevice is an example of that
onyx hinge
ooh, whoever added readthedocs to the CI of adafruit/circuitpython, 😻
spare jacinth
@onyx hinge gonna work on that? i would like to take a look and learn about how the strings are handled (:
but of course, doubling work aint cool
onyx hinge
@spare jacinth I was going to leave changing that string as low hanging fruit for someone else to work on.
spare jacinth
<@168269895988019200> I was going to leave changing that string as low hanging f...
can't 100% understand what the chained commands to generate the file are doing, so im not gonna try and fix the parse/codegen
throwing a %d should work and is quite easy
would we like (no promises on this) some script to check cases like this one? ie: detect if there's a string-closing " before closing the text "constructor" with )
onyx hinge
we use a program called "xgettext" for the purposes of extracting the messages from the source files and creating the circutpython.pot file. I don't think we want to start developing xgettext.
spare jacinth
actually, the value should be constant, right? ie: can hardcode it on the string instead of adding overhead parsing a format specifier
onyx hinge
I looked real quick and didn't spot an option for xgettext to treat this as an error or warning, which is unfortunate. I only noticed this because I was going through the whole list of translated strings
Yeah hard-coding it in the string was one of the options I suggested. What I wrote was a little bit unclear, no doubt
spare jacinth
i didn't open the thing on github and missed a good part of the text 🙃
onyx hinge
mp_raise_NotImplementedError(MP_ERROR_TEXT("Only 8 or 16 bit mono with 64x oversampling is supported."));
MP_STATIC_ASSERT(OVERSAMPLING == 64);
tulip sleet
could be an mp_raise wit varg instead
mp_raise_NotImplementedError_varg(MP_ERROR_TEXT("Only 8 or 16 bit mono with %dx oversampling is supported."), OVERSAMPLING);
onyx hinge
agree though the hard-coded version might be a few bytes smaller overall
onyx hinge
<@329766224093249548> are these two strings intended to be identical? I noticed ...
@tulip sleet if you responded to this message I sent late last night I missed it
tulip sleet
I agree it could be better. Scott did MIDI and I think he chose those.
i am not too worried about saving 4 bytes or whatever here
spare jacinth
i like %d much better too, but idk how worried we are about code size or the small overhead of parsing it (specially, given the value is probably never going to change), thus why i asked
tulip sleet
you can remove the "is " to save 3 bytes. It's not worth worrying about. 🙂
or replace " with" with " ,", etc. I'm not actually suggesting these, just that there are many ways to squeeze a few bytes
tulip sleet
@onyx hinge is the locale PR ready, would you say?
i am shooting for an alpha.5 later today. Still would like to fix the qtpy esp32s3 build. That's confusing.
I am going to redo it; my testing may have been off.
onyx hinge
@tulip sleet I think it's ready
onyx hinge
thank you!
tulip sleet
@crimson ferry I was testing with a QT Py ESP32-S3 8/0, not a 4/2. No wonder it didnt' work. I'll drop two .uf2's here for you to test.
I don't have a 4/2, will order one, but would like to get this fixed before the alpha release.
@onyx hinge do you have a QT Py ESP32-S3 4/2 ?
onyx hinge
@tulip sleet https://www.adafruit.com/product/5700 ? no, store doesn't seem to think I have any past orders of it
tulip sleet
np, I'll see if anyone else has one, or maybe anecdata will come on. They're not online now.
onyx hinge
I'll put it in my cart in case I make an order soon.
I saw some of the discussion go by but didn't have anything to add.
tulip sleet
I think this is definitive from the datasheet:
the qt py is using the S3FH4R2 variant
so I will just fix that and PR
spare jacinth
can't 100% understand what the chained commands to generate the file are doing, ...
reading xgettext documentation (a bit confusing) and doing some tests to see if i can somehow blacklist MP_STRINGIFY, will open a PR soon either way
tulip sleet
<@329766224093249548> adding -Os was needed?
Yes, it was way too big otherwise.
crimson ferry
@tulip sleet I'll test QT S3 4/2 as soon as the artifacts are built
tulip sleet
Also there is the ulab-growing issue
onyx hinge
afk for breakfast & walk!
crimson ferry
Is the -Os relevant?
tulip sleet
Is the -Os relevant?
I wonder if the serial problem is due to https://github.com/adafruit/circuitpython/pull/8599
i will check an artifact from that elsewhere
YES
breaks serial
tulip sleet
@crimson ferry I will build you a version with the qt py change but reverting that.
crimson ferry
sounds good, thanks
tulip sleet
sounds good, thanks
crimson ferry
do you have the .bin handy? if not I'll install bootloader
crimson ferry
no change, CIRCUITPY mounts, but serial misbehaves (connects and disconnects, no output or response to keyboard)
NeoPixel slow flashes green
tulip sleet
maybe i built it wrong, because i was testing on an ESP32-S3 rev tft board and it fixed serial. i'll check things further
now I'm really confused, because I saw that same behavior on the feather, reverted, and it fixed it, but now building on adafruit/circuitpython with the serial change above, it still works
ah wait, it does behave badly after a hard reset
every OTHER timne
crimson ferry
yeah, there's a difference right after flashing vs. after a hard reset
Right after flashing, serial stays connected but no interactivity (CIRCUITPY doesn't mount). Subsequent hard resets will still get CIRCUITPY mounted, but serial connects then disconnects within a second.
tulip sleet
Right after flashing, serial stays connected but no interactivity (CIRCUITPY doe...
I verified it's fixed by reverting on the feather. I don't see anything wrong with the order of my build steps.
crimson ferry
revert revert lol
crimson ferry
not sure, I re-erased and re-flashed qtpys3-4-2-fix-revert-serial-change.bin several times
tulip sleet
i think these are the same
crimson ferry
ok, will test new files
tulip sleet
could try reinstalling the UF2 bootloader anyway
but we'd want to know the bin doesn't work
the .bin's did differ but it might just be a timestamp
crimson ferry
nope, same behavior as before, weird
I'll try bootloader
erased, installed bootloader (curiously, serial can connect when it's in this state, but no interactivity), put in bootloader mode, copied UF2... CIRCUITPY mounts, serial can't connect until after hard reset...
$ tio /dev/cu.usbmodem14601
[tio 10:09:13] tio v1.32
[tio 10:09:13] Press ctrl-t q to quit
[tio 10:09:20] Connected
I (821) esp_image: segment 3: paddr=00150ec0 vaddr=3fc9e810 size=026f0h ( 9968) load
I (823) esp_image: segment 4: paddr=001535b8 vaddr=40374000 size=187ech (100332) load
I (846) esp_image: segment 5: paddr=0016bdac vaddr=600fe000 size=01064h ( 4196) load
I (857) boot: Loaded app from partition at offset 0x10000
I (857) boot: Disabling RNG early entropy source...
[tio 10:09:22] Disconnected
[tio 10:09:37] Connected
```then connect/disconnect on subsequent hard resetstested with the 8/0 qtpy:
Adafruit CircuitPython 9.0.0-alpha.4-9-g8c9aeb21bc on 2023-11-15; Adafruit QT Py ESP32-S3 no psram with ESP32S3
>>>
[***pressed reset]
[tio 11:09:43] Disconnected
[tio 11:09:44] Connected
[tio 11:09:45] Disconnected
[tio 11:09:46] Connected
Auto-reload is on. Simply save files over USB to run them or enter REPL to disable.
...
do you ever get an opening prompt?
tulip sleet
double-checking that this is the same qt py you were testing, not an 8/0
crimson ferry
yup, FH4R2 on the chip
tulip sleet
i'm at a loss. you are testing on a Mac, I could try that
tulip sleet
but you have a feather or other S3 you can try?
crimson ferry
I have S3: devkits, xiao, adafruit TFT, UM FeatherS3, MetroS3
tulip sleet
anything that's also 4/2
crimson ferry
wait, the TFTs are modules, but 4/2
crimson ferry
Adafruit ESP32-S3 Feather TFT (not reverse)
tulip sleet
crimson ferry
.bin? that lets me erase flash every time for testing (more easily)
doesn't matter, it's just one line
tulip sleet
.bin? that lets me erase flash every time for testing (more easily)
they are both built of course
crimson ferry
that works
noticed that on the QT Py, the serial name doesn't change from a generic name based on the USB port to the specific name based on the MAC address
the TFT does change the name of the serial port, like all working espressif boards normally do
OK, huh, something was wonky with serial, hadn't seen it before... had tried tio in new windows even with the QT, but...
after testing the TFT, putting the QT Py back on the same USB, it worked!
sorry about all that, I'd never seen serial behavior like that before
in the past, if something gets wonky, I do it fresh in another Terminal tab and it's good
but this was deeper than Terminal... USB wasn't renaming correctly
tulip sleet
that is really weird, I think the revert is important anyway, because I see the same thing; maybe the original badness put the port in a bad state
anyway, the board does come up, so I'll note that in the qt py PR
thank you for persevering on this testing
crimson ferry
thank you!
onyx hinge
@tulip sleet reviewed the PRs you mentioned
onyx hinge
@lone axle if you know .. do we have the ability to include "data files" in a lib installed with circup? any special steps to take, or an example I can look iat? This is a ".bin" file. I could put it inline as a b"" string if I have to, it's about 4kB
tulip sleet
<@329766224093249548> reviewed the PRs you mentioned
Thanks! Now I just have to wait for a bunch of builds 🙂
reverted serial fix is mysterious -- in testing, is intermittent, seems like uninitialized something, or maybe unicode vs not, but we weren't printing unicode
lone axle
<@382939733107408897> if you know .. do we have the ability to include "data fil...
I do not know of a way. I poked around briefly at one point to try to figure it out because there is a font.bin file used by some libraries that is included in the examples directory but not the library itself. I can't say that I dug too deep, but I didn't find any examples of our libraries including non-code files.
I'm sure it must be possible though, I imagine there must be libraries deployed to pypi that include some non-code data files. Maybe they can be listed inside of pyproject.toml for inclusion somehow.
manic glacierBOT
lone axle
adafruit_framebuf is the one that caused me to look into it at the time. It has a font.bin file in the examples here: https://github.com/adafruit/Adafruit_CircuitPython_framebuf/blob/main/examples/font5x8.bin which is referenced in the code as a default value in a few places in the library itself https://github.com/adafruit/Adafruit_CircuitPython_framebuf/blob/main/adafruit_framebuf.py#L493
tulip sleet
@onyx hinge looks like we may need to do a make translate?? weblate auto PR failed: https://github.com/adafruit/circuitpython/pull/8614
tulip sleet
it deleted a lot or all of circuitpython.pot
make check-translate does not complain on the tip of main
onyx hinge
I THINK that diff is saying that the pre-commit change is to delete all of circuitpython.pot
tulip sleet
yeah
tulip sleet
I _THINK_ that diff is saying that the pre-commit change is to delete all of cir...
and yet locally:
halbert@cod:~/repos/adafruit/circuitpython$ pre-commit run --all
Check Yaml...............................................................Passed
Fix End of Files.........................................................Passed
Trim Trailing Whitespace.................................................Passed
codespell................................................................Passed
Translations.............................................................Passed
Formatting...............................................................Passed
so weblate is confused
i don't think this needs to hold up the release
from https://docs.weblate.org/en/latest/faq.html
In case the translation file for the source language is needed, but should be ignored by Weblate, please adjust the Language filter to exclude it.
but that's the .po, hmm
onyx hinge
OK, I sort-of see what happened. I'll file a PR to fix it.
orchid basinBOT
orchid basinBOT
slender iron
Yes, it was way too big otherwise.
I've been disabling BLE on 4MB flash S3 boards
orchid basinBOT
manic glacierBOT
tulip sleet
I've been disabling BLE on 4MB flash S3 boards
It seems to fit OK with -Os and camera turned off. The Adafruit Feather S3 did that.
orchid basinBOT
crimson ferry
is 8.x re-merged into alpha.5, or is that for the next version?
tulip sleet
is 8.x re-merged into alpha.5, or is that for the next version?
not specifically (I did it for alpha.4), but there was little or nothing since then. There will be an 8.2.8 soon to handle some flash chip substitutions.
crimson ferry
there are two raspberrypi wifi AP PRs, one in 8 (8590) and one in 9 (8326) (stop_ap & simultaneous station/AP etc)
hybrid dragon
Is there something I need to do to fix the name and maker of the heltec board I added for https://circuitpython.org/board/unknown/?unknown_id=heltec_esp32s3_wifi_lora_v3 ? Or I just name the board markdown file the same as the board and it automagically works?
wraith crow
Is there something I need to do to fix the name and maker of the heltec board I ...

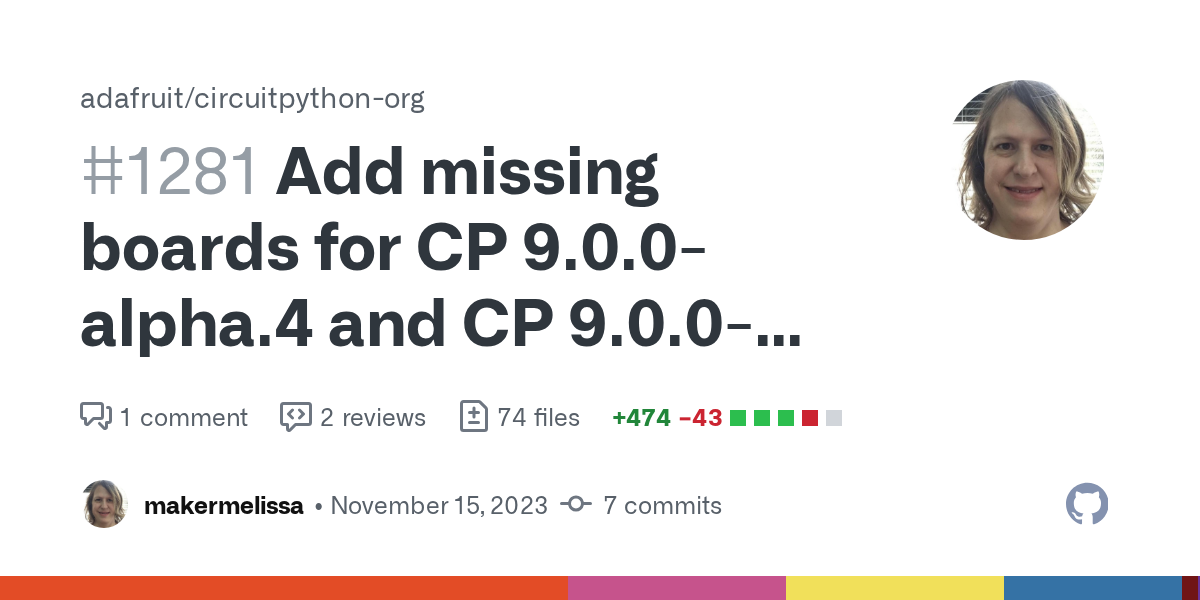

It looks like makermelissa has taken care of it with https://github.com/adafruit/circuitpython-org/pull/1281 but if you want to help for the next one you can check out https://learn.adafruit.com/how-to-add-a-new-board-to-the-circuitpython-org-website
wraith crow
I see there's a new submodules option for boards. Is there a new way of running it or the fetch-port-submodules, it seems to be failing.
fetch-all is giving me the same error as well
wraith crow
Okay, updated the git repository so I went from 2.34.1 to 2.42.0 and the submodules seems to be working now 😁
wraith crow
In case anyone else on Ubuntu runs into this:
sudo add-apt-repository ppa:git-core/ppa
sudo apt update
sudo apt install git
tulip sleet
Okay, updated the git repository so I went from 2.34.1 to 2.42.0 and the submodu...
@onyx hinge set the version brekapoint for using partial clones at git 2.27.0. But I think it is at 2.36.0 (hence your experience). ^^ We can change this.
partial clones are a lot better than shallow clones, so I'd recommend sticking withe the ppa version
onyx hinge
I see there's a new submodules option for boards. Is there a new way of running ...
I changed this around, and tried to make it detect whether "--filter:blob=none" was supported. perhaps my test was wrong. what version of git are you usuing?
wraith crow
2.34.1 was the version that I was using that failed
tulip sleet
I read the release notes and have a memory that it was added at 2.36.0
I researched this months ago.
https://github.com/adafruit/circuitpython/pull/8073 aha yes, 2.36
onyx hinge
mea culpa
tulip sleet
np - I should have caught it in the review
onyx hinge
I know I looked at various versions at https://git-scm.com/docs/git-fetch/2.27.0 and thought I saw --filter support in 2.27 but clearly I was incorrect.
tulip sleet
i rather laboriously went through the release notes
onyx hinge
oohh I made the mistake of looking at "git clone" manpage, not "git fetch". https://git-scm.com/docs/git-clone/2.27.0 lists
--filter=<filter-spec>
tulip sleet
yes, it was added for submodules only later
onyx hinge
sorry for the trouble retiredwizard, thanks for bringing the correct information dan
and goodnight 🙂
wraith crow
😁 no trouble, thanks for all you guys do....
onyx hinge
🌃
tulip sleet
I discuss this in the second part of https://learn.adafruit.com/building-circuitpython/build-circuitpython#fetch-submodules-3141425
i am looking forward to Ubuntu 24.04, when they will finally advance git again
onyx hinge
(debian stable supports it; and on debian oldstable, bullseye-backports has a new enough git)
but yeah I guess ubuntu lts didn't get it
wraith crow
I discuss this in the second part of <https://learn.adafruit.com/building-circui...
Ahh, not reading docs is one of my weaknesses 😆
tulip sleet
well, there's a lot there, and it changes out from under you every time I find a new thing to mention
tulip sleet
@onyx hinge I just made a PR for the git version
onyx hinge
@tulip sleet should I click merge on 8621?
tulip sleet
<@329766224093249548> should I click merge on 8621?
sure, I will make an 8.2.8
onyx hinge
@tulip sleet I started looking at merging 8.2.x to main but there are a fair number of conflicts. The shared_bindings_matrix one should be resolved by taking the main branch version. but I don't know about how to resolve the rest, particularly the unexpectedmaker board config differences.
tulip sleet
<@329766224093249548> I started looking at merging 8.2.x to main but there are a...
just take the main version for the UM boards
onyx hinge
@tulip sleet OK, can do
tulip sleet
there may be some inconsistencies, but UM is aware of that
tulip sleet
@onyx hinge weird profusion of commits in latest translations pr. Looks like they updated something about line breaks
onyx hinge
oh no
tulip sleet
it doesn't look bad, just different
onyx hinge
fwiw I've put weblate into "locked" status so people aren't touching messages at this time
"X-Generator: Weblate 4.18-dev\n"
"X-Generator: Weblate 5.2\n"```oh they did have a big jump in version didn't they.some files are jumping from 5.1 to 5.2. I think 5.2 changed something about line lengths and/or how to break long messages across msgstr lines
onyx hinge
Weblate 5.2
Released on November 16th 2023
tulip sleet
The concatenated text of the messages seems to be the same.
onyx hinge
nothing noted in the release notes https://docs.weblate.org/en/latest/changes.html fwiw
tulip sleet
I never even noticed they had multi-line msgstrs that appear to be concatenated
onyx hinge
it must be a standard feature of gettext. I see some of the commands have options about how to wrap ``` -w, --width=NUMBER set output page width
--no-wrap do not break long message lines, longer than
the output page width, into several lines
const mcu_pin_obj_t pin_GPIO32 = PIN(32, ADC_UNIT_1, ADC_CHANNEL_1, TOUCH_PAD_NUM9);
const mcu_pin_obj_t pin_GPIO32 = PIN(32, ADC_UNIT_1, ADC_CHANNEL_4, TOUCH_PAD_NUM9);```oh was that the solution to the ADC problem you were chasing? surprisingly simpleI think so. In the issue people said other pins did not work, but I could not reproduce that.
it was a mis-transcription from the datasheet.
ESP32-S2 and S3 have much less random numbering of the ADC channels
I also double-checked the touch numbering
orchid basinBOT
spare jacinth
working on getting a library (https://github.com/elpekenin/circuitpython_toml) in the community bundle, couple questions:
- is requirements file required for
circurpor whatever? i dont have any dependency... in case the travis file for mpy is required... can i blacklist a file (little test suite) from it? (i dont quite see how it "finds" them)nvm, just read the comment which i tought was a copyright header
oh, apparently not required, goodbye then 😛
more to come soon, probly 😅
onyx hinge
belated remembered to unlock circuitpython's weblate so folks can get back to translating messages.
manic glacierBOT
New superboard.
Mandatory port checklist:
- [x] TinyUF2.
- [x] Pins.
- [x] Dual I2C busses.
- [ ] Ensure camera pinout works.
- [ ] Do something about GDI.
- [ ] Do power management stuff with PWR pin.
usb vid/pid:
The camera currently doesn't work as upon init the board safemodes due to memory.
It's 3 am, I am not even gonna think about it.
manic glacierBOT
manic glacierBOT
atomic summit
Hey @tulip sleet- Has anyone started looking at C6 support yet, that you know of? I have my TinyC6 boards ready to go into my store - but I have nothing to ship on them 😉
I was going to have a look myself at getting it working, but if someone else has started, I'll wait.
tulip sleet
Hey <@329766224093249548>- Has anyone started looking at C6 support yet, that yo...
we have c6 builds for 9.0.0: https://circuitpython.org/downloads?q=c6
atomic summit
Oh wow, was not expecting that! Ok, that makes my life MUCH easier, thanks 🙂
atomic summit
I was expecting to have to do some heavy lifting to get this going, but I'm relieved to know I don't - it's really not my forte
tulip sleet
I was expecting to have to do some heavy lifting to get this going, but I'm reli...
well, I think your customers may be a bit on the bleeding edge, but the low-hanging bugs have been dealt with
atomic summit
well, I think your customers may be a bit on the bleeding edge, but the low-hang...
Can you please remind me where I can add CIRCUITPY_CREATOR_ID and CIRCUITPY_CREATION_ID stuff for my board?
wraith crow
The github site? https://github.com/creationid/creators
atomic summit
The github site? https://github.com/creationid/creators
Thanks!
wraith crow
Just finished digging through all that for a PR, not sure I got it all straight yet 😄
atomic summit
Yeah, I remember I added a creator_id for myself ages ago, but cant work out how to create a "creations_id" - do I just make that up ?
tulip sleet
Yeah, I remember I added a creator_id for myself ages ago, but cant work out how...
yes, whatever makes sense for your part numbers or whatever, completely your choice. Too much choice is not a good thing sometimes
tulip sleet
Yeah, I remember I added a creator_id for myself ages ago, but cant work out how...
0x00c3_something is good for c3 boards
you'll see that in a bunch
atomic summit
yeah, I did 0x00C60001
tulip sleet
i can approve PR's in that repo
atomic summit
Ok, not added it to a fork yet - just want to get this all building first, so I can do a PR for CP first
hybrid dragon
Is there a restriction preventing me from adding a hug report to the weekly meeting notes - as long as it's under my name & follows the format?
wraith crow
Nope
hybrid dragon
Okay, wonderful. Thought so, but always nice to ask first. :)
atomic summit
@tulip sleet are there docs on how to flash the built .bin to the board? Usually the build sysatem spits out an esptool..... command, but I got a complete/successful build bt no command for flashnig.
trying a clean build again to see if I get one
tulip sleet
esptool.py -p /dev/ttyACM0 -b 921600 --before=default_reset --after=no_reset write_flash 0x0000 but I don't know if the offset is right. I almost never use the Makefile commands
can you just make flash?
i have that command in an alias
atomic summit
yeah, it's the offset I am looking for - but I will also need the bootloader part right ?
tulip sleet
are you holding down the boot button and pressing reset? Then it gets into the ROM bootloader. The second stage bootloader is bundled into firmware.bin
atomic summit
ok, I'll try to write this to 0x000
tulip sleet
that's what make flash does
firmware.bin is made out of bootloader.bin, partition-table.bin, and circuitpython-firmware.bin. It's all packaged up into a .bin that is meant to load at 0x0000
I'm pretty sure
certainly true for the c3
tulip sleet
don't have a terminal program connected to the same serial port, it will mess up esptool
you have carefully avoided these non-full-USB chips 🙂
atomic summit
Not really - My TinyPICO and TinyPICO Nano are original ESP32 🙂
But I didn't do anything with the C3 as it really didn't interest me... but my brain is overflowing - so new data in pushes old data out 😉
Ok, so now I have to integrate this inbto my test jig - so I can flash CP on all tested TinyC6 boards!
Thanks for the help Dan and RetiredWizzard!
manic glacierBOT
brazen hatch
Anyone tested espcamera after the new split-heap?
I am having a lot of trouble with hardfaults.
Wait, debug mode says.. GPIO39 is in use..
???
But in my definition it's not defined anywhere else
GPIO39 is just for Y2..
Is it some usb thing or something?
It's one of the jtag pins..
Is jtag enabled by default on this board or something?
stuck elbow
Ah I just needed to define the pin outside of the cam tuple too
that sounds wrong, can you report a bug?
brazen hatch
I am already doing
brazen hatch
Also, in normal mode (not debug mode), using io39 was a hardfault.
Non-reset pins may be kinda broken
nah nvm espcamera still does it
brazen hatch
Jtag pins are apparently treated seperately
And I accidentally built a normal build in the midst of testing
and I thought it fixed it
I am kinda stuck between jtag not letting me use the camera pins and normal builds just being wonky with ram.
brazen hatch
Yea, I finally found the hardfault reason. espcamera evaluates None pins are >0
brazen hatch
Yea, NO_PIN apparently does not evaluate as 0 or -1 anymore. So cameras without xclk, pwrd and reset pins, just do not work.
Thankfully it can all be fixed in common-hal.
Also, I think I gave the board the best uf2 name. "FIRE2BOOT"
solar whale
@tulip sleet Do you know waht language is the biggest build for the feather_m0_rfm69 -- I have cread a PR for the rfm69 library and I want to make sure i will still build. I added about 50 bytes of code
tulip sleet
<@329766224093249548> Do you know waht language is the biggest build for the fea...
looking at https://github.com/adafruit/circuitpython/actions/runs/6893476418/job/18754294658, looks like ja. 9.0.0 is smaller than 8.2.x
solar whale
Thanks -- I'll give ja a try
solar whale
Well -- it fits for ja in 9.0.0 -- just barely ```jerryneedell@Mac-mini atmel-samd % gmake -j4 TRANSLATION=ja BOARD=feather_m0_rfm69 clean
- Verbosity options: any combination of "steps commands rules", as
make V=...or env var BUILD_VERBOSE
rm -rf build-feather_m0_rfm69
jerryneedell@Mac-mini atmel-samd % gmake -j4 TRANSLATION=ja BOARD=feather_m0_rfm69 - Verbosity options: any combination of "steps commands rules", as
make V=...or env var BUILD_VERBOSE
FREEZE ../../frozen/Adafruit_CircuitPython_RFM69
MKMANIFEST ../../frozen/Adafruit_CircuitPython_RFM69
GEN build-feather_m0_rfm69/genhdr/mpversion.h
Root pointer registrations updated
Module registrations updated
GEN build-feather_m0_rfm69/genhdr/root_pointers.h
GEN build-feather_m0_rfm69/genhdr/moduledefs.h
QSTR updated
GEN build-feather_m0_rfm69/genhdr/qstrdefs.generated.h
MPY adafruit_rfm69.py
GEN build-feather_m0_rfm69/frozen_content.c
Memory region Used Size Region Size %age Used
FLASH_BOOTLOADER: 0 GB 8 KB 0.00%
FLASH_FIRMWARE: 188072 B 188160 B 99.95%
FLASH_FILESYSTEM: 0 GB 64 KB 0.00%
FLASH_CONFIG: 0 GB 0 GB
FLASH_NVM: 0 GB 256 B 0.00%
RAM: 4948 B 32 KB 15.10%
188072 bytes used, 88 bytes free in flash firmware space out of 188160 bytes (183.75kB).
4936 bytes used, 27832 bytes free in ram for stack and heap out of 32768 bytes (32.0kB).
EN has 1412 bytest to spare
stuck elbow
I wonder if we have a native speaker in the community who could go over the translations and shorten them where possible? I did that for Polish once.
tulip sleet
at some point I think we will give up on those boards, hence the RP2040 RFM boards. I would not necessarily want to see library development held back by the space issues.
solar whale
at some point I think we will give up on those boards, hence the RP2040 RFM boar...
Agreed!
tulip sleet
they were designed before CPy existed
solar whale
I am even using bossac to load them 😉
onyx hinge
The last two contributions to the "ja" translation not from someone I know doesn't speak japanese were 2022 and 2020. The translation completeness is 37%. Another possibility is to decide to not publish the japanese translation at all.
If it has no active contributors, its usefulness goes down over time as we add messages & revise existing messages.
tulip sleet
the de_DE translation is close behind ja in size
stuck elbow
possibly because it's more complete
onyx hinge
making "supports localization at build time" a feature like any other CIRCUITPY_ feature would let us turn translations off for all those super-full samd21 boards.
and of course as dan alludes to, someday we will have to declare old & small boards as orphans, with a last supported CircuitPython version of ... ???
solar whale
I'm happy to have stirred up this discussion.... good luck! I have to go offline for a few hours but I'll be following it.
onyx hinge
nice to see you drop in @solar whale ! take care
or just use LLMs to suggest shorter messages without knowing the language yourself. e.g., for "Code wurde durch automatisches Neuladen gestoppt. Wird bald neu geladen." I got "Code angehalten. Wird bald neu geladen." ("Code stopped~~ by auto-reload~~. Reloading soon")
stuck elbow
in my experience, changing text in languages you don't understand leads to hilarity
like that time where Nintendo translated "miss" in rpg combat to "madchen" in German
brazen hatch
Does anyone remember if E (37870) i2c: i2c_driver_delete(451): i2c driver install error is an ignorable thing?
onyx hinge
Does anyone remember if `E (37870) i2c: i2c_driver_delete(451): i2c driver insta...
It's been there for a long while, I recall that much
brazen hatch
oke then, thanks
I am so deep in debugging, sanity is plummeting
I (229510) cam_haler: hal i2c: 0
I (229510) s3 ll_cam: DMA Channel=4
I (229510) cam_hal: cam init ok
I (229520) camera: Using existing I2C port
I (229520) camera: Sending i2c: 0
I (229530) camera: Searching for camera address
I (229540) sccb: Starting probe.
I (229540) sccb: Current i2c: 0
I (229540) sccb: Current ownership: 0
E (229550) camera: Camera probe failed with error 0x105(ESP_ERR_NOT_FOUND)
(the i2c messages are mine)
I can't get the camera to work no matter what.
I can see the i2c addr in the scan, but espcamera doesn't see it..
onyx hinge
That may be a bad idea worth rejecting and I'm OK with that.
brazen hatch
That may be a bad idea worth rejecting and I'm OK with that.
Personally I'm more into disabling locales than chopping features constantly.
Those boards are the kind you use just to do your job, not to learn and play around.
onyx hinge
cameras are maddening. I have not followed all the debugging you've been doing, but: consider manually supplying clock from PWM and doing an I2C scan as a very basic sanity check. cameras won't respond on I2C bus unless they have their input clock. Add a sleep between turning on power & clock and trying to i2c scan. Also, the clock duty cycle has to be close to 50% with low jitter, which means only a few PWM frequencies are actually OK. (main system clock divided by 2 or 4 are good choices) Some camera modules may be pickier than others.
brazen hatch
oh this board doesn't have power control to the camera
onyx hinge
and of course checking that the camera works in not-circuitpython
brazen hatch
This board basically has no camera control pins.
waiwaiwaiawait XMCLK??
I missed that. I deserve that for doing the pindef 3am.
brazen hatch
and of course checking that the camera works in not-circuitpython
I am also guilty of not wanting to touch arduino.
I have been spoiled by CP way too much.
Oh.
The board has a power management thing AXP313A, that needs to enable camera power..
The despair is starting to set in.
Ah it has MP driver
if camera == 0:
self.set_camera_power(1.2,2.8)
else:
self.set_camera_power(1.8,3.3)
💀
We set voltages by hand..
Oh? We can also time shutdowns with this
budget acpi
Oh wow someone did already
and didn't do a board port
Oh but it so means I have to make a C module and add it to the core..
brazen hatch
Board porting, hardcore edition.
If I make a mistake, the camera is gone.
Checked with multimeter, the voltages change accordingly
Question though. What's the best way to ship the module?
It needs to be on the board kinda..
Without it, the camera will never power on.
brazen hatch
Made the module a lot more general purpose, but preserved the camera-specific voltages as I really don't want to let the users set voltages by hand
digital shoreBOT
adafruit
atomic summit
@tulip sleet in the porting of MP 1.2x for the 9.0.0 series, I understand things that are not deemed "needed" in CP get cut out, but I was curious about removing bits that mpremote requires for use, like ilistdir ?
Is that just to reduce build size? Is it gone gone, or is it just not enabled?
I understand that the "official" workflow for non native USB ESP32 boards is the web workflow, but I think mpremote is an awesome workflow for working on boards without mass storage, and though it does work for most things, it's broken for others, like calling mpremote ls as ilistdir doesn't exist in CP.
Is there an official ruling on this? or is it just omitted because no one thought to include it?
I've not done extensive testing on what does and does't work with mpremote, but basic functionality like connect and cp work, but others like ls and soft-reset don't work.
slender iron
Is there an official ruling on this? or is it just omitted because no one though...
We don't use it so we don't know if it is broken.
It'd be ok to include APIs for it as long as they match CPython APIs for CPython modules. (I don't know what ilistdir is)
tulip sleet
<@329766224093249548> in the porting of MP 1.2x for the 9.0.0 series, I understa...
we have our own version of the os module, so we'd have to move over the extra stuff they added
it's not that we deleted it, it's that we migrated os to shared-bindings, and we no longer merge from extmod/modos.c or wherever it is now
mostly we recommend Thonny for non-USB-drive boards, but there are things that are awkward to do with Thonny. I looked briefly at mpremote at one time but it was full of uos stuff. That's been fixed for v1.21, for sure, and I haven't looked again.
stuck elbow
there is no such thing as os.ilistdir in python: https://docs.python.org/3/library/os.html
atomic summit
I never said ilistdir was part of os - just saying it's not in CP, when it is in MP 😉
I've not looked into the MP side yet to see what's what as there was no point until I understood if getting it working in CP was an option.
tulip sleet
we used to have ampy, which is vagulely like mpremote. Having a tool like that would be useful. Whether mpremote makes sense for CPy I don't know.
@slender iron I was helping this user https://forums.adafruit.com/viewtopic.php?t=206024 and came to the conclusion that connectin to a BLE peripheral doesn't work at all on ESP32-S3. scanning and advertising work. I went back to 7.3.3 and tried several 8.x versions, and it's not working. It appears service discovery is failing in some way. Did you ever actually get it to connect and use a service? If not, I will revise the info about what ESP32-S3 BLE can do in the guides.
it does connect, but looking up a service doesn't work
it crashes hard sometimes
atomic summit
we used to have ampy, which is vagulely like mpremote. Having a tool like that w...
Fair enough. Thonny would be my last choice in the ide/tool I'd use to dev with for non native USB boards, so I'm looking for a solution for CP dev in VSC, and mpremote works great for this in MP.
slender iron
<@252717193496756235> I was helping this user <https://forums.adafruit.com/viewt...
I don't remember. Its been too long
atomic summit
right now I'm also using it on my testjigs for flashing and testing non native USB boards, so it's integral to my workflow for production and development.
tulip sleet
My guess is maybe no, i never tried myself until now. You just ended up hitting the dynamic service problem really early
tulip sleet
right now I'm also using it on my testjigs for flashing and testing non native U...
maybe it would be possible to code around the lack of ilistdir and maybe some other things
make a cpremote
This is what I was looking at briefly. I actually didn't find the CLI UI for mpremote all that intuitive, but I didn't look at it for very long
atomic summit
Honestly, I'm not a fan of a cpremote - that's kinda how things stated when CP split from MP 🤪 I personally don't want to use 1 tool for CP and 1 for MP.... especially if one tool can be made to work in both 🙂
mpremote allows you to mount a local FS folder as your devices flash and code away without ever copying over or editing files on device. It's def not a beginners workflow, but it's really great.
slender iron
Get mp to move ilistdir somewhere out of a CPython module and then we can add it
atomic summit
Ok, I'll leave this one alone for now. I was really just curious as to why bits were missing, but I remember now Scott mentioned the move to make things more CPyython like, so it makes sense.
slender iron
MP does want to do it over time. They just haven't yet
atomic summit
Get mp to move ilistdir somewhere out of a CPython module and then we can add it
yup, I'll have a chat with Matt and Jim about stuff and see what can be done
Thanks for the info Dan and Scott!
thorny jay
Dear @tulip sleet,
I found CP code to implement BTHome (v2 unencrypted) and communicate in Bluetooth with Home Assistant.
The example is on a XIAO, but should be easy to adapt for Adafruit nRF boards with build in sensor such as CLUE or Feather Bluefruit Sense.
However the author, Koen Vervloesem, explain the following way that he is using _bleio:
Note that this code uses CircuitPython's low-level BLE module _bleio, which is meant for internal use according to its documentation. The code has been tested with CircuitPython 8.0.2, but _bleio's API can change at any time. I decided to use _bleio instead of adafruit_ble because the latter's documentation was unclear.
I was wondering if you could have a look if it can be implemented with adafruit_ble or if the API is missing something that force the use of _bleio?
And maybe it is important to receive this message about the documentation of adafruit_ble, Koen is also the author of books on BLE, so I find it strange he could not find his way with the documentation...
The code was written for 8.0.2 but I tested both on 8.2.8 and 9.0.0-alpha.5 and it seems to work fine (I still need to setup a Home Assistant, but with a BLE scanner I get the advertisement).
Regards
thorny jay
Dear <@329766224093249548>,
I found CP code to implement BTHome (v2 unencrypted...
Better with a link: https://github.com/koenvervloesem/BTHome-Inertial-Sensor-in-CircuitPython
manic glacierBOT
atomic summit
so my hopes of using mpremote (or anything really) to talk to my TinyC6 running CP on my test jig - or for any dev work has been dashed - constant serial failures when using mpremote cp xxxx
It fails 90% of the time, sometimes at 30%, somtimes up to 60% transfer... and if it does success, if I attempt to do a second cp is fails that 100% of the time.
so right now I have no way to put code on the DUT when it's running CP 😦
even just from the command line, mpremote fails cp 90% or more of the time.
and if it fails, the board has to be reset for anything to work on it again
example:
cp /home/pi/testjig/shipping_files/tinyc6/tinyc6.py :
could not complete raw paste: b'\x01'
pi@raspberrypi2:~/testjig $ mpremote cp /home/pi/testjig/shipping_files/tinyc6/tinyc6.py :```The second cp has hung now and will never return until I reset the board.
even on my Mac it constantly fails and hangs
wraith crow
so my hopes of using mpremote (or anything really) to talk to my TinyC6 running ...
I don't know how desperate you are, but before web workflow came out I wrote something to transfer files to the C2 boards. The "careful" versions of the copy commands worked reliably on that chip https://github.com/RetiredWizard/Serial-File-Manager
atomic summit
I don't know how desperate you are, but before web workflow came out I wrote som...
Oh, wicked, wil give this a go now
wraith crow
The note about binary files is not longer true since the BCOPY and CFOLDER commands were added
The interface is also pretty wonky, I kinda stopped working on it (web workflow) but you might be able to grab the core code and set something up that works for you
atomic summit
This doesn't seem to be working - I can list remote files with RDIR
but cant RDEL or COPY or set LFILE or RFILE etc
Oh, I worked it out
so I'll try to convert this to not be a command line tool p needs to all be automated, but it does seem to copy 2/2 times so far
that didn't make sense - to not be a prompt driven tool
wraith crow
Cool, 😁 I do think the binary copies were working reliably, a bit slow but....
atomic summit
all of my files ate python scripts so all text based
