thatdeletes a piece of the line, i was wandering if i could change the recurrence of the brush

#

for alternating colors

#

ok it was actually the span parameter

rough furnace
#

Oh I misunderstood; glad you sorted it out

lapis tapir
#

thanks anyway

rough furnace
#

welp, thought I would be catching up on pyqtgraph work over the next few weeks, but my 2yo got a close covid contact and is on quarantine, this will make things interesting :/

obsidian sapphire
#

we'll all be there with you soon enough, Ogi, make no mistake.

#

okay, so I'm looking at the mailing list question that was asked about unresponsive plots, and I'm finding that successive calls to PlotWidget.plot() take longer and longer.

#

( with a .clear() in between each )

obsidian sapphire
#

yeah, I can't explain it. clear() is definitely being called, and the plot's items are being removed. something might be leaking here? more digging...

#

huh. the leaky behavior isn't present if I only plot a single array. or at least, it's not showing as noticeably. ( for those following along, I'm using examples/multiplePlotSpeetTest.py as my playground here, which either plots 225 little arrays, or it combines them into a single array )

obsidian sapphire
#

modifying the data in place and calling PlotWidget.update() is 10*5 times faster, and doesn't seem to suffer from any leak, so I'm going to recommend the poster do that, but I'm worried about the clear/plot use-case, now.

fervent vale
#

Is it intended implementation behaviour that the user passed-in buffer can be subsequently updated and modified by the user? I have always used setData to update the plot data

#

If the data is transformed before display, wouldn't that mean that the library would have to repeatedly re-transform the data in case it was modified outside by the user?

fervent vale
#
import numpy as np
import pyqtgraph as pg
from pyqtgraph.Qt import QtCore, QtWidgets

shifts = []
plots = []

def update():
    for idx in range(len(plots)):
        pi = plots[idx]
        shift = shifts[idx]
        data = np.roll(base_data, shift)
        pi.clear()
        pi.plot(data)
        shift = (shift + (idx+1)) % base_data.size
        shifts[idx] = shift

pg.mkQApp()

rng = np.random.default_rng()
base_data = rng.random(1000)

if 0:
    glw = pg.GraphicsLayoutWidget()
    glw.show()
    for row in range(5):
        pi = glw.addPlot(row=row, col=0)
        plots.append(pi)
else:
    wgt = QtWidgets.QWidget()
    wgt.show()
    vbox = QtWidgets.QVBoxLayout()
    wgt.setLayout(vbox)
    for row in range(5):
        pw = pg.PlotWidget()
        vbox.addWidget(pw)
        pi = pw.getPlotItem()
        plots.append(pi)

shifts = [0] * len(plots)

timer = QtCore.QTimer()
timer.timeout.connect(update)
timer.start(1)

pg.exec()
#

The above script crashes after a while. It doesn't crash if GraphicsLayoutWidget is used instead of using multiple PlotWidgets

rough furnace
#

covid

fervent vale
#

PlotWidget zoom pan freeze

rough furnace
#

Sorry for the mass tag, but I think we need to discuss setLogMode @wide prism @obsidian sapphire @violet basin @fervent vale @torn coyote @torn coyote @mortal grotto @plush fulcrum check the thread...

wide prism
#

Sorry for the brain dump; My free time is quite limited right now, so I am in the unappealing position of bothering you all with thoughts without putting them into code. 🙇‍♂️

rough furnace
rough furnace
#

Next weekend, there will be a PyCascades conference, which I am the sprint chair for. The sprints are a relatively narrow window, 1 PM - 5 PM PST on Sunday Feb. 6th (we can likely sprint later if we want)

Would anyone like to participate?

Link for more info: https://2022.pycascades.com/program/sprints/

Website for PyCascades 2022, a regional Python conference in the Pacific Northwest hosted online.

wide prism
#

Heh, your involvement with sprints escalated quickly. I am still mentally context-switched away from python development, so it doesn't seem very likely that I'll be able to join in a productive fashion. But I might be able to hang around some.

rough furnace
mortal grotto
#

Question regarding plot exports: Why don't the scatter plot and curve align with each other?

import numpy as np
import pyqtgraph as pg
from pyqtgraph.Qt import QtCore, QtGui, QtSvg
from skimage.draw import circle_perimeter

pg.mkQApp()
spi = pg.ScatterPlotItem()
spi.setPen('r')
spi.setBrush('r')
spi.setPxMode(False)
spi.setSize(5)
ci = pg.PlotCurveItem()
ci.setPen('k', width=3)

outName = 'test.svg'
# Make some random curve data
coords = np.c_[circle_perimeter(50, 50,25)]
# Default ordering is not conducive toward CurveItem plotting
angles = np.arctan2(*(coords - coords.mean(0)).T)
order = np.argsort(angles)
# Everything should fit nicely in the svg size
coords = coords[order] - coords.min(0)
coords = (coords / coords.max(0)) * 250
# Close the shape
coords = np.r_[coords, coords[[0]]]

points = np.random.randint(0, len(coords), size=15)
spi.setData(*coords[points].T)
ci.setData(*coords.T)

# Boilerplate copied from Qt docs
generator = QtSvg.QSvgGenerator()
generator.setFileName(str(outName))
generator.setSize(QtCore.QSize(250,250))
painter = QtGui.QPainter()
painter.begin(generator)
ci.paint(painter, None, None)
spi.paint(painter)
painter.end()

This generates the attached svg

test.svg
mortal grotto
#

Update: Looks like the scatterplot is off by a 4/3 scale factor

rough furnace
#

if you search the issue tracker, you'll see quite a bit of discussion on this... but i don't have memory of where we landed

mortal grotto
#

GH's issue tracker doesn't have the best searching capabilities... I'll do my best

Thanks for the tip, wasn't sure if I was making the wrong assumptions about how exports work or if it was a pyqtgraph thing

rough furnace
#

i'm in a meeting but i'll see if I can track stuff down

#

(notei t's closed)

#

it's closed but you can see how the debugging occurred which may be helpful

rough furnace
#

that conda CI build I'm working on, resulting in segfaults is driving me up the wall... after having such a reliable/robust CI for so long, feels like I'm just introducing more problems...

rough furnace
#

if anyone is on macOS, that uses conda distributions of python, please let me know.

harsh ravine
rough furnace
#

@fervent vale on the subject of sunsetting support for older Qt versions, I'd like to get your opinion on discontinuing support for Qt 6.1 sooner rather than later (or on the same release we remove Qt 5.12 support)

rough furnace
rough furnace
#

i'm looking at seeing if we can cache dependencies installed during the CI process; this could arguably speed things up a decent amount, down-side is that we won't catch breaking changes as they are released unfortunately as we will have to pin versions of things

rough furnace
#

good news, with pytest-xdist we can save 1-2 minutes on runtime for the test suite, but bad news is we get intermittent failures...

rough furnace
fervent vale
rough furnace
fervent vale
rough furnace
rough furnace
#

here is the code I have:

import pyqtgraph as pg
from pyqtgraph.functions import imageToArray
import numpy as np
import os

app = pg.mkQApp()
image_path = os.path.abspath("./image/telescope_alignment_evaluation_image_labeled.png")

original = pg.QtGui.QImage()
original.load(image_path)
# original.convertToFormat(pg.QtGui.QImage.Format.Format_RGBA8888)

array = imageToArray(original, transpose=False)

jwst_image_item = pg.ImageItem(array)
jwst_image_item.setOpts(axisOrder='row-major')
imageview = pg.ImageView(imageItem=jwst_image_item)
imageview.show()

if __name__ == "__main__":
    pg.exec()

what am I missing here, doing a quick look through the code, I'm not seeing an easy way to manipulate the channel order other than to re-order the numpy array, which I suppose I'm not above doing.

#

(fwiw I did get this working by adding array = array[..., [2, 1, 0, 3]])

fervent vale
#

After loading the png, convert it to RGBA8888 then use ndarray_from_qimage. The resultant ndarray can be passed directly to ImageItem.

#

ndarray_to_qimage should be used in preference to `imageToArray. The latter has endian-ness assumptions.

rough furnace
#
image_path = os.path.abspath("./image/telescope_alignment_evaluation_image_labeled.png")

original = pg.QtGui.QImage()
original.load(image_path)
original.convertToFormat(pg.QtGui.QImage.Format.Format_RGBA8888)

array = ndarray_from_qimage(original)

jwst_image_item = pg.ImageItem(array)
jwst_image_item.setOpts(axisOrder='row-major')
imageview = pg.ImageView(imageItem=jwst_image_item)
imageview.show()

This unfortunately still results in the with the wrong channel order

rough furnace
#

@fervent vale you've worked w/ ImageItem a lot more than I have, let me know if this is an appropriate case for opening an issue and I can migrate the content there

fervent vale
#

convertToFormat returns a new QImage rather than converting in-place.

#

There's an "in-place" version called convertTo available since 5.13 but it's likely to allocate new memory internally anyway.

#

Another thing, ndarray_from_qimage returns only a non-owning view. So if you don't hold a reference to the QImage, you may need to make a copy() of the ndarray

rough furnace
fervent vale
#

Regarding all those issues about pyinstaller with PyQt, isn't bundling up GPL modules with presumably the aim of distributing the application a license violation?

rough furnace
#

while it certainly could, I think there are plenty of exceptions here (fair warning, I'm not a lawyer)

  • Application is open source
  • Application is distributed internally at a company

I think a comparable equivalent is how ffmpeg is frequently distributed with applications (which if memory serves, it has a more restrictive license)

#

Along those lines, conda defaults channel distributes PyQt5 5.9 (but that's not a distribution created/maintained by Riverbank computing).

fervent vale
#

ffmpeg can be built to be LGPL, so it would actually be less restrictive.

rough furnace
fervent vale
#

It's one thing to let the user download PyQt to use with your application. Another to bundle them together. That would make your application also GPL licensed

#

Unless the person bought the PyQt commercial licence

rough furnace
fervent vale
#

Yes. Internal company use is explicitly permitted

rough furnace
#

not going to lie, the idea that I would deploy a pre-packaged Qt application to the web like that is ...terrifying I already support a few dozen users, and run into all sorts of edge cases... but opening it up to anyone? ...

fervent vale
fervent vale
#

For the telescope image, you should convert it to RGB888 instead of RGBA8888. The ImageView histogram treats the alpha channel as just another color channel

rough furnace
fervent vale
rough furnace
#

oh right!

#

(how do I know so little about this aspect of the library and still have merge rights 😬 )

rough furnace
#

Hey folks, I just turned down a job offer that may be up someone's alley here.

https://akselos.bamboohr.com/jobs/view.php?id=73

I can discuss my interview process and offer. I turned down the role not because of any red flags but because I got another offer elsewhere that I decided to take instead

rough furnace
#

I just merged Luke's PR to fix a regression, any other PRs we want to merge before doing a 0.12.5 release?

fervent vale
#

#2185 that provides a new option to override the segmented lines mode heuristic seems useful

fervent vale
#

For issue #2213, this would allow an easy way to ascertain if the culprit is the segmented lines mode

#

For testing purposes, being able to force it on allows testing for edge cases. Like for the new glow example.

#

(Of course, developers can always force it on by modifying the pyqtgraph source)

rough furnace
rough furnace
rough furnace
#

Changing jobs, this next week is proving to be exhausting

#

My group went from 3 devs, and after my departure it will be down to 1 dev, a new grad hire whose been out of school for <1 year.. he’s on vacation so I’m having to document all my pass down while handling his duties too. So this has been awesome. On the plus side looks like I’ll be able to open source the Qt application I have been maintaining

fervent vale
#

PySide6 6.3.0 is out, and there are 2 tests that have issues: test_busycursor.py fails and test_parametertypes.py segfaults. test_parametertypes.py only segfaults on Python 3.10 but not on Python 3.8 and 3.9.

#

A modified github workflow that runs PySide6 6.3.0 on Python 3.8, 3.9 and 3.10

#

No issues for PyQt6 6.3.0

#
import gc
import string

import pyqtgraph as pg
import pyqtgraph.parametertree as pt

def populate_tree_one(tree):
    # this doesn't crash
    root = tree.invisibleRootItem()

    for x in string.ascii_uppercase:
        ch = pt.Parameter.create(name=x, type='str', value=str(ord(x)))
        item = ch.makeTreeItem(depth=0)
        root.addChild(item)

    return tree


def populate_tree_two(tree):
    # this crashes
    root = tree.invisibleRootItem()

    children = [dict(name=x, type='str', value=str(ord(x))) for x in string.ascii_uppercase]
    param = pt.Parameter.create(name='params', type='group', children=children)

    for ch in param:
        item = ch.makeTreeItem(depth=0)
        root.addChild(item)

    return tree

pg.mkQApp()
tree = pg.TreeWidget()
tree.setColumnCount(2)
populate_tree_two(tree)
# tree.show()
# pg.exec()
del tree
print('before GC')
gc.collect()
print('after GC')
#

I have a standalone example that can trigger the segfault, but it still depends on pyqtgraph, so would not be good enough for a MWE

#

In the example above, it seems that creating a "group" Parameter is essential to the segfault. Hopefully someone who is more familiar with parametertree can further whittle down this example into an MWE?

mortal grotto
#

Huh. 15 children has no problems, but 16 children causes a crash. Change range(16) to range(15) and everything works. Still investigating.

import gc
import string
from PySide6 import QtWidgets
import pyqtgraph as pg
import pyqtgraph.parametertree as pt

def populate_tree_two(tree):
    # this crashes
    root = tree.invisibleRootItem()

    ch = [dict(name=f'test{ii}', type='str', value='False') for ii in range(16)]
    param = pt.Parameter.create(name='params', type='group', children=ch)

    for ch in param:
        item = ch.makeTreeItem(depth=0)
        root.addChild(item)

    return tree


pg.mkQApp()
tree = pg.TreeWidget()
tree.setColumnCount(2)
populate_tree_two(tree)
# tree.show()
# pg.exec()
del tree
print('before GC')
gc.collect()
print('after GC')
mortal grotto
#

Huh 15 children has no problems but 16

#

Commenting out the self.eventProxy line in basetypes.py fixes termination in all cases

Edit: It still happens sometimes when this is performed. But returning a reference to param mentioned below consistently succeeds

mortal grotto
#

Also, returning a reference to the param that was created in populate_tree_two alleviates problems.

Apologies for spamming the main thread, somehow mixed up my windows. Will continue the discussion below...

mortal grotto
#

@fervent vale Pyqtgraph free MWE. Produces GC fault on Windows 11, not sure about other systems

import gc
from PySide6 import QtCore, QtWidgets

class X(QtCore.QObject):
    sigTreeStateChanged = QtCore.Signal(object, object)

    def __init__(self):
        super().__init__()
        self.childs = []
        self._parent = None
        self.changes = []

    def treeStateChanged(self, param, changes):
        self.changes.extend(changes)

app = QtWidgets.QApplication([])
# child, parent = [Parameter.create(name='test') for _ in range(2)]
child, parent = X(), X()
parent.childs.append(child)
child._parent = parent
child.sigTreeStateChanged.connect(parent.treeStateChanged)

print('before gc')
del child, parent
gc.collect()
rough furnace
#

there is another issue too...

pytest tests -k "not parameter"

this will have a segfault on completion; despite no parameter tree tests running

#

@mortal grotto can you try disconnecting the signal after you connect it and see if it still crashes? (I'm on child-care duties this week while my 6yo is out from school, i'll try and look more closely in the evening)

fervent vale
#

Thanks to ntjess, a shorter version: ```python
import gc
from PySide6 import QtCore

class X(QtCore.QObject):
signal = QtCore.Signal()

def callback(self):
    pass

child, parent = X(), X()
parent._child = child
child._parent = parent
child.signal.connect(parent.callback)

print('before gc')
del child, parent
gc.collect()

#

So we have two QObjects that hold a reference to each other; and on top of that one of them connects its signal to the other's method.

#

I ran it through the modified CI running {PySide6 6.3.0, PyQt6 6.3.0} x {Python 3.8, 3.9, 3.10} x {Windows, Linux, macOS} and it crashes only for {PySide6 6.3.0} x {Python 3.10} x {Windows, Linux, macOS}

rough furnace
#

i should probably open a bug in the PySide bug-tracker w/ that MWE

obsidian sapphire
#

💩 ! The free-moving handles are created with a position in a coordinate system scaled to the bounding box of the ROI they're on (i.e. ([0,1], [0,1]) for all points contained in the ROI), but nothing else knows how to think in those coords, and all subsequent positions use the normal-scale, parent coords. Do we want to switch to declaring the handles in un-scaled units, maybe not right now, but as part of a deprecation path, or do we want to teach all the handle-handling code to use the scaled units? I wish all position data could have explicit references to their individual coordinate systems...

rough furnace
#

I wish all position data could have explicit references to their individual coordinate systems...

omg yes... i would support any effort to go in this direction

I don't use ROIs as much as others (I did recently get a tweet at a paper that made heavy use of pyqtgraph's ROIs, perhaps I should reach out to the authors); but I would be more inclined to think that we should make handle/handling code learn tho deal w/ scaled units.

proper summit
rough furnace
#

Another maintainer has entered the chat!

#

@fervent vale has done some amazing work with minimizing copies of arrays in memory. I’d be curious if this tool can help us identify other cases where we are having that sort of thing.

proper summit
#

probably!

#

I don't have any better answer for that beyond "try it and see", but the flame graph view should make it pretty easy to see places where an unnecessary allocation is happening

#

at least if it's large enough to make much of a dent in your process's total heap memory usage

rough furnace
#

yeah definitely first step is trying for sure

#

not fair to ask you to comment on it until we at least try that 😆

fervent vale
#

Someone posted some pyqtgraph screenshots on the pyside gitter channel

#

To show which examples work on pypy

rough furnace
#

hmm...wonder how easy it would be to address those, I've never used pypy before

fervent vale
#

Pypy

rough furnace
#

just revived my mid-2010 macbook pro (runs the now deprecated/unsupported macOS 10.13/High Sierra). There was a numpy wheel for it for numpy 1.21, current scipy versions, and the latest PyQt5. Running the line plot update still results in ~320 fps on it.

#

should add, this machine is pretty useless for most tasks.... but somehow pyqtgraph/numpy/qt still work well on it

obsidian sapphire
#

@rough furnace what's your opinion on deprecating return values? the only clean way to do it is to move to an entirely new fn name, but I'd like to encourage us not to be afraid of fixing things like that. we would maybe want a convention for naming, though.

mortal grotto
#

@fervent vale and @obsidian sapphire I know you've worked with ImageItem quite a bit, feel free to loop in others who might be interested

I talked to a company quite invested in making pg.ImageItem work for really big (multiple 500MB-1GB edit: file size is misleading compared to array memory) images. Is this something easily supported without memory or fps constraints right now? If not, they would be willing to pay a bounty for the feature to be implemented. They wanted to know what an appropriate cash prize would be and other logistics like timeline etc.

rough furnace
#

@obsidian sapphire if you have some time, can you read up on #2185 and chime in on the comments, I'm hung up on using booleans or strings for on / off / auto vs True / False / None ... this kind of stuff absolutely paralyzes me, as I likely know on my own I'm likely to suggest something stupid, but if there is some group decision making here, at least I can point the finger at someone else 😄

mortal grotto
#

Is there a black equivalent for decisions like this? Maybe it's time for a brand-new black-flag: a lib standardization for enums, ternary values, and more 😆

obsidian sapphire
#

heh. yeah, tools like Sourcery kinda do that with a bunch of flow control patterns, at least.

rough furnace
#

this one there really isn't a right answer, my opinion is that we should be in-line with the rest of the library API, and if that doesn't match, then we should be in-line with the Qt API, and if that doesn't really fit well, then we're on our own to figure it out.

I think the "correct" solution for this situation isn't necessarily the one that is clearest as the author of the PR suggests, but the one that is most in-line with the rest of pyqtgraph.

this is way way way into personal opinion, and I really don't like mandating PR authors conform to my opinion.

#

just saw your comment, did a regex search in the repo for 'on' and no matches :/

#

remote proxy has some matches to 'off'

#

black will eventually come 😆

tight cliff
#

black has some # fmt: off comments to disable formatting, if that was what you are asking

Black reformats entire files in place. It doesn’t reformat blocks that start with # fmt: off and end with # fmt: on, or lines that ends with # fmt: skip. # fmt: on/off have to be on the same level of indentation. It also recognizes YAPF’s block comments to the same effect, as a courtesy for straddling code.
https://black.readthedocs.io/en/stable/the_black_code_style/current_style.html#code-style

#

oh woops, this is a private channel, sorry to barge in

rough furnace
#

we welcome visitors @tight cliff ...especially visitors that are our hosts 😄

#

we're private because not all the maintainers have agreed to migrate from our slack workspace to here

#

the reference to black is a reflection of the desire from virtually all the maintainers to run black on the entire codebase, the reason we haven't is because of the number of outstanding PRs, which we have been chipping away at for quite some time (once we run black we will have all the merge conflicts)

tight cliff
#

ohhh, I thought it was about the on/off/auto discussion, woops

rough furnace
#

the on/off/auto vs. True/False/None has to do w/ a PR we have in our queue detailing an API change and we're debating what the arguments should be

#

I'm personally team True/False/None due to arguably being more in line with the rest of our API, where-as str representations of on/off/auto better represent the intention here IMO.

#

@wide prism I know you looked at that on/off/auto issue, but if you can set aside your reference to assembly style programming, I'd be curious to get your thoughts on what would be better

wide prism
#

Hard to move beyond that... 'on', 'off', 'auto' is clear to read, but

#

I'd always try putting True or False when writing code.

#

I think I had some related problem with matplotlib, where there is some parameter that likes 'none' but doesn't like None.

#

I'd think that obvious True or False parameters should be just that: True or False.

#

But we can add 'auto' to that list.
Isn't that the extra-special option here that nobody will specify? Because it is the default?

#

In that case I'd propose keeping None as the internal representation, but making 'auto' a user-facing alternative to specify that.

fervent vale
#

There's the read back of the config option. Wouldn't be nice to set as 'auto' but to read back as None

wide prism
#

Hmm. If that actually gets read back, then yeah, consistent "auto" might be the option of least surprise.

#

Do you know if python does any caching or recycling on string object? Or will option == 'auto' go to string comparison every time?

fervent vale
#

I don't know what goes on under the hood but I think the drawing time would dwarf any string comparison time.

wide prism
#

Unless this runs for every point, yeah, you're probably right.
I'll be happy to be outvoted on this 🙂

#

I'll probably continue to find it strange to see internal state represented as strings, though.

fervent vale
#

There are actually 2 states. Global config and local config.

#

The local config fetches its value from the global config

#

Local config is stored in self.opts and is ambiguous as to whether it's private or user accessible and/or modifiable

rough furnace
#

Alright, sounds like we have a consensus; I should read over the PR again; will try and do that this afternoon, I have a busy day. @obsidian sapphire if you’re free today and the PR looks good, please merge it 👍

rough furnace
rough furnace
#

Pointers to NumPy Arrays to Qt objects or methods

rough furnace
#

just realized I let the tox.ini config get out of date 😬 guess that's an easy PR I can submit...will do so shortly

mortal grotto
#

@wide prism how would you feel about a PR for pg.colormap.{get,listMaps} which allows source='any' for finding either local, matplotlib, or colorcet instead of just one source? My use case is allowing the user to pick anything available on the system, and I thought that might be a general use-case

wide prism
#

I think that is a good idea.

#

I don't like having the behavior as the default, since it makes it unclear to the user where what map comes from, and thus if others can be assumed to have it.

#

But as a specifically stated option it sounds great.

mortal grotto
#

Of course, I think the current default makes sense, and prevents long fetch times (for listing)

wide prism
#

Heh, I wish I was sure about that. The long fetch time might be mostly on our end, digging through individual files. I think matplotlib might be loading everything from one file, and I honestly don't know how that works out in terms of relative speed here 🙂

mortal grotto
#

I also wasn't sure about the try -> ImportError overhead given the whole sys.path fiasco of python. Not a huge deal, but explicit is often better than implicit in any case

fervent vale
#

Parsing all of the csv files was one of the causes of the long startup time of the colormaps example

wide prism
#

I am not particularly attached to that code, if anyone has a good speed-up, we can put that in. I think the current code is "good enough" since loading all the csv files shoudl basically only ever happen in the example.
Keeping the maps as raw files is supposed to lower the barrier of entry to loading your own maps: Just look at what we have and copy the format.

#

Is there some way to limit the map loading during the test suite? That's the one place where the slowdown is painful.

rough furnace
#

Just stumbled across QCustomPlot, a Qt C++ library for doing plotting. I saw they have support for multi-axes plots, a feature many folks have been looking to add to the library; might be worthwhile to try and emulate QCustomPlot's API https://www.qcustomplot.com/index.php/demos/advancedaxesdemo

Qt Plotting Widget QCustomPlot - Advanced Axes Demo

QCustomPlot is a Qt C++ widget for plotting. This plotting library focuses on making good looking, publication quality 2D plots, graphs and charts, as well as offering high performance for realtime visualization.

still laurel
wraith mist
minor niche
#

And so it begins

copper lily
#

Helloo

#

:>

distant surge
#

hi there

main thunder
#

👋

still laurel
#

Hey everyone from Latvia!

viral dawn
#

mm

sudden briar
#

hmm

copper lily
#

Idk much yet.. but will check about the project when I get on pc

#

:>

rough furnace
#

welcome newcomers, I'm here to convince you that using this library might occasionally be in your best interest!

raven mountain
#

Hello new channel

wild umbra
#

hello contributors!

rough furnace
#

For those that don't know, PyQtGraph focuses on being a high performance interactive library that gets embedded within Qt applications (although you can certainly run a Qt application just for doing a plot in pyqtgraph, that's perfectly fine).

We require numpy and any modern Qt bindings to be installed; and as of right now, python 3.8+ (per NEP-29)

once you have numpy and some Qt bindings installed, you can run python -m pyqtgraph.examples to see some basic use cases of the library and some of the benchmarks

#

if you're interested in contributing to the library, we can use help from all sorts of areas; we need help w/ opengl and SVG support ... if you have experience with numba, there are likely places in the library that would benefit from numba acceleration as well

uncut ore
#

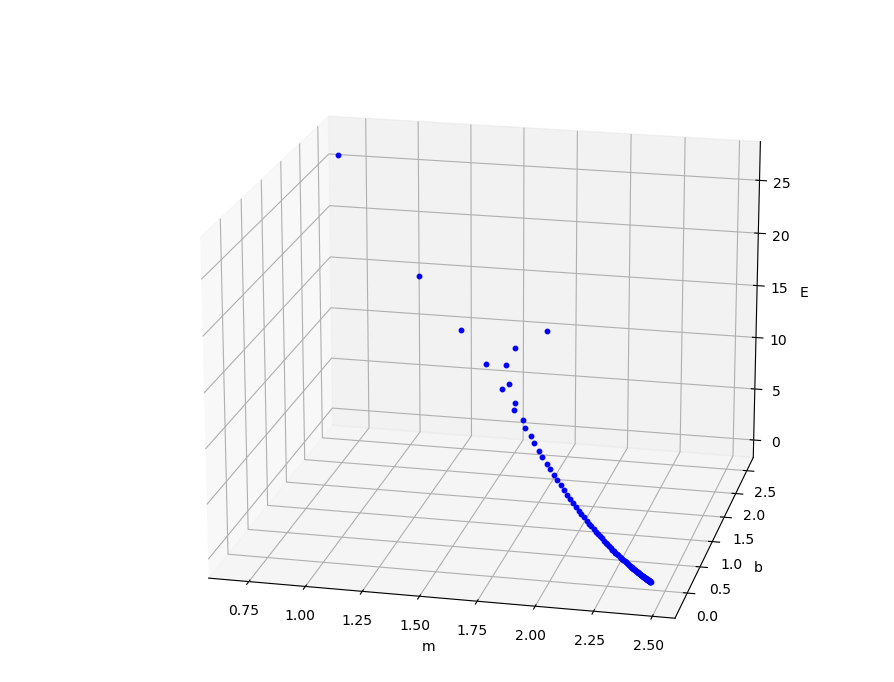

I have one practice project with pyqtgraph, the one thing I am sorta stuck on is having the parameter tree influence the currently plotted trajectory

mortal grotto
#

I can help with that 😁

uncut ore
rough furnace
#

@uncut ore just fyi @mortal grotto is the parameter tree expert

#

also @uncut ore I see you trying to solve your physics homework 👀

uncut ore
#

lol, I'm about 10 years or so late on the homework then

#

But yeah, physics is fun

rough furnace
#

wait, are you using the animation capability of arrow item?

#

this might be the first usage of that I've seen in the wild 🎊

uncut ore
#

I might have had a convo with you in the past about it, and about possibly exporting the animation to a gif or mp4 format

rough furnace
#

QAnimation support to ArrowItem was added as a test before my involvement w/ the library started, from what I've gathered it was one of those things that just looked so easy that Luke (original author) decided to add to see what would happen.

#

I don't think we offer any kind of export capability for animations/movies natively, would totally entertain that discussion tho; right now suggested scheme is to export a png of every frame, and use ffmpeg to make a gif or mp4 out of it

mortal grotto
#

I've done something a little similar, but not with animations

uncut ore
#

Is the PNG export already implemented?

mint kestrel
#

Hi guys

rough furnace
#

we support svg export too (although there are a handful of issues in the issue tracker)

#

looking qt QMediaRecorder I think exporting to a mp4 might not be out of the realm of reason

uncut ore
rough furnace
#

@uncut ore if you think you're ready to give a mp4 export a good shake, message me, I'll give it a shake and see at least there are some easy solutions to implement within Qt directly

uncut ore
#

Sounds good, it is likely a bit beyond me right now but if I come up with something I'll for sure give you a shout

rough furnace
#

yeah, the qt multimedia stuff is a bit complex and weird... would definitely be a tough thing for someone new to the framework to try and figure out

mortal grotto
#

@uncut ore something like this? 🙂

uncut ore
#

Yeah!

#

It gives me some small hope that my code wasn't complete spaghetti

mortal grotto
#

The gif didn't change label text, but this code has it

You were close!

📎 scratch_4.py
#

You just had to make a function that re-evaluates parameters each time an event happens (like pressing "go")

uncut ore
#

Ahhh that is sweet

#

Would moving the TextItems into the run loop also update the labels?

mortal grotto
#

Yep!

vestal jay
#

is pyqtgraph better than matplotlib?

mortal grotto
#

Same with setting curve data -- Qt handles it all for you*

  • depending on the time taken to complete actions it might lag, but that won't be an issue for your code
mortal grotto
rough furnace
#

website highlights differences, pyqtgraph is a much smaller project that works really well in a smaller niche than matplotlib; matplotlib has far more static plot capability (and it's not even close)

true hearth
#

I don’t know how to create a gui

#

👍

#

Can someone tell me?

rough furnace
#

take a look at the example app python -m pyqtgraph.examples they will highlight how to create some basic plot GUIs, if you're looking for something a little more complex/feature-full, you can look at some Qt tutorials, realpython has some, and if you need something more robust, I think pythonguis.com has some articles too

#

Qt is a big framework, you won't learn it in a day/week/month but it doesn't take long to get started

true hearth
#

Thx

hexed nova
#

I was wondering if this library has good collision detection with shapes?

Ex can it tell if/where 2 circles intersect?

rough furnace
hexed nova
#

Ok thank you just wondering.

rough furnace
#

@fervent vale thanks for chiming in on #2308 , goodboy has been messaging me on this perceived issue for some time now. I still don’t understand what the issue he thinks the code-base has.

fervent vale
rough furnace
#

Anything can change; would need a good case for it is all.

EDIT; do you think there is substantial benefit for preserving the QPainterPath instances?

warm vortex
#

wow

#

an opensource plotting lib in pydis

#

oh wait this has been here since 2021?

#

guess i didn't see it

rough furnace
fervent vale
#

QPainterPath reuse

mortal grotto
#

Has anyone successfully attempted running a pyqtgraph GUI inside a docker container? I've followed 5+ solutions so far and nothing worked yet

uncut ore
#

Following up on the animation from yesterday, is there a way to get each "frame" created by the CurveArrow's makeAnimation method? I would like to export each frame to then animate with PIL's Image function

#
...
a = pg.CurveArrow(curve)
...
def run():
    ...
    global animation
    animation = a.makeAnimation(loop=-1)
    animation.start()
    exporter = pg.exporters.ImageExporter("Not sure what to put here")
    exporter.export(f"{item}.png")
uncut ore
mortal grotto
#

That won't quite work, because "run" is only called once. So you would get a picture of the initial setup, but not any of the subsequent frames

uncut ore
#

Right, the animation.start() is the loop that is "moving" the arrow along the curve

#

But I can't access the individual frames (I think)

mortal grotto
#

You can connect to the stateChanged signal with a new function that is responsible for taking a screenshot

#

Are you familiar with signals and slots? They are powerful tools in the Qt ecosystem

uncut ore
#

😬

#

Not yet, but I'm here to learn

mortal grotto
#

No worries! They're pretty straightforward once you learn the basics. I'll send over a very rough implementation. Lol, there are probably significantly more efficient ways of making this happen

uncut ore
mortal grotto
mortal grotto
#

So I misunderstood the "stateChanged" signal, which only fires when the animation changes from starting to running to stopping. Instead, you can use a timer

Also, since your animation re-loops indefinitely, the "finished" signal connection doesn't help much and screenshots will continue as long as the app is open. You will need different logic to prevent that

Also make sure the screenshotFolder exists or you will get an error trying to save the exporter

📎 scratch_4.py
uncut ore
rough furnace
rough furnace
uncut ore
pale musk
#

thats mighty nice

uncut ore
#

Huge props to ntjess and j9ac9k for the hand-holding though

#

Now to try my strava visualizer in pyqtgraph....lol

rough furnace
#

you can see some examples of it in action in the infinite line example

uncut ore
mortal grotto
#

A few minor improvements (minus TargetItem)

  • Clean out old pngs in case you're running twice
  • Avoids re-creating text items in the "run" loop
  • Locks aspect ratio to treat x- and y-units similarly
  • Autoranges axes on new run
#

@rough furnace This is shaping up to almost be a reasonable pyqtgraph.examples entry lol

rough furnace
mortal grotto
#

It's not interactive tho 😁

#

If I were to submit a PR I'd make a GraphicsItem stick man and the goal would be to hit it with the projectile 😆

Should be reasonably doable! You could even make it fall over if you successfully aimed

rough furnace
#

need an animated battleship game

#

demonstrating pg.GraphicsLayout (top view + side view)

elder eagle
runic umbraBOT
#

video.py lines 9 to 10

class Recorder:
    """Handles the recording of a video from frames using ffmpeg"""```
elder eagle
uncut ore
rough furnace
#

if someone submitted a PR to have optional ffmpeg support into pyqtgraph for exporting purposes, I would totally accept that

dim wave
#

hey guys am trying to install pyqt5 on mac but am getting a erorr

rough furnace
#

@dim wave fyi i don't really do support on DMs, I often have to put the computer away, parenting duties call me, and likely someone else can help you if you describe your issue.

copper lily
rough furnace
pearl heart
#

Hey, I wanna know how to install this pyqtgraph.

#

Ping me or DM me, if anyone know this.

cedar trail
pearl heart
#

I didn't

#

It has a number?

#

Like pyqt5?

#

Or just pyqtgraph?

cedar trail
pearl heart
#

Oo

#

Thanks

rough furnace
#

You need to install some Qt bindings,, 5.12+ or 6.1+

median remnant
median remnant
polar onyx
#

Hi, please stick to the channel topic :)

solid dock
#

Where can I download this?

mortal grotto
#

If you're asking about the pyqtgraph package, you can get it from pypi.org (pip install pyqtgraph), github (https://github.com/pyqtgraph/pyqtgraph), or conda forge (not sure if the conda one is recommended due to some complicatoins with the Qt libraries available with Conda)

torn minnow
#

is this like matplotlib but better and simpler than opengl?

rough furnace
#

@fervent vale


The current snapshots (PyQt5, PyQt5-sip, PyQt6, PyQt6-sip) allow you to
create a sip.array object like this...

from PyQt6.sip import array
from PyQt6.QtCore import QPoint

points = array(QPoint, 4)

The array is mutable, so...

points[1].setX(10)
points[1].setY(20)

The SIP support for the /Array/ annotation has been changed so that any
argument so marked will accept either a sip.array of the appropriate
type (in which case no conversions are necessary) or a Python sequence
(in which case the sequence is converted to a temporary array on the
fly).

All of the relevant QPainter methods now have support for /Array/, so...

painter.drawPoints(points)

You can test if the support is present just by checking if the sip
module has the 'array' attribute.

Please test.```
mortal grotto
#

@torn minnow For unchanging publication plots, matplotlib is significantly more mature and feature-full. For real-time analysis (i.e. streaming data), integration into larger applications, and a few other tasks, pyqtgraph seems to do pretty well

You can check out the "Comparison to other python graphics packages" here: https://pyqtgraph.org

torn minnow
#

ModuleNotFoundError: No module named 'OpenGL'

#
import numpy as np

import pyqtgraph as pg
import pyqtgraph.opengl as gl
from pyqtgraph.Qt import QtCore
mortal grotto
#

You can check out some pre-made examples at python -m pyqtgraph.examples once you have pyqtgraph installed

rough furnace
#

i will point out our opengl implementation is likely ...sub-optimal; the 3D portions of our library generally do not get as much attention as the 2D portions. If anyone here has OpenGL experience, we would love your input on where things can be done better.

fervent vale
#

pijyoi1836

rough furnace
#

just noticed that conda-forge failure; looks like there was an update to the pyside2 conda-forge feedstock 4 days ago

fervent vale
rough furnace
#

conda-forge pyside2 was upgraded from 5.13.2 to 5.15.4; so lots of changes there

fervent vale
#

Remote Graphics View should show a blank image then

rough furnace
#

i just asked someone on twitter where I should direct this sort of bug-report; conda-forge feedstock repo for pyside2 says issues should be limited to issues w/ installation...

fervent vale
#

Fortunately almost all the code was migrated away from assuming write-thru behaviour

fervent vale
#

zero copy QImage

rough furnace
#

@proper summit trying to run memray on my linux VM; got an issue here complaining about CXXABI_1.3.11 not found

Happy to move this discussion somewhere else or to an issue tracker if you'd like.

I'm running this in an ubuntu VM with apt-get install libunwind-dev liblz4-dev per the README instructions.

#

I tried running from source, but but a different error:

mortal grotto
#

@rough furnace are you OK with a PR to add this discord link in "Support" section of readme?

rough furnace
proper summit
proper summit
#

The compilation error you got when trying to build it from source is definitely related to the old gcc 5 compiler not supporting the C++ 17 standard

obsidian sapphire
#

okay, so I need build two new plot options: 2nd derivative and a low-pass filter (with configurable cutoff freq). I don't think I want to include these by default in pyqtgraph? I would be happy to make them standard, but they begins to feel like a lot of noise in the plot options menu.

obsidian sapphire
#

huh... the 1st-derivative plot option is behaving poorly in my app: it initially redraws with the derivative applied, but subsequent redraws revert to the unadulterated data.

rough furnace
rough furnace
#

@proper summit I got myself sorted out, thanks again for your help!

proper summit
#

Ah, great, glad you got it!

rough furnace
#

memray usage here is somewhat nice right now as Riverbank Computing (authors of PyQt4/5/6) are giving us access to an experimental way to pass numpy arrays to Qt's draw methods more directly; potentially with zero-copy operations, so being able to quantify the improvement memory wise is super helpful.

gentle arch
#

hi guys

#

anyone could help fast to install pyqtgraph at vscode?

rough furnace
#

(you will need to decide which qt bindings to install as well, if you don't know, or don't care, I would recommend installing PyQt5 bindings pip install pyqt5 )

gentle arch
#

so i cant start my virtual enviornment

rough furnace
#

probably should post to one of the help channels for help with that 👍

thin hazel
#

@gentle archhave you ever started any virtual environment?

obsidian sapphire
#

I'm going to rubber ducky at this thread while I work on this transform refactor.

obsidian sapphire
#

how is saveState/restoreState being tested currently?

#

test_dockarea has some calls

#

but that doesn't have any plots

mortal grotto
obsidian sapphire
#

😆 nice! yeah, no, I'm only working on PlotItem at the moment.

obsidian sapphire
#

okay, math friends, this might be important. why would doing log scaling on an FFT necessitate dropping the 0th term? I don't get errors or noticeable visual discrepancies for any of the Basic Plotting plots.

#

is it that log(0) == inf, and therefore the log is invalid at that point?

#

I guess if I plot y=0, maybe it'll be apparent?

fervent vale
#

The 0th term has x-coord 0

obsidian sapphire
#

A[0] contains the zero-frequency term 0*fs, which is real due to Hermitian symmetry.

#

(that's from the rfft docs)

#

which I guess is what you're saying? 0*fs should always be zero; I don't know why they would bother saying that, then.

#

(fs is the sample freq)

#

okay, maybe this only comes up if I'm plotting complex numbers?

fervent vale
#

Whether the input data is real or complex, the freq coords are the same

#

Whether or not taking log(X) of the frequency coords makes sense is another matter

obsidian sapphire
#

oh! I wonder if this is masking the potential problem: self.x[nonfinites] = np.nan # set all non-finite values to NaN

fervent vale
#

Taking log(Y) of abs(fft(data)) displays the magnitude in roughly decibel scale

obsidian sapphire
#

(that snip is from the log scaling)

fervent vale
#

Yes, it was also partially responsible for the histogram plot issue

#

So what you are saying is that with the addition of that snippet, it is no longer needed to drop the 0th fft term for log X?

obsidian sapphire
#

That was my thought, yeah. I just tried again with the inf->nan lines commented out, and I still wasn't able to trigger any errors or weird graphs.

fervent vale
#

It would also pass through arrayToQPath which has to remove non- finites

#

The 0th x term would then get replaced by the 1st x term

obsidian sapphire
#

Well, so, my actual goal is to be able to decouple log and fft transforms. If the fft code is pre-emptively removing zeros only to prevent log(0), then it's safe to remove that logic. Is there any other reason to drop/shift away that 0*fs term?

fervent vale
#

I think it used to be that several years ago, log X of fft mode would throw exceptions

obsidian sapphire
#

oof. okay, I'm going to keep pushing ahead on this under that assumption. the git log for these lines does have the first bin causes an error, and it looks like that's no longer true!

#

(also, thanks for talking through that with me!)

lusty moat
#

What's pyqtgraph used for

rough furnace
# lusty moat What's pyqtgraph used for

it's used when you want a plotting library with interactivity (mouse/keyboard events) or need rapid updating (example you have live sensor data coming in). It's often found used in experimental research settings, but by no means is it limited to that audience.

What it is not is a matplotlib replacement/derivative. While pyqtgraph can generate static plots, other libraries generally work much better in that regard.

lusty moat
#

I see

mortal grotto
#

I know it's a really simple tool, but I was able to use pg.debug.Profiler to turn a 3-second operation into 977ms 🙂 Such an easy way to find the bottlenecks!

#

If it was more commonly used, I would submit a PR to threshold such that only perf times > threshold get printed, but it would require a bit of a redesign

rough furnace
#

there is actually a PR for that very feature right now 😆

#

feel free to review/give feedback on it and merge it when you think it's ready 👍

#

#2281

quartz tiger
#

pyqtgraph/pyqtgraph#2281

supple leafBOT
quartz tiger
#

our bot can be useful sometimes

mortal grotto
#

A quick search didn't reveal any comments from him; @rough furnace do you know if goodboy is in this discord? My gut reaction is the logging module would fit with a lot less hassle and more flexibility for something like this. I don't think the performance overhead of logging vs custom printing is too huge, but I'd need to run some tests. Unfortunately, that would invalidate lots of logic from the PR. But it would let you choose different output streams, several separate thresholds (i.e. a LoggingHandler for each threshold set), different logging levels for different threshold severities, and so on.

rough furnace
#

i do think introducing logging module would be a very worthwhile thing to do; but I don't think it necessarily belongs in this PR

#

regarding logging performance; I think logging messages were highly optimized for the %s syntax of string interpolation (vs. str.format() or f"")

mortal grotto
#

I guess to clarify I don't mean incorporating logging everywhere in pyqtgraph, I just meant for updating the profile to log filterable messages instead of adding time threshold logic. Though you're right, that could always come later since it would still be convenient to allow a Profiler signature that stays the same as this PR

rough furnace
#

ooo i see what you're getting at...

#

that would indeed be a better way of going about it ...especially if we just limit scope to debug.Profiler() ... if you do suggest it, i would put a comment about how to do the logging and filtering at least so they don't have to figure it out.

goodboy isn't here, but he was on our slack channel, but he hasn't been active there in recent months

mortal grotto
#

👍 that would be the goal

Shame, it's a lot easier to discuss via threads instead of PR comments, lol

torn minnow
#

This project is really cool I will be adding it to my work flow

#

The live updating features and 3d graphing is one of the best

mortal grotto
#

pyqtgraph/pyqtgraph#2322 is live as a hopeful replacement of 2281

supple leafBOT
loud fjord
#

i got a question:

#

how to make a pyqt5 window which stays top of a specific pyqt5 window

rough furnace
rough furnace
loud fjord
#

k

obsidian sapphire
#

More rubber duckies here

rough furnace
#

@fervent vale does the audio on this chat sound like absolute garbage on your end too or is it just my machine?

fervent vale
#

It sounds okay to me

rough furnace
#

huh, ok, thanks for the sanity check

#

@fervent vale is there a time-range that typically works well, sounds like they wanted to have a longer discussion on the whole passing numpy arrays bit

fervent vale
#

well I am on UTC+8, they are on UTC+2

#

so actually right about now is good for me

rough furnace
#

ok, right now is on the early side, but doable for me

#

actually early is good as kids aren't up yet 😛

fervent vale
#

It doesn't have to be void pointers... Think that gives people the wrong idea

#

Could be anything that supports the python buffer protocol

#
In [25]: lines = np.zeros((3, 4), dtype=np.float64)
In [26]: mv = memoryview(lines)
In [27]: mv.shape
Out[27]: (3, 4)
In [28]: mv.format
Out[28]: 'd'
#

e.g. their drawLines should accept any python buffer of doubles that has a shape of (nlines, 4)

#

It just seems odd to me that they would prefer drawLinesNp(x1, y1, x2, y2) (based on what the current drawPointsNp looks like)

rough furnace
#

(magically my speakers are working again without sounding like absolute rubbish)

yeah I went w/ the void pointer to use an example of how we currently do it, but if they're more partial to drawWhateverNp methods, I'm sure we can work w/ that too

torn minnow
#

Is possible to change the opacity a point/line in pyqtgraph?

rough furnace
#

fair warning if you have > 1 px thick line you'll see major performance penalties with using a color with some transparency

mortal grotto
#

@torn minnow Maybe you already know this, but if you want to apply the same opacity to all points or the whole line, you can also change the opacity of the underlying item:

item = pg.PlotCurveItem() # Or whatever your item is
item.setOpacity(0.5) # hardly any performance penalty compared to setting a pen with alpha
obsidian sapphire
#

Do we want to set the e.g. log-mode of a PlotDataItem separate from its parent PlotItem? The PlotDataItem doesn't have access to its axes, to be able to set them up appropriately. I feel like I should just deprecate all of the PlotDataItem.set*Mode methods and redirect users to the PlotItem-level controls, regardless of the rest of my current work.

#

@wide prism you did a bunch of this work. what do you think?

#

Also, what do people think of this UI for the dynamic parameters of a custom data transform? I'm just sticking a ParameterTree into the second column of a grid layout, but if there are other good ideas, I would be willing to play around with it.

rough furnace
#

@wide prism ☝️

torn minnow
wide prism
# obsidian sapphire <@702383444180860928> you did a bunch of this work. what do you think?

Ideally, there would be no reason for just one PlotDataItem to ever have a different transform/mapping mode than others in the same plot.
But ideally, all items would also understand the transforms/mappings and coordinate with the axes to plot accordingly. There it sounds like going through PlotItem would be great.
But until some of that works, I am somewhat undecided on removing the methods in PlotDataItem...
They might be good to have for forcing reproducible behavior for a while longer. Deprecation with an indefinite expiry time for now, maybe?

rough furnace
#

I'm good rolling out deprecation warnings, but we should have something else in-place that we can suggest users use instead

obsidian sapphire
#

👍

#

oh, damn; the order of these transforms is very significant; if you do your dy/dx before your low-pass filter, the noise dominates, but in the other order, you get the derivative of the sensible part.

#

maybe these need to be reorderable? just add on some handlebars to each one...

rough furnace
#

is what you're trying to do have some overlap w/ the flowchart module?

fervent vale
rough furnace
rough furnace
#

@fervent vale am I putting too much value in zero-copy here? I mean, at a glance not having to allocate 2x the memory for something like this seems fairly beneficial, I don't have much experience w/ this kind of lower level programming so I likely have strong misconceptions here

obsidian sapphire
fervent vale
#

Zero-copy also implies zero-alloc

rough furnace
#

ahh, so if it's not going to happen for drawLines regardless probably should just forget about it then 😬

fervent vale
#

In our current implementation, it's cached alloc and vectorized population on pyqtgraph side; on the pyside side, there will be a conversion from python list to c++ array (not zero-copy)

rough furnace
#

right, but what we're asking from them is to be able to take a numpy array (or a voidPtr to a numpy array, or some alternative), so we can do away w/ even having a python list to begin with. I mean, for all I know here this is a non-issue.

fervent vale
#

Yes, that would be ideal. Take a python buffer, treat it as nlines * 4 doubles and pass it directly to drawLines with no conversion

#

In my opinion, removing some XML lines from their binding generation would do the trick

rough furnace
#

yeah i'm bummed they didn't address your comment in chat earlier

fervent vale
#

I realised that QPolygonF actually follows the same pattern as drawPixmapFragments

rough furnace
#

i should have said something about it, sorry about that.

rough furnace
fervent vale
#

QPolygonF.data() returns an instance to the first QPointF element

#

Calling shiboken.getCppPointer() on that returned instance gives the pointer to the array of QPointFs

#

I mean it's the reverse analog of drawPixmapFragments

#

In drawPixmapFragments, we pass it an instance to the 1st element of the PixmapFragment array

rough furnace
#

silly question, where is the XML file(s) you're referring to w/ the signatures?

fervent vale
#

It's under lib/site-packages/PySide6/typesystem_gui_common.xml

#

Search for drawLines

#

There's xml there to remove unwanted C++ signatures

rough furnace
#

i'll try and rebuild a pyside package w/ that change and see what happens

fervent vale
#

Tell me if you need me to provide an example. Can modify it from the pyqt sip array MWE

rough furnace
#

an example will likely be helpful, i'm pretty tired, so if I run into too many issues trying to build pyside i'll likely give up before too long 😛

fervent vale
#

Yeah, I don't want to kill my machine building Qt

#

It's nice that PyQt bindings can be built with no extra files

rough furnace
#

you don't have to build qt to build pyside

fervent vale
#

Do I need to download Qt sources to build PySide?

rough furnace
#

i think you need Qt installed so you can point to qmake

#
CMake Error at cmake/ShibokenHelpers.cmake:162 (find_package):
  Could not find a package configuration file provided by "Clang" with any of
  the following names:

    ClangConfig.cmake
    clang-config.cmake

  Add the installation prefix of "Clang" to CMAKE_PREFIX_PATH or set
  "Clang_DIR" to a directory containing one of the above files.  If "Clang"
  provides a separate development package or SDK, be sure it has been
  installed.
Call Stack (most recent call first):
  cmake/ShibokenSetup.cmake:39 (setup_clang)
  CMakeLists.txt:11 (include)

ain't nothing easy 😛

fervent vale
rough furnace
#

i see going for the no-intention 😆 i can sort that out

#

ok needed llvm installed too... and had to set an environment variable... laptop is now moving to space-heater mode

EDIT: ok now just errored later in the build process...

wide prism
#

maybe these need to be reorderable just

fervent vale
#

Ok, I managed to build PySide2 (QtCore, QtGui only) against system Qt5 in WSL2 Ubuntu 20.04 with the drawLines(QLineF*, int) signature left intact. The benchmark script above yields 621 fps (without array) vs 918 fps (with array).

#
In [2]: QtGui.QPainter.drawLines?
Docstring:
drawLines(self, lines: PySide2.QtCore.QLineF, lineCount: int)
drawLines(self, lines: typing.List[PySide2.QtCore.QLineF])
drawLines(self, lines: typing.List[PySide2.QtCore.QLine])
drawLines(self, pointPairs: typing.List[PySide2.QtCore.QPointF])
drawLines(self, pointPairs: typing.List[PySide2.QtCore.QPoint])
Type:      method_descriptor
#

So yes, it would be as simple as removing the offending xml lines...

#

Using the system Qt5 avoids having to download the sources from the Qt Company

#
diff --git a/sources/pyside2/PySide2/QtGui/typesystem_gui_common.xml b/sources/pyside2/PySide2/QtGui/typesystem_gui_common.xml
index 13f8f3cbf..ed8ef4327 100644
--- a/sources/pyside2/PySide2/QtGui/typesystem_gui_common.xml
+++ b/sources/pyside2/PySide2/QtGui/typesystem_gui_common.xml
@@ -1851,7 +1851,7 @@
     </add-function>
     <!-- ### Overloads using QVector<T> does the job of these methods -->
     <modify-function signature="drawLines(const QLine*,int)" remove="all"/>
-    <modify-function signature="drawLines(const QLineF*,int)" remove="all"/>
+    <!-- <modify-function signature="drawLines(const QLineF*,int)" remove="all"/> -->
     <modify-function signature="drawLines(const QPoint*,int)" remove="all"/>
     <modify-function signature="drawLines(const QPointF*,int)" remove="all"/>
     <modify-function signature="drawRects(const QRect*,int)" remove="all"/>
rough furnace
#

nice work!

rough furnace
#

still running into build issues w/ Qt 6.3 but I almost have it

rough furnace
#
$ pip install PySide6-6.4.0a1-6.3.0-cp39-cp39-macosx_12_4_x86_64.whl
ERROR: PySide6-6.4.0a1-6.3.0-cp39-cp39-macosx_12_4_x86_64.whl is not a supported wheel on this platform.

🤦‍♀️

mortal grotto
#

For those with more Qt familiarity -- When I spawn a QWebEngineView, there is an unsuppressable stderr printout originating from this function in Qt source: https://sources.debian.org/src/qt6-webengine/6.2.4%2Bdfsg-8/src/core/web_engine_context.cpp/#L263

My first thought was to check if this QLoggingCategory could be disabled temporarily, given it has an entry in the PySide6 docs: https://doc-snapshots.qt.io/qtforpython-dev/PySide6/QtCore/QLoggingCategory.html

It is also referenced in the Bluetooth error filtering section: https://doc.qt.io/qtforpython-6/PySide6/QtBluetooth/index.html

However, attempting to access it gives an AttributeError so it probably isn't actually packaged (testing on PySide6==6.3.0).

As a result, I put the calling code in another python file and created a Process that set stderr to print to os.devnull. This has several obvious downsides, but at least works. Is anyone familiar with any ways to temporarily suppress these kinds of Qt debug statements that don't involve subprocesses?

rough furnace
#

oh i've done some filtering of messages like that before ...hold on

#

qInstallMessageHandler passing to another method there, and then you should be able to catch/filter messages there

mortal grotto
#

Neat! So they integrate with the logging module?

rough furnace
#

well, you have to do the integration

#

but that's how you do it

mortal grotto
#

Oh nvm, I misread your code initially. So QLogggingCategory isn't available but you can still intercept the logged messages. Thanks! None of the terms I was googling led me down this direction

rough furnace
#

I should add, I'm not making any claims on this being the "correct" way of doing it; it's just how I did it 😆

mortal grotto
#

Better than a subprocess that suppresses any stderr printouts 😆

rough furnace
#

but basically you intercept the qt logger messages, filter out the ones you don't want, and re-emit the messages in the python logging module

mortal grotto
#

Oh interesting, QMessageLogger is indeed exposed in PyQt5 but not PySide{2,6}

rough furnace
#

hmm.... i used it with pyside2 ... might be in a different module or something

mortal grotto
rough furnace
#

I don't think you need QMessageLogger ?

mortal grotto
#

Whoops, I meant QLoggingCategory

#

It would allow easy disabling of debug info from modules by name

rough furnace
#

don't think you need that one either, you need QMessageLogContext

mortal grotto
#

For the filter handler sure, but having access to QLoggingCategory would allow you to do
QLoggingCategory.setFilterRules("qt.webengine* = false")

if all you want is to suppress that debug information

rough furnace
#

ahh

mortal grotto
rough furnace
#

@mortal grotto you should report a pyside bug requesting they expose QLoggingCategory tho

rough furnace
#

@fervent vale

Got pyside6 to compile w/ that XML file edited out:

pyside6_dev_39 ❯ python benchmark.py
use_array=False duration=0.289 fps=346
use_array=True duration=0.080 fps=1245

😆

looks like I'm just generating type-errors...ok re-verifying that it's actually doing something

sure enough, I accidentally undid my removal in the XML file, ... updated the results

rough furnace
#

I got the recompile process down to a few minutes; let me know if you think I should change modifying that XML file in other ways

fervent vale
#

All the drawXXXs could be restored, although we don't have a use for them

fervent vale
#

How much disk space did it cost you to compile pyside6?

fervent vale
fervent vale
#

Okay, compiled QtWidgets, and PlotSpeedTest.py works with the new signature

#

One snag: my PySide2 has __version__ 5.14.2a1

#

that breaks debug.py version splitting code that assumes all parts are integer

rough furnace
#

got my hands full here for another ~4 hours...

#
~/Developer/pyside-pyside-setup dev*
pyside6_dev_39 ❯ du -sh .
2.0G

2 GB?

#

my build command:

python setup.py install --ignore-git --debug --module-subset=Core,Gui,Widgets --qtpaths=/usr/local/bin/qtpaths
fervent vale
#

not including all other auxiliary downloads like Qt source, llvm?

rough furnace
#

oh, ugh, I installed qt via brew, same w/ llvm and clang

#

qt: /usr/local/Cellar/qt/6.3.0 (12,874 files, 550.0MB) *
llvm: /usr/local/Cellar/llvm/13.0.1_1 (5,449 files, 940.9MB)

fervent vale
#
python3 setup.py install --qmake=/usr/bin/qmake --no-examples --module-subset=Core,Gui,Widgets --skip-docs --parallel=8
#

my build failed when I included --ignore-git but that was probably because I didn't do git submodule update or something

rough furnace
#

I had to skip QtDesigner module, also I had to put symbolic links for Assistant.app, Linguist.app and Designer.app ... I think I set an environment variable too...

#

regardless, I'll be happy to test more later tonight w/ this 👍

#

ok, back to parenting duties... will rebuild and test your branch in ~4 hours

obsidian sapphire
#

I made a PR. @wide prism will you look at it and make sure I'm not making any mistakes, or otherwise suggest ways I could improve it?

rough furnace
#

@mortal grotto while trying to test the self-built pyside bindings; I just got this traceback when attempting to launch the Line Plot Update benchmark

 File "/Users/ogi/Developer/pyqtgraph/pyqtgraph/examples/PlotSpeedTest.py", line 87, in <module>
    params = ptree.Parameter.create(name='Parameters', type='group', children=children)
  File "/Users/ogi/Developer/pyqtgraph/pyqtgraph/parametertree/Parameter.py", line 137, in create
    return cls(**opts)
  File "/Users/ogi/Developer/pyqtgraph/pyqtgraph/parametertree/Parameter.py", line 217, in __init__
    self.addChildren(self.opts.pop('children', []))
  File "/Users/ogi/Developer/pyqtgraph/pyqtgraph/parametertree/Parameter.py", line 601, in addChildren
    self.addChild(chOpts)
  File "/Users/ogi/Developer/pyqtgraph/pyqtgraph/parametertree/Parameter.py", line 582, in addChild
    return self.insertChild(len(self.childs), child, autoIncrementName=autoIncrementName)
  File "/Users/ogi/Developer/pyqtgraph/pyqtgraph/parametertree/Parameter.py", line 617, in insertChild
    child = Parameter.create(**child)
  File "/Users/ogi/Developer/pyqtgraph/pyqtgraph/parametertree/Parameter.py", line 137, in create
    return cls(**opts)
  File "/Users/ogi/Developer/pyqtgraph/pyqtgraph/parametertree/parameterTypes/pen.py", line 45, in __init__
    children = self._makeChildren(self.pen)
  File "/Users/ogi/Developer/pyqtgraph/pyqtgraph/parametertree/parameterTypes/pen.py", line 111, in _makeChildren
    QtEnumParameter(ps, name='style', value='SolidLine'),
  File "/Users/ogi/Developer/pyqtgraph/pyqtgraph/parametertree/parameterTypes/qtenum.py", line 16, in __init__
    self.enumMap = self._getAllowedEnums(enum)
  File "/Users/ogi/Developer/pyqtgraph/pyqtgraph/parametertree/parameterTypes/qtenum.py", line 54, in _getAllowedEnums
    vals = enum.values
  File "/Users/ogi/.pyenv/versions/3.9.13/lib/python3.9/enum.py", line 429, in __getattr__
    raise AttributeError(name) from None
AttributeError: values
#

this is a dev/alpha of pyside6 right now, but fair warning, this issue may be present in 6.4.0

#

fixed with this modification in qtenum.py

    def _getAllowedEnums(self, enum):
        """Pyside provides a dict for easy evaluation"""
        if 'PySide' in QT_LIB:
            try:
                vals = enum.values
            except AttributeError:  # pyside6 6.4+
                vals = {e.name: e for e in enum}
#

@fervent vale I'm seeing a ~160fps -> 167fps difference on PlotSpeedTest.py (thanks for updating your PR)

#

improvement seems to scale with nsamples too

fervent vale
#

Try also line width=1, but toggle between segmented line mode

rough furnace
#

pyside6.3 ~530fps
pyside6.4.0a1 ~550fps

#

you think it would be worth testing this signature?

void QPainter::drawLines(const QPointF *pointPairs, int lineCount)
fervent vale
#

According to source code at woboq, drawLines(QPointF*, int) merely casts QPointF* to QLineF* and then calls drawLines(QLineF*,int) with half the length

rough furnace
#

oh, yeah, let's not do that 😆

fervent vale
#

Clearly shows that a QLineF is memory layout is compatible with QPointF...

#

There are just 4 drawXXXs methods: Lines, Points, Rects, PixmapFragments

#

The integer variants aren't useful to us

#

It might be worthwhile creating a benchmark of drawPoints vs drawPointsNp to show to Qt company

rough furnace
#

i'll enable the signature and rebuild...

fervent vale
#

Should be easily adapted from the existing script

rough furnace
#

i'll give that a go right now...

wide prism
#

Let me already say that getting the entire hand-coded, proof-of-concept style transform code wrapped up in nice structures would be so satisfying.

fervent vale
#

Tests all 3 modes

rough furnace
#

@fervent vale heh, I was right about to share mine...

#

but i'm getting weird results, so I likely hosed something up

#
pyside6_dev_39 ❯ python benchmark_points.py
mode='list' duration=0.372 fps=269
mode='array' duration=0.046 fps=2184
mode='numpy' duration=0.117 fps=853
#

👀

#

@harsh ravine free FPS baby!

fervent vale
#

Better verify that it did run... by saving the qimage as a png

rough furnace
#

good call, will save the output with different filenames...

#

i do have points

fervent vale
#

With less coding effort than creating the Np methods too...

rough furnace
#

that's ...almost an order of magnitude improvement...

harsh ravine
#

So those results are legit?

rough furnace
#

yup

harsh ravine
#

That is insane

rough furnace
#

this is a proof of concept tho...

  1. We don't use QPainter.drawPoints in our repo anywhere
  2. We are using these results to talk them off a proposal we really think is sub-optimal
harsh ravine
#

What kind of results do you get with a pattern that has a float32 dtype?

fervent vale
#

Oops, I left the save statement inside, have edited it away. It should have been outside the timing calls anyway

fervent vale
harsh ravine
#

aww

rough furnace
#

😆

mode='list' duration=0.307 fps=326
mode='array' duration=0.029 fps=3473
mode='numpy' duration=0.109 fps=918
#

@harsh ravine we want to use the "array" mode proposed here for QPainter.drawLines which we currently use when drawing lines > 1px, the benefits are nowhere near as huge as with drawPoints but it's definitely observable

#

there is likely something we can do w/ drawRects in the future as well, but overwhelming majority of our draw operations are drawPainterPath which we have (I mean pijyoi has) optimized quite extensively; ...with another PR in queue to optimize it more.

harsh ravine
#

oh, why does the benchmark use drawPoints then?

rough furnace
#

because pyside devs rolled out a custom drawPointsNp function (Np short for numpy) ...they were using that function as a way to highlight better numpy support, and were proposing rolling out a similar drawLinesNp method for us

#

this benchmark goes to show that we can get far better performance if they just delete one line in their XML file listing the function signatures to not expose 😆

harsh ravine
#

Think this is going to help that guy who wanted to plot a million points, or whatever it was?

rough furnace
#

didn't see that one, saw someone wanting to draw a ton of rectangles, which exposing that signature for drawRects would go a long ways too

harsh ravine
rough furnace
#

oh, ugh yeah that would probably work, still would recommend doing some downsampling tho

fervent vale
#

I managed to build PySide6 6.2.4 on WSL Ubuntu 22.04. I suspect the numbers you were getting was because of --debug.

#

After tweaking the run parameters nsegs 10_000 -> 50_000; size 500 -> 1000; I get the following times:

#
mode='list' duration=0.926 fps=107
mode='array' duration=0.559 fps=178
mode='numpy' duration=0.610 fps=164
#
python3 setup.py install --qtpaths=/usr/lib/qt6/bin/qtpaths --ignore-git --no-examples --skip-docs --module-subset=Core,Gui,Widgets --pyside-numpy-support --parallel=8
#

The issue with your benchmark script is that drawLinesNp assumes / requires that the arrays passed in are contiguous.

rough furnace
#

nice catch; let me rebuild...

#
pyside6_dev_39 ❯ python setup.py install --ignore-git --no-examples --skip-docs --module-subset=Core,Gui,Widgets --pyside-numpy-support --parallel=8
...
pyside6_dev_39 ❯ python benchmark_points.py
mode='list' duration=0.082 fps=1219
mode='array' duration=0.023 fps=4316
mode='numpy' duration=0.030 fps=3345
rough furnace
#

oh, should adjust the parameters too...

#
pyside6_dev_39 ❯ python benchmark_points.py
mode='list' duration=0.402 fps=248
mode='array' duration=0.160 fps=625
mode='numpy' duration=0.208 fps=480
#

@harsh ravine with nsegs = 1,000,000

~/Developer/pyside-pyside-setup dev*
pyside6_dev_39 ❯ python benchmark_points.py
mode='list' duration=7.633 fps=13
mode='array' duration=2.033 fps=49
mode='numpy' duration=2.542 fps=39

so yeah I guess 1 million points is not out of the realm of reason any more...

harsh ravine
#

Impressive. That's more than quick enough now.

fervent vale
#

note that there is already a drawPoints(QPolygonF) overload that gives good performance, so neither the 'array' nor the 'numpy' versions are needed

#

the example given was really to demonstrate that providing a 'array' overload would be simpler and faster than a 'numpy' overload

rough furnace
#

@fervent vale regarding #2324 (avoiding serialization of qpainterpath construction) can we work around the issue with NaN values in a path resulting in an invalid path and getting blank ones returned instead?

fervent vale
#

okay, so this non-finite issue has firstly to do with the serialization operator diligently checking for all-finite, and if any non-finite is found, it discards the whole path

#

but secondly, this means that the rest of the Qt library is free to assume that the coordinates are all finite

#

so if you were to forcefully subvert this assumption, who knows what undefined behavior you would end up invoking

rough furnace
#

i'm fine with that float('nan') is a valid float and I'm definitely of the opinion Qt should not be discarding painter paths because there is a float('nan') in it...

I'm mostly curious if this makes it so we do away w/ the finite check and back-filling process

#

(I get that this code-path won't be used unless enableExperimental is called 👍 btw good use of that flag)

fervent vale
#

I remember in one of the earlier iterations, it was possible to pass in NaNs through QPolygonF or something

#

but in one of the examples that did filling, it ended up with corruption

rough furnace
#

oh, right, ... i remember that, might have had something to do w/ line thickness too ...

fervent vale
#

the enableExperimental was to let it get into the "wild" and hopefully get more testing before it got into mainstream

rough furnace
#

yeah normally I'm not big on hiding stuff like this behind that flag, I doubt enough users are using current versions of pyqtgraph with enableExperimental set to True... but I think this is an appropriate case for it. Do you have access to an ARM platform you can test on? All my apple machines are the intel based ones...

fervent vale
#

not so much that it would matter on ARM64, since ARM is little endian anyway. More importantly would be to verify 32-bit because that's where the pointer sizes and size_t are 32-bit

#

it should work though

rough furnace
#

I'm trying to think who might have a 32-bit machine they could test on; @wide prism ...didn't you mention one of your work machines was 32-bit windows some time ago?

fervent vale
#

I could try on a 32-bits version of Bullseye on the raspberry pi, that comes with Qt 5.15, I think.

rough furnace
#

if it's not too much trouble (I have no problem merging as is)

fervent vale
#

hmm, let me try install Python 3.7 32-bits side-by-side on my Windows machine instead

rough furnace
#

you might need 3.8

fervent vale
#

okay it works with Python 3.7 32-bits, PySide2 5.15.2.1

#

come to think of it, pypi only has 32-bit PySide2 for Windows

#

so it's really a very limited audience...

fervent vale
#

test_qpainterpathprivate.py succeeds on Raspberry Pi OS 32-bits Bullseye / system PyQt5 5.15.2

#

Also works on Raspberry Pi OS 64-bits Bullseye

rough furnace
#

Thanks for testing!

rough furnace
#

thanks again for identifying where the ease of changes here

fervent vale
#

This is how the segmented line mode does it

#

It would likely require regeneration of the test reference images because what the back filling does now is to repeat coords

rough furnace
#

i can regenerate images

fervent vale
#

In the rendering of the QPainterPath, repeated coords are not an no-op

rough furnace
#

(really should modify the viewer/examiner app to allow to save images)

fervent vale
#

The finite checking is fast. The backfill is the slow part as it uses sort

rough furnace
#

really liked the original behavior, if you had a NaN value the "lines" connecting to that NaN value would just not be there; allowing for an easy way to introduce a discontinuity

#

while completely out of scope, wish there was an easy way to introduce float('inf') and -float('inf') support (drawing effectively a vertical line up/down from the point before, and a vertical line to the point after ... but yeah, that would hose all sorts of stuff like boundingRect

fervent vale
#

oh, the removal of backfill for connect=all was already done in #2036

#

_arrayToQPath_finite also doesn't use backfill

#

so it's only 'array' and 'pairs' that make use of backfill, and even then using it for 'pairs' is dubious

rough furnace
#

oh, huh, I clearly haven't been paying attention 😬

copper lily
copper lily
fervent vale
torn minnow
#
    ax.plot_surface(m, b, e, rstride=1, cstride=1, cmap='viridis', edgecolor='none')

    unw = np.unravel_index(e.argmin(), e.shape)
    m = m[unw]

    b = b[unw]
    print(m, b)
    ax.scatter(m, b, e.min(), c='r', marker='o', s=100)
    ax.set_xlabel('m')
    ax.set_ylabel('b')
    ax.set_zlabel('E')

I have this code what would be the best way to convert it to using pyqtgraph

rough furnace
#

can you show a screen-shot of what that looks like? my matplotlib game is weak

torn minnow
rough furnace
torn minnow
rough furnace
torn minnow
#

will do

#

@rough furnace thx so much it works a lot better now

rough furnace
#

nice! our 3D capability is a bit rudimentary; definitely not anywhere near feature parity as our 2D but it does work 👍

torn minnow
#

ya also it is alot less laggy and functional compared to matplotlib

rough furnace
#

the interactivity in pyqtgraph is really a top notch feature of the library; matplotlib can do some of it, but the library is really aimed for another purpose

worldly lake
#

Reposting from #python-discussion:

Hi! Just saw announcements message about pyqtgraph. I currently use matplotlib to produce simple graphs ( I've added a link below)
How does it actually compare to matplot lib in terms of speed? I just want to produce static pngs (well, a buffer actually so I can deal with it in memory rather than saving it to file than re reading etc)
Here's how one of my graphs looks like. I would say its pretty simple
https://cdn.discordapp.com/attachments/847448895490490388/986395525236539392/NA-PVP-XboxOfficial-TheIsland-SmallTribes1_Today.png

rough furnace
#

hey, so in terms of speed pyqtgraph is pretty fast, but i can't imagine speed being an issue in matplotlib here, this seems like a straight forward chart... that x-axis might be problematic for us tho, I'm not sure.

worldly lake
#

I have a discord bot which dynamically generates these plots and sends them
Its not slow, but its not like, "instant" or as fast you know. Thought maybe pyqtgraph could be a bit faster

rough furnace
#

so plot render/save speed should be fast but startup time might be problematic as pyqtgraph loads the entire qt framework in the process

worldly lake
#

startup time isnt an issue for me yeah

#

I've got some "benchmarks"

2022-06-15 00:53:51.572 | Graph prepared in 0.9760644845664501 seconds
2022-06-15 00:53:52.575 | Graph prepared in 0.9724381305277348 seconds
2022-06-15 00:53:53.727 | Graph prepared in 1.1165316887199879 seconds
2022-06-15 00:53:54.737 | Graph prepared in 0.9700769018381834 seconds
2022-06-15 00:53:55.672 | Graph prepared in 0.8993141390383244 seconds
rough furnace
#

as i said that x-axis might be problematic, you'll have to tinker with it, but doing a line plot overlayed with scatter symbols isn't an issue (PlotDataItem is what you want)

worldly lake
#

avg 0.9 to 1 seconds

worldly lake
rough furnace
#

i'm wondering if you can send a png into a buffer directly, I Think there is some code somewhere in the library to do that, but this might be a case of some pre-mature optimization... see how things go with a dumb example first 😛

worldly lake
#

from io import BytesIO
ez

#
plt.tight_layout()
buf = BytesIO()
plt.savefig(buf, format="png")
buf.seek(0)
return buf
#

then I can just do discord.File(buf)

rough furnace
#

is this graph being generated on a head-less system, there may be extra steps needed on linux

worldly lake
#

headless yes

#

ubuntu VPS

rough furnace
#

you may need need xvfb

worldly lake
#

ty

#

I'll check it out

fervent vale
#

A familiar looking screenshot

rough furnace
#

Haha yeah that screenshot does indeed look like I’ve seen it before

rough furnace
#

Thanks for the enum PR @fervent vale

rough furnace
#

Arbitrary Transforms PR 2326

rough furnace
rough furnace
rough furnace
#

@fervent vale looks like an unrelated PR triggered some relevant test failures:

    def alloc(self, size):
        # The C++ native API is:
        #   drawPixmapFragments(const PixmapFragment *fragments, int fragmentCount,
        #                       const QPixmap &pixmap)
        #
        # PySide exposes this API whereas PyQt wraps it to be more Pythonic.
        # In PyQt, a Python list of PixmapFragment instances needs to be provided.
        # This is inefficient because:
        # 1) constructing the Python list involves calling sip.wrapinstance multiple times.
        #    - this is mitigated here by reusing the instance pointers
        # 2) PyQt will anyway deconstruct the Python list and repack the PixmapFragment
        #    instances into a contiguous array, in order to call the underlying C++ native API.
        if self.use_sip_array:
>           self.objs = Qt.sip.array(QtGui.QPainter.PixmapFragment, size)
E           TypeError: a sip.array can only be created for types using ABI v12.11 or later
pyqtgraph\graphicsItems\ScatterPlotItem.py:164: TypeError
fervent vale
fervent vale
#

Okay, according to the Github Action logs, cached PyQt5 5.15.6 was used together with the updated PyQt5-sip 12.11.0

#

testing locally, PyQt5 5.15.7 + PyQt5-sip 12.11.0 does support the sip.array drawing methods

rough furnace
fervent vale
#

Well, locally, I did a pip install -U PyQt5 and that pulled in the newer sip too

#

So PyQt5 5.15.7 has a dependency on the newer sip, but users can install newer sip with older PyQt5

fervent vale
#

Hmm, PyQt5 5.12 also pulls sip 12.11.0, but clearly PyQt5 5.12 won't be getting this support

rough furnace
#

o; that may be an issue

fervent vale
rough furnace
#

Lgtm, just curious why do you like to compare the hex versions of the version numbers?

fervent vale
#

For one, it's the binding version that's relevant

#

QtVersion is set to QT_VERSION_STR

#

And since we are needing the binding version, PYQT_VERSION is easier to use than PYQT_VERSION_STR

#

encoding it as hex just makes it easier to read

rough furnace
#

huh, i just reran the CI for #2300 but it's still failing for pyqt5 5.12.3; ... I don't understand why that CI is failing, since I merged the PR you just created.... wonder if it re-ran with master cached or something...

#

passed on my local machine...

#

ok on closing/re-opening it's now passing ...

rough furnace
#

oh, i'm jumping the gun by a few days but oldest version of numpy to 1.20

rough furnace
#

should 0.13.0 be the next release? (debating making a PR to remove all the stuff marked for deprecation in 0.13.0)

fervent vale
#

I suppose numpy 1.21.5 should be bumped to 1.21.6 in requirements.txt?

rough furnace
#

better yet, I should really use the ~= syntax

#

i'll do that right now

fervent vale
#

Does that interfere with caching?

rough furnace
#

I don't think so; it still queries pypi for current versions of stuff, the cache just holds the previous downloads

#

or at least that's my understanding

rough furnace
#

If anyone wants to collaborate on closing out some of the open PRs tonight; let me know. Going to try and allocate a few hours with the intent of lowering the PR count.

fervent vale
#

multiplePlotSpeedTest.py can also demonstrate the speed up due to accessing QPainterPathPrivate

rough furnace
#

That one doesn’t have the parameter tree yet, right?

fervent vale
#

In fact, it has a check to see if arrayToQPath was in functions.py

#

That probably gives an idea of how old it is

rough furnace
fervent vale
#

isocurve, traceImage, isosurface, pseudoScatter, toposort are probably good candidates for moving out

rough furnace
mortal grotto
rough furnace
#

TARGET ITEM! IN THE WILD!!!!

rough furnace
leaden lotus
#

wow

lunar crescent
#

Which programm language is better java or python

rough furnace
tidal rock
#

In my opinion, it depends what you are writing for

tepid patrol
gray linden
molten mist
rough furnace
#

welcome @molten mist !

#

since it looks like you're making use of the 3d capability of the library, do you have much experience with opengl?

molten mist
#

a little bit, but I've done a fair amount of 3d plotting in matlab and matplotlib, and I've worked with Blender a fair amount

rough furnace
#

would love to expand some of the 3d plot capabilities of pyqtgraph; it is unfortunately pretty dependent on opengl as of rigth now, and outside of the basics none of the active maintainers have much expertise there

molten mist
molten mist
#

I'm going to need a lot of little help here and there as I figure out the syntax and general vibe of how GUI's work

rough furnace
#

at a glance here looks like you're doing a lot of the right things, not recreating new graphics objects, but calling setData and such instead 👍

#

the API has been around for a while which means it's tough for us to make changes, there are no shortage of inconsistencies throughout; but the feature-set on 3D data is fairly minimal so you may not be getting too impacted there... we did recently switch from QGLWidget to QOpenGLWidget which that was disruptive to some

molten mist
#

Right on - I'm mostly just going to use to to do basic 'dots and lines' like kinds of plotting, so Scatter3d and Line3d (or whatever) are all I need

rough furnace
molten mist
#

Something I've thought of a lot - Would it be possible to embed an iPython console in a pyqtgraph GUI? Ideally one that had access to the same local variables as the main function?

#

basically - is it possible to include a spyder-like ipython console to my GUI? Similar to the pyqtgraph console, but more fully featured

rough furnace
#

yes, there is a console widget that pyqtgraph ships with

#

i think there is even an example that highlights its usage

rough furnace
#

I bring that GLPainterItem example since that's helpful for combining the 2D and 3D capabilities

molten mist
#

Yas, I've played with that and it's super cool, but it's not particularly well functioned. As far as I can tell, there's no color-coded linting or code completion(?)

I was thinking about something along the lines of qtconsole - https://github.com/jupyter/qtconsole

Could I make a widget from that and include it in a pyqtgraph GUI?

GitHub
GitHub - jupyter/qtconsole: Jupyter Qt Console

Jupyter Qt Console. Contribute to jupyter/qtconsole development by creating an account on GitHub.

rough furnace
#

oh yeah, I agree the pyqtgraph console on its own is fairly limited; definitely would be better to integrate the qtconsole more directly...not sure how straight forward that is to integrate into the existing console, or if you can just treat the qtconsole as its own qwidget and just add it elsewhere via addWidget to a layout call or something

molten mist
#

Another tricky thing is to get the console to have access to the same data as the rest of the GUI. I think it's relatively straightfoward to just create the qtconsole widget and attach it, but there's some extra work to connect it to the same... kernel? I think the proper jargon is that it needs to be "connected to the running kernel" or something?

#

--

rough furnace
#

no clue about that, i agree it would be ideal

molten mist
#

I'll let you know if I make any progress there 🙂

rough furnace
#

if there are changes needed in our library, would certainly support that

molten mist
#

Also - I'm curious it you could tell me more about the governance/mod structure behind the pyqtgraph project!

How do you organize and recruit your moderators? Are y'all funded in any way (grants, donations, etc)?

#

freemocap is starting to grow, so I'm curious about the structures behind bigger projects like yours 🙂

rough furnace
#

no funding; there are ~5 active maintainers; original author suffered from burnout and I took over maintainer duties 3-4 years ago... he's still around and provides assistance periodically which we really appreciate.

#

needing to get my act together to get our numfocus membership in 😬

#

i don't think this project should be used a model for how to run a project 😆

molten mist
#

that's interesting to hear, I can already see how burnout would be a huge problem, hence why I'm trying to put thought into the structure now (while we're small) in preparation for maybe being bigger later

#

Thank you for stepping up to be maintainer! I really like your project a lot. I think it occupies a really nice niche in the scientific python community 🙂

rough furnace
#

I mean, it's a common theme in open source for a good reason; it's tough to work around, and what's unfortunate is that assistance/help doesn't come around until the project starts to derelict

#

I put out roughly annual calls for maintainers, ... I try to keep up with PRs as they're submitted (at one point was down to 16 open PRs, but we're back up to 40 now)

#

it's a bit unfortunate that when maintaining a project you generally don't write much code for it, mostly reviewing/testing ... there are a couple of areas of the library I would love to spend more time with, but when I allocate time to this project, it's usually to go through open PRs

molten mist
#

thats a shame, but it makes sense

#

sounds a lot like running a lab though, which is my regular job anyway 😛

#

(btw, I'm going to host a Twitch stream now - twitch dot com slash freemocap - feel free to pop on if you like, otherwise I'll post my questions and progress here. Thanks!!)

rough furnace
#

haha I need to get back to my paying job, best of luck, please let us know if you run into issues and similarly let us know how qtconsole integration goes!

brazen haven
#

what’s this?

rough furnace
#

A high performance interactive plotting library

rough furnace
plush fulcrum
molten mist
molten mist
#

Oh wait, I got it!

yaqd list --format json | yaqc-qtpy -
#

and then a nice cow pops up and a black box that says -hidden

plush fulcrum
molten mist
#

Ah, I get it - yaq like yak 🐮

plush fulcrum
molten mist
#

Ah perfect!

#

This looks like a really awesome project in addition to being a good source of sample pyqtgraph code. There are some parts of freemocap that might benefit from this kind of daemon/client pattern

plush fulcrum
molten mist
#

not to mention that I think a daemon motif would match well with out currently skeleton based branding 😂 💀 👹 +

molten mist
plush fulcrum
#

The pattern adds some systemic complexity, but I really like it because it makes debugging a whole lot easier than a monolith application. (each part is pretty simple, but yeah you do have to organize running the parts)

molten mist
#

Totally

#

On my end, I'm planning to use freemocap as a teaching tool, so having an ipython console attached will provide a nice entry point towards giving students basic programming experience

plush fulcrum
#

for us the console is mostly an escape hatch to provide access to features we have not (yet) built actual UIs for, but also serves as a place to do some light computation/function writing with access to the hardware. Not really something we expect users to sit down at and use a ton, but it was not that hard to add so I went ahead and did it. This file includes the embedding of the qtconsole, adapted from an example in their docs, linked in a comment.

GitHub
yaqc-qtpy/_main_widget.py at main · yaq-project/yaqc-qtpy

Contribute to yaq-project/yaqc-qtpy development by creating an account on GitHub.

#

Oh wait I got it

inland hornet
inland hornet
#

can anyine help me out with how can i display the graph to a html web?

rough furnace
inland hornet
rough furnace
#

no clue, we don't work on matplotlib 🙂

inland hornet
#

is matpotlibs like a beginer thing?

rough furnace
#

matplotlib is a top tier and very powerful plotting library, it's just not our plotting library, we're not in a good place to give advice/input about it, especially in this channel. If you have a specific question, consider posting in one of the help channels, #data-science-and-ml or #user-interfaces

inland hornet
#

my task: make a graph of a car (time and velocity are given every sec) and display it live feed to a website. (a basic simple html website)

rough furnace
#

again, probably not the library for you, pyqtgraph generally runs on native environments, and not web environments, I would consider bokeh or plotly instead

inland hornet
#

bokeh and plotly okay i'll look into them now

inland hornet
#

using bokeh ]

fervent vale
rough furnace
#

somehow missed those messages, thanks for the heads up 👍

#

fliptable meme

fervent vale
rough furnace
#

Yeah I’ll see what they suggest

mortal grotto
runic umbraBOT
#

utilitys/widgets.py line 54

class ConsoleWidget(RichJupyterWidget):```
mortal grotto
quartz tiger
#

I'm looking to do some very basic graphing (2d line graph with a few lines some data trends), after generating the graph I want to have the png image bytes in memory, so that I can send it off to an API, no need to display it in a gui.

I notice you support exporting to a file, so I imagine I can use this to export to an iobuffer.

Do you think this is a valid use case for this lib, or is it a little overkill for my basic use case?

fervent vale
#
import pyqtgraph as pg
from pyqtgraph.Qt import QtCore, QtGui

app = pg.mkQApp()
pwgt = pg.PlotWidget()
pwgt.plot(list(range(10)))
app.processEvents()
qimg = QtGui.QImage(800, 600, QtGui.QImage.Format.Format_RGB32)
painter = QtGui.QPainter(qimg)
pwgt.render(painter)
painter.end()
io = QtCore.QBuffer()
qimg.save(io, 'PNG')
pngdata = io.buffer().data()
with open('export.png', 'wb') as fd:
    fd.write(pngdata)
#

interestingly, the amount of pyqtgraph-specific code is really minimal. It's almost all Qt code.

quartz tiger
#

That seems pretty straight forward, thanks :D

rough furnace
#

@quartz tiger this is actually a regular occurrence, given we are so heavily integrated into Qt, for more .... custom functionality, usually there is Qt framework capability there that integrates fine w/ pyqtgraph.

molten mist
rough furnace
molten mist
#

My pleasure, it was fun to put together 🙂

#

Tbh, I'm fairly clueless about how that 'kernel' stuff actually works, but the example seems to work well enough 🙂

rough furnace
#

um... you may have forgotten to add the example to the PR? I see the file in pyqtgraph/widgets/JupyterConsoleWidget.py but not seeing a file in pyqtgraph/examples/...

#

also love the comment w/ the source/example 👍

plush fulcrum
#

I do question a bit if it is in scope… I have no issue with having an example, but we were discussing removing the existing console support, so not sure adding a new console is what we want

#

If the lesson is “qtconsole can be made easier to use than it is” perhaps that is a conversation for qtconsole

fervent vale
#

A clean install of qtconsole pulled in 30+ packages

fervent vale
#
import numpy as np
import pyqtgraph as pg
from pyqtgraph.Qt import QtWidgets
from qtconsole import inprocess

class ConsoleWidget(inprocess.QtInProcessRichJupyterWidget):
    def __init__(self):
        super().__init__()

        self.kernel_manager = inprocess.QtInProcessKernelManager()
        self.kernel_manager.start_kernel()
        self.kernel_client = self.kernel_manager.client()
        self.kernel_client.start_channels()

    def shutdown_kernel(self):
        self.kernel_client.stop_channels()
        self.kernel_manager.shutdown_kernel()

class MainWindow(QtWidgets.QMainWindow):
    def __init__(self):
        super().__init__()
        cwidget = QtWidgets.QWidget()
        vbox = QtWidgets.QVBoxLayout()
        cwidget.setLayout(vbox)
        self.plot = pg.PlotWidget()
        self.console = ConsoleWidget()
        vbox.addWidget(self.plot)
        vbox.addWidget(self.console)
        self.setCentralWidget(cwidget)

        app = QtWidgets.QApplication.instance()
        app.aboutToQuit.connect(self.console.shutdown_kernel)

        kernel = self.console.kernel_manager.kernel
        kernel.shell.push(dict(np=np, pw=self.plot))
        self.console.execute("whos")

if __name__ == '__main__':
    pg.mkQApp()
    main = MainWindow()
    main.show()
    pg.exec()
#

Would a standalone example such as the above be more appropriate?

rough furnace
#

Yeah I’m partial to a stand-alone example, and a reference to the example in the Documentation for the console widget

rough furnace
#

@obsidian sapphire @plush fulcrum @wide prism @torn coyote can you all share your thoughts on pyqtgraph/pyqtgraph#2352 ?

tl;dr a PR #2169 which is a micro-optimization was merged, and made an attribute of ViewBox is now an Optional (can sometimes be None). This change caused a breakage in the Orange project. I don't see a good way to support both workflows here. Anyway deciding how to manage this sort of thing is one of the most hated kinds of decisions so I'm outsourcing that to you all 😛

rough furnace
#

Lazy QRect

safe pecan
#

Kernel problem

rough furnace
rough furnace
#

the way I seem to keep breaking pyqtgraph, merging that pyi file will likely break something 😆

rough furnace
#

@fervent vale would you like me to submit a bug-report to the pyside bugtracker for your example regarding the ROI-Handle decay issue?

fervent vale
#

It's not minimal enough yet

#

Actually you could submit the Mixin one, it's minimal

#

And is likely the blocker for qtconsole

#

The pypy CI is currently set up to use the Qt CI snapshots. Don't think there's any PyPySide-specific commits since 6.3.0

rough furnace
#

I think it's fine to use their snapshots for testing on this PR

#

this is a highly experimental feature that is subject to change, ...even if changes haven't been made recently

#

I can reach out to Christian and make sure they're ok w/ it

rough furnace
fervent vale
#

In the PR, there's a subdir "tests_pypy" with a file test_mixin.py

#

All the tests in this subdir will pass on the regular bindings

#

But will fail on PyPySide

strange canopy
#

I wanted to create a program that would display how a control valve reacts to input changes and its tuning constants, etc. But being a beginner with python I don't know what "graphics package" would be best to display a moving graph like the one seen in this video: https://www.youtube.com/watch?v=7qw7vnTGNsA

Someone mentioned that pyqtgraph would be good for this application. Would you all agree?

YouTube
Slamkus
PID Controller - A Real Example with Animation

A tuned PID controller - automatically manipulates the motor speed to maintain the lever arm's angle at a setpoint. Programmed on Arduino, using Ziegler-Nichols tuning constants.

▶ Play video
rough furnace
#

you can get the basics up and running with the following

pip install numpy scipy pyqtgraph PyQt6
python -m pyqtgraph.examples```

this will launch pyqtgraph's example application which can show you some basic examples
strange canopy
#

I looked up PyQt6, skimming the docs at the moment. As I mentioned, being a beginner at this, would you help me understand the need for PyQt6?

rough furnace
#

so... a little context, PyQt5, PySide2 are python bindings to Qt framework version 5.x; PyQt6, PySide6 are python bindings to the Qt framework version 6.x ... There isn't much documentation specific to PyQt/PySide usually we use the C++ documentation of the Qt framework itself.

strange canopy
#

"Qt framework", going to have to google that...

#

Hopefully pyqtgraph and PyQt6 are available through 'conda install'?

strange canopy
rough furnace
#

you can do this via conda, you need to install some stuff via conda-forge tho...

conda create -n my_project
conda activate my_project
conda install -c conda-forge pyqt5 pyqtgraph numpy scipy
strange canopy
rough furnace
#

the -c is for specifying a specific conda channel to install packages from... so w/o specifying it, miniconda and anaconda distributions use the defaults channel to install packages from. Unfortunately, on the defaults channel, it has a very old version of PyQt5 (which we stopped supporting quite some time ago), and also an old version of pyqtgraph (which will never get updated unless they update their version of PyQt5, which from what I pieced together, will just never happen).

#

in terms of how to find out what I mentioned here, the commands I posted are fairly straight forward, you can view to #❓｜how-to-get-help channel if you run into trouble installing stuff, there's nothing unusual I posted here.

strange canopy
rough furnace
strange canopy
#

Github... that's another thing I need to learn. 🙂

rough furnace
#

ok, can't get multiple PR templates working to save my life, ...since these checklists were meant to prevent me from forgetting stuff, going to put the contents into CONTRIBUTING.md

EDIT: just kidding, decided to merge it into a single template, and put the checklists under collapsable sections

fervent vale
#

It's a bit weird though, the trigger point is over-riding the itemChange method...

rough furnace
#

Huh! There have been comments in the code base about overriding that method being problematic in very old versions of pyside

rough furnace
#

I'm going to try and spend some time tagging issues, closing out old ones; if anyone has some down time and wants to assist; that would be appreciated!

rough furnace
#

@fervent vale thanks for identifying the lingering reference. I have a branch going to try and address some issues with the LegendItem, I’ll see if I can remove that extra reference or replace it with a weak ref

Edit: re-read and saw you think it’s a bindings issue we may not be able to work around. I’ll see if I can replicate without pyqtgraph

fervent vale
#

pijyoi1836 thanks for identifying the

somber fractal
#

Hello!
How do I in django to query a value in the bank greater than 100 and less than 1000

tight cliff
torn minnow
#

hello I have a quick question I am running some code in matplotlib and in pyqtgraph but i am getting different results

rough furnace
torn minnow
#
import numpy as np
import pyqtgraph as pg
import pyqtgraph.opengl as gl
from pyqtgraph.Qt import QtCore

data = np.array([[1, 2], [2, 5], [3, 7]])
m = 0
b = 0
eta = 0.1

app = pg.mkQApp("GLScatterPlotItem Example")
w = gl.GLViewWidget()
w.show()
w.setWindowTitle('GD')
w.setCameraPosition(distance=20)

g = gl.GLGridItem()
w.addItem(g)

def compute_grad_with_respect_to(m, b, respect=True):
    if respect:
        return (6 * b) + (14 * m) - 33
    else:
        return (6 * m) + (3 * b) - 14



for i in range(100):
    respect_to_b = compute_grad_with_respect_to(m, b, respect=False)
    respect_to_m = compute_grad_with_respect_to(m, b)

    m = m - (eta * respect_to_m)
    b = b - (eta * respect_to_b)
    print(m, b)

    e = (m + b - 2) ** 2 + ((2 * m) + b - 5) ** 2 + ((3 * m) - 7) ** 2

    sp1 = gl.GLScatterPlotItem(pos=(m,b,e), size=15, color=(1, 2, 0, 1))
    w.addItem(sp1)

if __name__ == '__main__':
    pg.exec()
#

output

#
import numpy as np
import matplotlib.pyplot as plt

data = np.array([[1, 2], [2, 5], [3, 7]])
m = 0
b = 0
eta = 0.1


def compute_grad_with_respect_to(m, b, respect=True):
    if respect:
        return (6 * b) + (14 * m) - 33
    else:
        return (6 * m) + (3 * b) - 14


fig = plt.figure()
ax = fig.add_subplot(111, projection='3d')

for i in range(100):
    respect_to_b = compute_grad_with_respect_to(m, b, respect=False)
    respect_to_m = compute_grad_with_respect_to(m, b)

    m = m - (eta * respect_to_m)
    b = b - (eta * respect_to_b)
    # make a 3d plot with m b and e
    e = (m + b - 2) ** 2 + ((2 * m) + b - 5) ** 2 + ((3 * m) - 7) ** 2

    ax.scatter(m, b, e, c='b', marker='o', s=10)
    ax.set_xlabel('m')
    ax.set_ylabel('b')
    ax.set_zlabel('E')

plt.show()
#

output

torn minnow
rough furnace
#

hmm... don't think it's just the angle here...

#

so first thing first; instead of adding 100 GLScatterPlotItems, you should probably create a 100x3 numpy array where each row represents the x,y,z coordinates of each point

#

actually you're not using the i variable anywhere, any reason that for loop is part of your example here?

#

oh wait, I see you're updating points

#

also the size parameter doesn't take a constant like that, need an array I think

#

oh, looking at your scale, I think what's happening is that the scales are way off...

#

I'm not that familiar w/ the 3D aspects of the library, but I think it generally expects the scale of each axis to be fairly similar...

#
import numpy as np
import pyqtgraph as pg
import pyqtgraph.opengl as gl
from pyqtgraph.Qt import QtCore

data = np.array([[1, 2], [2, 5], [3, 7]])
m = 0
b = 0
eta = 0.1

app = pg.mkQApp("GLScatterPlotItem Example")
w = gl.GLViewWidget()
w.show()
w.setWindowTitle('GD')
w.setCameraPosition(distance=20)

g = gl.GLGridItem()
w.addItem(g)

def compute_grad_with_respect_to(m, b, respect=True):
    if respect:
        return (6 * b) + (14 * m) - 33
    else:
        return (6 * m) + (3 * b) - 14


N = 100
points = np.empty((N, 3), dtype=np.float64)

for i in range(N):
    respect_to_b = compute_grad_with_respect_to(m, b, respect=False)
    respect_to_m = compute_grad_with_respect_to(m, b)

    m = m - (eta * respect_to_m)
    b = b - (eta * respect_to_b)
    print(m, b)

    e = (m + b - 2) ** 2 + ((2 * m) + b - 5) ** 2 + ((3 * m) - 7) ** 2

    points[i, :] = [m, b, e]

    # sp1 = gl.GLScatterPlotItem(pos=(m,b,e), size=5, color=(1, 2, 0, 1))
    # w.addItem(sp1)


points[:, -1] /= 20
size = np.empty((N,), dtype=np.float64)
size[:] = 5.

sp1 = gl.GLScatterPlotItem(pos=points, size=size, color=(1., 2., 0., 1.))
w.addItem(sp1)

if __name__ == '__main__':
    pg.exec()
torn minnow
rough furnace
#

I don't know off the top of my head if there is a way to scale an axis in 3D pyqtgraph-land...

#

Just had a nice email exchange with Phil at Riverbank Computing, he said he's open to other feature requests from us. @fervent vale you've done the bulk of the Qt integration recently, if you think there is something else that the bindings can do to help things out, let me know and I'll gladly make the feature request.

torn minnow
rough furnace
#

feels like I've been merging PRs, but seems to have made everyone else busier, outstanding PR count is still more or less the same 😆
