So i managed to extract the .aar files from this game but they contain .ams, .aod, .ddb, .aig, .mpl, .atb and .bin files.
And i cant open them with BrawlCrate or any Wii modding tool
I uploaded some files with those extensions so anyone could help.
#Pandora's Tower Wii ripping help
clever dawn
clever dawn
Anyone?
clever dawn
trying again cause i still dont know😔
lusty creek
I can look at these later
clever dawn
I can look at these later
thanks
lusty creek
The bin file only contains text
acc_dyn_pdt.ddb
srsc_dyn_HairFR.ddb
srsc_dyn_HairSR.ddb
srs_dyn_hairB.ddb
srs_dyn_hairBT.ddb
srs_dyn_hairF.ddb
srs_dyn_hairSL.ddb
srs_dyn_hairSR.ddb
srs_dyn_skirt.ddb
lusty creek
the atb file could be a sort of Aqualead ALTB Table
Dunno
This is what Dolphin Texture extractor says about the rest
Info: Scan "srs_brcA0.aig" recognized as Aqualead ALIG Image.
Info: Scan "srs.aod" recognized as Aqualead ALOD Object Definition.
Info: Scan "srs.0.ams" recognized as Aqualead ALMS Mesh Collision.
clever dawn
Aqualead?🤔
lusty creek
Seems like a japanese vgm company
clever dawn

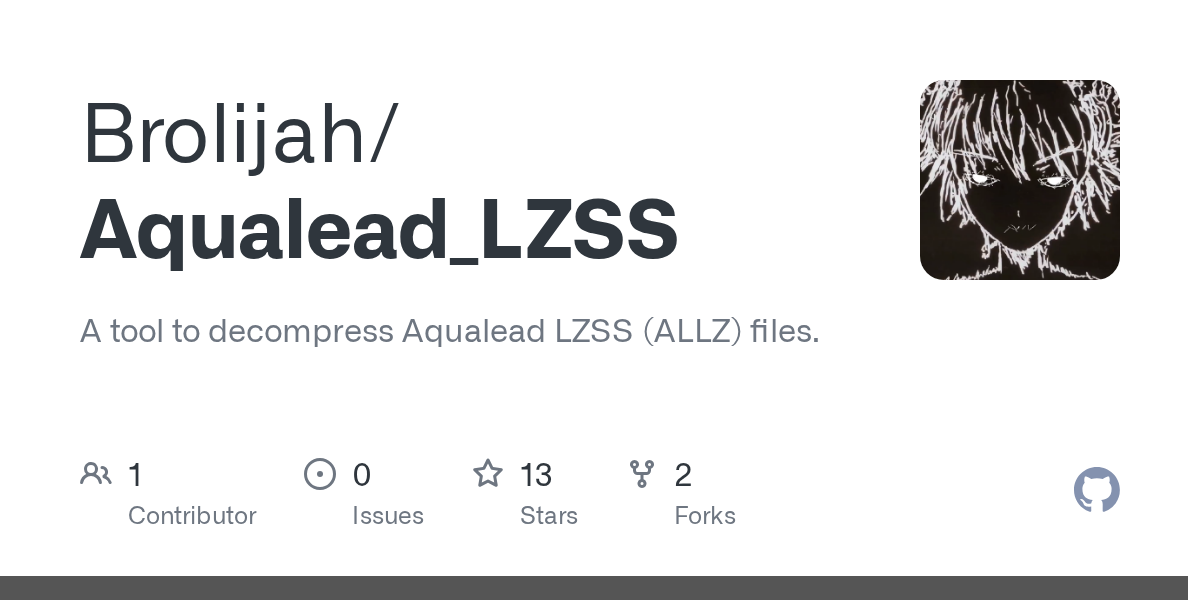

well i only found this tool: https://github.com/Brolijah/Aqualead_LZSS and the original dead website of the engine
lusty creek
I think the models are the ddb files
ams is the mesh
the atb a sort of value table
Dunno
The model itself seems compressed
lusty creek
well i only found this tool: https://github.com/Brolijah/Aqualead_LZSS and the o...
this wont do
clever dawn
the atb a sort of value table
i opened it in a hex editor and i think its the game text
thorny blaze
I was looking at this game recently, and found some meshes in the .aar files. The scales of the raw submeshes are all over the place. I didn't find UVs or normals, but I'll write down what I found so far. Probably have to find position/scale/rotation listed for each mesh, or it's all put together correctly with bones and animations.
You can also use Ninja Ripper with Dolphin, but it's posed.
In an .aar file you can find the beginning of a mesh by searching for ALMS (41 4C 4D 53), then not far beyond that is a header with some info about the vertex block. It seems to be marked by 00 01 04 03 usually. The blue highlight in my screenshot is the vert count (05 41 = 1345 vertices). The green highlight is where the stride is stored (0C = 12), and right after that the 02 10 is the data offset, from the beginning of the 00 01 04 03 header to where the vertex data actually starts.
For faces, the indices start after the vertex data, in this case at 0x7700 (I'm using mct_.aar as an example). You can usually spot it where there's an 80 00, followed by 2 bytes that represent the length of this index section (5C A0) and then 98 00 marks the start of the tri strips.
In my screenshot, I'm reading the indices in sets of 3 (I'm guessing UV/normal/face), so for example 00 24, 02 BE, 02 BE is a set, where 02 BE is the face index. Then there's a 00 byte separator, then the next set of indices. A tri strip break is marked by 98 00.
I've seen some meshes that store indices as shorts, others as bytes, and also with/without 00 byte separators. Some meshes also seem to have more than 3 indices per set, so I'm guessing multiple UV maps, but not sure.
