websocket with channels route not working

[lone mesa]

class EmiSimulatorWebServer:
    def __init__(...):
        self._channels = ChannelsPlugin(backend=MemoryChannelsBackend(history=1), channels=[t.short for t in targets])
        self._litestar = Litestar(
            [self.handler],
            static_files_config=[StaticFilesConfig(path="/static", directories=[self.get_static_path()])],
            plugins=[self._channels],
        )
        # where bind address is ('0.0.0.0', 5555)
        self._server = EmbeddedServer(EmbeddedConfig(self._litestar, *self._bind_address))

    @websocket("/api/v1/ws")
    async def handler(self, socket: WebSocket, channels: ChannelsPlugin) -> None:
        if socket.client is None:
            self.logger.info("Not accepting web socket connection with `None` client")
            return
        self.logger.info(f"Accepting web socket connection from {socket.client}")
        all_channels = [t.short for t in self.targets]
        await socket.accept()
        async with channels.subscribe(all_channels) as subscriber:
            await channels.put_subscriber_history(subscriber, all_channels, limit=1)
            async with subscriber.run_in_background(socket.send_text):
                self.logger.info(f"Sent BACnet target status to {socket.client}; waiting for events..")
                received = {"type": "websocket.connect"}
                while received["type"] != "websocket.disconnect":
                    received: WebSocketReceiveMessage = await socket.receive()
                    self.logger.info(f"Received BACnet event from {socket.client} of {received['text']}")
                    if received["type"] == "websocket.receive":
                        await self._handle_bacnet_event(socket.client, received["text"])

I can't seem get a connection when connecting to ws://127.0.0.1:5555/api/v1/ws Am I missing something?

[rigid mantle]

Heya, can you give some more details? Do you get any logs?

[lone mesa]

Litestar doesn't seem to be emitting any errors in console, so not that I am aware of

[rigid mantle]

is it possible for you to give a minimal example so one can copy paste to replicate the same issue?

[lone mesa]

I can try and extract something more minimal from what I have here.. I will need 5 mins

[rigid mantle]

take your time, where is websocket from?

[lone mesa]

from litestar import Litestar, Response, WebSocket, get, post, websocket
from litestar.channels import ChannelsPlugin
from litestar.channels.backends.memory import MemoryChannelsBackend
from litestar.datastructures import Address
from litestar.exceptions import ClientException
from litestar.response import Redirect
from litestar.static_files import StaticFilesConfig
from litestar.types import WebSocketReceiveMessage
from pydantic import BaseModel, Field
from pydantic.alias_generators import to_camel
from uvicorn import Config, Server

Here is a stand-alone version

[rigid mantle]

thanks, let me try running this

[lone mesa]

Seeing this INFO: ('127.0.0.1', 52672) - "WebSocket /ws" 403 in your stripped down example which does INFO level logging .. I was only showing WARNING and above in our full code

[rigid mantle]

I atleast get this

INFO:     ('127.0.0.1', 50798) - "WebSocket /ws/api/v1/" 403
INFO:     connection rejected (403 Forbidden)
INFO:     connection closed

[lone mesa]

yeah. why is it rejected? is the handler not being recognized?

[rigid mantle]

let me check

[lone mesa]

perhaps it doesn't like a method being used as a handler?

[rigid mantle]

you could try https://docs.litestar.dev/latest/usage/websockets.html#class-based-websocket-handling if you want class based, but I am not sure

[lone mesa]

that was my next thing to try. it means a fair amount of boilerplate to pass around some dependencies so I was hoping to avoid it

I bring up my case because it could be an issue with support for methods. I expected some sort of error if that was the case though

The WebsocketListener seems to have an on_receive() callback but how do I integrate that with channels? Do I

        async with channels.subscribe(all_channels) as subscriber:
            await channels.put_subscriber_history(subscriber, all_channels, limit=1)

in the on_accept() callback?

[rigid mantle]

tbh I have never used websocket (WebsocketRouteHandler) I only ever used https://docs.litestar.dev/latest/usage/websockets.html#customising-connection-acceptance

[lone mesa]

@websocket_listener("/", connection_accept_handler=accept_connection)
def handler(data: str) -> str:
    return data

This seems inappropriate for my use-case as well as I need to push stuff to the websocket even if I am not receiving anything

so I guess what I do is create my own "accept_connection" and start an asyncio task there?

The docs are really poor for my use case.. If I can figure this out I am probably going to do a MR with some improvements

[rigid mantle]

let me understand what exactly you did, in the mean time you might get other responses

[lone mesa]

to help explain some bits of the code / context better:

EnteliTargets are "targets" in a 3rd party system (BACnet system which is connected up to some hospital equipment) Essentially they are boolean values that could change at any time. If they change we need to communicate that through websocket. Additionally, the user can change the values and we receive those actions through the websocket.

two-way sync + control

each EnteliTarget is a "Channel"

[rigid mantle]

i understood this one

it does seem to be self

[lone mesa]

so there is an issue with using a method?

[rigid mantle]

seems like it

also async with channels.subscribe(BACNET_TARGETS) as subscriber the usage for that has been changed

its not supposed to be in a context manager? https://docs.litestar.dev/latest/usage/channels.html#id5

[lone mesa]

https://docs.litestar.dev/latest/usage/channels.html#managing-history

[rigid mantle]

from litestar import Litestar, WebSocket, websocket
from litestar.channels import ChannelsPlugin
from litestar.channels.backends.memory import MemoryChannelsBackend
from litestar.datastructures import Address
from litestar.types import WebSocketReceiveMessage

BACNET_TARGETS = ["BO1101", "BO1102", "BO1103", "BO1104", "BO1201", "BO1202", "BO1203", "BO1204"]


class Something:
    @websocket("/ws")
    async def handler(socket: WebSocket, channels: ChannelsPlugin) -> None:
        if socket.client is None:
            print("Not accepting web socket connection with `None` client")
            return
        print(f"Accepting web socket connection from {socket.client}")
        await socket.accept()
        async with channels.start_subscription(BACNET_TARGETS) as subscriber:
            await channels.put_subscriber_history(subscriber, BACNET_TARGETS, limit=1)
            async with subscriber.run_in_background(socket.send_text):
                print(f"Sent BACnet target status to {socket.client}; waiting for events..")
                received = {"type": "websocket.connect"}
                while received["type"] != "websocket.disconnect":
                    received: WebSocketReceiveMessage = await socket.receive()
                    print(f"Received BACnet event from {socket.client} of {received['text']}")
                    if received["type"] == "websocket.receive":
                        await _handle_bacnet_event(socket.client, received["text"])

async def _handle_bacnet_event(client: Address, event_json: str) -> None:
    print(f"fake handling bacnet event from {client} of {event_json}")

app = Litestar([Something().handler], plugins=[ChannelsPlugin(backend=MemoryChannelsBackend(history=1), channels=BACNET_TARGETS)])

that is a minimal example 🙂

if you add self you can see it does indeed break

without self

Accepting web socket connection from Address(host='127.0.0.1', port=50897)
INFO:     ('127.0.0.1', 50897) - "WebSocket /ws" [accepted]
Sent BACnet target status to Address(host='127.0.0.1', port=50897); waiting for events..
INFO:     connection open
Received BACnet event from Address(host='127.0.0.1', port=50897) of ok
fake handling bacnet event from Address(host='127.0.0.1', port=50897) of ok

[lone mesa]

thanks for the simplification.. I already trimmed so much bulk from what I had. The self was important for other reasons that were trimmed.

the instance is managed by an orchestrator in another thread

and it needs to be able to be torn down, reconfigured and started based on external changes..

[rigid mantle]

yes but the point I want to convey is, its really difficult for me or anyone to narrow done the other "fluff"

the issue you are facing is replicable with just this

[lone mesa]

Alc: understood. And thanks for doing the extra pass to clean up what I had

[rigid mantle]

what is fluff to me is important to you, so its hard to simplify

I will let a maintainer comment on if self / method usage is a bug

[rigid mantle]

is this the only reason you cant have it as a "normal app" (not encapsulate in a class)

[lone mesa]

do you want to create an issue or would you prefer I do it?

[rigid mantle]

we have a bot 🙂

[daring mulch]

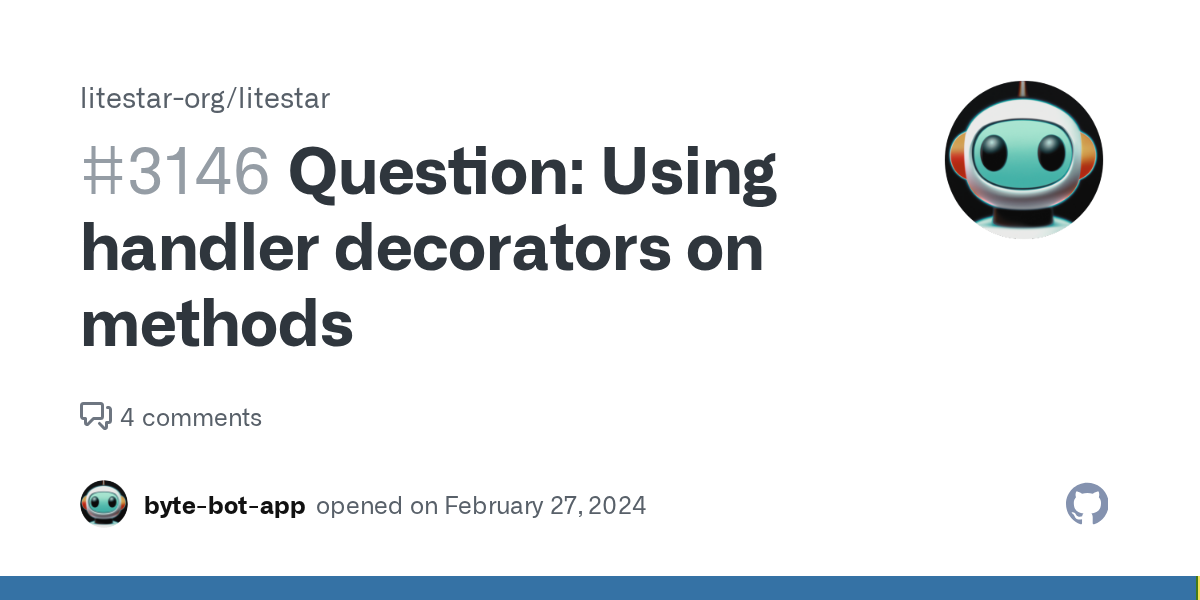

GitHub Issue created: https://github.com/litestar-org/litestar/issues/3146

[rigid mantle]

feel free to add stuff there

whats your GH?

so I can tag you

[lone mesa]

skewty

[rigid mantle]

heya, I have done some edits

if you want to make edits to the post let me know, you must be able to leave a comment anyways

so I removed a lot of stuff

your only issue is its a method

or at least thats that example leads me to believe

[lone mesa]

yeah. I am trying with a @staticmethod and dependency injection

NOTE: in your example you didn't include self parameter to method and didn't specify either @staticmethod or @classmethod

[rigid mantle]

yes I mentioned adding self causes it to break

it is just to have a "running" example, not to have a "proper" example

[bold tangle]

@lone mesa I've replied to you on GH as well but: You can check out here how to handle the "instance methods as handlers": https://github.com/litestar-org/litestar/blob/1332983e09e13571c9a7490540a21f5cf8121f77/litestar/channels/plugin.py#L117-L126

[violet acorn]

litestar/channels/plugin.py lines 117 to 126

if self._arbitrary_channels_allowed:
    path = self._handler_root_path + "{channel_name:str}"
    route_handlers = [WebsocketRouteHandler(path)(self._ws_handler_func)]
else:
    route_handlers = [
        WebsocketRouteHandler(self._handler_root_path + channel_name)(
            self._create_ws_handler_func(channel_name)
        )
        for channel_name in self._channels
    ]
