iFlight FC not communicating with RadioMaster TX16S on 4.5

[karmic lichen]

Hi I have a few drones I updated to 4.5 recently and all but one worked with no issues at all. I have an iFlight SucceX E-f722 stack, Caddx Vista and Crossfire on the 5" that has the issue. I flew the drone on 4.4 the day before updating with no crashes or anything abnormal but i still checked all wires and connections and found no issues. My RadioMaster is still connected to my crossfire rx and my vtx is still connected and outputting videos but the drone will not arm or anything sice i updated. When I am plugged into the PC on BetaFlight on the Receiver tab non of the bars move showing that its not receiving inputs as well. I am on Configurator 10.10.0 and here is my CLI DIFF ALL info # version

Betaflight / STM32F7X2 (S7X2) 4.5.0 Apr 28 2024 / 18:21:52 (c155f5830) MSP API: 1.46

config rev: 47ab260

start the command batch

batch start

reset configuration to default settings

defaults nosave

board_name IFLIGHT_SUCCEX_E_F7
manufacturer_id IFRC
mcu_id 002000235931500620393539
signature

feature

feature TELEMETRY

serial

serial 0 1 115200 57600 0 115200

beacon

beacon RX_LOST
beacon RX_SET

aux

aux 0 0 0 1700 2100 0 0
aux 1 13 2 1300 1700 0 0
aux 2 35 3 1700 2100 0 0

master

set gyro_lpf1_static_hz = 0
set gyro_lpf2_static_hz = 600
set dyn_notch_min_hz = 90
set dyn_notch_max_hz = 800
set gyro_lpf1_dyn_min_hz = 0
set gyro_lpf1_dyn_max_hz = 0
set acc_calibration = -14,31,-41,1
set rc_smoothing_auto_factor = 80
set rc_smoothing_setpoint_cutoff = 25
set rc_smoothing_feedforward_cutoff = 25
set blackbox_device = NONE
set yaw_motors_reversed = ON
set small_angle = 180
set simplified_gyro_filter_multiplier = 120
set osd_vbat_pos = 2503
set osd_warnings_pos = 14729
set osd_avg_cell_voltage_pos = 2514
set osd_log_status_pos = 462
set rpm_filter_q = 1000
set rpm_filter_fade_range_hz = 100

profile 0

profile 0

set dterm_lpf1_dyn_min_hz = 0
set dterm_lpf1_dyn_max_hz = 0
set dterm_lpf1_dyn_expo = 0
set dterm_lpf1_static_hz = 105
set dterm_lpf2_static_hz = 210
set p_pitch = 80
set i_pitch = 122
set d_pitch = 48
set f_pitch = 196
set p_roll = 67
set i_roll = 101
set d_roll = 42
set f_roll = 163
set p_yaw = 67
set i_yaw = 101
set f_yaw = 163
set d_min_roll = 42
set d_min_pitch = 48
set feedforward_smooth_factor = 30
set feedforward_jitter_factor = 10
set simplified_master_multiplier = 130
set simplified_i_gain = 85
set simplified_d_gain = 110
set simplified_pi_gain = 115
set simplified_dmax_gain = 0
set simplified_feedforward_gain = 105
set simplified_pitch_pi_gain = 115
set simplified_dterm_filter_multiplier = 140

profile 1

profile 2

profile 3

restore original profile selection

profile 0

rateprofile 0

rateprofile 0

set rates_type = BETAFLIGHT
set roll_rc_rate = 145
set pitch_rc_rate = 145
set yaw_rc_rate = 145
set roll_srate = 70
set pitch_srate = 70
set yaw_srate = 70

rateprofile 1

rateprofile 2

rateprofile 3

restore original rateprofile selection

rateprofile 0

save configuration

save

Any help will be greatly appriciated. Thank you in advance

[vital willow]

Go to the CLI tab and click Submit Support Data, then send the resulting support ID here

[karmic lichen]

b963ba64-a7e4-4dbc-b700-cef3984f6ab6

sorry about that

[vital willow]

doesn't look like you have a port set up with Serial RX

just to make sure, can you get a screenshot of the Ports tab?

[vital willow]

yea okay, matches up

you need to enable Serial RX on the UART that your receiver is connected to

[karmic lichen]

ok that makes perfect sense thank you for the help and sorry i'm still learning

[vital willow]

it's fine

[karmic lichen]

I have enabled the Serial RX like is says in the manual for the FC and i am still having the same issue. Is there something else that could be preventing it from communicating still?

The RX plugs into the board along with the VTX so i wouldn't have them on a different UART than what the manual shows i dont think

Not sure if this could help. @vital willow

[soft scroll]

It looks like you have your receiver wired to UART 2, but you have SerialRX set to UART 1 in Betaflight

[karmic lichen]

this is how its supposted to be i think and the FC has a blue light that turns on when i arm and flashes when i flip my beeper switch but the motors dont arm and it doesnt beep either. I'm sorry im have so much trouble. i normally figure this stuff out myself but this time im lost

So its showing on BetaFlight that all switches and everything Transmitter related is working but my motors wont arm and my beeper doesnt work so it may be something other than BetaFlight im guessing.

[soft scroll]

Post the output of status in the CLI

[karmic lichen]

status

MCU F722 Clock=216MHz, Vref=3.27V, Core temp=47degC
Stack size: 2048, Stack address: 0x20010000
Configuration: CONFIGURED, size: 3826, max available: 16384
Devices detected: SPI:1, I2C:0
Gyros detected: gyro 1 locked dma
GYRO=MPU6000, ACC=MPU6000
OSD: NONE (70 x 14)
BUILD KEY: 5702028dbedb7e99f324b66697027417 (4.5.0)
System Uptime: 90 seconds, Current Time: 2024-04-29T21:33:17.508+00:00
CPU:30%, cycle time: 125, GYRO rate: 8000, RX rate: 50, System rate: 9
Voltage: 49 * 0.01V (0S battery - INIT)
I2C Errors: 5
FLASH: JEDEC ID=0x00ef4018 16M
GPS: NOT ENABLED
Arming disable flags: CLI MSP

im assuming this is what you needed?

[soft scroll]

Do you not have a VTX?

[karmic lichen]

I do but im new to this so i didnt know exactly what you needed. i apologize

i have a Vista

[soft scroll]

It's just not detecting the OSD

Can you go to the CLI tab, type dump and post the output?

[soft scroll]

Copy and paste this into the CLI tab:

serial 0 131073 115200 57600 0 115200
set motor_pwm_protocol = DSHOT300
set pid_process_denom = 2
save```

[karmic lichen]

ok i just did that and here is the dump file after i did it.

[soft scroll]

Can you post the output of status now? Can you arm?

[karmic lichen]

i still can not arm and yes give me one second

status

MCU F722 Clock=216MHz, Vref=3.28V, Core temp=32degC
Stack size: 2048, Stack address: 0x20010000
Configuration: CONFIGURED, size: 3826, max available: 16384
Devices detected: SPI:1, I2C:0
Gyros detected: gyro 1 locked dma
GYRO=MPU6000, ACC=MPU6000
OSD: MSP (53 x 20)
BUILD KEY: 5702028dbedb7e99f324b66697027417 (4.5.0)
System Uptime: 10 seconds, Current Time: 2024-04-29T21:57:50.145+00:00
CPU:16%, cycle time: 125, GYRO rate: 8000, RX rate: 15, System rate: 9
Voltage: 11 * 0.01V (0S battery - INIT)
I2C Errors: 5
FLASH: JEDEC ID=0x00ef4018 16M
GPS: NOT ENABLED
Arming disable flags: RXLOSS CLI MSP

[soft scroll]

What warnings are shown in the OSD when you try to arm?

[brisk frigate]

disable bitbang when dshot_bidir is disabled otherwise enable

[karmic lichen]

deal! how do i do that? Also no warnings show up im about to post a pic of the OSD

[brisk frigate]

set dshot_bitbang = OFF
save

[karmic lichen]

THAT FIXED IT!!

Thank you all so much

[soft scroll]

Is this a new known issue? 😅

[brisk frigate]

@soft scroll this has changed just before release

only reason could be https://github.com/betaflight/betaflight/pull/13589

[soft scroll]

Good to know. Does it only affect F722?

[brisk frigate]

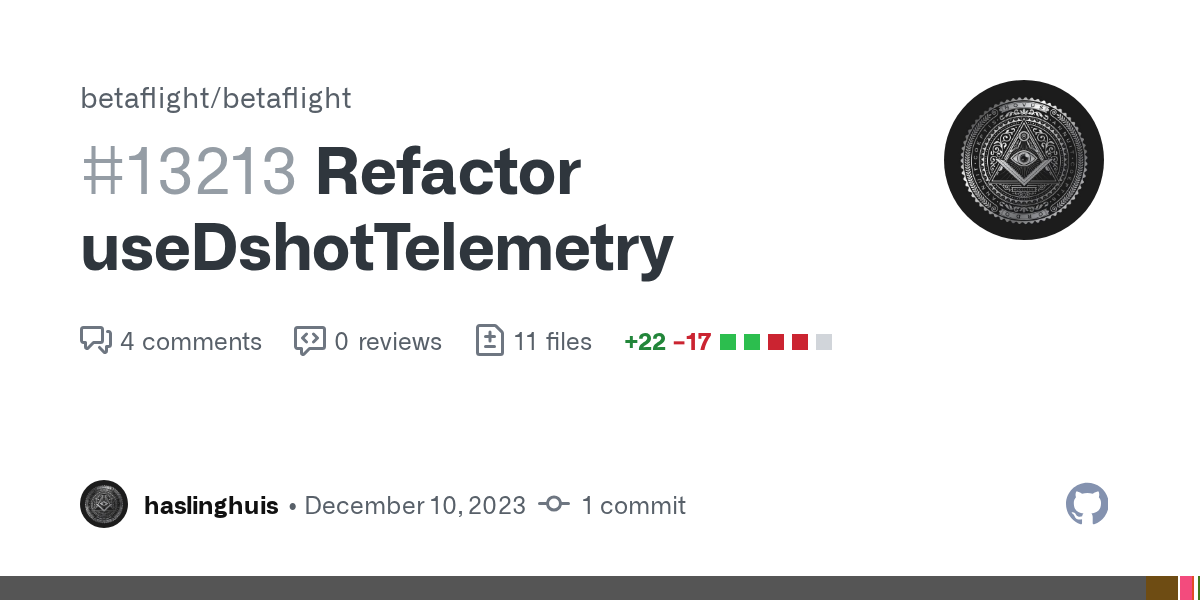

Was working on it in https://github.com/betaflight/betaflight/pull/13213 months ago - but was scheduled for 4.6

Not sure yet
