#Quad falls out of the sky randomly (potential 4.4 bug)

1 messages · Page 1 of 1 (latest)

orchid storm
#

Build Info:

  • Micro Apex 5 inch
  • Gemfan 5125
  • Hglrc zeus f722 mini
  • rcinpower smoothx 1507 4200kv (76% output limit)
  • 3s 1300mah
  • Elrs v3 500hz (adaptive power)

Yesterday I upgraded from 4.3 to 4.4 and loaded my backup via the presets tab.
Now it falls out of the sky:

  • 1x during punchout
  • 2x during rolls
  • 3x during a very gentle turn (los)
  • 1x while disarmed (~3sec after landing)

Additional Info:

  • i cannot rearm until i unplug the battery
  • motors are turned off (luckily)
  • osd is frozen (rssi and voltage still from the moment it happened)
  • no disarm screen
  • probably no failsafe (lq always 100 and rssi never under -80)
  • the esc plays two tones one high and low
  • Tune and Filters are exactly the same
  • Target is correct, but blackbox is not being recognized anymore
  • There is no vtx on the 5v Rail (probably no brown out)
  • Probably no bad solderjoints (im pretty experienced, but ill check them all later)
  • big capacitor on vbat
  • probably no desyncs (didnt change any esc settings and had no issues before)

I will reflash 4.3 later and see if the issue is still there. Ill put up a diff all later too.
Im just very confused. Feel free to let me know any tests to narrow down the issue.

slate quartz
#

Blackbox log? Diff?

orchid storm
#

There is no blackbox log since the flash isnt being recognized anymore, but here is my diff:

floral pivot
#

i beleive this is fixed in 4.4.3-zulu
please use latest ESC firmware as well.

orchid storm
#

still no dataflash chip found :/

#

i can test if the issue still exist tomorrow

slate quartz
orchid storm
#

or what are the most common issues with that?

slate quartz
orchid storm
#

but i think i had a issue a while ago, where i couldnt erase the blackbox

slate quartz
#

Can you post a picture of the flight controller?

orchid storm
#

should i unsrew the top plate?

#

or a product pic?

floral pivot
orchid storm
slate quartz
#

The one defines does not match what is on your board, or it has a physical problem

slate quartz
#

So this is the 'reference' for what was working

orchid storm
slate quartz
#

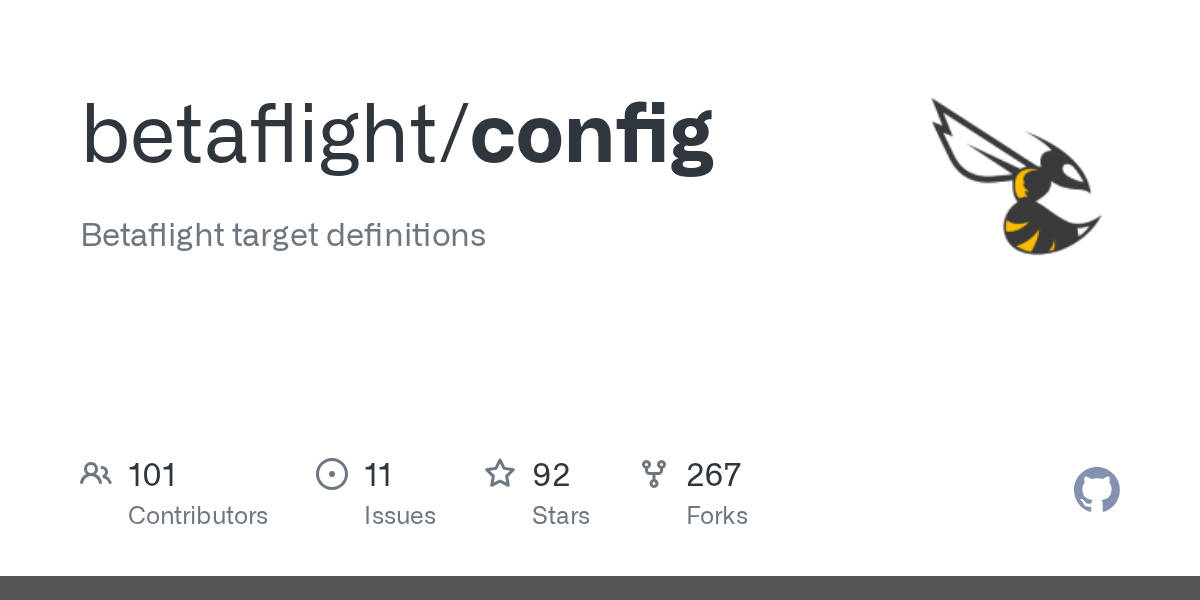

If we look in the configs repo we see the new targets

#

But your board is actually a mini, so you are using the incorrect target

#

We can see that this has the flash defined

orchid storm
slate quartz
#

So switch targets to F722MINI and you should be good

orchid storm
#

has this changed?

orchid storm
slate quartz
#

HAKRCF722MINI*

orchid storm
#

or are they the same?

slate quartz
#

Ah woops one sec

orchid storm
#

there is also a mini variant for hglrc

floral pivot
#

whoops 😆

orchid storm
#

but the non mini target worked on 4.3

slate quartz
#

Yes I'd try the HGLF722MINI target as that matches your board

floral pivot
#

they bpth define W25Q128FV, BUT they have different PIN addresses.

#

if you have the mini, then flash the mini

slate quartz
#

Beat me to it 😅

orchid storm
#

no gyro...

#

after flashing 'HGLRCF722MINI'

floral pivot
#

uggg

slate quartz
#

Does blackbox work though?

orchid storm
#

no blackbox or accel either

slate quartz
#

Well, go back to your previous target for the moment then. Might be best to take a photo of your FC or the wiring diagram now too

floral pivot
#

go back to non mini, follow the link i provided for core-only, if blackbox work, then send support-id and output of both version and status from CLI tab.
if not.... 🔮 , maybe dead chip

orchid storm
slate quartz
#

Nope, you mentioned you had problems erasing it on 4.3

#

Do what nerdcopter says first

#

Then try go back to 4.3 if its still not working

#

And confirm its still working there if you have no luck with core only

floral pivot
#

i've read a complaint or two about hglrc QC... never had an FC but i like their VTX. 🤷‍♂️

orchid storm
#

no luck on 4.3, is it worth trying with 4.4 and cloud-build?

floral pivot
#

thought that's what you were already doing

#

selecting any 4.4 or 4.5 in Configurator will be a cloud-build.

#

selecting 4.3 just loads pre-compiled unified-target

orchid storm
#

i tried 4.4 earlier, then the wrong target with 4.4, and now 4.3

#

im just asking if its worth trying with the custom defines

#

i thought if 4.3 doesnt work 4.4 will probably not be better

#

just talking about blackbox

floral pivot
#

okay, understood. if 4.3 fails, then hardware problem for flash-chip since you said 4.3 worked before. i can't see that any flashing would have caused an issue, it's jsut configuration/resources afterall.

orchid storm
#

well i couldnt erase the flash a while ago

#

but it worked a few monts ago and i didnt fly that quad until now

floral pivot
#

♻️

orchid storm
#

should i just get an open-lager?

floral pivot
#

sounds like flash-chip died irregardless of using, not using, not crashing. very unusual and would argue hardware quality control.
fly it as is, or replace. whatever firmware version you choose, sounds like flash-chip will never work. if you want to go through the custom defines, it is only "effort" so worth a try.
with 10.9 you must exnable expert mode / release candidates on the flashing tab.

orchid storm
floral pivot
#

4.3 or 4.4.3 or 4.5 should not fall from the sky which is original subject.

orchid storm
#

yea, the falling out of the sky was on 4.4
