#Ultimate E290 Shield

31 messages · Page 1 of 1 (latest)

arctic quartz
#

The E290 Shield is an add-on board designed for the Heltec Vision Master E290. This shield provides a convenient and modular solution for integrating additional functionalities such as GPS, a buzzer, and a vibration motor. It also exposes pins for easy soldering of additional components, making it highly versatile for various projects.

Key Features

  • GPS Control: The GPS module is controlled via a MOSFET, allowing for power-saving and easy toggling through firmware.
  • Buzzer Control: A transistor protects the board's GPIO pins while ensuring the buzzer operates at a high volume.
  • Vibration Motor Control: Similar to the buzzer, the vibration motor is controlled by a transistor, safeguarding the GPIO pins and providing strong feedback.
  • Battery Compatibility: The shield is designed to accommodate a 3000mAh battery, which can be sandwiched between the shield and the main board.
  • Expandability: Exposed pins allow for the addition of custom components, enhancing the shield's functionality.

Gerber Git

https://github.com/HarukiToreda/Meshtastic-Experiments/tree/main/PCB-Projects/E290-Shield

GitHub
Meshtastic-Experiments/PCB-Projects/E290-Shield at main · HarukiTor...

Just my own measurements and values. Contribute to HarukiToreda/Meshtastic-Experiments development by creating an account on GitHub.

arctic quartz
#

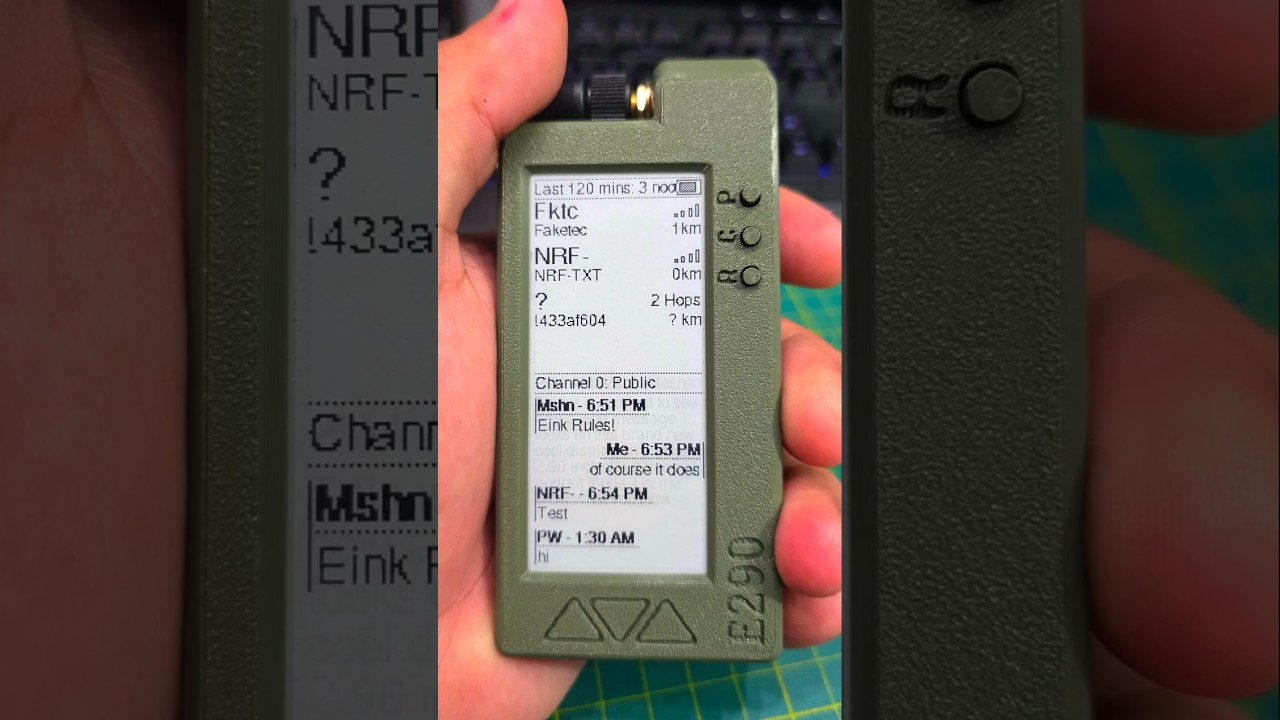

Ultimate E290 Shield

misty compass
#

Is this a video, or still image ?

#

Cuz its just a till image with audio for me..

arctic quartz
hybrid goblet
arctic quartz
hybrid goblet
#

wow. this be very nice for standalone communicator

arctic quartz
#

yeah I said the same thing lol

#

very promising

hybrid goblet
#

yes yes, coz now we can see the message threads on screens. very exciting!

arctic quartz
#

take a look

#

so far it works on the E290 and TEcho

unkempt lily
#

Hi, I just received my E290 shield PCB's.
I flashed the Preview 2.6 HUD FW from the web flasher.
Is there a way to use the buzzer and the vibra motor? I don't see that they are separately configurable?

proper sand
#

Is the issue that you can't see the "external notification" section in the app?

#

There was a small bug with the firmware in the preview which caused the external notification settings to be hidden in the apps. I think it got fixed in time for the 2.6.1 alpha which has just appeared in the web flasher

unkempt lily
proper sand
#

Hmm, in that case.. I'm not sure 😅

unkempt lily
proper sand
#

All good! I'm not sure exactly why it helped, but hey the important thing is that it's working

unkempt lily
#

Any plans for a case designed with this hardware configuration in mind? (E290 +Shield+ battery)

arctic quartz
#

yeah I'm going to soon

arctic quartz
#

Before

#

Now after

#

modified it to wrap around the battery so that it doesn't make the case any thicker than it already is. Also using the ATGN336H GPS module cause it's much smaller.

misty compass
#

That's a HUGE difference.. LOL Looks nice

arctic quartz
