EVA 3.0 Chonky Shroud with ZeroG Logo

[novel galleon]

i believe you have the logo upsidedown

[severe fractal]

Correct

[stuck portal]

Don't think so, the slots on the top cover the hot end cooling fan, thus are on the top. Picture is oriented in the manner installed.

I still need to modify the EVA 3.0 front universal piece to accept the two drive belts going into that area. Too bad I can't think of a way to use the uber-cool built in tensioners on the back plate. Any ideas welcome.

[stuck portal]

Logo orientation is edited = NOT correct I am a dork! Scroll down for both of the new corrected files

[severe fractal]

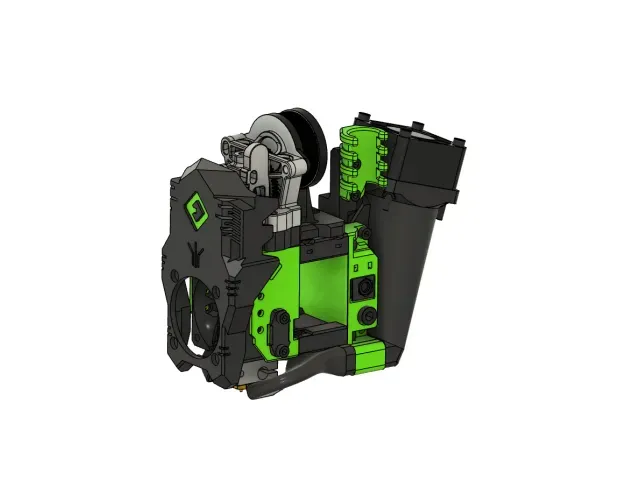

Your shroud is upside down 😉

https://media.printables.com/media/prints/222687/images/2036836_48c767bd-ef44-45b5-aa9e-42762c5caa3f/thumbs/cover/640x480/png/drive_libra-full-eva3.webp

[stuck portal]

Oh boy...Shows what happens when you drink Rye Manhattans when doing CAD. Thanks!!

[severe fractal]

Haha, no worries

[stuck portal]

Corrected files.....sheeesh

[halcyon dagger]

Hope this is helpful: https://discord.com/channels/747612067951018075/1041406799342997544 🙂 (Docs here: https://jon-harper.github.io/E34M1/)

[stuck portal]

Good information and designs...I am going to prusue my own solutions, think I have some improvements to offer. #1007998760967737364 has a thread for EVA 3.0 mods if you wish to contribute...all inputs welcome!
