It can if you fuck something up
is it easy to fuck up
Very
is it recommended not to try then
How much soldering experience do you have?
idek what soldering is my guy
This will also void your warranty
ahh
Then deff do not try, i have some pre modded flipper sitting around though
as in ur selling?
Lemme check with the team to see if its okay to sell em here
Wrench said he would get back to me tmr kittens
XD
I was gonna say likely no cause of the rules
yeah im gonna ask tomorrow
Didnt know if you were in this thread
i love being in your walls
Wha


@bronze flame i wonder what they are up to lol https://github.com/flipperdevices/flipperzero-firmware-rgb/tree/release
This is a branch of Astra, one of the developers
ahh
Did Astra do the modification?
She also built herself an RGB backlight
She uses the same firmware that I have, only changed the control port to A2
I wonder why, not just use vibro
Vibro superior gang
Shoot me a dm
I can shoot you
shoot me instead <_<
Nu
No dress
Im gonna move soon so you better hurry
Then you wont have my dox lolololol
why are we shooting people
Shooting dms?
I was joking about this lol
Lol
yooo just got a @dawn hazel face reveal
[redacted]

do i just have to install the firmware or i also have to do something else?
no. you have to replace the backlight pcb.
seems a bit complicated i think i would break it when i do that
yeah, i'd probably advise against doing it if you aren't comfortable. it's not too difficult imo but for sure some points that you can damage your flipper. especially with soldering or even the ibutton pins
yeah idk i will think about it thanks

Feel free to shoot me a dm
thanks appreciate that
I broke my ibutton pin off however do I care no
Just solder it back on
I’ll never use it so no point trying
I agree
I want see
You can slightly shock your tongue by licking it
another good idea:
lick a 9 volt battery
||please don’t it will most likely kill you||
What weak world do you live in?
bro people die every year licking batteries
are you talking out of experience?
if you are then you belong in a mental hospital
nobody in the right mind would lick a battery
I need someone to support me here
A 9 volt battery is nothing
@lime tinsel back me up
Hmm
I feel like you would do it
do not lick a battery
thanks
Yw
why is that a compliment
Yes I have licked one.
No, it isn't safe/healthy.
But like seriously, licking a 9v batter is fine right?
Like it won't do brain damage
It's just a lil tingle on the tongue
Doing it once isn't gonna cause permanent issues unless it's covered in battery acid
what is wrong with everyone

You, quit licking batteries
Yeah I don't recommend it though. People should not lick batteries
I only did it once cause my mother told me to
So that was like...20+ years ago lol
is your mother a psychopath?
Yes
Lol
She used to fake electrocute herself because she thought it was funny we were scared
So.... Yes
~•°trauma°•~
I generate static electricity during class and shock people when they walk by me
Heh
You start
And btw I am in my right mind
I just like it
wait omg this is genius! free shockies
no thanks
Tbf how else are you supposed to test a 9v battery in a quick amount of time
She damaged vibro pin and decided to use gpio
Haha, if flipper staff can damage it must be easy to break
Do you know how they damaged it?
She's a developer, not a mechanical engineer or smth
Ahh ok
Vibro pin is quite fragile
Pad just ripped off maybe
Exactly
I forget its supposed to be used for testing with pogo pins
Not to have wires soldered to
Im surprised i didnt break it
IM surprised I didn’t break it
I’m not surprised I broke it
What did you do?
Bozo
can u change colours without modding it
No
oh
Is it hard to invert the filter on your flipper? Just curios on how people done it and if it's easy or not
You basically have to scrape the polarizer off the display with a razor blade
Then replace with a new one
ah ok thanks
A little late but there is plenty of videos on how to do it on YouTube also just look up how to change lcd polarization
I ordered some PCBs, LEDs, and capacitors to try this mod, wish me luck...
Did we ever determine if the different versions of the FlipperZero (R02,R04,etc.) makes a difference in the LEDs/capacitor spacing? Or it shouldn't matter?
The difference between R02 and R04(01) models have no impact, but the difference between R04(01) and R04(02) is huge and there will need to be modifications made on R04(02) LCD displays
Ahhh... good to know, thanks
And I take it the newer Flippers that are being sent out right now are the R04(02) versions?
Its completely random, some people get R04(01)'s and others get R04(02)'s
@winged pivot ask here
@dawn hazel do you have pcbs ready
Not yet, im currently waiting on some solder paste
Ok, if you remember, message me when your in stock.
Or If it’s ok with you, I’ll message you in a few days
^im interested as well! I don’t have a good space in this tiny apartment to try and solder lol
I don't have much room in my tiny room to solder either. Didn't stop me from using leaded solder with no ventilation.
fair, im erring on the side of caution mostly because of pets- last thing I need is a cat jumping and getting fur fried off lol. There's not really anywhere for me to separate from them unfortunately
need to just not kill your lungs lol.
https://www.amazon.com/YaeTek-Adjustable-Absorber-Extractor-Soldering/dp/B07BGTMQKP
I eat lead on a daily basis anyway
How did u get that? I mean the first step...
Wdym?
❤️

@primal thorn please stop shitposting

how hard would be for new person to do this mod
new to solder and not break electronics inside of product
I have no experience with this mod personally, but I would definitely practice on scrap components such as old computer parts so that you can get a better feel for it.
extremely hard
i see posted you done before , can pay for it from you LOL
i mean sure lol
id do it for $120 + shipping
how much are total for parts?
hm if it is here next paycheck i might do it haha
i rather have professional install it then me LOL
can i dm?
sure
@bronze flame what is the reason for bridging the - for the backlight to rfic carrier gnd
to make your life terrible when using trash solder
I spent 3 hours streaming the installation of the RGB Backlight Mod for Flipper Zero this morning, then spent another 3 hours editing it down so you can watch all the fun parts!! Super fun mod, but definitely not for the faint of heart!!

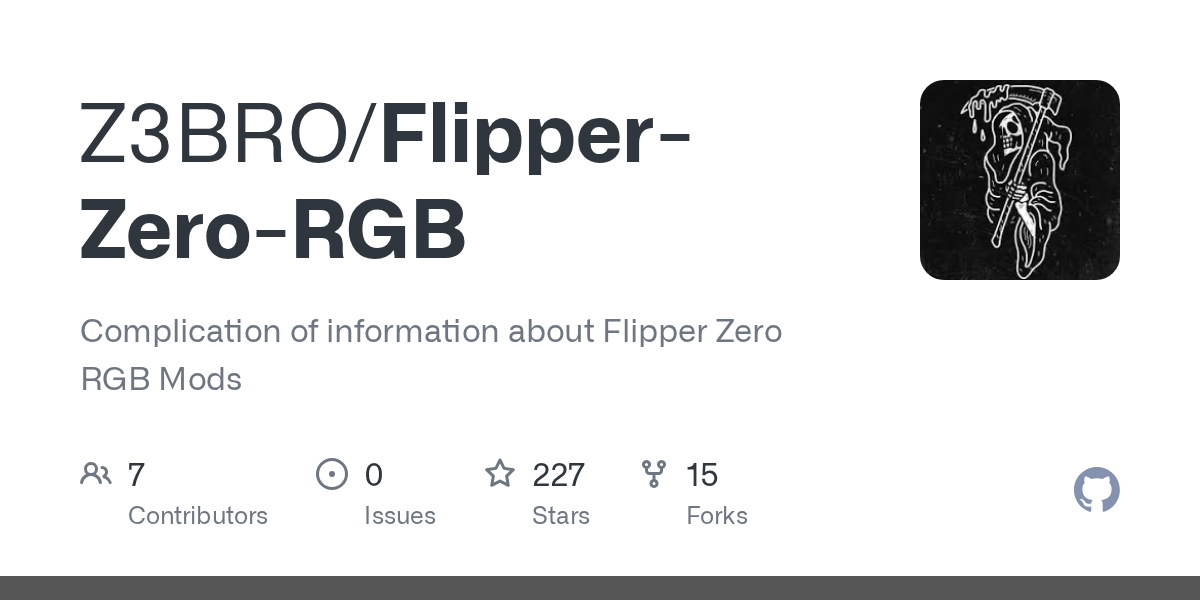

Z3BRO's Github with RGB Info : https://github.com/Z3BRO/Flipper-Zero-RGB...
Lol
I did not understand the question
What is reason for bridging that?
It is necessary that the backlight power goes around the old backlight driver. If you leave the connection as it is, then the RGB backlight will work unstable
Thats what i figured
@upbeat lantern im recieving an error when trying to order new pcb's, it says no drill layer.
You can open the project and generate it by yourself, I'll fix this later
JLCPCB texted me this:
There is no drill layer in gerber file, is that normal? Normally we need Excellon drill file(s) with drill holes size and coordinate in a file.
I replied with: that's normal, there is no need for drill holes
Have you received working PCBs from this order already?
Haven't received them yet. Just got the shipping confirmation.
I think I bricked my flipper doing this mod
Haven't soldered in a while so definitely on me
Ahhh damn, what happened?
Not exactly sure. I plugged the battery back in and it won't turn on
Can't find my multimeter either
Did that. No LED light from the board
tried the whole reboot sequence too holding down the back button
I'm gonna try to remove the wire connections I made to see if that's interfering with something. I'm just scared I burned a component on the board or something
The static pink mod was 2022-07-25 and the amount of questions about it made me wanna make a howto video, but also wanted to 1up it, so I did it on camera on 2022-11-10 but never edited the hours of footage... but finally again working on it now
and that fix the problem or no?
what did you done so
They manufactured them and I already received the PCBs. Haven't had the chance to solder them. Will update when i did the mod.
Just received my replacement flipper. @dawn hazel not sure where I saw it, but was there something about the RGB mod not exactly working or the process being different with the newer flippers? My original flipper was a kickstarter one.
The current pcb is not compatible with R04(02) displays without some modification to the display, it is random which model you recieve
any way to check it without cracking it open?
Yeah, your model number
They don't denote difference models past the region, so depending on when it as manufactured it could be either
Wronggggg, ittl say what if its (02) its fine then
I didn't think it was labeled just an internal change
Nope, it says it on the box
Oh fun, okay
Its kinda weird tho, the only difference is the display/backlight assembly
But they still produce both models
could it be sourcing parts from two different suppliers?
Or two different manufacturers
trying a thing
and the end its fine or no?
Solder Paste + Hot Air Station 👌🏻
after thinking about it, I realized what the drill layer is for, the holes connect the 2 layers together. PCBs are not working 🤦🏼♂️
A new design for the pcb's are in the works, ill be sure to ping you when the files are released to the public
great to hear, thanks.
current PCBs are no good?
I think the PCB Gerber file is missing drill layer or JLCPCB changed something
Please update if the PCBs work or if JLCPCB is sending you a message. Thanks.
Those are the new test pcbs, we will make an update to the repo if they work
The no resistor version has missing drill files
ah
Which resistors do I have to Order?
@lapis vortex might be selling prebuilt pcb's if the new files work
None, just bridge the gap with solder
this is the plan
Oh ok, Haven't ordered them yet. I think I will fix the PCBs without the drill points mit thinn wire brides 😅
Got it working with wire brides. Next up, is adding solder mask and than, hopefully successfully mod the backlight haha 👍🏻
..? litterally
how did you fix it haha
i don't like looking at this
but if it works it works
how'd you test it externally?
i'm unable to test my own (as i do not have them yet) but i was thinking about using a firmware from before they changed the pin from A7 to the vibration motor
then just add wires in power, ground, and A7
yep, this is p much the easiest way
Connected the PCB to an Wemos D1 mini running wled. The LEDs run on 5V
This is also a great option
That's what I was expecting:)
You can drill the surface off the solder pads that the copper is exposed, where the drill holes are supposed to be, and then solder wires connecting the two sides. If you scroll up in this thread you can see a video of how i done it.
I want to do this asp as a i have never done any soldering any tips I should follow?
Don't
Success 😁 had to file down the plastic frame so the one capacitor has a slot so sit flush and the PCB won't bend. Removing the screen and original PCB was sooo sketchy, was sweating like crazy trying to not break something. But if you know your skills and have a hand for this it's definitely doable and worth it. To someone that doesn't have experience in device repair, micro soldering and doesn't have the right tools i don't recommend doing this. The possibility breaking something is just too high. Many thanks to @dawn hazel and the great people for making this possible.
Nice!!

Please tell me you didnt leave that pcb like that
I used thicc rosin on the desolder wire instead of solder flux. That's why it looks so messy. Cleaned everything up with isopropylalkohol changed the wire run to vibro pad under the flex cable and tacked it down with solder mask. Don't worry it's clean again on the inside 😉
just hook it up to GPIO ground and ez mode
Please tell me you also see the super melted component can’t even tell what it is
I may be wrong but that looked very melted
it definitely looks hurt
My question is how
i'm just trying to figure out what component it is
I have so many questions…
Never soon enough
Gamble it all, double or nothing
60 boards and two stencils?
Oh, it has the stencils too; Already have the components?
Amazing tech trash panda
It's not melted haha. When I have my Flipper disassembled again to replace my buttons with resin printed ones i send a photo of the perfectly fine inductor. As I said this was only (German word is: Kolophonium) or solder rosin. And it cleaned right off.
Help, inductor L13,L14,L15 looking burned but my Device is still working 🤔
fuck you
de-henry's your inductors
But at least you guys made me open in up again and clean the PCB better 👍🏻
С:
Made a small upgrade of printed circuit boards
that's a well-done
hmm... I might wanna give real rgb backlight a try as well, but I'd do it without custom firmware ^^
or is that already done too?
So there seem to be at least 2 display PCB versions. If I design a custom board solution, I'd want compatibility with both (and my flipper is using the older one). Does anyone know the exact PCB width on both variants? (Would a little QFN microcontroller fit onto it?)
Very nice! Could i see them close up? I would love to see your design
oh, nice docs https://github.com/quen0n/flipperzero-firmware-rgb
saved me from taking mine apart again to measure ❤️
package too big
if only there was a way to somehow make it smaller...
wait a second, is there even a real reason why the PCB can't be wider?
perhaps it might be possible for it to be like 1mm wider until it collides with the black inner shell
any way of getting one nowadays?
Very nice!
sooo astro made a stupid mistake (again)
i accidentally connected the power rail to the data in
trivial enough to fix by cutting a trace though
done
theoretically should work, still waiting on components
solder reflow plate works great
that looks great
How hard do you guys say it would be to do this RGB backlight?
I'm guessing i'd need a saudering thing
if you've never soldered before, nigh impossible
thanks 👍
plus if you screw up you have wasted $170

i've heard of people having game console modchips installed by repair shops, you could ask someone at one of em
yeah possibly
I mean pretty easy if you get a already made rgb board
well yeah, but it's not the easiest mod in the world
wouldn't recommend it to a beginner
Would be a kinda interesting experiment to see how bad it would go tho
@sleek narwhal
of the screen?
Yes
yea that's what this is
oh
see here
i have a board designed that should work but am still waiting on components for it
mail is annoying
Cope

you don't like my pink?
Can we set white as back color?
hi, how did you do that
?
i just wired the backlight externally and used the old fw that uses pin a7 as control
I mean how did you change the color of the pcb by connecting to pcio
^
because before unmounting my flipper etc i just want to be sure that the pcb work
do you have a link for this frmw
please @dawn hazel
You can test the PCB with an Arduino or esp8266 or really every dev board. Use the neopixel or fast Led Library
k thanks
where can i buy a rgb pcb?
!rgb
me
FUCK
He in eu
ohh easy
o
I can send ya one buddie
Astro can i send you a dm?
NO
kidding go ahead
Bruh
WHO HAS THE RGB BOARD FOR MEEEE
since you're in europe though i'd ask z3bro
I do
alright
though... i might try something
i'd like to see how they fare being mailed in a regular envelope
With a piece of cardstock? I'd chance it
want one? :3
Yes, I would. Thanks
i shall mail you one in an envelope
and if it doesn't arrive in one piece i shall send another another way

look at it. it is beautiful
Everything has been updated! huge thanks to @vagrant flare for fixing the patch
Hi anyone have a link for an older firmware who use a7 pin for the backlight control? i dont find it
i do, mind if if DM you?
np dm me
i should maybe try to make an app to control the LEDs externally so i don't have to flash firmware every time i wanna test em
Can you use the led flashlight app?
that's just on/off
Yeah I thought you just wanted to check power continuity
Its also nice to check that all the colors work, sometimes some colors are broken
i had two blues not working earlier
L
also
don't have to pay a premium for white soldermask if you just use white silkscreen
try 3.3V
ok 2 sec
for power obviously
wdym
like, did you get it from someone here? or did you make it yourself?
i had burning issues at the beginning of making mine, it turned out i had the LEDs oriented the wrong way
…wait it have a way for the les to be oriented

Yes
Look at the guides lol
hm ok
Check out my GitHub repo for more info on the mod
https://github.com/Z3BRO/Flipper-Zero-RBG-Backlight
oh ok yes is not the good way
but if i tested it on the 5v does the led are dead?
they havent burned
uhhh, whenever i did mine wrong it was very obvious they had died
so they might still be alright

thanks
Glad to see its working!
uhh... have you stripped it by chance
do you have a solder sucker?
Uh could you show the reverse side of the board?
and also maybe unplug the battery for now
also is that foil
yes
i recommend removing it from the vicinity of your opened electronic device

yes
i think i brick it, i tried to update it to a newer firmware but an error happened and now its a green led with nothing
ok no its fixed
and why disconnect the battery
do you have a multimeter? the four pads underneath "RFID_CARRIER" aren't all ground pads
make sure your wire only touches the two on the right side
yes on first the wire was touching three of those but i fixed that
(it was no display before i fixed it)
but yes i hahe a multimeter
ah yeah, i was just gonna ask you to check continuity between the sides of those pads
its ok
and you're using a firmware that supports the rgb backlight over the vibro pad?
i tried another firmware and its not working too
so i asume yes
wtf why is not working it have continuity on the 2 cable
@dawn hazel any idea
ping me if so
mine its not working do you think it’s because i purchased the pcb with resistor and just added a blob to the resistor pad?
No, that is not the reason, that is the best way to do it as of now
hmm but why the 5v was not working
only the 3.3 i don’t understand
sorry the lcd is welded i dont have any picture
fixed, i just connected the + to 3v3 instead of the 5v and now its working
(the big cable was only for testing)

wtf is this fucking piece of shit i just resemble it and its not working dudeee
not this one
planning on sell or do a commision?
idk
do you know what the ext_3v3 pad is for
@sterile escarp want one?
mhm
i wanted one but z3bro stopped doing them and i cant solder so im fucked
and tech guy told me it will be so $$$
ill see what i can do
well if you can't solder then learn to 😶
but if you'd like i could send you one of mine
i m buying tech things slowly since in house parents arent trought their best...
and today i discovered my mother has a small debt on bank
but we solved it
so we should be good
ty
ill buy more stickers soon im running out of them
:)
@lapis vortex do you have any idea… im so tired of trying everything wtf
so it works, it's not a problem with the backlight itself...
Wdym
well the backlight itself works, just not on the pads as expected
no i mean now the backlight dont work anymore
oh weird
i just puted the plastic cover and after that it stopped working for no reason
Fuck off the board just died idk how that happened but its that
That sucks lol
Finally after rebuilding a new pcb, it was working i assembled the flipper and one hour after the backlight stopped working like the first time 🙄
would like some assistance gathering data- can more people confirm how their original backlights look from the backside? the top one is R04(01), the bottom is R04(02)
it should be the same throughout the two different models, then people can determine their model even without the box
The led placement is slightly different too right?
yep, and there's only one resistor on the new one as opposed to three
hey @bronze flame @dawn hazel @sleek narwhal
in the latest rgb cfw are we still using vibro pad or did it change again?
sorry for pinging
and yes, the vibro pad is what's currently supported
ok
thanks
does the ground i use matter?
No
okay because i cant get the fricken rfid square
Gpio ground is easiest to solder
what one do u recomend?
ok
here's what mine looks like
what gauge wire did u use?
and can i use 14 guage for the ground
i think thats one of the few wires that i got
@lapis vortex
@dawn hazel
sorry
Holy fuck 14ga?
yeah i might have 20 gauge somewhere
isn't 14 gauge like a half inch
Yeah 14 ga would be wayy too thick
why is plugging the battery connecter in the hardest part 😭
ive spent the last 16 mins trying to plug it in
painm in the ass. even worse than removing the lcd
did you maybe bend pins inside the connector?
oh weird

nvm the last pin is just bent to the left a little bit
@lapis vortex yk how i can unbend it?
uhh, toothpick or a thin pair of tweezers should work
ok
just be careful not to damage anything AND DONT POKE THE BATTERY
got it lol
pov: me doing the mod
ok i did it and it worked and as a bonus i am not missing my house
that's quite the relief
yea, most RGB LEDs have trouble with pure white
ok
i should try messing around with the color values
see if downing the B value makes it any better
yeah u should try that
Neopixels have a blueish tint
Not much you can do about it
i wish the rgb color would save over reboot
yes
it doesnt for me
nvm it saves lol
i just tried it

hmm
New flipper!
when are you restocking? in trying to mod my Flippers
soon™
is now good?
if you can, sure
alrighty, i'll put my last three up
Whooo
Soon accomplished
they are up
Ty👌👌
How do you do the gradient? That’s cool
@lapis vortex how did you manage to do the gradient effect?
oh it's a new feature on a different firmware i can't name here
can u dm me the name please?
astrOS
@dawn hazel Hey brother im looking into putting a rgb backlight in my flipper and someone told me to come to you to see about getting a pre soldered board to put in. Would that be possible?
Also @fiery flint idk if your the right astro but 🤷♂️
Yes! Where are you located? Both me and astro make pcb's.
You can buy them there once astro has more in stock!
Oh lit i was also wondering bc i also have 0 soldering experience if i could have you install it for me
Astro can do mail in installs
@lapis vortex
Contact her
Im eu based right now, so only doing installs for eu customers
itll take me a couple weeks before i can make backlights or do installs again- gotta get settled into college
Ok just lmk but pls contact me first b4 anybody else🙏
How much would a send-in cost?
Thank u for your help
Actually i have another question because im getting a feeling i can switch to more than one different color is that true?
yes!
Oh fr
With a submenu in a custom fw i assume?
And the colors are red green and blue?
There’s a lot more than that
On a specific CFW which I can’t say, has a gradient effect
it's RGB, so you can make the screen pretty much any color
and it requires some form of custom firmware, yes- there's a fork of OFW that supports it, but most CFWs do support it or have versions that do
At least 2 popular cfw’s do support it
Ofc thank you guys so much for all the info
Np
Are you sire it would take a couple weeks i got 100$ on me rn i can buy the board and give the rest to you to do it asap🤷♂️?
Let the deer get settled in.
well, thinking about it, it probably won't take me that long
but i'll need to make sure the boards i had made actually work
and it definitely won't be $100
More than or less than?🙏
Ofc brother this is a very elegant deer. Wait wouldnt it be a doe?
I don't deerscriminate.
The pronouns brother🙏
But fr tho more or less than 100$?
i was thinking more round $50, not including shipping
and for the record deer would be the gender neutral term 🙃
buck and doe would be male and female
Just so im clear what would you prefer? And what gender are you/do you identify as?
meh i don't really mind, i usually go by she though
Fs
So no rush, im just wondering what a ballpark estimate would be like of when the earliest you could do it would be? I will pay extra if you take it in quicker
The offers there if you want it
if you'd like to put your flipper in the mail right now, it'll probably be here by the time i'll be ready to do it
well.. not right now but you know what i mean
Yeah ofc just send me all the info i woukd need to ship it out and ill see when i can🙏
alrighty!
Yeah just dm me the info whenver you can and maybe accept my friend request🤷♂️
So soldered up my RGB board
Haven’t soldered it to the flipper yet
Anyway to test it with the flipper before installing?
Seeing people use A7, 3v3 or 5v, and gnd to turn it on but mines not doing anything (I do recall seeing something about switching from A7 to the vibro pad but I want to test not install yet haha)
Assuming I also soldered it correctly lol
(Did burn one out mixing up gnd and 3v3 trying to mess around lol)
You have to flash your flipper with a special version of the firmware to test via pin A7
speaking of rgb, i finally got the rest of my components from aliexpress, so assuming everything works i can sell finally
Yeee
ahh thats probably what i need haha
REALLLY?????
yes !
do the files on your git have the A7 firmware?
the Update Files folder?
Hmm still not lighting up
But again swap it around it’ll burn out
coould you send a picture of your rgb board?
There ya go!
Is the first time I’m doing SMD soldering
Tho I don’t have a microscope sadly (probably would help a lot lol)
the images are a bit hard to make out- lemme try something
there's a sort of rectangular chip one one edge
Oh yours is a bit different than mines laid out
Ahh yep
Was looking at that
and yeh its my own design
Should be the right way
1515’s
hmm... i'm not really sure then
i had a few of my LEDs burn out when they were oriented wrong
yeah i was about to say.. that bottom one does NOT look happy
Haha
Had to find out one way
Fresh board
Same thing hmm
Which firmware are you running? Did astro send the A7 firmware?
used the one from your github
Lemme dm you the right one
OFW 0.87.0
kk
i hope thats the issue and not my bad soldering haha
works fine now!!
thank you z3bro and astro!!
after forever and ever, @lapis vortex's backlights are finally ready! She has listed a bunch for now, but if you aren't able to get one don't worry- more are on the way soon!
https://www.tindie.com/products/astrowave/rgb-backlight-for-flipper-zero/
i was about to send that
Too bad
Cool
@hoary flax i dont really do dms, but we can talk here!
Ok sorry.
In your YouTube video you said to message you about possibly doing the rgb install.
Do you still do these?
In some instances yes, where in the world are you based?
pokes head in
I do primarily eu installs, and astro does primarily usa installs
Pittsburgh, PA
I would contact @lapis vortex then, she does installs for us customers.
do you know of anyone who can do it in canada?
tried to do it today
couldnt get past the main screw that hold the PCB's together (seems stripped from factory)
rather just not waste my time and send it in at this point instead of damaging it by mistake
would tighten
but never loosened
What screw exactly?
Top left short screw
Getting ready to head to work so I plan on drilling it out there
good luck
make sure u have the right screwdriver, you need a pretty long zero for it. I've taken both of mine apart a number of times and never had any issues with anything stripping as long as u take ur time and avoid letting your fists be too hammy
seemed stripped from factory sadly
I just finished this mod, it was my first DIY project in years and it was an absolute train wreak for a few hours, everything ended up ok though
Glad to hear it all worked out!
It almost didn’t, I ended up on. 3 hour hunt for a de-solderer cause I figured I could do it without one
yeah that’s kinda important
What is preventing it from running as a FAP? An RGB FAP.
besides having it in the settings menu
Must.. not.. undertake.. new side project
I looked at the diff and it didn't look impossible, minus it living in the settings.
You don't need those
I tried doing it without one but I couldn’t get all the solder off
sometimes u gotta add solder to remove solder
@sleek narwhal i don't really accept DMs, but my RGB boards fit every model of flipper
they also have a data output pad in case someone ever makes another rgb mod that needs to use it
Does anyone know why, I did the rgb mod and it wasn't working for awhile. When I reinstalled the firmware it worked for probably 20 seconds. The backlight turned on and it look amazing. If anyone knows what I can do that would be greay
Ignore the black wire🤣 I put electric tape
Thanks to @lapis vortex for getting me here, I'm just so confused because it was on and working and it stopped working after I either picked it up or just after 20 secounds
Any help will be appreciated
I advise just doing your wiring like this.
You don’t need to connect it to the 3v like you have on the right and from what I can tell you have no ground
the connections are all good- it seemed like he burnt out the backlight power supply as well, so i recommended the extra 3v wire
also, i hate that picture since it's really hard to solder to the rfid_carrier ground
I mean that’s true it’s easier to solder to the ground on the gpio don’t know why they never put that as a option
"it's closer"
10% the size also
this is what i usually do
I just hope that the extra 3v didn’t cause the led to be over volted and burn out cause the fact it was on then not anymore sounds like the leds went out
But your way is also smart
the component underneath the power pad also got damaged on his i believe, so it wouldn't have power anyways
Think a multi meter would be the best bet to find out what’s happening
I will try to find mine today
Do you think I should try that?
But I could still do other stuff to make it work? Or can I buy another one of that compoment?
It looks like a capacitor
replace the capacitor or just get a new led board
and do it correctly the next time
We don't know yet if that's not making it turn off
I could try that if u want me too
Sorry was out all day but see if you could check the voltage being sent to the board
You have a multi meter to check the voltage being sent to the backlight
I will buy one cause j font have one, I lost two💀
Alr lmk
iPhone 16 pro max ultra a year early and you got a deal
Ok, is there any other things i can do without the multimeter to fix it?
Have you tried wiring it properly already
Isn't this good or should I try something else?
I have to buy one off of Amazon so it would take a day. I don't know when I can buy it.
Try removing the extra positive wire and also are you able to take a pic of the leds
That one
Should I also change the other one to this?
You can just to be sure ig
Alr👍
i tried that now it says sd card mmounting failed
i didnt burn anything all i did was solder it to grnd
Picture?
nvm i fixed it
damnt
The flipper corrupted the sd card somehow
i gotta format it lmao
Hey, I'm gonna buy another rgb backlight. That's probably the problem
In the beginning when I was soldering yhe input part of the backlight was like half on, next time I will know not to burn it
Actually I don't know yet
Is there anywhere I can buy thr original backlight? Using it as a backup
Wym?
nevermind, astro was very kind to ship me an orginal backlight and the rgb one too!
Did you do the rgb physical mod?
lol no if I needed to i missed that. I have had this thing for 5 hours
just trying to find cool stuff to put on it
reverted back my firmware and it fixed
You need rgb leds to have rgb colours the leds on the board are just orange from factory
i guess i thought it was part of the base board. and we just needed to like "unlock it" or something
I tried the Rainbow LCD option in CFW today. When enabled and the rainbow effect is set to wave or changing my Flipper makes really quiet clicking sounds. What could be causing this ?
that is normal. the vibro motor is being turned on very briefly while it changes. due to the fluctuation in voltage, it tends to briefly get tripped. i wouldn't necessarily say it is good for your flipper though.
Ohhh the Vibro pin. Makes sense now. Unfortunately it seems there is now way turning it off besides physically modding something. Oh well, we will see how long it will last. Easy to replace part under 5$ 😅
@foggy grail wouldnt a .fap for the RGB software only work when the app is open? I want it to work with the LCD screen like it does now with the patch
like, what happens when you exit the app
Nope, it would work with it closed too
also services exist if persistence was necessary
So context: the main reason it doesn't exist as an app in the first place is because the furi_hal_gpio functions are not exposed by the API
you could submit a PR to expose them or you could do what I did and just get the offset to gpio functions from a known function, in this case the OneWire functions
that way it could work today and you wouldn't need any buy in to get changes merged into the firmware
I'd do this but I'm inundated in 9 projects for the Flipper Zero right now
have to dig myself out of the hole
@viral tangle, I don’t really accept dms. And no, I’m no longer accepting mod requests. @lapis vortex is though, she might be able to help ya out!
so tempted
Do it! Astro does great work.
i’ll consider it sometime soon i always wanted to do a modded green flipper
astro this isn’t fully about the rgb backlight but would you also do a mail in transparent shell mod?
We were literally just discussing that haha
oh my bad
yeah it’s just if love both mods but the only thing i’ve ever soldered is a cc1101 🤣
i've been considering it- i'd have to have some of them made, but it's totally something i could eventually do
that would be awesome, i would definitely consider some like combo deal or something haha
i wanna do the clear case mod but i don’t have enough confidence in my self lol
it's pretty easy really, you just gotta remove six screws and pop out the screen and IR windows
yeah, maybe i’ll consider it a bit more
The only thing is that you are not allowed to profit from the shells itself, @pine monolith correct me if im wrong but you would have to charge the same amout as pcbway
But you would be able to charge an install fee
👁👁
I guess it depends if those RGB boards from @lapis vortex ever show up 😂

Update to my last backlight, I got the replacements and I installed the original backlight into the flipper. The bwcklight wouldn't turn on, but I can see it on in the led just a little bit
What could that mean?
So i figured out the issue, its what ur talking about
i gotta buy a heat gun to properly install but when i press the sweat spot with the capcitor on the place it brightens up
I think so though, if not its something near there im im pressing
I have an issue with the rgb backlight so I will do that later on.
if someone sent the transparent shell in with the flipper would you consider it?
yeh, that wouldn't be too hard
Hey astro! I was wondering if I can fix this at all, if not I'm gonna buy one more backlight from you because I figured out the issue and fixed jt
i would love to get a transparent & rgb modded flipper haha
is the pad on the other side of the board fine?
on second thought, that wouldn't help anyways i don't think, lemme check
oh no it should still work as long as the pad on the front is okay
can also just scrape out a trace for the missing pad
theres a very small little part that i think i can use for a trace
i cant explain it, i can connect solder to it but i think it will still work
the red mark has a little tiny dot fro a trace
can you explain how i can make a new trace maybe? thanks
with very fine enamel wire
you strip the enamel of the very very end, stick it through the via, bend the wire so it sits flush with the board and solder on the other side
like so
then you take the piece of wire that sticks out, and you make a spiral as big as your pad, like so. still flush with your board.
once that's done, take an xacto blade and scrape away the top of that spiral to expose the copper
apply solder, and voila! makeshift pad.
before scraping off the varnish from the wire on step 3, you can put a drop of very thin superglue to bond the wire to the board, it can help hold it down to the board for the scraping step and soldering. just note that superglue dies under heat, so solder quickly and with just enough heat to do your joint.
have you done this before?
youre setting up some weird expectations here
i've done similar things, yes, and seen it done to fix BGA pads.
I only see the pic they posted though, not how it's actually assembled onto the flipper, so there might be a waaaay easier way to fix this
as i said if the pad on the other side of the board is still there, the backlight should still work
then im not sure why you think this pesron is able to do this lol
even i couldnt do this, its way too many windings for such a small area
and completely pointless, just run a jumper to the pcb above the ripped pad?
instead of soldering backlight to the leg, scratch the solder mask where green arrow points at, then solder to that
then use epoxy or adhesive to keep the backlight attached to the board, as the previous method was soldering the leg in place
🤣 with the luck that I have that is also off,
I could try what @hybrid badger is telling me though

so on my boards there's three lines on the back
the top one is the ground one, which you'll want to solder to
think it makes the most sense to solder here
after scraping
wire might get in the way otherwise
that's the front of the board you dolt
then you showed him the wrong side no?
im confused lol
fingers crossed, just got astro's backlight in the mail, now to home depot since my smallest screwdriver isn't long enough
Then how would I do it on the other though?
blue is backside, he showed the back of the board in the picture he sent
if you scratch the soldermask off the board, there's three parallel lines
the top one is ground
ooh
Sorry I forgot to tell you, over alot of use of taking the wire of and off this part came off. My solder was at 200-250. Is there anyway I can fix that part too? I have the piece that came off.
For some reason I can't find this wire, should I scrap it even more
the red part is on the front side of the pcb
Ohh ok 👍
How can I solder on the wire? Sorry but jt won't let me solder anything on there
Like, I try to solder on ground and it will never stay
welp that failed, partially..got 1 of my two working with RGB
1 of two flippers?
Yea 1st one was good. 2nd one fell off my damn clamp and broke :/
the thing you solder to has to heat up to the same temp as the solder and iron to stick together
ground is always more heatmass, so it takes longer to heat up
but u also have to make sure its something you can solder to as well of course, in this case copper
I tried those and I think I accidentally scraped the wire, I bought another backlight because I don't want to go through all this trouble.
Thanks fro the help though

oh good ya got it working!
Thank you!
I only got one more problem, I don't know if I did it or something is blocking underneath it, but there is a very very vague black circle in the middle. Do you know how I can fix it? I don't mind it but just trying to get the best of it
I believe that’s part of the LCD manufacturing process.
hmm
ok thanks
btw do u have any idea why my nfc doesnt work after i insTalled the rgb mod? everything looks fine
Is it just RFID/NFC or other functions like the speaker, vibration motor, etc.
Nope just nfc
I can't test rfid because I do nkt have one
Sounds, motor, etc works fine the screen looks fantastic
But I just can't use nfc for somereason.
I opened it up disconnected/connected the ribbon cable again but with no avail. It looks fine I just have no clue what's causing it after the rgb mod
Dude stop pinging the same person over and over
I did that so other people wont think that im asking everyone, drop it
Fucken ease up turbo
💀 what are you on about
youre objectively wrong here my friend, just trust us, its discord etiquette 😄
we can figure out context based on messages, replies are only necessary in certain cases
💀 bro what
im being dead serious i meant to do that so other people dont think that im asking out loud im only asking to him
I personally don't mind since I'm usually at work.
Same I turned off all discord notifications for when I’m at work so someone could @ me 20 times and I wouldn’t care
i didnt even know that was a thing lmao
By the way astro do you know why when my backlight goes inactive the led lights randomly turn on even when the backlight is off
are you on the latest of whatever firmware youre using?
ohhhh lmao
thats good atleast, i stayed on the stream to like 1 but did i saw you had to make a new rgb board
Man i might buy a transparency case

i still have no clue why my nfc doesnt work at all anymore after the rgb mod, i checked for damages but didnt find anything, does anyone know why this happened?
hard to say without being able to inspect it
if u could upload high res well-lit pics of all sides of all boards thatd help
The part right of the screen ribbon connector, it is burned because of my old solder. But it worked completely fine before and after the rgb mod.
🤣 I had a very poor and hell time with my old solder. It sucked. But everything works fine I guess that part is just black💀
Did you find anything that might be the issue?
I don’t even know how to answer that…
what do you mean?
I don’t wanna be rude but kinda looks like you somehow splashed the solder amazingly not shorting something
everything is clearly not working fine else you wouldnt be here with something broken no?
It looks like you are shorting at least 3 things in that one pic
I wouldn’t be surprised if the cap you engulfed is smth important
what wire
Ul10064
36ga
I bought some for switch installs, works really nicely for rgb installs too tho
ah
the secound photo it looks like i shorted it but i didnt, thats how i got the rgb to work, but the first photo i guess i did sadly
