prime hollow
Very new to ZMK. I created my config files by following tutorial from scottokeebs https://www.youtube.com/watch?v=O_urj-rF3bQ
I've pushed everything to github, check the status in Action tab and it failed because it can't find my board.
Does anybody having similar issue? My config files are here: https://github.com/bdhoel/zmk-config-halfswoop/tree/master/config/shields/halfswoop
nimble estuary
https://zmk.dev/docs/development/new-shield#kconfigshield
That video is good as an overview and general introduction, but not everything are correct or up to date.
I highly recommend following this written guide instead.
prime hollow
Should be `def_bool $(shields_list_contains,halfswoop)`
Thanks for replying. I removed the extra space and add 1 more layer in my keymap, but I still got the same error. https://github.com/bdhoel/zmk-config-halfswoop/actions/runs/10540098434/job/29204391786
nimble estuary
The shields folder should be inside of boards. config/boards/shields/<name> was the correct path to use.
The current recommended path is boards/shields/<name>.
Try moving everything there, for example boards/shields/halfswoop/Kconfig.shield
prime hollow
I got different errors now https://github.com/bdhoel/zmk-config-halfswoop/actions/runs/10540355912/job/29204913826
Do you know any of these?
What I understand there's something wrong in my file halfswoop.overlay at line 6. But I don't know exactly the issue is.
nimble estuary
Yep line 6, an extra space 😁
prime hollow
lol I indeed
I just notice there's an extra space
New error https://github.com/bdhoel/zmk-config-halfswoop/actions/runs/10540429390/job/29205073833. I'm guessing something to do with matrix_transform?
nimble estuary
✅ compatible = "zmk,matrix-transform";
❌ compatible = "zmk,matrix_transform";
prime hollow
Thanks, it compiled.
I can paired the keyboard with my PC but there is no keypress when I short any switch contacts.
With and without cable no keyypresses
prime hollow
I should have mentioned this earlier but I am using Supermini nrf52840

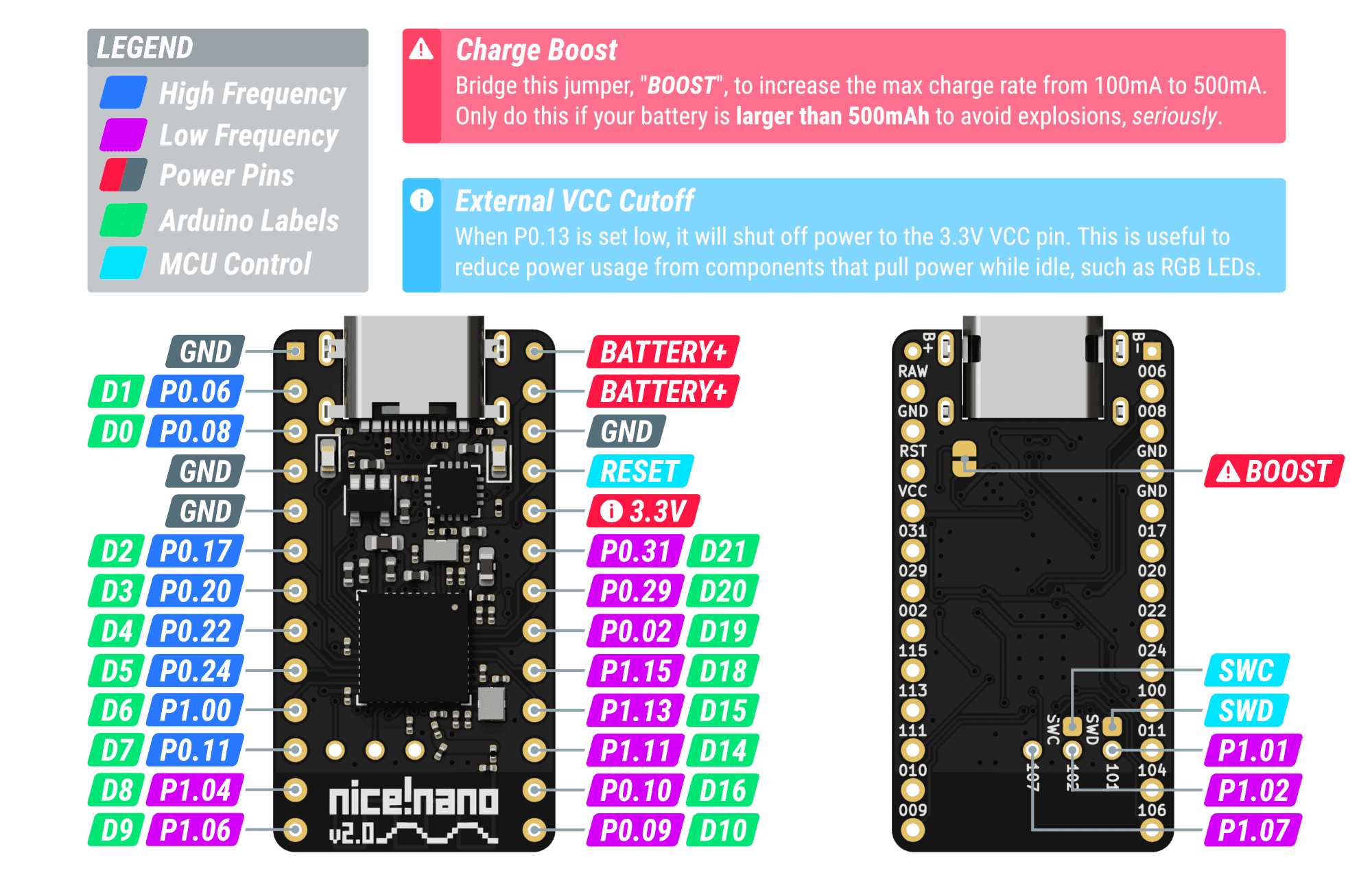

And I follow this pin diagram
And this is my schematic
nimble estuary
Huh, that looks correct to me. Does touching two pins with a tweezers works?
Also #hardware message
prime hollow
No it does not. That's what I did. I haven't solder any switches
nimble estuary
Is your controller on your PCB yet? Do you mean you touched pads on your PCB or did you touch the controller directly?
And also zmk prefer sending keys over USB if you're powering with a USB cable https://zmk.dev/docs/keymaps/behaviors/outputs
