zealous edge
Hi! I'm new to using Needle Engine and I was wondering if there was a way to inject 3D models (gltf files along with their extensions) into an AR web app from a database of 3D models?
For example, an online store that displays 3D models of plants in AR. If a new plant was added and it's 3D model was uploaded to the database would it be possible to update the web app automatically to build and include this new plant to view in AR?
eternal solsticeBOT
Hi! I'm new to using Needle Engine and I was wondering if there was a way to inj...
Hello there – I'm an AI powered assistant 🤖 that might be able to help you with your question. Would you like me to try helping you?
💡 Did you know that we now also have a forum?
Join now with your discord account!
faint badge
Hi, sure you dont need to rebuild the app for that. Your app could simply connect to your database to then e.g. download it directly when a user visits your web app or display a thumbnail or text and download it when clicked.
Needle Engine is a web engine and you can do this the same way you would with e.g. vanilla threejs 😉
zealous edge
Great! So if you download the model could it still have the functionality that needles engine bakes into it? Sorry still trying to wrap my head around how the needles engine actually works when it comes to building. Does it build individual 3D models/experiences which can be embedded in a web app through threejs for example?
faint badge
Yes to both of your questions - when you export a scene or prefab to GLB/glTF with our Unity or Blender integrations you get all the data stored in those files - so when they're loaded with Needle Engine they will be unpacked and become interactive (well depending on the components that you used of course). Note that they dont contain the actual javascript/typescript code for components This link might help to understand more.
If you want to load a GLB and let needle engine handle re-creating your components you can use e.g. loadSync (imported via import { loadSync } from "@needle-tools/engine" or you can wrap the URL in an AssetReference type and load it with loadAsync for example.
zealous edge
Thanks! I noticed that the engine has a function called AssetReference.getOrCreate() which allows you to load a asset from a url pointing to a gltf. I was wondering if this would work if I passed a url to a google cloud platform bucket. Alternatively I wanted to load the model directly using firebase and instantiate it as a component. Would this be possible with loadsync?
Basically just wondering if needles engine handles the creation of a component if I have the gltf file
faint badge
If the bucket url is publicly accessible it might work. Same for the loadsync method. They both ultimatety pass down the url to our GltfLoader with the needed plugins to load the file.
Yes if your file has components / needle engine extensions because it was exported with Unity or blender using our integrations then it will create the components and setup everything for you
If you use loadSync youll get the GLTF file back (with the scenes which contains the objects you can add to your scene) while the Addressable/AssetReference already returns the objects (and might have added it to your scene automatically depending on which method you call/which options you pass in)
zealous edge
I was wondering if I have a gltf file is it possible to instantiate that file into the unity scene?
faint badge
You can drag drop your gltf or glb file into the unity editor yes (same as with a fbx file). We use/maintain UnitGLTF that does import and export of gltf files into unity
Is that what you're asking for?
zealous edge
Kind of. Basically I've loaded a gltf file from a DB and I want to be able to make it a gameobject to add additionaly functionality and render it. Unless this can be done with just the base threejs?
I want to be able to view it in AR
faint badge
Yes just drop it into unity, add it to your scene and add components (if you need any) to it and then export with needle engine. If you want AR just add the WebXR component to any part of your scene and youre done
If you start from zero add the ExportInfo to your scene somewhere and click play (it will generate a web project and start a local server for testing)
zealous edge
I loaded the file with a script and I want to add it programatically
Not manually by dropping in
Similar to how AssetReference is able to create/instantiate a model loaded from a URL
faint badge
So you have a web project already? You can load it at runtime using typescript too (with a AssetReference for example yes)
zealous edge
Ya I have a web project

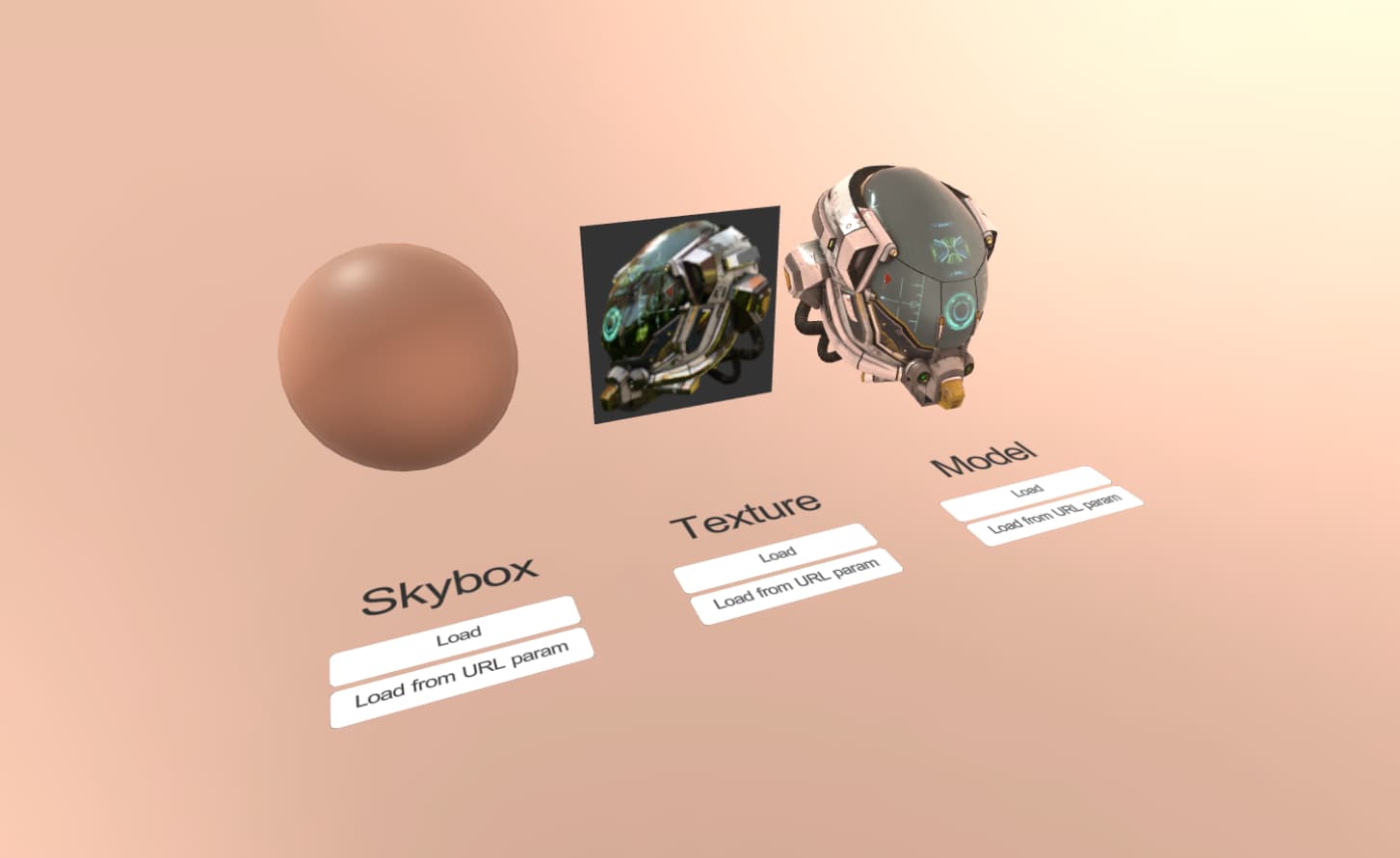

I want to do something similar to the external content sample project: https://engine.needle.tools/samples/external-content/?overlay=samples&room=needle836
But instead of using a url I want to use the gltf file I already fetched
faint badge
By fetched you mean you have it on disc?
Whats your goal 🙂 im not sure - can you give me some more details?
zealous edge
Sure sorry if this is confusing let me start over
So the functionality that I want to implement is as follows:
faint badge
So you have step 1-3 ready I guess? Or where exactly do you need help?
(For clarification: Unity isn't involved anymore in this process at all, Unity is just used to author and setup your scene but what you describe is purely web based which is Needle Engine Runtime / threejs. Thats why i wasnt sure when you asked about instantiating the gltf in Unity)
If/when you have a file in memory as a binary blob from google you can use parseSync for example to turn it into a threejs glb/gltf file with all functionality/interactivity that you can then add to your scene
faint badge
Did you get it working @zealous edge ?
