glacial granite Jun 20, 2023, 1:21 PM

#

Hello Reprap people, I need your help.
I have a BTT GTR board with TMC2209 drivers and would now like to put a BTT TFT70 into operation. How can I get the TFT to work? Thanks in advance for your help

graceful spade Jun 20, 2023, 1:24 PM

#

did you follow the instructions on the wiki first? https://teamgloomy.github.io/gtr_screen.html

Connecting a screen to a GTR | RepRapFirmware for LPC and STM32

How to connect a serial screen to a GTR

glacial granite Jun 20, 2023, 1:29 PM

#

Yes, I have, but it doesn't work because he always complains about the Wifi😭

graceful spade Jun 20, 2023, 1:31 PM

#

you're gonna need to be more specific than "it complains about wifi" 😅

glacial granite Jun 20, 2023, 1:35 PM

#

ok, wifi wants the baud rate, even if i enter it correctly it still doesn't work. It keeps saying "no printer connected and the display beeps unbearably🙈 sorry for my english😁

graceful spade Jun 20, 2023, 1:37 PM

#

my tft35 works with :
M575 P1 S2 B57600

#

did you change the baudrate in the screen's settings too?

#

not sure what wifi has to do with your tft

glacial granite Jun 20, 2023, 1:39 PM

#

graceful spade my tft35 works with : `M575 P1 S2 B57600`

jes i have

#

I also have it with the same TFT35, doesn't work either

#

#

with this cable

#

M575 P1 S2 B115200 ; enable support for tft

worn orioleBOT Jun 20, 2023, 1:42 PM

#

GG @glacial granite, you just advanced to level 1!

graceful spade Jun 20, 2023, 1:42 PM

#

make sure it's plugged properly

glacial granite Jun 20, 2023, 1:42 PM

#

👍

graceful spade Jun 20, 2023, 1:42 PM

#

glacial granite M575 P1 S2 B115200 ; enable support for tft

B115200 try and lower it as the wiki says to 57600 ish

#

and change it in the screen settings too

glacial granite Jun 20, 2023, 1:44 PM

#

I've tried everything🤷‍♂️

#

the last values are from experiment no.100

graceful spade Jun 20, 2023, 1:46 PM

#

a screen doesn't need a high baudrate comm, the lower the better

glacial granite Jun 20, 2023, 1:47 PM

#

ok

graceful spade Jun 20, 2023, 1:47 PM

#

main problem here is BTT TFT screens are unreliable and partially work sometimes when the firmware isn't too broken due to changes in the marlin part of it

#

try updating your screen to their latest version if that's not the case

glacial granite Jun 20, 2023, 1:48 PM

#

ok thanks, i will try tonight👍

#

I'll let you know if it worked

glacial granite Jul 20, 2023, 9:06 AM

#

Hey guys, me again. My board is running great so far. I have now connected a BTT TFT70 to the Super 8 Pro and it works so far, except for one small thing. As soon as I press home on the display or something like that, the display freezes or "please wait" appears and then it stays that way. Can you tell me maybe (guess) what it could be?

#

#

graceful spade Jul 20, 2023, 12:51 PM

#

could be a lot of things (mainly the screen's firmware being bugged) but you can check that your homing files are not doing things that could "freeze" your TFT when you home, like doing extra includes, etc..

#

does it freeze when you press Home X / Y / Z / All ? that'll help pinpoint what/which file is wrong

glacial granite Jul 20, 2023, 5:05 PM

#

I have the firmware from reprap and now I don't know what could be wrong?🤷‍♂️ https://github.com/bigtreetech/BIGTREETECH-TouchScreenFirmware

GitHub

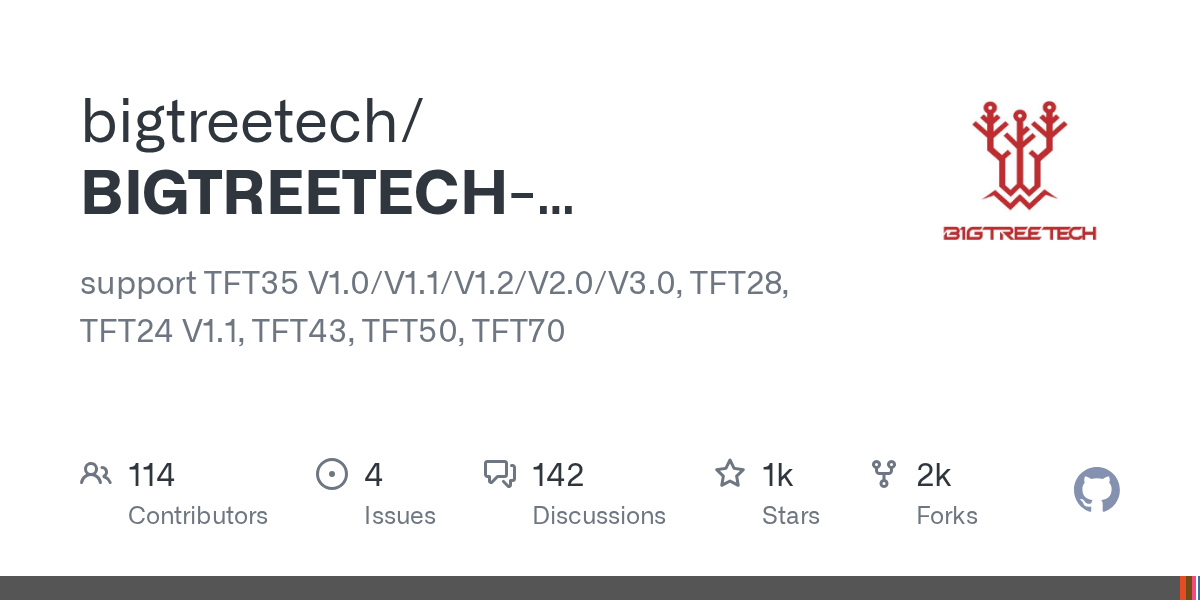

GitHub - bigtreetech/BIGTREETECH-TouchScreenFirmware: support TFT35...

support TFT35 V1.0/V1.1/V1.2/V2.0/V3.0, TFT28, TFT24 V1.1, TFT43, TFT50, TFT70 - GitHub - bigtreetech/BIGTREETECH-TouchScreenFirmware: support TFT35 V1.0/V1.1/V1.2/V2.0/V3.0, TFT28, TFT24 V1.1, TFT...

worn orioleBOT Jul 20, 2023, 5:05 PM

#

GG @glacial granite, you just advanced to level 7!
