bevy_enhanced_input

[proud coral]

So I guess in my mind contexts are basically for reusing the actions across different situations

but maybe that's not the philosophy here

This is the pattern I'm following rn

it works dont get me wrong

It just gives me vibes of I'm not doing it correctly

[heady mauve]

I do think it might depend on how you view contexts. In my mind, contexts are used to separate actions based on what state an entity or the game might be in. For me, a context isn't for reusing actions necessarily but being able to bind the same input to different actions depending on the specific circumstances that exist for the context to be active.

I'm not sure if that is the philosophy of the library though.

[proud coral]

(The multiple repeated cycle actions are missing, but you get the point :P)

[heady mauve]

I think the key might be that if multiple actions across contexts lead to different effects then they should probably be separately defined actions. If you had a cycle action that changed something in the UI that did the same thing on different entities then it makes sense to keep it the same. If the cycle action depends on specific code depending for what is being cycled, then the actions should probably be different.

[proud coral]

I'll keep experimenting, thanks for the feedback @heady mauve

one more question b4 leaving, is there an straightforward way to have contextless actions? or actions that trigger on all contexts

(same thing called differently :/)

[heady mauve]

I don't think there are context-less actions. So if you want some action to be a global thing that can be done from anywhere it would have to be in a context on an entity that would live for the length of time you are looking for.

I'm a little confused by wanting actions that trigger on all contexts. There is context layering so you can have certain actions in a single context and then can have other contexts on the same entity also. Those other contexts could be deactivated, removed, or replaced with other contexts and as long as you leave the context with the action you want alone it should still activate as long as none of the other contexts in a higher priority consume the same input.

If I am misunderstanding your question, then perhaps you could provide an example that explains the scenario you are looking for.

[proud coral]

It was just a question, but yeah I just want to throw in some actions mostly for trying out things

that do not go into any context per se

I just converted my entity marker (Player) into a context and will put these there

[ionic sundial]

https://github.com/simgine/bevy_enhanced_input/pull/240

[modern nebula]

I'm trying to figure out how to use chording to combine mouse motion with a key. I.e. you press middle mouse button and move the mouse to pan the camera around.

I'm currently using the actions! macro approach from the documentation.

actions!(MainCameraControllerContext[
            (
                Action::<Pan>::new(),
                Down::new(0.0),
                Bindings::spawn((
                    Cardinal::wasd_keys(),
                    Cardinal::arrows(),
                    Axial::left_stick(),
                )),
            )

Etc.

But the other recent example of someone tackling that problem in here seems to be using a different approach. Not real sure what I need to be doing here.

[sharp warren]

For Chord you need access to the entity. See its documentation for details.

[modern nebula]

For the life of me I still cannot figure out how to get chorded inputs to work. I also can't get the action to mock. I've tried what's in the docs to the best of my understanding, and I've dug back through this thread for other discussions of it. I've tried also moving this into a different function from the one that initializes the similar portions of the context, and using the BindingOf / ActionOf relationship stuff. I'm not sure what I'm missing / doing wrong.

fn init_camera_controller(mut commands: Commands) {
    commands.spawn((
        Name::new("Main Camera Controller"),
        MainCameraController::default(),
        Transform::from_translation(Vec3::ZERO),
        MainCameraControllerContext,
        actions!(MainCameraControllerContext[
            // Removed standard action! macro even spawn on WASD and scollwheel for discord            ),
        ]),

        Actions::<MainCameraController>::spawn(SpawnWith(|context: &mut ActionSpawner<_>| {
            let rmb_chord = context
                .spawn((
                    Action::<RMBChord>::new(),
                    Down::new(1.0),
                    bindings![MouseButton::Middle],
                ))
                .id();

            context.spawn((
                Action::<Orbit>::new(),
                ActionMock::new(ActionState::Fired, Vec2::ZERO, Duration::new(5, 0)),
                Chord::single(rmb_chord),
                bindings![Binding::mouse_motion()],
            ));
        })),
    ));
}

[sharp warren]

This looks like your context is MainCameraControllerContext, but you spawn your actions for MainCameraController.

[modern nebula]

Changing that caused a panic with the note that the bundle being spawned there has duplicate components: [DebugName { name: "bevy_enhanced_input::action::relationship::Actions<tinker_3d::camera::main_camera::MainCameraControllerContext>" }]

[sharp warren]

This means you inserted 2 actions components.
I think I see this in your code above: actions!(MainCameraControllerContext...

[modern nebula]

So does that mean I need to use either the actions! macro or the method outlined in the chord example that I'm using below it and not both?

[sharp warren]

Exactly!

[modern nebula]

Okay, I'll give that a shot, thanks

[cursive gorge]

Is this example wrong? It uses Fire instead of Start 🤔
https://docs.rs/bevy_enhanced_input/latest/bevy_enhanced_input/action/events/struct.Start.html#examples

[sharp warren]

Yes 😅
Let me quickly open a PR...

[sharp warren]

Previosly sent to the wrong chat 😅

[cursive gorge]

I think this might happen because they are deprecated and thus exist, while the docs only check for wrong links

[sharp warren]

Yep, but they have doc(hidden)...

[cursive gorge]

Also depending on your lints you also won't receive errors for things that are clearly types but aren't formatted as links, which then causes no error either

Hmmm, though oddly enough here it uses a deprecated alias and it just shows wrong in formatted text too https://docs.rs/bevy_enhanced_input/latest/bevy_enhanced_input/action/events/struct.Start.html

Like what is that [Fired] thing, that's clearly supposed to be a link

[sharp warren]

Yeah, it's cursed 😅
Opened a fix: https://github.com/simgine/bevy_enhanced_input/pull/245

I'll draft a patch release after the merge

[inner sky]

whoops looks like when I renamed them my IDE didn't feel like following suit for the docs

[sharp warren]

Mine also doesn't rename docs. But I think it should be implemented on the rust-analyzer side to work 🙂

[sharp warren]

Drafted.

[inner sky]

Just wanna mention that BEI's code is a lovely well to draw from for an API I'm drafting up in an AI behavior crate 🙂 #game-ai message

there's so much high quality code I can adapt

[inner sky]

Is there a difference between these two?

bindings![A, B, C]
bindings![(A, B, C)]

[inner sky]

Because it seems to me like the API is going through a few hoops to support the latter, even though it seems to me as if that's semantically wrong?

Since they all get converted into Binding, and you can't have a single entity with multiple Binding components

Or did I get something wrong?

[coarse brook]

I would love to have the tuple one be an easy way to bind a chord. To me it seems like it is semantically wrong if it currently works 🤔

[sharp warren]

Looks cool!

[sharp warren]

Yes, first is 3 entities, the second is a single entity with 3 components. Just like with children!.
The only special sauce is that I magically convert first argument into a Binding. Otherwise it would be annoying to type things like Binding::from(KeyCode::Space).

I hope when BSN comes we'll be able to drop this and actions! macro 🙂

[inner sky]

Ooooh so that’s what that code does

But is there a semantic difference for BEI?

[sharp warren]

Yes, this is 3 bindings with 1 component each:

bindings![A, B, C]

This is a single binding with 3 components:

bindings![(A, B, C)]

[inner sky]

But what is the actual difference in how BEI behaves?

[sharp warren]

You have 1 bindings vs 3 bindings. You can't attach multiple Binding to a single entity.

So if A, B, and C are all Binding, second example will simply panic.

[inner sky]

Oh, so the second one is for when you want to attach metadata to the binding, like a Name?

[sharp warren]

Yes. Also modifiers, conditions, etc.

They work with bindings too

[inner sky]

Ooooooooooh

Okay, now it all makes sense

And a user just needs to make sure the first component is the binding

[sharp warren]

Action-level modifiers and conditions just applied to all bindings.
Binding-level ones applied to specific bindings.
For example, you may want to apply sensetivity to a binding.

[sharp warren]

Yep

[inner sky]

That makes sense, thanks for the explanation 🙂

[sharp warren]

It's a bit magic, but I decided it's worth it over Binding::from.

[inner sky]

Well if it’s good enough for you, it shall be good enough for me 🙂

Again I cannot stress enough how incredibly helpful the BEI source code is for me right now haha

[sharp warren]

Thanks, I really glad people like this design 🙂

[inner sky]

Looking at ContextInstance right now

I love the trick with the function pointers

Am I understanding it correctly that you're using function pointers to functions derives from generic functions so that the struct itself is not generic?

that's brilliant

[sharp warren]

Yep!

[sharp warren]

Thank you!
I learned it from @cursive gorge, she suggested this approach for ser/de customization in bevy_replicon 🙂

[inner sky]

I just noticed that IntoBindingBundle can have an on_unimplemented diagnostic

that makes it more clear why something is not working 🙂

[sharp warren]

Looks awesome!

I definitely need to add something like this.

[inner sky]

I'll PR it, sec

@sharp warren this text fine?

{Self} is not a valid binding bundle. The first element must be a Binding.

Or more wordy?

[sharp warren]

Looks great!

Maybe "must be convertible into a Binding".

[inner sky]

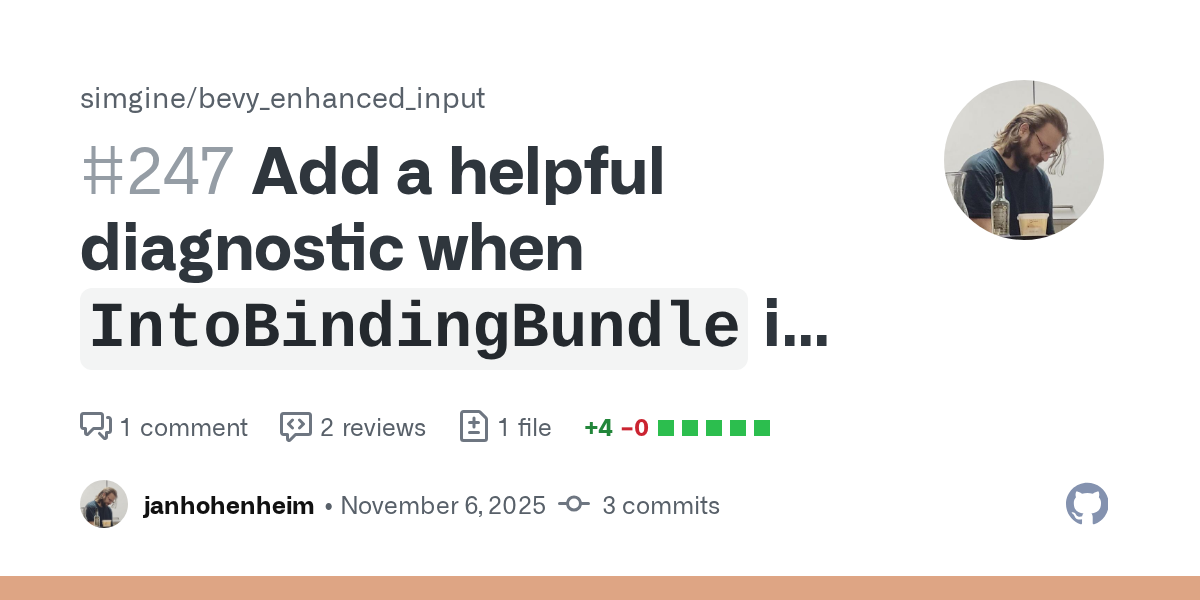

there ya go https://github.com/simgine/bevy_enhanced_input/pull/247

[cursive gorge]

I need the movement input in another action (that happens to be on another context on the same entity), do we have an easy way to access that or order it so that I can read where it wrote its data?

[sharp warren]

If you need data from another action, you can query for it.

[cursive gorge]

How exactly would I query it? Do I iterate trough the related actions on the context entity?

[sharp warren]

If your action is unique, you can use Single.
Otherwise yes, just query query for related actions and use iter_many.

[cursive gorge]

They are currently unique, but I'm writing my code on the assumption I'll want to add split screen support later (which I am planning to do)

iter_many seems to work, nice

[inner sky]

@sharp warren do you have experience with the foo!(Bar[ ... ]) syntax confusing rustfmt?

e.g. this is not indenting for me

tasks!(Sequence[
     op("a"   ),
                tasks!(Sequence[op("b"), op("c")]),
]),

[sharp warren]

Yep :(
Not sure how to solve this.

[inner sky]

In my case, I could replace it with

Sequence,
tasks![
  op("a"),
  Sequence,
  tasks![op("b"), op("c")],
],

But I kinda like the fact that right now tasks! ensures that you specified either Sequence, Select, or custom

[inner sky]

@sharp warren I'm done with the AI library and now moved on to finally doing a solid kinematic character controller

I'd like to hardcode it to work with BEI out of the box as nicely as possible

Seems like the best way to do that is to do all input accumulation internally (so the user doesn't get to see that nasty boilerplate), and expose the... idk the precise term, the structs that have #[action_output(Vec2)]

then userland code can just do

pub(super) fn plugin(app: &mut App) {
    app.add_input_context::<PlayerInput>();
}

#[derive(Component, Default)]
#[component(on_add = PlayerInput::on_add)]
pub(crate) struct PlayerInput;

impl PlayerInput {
    fn on_add(mut world: DeferredWorld, ctx: HookContext) {
        world
            .commands()
            .entity(ctx.entity)
            .insert(actions!(PlayerInput[
                (
                    Action::<Movement>::new(),
                    DeadZone::default(),
                    SmoothNudge::default(),
                    Bindings::spawn((
                        Cardinal::wasd_keys(),
                        Axial::left_stick()
                    ))
                ),
                (
                    Action::<Jump>::new(),
                    bindings![KeyCode::Space, GamepadButton::South],
                )
            ]));
    }
}

where Movement and Jump are exported by the character controller

first question: does that seem reasonable?

second question: what about NPCs?

It would be neat if NPCs could use the same character controller as the player, but how would such a BEI-native library deal with that? Is it good design to tell the users to mock the inputs to the NPCs?

Or I guess I can just tell users to directly manipulate the accumulated input component that is handled behind the scenes anyways:

/// Input accumulated since the last fixed update loop. Is cleared after every fixed update loop.
#[derive(Component, Reflect, Default, Debug)]
#[reflect(Component)]
pub struct AccumulatedInput {
    // The last non-zero move that was input since the last fixed update loop
    last_movement: Option<Vec2>,
    // Whether any frame since the last fixed update loop input a jump
    jumped: bool,
}

not sure what the cleanest design for NPC inputs here is

[sharp warren]

Yes, that how I actually imagined other libraries use it!

[sharp warren]

I think so, yeah. The mocking API is quite simple.

[inner sky]

okay that's a relief!

That means I need to do very little on the library side 🙂

I wonder if there's a smarter way to accumulate the inputs than

fn apply_movement(
    movement: On<Fire<Movement>>,
    mut accumulated_inputs: Query<&mut AccumulatedInput>,
) {
    if let Ok(mut accumulated_inputs) = accumulated_inputs.get_mut(movement.context) {
        accumulated_inputs.last_movement = Some(movement.value);
    }
}

fn apply_jump(jump: On<Fire<Jump>>, mut accumulated_inputs: Query<&mut AccumulatedInput>) {
    if let Ok(mut accumulated_inputs) = accumulated_inputs.get_mut(jump.context) {
        accumulated_inputs.jumped = true;
    }
}

fn clear_accumulated_input(mut accumulated_inputs: Query<&mut AccumulatedInput>) {
    for mut accumulated_input in &mut accumulated_inputs {
        *accumulated_input = default();
    }
}

In another project I used the pull-based API instead

But in there I just hardcoded it to PreUpdate

But that wouldn't work in the general case, where a user may be running BEI in any schedule

so I resorted to having these trivial observers

[sharp warren]

Yes, this will work for any user schedule as you get inputs immediately.

[inner sky]

Yeah I was just wondering if there's a less... repetitious way of doing it

Since if I allow e.g. 10 inputs, I will end up with 10 observers that look the same

guess I can do a macro

[sharp warren]

Maybe use generics? 🤔

[inner sky]

wouldn't allow me to set accumulated_inputs.last_movement specifically

[sharp warren]

But you still need to assign which struct corresponds to each field

[inner sky]

exactly haha

[sharp warren]

Unless you use TypeIdMap 🤔

And no fields

[inner sky]

what's that

at least this is not an issue for the end-user code

[sharp warren]

It's a HashMap with TypeId and noop hasher.

[inner sky]

since from their perspective this design Just Works if they use BEI "normally"

[sharp warren]

Because TypeId is already a hash

[inner sky]

Oh so you mean I could have a hash from TypeId to... Vec3?

[sharp warren]

https://docs.rs/bevy/latest/bevy/utils/type.TypeIdMap.html

[inner sky]

thx, I definitely could have used this in the past had I known it haha

[sharp warren]

You have a bunch of action-structs and you need to map it to the fields on your accumulation struct, right?
So with TypeIdMap you can have keys that directly represented by types.

[inner sky]

NB this is one of the things that annoys me about Tnua. Using it with BEI the naive way will give you subtly different results depending on your framerate because it does not factor in input accumulation.

[sharp warren]

But if it's only a few, I'd just repeat the code. Sometimes repetition is okay.

[inner sky]

yeah exactly, but I'd not sure how that would look in-code

[inner sky]

yeah agreed

especially since the code in question is like 10 LOC per repetition

[sharp warren]

A generic function over the action that does the insertion to the map based on the action type. And values stored as ActionValue.

[inner sky]

throwback to when I had a bug report that jumping on low-end PCs caused your jumps to be twice as high than on a fast PC lol

[inner sky]

Ooooooooh I forgot about ActionValue

gotcha

I'll stick with your suggestion of repeating the code, but I'll remember this for future reference. Thanks!

[cursive gorge]

Bindings::spawn(
    Axial::<Binding, Binding> {
        x: GamepadButton::LeftThumb.into(),
        y: GamepadButton::RightThumb.into(),
    },
)
```This one seems rather awkward 🤔

[sharp warren]

Could you PR a helper, similar to Axial::left_stick?

[cursive gorge]

I guess a ::new() could work with Into<Binding> if that's the intended behavior here? 🤔

[sharp warren]

Yeah, for Axial it makes sense.
I usually provided direct helpers because the number of arguments could be large.

But it might worth reducing the amount of helpers in favor of new

[cursive gorge]

Is Axial even the right thing here, I'm trying to map it to a f32, just feels a bit wrong 🤔

[sharp warren]

In Bevy sticks also f32. They are split into axes.

[cursive gorge]

In this case I had a 0 or 1 button, and another 0 or 1 button and I need -1 to 1

Ah, there is Bidirectional for this

[sharp warren]

Ah, if that's what you want, then yes 🙂

[cursive gorge]

My camera control actions are truly cursed

(
    Action::<Rotate>::new(),
    Scale::new(Vec3::new(0.0035, 0.002, 1.)),
    Bindings::spawn_one(Binding::mouse_motion()),
),
(
    Action::<Rotate>::new(),
    DeadZone{kind: DeadZoneKind::Axial, lower_threshold: 0.2, upper_threshold: 1.},
    Scale::new(Vec3::new(0.032, -0.012, 1.)),
    DeltaScale,
    Bindings::spawn(Axial::right_stick()),
),
(
    Action::<Zoom>::new(),
    Scale::new(Vec3::new(0.3, 0.3, 1.)),
    Bindings::spawn((
        Spawn((Binding::mouse_wheel(), SwizzleAxis::YXZ)),
        Bidirectional::<Binding, Binding> {
            positive: GamepadButton::LeftThumb.into(),
            negative: GamepadButton::RightThumb.into(),
        },
    ))
),

But unlike the rest of my game they have some simple observers like:

fn zoom_camera(trigger: On<Fire<Zoom>>, mut control: Query<&mut CameraDistance>) -> Result {
    let mut zoom = control.get_mut(trigger.context)?;
    **zoom = (**zoom - trigger.value).clamp(1., 15.);
    Ok(())
}

[sharp warren]

Looks alright, but I definitely need to tweak helpers 🤔

[sharp warren]

Opened:
https://github.com/simgine/bevy_enhanced_input/pull/249

[cursive gorge]

[main bf0395d] Switch from leafwing-input-manager to bevy_enhanced_input
 43 files changed, 461 insertions(+), 564 deletions(-)
```The extra deletions are somewhat misleading, but overall the code is a lot nicer now 🥳

[valid harbor]

does anyone has an idea on how

app
            .add_plugins(EnhancedInputPlugin)
            .add_input_context::<Player>()
            .finish()
        ;

can hard freezee my app (can't even kill with the terminal I have to kill my terminal)
Should I make a bugreport on that?

the engine is absolutely unresponsive when it hits the finish()

bevy = { version = "0.17.2" andbevy_enhanced_input = "0.19.3"

[sharp warren]

No idea, but have you tried running examples?

[valid harbor]

I'll do that later and file a bug report if the bug persist

I'm using an example tho, so that sort of count as that

[sharp warren]

I wonder if it's reproducible within the repo

[valid harbor]

you want me to download the repo and try from there, copy

okay examples works, so the issue was my code somehow

I had copied from https://docs.rs/bevy_enhanced_input/latest/bevy_enhanced_input/#putting-it-all-together

believing that was to be called example

use bevy::prelude::*;
use bevy_enhanced_input::prelude::*;

#[derive(Component)]
struct Player;

#[derive(InputAction)]
#[action_output(bool)]
struct Jump;

#[derive(InputAction)]
#[action_output(bool)]
struct Fire;

pub struct ControlTestPlugin;

impl Plugin for ControlTestPlugin{
    fn build(&self, app: &mut App) {
        app.add_plugins(EnhancedInputPlugin)
            .add_input_context::<Player>()
            .finish()
        ;

        app.world_mut().spawn((
            Player,
            actions!(Player[
                (
                    Action::<Jump>::new(),
                    bindings![KeyCode::Space, GamepadButton::South],
                ),
                (
                    Action::<Fire>::new(),
                    bindings![MouseButton::Left, GamepadButton::RightTrigger2],
                ),
            ])
        ));
    }

giving me this code

but that is flawed somehow and causes the issue described earlier

the main only has:

fn main() {
    App::new()
        .add_plugins(DefaultPlugins)
        .add_plugins(ControlTestPlugin)
        .run();
}```

reducing the BEI to

pub struct ControlTestPlugin;

impl Plugin for ControlTestPlugin{
    fn build(&self, app: &mut App) {
        app.add_plugins(EnhancedInputPlugin)
            .finish()
        ;
    }
}```
still causes the issue

ah probably because of finish being used not in the main

I guess you don't use finish?

removing finishes now causes other issues, what's the most minimal functionnal example?
The rust community truly hates examples that are sufficiently small to be visibly in full screen, making them totally accessible for someone that just landed in

[sharp warren]

Ah, of course, you shouldn't call finish

Calling run already does finish.

[sharp warren]

Drafted a new release with this change.

[sharp warren]

You can now write this a little bit nicer 🙂

Ping @thick kiln to update Lightyear. Should be just a version bump.

[inner sky]

@sharp warren I've got a little problem with the setup we discussed a while ago

Here:

fn apply_movement(
    movement: On<Fire<Movement>>,
    mut accumulated_inputs: Query<&mut AccumulatedInput>,
) {
    if let Ok(mut accumulated_inputs) = accumulated_inputs.get_mut(movement.context) {
        accumulated_inputs.last_movement = Some(movement.value);
    }
}

fn apply_jump(jump: On<Fire<Jump>>, mut accumulated_inputs: Query<&mut AccumulatedInput>) {
    if let Ok(mut accumulated_inputs) = accumulated_inputs.get_mut(jump.context) {
        accumulated_inputs.jumped = true;
    }
}

fn apply_crouch(crouch: On<Fire<Crouch>>, mut accumulated_inputs: Query<&mut AccumulatedInput>) {
    if let Ok(mut accumulated_inputs) = accumulated_inputs.get_mut(crouch.context) {
        accumulated_inputs.crouched = true;
    }
}

fn clear_accumulated_input(mut accumulated_inputs: Query<&mut AccumulatedInput>) {
    for mut accumulated_input in &mut accumulated_inputs {
        *accumulated_input = default();
    }
}

if this is my library code, the user wouldn't be able to change this to e.g. only jump when Jump has been released

right?

[sharp warren]

The Fired depends on the condition, so if user can attach Release, it will jump on release.

[inner sky]

Oooooooh 👀

thanks!

do we also have some kind of builtin toggle?

[sharp warren]

What do you mean?

[inner sky]

some way of saying "when I press CTRL it will fire the crouch action every frame until I press CTRL again"

Asking since usually I handle that in the observer that observes the Fire, but since this is now in the library code, that would need to be configured by the user

[sharp warren]

Actually, no 🤔
But it sounds like a reasonable thing to add.

In Unreal you don't really need it because it's all nodes and there is a built-in node. So you just use it before you connect logic to the input.

[inner sky]

I'm deep in the KCC rabbit hole, otherwise I would volunteer to PR it

[sharp warren]

But it makes sense for Bevy

[inner sky]

yeah makes sense

[sharp warren]

I'm a bit busy with bevy_replicon too... Let's just wait for a brave soul who needs a toggle 🙂 It shouldn't be hard to implement.

[inner sky]

yeah sooner or later that brave soul will be me haha

[sharp warren]

What I like about conditions is that users can write them by simply implementing a trait.
So even before the upstreaming, people can try it in their codebase without any patching and later upstream if they want.

[ionic sundial]

You could make an issue describing it so the next pour soul that comes along knows it can be implemented and knows what to do?

[cursive gorge]

That would actually be really neat as long as it's easy for code to reset the toggle, eg you toggle sprinting but it stops if you stop moving (not the desired game in every game ofc, and for example with crouching you're gonna want to keep crouching even if you stop moving)

[sharp warren]

Good point!
With the component-based design it should be easy. Just query and flip the toggle.

[cursive gorge]

Having the ability to spawn bindings like that without having to change actual handling of the actions would be great though

Would greatly simplify adding important accessability features like toggle sprint/crouch/etc

[sharp warren]

You mean spawning some actions/bindings later on? It's supported

Ah, you mean having the same logic that processes the action in observer/system with and without toggle bindings?
I think this should already work the same since the concept of press and release is abstracted. Like in the example above, user slaps Release modifier and it still works since the reacting logic only cares about Fired.

[cursive gorge]

Yea, just in this case you can remove the regular binding, and spawn a toggle binding

(Or just add/remove the component)

[raven arch]

Hi new user of this crate. It's pretty exciting, so far quick to setup. But I am having some trouble with some action binding and specifically my left stick on my PS5 dual sense controller (I have tested it work fully)

(
    Action::<crate::controls::Move>::new(),
    DeadZone{kind: DeadZoneKind::Axial, lower_threshold: 0.2, upper_threshold: 1.},
    Scale::new(Vec3::new(1., 1., 1.)),
    Bindings::spawn(Axial::right_stick()),
),
(
    Action::<crate::controls::Move>::new(),
    DeadZone{kind: DeadZoneKind::Axial, lower_threshold: 0.2, upper_threshold: 1.},
    Scale::new(Vec3::new(1., 1., 1.)),
    Bindings::spawn(Axial::left_stick()), // Bidirectional::new(KeyCode::ArrowLeft, KeyCode::ArrowRight),)
),

here I have defined both left and right sticks to the same action (for debug) but the left stick never writes a value to the X axis. The right will do this correctly though. I could very easily be doing something incorrectly but the right working left not working is a pretty strange 🧩
Any ideas what the issue might be?

[sharp warren]

Strange, your setup looks correct.
Try running the flycam example in the repo, does it work it for you correctly?

[raven arch]

Which one is the flycam example?

    all_conditions
    basic_action_management
    character_controller
    context_layering
    context_switch
    hotbar
    keybinding_menu
    local_multiplayer

[sharp warren]

It's basic_action_management

[raven arch]

@sharp warren yep this works as expected. So does the character_controller example.

[raven arch]

I have 2 contexts like the docs [on foot, in car] the "in car" context only uses

(
    Action::<controls::Steer>::new(),
    // Bindings::spawn(Axial::left_stick()),
    bindings![
        GamepadAxis::LeftStickX,
    ],
),

could this be related? (obviously this is the intention of contexts) I have attempted to test using the left full stick also (did not change anything)

[raven arch]

@sharp warren just to make sure I'm correct, this is what my InputAction should look like?

#[derive(Debug, InputAction)]
#[action_output(Vec2)]
pub struct Move;

[sharp warren]

I think it might be because you use the same action twice

I never tried something like that.

Just put both sticks to the Bindings::spawn

[raven arch]

Nailed it! Thanks @sharp warren that was the issue. I took the car out and the left stick works as expected.

[raven arch]

So in my case I have a [steer] car (X axis only) and [movement] player InputAction which I bind on each entity. This #1297361733886677036 message code was simply testing the sticks. I really only use the Axial::left_stick() part.
Sorry but I'm not sure what you mean by "Just put both sticks to the Bindings::spawn"

[sharp warren]

If you don't need both sticks for the movement, just remove the extra action.

[raven arch]

So with having 2 different contexts [in car, on foot] I shouldn't have actions bound to both?

[raven arch]

this is the car when spawned

  LinearVelocity::default(),
  AngularVelocity::default(),
  controls::DrivingContext,
  actions!(
      controls::DrivingContext[
          (
              Action::<controls::Throttle>::new(),
              bindings![
                  GamepadButton::RightTrigger2,
              ],
          ),
          (
              Action::<controls::ThrottleReverse>::new(),
              bindings![
                  GamepadButton::LeftTrigger2,
              ],
          ),
          (
              Action::<controls::Steer>::new(),
              // Bindings::spawn(Axial::left_stick()),
              bindings![
                  GamepadAxis::LeftStickX,
              ],
          ),
          (
              Action::<controls::Interact>::new(),
              bindings![KeyCode::Space, GamepadButton::South],
          ),
      ]
  ),

and here is the player when spawned

  Transform::from_translation(spawn_pos),
  RigidBody::Dynamic,
  Collider::capsule(0.4, 0.8),
  LockedAxes::ROTATION_LOCKED, // Keep upright
  Player,
  Health::default(),
  crate::controls::OnFootContext,
  actions!(
      crate::controls::OnFootContext[
          (
              Action::<crate::controls::Move>::new(),
              DeadZone{kind: DeadZoneKind::Axial, lower_threshold: 0.2, upper_threshold: 1.},
              Scale::new(Vec3::new(1., 1., 1.)),
              Bindings::spawn(Axial::left_stick()),
          ),
// removed debug Axial::right_stick() binding
          (
              Action::<crate::controls::Interact>::new(),
              bindings![KeyCode::Space, GamepadButton::South],
          ),
      ]
  ),

[sharp warren]

No, you just can't have the same action in the same context twice.

[raven arch]

Ok understand. Thanks 🙂 that was only for debug. If I remove (which I have) the duplicate action binding nothing changes for the player [on foot] there is only a single axis of movement.
If I do not spawn the car at all, which binds the left stick X axis when in that context the player [on foot] moves correctly.

[sharp warren]

As, so the problem persists?

[raven arch]

it appears to me that the binding for the left stick X axis is stuck on the car and the player cannot use it?

[sharp warren]

Ah, but in your code you LeftStickX, no?

[raven arch]

yep for the car context only.

#[derive(Debug, InputAction)]
#[action_output(f32)]
pub struct Steer;

is bound as the action.

[sharp warren]

So you have 2 contexts active at the same time?

[raven arch]

It looks like it. I have only used .add_input_context in the build and I use a state to switch between [on foot] and [in car] ... but those are bevy states, I'm not sure how I switch a context off.

So it looking at https://docs.rs/bevy_enhanced_input/latest/bevy_enhanced_input/context/struct.ContextActivity.html I should be inserting ContextActivity::INACTIVE when the state changes for the car (the player despawns) Or calling toggled on the context component by the looks of it.

[raven umbra]

I am trying to figure out how to create a chord for pressing the jump button while holding down ⬇️ on either the keyboard, dpad, or gamepad left stick. Is there a way I can use my existing Move command (Vec2) as the chord and check if the y value is less than one?

Or if I create a new action, I don't know how to specifically set the gamepad y axis negative to fire it. I know how to set the down arrow and down on the dpad.

[sharp warren]

This depends on your use case. If you want both to be active at the same time, you need to configure which context evaluates first via ContextPriority.
If you want to toggle between them, you can use ContextActivity.
I highly suggest to read the quick start guide in the docs if you haven't yet.

[sharp warren]

No, you will need a separate action for it.
Alternatively, you can create a custom Chord run condition based on the current one.
I'm also open to adjust our current Chord to add a configuration , but I can't imagine how we could express something like this nicely 🙂

[raven arch]

I have a much better understanding now and I'm using ContextActivity ACTIVE/INACTIVE , I will read the docs some more and they should make more sense. Thank you very much for the help @sharp warren

[raven umbra]

What is a custom Chord run condition? Is there an example?

[inner sky]

@sharp warren just wanted to say that BEI is allowing me to have a lovely tiny API surface for my KCC:

use bevy::prelude::*;
use bevy_enhanced_input::prelude::*;
use bevy_ahoy::prelude::*;

#[derive(Component)]
struct PlayerInput;

fn spawn_player(mut commands: Commands) {
    // Spawn the player entity
    let player = commands
        .spawn((
            // The character controller configuration
            CharacterController::default(),
            Transform::from_xyz(0.0, 20.0, 0.0),
            // Configure inputs
            PlayerInput,
            actions!(PlayerInput[
                (
                    Action::<Movement>::new(),
                    DeadZone::default(),
                    Bindings::spawn((
                        Cardinal::wasd_keys(),
                        Axial::left_stick()
                    ))
                ),
                (
                    Action::<Jump>::new(),
                    bindings![KeyCode::Space,  GamepadButton::South],
                ),
                (
                    Action::<Crouch>::new(),
                    bindings![KeyCode::ControlLeft, GamepadButton::LeftTrigger],
                ),
                (
                    Action::<RotateCamera>::new(),
                    Scale::splat(0.04),
                    Bindings::spawn((
                        Spawn(Binding::mouse_motion()),
                        Axial::right_stick()
                    ))
                ),
            ]),
        ))
        .id();

    // Spawn the camera
    commands.spawn((
        Camera3d::default(),
        // Enable the optional builtin camera controller
        CharacterControllerCameraOf(player),
    ));
}

That's already it. No glue, no managing inputs, no fussing around with schedules, nothing

I simply export Movement, Jump, Crouch, and RotateCamera from the library and the user sets up a binding. Done.

Great job with the API design of BEI, this is really powerful 😄

[sharp warren]

I.e. you can copy the existing Chord implementation and edit it to your liking in your crate without patching.
Just don't forget to register it via app.add_run_condition<YourCustomChord>().

[sharp warren]

Awesome, I love it 🙂

[sharp warren]

Ah, I forgot to asnwer about separate action.
Just assign the axis and clamp it only to negative:
https://docs.rs/bevy_enhanced_input/latest/bevy_enhanced_input/modifier/clamp/struct.Clamp.html

For your use case, I'd probably do this ^

Making a custom condition would be overkill.

We could also extend Chord to assign a desired value that triggers the chord, but it's a bit ugly 🤔
I think a separate action fits better.

[frozen spear]

if i wanted a wasd-keys-like Cardinal input but with key-overriding behavior (e.g. im holding A going left, and then press down D without letting go A, it should override A and start going right. If i then let go D it should start going left again. if i hold A, press D, then let go A and press it down again, it should start going left again) how would i go about doing that?

[sharp warren]

Try using https://docs.rs/bevy_enhanced_input/latest/bevy_enhanced_input/action/enum.Accumulation.html#variant.MaxAbs

[frozen spear]

thanks, this half works, it only overrides in one direction

if i hold D and then press A, it doesnt change direction

want it to resolve ties by taking the most recent input direction per axis

maybe a third accumulation is needed

[sharp warren]

Ah, right 🤔
Yeah, we probably need an additional strategy. Or just a boolean inside MaxAbs

[frozen spear]

we could also make it always resolve this way in MaxAbs if the absolute values are the same

all my directions are unit length

i think this resolution strategy would be preferred if the absolute values are the same

[sharp warren]

I.e. pick the last one?

[frozen spear]

the newest one

yeah

would this just be making this < a <=

Accumulation::MaxAbs => {
    let mut value = self.value.as_axis3d().to_array();
    let other_value = other.value.as_axis3d().to_array();
    for (axis, other_axis) in value.iter_mut().zip(other_value) {
        if axis.abs() < other_axis.abs() {
            *axis = other_axis;
        }
    }
    value.into()
}

testing rn

nope

that just inverts the direction that dominates

okay so these things arent ordered by recency

hmmm

how do we recovery recency?

[sharp warren]

Yep, we just evaluate actions in order they defined.

What is your use case, btw? 🤔

[frozen spear]

character control

[sharp warren]

For things like movement accumulation usually common

[sharp warren]

Yeah, I mean what kind of game?

[frozen spear]

oh, uhhh

its a lot of things together

[sharp warren]

Do you think accumulation wouldn't work for it?

[frozen spear]

fps-y

well it would but i want this specific feel to it

cus itd be snappier

if the key you press always immediately does the direction then it feels better

rather than waiting for the other key to be unpressed or having a couple no movement frames inbetween

[sharp warren]

It's quite unusual. In all games I've played it's accumulation 😅
Both modern games (like Marvel Rivals) and old (like Quake 2).

But you can still get this behavior by adding a custom input modifier.

[frozen spear]

oh yeah ive never played a game that does this

its just something i want in mine

[sharp warren]

Wait, not entirely sure if it's possible via a modifier or custom state tracking.
You will need to split your movement keys 🤔

[sharp warren]

Yes, I think using different actions for each direction is the only option.

[frozen spear]

thats unfortunate

cus gamepad gets awkward then

[sharp warren]

Yeah... I'm also open extending the crate, but I'm not entirely sure how something like this can be integrated

But I'd suggest to try different directions and see how it feels.

[frozen spear]

do you support key chord bindings? stuff like how vs code lets you change document highlighting by pressing ctrl + k and then m in quick succession

[sharp warren]

Yep, see the Chord condition

[frozen spear]

can you have a different action for ctrl+k than k+ctrl

or is it the same

[sharp warren]

Yeah, you can create a chord from 2 other chords

Wait, no, when you want a sequence, you need Combo

[inner sky]

@sharp warren is there a way to bind something only to mousewheel down?

and not up

[sharp warren]

Yes, use Clamp

[inner sky]

thx, let me try

[inner sky]

(
    Action::<Jump>::new(),
    Clamp::pos(),
    bindings![Binding::mouse_wheel()]
),

this seems so still trigger on both up and down

[sharp warren]

Can you enable logging and see how the clamp transforms the input?

[inner sky]

sure, by regular RUST_LOG?

2025-11-29T12:24:54.517506Z DEBUG bevy_enhanced_input::action::fns: triggering `STARTED` for `Jump` (`252v0`) for context `241v0`
2025-11-29T12:24:54.517525Z DEBUG bevy_enhanced_input::action::fns: triggering `FIRED` for `Jump` (`252v0`) for context `241v0`
2025-11-29T12:24:54.523512Z DEBUG bevy_enhanced_input::action::fns: triggering `COMPLETED` for `Jump` (`252v0`) for context `241v0`
2025-11-29T12:24:55.984066Z DEBUG bevy_enhanced_input::action::fns: triggering `STARTED` for `Jump` (`252v0`) for context `241v0`
2025-11-29T12:24:55.984081Z DEBUG bevy_enhanced_input::action::fns: triggering `FIRED` for `Jump` (`252v0`) for context `241v0`
2025-11-29T12:24:55.990436Z DEBUG bevy_enhanced_input::action::fns: triggering `COMPLETED` for `Jump` (`252v0`) for context `241v0`

I assume you meant to debug print it manually, as this doesn't show the transform

2025-11-29T12:27:32.308240Z  INFO bevy_ahoy::input: jump=On { event: Fired { value: true, state: Fired, fired_secs: 0.0, elapsed_secs: 0.0 }, trigger: EntityTrigger, _marker: PhantomData<()> }
2025-11-29T12:27:33.695994Z  INFO bevy_ahoy::input: jump=On { event: Fired { value: true, state: Fired, fired_secs: 0.0, elapsed_secs: 0.0 }, trigger: EntityTrigger, _marker: PhantomData<()> }

well, not much to transform, given that it's a bool output

I see, that's probably the issue

#[action_output(Vec2)] fixes this

#[action_output(f32)] does not FWIW

[sharp warren]

No, no, I meant RUST_LOG, when you enable trace, it shows how modifiers affect input. It's quite verbose, though :)

[inner sky]

ah I see

sec

I'll revert to bool

[sharp warren]

Yeah, I'd expect it to be a bool.

[inner sky]

oh this is almost impossible to do :/

it seems like it prints stuff every frame

Oh wait, I can panic! on the input

[sharp warren]

Yeah, just redirect into a file

[sharp warren]

Could work too 🤔

[inner sky]

for scroll up

for scroll down

[sharp warren]

Ah, I see. The scroll outputs Y value.

Transform it into X value first

I.e. swizzle it

Also looks like you have 2 jumps?

[inner sky]

(
    Action::<Jump>::new(),
    Clamp::pos(),
    SwizzleAxis::YXZ,
    bindings![Binding::mouse_wheel()]
),

like so?

[sharp warren]

No, on the input

[inner sky]

yeah I wasn't sure how to bind it other than this:

(
    Action::<Jump>::new(),
    Press::default(),
    bindings![KeyCode::Space,  GamepadButton::South],
),
(
    Action::<Jump>::new(),
    Clamp::pos(),
    bindings![Binding::mouse_wheel()]
),

[inner sky]

like this?

(
    Action::<Jump>::new(),
    Clamp::pos(),
    bindings![(Binding::mouse_wheel(), SwizzleAxis::YXZ)]
),

[sharp warren]

Yep!

[inner sky]

same result :/

[sharp warren]

Ah, you need either use f32 or move Clamp to the binding as well

Your action is bool. When the binding gets evaluated, it converts into the action value. It's too late to apply Clamp at this point.

[inner sky]

yesssss

(
    Action::<Jump>::new(),
    Press::default(),
    bindings![
        KeyCode::Space,
        GamepadButton::South,
        (Binding::mouse_wheel(), SwizzleAxis::YXZ, Clamp::pos()),
    ],
),

this here does everything I need 🙂

[sharp warren]

Yeah, that's what I'd do 🙂

[inner sky]

(except run rustfmt on it )

thx for the help!

[sharp warren]

So you basically transform positive wheel into a button

You're welcome 🙂

[inner sky]

So cool that the API is able to express that 😄

[inner sky]

Do you have some advice on how to provide API for default bindings?

without it being too magical

e.g. required components would maybe work, but that would not allow users to manage their input actions however they want

I could provide a function like default_input_actions, but that would that just use a default input context that is already preregistered?

sounds a bit magic

but having the user provide their own input context in a generic could also be weird

[sharp warren]

One of the options is to provide a simple resource with bindings.

But this might limit the customization because all modifiers and conditions will be hardcoded.

So it depends on how opinionated your controller will be

[torn spade]

hi @inner sky, or whomever. this is a fairly basic question and my intent is to understand BEI better. in your bevy_ahoy crate, the right axis for a controller is bound to camera controls. in the minimal example, using a controller (ive tried a few controllers but curerntly using a DS4) to look around results in reversed up/down pitching. the BEI example for character control appends ".with(Negate::x())" to the right stick bind. in that example, and when modifying the bind in your minimal setup for ahoy with a negate, this results with reversed left/right, yaw and a proper up/down. to me this implies that both axes are being reversed for some reason, instead of just one.

is this intentional? what am i not understanding about this? my goal is to bind the controls so that pushing upwards on the analog stick looks up, and down looks down, etc

[inner sky]

oh I should actually test it on controller haha

[torn spade]

something else i should mention is that your splat scaling works fine for mouse but is way too slow for the controller stick, so i suppose youd do something like .with(splat(.4)) on the right stick

[inner sky]

noted, thanks

I'll run it later with a controller and debug the things you mention 🙂

[torn spade]

and thank you very much for the crate. having an example like this to work and learn from is much needed. i was struggling a lot trying to understand physics/movement/system ordering and ahoy has so far been invaluable in filling in blank spots for me

[inner sky]

I highly highly recommend reading https://github.com/myria666/qMovementDoc in that case!

it will help you much more than reading through the source code, I believe

[torn spade]

yes, ive been reading this. great resource

[novel fossil]

it is the default in most FPS games but all the pro players usually change this using configs and scripts. look at the amount of tutorials for CS2 for example.

[inner sky]

@frozen spear in case you get this working, I'd be interested in making it the default for Ahoy 👀

[frozen spear]

that would be cool. yeah its just like, better movement

i would like BEI to support it out of the box

i think the way to get BEI to support this is to have bind processing be ordered not by declaration order but by pressing order

then it gets pretty trivial. idk if that breaks anything though, @sharp warren would know better

[sharp warren]

Do you know any game that implements this behavior?
Could you also link a script or config for CS2? It's the first time I hear about it 🤔

[sharp warren]

Shouldn't break anything, but it's not trivial to implement

[mystic torrent]

I might understand it wrong but changing the order in which actions are executed can be/is breaking no?
Rotate + move != move + rotate, declaration order allows this to be deterministic

[frozen spear]

it wouldnt change the order in which the input is consumed

just the order in which its processed internal

BEI has no concept of rotation or moving, only axes afaik

@sharp warren i thought a bit more about it, and i think whats actually desired here is timestamps on the input somehow

cus that can be used to combine it unambiguously

and also be used for other things

[sharp warren]

It would be great, but Bevy doesn't provide this information.

[frozen spear]

like knowing exactly when within a frame a button was pressed

[sharp warren]

See https://github.com/simgine/bevy_enhanced_input/issues/106

[frozen spear]

i think that until we have real timestamps (idk when this happens) it makes sense to have fake internal timestamps of some kind no?

like, we could do something as stupid as just reading system time when we see a key press and saving it next to it, with the expectation to switch to real timestamps eventually

for wasd ordering that would be enough

[sharp warren]

It's something that needs to be done on the Bevy side. Because inside events we don't have this information.

@frozen spear have you tried manually making this logic by splitting movement into X and Y axes and adding custom logic to implement the desired behavior?

[frozen spear]

no

i dont really wanna do that

[sharp warren]

Why not?

[frozen spear]

cus its more complicated than it should be, and will make gamepad support painful

also im doing other things lol

ill probably end up doing that if theres no other way and i really need it

im not the only one who wants this though

[sharp warren]

Feel free to ignore the advice, but I'd suggest to quickly hack it together and see how it feels.
Because there might be a good reason why other games don't implement input like that.

[frozen spear]

i already know how it feels because ive used controllers that behave like this

[sharp warren]

You mean actual hardware or software implementation of input controller for games?

[frozen spear]

software

although there are keyboards that do this

theres keyboards specifically designed for this, which cancel out A when D is pressed and vice versa, same for W and S

[sharp warren]

Could you point me to it? I'm curious to see.

[sharp warren]

BTW, this solution is not that hacky. In Bevy sticks also split by axes.

[frozen spear]

its called auto counter strafe, heres some links from a google search
https://github.com/LovelyNacl/Auto-Hotkey/blob/master/CounterStrafe.ahk
https://www.reddit.com/r/GlobalOffensive/comments/173ky0t/auto_counter_strafe_fast_stop_quick_stop_auto/
https://github.com/danielkrupinski/Osiris/issues/928
https://gist.github.com/CoolOppo/9984632

[sharp warren]

Ah, you meant via scripts. Very interesting, thank you a lot!
(I might try it myself)

[frozen spear]

i have some C# code that does this that i wrote ages ago somewhere for my game

idk where it is now though

[exotic dome]

Razer called this feature snap tap, and it has been very controversial in cs2, afaik it's mostly banned in competitive/pro play these days

[frozen spear]

yeah

i think whether its fair or not doesnt matter if you're a gamedev putting it in base game though

thats just a feature then and everyone has it. if anything it levels the playing field

[exotic dome]

Yeah I agree, it doesn't have to be unfair, but in CS2 specifically it's seen as a kind of cheat/aid because counter strafing is a core part of the game. If it's part of the game then it's fine.

[frozen spear]

and yeah the hardware impls of this go to even more ridiculous lengths, like tuning the key depth activation threshold to make it even more immediately responsive

[inner sky]

Would Time::elapsed() not work as a best guess for now?

[sharp warren]

But how can we get this information from the event?

[inner sky]

Can’t you query Res<Time> when processing it?

(With the obvious caveat that this is discretized to the frame rate)

[sharp warren]

But this will be the information when an action is processed.
I think we need the time the key was pressed.

Otherwise it's just the evaluation order

[inner sky]

Yeah, but if it was not pressed in the exact same frame, it would already work, no?

To be clear, I mean reading the elapsed time in the BEI systems that run in PreUpdate by default

[novel fossil]

Looks like it doesn't work in CS2 anymore but there are configs for other games like TF2 or L4D2. It's called a null movement config. Example: https://github.com/ChadyG/TF2-configs/blob/master/null_movement.cfg

[sharp warren]

Ah, I get it now. It's actually already there:
https://docs.rs/bevy_enhanced_input/latest/bevy_enhanced_input/action/struct.ActionTime.html
This means we could implement this via modifier.

[sharp warren]

Thanks!

[frozen spear]

oooooh yay so its possible?

we can make it pick the newest by using the elapsed time in an action modifier?

[sharp warren]

Thinking about this more, the elapsed timer represents the action time. So it won't reset with the direction change...
So we might need to add it per-input.

[outer wyvern]

We have to rewrite the winit integration first at least iirc

[inner sky]

@sharp warren I have a biiiiiiig actions! block right now, and would like to introduce a chord. The examples I could find for chords don't use the actions! macro, I assume due to syntactic limitations. But I would be very sad if I had to replace my entire actions! block haha.
How do I add an action with a chord after the actions! block? I suppose something like with_related::<Action>?

[mystic torrent]

You mean something like this? (i.e. ActionOf)

        let id = commands .spawn((Action::<T>::new(), slot_modifiers(ability), bindings![key, gamepad_button])).id();
        commands.entity(player_entity).add_one_related::<ActionOf<Player>>(id);

[sharp warren]

You can also insert ActionOf(entity) directly. Basically, anything you would do with Parent/Children.

[inner sky]

Thx!

New question: what would be your advice for how to record input?

I would like to record the inputs I execute in a certain time frame (eg start recording when pressing F3, stop when pressing F3 again) and then play it back as a unit test

Or I guess end-to-end test more like

Is there some prior art? Or do I basically just write the input timestamp into a text file when the observer for an action is triggered?

And then mock those inputs in a test run, dividing the timestamp by some speedup factor

[sharp warren]

I think having a crate for this would be really cool.
I didn't include this into BEI because it might be a bit opinionated.

The way I'd do it is to just run a system after the input processing and record the state and value if it's Changed for each action. So I'd encode it in a form of "Use this value of the action for X frames".

[inner sky]

Oooh that’s clever!

I'll probably do that crate over the weekend since I kinda need it

If you want, I can donate it to simgine after 🙂

[sharp warren]

I think it's better to have the authority distributed. So everyone maintains what they use 🙂 Reduces the bus factor and such.

But having the mention in the readme might be useful 🙂

[inner sky]

Maybe it could work via the events StartRecording and EndRecording and write everything into an Asset

[sharp warren]

Makes sense

[inner sky]

(Events are triggered on a specific entity holding actions)

[sharp warren]

Yep, sounds convenient.

[inner sky]

Could also add IgnoreRecording markers to actions in case someone needs that

Then in my KCC, I can conveniently expose that as a StartRecording and StopRecording action instead of an event

Since the whole API is action based

[sharp warren]

I like the described API a lot!

[inner sky]

Btw I've had even more people asking "can you make the input for this movement support this weird thing" and my answer is still always "yes, it’s BEI, you can bind or mock the action however you want"

And I implemented input buffering and coyote time downstream since it was really trivial

Well, trivial for me in any case since I input buffer to the next fixed timeframe anyways

So I can just as well buffer that input for say 150 ms on top

[inner sky]

BEI is saving me much more work than I thought

[inner sky]

@sharp warren hope I'm not pinging you too much 😄 I'm wondering if BEI or Bevy in general has a way to translate keybindings from KeyCode to Key. It seems like BEI's example keybinding menu only shows KeyCodes, but I would like to have the UI display the Key instead

I know you can get the Key once an input has already been made, but what about the preconfigured inputs?

I.e. if I ship a game so that by default it uses the physical W A S D KeyCodes, how would I get my keybinding UI to display that as D A S H, which are the corresponding Keys on my keyboard layout?

[sharp warren]

It's okay, don't worry 🙂

You mean Binding?
You can store and display bindings in settings too. It's just in games you usually configure gamepad and keyboard separately 🤔

[inner sky]

Yeah in the end I want to display Binding, but not as KeyCode, but as Key

(for keyboard ofc)

for gamepads, idk, I have not thought about that at all 😄

[sharp warren]

Ah, I get it. But not sure what to suggest. Maybe we could have a conversion somehow? 🤔

[inner sky]

Yeah I would hope that winit somehow offers us the current keyboard layout so that we can look up stuff

but I wasn't able to find it

not that it doesn't exist, I'm not terribly familiar with the API

[inner sky]

heck
https://github.com/rust-windowing/winit/issues/2678

[sharp warren]

Damn, looks like not much we could do

[inner sky]

fuck

that's really disappointing for UX :/

maybe there's some other crate I can use downstream to read the keyboard layout and do some weird conversion that way

update: there's : https://github.com/HactarCE/key-names

[sharp warren]

Interesting!
I think having something like this in Bevy would be nice 🤔

Since it's for KeyCode, I feel like it belongs more to bevy_input.

[inner sky]

@sharp warren we just ran into something weird. This setup here made Only Tac ever fire, and never Crane

is that intentional?

Don't get me wrong, the setup is wrong anyways, it should be this:

and the second screenshot behaves exactly as expected

but our debugging was a bit hindered by the fact that the code in the first screenshot apparently "consumes" the space input, never triggering Crane

[sharp warren]

That's correct. You can disable input consumption by changing the ActionSettings.

[inner sky]

oh, so if it has no Press or Hold it consumes?

but Press does not consume?

that seems a bit odd

[sharp warren]

I'd expect the consumption to happen in both cases 🤔

[inner sky]

Can confirm Press definitely does not consume anything

[sharp warren]

Ah, I see.

[inner sky]

we have like 3 things bound to space haha

[sharp warren]

First action will trigger on one frame and second action on the second

[inner sky]

take a look at this:

[sharp warren]

Actions consume inputs only if they actually do something.

Press is basically a single press

[inner sky]

OOOOO

AAAA

so we are introducing a one frame lag!

[sharp warren]

Yep!

[inner sky]

On which entity do I insert the ActionSettings?

[sharp warren]

On the action entity you want to configure

[inner sky]

hmm help me out here

how do I do that when using actions!?

[sharp warren]

In your screenshot just put it right after Action::<X>::new()

The position doesn't matter

Just looks nicer logically

[inner sky]

like so?

hmm that looks like something I personally want everywhere in my app

is there a global setting for disabling consumption?

[inner sky]

@frozen spear this is why it behaved the way it did ^

[frozen spear]

wild

[sharp warren]

No, we don't have a global default 🤔

[sharp warren]

But this might be a good default 🤔 At least people won't get confused.

[inner sky]

for now I just added it to all my actions 😅

[heady mauve]

Do you need them to be separate actions? If how the action behaves depends on the situation which can be determined in advance then having them as unique actions in different contexts might work better. If the result of the action depends on things that may occur after the input is done then it might be better to check for that within the action itself and not have separate versions.

To give an example of the former, if you are touching a wall you might be able to create a WallTouching context that would override the Jump action with a Mantle instead. If however, you are allowing the character to Jump into a Mantle if they hit a low enough wall, then that might be better done within the action itself.

[inner sky]

The main reason is that people want to configure these independently

e.g. some want mantle to be on a different key

some want to have jumps on release

some don't want to bind cranes at all

(already got all those requests)

so it seems easiest to just toss the actions at the user and let them decide how to bind them

[heady mauve]

Could you have different contexts for the different play styles?

Of course, it may not be an issue for your game.

I've had problems in a game where they had some things set to not consume inputs while allowing for user defined controls which lead to two different actions which shouldn't have occurred together to happen.

[inner sky]

this is a library I'm making, so users can choose to distribute those actions however they want across contexts. I'm only exposing Actions, they have to bind them themselves.

The code I posted above is just the one used in an example 🙂

[inner sky]

but good to know, I'll keep it in the back of my mind!

[tawdry heart]

Hello everyone. I'm new to online dialogue, so bear with me.

My goal is to allow an action to deactivate its own context upon being fired. This could be useful for a general SwichContextTo<C> action, which could activate the C context and deactivate the action's current context. (This could be useful for folks who want to transition between mutually exclusive, "state-like" input contexts.)

To do this, the action entity must know which component on its context entity is the correct ContextActivity to deactivate.

Although this can be achieved in the aforementioned use case by adding an additional generic parameter to the action (resulting in SwitchContext<C1, C2>), this would require the user to add a new observer for each (C1, C2) combination. It would be more ergonomic to use SwitchToContext<C>, especially if the observer for this action were added as soon as the context C was registered (e.g. in the InputContextAppExt::add_input_context_to method or a similar custom method).

To make an action entity aware of its corresponding ContextActivity component without introducing extra generics on the action, the action entity could automatically include an ActivityId component that wraps the ContextActivity's ComponentId. This would be as simple as adding the following line in InputContextAppExt::add_input_context_to method (or in a similar, custom extension method):

let _ = self.try_register_required_components_with::<ActionOf<C>, ActivityId>(|| ActivityId(activity_id));

Here comes my problem: I am not sure how to deactivate ContextActivity using its ComponentId. If deactivation were to occur simply removing ContextActivity::<C>, I could use something like:

commands.entity(context).remove_by_id(activity_id);

However, deactivation instead occurs by inserting ContextActivity::<C>::INACTIVE, which limits me to the unsafe EntityCommands::insert_by_id method, and I don't know how I would make this specifically insert the ContextActivity::<C>::INACTIVE variant.

Any help or course correction would be welcome.

[sharp warren]

The entity could have multiple contexts attached to it. So I don't think you can get away with a single generic.

[tawdry heart]

To clarify, which of these are you saying?

1. the action entity can have multiple context components connected to it, or
2. the context entity can have multiple context components connected to it

In the case of #1, I assumed that each action entity can have no more than one context (because action entities automatically despawn when a single context entity despawns). If this assumption is wrong, then I unquestionably agree with you.

In the case of #2, context entities can have multiple context components. But since an entity can only have 1 of each component, and since each ComponentId is unique in a given world, wouldn't ContextActivity::<A> and ContextActivity::<B> have different ComponentIds (and therefore, different ActivityId(ComponentId) components for their "children" actions to "inherit")?

[sharp warren]

It's 2, but now I get it now.
You can workaround it by storing a function pointer during the registration in a component. Once you want to disable the context, you just call this function that does this.

[tawdry heart]

Cool, I'll try it out

[sharp warren]

I use this trick inside the BEI itself, so you look at the internals for an example

[tawdry heart]

Worked like a charm. The examples/context_switch.rs example was reduced by a whopping ~10 lines

[limber turtle]

hiya is it possible to handle trackpad scroll?

[sharp warren]

How is this represented in bevy_input?

[limber turtle]

PanGesture I think?

[sharp warren]

If it's gesutres, I didn't include them.
If you're interested in adding them, should be a simple extending of the Binding enum.

[sharp warren]

Updated to the latest RC, enjoy.

[oak monolith]

Hi there! I have a use case that I'm not sure how to cover and maybe you could help me out. I have a Hold action that, once fired (and while fired) consumes some resource (picture a stamina bar). I would like to cancel/complete the action once said resource is depleted and the user is still holding down the button so they have to release the button, press and hold again if they want to fire the action again. Any ideas?

[sharp warren]

I think you can create a custom condition, but I'd suggest to just write your own logic on top of the input.

[oak monolith]

So a custom BEI condition you mean, cool. And regarding your other suggestion, can you elaborate a bit more? What did you mean with that? Thanks a lot!

[sharp warren]

I mean you can write your custom reaction logic on top inside observers/systems. I.e. if the bar drains, you pause the logic until the input stops firing and starts to fire again.

[oak monolith]

I see what you mean, I thought you were referring to some InputAction specific logic that I was unaware of. The problem I'm having with that is the observer that listens to the Fire event can check what you say, but if we add a bar regeneration system into it, whenever the condition gets checked again, the input is still Fired but the bar now has some value other than zero and the cycle continues. So I was looking for a way to potentially tell the input library that the action got released, but not necessarily the key/button associated to it. I hope this makes sense. 🤔

I just found out BlockBy exists, I wonder if that could help at all... But now I see this is an action that blocks another, I don't think this covers my use case.

[sharp warren]

You can just have a boolean state somewhere that prevents action from firing until it stops firing first.
But nothing built-in to handle it inside the library comes to mind. Feel free to experiment with this and leave suggestions 🙂

[oak monolith]

Thank you!

I will try some stuff out and let you know how it goes

[heady mauve]

I'm not sure, but you might be able to use some sort of layering of contexts so that upon the first input it adds a context layer if all the conditions are valid that uses that context to add the action and the removal of that context layer is done outside of the action (like when it reaches zero).

Something like an Activate action that adds or activates a Consumption context layer on top with a Consume action (that uses the same binding as Activate) where either releasing the binding, or external to it in a system when the bar is drained, the Consumption context is removed, or possibly inactivated. But the Activate action would need to have its conditions met before it could enter the Consumption context so you could check in that observer if there was regeneration going on or whatever that might prevent the activation.

[oak monolith]

This sounds like a good alternative, I will give it a go if a simple state based approach doesn't work. Thanks for the ideas!

[oak monolith]

I ended up using a boolean state wrapped in a Resource, the observer handling the Fire mutates it and then the other systems read this resource as necessary. For now, it works! Thanks a lot for the ideas, I think it was a "writer's block" situation and I needed a different perspective 😅

[spice knot]

I want to remove the ability to move on the diagonals.
Is there an easy built in way to do this or do I have to manually filter the input to only be on the x or y axis at one time?

[sharp warren]

I'd define separate actions for vertical and horizontal movement

[inner sky]

@sharp warren got a weird one for you after the holidays: It looks like Negate::x() negates both X and Y on my controller

Binding: https://github.com/janhohenheim/bevy_ahoy/blob/main/examples/playground.rs#L235 (Imagine a Negate::x() on the controller binding)
Handling: https://github.com/janhohenheim/bevy_ahoy/blob/main/src/camera.rs#L139

the issue with this is that right now, moving the stick up looks down (like when controlling a airplane). Using Negate::x() makes moving the stick up look up, at the cost of making the stick to left look to the right

meanwhile, Negate::y() (which is what sounds more correct in this case to my mind) doesn't seem to do anything at all for some reason

Unless I'm doing something wrong here

[frozen spear]

i think i see what the bug is

impl<X, Y, T: Clone> WithBundle<T> for Axial<X, Y> {
    type Output = Axial<(X, T), (Y, T)>;

    fn with(self, bundle: T) -> Self::Output {
        Axial {
            x: (self.x, bundle.clone()),
            y: (self.y, bundle),
        }
    }
}

from bei

.with is decomposing axial into two 1d axes

and putting the same bundle on both

negate x will negate both because both are x

negate y wont do anything

[inner sky]

That took a while to enter my melon

But I get it now, thanks!

Any idea how we could work around it?

[frozen spear]

im not really sure

[inner sky]

There’s probably a way to turn this into a tuple I reckon

[frozen spear]

like the obvious answer is to have a separate method for it, but that leaves the footgun there

i think its interesting that Axial is kinda completely generic

like the fact that you can just use it with pretty much whatever for X or Y

Axial { x: Camera::default(), y: Collider::cuboid(x,y,z) }.with(Transform::IDENTITY) is valid code i believe

lol yeah using this as the bindings block of an action is valid

Bindings::spawn((
    Cardinal::wasd_keys(),
    Axial {
        x: Camera::default(),
        y: Collider::cuboid(0.0, 0.0, 0.0),
    }
    .with(Transform::IDENTITY)
))

i dont know what that means

i think the first step is to constrain it such that it cant be used incorrectly, and only then add api surface to allow configuration in correct intuitive ways

[inner sky]

Hmm yes, this is quite the axis you have there

[inner sky]

I'm even more interested in fixing it downstream so it works for ahoy 😄

[frozen spear]

ahh. in that case just

Axial {
    x: (Binding::from(GamepadAxis::LeftStickX), Negate::x()), y: (Binding::from(GamepadAxis::LeftStickY), Negate::x())
}

remove Negate from the one you dont want negated

although im not really sure cus the docs say

/// Inverts value per axis.
///
/// By default, all axes are inverted.

not sure how that would make sense tbh

[sharp warren]

@inner sky Yes, that's because with just attaches a component to every entity in the present. And during applying, each axis are plain f32.
Presets are the weakest part of BEI. Right now I'm just waiting for BSN to use templates instead 🙂
But I probably could update the docs to clarify it.

[sharp warren]

Wait, I think I know a good solution to it.

[sharp warren]

@inner sky could you try this branch: https://github.com/simgine/bevy_enhanced_input/pull/261 ? It should just work.

[inner sky]

Thx! I can try tomorrow 🙂

[sharp warren]

BTW, are you on 0.17?

[inner sky]

Yep

[sharp warren]

Okay, let's consider this as a bug, so I can draft a new patch release after you test it.

[sharp warren]

Remainder just in case you forgot 🙂

[sharp warren]

@outer wyvern by any chance you missed https://github.com/simgine/bevy_enhanced_input/pull/248 ?

[sharp warren]

Went ahead and drafted 0.20.1 🙂

[outer wyvern]

I did! I was working through my notifications

[sharp warren]

It's quite old (Nov 14), so I decided to ping 🙂

[inner sky]

I indeed forgot, sorry!

Will try to remember to check tomorrow

but it very much looks like it will fix it 🙂

[viscid hazel]

Hi, how can i mock action input?
I read docs, but i have multiple entities with same actions (player, NPCs, etc..):

fn mock_jump(mut commands: Commands, jump: Single<Entity, With<Action<Jump>>>) {
    commands.entity(*jump).insert(ActionMock::once(ActionState::Fired, true));
}

so this jump query can find only one random entity, but i need mock input for specific entity.

p.s. i need this because in bevy_ahoy BEI is only one way to pass orders to char controller.

[viscid hazel]

I figured it out, I'll leave the solution for those who will do something similar:

sysparam for simlicity:

#[derive(SystemParam)]
pub struct SupPawnMovementInput<'w, 's> {
    actions_movement: Query<'w, 's, &'static Actions<ICPlayerMovement>>,
    action_jump: Query<'w, 's, &'static Action<Jump>>,
    commands: Commands<'w, 's>,
}

impl<'w, 's> SupPawnMovementInput<'w, 's> {
    pub fn jump(&mut self, pawn: Entity) -> Result<(), BevyError> {
        let movement_actions = self.actions_movement.get(pawn)?;

        for action_entity in movement_actions {
            let Ok(_) = self.action_jump.get(action_entity) else {
                continue;
            };

            self.commands
                .entity(action_entity)
                .insert(ActionMock::once(ActionState::Fired, true));
        }

        Ok(())
    }
}

system that apply "jump" to some character:

pub fn on_player_jump(
    // .. magic
    mut movement_ctl: SupPawnMovementInput,
) -> Result<(), BevyError> {
    let player: Entity = {..some query code..}
    movement_ctl.jump(player)?;

    Ok(())
}

p.s. this is not best solution, because we need loop over all input actions, but i dont now how do better.

[sharp warren]

If you know which entity you want to mock, you can just iterate over Actions<YourContext> which holds entities of the related actions.
There is also Query::iter_many for convenience: you can pass Actions<C> to it.

[weary maple]

if and when this gets merged
https://github.com/bevyengine/bevy/issues/17647

itl be even easier since you could just do

fn on_player_jump(mut commands: Commands, action: Single<Entity, (With<Action<Jump>>, RelatedTo<ActionOf<Player>, With<Player>>)>) {
    commands.entity(*action).insert(ActionMock::once(ActionState::Fired, true));
}

assuming I understood the proposal right of course

[native pendant]

any example on moviment with "drag" controls on mobile? i.e., touching the left side of the screen and dragging will create Vec2 movement input from the difference of the initial position and the current location of the touch

[sharp warren]

We don't expose touch controls yet :(
But it's very easy to implement.
Just add another variant here: https://github.com/simgine/bevy_enhanced_input/blob/356a439d083c2da4d88ccde8153b4bb66164823a/src/binding.rs#L43
And read it from Bevy here: https://github.com/simgine/bevy_enhanced_input/blob/356a439d083c2da4d88ccde8153b4bb66164823a/src/context/input_reader.rs#L73
If you're interested, I'll be happy to accept a PR. It just requires actually playing with the API to expose actually convenient way to bind touch controls.

[native pendant]

Has anyone ever complained about having Gizmos on a On<Fire<...>> not working?

[sharp warren]

Gizmos is immediate. So the event should fire every frame.

[native pendant]

It is an ActionMock with ActionState::Fired

Span manual

[gleaming falcon]

is there an example of using picking together with BEI for shortcuts?

[native pendant]

E.g., you have 2 sprites right clicking one does one action on it, right clicking on the other does the action on the other, left clicking on one does a different action on it, etc, is that it?

[sharp warren]

Yes, this should fire every frame. Maybe Gizmos can't be drawn from observers. Try using it in a system.

[sharp warren]

No, I think after upstreaming we need to rework picking to use BEI under the hood.

[ionic sundial]

One thing that just tripped me up in BEI is Chord vs Combo. In VS Code, a chord is where I press, say, cmd+k, then wait a bit, then press something else and VS Code picks up the action (see screenshot).

However, in the all_conditions.rs example, the Chord action only fires if you press 8 and 9 at the same time. This tripped me up because of the difference to VS Code.

I don't really mind, because I suspect BEI is using UE terms, but just thought I'd share in case anyone else comes across this.

[sharp warren]

Yeah, it’s named after the corresponding modifiers in UE.
But we don’t have to stick to their naming. Could you open an issue?
I’m not a native speaker, so I’ll leave it up to @outer wyvern to decide 🙂

[ionic sundial]

Sure I can open an issue but my current feelings are that I’m not that fussed. If we discover every input system and app out there prefers Chord to mean what it means in VS Code, then maybe you might change it, but if not, it may just be worth keeping in mind and/or documenting further.

@sharp warren I've made a Toggle condition. Here's the gist: https://gist.github.com/mgi388/da68cb3e8fe42ee54326f9bb381a1966. Happy to PR this, or someone else to do it, but I'm still proving that this does what I want for my own use case (and tidying up an example), so haven't done it yet.

One question I had is regarding BEI users and whether they should prefer to mutate a condition (like Toggle), or if they should mutate the ActionState. To elaborate: When an action is toggled on, the BEI user may eventually wants to programmatically toggle the action off. There are two options:

1. They could query &mut Toggle and set t.toggled = false, or;
2. They could set the action entity's ActionState to ActionState::None (which is what Toggle's evaluate function ultimately does underneath when the toggled member is false.

cc @inner sky because you wanted Toggle too.

[edgy shuttle]

To me, chord is natural because of the meaning in music (multiple notes played together)

that's what I've assumed the name comes from

[sharp warren]

Looks useful!

About mutation, I'd expect to mutate Toggle if needed. This will be consistent with other conditions and modifiers.

[frozen spear]

the notes of a chord dont necessarily have to be played simultaneously (ex. strumming) or even overlapping (ex. arpeggio) for it to be a chord technically

anyways it would be funny to take the music analogy further and call vs code's notion of chords "melodies"

[sharp warren]

So yeah, feel free to PR. The snippet looks good!
But a quick note - I prefer to avoid commenting asserts. Just my preference 🙂 2 reasons:

1. You can write a panicking message. So this:

// Initially off
assert_eq!(
    condition.evaluate(&actions, &time, 0.0.into()),
    ActionState::None
);

Can be written like this:

assert_eq!(
    condition.evaluate(&actions, &time, 0.0.into()),
    ActionState::None,
    "Should be off initially"
);

2. In most cases it's obvious what's happening. Like in the example above. So I most cases I omit messages entirely. There is no need to duplicate Rust in English 🙂

[ionic sundial]

Agreed, will adjust that before the PR. Thanks for the pre-review!

[inner sky]

yes indeed, thanks 😄

[outer wyvern]

My experience with "chord" is from piano and music, where all elements are played at once

[fast jasper]

IMO chord generally means "a bunch of things at once". This is true for music, emacs, etc. whereas a "combo" is a series actions in succession (like a fighting game).

I think vscode is an outlier here, and it has been documented in their issue tracker as being weird multiple times, with the ultimate reasoning being "we're going to continue stretching the meaning of the word": https://github.com/microsoft/vscode/issues/155556

emacs chord reference: https://www.emacswiki.org/emacs/Chord#chord

[ionic sundial]

Thanks for doing that research, that's really useful to know it's possibly an outlier in this regard.

[sharp warren]

Interesting, thanks for the clarification!

@ionic sundial should we close the issue?

[ionic sundial]

Yup just close. Feel free to link Chris’ reply too if you like.

[ionic sundial]

@inner sky a while back you asked about NPCs and input mocking things. #1297361733886677036 message

Is your thinking there that if an NPC can jump, then you also give it BEI components, and notably a Jump action. But you drive the state of that action not from bindings but from an ActionMock? So if you have some AI script thing that says the NPC is meant to jump now, you'd handle that part of the script by adding an ActionMock to the NPC's action entity?

And either your generic Jump handlers/systems would kick in to make the NPC jump (just as the player jumps), or, if NPCs had a different behavior for jumping maybe there are some slightly different jump handling systems for those.

I think it's an interesting approach that I hadn't really thought of. I tend to think of my BEI components and actions as existing on a "Player" entity, of which there's generally only one (ignore multiplayer things).

My use case is an RTS, and I currently have actions on a "Player" entity, and it represents what you can do to the selected unit only. But I'm thinking whether it makes sense for every unit to have all these actions as well, and to drive the enemy units using mocked values (coming from AI scripts, etc.).

[spice knot]

I'm getting an error when trying to use a re-exported version of this crate.

I'm trying to define an InputAction:

use my_crate::enhanced_input::prelude::*;

#[derive(InputAction)]
#[action_output(bool)]
pub struct HoldBreath;

issue is the macro tries to reference ::bevy_enhanced_input::prelude::InputAction which doesn't work because InputAction now lies under ::my_crate::enhanced_input::prelude::InputAction, can't the macro just refer to InputAction directly as it should be inscope if one uses the macro?

[sharp warren]

It's considered a bad practice to rely on things in scope because macro just substitutes text.

[spice knot]

Is there any way to get around this error other than changing the reference then?

[sharp warren]

I don't think it's possible. You need to depend on the crate directly.

[spice knot]

Or what if the reference was changed to bevy_enhanced_input::prelude::InputAction instead, this way it would generally always target the crate but in my case I could write

Use my_crate::enhanced_input as bevy_enhanced_input

[sharp warren]

But why you even do something like this?

[spice knot]

I want to define the version of an external crate in the crate I use it in and then export all external crates for use in crates that depend on it so I have one place that defines the external crates version for all dependencies

[sharp warren]

It's possible, but uncommon. In macro references usually done via ::path::to::something to avoid clushing. Even though it's unlikely to have a module called std or bevy_enhanced_input.
So I'm not sure.

[sharp warren]

I'd suggest to avoid doing so. Bevy itself also until recently re-exported ron. But removed the re-export and asked users to define the crate in Cargo.toml
If you want to avoid duplicating your deps, you can use workspace.dependencies.

[spice knot]

Workspace dependencies feel so clunky but I guess I have no choice

(because what if I want to reuse crates in a different project or publish them independent of their workspace)

[sharp warren]

I don't know, to me crate_name::subcrate::thing_you_need is worse than thing_you_need.
For similar reasons Bevy no longer re-exports ron. Or never re-exports something like serde.

[frozen spear]

whats the status on upstreaming?

[sharp warren]

Alice got sick, so she didn't have time for upstreaming. But I think we'll try to upstream it for 0.19.

[frozen spear]

cool

so its ready

[sharp warren]

We think so, yeah

[sharp warren]

@outer wyvern could you review these 2?
https://github.com/simgine/bevy_enhanced_input/pull/262
https://github.com/simgine/bevy_enhanced_input/pull/269

[outer wyvern]

Aye-aye. Release is out, so now we can pester Alice I see :p

[zinc cliff]

I'm a bit confused on how you could bind both mouse_motion and Axial::left_stick() to the same action

Like I'm trying to do:

(
    Action::<CameraRotate>::new(),
    Bindings::spawn((
        Binding::mouse_motion(),
        Axial::right_stick(),
    ))
),

Oh never mind, as soon as I find an example with it...

(
    Action::<Rotate>::new(),
    Bindings::spawn((
        // Bevy requires single entities to be wrapped in `Spawn`.
        // You can attach modifiers to individual bindings as well.
        Spawn((Binding::mouse_motion(), Scale::splat(0.1), Negate::all())),
        Axial::right_stick().with((Scale::splat(2.0), Negate::x())),
    )),
),

[sharp warren]

Will be simpler with BSN 🙂
Spawning hierarchies in Bevy is not super convenient right now.

[floral vector]

Just switched my control scheme over and am still trying to familiarize myself. How do I distinguish between a button push and a button hold?

I know it's probably in conditions.

[sharp warren]

You just assign a condition and the action will trigger when you want.
For example, If you want hold - attach Hold condition. If both - create 2 separate actions, one for hold and one for push.

[ionic sundial]

@sharp warren Any chance you've come across this?

.../index.crates.io-1949cf8c6b5b557f/bevy_enhanced_input-0.20.1/src/condition/fns.rs:48:50:
called `Result::unwrap()` on an `Err` value: QueryDoesNotMatch(593v0, ArchetypeId(876))
stack backtrace: <snip>

Link to BEI source code

I don't have a repro, and I couldn't find an existing issue or bugfix in newer versions.

This is happening in 0.20 after upgrading from 0.18 to 0.20 as part of my project's Bevy 0.16 -> Bevy 0.17 upgrade.

Not 100% sure, but I think it's happening when I do a state transition (in this case I tried to end my battle which transitions to a different state).

Don't think it's useful, but link to the full stack trace: https://gist.github.com/mgi388/27afa2a24d78e6f2cbc271f69c2877a6

[sharp warren]

This should never happen 🤔
If a condition is removed, it should've been previosly added.

[ionic sundial]

I do lots of DespawnOnExit BTW, including on my BEI player entities.

app.add_systems(OnEnter(Battle), setup_battle_player);
app.add_systems(OnExit(Battle), teardown_battle_player);

// ...

fn teardown_battle_player(mut commands: Commands, player: Query<Entity, With<BattlePlayer>>) {
    let Ok(player_entity) = player.single() else {
        error!("Battle player not found"); return;
    };

    commands
        .entity(player_entity)
        .remove_with_requires::<BattlePlayer>() // necessary to fully remove the context
        .despawn_related::<Actions<BattlePlayer>>();
}

I checked the end of the stack trace which I missed when uploading, but it has:

Encountered a panic when applying buffers for system `engine_battle_player::teardown_battle_player`!
Encountered a panic in system `Pipe(bevy_state::state::transitions::last_transition<engine_battle_state::Battle>, bevy_state::state::transitions::run_exit<engine_battle_state::Battle>)`!

So I wonder if the remove_with_requires and/or despawn_related possibly combined with DespawnOnExit is creating some bad state in the ECS/BEI.

[sharp warren]

I wonder why entity might not exist at this point 🤔
On each action and binding we basically store a special component with ordering. And the observer fails to access it.
It's an easy fix, just turn it into if let, but I wouldn't expect this to happen... That's why I simply unwrapped.

[sharp warren]

Drafted a patch release with a new feature: automatic state activation/deactivation based on states.

[ionic sundial]

@sharp warren while continuing my upgrade to Bevy 0.17 I have another weird bug. Again, I don't have a repro sorry, but thought I'd see if you have any ideas off the top of your head. Sometimes when I load my game my context actions appear to be missing. By that I mean: There is an entry in the Actions<C>.entities Vec but there's no actual entity there. Further, sometimes some of the actions are there, but not all of them. Some egui inspector screenshots should help illustrate.

Look at my GlobalPlayer context's Actions (first screenshot). 7 entries, but no entity data. The GlobalPlayer actions are spawned like this and there's no dynamic disabling or removal of entities on my side, and recall that sometimes they're there.

If we look at another of my contexts that exists at the same time, DeploymentPlayer, we see that there's one of the actions there, but the others are just empty entries (second screenshot). The DeploymentPlayer actions are spawned like this. Now, these actions do have some DisabledOnEnter/EnabledOnExit components so I can disable them depending on the state, but I don't think this is related because a) GlobalPlayer doesn't do this and b) RepositionToCursorOrderAction looks the same as all the others, and from the second screenshot you can see this action shows and c) I also disabled these side effects of these components and it still happens.

Again, sorry I don't have a repro yet and I doubt you can do much, but thought I'd ask if anything stands out to you. I don't see any panics or error logs either. Just sometimes it works, sometimes they appear broken. If the entities themselves looked fine I'd probably think system ambiguity, but because of the broken actions it looks like something else. This is [email protected] and [email protected].

[sharp warren]

This is super weird 🤔
It feels like the spawning of related entities is broken.
I've never encountered anything like this before. The only cause I can think of is a duplicate Bevy dependency. Could you check that?

[ionic sundial]

Yep I checked. No duplicate dependency.

It definitely is strange. Very likely could be user error of course. It’s just suspicious that 0.16 was fine.

I’m not using the macro in the snippets above. I could try switching to the macro just in case that is it.

[sharp warren]

You could try, but I'd expect it to to be the same 🤔

[ionic sundial]

Yeah I figured too.

[sharp warren]

Can you try updating to 0.18?

[ionic sundial]

I can eventually, but waiting on some deps so it’s not easy yet.

That said, it’s fine. Just thought I would check if you had any obvious clue why it could be broken. My next steps is to start to break it down into minimal repro, or I might see if I can update the remaining 0.18 deps myself.

[sharp warren]

You can try updating the deps to 0.18 or see if they were already updated by someone and use these branches.

[ionic sundial]

Yep I’ve got a tracking issue of all outstanding deps. There’s just a few like bevy_mod_scripting that might be hard for me to do so I’ve typically just waited.

[sharp warren]

Ah, bevy_mod_scripting is quite complex. But update from 0.17 to 0.18 is very simple. We didn't get many breaking changes this time. So I'd give it a try, it might be just a version bump.

[ionic sundial]

This still happens in Bevy 0.18 BTW:

.../.cargo/registry/src/index.crates.io-1949cf8c6b5b557f/bevy_enhanced_input-0.22.2/src/condition/fns.rs:48:53:
called `Result::unwrap()` on an `Err` value: QueryDoesNotMatch(611v0, ArchetypeId(795))

If I change this in my teardown function:

commands
    .entity(player_entity)
    .remove_with_requires::<BattlePlayer>() // necessary to fully remove the context
    .despawn_related::<Actions<BattlePlayer>>();

to this:

commands
    .entity(player_entity)
    .remove_with_requires::<BattlePlayer>(); // necessary to fully remove the context
// .despawn_related::<Actions<BattlePlayer>>();

(i.e., remove the despawn_related call)

It doesn't crash. And for completeness, removing remove_with_requires, but keeping despawn_related also crashes.

Still striving to get a repro for you but wanted to share an update re still not working in Bevy 0.18 (have only just upgraded / in the middle of it).

[ionic sundial]

Also just noting this one still exists in Bevy 0.18 as well. That is, actions missing sometimes / Actions<C>.entities Vec containing entries with invalid/missing entities.

[sharp warren]

This is weird. Could you try to create a minimal repro for both?

[ionic sundial]

@sharp warren I believe I have a repro for this one: https://github.com/simgine/bevy_enhanced_input/pull/279 See PR description for more info.

[sharp warren]

Thanks, I'll fix it today after work!

[ionic sundial]

@inner sky if you're looking for a wall of text to read now that you're back, I'm keen to hear your thoughts on this. But if you're too busy or not interested, all good!

[inner sky]

yep that's precisely it 🙂

though because BEI / Bevy have no good input buffering story, I need some intermediate representation anyways (to keep the input around until the next fixed update)

so as a consequence in my API, you can still opt to not use mocks at all and directly modify that cache

[ionic sundial]

Yeah I saw your repo where you accumulate the input and I was inspired by that to do the same.

[inner sky]

let me know how it works for you 😄

I'm also curious to see how this scales in the long run!

[ionic sundial]

Will do! I'm still doing lots of massaging and will start doing some reworking soon to store actions per unit rather than on the "player".

[sharp warren]

@ionic sundial fixed: https://github.com/simgine/bevy_enhanced_input/pull/280

[inner sky]

@sharp warren is there a cleaner way to mock a specific action?

fn set_controller_velocity(
    mut agent_query: Query<(&Agent, &Actions<NpcInputContext>)>,
    mut action_mocks: Query<&mut ActionMock>,
    desired_velocity_query: Query<&LandmassAgentDesiredVelocity>,
    global_movements: Query<(), With<Action<GlobalMovement>>>,
) {
    for (agent, actions) in &mut agent_query {
        for action in actions {
            let Ok(mut mock) = action_mocks.get_mut(action) else {
                error!("Failed to get action mock");
                continue;
            };
            if global_movements.contains(action) {
              // use mock
            }
        }
    }
}

if no, would you mind if I upstreamed an analogue to seedling's get_effect?

Maybe something like

fn set_controller_velocity(
    mut agent_query: Query<(&Agent, &Actions<NpcInputContext>)>,
    mut action_mocks: Query<&mut ActionMock>,
) {
    for (agent, actions) in &mut agent_query {
        let mut mock = action_mocks.get_mock::<GlobalMovement>(actions).unwrap();
        // use mock
    }
}

[sharp warren]

There is iter_many_mut which should be a bit more ergonomic 🤔
So you just iter_many_mut(actions).next()

I would really prefer to have a better generic solution built into Bevy, but I don't mind adding a trait extension in the meantime 🙂

[inner sky]

you forget, iter_many_mut does not have the same ergonomics as iter_many

that bit me many times too

oh, though in this case it doesn't matter

[inner sky]

hmm nvm, that doesn't play too well with the fact that it needs to be GlobalMovement

iter_many_mut cannot be chained into filter

[sharp warren]

Yeah, it's not an iterator :(

[inner sky]

fn set_controller_velocity(
    mut agent_query: Query<(&Agent, &Actions<NpcInputContext>)>,
    mut action_mocks: Query<(Entity, &mut ActionMock)>,
    desired_velocity_query: Query<&LandmassAgentDesiredVelocity>,
    global_movements: Query<(), With<Action<GlobalMovement>>>,
) {
    for (agent, actions) in &mut agent_query {
        let mock = action_mocks
            .iter_many_mut(actions)
            .fetch_next()
            .filter(|(e, _)| global_movements.contains(*e))
            .map(|(_, mock)| mock)
            .unwrap();
    }
}

this ugly duckling works

[sharp warren]

This will get only the first action

[inner sky]

oh snap

you're right

bleh

[sharp warren]

So yeah, if you want eronomically get action X for context Y, we need either better Bevy support for it, or do something custom.
I heard we're getting hierarchy queries in the next release, though 🤔

[inner sky]

This?

fn set_controller_velocity(
    mut agent_query: Query<(&Agent, &Actions<NpcInputContext>)>,
    mut global_movement_mocks: Query<&mut ActionMock, With<Action<GlobalMovement>>>,
    desired_velocity_query: Query<&LandmassAgentDesiredVelocity>,
) {
    for (agent, actions) in &mut agent_query {
        let mock = global_movement_mocks.iter_many_mut(actions).fetch_next().unwrap();
    }
}

Pinging @brittle swallow because you also care about this

[sharp warren]

This would work

[inner sky]

(e.g. what bevy_seedling does seems like an excellent upstreaming candidate, though not exaaaactly what we need here)

[inner sky]

nope, good old "temporary value dropped while borrowed"

fn set_controller_velocity(
    mut agent_query: Query<(&Agent, &Actions<NpcInputContext>)>,
    mut action_mocks: Query<&mut ActionMock, With<Action<GlobalMovement>>>,
    desired_velocity_query: Query<&LandmassAgentDesiredVelocity>,
) {
    for (agent, actions) in &mut agent_query {
        let mut iter = action_mocks.iter_many_mut(actions);
        let mut mock = iter.fetch_next().unwrap();
    }
}

oof this is suboptimal

not your fault ofc

that's just missing ergonomics in the ECS

[inner sky]

@sharp warren is this syntax fine for you as an upstreaming solution until we have something better builtin?

Oh, while on the topic: how do you feel about implementing Default for ActionMock?

[sharp warren]

Yeah! We can remove it once not-needed. Not a big maintenance cost.
Another option to consider: make this API event-based.

[inner sky]

could you elaborate?

[sharp warren]

Good idea. I'd probably would even make it required component for actions. So we won't have archetype moves when we want to mock.

[inner sky]

asking because I have to spam a ton of these guys for all my actions:

ActionMock {
    state: ActionState::None,
    value: Vec3::ZERO.into(),
    span: MockSpan::Manual,
    enabled: false
}

[inner sky]

that would be excellent

is same PR alright?

"improve mock ergonomics"

[sharp warren]

Instead of adding an extension trait, we can create a special event that targets context and specifies the action we want to mock.

[inner sky]

👀 I like the way you think

[sharp warren]

Up to you, both separate and the same PR fine by me 🙂

[inner sky]

that would have lovely semantics

[sharp warren]

Yeah, easier to write. You just add Commands to your system.

[inner sky]

fn set_controller_velocity(
    mut agent_query: Query<(Entity, &Agent)>,
    mut commands: Commands,
) {
    for (context, agent) in &mut agent_query {
        commands.trigger(
            Mock {
                context,
                ActionMock::new(...)
            }
        );
    }
}

like this?

[sharp warren]

Yep!

[sharp warren]

Wait, you also need action type

[inner sky]

hehehe, I was about to ask "how do you feel about ActionMock::once?"

apparently you feel good about adding that 😄

[inner sky]

oh right

that could be a generic

[sharp warren]

We won't be able to observe this way 🤔

[inner sky]

heck

you're right

[sharp warren]

It needs to be dynamic.

[inner sky]

commands.trigger(
    Mock {
        context,
        action_type: GlobalMovement.type_id(),
        ActionMock::new(...)
    }
);

would that work?

it's surely ugly

[sharp warren]

Just make the constructor generic

[inner sky]

oh good idea

[sharp warren]

I.e. you pass the type into constructor and it stores the TypeId internally.

[inner sky]

If you don't mind currying, this would even work: (sec)

[sharp warren]

You will need to convert TypeId into ComponentId via type registry

[inner sky]

commands.entity(context).trigger(
    Mock::new::<GlobalMovement>(ActionMock::once(...))
);

[sharp warren]

And later find an entity in Actions that stores type

[inner sky]

where Mock::new actually returns an Fn

[sharp warren]

Wait, Actions is generic 🤔

[inner sky]

ah heck

you know what, I'll do the extension trait for now

I bet there's a neat design here that can be dug up

but we can still switch to it later

[sharp warren]

Wait, I think I have an idea.
We can have a custom command. It can be fully generic.

[inner sky]

You'll have to help me out here for sure haha

[sharp warren]

commands.mock

[inner sky]

ooooooh

[inner sky]

commands.entity(context).mock::<GlobalMovement>(ActionMock::once(...));

[sharp warren]

It's easy to implement. We just need to create a struct MockCommand and implement Command trait for it. The struct will be generic over action and context.
And finally you add an extension trait for Commands to do mock.

Yeah, something like this.

But you need to write both context and action type.

[inner sky]

oh yep

commands
  .entity(context)
  .mock::<NpcInputContext, GlobalMovement>(ActionMock::once(...));

[sharp warren]

For example you can take a look at something like AddChild in Bevy

It's also a custom command.

[inner sky]

yeah I know about those, I was thinking in the wrong direction earlier 😄

alright I can do that

brb coding it up

@sharp warren this would require : Reflect for the involved input action and input context

which is fine by me

just mentioning

or well, at least Any

[sharp warren]

Why so? If the command is generic, you should know the type at compile-time.

[inner sky]

but I need the type_id for a dynamic query

or hmm

[sharp warren]

You needed it for event because we can't observe such event without registration

[inner sky]

if it's generic, I don't need a dynamic query at all

you're right

[sharp warren]

But it's not the case for command. If your struct is generic, you don't need dynamic queries

[inner sky]

@sharp warren the test fails for some reason, but is this the right shape? https://github.com/simgine/bevy_enhanced_input/pull/282

[sharp warren]

Yep!
A few suggestions:

• I think you can just world.get::<Actions<C>> if you place it after the query_filtered.
• I'd use C for context type and A for action type for consistency.
• Could you rename _pd into marker? Just for consistency with the rest of the codebase.
• I'd rename the test into simply entity_command.

Also, maybe do mock_once command as well?

[inner sky]

on it

[sharp warren]

Instead of this

.mock::<TestContext, Test>(ActionMock::once(ActionState::Fired, true));

do this:

.mock_once::<TestContext, Test>(ActionState::Fired, true);

And .mock can look like the default constructor. To avoid typing ActionMock

[inner sky]

good idea 🙂

[inner sky]

check again

Now why is it not actually mocking anything

the places with ? are all returning Ok

Oooh

It has a one frame delay like this

One update to queue the command, one for applying the mock

Hrmm

Got any wisdom?

[sharp warren]

Ah, of course. It's because you using commands on the world. It's fine.

[inner sky]

Fair enough

[sharp warren]

Maybe we need to implement this extension trait for both world and commands. I did similar thing in Replicon.

[inner sky]

it would still take 2 frames in userland code, no?

[sharp warren]

On second though, it's not that useful on the world 🤔

[inner sky]

i.e. when calling it in a system

[sharp warren]

No, with the world impl it will work immediately.

If you won't use commands() 😅

[inner sky]

yeah I meant in a regular system that uses Commands

oh, no

[sharp warren]

Hm, no sure tbh

[inner sky]

no it wouldn't

since the ActionMock will be handled the next frame by BEI

all good

then I'm happy with it 🙂

my doc example is not quite right, gonna fix that

also, IIRC we agreed that consuming inputs should be false by default, right?

[sharp warren]

I don't remember agreeing on this 🤔

[inner sky]

been a while haha

[sharp warren]

I think it will be less confusing for users 🤔

[inner sky]

I walked right into a footgun with Ahoy due to the input consumption where I bind multiple things to the same key by default

so I right now have to tell consumers "please make sure to set that to false"

[sharp warren]

Yeah, not great.

[inner sky]

I can do a second PR for that

[sharp warren]

Okay, let's do this!

A tiny question on the current PR. Do we need to panic there?

[inner sky]

IMO yes: this is something that is unreachable

using a Result there would be the wrong semantic

ideally this would be rewritten so that the type system knows this fact

but idk how without having a multiple borrow

(assuming you mean the .expect())

[sharp warren]

Ah, right!
I'd only suggest to change the messages a little:

• Include actual type to make them more clear.
• Start messages with a non-capital letter (both panics and errors). That's how it's done in the crate and that's what Rust std lib does.

[inner sky]

How do I get the actual name?

[sharp warren]

Just use ShortName

Check other places in the crate for usage examples

[inner sky]

the expect needs to stay like that because World is a type, and Rust recommends that style for expect ("I expect that blablabla")

but alright for the others 🙂

[inner sky]

TIL, that's neat

[sharp warren]

If it's a type, I'd wrap it into `
And what do you think about

expect('ActionMock' already found on this entity)

Can't use ` inside code fences, weird 😅

[inner sky]

good idea!

done

PR should be good now

[sharp warren]

Maybe move ActionMock and the extension trait into a separate mock module under action?

[inner sky]

can do

[sharp warren]

Looks good, I'll make a proper review pass (just in case) today later because I'm currently at work 🙂

[inner sky]

done

[inner sky]

sounds good! I'll do the other PR now

done: https://github.com/simgine/bevy_enhanced_input/pull/283

let's hope all tests pass without a change hehe

[sharp warren]

Doubt it 😅

[inner sky]

I'll keep my hopes up

[inner sky]

you were right, of course

aight, fixed those

nothing dramatic

PR ready too 🙂

[sharp warren]

Great, I'll take a look later today 🙂

[sharp warren]

Reviewed, thanks!
Once merged, I'll draft a new release.

[inner sky]

@sharp warren I've addressed everything except this:

I'm looking at the Bevy code for EntityCommand and looks like they do it differently nowadays. The idea is to create an extension trait for EntityWorldMut first with mock and mock_once. And then create a function that returns a closure that simply calls this method. And finally create an extension trait for Commands that queues this function. This way you have a convenience for both Commands and direct world access.

could you point me to the code in the Bevy codebase you're referencing?

I fail to understand what exactly you mean

[sharp warren]

Sure!
Take a look at this module:
https://github.com/bevyengine/bevy/blob/5925b1925841149a6df99beda0c4d831c53d4556/crates/bevy_ecs/src/system/commands/entity_command.rs#L112
Their entity commands are just plain functions.

So instead of having a struct, you just implement your extension trait for ⁨EntityWorldMut⁩ that does the thing directly.
And just create a function that returns ⁨EntityCommand⁩.
And finally implement the extension trait on ⁨Commands⁩. This way you have both: command and entity API.

Feel free to ask questions if anything is unclear.

@outer wyvern I noticed you approved all PRs except https://github.com/simgine/bevy_enhanced_input/pull/280
By any chance you missed it?

[inner sky]

aah perfect, thanks!

will implement that later

[sharp warren]

Made a few tiny changes, see commits. Let me know if you want me to handle the suggestion about commands.

[inner sky]

just saw it, thx

I'll be going to IKEA now, so feel free to implement it if you happen to have time 🙂

otherwise I'll do it when I return

[sharp warren]

I'm also need to go rn 😛

[inner sky]

hehe

[outer wyvern]

Missed it; not back at work so the notification sampling is random

[sharp warren]

Got it, sorry for bothering!

[ionic sundial]

@sharp warren we're missing these register_types (first screenshot) (they're not automatic because of generic type parameters). But to do that we need to add the + TypePath constraint (second screenshot). Which means deriving TypePath on contexts (third screenshot).

Would it be OK to PR this change like this? It would force everyone to add TypePath to their context components. But because the BEI crate doesn't yet have a conditional bevy_reflect feature (or reflect, whatever the name), it would be a bigger change to introduce that feature at the same time.

I guess it's probably going to be better to first introduce a reflect feature before making this change, isn't it...

Use case: self.register_type::<Actions<C>>();, for example, lets me look at and expand the actions in my inspector.

[sharp warren]

Ah, yes, requiring ⁨TypePath⁩ is exactly why I didn't call ⁨register_type⁩.
I think requiring ⁨TypePath⁩ will reduce the ergonomic. I don't like deriving ⁨TypePath⁩ for every context 🤔

[ionic sundial]

I guess I can continue to do this in user land, it’s just less convenient.

Alternatively, I guess a BEI reflect feature would avoid forcing everyone to derive TypePath unless they want to enable that feature.

[sharp warren]

I don't know, I think it's convenient to have reflect enabled to see things like ⁨⁨ActionValue⁩⁩, but at the same time requiring contexts to implement ⁨⁨TypePath⁩⁩ is a bit invasive...
Maybe we can have an alternative registration methods as a workaround? 🤔
Could you open an issue to discuss this with others?

[ionic sundial]

Yeah I’ll open an issue. I personally don’t think it’s invasive to have to derive reflect or typepath on my components. All of my components derive reflect as a matter of course anyway (I need to do this so I can use an inspector) and you have to derive typepath on asset loaders to make them work as well, so it’s no big deal IMHO to have to do this.

And yeah a second trait method is also an option (and is what I am currently doing in user land).

[ionic sundial]

Also you probably have way more components in your game than you have context components so I suspect there’s only a handful of context types most games would ever have to add TypePath to.

All that said, if it was conveniently gated behind a feature then maybe everybody wins.

Will make an issue later.

[sharp warren]

I agree that having ⁨#[require(Component, TypePath)]⁩ (or ⁨Reflect⁩) is not a big deal, but feels a bit wrong to require this... 🤔
Let's discuss this in a issue. I can't say which solution I would prefer.

But we definitely should make reflection optional, it's 100% a good start.

[inner sky]

I would personally also prefer contexts be type path, it seems very acceptable in practice

[inner sky]

done

[sharp warren]

Thank you!

I need your opinion 🙂
If we return ⁨⁨Err⁩⁩ from ⁨⁨Command⁩⁩, the app will panic, right?
Do you think it's desirable? This doesn't sound like a critical error to me, maybe just log a warning if there is no such action?
I found panics in gamedev quite annoying for development 😅 A warning would allow me to inspect the entity in the inspector. Once we get editor, this may become even more desirable.
Another advantage is that we'll able to have a single extension trait for both ⁨⁨EntityWorldMut⁩⁩ and ⁨⁨EntityCommands⁩⁩.

[inner sky]

No! It will call the default error handler, which is slated to respect error levels (critical, warn, info, etc)

so the general advice right now is to expose as many things as possible as ⁨Result⁩s so that the error handler has the power to handle them accordingly

and since panicking is crap, most people right now should switch the default error handler from panic to log imo

but that's an on ongoing ECS design thing

so IMO we should definitely return a ⁨Result⁩ there

any panics resulting from that are not a BEI fault, but a default error handler fault

last few times this was discussed, the outcome was "don't assume ⁨Err⁩ == panic for your designs"

[sharp warren]

Ah, right, thank you!!

[inner sky]

the one place where we did an exception for this was ⁨Single⁩, which should return a ⁨Result⁩

but its panickyness was already changed a few times

and it's very very likely that when we have error levels, it will go back to warnings or being ignored again

[sharp warren]

Yeah, I'd expect it to ⁨Result⁩, tbh

Very error-prone right now

[inner sky]

so in order to not have it switch yet again, we decided to wait with that

[sharp warren]

Makes sense 😅

[sharp warren]

@inner sky Thank you a lot! Love this API.

Pushed a few minor changes from my side 🙂

[inner sky]

LGTM 👍

thx

[sharp warren]

Once merged, I'll draft a new release

@thick kiln I need your answer on https://github.com/simgine/bevy_enhanced_input/pull/266#discussion_r2657711427 🙂
To put it short, I think you simply can add ⁨where⁩ in your code instead and it should just work since the action is already serializable.
I just think it's might be a better place to do so.

[thick kiln]

let me check; so the PR is not needed?

[sharp warren]

Yeah, I think so 🙂
Unless you're working with generic functions over ⁨InputAction⁩, but in this case I'd just add ⁨where⁩ in your code.

[outer wyvern]

@sharp warren I've given you a couple of reviews now 🙂

[sharp warren]

Awesome, thanks!

[ionic sundial]

https://github.com/simgine/bevy_enhanced_input/issues/285

[sharp warren]

I have been thinking... We probably should go with the ⁨TypePath⁩. I think it's a lesser evil.
If you open a PR, I'll bless it.

But we need to mention it in the quick start guide.

[ionic sundial]

Ok sounds good I’ll take a look at it. I can update the docs and quick start guide.

[ionic sundial]

@sharp warren @inner sky I started using the new mock_once but I've come across an issue I'd like to get your thoughts on: After usingmock_once, bevy_enhanced_input unconditionally sets enabled = false after expiry, breaking AI-controlled actions.

Use case: I'm using ActionMock for AI-controlled units. When spawning actions, I use ActionMock::new(ActionState::None, false, MockSpan::Manual) to keep the mock enabled (so AI can drive the action). When a unit is player-selected, I set enabled = false so real input bindings work. When deselected, I restore enabled = true for AI control.

The problem: When I call mock_once() to trigger an AI action, after the mock span expires, the code in context.rs sets mock.enabled = false. This makes the AI lose control. The action returns to "player-controlled" state instead of staying in "AI-controlled/mocked" state.

Any ideas? Could ActionMock support restoring to a configurable enabled state after expiry (rather than always false)? For example, a restore_enabled: bool field, or treating MockSpan::Manual differently since it already implies manual lifecycle control?

[sharp warren]

I'd expect AI to regain the control after user. I.e. give a different value.

[ionic sundial]

Yeah I guess it can be controlled in user-land. I'm doing this at the moment. Not sure if this will scale / will reveal any future design issues, but this seems to work for now:

app.add_observer(restore_action_mock_after_complete::<CancelOrderAction>);

fn restore_action_mock_after_complete<A: InputAction>(
    complete: On<Complete<A>>,
    mut commands: Commands,
    unit_query: Query<(), Without<UnitSelected>>,
) {
    // If the unit is not selected (i.e., AI-controlled), restore the action
    // mock. If we don't do this, the action mock remains disabled and the AI
    // ends up responding to bindings meant for player-controlled units.
    if unit_query.get(complete.context).is_ok() {
        commands.entity(complete.action).insert(ActionMock::new(
            ActionState::None,
            false,
            MockSpan::Manual,
        ));
        trace!("Restored AI mock for action");
    }
}

[sharp warren]

I'm not sure if I get it. Why you reset the mock?

[ionic sundial]

The units in the game all have an action context, and of course a set of action entities related to it. Now, by default I add an ActionMock to all of those actions (with enabled=true). This is so that the non-player controlled units do not respond to bindings/input.

When the player selects a unit, I change that entity/unit's actions and set the ActionMock.enabled=false. This is so that the selected unit can now respond to player input/bindings.

Now, to test some really simple "AI logic", I added a system that does this every 1s:

// Get a random non-player controlled unit.
//
// Call "mock_once" to simulate AI logic where the unit is canceling its current order.
commands
  .entity(unit_entity)
  .mock_once::UnitInputContext, CancelOrderAction>(ActionState::Fired, true);

This works as expected. However, once BEI is done executing this mock, and it has expired, BEI sets the ActionMock.enabled=false (per the context.rs link I shared above).

But now refer back to the start of this message: "I add an ActionMock to all of those actions (with enabled=true)". I need the AI units to have their ActionMock.enabled=true so that they don't respond to player input/bindings, but BEI just set it to false!

Is that a bit clearer?

[sharp warren]

Ah, I get it now!
Yes, right now I'd probably reset it like this.
I wouldn't expect the old state to be restored 🤔

[ionic sundial]

I could imagine a BEI API like:

commands
  .entity(unit_entity)
  .mock_once::UnitInputContext, CancelOrderAction>(ActionState::Fired, true)
  .and_then(OnActionMockExpired::SetEnabled);

(this is just pseudo-code, no idea how the API should actually look here, e.g., it could just be another arg to mock and mock_once)

I think part of the reason there is a tension here is that mock_once and mock are sending off non-zero values for the action mocks (and with enabled: true to indicate the mock should now be in effect). But I'm trying to have the default state of the actions with an action mock that also has enabled: true, but with zero values for the action mock.

Said another way, it feels wrong to me that BEI unconditionally sets enabled=false once the mock has expired, because using the mock as an "always on" (i.e., with enabled: true), but sometimes with non-zero values seems like a valid thing to do.

Happy to be proved that this is the wrong thinking though.

[sharp warren]

The purpose of mock is to force specific value. Once the span expires, the component disables itself. I disable it instead of removing to avoid archetype moves.

I'd probably suggest to rethink the strategy itself. I think and_then is a bit too opinionated. But you can build an abstraction like this in your code, of course.

[ionic sundial]

I think and_then is a bit too opinionated
Yeah it was just pseudocode to illustrate callers trying to say "restore ActionMock.enabled"

[sharp warren]

I understand, I mean I'm not sure about adding a configurable condition like this...
But I can add an event that indicates the mocking is over. What do you think?

Might be more convenient to attach your logic this way.

[ionic sundial]

Ah got you, my bad. I thought you were commenting on the specific syntax.

[ionic sundial]

An event sounds like it could be more declarative / clearer intent for what the user-land "restore" code does (compared to my current approach relying on the Complete event).

[sharp warren]

And a bit more efficient. I think having an event for this is useful in general. Feel to open a PR or an issue.

[ionic sundial]

I am also happy to keep thinking about this and seeing if my design should be reworked though.

[ionic sundial]

@inner sky I wonder if we could have try_ versions of entity commands mock and mock_once (by using queue_silenced I believe).

Why? It's easy to experience the panic entity 462v0 has no Actions<MyInputContext> when you're spawning and despawning contexts (e.g., when using context layering) intertwined with mocking.

mock and mock_once probably also need to have their docs updated to mention they can panic.

[inner sky]

They don’t panic. This is the fault of the default error handler in Bevy controversially treating errors as panics

[ionic sundial]

Oh lol not this again.

[inner sky]

I really hate it

[ionic sundial]

Right, so if my error handler warned and didn't panic, I'd have the error warned, right?

[inner sky]

Bingo

Set the error handler to log and you're golden

[ionic sundial]

But does my comment still stand insofar as "well, I can't do anything about this warning, the context no longer exists, so if we had try_ versions I'd use call that to indicate I don't care about it failing"?

[inner sky]

Well we have remove and try_remove, so that would be consistent

[inner sky]

we could do the exact same thing for try_mock 🙂

[ionic sundial]

Yup. I'll make an issue to track it, don't have time rn to make a PR for it, but will try and get to it later.

[inner sky]

hmm

actually, we could override the error handler for mock as well

so that it prints a warning

[ionic sundial]

https://github.com/simgine/bevy_enhanced_input/issues/289

[ionic sundial]

Ah so for my case even though I have the panic error handler I would now get the warn instead. That would be a better default state I think, but I'd still use the try_ ones to avoid warning log spam.

[inner sky]

yeah fully agreed on both accounts

honestly, the issue here is that error handling is a bit messy in Bevy

but let's at least be consistent

I'll whip up a PR rn

I happen to have a bit of time

[ionic sundial]

Amazing thanks, if you're free go for it.

Yeah I have an overall average experience with Bevy error handling (not great, not the worst), but I don't personally have any great ideas or suggestions to make it better.

Lmao the amount of times I can't work out why a system isn't running and I've yet again forgotten that it was skipped due to a Single query no longer matching.

But that's OT.

[inner sky]

@ionic sundial @sharp warren https://github.com/simgine/bevy_enhanced_input/pull/290

[acoustic marsh]

I've had that happen so many times dealing with replicated components. Is there a way to make it panic (error I guess)?

[acoustic marsh]

Actually I guess it should normally? Hmm

Edit: Oh looks like it has flip flopped a few times. That explains it

[sharp warren]

@ionic sundial @inner sky the patch is up 🙂

[ionic sundial]

https://github.com/simgine/bevy_enhanced_input/issues/292 for tracking.

[ionic sundial]

I wonder if we could improve the docs for ActionState Ongoing and Fired. When you're trying to understand whether to use ongoing or fired, it's not really clear from the enum variant docs what the actual difference is. To me they read exactly the same. Edit: And I still don't actually know what the difference is.

Ongoing: "For example, with the [Hold] condition, this state is set while the key is held down, until the required duration is met."
Fired: "For example, with the [Down] condition, this state remains active as long as the key is held down."

Context: In my Toggle implementation I am trying to understand if I'd use Ongoing or Fired (I'm trying to solve a bug in my game and checking how my Toggle implementation works).

[outer wyvern]

Explicitly contrasting them would be a good strategy

[heady mauve]

The documentation you quoted also has these portions that were prior to what you quoted:
ActionState::Ongoing: "Condition has started triggering, but has not yet finished."
ActionState::Fired: "The condition has been met."

Ongoing is used when a condition has some but not all its requirements that need to be met before the condition is active, it is in process though. Fired is when the condition has all its requirements met, so it is active.

In the case of [Hold], the input requirement is met but the necessary time might not have passed so it is set to ActionState::Ongoing. On the other hand, [Down] just requires the input is active and will keep as ActionState::Fired as long as that is the case.

[ionic sundial]

Ah right I think that clears it up a bit, thanks.

I honestly didn't know that Ongoing meant "condition has not been met" 😅 .

I thought it was the opposite: That the condition has been met. For example, if I say I am having an ongoing argument with someone, the argument has started and is still happening. So I thought this meant the condition was started and is still happening.

English is hard.

[heady mauve]

Perhaps ActionState might be better named ConditionState since it may help someone consider that the Condition can be Ongoing even if the Action isn't active. I think Press is an example of using Ongoing to prevent further firings until the input has been released and then pressed again. In that case, the ActionState for the Condition goes to Fired and then switches to Ongoing to keep track of the input state.

I was mistaken. It is Tap that uses Ongoing.

[sharp warren]

I like the proposed name 🤔
Could you open an issue? I'd like to see other people opinions.

@ionic sundial by any chance you could open a PR to clarify the doc since you understand it properly now?

[ionic sundial]

Yup will do.

[inner sky]

wait WHAT

TIL

[heady mauve]

https://github.com/simgine/bevy_enhanced_input/issues/294

@ionic sundial Could you include your thoughts on the issue as well?

[summer patrol]

i'm currently investigating if its possible to allow binding OpenXR input through this (from a thirdparty crate), but i can't find a way to add any custom binding source? is this currently supported?

it would suck if i still had to recommend that users replace their entire input handling system with something else, just because they want to support XR, especially if this is upstreamed into bevy

[ionic sundial]

@inner sky it occurs to me with your thinking here: I wonder if another way to improve the chances of upstreaming BEI and show it's quality is for those new Bevy camera controllers to be upgraded to BEI outside of tree. It's not my call, but even if they lived in BEI so they were also treated as first class citizens, they'd then more easily slot back in tree if BEI was upstreamed. They could just as easily be another 3rd party crate ofc.

[sharp warren]

It's not currently supported, but we have an open issue about custom input sources.
We just didn't have a use case. Would you be interested to tackle it?

[sharp warren]

You can replace the underlying input system, but we don't have a way to define custom bindings, like XR.

[summer patrol]

i think i'll have to investigate if having custom bindings would be enough to support OpenXR, since it provides its own action based input system you have to integrate with, depending on how BEI is built that might need a whole redesign

[sharp warren]

It's already planned for upstreaming.
I'm just waiting when maintainers have free time. I'm not rushing with this because having it as a third-party crate allows me to interate on it more quickly 🙂

[sharp warren]

I don't think BEI will need a redesign because I'm pretty sure Unreal Engine suports XR

[ionic sundial]

Sorry I didn’t mean to imply it wasn’t up to scratch (it’s amazing), I was just trying not to assume anything.

I mentioned that more in that it sweetens the deal a bit more of the camera controllers are also already updated.

[sharp warren]

Another good use case would be shortcuts for buttons. And shortcuts for picking 🙂

[ionic sundial]

Not sure if this is what you mean regarding picking: But yeah I’d love to see something UI + BEI combined. For example how to make sure clicks on UI elements swallow/consume input so that actions like clicking on your 3d world don’t also fire. I wondered if BEI could somehow provide a UiInputContext with a high priority or something.

Just thinking out loud, can probably do all this in user land easily.

[heady mauve]

I was playing with UI and BEI last year and I made a Context for UI Navigation that included activating an element. When it activated, it found the currently focused UI element and sent a click event to it. The harder part was setting up navigation but with Bevy 0.18's Automatic Directional Navigation it should be easier.

Here's the function that actually sent the click:

pub fn activate_ui_selection(
    _: Trigger<Fired<UiActivate>>,
    input_focus: Res<InputFocus>,
    mut commands: Commands,
) {
    if let Some(focused_entity) = input_focus.0 {
        commands.trigger_targets(
            Pointer::<Click> {
                target: focused_entity,
                pointer_id: PointerId::Mouse,
                pointer_location: Location {
                    target: NormalizedRenderTarget::Image(
                        bevy::render::camera::ImageRenderTarget {
                            handle: Handle::default(),
                            scale_factor: FloatOrd(1.0),
                        },
                    ),
                    position: Vec2::ZERO,
                },
                event: Click {
                    button: PointerButton::Primary,
                    hit: HitData {
                        camera: Entity::PLACEHOLDER,
                        depth: 0.0,
                        position: None,
                        normal: None,
                    },
                    duration: Duration::from_secs_f32(0.1),
                },
            },
            focused_entity,
        );
    }
}

BEI allowed me to separate inputs from actions so I could navigate the UI with keyboard and/or gamepad relatively simply. Probably need a little update for newer versions of both Bevy and BEI.

[sharp warren]

Here is what I use in my game for UI:
https://github.com/simgine/simgine/blob/master/ui/src/widget/button/action.rs

[sharp warren]

bevy_picking uses hardcoded inputs, but I think it would be nicer to express it through BEI.

[heady mauve]

Yours is so concise, I like it!

[ionic sundial]

Ooo thanks for sharing. I didn’t know you had anything open source here. Good to see something from the BEI author for possible “best practice”.

[inner sky]

already using the new mocking API I see

[sharp warren]

Yeah, I really liked it!

[sharp warren]

I would appreciate opinions on https://github.com/simgine/bevy_enhanced_input/pull/297
See the linked issue. I'm on board, but I'd like to hear what other people think.

[ionic sundial]

(Since it might be controversial / not the only solution, I also updated the PR desc with some more background explaining the goal, the proposed solution and maybe some alternatives)

[sharp warren]

Thanks!

[sharp warren]

Asked in #reflection-dev message

[graceful tapir]

Is Mouse Motion an input in this crate?

[ionic sundial]

@outer wyvern if it please you (and when you get a chance, no rush): https://github.com/simgine/bevy_enhanced_input/pull/298

[outer wyvern]

Done! nice stuff

[graceful tapir]

observers are only called when their triggers are all on right?

[sharp warren]

Yes

[sharp warren]

Correct

[round portal]

do we really need a whole Action for a modifier here ? I feel it can be simplified to just a bindings entity

[heady mauve]

Could you possibly explain further what you mean? I have a use case from another game where I regularly use multiple modifiers with two input devices to change behavior across the input devices. I can use the modifiers individually or together, just like how on a keyboard you can use CTRL and Shift either individually or together. Would a binding entity allow for similar behavior?

I do know how I can replicate that with Actions in BEI, but could you explain your solution?
