Next Generation Scenes

[rare whale]

I think the truth of that proposition varies based on the scale of the hierarchy: as you get to larger and more complex scales, the meaning of things gets embodied in the shape of the tree rather than individual components. Not only in UI work, but in 3d scenes, a lot of the higher-level entities have a purpose which is organizational.

For these kinds of groupings, it doesn't hurt to insist that they have a concrete component, but it isn't necessary either.

[split harness]

I've actually made the pragmatic choice to not port the Feathers "container" scene functions for this reason, as they feel more like mixins/styles than proper behavior-defining objects

I don't think we need everything to be a component scene. Only things that are behavior-defining / object-like

Ex: every "control" in Feathers benefits from being a "scene component"

[thick slate]

Doesn't this break our bevy_ecs / bevy_scene division?

[split harness]

Kind of. It would only be present in the macro

And it could be behind a feature flag

[thick slate]

I still don't like it as much

[thick slate]

This is a very useful source of "important components to help auto-generate names for inspectors" FYI

[split harness]

I could move bevy_scene into bevy_ecs 🙂

[thick slate]

He wants to kill our poor minimalist bevy_ecs users

(obv feature flagged lol)

[split harness]

Fundamentally, I think scenes are in the purview of "ecs"

They are "core data model stuff"

[thick slate]

Yeah, I think I agree there

All of my previous suggestions / early thoughts on this problem space were framed in terms of "thing that lives in the ECS"

[split harness]

However, I do think organizationally and perceptually, it is better for them to be separate crates

[thick slate]

Mhmm

The serialization stuff also complicates things

[split harness]

But I think this one specific tweak is a good idea personally

In the interest of making things clearer / easier for users

[thick slate]

I could live with it lol, but I am going to make you write good docs for the derive macro finally

[rare whale]

As you know there are a gazillion React UI libraries, and they often have a dozen or more container types which impose a structure on their descendants - App, Toolbar, Card, and so on.

These have no inherent behavior

Anyway, I don't really want to argue about this, I just want to note my position for the record 🙂

[silk lava]

By querying for scenes, what does that look like? Cause even thought I'm not sure we will be able to uphold it for much longer, but I thought the idiom was that the things you query for should be obvious and preferably the type itself. Aka dont have QueryData for a set of components, just query the set of components.

[split harness]

If Player is your "scene component", you add With<Player> to your Query, and you can assume that all of its scene contents are there

[silk lava]

Oh okay, we have that today with required components. 👍

[split harness]

You aren't writing a query for "something that matches the full description of a scene", which would be massively inefficient. You just know that anything with the Player component will have the "player scene" ready to go

[silk lava]

If you were to make the SceneConstructor part of Component, could you then make the Bundle for the Component have an BundleEffect of the scene, where a non-scene Component still has no BundleEffect
Then you wouldn't 'have' to use spawn_scene and you would still get somewhat valid results with spawn.

[split harness]

Perhaps, but I don’t think it would be a good idea. This would mess with the lifecycle / hook properties that I’d like to be rock solid, and it would create a situation where the component would temporarily exist without its whole scene, which makes it impossible to trust when you’re writing scene logic / systems

[silk lava]

Hmm true, thing is when compared to the other component types they all work even when not using their intended paths, except scenes and assets which is unfortunate, but not sure how you mesh the async nature to make them work in the sync spawn context.

[split harness]

The trick is to accept that some components should only exist as part of an async process. Nothing wrong with that, other than the added problem of ensuring that is true (which is what the hooks are for)

If we're feeling spicy we could add an associated type to Component and use that to block it from being added via a normal bundle

But I think the hook is the least invasive / lowest complexity approach. Imo its the move for now

[queen oak]

Yes, I like this

I think thats less confusing

[rare whale]

TBH, I liked the previous approach better: there were different moving parts, and I understood the role of each part and how they fit together.

[split harness]

I will note that this union isn't just about reducing boilerplate / cutting down on jargon. By making it part of the Component derive we can add validation to the component to ensure it is never spawned without its scene

[rare whale]

Can you produce a more fleshed out example?

[split harness]

If it is separate, then the user needs to wire up that validation themselves

[split harness]

An example of the validation code? Or an example of something that would trigger the validation code?

Or an example that uses the derive?

[rare whale]

In your previous post I couldn't see how to keep separate the scene parameters from the component properties

What would the feathers button scene type look like in this new scheme?

[split harness]

#[derive(Component, Default, Clone)]
#[component(scene(FeathersButtonProps))]
pub struct FeathersButton;

#[derive(Default)]
pub struct FeathersButtonProps {
    pub variant: ButtonVariant,
}

impl FeathersButton {
    fn scene(props: FeathersButtonProps) -> impl Scene {
        bsn! {
            Button
            template_value(props.variant)
        }
    }
}

[split harness]

Or alternatively (which I am kind of partial to):

#[derive(Component, Default, Clone)]
#[scene(FeathersButtonProps)]
pub struct FeathersButton;

[split harness]

In practice, I think we might want to stop using "props" for things that could be normal component patches

FeathersButton users could just add the ButtonVariant component manually when they want to set it

(given that it doesn't drive the Scene outputs)

[rare whale]

Maybe. One thing that gives up is type safety: there's nothing to discourage me from adding ButtonVariant to a slider, or SliderRange to a button.

Anyway, this is a separate argument, and button isn't a great example, I should have picked a better one.

[thick slate]

If only someone was working on a comprehensive design for archetype invariants 😉

(back burner for now, but tell me when you want it)

[rare whale]

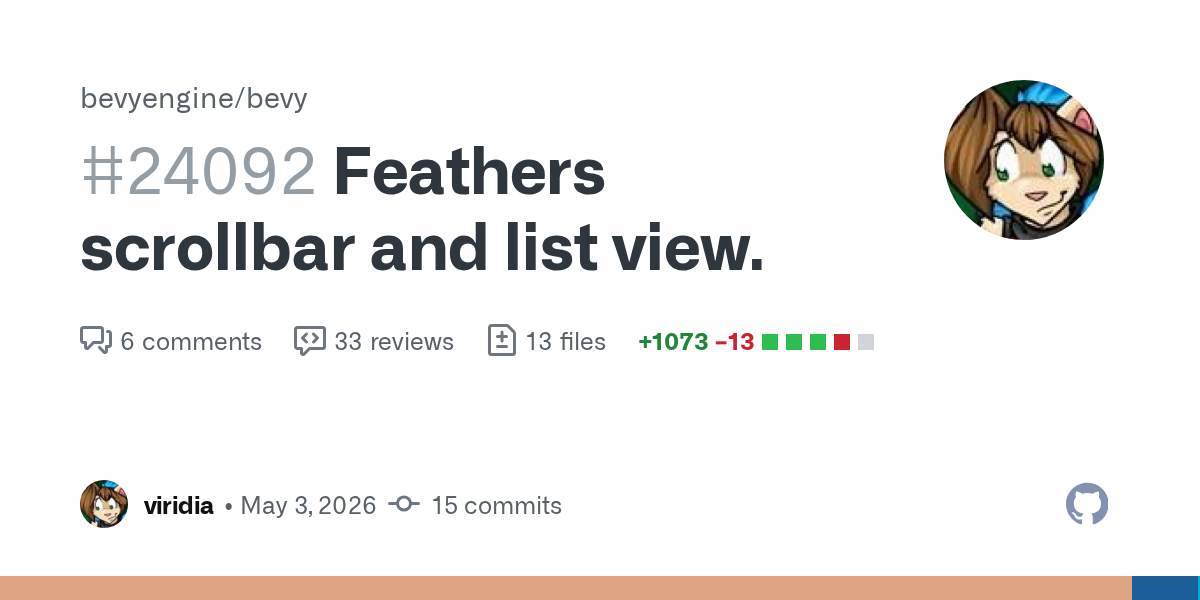

An example that comes to mind is ListView: in order to get scrolling to work correctly, the rows have to be the grandchild, not the child, of the list view entity.

So we can't just patch them in with Children [].

[tardy beacon]

I don't know if this is a problem or not, but I noticed that the debug symbols for an app with a lot of BSN are... quite something.

For feathers_gallery, the longest function signature is 121,645 characters.

[tawdry owl]

Makes me curious how much impact on compile times this level of monomorphisation has

[amber pebble]

I'm also curious how heavy use of bsn affects binary size

[tardy beacon]

The code that's specific to feathers_gallery is 44.5KB (windows x86, release + thin-lto). I'd say that's not great, but not the end of the world either. (The rest of the engine is waaay chonkier)

I might poke around a little more as I'm not sure why some of the drops are needed. I think they might be there to handle Vec allocation failure... but that seems wrong - I thought allocation failure in Rust was supposed to be a panic.

On compile times, standard_widgets is 8.1s, feathers_gallery is 11.3s (+40%). That may not be a fair comparison, but they're roughly the same size in terms of code. (Tested with release profile, windows x86, touching just the example file. No dynamic linking, linker = LLD)

[tardy beacon]

Might have spoken too soon - there's at least another 50KB hidden in bevy_scene. So I think the code for constructing the Scene and implementing drop is ~44KB, and then the implementation of SceneList::resolve_list is ~50KB. Could have missed other parts.

[copper dragon]

Curious what the function is
can't tell cause debug so deep lol

[lime veldt]

at this point you probably want compilation to spit out a lookup table for types so the binary only needs indices into that if you really need to know

though if you have the RAM it is maybe fine to have these unhelpful blobs lying around?

[copper dragon]

I think its bsn_list![Camera2d, demo_root()]

[rare whale]

@split harness @thick slate I'm looking at the crate docs for BSN, and I saw this line:

this blanket impl always replaces the entire value — there is no field-level merging. If you want per-field patching, you must derive FromTemplate explicitly.
(From https://dev-docs.bevy.org/bevy_scene/index.html#composition-and-patching)

If that's the case, then how is Node patchable? Node derives Default and Clone. Later in that same section it states:

Deriving FromTemplate and Default on the same type is not allowed
Either my understanding is faulty or this doc is.

[thick slate]

Docs must be wrong then. I thought that was the key trade-off 🤔 Issue please

[split harness]

Yeah the docs are wrong. I should do a review of them 🙂

[thick slate]

Thanks ❤️ Piecing things together from old PR descriptions and tests was a bit dicey

[split harness]

The problem here is that we're abtracting over the runtime API. Ex: we aren't setting people up for success when they try to set the SliderValue at runtime

[split harness]

Something we could do to cut down on type-codegen is inline patch logic in the BSN macro itself. Ex: rather than having a new type that facilitates the get_or_insert_template::<T>, followed by the field patches, we could instead just do that all inline

The type-driven approach was largely a legibility / hand-written-code-clarity driven play

For example this:

MyComponent::patch(|template|  { template.field  = 10 })

Is a bit easier to type and read than this:

|context, resolved_scene| {
  let template = resolved_scene.get_or_insert_template::<<MyComponent as FromTemplate>();
  template.field = 10;
}

[tribal yacht]

btw, I think the A-scene label for triage is no longer accurate

it talks about serialization, which is no longer in the bevy_scene crate

[thick slate]

I'll try and remember to fix this tomorrow 🙂

[split harness]

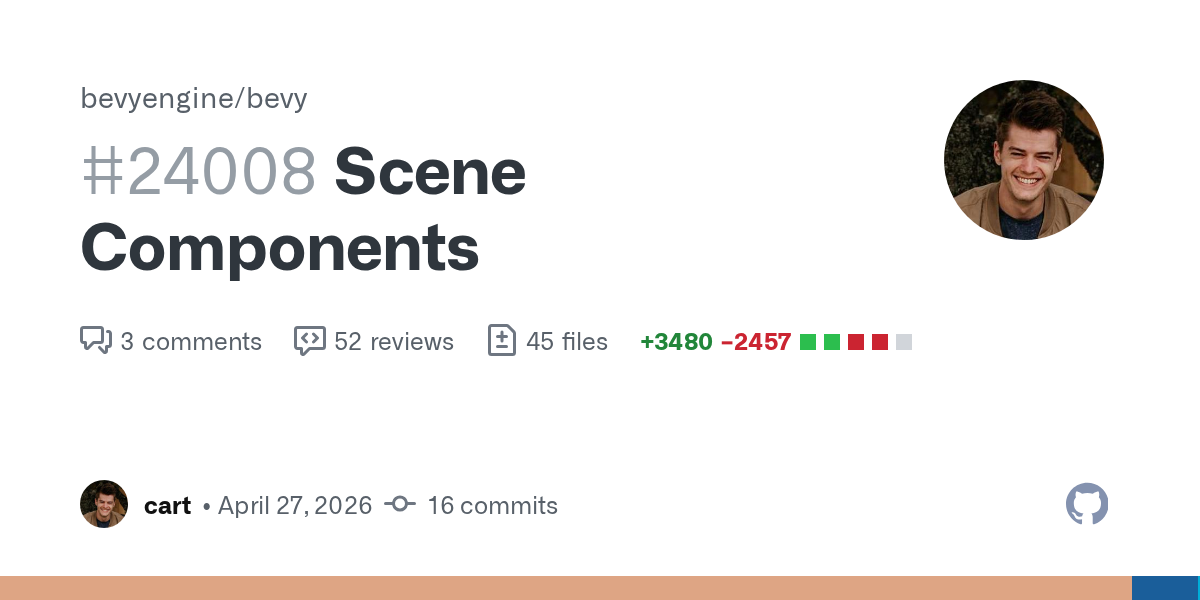

My Scene Components PR is out! ("big" because of examples / ports / tests / docs)
https://github.com/bevyengine/bevy/pull/24008

@thick slate my doc plan is to port the PR description over to the Scene docs

[silk lava]

Is it gonna be possible to create an LSP that gives you both structs(Comp&Props) fields to auto-complete? Also does the order in which they are input matter? (Props before, Props after, or doesnt matter)

[cobalt stone]

I don't really get the motivation for this :/

What does this solve that either:

• An actual seperate scene (why are we tying scenes to components?)
• Required components

Don't solve?

[silk lava]

Still think I would rather prefer an syntax as such:

:SceneStruct{ field_a: ... }(SceneStructProps{prop_a: ...})

Then its less implicit as to what is happening, as you see the function call syntax which is kinda what the scene component semantics represents that a component can represent an function that returns a scene, and also get to see the actual type being passed as props and can more easily look it up.
Downside, is that you must know what the Props type is to type it out, although I think that due diligence will lead to less bugs overall.
I dont know if this syntax might be ambiguous/not-possible though. 🥹

[dapper sky]

I'm not a fan of this syntax 😅 feels like a walk on the side of making bsn look like a scripting language

I guess templates also do that

[silk lava]

and the @props syntax doesnt? 🤔

The above is valid rust code.(minus the :)

[dapper sky]

yeah it was a poorly thought out jab

I think maybe the thing that irks me here is that SceneStruct + SceneStructProps is a weird duplication of similar terms.

and that a desire would immediately arise for that duplication to be de-duplicated

[leaden dew]

both of those approaches have holes: the separate scene isn't associated with a queryable component on the type level (any any such association must be enforced as a convention, which is error-prone), and required components aren't friendly to hierarchy or observers, both of which are common features of "canonical representations" of entity classes

I've been wanting an ergonomic way to define a proper constructor function like this in like every jam and from a brief survey of bevy jam 7 I did a while ago almost every open source project I looked at was solving this problem using On<Add, MyMarker> observers which requires a bunch of extra legwork (plugins, systemparams)

[cobalt stone]

both of those approaches have holes: the separate scene isn't associated with a queryable component on the type level

But why do we want this?

The player example is kinda contrived. I'd just use a Player::spawn() function that returns impl Scene

Or just a standalone spawn_player() function

I'm not seeing the need to tie components to specific scene instances

[leaden dew]

hmm. it is sort of a reification of the idea of "identity components" - components exactly like Player (but also specific enemies, items, props, whatever) that carry a single canonical representation and can be queried against for entity-specific behaviors. it's at the very least extremely common from what i've seen in bevy games, but it is also arguably not proper ECS

justification seems like a fair question

[silk lava]

Identity components don't really matter for reasoning, because you can do them with Required Components as well and have the same downsides of lacking archetype invariants to enforce the component set.
BSN upside: allows external state to be passed in
RC upside: allows adding/removing at runtime.

The BSN upside could be transferred in some way, by allowing FromWorld to take props.
The RC upside could be transferred, if the scene function is stored as a function pointer on the ComponentInfo, such that you could access it, take it, then create a new scene that inherits from it or something completely different.

[split harness]

The big gap that this is filling is around abstraction / interface building. Many categories of component are built under the assumption that a scene / hierarchy of entities will be present. Yes we could just have a Player::scene function, but there is nothing that ties Player and Player::scene together. I strongly believe that there is a benefit to having a single importable / nameable type that people can refer to that is the "thing" that is being spawned. Forcing people to know that the ButtonWidget component requires some other arbitrary scene symbol (and where that symbol "lives", ex button_widget() or ButtonWidget::scene) to satisfy its functional requirements is error prone and overly complicated. Additionally, scene functions on their own are not "nameable" in the ECS. You can't open an inspector to see all of your button_widget() scenes. You can't write a query to iterate over them. You can't write an observer that runs when button_widget is spawned.

Additionally, many users of raw scene functions have explicitly requested "struct like" scenes, as my_scene(props: MySceneProps) are a common pattern, and it is more boilerplatey than they would prefer (ex: @rare whale hit this with the Feathers widgets, and I agree that the ergonomics were suboptimal).

[split harness]

The BSN vs Required Components use case overlap is something we've discussed in the past. I agree that it feels like these could be reconciled, and I agree that forcing users to choose between two abstractions is not ideal. The fundamental difference between them is that BSN is dependency-aware and has access to a World context / entity spawn context, whereas Required Components are not dependency aware and do not have access to a World / entity spawn context. Required Components are also much lower overhead, as they're literally just a constructor pointer.

Unifying them might be possible, but it would require a pretty signifcant change to our ECS spawning internals. Currently it is extremely unsafe to provide World access when constructing required components.

[silk lava]

I agree with initial statement, but what about reversing the logic: world.spawn(SceneComponent), then the user needs to know that this component is a scene, as this will error.
You could argue the error is for that, but then why not error when: world.spawn_scene(SceneComponent) with error message: SceneComponent: !Scene, Did you mean SceneComponent::scene()?
This hints of a bias towards scenes, where most users will end up fn scene() {bsn!{MyComponent}} to feed into that bias.

[split harness]

I do think it is worth spending time trying to reconcile the two, but its not going to be a trivial change, and I think the benefit in practice would largely be theoretical

[split harness]

I agree with initial statement, but what about reversing the logic: world.spawn(SceneComponent), then the user needs to know that this component is a scene, as this will error.

Yes to avoid a runtime error they do need to know that SceneComponent is a "scene component". I'm pretty sure we can make this a compile time error, it would just be a bit invasive. I think it is pretty uncontroversial that logging an error when a component that definitely requires a Scene is spawned without a scene is much better than the status quo of not logging an error and things breaking in arbitrary and likely confusing ways.

You could argue the error is for that, but then why not error when: world.spawn_scene(SceneComponent) with error message: Did you mean SceneComponent::scene()?
How would it know how to report that without some sort of static tie between the function and the component?

[split harness]

This hints of a bias towards scenes, where most users will end up fn scene() {bsn!{MyComponent}} to feed into that bias.
It doesn't hint toward it. It explictly embraces it. Of course components that need scenes should be spawned as parts of scenes.

[silk lava]

Okay, so if they still have to know, then that point is moot.
Knowing what to return for the error would just be idioms, SceneConstructor still exists and provides scene(), and still assumed if someone wants to tie a scene to a component that they use that, but the macro itself will not invoke such a thing.

[split harness]

Okay, so if they still have to know, then that point is moot.
The point is not moot, because you don't have to know. There is a runtime error that will instruct you, and if we're willing to pay the complexity cost, we could make it a compile time error.

Are you suggesting "keep SceneConstructor around, but don't support using it in inheritance position"?

[silk lava]

Also in a generic context how does this work?

fn system<T: Component + ?SceneConstructor>(world) {
    if const{T as SceneConstructor} {
        world.spawn_scene(bsn!{:T})
    }
    else {
        world.spawn(T);
    }
}

[tribal yacht]

This is not an endorsement for #24008, as I'm unsure how usefull it will end up being. But if this is the direction Scenes are going to go in, could you also implement it for Resources @split harness ?

#[derive(Resource)]
#[resource(scene)]
struct ResourceA;

[silk lava]

(1) The above is an example where you dont even get to pay the cost, it just doesnt compile.
(2) Yeah, Im digressing though, probably not the right move.

[split harness]

First: you're using proposed / may not ever be stable rust features there.

These are fundamentally extremely different operations. Being generic in that way isn't really doing anyone any favors, as spawning a scene with dependencies (which may not even be loaded yet) is fundamentally very different than spawning a single component on its own

[silk lava]

That is my point though, if they are fundamentally different things, but they both produce components, and as you suggested the above syntax may never be stable, then how in a generic context can anyone work with Components anymore?

Maybe some kind of supertrait Component: Data + Scene: Data then a Scene Component can just impl Scene, and the ECS only cares about Data, and then you can bound your generics on either Component or Scene and know what calling context you must use. Probably not, but I dont see any other way.

[split harness]

Scene components are just a specific kind of component with special requirements about when/where it can be spawned. For a given moment in time, there will always be a specific kind of a component that you can't spawn right now.

Or perhaps the better way to put it is "the set of components that theoretically shouldn't be spawned right now is infinite". Context has always mattered

If you are generic on Component and you do INSERT_ARBITRARY_ACTION_HERE, there are some components for which that would result in an error

Resource components are an easy example of this

[silk lava]

Resource wouldnt error there, if we had allowed unpinned resources, but thats long gone now.

[split harness]

We could probably make this work, although I'm not sure we should

[tribal yacht]

it can definitely wait, but I want to point out that these sort of things are now pretty easy to do

if there's a good reason to do them

[split harness]

but it is also arguably not proper ECS
Its certainly not "textbook / simple ECS", but that has never been the goal. The goal is to build the best data layer for Bevy.

[split harness]

@silk lava can you post your PR message as a comment on a line of code so we can have a threaded conversation?

Oof I deleted it thinking I'd still have access to the message in the history. Sorry if that made you retype it

[silk lava]

No worries, it wasnt very long. Im gonna leave off the @ vs {}()syntax yap, because its just my pure opinion.

[leaden dew]

I would argue scene components are a massive step beyond required components in terms of reifying identity components (making the concept "real" in the engine), in particular using required components this way can even now be interpreted as a kind of "misuse" of them (and indeed it feels kinda bad to do too much via RC especially when hierarchy or observers requires you to split it up). they're certainly intended more for helping to enforce invariants so that it's easier to make assumptions when writing systems

but anyway I only brought up the identity components thing because it seemed like maybe what Jasmine was getting at. I think it's a better data model either way or at least is more likely to be useful for people in the wild

[viral roost]

So my understanding is that a Scene Component is there to define the typical construction of a marker component. How would you handle having a Robot component, but wanting to have a scene construction for "robot with lasers" versus "robot with swords" versus "naked robot"? In this case, all Robot's have the same basic systems

[queen oak]

i'm a very big fan of these scene components, however i take issue with this note:

Attempting to spawn a scene component on its own without the scene (ex: commands.spawn(Player::default())) will log an error, as Scene Components should never exist without their scene.
See i don't like this, because we aren't keeping the fact that all the other components in the scene have to exist. We can insert a player, we can remove player, we can insert and remove other components in that scene fine. If we want to we could try to at runtime prevent invalid moves like this, but as of now this seems sorta a weird thing to do 🤔

instead of #[require] #[always] kinda move, but that doesn't exist yet, so i don't think we should prevent commands.spawn(Player::default())

[split harness]

A more specific description would be "a Scene Component should never exist without first having a full initialized scene" . Scenes are allowed to change dynamically post-spawn

(based on arbitrary app logic)

[split harness]

This would be bad, because a Player is designed to be initialized with a "Player scene"

[queen oak]

so the intention is not to do Query<&Player> in isolation, but to do Added<Player> or On<Add, Player> etc

[split harness]

Someone should be able to write an On<Ready, Player> observer that can assume the Player/Hand entity exists (this of course operates under the assumption that all Players are spawned with a Hand child)

The intention is to make Query<&Player> work "by default" for things like accessing Player/Hand. As long as the author doesn't remove Player/Hand anywhere, then every Query<&Player> system will "just work"

Without needing to worry about things like "ensuring the Player scene is fully loaded first"

[leaden dew]

is that Ready trigger theoretical or does that exist right now on main or in your PR?

[split harness]

Theoretical. My initially plan was to invert spawn order to allow On<Add> to work that way, but I ultimately landed on supporting both (top-down spawn order with On<Add> with bottom-up triggered On<Ready> events)

[leaden dew]

it sounds like a godsend for loading screens

[split harness]

Yup this is going to make everything so much better

[split harness]

You have many options, based on the needs of the situation:

1. Parameterize "Robot with lasers" using Scene Components + props: :Robot { @lasers: true }
2. Define "lasers" as a child scene component :Robot Children [ :Lasers ]
3. Define lasers as a child component :Robot Children [ Lasers ]
4. Define lasers as a root component :Robot Lasers
5. Define lasers as a scene function: :Robot lasers()
6. Define "slots" for addons, which the Robot scene component can place in the appropriate part of the hierarchy: :Robot { @left_hand_slot: {bsn!{ Lasers }} }

[viral roost]

I guess, what would my #[component(scene ... look like for Robot ?

[split harness]

Pick one of the options above and ill fill it in

[thick slate]

I can build the Ready event this week for you if you'd like 🙂

[split harness]

The hard part is triggering it at the appropriate time, benchmarking to decide whether its "worth it" relative to just relying on Add and inverting the spawn order, and deciding whether or not to trigger it for normal spawns (and if so, how)

Are you willing to take that on too?

[thick slate]

That'll be harder, but I think I can manage 🙂 Certainly more effective than having me fix rendering bugs

I want to get more hands-on experience with bevy_scene early

To avoid a repeate of bevy_assets

[split harness]

Landing with Ready would be very nice

[split harness]

We should be able to see the cost of Ready on the current scene benchmarks pretty easily

@thick slate pretty sure we want to trigger Ready right after the apply_related calls in resolved_scene.rs

I believe there will be some "trickery" necessary to ensure that we don't call Ready twice when spawning with the cached ResolvedScene::inherited scene

Actually maybe not, because it inlines the logic rather than wrapping it (thanks to the BundleWriter changes)

But if you see a double Ready trigger, thats a good place to look

[rare whale]

@split harness So I take it you prefer FeathersButton over feathers::Button

[bitter patrol]

I'd say feathers::Button makes it look like just a Button component that happens to be inside of a "system" called Feathers, instead of it being some kind of "feathery button"
goes better with third party libraries in the future which could be called whatever::Button

just my two cents

imho feathers::Button looks more serious

a bit bikesheddy tho

[lime veldt]

I prefer to not have to import things as SomethingElse so it does not collide with some other Button though

[karmic rock]

Interesting how we've seemingly landed on opposite approaches:

Note that these ("props") are not available on the final component.
In flecs a scene component (template) is a regular component where the props are component fields

as spawning a standalone MyButton component without the associated scene is very likely to be broken
In flecs the MyButton component is the thing that spawns the scene, which is just entities and components. There is no separate scene object.

What I did with flecs script is basically just create a notation that spawns entities and components. Similar to webdev, where a React/Vue component just spawns HTML/CSS/JS. The browser doesn't need to know how that data was spawned.

It sounds like with the introduction of BSN bevy is moving away from using the ECS as the data layer, and turns BSN into the data layer

(or at least the scene model that's implied by it)

[silk lava]

Would MyButton's hooks spawn the scene? via on_insert I assume, so that if you overwrite it, it produces a new scene?

[karmic rock]

Yup

That's exactly how it works

[queen oak]

I wayyyy prefer feathers::Button, and I would very much like to try to convince everyone here that its a way better way to do this kind of thing.

For example, in alternative frameworks one could have malek::small::Button, etc.
By making it possible to do my own default styling and moving things around I can easily copy and modify scenes by just swapping out the use statement.

Furthermore this is what namespacing is for, looking at feathers::Button I know that I can just look at Button and I can easily filter out, mentally, the feathers section, it makes it far more readable.

[karmic rock]

So you can spawn scenes with the regular ECS API:

world.entity().set(Button{ width: 100 }); // spawns button scene (template)

[silk lava]

Is it expected the scene will be fully available/loaded by the time the hooks are done running for the Button Prop Component?
If someone were listening for On<Add<Button>>, would they be able to access the scene stuff it produces? Or separate Ready/Scene event?

[karmic rock]

It's synchronous, so yeah the entire scene is available once the hook finishes. Which means you can register an OnSet observer for the component which can make assumptions about the scene being ready

[queen oak]

I always want the option to reduce visual noise, being able to use feathers::Button; is exactly that.

[silk lava]

Hmm, you don't ever load anything into Scenes? or does it just block until it does?

[karmic rock]

The model is more similar to a browser. You can create an Image element, but that doesn't mean the image needs to be loaded synchronously

The scene spawning code is only responsible for creating the entities+components, not for the second-order effects this produces

You can load assets synchronously or not, that's up to the application

[silk lava]

Heh, reminds me of Firefox and Chrome back in the day, one used to load piece-meal as it was recieved, the other only presented once everything was loaded. (I changed to the former, because I disliked the latter 😛 ) /off-topic

[exotic panther]

opened a pr for entity path resolution that adds support for resolving paths in bsn
https://github.com/bevyengine/bevy/pull/24018

[tardy beacon]

I've played around a bit more with this gigasymbol issue and written up some notes: https://github.com/bevyengine/bevy/discussions/24021. TLDR: No good solutions, but I have tested a bad solution that gives us an escape hatch if the big types do cause major issues.

I also turned feathers_gallery into a benchmark - the current benchmarks were hiding issues because they're so small. I can turn that into a PR if desired, although it's a bit of a cut and paste job.

[thick slate]

Useful analysis; thanks!

[split harness]

Yeah I opted for FeathersButton to avoid aliasing with the core Button component. In a context where both are showing up in scene definitions / ECS queries / inspectors / scenes, I think this is preferable.

[split harness]

Thanks for investigating! I left a reply. I suspect that you didn't fully explore my idea, based on some of your phrasing (in fairness I didn't fully specify it). If you have the energy to go down that path (if you haven't already), I suspect there is some gold at the end of it

[split harness]

In flecs the MyButton component is the thing that spawns the scene, which is just entities and components. There is no separate scene object
How does this work in the context of a scene that hasn't been fully loaded yet? Can you spawn a MyButton before some large flecscript scene is fully resolved?

[split harness]

Ah fully synchronous loading

[karmic rock]

Yes, but this is not coupled to asset loading, just populating the ECS with the right entities

[karmic rock]

^

[split harness]

From the bevy perspective, scenes can be assets, and can depend on them

(but do not have to)

[karmic rock]

Yeah that’s not very different I think from what I do. This is integrated with glTF loading in my own engine. The key difference is that the actual loading of textures, meshes etc from disk can be asynchronous.

[split harness]

Ex: by default Handle<Image> assets are loaded asynchronously / on their own time and they "pop in". But the system is built such that you could make Handle<Image> loads block scene loads

[karmic rock]

Yup same

[split harness]

Presumably in the second case (image "required" by scene), if you try to spawn the MyButton scene it would block synchronously until the image loads?

[karmic rock]

It's fully up to the application. The only thing that my implementation does is instantiate entities & components synchronously (you can't really asynchronously instantiate things into the ECS anyway). Any second-order effects like texture/mesh/... loading is implemented with hooks or observers.

For example, if the scene instantiates a Texture component, the hook for that component would handle loading the actual texture (async or sync)

The scene implementation has no idea, it just populates the ECS

In practice you get a scene file like this: https://github.com/SanderMertens/flecs-engine/blob/main/etc/assets/scenes/bistro.flecs that loads assets from glTF

What happens when those entities/components get instantiated entirely depends on which hooks/observers are registered

[split harness]

Makes sense. There isn't really the concept of a blocking asset load in Bevy (you can theoretically do it but it isn't a part of the standard flow). An asset is either ready now (and you can do the thing that depends on it) or it isn't (and you need to wait). Blocking the ECS thread (the thing holding World) to do things like file io is pretty much never what we want.

So something like a system that does large amounts of arbitrary blocking work (ex: loading and resolving an arbitrary number of BSN files and other assets) to make a directly spawned / standalone MyButtonscene component valid "right now" isn't a path I'm particularly interested in.

That type of immediacy does have the very cool property of making a MyButton scene component spawn via normal sync world APIs "just work". But I think it is desirable to push people into async / up-front-dependency-aware APIs (ex: encourage them to either build loading screens that don't freeze, then spawn when things are fully loaded, or "queue" operations to happen in the background that resolve in their own time whenever they are ready).

[karmic rock]

I can see the reasoning behind that. I personally prefer the web model where data (/HTML) can be instantiated immediately and unconditionally, and have the engine/browser handle the async logic. It also creates a clear separation between a data & presentation layer, where a renderer just presents what it finds in the ECS

& the ECS can contain any entities/components the application wants

e.g. it's not inherently important for the ECS/data layer to know whether an image is loaded, as long as it knows that there is an entity with an Image component. Whether the image is loaded or not is only important for the renderer

(simplifying- of course in some cases you want application logic to also be aware of that, just pointing out that this is determined per subsystem)

[split harness]

I do generally agree here for many categories of async things. I think components like Sprite { image: Handle<Image> } should be spawnable immediately / the image can "pop in" on its own time.

I think an important distiction in "web terms" is that an <img> element is an object whose properties are fully known at runtime, whereas some button_template.html file on a server somewhere is not.

Someone building a web application that instantiates button_template.html would either need to ensure that it exists in memory on first load, or use eventing to wait until it is ready.

[karmic rock]

That is all handled by the browser though. It loads the HTML file, dependencies etc. I just provide the browser with the entry point. It makes sure that the DOM is asynchronously loaded, and synchronously updated

[split harness]

Yup this is generally handled by specifying all of a page's dependencies "up front". But not always.

Haha I doubt we need to "websplain" to each other. I'm pretty sure we're both well versed in the web world.

[karmic rock]

Right, I agree that's an important aspect of asset loading. I guess what I'm saying is that I see this as three separate layers:

• one that fetches documents, dependencies etc.
• one that (synchronously) instantiates documents into the data layer
• one that (synchronously or asynchronously) loads assets depending on what got instantiated in the data layer

None of the layers have a dependency on the other ones. I can instantiate things in the ECS directly, I can just run a script directly

I would have expected BSN to implement 2), not 1)

[split harness]

Makes sense! My argument is that some things that you would want to "synchronously instantiate in the data layer" can only happen after some asynchronous process (even if you know the "name" of that data).

Our difference in design comes down to whether we are willing to transparently treat the asynchronous process as synchronous.

[karmic rock]

I think it’s fine to have an explicit asynchronous step, but I see that as a separate thing.

I think there’s value in a DSL that just makes it easier to populate the ECS and which is decoupled from resource loading.

[viscid cradle]

some gold ? is reducing binary size really that good ?

[karmic rock]

In any case, interesting to see the different approaches / tradeoffs 🙂

[split harness]

This is cool! Its not quite semantically what we I intend "entity paths" to be though. I think it is likely better to hard-code the component types and relationships for now, rather than trying to be generic on arbitrary component types

[split harness]

Value is arbitrary, but I value smaller binaries and faster compiles pretty highly

[heady latch]

This may be different for others, but in my personal productive work, this is one of the biggest anti-features I have to fight. I frequently need access to assets, and having to deal with the question of "is this loaded or not?" for everything is a big amount of bloat along an entire game. This is why I always preload everything I may need for a level whenever the player enters it. An async loading API is nice and all so the loading screen can advance without freezing the window, but the API behind asset access is imho very poor due to this mechanism.

[split harness]

BSN will resolve this by allowing HandleTemplates to "upgrade" the "lazy" asset dependencies to "scene dependencies"

[heady latch]

Oh, so my components can use scene deps and they will be guaranteed by the type system to be loaded when the system is run?

[split harness]

Yup!

[heady latch]

Neat! That would certainly make me much more comfortable doing async asset access

[split harness]

Disclaimer: that bit isn't wired up yet. I had it partially implemented awhile back but trimmed it back in the interest of moving forward

But the interface / dataflow would look something like:

bsn! {
  Sprite {
    image: HandleTemplate::path("sprite.png").dependency()
  }
}

This becomes a final Template in a ResolvedScene, which has Template::register_dependencies(), which we call after the scene is fully resolved, feed the results into the asset system and defer spawns until everything is loaded.

[split harness]

I suspect that people would enjoy something like a dependency("sprite.png") helper function

[heady latch]

So the sprite is not spawned until the png is loaded?

[split harness]

Correct

[heady latch]

Perfect

[exotic panther]

I will push back slightly on being generic on relationships, I'm doing some complicated stuff with relationships and it'd be godsend to use entity paths with them

more than willing to get rid of being generic over the component though

[split harness]

I think arbitrary relationships should be encoded in the path specification

Ex: you aren't generic on a specific single relationship. The path defines what relationships are necessary at each node in the path

[exotic panther]

could that not be on a more generic method that deferres to the methods I've added?

[split harness]

Hmmm maybe lemme review

Kind of. To support arbitrary relationships in path strings it would need to be dynamic

But functionally I think your methods otherwise work. I guess I'm not opposed to the general strategy here, provided we have a friendly top-level API that defaults to ChildOf / Name / strings (and relies on a slower dynamic path for other relationships)

We could also have a faster non-string runtime "EntityPath" representation that is more typed

[raw mesa]

Personally I'd prefer we do the opposite of marking particular handles as "non-blocking" or something. I feel like the list of cases where you actually want to spawn a scene with an unloaded asset is vanishingly small

[split harness]

We can definitely discuss the defaults

[exotic panther]

alice has voiced similar so I think I'll switch the base methods away from the generic component

[cursive parrot]

This is so cool that supporting both On<Add> and On<Ready> may not worth the overhead

[split harness]

We could also make them configurable (ex; HandleTemplate::UseContextDefault)

[split harness]

These accomplish orthogonal goals from my perspective

[exotic panther]

I don't have the reflect knowledge to do the wizardry required to get support relationships in the string so I will leave it generic over relationship in the hopes that others can pick it up later and do what I can't

[split harness]

Cool yeah these seem generally fine as lower-level implementation details. Just also provide the opinionated high level APIs and give them the good names 🙂

(and feel free to skip the dynamic reflection bits)

[exotic panther]

very much appreciated

[thick slate]

Good to see we're intuitively aligned on this :p

[split harness]

Agreed. The benefits of an ideologically/design-ologically aligned team 🙂

[tardy beacon]

Yep, I misunderstood! I thought you meant replacing TemplatePatch with a closure and then finding a way to implement Scene for that closure.

On what you're proposing, I'm still a bit unclear. The idea is that the bsn! would have one giant closure which effectively implements one giant Scene::resolve? So a good chunk of the codegen will need restructuring? (Full disclosure - I do not have the energy for something like that, so just asking out of curiosity).

[split harness]

Precisely

I think in pratice it wouldn't be a major overhaul. Just some top-level orchestration changes

But yeah I'm also probably the person best equipped to explore that space. I just sadly won't be able to prioritize it for awhile

[thick slate]

(please record this on your discussion post so we can find it again...)

[silk lava]

Is it intentional, that Scene entities are always only ever a single scene? So there is no way to have 2 separate scenes on the same entity? The SceneComponent meta-marker would make me assume so.
That seems like a big downside, and may lead to entity objects, where most entities are just a single scene, and you use the hierarchy to add functionality via another scene, which starts to look a lot like OOP designs.

[split harness]

Double-inheritance is disallowed, largely on technical / performance grounds atm as it is very hard to cache it / keep the combinatorics in check

SceneComponents are definitely very "object like". Cohesive units of functionality

Notably this does not force the "inheritance dependency hell" problem, as you can always add more components / mash more scenes on top

I will also note that in a world where multi-inheritance was allowed, if you took a ButtonWidget scene component and you could mash it together with a ScrollbarWidget scene component, you would get nonsensical / broken results.

Hierarchical scenes are not inherently composable in the same way that flat components are

[silk lava]

Right, but if you wanted to add an 2D Sprite setup, which is its own scene, and a Player controller, also its own scene, and you want to add that to the player you are forced now to do inheritence OOP style.
This wouldn't be that big of a deal, if the Scene/Indentity component wasnt apart of the behavoiur set, but they are, meaning this limitation of one scene per entity also means one identity per entity, which is literally OOP.
Given that the Scene system is going to be quite prevalant, I would argue it would be used the majority of the time as apposed to spawning individual components or bundles anymore.

Therefore the default structure/workflow is to create Scene Components for Identity's to behavoiurs, of which now each entity will only be able to subscribe to 1 behaviour set. This means two separate systems that rely upon two separate identities will never run over the same entity. That is anti-ECS.

[silk lava]

Besides for archetype invariants, provided by the components on the entity, there should ideally never be anything that prevents me from adding/removing a component/set of components/scene of components from an entity.
Where archetype invariants, could be used to uphold no 2 scenes/entiities shall contain the same Indentity component. That however is orthogonal to how I add/remove said components.

[split harness]

This is solved any number of different ways. If you are trying to mash together two arbitrary hierarchies, you have created a bunch of problems for yourself (things are likely to break in arbitrary ways, performance is a concern because arbitrary compositions of scenes require re-computations). In general the strategy should be

1. Default to using Components to define sharable logic. Low complexity, maximum reusability (no hierarchy mashing), highest performance
2. Use non-inherited scene functions to define shareable logic. Higher complexity, medium reusabiltiy, low performance (full recomputation of the final scene).
3. Use oo style inherited scenes. Higher complexity, low resuability, medium performance (inherited scenes can be cached / precomputed).

In theory we could provide a non-inherited/non-restricted version of scene components that fills the same role as (2). We'd need new syntax, and I'm honestly not sure it is practical in the real world

We can adjust as we go

[silk lava]

Why does the 1st Scene, need to be recompouted, to apply the 2nd Scene to an Entity? They are two entirely seperate Scenes.

[split harness]

Scenes are patches that apply on top of each other, in order

[silk lava]

Okay, Two ResolvedScenes then kek

[split harness]

ResolvedScenes are not the public interface that most people interact with. The Scene API does not speak "resolved scene" only patches

Also, writing ResolvedScenes on top of each other could invalidate the assumptions of the scenes. If they have overlapping Transform components, the second ResolvedScene's component would clobber the first one

[silk lava]

ResolvedScenes should be interacted with though, otherwise this issue that we are discussing shows its self otherwise. If you could have multiple ResolvedScenes on an Entity, then you wouldn't need to recompute the non-changed one, sure the second ResolvedScene may clobber some of the other ResolvedScenes entities/components but that is the nature of adding whatever you want to entities, you the user are responible for knowing what they have and what you add to them will work.

[split harness]

The point of SceneComponent is to be a functional abstraction. If you take a SceneComponent that someone else gives you, you cant be certain about how its scene will interact with your own arbitrary scene.

[silk lava]

You can, you just look at the scene() it produces? We already dicussed that you will need to know when an Component is a SceneComponent, so as to call the correct spawn method, so you can also checkout whatever scene they have provided, and potentially if needed, build yours around theirs.

[split harness]

"Scene component-ness" is a top-level concern with guard rails built in. Knowing and applying that knowledge is not the same thing as inspecting the internals of the scene function (and ensuring the things you do don't clobber those internals)

And notably, "scene component-ness" can be statically enforced, if we decide it is necessary and the tradeoffs are worth it.

[leaden dew]

wouldn't it be possible to forcefully mash together two scenes anyway by chaining commands.spawn_scene(first).apply_scene(second)

[split harness]

Yes this is possible, although apply_scene is largely discouraged (read the docs)

For exactly the reasons we're discussing here

[silk lava]

Got my points out of the way, I still disagree about Scenes being limited to one, or not allowing multiple ResolveScenes per entity. It will lead to more OOP behavior which will hurt performance in the end.
Either way though, I appreciate the hard work. 🛒 🩵

[split harness]

Multi-inheritance is largely an engineering / performance problem. If we really want to go down that road at all costs, we can

Given the tradeoffs, I'd prefer to start with constraints that can perform well and behave predictably and then later lift them, than to start with the wild west (both from a performance and behavior perspective)

Also as a disclosure: I think "pure-ECS at all costs" is just as bad as "OOP at all costs". Rust would be a better language if it embraced inheritance more fully

There is no one tool that is best at everything. Some problems are OOP-shaped and thats ok.

(for those who aren't aware, Rust is an OOP language, it just doesn't go all the way)

[silk lava]

Oh for sure, in fact I think I may be the only person that has suggested multiple times recently that we should have a form of OOP storage, where OOP semantics can be practiced, because in certian data-access-patterns/use-cases OOP is exactly what you need. Although I wanted this to be based on Storage, with as little change the rest of the API as possible, basically unifying it with the other storages.
Although I have yet to figure out what that unification looks like, besides for just wrapping the Components in Arc<Mutex<C>> and storing them inline in the Archetypes. Theres definitely something there, just gotta get that glimpse.

[thick slate]

Merging https://github.com/bevyengine/bevy/pull/24018

[vapid forge]

edit: PR created
is it intended/required that Scene andSceneList are implemented for ()? Its easy for this to lead to errors like fn thing() -> impl Scene { bsn! { Node }; } silently doing nothing, which would be alleviated by not implementing Scene and SceneList for ().

On the other hand, theres a test case called empty_scene_expressions, but its also the only thing which breaks if Scene is not implemented for ().
For SceneList, the unit type is used in a lot of cases through scene_list!() tho it seems possible to have this return something other than (), maybe an empty Vec, for the empty case. That way, the impl for unit could be removed, raising unimplemented error on accidental ;

[lime veldt]

I kinda want that for Bundle too for the same reasons

[exotic panther]

merging timed out :(

[vapid forge]

i got it working i think, not with Vec but a new unit struct.

[vapid forge]

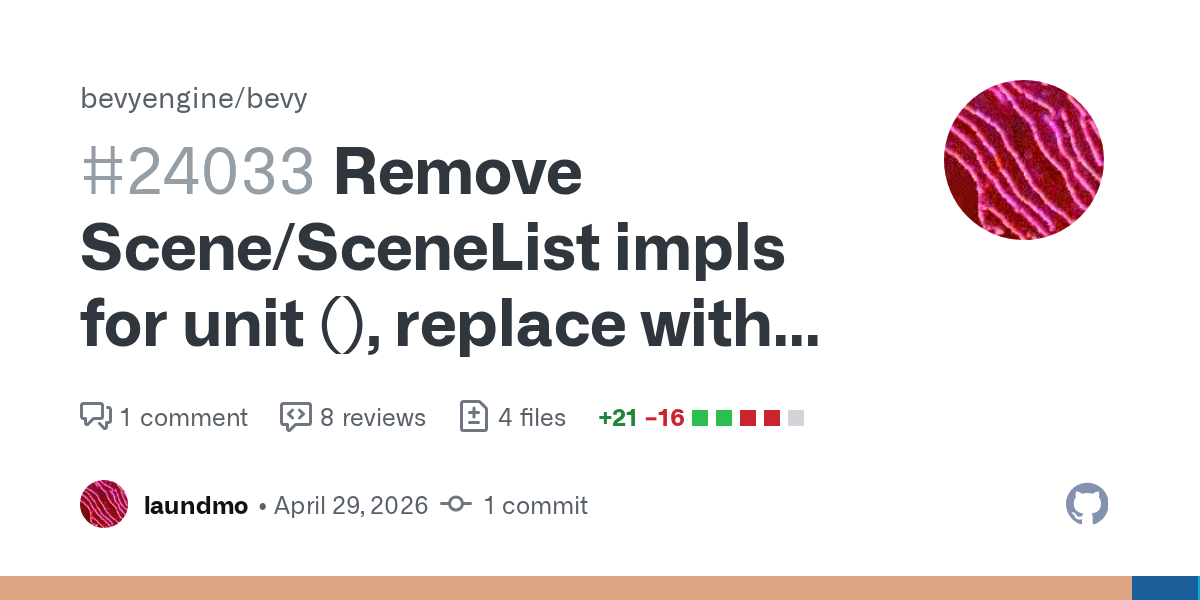

PR created: https://github.com/bevyengine/bevy/pull/24033

[split harness]

Reviewed!

[vapid forge]

replied!

[split harness]

I think I'm most amenable to this in the form of "we shouldn't support empty tuples at all", rather than hacking it

Although I still think theres significant value in supporting (), largely from a devex standpoint (people start with an empty tuple and build out, the equivalent of an "empty" argument when accepting impl Scene as an input parameter, etc)

[thick slate]

@split harness @vapid forge could we use macro-parsing to detect when we have (some top-level code) ended with a semi-colon and manually throw a compiler error?

[split harness]

The semicolon isn't part of the macro expression

[lime veldt]

I actually would like that be a RA/clippy thing

[split harness]

It would have to be wrapped one level up (ex: at function level):

bsn_fn!(my_bsn_fn, {
   #Hello
   Children [ #World ]
})

But at that point the problem isn't a problem anymore

And also ... ew

[random river]

Can you solve that with #[must_use]? It looks like adding that attribute to SceneScope and SceneListScope will cause pub fn thing() -> impl Scene { bsn! { Node }; } to emit warning: unused ``scene::SceneScope`` that must be used.

[split harness]

Ooh that would be very nice

[split harness]

This notably also makes feathers prelude-friendly. I think we should heavily consider adding a non-default bevy::feathers::prelude::* to easily pull the feathers widgets into scope

Although I suppose bevy::feathers::controls::* already does that pretty nicely

[vapid forge]

welp, its different enough i'm still gonna open a different PR buuuut worth a try

[vapid forge]

you are... 100% right. That just.. works. 🤦

wait

that also works for Bundles which is fun

less useful, because theres no central place to apply it i think

[lime veldt]

yeah there is no into_bundle you could put that on

[vapid forge]

wait, must_use can be applied to whole traits

alas, that doesn't work

its apparently not checked that way for traits

[lime veldt]

quite sure you don't want to turn every () in the app to #[must_use]

[vapid forge]

true, which is probably why it doesnt work like that for traits

alas i dont think the Component derive can applly must_use either

[random river]

Yeah, it looks like applying it to the trait just affects impl Scene and dyn Scene. Which is probably worth doing! Not using an impl Scene is almost certainly a bug.

[vapid forge]

already wrote it and was about to submit the PR when i got sidetracked trying to limit cargo test so it doesn't freeze my pc (somehow!)

[rare whale]

Now I kind of wish I had kept the longer prefix for the headless widgets. That being said, I don't think feathers belongs in the general prelude since the primary customers will be editors, not games.

[split harness]

I agree that it shouldn’t be in the general prelude.

I think the short general names make sense for the “shared” / common types

(Aka the headless widgets)

[rare whale]

My counter argument there is that the shared common types are meant for library authors

[split harness]

The longer names also makes mixing and matching widgets across libraries much clearer

[split harness]

Yeah this is a reasonable take. I think if anything is going to take the short names from the core widgets, it would be the less opinionated “game widget” library

[rare whale]

@split harness Speaking of which, I'm wondering what is the plan for bsn assets that inherit from bsn macro scenes. Like if I have a library of widgets that are defined in rust code, and I want to invoke those widgets in an asset.

[split harness]

Scene functions could easily be registered / reflected. SceneComponents / constructors are also pretty straightforward to wire up.

Things get harder for generic parameters (ex: fn scene(input: impl Scene))

But things like Box<dyn Scene> on scene constructors should be pretty straightforward to support

So in general the plan is "make it work" and I don't anticipate major technical barriers

[vapid forge]

finally sent the PR for this: https://github.com/bevyengine/bevy/pull/24040

[silk lava]

Is it possible to replace the () empty Scene, with Option<T: Scene>?
Then you cant mess up producing an empty scene.

[split harness]

Alrighty I've made some changes that resolve the concerns about stuffing "scene logic" into the component derive / bevy_ecs:

• SceneConstructor has been renamed to SceneComponent and is now derivable. It lives in bevy_scene. It automatically derives Component internally, and can be configured in all of the same ways.
• I've refactored the Component derive to be reusable and extendable. See the new bevy_ecs_macro_logic crate.
• I took the liberty of porting the Resource derive / removing all of the redundant logic, as it uses the exact same pattern.

This notably improves ergonomics even further:

#[derive(SceneComponent, Default, Clone)]
struct Player;

impl Player {
  fn scene() -> impl Scene {
    /* scene here */
  }
}

Configuring the SceneComponent derive now uses the #[scene] attribute:

#[derive(SceneComponent, Default, Clone)]
#[scene(PlayerProps)]
struct Player;

impl Player {
  fn scene(props: PlayerProps) -> impl Scene {
    /* scene here */
  }
}

I believe https://github.com/bevyengine/bevy/pull/24008 is "ready" now

[thick slate]

Changes requested!

(I really like the refactoring though!)

[silk lava]

Approved.

[brittle mortar]

Why not just use Player as the props ? It cauld reduce the complexity of bsn and reduce boilerplate code.

before:

#[derive(SceneComponent, Default, Clone)]
#[scene(PlayerProps)]
struct Player {
    value: usize
}

#[derive(Default)]
struct PlayerProps {
    border: bool,
}

world.spawn_scene(bsn! {
   :Player {
       @border: true,
       value: 10,
   }
});

after:

#[derive(SceneComponent, Default, Clone)]
struct Player {
    value: usize,
    border: bool,
}

world.spawn_scene(bsn! {
   :Player {
       border: true,
       value: 10,
   }
});

[thick slate]

Player is not a great example: the hope in general is that the prop gets completely erased and embedded into a bunch of different component values in a complex way

At least, that's the hope for UI

[split harness]

Player (and the rest of the scene) is what the props produce. Storing the props on a spawned Player doesn't really make sense, as they are not a "runtime" property.

Additionally, the distinction is important because props are not "patchable" after they are set.

[rare whale]

What he said. Often props are not things you would want to store on the actual component.

[frosty shell]

is there somewhere that documents the syntax of the bsn! macro?

[lime veldt]

when you want to intentionally return an empty scene, you have to specify the generic for that None :/

[heavy peak]

The scene component stuff confuses me. Doesn’t’ a scene have a player component? Why does a player have a scene component? Assuming scenes are like levels in a video game

[pale edge]

You can spawn scenes inside other scenes ?

[heavy peak]

Ahh, so this is intended to be used inside of a larger scene. That makes sense

[pale edge]

https://github.com/bevyengine/bevy/pull/24008
Read the objective and solution sections here.

It's also about making a player component spawn automatically with other things it needs

[thick slate]

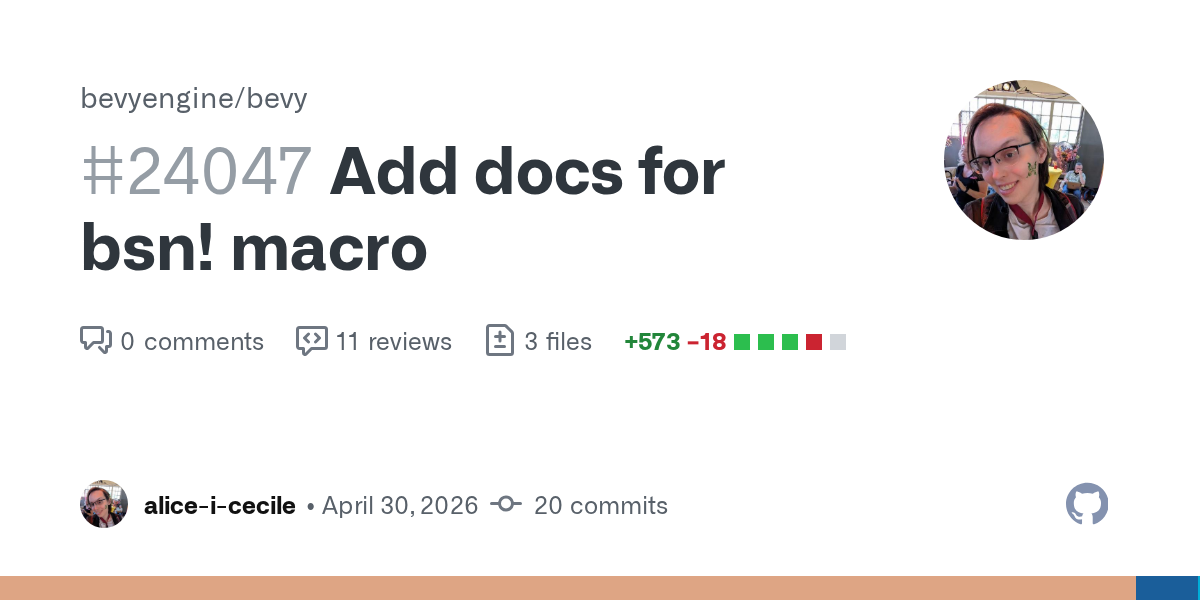

More docs! https://github.com/bevyengine/bevy/pull/24047

[slender lion]

Is RenderTarget usable in bsn at the moment? Seems like an enum without a Default or a FromTemplate

[thick slate]

Looks like no. It needs a FromTemplate impl

[frosty shell]

Also encountered this, made an issue: https://github.com/bevyengine/bevy/issues/24050

[split harness]

@thick slate I've resolved conflicts and pushed docs to Scene Components. Should be good now

[split harness]

Looking now

[thick slate]

Great, merge away

[thick slate]

Thanks for the review; I'll get on those changes!

One thing though: I wanted to be unusually aggressive on the "explain standard Rust syntax" in these docs. You complained about this in a couple places, but I think it's important here.

If things go according to plan, we should expect users who do not know how to write Rust to author, or at least tweak, BSN files. Glyphs like // and <T> are extremely mysterious for these folks (I was one of them), and quite hard to search (better in the age of the LLM, but not all users will use those).

I can de-emphasize them though!

[leaden dew]

considering these docs are specifically for the macro, which can only be used in Rust code, it's perhaps more safe to assume at least surface-level familiarity with Rust there than e.g. the bevy book

covering basic rust syntax i think would go perfectly in like documentation of the asset format in particular

[thick slate]

My plan is to move these out into the general BSN DSL documentation as soon as we have that

But I couldn't find a good home for it at present

[leaden dew]

makes sense

[thick slate]

Feedback resolved! Thanks for teaching me; there were a number of things I was unclear on and I very much feel like a novice when it comes to working with BSN still.

The tradeoffs of composition methods in particular were very hard for me to piece together, so I'm glad that we have clear, recorded guidance there

[split harness]

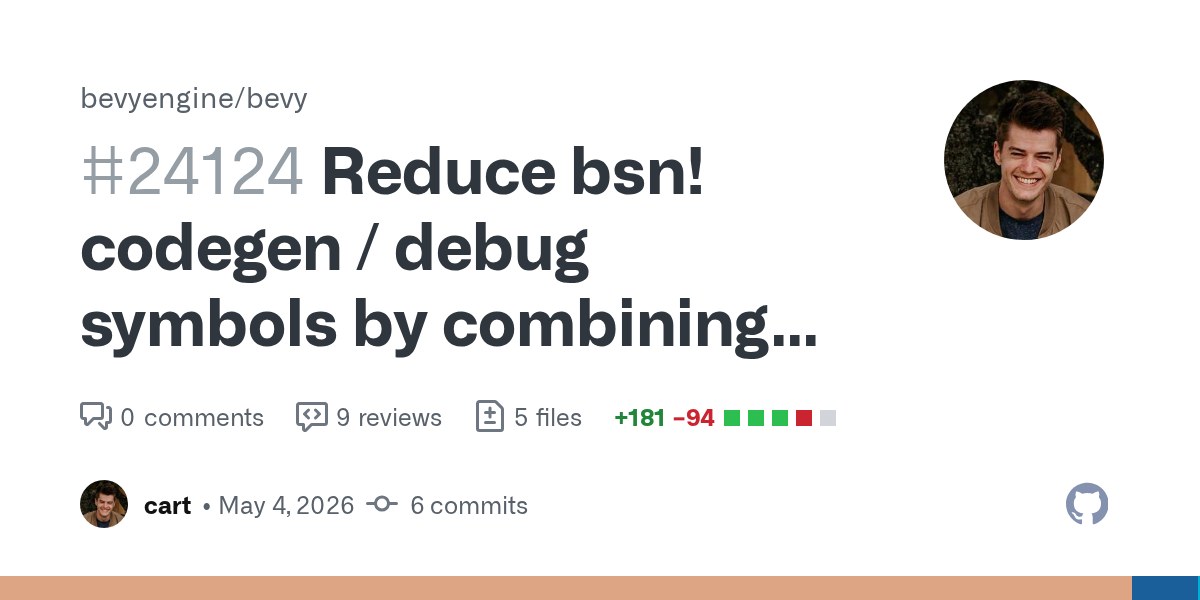

I've been working on cutting down on codegen / debug symbols in BSN:

Notice how "adjacent" template patches are all merged into the same Scene impl (the new SceneFunction)

Also no more PatchFromTemplate::patch intermediary

[lime veldt]

can't the concat of symbols for generic types be done lazily somehow?

so the binary only contains the parts of the names, not a bazillion number of combinations

[split harness]

I'm not sure I understand

[split harness]

Also the source bsn! for reference:

bsn! {
    Node {
        width: percent(100),
        height: percent(100),
        align_items: AlignItems::Start,
        justify_content: JustifyContent::Start,
        display: Display::Flex,
        flex_direction: FlexDirection::Row,
        column_gap: px(8),
    }
    TabGroup
    ThemeBackgroundColor(tokens::WINDOW_BG)
    Children[
        :demo_column_1,
        :demo_column_2,
    ]
}

[lime veldt]

When I look at this: #1264881140007702558 message I notice many many repeating segments. Do these segments appear only once in the binary or is this monstrosity one full single str?

[split harness]

Yeah for the debug symbols, this is the "full type name", which encompasses the entire tree. We could "break" this in a number of different ways:

1. Make EntityScope use Box<dyn Scene> instead of S
2. Stop using tuples for scenes and instead produce some DynamicScene(Vec<Box<dyn Scene>>)

These of course have runtime implications

[split harness]

These changes do help resolve the problem, as they significantly cut down on both the number of closure types and the number of Scene types generated

[lime veldt]

my suggestion was if we generate these full type names lazily at runtime instead of compiletime

[split harness]

My understanding is that we are not explicitly storing these type names in the binary / we are not generating them in code. Rather, these are the debug symbols that rust generates on our behalf as part of the compilation process

[lime veldt]

because we use stuff like type_name?

[split harness]

No, because someone debugging would want to know the type when they interact with it

As in using a debugger

Put another way: these symbols will not be produced in release builds

[lime veldt]

gotcha

[lime veldt]

aren't closures rather slim in these as they usually are just short {closure#1}s?

I can imagine they help a bit here

though that what comes before it, the location of the closure, can still be wordy

[split harness]

Yes, just a minor optimization. one less type generated

[dusk lynx]

Was there a way to pass #Entity as an argument to a function within bsn! yet?
As in

bsn! {
  #Root
  Children[:myChild(#Root)]
}

fn myChild(root: ???) -> impl Scene {
  bsn! { }
}

[tardy beacon]

...except for WASM. Or at least the default release build includes them. I don't know enough about WASM to say if they're strictly required.

[tardy beacon]

I'm starting to suspect that spawn_scene/spawn_scene_list being generic on Scene plus the function() -> impl Scene idiom might turn out to be a problem. I can see that one instance of spawn_scene_list is ~1KB, although hard to get accurate numbers on the total cost and how it might change with boxing. The real costs won't become apparent until there's an app that's spawning hundreds of different scenes. So I might be wrong, but seems risky.

I'm wondering if it would be safer to make bsn! return Box<dyn Scene> and change spawn_scene/etc to take a box? Currently it gets boxed anyway in ScenePatch::load_with, so we're just moving that box earlier.

As a bonus, would be a minor boilerplate reduction for cases like this that currently need to box explicitly:

button(ButtonProps {
    caption: Box::new(bsn_list!(
        (Text("Normal") ThemedText),
    )),
    ..default()
})

[dusk lynx]

The boxing actually seemed to be implicit after https://github.com/bevyengine/bevy/pull/24008

[tardy beacon]

Oh, that is a bit nicer, but I think it's still depending on curly brackets to trigger the Box::into. So if bsn! boxed then @caption: {bsn!{ Text("Left") ThemedText }} would lose one pair of curly brackets. Only a tiny improvement though.

[frosty shell]

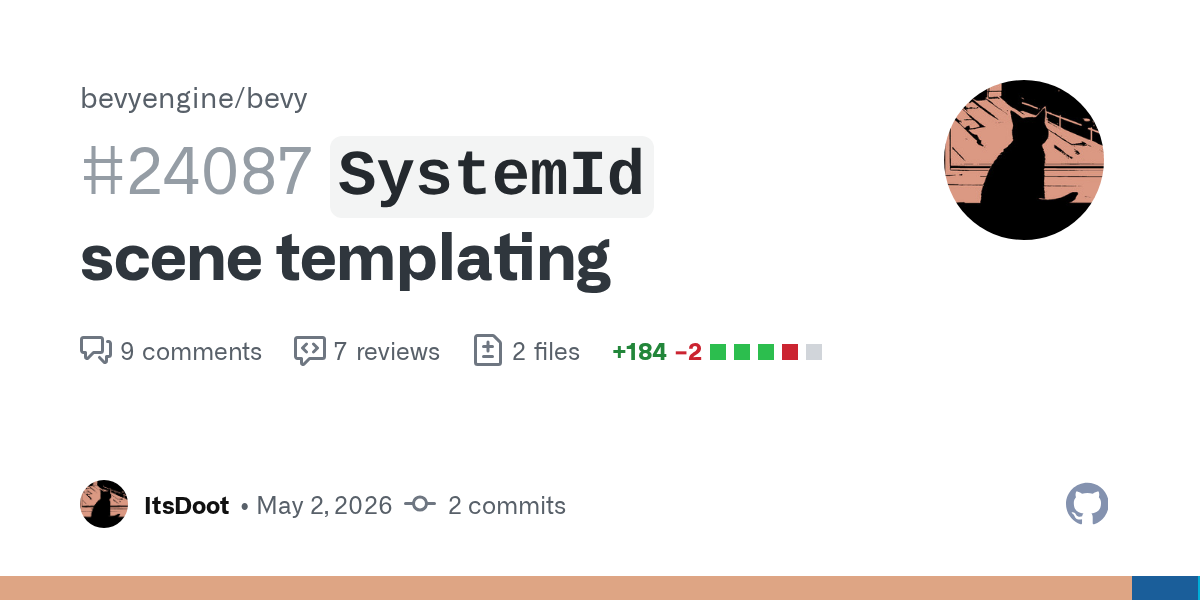

~~I got one-shot system templating working: https://github.com/bevyengine/bevy/pull/24072

Should've been half the size but portable-atomic's Arc not having special powers like std::sync::Arc means no-std-portable-atomic wouldn't be able to use one-shot systems (which I believe we only support on a best-effort basis). If the right rust feature gets stabilized though, it can support one-shot systems again~~

Got a better alternative figured out: https://github.com/bevyengine/bevy/pull/24087

[vapid forge]

could i inquire about the reasoning for using Arc at all? Its not really explained in the issue text.
edit: oh hm, clone_template

[frosty shell]

Yea templates being repeatable is the big thing

[vapid forge]

Hmm, have you investigated whether theres a way to rely on impl Clone for FunctionSystem?

[vapid forge]

Actually, better question/idea: Is there a reason to re-register each the system for each clone with a new SystemID?
edit: i turned this into a review comment

[silk lava]

Would this run into the same problem that the _cached variant of one-shot methods do with respect to non-ZST systems? (capturing closures / function pointers)

[vapid forge]

hm? i dont think so, i explained it more in the review comment on the PR, but basically: currently, a Arc<Mutex<dyn System>> is being cloned and re-registered when the template is cloned. Instead, if the Arc<Mutex> contains a dyn System or a SystemId, then on the first time this system is registered, it could change the dyn System to the resulting SystemId so that it acts like the case of passing a SystemId to the template from the start.

[vapid forge]

Has anyone been able to use a named entity reference in a impl Scene function argument or in a Scene Component value?

fn test(e: Entity) -> impl Scene {
    bsn! {
        ChildOf(e)
    }
}

fn main() -> impl Scene {
    bsn! {
        #Root
        Children [
            :test(#Root)
        ]
    }
}

:test(#Root) could also be :MySceneComponent(#Root) assuming struct MySceneComponent(Entity)

it seems named entity references can't be passed to scenes at all...

no matter what i try, i either end up with syntax errors, or a type EntityTemplate

[vapid forge]

bsn!{
    #Root
    //...
    :pane_header Children [
        :flex_spacer,
        :CloseButton
        CloseButtonTarget(#Root)
    ]
};

This is the closest i was able to get, I'd love to be able to do :CloseButton(#Root)

[cobalt stone]

            Camera3d
            template_value(Transform::from_xyz(-2.5, 4.5, 9.0).looking_at(Vec3::ZERO, Vec3::Y))
        )

Why is template_value used here?

Also I can't nest like this?

error[E0308]: mismatched types
   --> examples\asset\compressed_image_saver.rs:22:42
    |
 22 |                 base_color_texture: Some(asset_value("textures/GroundSand005/GroundSand005_COL_2K.jpg")),
    |                                     ---- ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^ expected `Handle<Image>`, found `HandleTemplate<_>`
    |                                     |
    |                                     arguments to this enum variant are incorrect

[frosty shell]

@vapid forge I had a sleep on it and figured out a much simpler version similar to HandleTemplate https://github.com/bevyengine/bevy/pull/24087

[vapid forge]

nice to see my idea from https://github.com/bevyengine/bevy/pull/24072#discussion_r3176573542 worked out
-# or did you truly come up with the exact same design, even using some of the same language, by yourself, without having read that..?

[frosty shell]

I only read your discord comments

and then looked at how HandleTemplate is implemented

swapped my game to this branch and was able to clean up spawning significantly

[rare whale]

@split harness I'm still having issues trying to pass a #Name as a scene property:

Children [
    // Inner part that scrolls
    (
        #inner
        Node { ... }
        ScrollArea::default()
        Children [
            {children}
        ]
    ),

    // Scrollbar
    :FeathersScrollbar {
        @target: #inner, // ERROR!
        @orientation: {ControlOrientation::Vertical}
    }
    Node { ... }
]

Neither @target: #inner nor @target: {#inner} will compile.

[rare whale]

Draft PR is here: https://github.com/bevyengine/bevy/pull/24092

[thick slate]

I can't get a fix working for https://github.com/bevyengine/bevy/issues/24050; appears to be an RA bug. Filed an issue upstream and removed from the milestone

[lime veldt]

oh so it does compile but RA flags it?

reminds me I wanted to report a RA bug too!

[split harness]

Was there a way to pass #Entity as an argument to a function within bsn! yet?
Not yet! Function arguments are currently normal Rust expressions. Supporting #Name in argument position is planned, but it will require some elbow grease to support both normal Rust and #Name.

[split harness]

Yeah once we support full rust expressions in field value position the {} will be optional. A similar problem to #Name in function argument position

[split harness]

@vapid forge @rare whale looks like for some reason the new "scene component" syntax isn't handling #Name properly, which is surprising given that its using the same code at the normal component patching. I expect an easy fix, but we'll have to see 🙂

[cobalt stone]

What about template_value?

It seems like you can't do

let x = MyComponent;

bsn! {
  {x}
}

You need to wrap x in template_value, and if you don't you get super confusing errors

[split harness]

It is used here because arbitrary expressions aren't supported in patch position right now. This is a product of having a manually defined / parsed "patch syntax", which is necessary as we need to know the symbol of the template we are patching ahead of time.

Supporting arbitrary expression here is possible. Once again a similar challenge to the "#Name in function argument position" problem above.

It is trying to marry arbitrary Rust expressions with more constrained BSN semantics

[queen oak]

We can do it!

We will grind it out next cycle

[split harness]

Yeah. A general class of problem I would like to solve sooner rather than later / I think we can get there shortly

[split harness]

This is the result of a semantics choice rather than a technical limitation.. {x} expects an impl Scene (ex: a bsn! block), but MyComponent is a raw final component value. Scenes are things that are "dependency aware patches that can contribute to a ResolvedScene", which is not what MyComponent is.

template_value(my_component) returns a Scene impl that completely overwrites the template of that type with the given value.

We could make bsn! { {my_component} } assume my_component is a "component template value that completely overwrites what is there". But then you couldn't do something like:

let x = bsn!{ Node MyComponent };
bsn! {
  {x}
}

Because x is an impl Scene, not a "component template value"

If we could impl<C: Component> Scene for C then we could make it behave like template_value implicitly, but I don't think thats possible.

[split harness]

The big challenges here are largely:

1. Treating #Name as what amounts to a "new" Rust value type. We might actually be able to do this in "layers" with some sort of prepass that does the replacement on the raw tokens, rather than trying to write ourselves directly into the Rust expression parse logic.
2. Supporting "type patching" in the appropriate places while also supporting arbitrary rust expressions. This is the gnarlier problem in my mind. Definitely still a solveable one.

(2) requires flipping from "i am patching fields directly on this type" to "I am now assigning a whole overwriting value to this template via a Rust expression" at the appropriate time.

We already do (2) in the context of Transform::from_xyz() vs Transform { position: Vec3 { x: 1.0 } }, but it is accomplished by manually parsing "constructor syntax vs field syntax". We aren't parsing these expressions as syn::Expr

I think the solution might actually be to parse them as Expr, which we then interpret

Although that does limit us as it means we need it to be a fully valid rust expr tree all the way down

[vapid forge]

well, not just scene components, also "normal" impl Scene functions. The issue seems to be linked to inheritance, either on a syntax or a logic level

I did mess around with it a bunch, trying tuple structs or named field structs for the SceneComponent and the props struct, surrounding it by all kinds of brackets/parantheses, etc.

[split harness]

also "normal" impl Scene functions.
Can you provide an example of what you mean here?

This still works / we have tests for it:

bsn! {
  #Name
  Children [
    Foo { entity: #Name }
  ]
}

[vapid forge]

ah, no, i meant inheriting

[split harness]

Gotcha

Then what is an example of "non scene component inheritance"?

[vapid forge]

:[a-zA-z_][\({]

(if i had to write a regex to find failing cases)

[vapid forge]

inheriting from a impl Scene function

[split harness]

My point of confusion is that any inheritance where you would assign #Name to a field is "scene component inheritance"

[split harness]

Ok that makes sense. Different failure path

[vapid forge]

maybe i'm misusing the terminology

i thought inheritance always needed : before the thing

[split harness]

Those are indeed both inheritance and they are indeed both broken (but for different reasons)

SceneComponent inheritance should hopefully be an easy fix

[vapid forge]

at least the errors i got were the same, iirc

[split harness]

function params slightly harder, especially if we want to support arbitrary #Name expressions

But yeah I'll try to get both working as soon as possible 🙂

[vapid forge]

basically take this #1264881140007702558 message and instead of a impl Scene function which takes Entity as an argument, make a struct Foo(Entity) which derives SceneComponent
or make it a unit struct and do FooProps(Entity), neither work

as in, neither allow me to pass in a #Name named entity reference as an entity

tho for one case, the props one iirc, or maybe the non-: patch syntax, i get a type error instead, due to getting EntityLinked or something (i forgor and am on phone rn)

if i wasn't in bed rn i'd go back and write a proper issue, it just seemed so obvious at the time that this would be something you'd wanna be able to do... i honestly didn't consider it

[split harness]

Yup i understand

[split harness]

Just put out my "improved BSN codgen" PR: https://github.com/bevyengine/bevy/pull/24124

[split harness]

Ok this one is a simple bug / I have a fix (assigning #Name to a a Scene Component's "normal" / patchable field).
But @rare whale's case (assigning #Name to a Scene Component's prop field) is a bit of a pickle, as prop fields are evaluated "inline" / immediately / without context. This means they can't call patch_context.current_entity_scope

This is essentially the same problem as wanting to create a new "entity reference" like this;

fn my_scene() -> impl Scene {
  let entity = EntityTemplate::new_ref();
  bsn! {
    SomeComponent(entity)
  }
}

If we're willing to embrace a global atomically incrementing counter for scopes (and pay for hashing the scope index rather than a dense array index), then we could make this happen

It would unlock a lot of flexibility, but it would also increase the cost of spawning things

Hmm I miiiight also be able to move prop evaluation into a Scene impl

[split harness]

Nope not possible. Props could determine the dependencies of a scene, which must be known prior to calling Scene::resolve, which is where we get access to the ResolveContext

[split harness]

Kind of a tough call here, given the performance. Additionally, this would make things like "hot reloading" / reactive diffing harder, as the scope index would change on each evaluation of the scene.

A given EntityTemplate::ScopedEntityIndex generated for a #Name would change from this: { scope: SOME_INDEX_RETURNED_FROM_THE_ALLOCATOR, index: 0 } to this { scope: SOME_OTHER_INDEX_RETURNED_FROM_THE_ALLOCATOR, index: 0 } each time the Scene is re-generated

Iirc i_cant_believe_its_not_bsn used a hash of the source file location for this, which would be stable in those contexts. But that is also massively more expensive to compute

Although I guess in theory we could do the hashing at compile time

let x: &'static str = const { file!() };

I don't love that either from a compile perf perspective, but preferable to doing at runtime

[rare whale]

@split harness I want to also have you think about the other issue that is blocking me, which is assigning handles to fields in inner structs, which I mentioned a couple days ago:

bsn! {
    Node {}
    Button
    Hovered
    EntityCursor::System(SystemCursorIcon::Pointer)
    StateSource::SelfState
    VisualStates [
        StyleRule {
            pattern: StatePattern {
                mask: WidgetState::DISABLED,
                required: WidgetState::DISABLED,
            },
            background: {ImageNodeTemplate {
                color: Color::WHITE,
                // image: ImageTemplate::Handle(""), // NOPE!
                ..Default::default()
            }},
        },
        StyleRule { ...  },
    ]

Here we have a StyleRule component which internally keeps an ImageNode containing a handle. I can assign the handle to fields of StyleRule but not to fields of templated structs within StyleRule.

Note that in this case, ImageNode is a component but we're not using it as a component because we want it to remain hidden until the state pattern matches (at which point it will be cloned and inserted into the widget, overwriting the previous image node).

I could solve this by hoisting all of the properties of ImageNode into StyleRule and then copying property-by-property but I'd prefer not to do that.

[split harness]

I would like to (once again 😃 ) reiterate that nesting templates inside of each other is supported and functional.

I see a number of issues with your code. First (and I think this is the core issue): you're doing an explicit Rust expression block when you don't need to / it is making things harder on you. This will compile:

#[derive(Component, FromTemplate)]
struct StyleRule {
    background: ImageNode,
}

fn scene() -> impl Scene {
    bsn! {
        StyleRule {
            background: ImageNode {
                image: "icon.png"
            }
        }
    }
}

Nested templates can/should be "patched" just like everything else, unless you really want / need to do explicit Rust expressions.

If you do want to do an explicit Rust expression for the ImageNodeTemplate, the one you wrote seems wrong:
(1) ImageTemplate isn't a type. You probably want HandleTemplate
(2) HandleTemplate::Handle("") doesn't make sense, as the ::Handle variant expects a Handle. you want the Path variant.

This compiles (although you should prefer the "patch" approach above):

fn scene() -> impl Scene {
    bsn! {
        StyleRule {
            background: {ImageNodeTemplate {
                image: HandleTemplate::Path("icon.png".into()),
                ..Default::default()
            }}
        }
    }
}

[rare whale]

Ah, I guess I misunderstood. OK that seems to work.

[rare whale]

How would it look if background was Option<ImageNode>? Like say I want to have Some(ImageNode { ... })

E.g.:

#[derive(Component, Clone, Default, FromTemplate)]
pub struct StyleRule {
    pub pattern: StatePattern,
    #[template(OptionTemplate<ImageNodeTemplate>)]
    pub background: Option<ImageNode>, // None = render nothing for this state
}

[split harness]

This bit is where things start to get "interesting". This is probably the most ergonomic form at the moment:

#[derive(Component, FromTemplate)]
struct StyleRule {
    #[template(built_in)]
    background: Option<ImageNode>,
}

fn scene1() -> impl Scene {
    bsn! {
        StyleRule {
            background: {ImageNodeTemplate {
                image: "icon.png".into(),
                ..default()
            }}
        }
    }
}

I was a bit surprised when this didn't work:

bsn! {
    StyleRule {
        background: OptionTemplate::Some(ImageNodeTemplate {
            image: "icon.png"
        })
    }
}

It generates the patch, but it doesn't do implicit defaults there, so it requires specifying every field on ImageNode. This feels overly strict / I think we can make that one work

I believe the current behavior is an over-extension of the "nested enums require specifying all fields" behavior

[split harness]

See this PR for the built_in attribute: https://github.com/bevyengine/bevy/pull/23699

[split harness]

Just put out a fix for setting normal tuple fields on Scene Components:
https://github.com/bevyengine/bevy/pull/24144

[split harness]

This is a pretty solid sign that we need a separate codegen path for props, rather than trying to reuse the existing logic. If we launch with #Name being unsupported in prop fields, we'll want an error path for that as well, which is also a departure from the current logic.

[vapid forge]

oh, to be clear, i also tried with named fields and #Name also didn't wanna work

i should probably write a few tests at this point

[split harness]

Named fields work for me. This test runs / passes:

    #[test]
    fn scene_component_name_reference() {
        #[derive(SceneComponent, FromTemplate)]
        struct Widget {
            entity: Entity,
        }

        impl Widget {
            fn scene() -> impl Scene {
                bsn! {}
            }
        }

        let scene = bsn! {
          #Name
          Children [
              :Widget { entity: #Name }
          ]
        };

        let mut app = test_app();
        let world = app.world_mut();
        let entity = world.spawn_scene(scene).unwrap().id();
        let root = world.entity(entity);
        let children = root.get::<Children>().unwrap();
        let child_widget = world.entity(children[0]).get::<Widget>().unwrap();
        assert_eq!(child_widget.entity, entity);
    }

[vapid forge]

strange, i'll have to test my thing again.

[vapid forge]

I wrote some tests for this:

• scene function (-> impl Scene) #Name entity reference
• named struct scene component #Name entity reference (additionally to tuple struct)
• scene component props #Name entity reference

https://github.com/bevyengine/bevy/compare/main...laundmo:bevy:bsn-failing-syntax-tests
I'm not sure if this could be a PR since these tests lead to compile/macro errors, but i'm also not testing to ensure they continue to lead to errors, instead using tests to showcase where syntax could be improved...

[vapid forge]

Okay, i've looked at the macros and their output quite a bit, and i can understand why this is so difficult.

The call to SceneComponent::scene() or scenefn() happens directly while the macro is being called, inside a block.

{
    (
    scene_function(), // where we wold like to pass Entity
    Foo::patch(move |value, _context| {
     // even this isn't actually an Entity, its EntityTemplate
      value.entity = EntityTemplate::ScopedEntityIndex(
          ScopedEntityIndex {
              scope: _context.current_entity_scope(),
              index: 0usize,
          },
      );
  }),
  )
}

This means all it does is add a template patch to be called with context later to the list of scene items. The way EntityTemplate handles this is by resolving during the time templates are applied.

I think a "solution" to this might actually be a compromise between making it as easy to use as it could be, somehow getting the #Name resolved to Entity before the scene call, and the current stat of it being impossible: By providing tools for impl Scene functions to take not the Entity itself, but something that can expand to it later. The main difficutly here, i would think, is that whichever this new NamedEntity (just my idea for a name) or whatever is, it would have to somehow store the context of the outer scene.

[rare whale]

Something like a NamePromise or NameFuture?

[vapid forge]

the issue really is how the implementation would look, because of the way the scoping works out

There needs to be some globally unique identifier for scopes i'm afraid, to be able to pass the outer scope into a different SceneScope

[vapid forge]

I am SO CLOSE to getting it working. The only issue is i had to no-op the register_dependencies which i'm sure is not good

Like, it actually works!

but i think it works in a way such that assets will not be registered, which is ugh

but i somehow got it to pass every test in bevy_scene/src/lib.rs even the ones i added

[vapid forge]

wait i forgot one i commented

ughhh it would be so much better if there could be global state during macros. Just increment a counter for each unique #Name + Scope and be done with it

[dusk lynx]

Calls for a thread_local! 😱

[split harness]

Cool cool. "#Name as function parameter" and "#Name as props" failing is unsurprising / expected

[vapid forge]

no i mean, i got #name as function parameter working

at this point

i also got #name as props working

its hacky tho

i put the chance it will be merged like this at a solid 0.1%

[split harness]

The only issue is i had to no-op the register_dependencies which i'm sure is not good
Yeah this is very unlikely to fly

[vapid forge]

mhmm

[split harness]

By providing tools for impl Scene functions to take not the Entity itself, but something that can expand to it later.
This is essentially what EntityTemplate::ScopedEntityIndex is

[vapid forge]

yup

basically, my solution looks like making the macro pass EntityTemplate when #name is referenced

the issue is: i need the current scope, no the inner one

so i had to hack my way around somehow getting the scope index before the scene function is called

[vapid forge]

if you're curious, i just pushed what i have: https://github.com/bevyengine/bevy/compare/main...laundmo:bevy:bsn-hacky-name-passing

[split harness]

Cool yeah this makes sense / sadly we can't use it 🙂

Thanks for investigating ❤️

[vapid forge]

yeah, it seems so close to possible

its... annoying

[split harness]

I'm off BSN until I can wrap up the Bevy Foundation's annual report to the IRS, so its great that you've picked up the mantle

[vapid forge]

if i could call register_dependencies from within resolve it'd work

but i'm not sure what the implications of that would be

[split harness]

Sadly thats an impossible request, as register_dependencies exists to prevent resolve from running until the dependencies are loaded

[vapid forge]

yea i suspected i'd be something like this

i might investigate if theres a way to have global state in the macro, but i suspect the outcome of that will be "fuck no"

could generate a UUID but thats also a relatively large amount of extra work

[split harness]

You might be able to have the macro access something like static NEXT_SCOPE_IDENTIFIER: AtomicUsize

[vapid forge]

yeah i'm afraid not, thats the first thing i thought of too

but perhaps a compile time uuid isn't the worst idea

[split harness]

Also anything involving randomness will cause problems for reactive diffing / hot reloading scenarios:
#1264881140007702558 message

[vapid forge]

mhmmm

[split harness]

Const-hashing file/line location is an option: #1264881140007702558 message

[vapid forge]

tho with the way i'm thinking it wouldn't persist after the scene is spawned. not sure how that would cause issues?

not spawned

resolved

[split harness]

Hmm yeah if you're diffing ResolvedScenes then you're fine

(which is really the only thing you could diff)

[vapid forge]

yea, hence, random in that place would just barely be fine as its gone one step before it becomes an issue

[split harness]

Yeah I think thats probably our best path forward

[vapid forge]

tho i actually dont know whether hashing file loc or generating a uuid would be cheaper

i mean, once the system is based on a global id instead of local, its easy to test either

[split harness]

It really comes down to the total size of the file + line info. UUID is big, but I suspect some file names will end up being bigger

most file names 🙂

[vapid forge]

i dont think the size matters that much

its more about how fast the hashing is vs how slow the uuid (or something with an equivalent level of randomisation) is to generate

hell: a millisecond precision timestamp + 32 random bits is gonna be unique enough to never collide

[split harness]

Yeah the real answer is do both and measure

[vapid forge]

the real answer is: first, i gotta work on actually seeing how implementing it like this would work out. I suspect it would simplify a lot of the current hassle done for scoping, but then again, i'll probably break 15 things in the meantime

[split harness]

There might be compelling performance incentives to keep the current approach around and use it for anything that doesn't require hoisting out of the resolve boundary

Although we can cross that bridge when we come to it / better to do the simple + direct swap first

[vapid forge]

hey uhh so @split harness how is your merged scene implementations PR https://github.com/bevyengine/bevy/pull/24124 any less breaking for register_dependencies than my attempt at resolving this? The questionable part, the Scene impl for a arbitrary function, looks exactly the same...

compare:

pub struct SceneScopeFn<F, S>(pub F)
where
    F: Fn(&mut ResolveContext, &mut ResolvedScene) -> S,
    S: Scene;
impl<F, S> Scene for SceneScopeFn<F, S>
where
    F: Fn(&mut ResolveContext, &mut ResolvedScene) -> S + Send + Sync + 'static,
    S: Scene,
{
    fn resolve(
        self,
        context: &mut ResolveContext,
        scene: &mut ResolvedScene,
    ) -> Result<(), ResolveSceneError> {
        let inner_scene = self.0(context, scene);
        let scope = SceneScope(inner_scene);
        scope.resolve(context, scene)
    }

    fn register_dependencies(&self, dependencies: &mut SceneDependencies) {
        // uh oh, this *cant* be a no-op...
    }
}

vs

/// A [`Scene`] that uses a function `F` to perform arbitrary [`Scene`] logic.
pub struct SceneFunction<F: FnOnce(&mut ResolveContext, &mut ResolvedScene)>(pub F);

impl<F: FnOnce(&mut ResolveContext, &mut ResolvedScene) + Send + Sync + 'static> Scene
    for SceneFunction<F>
{
    fn resolve(
        self,
        context: &mut ResolveContext,
        scene: &mut ResolvedScene,
    ) -> Result<(), ResolveSceneError> {
        (self.0)(context, scene);
        Ok(())
    }
}

[split harness]

Notably, none of the actions performed in SceneFunction have any dependecies

That is the difference between EntryResult::SceneImpl and EntryResult::CombinedSceneFunction

SceneImpl is for any BSN syntax that could generate a dependency

[vapid forge]

huh, yeah, i got confused by SceneExpression(block) for the like, 8th time today...

wait, but FromTemplatePatch?

[split harness]

What about it?

Thats still just setting fields on a Template of a given type in the ResolvedScene. It will never introduce new dependencies

[vapid forge]

okay, i tested what i was thinking, yup

[vapid forge]

Initial draft of globally unique entity references: https://github.com/bevyengine/bevy/pull/24173

I didn't realize CI runs for Draft PRs as well...

[vapid forge]

got the @props/impl scene function passing working as well!

well, as EntityTemplate not as Entity, but thats still really good i'd say.

second PR up: https://github.com/bevyengine/bevy/pull/24174

[rare whale]

@vapid forge If you take a look at my listbox PR (https://github.com/bevyengine/bevy/pull/24092), there's a place in the code that's currently commented out: (in listview.rs):

:FeathersScrollbar {
    // @target: #inner,
    @orientation: {ControlOrientation::Vertical}
}

The intent here is to tell the scrollbar which entity is being scrolled by it. This entity id is passed through to the headless Scrollbar component, which adjusts the scroll position when the scrollbar is dragged, and conversely, updates the scrollbar when the area is scrolled with the mouse wheel.

Currently the scrollbar is visible in the feathers gallery demo, but does nothing since the scrollbar isn't connected to a target entity.

[vapid forge]

Yee thats the kinda thing my PRs would partially solve. You can't get an Entity directly, but you can get a EntityTemplate which you can use instead of #name for any component which can take Entity inside the SceneComponent scene

[rare whale]

I'm ok if the syntax is a bit messy so long as it's possible

[vapid forge]

its not even messy, its just the type thats different, other than that, its the same

[rare whale]

The FeathersScrollbar scene currently looks like this:

impl FeathersScrollbar {
    /// Scene function for scrollbar.
    pub fn scene(props: FeathersScrollbarProps) -> impl Scene {
        bsn! {
            Scrollbar {
                target: {props.target},
                orientation: {props.orientation},
                min_thumb_length: 8.0
            }
            Node {
                border_radius: BorderRadius::all(px(3))
            }
            FeathersScrollbar
            ThemeBackgroundColor(tokens::SCROLLBAR_BG)
            Children [(
                Node {
                    position_type: PositionType::Absolute,
                    border_radius: BorderRadius::all(px(3))
                }
                Hovered
                ThemeBackgroundColor(tokens::SCROLLBAR_THUMB)
                ScrollbarThumb
                ScrollbarThumbStyle
                EntityCursor::System(bevy_window::SystemCursorIcon::Pointer)
            )]
        }
    }
}

[vapid forge]

from the tests i added in the second PR:

#[derive(Component, FromTemplate)]
struct Reference(Entity);

#[derive(SceneComponent, Clone, Default)]
#[scene(WidgetProps)]
struct Widget;

#[derive(Default)]
struct WidgetProps {
    entity: EntityTemplate,
}

impl Widget {
    fn scene(props: WidgetProps) -> impl Scene {
        bsn! {
            Reference(#{props.entity})
        }
    }
}

let scene_prop = bsn! {
    #Name
    Children [
        :Widget {
            @entity: #Name
        }
    ]
};

[vapid forge]

@rare whale you can see, in Widget i just do #{props.entity}

[rare whale]

Gotcha

LGTM

[vapid forge]

the chances of this being merged in time go way up if i could get some eyes on https://github.com/bevyengine/bevy/pull/24173 especially the TODOs

tho at this point i might be just a few days too late

which is honestly quite annoying

[rare whale]

Unfortunately that's deeper than my knowledge of bsn goes 🙁

[slender lion]

Is it correct that the asset_value isn't recursive right now, so can't be used for a MeshMaterial3d::<StandardMaterial> with textures?

right now I'm covering for that by using template and accessing the asset server to load the textures, so its not so bad

[split harness]

Correct. This problem will be solved once we add first class support for it via assets-as-entities and "shared BSN entities"

[rare whale]

@split harness I had a random thought this morning about using BSN scenes to do dynamic patching for state transitions. Right now in my BYOA widget prototype, I have a list of pattern that match various widget states, and associated with each pattern is a set of mutations. Currently the only mutation supported is changing the ImageNode but one could easily imagine wanting to change other component properties such as font color, outline, and so on.

Rather than trying to invent some Rust struct that encodes all of these different and optional mutations, I was wondering if this couldn't just be a patch. However, this raises a number of challenges:

• Currently the top-level API for invoking a scene (queue_spawn_scene) spawns a new entity, rather than applying the changes to an existing entity.
• BSN currently does not define a syntax for removing a component. I can imagine something like Remove::<Outline>, when present in the scene description, would cause the named component to be removed.
• The biggest issue is that the patches need to remain unevaluated until it is time to apply them. This means that if you are loading the widget as an asset, the partial scenes enclosed in the state table are scenes within scenes, such that the outer scene is actually instantiated, but the inner scenes remain as unapplied patches.

I don't know whether this idea is worth pursuing, but I thought I'd put it out there and see what folks think.

Although, I suppose that all of this is really just a workaround for the lack of reactivity. On the third hand, even if we had reactivity, we don't currently have a plan for representing reaction code within assets, so a purely data-driven approach is still needed.

[split harness]

We do have entity_mut.apply_scene, which applies the scene to an existing entity. I'm not immediately opposed to having removal syntax. I suspect that someone will eventually want to inherit from a scene, but remove a component from it. However semantically "removing a component template from a ResolvedScene" is different from "queuing a remove of a component on an already spawned entity".

I suspect that trying to treat BSN as "arbitrary transforms on spawned entities" rather than "a specification of what to add" would eventually result in mismatched requirements, confusing implementations, and (perhaps ultimately) frustrated users.

That being said, there is nothing stopping people from creating a "remove component" bundle template

[native mesa]

I'm not sure that the meaning of @ within bsn templates is documented anywhere

is this intentional?

[slender lion]

I doubt it. I believe the @ for scene components was added after alice did a big pass on docs for the core bsn feature. So the mention of @ is in the bevy_scene crate under scenecomponent props: https://dev-docs.bevy.org/bevy_scene/index.html#scenecomponent-props

[split harness]

It is mentioned in the top level bevy_scene crate docs under the "SceneComponent props" section

[slender lion]

we should probably add a mention of it to the syntax reference: https://dev-docs.bevy.org/bevy/prelude/macro.bsn.html#syntax-reference

[native mesa]

this needs to be surfaced on the bsn! macro itself.

[split harness]

Agreed

[native mesa]

how would you feel about deduplicating the docs on the macro and redirecting people more towards the crate doc?

there's a lot of surface area here to keep in sync

[split harness]

I would feel pretty good about that

The docs I've written have been in the crate-level spot. We should sync with @thick slate on the desired end state

Avoiding duplication is a good idea

[native mesa]

slight tangent, but been using bsn for a fun rustweek adjacent project. after intentionally not following development all that closely, i've been pretty happy with the docs and found it pretty easy to pick up.

a few little nits from that testing are: it's quite hard to conditionally add components, reactivity is still hard and i find myself constantly reaching for it now, we probably need to make the bsn/bsn_list and Scene/SceneList stuff a bit more clear, especially as it relates to inclusions {...} (the docs are all there, just a bit scattered).

[thick slate]

No objections about deduplication, but I feel strongly that we should try to keep the details of syntax and the conceptual model relatively decoupled.

[split harness]

Glad to hear it!

it's quite hard to conditionally add components,
Yup this definitely needs to be easier / lower boilerplate. We'll want first-class / lower boilerplate support for both conditionals and loops. I believe this is close to the "best" you can do in userspace atm:

let thing: Box<dyn Scene> =
   if condition {
      Box::new(bsn! {})
  } else {
      Box::new(())
  };
bsn! {
  {thing}
}

reactivity is still hard and i find myself constantly reaching for it now
Unsurprising. It would be nice to sort an official answer for this in the 0.20 cycle.

we probably need to make the bsn/bsn_list and Scene/SceneList stuff a bit more clear, especially as it relates to inclusions {...} (the docs are all there, just a bit scattered).
Very open to suggestions here!

[native mesa]

my proposal for the conditional thing is introducing {value}? which tries to pull the T out of Option<T>

i'll try to get up a PR with some small docs nits

[split harness]

if we're introducing new syntax we could always just add support for if expressions in "component position"

Option<T> syntax makes it harder to support patches I think

"conditional patches"

[native mesa]

that would be great as well, would give more flexibility with adding either type A or type B.

[split harness]

The main reason I haven't done that yet (its pretty easy) is that we might want to reserve that syntax for reactivity

[native mesa]

cool, that makes sense to me. as long as it's being tracked im happy.

[thick slate]

I would also say if that we're deduplicating we should give preferential treatment to the crate docs because the hyperlinks work

[split harness]

Yeah this is high on my "next cycle todos" list

[rare whale]

Right, because a non-reactive "if" is functionally a subset of a reactive "if" - it's effectively a reactive if whose condition is constant / non-reactive. So if you claim that syntax for reactive if, you aren't sacrificing anything (other than increased time to implement it).

The approach I have been taking is to implement the reactive primitives at the component level, not deeply integrated into bsn syntax but embeddable within it. This avoids the need for BSN to commit to any particular reactive strategy, but is not as straightforwardly ergonomic.

For integrated syntax, you'd need to accommodate the fact that there are multiple flavors of conditional primitives depending on context: an "if" statement whose output is an entity or entity tree is different from an "if" whose output is a component. And that's not even including other conditional patterns such as switch, foreach, and so on.

[split harness]

Theres also the need to reconcile the difference between "runtime value" reactions vs "prop value" / "template value" reactions. Depending on the reactivity flavor, non-reactive if for bsn! patch content might not be a functional subset

[raw mesa]

I'm putting this discussion in a thread #1504173980532346910 message

[south lagoon]

under which example subfolder do I find the bsn examples? Thanks

[somber rivet]

Is there some way to force load a set of scenes in advance so that I can just safely use them syncronously through the rest of the project without thinking about it?

[raw mesa]

@split harness just to clarify, what's the behavior of asset handles in scenes? Does spawn_scene fail if any dependencies are unloaded? Or only if inherited scenes are unloaded?

[split harness]

Only dependencies registered as part of Scene::register_dependencies, which is currently just "inherited scenes". Currently normal "asset handle dependencies" asset handles are not "scene dependencies" and will not block scene loads

The lingo for Scene::register_dependencies is "scene dependencies"

[raw mesa]

Cool that was what I thought, thanks!

[split harness]

Ultimately the plan is to support opting-in asset handles to be "scene dependencies"

on a case-by-case-basis

[raw mesa]

Right right. And then I think previously I've said we should make that opt out instead haha. I'm remembering now

[raw mesa]

We don't have anything like this today, but we also don't have scene loading yet, so scenes should work automatically right now?

Unless jackdaw has some scene loading thing

[somber rivet]

I should probably have said "is this in the plans" and it sounds like it is

Thanks!

[raw mesa]

I don't think we're gonna have anything for "block until this loads", but we definitely want a loading screen API, so you can just say "here's a scene, stay in the loading state until it's loaded". Here's my proposal for one https://github.com/bevyengine/bevy/compare/main...andriyDev:bevy:loading-screen

But I'm waiting for assets-as-entities v0 to push it upstream.

[somber rivet]

Yeah I guess I'm thinking of something like, for projects that have a relatively small number of scenes (say, < 200) you can just force them to all load on start, or maybe a way to "stream" them, so you can load all the assets for the main menu, then display the main menu and while the player is messing around on that you can load your game assets in the background... something like that. I just genuinely do not want to have to reason about whether my fireball needs to be spawned asyncronously in game code, at least not while I'm prototyping

I guess in theory you prototype using the bsn! macro, not .bsn... idk

[raw mesa]

That's exactly the kind of things we want to support with a loading screen API (e.g. Loading game assets while in the main menu). Ideally it's easy enough to setup that it can just be "here's my list of main menu assets and here's my list of game assets"

[somber rivet]

Great, I'm glad it's on peoples minds. I see the feedback people have about the async vs sync loading mental model introducing complexity, but that basically resolves it for me personally.

[native mesa]

I do think there could be some utility in creating a general async api for expressing “notify me when this collection of assets loads”

[raw mesa]

Let's move further discussion of this to assets-dev #assets-dev message

I don't wanna jam up this working group anymore lol

[silk lava]

Which makes it that much more difficult to tell if you should use async/sync 😔

[split harness]

Explicit async isn’t really an option here. We can’t afford to block the dependency enumeration process on the first dependency.

[native mesa]

can you elaborate, are you talking about being defensive about people not doing async correctly?

[split harness]

I interpreted Diddykonga's message as a desire to have these "scene dependencies" be expressed with local some_field: get_asset("path").await (aka making it "easier to tell that it is async")

[silk lava]

Explicit async? I was referring to spawn_scene being sync

[split harness]

Gotcha

There are two implementation paths to consider:

1. Expressing these dependencies via "bsn syntax", which becomes Scene impls that register the dependencies in Scene::register_dependencies. This would cause spawn_scene to fail in the same way as "scene asset inheritance"
2. Expressing these dependencies by adding a "template data api", which allows Templates to register arbitrary data (ex: "scene asset dependencies"). This would be evaluated after the scene is fully resolved (aka it wouldn't need to directly block spawn_scene, but it might warn instead).

(2) would take this into account separately from inheritance dependencies as part of the "queued spawn system". Ex: it would resolve the scene, then wait for asset dependencies to load

[silk lava]

To clarify my point on not being able to tell, I am more so referring to contexts where you cant/dont know the type/scene-in-particular, such as generic contexts and editor contexts

[split harness]

(2) is actually my current plan / the frontrunner in my mind, but its all tbd / we can discuss it

There is always the option to try to encode this statically (ex: a NoDependencies trait, which we constrain spawn_scene to). Main reason not to is compile times / complexity (as we need NoDependencies to align with the Scene::register_dependencies behavior)

We can't do the reverse / tie it to dependency registration directly, as !Dependencies isn't supported in stable rust

[silk lava]

Stupid question, but its not possible to evaluate scene asset dependencies after the immediate parts, I suppose 😛

[raw mesa]

Templates can do anything so there's no way to know that HandleTemplate will access the asset server and load a particular handle. We need a separate trait method to start that load ahead of time before the template is built (i.e., applied)

IOW, no 😛

[silk lava]

No sorry I meant for inherited scenes specifically, and not about having them beforehand, but loading them afterwards and applying them in a deferred way. (Which is why it was stupid because then you are reversing the patching order, which would require an entirely different setup probably)

A.k.A (2) from above, but also for Scene Assets that are inherited.

[raw mesa]

ahhhh got it

Yeah I would say no lol. That's also not really a desirable state, since now you're taking one action and having it applied "twice". That wouldn't be very obvious to a user that it's because the inheritance happens later

Like you'd be able to see a partially spawned scene which is... weird

[silk lava]

I agree, but something in my brain wont let me seperate it from assets, even though we already support using assets before their loaded, im brain broken 😔

[raw mesa]

My brain views the bsn! as just a fancy bundle, so it makes sense you should be able to spawn it immediately lol

And then inheritance is just an ugly part we gotta live with lol

[silk lava]

This has been a good convo though, I will digress from my side as Im unsure if I have a valuable argument at this point. 🩵

[raw mesa]

I can understand the motivation behind your stance! I am just traumatized(or annoyed?) by users always showing up to the Bevy discord and needing to be told about SceneInstanceReady because the old scenes were so unintuitive

[split harness]

@vapid forge just wrapped up my review and pushed some changes. One open question then I think we're ready:
https://github.com/bevyengine/bevy/pull/24174#pullrequestreview-4286394107

[vapid forge]

yee i just replied, GitHub finally decided to load

i like the new naming scheme

fyi: i won't be able to push commits to this for probably 18h

[split harness]

Removed the redundant parse case / approved / merged

[vapid forge]

i'll mention it here as well: the merge was blocked by spuriously failing CI

[raw mesa]

Is there a way to add a pre-existing component to a bsn! ?

I'm trying to do something like:

let my_transform: Transform = compute_my_transform_somehow();
bsn!(
  {my_transform}
  SomeOtherComponent
)

But it looks like this isn't supported??

It seems this:

bsn!(
  {template_value(my_transform)}
  SomeOtherComponent
)

works?

[split harness]

Yup template_value(my_transform) is the move atm. We're considering first class syntax for it, as it is pretty common

bsn! { {my_transform} } expects something that impls Scene

And components do not impl Scene on their own

You can omit the {} around template_value

[cobalt stone]

yeahhh it's quite annoying

[split harness]

Sadly I don’t think a blanket impl of Scene for components / templates is an option

We could reverse it and make passing in scenes harder

Open to suggestions

[cobalt stone]

¯_(ツ)_/¯

Could you have {foo} turn into {foo.to_scene()} where ToScene gets implemented for Scene and Bundle?

[raw mesa]

Personally I think that would be better? Everything else in a scene is just a component. Applying another scene feels like it should be an "operation"

[vapid forge]

alas, composing multiple -> impl Scene functions is really common (see feathers) so making that harder or requiring more syntax is probably not a great idea

[vapid forge]

WTF?
rust-analyzer resolves pub use bevy_scene_macros::bsn; in bevy_scene as the private module bsn and not the pub fn bsn proc-macro???

but only if i don't use a wildcard import...

(this is latest pre-release R-A btw)

so cursed

okay so its only an issue at that location, other places then using this re-exported bsn dont have this issue

[raw mesa]

Can you give an example of composing multiple scenes in feathers? Just looking at one of the examples, it mostly looks like a truck load of inheritance? Not applying multiple scenes, but maybe I'm misunderstanding

[vapid forge]

ah, you're saying inheritance would be unaffected?

[raw mesa]

I think that's fair? Idk that might be a hot take, it might seem inconsistent to others

[vapid forge]

it does to me, before going that route i'd made very sure we cant make component-returning expressions work in the current syntax

[raw mesa]

My reasoning is that we have one inheritance and N components, so components dominate and we should prioritize them

Also I think currently to apply a scene you need to put them in braces anyway? I might be wrong on that though

[vapid forge]

well, we also have N patches

[lime veldt]

I always found it weird when there is a macro and a module of the same name at the same location

I think alloc does that too with format

[vapid forge]

except the module is private so it should never show up there

[lime veldt]

right

[raw mesa]

Visually though, our most common patches are just component names. I would be shocked if we truly had "apply these 10 patches, none of which are components"

Anyway I've said my piece (peace?), so whatever we decide seems ok

Oh I guess one more thing is just that template_value is a very confusing solution here. Maybe we should have a specialized version like component()?

[vapid forge]

right now it really does seem we don't have any of these cases outside of docs, but i suspect they'll be much more common when people write custom styling for headless ui and similar things

[rare whale]

There's an argument that BSN's patch mechanism is substitutable for CSS's ability to compose style rules, in which case I expect that people are going to try and utilize the same kind of design patterns that they learned on the web.

[vapid forge]

I'm working on rewriting some bsn docs right now:

What do we call the collective kind of thing which can be part of an entity in bsn syntax? i'm talking about a single term for: scene inheritance, scene composition, templates (component patches), observers, etc.

The macro parsing calls it BsnEntry but entry/entries doesn't sound like a good term for user-facing documentation.

• Patch(es) - doesn't really fit scenes
• Templat(es) - doesn't really fit scenes
• Component(s) - doesn't really fit scenes or observers

[thick slate]

Scene element?

[vapid forge]

hmm, ideally i'd love one word since it'd be used a lot across the (syntax) docs, but perhaps element works

[rare whale]

part?

[vapid forge]

hmm, i like how short it is, i might go with this for now since unlike element it might not be confused with html(-like) elements

[silk lava]

Isn't Patch the term? Scenes are Patches, they Patch an Single Entity.

[vapid forge]

i mean, patches are a concept later, ScenePatch is an Asset type which is a scene, its dependencies, aand its ResolvedScene. The existing docs talk about composition, patching and inheritance as the 3 things you can do in/to/for a single entity.
But i'm looking for something on the syntax level

[silk lava]

I dont think patching should be included in those 3.
You patch things on a single entity, using inheritence and composition.

[vapid forge]

well, whats Node { width: px(10.) } then?

[silk lava]

A composition of a Node Template.

[vapid forge]

thats not really how the existing docs, which are mostly copied from carts PR description, talk about it

it talks about composition purely in the context of scenes

[silk lava]

Never found cart to be the best at docs, to be honest. Alice covers that role pretty well though.
Composition in the context of scenes is correct when describing the semantics available to the patching-syntax.

[vapid forge]

The parts Alice wrote are what i'm re-writing, since they're even less clear...

(plus, have some slight factual errors and other issues)

[silk lava]

Well shes had access to it for like a week or two, so I give credit either way kek

[vapid forge]

sure, but that to me just means it was too early to merge docs

anyways, i dont think "patch" works as a term to also encompass the inheritance syntax

i'm basically (kinda) writing a formal grammar

so
patch = scene_inheritance | scene_composition | component_patch
to me just.. doesn't fit

[silk lava]

template_inheritence has to be first, but after that its just template_composition.

[vapid forge]

-# I'm kinda torn between actually writing a grammar and just using grammar-like notation as part of the docs

[silk lava]

||I'll be honest, im still partially confused between Scene and Template|| 😅

[vapid forge]

a (resolved) scene is a collection of templates, related entities, and an inherited scene

[silk lava]

Right, Template -> Component and Scene -> Bundle. remember remember remember 😵‍💫

[vapid forge]

tho Bundle still exists, and is a Template

[raw mesa]

... Except templates are also for the fields in a component lol

[split harness]

I like to think that I'm good at them when I set my mind to it. The problem is I'm usually dragged in kicking and screaming 🙂

[split harness]

Yeah Template == "super powered Default-like constructor that has access to World and current entity spawn state". Functionally, it is natural that these are recursive

The things in scenes are "component templates"

[crisp garden]

-# Cart the secret docs hater. This stands counter to the cart = jondolf theory

[split harness]

Hehe I think docs are great and critical to building good software experiences. I just like writing the software more

Very open to discussing how to make the framing of components / templates / scenes "easier". Sadly each of these pieces are "functionally necessary", so it really comes down to naming and storytelling. I think the names for the concepts themselves are pretty close to as good as we can get. On the "storytelling" front, we could consider sweeping Template under the rug a bit as an implementation detail, and generally still talk about these things as "components"

[topaz ginkgo]

Hey @split harness sorry for the ping, but in jackdaw we’ve been working on the concept of prefabs now. I was wondering if you had any thoughts on how this might work in a bsn-based world? I believe in Flecs for instance prefabs are kind of baked into the ECS and first-class citizens there. Our implementation in jackdaw will effectively be Relationship based (via IsA) and an additional Prefab Component to be added as a marker, with individual field-level overrides supported via AST-based modification

[thick slate]

Tbh I quite like that as a "lies for children" argument, maybe with a footnote

[split harness]

Functionally, "inherited scenes" are BSN's "prefabs": they are pre-computed / repeatable spawned things

[split harness]

Flecs does an "entity inheritance" thing, which spawns the prefab as an entity (which isn't an instance on its own), and then "instance" entities can be spawned with a relationship, which then "inherit" from that base entity tree (ex: shared components, shared children, etc).

Bevy doesn't currently support that, and I'm not yet convinced it is the right path forward. Doing inheritance like that makes mutations a lot more complicated, especially in a parallel context, and it introduces a fixed indirection overhead when reading components.

I'm not against exploring that avenue, but letting each instance be a "full" owned instance feels like the right starting point, from my prespective.

[split harness]

This is an "ECS-feature research area". @tawdry owl has explored it here: https://github.com/bevyengine/bevy/pull/18767

[split harness]

In terms of "runtime modeling of the BSN scene representation", this type of relationship-driven approach to inheritance seems pretty reasonable.

[split harness]

Terminology-wise, these things are all "scenes". We do not need an additional / redundant "prefab" concept

[tawdry owl]

I think flecs doesn't actually allow mutable access to inherited components, which is something that might be worth exploring instead of trying to solve overloading Mut with CoW functionality.

[split harness]

Yeah definitely worth exploring! Would still require runtime checks, as "inherited component" isn't a static thing associated with the component. But it would certainly be cheaper and less weird that implicit CoW.
I thought that last time I talked to sander about it there was implicit CoW though

(although actually I think that was in the context of insert operations)

[tawdry owl]

Here's the thread where we discussed this. TLDR: in flecs clone-on-write is explicit by making inherited component owned. The suggested approach for querying was to just not include inherited components in &mut C queries.

[split harness]

Implicitly filtering out inherited components (/ their entities) when switching from &C to &mut C seems pretty bad

[rare whale]

@split harness @vapid forge I finished integrating the EntityTemplate into the feathers listbox widget and it's working great:

[split harness]

Love to hear it 🙂

[rare whale]

I've moved the PR out of draft: https://github.com/bevyengine/bevy/pull/24092

[tawdry owl]

Maybe, I'm not too sure if it's actually that bad. The idea with inherited components is that you probably don't want to change them implicitly, I think. Hard to tell how this would play out in a real project, but it clearly works for flecs.

[rare whale]

It was quite easy to use, here's a sample:

Children [
    // Inner part that scrolls
    (
        #inner
        Node {
            display: Display::Flex,
            flex_direction: FlexDirection::Column,
            align_items: AlignItems::Stretch,
            justify_content: JustifyContent::Start,
            overflow: Overflow::scroll_y(),
        }
        ScrollArea
        Children [
            {props.rows}
        ]
    ),

    :FeathersScrollbar {
        @target: #inner,
        @orientation: {ControlOrientation::Vertical}
    }

The #inner entity id is used to tell the scrollbar which entity is being scrolled

The target field of FeathersScrollbarProps is an EntityTemplate.

[vapid forge]

Love to hear it, this is exactly the kind of usage i was imagineing for this!

Well, my own was a bit simpler: i initially had the desire for sth like this because i wanted a "close" button which despawns the correct entity: :closebtn(#thing_to_close)

[karmic rock]

That’s not what happens. Systems default to readonly for non-owned components (inherited or otherwise). You can write to inherited components, but you’ll have to make that explicit

This is also reflected in the get APIs: the regular get returns a const ref and works for owned and inherited components. Get_mut only works for owned components

[karmic rock]

Fully owned instances are the default in flecs. You have to mark a component as inheritable to enable inheritance

[karmic rock]

Yeah modifying inherited components is rare. Inheritance & prefabs are heavily used on large scale commercial projects

One advantage of pulling it into the ECS is that you can optimize the storage for fast cloning of component values & hierarchies

[split harness]

Nice!

[vapid forge]

I'm working on updating bsn/scene docs, and stumbled across this:

Scene Inheritance

There are two ways to build on an existing scene[...]
Both let you patch fields on top of the parent, and both merge children from parent and child (parent's children appear first). They differ in when the parent is resolved and what kinds of parents they support.

I'm really unsure how this was originally meant. I think part of the confusion for me is that its talking about both inheritance parent/children and hierarchy parent/children at the same time perhaps?

If anyone has any idea how to untangle this, i'm all ears. Issue is i don't know if i'm missing some implication here or if this is just confusingly worded

[thick slate]

Man, this is muddled, sorry!

Basically, the core thing I kept wrestling with was "what is the actual difference in behavior between these two mechanisms"

And "what does pre-resolved mean".

[vapid forge]

pre-resolved: Scenes have a .resolve method, which turns them into a ResolvedScene. I think thats what pre-resolved would mean in this context

[thick slate]

This wasn't very clear from the PR description and things kept changing relative to the prior design docs here, so I ended up trying to reverse engineer the behavior from the tests

[thick slate]

Yeah, obviously 🙂 But what are the implications for users

The merging is about "how does this work if there's already matching children / components that could be overwritten"

Or at least, that was my understanding, which could very well be wrong

[vapid forge]

welp, more tests to write

[thick slate]

I would 100% just delete this particular paragraph, and try and answer the questions about the difference in behaviors and limitations of the two inheritance mechanisms directly

This was one of the most challenging and confusing bits for me: hence the table trying to compare and contrast them. I went through a ton of iteration on that, but I'm still not confident that it was right

And I should have just spent another couple of days writing tests lol

[vapid forge]

At this point i can't call this a docs PR anymore lol

the diff shows its about half docs changes half tests by line counts

[thick slate]

I will not complain about more tests!

[vapid forge]

mhmm, including fun ones such as "lets just test every single primitive type with a few differnt literals each"

[thick slate]

Ooh, very nice

Macros are such a pain lol

[vapid forge]

dunno, this doesn't look nice to me

plus bonus "rust-analyzer doesn't understand the macro" error

yes, it compiles and tests fine

[thick slate]

Make sure we have tests for move closures in on observers? I remember idly thinking "oh hey I bet this is a nasty edge case, especially for macro parsing"

[vapid forge]

git blame says you added one for that a month ago

[thick slate]

Oh good! I did remember to add that lol

Thank you very much BTW; I know that the existing docs are both pretty rough

[vapid forge]

i did add one for normal function observers

[thick slate]

Maybe we should have one for bundling in global observers too?

That should just straight up work, even though it's a bit weird

[vapid forge]

also, one for this... thing

fn unit(is_boss: bool, level: u32) -> impl Scene {
  let scene: Box<dyn Scene> = if is_boss {
      Box::new(bsn! {
          Boss
          Children [ :unit(false, level - 1) #Grunt1, :unit(false, level - 1) #Grunt2]
      })
  } else {
      Box::new(bsn! { Grunt })
  };
  bsn! {
      Level(level)
      {scene}
  }
}

[vapid forge]

huh wait how?

[thick slate]

You can just spawn an entity with Observer 😄

The app.add_observer stuff is just sugar IIRC

[vapid forge]

ugh, but do we want to encourage that pattern?

[thick slate]

Yeah, valid 🤔 We do kind of bless that behavior if we add a test for it

[vapid forge]

I know for sure Talin isnt' aware of that option, otherwise feathers would have a few less plugins floating around

plus: what happens if you spawn twice?

[thick slate]

I kind of like it as part of a systems-as-entities sort of movement. Being able to add DespawnOnExit to a global observer would be slick

[vapid forge]

i'm pretty sure right now it would duplicate the global observer

[thick slate]

Yeah, that's not great at all. You could also attach it to a phantom resource 😉

[thick slate]

Oh yes for sure, that may have been a strategic omission

[vapid forge]

i think thats something to carefully talk over, seeing how much of a pain SystemId templates was/is

[thick slate]

Yeah, agreed

I think we should skip for now, and then consider properly once systems-as-entities is being designed?

[vapid forge]

sure

i already feel like bsn suffers from too many ways to achieve the same goal

no need to add something like observers into the mix right now

[thick slate]

Yeah, that was my mood too when writing the docs. It was really hard to both articulate the differences and justify when you would want one vs the other

And it's extra hard because I think that much of the seeming duplication is required for obscure .bsn reasons, but we don't actually have that merged yet.

[vapid forge]

mhmm

i'll just say: i'm very glad to be on ADHD meds, i would not have been able to do this before

[lime veldt]

I sure have tests like that in my crate where I don't bless stuff but also don't want to have bugs there 😭 If I really feel strong about something being unsupported I write tests that assert errors or panics

[thick slate]

Yeah, I had exactly the same sort of feeling about the release note revisions this cycle TBH. I found it way less exhausting to do them this cycle because they were just adjacent files in the normal repo and I could just bang them out one at a time.

Clearly delineating stuff like "adding links and images" as out of scope for that pass was super useful to, to prevent me from feeling paralyzed by dread about the tedious tasks that I needed to finish before I could go back to the fun bit of wordsmithing.

But also maybe I've just like... managed my imposter syndrome and anxiety better and was able to get into a groove?

[vapid forge]

uhm. I think there is no difference between :scene() and scene()

wrote a test which spawns 2 entities, one using inheritance first and composing the second scene func, and one using purely "composition". Both have children.

Archetypes? The same. Children names? The same. Assets<ScenePatch>? empty.

[thick slate]

Doesn't the : force it to be pre-resolved a single time then cached?

[vapid forge]

Where would it be cached?

that'd be Assets<ScenePatch>

[thick slate]

Ah, right 🤔

[vapid forge]

which is, i might note, empty after the spawns

[thick slate]

Yeah, that violates my assumption of what should be going on

[vapid forge]

added another check: component values also end up the same (thought so, but good to check)

[thick slate]

Is this specific to the function form or do they differ when you use in-line literal scene definitions?

[vapid forge]

hm? as in: {bsn! { #Name } }?

[thick slate]

Yeah, just copy-paste the contents of fn scene in

[vapid forge]

oh you mean literally just inlining its bsn! contents?

[thick slate]

Yeah

Normally I would say that this is paranoid as heck but consider: macros

[vapid forge]

guess what i was doing just now

[thick slate]

So smart!

[vapid forge]

let scene_c = bsn! {
    unit_with_armor()
    Armor(10)
    Children [
        #Second
    ]
};

vs

let scene_b = bsn! {
    unit_with_armor()
    armor()
};

vs

let scene_a = bsn! {
    :unit_with_armor()
    armor()
};

all of them end up being, as far as i can tell, the exact same thing

well

the main difference is that if you inlinhe it you keep the same scope

but thats it

and that only matters to named entity references

i'm... going to have a word with cart when i get the chance about what the hecc the point is

[thick slate]

Maybe caching is just broken? But yeah, talk to Cart directly

[vapid forge]

it seems to just... not be implemented

well

the original PR description said it would only be implemented for assets, but who knows whats changed since then

well, i do: :func("arg") wasn't originally planned to be allowed. only argument-less functions, at which point caching makes sense

Okay so i did the following:

• inlined the macros and scene functions recursively
• fixed all clippy lints (unneccessary type path)
• copied the resulting blocks to their own files
• removed all indentation
• did a diff beteween them

therse one (1) difference: The left one has 2 SceneScopes nested where the right one has 1

otherwise theyre exactly the same

[thick slate]

[vapid forge]

the one where i manually inlined the scene entries (components etc) has a slight bit more difference, but negligible

yea no after cleaning up some more formatting differences, the logic is exactly the same between all 3

welp

this has put a... dampener on my docs writing till cart comes back

[vapid forge]

@split harness can we like, talk about this? Could you ping me or even call for a second (just to alert me) if you see this and this timestamp hasn't passed <t:1779235200:R>

i mostly wanna ask a bunch of docs questions

[thick slate]

This would explain why I struggled to articulate the differences in logics after carefully examining the tests...

[raw mesa]

cart: Corporate needs you to find the difference between these two pictures
Alice: I'm on it 🧐
cart: they're the same picture

[thick slate]

I feel so dumb :/ I should have been aggressively testing this stuff when I was confused.

[wooden vine]

If even Alice is humbled by this code, what are us mortal users supposed to do 😭

[vapid forge]

hope i can squeeze enough details out of cart to improve the docs

[thick slate]

I did catch a few bugs during review! Should not have rushed the docs to try and get 0.19 along though...

[split harness]

We don't yet pre-cache function-style scenes. Its on the todo list 🙂

[split harness]

It will ultimately be cached. Currently only asset-style inheritance is cached

[vapid forge]

do you have some time for me to interrogate you about bsn?

[split harness]

Feel free to ask any questions and I'll get to them as quickly as I can!

[vapid forge]

1. Whats the purpose of separate syntax for :scene and scene when caching, as described in the PR, doesn't require it to know whats cacheable?

the PR description says scene-functions without arguments and "scene.bsn" assets can be cached, both of which are clearly identified by their shape and do not need a prefix

1.1. Why should users care which option they use during the 0.19 cycle assuming caching for scene functions isn't implemented in time for 0.19?

1.2. Why was the syntax :scene named "inheritance" when all it seems to specify is that scene could be cached?

1.3 Are we sure we want to keep the : syntax around for scene functions and scene components? Would it perhaps make sense to only use it for :"scene.bsn" assets?

1.4 If we keep : around, does it make sense to allow scene functions with arguments? I can imagine it would be far more clear what the difference is if those just didn't work on a syntax level, and : always meant "caching" while non: scene functions need to be used for passing arguments. Then it truly becomes the sign for "cache this"

2. What guidance does it make sense to give right now about when to use SceneComponents vs scene functions?

3. Whats the correct terminology for a top-level scene item? In the #23413 text you talk about both "patch"/"patchable" and " in 'scene entry' position". Is a patch a kind of "scene entry"? is "scene entry" outdated terminology? I've started using "part" and "scene part(s)" insead, which terminology do you prefer?

4. What are the usecases for template(|context |{ ... }) you imagined while writinhg it? I'm struggeling to come up with something to use as an example.

[rare whale]

pub fn gizmoid<
    MB: crate::MeshBuilder + Default + Send + Sync + 'static,
    F: Fn(&Cx, &mut MB) + Clone + Send + Sync + 'static,
>(
    draw: F,
) -> impl Scene {
    bsn! {(
        HasOverlay
        template(|context| {
            Ok(MeshMaterial3d::<OverlayMaterial>(
                context
                    .entity.resource_mut::<Assets<OverlayMaterial>>()
                    .add(OverlayMaterial::default()),
            ))
        })

[split harness]

Whats the purpose of separate syntax for :scene and scene when caching, as described in the PR, doesn't require it to know whats cacheable?

Any scene without inputs is "cacheable" from a functional perspective (as at the end of the day everything is a Scene). The purpose of the : syntax is to give authors control and express intent:

• Inline Scene Functions: some_scene() is useful for one-off use cases where the author is just mashing functions (especially when functions are small). It is direct / immediate / incurs no extra "caching overhead". Because of this immediacy, it is also less restricted: you can do bsn!{ a() b() c() }, but you cannot do bsn! { :a :b :c }.
• Inherited Scenes: :some_scene / :"some_scene.bsn" is useful when you are defining something "reusable" (as we just discussed, the fact that function-style inheritance is currently "uncached" is a product of an unfinished TODO list). It is best used when defining "resuable" scenes, especially when some_scene is a "big" / expensive scene to evaluate. Because we are pre-computing these scenes and reusing them, this means that we can only "inherit" from one scene at a time (as scenes "project" on to each other).

[split harness]

1.1. Why should users care which option they use during the 0.19 cycle assuming caching for scene functions isn't implemented in time for 0.19?
Because "inheritance" vs "inline scene functions" is essentially "just" a performance thing, we can still train people to think about their scenes in the terms above and frame them as such. When we land scene-function-caching those use cases will get a perf boost. By having people adopt :scene early, we also encourage them to adopt those constraints early (ex: can only inherit once).

Alternatively (and this was my initial plan), we could just land scene-function-caching before 0.19 (which I'm kind of still holding out hope for). The caching infrastructure is already there because of asset inheritance caching, it just needs some wiring up for the functions. Very low hanging fruit.

1.2. Why was the syntax :scene named "inheritance" when all it seems to specify is that scene could be cached?
It includes additional constraints (there can only be one), so its not "just" a cached vs uncached lever. I think "inheritance" is also largely how people will want to think about it. That being said, we can definitely discuss the framing here if you feel strongly.

There is also the :SceneComponent element to consider, which (when parameterized with "props") would not be cached. This is a bit of an elephant in the room when trying to frame : as "cached".

I do think that :SceneComponents without props should be cached by default

We can also theoretically cache Scene Components with props (and functions with args) provided the props / args are hash-able

The "challenge" here is that syntactically you can't drop the : on SceneComponent without "downgrading" it to a normal component patch (which is still valuable / has use cases)

1.3 Are we sure we want to keep the : syntax around for scene functions and scene components? Would it perhaps make sense to only use it for :"scene.bsn" assets?
Scene functions can be arbitrarily complex / expensive. I see no reason to limit it to just assets.

[split harness]

1.4 If we keep : around, does it make sense to allow scene functions with arguments? I can imagine it would be far more clear what the difference is if those just didn't work on a syntax level, and : always meant "caching" while non: scene functions need to be used for passing arguments. Then it truly becomes the sign for "cache this".
This is a good thought / it was my plan for when I got around to implementing function caching. Adopting that constraint earlier would have made sense ... its just that capability predates caching entirely 🙂

What guidance does it make sense to give right now about when to use SceneComponents vs scene functions?
Scene Components are for building cohesive "things", especially if they have "behaviors" that build on the scene logic (ex: a Player, a Button, etc.

Scene functions are best used for pieces of functionality that you layer on top of something else, "reusable" or "factored out" scene logic, or logic that isn't really a self-contained "thing" (ex: a widget "style", shared logic between a Human and an Elf Scene Component, etc).

Whats the correct terminology for a top-level scene item? In the #23413 text you talk about both "patch"/"patchable" and " in 'scene entry' position"
SceneEntry is only used in the context of the AST / it isn't a user-facing concept / should not be a part of the documentation. It largely refers to a snippet of BSN syntax that produces something that implements Scene, although that doesn't need to be the case (ex: we could theoretically add something that is semantically in SceneEntry position that does some form of validation, modifies other entries, defines variables, etc, but doesn't produce a Scene value).

Patches are indeed a type of "scene entry" (and a type of Scene ... for example TemplatePatch).

The tension here is that a "piece" of a scene still impls Scene. This is kind of the whole point: scenes are composable / nestable / embeddable things.

When referring to "scene parts", I think it is probably best to refer to them by their individual names, rather than trying to provide some additional name for a single "thing" that happens to implement Scene.

For example: Player { health: 10 }is a "component patch"

What are the usecases for template(|context |{ ... }) you imagined while writing it
Two primary use cases:

1. Things that require World / entity spawn context, but don't implement FromTemplate or Template. This is most useful for partial BSN migrations and types that people don't control. It had much more usage earlier in the porting process.
2. One-off template logic that the user doesn't want to implement a whole new type for, or that they want to be viewable / readable inline in their scene.

[vapid forge]

I really don't think its reasonable to expect docs to be readable without some terminology which unifies :scene() and scene() and Component(5) and on(...) etc.

a term for "every thing that can be part of the whitespace separated list of thing added to an entity"

its easy to say from a technical perspective that it doesn't make sense to have a name for that, but people will expect a name and if there isn't one predefined everyone will call it something else, which is horrible for documentation and knowledge-sharing in the community

[split harness]

Hmm fair point. I think "scene entry" probably makes more sense than "scene part", as groups of "scene entries" could also be considered a "part of a scene"

[vapid forge]

fair, it also matches what the macro uses so thats... something

[vapid forge]

(inline scene functions and inheritance)
The problems i have with this, well, with explaining this, are

• its very... loose. From a cynical perspective one could argue that even with all the things you've outlined, the : syntax is still largely meaningless and in a sense only serves as inline documentation about intent.
• its using a very loaded word, inheritance, which comes with lots of implications, to mean "cacheable". This dilutes the meaning of the term IMO, and i wish i'd caught on to "inheritance" being "meaningless" way earlier. Let me explain it like this: I contributed a whole somewhat complex feature to BSN which touched the entire stack of how BSN gets converted to entities and components and still didn't understand that "inheritance" is actually a no-op untill i spent 20 minutes manually flattening 2 versions side by side to see that the diff shows nothing.

By using a term like "inheritance" we will make people assume theres something more to it, and spend time looking for that "something more". Thats a lot of wasted time and frustration we could avoid by... not using such a loaded term.

yes, "no-op" and "meaningless" are exaggerations and it does come with the "there can be only one" constraint, but compared to the breadth of baggage "inheritance" has in other related areas its basically nothing. Even more so as the meaning it does have is almost wholly different than the one it has in other places.

[vapid forge]

This so far is the only reason to keep the : or at least some sort of syntax for this case. Not that i think we should actually remove :. I really don't want to overthrow the whole established design. But i do think we should find a term which works better than "inhertitance" while we still can

[vapid forge]

I don't mean the caching, but the : syntax. Caching of scene functions, i would wager, could be done without the syntax.

again, i dont want to actually get rid of it, but i want to point out how large the mismatch is between a term as loaded as inheritance and something as "light" as :

[split harness]

the : syntax is still largely meaningless and in a sense only serves as inline documentation about intent.
This is only true until caching is implented for functions. Which the first part of your analysis ignores

[split harness]

This does acknowledge it, but thats kind of the whole point

[vapid forge]

again: this is 99% about the term "Inheritance" and 1% about the perhaps not immediately that useful syntax

[split harness]

Happy to discuss the best way to improve terminology, syntax, and how they feed into each other

I personally consider the only major unresolved "tension" in the design to be :SceneComponent, which is not cached when parameterized / generally shouldn't be

In terms of syntax

"inheritance" vs "caching" for that piece of syntax is debate-able

But only after that tension is resolved

[vapid forge]

mhmm. In the PR there was talk about a @Coponent syntax, is that still relevant?

[split harness]

Perhaps. Its worth noting that @Template {} syntax is already a thing (for types that implement Template directly)

[vapid forge]

oof, another thing for which i'm pretty sure there are 0 tests

[vapid forge]

where/how? I can't find a single mention of @ in the parser.

no wait, it'd be At

[split harness]

Yup its in there

[vapid forge]

ah, is_template

what makes that necessary?

as in, why cant TemplatePatch work as a FromTemplatePatch?

wait wut, BsnEntry::TemplatePatch sets ty.to_patch_tokens is_scene_component to true?

[split harness]

FromTemplate exists to say "I want to use this 'canonical template' for the given type". What if you want to define a custom "non-canonical" template that also produces that type?

This is admittedly, a largely theoretical thing. We haven't yet encountered a need upstream

[vapid forge]

Wouldn't that be a case for template(|context|{}) or similar?

[split harness]

Yes, but:

1. That isn't reusable
2. It isn't patchable

[vapid forge]

sure, but you can always create a new type wich implements Template but produces the otehr type no?

[split harness]

How would you patch that in bsn?

Thats exactly what @MyTemplate {} syntax is for

Where MyTemplate impls Template

And produces some arbitrary output

[rare whale]

@split harness @vapid forge One problem I have with the current docs is the inconsistent use of the word "parent" (along with "child" and "inheritance") - we really have two different axes of parentage here, and the terminology is ambiguous. I would suggest picking a different word such as prototype, base, derived, or extension.

[vapid forge]

i suppose the confusion for me is: isn't that what components already do?

at least in the "component implements FromTemplate" case

[rare whale]

What we have now is closer to JavaScript's prototype inheritance than it is to C++

[split harness]

In the context of inheritance, parent isn't SUPER common ("base" is much more common), and "parent" definitely shouldn't be used in our docs that way

[vapid forge]

(am i lucky or unlucky then that i know neither?)

[vapid forge]

did you see:

Both let you patch fields on top of the parent, and both merge children from parent and child (parent's children appear first).

amazing sentence 10/10, completely comprehensible

(sorry alice)

[split harness]

Yeah but I guess it didn't register at the time. Definitely both needs rephrasing and different terms

[vapid forge]

well, what it needs is to not exist, considering the difference between inheritance and no-inheritance, besides caching, is a single doulby-nested SceneScope

[rare whale]

In C++, "inheritance" means inheritance of methods only, whereas in JS both methods and properties are inherited - each object has a hidden prototype field which points to another object.

[vapid forge]

i assume you've seen the diff i produced cart?

between the code generated when using inheritance and using only inline scene functions?

[split harness]

Normal "component patch syntax" relies on FromTemplate to determine what Template to use to produce that component.
Ex: Sprite implements FromTemplate, where FromTemplate::Template == SpriteTemplate. SpriteTemplate is a Template, which produces a Sprite.

So the question is: what if I define MyCustomSpriteTemplate, which impls Template, that also produces a Sprite? How would I express that (and patch it) in BSN?

[split harness]

Yeah I thought we were past that. What is your open question?

Yes: the output is currently functionally identical. But that is because we haven't yet implemented function scene caching.

[vapid forge]

not really any question, just that it makes it very clear why theres no need to compare "inheritance" and "inline scene functions"

because theres nothing to compare, not on the behavioural level when spanwing a single entity

[split harness]

This is a temporary state, not the final end state. We shouldn't be debating the merits of something that isn't yet in its desired form

[vapid forge]

Even in its desired form, the only reason to use : is as a performance optimisation no?

[split harness]

It is a performance optimization that also opts in to additional constraints (there can only be one)

[vapid forge]

which is not a constraint considering:

bsn!{
  :my_scene()
  my_scene()
}

is completely valid

[split harness]

When put together, it creates something that closely resembles a "class-inheritance"-like pattern (which also generally only supports one base class)

[split harness]

The point is you can't do this:

bsn! {
  :my_scene
  :my_other_scene
}

There can only be one "inherited scene"

[vapid forge]

sure, but since theres no difference in what the entity looks like i can just leave out the second :

[white lichen]

whats the point of an opt-in restriction when you can just side step it by default

[vapid forge]

i could also just do:

bsn! {
    :noop()
    my_scene()
    my_other_scene()
}

which still doesn't produce any difference in final result when spawning the scene

i hope you can understand why i'm not done with this topic. If i'm wondering "whats the point" theres sure to be quite a few more people wondering the same

[split harness]

I agree that they produce the same results. They just perform differently

[white lichen]

Can we just special case the first one to be : implicitly?

[vapid forge]

sure, but usually when considering "inheritance" therse not a way to achieve the same result completely without it

[white lichen]

that would eliminate the syntax and keep the perf and semantics

[vapid forge]

eliminating the syntax isn't really the goal

the goal, at least for me, is understanding how the hell i'm supposed to communicate this to people while using a name like inheritance without sounding insane

"yeah so inheritance is just a performance optimisation, it doesnt provide any functionality"

i beg of you, please, understand how strange that will sound to anyone else

[karmic rock]

hm? members are also inherited in C++, not just methods 🤔

[split harness]

my_scene being cached and my_scene() being uncached feels pretty arbitrary to me.
Also, we could theoretically support:

bsn! {
  "a.bsn"
  "b.bsn"
}

Which doesn't use cached scenes for the assets, but still depends on the assets being loaded

Having syntax for "caching" (or whatever we choose to call it) feels like a good thing

[vapid forge]

i agree, but can we please rename it?

[split harness]

We can consider that avenue if we resolve the :SceneComponent tension 🙂

[vapid forge]

swap out the symbol to something new. maybe = or - or # or something to separate it so i can finally get on with writing docs

maybe even * would work

as a sort of 'unpacking'/'dereferencing'

[split harness]

I think reclaiming @ for SceneComponent makes some sense, given the @prop syntax

[vapid forge]

mhmm

[split harness]

However :@SceneComponent doesn't feel very good to me

[vapid forge]

and maybe * makes sense for Template?

[rare whale]

Sorry, right - it's been so long. In JS, the values are inherited

[vapid forge]

you mean for a cached scene component?

[split harness]

Yup

Although maybe thats worth it, given that it plays "nicely" / symmetrically with the other forms of "scene inheritance":

my_scene
:my_scene
"my_scene.bsn"
:"my_scene.bsn"
@MyScene
:@MyScene

[vapid forge]

yeah, i dont think thats tooo bad

considering that caching a scene component is, i suspect, not gonna be a thing all too often

or hm

actually no it'd happen often enough

but yeah, the symmetry is probably worth it

[split harness]

Yeah I suspect it will be reasonably common

[vapid forge]

the only consideration to me is if * works better:

my_scene
:my_scene
"my_scene.bsn"
:"my_scene.bsn"
*MyScene
:*MyScene

i think it does

[split harness]

Although a MyScene scene component with bsn! {:"my_scene.bsn" } is likely to be the most common

[vapid forge]

"component dereferences to scene" kiinda makes sense as well if you're generous (for the * instead of @ idea)

[split harness]

And this gets "internal" caching for the potentially expensive "my_scene.bsn" automatically

even if you're doing @MyScene {}

[vapid forge]

you mean with that being passed into a prop?

[karmic rock]

one neat thing in flecs is that you get to do both with the same IsA inheritance relationship*:

struct Point2 {
  x : f32
  y : f32
}

// Point3 (type) entity inherits from Point2 entity
struct Point3 : Point2 {
  z : f32
}

prefab base {
  Point3: {10, 20}
}

// Instance entity inherits from base entity
instance : base {
  // ... inherits Point3 value
}

[split harness]

No with that being the scene associated with the MyScene SceneComponent

[vapid forge]

ahh

[vapid forge]

i... don't see where that'd need an extra bsn! macro around it considering the planned syntax is:

#[derive(SceneComponent, Default, Clone)]
#[scene("player.bsn")]
struct Player {
    score: usize
}

[split harness]

Yeah this is functionally the same
