how pixel data into base_color_texture? | Bevy | Page 1

strange crypt Feb 16, 2024, 1:51 AM

#

use bevy::{diagnostic::LogDiagnosticsPlugin, ecs::{component::Component, query::With, schedule::IntoSystemConfigs, system::{Commands, Query, Res, ResMut, Resource}}, render::{settings::{Backends, RenderCreation, WgpuSettings}, RenderPlugin}, time::{Time, Timer, TimerMode}, window::PresentMode, DefaultPlugins};
use bevy::app::*;
use bevy::{prelude::*, window::WindowResized};
use bevy_fps_counter::{FpsCounter, FpsCounterPlugin};

const WINDOW_WIDTH: f32 = 2000.;
const WINDOW_HEIGHT: f32 = 1300.;
const BLOCK_SIZE: f32 = 10.;
const BLOCKS_PER_ROW: f32 = WINDOW_WIDTH / BLOCK_SIZE;
const BLOCKS_PER_COL: f32 = WINDOW_HEIGHT / BLOCK_SIZE;

fn main() {
    App::new()
          .add_plugins(DefaultPlugins.set(WindowPlugin {
            primary_window: Some(Window {
                present_mode: PresentMode::AutoNoVsync,
                title: "UwU".into(),
                resolution: (WINDOW_WIDTH, WINDOW_HEIGHT).into(),
                ..default()
            }),
            ..default()
        }))
          .add_plugins(FpsCounterPlugin)
          .add_systems(Startup, setup)
          .run();
}

fn setup(mut commands: Commands) {
    commands.spawn(Camera2dBundle::default());
    for row in 0..BLOCKS_PER_ROW as i32{
        for col in 0..BLOCKS_PER_COL as i32{
            draw_rect(&mut commands, row as f32 * BLOCK_SIZE, col as f32 * BLOCK_SIZE, Color::rgb(255., 0., 0.), BLOCK_SIZE, BLOCK_SIZE);
        }
    }
}

fn draw_rect(commands:  &mut Commands, x: f32, y: f32, color: Color, h: f32, w: f32){
    commands.spawn(SpriteBundle {
        sprite: Sprite {
            color,
            custom_size: Some(Vec2::new(h, w)),
            ..default()
        },
        transform: Transform::from_translation(Vec3::new(x - WINDOW_WIDTH/2., y - WINDOW_HEIGHT/2., 0.)),
        ..default()
    });
}```

#

this renders each block 1 at a time and the fps dies

worn steeple Feb 16, 2024, 2:16 AM

#

You probably want to construct an Image type manually if you're interested in easily setting the values of pixels directly 🙂

#

There's probably faster approaches with shaders

#

But this is a simple middle ground

strange crypt Feb 16, 2024, 2:16 AM

#

construct an image type

#

how i do that

worn steeple Feb 16, 2024, 2:20 AM

#

https://docs.rs/bevy/latest/bevy/prelude/struct.Image.html

This is the type

Image in bevy::prelude - Rust

API documentation for the Rust Image struct in crate bevy.

#

Not the friendliest API 🤔

strange crypt Feb 16, 2024, 2:20 AM

#

worn steeple Not the friendliest API 🤔

ive noticed

#

pub struct Image {
    pub data: Vec<u8>,
    pub texture_descriptor: TextureDescriptor<Option<&'static str>, &'static [TextureFormat]>,
    pub sampler: ImageSampler,
    pub texture_view_descriptor: Option<TextureViewDescriptor<'static>>,
}```

#

ok this is how i make one

#

what is the data

worn steeple Feb 16, 2024, 2:21 AM

#

These are going to be bytes (u8) corresponding to the colors in your chosen TextureFormat

strange crypt Feb 16, 2024, 2:22 AM

#

how i store color as a u8

worn steeple Feb 16, 2024, 2:22 AM

#

I wouild use the new method, rather than the fields

strange crypt Feb 16, 2024, 2:22 AM

#

pub fn new(
    size: Extent3d,
    dimension: TextureDimension,
    data: Vec<u8>,
    format: TextureFormat
) -> Image```

worn steeple Feb 16, 2024, 2:22 AM

#

So, you pick one of these formats: https://docs.rs/bevy/latest/bevy/render/render_resource/enum.TextureFormat.html

TextureFormat in bevy::render::render_resource - Rust

Underlying texture data format.

#

You probably want RGB, with linear color spaces and a 32 bit color depth

#

Rgba32Sint I believe

strange crypt Feb 16, 2024, 2:23 AM

#

is that a data type or a conversion function

worn steeple Feb 16, 2024, 2:24 AM

#

It's a description of how to interpret the bytes

strange crypt Feb 16, 2024, 2:24 AM

#

but how does it know which one im giving it

worn steeple Feb 16, 2024, 2:25 AM

#

You pass in the TextureFormat argument to the new function, to describe the format to it

#

Pixels are arrange left-to-right, top-to-bottom by convention

#

Just like reading a book

#

(this API and the docs are not great; I'll make an issue or two)

strange crypt Feb 16, 2024, 2:27 AM

#

so i make a function that turns human readable rgb into a Rgba32Sint. I pass that as an array of every pixel converted

#

what is the difference between size and dimension?

worn steeple Feb 16, 2024, 2:27 AM

#

strange crypt what is the difference between size and dimension?

Dimensionality is line vs. image vs. 3D grid of pixels

#

Size is width and height

strange crypt Feb 16, 2024, 2:28 AM

#

worn steeple Dimensionality is line vs. image vs. 3D grid of pixels

huh

#

oh ok

#

2D

#

am i creating a new image every frame or am i able to modify the data and reuse the image

#

probably modify

worn steeple Feb 16, 2024, 2:30 AM

#

You should be able to modify it 🙂

#

The image that you create will get registered in the asset server, like any other asset

#

And then you hand out a handle to e.g. a single SpriteBundle entity

strange crypt Feb 16, 2024, 2:33 AM

#

worn steeple And then you hand out a handle to e.g. a single SpriteBundle entity

its refering the wrong Image even being told exactly which one to reference

worn steeple Feb 16, 2024, 2:33 AM

#

Hmm 🤔

#

Why are you calling Image()?

#

That shouldn't be a thing

strange crypt Feb 16, 2024, 2:34 AM

#

u right

strange crypt Feb 16, 2024, 2:41 AM

#

worn steeple These are going to be bytes (u8) corresponding to the colors in your chosen `Tex...

fn rgb_to_bytes(r: u8, g: u8, b: u8) -> u8 {
    let rgba32_sint: u32 = (r as i32 | g as i32 | b as i32 | 255_i32) as u32;
    rgba32_sint as u8
}

is it not sus that it lets me turn a u32 into a u8

#

if r g and b are each u8s isnt that only going to account for red

worn steeple Feb 16, 2024, 2:41 AM

#

Your colors will just be very black :p

#

If you only want 8 bit colors use one of the 8 bit formats

#

Which will be more memory efficient

strange crypt Feb 16, 2024, 2:42 AM

#

so it shouldnt returna u8

#

it should return a u32

worn steeple Feb 16, 2024, 2:43 AM

#

strange crypt so it shouldnt returna u8

It should return a [u8;3]

#

Presumably?

#

Or a [u32;3], but that seems pointless

#

Since you're only using a small fraction of the actual information if you pass in u8s

strange crypt Feb 16, 2024, 2:43 AM

#

wym im using a small fraction

#

im passing in 3 u8s

#

r g and b

worn steeple Feb 16, 2024, 2:44 AM

#

Ah, I see

strange crypt Feb 16, 2024, 2:44 AM

#

fn rgb_to_bytes(r: u8, g: u8, b: u8) -> u32 {
    return r as u32 | g as u32 | b as u32 | 255_u32;
}```

#

better?

worn steeple Feb 16, 2024, 2:45 AM

#

I would do:

fn rgb_to_bytes(r: u8, g: u8, b: u8) -> [u8;3]{
   [r, g, b]
}

#

Nice and easy

strange crypt Feb 16, 2024, 2:45 AM

#

but thats not a u8

#

i thought it has to be a u8

#

not 3 u8s

#

    pub data: Vec<u8>,```

worn steeple Feb 16, 2024, 2:46 AM

#

You want to pass in a long vector of u8

#

And you'll use multiple bytes to represent each pixel

#

The adjacent ones will correspond to the same pixel

strange crypt Feb 16, 2024, 2:47 AM

#

so the data array is expecting someting in the form of
[pixel1_r, pixel1_g, pixel1_b, pixel1_t, pixel2_r, pixel2_g...

worn steeple Feb 16, 2024, 2:47 AM

#

https://docs.rs/bevy/latest/bevy/render/render_resource/enum.TextureFormat.html#variant.Rgba8UnormSrgb

This actually looks like the best format for you

TextureFormat in bevy::render::render_resource - Rust

Underlying texture data format.

worn steeple Feb 16, 2024, 2:48 AM

#

strange crypt so the data array is expecting someting in the form of `[pixel1_r, pixel1_g, pix...

Yep, exactly

strange crypt Feb 16, 2024, 2:48 AM

#

worn steeple Yep, exactly

ok that makes sense i didnt know that

#

does it need the tranperency?

#

seems like a wasted byte

worn steeple Feb 16, 2024, 2:49 AM

#

Yeah, looks like there's no Rgb8 format listed 🤔

#

I filed:

as a result of this discussion 🙂

GitHub

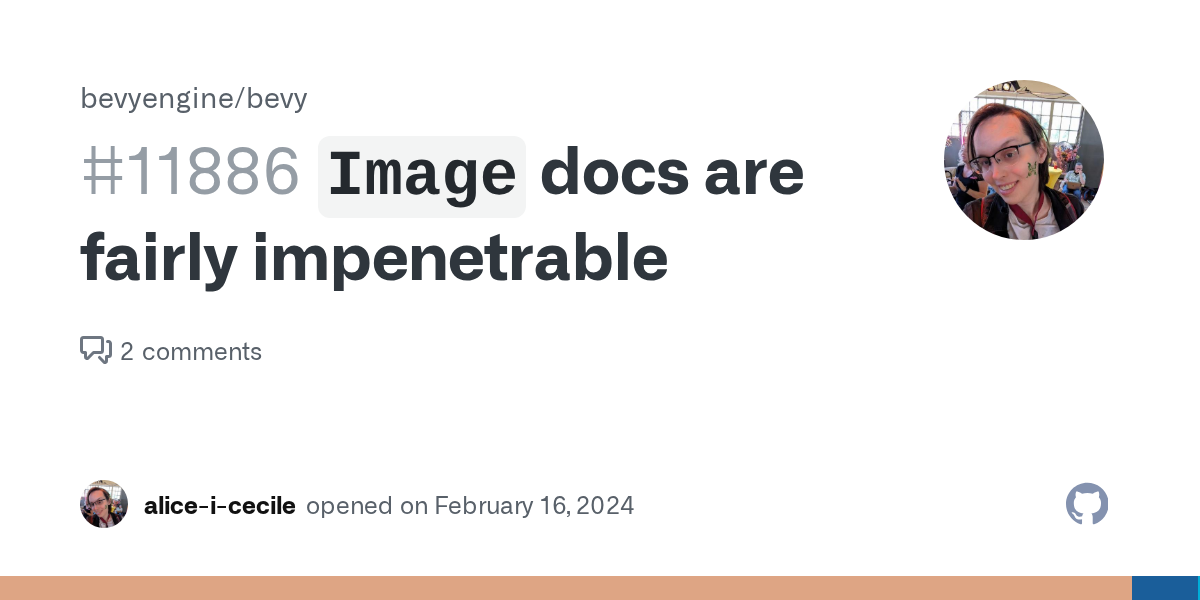

`Image` docs are fairly impenetrable · Issue #11886 · bevyengine/be...

How can Bevy's documentation be improved? The Image type is very low-level, and not approachable for beginners. For example: What does the data field store, in what order, and how is it related...

GitHub

Building and manipulating `Image` objects pixel-by-pixel is very te...

What problem does this solve or what need does it fill? Building images from programmatically controlled data can be a useful tool for getting reasonably high performance without having to swap to ...

GitHub

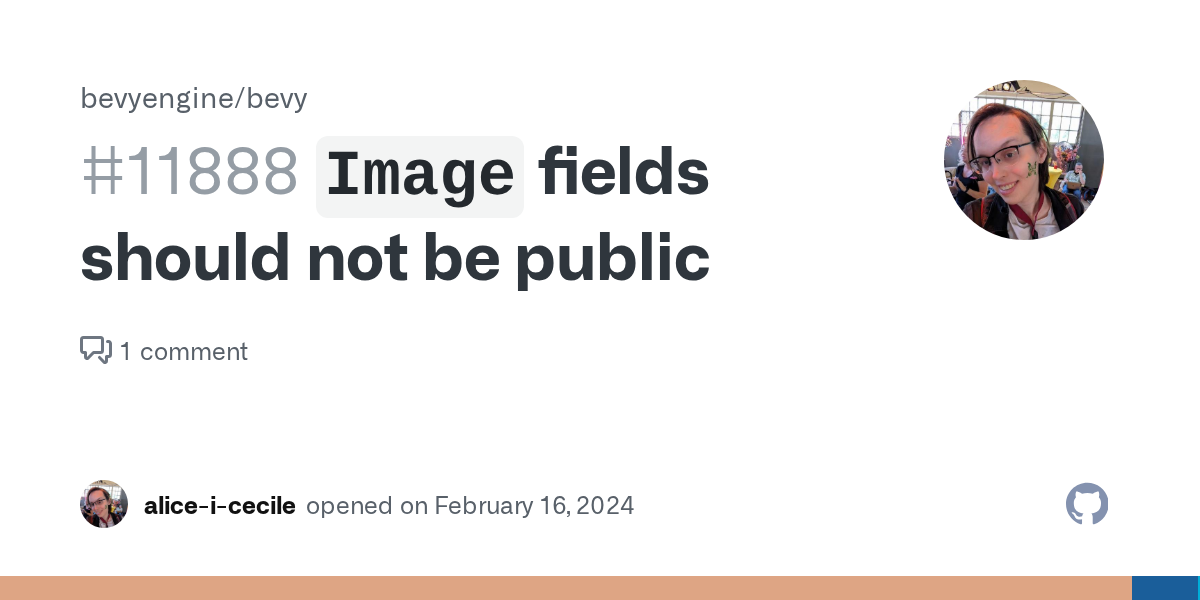

`Image` fields should not be public · Issue #11888 · bevyengine/bevy

What problem does this solve or what need does it fill? The Image type has quite a few complex invariants to uphold, around data layout and byte intepretation. As a result, it has several nice cons...

#

It's not just you :p

#

But writing out bytes directly is a fun and useful little exercise 🙂

strange crypt Feb 16, 2024, 2:56 AM

#

worn steeple You want to pass in a long vector of u8

let mut grid_image = Image::new(
        Extent3d {
            width: WINDOW_WIDTH as u32,
            height: WINDOW_HEIGHT as u32,
            depth_or_array_layers: 1,
        },
        TextureDimension::D2,
        (0..100).flat_map(|_| vec![255, 0, 0, 255]).collect(),
        TextureFormat::Rgba32Sint
    );```

worn steeple Feb 16, 2024, 2:56 AM

#

strange crypt ```rs let mut grid_image = Image::new( Extent3d { width: WIN...

You seem to be missing alpha 🙂

strange crypt Feb 16, 2024, 2:56 AM

#

no

#

second 255

worn steeple Feb 16, 2024, 2:57 AM

#

ah, I can't count

#

Getting too late here

#

Nice stuff!

strange crypt Feb 16, 2024, 2:57 AM

#

yay

#

now i need to draw the image to screen

#

chat gpt is unhelpful

#

and the docs dont show how to do it

worn steeple Feb 16, 2024, 3:05 AM

#

strange crypt now i need to draw the image to screen

AssetServer::load will get you a Handle<Image>

strange crypt Feb 16, 2024, 3:05 AM

#

whats a Handle Image

worn steeple Feb 16, 2024, 3:05 AM

#

Which you can use in a SpriteSheetBundle like before

worn steeple Feb 16, 2024, 3:05 AM

#

strange crypt whats a Handle Image

A handle is basically a fancy reference to this data

strange crypt Feb 16, 2024, 3:05 AM

#

ok

worn steeple Feb 16, 2024, 3:05 AM

#

But it's centrally tracked and reference counted

strange crypt Feb 16, 2024, 3:05 AM

#

what do i do with a SpriteSheetBundle

worn steeple Feb 16, 2024, 3:05 AM

#

Spawn it!

#

Probably in the middle of your screen

#

(going to bed now, good luck :))

strange crypt Feb 16, 2024, 3:07 AM

#

ty

strange crypt Feb 16, 2024, 3:52 AM

#

use bevy::{ecs::system::Commands, render::{render_resource::{Extent3d, Texture, TextureDimension, TextureFormat}, settings::{Backends, RenderCreation, WgpuSettings}, RenderPlugin}, time::{Time, Timer, TimerMode}, window::PresentMode, DefaultPlugins};
use bevy::app::*;
use bevy::{prelude::*, window::WindowResized};
use bevy_fps_counter::{FpsCounter, FpsCounterPlugin};
use bevy::prelude::Image;

const WINDOW_WIDTH: f32 = 2000.;
const WINDOW_HEIGHT: f32 = 1300.;
const BLOCK_SIZE: f32 = 10.;
const BLOCKS_PER_ROW: f32 = WINDOW_WIDTH / BLOCK_SIZE;
const BLOCKS_PER_COL: f32 = WINDOW_HEIGHT / BLOCK_SIZE;
const TOTAL_PIXELS: f32 = WINDOW_WIDTH * WINDOW_HEIGHT;

fn main() {
    App::new()
          .add_plugins(DefaultPlugins.set(WindowPlugin {
            primary_window: Some(Window {
                present_mode: PresentMode::AutoNoVsync,
                title: "UwU".into(),
                resolution: (WINDOW_WIDTH, WINDOW_HEIGHT).into(),
                ..default()
            }),
            ..default()
        }))
          .add_plugins(FpsCounterPlugin)
          .add_systems(Startup, setup)
          .run();
}

fn setup(mut commands: Commands, mut materials: ResMut<Assets<ColorMaterial>>, asset_server: Res<AssetServer>) {
    commands.spawn(Camera2dBundle::default());
    let mut grid_data = Image::new(
        Extent3d {
            width: WINDOW_WIDTH as u32,
            height: WINDOW_HEIGHT as u32,
            depth_or_array_layers: 1,
        },
        TextureDimension::D2,
        (0..TOTAL_PIXELS as i32).flat_map(|_| vec![255, 0, 0, 255]).collect(),
        TextureFormat::Rgba8UnormSrgb
    );
    let handle = asset_server.add(grid_data);
    commands.spawn(handle);
}

fn rgb_to_bytes(r: u8, g: u8, b: u8) -> u32 {
    return r as u32 | g as u32 | b as u32 | 255_u32;
}```

#

no display on the screen

#how pixel data into base_color_texture?
