Avian Physics

[visual sparrow]

but I guess it's probably hard to judge by eye

[vestal minnow]

Subject to change, but yeah it's the maximum linear or angular velocity allowed for the body to start sleeping

If it is above that for even a single tick, the sleep timer resets

The heuristics for this differ a lot across engines https://discordapp.com/channels/691052431525675048/1400290477562921092

[pseudo mirage]

I guess I should make a minimum reproduction example because this is some really janky behaviour

[vestal minnow]

If the RigidBody is on a child entity, then that is (currently) subject to wonkiness, bodies should typically be at the root of the hierarchy

The behavior of child bodies is not very well defined or tested atm

[visual sparrow]

Worth noting that it works entirely as expected when the rigid bodies are child entities of something that has an identity transform

[pseudo mirage]

My usecase is a hitbox that moves with the player

Not sure if I even need a Rigidbody component on that

[vestal minnow]

The player should have a RigidBody, but the child collider should not

[pseudo mirage]

I see, in that case I need to figure out why the child collider without the Rigidbody is causing massive lagspikes on collision (it has a sensor component on it if that matters)

[vestal minnow]

Adding the PhysicsDiagnosticsPlugin and PhysicsDiagnosticsUiPlugin (requires diagnostic_ui feature) may be useful so that you can see where the time is being spent on Avian's side

[pseudo mirage]

Thanks! Will see what I can find with it

[vestal minnow]

If you haven't already, it's also a good idea to also enable some optimizations for debug mode, at least for external dependencies

# Enable a small amount of optimization in the dev profile.
[profile.dev]
opt-level = 1

# Enable a large amount of optimization in the dev profile for dependencies.
[profile.dev.package."*"]
opt-level = 3

or alternatively run in release mode

optimizations can improve perf like over 100x in a lot of cases

[pseudo mirage]

Already did that, I am also on a fairly powerful machine so that should also not be the issue

[little maple]

was this in the simulation island branch?

[vestal minnow]

Yup, just for the dev profile

It mostly slowed down the narrow phase since it ran island validation whenever contacts were created or destroyed

[visual sparrow]

Is there an API for "give me the closest distance of this collider to any other collider"? distance only takes in two colliders

I think I can emulate what I need by doing a sphere cast around the collider and then sorting the hit distances so I get the smallest

but is there a more direct way?

Also, there is nothing like aabb_intersections_with_aabb for spheres, right?

ideally I would use aabb_intersections_with_sphere

But looks like parry doesn't support that as far as I can tell

oh I just saw that aabb_intersections_with_aabb doesn't accept a filter, so I'd have to manually go through the collision layers to filter them by hand

[vestal minnow]

there's project_point if you want the point on each collider that is closest to the given point, but there's no dedicated spatial query for the distance between shapes

[visual sparrow]

Oooh that looks relevant. So can I get the distance to the closest collider by taking the distance of the projected point to the one returned by that method?

[vestal minnow]

You can use it to get the distance to the closest collider from a given point, but it doesn't necessarily help you get the distance from a shape to every other shape

(unless that input shape is a sphere, then you can just treat it as a point and subtract the radius)

[visual sparrow]

Oh I see

hmm

I wonder how important that fact is

[vestal minnow]

If you specifically want the distance from a collider to any other collider, I'd probably just get the entities within some AABB or sphere using aabb_intersections_with_aabb or shape_intersections, and then manually calling contact_query::distance for each of those colliders

[visual sparrow]

The specific application is for calculating an object's exposure

with the rationale that the closer something is to the wall, the harder it is to spot

again, copying the design from Thief

since relevant objects are either humanoid capsules or small grabbable objects, approximating them with a sphere could be alright

[visual sparrow]

I consulted the original C++ implementation again, and they do something much simpler than what I was considering haha.
They just do 8 raycasts in 45 degree increments on the horizontal plane of the object and then sort the distances that they hit stuff at

[visual sparrow]

Oh hey I just saw we have shape_hits

that also looks relevant

nvm that requires a direction

are intersection callbacks ordered by distance? It says in the docs for hits that they're ordered, but I can't spot such a remark for intersections

[snow urchin]

How do you integrate layermasks/collisionlayers with spatialqueryfilter?

[sweet sundial]

does the field with a LayerMask in it not work?

[vestal minnow]

wowee 40k messages

mm can we change that bevy_xpbd link in James's original message lol, it has always bothered me after the avian rebrand

Hey @chilly wadi could you edit your original message here #1124043933886976171 message to something like:

An ECS-driven 2D and 3D physics engine by @vestal minnow.
https://github.com/Jondolf/avian

[vestal minnow]

So that it looks correct in this preview ^ and is more up-to-date

[chilly wadi]

done

[vestal minnow]

Thank you!

[tough zealot]

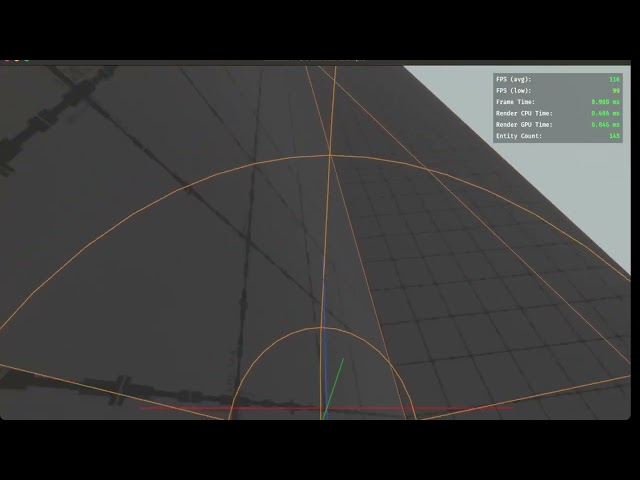

Is it expected that the debug physics are lagging one frame behind or am I holding it wrong somehow? I played around with the schedule for PhysicsDebugPlugin but that didn't help.

[vestal solstice]

is the collider on a child entity?

compared to the RigidBody

[tough zealot]

yes the colliders are child entities

I guess this is a case where the global transform has not been updated yet?

[vestal minnow]

I think it might be because the global physics position and rotation of child colliders is only updated before physics, not after

This should be fine for the actual physics, but makes them visually lag behind in debug rendering

Although I suppose for spatial queries it'd also be good to update the global position after physics, so that colliders aren't at an outdated position for things like ray casts 🤔 hmm

[tough zealot]

outdated GlobalTransforms are a major footgun in my experience

earlier today I was debugging an issue where forces were applied incorrectly when the framerate was low and more than one physics update ran per frame. turned out I was calculating them based on GlobalTransforms which are outdated by the time the physics schedule runs a second time

[vestal minnow]

The debug rendering is (currently) not using GlobalTransform, it's using Avian's own Position and Rotation components that are used internally for physics

This has the downside that if you're using transform interpolation, you'll also see the debug rendering not always match the visual position, because it's rendering the physics position, not the interpolated rendering position

Which may or may not be what you want, I haven't quite decided which one it should render

[wet niche]

This is a bit of a tangent, but @Jondolf could you update the main and bevy-0.17 branches to publish the next expected version, rather than the old version 0.3.0 for the avian crates? As it stands, cargo refuses to honor the [patch.crates.io] section (to use the git version) since other projects I'm using reference the last Avian version 0.3.1 due to semantic versioning being a thing. 🙂

[vestal minnow]

Do you mean changing it to 0.3.1 or the upcoming 0.4.0?

[visual sparrow]

I find the jitter this shows to be super distracting, personally

[wet niche]

Whichever you prefer (I suppose 0.4.0 given the amount of changes).

[visual sparrow]

We could schedule the gizmo systems to run after transform propagation in PostUpdate and then read the newest GlobalTransform

[vestal minnow]

Fair, yeah might be better to just render the interpolated version even if it's not technically accurate to the actual physics position

I guess one caveat is that then you can't do debug rendering for entities without GlobalTransform

[vestal minnow]

I'm not sure what the naming convention for in-development crate versions is, but I did what Bevy does and named the crate versions in the repo 0.4.0-dev for now
https://github.com/Jondolf/avian/pull/827

[wet niche]

Thanks! I'll try it out.

[visual sparrow]

I think if someone needs it, it should be trivial to add

We could even have the current system behind a toggle

[vestal minnow]

I suppose we could also have some GlobalOrPhysicsTransform helper query data

[vestal minnow]

Also updated the bevy-0.17 branch now

[visual sparrow]

Would you accept a PR for this later?

[vestal minnow]

I think I would, yeah

mm I'm wondering what bevy_rapier does here, I don't think it uses transforms but also I haven't seen people complain

[visual sparrow]

I would suggest replacing the old behavior and if someone still needs it we can add it back behind a toggle

Is that alright?

[vestal minnow]

maybe because the default isn't a fixed time step lol

[vestal minnow]

That's fine

[visual sparrow]

Which branch do you currently prefer PRs against?

Hmm I suppose I need to PR 0.17 anyways

Since that is what I use

[vestal minnow]

Hmm it's possible to retarget to another branch later right? Targetting bevy-0.17 is fine for now but I'd prefer to merge it without a lot of unrelated changes like that

I think I'll merge it tomorrow anyway

[visual sparrow]

Probably. If not I can open a new PR 🙂

Or

I PR against main

And just depend on my own 0.17 fork

That way you don’t have to pollute your 0.17 branch

But I still get to use it

[vestal minnow]

yeah that works too

crawls back to drawing a million fricking ER diagrams for an SQL course

[wet niche]

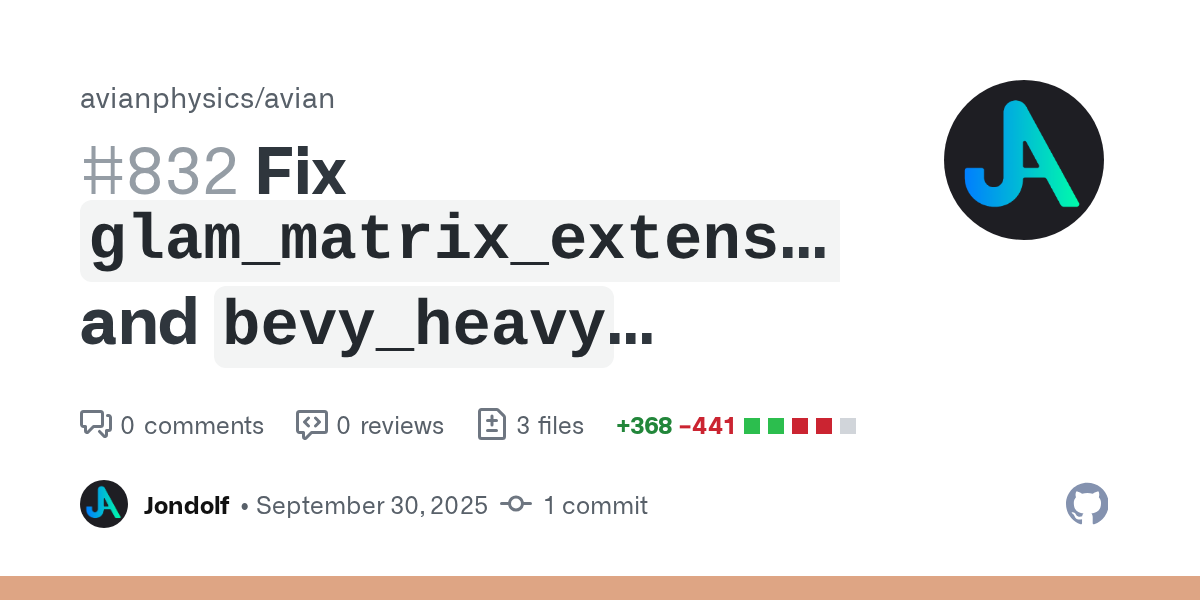

@vestal minnow sorry to pull you out of your SQL hole, but it seems like there are some leaking dependencies from main (bevy 0.16) into bevy-0.17.rc.2 via bevy_heavy: ```
$ cargo tree -i [email protected]
bevy_reflect v0.17.0-rc.2
├── bevy_heavy v0.2.0 (https://github.com/Jondolf/bevy_heavy.git#7331b214)
│ └── avian3d v0.4.0-dev (https://github.com/Jondolf/avian.git?rev=e05eec460b5e53af18ca46d4f2bc18e49b05c0d7#e05eec46)
├── bevy_math v0.17.0-rc.2
│ └── bevy_heavy v0.2.0 (https://github.com/Jondolf/
└── glam_matrix_extensions v0.1.0 (https://github.com/Jondolf/glam_matrix_extensions#c57bc2eb)
├── avian3d v0.4.0-dev (https://github.com/Jondolf/avian.git?rev=e05eec460b5e53af18ca46d4f2bc18e49b05c0d7#e05eec46) ()
└── bevy_heavy v0.2.0 (https://github.com/Jondolf/bevy_heavy.git#7331b214) ()

(this is making my build fail with messages like ```490 |     fn unit_principal_angular_inertia(&self) -> Vec3 {
    |                                                 ^^^^ expected `glam::f32::vec3::Vec3`, found `bevy_math::Vec3`
    |
    = note: expected signature `fn(&collision::collider::parry::Collider) -> glam::f32::vec3::Vec3`
               found signature `fn(&collision::collider::parry::Collider) -> bevy_math::Vec3````

(This seems to have been a problem even before the version bump)

[visual sparrow]

While I'm on it, Chris and I both would appreciate an event that is triggered when collider constructors are done

I'll do a PR for that

I think SceneInstanceReady is only triggered when the scene was successfully initialized, right @knotty thicket ?

[vestal minnow]

Is there a reason to have a separate event and not just do On<Remove, ColliderConstructorHierarchy>?

(and check that a collider exists)

[snow urchin]

How do I use collisionlayers to set something to a certain layer?

[vestal minnow]

I'm not against it, just curious if there's a difference

[vestal minnow]

Yeah hmm main seems to be broken right now, I hadn't run cargo update in a while so I had the old deps cached and didn't notice

I'll see if I can fix that somehow later

[visual sparrow]

It’s a bit roundabout and not obvious. Plus, I can envision us one wanting to keep the hierarchy component there without removing it so that it has nicer editor/inspector integration

[vestal minnow]

fair

[wet niche]

Could you clarify your question? Do you mean where to put the CollisionLayers component (it's on the same entity as the Collider) or how to define layers (use an enum with #[derive(PhysicsLayer, Clone, Copy, Debug, Default)]?

[visual sparrow]

ah heck

Since there is no published RC of avian, every dependency of mine points to the git source

which means that I cannot patch it

which means I have no good way of testing my Avian changes in production

;-;

is chain_3d supposed to have like 3 FPS in debug mode and crash when enabling the debug plugin

[visual sparrow]

wasn't it on the same entity as the collider?

Or was that changed?

Or did I always get it wrong lol

Also, am I reading it wrong that I'm supposed to enable use-debug-pluginon an example and it should just enable the debug visualization? Because that's not happening for me

[wet niche]

You're right, that's a more direct relation. I tend to have them all together anyway. But I'll edit the original post if the OP replies.

[tough zealot]

Yes it is! I sometimes post about it 🙂 https://bsky.app/profile/embersarc.bsky.social

[wet niche]

Having the plugin just allows for the possibility. In my experience, you need two steps. My app does this: ```
app.add_plugins(avian3d::debug_render::PhysicsDebugPlugin::default())
.insert_gizmo_config(PhysicsGizmos::default(), GizmoConfig {
enabled: false,
..default()
})

and I change that `enabled: false` -> `enabled: true` (or do it in code) to get results.

The code in the examples only adds the plugin, it seems.

[snow urchin]

CollisionLayers::new(LayerMask(2), CollisionLayers::ALL_FILTERS.filters),

[wet niche]

Oh, that ALL_FILTERS is meant to be an entire CollisionLayers instance. Maybe you mean CollisionLayers::new(LayerMask(2), LayerMask::ALL)?

[wet niche]

In any case, I'd recommend making your own enum and relying on the Into<LayerMask magic to help. e.g.:

#[derive(PhysicsLayer, Clone, Copy, Debug, Default)]
pub enum GameLayer {
    #[default]
    Default,
    Player,
    World,
    Projectiles,
}
``` (or whatever)
and then you can use arrays like so: ```
CollisionLayers::new(GameLayer::Player, [GameLayer::World]),
``` or ```
CollisionLayers::new(GameLayer::World, [GameLayer::World, GameLayer::Projectiles]),
``` -- then you don't need to bring any unrelated constants into your code.

[snow urchin]

yep

[visual sparrow]

@vestal minnow since I cannot use my Avian fork anyways because it cannot be patched downstream (no RC release on crates io) I submitted some PRs on the 0.17 branch anyways 😛

• https://github.com/Jondolf/avian/pull/828
• https://github.com/Jondolf/avian/pull/829
• https://github.com/Jondolf/avian/pull/830

[knotty thicket]

ColliderConstructorHierarchy isn't used if you're using a visual editor and have regular ColliderConstructor on reusable assets, etc.

[visual sparrow]

check my third PR 🙂

[knotty thicket]

Sorry 😅 just waking/catching up

[visual sparrow]

Oh no need, I was just mentioning that I implemented the feature you requested 😄

Also, for PR 2, here's the before:

And here's after:

@tough zealot this solves your issue 🙂

[tough zealot]

🥳 thanks so much!

[snow urchin]

Is the filter for what I should or shouldn't be colliding the object with?

[visual sparrow]

It's for what it should collide with

[wet niche]

Yeah, the naming always stumps me the first time. The filter "filters in", not filters out. So in my examples, the player interacts with the world, but the world interacts with other elements of the world and projectiles. The player and projectile never interact.

[dreamy viper]

Is the migration guide on the 0.17 PR up-to-date? I seem to recall that the SyncPlugin was changed

[sweet sundial]

it filters for

[vestal minnow]

It only includes changes that were made in that PR. The sync plugin refactoring was here
https://github.com/Jondolf/avian/pull/785

[vestal minnow]

This should hopefully get fixed by #832

[wet niche]

Thanks! I'll need to do an errand but can check back when it's merged.

[wet niche]

Seems to work so far. After a test build I see only porting issues on my side of the code. Thanks!

[vestal minnow]

Nice!

@visual sparrow I think I'm going to merge the bevy-0.17 branch in a sec, as soon as CI passes

I'll then test your remaining PRs properly and get them merged, hopefully I can change the base branch to main without messing things up too badly

Right now CI on the bevy-0.17 branch is failing on this, but only on some platforms

Ubuntu passed, MacOS did not

It's happening consistently too

[wet niche]

Hmm, I'm not having a smooth time updating to 0.4. This one is a bit confusing, as I'll show. Err, dunno how to make a thread...

I'm getting a mysteriously unsatisfiable Query after migrating to Avian 0.4.0-dev. In this query: ```
player_q: Query<(Forces, &mut Transform, &ColliderAabb), With<Player>>,

I always get `QueryDoesNotMatch`, even though it does (see pic).
`# invalid player entity 103v2: QueryDoesNotMatch(103v2#8589934695, ArchetypeId(74))`

Actually, I reduced the query down to _only_ `Forces` and it still fails. Wut?

mut player_q: Query<Forces, With<Player>>,

BTW there is no `Debug` impl on `Forces` so it's quite difficult to use `expect()` or `unwrap()` on the result since `Result` wants `T: Debug`. I needed to use ```
let res = player_q.get_mut(input.player_entity());
let Ok(mut forces) = res
        else {
            let e = unsafe { res.unwrap_err_unchecked() };
            warn!("invalid player entity {}: {:?}", input.player_entity(), e);
            continue;
        };

``` to even print the error 🙂

[vestal minnow]

Hmm 🤔 yeah if it's a dynamic body then it should work

I think one caveat is that it might not work in an observer right after spawn since some components may not be fully set up yet, not sure

[wet niche]

Oh, it's continuously occurring, not just at spawn. But this may be related to another thing I did and had to work around. I used to have a situation where I'd spawn things using RigidBody::Static because otherwise they'd fall through the floor, which was being loaded asynchronously. So I'd change to RigidBody::Dynamic later using Query<&mut RigidBody, ...>.
But that's not legal now, so I was EntityCommands.insert()'ing the changed RigidBody. I suppose that's not kosher?

[vestal minnow]

Reinserting RigidBody should be fine, but I haven't tested it specifically for the force APIs

[wet niche]

Well, I just tried not doing RigidBody changes (leaving at Dynamic the whole time) and still no go.

(BTW this is all bevy 0.16.1)

[vestal minnow]

Hmm, maybe try a simpler rigid body setup first to verify that it's working for at least a basic case, and then work from there to try and locate what's causing the problem?

We do have some unit tests in the repo for forces so in theory it should work

[wet niche]

OK. My player has two Colliders in a combined collider, as well as child colliders. But I changed all of that to a simple capsule Collider, and same issue. 🙁

(IIRC, I did try this migration a month or two ago and it did work. But things have changed on both sides, Avian and my project, so....)

▶️ OK, uh, it seems that the responsible component is Sleeping, which I add at init time. Heh. I can remove that... but I suppose I was relying on the 0.3.1 behavior where applying forces woke it up.

[visual sparrow]

The heck

Secret form on non-determinism unlocked?

[wet niche]

Also, as I've seen reported here before, I am also seeing avian3d::dynamics::rigid_body::mass_properties: Dynamic rigid body 95v2#8589934687 has no mass or inertia. This can cause NaN values. Consider adding a 'MassPropertiesBundle' or a 'Collider' with mass. even though I do just that -- i.e. in this case I was adding Mass(8.0) and Collider::from_sphere(0.1) (for example).

MassPropertiesBundle{ mass: Mass(8.0), ..default() } results in the same warning, presumably because the defaults for other fields aren't sane?

I can use MassPropertiesBundle::from_shape() but then I have to reverse-engineer the Mass I want 🙂

[vestal minnow]

Oh 🤦 It works on linux because it doesn't run on linux lol

#[test]
#[cfg_attr(
    target_os = "linux",
    ignore = "The plugin setup requires access to the GPU, which is not available in the linux test environment"
)]
fn collider_constructor_hierarchy_inserts_correct_configs_on_scene() {

The problem seems to be just that Name for glTF mesh primitives is now in the form of MeshName.MaterialName instead of just the mesh name, which the test was not expecting

needs to instead use GltfMeshName afaik

[vestal minnow]

Mm this one is sneaky, right now you can't manually insert Sleeping, you're instead expected to use the SleepBody command. I might be able to make inserting/removing Sleeping work too though 🤔

[wet niche]

I see that now in the docs. I'm not sure if that changed from 0.3.1 but the references to SleepBody/WakeBody are a bit far down in the Sleeping docs. Maybe it should be mentioned a little higher up not to manually use this component?

[vestal minnow]

It's new in 0.4 because of the simulation island stuff that overhauled all the sleeping logic, but yeah they could be made more prevalent in the docs. I'll first try if I can just make the old way of simply adding/removing Sleeping work

[visual sparrow]

I should be able to make it run on linux now

ping me when you made it work on macos

[visual sparrow]

I noticed I wasn't able to observe you on Discord later in the evening anymore. Is that also part of the overhauled sleeping logic?

[vestal minnow]

oh heck I believe this also affects APIs like ColliderConstructorHierarchy::with_constructor_for_name

i.e. the name you're meant to provide is in the form of MeshName.MaterialName, which feels very unexpected to me

I would expect "name an object in Blender -> load glTF -> refer to the mesh with the name used in Blender"

[visual sparrow]

yeah agreed

-# good thing I've never used that feature

[wet niche]

IIRC there's a migration note about this explaining the reasoning.

[vestal minnow]

yeah it's this

[visual sparrow]

So we need GltfMeshName?

[vestal minnow]

I guess I'd need to use GltfMeshName here too, but the system shouldn't necessarily be glTF specific I think?

[dreamy viper]

Is there some comprehensive changelog for migrating to the new avian version

[vestal minnow]

Not yet, but there will be later

I think mainly these PRs have breaking changes this cycle

From a networking POV I think the biggest things are that you may need to also roll back the ConstraintGraph resource, and also simulation islands might cause some problems (at least when I was trying them with Nise's stuff) but you can disable them by disabling the IslandPlugin

[visual sparrow]

Don't forget the BreadPhase

[vestal minnow]

:/ Avian doesn't even have bevy_gltf as a dependency

just as a dev dependency

[visual sparrow]

huh

that's crappy design on Bevy's part

you shouldn't have to know the scene origin asset to get the scene-authored name

[vestal minnow]

yeah

this will also break bevy_rapier's AsyncSceneCollider which has a similar thing

mm perhaps for now we just roll with it, it's a change on Bevy's part, and the MeshName.MaterialName version is the canonical Name for glTF meshes now, even if I dislike it

one could argue that using something other than Name would be unexpected here

[visual sparrow]

welp

[wet niche]

BTW aside from the small issues I mentioned (and some I didn't) the update to 0.4.0 went smoothly!

[little maple]

dang, I didn't realize the release was so soon

[vestal minnow]

@visual sparrow ping

(I just updated the tests and stuff to include the material in the name for now)

[visual sparrow]

Neat

I'll try to fix it in a few minutes

[visual sparrow]

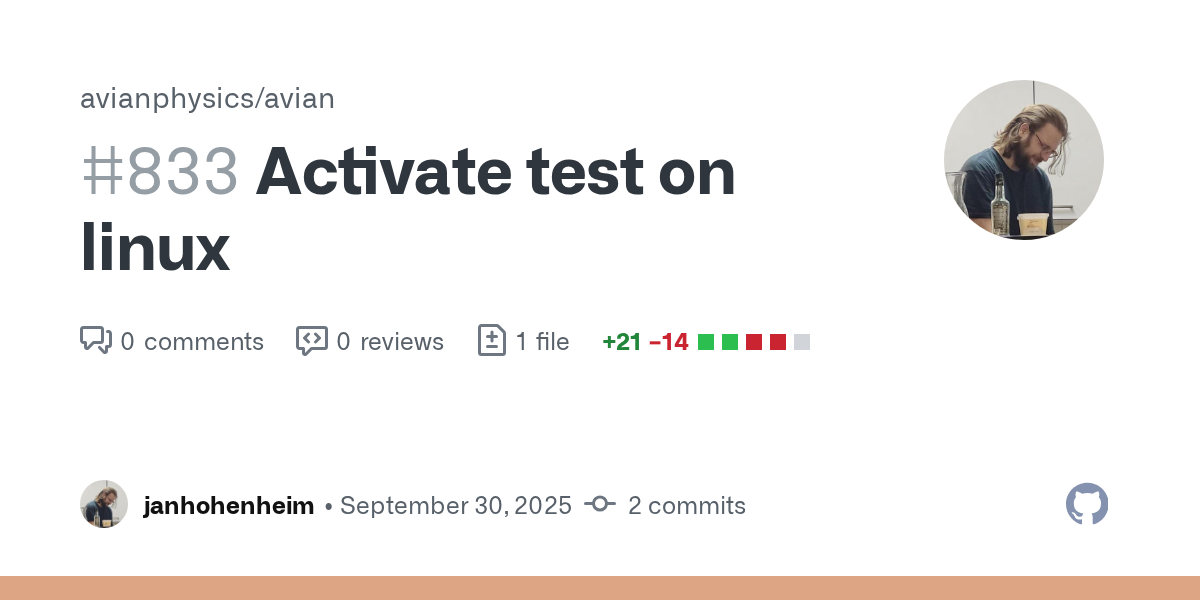

Let's see what CI says: https://github.com/Jondolf/avian/pull/833

also, I left my pre-existing PRs targetting 0.17 because I saw that main is still on 0.16

let me know if you want me to retarget them

[visual sparrow]

Welp nevermind, CI says no

Closing again

[vestal minnow]

Merged the bevy-0.17 branch 🙂

Hmm @visual sparrow do you know any git-fu to neatly retarget your two PRs, I tried with GitHub's button but it exploded the diff

I guess worst case just open another PR? There's probably a proper way tho

[visual sparrow]

can do

[vestal minnow]

uhhh wut, the collider_constructors example hangs with the PhysicsDebugPlugin enabled (on main too, not just with your PR)

oh there's an infinite loop sometimes, that's why

[visual sparrow]

updated the PRs to point to main

[dreamy viper]

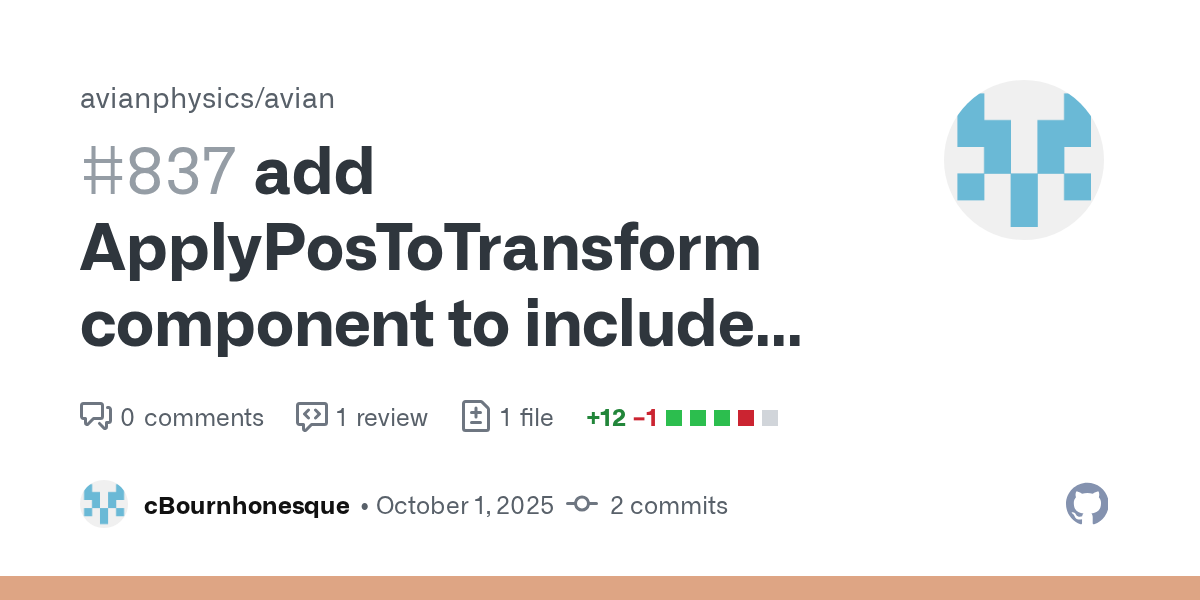

Can i add an extra component ApplyPosToTransform which would make an entity apply the PosToTransform sync even if it does not have a RigidBody?

https://github.com/Jondolf/avian/pull/837

[rocky seal]

https://github.com/Jondolf/bevy_heavy/pull/6

[dreamy viper]

Another thing I would need is control to be able to add PhysicsTransformPlugin in multiple schedules, with different controls for each of them.
Would that be ok with you? Something like HashMap<ScheduleLabel, PhysicsTransformConfig>

If config.propagate_before_physics is enabled,then TransformPropagation runs twice per frame?

[vestal minnow]

Yes, so that if you move things near the start of the frame, the global transforms are correct for physics

[dreamy viper]

Should this initial TransformPropagate only run for entities with RigidBody? or Position/Rotation?

[vestal minnow]

No, it also applies if for example you have sensors that are not attached to a rigid body, but are a part of some hierarchy, and some ancestor is moved

In that case you need to propagate down that hierarchy or otherwise the sensor will be at an outdated position from the POV of collision detection

[vestal minnow]

I would tentatively say yes if this would be useful for networking, with the caveat that it feels somewhat weird to me / I may rework this later

[vestal minnow]

What is this needed for? 🤔

[dreamy viper]

I replicate Position and that's what I used to run prediction and interpolation

PostFixedUpdate:

• TransformToPos
• StepSimulation
• UpdatePredictionHistory (using Position)

PostUpdate:

• VisualInterpolation (on Position)
• ApplyPredictionSmoothing (on Position)
• PositionToTransform
• TransformPropagate

I want to run only TransformToPos in PostFixedUpdate and only PositionToTransform in PostUpdate

[vestal minnow]

I feel like instead of generalizing PhysicsTransformPlugin to work across multiple schedules and with multiple configs, it may be simpler to just make a custom plugin for your networking use case, adding the systems and system sets exactly where needed

[dreamy viper]

I might be able to sync Pos to Transform after StepSimulation in PostFixedUpdate and do the interpolation/correction using Transform

[dreamy viper]

hm yes I could do that since the PhysicsTransformPlugin is fairly small.
The ApplyPosToTransform marker component is definitely useful, though

[vestal minnow]

Yeah, queued that PR for merge now

[vestal minnow]

Thanks! Merged the debug rendering one, and queued the other one for merge

[visual sparrow]

great!

tangential: we don't have any builtin way to create a sphere sector collider, right?

[vestal minnow]

we don't, no

(for vision cones? :P)

[visual sparrow]

bingo

[visual sparrow]

I should be able to just throw a bunch of points at convex_hull for that, right?

[vestal minnow]

yeah

(I'm off to bed, I need to get up in uh, four hours)

[visual sparrow]

oh heck

sleep well 🙂

[silk mauve]

Has there been any progress on an off-the-shelf avian 3d kinematic character controller?

[winged frost]

What's the standard way to offset a collider's position?
Edit: Collider::compound does what I wanted

[vestal minnow]

Yesn't, the KCC working group did some work on a KCC a while ago, but there hasn't been as much progress recently, partially because people are busy with other things and partially because people want some better collision detection stuff (Peck, which I intend to work on more next cycle)
https://discord.gg/KDSvhq9M

first I need to get the Avian 0.4 release done

[sweet sundial]

i've got two bodies i apply a relative force to (ie, one goes down, other goes up), and i'm migrating to Forces, which i've just noticed has a private global_center_of_mass() which would be perfect for using as the apply_force_at_point world_point on the other body
is that worth giving a public interface or should i have an entire extra query on position, rotation, and center of mass for this one operation
(don't want one of them to spin as much, so it uses regular apply_force; want to make that consistent between them, so i pretend it's an at_point at the CoM)

[visual sparrow]

@vestal minnow does collider-from-mesh make sense without default-collider?

I just ran into an issue without default because the collider cache requires both, but the code that uses the collider cache only checks collider-from-mesh

from a glance, it seems to me like collider-from-mesh should imply default-collider

Hmm although there are some collider constructors that work without default-collider

I'll try gating the collider cache only on collider-from-mesh instead nope

I'll fix the feature gate instead

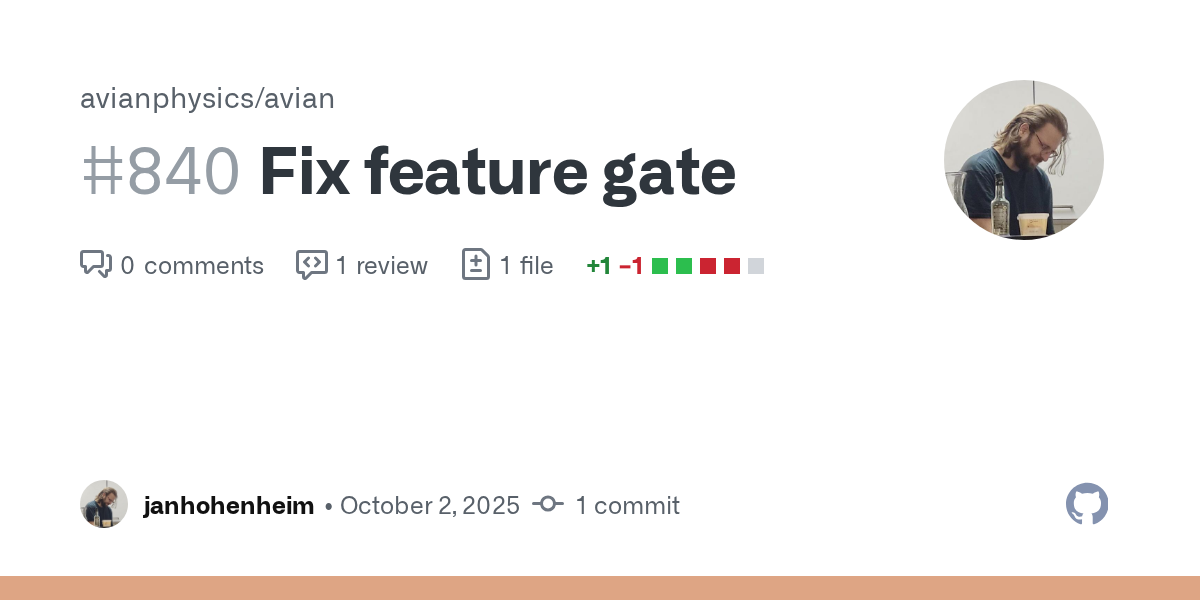

There ya go, trivial fix: https://github.com/Jondolf/avian/pull/840

[golden python]

Hello, anyone know the status of a release for avian that would be easier to manage than pointing to git main ?
Also curious if there is a migration guide kinda deal already for things like ExternalForce and others, maybe a little write up or something because idk where to start with the new force api.
Edit: I think applying forces might be rebranded under the forces component now.

[visual sparrow]

check the individual PRs that are tagged for the 0.4 milestone, they contain their respective migration guides for now

[vestal minnow]

-# (I saw nothing)

-# (I'm guessing you got it fixed lol)

[vestal minnow]

I'll try to get the 0.4 release out this weekend or early next week, in the meanwhile you need to use the main branch yeah

[visual sparrow]

yeah it was a classic cargo update

[visual sparrow]

but this is still good 👍

[vestal minnow]

Merged

[visual sparrow]

thx!

[grave quest]

Hey, I have recently replaced rapier with avian (rapier has some panic bugs) and I have noticed the big decrease in precision of very basic collision detection. Basically the case is like this - a projectile (kinematic circle collder, size 1) hits the rock (dynamic, circle collider, size 30), destroys itself and spawns effect where it did so. Rapier would cause effect to appear roughly about the edge of rock collider as expected. Avian does it it some other places, which appear to be somewhat random, close to truth but not quite as good as rapier. I managed to find configs that help with it slightly - I have disabled entirely speculative margin (SpeculativeMargin::ZERO) on projectile and I am also using observer instead of event reader (i.e Trigger<OnCollisionStart> instead of EventReader<CollisionStarted>). Now those two things made stuff better to some effect, but still far from rapier precision, at least to my eye (I can probably collect precise data.. if needed).
Anyone knows any other tricks to make avian more accurate?

[sweet sundial]

could use a shapecaster instead of a collider
could make the projectile dynamic, so it stops when it hits something
could try turning speculative collision back on and reading the ContactPair off the graph

[grave quest]

could make the projectile dynamic, so it stops when it hits something

huh, this is interesting take. I have been thinking of collisions as kinetic, because I wanted not to apply to any forces to them, so they just remove themselves on same frame as when collision detected. Was I missing something?

could use a shapecaster instead of a collider

I will see what it is.. never heard of this before

could try turning speculative collision back on and reading the ContactPair off the graph

I actually thought that speculative collision also applies to results of what is stored on the graph, but I did not really read the respective PR that deeply

[sweet sundial]

you could also just increase the physics tickrate

or put a system in the substepping loop

[grave quest]

Regarding speculative collision, there is this bit:

Speculative CCD: Contact points are predicted by the narrow phase for fast-moving objects before they actually touch. Speculative collision response is handled by pushing back the part of velocity that would cause penetration.

in here ,which made me think that I should not be able receive from contact graph anything different from what was "speculated", because speculation sounds like something that works on narrow phase. But it is possible that I misunderstand something in this..

or put a system in the substepping loop
you mean my system that looks at collisions? I use observer, it seemed to work better

The weirdest bit is that result somehow depend on the angle at which one circle moves to another

somehow from the bottom left it looks the worst 🙂

[sweet sundial]

https://docs.rs/avian3d/latest/avian3d/dynamics/solver/schedule/struct.SubstepSchedule.html

my approach for projectiles is to just have them as dynamic bodies i delete after they hit something, i don't even have effects yet (damage is applied by the force it exerts)

if you want something with minimum unpredictability though, just don't give it a collider at all
can handle its collision manually

[grave quest]

Looks like this for me now, somewhat random..

[sweet sundial]

... that looks like just a kinematic-kinematic collision

are you manually keeping the rocks in place

[grave quest]

... that looks like just a kinematic-kinematic collision

pretty sure only one of them kinematic, lemme check

[sweet sundial]

also speculative collision helps prevent that

it just can't do anything if the bodies aren't free

[grave quest]

Rock has this:

avian2d::prelude::RigidBody::Dynamic,

projectile this:

avian2d::prelude::RigidBody::Kinematic,

are you manually keeping the rocks in place

no, they spawn with 0 velocity and then have no reason to move, no forces are applied, cause projectile is kinematic

Oh, projectile is also Sensor

[sweet sundial]

that's not how that works

yeah there's the reason

the projectile steps forward, records a collision, and does nothing else

if you want it to not penetrate either make it solid (and dynamic) or add a way to find out when it collided, ie a shapecast

[grave quest]

For dynamic projectile not so different:

find out when it collided, ie a shapecast
ooh, sounds cool , sort of like rollback?

Though I still do not have speculative margin on, lemme try dynamic projectile with speculative margin

hm, no, this is worse

It is not cool to hit rock not on its edge, but liveable, hitting it outside of hitbox is definitely no go

[sweet sundial]

get the data off the graph and make sure it's actually collided

[grave quest]

But, say what I do if the answer is no (they do not yet collide)? Do I ignore that event? Then when I would know when it actually does collide?

[sweet sundial]

oh right observer

[grave quest]

I guess I can still capture OnCollisionEnded, then interpolate, but it sounds like an awful lot of workarounds 🙂

[sweet sundial]

i just read the graph in a schedule system

OnCollisionStart says "when two colliders start touching"...
where are you reading the objects' positions from?

[grave quest]

I honestly thought that collision_events: EventReader<avian2d::prelude::CollisionStarted> also only tells me which collisions have started on this frame

[sweet sundial]

a reader gives all events that have happened since either last time it was read or two Updates ago, whichever is more recent

[grave quest]

Hm, still sort of not quite consistent

This is the system:

fn projectile_hits_by_avian(
    mut commands: Commands,

    // avian stuff:
    mut collision_events: EventReader<avian2d::prelude::CollisionStarted>,
    contact_graph: Res<avian2d::prelude::ContactGraph>,

    // some other stuff:
    projectile: Query<(&Transform, Entity), With<Projectile>>,
    damageable_targets: Query<Entity, With<DamageableTarget>>,
    bullet_hit_effect: Res<BulletHitEffect>,
    projectile_assets: Option<Res<ProjectileAssets>>,
    mut damage_event_writer: EventWriter<damage::ApplyDamageEvent>,
) {
    for collision_event in collision_events.read() {
        let e1 = collision_event.0;
        let e2 = collision_event.1;
        let actually_colliding = contact_graph.entities_colliding_with(e1).any(|e| e == e2);
        if !actually_colliding {
            continue;
        }
        if let Some(((projectile_transform, projectile_entity), damageable_target_entity)) =
            (&projectile, &damageable_targets).get_both(e1, e2)
        {
            process_hit(
                &mut commands,
                &bullet_hit_effect,
                &projectile_assets,
                &mut damage_event_writer,
                projectile_transform,
                projectile_entity,
                damageable_target_entity,
            );
        }
    }
}

Projectile is this (from avian related stuff):

            avian2d::prelude::RigidBody::Dynamic,
            avian2d::prelude::Collider::circle(1.0),
            avian2d::prelude::LinearVelocity(direction * speed), // Set initial velocity
            avian2d::prelude::Sensor,
            avian2d::prelude::CollisionEventsEnabled,
            avian2d::prelude::GravityScale(0.0), // No gravity effect

Rock is this

            avian2d::prelude::LinearVelocity(velocity),
            avian2d::prelude::Collider::circle(27.0),
            avian2d::prelude::Friction::new(0.7),
            avian2d::prelude::Restitution::new(0.3),
            avian2d::prelude::GravityScale(0.0),
            avian2d::prelude::RigidBody::Dynamic,

(rock velocity is zero, which is not obvious from this here..)

Projectile used to be kinematic, I haven't tried kinematic without observer yet

[sweet sundial]

if it's a sensor you can't prevent penetration unless you start before the objects overlap

at most you can have less penetration

[grave quest]

I don't really mind a bit of penetration, just not half the object

haha, nice, yes dynamic non sensor projectile gives kind of best final pic

But it has another issue.. now projectile has knockback

So rock actually moves 🙂

The weirdest result I got one shot that rickosheted 🙂

[sweet sundial]

give it negative dominance

and maybe zero restitution or something

[grave quest]

It is addmitedly more fun looking actually

[sweet sundial]

yeah, imo the physics should dictate the behavior entirely for this kind of thing

[grave quest]

I need to test how often they ricochet like this, but I might actually just keep this like it is! Thanks for all your help!

Ok, the only issue is that after ricochet, projectile (which is long yellow line to imitate bullet) starts rotating (get angular velocity), which looks weird for a "bullet". I suppose I can make it a small circle and add particle system instead for trail, but maybe there is cheaper way of fixing rotation in the velocity direction or smth?

Ah, I remember now why I wanted projectiles to be Sensor, there is another weird effect if projectiles are dynamic bodies - they can hit another projectile, which looks kind of weird from gameplay perspective. They also then start rotating wildly not in a way that bullet with trail should

[sweet sundial]

https://docs.rs/avian2d/latest/avian2d/dynamics/rigid_body/struct.LockedAxes.html#associatedconstant.ROTATION_LOCKED and some manual rotation setter

can use collision layers to prevent bullet-bullet collisions

[grave quest]

Yeah, that sounded like it should help, but I must be missing some context, cause I thought I put bullet in same layer with target, which makes all bullets in same layer as other bullets

Oh, I see, I make them members of same layer, but then use different filters

[sweet sundial]

CollisionLayers::new(0b11u32, !0b10u32)

[grave quest]

I tried to do something like this:

pub(crate) const PROJECTILE_MASK: u32 = 0b0001;
pub(crate) const DAMAGEABLE_TARGET_MASK: u32 = 0b0010;

#[derive(Component)]
#[require(Health)]
// damageable targets can be hit by projectiles and other targets
#[require(avian2d::prelude::CollisionLayers::new(DAMAGEABLE_TARGET_MASK, PROJECTILE_MASK & DAMAGEABLE_TARGET_MASK))]
pub(crate) struct DamageableTarget {

#[derive(Component)]
// projectiles collide with damageable targets, but not with other projectiles
#[require(avian2d::prelude::CollisionLayers::new(PROJECTILE_MASK, DAMAGEABLE_TARGET_MASK),)]
pub(crate) struct Projectile;

But I think I missed something somewhere, this causes projectiles not to hit targets

[sweet sundial]

default is already 0b1

[grave quest]

I might have done & instead of |, but doing | also makes projectiles not to hit damageable targets..

[sweet sundial]

don't have to give targets a specific mask, ... but i also made a mistake

[sweet sundial]

CollisionLayers::new(0b10u32, !0b10u32)*

[grave quest]

got it, this is simpler - projectiles do not hit each other and that is all this is saying. Looks nice, thanks!

[gaunt girder]

I think I fonud a bug in the new implementation of JointDamping. Both bodies need to have the same RigidBody component, otherwise the damping does not occur. This is because, in src/dynamics/solver/plugin.rs on line 768, the call to get_many_mut requires that both bodies have the same components. Otherwise, it returns Err::QueryDoesNotMatch. I'm not sure what the right way to get both bodies would be as I'm still fairly new to bevy. I can create a github issue if needed.

I've attached a minimal example showing this in action.

[sweet sundial]

doesn't that just mean they both have to match the query? they shouldn't need to be in the same archetype

[gaunt girder]

And yet get_many_mut fails if they arent in the same archetype

If you dig into the function, you eventually get to this

    pub fn get_inner(self, entity: Entity) -> Result<D::Item<'w, 's>, QueryEntityError> {
        // SAFETY: system runs without conflicts with other systems.
        // same-system queries have runtime borrow checks when they conflict
        unsafe {
            let location = self
                .world
                .entities()
                .get(entity)
                .ok_or(EntityDoesNotExistError::new(entity, self.world.entities()))?;
            if !self
                .state
                .matched_archetypes
                .contains(location.archetype_id.index())
            {
                return Err(QueryEntityError::QueryDoesNotMatch(
                    entity,
                    location.archetype_id,
                ));
            }

Or at least, the archetype of the second body isn't in the matched archetypes of the query. Again, new to bevy so I could be misunderstanding, but the only difference between the left and right cubes is whether or not one has a Static or Dynamic RigidBody. I was able to trace it down to that method returning an Err and that being where the Err was returned

[sweet sundial]

are you on avian main? because different body types aren't different components yet there

[gaunt girder]

I am on main

[sweet sundial]

does it work with kinematic instead of static bodies?

[gaunt girder]

Well, I used dynamic bodies and yes. In my example code, I have 2 cubes on the left where both are RigidBody::Dynamic and they work as expected. The two cubes on the right, one is RigidBody::Static and the other is RigidBody::Dynamic and it does not call inside of the joint_damping function past the get_many_mut.

pub fn joint_damping<T: Component + EntityConstraint<2>>(
    mut bodies: Query<(&RigidBody, &mut SolverBody, &SolverBodyInertia)>,
    joints: Query<(&T, &JointDamping)>,
    time: Res<Time>,
) {
    let delta_secs = time.delta_seconds_adjusted();

    for (joint, damping) in &joints {
        if let Ok([(rb1, mut body1, inertia1), (rb2, mut body2, inertia2)]) =
            bodies.get_many_mut(joint.entities())
        {
            ...
        }
    }
}

[sweet sundial]

not an expert on the internals but static rigidbodies probably don't get SolverBodys inserted

[gaunt girder]

Ah, I think you're right. Just tried with one Kinematic and the other Dynamic and it works as expected. That makes sense

It just wasn't a thing in the previous version of avian where the damping was part of the joint instead of a separate component

[sweet sundial]

this might still be a bug, if you want to file an issue about it

[gaunt girder]

Will do. At the very least, it's a regression in features

[vestal minnow]

Ah yup that's a bug, it should use a "dummy" SolverBody for static bodies like some of the other solver systems

I'll fix that later today

[gaunt girder]

Should I still throw together an issue?

[vestal minnow]

Sure, good to have an issue for it in case I forget

Just some short description of the problem is enough

[gaunt girder]

Alright. Will do

Filed. Thanks! Really like the library in general btw. Really fun to code with

[fiery mortar]

@vestal minnow
https://www.youtube.com/watch?v=vKuHEdC2hf0

I seem to have this bug where I collide with the middle part of a mesh, no trimeshflags seems to fix it really, do you have any tips for dealing with it?

In the video you can see that i slide down the slope well, but then when it hits that cross section, it collides with it, and the player is able to climb all the way back up on it (on 16.1 btw)

[dreamy viper]

I have a ball collider defined with

    collider: Collider::circle(BALL_SIZE),
    collider_density: ColliderDensity(0.05),
    rigid_body: RigidBody::Dynamic,
    restitution: Restitution::new(0.5),

On collision it used to move away, but not anymore. Do i need to change anything?

[dreamy viper]

Also I got this panic:

thread 'main' panicked at /Users/charles/.cargo/git/checkouts/avian-5a22c167119f3550/465b513/crates/avian2d/../../src/dynamics/solver/islands/mod.rs:650:9:
assertion failed: island.contact_count > 0

[vestal minnow]

Is this with networking

If yes, you may want to disable the IslandPlugin (or help me figure out how to make it play nice with networking)

If not, it's most likely a bug

[lyric sorrel]

Just ran into the same issue as ChaosCat did yesterday with version of slab in updating to Bevy 0.17 and avian main - I think the version of slab named in avian's dependency lists needs updating from just 0.4 to 0.4.11 (the earliest non-yanked version with the get_disjoint_mut method), which should fix that without requiring downstream users to cargo update first

[dreamy viper]

It's with deterministic replication; so it should work fine as long as everything that needs to be rolled back is.
Is there some sleeping/island specific resource to rollback?

[vestal minnow]

The PhysicsIslands resource, and possibly the BodyIslandNode component

I believe also the ConstraintGraph resource which I mentioned earlier iirc

Note that I couldn't get Nise's networking stuff properly working with islands yet, which is why I added the option to disable them, but maybe your networking setup is different and it works there

[vestal minnow]

Hm yeah that seems weird if you have TrimeshFlags::FIX_INTERNAL_EDGES

It should (in theory) fix ghost collisions with internal edges like that, at least for the edges of a given mesh, not necessarily at mesh boundaries where two different meshes meet

[vestal minnow]

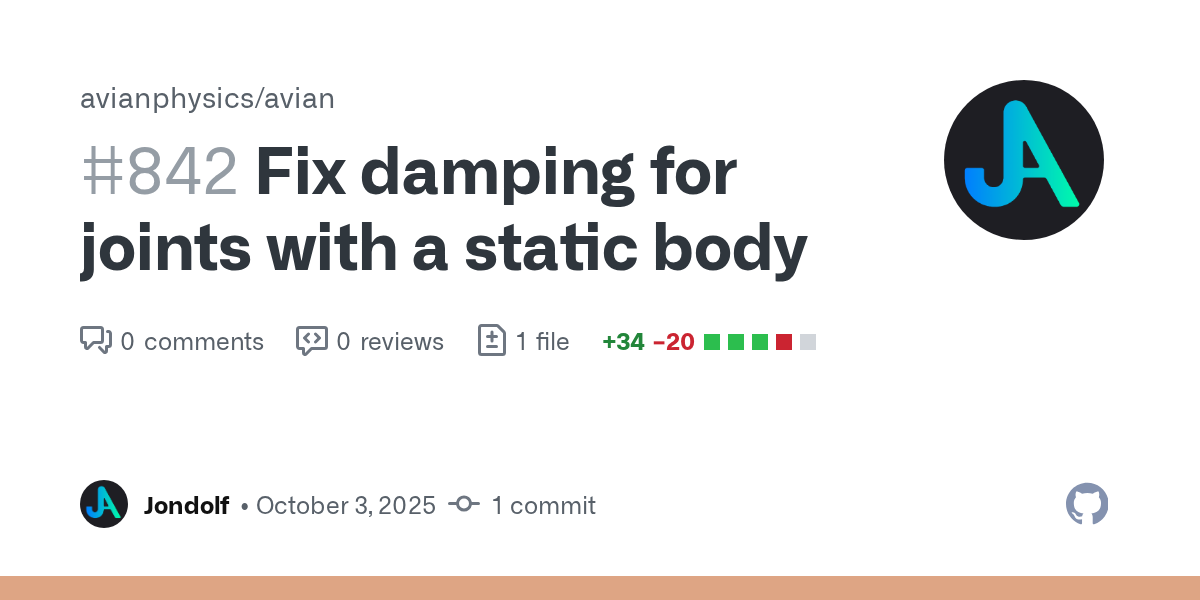

Thanks! Should be fixed by #842 once it merges

[fiery mortar]

I tried it again just in case, still doesn't work

[fiery mortar]

It is just one mesh, in blender its just a single thing

https://github.com/gold-silver-copper/fps/tree/4jon

This is the repo just in case you want to take a look, the scene spawning code is inside examples/lol.rs and the character collision sutff is all in src/character_controller.rs

[dreamy viper]

Could the Prepare step run in RunFixedMainLoop instead of FixedPostUpdate? or it is dangerous because other things in FixedUpdate might update Transform?

I tried applying TransformToPosition in FixedPostUpdate::Prepare, and PositionToTransform in PostUpdate
But it seems to break stuff and I don't really understand why.
My guess is that something might be modifying Transform in FixedPostUpdate, which means that TransformToPosition is getting re-applied if multiple FixedPostUpdate are running in a frame

[little maple]

finally finished updating to 0.17 with avian and no bugs so far

[wary ferry]

There is a relatively simple way to implement a TPS camera interacting with physics to prevent clipping trough RigidBody ? Something like SpringArm3D in godot ? https://youtu.be/ZCb12AHKMfE?si=W7GNy7lggEN2cC0d

I have tried playing with joints but without any success for now

[sweet sundial]

weird name for just a raycast?

[visual sparrow]

you can use springs to make the camera zoom in and out smoothly to avoid collisions

[sweet sundial]

in the video it's instant

[visual sparrow]

It's simple to have it follow a raycast distance, but it will be fairly disorienting in practice unless you smooth the movement

[visual sparrow]

oh lol didn't watch it

that's bad then

[visual sparrow]

I skipped towards the end it definitely is smoothed

[sweet sundial]

that's specifically added halfway through

the "springarm component" was just a raycast

[visual sparrow]

lol

[sweet sundial]

pretty sure the state of the art is unsmoothed anyway, unless the entire camera assembly is smoothed

for controller-targeted games there's usually systems to move the camera away from obstacles (there was a talk about Journey's impl of that) that relax the load on the distance-slider line-of-sight preservation

[visual sparrow]

What do you mean by "the entire camera assembly"?

last thing that comes to mind for me was Super Mario Odyssey, which is smoothed as fuck, but that might be exactly what you mean by "camera assembly"

[sweet sundial]

smoothed even when moving/rotating the camera in an empty void

[visual sparrow]

oooooh got it

[sweet sundial]

meanwhile my game's camera controller is literally as rigid as i could possibly get it (with an extra velocity drag)

[vague ether]

hey, got a weird issue with sensor colliders that's driving me nuts. hoping someone can point out what i'm missing here.

so i'm working on a portal system and have sensor colliders on each portal to detect when the player enters/exits the boundary. player has a capsule collider (radius 0.4, height 1.6), sensor is a sphere with radius 6.0. i'm using CollisionEventsEnabled and observing CollisionStart/End events.

wall portals work perfectly fine, collision starts when entering, ends when exiting, everything makes sense. but floor/ceiling portals are completely broken. CollisionEnd fires way too early even though the player is clearly still inside the sensor volume.

here's what i'm seeing when falling through a floor portal:

COLLISION START: boundary with player
Player at Y=1.13 (distance from portal: 1.125)
Player at Y=0.89 (distance: 0.891)
Player at Y=0.77 (distance: 0.766)
Player at Y=0.64 (distance: 0.637)
Player at Y=0.51 (distance: 0.504)
Player at Y=0.37 (distance: 0.365)
COLLISION END: boundary with player  <-- wtf?

portal center is at Y=0.0 and the sensor radius is 6.0 units. player at Y=0.37 should definitely still be inside the sphere but collision just ends anyway.

i've tried making the sensor absolutely massive (cuboid 10x10x10, sphere radius 6.0), removed any debouncing, verified the entities aren't being despawned, tried both sphere and cuboid colliders. same issue every time with floor/ceiling portals.

the only difference i can see is the orientation. floor portals have their normal pointing up (0, 1, 0), walls are horizontal. the sensor is a child entity so it inherits the portal's rotation.

is there something weird about how sensor/capsule collisions work with different orientations? or am i just completely missing something obvious here? this has been bugging me for hours lol

using bevy 0.17 and avian from main branch gh

[vague ether]

i added CollidingEntities to the sensor and logged both the distance and whether avian still thinks they're colliding when CollisionEnd fires:

COLLISION END: player with sensor - distance: 0.910, still_in_CollidingEntities: false

so when CollisionEnd fires:

• player is 0.91 units from sensor center
• sensor is a sphere with radius 6.0
• CollidingEntities component says they're NOT colliding

this happens consistently. the player is clearly still inside the sphere (0.91 < 6.0) but avian's own collision tracking thinks they've separated. it's not just the events being wrong ,the internal collision state is wrong too.

the only difference i can see is the orientation. floor portals have their normal pointing up (0, 1, 0), walls are horizontal. the sensor is a child entity so it inherits the portal's rotation. wall portals work perfectly, floor/ceiling portals have this bug every time.

[dreamy viper]

@cinder summit I don't know if you have thoughts on this. When only using Position, it should be fine to sync from TransformToPosition only once in RunFixedMainLoop before the fixed loop, no? What would be the use case to do the TransformToPosition every time in FixedPostUpdate (Prepare)?

Also when I insert a Bundle; if I understand correctly it adds Position::PLACEHOLDER because of required components, which adds Transform::Default because of required components. Then the first TransformToPosition sync will convert from Transform::default() to Position::default()

[cinder summit]

In my game I never do transform->position, but if you were using Transform outside the simulation I guess you'd do Transform -> Position once before the loop yes. And ofc you need the hooks to set up the position properly if you spawn something in the simulation

[vestal minnow]

It's not just Transform, it's also mass property updates and some other things IIRC

[dreamy viper]

So are you saying that it needs to stay in FixedPostUpdate because of that?

[cinder summit]

Imo if you don't need what the transform sync plugin does, you're better off disabling it and applying changes as needed in your own system

[vestal minnow]

Running preparation systems in the same schedule as physics is run in ensures that the state is up-to-date, running it elsewhere seems a bit sketchy

[dreamy viper]

yes that's what i'm doing, I disabled the plugin, but by default the plugin runs TransformToPosition runs in FixedPostUpdate so I'm trying to understand if I can get away with running it somewhere else.

I tried doing TransformToPosition in RunFixedMainLoop::BeforeMainLoop and PositionToTransform in PostUpdate, which seems to work

I guess it works under the condition that the user doesn't touch Transform during FixedMain or Update and instead relies on Position.

[cinder summit]

If you know what your simulation will and won't do then you can move them, yes

I personally only use a system to sync Position/Rotation -> Transform in RunFixedMainLoop::AfterMainLoop

[willow elbow]

Hello, I updated my project to 0.17 and I get this warning:
Dynamic rigid body 79v1 has no mass or inertia. This can cause NaN values. Consider adding a MassPropertiesBundle or a Collider with mass
which goes away only if I add MassPropertiesBundle, not sure what a Collider with mass refers to.
The problem is I want to set the angular inertia but I can't see how to set it with MassPropertiesBundle within spawn

[vestal minnow]

MassPropertiesBundle has an angular_inertia field for this

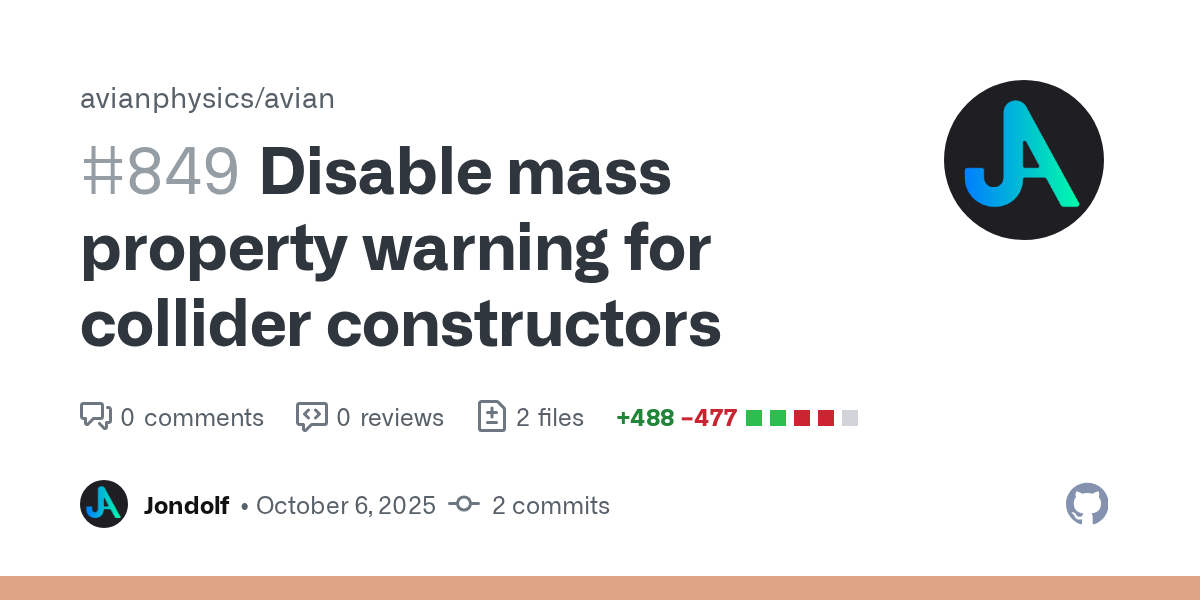

The warning though is a bug somewhere, which I'm hoping to fix soon, you shouldn't be getting it unless the body has no collider or the mass properties have been manually configured to invalid values

[willow elbow]

thanks for your help. That means that I have to first spawn the entity and then query the MassPropertiesBundle to change its field, I can't do it directly at the time of spawning, right?

[vestal minnow]

No you can just set it at spawn

commands.spawn((
    RigidBody::Dynamic,
    MassPropertiesBundle {
        mass: Mass(MY_MASS),
        // Note: In 3D, this has a principal inertia and orientation
        angular_inertia: AngularInertia(MY_INERTIA),
        ..default()
    },
    // ...other components
));

Or better, just use the raw components and not the full bundle

commands.spawn((
    RigidBody::Dynamic,
    Mass(MY_MASS),
    AngularInertia(MY_INERTIA),
    // ...other components
));

The MassPropertiesBundle mainly exists because of the from_shape helper, for computing all the mass property components based on a given shape and density. If you're manually specifying the mass and angular inertia, it's cleaner to just use the components directly

[willow elbow]

Unfortunately both solutions do not get rid of the warning. It goes away only by using MassPropertiesBundle::from_shape, I guess it's due to the bug you were referring to

[dreamy viper]

Should AccumulatedLocalAcceleration also be rolled back? Is it used for one-time forces? Does it every get persisted past one PhysicsStep?
I see there is also VelocityIntegrationData

[vestal minnow]

both of them are cleared every physics tick, so you shouldn't need to roll them back

i.e. the state doesn't persist, it's recomputed every tick

[dreamy viper]

Thanks.
Another issue I have is that I had a system that queried Position, Mass, etc. and ExternalForce

but now i can't query Position along with Forces because of access conflicts

I'd rather not use a ParamSet or anything like that; would it be possible to make the fields inside Forces public?

oh i see helper methods are provided ..

I guess it's not exactly the same because you cannot mutate 2 fields at once if you have to go through the helper methods, as opposed to accessing the field directly. But maybe it's fine

Oh those helper methods are internal only

[tall willow]

nice this is bevy_fps_controller right. I couldn't really get sloped terrain to feel terribly natural

[fiery mortar]

yes its based on bevy_fps_controller but i rewrote a great deal of it. i made it fixedupdate and it now uses force impulses instead of manual transform translation mutation. also uses avian gravity and damping instead of the old gravity and friction system, as well as other minor changes .

I really appreciate you making bevy_fps_controller, would've been difficult for me to get the base yaw/pitch/accel stuff working. bhop is king!

yeah slopes at first were very finnicky but i made it a floating controller and slopes are pretty good now, the current issue im having isnt due to the controller, but due to a ghost collision, as far as i can tell. it happens occasionally on flat ground as well

[tall willow]

Cool

What is floating controller?

[fiery mortar]

instead of the collider being on the ground, there is a force pushing it up constantly, making it slightly above the ground. for me this gave me free walking up stairs, and i dont slide down slopes.

[chilly wadi]

@vestal minnow I haven't had too much time to look into Avian's implementation but I'm curious how much allocation Avian is doing in its systems.

I've been investigating if it's a good idea to introduce support for low level scratch space for efficiently managing ephemeral allocations.

And physics and rendering are the two areas where it seems to be a good match.

[vestal minnow]

So this would be similar to an arena allocator that gets freed for example after every time step? Box2D uses those a lot, and I could probably use them too for things like constraints

I think constraints would be the biggest thing where that may be helpful

Most other data is more long-lived and persisted, and not as perf-critical

[chilly wadi]

It is exactly an thread local arena allocator. Likely scoped to the lifetime bounds of a schedule..

At least that's what I'm thinking right now

The intent would be to allow for some cheap scratch space that can be shared between systems

Mostly to avoid the churn of moving entities and components around on short timescales.

[vestal minnow]

What Box2D does is it allocates a bunch of things to a global arena allocator on the world, distributes some data there, and then frees them after the solver. For example here it allocates some space for SIMD contact constraints
https://github.com/erincatto/box2d/blob/cfa9ef1b76256f92ec3e26a1a20521e50dddac19/src/solver.c#L1468
that it distributes to graph colors
https://github.com/erincatto/box2d/blob/cfa9ef1b76256f92ec3e26a1a20521e50dddac19/src/solver.c#L1494
and later uses in a thread-local context in the solver
https://github.com/erincatto/box2d/blob/cfa9ef1b76256f92ec3e26a1a20521e50dddac19/src/contact_solver.c#L1807

I'm guessing this would probably be a bit different in Rust land

[chilly wadi]

Yeah I'm a bit conflicted since this would require either some intricate lifetime weaving

or require fallible handles instead

[vestal minnow]

In my case, I currently just have this for the "graph color"

pub struct GraphColor {
    pub body_set: BitVec,
    pub manifold_handles: Vec<ContactManifoldHandle>,
    // This is the relevant part
    pub contact_constraints: Vec<ContactConstraint>,
}

Each constraint within a given graph color can be solved in parallel. In Box2D's case, it doesn't store a vector, but points to some chunk in the arena allocator, unless I'm misunderstanding what it's doing

Also the graph colors in my case are stored in a ConstraintGraph resource currently, it's just a Vec of graph colors

[chilly wadi]

since you're doing this in parallel, this is all just allocated up front, right?

[vestal minnow]

The constraints are, yes

[dreamy viper]

I'm extremely interested in this for networking; I was looking at BlinkAlloc in the past

[dreamy viper]

@vestal minnow what do you recommend for this? (accessing Position/Rotation/etc. at the same time as Forces)

[chilly wadi]

I'm thinking of writing a plugin that should get us 90% of the way there and pave the way there for experimentation, but a complete option will likely need deeper integration with the ECS.

[vestal minnow]

We can probably add more public getters for those, I originally didn't do that since Position and Rotation are generally intended more for internals, and most people would probably just use the transform, which would not have any conflicts

Or you may be able to use a ParamSet, though it's more annoying

[dreamy viper]

Would making RigidBodyForcesInternal public work?

[vestal minnow]

I don't really want to expose literally everything there, that trait exists primarily to allow internally sharing logic between ForcesItem and NonWakingForcesItem

I would be fine exposing getters for position, rotation, and velocity (velocity already exists), the rest feel more niche to access mutably in the same system as you're using Forces

exposing more fields than necessary risks cluttering up autocomplete and making the API more confusing

[dreamy viper]

that works! thanks. https://github.com/Jondolf/avian/pull/845/files

[dreamy viper]

oh wait could i also add ComputeMass? my forces often rely on the mass of the entity

[vestal minnow]

Shouldn't you be able to just query for it? It's only borrowed immutably in ForcesItem, so unless you're querying mutably for it for some reason, it shouldn't conflict afaik

[dreamy viper]

oh you're right, didn't know you could query multiple immutable components in the same query; it makes sense

[sweet sundial]

there's an automatically generated ReadOnlyForcesItem that's kinda a footgun if you try to forces.get(e).unwrap().angular_velocity()

[golden python]

Hello, new forces querydata is sick, thanks for the work.
Would it be possible/make sense to have this kind of function directly integrated ?

fn get_point_velocity(linear_velocity: Vec3, angular_velocity: Vec3, point: Vec3) -> Vec3 {
    linear_velocity + angular_velocity.cross(point)
}

I find myself needing it often.
I'm also curious why there isn't a apply_linear_acceleration_at_point

[vestal minnow]

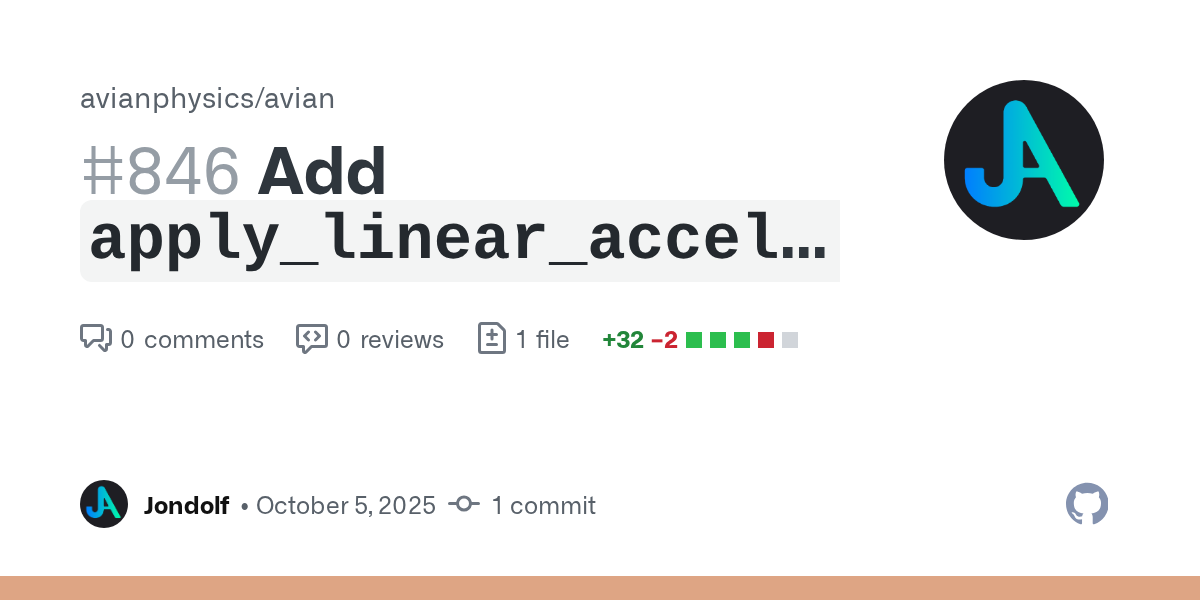

Added apply_linear_acceleration_at_point now. I originally just wasn't sure if it's useful, but I agree it probably is, and it's good to have for consistency / API completeness
https://github.com/Jondolf/avian/pull/846

[vestal minnow]

I would like to add a method for computing point velocities, it just feels somewhat weird to have a random function floating around somewhere. In bevy_rapier it's natural since both linear and angular velocity are in a single Velocity component, so they can just have a Velocity::linear_velocity_at_point method

We could consider combining LinearVelocity and AngularVelocity under a Velocity component too

Honestly I'm not entirely sure which API I prefer

Spawning with linear velocity

// Before
commands.spawn((
    RigidBody::Dynamic,
    LinearVelocity(Vec3::X),
));
// After
commands.spawn((
    RigidBody::Dynamic,
    Velocity::from_linear(Vec3::X),
));

Spawning with linear and angular velocity

// Before
commands.spawn((
    RigidBody::Dynamic,
    LinearVelocity(Vec3::X),
    AngularVelocity(Vec3::Y),
));
// After
commands.spawn((
    RigidBody::Dynamic,
    Velocity {
        linear: Vec3::X,
        angular: Vec3::Y,
    },
));
// Or alternatively
commands.spawn((
    RigidBody::Dynamic,
    Velocity::new(Vec3::X, Vec3::Y),
));

Using linear velocity in a system

// Before
fn accelerate_linear(mut query: Query<&mut LinearVelocity>, time: Res<Time>) {
    let delta_secs = time.delta_secs();
    for mut linear_velocity in &mut query {
        linear_velocity.x += 2.0 * delta_secs;
    }
}
// After
fn accelerate_linear(mut query: Query<&mut Velocity>, time: Res<Time>) {
    let delta_secs = time.delta_secs();
    for mut velocity in &mut query {
        velocity.linear.x += 2.0 * delta_secs;
    }
}

I think I might actually slightly prefer a single Velocity component

And it'd solve the point velocity API problem

[golden python]

I meant adding it to the Forces QueryData, which i'm not sure is possible since I don't know much about it.

[vestal minnow]

Mm we could add that too

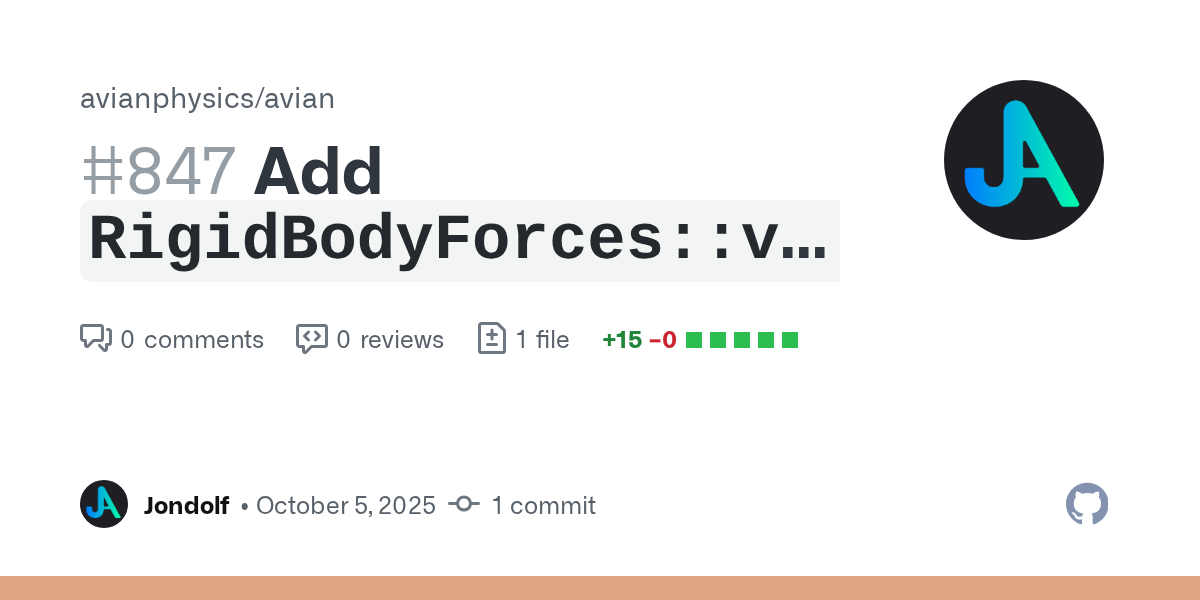

[vestal minnow]

added
https://github.com/Jondolf/avian/pull/847

[willow elbow]

I just found this message about a camera interpolation artifact and I was wondering if you got this after updating to 0.17? I get a similar problem when moving the camera interpolating between two positions which I didn't get in 0.16. Is this a known problem in 0.17?

[golden python]

I tried it, it works great thanks a lot.

Btw is it normal that I need a mut access to the query data in order to call that method ?

When I don't do get_mut it doesn't show up

[visual sparrow]

Yeah this was updating Tnua to 0.17, but honestly the way they handle fixed timesteps is more of an afterthought, so I wouldn’t worry about it.
In my own projects, I did not get any issues, no. For the record, I don’t interpolate the camera itself, but set its translation to that of the interpolated player

[willow elbow]

I am using EasingCurve sample to interpolate non-linearly between one camera position to another and I get the following glitchiness that appeared after updating to 0.17. As far as I know easing curves and sampling have not been changed though across 0.17, or am I wrong?

[visual sparrow]

Oof that sucks

[visual sparrow]

I'm not aware of any changes

But I may be wrong

Maybe ask #math-dev

[dreamy viper]

I think I almost have rollback working for islands. The main problem I have is on the BodyIslandNode::on_remove observer.
On rollback, I start by reverting BodyIslandNode, PhysicsIslands and Sleeping to their state at the start of the rollback tick.
The problem is that I don't have a specific order for the reverts, so I might get something like:

• revert PhysicsIslands to its past state
• remove BodyIslandNode, which triggers the on_remove observer
  The observer then panics here: https://github.com/cBournhonesque/avian/blob/7691ef41233f9eda9547f7bb01248855f9a6a449/src/dynamics/solver/islands/mod.rs#L1345-L1345

I guess a solution would be to have a way to disable this observer during rollback, but I don't really have a way to do this.
I guess another way could be to call return instead of panic at that line, but that's not ideal either because in non-rollback cases you probably do want to panic.

For now I will simply disable the Island plugins

[sweet sundial]

for the record i have two parallel systems modifying linear and angular velocity

[vestal minnow]

Are they expensive systems? In my experience it has generally been slower to run cheap-ish systems like that in parallel than just running then sequentially, at least with Bevy's current scheduler

[sweet sundial]

one's just a few vector calculations and the other's that plus collision reading, so not very

it's honestly more about how i want to make them independent mechanically, and the ambiguity checker tells me when that might stop being the case

[vestal minnow]

In general I would put DX and overall API "niceness" over optimizing for possible system parallelization for things like this. Bevy has kinda the same thing with Transform, where it could be split into three different components (and originally it was) but is a single component, which arguably is better at least for that case IMO

to me the question is mainly if the DX is better with a single Velocity component or split components

I've been intending to combine Position and Rotation under a PhysicsTransform for a while now, which is kind of a similar case

If both of them were combined then we could also have some more nice helpers for position and velocity integration and whatnot

(in addition to point velocity)

[sweet sundial]

could make a just-the-velocities querydata

[bleak wadi]

I've encountered this error in @visual sparrow's 0.17 branch of bevy_tnua, has anything changed here?
Encountered an error in run condition `<bevy_tnua_avian2d::TnuaAvian2dPlugin as bevy_app::plugin::Plugin>::build::{{closure}}`: Parameter `Res<'_, Time<Physics>>` failed validation: Resource does not exist If this is an expected state, wrap the parameter in `Option<T>` and handle `None` when it happens, or wrap the parameter in `If<T>` to skip the system when it happens.

[bleak wadi]

ok i've fixed this, but i've got some more issues

it seems like collider has been changed to not have mass by default?

Dynamic rigid body 254v32 has no mass or inertia. This can cause NaN values. Consider adding a MassPropertiesBundle or a Collider with mass.

and the weapon hitbox which this is talking about is affected by gravity now

adding mass doesn't seem to fix it

[bleak wadi]

and it says MassPropertiesBundle isn't a component

[maiden charm]

The performance improvements in 0.4 are very nice, thanks!

Mainly for debug builds. It was fast enough in release before, but debug mode performance is nice for productivity

[bleak wadi]

do you know about the option to compile dependencies in release?

[maiden charm]

Of course 🙂

It doesn't help avian too much for some reason, possibly too many generics

[light vessel]

Im also getting the Dynamic rigid body has no mass or inertia bug. For my use case it happens when I use Disabled + entity cloning (prefab design pattern) which may be where the bug lies? I've found missing Clone on a component can really bork up entity cloning in hard-to-detect ways.

[bleak wadi]

Interesting

[bleak wadi]

Yeah, i think it's that, i have the same usecase

[light vessel]

It looks like this bug is also messing with transform position and rotation for me and I suspect avian's involved since I use LinearVelocity and avian has the interpolation stuff. Not entirely sure could also be a change bevy made to entity cloning or disabled 😢

[vestal minnow]

Yeah I'll try to debug the mass problem today, definitely a bug

[vestal minnow]

Neat, that's great to hear 😄 there's still a lot more optimization work to be done, but it's definitely a big upgrade over 0.3

[bleak wadi]

@vestal minnow i'm having this issue with ldtk; the visuals work fine but all the avian hitboxes spawn at 0.0 for some reason? i'm assuming it's a change upstream from bevy, or maybe i messed something up with the migration, but it could be possible there's something in avian breaking it?

[vestal minnow]

Not sure why that'd be happening, but I can probably take a look later

[vestal minnow]

Mmmm it seems that our 3x3 eigensolver is returning NaN values sometimes, which are later clamped to 0.0 for angular inertia

I'm not sure why this wasn't a problem before though, I don't think I've touched this code

lol, specifically this returns NaN

let mat = SymmetricMat3 {
    m00: 5.3333335,
    m01: 3.4465857e-23,
    m02: 0.0,
    m11: 5.3333335,
    m12: 0.0,
    m22: 5.3333335,
};

but this does not

let mat = SymmetricMat3 {
    m00: 5.3333335,
    m01: 0.0,
    m02: 0.0,
    m11: 5.3333335,
    m12: 0.0,
    m22: 5.3333335,
};

[vestal minnow]

@light vessel @bleak wadi @visual sparrow (any others?) I fixed at least one bug that was causing the mass property warning, I'm curious if it's fixed for y'all if you cargo update

(the problem was that there's a check that tests whether the matrix is diagonal to avoid pathological NaN cases, but it was checking for exact equality to 0.0 rather than having some epsilon)

[visual sparrow]

cargo tree says I'm using https://github.com/Jondolf/avian?branch=main#774f60e3

[vestal minnow]

rip

[visual sparrow]

did you forget to push?

[vestal minnow]

no the bug was in glam_matrix_extras

[visual sparrow]

oh, let me cargo tree that

uuuh

oh I see you edited

[vestal minnow]

typoed, extras not extensions

[visual sparrow]

https://github.com/Jondolf/glam_matrix_extras#6e27652b

that commit looks correct

so nope, does not solve it in Foxtrot at least

[vestal minnow]

mm I'll just run foxtrot and try to debug there

[visual sparrow]

https://github.com/janhohenheim/foxtrot/pull/435

[visual sparrow]

is the issue maybe coming from rigid bodies that have no colliders at all?

because that's the case when using a RigidBody::Dynamic in combination with a ColliderConstructorHierarchy

(for exactly one frame in my case)

[vestal minnow]

That's one problem yeah, but afaik that existed in previous versions too?

[visual sparrow]

yep

maybe the check didn't fire back then

I suppose I could listen for the new event we added, but that seems a bit boilerplatey

Could that check just have a Without<ColliderConstructorHierarchy>?

[vestal minnow]

I guess a simple fix would be to just skip the warning if the body has ColliderConstructor or ColliderConstructorHierarchy

yeah

[vestal minnow]

seems to work in my test scene
https://github.com/Jondolf/avian/pull/849

[visual sparrow]

nice!

Wish I could patch to test

(please consider releasing at least a -alpha next time so I can patch binaries 😅 )

[vestal minnow]

Actually I think only ColliderConstructorHierarchy is problematic, not ColliderConstructor

[visual sparrow]

How come? The Mesh may not be ready for n frames

[vestal minnow]

Mm I guess yeah, my test scenes are probably just too simple to repro that

I'll keep ColliderConstructor filtered out too

It's merging once CI is done, so we can test it with foxtrot then

(I need to go afk for ~30 min)

[tough zealot]

Could it be that the quaternion multiplication here is the wrong way around? I'm seeing stutter issues with rotation extrapolation. https://github.com/Jondolf/bevy_transform_interpolation/blob/main/src/extrapolation.rs#L440

[vestal minnow]

I think you're right, yeah

for a world-space transformation the original rotation should be on the right

[tough zealot]

👍 I can open a PR

[vestal minnow]

thanks!

[vestal minnow]

Warnings in foxtrot seem to be gone now 🙂

Though there's this when pressing Quit to title

[visual sparrow]

Heh

[visual sparrow]

Yay!!

[vestal minnow]

another pretty big release, huh

Still missing content for the What's Next section, and I need to add images and videos and run some benchmarks... otherwise I have most of this written now

[rocky seal]

avian is utterly critical to my app and it's great work

[runic tinsel]

Is there somewhere I can see this?

[vestal minnow]

Nah these are the WIP release notes I'll post on my website (joonaa.dev) once everything is done and I've actually released 0.4

I'm considering changes to how we do releases moving forward but for this one I'll just do things like I've done in the past

(specifically, we could do slightly smaller and more frequent releases, and have migration guides in-repo, and maybe make release notes public as a draft somewhere even before the release)

(and also a dedicated avian.rs website would be nice, I do have the domain for that)

[dry jolt]

is there a new release of avian for bevy 0.17?

[vestal minnow]

Nope not yet, the upcoming 0.4 release will be for bevy 0.17. But the main branch has supported 0.17 for a while now, so you can hopefully use that

[dry jolt]

ohh ok thanks

[dry jolt]

its working. loving avian so far

[golden python]

bump this

[sweet sundial]

.

[little maple]

is there any way to optimize SpatialQuery's cast_shape/cast_ray? Like, does setting max_distance to a low value help? Is a shapecast "cheaper" than a ray cast?

[oak vigil]

i'm not sure specifically if that's possible, but one method of optimization is to do an AABB test first and skip any expensive shape/raycast checks unless the AABB check passes

[little maple]

are you referring to SpatialQuery's aabb_intersections_with_aabb or do you mean like... manually checking AABB myself?

[oak vigil]

yah that's one way. you should be able to get the aabb from the collider

also you might be more interested in aabb being completely inside

https://docs.rs/avian3d/0.3.1/avian3d/collision/collider/struct.ColliderAabb.html#method.intersects

doesn't seem like there is a function exposed to check if AABB is inside another, but it should be trivial by checking min/max

[little maple]

I might be able to replace my shapecast usecase entirely with this 🤔 Thanks!

[light vessel]

Still seeing issues on main with entity cloning including the warning about no mass. Disabling the avian specific components shows that the starting position and rotation are correct:

#[derive(Component, Clone)]
#[require(
    Lifespan::new(1.0),
    //Sensor,
    //RigidBody,
    //Collider::rectangle(10.0, 10.0),
    //CollidingEntities,
    AnimationIndices::Cycle((0..=4).cycle()),
    AnimationTimer(Timer::from_seconds(0.2, TimerMode::Repeating)),
    Disabled
)]
pub struct Projectile {
    pub damage: Damage,
    pub speed: f32,
    pub forward_offset: f32,
    pub angle_offset: f32,
}
...
commands
  .entity(projectile_entity)
  .clone_and_spawn_with_opt_out(|builder| {
    builder.linked_cloning(true);
  })
  .remove::<(ProjectileOf, Disabled)>()
  .insert((
      Transform {
          translation: starting_position.extend(ZLayer::InAir.z()),
          rotation: Quat::from_rotation_z(rotated_direction.to_angle()),
          ..default()
      },
      LinearVelocity(rotated_direction * projectile.speed),
      CollisionLayers::new(
        GameCollisionLayer::PROJECTILE_MEMBERSHIPS,
        LayerMask::from(damage_source) | GameCollisionLayer::HighObstacle,
      ),
));

The translation issue is that its always moved to 0, 0 after the first frame. Removing sensor alone fixes this 🤔 No idea whats up with the rotation.

[vestal solstice]

at what system set the spatial query updated?

i'm having an issue where an entity is despawned, but it still shows on the spatial query, and is breaking some of my logic

that is my assumption at least

[little maple]

https://idanarye.github.io/bevy-tnua/avian3d/spatial_query/struct.SpatialQuery.html#method.update_pipeline

This is done automatically once per physics frame in PhysicsStepSet::SpatialQuery

I have a few places where I'm calling update_pipeline manually though

[little maple]

when two colliders collide... is there an easy way to get roughly the point where they collide? I'm wondering if my raycast vehicles could be more efficient if they use sensors vs casting rays 🤔

[oak vigil]

you wanna check out ContactManifold
https://docs.rs/avian3d/latest/avian3d/collision/collider/struct.Collider.html#method.contact_manifolds

[snow urchin]

expected update time?

[little maple]

hmm, yeah. I wonder if this'll be more efficient or less efficient. I suspect it's a "measure and see" situation

[late wind]

So, just to be sure if I understood correct, since I'm just starting with avian2d, if I have a tilemap, which is just a grid of Vec2, the best way to create colliders for things like walls, is to use Collider::voxels, where voxel_size is 1x1 (since I'm using 32.0 as the lenth_unit, which is the pixel count of each tile, 32x32) and grid_coordinates are the "tiles" coordinates which will be a wall (collidible).

My only question is if grid_coordinates is a "local position" or needs to be in the "global" position.

[sweet sundial]

don't see how it wouldn't be local to the collider's origin

length unit doesn't mean that, though; it just scales things like the sleep threshold

[little maple]

is there something that would prevent a child collider sensor from detecting collisions?

like, I have a rigidbody moving and I have a sensor collider which is a child of it offset so it's always in front of the parent... but it doesn't seem to detect collisions at all 🤔

[visual sparrow]

Non-matching collision groups?

[little maple]

this might be it 🤔 I'm messing with the layers now, I thought I had them correct

Two colliders A and B can interact if and only if:

The memberships of A contain a layer that is also in the filters of B
The memberships of B contain a layer that is also in the filters of A

it's funny, I read that and think "yeah, that makes sense" and then I code something that isn't that.

yeah, that was it

[echo parcel]

Hi, what is the current state of a voxel colliders?

[vestal minnow]

The upcoming Avian 0.4 release (and the main branch) supports Collider::voxels and some other ways to create proper voxel colliders. I haven't tested them too much yet, they were just added to Parry and I exposed APIs for them

They should allow you to make very efficient voxel geometry without ghost collision problems (hitting the "internal edges" between voxels), as long as the sizes of voxels in a given collider are uniform

[vestal minnow]

Should be local

But I have not tested the voxel colliders much yet

(they are from Parry, we just expose APIs for them)

[vestal minnow]

Oh, this one is kind of nasty 🤔 My suspicion is that the position thing is because physics internally uses Position and Rotation components for physics positions, and if these have non-default values at spawn (which they will, because you're cloning an existing entity), they will override the Transform by default

Does it work if you insert Position and Rotation instead of the Transform there? Or alternatively disable cloning for those two components, if there's some way to do that

(to be clear, cloning use cases like this should be supported better, but I'm interested to see if it works like that)

We should probably have some integration tests for entity cloning to make sure it works like expected

Mm supporting cloning feels extremely cursed though since it might also clone various identifier components that should be unique or connect entities to external data, like the BodyIslandNode component

I feel like there should be a way to mark components as "don't clone this please" without users having to do that manually

If this is a thing, let me know lol

[echo parcel]

So just a little more wait. Thanks

[glossy bloom]

I've been just looking at the new joint API recently and it's soo much nicer than before. Especially the spherical joint axes configuration is much more intuitive than it was before the rework for ragdoll editing, and the docs are clearer. Thank you for your work!

[little maple]

🤔 do the contact manifolds only get updated when colliders first collide? edit: ah, I was using local translations

[little maple]

so, I'm trying to use the contact manifolds to determine where these rectangular colliders intersect with the ground.. like, the surface point of where the block meets the ground?

I'm drawing a blue sphere on the contact points and a pink one at the "closest" point and I noticed they're like.. sunken in a bit? But then also, when I go over an edge (the red arrow), the contact points are at the edge

is it possible to get the point on the ground surface consistently?

[light vessel]

I had to insert Position and Rotation in addition to Transform like this

Position(starting_position),                   Rotation::radians(rotated_direction.to_angle()),
Transform {
  translation: starting_position.extend(ZLayer::InAir.z()),
  rotation: Quat::from_rotation_z(rotated_direction.to_angle()),
  ..default()
},

This fixed the projectiles but I still get the mass warning. Disabling the cloning of Position and Rotation stopped the projectiles from moving entirely (but also got rid of the mass warning lol)

It looks like there is a way to modify a components default clone behavior: https://docs.rs/bevy/latest/bevy/prelude/trait.Component.html#method.clone_behavior

#[component(clone_behavior = Ignore)]

[vestal minnow]

If you're using ContactPoint::point, I think it's effectively the world-space midpoint between the contact points on the surfaces of each body. These surface points should be separated by ContactPoint::penetration along the normal (if positive, the shapes are penetrating, if negative, they are separated and it's a speculative contact)

I believe you can get the point on the surface of either body by doing contact.point + manifold.normal * contact.penetration or contact.point - manifold.normal * contact.penetration depending on which surface you want

[vestal minnow]

Oh neat! Didn't know about this

[vestal minnow]

I would mayybe just use ray casts though unless you have a specific reason to use contact manifolds for this

[little maple]

I wanted to see if this is more efficient than doing raycasts for all my wheels

[vestal minnow]

It's unlikely, computing contact manifolds is generally costlier than just simple ray casts, plus it adds broad phase overhead and whatnot

I believe you could maybe also perform the ray casts in parallel since SpatialQuery doesn't require mutable access

[little maple]

yeah, I am running them in parallel, I think I just have a lot of wheels sometimes and wanted to try some alternative approaches

[little maple]

is a shape cast "cheaper" than raycast? maybe I should ask differently... I'm really just trying to find the distance to the ground efficiently

[vestal minnow]

almost certainly slower, though not by much (and it depends on the shapes)

[visual sparrow]

In my mind, an intersection test with a sphere should be essentially free. Is that accurate?

[vestal minnow]

Between two spheres yes, between a sphere and some other shape it depends

It basically does point projection in the latter case

assuming we're purely talking about an intersection test that returns a bool

For a shape cast it'll need to do a "Minkowski ray cast" with GJK

Except for ball-ball and maybe some other trivial combination

[late wind]

Hello, another question: I've added a voxel collider, but I noticed when I add the PhysicsDebugPlugin there is a heavy hit on fps (debug build), which drops from ~120 FPS to like ~20 FPS.

There is no physics yet, only a Collider::voxel with a RigidBody::Static

Is this some known/expected thing?

[sweet sundial]

seems explicable to me
there's probably a "disable debug gizmos for this entity" component

[oak vigil]

Hey, hate to be that person, but is there an ETA on 0.4 release? 😄
I realize github is updated to Bevy 0.17, but the dependent libs are still backlogged
If there are any blockers that need an extra hand, I'd be happy to help

[maiden charm]

I think I hit some kind of bug in Avian whereby colliders don't get updated when transform scales change

oh, I think it's a slightly different problem: update_collider_scale only takes the Transform into account, whereby it should take the GlobalTransform into account. Also it should run whenever the GlobalTransform changes, not just the Transform.

wait, hmm, ColliderTransform is supposed to handle this. this is odd

[maiden charm]

Here's a fix https://github.com/Jondolf/avian/pull/851

[vestal minnow]

Mostly blocked on me finishing the release notes (writing is 90% done, just need a few more images) and migration guide, plus the fact that I have a project deadline this Sunday for university stuff 😅

My estimate would be next Monday at the latest, but hopefully sooner

[light vessel]

What is the easiest way to disable the persistent simulation islands

[vestal minnow]

PhysicsPlugins::default().build().disable::<IslandPlugin>()

[light vessel]

Awesome thanks! Reason I ask is because I can't seem to get around this issue trying to despawn a disabled physics entity:

thread 'main' panicked at .cargo\registry\src\index.crates.io-1949cf8c6b5b557f\bevy_ecs-0.17.2\src\error\handler.rs:125:1:
Encountered an error in command <bevy_ecs::system::commands::entity_command::insert<avian2d::dynamics::solver::islands::BodyIslandNode>::{{closure}} as bevy_ecs::error::command_handling::CommandWithEntity<core::result::Result<(), bevy_ecs::world::error::EntityMutableFetchError>>>::with_entity::{{closure}}: The entity with ID 10227v0 was despawned by .cargo\registry\src\index.crates.io-1949cf8c6b5b557f\bevy_ecs-0.17.2\src\relationship\related_methods.rs:21:19
If you were attempting to apply a command to this entity, and want to handle this error gracefully, consider using EntityCommands::queue_handled or queue_silenced.

[vestal minnow]

Ah that's a good edge case, I hadn't considered that you can even do that haha

I'll see if I can fix that later

[light vessel]

Ty good sir. Sorry I'm kinda pushing the boundaries of cloning and use of disabled over here 😅

[fiery mortar]

thats good tbh

[late wind]

Just for future reference, nvm, I just forgot to add the optimization on my new project

[profile.dev.package."*"]
opt-level = 3

Fps went from 120 to 600 😅

[clear dew]

hallo, am I missing something about CollidingEntities? e.g. is

(
 Collider::...,
 CollidingEntities::default(),
 CollisionEventsEnabled
)

The expected behavior is that CollidingEntities would be 1:1/track state for On<CollisionStart> and On<CollisionEnd>

I'm unsure what the actual behavior is

Ah, looking at the history of this channel, seems like other people have wondered about this. I see I'll just need to make an external colliding entities to track this

[fossil pendant]

with transform interpolation I am getting this really strong jittering effect but I'm not sure what I messed up

this is with a really low tickrate for fixed update, but the issue is still there with a higher one, even if less noticeable

ok after trying to put every transform access into fixed update it went away, but having the camera movement in fixed update feels kind of bad

[clear dew]

is that colorado

[fossil pendant]

I have absolutely no clue

[clear dew]

I might have the solution for your question

one sec, it's buried

[clear dew]

#1378795204747727018 message see if this thread will help resolve your issue :)

[fossil pendant]

I already have separate camera and player entities though, if that is the fix

[clear dew]

I believe Jan knows a lot about cameras and how do deal with the jitter effect. for third person, lemme see if I have some code..

[clear dew]

ok honestly my camera controller for this is absolutely railed and a terrible example. I use my own lerped camera gimbal to move the camera along the target position

that would double interp here

but I think for me, that solves my issue 😆 i also can't quite remember if there's a disabling component for transform interp

would prolly wanna add that

[fossil pendant]

ahhh global transform outdated

https://cdn.discordapp.com/emojis/1117737472328220795.webp?size=48&name=voidling

god I swear

[vestal minnow]

I would recommend no transform interpolation for the camera entity, but update its transform every frame

[fossil pendant]

taht's what I had before and it was jittering

but that was due to global transform being outdated

I assume I am using bevy wrong, but when working with hierarchies I need global transform updated a lot more often than once per frame

it's driving me insane

[clear dew]

There's a way to calculate this in a system. Do you know about this :o

[fossil pendant]

yeah but it's still annoying having to calculate it maybe multiple times if you are accessing it in different systems

[clear dew]

maybe the hack would be to run your code after TransformSystem::Propagate. kinda sucks in a postupdate system, but eh

[fossil pendant]

I suppose inserting the updated global transform again is a possibility? Feels like a hack though

[clear dew]

in the PostUpdate schedule

[fossil pendant]

just makes proper scheduling even more of a headache for me

[clear dew]

😅 hopefully with systemsets, it won't be too bad

I feel that

[fossil pendant]

also I have quite a few instances of code needing global transform and then updating the transform of something else

[fossil pendant]

when I tried that the changes only got rendered next frame

too offtopic though

I complained in #1425767150584594524

thanks for the suggestions though <3

[visual sparrow]

• make the player a rigid body
• enable interpolation for the player
• do not make the camera a rigid body
• do not make the camera a child of the player
• in Update add a system to move the camera according to the Player's Transform (not GlobalTransform) + some offset
• bonus: make the camera rotate before physics runs, see Bevy's physics in a fixed timestep example

[fossil pendant]

basically what I have right now, except that I have a camera target as a child of the player

really annoying that this doesn't just work

[visual sparrow]

Oh I see. Then you'll need TransformHelper to get its currently global transform

[fossil pendant]

sigh

I have a lot of systems that need an up to date global transform

I feel like the current global transform implementation leads to a lot of

[burnt canyon]

Hm, I'm trying to draw some debug shapes. And I got to something like this, but this doesn't work because SharedShape is not an enum.

use avian2d::parry::shape::SharedShape;
// ...

match collider.shape() {
    SharedShape::Circle(circle) => {
        // Simple circle - draw at entity position
        gizmos.circle_2d(position, circle.radius, color);
    }
    SharedShape::Capsule(capsule) => {

Any way I could do something like this?

EDIT: Sometimes asking the question leads one to the answer. It's not SharedShape, it's the TypedShape! That works perfectly.

use avian2d::parry::shape::TypedShape;
// ...

match collider.shape().as_typed_shape() {
    TypedShape::Ball(ball) => {

[vestal minnow]

You may want to use the PhysicsDebugPlugin, which does debug rendering for you

[burnt canyon]

Are you kidding me. 🤣 Duh. I did a quick google, but couldn't find it. Thanks. 😄

[late wind]

Hello, 2 questions if you folks don't mind:

1. for a 2D top-down RPG-like game, I don't need Gravity, so to disable it I just need to set Gravity(Vec2::ZERO) or is there another way?

2. I'm using a KinematicBody to move my character, and I wanna a wall StaticBody to block to. By default, if I understood correct, the KinematicBody isn't blocked by StaticBody colliders, so I need to implement this "blocking" logic myself, like on the kinemaic_controller_collisions example, right?

[slim ledge]

There's Gravity::ZERO but yes

[oak vigil]

are kinematic bodies even affected by gravity...?

[vestal solstice]

kinematic bodies you need to apply gravity yourself

[oak vigil]

Yah, so would Gravity::ZERO even be needed?

[spare bison]

Played around with some custom gravity.

• In the first screenshot the dynamic bodies are pulled by both planets.
• In the second, only the closest planet is affecting gravity.

It's not so easy to get the bodies to sleep when there are constant forces going on.

[vestal solstice]

i just hit something weird, i have a rigid body and a collider as its child, the collider is static, but the parent is moving, and the ColliderTransform of the child is updating

[sweet sundial]

better: collect input before FixedUpdate, then don't even use the camera transform for anything until you recalculate it for rendering

[bleak wadi]

ive been away for a while, just got back and unfortunately I still have both errors

[vestal solstice]

@vestal minnow have you see this happen? #1124043933886976171 message

[vestal solstice]

SyncPlugin was disabled

that wasn't it

[vestal solstice]

the default for ExternalForce being persistent: true makes the most sense?

[spare bison]

From my testing that is the only way to reliably make the bodies go to sleep.

Otherwise you have to set the force each tick and that I believe makes them not fall asleep?

[vestal solstice]

hmm

[visual sparrow]

How evil is it to assume that a user's static rigid body will never ever change its transform (beyond being despawned and respawned)

and how misguided is it to assume that static rigid bodies will in general be spawned and despawned as part of the whole scene, with some rare exceptions (e.g. breaking an object at runtime)

I know Avian allows to move static bodies as much as you want, and I know you can spawn and despawn them at will

but I think in practice a general purpose library (in my case navmesh and steam audio) can assume the above conditions, right?

@vestal solstice how is it in your game?

[vestal solstice]

todays daily had a lot of discursion on that

players will be dynamic and npcs will be kinematic

[visual sparrow]

good timing!

[visual sparrow]

and I assume the level is static?

[vestal solstice]

yes

[visual sparrow]

and I further assume that the level won't change its transform, right?

[vestal solstice]

correct

[visual sparrow]

do you have any static rigid bodies that you don't spawn and despawn as part of the whole scene?

[mossy brook]

Our game never modifies static rigid bodies' transform eithier. We are, however, spawning and despawning them a lot.

[vestal solstice]

spawn/despawn after the first instanciation?

[visual sparrow]

thx! What's the use case for spawning and despawning them in this case? what does "a lot" mean? Every frame, every few ms, every few sec?

[vestal solstice]

all static bodies are defined on a glb using skein

[visual sparrow]

I mean e.g. the player activates a switch and that spawns in a big statue that is a static rigid body. Then the player throws a bomb at the statue and it gets despawned.

[vestal solstice]

not at the moment

[visual sparrow]

So that static rigid body would be spawned and despawned not as part of the scene, but as something dynamic

[mossy brook]

At human speeds, we're essentially at the same build rate as Satisfactory since it's an automation game. Any batch operations (e.g. blueprints, zooping) would probably be the addition of many rigid bodies in a single tick.

[visual sparrow]

Aaah okay

[vestal solstice]

my issue was on a Dynamic body

[visual sparrow]

I'm asking because I can optimize some stuff in both the navmeshes and the steam audio stuff if I make one big mesh out of all static bodies

But that would mean rebuilding the entire mesh when a static body changes

sounds like in your case, that would be expensive

[vestal solstice]

this is the avian channel, not landmass

[visual sparrow]

I guess I could have markers that say "Static for real for real"

[visual sparrow]

I know

I want to know how people use Avian

This is also not for rerecast, but for steam audio 😄

but I can share the code with rerecast once I have it

[vestal solstice]

on the server it is instanciated on startup and on the client it is instanciated when moving to the room that has that scene

[visual sparrow]

thx!

[vestal solstice]

anything with a marker component goes through a system that collects the entities in the SceneSpawner for that scene and creates a filter with those that have RigidBody::Static and generate the navmesh from them

[mossy brook]

To be fair, you might just optimize differently based on the game. An open world / procedurally generated environment / UGC has a different set of constraints than a handcrafted level of some kind.

[visual sparrow]

Yeah definitely. I'm mostly looking for sane defaults.

[dreamy viper]

Raycasts and other physics queries only work on RigidBodies, right? Would it make sense to enable them for arbitrary colliders that are not RigidBody?

[sweet sundial]

that first part seems unlikely

[maiden charm]

Avian is now out of the Tracy profile in my project with the 0.4 improvements. Amazing work @visual sparrow

[visual sparrow]

I think my perf stuff was in 0.3, this is all @vestal minnow's work

[little maple]

I know there's some overhead when generating colliders with like Collider::trimesh_from_mesh, but what about creating Collider::cuboid? Is that worth caching at all?

[visual sparrow]

Eeeeh, in practice not really

Creating the cuboid is basically free

So you don't save on CPU time by caching it

However, the colliders use Arcs in the background, so if you have a large amount of cubes of the same dimensions, you could cache them and .clone() that cached collider to only represent it once in memory

that way you could potentially save RAM

for cuboids specifically though, you may want to instead use voxel colliders anyhow

And idk how those work haha

[little maple]

lol I haven't heard of voxel colliders, is that new?

[visual sparrow]

yep!

[little maple]

this is a trace of spawning the player in my game and I noticed that on_collider_body_changed gets called 20 times during this process. I'm not sure if that's necessarily what's contributing to the overhead of spawning, but I suspect it's kinda wasted effort, right? Wouldn't I only really need it done once the entity is "ready" (I know that's arbitrary)?

I suppose the solution is like.. make adding the collider be the last step of creation?

[maiden charm]

Turns out the UI slowness culprit in my app was Avian. If you include the physics diagnostics UI at all you lose 1.5ms per frame on even a high end system, even if the UI isn't visible. Made a fix: https://github.com/Jondolf/avian/pull/856

[vestal minnow]

Sneak peek of release notes haha

This read time plugin I have gives the release notes an estimated reading time of 40 min though code examples and whatnot probably skew this higher

everything is done now except the cover image, "Other Changes" list, and migration guide

[vestal minnow]

Mm we currently call this whenever you insert ChildOf, RigidBody, or AncestorMarker<ColliderMarker>

It updates ColliderOf whenever ancestors change, or when a rigid body is added to the hierarchy

[vestal minnow]

The associated code example
https://github.com/Jondolf/avian/pull/857

[vestal minnow]

Should get fixed by #858 hopefully

[vestal minnow]

I believe it should already work on colliders not attached to a rigid body, unless something regressed

Yup, the ray_caster example still works

That one doesn't have any RigidBody on the colliders

[little maple]

whoa this sounds crazy actually

I don't understand the triangle part though

[vestal minnow]

what triangle part?

[little maple]

composite shapes with triangle meshes? I guess like.. is that saying if I have an entity with multiple colliders that aren't touching or something?

[vestal minnow]

A trimesh is a composite shape, i.e. a shape consisting of several sub-shapes (triangles). It's just saying that trimesh colliders do not collide with voxel colliders

I believe that is also the case with compound shapes like the ones produced by convex decomposition, they don't collide with voxel colliders yet

[little maple]

ah got it

so, it wouldn't be a problem if everything uses voxel colliders? and you'd get a performance boost potentially? am I understanding that?

[quartz heart]

Is there a way to have child entities also ignored with a raycast, if the parent rigidbody is added to the excluded entities?

I often setup the colliders in child entities instead of the root object.

[dreamy viper]

you're right; thanks.
I updated my examples to avian 0.4; everything seems to be working apart from island rollbacks

[vestal minnow]

If the shapes should be voxelized (i.e. Minecraft-ey) then sure, but primitive shapes and convex hulls will still probably be faster / more versatile in general

Voxels are mainly a better version of just throwing a bunch of cuboid colliders on a grid

And don't have the problem of ghost collisions between the cuboids, which is a common pain point for people doing tile maps collisions in 2D or voxel terrain in 3D

Hmm we should maybe look into whether we could provide some sort of built-in collider integration with Bevy's new tile map stuff at some point 🤔

[vestal minnow]

Currently no, unless you use something like cast_ray_predicate and manually write a filter for this that checks whether the entity in ColliderOf is an excluded entity

[vestal minnow]

it's here
https://github.com/Jondolf/website

Astro.js + some Svelte components

actual blog post content uses .mdx files

there are some custom remark plugins to preprocess the markdown, for example to automatically turn @SomeUser into GitHub user links

[bleak wadi]

@vestal minnow i just wanna remind you that i still have some bugs, the warnings involving re-enabling a collider, and the one with ldtk colliders (that could be ldtk itself or bevy not sure)

[vestal minnow]

Do you have some way I could reproduce the ldtk problem?

I haven't seen it in other contexts in my testing

I guess I could copy the platformer example in bevy_ecs_ldtk and adapt it to use avian instead of rapier

[true hearth]

If I'd like to simulate train physics in avian, I'm guessing I would probably write a custom constraint to keep the train wheels/bogies on the tracks, right?

I guess could also do it by applying appropriate forces, but I'm guessing that can cause problems easily due to the required stiffness there

[bleak wadi]

yeah i guess so, here's my fork https://github.com/Lenchog/bevy_ecs_ldtk

[lyric sorrel]

@vestal minnow would you be happy to expose a few extra things from SpatialQueryPipeline as pub? I've been implementing some extra spatial queries in a downstream project (one of them is a multi-shapecast, which might be upstream-worthy if it works well, but the other is more niche), and I've ended up having to replicate the SpatialQuery and SpatialQueryPipeline types in my own crate to do it.

It'd be nice if I could just impl an extention trait on the upstream types, but it'd need: a way to obtain a reference to the &dyn QueryDispatcher, to get an entity from an index (i.e. a method returning self.proxies[idx].entity) and to access the parry TypedCompositeShape for the pipeline (public versions of as_composite_shape[_with_predicate], which could return impl TypedCompositeShape to avoid having to make the concrete return types public)

I've got a set of changes written that I'd be happy to PR if so, just wanted to temperature check first 🙂

[vestal minnow]

Yeah these seem fine to expose for SpatialQueryPipeline

But note that a lot of it may change soon-ish with the new BVH stuff using OBVHS (still WIP) and generic spatial queries (#810)

[snow parrot]

Speaking of SpatialQueryPipeline, what might be the cause of an out of bounds panic in rebuild_range_binned here?

index out of bounds: the len is 8 but the index is 8
(...)
   2: core::panicking::panic_bounds_check
             at /rustc/1159e78c4747b02ef996e55082b704c09b970588/library/core/src/panicking.rs:280:5
   3: parry2d::partitioning::bvh::bvh_binned_build::<impl parry2d::partitioning::bvh::bvh_tree::Bvh>::rebuild_range_binned
             at /home/x/.cargo/registry/src/index.crates.io-1949cf8c6b5b557f/parry2d-0.24.0/src/partitioning/bvh/bvh_binned_build.rs:58:28
(...)
Encountered a panic in system `avian2d::spatial_query::update_spatial_query_pipeline`!

I'm in the very early stages of implementing a character controller for PC and NPCs, and this happens if I get close to one of the NPCs on the side that has a raycaster. I'm very new at everything, so forgive me if this is a stupid question., or if I left out something useful from the backtrace.

[vestal minnow]

Looks like a bug on the side of Parry (the collision detection lib used by Avian). That part is

// https://github.com/dimforge/parry/blob/master/src/partitioning/bvh/bvh_binned_build.rs

const NUM_BINS: usize = 8;
const BIN_EPSILON: Real = 1.0e-5;

let mut bins = [BvhBin::default(); NUM_BINS];

assert!(leaves.len() > 1);

let centroid_aabb = Aabb::from_points(leaves.iter().map(|node| node.center()));
let bins_axis = centroid_aabb.extents().imax();
let bins_range = [centroid_aabb.mins[bins_axis], centroid_aabb.maxs[bins_axis]];

// Compute bins characteristics.
let k1 = NUM_BINS as Real * (1.0 - BIN_EPSILON) / (bins_range[1] - bins_range[0]);
let k0 = bins_range[0];
for leaf in &*leaves {
    let bin_id = (k1 * (leaf.center()[bins_axis] - k0)) as usize;
    // THIS PANICS
    let bin = &mut bins[bin_id];
    bin.aabb.merge(&leaf.aabb());
    bin.leaf_count += 1;
}

In your case it somehow computes a bin_id of 8, which is just one too large

I'm guessing it might be some floating-point error when the leaf's center is close to equal with bins_range[1], which could produce a value like 8.000001 or something, when it should be just slightly below 8

the easiest fix would probably be to just do .min(NUM_BINS - 1) for the bin ID

[dreamy viper]

I see cases where my collider seems to have collisions disabled for some reason. It's not deterministic but I can reproduce it semi-consistently. Still trying to understand what could be the cause.
All components seem to be there, so i'm not sure what I should be looking at to debug this

[dreamy viper]

Opened this ticket: https://github.com/Jondolf/avian/issues/863

[dreamy viper]

It could be that some additional resource needs to be rolled back, such as AabbIntervals. Maybe I have a resource that's stuck in an incorrect state because it wasn't rolled back? Or is AabbIntervals re-created from scratch every time? It doesn't seem to be the case.
Other candidates: ContactStatusBits ?

Then again this could also be a red herring

[lyric sorrel]

I've opened a PR (#862) - happy to bikeshed on names for the new methods

I could also look at writing a new example to demonstrate a custom query, if that would be valuable

And I'll keep an eye on the OBVHS work (and keep an eye out for peck too, I guess) for any future changes - thanks for the heads up

[vestal minnow]

Thanks, merged!

[vestal minnow]

Are you rolling back the ConstraintGraph? Though I would imagine that you'd get panics if not, instead of just missed collisions

looks like yes

[vestal minnow]

I've run it about seven times and have not hit the collision problem yet. However I noticed that if I have one of the client windows off-screen, it seemingly stops simulating things on that client, which causes a desync

(I'm using niri, a scrolling/tiling window manager)

[bleak wadi]

nice, me too

[vestal minnow]

also hit this probably a bevy thing and not lightyear though

[vestal solstice]

I would get that a lot when having the server open (with a window for debug) and opening the client, while loading a Gltf my PC would chug and the server window would crash

[vestal minnow]

Alrighty, I finally have the release notes and migration guide pretty much done, so I intend to release 0.4 tomorrow unless something goes horribly wrong

I have to zoom out to see the whole auto-generated list of PRs in 0.4 lol

[visual sparrow]

Great job, hope you don’t feel to burned out by all that work

[dreamy viper]

I've been trying again and i cannot reproduce it now ... mysterious. Will let you know if I come across this again. Thanks for trying

[bleak wadi]

so will I have to depend on main once it's fixed or wait for 0.4.1 for my bugs?

[little maple]

it's honestly not too bad depending on main. I got through almost all of 0.16 using main

[vestal minnow]

yeah, I would rather release now and do a 0.4.1 patch later than delay the release further at this point

[bleak wadi]

yeah that's a good idea

it's a pretty niche usecase

[glossy holly]

If I want to track collision events between two components, let's say "Ball" and "Goal", using the message reader, what would be the easiest way to query for the components? since the Ball could be either collider1 or collider2

rn something like this seems the most ergonomic, but might not be the most performant to check every frame

[late wind]

So, is it possible to do pixel perfect collisions with Avian2D?

[vestal minnow]

Pixel perfect in terms of accuracy, or the collider's shape? There's the bevy_collider_gen crate for generating colliders from images with transparency, which might work

[vestal minnow]

This seems fine, though you could use something like ball_query.iter_many_mut(colliding_entities) to collapse that inner loop and condition into one thing

https://docs.rs/bevy/latest/bevy/prelude/struct.Query.html#method.iter_many_mut

[vestal minnow]

If you want to just react to collisions for the ball, you can use the observer API of the CollisionStart event
https://docs.rs/avian2d/latest/avian2d/collision/collision_events/struct.CollisionStart.html

Attach an observer for the ball, and collider1 and body1 in the event data will always correspond to the ball

[glossy holly]

wouldn't I need to attach the observer everywhere the ball is spawned?

[vestal minnow]

Yeah, if you have a lot of balls then the message reader approach might still be better

[glossy holly]

I'd like to keep the behavior attached to the ball component, so anywhere the ball component exists it will be handled properly

[glossy holly]

it doesn't like that linearvel is mutable it seems

[vestal minnow]

For iter_many_mut you need to do the while loop thing like in the example docs I linked

[glossy holly]

oh i see

[vestal minnow]

FYI, Chris is covering Avian 0.4 live if y'all wanna follow along 😄 I'll also be in the chat
https://youtu.be/fwYywrVapEY

[visual sparrow]

lol @knotty thicket I also thought the caching was released ages ago

[knotty thicket]

For real though! Lol

[tacit kayak]

For my usecase I would like two objects to gently push away from each other (possibility more if there is a whole group of them in a corner). Does Avian have any support for this?

I read through the documentation but I figured I would ask here as a last ditch attempt.

Actually reading about it bit more I'm guessing I would want to use colliders for collision detection then build my own system on top of that

[little maple]

ooo does this work well with skein? I was planning on tackling this specific thing in my game with colliders and skein this morning and got side tracked

[cloud jasper]

I've encountered an issue while trying to upgrade Tnua: https://github.com/Jondolf/avian/issues/865

[green adder]

I don't know if I'm completely mistaken but is PreviousGlobalTransform gone with avian 4.0? Is there a replacement?

[knotty thicket]

Yep, should "just work"

[little maple]

is there a straightforward way to move a collider (and any meta components that get added to it) to its parent? Edit: gonna just write an On<Add observer

[vestal solstice]

have the collider as a child

[winged frost]

Having it as a child messed with my logic, so this is what I did. I do not know if it's correct though
Collider::compound(vec![( Vec3::new(0., 2.5, 0.), Quat::IDENTITY, Collider::capsule(1., 3.), )])

[sudden sparrow]

Hi. I am quite confused. Since i updated to 4.0 none of the joints seem to work anymore. I use RevoluteJoint on the long boards and SphericalJoint on the chain. It seems no forces are applied by the joints. Basis and anchor values seem to not affect this at all. Any idea what is wrong?

[willow elbow]

Hello, I thought the warning Dynamic rigid body x has no mass or inertia. This can cause NaN values. Consider adding a MassPropertiesBundle or a Collider with mass was solved in 0.4 but I still get a lot of warnings. Do I need more than the following to make it go away?
RigidBody::Dynamic, ColliderConstructor::ConvexHullFromMesh, Mesh3d(meshes.add(Cuboid::new(x_length, y_length, z_length)))

[visual sparrow]

@vestal minnow https://github.com/Jondolf/avian/pull/866

need to add docs and see if we can actually get away with not depending on bevy_render

and I need to verify that this still works the same as my rerecast version

but it's ready for a review 🙂

[visual sparrow]

@vestal minnow alright, fully done now

Is this roughly the right shape?

[vestal minnow]

Yeah it looks fine generally, left some small comments

I'm not going to bikeshed this too much though since I expect this to be a relatively niche API, and we'll probably have something else later on with upstreamed mesh and collider types

[visual sparrow]

yeah agreed, this should all be upstream

[vestal minnow]

Not quite sure 🤔 The joint examples in the repo work like normal

How are the joints set up in your scene? You could also try some simpler joint configuration e.g. copying some example in the repo, to verify that at least that works

[visual sparrow]

Addressed it all

[vestal minnow]

Hmm I'm not getting the warning with this setup

[visual sparrow]

just to make sure, did you cargo update? 😄

[vestal minnow]

That one should (in theory) be fixed, though someone else was still getting some warnings when using ldtk I believe

[visual sparrow]

And remember to remove any patch.crates-io or git references you had in Cargo.toml

[visual sparrow]

btw I don't like the panics in there, but those will panic on the parry side anyways, so I thought it's better to make them more visible 🙂

[vestal minnow]

Oh you should rename the ball_subdivisions method too, you seem to have renamed just the property atm

Also update the doc comment and panic messages

(to use "sphere")

[visual sparrow]

oh yeah good catch

done

[vestal minnow]

Thanks! Looks good now, merging (assuming CI plays nice)

[willow elbow]

avian3d v0.4.0

[stiff cypress]

Hi. Is there a way to fully clone entity with rigidbody component? Like with commands.(entity).clone_and_spawn or something. It only works if i change it while cloning from static to dynamic like so

commands
        .entity(root)
        .clone_and_spawn_with_opt_out(|builder| {
            builder.deny::<RigidBody>()
        })
        .insert((
            if is_anchored {
                RigidBody::Static
            } else {
                RigidBody::Dynamic
            },
        ))

or this way

commands
        .entity(root)
        .remove::<RigidBody>()
        .insert(RigidBody::Dynamic);

but if i try to just clone it entities start floating around

mostly talking about preserving all velocities, moments etc while cloning

[visual sparrow]

[visual sparrow]

@vestal minnow do we have something like a weak handle to colliders?

I guess I could clone the underlying shape weakly

[knotty thicket]

weren't weak handles removed?

[visual sparrow]

Yeah, but Colliders are not Assets anyways

They're Arcs

So I guess I do a weak clone of them and put it in a hashmap for lookups

[knotty thicket]

rubs glasses

I guess not handles anyway but lol at "not handles, they're arcs!"

[visual sparrow]

heheheehhe

Wish I had an AssetId for them and AssetEvents

Since I don't know how I would ever clear up a HashMap<SharedShape, T>

Oh wait

map.retain(|shape, _| Arc::strong_count(&shape) > 0);

this works!

Hold up, a HashMap<SharedShape, T> or HashMap<Collider, T> is useless ;-;

No Eq, no Hash

Any of you got a better idea than to... store the Debug string as a key?

Ah also @vestal minnow I pacified the CI for https://github.com/Jondolf/avian/pull/866

[vestal minnow]

pressed the button

[visual sparrow]

thx!

[knotty thicket]

the SharedShape Arc has Eq

so, uh, unwrap it? lol

HashMap<Arc<dyn Shape>, T>

[visual sparrow]

That's what I tried too

no dice

[knotty thicket]

wanders off to find the error from that

[visual sparrow]

Or, in minimal:

[knotty thicket]

HashTable? https://docs.rs/bevy/latest/bevy/platform/collections/struct.HashTable.html

[visual sparrow]

Oh whaaat

TIL!

[visual sparrow]

okay, having read through this, I need to provide my own hasher

I'm not very experienced in these things

Do you have a suggestion how to go about it?

I guess the most manual way would be to downcast the shape to every possible typed shape and hash those?

[sweet sundial]

Shape: DowncastSync seems helpful

[visual sparrow]

the typed shapes also don't implement Hash

[visual sparrow]

there's already .as_ball() and friends 🙂

It just seems like a lot of boilerplate

[sweet sundial]

and a direct downcast lol

picked HeightField from the shapes at random and it doesn't impl Hash

[visual sparrow]

hmm and even hashing the individual fields of the methods is tricky because they're f32

time for ordered float

[knotty thicket]

I don't have any real great suggestions tbh, I don't really ever need hashtable, I just know it exists 😅

[sweet sundial]

and the end goal is just to deduplicate things like Collider::cuboid(1.0,1.0,1.0)?

[visual sparrow]

Not directly

it's for steam audio

I need to have a map from colliders to meshes

where steam audio would appreciate it if two identical colliders reuse the same mesh

[sweet sundial]

try hashing by address then

[visual sparrow]

got a snippet?

otherwise I could also fill in this beautiful thing

[knotty thicket]

RoundTriangle

[sweet sundial]

c.shape().0.as_ptr().hash(..)

[visual sparrow]

that's shapes with rounded corners 😄

[visual sparrow]

👀

[visual sparrow]

ah heck, this fails

[sweet sundial]

well yeah it's address hashing

[visual sparrow]

A and B are not the same

I was hoping it would hash the address of the thing behind the Arc

[sweet sundial]

if it's two clones of the same arc-

[visual sparrow]

is there something similar that will hash to the same value if B is a clone of A?

As in, two Arcs pointing the same way

[sweet sundial]

this should do that

[visual sparrow]

assert_eq!(hash_a, hash_b); fails

[sweet sundial]

try using the same HashBuilder on all three?

might be the random whatever

[visual sparrow]

oooh good point

or wait

[sweet sundial]

hashbuilder not hasher

[visual sparrow]

ding ding ding!

That was it

thank you so much 😄

So do I need to store the hash builder in my collection?

In order to not rebuild it

[sweet sundial]

that's what a hashmap does

tbh i'd just do a hashmap with a newtype as the key

[visual sparrow]

And manually impl Hash for it?

[visual sparrow]

struct ColliderKey(Collider);
impl Eq for ColliderKey {}
impl PartialEq for ColliderKey {
    fn eq(&self, other: &Self) -> bool {
        Arc::ptr_eq(&self.0.shape().0, &other.0.shape().0)
    }
}
impl Hash for ColliderKey {
    fn hash<H: Hasher>(&self, state: &mut H) {
        Arc::as_ptr(&self.0.shape().0).hash(state);
    }
}

like that?

[sweet sundial]

actually i'd probably put it onba Weak, for that thing you were doing earlier
