Avian Physics

[sleek thicket]

and i set up bitmasks as consts, so it's just layer::whatever to me when spawning

with components it might actually get worse

[vestal minnow]

With bitflags I really don't like that if component A requires ActiveCollisionHooks::FILTER_PAIRS, and component B requires ActiveCollisionHooks::MODIFY_CONTACTS, only one of them will be applied unless you manually add both

with separate components this is not an issue

[sleek thicket]

what are they actually used for?

[vestal minnow]

enabling collision hooks

for filtering broad phase pairs, and for modifying/filtering contacts computed by the narrow phase

and possibly more in the future

[sleek thicket]

i tried reading rapier doc about it but i still don't get how it's different from collisionlayers

[vestal minnow]

you cannot query the ECS or do any other custom logic with collision layers, nor can you use them to modify contact data

you can use contact modification hooks for one-way platforms, conveyor belts, non-uniform friction and restitution, etc.

broad phase pair filtering is a bit more limited, but you can use it for e.g. interaction groups beyond the limit of 32 layers for CollisionLayers, or for stuff like Box2D's collision groups (different from layers)

any custom logic before the collisions are handled by the solver

[sleek thicket]

i took a look at PR and the reworked one-way example, and my conclusion is that you really shouldn't worry about how 1 line out of 800 looks nicer 😅

[paper maple]

What is prediction_distance in contact_manifolds

[shut pulsar]

didn't see that message, cheers for the info.
Yeh I meant how it's mean to be used/configured in Bevy as it didn't really click for me (new to rust) couldn't find an example

[vestal minnow]

It's the maximum separation distance for a contact to be returned, so for example with a prediction distance of 2.0, you'd get a contact even if the shapes are separated by up to 2.0 units

this is necessary for speculative collision

[paper maple]

yeah sorry it's clearer in contact

[vestal minnow]

Wdym? Looking nicer isn't really the point for the collision hook stuff

arguably it even makes some things slightly more annoying (as opposed to using PostProcessCollisions)

[sleek thicket]

i was commenting on [this](#1124043933886976171 message)

i'm saying that you already made 2 examples so you probably know which one is better, even if it doesn't look nice

[paper maple]

Would it be a bad idea to have SpatialQuery expose its fields ? I currently have to put Position, Collider and Rotation queries in a ParamSet because SpatialQuery uses them, but doesn't expose them to the user.

[past cargo]

Hey Bro, How do i see this world inspector?

[paper maple]

bevy_inspector_egui

[cyan flame]

I have a really silly question

How can I make gravity of a collider relative to another collider?

I'm trying to use the 3d dynamic example and adapt the character controller to move around a sphere (planet) but gravity is -y... is setting gravity angle(?) supported?

Custom collider 2d example is what I'm looking for... but I'm not sure how to turn that into 3d

[mild stump]

So I have a quick question. If I use cross-platform determinism does that mean I will have to sacrifice parallelism or have we found a way to make them work with it?

[little maple]

if it were me, I wouldn't mess with the gravity constant because each entity in your game would have a different "down" based on where they are. Instead you'd have to apply a down force that is relative to where they are

[cyan flame]

The only gravity I want is per collider vector pointing towards the center of mass of the planet… maybe I don’t want gravity at all because I don’t support jumping, just want vehicles to move across the surface of the planet

Should I disable gravity and do position manually?

[vestal minnow]

Avian should be deterministic either way

There isn't that much parallelism yet (mainly narrow phase collision detection is multi-threaded) but there will be more in the future. I intend to keep determinism by default even with multi-threading though

[cyan flame]

Thank you! Will this work if say I added mountains and valley to my planet, i.e. not the simple perfect sphere I currently have?

[golden python]

Hello, I'm still interested if anyone knows of good 3d kinematic collision solutions (except the built-in one)

[cinder summit]

@vestal minnow I think there was some discussion on the potential of a world where big types could be assets instead of part of Collider ... What would that API look like?
Something like this?

enum Collider {
    Sphere(Sphere),
    Capsule(Capsule),
    ... // more small primitives
    TriMesh(Handle<TriMesh>),
    ConvecDecomp(Handle<ConvexDecomp>),
}

Trying to plan the improved SDF collider API, and I'm not sure if I should just have everything be a handle to an SDF tree, or make an enum that special-cases the optimized shapes

Makes sense to just pick whatever approach avian would go with given the same situation 🤔

[past cargo]

hmm is this normal? if i load the rigid body and collider as components on a bundle it doenst show on PhysicsDebugPlugin

wydm

[cinder summit]

Alternatively https://bevyengine.org/news/bevy-0-15/#required-components

That said I don't think bundles should be breaking the debug plugin ... Maybe nested bundles are broken or one of your bundles is actually a Component instead of a Bundle 🤔

[past cargo]

the sad thing is that i cant modify the default values from #[require]

how

yes

and have nothing aobut it

or iam blind lol

thanks guys

[vestal minnow]

Probably something like that, yeah... The details of what the new Collider type would look like depend on what ends up being the most optimal in terms of runtime perf and memory usage though, so it's hard to say what exactly it'd look like before we actually have an implementation

Also I don't love the shape name repetition for the API, like Collider::Sphere(Sphere::new(0.5)), but we already have Collider::from(Sphere::new(0.5)) and even Sphere::new(0.5).collider() which is alright. I'm not entirely sure if we want to keep all of the current constructors like Collider::sphere(0.5) on Collider, or embrace the primitive shape APIs more, probably the latter

We also need to handle scaling, which is why the current representation has both the scaled and unscaled version, similar to bevy_rapier

pub struct Collider {
    shape: SharedShape,
    scaled_shape: SharedShape,
    scale: Vector,
}

There's probably a smarter way to do this though. We should probably just store only the scaled version, even if that could technically be lossy when scaling at runtime, and have some optional component to entirely disable automatic scaling with transforms. People who need "lossless" scaling can always cache the unscaled version and manually handle scaling for the rare cases where that does matter

(an example of "lossy" scaling would be if you have an animation that scales the collider from a scale of zero to one, but the scale of zero erased all information about the size and proportions of the actual shape)

[sleek thicket]

do you have any plans for how working with colliders will look like in the editor?

asking that because in unity i never even had to touch the API

[vestal minnow]

Ideally similar to Unity or Godot, add a Collider component and have a dropdown where you can set the shape and its properties

If we have shapes like meshes as assets, you can load or drag and drop that for the shape (handle)

You just define the unscaled collider's shape in the editor, and the transform scale is applied to that

since the editor edits mostly BSN, that can just store the unscaled shape

then at startup (and in the viewport) it applies scale probably

[vestal minnow]

I'm thinking that I might make Friction and Restitution only affect the collider they're on, not child colliders 🤔 I'm pretty sure they're currently our only components whose behavior propagates to child colliders (unless explicitly specified for those entities) which is a bit inconsistent

it's also kind of a pain internally to have the "collider -> body -> global default" priority chain for them

this is so ugly lol

// Get combined friction and restitution coefficients of the colliders
// or the bodies they are attached to. Fall back to the global defaults.
let friction = collider1
    .friction
    .or(body1.friction)
    .copied()
    .unwrap_or(default_friction.0)
    .combine(
        collider2
            .friction
            .or(body2.friction)
            .copied()
            .unwrap_or(default_friction.0),
);
let restitution = collider1
    .restitution
    .or(body1.restitution)
    .copied()
    .unwrap_or(default_restitution.0)
    .combine(
        collider2
            .restitution
            .or(body2.restitution)
            .copied()
            .unwrap_or(default_restitution.0),
);

oh right CollisionMargin is like this too

[vestal minnow]

and SpeculativeMargin 🙃

mhhh I'll keep it the way it is for now, though it's making things more annoying for me rn

[sleek thicket]

you could just make a constructor on parent

so users will only need to deal with 1 component that propagates to every child on spawn

[vestal minnow]

wdym by constructor

I'd prefer if component propagation was first-party like here
https://github.com/bevyengine/bevy/pull/17575

[sleek thicket]

1. i still think Mass should be renamed to something like IndependentMass to avoid confusion
2. i can't understand how easy it would be to propagate to joints instead of children, otherwise the generic propagation seems almost perfect
3. combining friction+restitution+density into one "material" makes the most sense to me,
   unity and godot basically do this but without density
4. i still think that it'd make more sense to spawn a group of objects using only the final mass and create a material based on that, and i can't see if anything like it has already been done in mass rework

[sleek thicket]

#3 especially makes sense when you account for gameplay where you can get frozen/petrified

not sure if propagation would work there, because you might want to freeze only 1 body part

[vestal minnow]

For (3), no engine I know has density in the material type, physics materials more-so represent the surface properties than the physical material (like a wood material or whatever). Density is also not "a thing" from the POV of the physics engine, it's just an abstraction to configure mass conveniently

Combining friction and restitution could be fine, and I would do that if we make physics materials assets. But:

1. It's not necessarily an ergonomics win.

commands.spawn((
    PhysicsMaterial {
        friction: 0.4,
        friction_combine_rule: CoefficientCombine::Max,
        restitution: 0.2,
        ..default()
    },
    // ...
));

vs.

commands.spawn((
    Friction::new(0.4).with_combine_rule(CoefficientCombine::Max),
    Restitution::new(0.2),
    // ...
));

We could have constructors for PhysicsMaterial, but it'd still be a bit more verbose. Though with materials as assets, you could cleanly reuse the same material handle, which would be nice.

2. You wouldn't be able to set e.g. a custom friction, while still using the globally configured default restitution, since the material component would override both. Not sure if this is really a big issue though.

[sleek thicket]

not an ergonomics win when spawning new material, can be a win when spawning reusable or swapping it during gameplay
like if you swap to petrified and mass gets automatically recalculated based on volume, so the object becomes reasonably heavy

[vestal minnow]

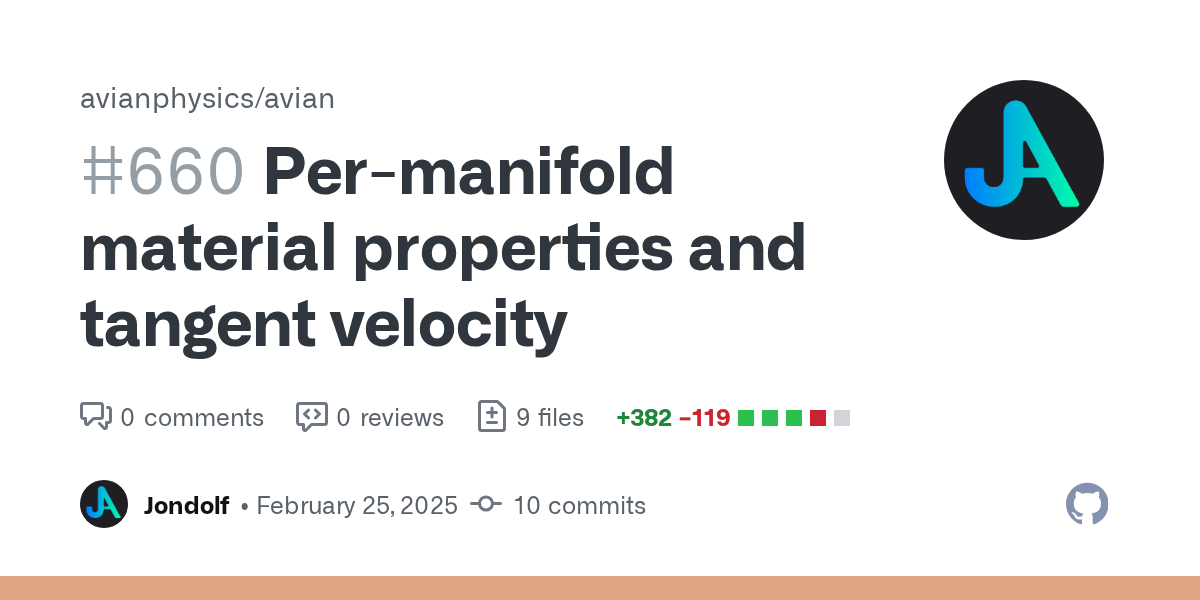

Finally opened the PR for per-manifold material properties and tangent velocity, which I used for the conveyor belt demo
https://github.com/Jondolf/avian/pull/660

split this out from the contact graph branch

After the contact graph + solver bodies, we can handle 13k+ active contacts at 60 fps in 2D on my machine

(6 substeps)

I should test how this compares to bevy_rapier without SIMD

[golden python]

thanks, i'm trying it out, though it is 0.14, so I have a lil upgrading to do

[vestal minnow]

Avian vs. three steps of Rapier in this large pyramid test, tried to make configuration as comparable as possible

there's something wrong with my config though since Rapier is giving a lot of zeros even for stuff like contact counts

[golden python]

Hello, are there migration notes for 0.1 to 0.2 ?
I am specifically looking for what shape_cast's max_time_of_impact became.

[vestal minnow]

It's just max_distance

[golden python]

thanks, that was my suspicion

[vestal minnow]

Migration guide here
https://github.com/Jondolf/avian/releases/tag/v0.2.0

[grizzled depot]

cool 🙂 ; I'd be curious to compare tracy runs on those, it's pure curiosity but I added some profiler annotations to rapier last year so that might give a few insights (I didn't dive much into performance investigation though)

[golden python]

Update: It took a while but I ported the whole thing to my game, and the kinematic collisions seem to work really well, I never clipped through the ground unlike before.
I would be curious as to what makes their implementation better, maybe it's the multi-step of the sliding or something idk.

Now I'm going to try and port the collision part back into my character controller, it's a mess

[vestal minnow]

Mm I was confused about why Rapier's narrow phase is still so much faster, but I think I have an inkling why. It seems like most of our cost there might now actually be in the bit set management and allocations rather than the actual contact computation

I believe I should probably store a bit set for each worker and cache those rather than reallocating every time

(if only I knew how to do that )

I should really get a lot more familiar with multi-threading beyond par_iter and par_splat_map lmao

way faster than current main branch, but inherently much slower than multi-threaded for collision detection

lemme try

scuffed screenshot setup lol

I think we should be able to optimize the single-threaded version of the narrow phase by a fair amount, it's currently kinda using the "parallel approach but single-threaded"

could probably have a single-threaded path that doesn't use the bit set stuff at all

[lavish orbit]

@vestal minnow I just noticed that on the github light theme, the avian logo looks a bit weird and pixelated along the edges. just thought I'd let you know.

[cinder summit]

#[require(Predicted, RigidBody(|| RigidBody::Dynamic), Collider(|| Collider::from(Sphere::default())))]

The avian API sure is clunky to use with required components ... Tho I guess it's nice that Collider at least doesn't require any Assets currently 😂

[opaque temple]

Does anyone have thoughts for BigSpace integration? If you tried it, what were the challenges?

[vestal minnow]

I feel like that's a browser thing, it's an SVG with a drop shadow so it shouldn't be pixelated

I'm on my phone rn but it's not that pixelated for me

[lavish orbit]

Huh, maybe a safari quirk

[vestal minnow]

Rigid bodies should get nicer if/when we have unit structs for the different types of bodies... Having a specific collider shape as a required component feels like a relatively niche case though

can also use a function instead of a closure if the same requirement is used for different components

[past cargo]

jondolf the goat

[cinder summit]

Yea the function approach seems reasonable for the collider but the rigid body thing is just kinda ugly 😂

[vestal minnow]

For a single floating origin it shouldn't be too bad, mainly I think you need a custom version of Avian's SyncPlugin which synchronizes Bevy's transforms with the Position and Rotation components used by physics. Someone made a branch that has this a long time ago.

For proper support, including multiple floating origins, we need the ability to run several instances of the simulation separately. This isn't currently easy to do properly, but I have a prototype for multiple physics worlds using bushrat's indexed query PR for Bevy. I haven't worked on it more yet though since that PR is currently kinda stalled

Once we do have support for disjoint simulation instances one way or another, we would probably use big_space's spatial hashing to group physics entities into those instances

[vestal minnow]

I wish we could just do RigidBody::Dynamic instead of RigidBody(|| RigidBody::Dynamic), the wrapper and closure bring no value there

[cyan flame]

Maybe a silly question but won’t this accumulate endlessly?

[sweet sundial]

isn't that closure unnecessary? RigidBody::default() is dynamic

[cyan flame]

I have a followup silly question… what if I always want my dynamic colliders to be grounded? Am I doing this wrong by doing it in a single system? Say I have a system for vehicle movement, I assume I need to apply the gravity acceleration to the vector of the requested movement. Sorry for these really silly questions, are the some resources you can point me to that would help me understand this better and be better able to reason about this?

[cyan flame]

I never want my vehicle colliders to not be in contact with the planet collider. All colliders should always be grounded… is that misguided?

Can you point me to some resources about this so I can educate myself on the domain a bit?

If you know of any that is

Just feel a bit lost and unable to reason about what I need to do

I want to have a capsule move along the surface of a planet which for now is just a sphere

Jumping or not either way is fine

[sweet sundial]

my initial impression is 'use ExternalForce with persistent:false, and the entity_commands.entry().or_insert().and_modify() pattern'

[cyan flame]

Conceptually I’m having trouble figuring out what to do to accomplish that

I started with just trying to get a capsule spawned 50 units away from the surface to land on the surface

Oh really? What part of the camera causes problems?

[cyan flame]

I got it to land on the surface but once it lands it slides along the surface from the landing point to a fixed point

Increasing the friction on the capsule collider and the planet collider causes the capsule to wiggle around in the spot it landed

I think that code just took the normal times 100.0 from the translation of the position component and set that equal the the entity’s LinearVelocity component’s inner vector

Which is a feedback loop so never reaches a steady state

Sorry I’ll the actual code when I get home in a few hours

Awesome, will do, thanks for your help!

[vestal minnow]

Apparently 0.5 ms out of the total 0.85 ms for the narrow phase here just comes from par_iter overhead 🤔 why is it so much faster for Rapier though

both are using rayon currently

[rocky seal]

is rapier running https://docs.rs/rayon/latest/rayon/struct.ThreadPoolBuilder.html#method.build_global in advance?

[vestal minnow]

I don't think it would matter since it only needs to be initialized once

[past cargo]

Does avian have body position force? Like i can set a position to It move and Lock on this position, Very good to fly cause i can Lock the Y position only, while x and z can be moved

[past cargo]

Thanks bro

You are a goat

[formal galleon]

@vestal minnow In your kinematic character controller example, wouldn't it be way more efficient if you would use CollidingEntities for the Collider of the character instead of iterating all Collisions in function kinematic_controller_collisions in https://github.com/Jondolf/avian/blob/main/crates/avian3d/examples/kinematic_character_3d/plugin.rs ?

[vestal minnow]

It would, yeah

[formal galleon]

Ok, just wanted to make sure that I correctly understood how Collisions and CollidingEntities work

[vestal minnow]

You still need to get the contact data from Collisions but you can at least avoid iterating over all collisions

[formal galleon]

ah yes, good point

[vestal minnow]

the KCC in that example is not great though, I would generally recommend more of a collide-and-slide approach using shape casts instead of raw contact data

(for example this)
https://github.com/UndefinedBHVR/vidar/blob/main/src/character_controller/kinematic_controller/movement.rs

[formal galleon]

In my hedgehog game, I implemented a hover functionality, to prevent colliding and flickering all the time, but still use the collision resolver from your example as "fallback", because I have to handle high jumps and such.

[formal galleon]

Ah one could use https://docs.rs/avian3d/latest/avian3d/collision/struct.Collisions.html#method.get with the entity (owner of CollidingEntities), and the entity inside the ColldingEntities

[vestal minnow]

yep

There's also Collisions::collisions_with_entity which avoids having to use CollidingEntities, but that's horribly unoptimized right now since it just iterates through all collisions. It will be much better with the upcoming contact graph stuff though

[formal galleon]

Ok, so CollidingEntities, for now, is the most efficient way to find collisions of exactly one entity of interest

[vestal minnow]

Yeah it should be the fastest currently

[formal galleon]

Nice! I recognized a performance boost already, because I have a lot of collisions and handling scenarios. 1. I have a wind plugin that applies external forces and torques to falling leafs to appear more natural, but disable the wind affection after colliding with the ground. 2. I use a sensor to detect nearby food on the ground to enable interaction. 3. Another sensor to detect the environment to calculate stealth of the hedgehog (if nearby to grass, it's stealthier than on plane ground). And 4. the character collisions. There are a few more cases, but currently, in every case I iterated all collisions

[weary hornet]

Outside of shapecasts I haven't done much with avian yet, so maybe this is more obvious for someone

if I add a RigidBody::Kinematic to an entity, I should be able to query for these below, and get that entity right? And then it's just a matter of manipulating these to move it?

&mut LinearVelocity,
&mut AngularVelocity,

[formal galleon]

@vestal minnow Is there a easy way to find the matching/related rigid body entity for an entity with a collider (because colliders can be inserted to children entities). For me, it often feels bloated to traverse the parents to find the matching rigid body entity. There is a new upcoming feature called Relations. Maybe we could use something like this to easily lookup a rigid body? Don't know how it would work if there are multiple collider chidren. What do you think?
edit: oh, there is a ColliderParent. sorry! 😄

[vestal minnow]

Yup

[weary hornet]

Ok another question, I see Kinematic doesn't deal with collisions.

How would I implement a simple collide and slide system? Dont care about grounded state or jumping, or anything like that.

I guess I could just use a Dynamic and use external forces

trying to do this without shapecasts like I have in the past

[opaque temple]

I thought kinematic meant, conceptually, that the object is deliberately excluded from the automated physics interactions, to be used for scripted movement / cutscenes.

[spiral nymph]

There is a simple example in avian3d repo

[weary hornet]

thanks I missed it

[spiral nymph]

Just need to change bundle by require in case you're using bevy .15

[valid fog]

I'm writing a networking library that has the ability to modify avian transforms and sync them between clients. What is the things I should be aware of the, the caviates, about modifying Position, Rotation, LinearVelocity, AngularVelocity ( i assume these are the components i should be modifying perhaps I am incorrect ).
Should I do these modifications in FixedUpdate or in Update? Are there other scheduling concerns or other things i should be aware of?

Is there some way I should be taking advantage of interpolation or something in order to tell the objects to move towards a location instead of just teleporting them there?

[spiral nymph]

FixedUpdate or a custom schedule with const frequency I suppose since you don't want it to dependant of frame rate.
But syncing between users mean you'll need a PreFixedUpdate to compute (t-1) Transform of other clients before computing (t) physics, or to chain them in this order

And you should use velocities instead of changing transform directly to avoid teleporting

[cinder summit]

Honestly heavily dependent on your specific networking requirements ... You usually just want to apply networking updates before FixedMain, replicon for example just applies network updates in PreUpdate ... But if you don't want obvious networking artifacts, you'll need some good prediction stuff set up, and that's where all the things to worry about come in

[vestal minnow]

So I've been optimizing the narrow phase a bit further. The test scene is a 2D pyramid with a base of 60 rectangles, about 4750 contact pairs in total.

By default, rayon's par_iter_mut is often faster on my machine than Bevy's par_chunk_map_mut, however this seems to be because rayon's task pool here has 24 threads (not necessarily all used) while Bevy's ComputeTaskPool has "only" 16 threads.

If I constrain rayon to 16 threads so that it's the same as Bevy, I get:

• rayon: 0.56-0.58 ms
• ComputeTaskPool: 0.38-0.40 ms
  So using Bevy's task pool seems faster in this case when constrained to the same number of threads. Maybe when using rayon it's fighting with Bevy's own task pool in some way, or maybe it's not using high performance cores, idk.

Interestingly, in this scene, Rapier's narrow phase is taking 0.57 ms when also constrained to 16 threads, so we're actually about 33% faster. With a larger pyramid it's closer though, and I suspect that Rapier still wins at larger scales at the moment

[grizzled junco]

modifying Position will always be "teleport"? I'm trying to use bevy_tween to directly modify Position but it won't "trigger" the physics until it stopped interpolating

if that's the case, i will try to somehow use LinearVelocity instead

[grizzled junco]

now that i think about it

impl Interpolator for MovePos {
    type Item = Position;
    fn interpolate(&self, item: &mut Self::Item, t: f32) {
        item.0 = self.start.lerp(self.end, t);
    }
}

because it's just directly set the position every interpolation step, it will just keep teleporting until t = 1, even if the physics engine doing something between t = 0 -> t = 1.

so, i need a way to check if next position is "valid" then set the position. But that won't go well if, for example, t: 0.1 valid, t: 0.2 not valid, t: 1 valid. It will teleport with a huge step.

now i need a way to have a state for "this should not interpolate anymore"

i feel like i should interpolate LinearVelocity instead for physics object

[cinder summit]

Yea it will always teleport, what you really want to do here is calculate the difference to the next position you should be at, then set LinearVelocity so its there after running physics once

[cinder summit]

How did you optimize the narrow phase? Is this defualt collider specific or general improvements like when the data structure for manifolds got less nested Vecs? 🤔

Also speaking of data structures, I've noticed that Collisions is incredibly slow to clone, but it's needed for warm starting ... I wonder if this is another case of nested Vecs

[true hearth]

or instead of lerping you could do a damped spring approach backed by avian external forces to move to a target position, depending on what exactly you want to get out of a tween. The spring approach can also have some nice emergent motion if the target position changes dynamically

you can kind of see the result in this video, though if you let avian do the integration you can skip the second half https://www.youtube.com/watch?v=KPoeNZZ6H4s

[vestal minnow]

General improvements, a lot of them. I'll have details and results in the PR description once I make that, but:

• Use a contact graph instead of the current IndexMap. This is needed for iterating over all contact pairs associated with a specific entity, which was previously insanely slow and seriously bottle necked some systems. Also needed for simulation islands once we implement them.
• A contact pair now always exists if two AABBs intersect, even if the shapes themselves are not touching. The broad phase creates new pairs in the contact graph directly rather than collecting all pairs to a vec every time.
• All pairs are updated by the narrow phase in parallel, without any extra allocations. Previously the narrow phase basically reinserted all touching contacts and allocated a ton of vecs instead of mutating persisted data directly.
• contact_manifolds now mutates the given vec of manifolds in-place rather than allocating a new vec every time. However, we still need some allocations and annoying conversions there because Parry uses its own contact manifold type that we can't reuse :(
• Contact status changes (collision started or ended) are collected into thread-local bit vectors during parallel iteration, and combined into a global bit vector. The narrow phase then quickly iterates through set bits using bit scanning intrinsics, and sends collision events and removes contact pairs whose AABBs no longer intersect. This is done serially for determinism.
• Collision events are opt-in with a CollisionEventsEnabled component. The overhead of collision events is also way smaller since it doesn't require its own separate scan over collision pairs.
• A lot of things are simpler: we can BroadCollisionsPairs, AabbIntersections, wake_on_collision_ended, all of the awkward during_current_frame/during_previous_frame shenanigans...
• Probably more, there's so many changes and improvements that I forget

In short:

• Contact pairs are persisted way better. Much fewer allocations and unnecessary work.
• Pair creation and removal is fast and handled more incrementally rather than creating and yeeting everything all the time.
• Updating contact data is way faster, using in-place mutation.
• Collision event overhead is way smaller.
• Hacky ugly stuff around contact pair management begone!

[cinder summit]

Nice ... Those changes are a lot more broad than what I imagined when hearing "the narrow phase" ... How big is the actual difference? 🤔

[vestal minnow]

Not that huge, but the difference is larger the more contacts there are, and we're so solver-bound that it's currently hard to measure properly :P here's a rough profile of a relatively collision-heavy scene though, left is main and right is the improved one

Worth noting that collision events are included in the narrow phase timings now, so it's a bit misleading

Also the main branch's version didn't include contact removal in the narrow phase section

[cinder summit]

I don't think we're necessarily solver bound tho ... What if there are a lot of things the broad phase fails to filter?

[vestal minnow]

The broad phase has been only like 10% or less of the solver's time in most of my tests, and that's if the entities are pretty densely packed in a way that makes sorting for sweep and prune more expensive

but my test scenes aren't representative of actual projects so idk

[cinder summit]

The one case where optimizing the narrow phase makes a big difference are when the AABBs overlap but the colliders never touch ... That can be incredibly rare, for example if you largely deal with barely rotated cubes, or things with relatively tight AABBs like spheres ... But then there's like trimeshes or convex decomp

Or those arc colliders in my game 😂

That will get you potentially thousands of things going trough the broad phase, when realistically only a few contacts exist

[vestal minnow]

For cases like that I don't think there's really a way to avoid potentially unnecessary contact computations, beyond splitting the large shapes up into smaller shapes with their own bounding volumes

since Parry's trimeshes store BVHs for the triangles, technically we could try having some mid-phase that further filters intersections with meshes before creating contact pairs for the narrow phase

[cinder summit]

If the narrow phase is fast enough and the solver doesn't waste time on things that aren't even touching that shouldn't be a problem no? 🤔

[vestal minnow]

yup

[sweet sundial]

not actually relevant for my projects, but is there a good way to put a hole in a collider? eg, half-space with a hemispherical pit

[spiral nymph]

Could be pretty useful to make defense field in game

[sleek thicket]

maybe in @cinder summit's sdf colliders

[cyan flame]

@sleek thicket btw increasing the size of my colliders by 10,000x made the jitter go away completely

My previous colliders were a 100.0 radius sphere and a 0.3 radius 1.0 heigh capsule

[sleek thicket]

that's a really strange fix

[cyan flame]

I wanted a realistically sized planet anyway so the fact that this appears to fix it works to my benefit

Hopefully it actually fixes it not just seems to

[vague pebble]

Actually not so much tiny colliders are known to be harder to detect

Issues like tunneling and precision limitation may arise

[vestal minnow]

not really, in general you're just more likely to get precision and stability issues with very large or very small objects

Tunneling would be a problem if you had for example some small object moving towards a thin wall very fast, but scaling the whole scene up doesn't inherently fix anything assuming you also scale the velocities. But yeah stuff like just making the wall thicker would help a bit

CCD also "fixes" tunneling so it shouldn't be too big of a concern in general

[golden python]

Hello, I can't seem to get kinematics collision working great with my usecase (I have complex procedurally generated colliders from a mesh) as my characters keep falling through the map.

I tried the kinematic character example, but it would fall through very often.
I also tried this one: https://github.com/UndefinedBHVR/vidar, which worked better but still falls through quite often.

I am considering going with a rigidbody based controller as I imagine it would have more robust collision stuff with CCD.
Is that a good call ?

[sleek thicket]

yup, you can just switch to kinematic once you actually need it

[golden python]

I can't really switch back if I make my whole character controller around a rigidbody though. It's a commitment

[sleek thicket]

it's not, but the other way around is

[golden python]

and I don't understand the "once you actually need it"

[sleek thicket]

most games don't need the extra control from using kinematic rb

[golden python]

that is a pretty hot take I believe, the industry disagrees afaik

[sleek thicket]

what exactly are you doing that needs it

[golden python]

I think my project can work without, though only time will tell.

[kind moss]

Can someone help me figure out what's wrong with the physics here? An impulse is being applied to the blue ball in the direction the green line is pointing. When it rolls along the surface and over the edge it bounces in to the air. The corner it's rolling across is clean, there's just one vertex there. The collider it's rolling on is a polyline but I see the same behavior with trimesh colliders. I thought it might have something to do with restitution but I see the same behavior when restitution is turned down to 0 on both bodies.

[sleek thicket]

looks like a ghost collision

[kind moss]

Like a problem with the speculative collision detection?

[sleek thicket]

it's just a classic problem with collision detection but idk, it might be involved too

[kind moss]

Hmm, yeah, setting SpeculativeMargin(0.0) and SweptCcd::default() seems to resolve it in some quick tests. I thought I'd tried that but I guess not.

Yeah, if that didn't completely fix it it made it almost unnoticeable. Hard to say if it's completely gone. Thanks!

[grizzled junco]

i haven't try it yet but that's simple and very useful

[grizzled junco]

but now im interested in this because I've watched the video a while ago and didn't understand it really well, but just now i rewatch it and i might be able to use this now

it's so fun doing anything other than finishing the game itself

[grizzled junco]

what makes a rigidbody entity implicitly have Position and Rotation?

[true hearth]

you can also just google "damped spring" and you will find results that have the same concept written specifically in terms of forces or acceleration (which is good for avian)

though in most cases, the "anticipation" motion from that video is not part of a "damped spring"

but basically it's just:

force = spring_strength * (target_position - current_position)
    - damping_strength * velocity

but you can use the equations from the video to control this in terms of zeta and f, which is more intuitive to control. Though you will need to incorporate the rigid body mass as well, except if you are able to set it's mass to exactly 1.

[true hearth]

my guess is that they are required components for RigidBody

though I can't find them here: https://docs.rs/avian3d/latest/avian3d/dynamics/rigid_body/enum.RigidBody.html#impl-Component-for-RigidBody
maybe they are pulled in by one of it's requirements?

[vague pebble]

Curious, if there are multiplee collision at the same, is there a chance that the Collisions event might die before I can consume it? If so, how can one ensure he never skips a collision

[past cargo]

.

[cinder summit]

So I know how I would make a rocket league arena with SDF colliders, but what would be the most sensible approach with the default collider? 🤔

[vestal minnow]

the easiest would probably just be a trimesh

with fixed internal edges

convex decomp could maybe work too, but I'm not sure if it'd produce perfectly consistent or smooth enough results in comparison to a hand-authored thing

[cinder summit]

Yea especially since the arena would be big ... Maybe if I flipped some meshes a couple of times, but at that point just doing rectangles might be easier 😂

[dark swift]

This took me way too long to figure out but I wanted to share here in case it was useful for someone else because I couldn't find very many complete 2D top-down examples. I made an Avian 2D top-down kinematic character controller that doesn't get stuck on corners. Feel free to suggest any changes if you find a bug https://gist.github.com/komodo472/527de60a3d2ee07c4d5ca18c3d14087c
It's based on these two papers

• https://www.peroxide.dk/papers/collision/collision.pdf
• https://arxiv.org/ftp/arxiv/papers/1211/1211.0059.pdf

[weary hornet]

Hey nice, I use the same looping technique, taken from Quake 1, works in 3D too (I loop 4 times)

Hey so I have a weird issue where colliders are not following the entity.

Note that I am using lightyear, and I have a feeling it's probably related to how it handles interpolation. Not sure what to do, I'm thinking maybe its needing to manually set the Position or something.

[grizzled junco]

i will try to implement this later, it's so interesting but i don't need it right now. Thanks for the help!

[grizzled junco]

i really don't know because one of my object somehow has them without me inserting it, but not for the other

[fading zenith]

I'm trying to write a very basic breakout game and my setup is very simple, but I'm running into issues that I think should be trivial and could use help with. 1) The ball doesn't reflect off the objects at the expected angles. 2) The ball starts speeding up (or slowing down?) and I can't tell why. The paddle is a kinematic body, the ball is a dynamic body, and the walls are static bodies. Restitution for everything is 1.0. Can provide code if needed, but I have a clip

[sleek thicket]

did you lock rotation?

and those walls might be causing ghost collisions, try making them out of just 4 colliders

[fading zenith]

kk will give it a shot

[fading zenith]

update: making them 4 large colliders solved both the acceleration and the angle problems. thanks!

[formal galleon]

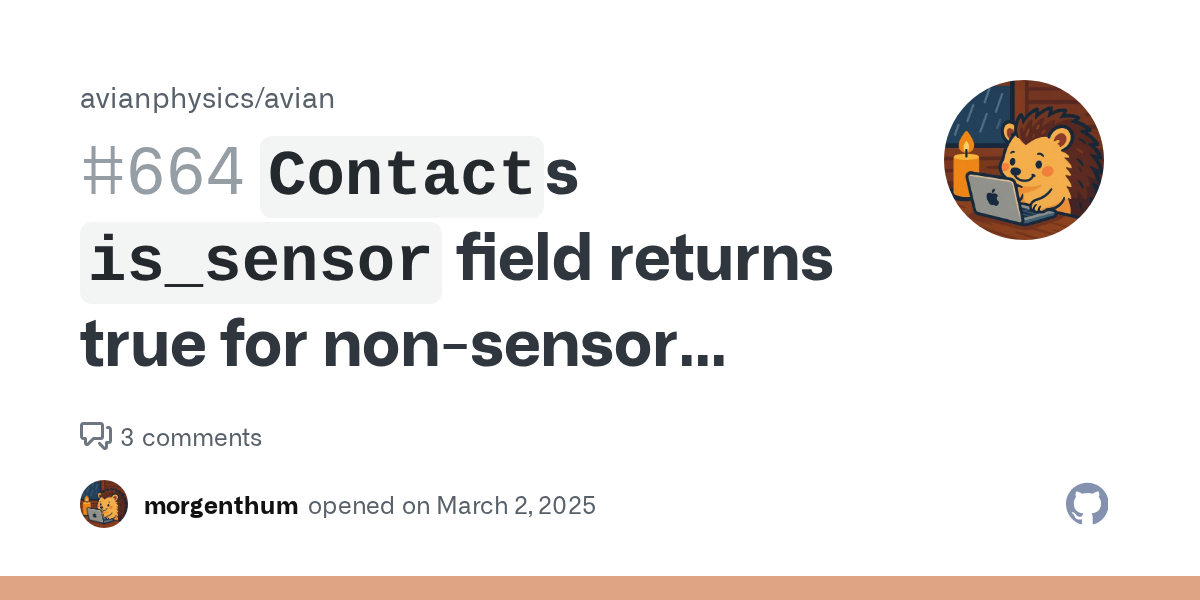

I think I found a bug. I have an entity with multiple colliders as children - one "real" collider, and some sensors. As soon as my real collider collides with another collider (which also isn't a sensor), the is_sensor field in Contact is true (https://docs.rs/avian3d/latest/avian3d/collision/struct.Contacts.html#structfield.is_sensor) which isn't correct.

I also validated it with a Query<Has<Sensor>> for both - entity1and entity2 fields in the Contact. The query also returns false for both entities. I can't imagine that this behavior is intentional?

I use the latest release version 0.2.1.

just in case - I opened an issue. If it`s intentional, for whatever reason, we can close it: https://github.com/Jondolf/avian/issues/664

[proven ice]

using avian2d. how could i generate a collision mesh and then use it as a static body's collider?

in my particular case, i'm just gonna be generating triangles.

[kind moss]

I think this is probably the easiest way if you mean a triangle mesh: https://docs.rs/avian2d/latest/avian2d/collision/collider/enum.ColliderConstructor.html#variant.Trimesh

There's another variant for just single triangles too.

[proven ice]

thanks!

does avian have this problem?

the red circles are misaligned lol but i think its a problem people making tile-based games in modern engines will be familiar with

im working on a solution / meshing algorithm. finds edges (and their normals), and creates triangles from them. then maybe i could do something where the corners are filled in (only half-way to the inset points, due to an edge case that is hard to explain via text) to prevent weird corner behaviour.

[sleek thicket]

yep, it also has problems with corners if you're not using cuboid

[junior flower]

This is rather inspired!

[proven ice]

inspired?

[junior flower]

Making inward-pointing triangles to have a single face per edge. I think the idea is neat.

[proven ice]

oh, thanks!

[proven ice]

does it matter whether or not my points are defined in a CW/CCW order? i couldnt find any mention of this on the page.

im going to assume avian corrects for non-CCW triangles internally? since creating a collider from a single triangle does so.

[kind moss]

Not sure. I've never thought about it and haven't had a problem, so either it doesn't matter or I've gotten lucky.

[vestal minnow]

only for Collider::triangle

and only in 2D

[vestal minnow]

I'm not sure if this would fix ghost collisions at the corners, the edge of the triangle still exists so you might be able to bump into it

The way to properly fix ghost collisions is to have a shape that uses adjacency information to detect and prevent hits against internal edges. Trimeshes support this with TrimeshFlags::FIX_INTERNAL_EDGES enabled, and it should also be possible to support it for polylines, but I'm not sure if Parry does. Box2D has a chain shape for this

Also see Erin Catto's article on ghost collisions
https://box2d.org/posts/2020/06/ghost-collisions/

[proven ice]

oh, thanks!

[worldly cove]

I have a very large object, moving very fast - and it seems to be "jittery". I thought it was the bevy_panorbit_camera not keeping up, but after looking more, it seems that other static objects (like the small trees) are smooth. I'm reeeasonably sure I'm not manually updating the stone anywhere else - any suggestions on what I might check? Thanks!

[sweet sundial]

what's your physics tickrate?

[worldly cove]

I went to reply "just using whatever is in PhysicsPlugins::default()", which lead me to actual read the docs. Upping the substeps to around 20 fixed the issue I was seeing. Not sure that's the best way - but I'll now read the rest of the docs and make sure I'm not doing anything else stupid. Thanks!
[Edit, well - fixed it with debug on, but still jittery without it... but I'll try more settings and hopefully sort it out]

[Final edit! Reading the docs really pays off... who would have thought? Adding the TransformInterpolation component to my stone as recommended in the very clearly-titled "Why does movement look choppy?" question in the FAQs - makes everything buttery smooth]

[viral goblet]

Are collisions reported twice?
If A intersects with B do I get both an (A,B) event and a (B,A) event?

[sleek thicket]

no

[viral goblet]

Interesting
Which one is the first then?

[sleek thicket]

either one.

[viral goblet]

Meaning that if I have two different queries I need to check twice each time?

What do you mean? Can you send a code example?

[sleek thicket]

#1124043933886976171 message

one system sorts all collisions, and the subsequent systems know exact order and type

[viral goblet]

I see

[sleek thicket]

there's also no issues with race conditions unlike the usual approach

[viral goblet]

But that means that they're all in the same place
If I wanted them to be more independent I'd have to send another collision-sorted event which would flood the system

[kind moss]

How much should we expect TrimeshFlags::FIX_INTERNAL_EDGES to help with ghost collisions? I'm still seeing them with that set unless it turn on SweptCcd and fine tune SpeculativeMargin, which is what I was doing before to deal with the problem.

[viral goblet]

I think I'd just check in each query

[vestal minnow]

It should fix ghost collisions against the mesh that has it set, but it of course doesn't help at edges where two different colliders meet. For example, if you had chunks of terrain represented as individual trimeshes, you could still get ghost collisions at the edges of those chunks

[kind moss]

Hmm... I don't think that is what I saw happen. Let me experiment a little more, maybe I'm doing something wrong. These meshes shouldn't be chunked up like that.

[sleek thicket]

if you tag everything instead of assuming it's environment then you could just continue, and it shouldn't flood the systems any more than each independent system doing it

@vestal minnow did anything come out of the hooks/observers that would work similar to unity/godot?

[kind moss]

Yes, it seems to still be happening. The terrain mesh here is built with FIX_INTERNAL_EDGES on and the blue ball has the default SpeculativeMargin and SweptCcd off. An impulse is being applied in the direction the green line points and you can see that the ball rolls to the edge and then hops into the air, which I've been blaming on ghost collisions but maybe there's actually some other problem.

Sorry, that first example is my old test. Showing the same problem without FIX_INTERNAL_EDGES. The second video is the one with FIX_INTERNAL_EDGES on. The behavior is the same, or maybe slightly better in the second one but the problem is still there.

[vestal minnow]

Hmm so this is 2D, I'm not sure if Parry handles internal edges properly there

[kind moss]

Yes, 2d. Sorry, should have specified that.

[vestal minnow]

I know in 3D Parry uses "normal cones" to fix contact normals using adjacent triangle geometry, but it might not do that in 2D currently

[kind moss]

Ok. I'm actually fine using SweptCcd and the tuned SpeculativeMargin, that fixed the issue for me. I just got excited when I saw you mention FIX_INTERNAL_EDGES.

[vestal minnow]

Nope not yet, but it'd be OnCollisionStarted and OnCollisionEnded events implemented using either observers or a custom API using one-shot systems.

The problem with observers is that we'd ideally only trigger the event for entities that are actually being targeted by an observer, but with current Bevy that info is not easily accessible. People might also have assumptions about global observers behaving a certain way, like getting all collision events by default, but that wouldn't necessarily be the case here

We could also just trigger the collision events for everything by default, but that could be thousands of events per frame in heavier cases, times two (one event for each entity in the collision)

A custom API more similar to bevy_eventlistener would make the API more obvious and provide a clear marker of "send collision events for this entity please" since the component lives on the entity directly, but that may also diverge a bit from what many people expect, since observers are the usual first-party thing for targeted entity events

[sleek thicket]

i don't unity/godot's approach because of what happens after that,
you'll still need to look up what the other object is twice, when it could just be sorted out ahead of time

i just need to figure out a better way of doing it

[vestal minnow]

In theory we could make an API where e.g. collisions.get(entity) returns the collision such that the given entity is the first entity in the collision data, but that would mean iterating through all of the manifolds and contact points and swapping everything

*in the case that it's not already the first entity

[kind moss]

This would simplify a lot of my code.

[vestal minnow]

For entity events using observers / one-shot-systems / whatever, you'd always know which entity is "self" and which entity is "other", but those events only store the entity, you still need to query the Collisions resource to get actual collision data

[kind moss]

Related: Having body_entity on OnCollisionStarted would also be very useful. I don't have a sense for how expensive that is, maybe it's prohibitive.

[sleek thicket]

@viral goblet i just realized you could just hold multiple Option<tag>s inside that component
just skip matching when tags shouldn't interact

you can split the individual sorting systems into events with just 1 tag too

[vestal minnow]

The body entity is available in the place where the event is sent, so it shouldn't be too expensive in that sense, just uses slightly more memory

but two extra u64 values per event probably isn't a concern memory-wise :P

[kind moss]

I don't know how common this pattern is in general but in the projects where I use these events I am almost always doing the lookup in the recieving system, which is certainly more expensive. Because I tend to have multiple colliders per body.

[vestal minnow]

Yeah, makes sense

[kind moss]

Sometimes I can use Collisions instead, and I do. But the events are nice.

[vestal minnow]

I like how the current tuple struct looks API-wise when destructuring in stuff like loops

for CollisionStarted(entity1, entity2) in event_reader.read() {
    // ...
}

but I guess this pattern wouldn't be too much worse if it was a normal struct with fields either, assuming you're using the field names directly

for CollisionStarted { entity1, entity2, .. } in event_reader.read() {
    // ...
}

[kind moss]

Yeah, I agree the tuple is very clean but the second version also looks fine.

[sleek thicket]

it won't look fine if you change the name though

[kind moss]

Yeah. But entity1:my_entity1 isn't terrible.

And the mass of code required to look up the RigidBody from the collider entity is way worse.

[sleek thicket]

for a fair comparison:

for CollisionStarted(E1, E2) in event_reader.read() {
    // ...
}

for CollisionStarted { entity1: E1, entity2: E2, .. } in event_reader.read() {
    // ...
}

i think tuple wins 😄

[kind moss]

If that's all you're doing I agree. But if you need the body, which I always do, you have a whole lot of other ugliness to deal with which an extra field would solve.

And that ugliness involves both the system definition, because you probably need an extra Query, as well as the code that processes the event.

Also the performance cost of doing the query lookup.

[sleek thicket]

you just need 2 bodies, right? in that case wouldn't it just be...

for CollisionStarted(E1, E2, _, _) in event_reader.read() {
    // ...
}

for CollisionStarted { entity1: E1, entity2: E2, .. } in event_reader.read() {
    // ...
}

if you're not using them, and

for CollisionStarted(E1, E2, RB1, RB2) in event_reader.read() {
    // ...
}

for CollisionStarted { entity1: E1, entity2: E2, rigidbody1: RB1, rigidbody2: RB2 } in event_reader.read() {
    // ...
}

if you are?

[vestal minnow]

not exactly the clearest type definition

pub struct CollisionStarted(pub Entity, pub Entity, pub Entity, pub Entity);

[kind moss]

Yeah, I agree.

I strongly prefer named fields in this case.

[sleek thicket]

i guess i'm fine with both because i have it all in 1 system

[vestal minnow]

you can also just... not use destructuring there if it ends up ugly, you can just call it ev if you want short names and do ev.entity1 or whatever

[cinder summit]

Might was well just [Entity; 4] at that point

[sleek thicket]

for CollisionStarted([E1, E2, RB1, RB2]) in event_reader.read() {
    // ...
}

sometimes you can't make both sides equally happy, but you can always make them equally unhappy

for CollisionStarted((E1, RB1), (E2, RB2)) in event_reader.read() {
    // ...
}

[kind moss]

No see, this is fine:

for CollisionStarted(es) in event_reader.read() {
    for e in es {
        if collider_query.contains(e) {
          // process colliders
        } else if body_query.contains(e) {
          // process bodies
        } else { panic!() }
    }
}

[kind moss]

I actually don't hate this one. I like the named fields better but I could live with this.

[sleek thicket]

why not (e, e, rb, rb)?

i think it's better when you don't care about either collider or body

(_, _, rb1, rb2) or (e1, e2, _, _)

[kind moss]

That is a good question. The structure of the nested tuples makes the relationship between the pairs less opaque to me. To be clear, I still think it's a bad design but I think it's less unclear.

[kind moss]

Yeah, I agree that this looks better.

[sleek thicket]

vs ((_, rb1), (_, rb2)) or ((e1, _), (e2, _))

every variant is better than how unity did it though

[vestal minnow]

how does Unity handle it?

[sleek thicket]

collision gets rb by default, and you use .collider to get actual collider

void OnCollisionEnter(Collision collision)
{
    Debug.Log(collision.collider.name);
}

[vestal minnow]

Oh god it has both body and rigidbody and they belong to different game objects

[slow tapir]

How do I prevent colliders from sticking together? I have a trimesh generated from a bevy_voxel_world chunk and a bevy_tnua capsule collider for the player.. I tried a CollisionMargin of 0.15 but it still gets stuck

[sleek thicket]

sticking when idle or moving? might just be friction or something on tnua's side

[viral goblet]

What I ended up doing (after thinking about it for the entire day) is exctracting this logic into a macro, so it's use looks something like:

            physical_bodies,
            unchangeable_velocity_bodies,
            *first_entity,
            *second_entity
        );
        match maybe_bodies {
            Some((
                (LinearVelocity(velocity), Mass(mass), physical_transform, physical_entity),
                (unchangeable_velocity, unchangeable_transform),
            )) => {
                  ...
                  }
            _ => {}
      }

Oh that means I can actually use if let

Look how clean this other function is now:

        let maybe_damage_taker_and_causer =
            get_from_both_queries!(damage_takers, damage_causers, *first, *second);
        if let Some(((damage_taker, damage_taker_entity), damage_causer)) =
            maybe_damage_taker_and_causer
        {
            if damage_taker.is_damageable_by(damage_causer) {
                damage_requester.send(DamageCauseRequest {
                    to: damage_taker_entity,
                    damage: damage_causer.damage,
                });
            }
        }
    }```

(Let me know if I should share the macro here so other people may use it)

[slow tapir]

Setting friction to 0 helped, thanks

[formal galleon]

Maayyybe someone is interested in my question - not sure: https://discord.com/channels/691052431525675048/1346538529160691743

It isn't 100% related to physics.

Please don't blame me if it's not 😶

[sleek thicket]

you'll probably need to revert if you run into same problem as me 😄
i needed projectiles that are damageable, but can have special interactions with each other
when it was separate, it'd trigger both the projectile_hit_damageable and projectile_hit_projectile, but i only needed the latter
so i had to query both for everything they might be, and sorting that out ended up just being a more complicated version of tag matching

[sleek thicket]

[tag system](#1124043933886976171 message) would help in your case too, you'll most likely need to sort collisions later anyway, and that's where you can add environment tag with the type of environment

[valid fog]

I have realized yes, I need to, so, I was simply syncing positions and linear velocities, but this does not work with high latency because the positions are backwards in time by the time they get to another player

I need to extrapolate out using position += velocity * delta time

Where delta time is timestamp when packet was sent - current time

[cinder summit]

This also produces weird artifacts, which is why games either accept the fact that other people's positions are in the past (and potentially use lag compensation to make sure gameplay isn't affected by it heavily), or do fully simulate what those clients would've done using rollback, like fighters or in a non-1v1 setting rocket league

[past cargo]

@vestal minnow why when i add serialize as feature it remove all others?

aaaaa

[sleek thicket]

try ["serialize", "f32"]

[past cargo]

still

if i remove serialize its fine

otherwise no

[sleek thicket]

if it's this and saved then it's strange, otherwise normal

[past cargo]

not working

[sleek thicket]

and why are you showing the compile error tab when it's written in terminal anyway

[past cargo]

what

[past cargo]

guys

putting like this fixes the issue

[past cargo]

xd

is my rigit body ir collider wrong ? cause when i try apply linear velocity he just go down lol

simple test btw linear_velocity.z += 20.0 * delta_time;

all i do is put RigidBody::Dynamic and Collider::capsule(0.3,1.0)

[gloomy folio]

I have a problem.. i change LinearVelocity and AngularVelocity but it doesn't move at all. do i need to tell avian that i've changed it or something? i print it to console and numbers move and move from frame to frame

[past cargo]

did you implemented the Pyshics plugin?

on add_plugins

[sleek thicket]

you'd fall down too if someone pushed you

[past cargo]

?

[sleek thicket]

unless you were on ice

[past cargo]

but iam pushing?

iam just trying move it

like normal walk

i shouldnt use linear velocity so?

[sleek thicket]

if you remove friction he'll slide, if that's what you want
if you lock rotation he just won't fall
character controllers are a pain and there are too many ways to deal with it

[past cargo]

"if you remove friction he'll slide, if that's what you want" na i just want he normaly walk

okie so i need lock rotation?

[sleek thicket]

it's one of the easy ways to do it if you never need to change the rotation, you can just disconnect the animations from collider

[past cargo]

"you can just disconnect the animations from collider"?

wydm

the player walking animation?

cause the model is a child of the entity that have the collider

[gloomy folio]

DOH.. FFS

[sleek thicket]

then you're already halfway there

@past cargo there's also this approach
https://youtu.be/qdskE8PJy6Q?si=uy9kl57aaER_wtoX
https://www.youtube.com/watch?v=CdPYlj5uZeI

[past cargo]

what is ffs?

[gloomy folio]

for fuck's sake lol

[past cargo]

that was the problem?

[past cargo]

more because i did a state machine xd

now i just legit just need move it ahaha

[cinder summit]

@vestal minnow I tried making an up-to-date version of the collider context thing, added the convenience wrappers for non-context colliders, and made the param order a bit more sensible ... Was there anything else we wanted to try there?
https://github.com/NiseVoid/avian/commit/379468d384f2e5da97dd1e6dc3c4e12e0a71b9ee
Would we also want an example or test for this? 🤔

[kind moss]

When I add a RevoluteJoint (or any joint, I think) as a component on one of the bodies it joins it seems not to work. If I spawn the exact same RevoluteJoint as it's own entity it does work. Is that Expected or a bug? It seems like it would be tidy to keep the joints close to the entities they apply to.

Hmm. If I spawn the joint as a child of the entity it effects, that also works. So maybe it's just that the joint component interferes with other components on the body? I guess having it as a child addresses my tidiness concern.

[past cargo]

how does Shapecast works?

[sleek thicket]

it casts shape 👍

[past cargo]

BRO

IAM talking about the method

like have cast_shape_predicate

and cast_shape

what is the difference?

[sleek thicket]

predicate: A function called on each entity hit by the shape. The shape keeps travelling until the predicate returns false

[past cargo]

is there a way to debug the ray? @sleek thicket

so i can see the direction its going

[sleek thicket]

not for the spatial query afaik, you can just make a ray gizmo for that

ray/shapecaster should have it but i don't remember if it's enabled by default

[past cargo]

i mean, iam trying fire a ray down the character to align it with the floor

let transform_translation = transform.translation;

        let shape_hit_data = query.cast_shape_predicate(collider, transform_translation, Quat::from_rotation_y(0.0),Dir3::Z,&ShapeCastConfig{
            max_distance: 20.0,
            target_distance: 0.0,
            compute_contact_on_penetration: true,
            ignore_origin_penetration: true,
        },&SpatialQueryFilter::default(),&|entity_found| {
            if entity_found == entity {
                return false
            }
            true
        });

        if let Some(shape_hit_data) = shape_hit_data {
            controller.floor = Some(shape_hit_data.entity);
            controller.floor_normal = Some(shape_hit_data.normal2)
        }else {
            controller.floor = None;
            controller.floor_normal = None;
        }

wich seens wrong

[sleek thicket]

Z is down in your coords?

[past cargo]

iam bit confussed rn, its getting the floor yes, than iam trying alig the charactr with the floor, but

pub fn rotate_to_ground(
    mut character_query: Query<(Entity, &mut Transform, &CharacterController), (With<CharacterController>)>,
    time: Res<Time>,
){
    for (_,mut transform,controller) in character_query.iter_mut(){
        if controller.floor == None{return;}
        let target_rotation = Quat::from_rotation_arc(Vec3::Y, controller.floor_normal.unwrap());

        let smoothing_factor = 5.0 * time.delta_secs_f64().adjust_precision();;
        transform.rotation = transform.rotation.slerp(target_rotation, smoothing_factor);
    }
}

[past cargo]

iam trying alwasy cast down the player

even if he is rotated

[sleek thicket]

ok, but you're casting it in worldspace Z direction

[past cargo]

hmm

so how do i do it to cat down the player always?

[sleek thicket]

you're asking a question about basic stuff again, and i'm afraid that you're assuming people are chatGPT and the time spent time answering them is worthless =/
if you don't want to figure out anything on your own, why not just use tnua?

[past cargo]

brother

its math stuff

i just ask small stuff here

[sleek thicket]

predicate wasn't math, just 10 seconds of bothering to take a look at docs

direction down is just basic transform method but i guess if you started game dev with bevy then nothing would explain it to you 🤔

[past cargo]

no

i am game dev since 5 years but bevy coordinates are totally different from the way i was working

like the linear velocity

[sleek thicket]

oh you mean which way is up/forward?

[past cargo]

yes

i tryed Quat::from_rotation_Y

that should be the expected

but no

[sleek thicket]

you can just use whatever coordinate system you want, just keep in mind that for default stuff like methods and camera Y is up and -Z is forward

[past cargo]

for some reason just _Z works

[sleek thicket]

https://docs.rs/bevy/latest/bevy/prelude/struct.Transform.html#method.down

[past cargo]

okie but how enalbe the raycast debugs?

so i can know

[sleek thicket]

https://docs.rs/bevy/latest/bevy/gizmos/gizmos/struct.Gizmos.html#method.ray

[past cargo]

:/

thanks btw

but the raycast part seens correctly, its getting the floor aways

[sleek thicket]

idk if jondolf made any shorthand for that, it'd actually be useful

[past cargo]

now i just need rotate it

the character

need a formula math for it

[sleek thicket]

you're making something with anti-gravity?

mario galaxy battlegrounds?

[past cargo]

?

no

i just want alight on small angles

like when he is walking on a ramp

[sleek thicket]

i don't understand why, you'd just get player to tilt

with extra issues around edges

[past cargo]

well ia mtrying make a character controller

so i need make it dont keep falling

[past cargo]

like this

[sleek thicket]

why did you decide against locking collider rotation?

[past cargo]

if i do it i cant do stuff lik knockback

with angular velocity

rotate axis stops angular velocity to works

[sleek thicket]

you mean like that thing from very very valet tutorial?

[past cargo]

what?

[sleek thicket]

☝️

[past cargo]

wydm on this tutorial there is nothing about it

[sleek thicket]

https://youtu.be/qdskE8PJy6Q?t=184

[past cargo]

does it really need float?

[sleek thicket]

yep, you can just add IK legs and it should be good

[past cargo]

na never did ik iam fine

i will keep it not floating

[sleek thicket]

you'll need to do it anyway unless your levels are completely flat lmao

[past cargo]

its not level, its a battlegrounds

[sleek thicket]

ok, you'll need IK either way unless your battlegrounds are completely flat.

old games got around that issue by avoiding stairs/ramps and making elevation that you can only jump on, or adding stuff like "interact with stairs" that made you lose control

or just not allowing you or anyone else to see how characters walk up/down stairs/ramps

but these days idk the last time i didn't see IK for legs

[deep cypress]

I'm trying to detect collisions between a half space and a capsule, but it's reporting collisions on every frame no matter where that collider is. Seems to be related to this issue. Anyone know a workaround?

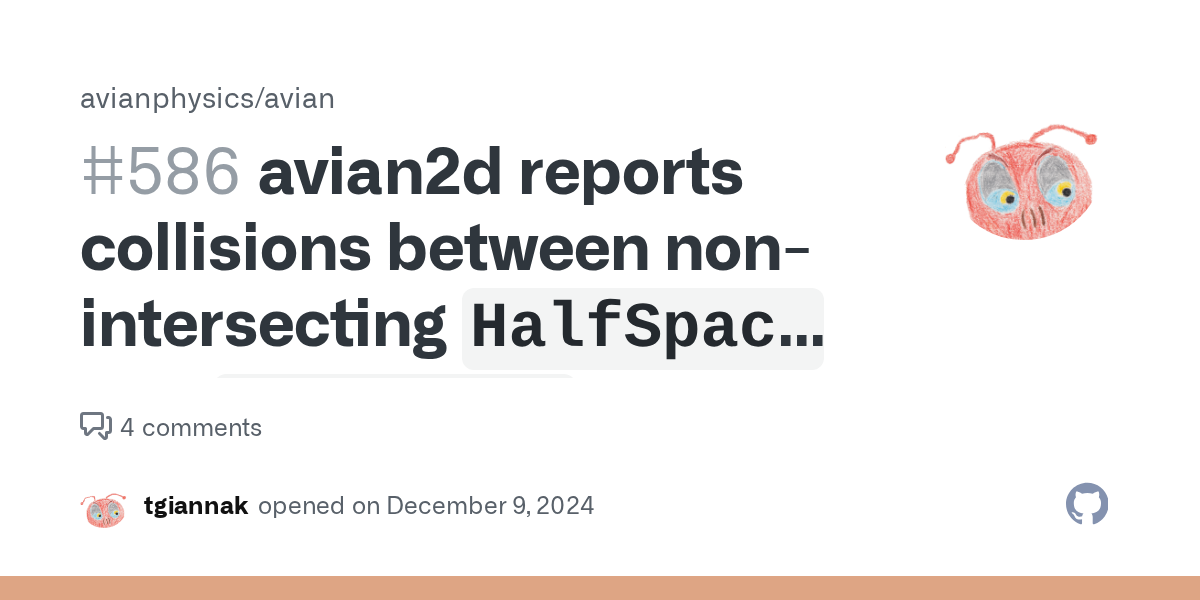

https://github.com/Jondolf/avian/issues/586

[sweet sundial]

is there a non-uniform scale on it?

is Contacts.during_current_frame handy

[deep cypress]

No scales applied. during_current_frame is always true.

[deep cypress]

I just switched to using rectangles instead of half spaces.

[past cargo]

@sleek thicket hey bro iam trying make it float but i cant for some reason, avian does not let it happens?

i tryed move the child translation first

but just the child moves up, the collider stays on same place

i tryied than move the ColliderTransform

but nops, collider transform does not move

so i need try body Position?

nvm avian does not have body position

[sleek thicket]

@past cargo all you need to do is add velocity to collider with rb

and avian does have position, but you're not supposed to change it in this case

[past cargo]

rb?

what is rb

[sleek thicket]

rigidbody

[past cargo]

but keep adding velocity up isnt a problem?

nvm it doesnt work the way i tought

[past cargo]

@vestal minnow where is the body position link you showed me?

seens you deleted

[sleek thicket]

https://docs.rs/avian3d/latest/avian3d/position/struct.Position.html

[chilly cradle]

Hey @vestal minnow, is this example available anywhere? I'm trying to do something similar and am dumb and can't find anything related to attractors in the Avian GitHub repo

[vestal minnow]

That one is the custom_collider example, though the attractor part isn't the focus of the example

[chilly cradle]

Sweet, I'll be digging into that now

[vague pebble]

@vestal minnow Mr Jondol, when you a load a scene collider from a mesh, what characteristic is usually necessary for the collider to be shaped correctly? For example, does it need UVs, tangents, normals? Or all it needs is the vertex locations

I ask because I am exporting a gltf, which it is sole purpose is to give me colliders

[vestal minnow]

Only vertices and indices are necessary for trimesh colliders since they describe the actual triangles, the rest is mostly useful for rendering

[cinder summit]

Anyone know if my estimation is correct that avian will be a pain to migrate to bevy main? 🤔

[vestal minnow]

this has a migration to an earlier version of main, relying on some local dependency patches
https://github.com/Jondolf/avian/commit/33d9f9eabad0c1762de40d90968ea39ad97631cd

not too bad, the biggest non-mechanical thing was probably needing to rework the AncestorMarkerPlugin to use just observers since HierarchyEvent no longer exists

but we wanted to do that anyway, it simplifies things and makes it more robust

I'll migrate Avian's main branch to Bevy 0.16 as soon as the RC is out, but that commit probably works as a base for now

[vague pebble]

I belive I owe you this info, when exporting collider only maps. From blender, one must have UVs and Normal options added

If it doesnt, it seens indices and vertex are not found, reason unknow

[past cargo]

@vestal minnow https://create.roblox.com/docs/reference/engine/classes/AlignPosition

https://create.roblox.com/docs/reference/engine/classes/AlignOrientation

bassicaly the way roblox works is you insert one of those on the character

with attachments

and applie the force

its good becasue

you can insert multiplie

and have forces being applied on different parts of the body

[vestal minnow]

yeah we'll most likely have a similar thing once we have joint motors

[past cargo]

wait let me shhow you a example to be more clear

xd

xd

[vestal minnow]

a lot of other physics engines have a similar feature too, for example Box2D has b2MotorJointDef and Bepu has a OneBodyLinearServo and OneBodyAngularServo

[past cargo]

about the BodyPosition, that is AlignPosition now on roblox, the idea is to make the model move for the designed position you set on it, that way we can lock the model movement, like on roblox have a lot of air combat, where you punch the enemy up and both stay on air, it uses body position to lock the Y on air, so they both can get knockbacked to the sides but stay on air on same y axis

the idea is be able to select the position you want it to move

and the forces values on each axis

so if you like set force 0 on y, it wont move the y axis

same for x and z

its very usefull

idk if you get it cause my english is bad

but i can show some examples if you want later

[sleek thicket]

that's basically a spring

[past cargo]

Wait two pings

Who did the other?

[sleek thicket]

i got confused by your LV demo

[past cargo]

O

[sleek thicket]

wiggling with a cursor doesn't communicate well what you're trying to demonstrate 😅

[past cargo]

Btw to rotate the player can I Just transform.translatio? Or i should use Psychic stuff?

[sleek thicket]

why do you need to rotate the player?

[past cargo]

?? Well Its 3D game so she should walk on alll directions lol

So I need rotate for the direciont he gonna walk

Transform.translation is fone?

*fine

[sleek thicket]

if you're rotating the collider responsible for movement you'll probably run into a bunch of bugs eventually
if it doesn't have children then it's fine, if it does then it's bad either way 😅

[surreal rune]

@vestal minnow The no_std is coming for you...

[cinder summit]

I see you started by removing the heaviest std dependency

I also love that this is now just PR 1 of bevy_heavy

[surreal rune]

Yeah I was surprised by that too lol

[vestal minnow]

not many external users for a mass property crate 😂

[surreal rune]

True, but still funny haha

[cinder summit]

@vestal minnow Is this how the example is supposed to work? 🤔

[grizzled junco]

is there example on how to use ExternalTorque? I tried to use it, but it doesn't do anything to the rigidbody.

[cinder summit]

Did this version actually work when you made it? I don't see why my changes would cause things to fall trough the floor

[vestal minnow]

I recall things generally working, but I'm not sure if I tried that character controller example specifically

[cinder summit]

Whats a good 3D example for collisions? 🤔

[vestal minnow]

cubes I guess

[cinder summit]

Oh ... It really is just the character controllers wtf 😂

[vestal minnow]

for the minimal collision setup

Or something with collider hierarchies? Since the example loads a glTF scene

[cinder summit]

That's very possible considering you changed hierarchy code 🤔

[vestal minnow]

yea that's probably the most likely thing to be broken, tho iirc tests were passing

[cinder summit]

I don't need hierarchies to work anyway, so this should be fine 😂

[vestal minnow]

Hmm I don't think we actually have an example for it 🤔 but make sure the body is dynamic, has angular inertia (if it has a collider then it should already have inertia by default), and the torque you're applying is large enough

especially if this is 2D and you're using pixels as length units, you might need some very large forces and torques for things to move

[past cargo]

doesl inear velocity doenst accept negative values?

i put z= -10 and it goes forward lol

same if i put just 10

[sleek thicket]

it does, wtf are you talking about

[cinder summit]

-10 Z is forward tho 🤔

[white garnet]

is it possible to advance simulation for a specific object only?

[grizzled junco]

i thought 1000 already large enough for it to have a noticeable movement, now i need 1_000_000 to even do a "slow" rotation (persistence false).

[cinder summit]

If you're only applying it once you're gonna need really high forces so that makes sense

[past cargo]

i mean

seens not

iam setting it positive and negative and still same direciton

[sleek thicket]

then you fucked up somewhere else, probably input

[past cargo]

well no, i tested with raw values, let me show

first test 1

second test now -1

same thing

@vestal minnow what i fucked up?xd

nvm

i think i figured out

[sleek thicket]

i facepalmed so hard when i saw it

[past cargo]

bro i was sure it was * not +

i need glasses

[sleek thicket]

you need adhd meds

[past cargo]

xd

also i notice that some bugs happens if you set linear velocity fields to 0.0 @vestal minnow

[sleek thicket]

i don't, probably something on your end... by now you can just safely assume that every problem is on your end, tbh

[past cargo]

xd

yes iam having some issues here, can be due friction?after i move and stop it start comming back very slow

[sleek thicket]

add a plain sphere and add movement to it, if you don't see the same problem then it's on your end

[past cargo]

*capsule

[sleek thicket]

capsule would fall over

whatever you're doing to keep it straight might be the reason for the behaviour

[past cargo]

i just locked the axis

LockedAxes::new().lock_rotation_x().lock_rotation_z()

[sleek thicket]

ok then capsule should be fine too

[past cargo]

want take a look on code?

can be lightyear replicating maybe too idk

https://github.com/Kevenpvp/PowerProject anyway

[sleek thicket]

it definitely makes it harder to debug, even if it's not the cause

[past cargo]

the issue was i need set the linear velocity to 0 when stops the movement @sleek thicket

[sleek thicket]

nah that's a bandaid solution

[past cargo]

i mean i realized that if i dont set to 0 the values keep changing like crazy

that maybe because lightyear replication system

[sleek thicket]

then you have something broken that does it

probably input

[past cargo]

probaly lightyear replication system

[past cargo]

hmmm

what do you mean

[sleek thicket]

☝️

[past cargo]

i mean that is not input because i dont set the linear velocity if the unit is not on walking state

i also printed to check

but i notice that the Y on linear velocity gets crazy when iam moving it

let me show ya

maybe its because its not floating xd

[sleek thicket]

walking state is when you have velocity?

[past cargo]

i made a state machine, walking states happens if the input direction x or z are bigger than 0.0

pub fn character_inputs(
    mut commands: Commands,
    mut character_query: Query<(Entity, &ActionState<CombatantActions>, &mut StatesMachine, &NetworkSide, Option<&PlayerCombatant>), (With<CharacterController>)>,
){
    for (entity,action_state,mut states_machine,network_side,player_combatant) in character_query.iter_mut() {
        if player_combatant.is_none() && network_side != &NetworkSide::Server{
            continue;
        }

        let move_dir = action_state.axis_pair(&CombatantActions::Move);

        if move_dir.x != 0.0 || move_dir.y != 0.0 {
            if !states_machine.can_execute(StatesType::Walking) {continue;}

            if !states_machine.current_states.contains_key(&StatesType::Walking) {
                states_machine.execute(&mut commands,entity,network_side,StatesType::Walking,StatesInfos{
                    start: Default::default(),
                    duration: 0.0,
                    source: Default::default(),
                    in_cooldown: false,
                    applied: false,
                    values: Some(StatesValues::Walking(
                        Vec3::new(-move_dir.x,0.0, move_dir.y),
                    )),
                });
            }else {
                states_machine.current_states.get_mut(&StatesType::Walking).unwrap().values = Some(StatesValues::Walking(
                    Vec3::new(-move_dir.x,0.0, move_dir.y),
                ));
            }
        }else {
            if !states_machine.can_execute(StatesType::Idle) {continue;}

            if !states_machine.current_states.contains_key(&StatesType::Idle) {
                states_machine.execute(&mut commands,entity,network_side,StatesType::Idle,StatesInfos{
                    start: Default::default(),
                    duration: 0.0,
                    source: Default::default(),
                    in_cooldown: false,
                    applied: false,
                    values: None,
                });
            }
        }
    }
}

[sleek thicket]

so when you release input, what happens?

[past cargo]

it execute the Idle state

i can even show ya wait a bit

see

now as i said the absurds values on Y when iam moving it

may be the reason?xd

[sleek thicket]

when adding input you run system that adds it to velocity and replicates it
when idle, you just don't replicate it
do i get that right?
you're not commenting anything so i have no idea what you're doing

[past cargo]

when you press any movement input it first check if the unit can enter on walking state, if yes it set on walking state and save the direction dir

if you stop press and movement inpu

it start the idle state

that stops the moving state

on idle state the unit doenst move with inputs

[past cargo]

but as i said, cant this be the reason?

the Y GIANT VALUE LOL

[past cargo]

yes

[sleek thicket]

isnt that 0

[past cargo]

no?

y is being big f numbers

let me show ya xd

i dont think this should be values on y xd @sleek thicket

considering iam not changing y

damm

[sleek thicket]

it's probably just 0 with floating point error

ah, i guess walking state is triggered by it so it's still a potential bug

didn't rust have a warning on comparing floats

[past cargo]

no its not, cause i put a print when its walking

cause i move the unit here

and its not printing when its on idle state

so its not it

[sleek thicket]

yep

0 FPEs to 0.0000000000000000000000000001
0.0000000000000000000000000001 != 0, so you're walking

[past cargo]

i can also check if you want the linear velocity when its on idle

let me see it

[sleek thicket]

basically you need to switch that to move_dir.length <= 0.01

or whatever the controller deadzone is

[past cargo]

hmm but you mean the move dir is wrong when iam setting it on walking?cause its not triggering walking state when i stop input

because this if seens pretty much working

let me test it

@sleek thicket yup

its not triggering the walking state

but aftr i stop walking

the linear keeps like ths

unless i do linearvelocity = 0

maybe the move dir is a very weird value

[sleek thicket]

ah fuck it's been 1 hr already

that'll be $30

[past cargo]

okie

paypal?

[sleek thicket]

i was just joking but if you're paying then i can actually go read your github

[past cargo]

xd

but yes bro, the walking state is not being triggets meaning the if move_dir.x != 0.0 || move_dir.y != 0.0 { is working , i checked with the printt

the problem is when it stops moving the linear velocity keeps crazy

until i set it 0

that can mean:
1-the capsule is not floating so maybe the values are crazy cause it
2-the move dir while waking is giving weird values
3-the y value being weird as hell is influencing the z value

[sleek thicket]

then the problem's in the branch where it's not moving

[past cargo]

i mean i dont do nothing while its not moving

[sleek thicket]

comment everything you're doing, i'll check your github next time if you don't accidentally find the problem yourself

[past cargo]

well still can be the the y weird value cant it?

or because the capsule is not floating

bro you are a goat fr

[past cargo]

@sleek thicket the problem was the Friction(|| Friction::new(50.0_f32)),

if i dont put adefault friction ,it doenst happens

[cinder summit]

Isn't friction supposed to be between 0 and 1?

[past cargo]

xd idk

[sleek thicket]

The friction coefficients should typically be between 0 and 1, where 0 corresponds to no friction at all, and 1 corresponds to high friction. However, any non-negative value is allowed.

[past cargo]

yessssssssssssssssss

this was the issue

[sleek thicket]

does friction above 1 just push you in negative direction? lmao

[past cargo]

if you dont set the velocity backs to 0 yes

[sleek thicket]

either way that doesn't sound right

[past cargo]

bt [] i think my character model seens inverse rotating, any easy way to see the look vector?

cause you guys said -z is forward

but z is being forward here xd

[sleek thicket]

it doesn't really matter

i'm using Y-forward Z-up

[past cargo]

what

[sleek thicket]

to match blender

you just have to keep in mind that for camera -Z is forward and Y is up

and X is left if i understand it correctly, idk it always makes my brain hurt

[past cargo]

lol

also friction zero means it will slide?

[sleek thicket]

yeah, unless you add damping

[past cargo]

and friction 1 = no slide at wall

[sleek thicket]

idk how often it's done but before hovering sphere i had 2 colliders, one with friction for legs and one without friction for body, i was mostly just copying wolfire's procedural animation stuff

[past cargo]

friction 1 still slide a bit lol

[sleek thicket]

https://youtu.be/LNidsMesxSE?t=209

[past cargo]

is this because the floor friction too?

[sleek thicket]

also i've never seen that before, really cool seeing the actual prototype stuff
https://youtu.be/SAtwQa8t_3g

[sleek thicket]

might be because of high speed, you want that kind of behaviour in more realistic games anyway

[past cargo]

i guess its because floor friction too, cause so far i saw slide is calculcated basaed on both colliders friction

nvm

its the high speed as f

[sleek thicket]

oh yeah you can set which one affects it

yeah you need environment to see what's actually going on

[past cargo]

i guess is the highest speedcause i set the floor friction 1 too and still the same

reduced speed to 3

and works now

slide a bit still, what is dampening as you said?

[sleek thicket]

damping just reduces velocity regardless of friction

but in this case i think you just need IK

[past cargo]

i just set the linear velocity to 0 when stop walks

[past cargo]

hmmm, how this would help me? isnt that just to make the feet animations move cool on terrain?

like to follow terrain, stairs etc

having prog

[sleek thicket]

body would have inertia without legs looking like they're sliding

[past cargo]

okie but i would need put colliders on the feets right?

[sleek thicket]

no

[past cargo]

?

but the mesh model

have nothing

its just visual

oooooooooooooooooooooooooooooo

you mean to show how they are sliding

for ppl

[sleek thicket]

???

[past cargo]

its my bad english

i understand what you mean

but my bad english kills me

well in some months you will see my combat game getting form, iam doing it like i did on roblxo a time ago @sleek thicket

iam specialist with combat and spells game xd

first time doing on bevy

wish me lucky

[sleek thicket]

famous last words xD

[past cargo]

well iam 5 years doing games xd

i have experience at least xd

[sleek thicket]

games or roblox

[past cargo]

games on roblox, roblox studio is a engine in lua

i work with it

but now iam trying make a game on bevy as hobby

[past cargo]

similar to this

combat + spells

[sleek thicket]

scripting

[past cargo]

yup

[paper maple]

Haven't read the whole conversation, but generally rigidbody colliders dont make good character controllers on their own. You need to implement specific collision handling for characters so that they behave more like legs, rather than a rigidbody

[past cargo]

Hmmm i locked two axis

And iam moving it

What more should i do?

[paper maple]

Yeah but going up slopes and dealing with un-even terrain won't work out too well (at least I didn't like it)

[past cargo]

I also now iam setting the linear velocity x and y to 0 when it stops now

[paper maple]

because normal forces and sliding, etc.

[past cargo]

What should i do mr frog

[paper maple]

Legs and walking don't behave like rigidbodies at all, so sliding a rigidbody around will always feel wrong

[past cargo]

Frog senpai

[paper maple]

Well, I've been working on a character controller in 2d. I tried Tnua which does a floating body controller, but I found it to be a bit too complicated for me. When trying to implement my own, I started off with just a rigidbody capsule as well, but ran into the numerous issues that occur when going across un-even terrain. That's about when I reaized that pedal movement doesn't really match RigidBody physics

I tried doing a circle with infinite friction and rolling that around, and that works okay

But it makes other things complicated.

So now im working on just having a capsule shape cast (I dont actually use a Shapecaster because the system ordering doesn't work out for what I want to do with it, so I do an explicit shape cast in the system I need it for) and then resolving collisions / overlaps in a way that would feel natural as a walking entity

[past cargo]

How shape cast helps you there?

[paper maple]

Because it doesn't apply any forces or anything. It just tells me where the overlaps are happening, then it's up to me to implement how to resolve it.

[past cargo]

Well you could use kinematic rigid body instead

[paper maple]

Messed around with it and I didn't end up using it. I don't reember what issues it had, but it isn't an automatic solution.

I think it was because you still dont get control over how te resolve collisions, it just forces anything that overlaps with it to get pushed out of it.

[past cargo]

So, bassicaly, rigidbodys are no good for character controllers

To be honest you could make a rigidbody static at least so others rigidbody would collide with It @paper maple

[paper maple]

U could try the Kinematic bodies and see how that goes

but defnitely not Dynamic bodies

[sleek thicket]

in robotics doing extremely simple stuff like walking turned out to be the most difficult problem to solve
character controller is robotics where you're allowed to cheat, and everyone's failing even with that

either way i took a look at battlegrounds and i'm not even sure if it's possible without dynamic rb

[paper maple]

Uh huh yeah except the people solving it for themselves haven't spent years studying the topic ? More like 2 weeks intermittently ? I'm not sure why you feel the need to be condescending

Condescending and dismissive. @sleek thicket

nice

[past cargo]

Wich battlegrounds you took a look?

[sleek thicket]

followed a link with same name from what you sent before

[past cargo]

But iam not even able to make It float with dynamic rb

[past cargo]

Roblox have default character controller called Humanoid

[sleek thicket]

yeah i know, roblox devs already figured out everything for you

[past cargo]

Yup

But yeah you cant make It fly with dynamic rb

[sleek thicket]

please don't state things you don't understand as facts

[past cargo]

Wydm

It have gravity that pushs down

Not possible lol

[sleek thicket]

do you know what gravity is?

[past cargo]

I tryed set the y to 0.5 every frame

I mean i tryed set the linear velocity y to 0.5 every frame

[sleek thicket]

not in game dev, just tell me what gravity is

[past cargo]

A force pushing you down

[sleek thicket]

ok that's good enough, so how do birds fly irl if there's a force pushing you down that makes it impossible to fly

[past cargo]

So you mean the linear velocity y need be the same force as the Gravity?

If its higher It Will fly

If its lower it wont fly

If its equall It Will float

[paper maple]

what u seem to not understand is that birds are not RIGID

[sleek thicket]

yeah, gravity is just velocity.y -= 10/s

[paper maple]

but that part only matters when they actually collide with things

[sleek thicket]

you can also just disable it altogether and apply it manually like how many games do it to make jumping/falling feel better

[past cargo]

Its possible to modify the gravity on avian? And How do i see the current amount?

[sleek thicket]

https://docs.rs/avian3d/latest/avian3d/dynamics/integrator/struct.Gravity.html
https://docs.rs/avian3d/latest/avian3d/dynamics/rigid_body/struct.GravityScale.html

[past cargo]

@paper maple i think you could Shapecast sphere down the character like 10% bigger than current Sphere, If It find some floor you Already make it up

[past cargo]

Hmm

[sleek thicket]

it needs to be smaller because otherwise it'd hit walls

[past cargo]

Btw just to make sure again, why It need floats?

Also How would i make something fly and stay on a determined y axis? Cause if the Y is much bigger It Will feep flying forever

And going up

Since there is no body position forces on avian

Or i would need make my own gravity for the character?

[sleek thicket]

it just removes some problems other controllers have like walking on stairs in just 2-3 lines of code
VVV video explained all of it, did you end up not watching it?

[past cargo]

I did my english is bad

And I forgot ir

It

Xd

Well iam gonna keep trying

[grizzled junco]

im really curious why one of my game object has (Position, Rotation) without me inserting it, but not the other

both have rb

and i think rb doesn't have Position and Rotation as its required components

[kind moss]

Looks like they're created by avian::prepare::init_transforms which looks for Added<RigidBody> so it might get skipped if you add that component after the system runs, which looks like it's in FixedPostUpdate.

[grizzled junco]

i spawned both at startup in the exact same way..

it's not really a big concern right now, but it's just annoying when i think about it

match (has_rigid_body, new_transform) {
    (true, None) => {
        cmds.try_insert((
            Position(new_position),
            new_rotation,
            PreSolveAccumulatedTranslation::default(),
            *previous_rot.unwrap_or(&PreviousRotation(new_rotation)),
            PreSolveRotation::default(),
        ));
    }
    (true, Some(transform)) => {
        cmds.try_insert((
            transform,
            Position(new_position),
            new_rotation,
            PreSolveAccumulatedTranslation::default(),
            *previous_rot.unwrap_or(&PreviousRotation(new_rotation)),
            PreSolveRotation::default(),
        ));
    }
    (false, None) => {
        cmds.try_insert((Position(new_position), new_rotation));
    }
    (false, Some(transform)) => {
        cmds.try_insert((transform, Position(new_position), new_rotation));
    }
}

https://github.com/Jondolf/avian/blob/0474c721040582caa304dc70ddce4c53faca250a/src/prepare.rs#L312C1-L338C10
also it's using try_insert but im not sure if that's actually matters

[vestal minnow]

worked a bit on Peck yesterday, got rectangle-rectangle contact manifolds with SAT and clipping working I think

now I could theoretically plug this in Avian to simulate box collisions without Parry :P

I'll test that later tho

[past cargo]

what is parry

[vestal minnow]

The collision detection library that both Avian and Rapier currently use

[past cargo]

i see

[vestal minnow]

it was built primarily for Rapier, but can be used independently

[past cargo]

pls bro make body position, will make float so much easier xd

rn i need keep controlling character gravity scale to make it float

• linear velocity y

[grizzled junco]

there's Position component though?

[past cargo]

its not body position

[grizzled junco]

what do you mean by body position

[past cargo]

https://create.roblox.com/docs/reference/engine/classes/BodyPosition

[grizzled junco]

even in that reference it said deprecated

also I'm not sure avian should add that kind of feature in the engine

not like i know avian long-term goal

[past cargo]

yes because have the new ay

https://create.roblox.com/docs/reference/engine/classes/AlignPosition

that does the same

but you can focus the point it will move

with a attachment

[past cargo]

bro

this is essential to make fly for example

[past cargo]

na bro, make it float is dumb, the math is not mathing

i will f ignore it for now until jondol make body positio

[grizzled junco]

that sounds like a game engine feature and not a physics engine feature

[past cargo]

broo

to make fly now its almost impossible with dynamic body

[past cargo]

lot of engines have this feature so wydm

[grizzled junco]

seems like i misunderstood the description

yeah that sounds useful in more cases than i thought

[past cargo]

yup

[sleek thicket]

idk if unity has it but i ended up just making it myself for grabbable objects

BodyPosition is a cursed name for that, AlignPosition is better but still not immediately obvious
if you know what it's called in other engines then link it, might be useful for future bikeshedding

[vestal minnow]

we do have a DistanceJoint which could be used for a kind of similar effect, you'd have a static or kinematic body for the target position and constraint the other body to that via the joint

not quite the same as what that thing in Roblox is though

[sleek thicket]

yeah, i think it affects rotation when pulling? idk about roblox though

oh nvm if it's not center then it does

[past cargo]

roblox to affect rotation is other stuff

called AlignRotation

[sleek thicket]

not aligning, just affecting

[past cargo]

than its AngularVelocity

[vestal minnow]

Yeah the distance joint only applies a torque if the attachment point is not at the center of mass

[sleek thicket]

like when you try to pull head to the ground, body bends over

instead of just getting stuck

[past cargo]

i mean the issue rn is not able to make character controller with dynamic body lol

its just over complicated

like

[sleek thicket]

it's 99% netcode for you

i have a floating dynamic controller with coyote time working with alignment to custom gravity working in 10 lines of code if you don't count the boilerplate and the cursed camera, but i can't send it to you because your netcode would break it

[past cargo]

o yes but on this case you are doing custom gravity

i wanted see the direction iam shapecasting

[sleek thicket]

https://docs.rs/bevy_gizmos/latest/bevy_gizmos/gizmos/struct.Gizmos.html#method.ray

i don't understand why you'd need it without custom gravity though, it goes exactly where you tell it to and you're not even changing it

[grizzled junco]

that's why i misunderstood it, bad name imo

[sleek thicket]

distancejoint isn't perfect either, assuming it does exactly the same thing

[grizzled junco]

i like Bepu's name more, but still not immediately obvious

i don't think there's a perfect name, but i just don't like BodyPosition / AlignPosition

[vestal minnow]

it's more like Roblox's SpringConstraint

or Bepu's DistanceLimit

or Jolt's DistanceConstraint :P

[sleek thicket]

@vestal minnow would splitting joints into required components make no sense?
every joint has 2 entities, 2 anchors, lin+ang damping, compliance and force, and position lagrange and exact same docs

and would distancejoint be any different from fixedjoint if making rest_length optional meant that it's same as distance between anchors?

and are you planning on turning joints into relationships

[vestal minnow]

FixedJoint aligns both translational and rotational degrees of freedom, some engines call it a weld joint

[sleek thicket]

oh, 🤔

[vestal minnow]

We might extract some shared things into their own components for the user-facing API, but many constraints have properties that can't reasonably be shared across joint types. For example for a revolute joint, you might want to configure the stiffness of the point-to-point constraint and angle limit constraint separately, and they have their own forces and Lagrange multipliers, etc.

I imagine we'll also want to have a split between the user API for joints and the internal representation, since using the ECS for solver internals isn't great for perf or determinism atm

(currently joints can cause determinism issues in some cases because of query iteration order)

[past cargo]

bro idk the math to make a capsule gizmo

[past cargo]

idk if iam shapecasting correctly to get the floor

since the parameters are very weird compared what ik

[sleek thicket]

gizmos.primitive_3d(Capsule3d

[past cargo]

like this mask stuff

its working oposite the way it should? its black list or whitelist?

cause i made the floor Default layer

and i tryed make floor on this mask

but when i do it starts ignored the floor lol

[sleek thicket]

can you read what it says in the tooltip for me

[past cargo]

Specifies which collision layers will be included in the spatial query, wich means for me it will just get stuff inside on this layer

that doenst happens

the oposite happens lol

this make me hella confused

[sleek thicket]

default is 1 so it should work.
as usual, you can safely assume it's something on your end.

[past cargo]

?

default is 0

the floor is on Default layer

[sleek thicket]

you're not using gamemask here though

and the default avian layer is 1

[past cargo]

because i cant?

[sleek thicket]

does .into() work? i don't use physicslayer at all so idk how it's done with it

[past cargo]

so how tf you get just grounds? if i dont use physicslayer it keep getting the own character

i also need get the bottom point of the character collider to calculate the floating distance

[sleek thicket]

const LITERALLY_NOTHING:    u32 = 0;
const DEFAULT_LAYER:        u32 = 1 << 0;
const FIRST_LAYER:          u32 = 1 << 1;
const THIRD_LAYER:          u32 = 1 << 3;
const LAST_LAYER:           u32 = 1 << 31;
const LITERALLY_EVERYTHING: u32 = u32::MAX;

const THIRD_MASK: CollisionLayers = CollisionLayers::from_bits(THIRD_LAYER, LITERALLY_EVERYTHING);

[past cargo]

from works dont worry

now i need get the bottom position of the collider

[sleek thicket]

you mutate everything as you iterate?

[past cargo]

to be honest i wanted to know the capsule height size

@sleek thicketi but capsule just have a .radius

not .height

nvm it have

now it make all more ez

[past cargo]

@vestal minnow something is wrong here, the floor is on transform 0,0,0, the height is 0.1, means the top of it would be y = 0.05 (that is height / 2), until now fine, but my entity collider is height 1, means to stand on top of the floor the y would need be 1 / 2 + 0.05 = 0.55, but for some reason its 0.85 to stand on top, like wtf?

or on bevy the translation is not the center?

[vestal minnow]

joints are currently solved by iterating through all joints serially, but the query iteration order can be different depending on Entity IDs (and probably some other factors) which can cause problems for networking since the IDs may not be stable across clients afaik

and different constraint solve order can result in different behavior

[vestal minnow]

the capsule radius is added to the height

[past cargo]

well but iam using capsule.height and it returns me 1

[vestal minnow]

the height is the height of the cylindrical part between the hemispheres, add 2x the radius to get the total height

so if the capsule has a "height" of 1 and the radius was e.g. 0.25, the actual full height is 1.5

[past cargo]

so the 1 + 0.3 * 2 = 1.6 height, 1.6 / 2 = 0.8 + 0.05 = 0.85

now math is mathing

[past cargo]

why this approach btw?

doenst it seens unecessary?

[vestal minnow]

There's a lot of reasons:

• Bevy's Capsule2d and Capsule3d and their meshes are defined like this
• You could get impossible configurations if the radius wasn't added. For example, a capsule with a height of 0.5 and radius of 0.3 would be invalid, since the radius would make the height at least 0.6.
• Mathematically, a capsule is often defined as a cylinder with hemispherical ends, or as a line segment that is expanded by some radius (using the Minkowski sum). With either of these definitions, it's pretty intuitive to represent the capsule with the height or length of the cylinder or line segment, and a radius.
• The representation is better for many calculations and algorithms

[cinder summit]

Pff, clearly capsules are defined as distance away from a line segment

[past cargo]

did @sleek thicket

it floats 0.1 studs

from floor

while the character model still correctly on floor standing

with dynamic body

[vestal minnow]

I think often in editors like Godot and Unity it does actually use the total height of the capsule, but it's tied to the radius so that it's impossible to get those invalid configurations like a radius that is smaller than the height

[past cargo]

okie, now i need see how iam raycasting to get the floor correctly

my plan is raycast from capsule top and goes down to get the closest floor

if the floor normal 1 is to big so its not auto step

if its small the diferecence so i auto step

well if it follows roblxo shape cast logic

it wont detect nothing that is inside the ray when its casted

so i wont have this problem

its excluded already

combatants are on a different layer

i dont want get combatants as floor lol

[sleek thicket]

is that a bad idea though

[past cargo]

i mean, i dont want ppl stand above other ppl

they should slide
