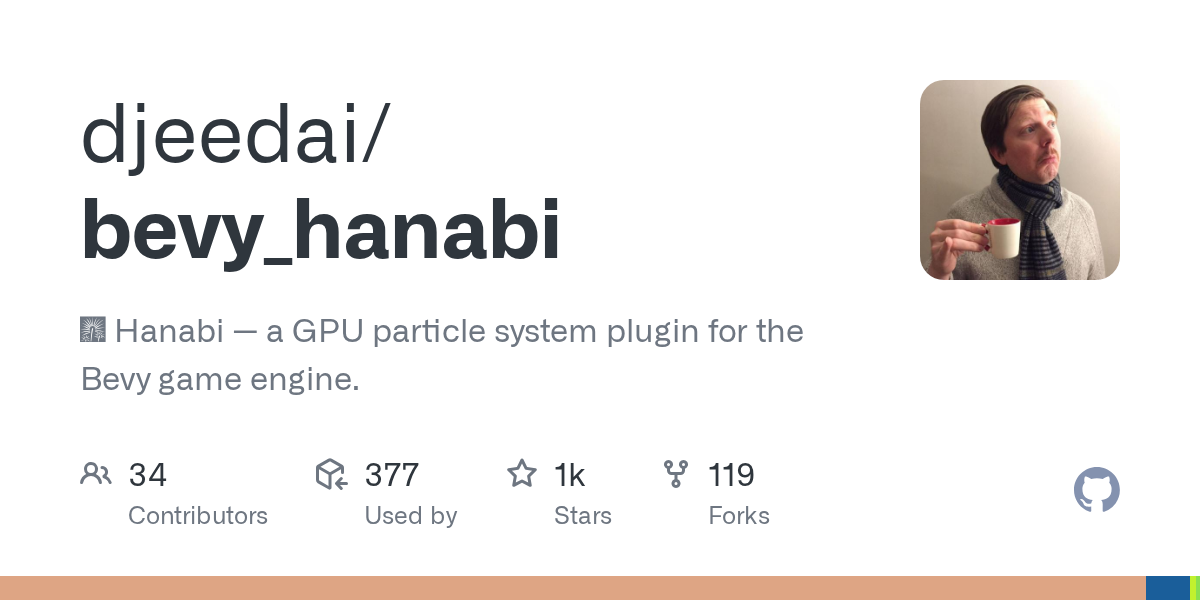

bevy_hanabi

[mild bluff]

Actually I'm not finding this field:

pub struct CompiledParticleEffect {
    /// Handle to the underlying asset.
    asset: Handle<EffectAsset>,
    /// Cached simulation condition, to avoid having to query the asset each
    /// time we need it.
    simulation_condition: SimulationCondition,
    /// A custom mesh for this effect, if specified.
    mesh: Option<Handle<Mesh>>,
    /// Handle to the effect shaders for his effect instance (one per group), if
    /// configured.
    effect_shaders: Vec<EffectShader>,
    /// Textures used by the effect, if any.
    textures: Vec<Handle<Image>>,
    /// 2D layer for the effect instance.
    #[cfg(feature = "2d")]
    z_layer_2d: FloatOrd,
    /// Layout flags.
    layout_flags: LayoutFlags,
    /// Alpha mode.
    alpha_mode: AlphaMode,
}

[native elbow]

Sorry it's on EffectSpawner my bad

Just make sure to overwrite after the TickSpawners or TickInitializers (depending on version) system set

[mild bluff]

Ah cool. I did a ctrl+f for it in the files I had open but didn't have the right one open

Whoa, so do I have to grab the EffectInitializers off my entity (which gets inserted onto it in tick_initializers)... then for each initializer that's a EffectSpawner, modify its spawn_count. And if I have to do it after TickInitializers, I have to put it in PostUpdate?

[native elbow]

Yes

[weary abyss]

@native elbow Submitted a PR for a small feature I needed https://github.com/djeedai/bevy_hanabi/pull/442

[still mirage]

Does orient along velocity work for 2d particles?

[still mirage]

i ended up writing a custom render modifier

[marsh walrus]

Is there any way to write a modifier that applies a linear transformation to all the vertices in a particle?
It seems like the Attribute::POSITION is the position of the entire particle?

[weary abyss]

@native elbow are you working on 0.16 support? it's right around the corner. no rush, just curious 🙂

[marsh walrus]

On the github README it claims that there is already support for stretching a particle alongside velocity, but I can't for the life of me find a modifier (or any other construct / function) that would let me do that.
Can anyone point me in the right direction?

[weary abyss]

You could use a SetAttributeModifier that computes SIZE2 from VELOCITY

[native elbow]

Just published 0.15 with all major changes since 0.14, still compatible with Bevy 0.15. This means now we can merge support for Bevy 0.16 to main

[weary abyss]

Thank you!

[fluid brook]

there a way to spawn particles in set positions?
I'd like to spawn them on the circumference of a circle, but not at random, more like equal distances apart

[fluid brook]

also for me, .render(ColorOverLifetimeModifier { gradient }); needs to have ..default() to work now

[fluid brook]

or possibly more simple, a way to set the seed and then I'll just manually go through and find a seed that does this xD

[native elbow]

Yes. This is in the CHANGELOG.

[native elbow]

That's an interesting one. I'm not sure there's a way to identify a particle within a single emit burst, which is what you'd need to make sure they don't spawn at the same position

There's Attribute::ID but it's not necessarily contiguous so would be hard to distribute over the circle based on that.

Although conceptually it's pretty easy to get a "spawn ID" since it can be mapped 1:1 to the compute thread. So please do open some GitHub feature request @fluid brook 🙂

[native elbow]

Didn't you have a 0.16 branch already? I thought I saw some notification, but can't find anything now

[weary abyss]

I don't

[native elbow]

Ok I'll try to have a look when I have time

[native elbow]

I have most build error fixed (not sure it's correct, but seems ok), except that all the render phase items again completely changed, so I'm going to need to dig into that and understand how to convert from 0.15 to 0.16.

[weary abyss]

Yeah, that was the main thing I knew would be an issue

[fluid brook]

it's not that I don't want them spawning in the same position, I do however want more control on where they spawn so I can have them evenly spread, and not look so random all the time.
Just being able to set the seed would be enough, since I could then go through the seeds one by one until I find one I like: and sounds like it would be an easier solution and in general just a nice thing to be able to do (if you can't already and I just don't know how)

[native elbow]

Maybe EffectAsset::prng_seed then?

[fluid brook]

yeah I tried that but it didn't seem to do anything.
I looked at a slither of a source code and it just looked like it was being passed over as 0 and then calculated gpu-side but idk

even if that's not the case yeah, I set it, ran an effect a few times and got varying results so

[weary abyss]

@native elbow btw re your comment, I was thinking the Unity exporter might want to have a "compose" feature that detects the "spawn invisible particles that then trigger subemitters" pattern and then compiles them into a single Hanabi particle effect

this would be more work, but would be more efficient and would avoid the need for on-spawn emitters

My studio's VFX artists do make particles that are not invisible and create subemitters on spawn though. So we would have to have some other solution for that. I think maybe supplying a PRNG seed as a property would suffice to ensure that K particle groups spawn N particles at exactly the same place?

[native elbow]

I'm not sure

BTW I looked at the new binning code in the Bevy renderer in 0.16, this has increased about 10x in complexity. Initial estimate is many-weeks before Hanabi can be ported. I'm even considering rewriting an entire renderer as a workaround rather than trying to understand the Bevy code.

[still mirage]

it's not compatible at all with 0.16? 😢

[native elbow]

The render items have different fields and there's no docs. Trying to reverse engineer how things are supposed to be used, and it was already quite complex for 0.15, but it's even worse in 0.16

[still mirage]

dang, maybe you could request the 0.15 -> 0.16 migration guide ahead of time, assuming they're putting that together now

[west hazel]

it's there: https://bevyengine.org/learn/migration-guides/0-15-to-0-16/

the PR that's marked as a breaking change for binning is https://github.com/bevyengine/bevy/pull/16898, any other issue that you met @native elbow ?

[graceful cape]

After upgrade to version 0.15 warnings appear every time spawner is created "Updated metadata entry 3 for effect 3871v6#25769807647, this will reset it." . What can be done to correct these warnings?

[tidal violet]

this has been forwarded to the 0.16 working group. what types specifically are you referring to?

[quasi wharf]

definitely happy to help here

[native elbow]

The render phase items like Transparent2d for example. They have multiple changes. I've looked at the PR and the code, I don't know what's going on. There's multiple levels of indirections with some new caching based on Ticks, for which I have no idea what I'm supposed to do because I don't want the renderer to cache anything, I doubt it makes any sense for Hanabi.

Release notes say to set the BatchSetKey to () so at least that's one of the info I didn't have.

There's also something about GPU culling being ON by default, I'm guessing this will have some effect and require a change because I doubt Hanabi effects can run through the GPU culling code, as they're not really mesh-based render items. But I don't know how to disable.

[native elbow]

List of issues:

• Transparent2d has new extracted_index and indexed fields
• Transparent3d has new indexed field
• OpaqueNoLightmap3dBinKey lost all its field, instead has some asset_id (???)
• BinnedRenderPhase<T>::add() has new arguments, in particular input_uniform_index and change_tick

There's a u/bevy16 branch with all the changes I could make, and the above issues unfixed, here : https://github.com/djeedai/bevy_hanabi/compare/u/bevy16?expand=1 if someone has time to have a look and understands the above?

[quasi wharf]

the required tick argument for the retained bins on the binned phase will probably the most difficult to work around in the case you don't want any caching (which makes sense i imagine for what you're doing) i think the simplest thing would just be to provide the current tick of the queueing system your in, which would effectively invalidate the bin each frame. i'll take a look at your branch later

[native elbow]

Thanks @quasi wharf! I assume this is the case indeed. I think one of the examples does something similar maybe? I saw some code fetching the system tick and overwriting each frame.

To be honest I'm not even sure whether I don't want caching because I don't know what's cached.

[quasi wharf]

basically we use the last time an entity changed in a way that would invalidate the bin key as a quick check to avoid re-building the bins. so in the fast path, let's say for a totally static mesh/material, we no longer have to re-specialize the pipeline or queue the entity into the render phase at all, because if none of the entities in the bin have changed then the bin is up to date and we can just draw it. i think this might actually make sense for hanabi? because once an effect is spawned, it's "static" relative to things that would require a pipeline change over its duration, right?

[native elbow]

Yes, but wasn't the bin used to render back to front? I'm confused what they're sorting for?

[weary abyss]

Bins were never used to render back to front

The reason why we sort is to reduce state changes by putting objects with similar vertex buffers/etc together

Just re-extract everything every frame for now. I don't expect there will be enough particle effects around to warrant retention anytime soon

[weary abyss]

@native elbow If you need to sort particle effects back to front, you should probably use a SortedRenderPhase instead of a binned one. As an added bonus, SortedRenderPhase has barely changed since 0.15 so you won't have to update as much

[native elbow]

Transparent effects use SortedRenderPhase and opaque/alphamask ones use BinnedRenderPhase

[weary abyss]

Sounds good

[weary abyss]

There aren't any docs? I added a lot of docs...

e.g. BinnedPhaseItem and SortedPhaseItem now have docs for all their methods, as does every field on BatchSetKeys and BinKeys

[native elbow]

Most docs describe what the functions are doing, which is easy to guess from reading the code. Most docs do not describe why the functions are doing what they're doing nor how you're supposed to use them.

The specialized_mesh_pipeline.rs does help a bit though. Although it's still using the SpecializedMeshPipelines so doesn't show the truly generic case where you use your own pipeline. But I guess that's more rare.

[proud basin]

how can i get different usages of the same effect to spawn in different patterns? or do i have to create a new effect every time? SetPositionCircleModifier is producing the same positions always

[weary abyss]

@native elbow The new particle events system doesn't support spawning a particle every N frames, so worms isn't the same as before.

New proposal: Could I add a burst delay so that events are emitted at a fixed rate? I need this. If yes, and the initial delay was customizable, this would make the OnSpawn condition that you don't like unnecessary, as you could just set the initial delay to 0 and the burst delay to infinity. (Also our VFX artists are using OnSpawn for other things that can't be easily replicated in other ways so I do need something like OnSpawn)

Alternate proposal: Allow events to be tied to an Attribute so that an event is emitted when the Attribute is equal to some value. Then you could write whatever logic you want.

[native elbow]

Are you talking about GPU spawn events? Because the CPU spawner does support burst rate.

I suppose we can add some EmitCondition that does emit similar to the CPU spawner, at constant rate and possibly with bursts.

I like the idea of an expression for the event condition. But I'm afraid there's some missing casts or functions to handle an integral expression. I don't like the "equal an attribute" because most attributes are floating point and that means FP equality, which is a can of worms.

Also are you reallt asking for "every N frames" and not "every N seconds"?

[weary abyss]

Yes, GPU spawn events. Every N seconds will work for me

If you think that having an expression is fine then I can implement that

[weary abyss]

@native elbow Aha, I looked up the way Unity suggests to do it: https://discussions.unity.com/t/gpuevent-trigger-once-at-birth/779939/2

It's quite simple. You just make the number of particles to be spawned in the event an ExprHandle instead of a constant. Then you can implement whatever you like.

I like this idea, it should be very simple to implement and then I won't have to bug you anymore 🙂

[weary abyss]

@native elbow Here you go. https://github.com/djeedai/bevy_hanabi/pull/444 Simple and hopefully uncontroversial 🙂

[native elbow]

Looks good but it's a breaking change so for 0.16

[weary abyss]

ok, reverted the change to the migration guide (I think that was the right thing to do?)

[weary abyss]

@native elbow Would you like help with the 0.16 upgrade? If so, is the 0.16 branch up to date with your latest work?

[native elbow]

Yes and yes. The branch runs but there's no graphics, needs to be debugged. Thanks!

[weary abyss]

@native elbow Here you go. The issues were with the visibility optimizations in 0.16 https://github.com/djeedai/bevy_hanabi/pull/445

[weary abyss]

There seems to be an issue with init_fill_dispatch_args when you have more than 2 copies of an effect. I'm investigating

The coalescing code appears to be wrong

[weary abyss]

@native elbow I've found about 3 different bugs so far with the combination of multiple particle effects and events 🙂 Working on patches for each of them

I think I know the cause in each case

[weary abyss]

@native elbow Submitted fixes for all of them: #447, #448, #449

[native elbow]

I don't understand, the ribbon.rs effect has 2 instances already and is fine. Are you saying it fails from 3 instances? 🤔

[weary abyss]

It was actually funny: in my code, I hit one bug with 1 instance (the visibility computation), then hit another with 2 instances, then hit another with 3, and another with 4 🙂

Note that the particle system in question has 3 separate particle effects, one of which emits child events. Spawning 2/3/4 copies of the whole system is what caused the problem. So it's really 6/9/12 effects that triggered those bugs.

[native elbow]

😵‍💫

[weary abyss]

@native elbow Also despawning a particle system is broken, multiple crashes. I'll investigate

[weary abyss]

The crash happens when you spawn instance 0 of an effect A, spawn another instance 1 of that effect A, then despawn instance 0

Hanabi could really use some stress testing, because just spawning and despawning 1 or 2 particle effects at once isn't enough to uncover bugs

actually using it in a game, though, with effects created by VFX artists, instantly uncovers these things

It only seems to happen with complex effects with multiple event emitters

This one is a combination of 11 different EffectAssets, which is not uncommon for things VFX artists make

[weary abyss]

The problem seems to be that the is_child_list_changed check that skips the update of CachedParentInfo is insufficient sometimes. Commenting it out makes the crash no longer happen. I suspect the problem occurs when you have parent -> child -> grandchild and despawn them in some order

[weary abyss]

@native elbow Submitted a patch to fix that issue: https://github.com/djeedai/bevy_hanabi/pull/451 I'm not completely sure this is how you wanted to fix the problem, but in any case that patch worked for me

[weary abyss]

Bad news, just hit another Hanabi crash bug 🙂

[weary abyss]

There's also some kind of rare race between mesh loading and particle loading that causes a Hanabi crash on startup occasionally.

[weary abyss]

@native elbow Another 0.16 fix for you, this time for opaque and alpha masked particle effects: https://github.com/djeedai/bevy_hanabi/pull/453

[gilded fox]

is there a built in way to make the thicker particles finish their movement before putting the other ones back in?

[junior glen]

@native elbow I've got probably very basic question after getting back into Hanabi. I've tried adding a basic effect by just copy-pasting the code from the readme into my 3D app and it looks like this:

As you can see, the big white particles work great, but for some reason, my crosshair is snowing 😅 You can see the effect towards the end

I think this may be due to me having 3 cameras active in this level?

Oh, RenderLayers, got it

[junior glen]

Another thing: when creating a new effect, I get this warning, even on the examples:

2025-04-17T23:31:31.849161Z WARN bevy_hanabi::render: Updated metadata entry 0 for effect 13v1#4294967309, this will reset it.

That's not bad, right? Seems alright that the metadata for a new effect would be "updated" and "reset"

I just wonder whether I can do anything to not have a scary warning when starting my app

[weary abyss]

This is normal

[native elbow]

Yes. The warning if I remember correctly is that due to some limitations in the implementation this can trigger at other times than when spawning the effect, and at those time it's unexpected.

[junior glen]

I suppose there is no way to silence these?

It's not a big deal, but I try to keep all warnings meaningful

[native elbow]

I'll get around to fix this. This is basically a TODO for me. I know it's confusing for users, but better that than having no info it case it causes an actual issue (which IIRC it can)

[junior glen]

thanks 🙂

[native elbow]

I also hate this kind of warning, sorry. Being a bad citizen here 😕

[native elbow]

I don't know what I'm looking at, what are the thicker particles and what are the other ones. Not sure if due to compression but I can barely see anything changing.

[gilded fox]

Nvm, I gave up on that
Thanks though

[weary abyss]

got two new effects from the VFX artists and both made Hanabi fall over

eventually we'll hopefully get to a point where I get an effect and Hanabi can actually render it without fixing bugs in Hanabi 🙂

btw, one thing I've been unsure about is the ping/pong thing... I'm not sure why that's done. Is it just an optimization to avoid reading from and writing to the same GPU memory in the same shader? I'm not convinced that actually helps on modern GPUs, and it adds complexity

[weary abyss]

Fixed one race: if the asset doesn’t load in one frame, then we can fail to load it at all in some circumstances. I’ll submit a PR once I fix the other bug

[weary abyss]

@native elbow Here you go: https://github.com/djeedai/bevy_hanabi/pull/455

I think that this will fix a lot of issues I've been hitting.

[native elbow]

No. It's because of the relaxed atomic memory model of shaders, you can't be reading from an active list of alive indices that's also being mutated atomically due to particles dying. If I remember correctly the initial design issue.

I hate it but couldn't find a better way at the time. Maybe now there's a better way though, as things changed quite a bit since this was first written.

[native elbow]

I found another stale bind group bug, which I'm not sure why worked before but started to 100% panic suddenly. https://github.com/djeedai/bevy_hanabi/pull/460

Just FYI for everyone, the plan for the next week(s) is:

• Merge the fix from Nico Zweifel (https://github.com/djeedai/bevy_hanabi/pull/457) about stale mesh references
• Confirm with @weary abyss that the fix in merged in #458 indeed supersedes the open PRs #448 and #449, and discard those PRs.
• Release 0.16.0 (still Bevy 0.15), because there's like 4 or 5 large bugs in 0.15 so it's a bit too rough, and I don't want to force people to upgrade Bevy just to get a working version. I had hoped to release a 0.15.1 patch, but unfortunately the change for the emit count as expression is a breaking change, so 0.16.0 it is.
• Merge the u/bevy16 branch for Bevy 0.16 support, with the fix from #453
• Release 0.17.0 with Bevy 0.16 support once that's available.

Alternatively I might revert #444 (GPU event count as expression) so we can do a patch release, and re-apply that change after. Not sure yet.

[weary abyss]

@native elbow Smoke test in my project suggests that #458 indeed works. Thanks!

[native elbow]

Superb, thanks for confirming!

[native elbow]

Released v0.15.1 with the accumulated fixes from the past few weeks.
#crates message

[misty aurora]

Hi,
I have some code that works on Hanabi 0.14 but fails on 0.15.1.

I am getting this error since the update

   WARN bevy_ecs::world: error[B0003]: /home/lyndonm/.cargo/registry/src/index.crates.io-1949cf8c6b5b557f/bevy_hierarchy-0.15.3/src/hierarchy.rs:49:19: Could not despawn entity 263799v4#17180132983 because it doesn't exist in this World. See: https://bevyengine.org/learn/errors/b0003
    at /home/lyndonm/.cargo/registry/src/index.crates.io-1949cf8c6b5b557f/bevy_ecs-0.15.3/src/world/mod.rs:1532

   WARN bevy_ecs::world: error[B0003]: /home/lyndonm/.cargo/registry/src/index.crates.io-1949cf8c6b5b557f/bevy_hierarchy-0.15.3/src/hierarchy.rs:49:19: Could not despawn entity 263800v1#4295231096 because it doesn't exist in this World. See: https://bevyengine.org/learn/errors/b0003
    at /home/lyndonm/.cargo/registry/src/index.crates.io-1949cf8c6b5b557f/bevy_ecs-0.15.3/src/world/mod.rs:1532

   WARN bevy_hanabi::render: Updated metadata entry 0 for effect 267754v86#369367455210, this will reset it.
    at /home/lyndonm/.cargo/registry/src/index.crates.io-1949cf8c6b5b557f/bevy_hanabi-0.15.1/src/render/mod.rs:4078

   WARN bevy_hanabi::render: Updated metadata entry 1 for effect 267755v1#4295235051, this will reset it.
    at /home/lyndonm/.cargo/registry/src/index.crates.io-1949cf8c6b5b557f/bevy_hanabi-0.15.1/src/render/mod.rs:4078

Screenshot is the diff of my changes in making the update

What I have working in 0.14 its a little energy beam sent from sun to planet.

[native elbow]

The error you pasted says you're (or Hanabi? Can't tell from the logs) trying to despawn an Entity that doesn't exist. Unless there's a callstack pointing to Hanabi, this looks like a user error unrelated to Hanabi.

And the code you pasted is about spawning so I don't see how it's related to the error, as that code shouldn't trigger any Entity despawning.

[junior glen]

to expand on this, replace despawn with try_despawn to fix this

[native elbow]

Well yes, kind of. It sure works around. But that doesn't change the fact the code pasted above spawns a new VFX, so I don't see how it's related to some despawning error? 🤔

[junior glen]

yeah fair enough

[misty aurora]

Is the metadata error unrelated to Hanabi?
I think I can figure out the despawn error but the metadata one seems to be for different entites.
I assume thats the one thats actually breaking my animation.

[native elbow]

Ignore the metadata warning. And it's a warning not an error.

It simply says the data for that effect was re-uploaded so that will reset the effect. That's perfectly normal on spawn. It can lead to artifacts if you get that later on an already spawned effect. Unfortunately this requires a bit of a design change to fix, so I left the warning for now.

[misty aurora]

Thanks knowing that metadata is not important is helpful

[ember pumice]

Popped in here just to check on that haha

[gilded fox]

How close is hanabi to having a bevy 0.16 version?

[white siren]

it already compatible with bevy 0.16
bevy_hanabi = { git="https://github.com/djeedai/bevy_hanabi", branch = "main" }

[gilded fox]

Thanks!

[native elbow]

I didn't publish to crates.io because after removing the bevy_egui dependency from examples (due to licensing question), and simplifying the examples to just depend on all Bevy, it appeared that there's a couple of artifacts in examples, I assume due to the fact depending on Bevy entirely changes the timings etc. in the frame. Now, I suspect those are the same issue(s) already logged for some time, so not really a regression, but I didn't have time to investigate I didn't want to add some approval seal by publishing when I know there's issues.

As said above, workaround is to depend on git branch main for now.

[junior glen]

could you link to the licensing question? I'm curious

[native elbow]

https://github.com/vladbat00/bevy_egui/issues/379. but don't read too much about this mention, this was just a trigger for me to finally review usage of examples, the real issue is the bugs in Hanabi.

[junior glen]

I see! Thanks for the interesting read 🙂

[junior glen]

Also, that explains why I’ve seen you run into multicam bugs lately 😄

[gilded fox]

Understandable

[gilded fox]

Thanks for exposing a public version despite it all (I do love em particle effects)

[simple falcon]

I'm new to playing with 3D particles. Does Hanabi let me calculate if a particle collides, or at least gets within a certain radius, of another entity? I've been recreating fps weapons, and am currently working on a flamethrower.

Never mind. I just saw that that's a feature that's still being worked on, according to the README.

In that case, anything I can do to help?

[true kayak]

I have a basic bevy_hanabi question: I want to spawn an effect everytime there is a collision. I can spawn a new effect with a handle, but it does not appear there is any kind of built-in "effect lifetime" to cleanup old effects. should I manually despawn the old entities? ( doesnt seem to be mentioned anywhere and seems important)

There is a sample spawn_on_commands.rs, this seems to reset effect_spawner ... not sure is this effect specific or some kind of global effect spawner. Thanks for any insight

I think this is resetting that specific effect entity - which should work for my needs - will give that a try 🙂

[native elbow]

Efficient particle collision is a complex topic. The two most common solutions are simple analytical geometry only (e.g. a box) which is quite limited, and depth-buffer based solutions, which also have issues. I’d like to try the later but I don’t even know at the minute where/how to grab that depth buffer from Bevy, and it might require changing the order of some Hanabi passes etc. which is a bunch of work unfortunately.

[native elbow]

That example has a major limitation: you can’t spawn more than one burst per frame. If you need more, others have used effect pools: allocate a few effects, hide them, and take one from the pool when needed, then put it back. It’s a bit of bookkeeping work but as far as I know is the optimal solution in terms of performance and GPU resource usage.

The reason it’s optimal is that the effect instances in the pool retain their GPU allocations, pipelines, shaders, etc. So there’s close to 0 cost just in-hiding one. As opposed to spawning a new entity and component, where Hanabi has to redo all the work of allocating various caches etc. for that instance.

[fluid brook]

how can I get a new particle effect to spawn particles randomly?
Right now every time I fire a bullet, a spawn an entity with ParticleEffect::new(effect_asset_handle.clone())
the effect itself then spawns 10 particles once with SetPositionCircleModifier, but they're always in the same position.
is there a way to get them to spawn randomly each time?
I'm pretty sure I had another project where they did but I was reusing the same ParticleEffect with reset() - is making a new ParticleEffect each time just a bad idea orrr

[fluid brook]

okay yeah spawning a new particleeffect each time lags the game pretty fast

[native elbow]

There were changes to the PRNG recently. If I recall correctly there’s a seed field on the effect? Set that to a random value

[fluid brook]

there is on the effectasset, but that'll make it the same every time no?

[native elbow]

CompiledParticleEffect::prng_seed

The component is on the same entity as the ParticleEffect

[fluid brook]

oh I checked that but couldn't find a way to set it

[native elbow]

Yes, the asset field is copied to the CompiledParticleEffect by default

Oh sorry it’s private indeed. We shoudl fix this

[fluid brook]

it's not a big deal anymore since I've added multiple particle effects so it's harder to tell now
I also stopped spawning a branch new entity with ParticleSpawner on it, and instead added some child entities with the spawners on them and it's no longer lagging surprise surprise xD

less laggy we'll see

[native elbow]

I have a fix in https://github.com/djeedai/bevy_hanabi/pull/473

[gilded fox]

What could cause a specified lifetime to... not work at all?

Here's a gist of my function:
https://gist.github.com/Rabbival/8d66f356db98c9b05a7eb3ee1f77a903

I can't for the life of me figure out what's wrong with it (been trying to figure that out for the last 5 hours or so)
The consts:

pub const GOLDEN_WASTE_PARTICLES_SPAWN_RADIUS: f32 = 12.0;
pub const GOLDEN_WASTE_PARTICLES_PER_CARD: f32 = 16.0;
pub const GOLDEN_WASTE_PARTICLE_SIZE: f32 = 8.0;
pub const GOLDEN_WASTE_BURST_DURATION: f32 = 0.2;
pub const GOLDEN_WASTE_PARTICLES_LIFETIME: f32 = 0.4;

(I don't think it matters really but maybe I did something illegal and didn't realize?)

[fluid brook]

what is happening

[gilded fox]

Oh sorry yea

😅

They won't despawn

Like, the lifetime feature doesn't work

[fluid brook]

what's maxparticles

[gilded fox]

1024

I didn't think I should set it because it worked for other particle effects by just setting the lifetime

This is a valid solution though I guess

Thanks

[fluid brook]

wait what, what solved it

what just happened xD

[gilded fox]

lmao

I don't know if it would solve it because it's still compiling but I assume if the max particles is set to the number of particles in the burst then

oh nvm that wouldn't help at all

sorry my brain is tired

been working on it for a few hours now

(I'm trying to make them despawn so that they won't live beyond the rectangle)

[fluid brook]

if you use below it works I think

    let mut colour_gradient = Gradient::new();
    colour_gradient.add_key(0.0, Vec4::new(0.75, 0.35, 0.0, 0.5));
    colour_gradient.add_key(1.0, Vec4::new(0.75, 0.35, 0.0, 0.5));
   ...
    .render(ColorOverLifetimeModifier { gradient: colour_gradient, ..default() })

if that does fix it and in case it's not been reported already - @native elbow

[gilded fox]

Giving it a try in a moment

Compiling now, it'll take a few minutes
If it works that would make sense, I think the only difference between these particles and the others is that this is the only time I didn't change their colors

That did it! Thanks a lot!
@fluid brook

[native elbow]

lifetime doesn't work without age. if nothing adds the Attribute::AGE, then there's nothing to compare the Attribute::LIFETIME to.

[gilded fox]

So I should add an age attribute manually

[native elbow]

Normally it's added by default I think but it's possible to not have it. Look at trace-level logs there's a line showing the layout of your particle effect, something like (+0) age, (+4) position, etc.

[native elbow]

Try it, and see if that works. There's a good chance yes

[gilded fox]

Alright
Thanks!

That did it!

[native elbow]

Yeah, I think I've hit that one in the past.

[gilded fox]

One of the problems of the support channel being under ecosystem-crates is that there's no way to search things specifically for hanabi
At least I didn't find one

[native elbow]

It's a bit annoying because AGE without LIFETIME can be useful, but LIFETIME without AGE rarely, and in both cases for other things than just particle death. But for particle death itself, you need both, or at least ideally we'd need AGE alone (with a fixed lifetime shared by all particles; not implemented). But in all cases LIFETIME alone won't do anything for particle death.

[gilded fox]

I did try looking for related past issues and didn't find any

[native elbow]

I don't think there is.

I hit that myself on an example I think while developping.

There's probably an example comment somewhere mentioning this, but that's not super clear I agree

[gilded fox]

Interesting
I did take a look at the crate's code but it's too advanced for me to grasp haha

I should take this opportunity to thank you both for making and maintaining the crare and providing constant support on this channel

Like

Honestly my game wouldn't look as good without it

[native elbow]

Thanks!

[gilded fox]

look at em go

[gilded fox]

I'm trying to make it add an age attribute when lifetime is added but age not
However
Whenever I cargo test the IDE crashes

[gilded fox]

I did manage to run the attributes tests
I don't see why it should effect anything else but it might be worth running all the tests if you can
https://github.com/djeedai/bevy_hanabi/pull/474

[native elbow]

I'm not convinced that we should do that

[fluid brook]

how come?

[fluid brook]

also have you tested to make sure that Age isn't added twice if you add lifetime and coloroverlifetime etc
I've never done anything with the crate so no clue if it's even possible but

[gilded fox]

Why not?
I mean, it would prevent future bugs and why would anybody want to have lifetime without age?

It still lets you have age without lifetime

I tried to make it like a required component, added automatically but not coupled

[gilded fox]

If it already has an age, no other age is added (there is no test for that but I checked it with logs)

[native elbow]

Because (at least I thought) there's already a way to enable/disable aging (AGE += dt) and reaping (alive = AGE < LIFETIME), similar to what Unity is doing : https://docs.unity3d.com/Packages/[email protected]/manual/Reference-Attributes.html#age-lifetime-and-alive
And so the attributes themselves shouldn't depend on each other and control those things, otherwise it's confusing there's 2 sources of truth for the same thing. And if you disable reaping, then LIFETIME adds AGE for nothing, and you waste GPU RAM.

[gilded fox]

I mean, it adds age 0 so that lifetime would have a meaning

I'm not sure what reaping is, but if you don't need age then you don't need lifetime either

Anyway, I thought it might be good to prevent future bugs but in the end of the day it's your crate- do what you feel is right

[fluid brook]

if there's a way to use lifetime without age (like an actual use case) then yeah sure I get it, I just didn't know that existed

[native elbow]

The real issue is that now the aging and reaping are auto-decided based on the presence of attributes or not. This is highly confusing because e.g. removing a ColorOverLifetimeModifier attribute, which is supposed to only change the rendering, now suddenly breaks the effect or not depending on whether another modifier has added the AGE and LIFETIME. This kind of random side-effect changes are very hard to understand. Instead the Unity approach makes more sense: if you want aging/reaping, just configure your effect for it. And then, that in turn will add the required attribute(s).

[gilded fox]

I'm trying to figure out how to make a "slow motion" effect for the particles. Since I couldn't find a way to manipulate delta_time, I figured I should use AccelModifier::via_property() but couldn't find an example as to how it should be used. I did see in the examples that properties can be set by their name, but I'm missing this one last step to connect these two ends (meaning, enabling setting the accel modifier after the effect has been created and spawned)

[gilded fox]

I just realized I'll also have to change the AGE report
So I probably have no way around changing delta_time, if that's even possible

[native elbow]

Do you slow-mo only particles or all game?

I never tried, but whoever contributed the latest time changed added some Time<EffectSimulation> so if you mess with that clock, and in particular its relative speed, I think this should work

There's a set_relative_speed() impl from the EffectSimulationTime helper trait which allows changing it

So something like time: ResMut<Time<EffectSimulation>> and time.set_relative_speed(0.2) for 20% speed

[gilded fox]

The goal is to slow down the entire game, I only have the particles left (everything else slow downs on demand)

[native elbow]

This is a bit unexpected because Time<EffectSimulation> is based on VirtualTime so should slow down with it

[gilded fox]

Legendary

[native elbow]

Unless you're not slowing down VirtualTime? But you probably should impl slow-mo that way

[gilded fox]

I don't, different elements use different time scales

[gilded fox]

That should do though

Thanks!

[gilded fox]

I couldn't find a way to scale the time for a single particle effect (it seems that the one you linked slows them all down)

(That's still better than nothing
Thanks)

[snow cedar]

hi, is there a way to change the particle from a square to a circle?

nvm i figured out with the round modifier

[snow cedar]

how would i extract just the xyz from a VEC4F?
my usecase is to do something like https://github.com/djeedai/bevy_hanabi/issues/259, but only interpolate the alpha from original to zero

i tried the following:

    let color = SetAttributeModifier::new(
        Attribute::COLOR,
        writer
            .prop(color)
            .cast(VectorType::VEC3F)
            .vec4_xyz_w(
                writer.prop(color).w()
                    * (writer.lit(1.)
                        - (writer.attr(Attribute::AGE) / writer.attr(Attribute::LIFETIME))),
            )
            .pack4x8unorm()
            .expr(),
    );

[snow cedar]

i found an ugly solution:

let color = SetAttributeModifier::new(
        Attribute::COLOR,
        writer
            .prop(color)
            .x()
            .vec3(writer.prop(color).y(), writer.prop(color).z())
            .vec4_xyz_w(
...
``` But I think there should be those swizzle functions that wgsl offers, like writer.prop(color).xyz()

[native elbow]

Yes feel free to open a GiHub issue. Swizzle are annoying to implement because of the large number of combinations to support, but I appreciate they’re quite useful.

[waxen kettle]

So I have found that the wasm target disclaimer here is not entirely accurate, it's not that the serde library itself does not work in wasm, but rather that the Hanabi + Serde libraries together cause problems.

I mention this because I use the serde library to load my levels at runtime on web and I had never noticed issues before.

I am building using target wasm32-unknown-unkown and I only run into issues later when running wasm-bindgen

[native elbow]

The disclaimer doesn’t say the serde library doesn’t work in wasm. It says the typetag library doesn’t, which was true at the time of writing but apparently is now available, although I didn’t try since someone pointed that recently. Nevertheless, using typetag in wasm requires extra setup, so technically out of the box that disclaimer is correct.

[waxen kettle]

Hmm maybe I will try to mess around a bit more with it then, the compilation step seemed to work well only the wasm-bindgen command would actually fail with something within Hanabi

[native elbow]

bindgen usually fails on mismatching version. Bevy itself requires a very specific version, it’s possible it changed in 0.16 and I didn’t update Hanabi for it

[junior glen]

@native elbow nightly is telling me this

looks like something just became a new warning

It says // to_bits() can't be const, but it looks to me like that is not the case? https://doc.rust-lang.org/std/primitive.f32.html#method.to_bits

[lament basalt]

hello! I'm not in the loop atm, but I don't see an issue, so hopefully it's my fault. I cannot get bevy_hanabi to run with webgl:

thread 'main' panicked at /home/main/.cargo/registry/src/index.crates.io-1949cf8c6b5b557f/wasm-bindgen-wasm-interpreter-0.2.100/src/lib.rs:245:21:
bevy_hanabi::modifier::accel::_::__ctor::hfb9b1f61ac6430ce: Read a negative address value from the stack. Did we run out of memory?

I've only cloned the bevy_new_2d template, enabled bevy/webgpu, and added the plugin to App. Let me see if I can publish this rq

https://github.com/dsgallups/test_wasm_hanabi

I guess I assumed that wasm support was available, due to this https://github.com/djeedai/bevy_hanabi/blob/d65cd725f25b20122c926b585d374ad91a404319/docs/wasm.md, linked from the readme. Thanks 😄

[waxen kettle]

@lament basalt I also couldn't it could be related to this

[lament basalt]

ah, ok..this might be a quick fix

ill check it out

immediately seems they depend on the semver minor

[lament basalt]

the latest release I see for wasm-bindgen is still 0.2.100, so honestly I have no idea..

note that bevy_hanabi depends on 0.2.100

main@main-desktop:~/repo/bevy$ wasm-bindgen -V
wasm-bindgen 0.2.100

hasn't been updated in 5 months

[waxen kettle]

I could get it to work without my toml plugin enabled, which includes serde and serde_toml. Separately they both work but together I get the same error as you. Didn't have much time to look other than that, just disabled particle effects on web builds.

[lament basalt]

yeah, prolly will do that as well

[junior glen]

@main wagon ^

[gilded urchin]

Hello!
I'm encountering an issue where for the very first particle effect I spawn after game startup as an entity, it doesn't have any visuals.
From the 2nd one it works as expected then. It's always just the very first entity, even if I use a different EffectAsset.

Does that sound familiar to anybody? (on bevy 0.15)

[junior glen]

Ha, @main wagon and I have the exact same 😄

On Bevy 0.16

[main wagon]

Maybe we could do a hack where we just spawn the effect at startup offscreen somewhere lol

[gilded urchin]

Ah interesting 😄 yeah I was considering that as a workaround actually. But wanted to check if I'm maybe missing some loading or init call somewhere 🤔

[junior glen]

good to do that anyways in order to precompile shaders FYI

[remote ice]

Does it sound familiar? Yea, I had pretty much the same bug in my game which I last ran on 0.14 ... I thought djee and pcwalton already found the source of it though 🤔

[junior glen]

FYI @lament basalt I got bevy_hanabi working on Chrome + WebGPU

If you tell me your error I may be able to help

[lament basalt]

@junior glen it's this one across mac and linux

that's really great news

[junior glen]

oh heck I didn't get that one, sorry 😅

Did you make sure you're not pulling in serde?

cargo tree -i serde

[lament basalt]

the only thing sthat depend on serde are bevy crates

but ive disabled so many features

[junior glen]

[lament basalt]

really bare to the bone yknow

im gonna see what your features are rq

[junior glen]

https://github.com/Bevy-Jam-6/boomchain/blob/main/Cargo.toml

We don't even disable anything

[lament basalt]

i temporarily stole ur blood spatter

oh

wait fr

[junior glen]

Welp

[lament basalt]

like, just for reference, bevy_hanabi's own wasm examples

do not compile

the whole .sh in the root

not one of them generates js bindings

I tried on both mac and linux

[junior glen]

The repo has deny(warnings) and nightly introduces some new ones FYI

Did you run into that?

[junior glen]

^

[lament basalt]

no, just the same error. it compiles but no bindings

sorry, the whole time i meant

compiles fine. bindgen panics

[junior glen]

that's so weird

[junior glen]

Dunno if this helps, but I'm on 0.2.100

Maybe you can get the CI to run bindgen?

[lament basalt]

yeah...ill try a runner next

but i wouldn't be surprised if like, it runs

I see it fails in the browser, and you see the same test succeeds

[junior glen]

Hmm I see

[lament basalt]

😆 i wouldn't be surprised

but since you can get it to work...

I know it's possible

[junior glen]

We are still trying to get our thingy to get deployed, so we are in this together 🤞

[lament basalt]

you can get it to work right

[junior glen]

At least locally

[lament basalt]

just wanna make sure

ok awesome

thanks

[junior glen]

Okay, there is a but

on my Fedora, WebGPU only uses the CPU and not the GPU

Dur to a known bug

So idk if it actually actually runs when using a GPU 😬

[lament basalt]

that's a W nonetheless

[junior glen]

Yeah at least the particles show up in my browser

[lament basalt]

@junior glen I think I might have to move forward and figure out this hanabi deal 😆

these gibs and ConvexDecompositionFromMesh fail the stress test

or...i could write a queue and kick out gib pieces early

[junior glen]

Woah that looks cool!

[junior glen]

What’s the issue?

FYI, colliders made from meshes are cached on Avian main

[junior glen]

If the issue is that the gibs are hurting performance, I have a DespawnAfter(Duration) component on them that despawns then after a few secs

[lament basalt]

same! I think I covered all the checkboxes here...actually, I spawn a scene root once the gib scene is loaded, and one-by-one take the mesh, collider, and global transform out of the scene's children until it's empty, cache it in a resource, and despawn the scene

and the despawn time is 3s

I'm not exactly sure what's killing the performance here, need to investigate

🤔

[junior glen]

We don't even cache them manually

we just spawn and despawn them

[junior glen]

what if you use a convex hull?

Let's switch to #1124043933886976171 😉

[lament basalt]

someone commented and found out the problem

https://github.com/djeedai/bevy_hanabi/issues/477#issuecomment-2952598030

didn't realize serde was in the list of default features, can't beliee I fked that

[junior glen]

Ah, that explains it! We only used the 3d feature from the get-go 😅

[weary abyss]

I'm running into some performance problems, even ~250 concurrent particle systems are enough to bring my 4070 to its knees and that shouldn't happen

250 drawcalls isn't much

I could start aggressively trying to reuse particle systems but that's a pain and I'm going to see if anything jumps out in the profile.

I mean, I guess it'd be better to implement batching in Hanabi, but I'm really suspicious because a 4070 should be able to handle 250 drawcalls no problem.

[weary abyss]

It seems to be what I was afraid of: the lack of batching results in overhead that's just too high. We need to batch dispatches and use multidraw in the render phase.

[weary abyss]

@native elbow (no rush in responding) Looks like the first step is going to be to use the Bevy offset allocator to pack the data for copies of a single particle effect asset into a single buffer. Does that make sense to you?

Just wanted to get your sign off before I start implementing

[native elbow]

Yes, it’s the batcher that you removed with particle groups essentially 😉

[native elbow]

We did, 99% sure it’s the various GPU resources, notably pipelines, which take multiple frames to compile, and so for burst effects the burst has already passed by the time the pipeline is ready. I talked with the Bevy rendering team, they have the same issue with various resources like meshes. It’s quite hard to solve. Plan is to start exposing the state of the pipeline at least so we can tell the user when the effect is ready. But really this is just a more robust version of “spawn in the background in advance”, which is the recommended workaround for now.

[weary abyss]

Oh, looking through there's a lot of support code for batching already, yay

[native elbow]

Yes. Which makes it harder to surface the status of an effect because there’s not a 1:1 direct match between effect instance and pipeline, due to this layer of abstraction intended for batching.

[weary abyss]

Makes sense. I'm working on fixing the code that tries to store multiple effects in a single buffer. I'll go ahead and submit that when I'm done and leave actually turning on batching to a followup, in order to make things easier for you to review

@native elbow On a positive note, aside from the performance issues from lack of batching, Hanabi's feature set has definitely been suitable for production quality VFX at my studio

I probably have a good 2/3 of Unity's legacy particles engine replicated in Hanabi at this point

[weary abyss]

Looks like I've got that code fixed modulo a few edge cases. Wasn't too hard.

I think there will be 3 PRs:

1. Multiple effects per buffer (hopefully today)
2. Batching for init & update, via binary search to find the spawner and effect metadata for the current instance
3. Batching for render via multi-draw indirect

[weary abyss]

@native elbow Working on moving sorting before batching as your comment suggests.

[weary abyss]

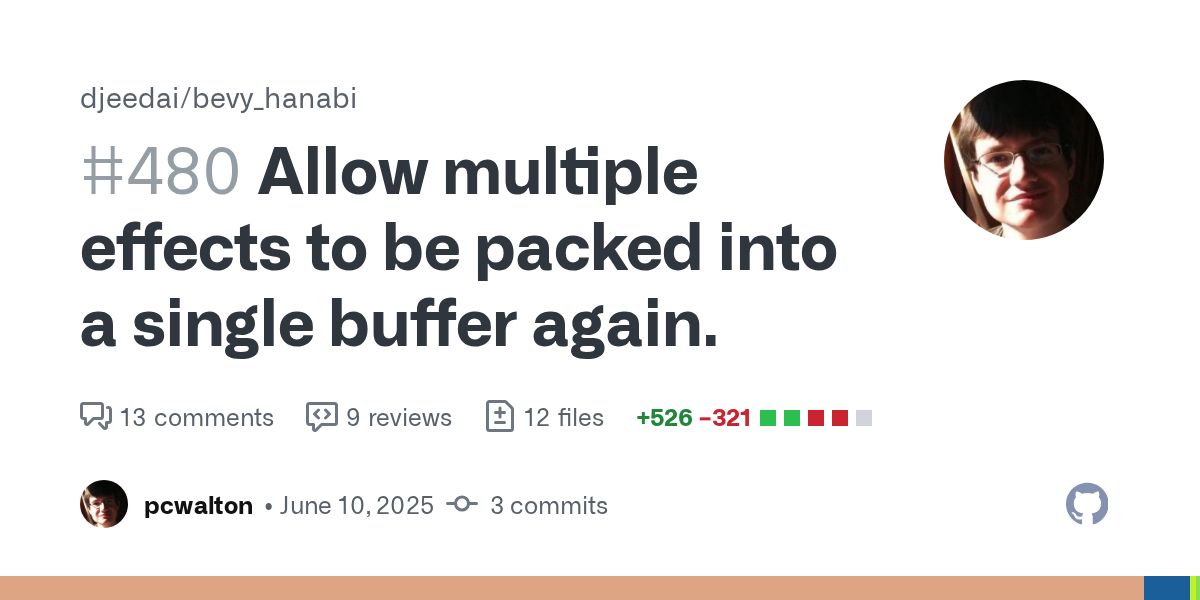

@native elbow Here you go, multiple-effects-per-buffer plus sorting rewritten as you suggested. Batching should hopefully be straightforward on top of this. https://github.com/djeedai/bevy_hanabi/pull/480

[bright parrot]

#showcase message

[weary abyss]

@native elbow no rush, but do you know when you'll get a chance to look at the that PR?

[native elbow]

I had a look but it's so easy to break everything that I will need to pull it and run and debug carefully, I can't just look at the code in the PR.

[weary abyss]

OK

[weary abyss]

@native elbow The ribbon example works for me, oddly enough.

[native elbow]

It looks like it works most of the time, just because you're lucky. See the review, there's at least 2 different bugs in the sorter.

More generally I'd rather:

1. we add more tests rather than remove the existing ones
2. we split individual changes; the PR is 1) adding metadata to render pass, 2) adding a new sorter, and 3) merging effects into a same buffer. Those things can be reviewed separately (I believe 1) is OK to merge, but 2) is broken, and therefore 3) can't be merged)

[weary abyss]

@native elbow can I add proptest?

[native elbow]

I don't know what's "proptest"

[weary abyss]

Randomized testing crate. Good for CS-y algorithms like topological level assignment

Also, do you want me to split up the PR, or keep it as it is and just fix the bugs since you already reviewed it?

[native elbow]

It's fine as it is now

[weary abyss]

OK. I'll fix the topological level assignment (it needs a separate pass to assign the levels, trying to assign the levels as it goes was too ambitious), flip the ordering, re-add the tests, and smoke test all the examples

on macOS and Windows

[native elbow]

I'm not sure about proptest, I don't like adding dependencies I don't know, it's random external code compiling inside everyone's own code. I don't think it's necessary for that single example. Most missing tests are not around algorithms they're GPU things. In fact the issue here is that there's no GPU test to catch this (same for the property layout bug I'm working on).

[weary abyss]

OK, I'll leave it out

[native elbow]

Thanks

[bright parrot]

You should check out proptest just for future reference though, it's an invaluable testing strategy! It's quite similar to fuzzing in a lot of ways:
https://crates.io/crates/proptest

[errant crane]

Is there a way for repulsor/attractor to use a relative coordinate frame and not global? Eg I have an effect that is childed to my character, but I want the attractor/repulsor to also follow the character.

[native elbow]

You can use local space simulation or move the attractor location with a property

[errant crane]

What is the status of the Node + Graph implementation (any eta or list of work to be done there)? Editing effects by hand and recompiling is a pain, i was thinking about making an editor and saw the Node API stuff, but it seems incomplete.

[junior glen]

@errant crane fyi

[errant crane]

Yea I saw it, from what I can tell in the video, you can't actually edit or build anything yet, and it's yet to be shared, but I am hoping!!! Or wishing to contribute. Also I think it's 2D, i'm after 3D, but I assume that bit will be easy to add.

[wide cloud]

Probably one or two steps away from having MVP working. Most of basic widgets should be done.

I'm using pretty old versions of Bevy and Hanabi, but maybe we can figure out later how to make it compatible wit newer versions: #showcase message

[errant crane]

Gotcha, I recently just myself moved my project to 0.16. Let me know when you have something! I'd be happy to help port it forward and test and contribute

[errant crane]

I am a bit lost on how I could make something like lightning. My thought is a low spawn rate with small init position variance and ribbons between each particle while the entity moves forward at a high rate. But as far as I can tell it looks like ribbons are a second particle system that just tracks another one. Is there a way to have ribbons between each particle in 1 system?

[weary abyss]

@native elbow Got another PR ready for you when you get a chance. This one builds on my other one and knocks another roadblock that was blocking reenabling batching out of the way https://github.com/djeedai/bevy_hanabi/pull/487

I think I'll need another PR after this one for properties before I can reenable batching.

[wide cloud]

Happy to announce that Drakkar VFX – Jarl's editor for particle 2D effects is now open source! 🎆 ⛵

https://github.com/jarl-opensource/drakkar-vfx

[remote ice]

Is there a recommended way of working with bevy_hanabi now that's not writing code? The effects have gotten even worse to write as code compared to my old bevy 0.14 code 😅

[tidal violet]

What is this UI written in?

[wide cloud]

gpui https://www.gpui.rs

[tidal violet]

It looks pretty good

How is using it?

[rich niche]

It would be even more awesome if it supports higher versions of bevy and hanabi

[wide cloud]

Mostly pretty straightforward, although there was some initial cost of building basic components like text input, button etc. The only problem I didn’t figure out is how to embed bevy window into parent gpui window.

[wide cloud]

one day 🙂 but also – PRs are always welcome

[rich niche]

Why placing a SetVelocityCircleModifier in the update section produces a problematic wgsl code, where transform is not defined? And I wonder if there are any ways to solve this problem.🙏 (Notice the function set_velocity_circle_xxx)

[remote ice]

So I seem to have two "fun" issues:

1. Sometimes vfx will just play completely random effects instead (only on main)
2. Whenever I set a texture on a vfx, the particles disappear, if the texture is gone they show up as squares as expected (latest release and main when it doesn't do 1)

I also had another issue but that seems to have been fixed on main already, where you can reference attributes that then get optimized out as unused and thus give shader compile errors

As for 1, it feels like it is just mixing the effect it should play with whatever the first registered effect was

[remote ice]

Okay update on 1, this only seems to happen on effects where I had commented all render modifiers out (which also causes fun issues like setting a lifetime, but age never being used, and thus the effect never actually expires)

[native elbow]

Isn't 2. the usual "the texture asset was not loaded in time"?

[remote ice]

The texture handle never gets unloaded so I doubt it 🤔

[native elbow]

Because that makes no sense despite the (wrong) fact that the modifier claims it does. What are you trying to achieve? transform is the transform of the emitter (the Entity the ParticleEffect component is on), so using that modifier in Update would reset the position of all particles in a circle each frame, which would effectively makes them not move at all.

[native elbow]

This is unrelated. You can have a reference to the asset, yet the asset not finished loading or even failed to load (some weird PNG settings or whatnot).

I'd check the logs, in Debug at least, see if there's anything related there

[remote ice]

Hmmmm, I guess I could check the failed loading thing, they aren't the usual RGBA images at least 🤔

[native elbow]

Try another image that works, and check if there's any log about asset not being ready.

That "asset not ready" thing has been plaguing Hanabi for many versions but I don't (and neither does the rendering team) have a good solution for it quite yet.

[remote ice]

Is it hanabi that prints the debug output or bevy_render or something?

[native elbow]

It should be Hanabi but I don’t remember if it prints only for pipelines not ready or also for textures

[remote ice]

Ah, it appears I messed up adding the slots somewhere along trying to get it to work, and hanabi just silently replaces the load with using a 0 vec 🙃

But yes, also the particles don't seem to like getting loaded, but at least it works now!

[native elbow]

Do you have a repro (or a longer description)? It sounds like Hanabi should warn here, not silently do the wrong thing.

[remote ice]

So pretty much just what the examples do with textures, but forgete to add the m.add_texture_slot("color");

[mint star]

What would be the best strategy to get particle effects to glow, without having bloom on other parts / layers of a scene?

[remote ice]

Could embed the glow in your textures.
Or set up global bloom with a thershold high enough to only bloom HDR colors.
Or set up a seperate camera that renders hanabi with bloom.

[mint star]

The HDR colors strategy sounds best, Thanks!
I tried the two cameras approach but I got fullscreen bloom in varying layering setups 😅

[near zealot]

is it possible to have different velocities for different instances of the same effect? Is that something I can do with EffectProperties?

I'm trying to make an effect like a spray that goes in a specific direction but didn't want to dynamically compile new effects every time

[native elbow]

Yes it sounds like properties is the way to go if you want to avoid recompiling effects, which in your case sounds like something you want indeed

[native elbow]

I don't know if bloom works with RenderLayer but that could be a way too, there's an example showing how to render some effect only on some render layer

[mint star]

Re: bevy-hanabi editors, I wrote OMAGARI so I can make spell effects for HEXROLL. Works pretty well and supports most of what I need, including EffectParent relations, copy/pasting expressions and using 0.16.1 but 3D only.

[near zealot]

is this available for use 👀

[mint star]

If you don't mind the blender1.0 vibe and some ugly code then I can push this to github (I'll have to file a release request on my day job before I can do so - but that shouldn't take more than a week to clear out)

[near zealot]

that would be cool. I'm still trying to grasp a lot of writing these expressions

[mint star]

Will do - give me a week. Using an interactive user-interface to edit effects really helps with figuring out Hanabi's expressions API.

[near zealot]

how would I do something like the puffs example but have it be relative to a moving entity's position and rotation? If I'm understanding the example right, it seems like it would just always spawn at world origin and fly in that specific direction

[mint star]

To move an emitter with an entity, I believe it is best to set the ParticleEffect as the ChildOf the moving entity. Changing the velocity vector can be done using hanabi's properties. You can probably use properties for positioning as well. That's where I'd begin experimenting from.

[near zealot]

is there a good example that shows how to do the properties stuff?

[mint star]

https://github.com/djeedai/bevy_hanabi/blob/main/examples/spawn.rs has a pretty basic example.

[mint star]

https://github.com/hexroll/omagari

[near zealot]

hmm, I was trying to incorporate the property stuff and added the AccelModifier, the my_accel expression, .update(update_accel3) and a system for updating the property with DynamicRuntimeAccel...

and now when I trigger the effect my game just locks up. what could be causing that?

ah, I figured it out. I was missing the EffectProperties component. I guess if you add a property but don't add the EffectProperties component, it crashes

[near zealot]

hmm actually... it's like if I spawn multiple at once it freezes but if they aren't using a property then it works 🤔

[errant crane]

HERO!!! I will 10000% be using this

[simple notch]

My game freezes on MacOS only when a lot of ParticleEffects are added. I've narrowed it down to this:

pub fn reserve(&mut self, capacity: usize, device: &RenderDevice) -> bool {
        if capacity > self.capacity {
            trace!(
            "reserve: increase capacity from {} to {} bytes",
            self.capacity,
            capacity,
            );
            self.capacity = capacity;

            if self.buffer.is_some() {
                trace!("reserve(): existing buffer will be destroyed");
            } else {
                trace!("reserve(): no existing buffer to destroy");
            }

            if let Some(buffer) = self.buffer.take() {
                trace!("reserve(): destroying old buffer...");
                buffer.destroy();
                trace!("reserve(): old buffer destroyed");
            }
            trace!("reserve(): creating new buffer with {} bytes", capacity);
            self.buffer = Some(device.create_buffer(&BufferDescriptor {
                label: self.label.as_ref().map(|s| &s[..]),
                size: capacity as BufferAddress,
                usage: BufferUsages::COPY_DST | self.buffer_usage,
                mapped_at_creation: false,
            }));
            trace!("reserve(): new buffer created");

            self.is_stale = !self.values.is_empty();
            // FIXME - this discards the old content if any!!!
            true
        } else {
            false
        }
  }

2025-07-31T22:21:37.227957Z TRACE bevy_hanabi::render::aligned_buffer_vec: hybrid abv: write_buffer: size=800B item_align=256B
2025-07-31T22:21:37.227976Z TRACE bevy_hanabi::render::aligned_buffer_vec: reserve: increase capacity from 544 to 800 bytes
2025-07-31T22:21:37.227980Z TRACE bevy_hanabi::render::aligned_buffer_vec: reserve(): existing buffer will be destroyed
2025-07-31T22:21:37.227985Z TRACE bevy_hanabi::render::aligned_buffer_vec: reserve(): destroying old buffer...

I suspect the issue is related to Metal's lifetime management, where destroying a buffer while it's referenced by in-flight command buffers causes a hang.

seems to be same issue

[native elbow]

That sounds like a wgpu bug rather, because I thought wgpu was handling that. I specifically added those destroy calls from a recommendation of some wgpu contributor, to try and catch uses of old buffers. You can try and remove them see if that helps?

[near zealot]

yeah, actually, with the thing I ran into above.. there's no panic or stacktrace or anything.. the game just freezes.. it's difficult to know what's going on 🤔

[native elbow]

It sounds like your analysis is correct, the buffer is still in use and so wgpu blocks the destroy call. Technically those calls are not necessary for Hanabi to work. It’s a debugging feature. So you can try removing them and see if the game still freezes?

I’m actually not 100% sure that it’s correct to destroy the buffer there.

[timid storm]

hi im looking to know if bevy hanabi might finish the missing collisions feature and the position over shape for cube & plane feature by the time we get 0.18 of bevy

[native elbow]

No idea

[weary abyss]

I'm currently working on doing the remaining of the work for batching because it's blocking my project. I'm going to fork Hanabi for now because we can't afford to wait longer and plan to land the changes upstream at whatever pace you want.

[native elbow]

Thanks @weary abyss, sorry I don’t have any time for this at the minute.

[wise plinth]

For one of my vfx I hit https://github.com/djeedai/bevy_hanabi/issues/420 a while ago at bevy 0.14. Prespawning it did fix the issue for the time being, but now I'm updating to 0.16 and now it errors with Failed to find material bind group layout for buffer #0 during prespawn and prespawn only. Seems noncritical as it works afterwards, but I was wondering why it suddenly log errors and whether I can easily fix it or not ?

[weary abyss]

I currently have batched rendering working with MDI in simple examples. Some examples crash but it shouldn't be too tough to fix.

This is only 1/4 of the solution though: init, update, and sort will also need to be batched and the techniques are different for each one.

This is about a 1k line patch, so I would imagine that the full set of batching patches will be about 4,000 lines or so, plus the two PRs I already have open.

[junior glen]

Thanks a bunch for implementing batching 🙂

[weary abyss]

Yeah, I highly suspect I'm not the only one for whom lack of batching in Hanabi is blocking shipping stuff

[remote ice]

Did we have batching in the past?

I remember once running with millions of bugged particles 🤣

-# The despawn condition on emiters was wrong and the effects were in world space, so the playtesters decided to have a bit too much fun

[gilded fox]

Holy

This is going to save me so much time haha

What does it mean that it uses 3D only?

[mint star]

I just didn't look into any 2D related concerns or accounted for 2D use-cases for now. I don't do anything to prevent 2D use-cases though 😉

[gilded fox]

Where can I write to you about tool use instructions?
I assume it should work when I press render but maybe I missed something?

[mint star]

Can you share your .omagari file? I'll take a look.

[gilded fox]

I didn't understand how to save it so it's no longer with us 🥹
Also I'm not sure the main bevy_hanabi thread is the place to discuss that, can we open a thread for the tool?

I'll make another effect, one sec

[gilded fox]

Made another one
It won't let me save though

[mint star]

Let's take it to #1409190003376001075 message

[weary abyss]

We always batched, but not across multiple instances of the same effect.

Spawning many instances of a small effect is a thing that games tend to do a lot and right now Hanabi's performance drops dramatically with this. It's even worse when the effect is composed of many smaller effects, which is very common in real world VFX that artists author. For example, one of our common VFX instances has 7 sub-effects. If you put just 15 of them on the screen then the app starts lagging horribly due to wgpu overhead. We can't really ship with this as 15 instances of an effect is something most games will do.

My code makes us batch across multiple instances of the same effect. I've already got vfx_render batching using multi draw indirect and vfx_init batching in the CPU spawner mode. This batching not only reduces dispatches, but also increases GPU thread occupancy, because multiple threads within a single workgroup can now be assigned to different effect instances.

For example, with the instancing example, we go from 40+ workgroups in the init phase to just 2, one for each effect asset.

Next up will be batching vfx_update, which should, along with the rest of my patches, result in dramatic performance increases in many Hanabi workloads, dropping the number of dispatches/drawcalls from O(number of effect instances) to O(number of separate effect assets). I will still want to batch vfx_sort and GPU spawning with vfx_init, as our artists are using those features quite a bit.

[gilded fox]

I noticed that rotating the effect's transform doesn't rotate the effect itself (unless I'm doing something wrong)
Is there a way to rotate an effect's preset dynamically?

nevermind my calcualtion was wrong

[gilded fox]

I don't understand how to set up the texture slots in effects

Here's how I set my effect
https://gist.github.com/Rabbival/5eeb4aded37419fa1f9aa17e5df68fad

Here's how I use it
https://gist.github.com/Rabbival/5ba4ea98848fb591c41b13140c8a3978

But I don't see anything

( I can see the effect when I don't use EffectMaterial )

[hidden scarab]

Is there a delay in spawning a ParticleEffect and the effect displaying? The ribbon entity I have following projectiles start the trail further away from the player the faster the projectile is, even though spawn position is on the player

[weary abyss]

Ok, vfx_update now uses batches. instancing goes from 40+ compute dispatches down to 2, the first one with 110 workgroups and the second one with 7 workgroups. This also should improve shader occupancy a lot.

[weary abyss]

Yes because of shader compilation

[hidden scarab]

I see so would I want something like object pooling where I create ParticleEffect components in advance?

[remote ice]

Just load the effects once somewhere so they load. No need to object pooling, pooling in an ECS sounds like madness

[hidden scarab]

lol yeah thats why I hadnt thought to try it

when the game starts I initialise a resource that holds a reference to EffectAsset.add(ribbot_effect)

I thought that loads it, each time I spawn a projectile I would clone the effect handle from the resource

[remote ice]

You'd need to spawn the effect once for the shader to get compiled I think. I'd imagine in the future bevy will get so mechanism to make this work nicer though

[hidden scarab]

Even if I shoot the same projectile type multiple times the trail starts late for all of them

[gilded fox]

Is there no way to use more than one texture per effect?

I thought it would pick one randomly

[junior glen]

You typically spawn a dedicated scene containing all materials and VFX behind UI (so the user doesn’t see it) and then wait for the shaders to finish compiling when first loading the game

For prior art, see Foxtrot or Chainboom

[hidden scarab]

I haven't touched shaders much so im not sure I understand, bare with me. If spawning the effect in advance begins the shader compilation, then shouldn't firing a projectile for the first time begin shader compilation? If so then after some amount of time I would expect ribbons to start at the expected position when firing, but they don't (At least not within a few minutes for one minimal effect)

Am looking through Foxtrot & Chainboom and noticed you use world.add_asset(EffectAsset), where I use Assets<EffectAsset>.add(EffectAsset) for keeping a reference in a resource to be cloned, could that be a culprit?

[junior glen]

Yes, you are right. What you describe does mot sound like precompilation issues.

Don’t know if add_asset does anything other than what you do

[hidden scarab]

I would have thought adding assets either way would be functionality comparable, I'll try and put a minimal recreation of it together when I get time at my computer later

[hidden scarab]

Got an example together on this repository, includes a readme with a bit of background https://github.com/jacobrolph98/proj_test

[weary abyss]

Everything is now batched in my branch except for spawn events. Remaining tasks:

• Batch spawn events (needs a new shader to create batched indirect dispatch args).
• Batch properties (I never actually did this)
• Reenable culling as I broke it

3500 line patch so far

[weary abyss]

OK, all effects are now batched. Just need to fix properties and culling.

One annoyance is that with batching there's no longer any attempt whatsoever to render transparent particles in the right order. Hanabi never did this properly anyway, but now it's kind of hopeless. Just use alpha mask or OIT

Batching does add an overhead of 3 compute invocations per frame, but this is a fixed overhead and doesn't increase with the amount of effect types you have. The number of compute invocations and drawcalls should now be O(number of effect assets), not O(number of effect instances).

Given how slow wgpu is, this is the difference between Hanabi being unusable for lots of games and Hanabi being usable for them (including for my project)

[junior glen]

Really cool, I bet I will also get some neat performance out of this 😄

Thanks a bunch!

Is there a branch one can try out?

[weary abyss]

https://github.com/pcwalton/bevy_hanabi/tree/sort-batching but very rough and WIP

[weary abyss]

http://github.com/pcwalton/bevy_hanabi/tree/batching has the current work. Batching should be fully working, though it's extremely rough and needs to be tested more thoroughly. I'll be doing some cleanups and refactoring today.

(For example EffectBatch is no longer a batch and needs to be renamed to EffectInstance and RenderBatch needs to be renamed to EffectBatch)

[weary abyss]

You know, I wonder if the failure in the ribbon example is one effect loading before the other? That would explain why running it "cold" fails and rerunning the example succeeds -- when the shaders are in the OS disk cache they load at the same time, avoiding the problem

[timid storm]

hi

can u add the missing collisions as well as position over cube and plane in bevy_hanabi?

[weary abyss]

ok, this is what the profile looks like with a few hundred effects
The performance problems are fixed, it's basically just lack of using the retained render world

[weary abyss]

OK, in my project I can now get over 500 different particle effects on screen and still hit 120 FPS.

[silver veldt]

has anyone made rain in hanabi?

[silver veldt]

i can't figure out how to make a particle bigger...

[silver veldt]

is there a way to tie everything to the camera?

@weary abyss i'm trying to add rain to my game, how should i make it cover the whole map? obviously you could just set it to create particles everywhere but i can't imagine the performance would be very good lol. is it possible to make the particles stay inside the game world (not moving with the camera because that would look weird), but appear everywhere?

[junior glen]

Spawn the emitter as a child of the camera

[junior glen]

Over time? https://docs.rs/bevy_hanabi/latest/bevy_hanabi/modifier/output/struct.SizeOverLifetimeModifier.html

[weary abyss]

This

[silver veldt]

thanks

[weary abyss]

I have a suspicion that Hanabi bind groups aren't being invalidated properly or something. When spawning and despawning complex effects the effects can sometimes end up in the wrong place (often an existing effect teleports to a new location unexpectedly). This isn't specific to my batching changes as this happened before.

On a positive note, none of our testers are reporting any VFX performance problems anymore with Hanabi post batching.

[remote ice]

Yea, I have encountered this issue in my game, though it's never consistent enough that I can repro it

[weary abyss]

I can definitely repro it, though it's quite random. I'll try to fix it when I get time

[weary abyss]

The problem seems to go away if I hammer in global simulation space. Which indicates to me that it's likely an issue with how we allocate and/or pass in spawners to the vfx_render shader

[weary abyss]

Looks like the spawner data is getting corrupted. Strange.

[weary abyss]

OK, that's fixed; there were multiple bugs, including one in my code and one whereby Hanabi wasn't invalidating bind groups when the spawner buffer resized. There's still an issue whereby some effects with single bursts just don't emit their bursts (and it's not that they aren't loaded; this is after loading).

[weary abyss]

Oh, this is fun. If you specify you want to spawn 1 particle per cycle, sometimes Hanabi fails to spawn any, because it accumulates fractional particles via floating point math, uses floor on that value to determine how many particles to spawn, and sometimes you end up with 0.99999 at the end of the cycle, which rounds to 0.

I think the solution may be to keep track of the integer number of particles spawned this cycle and if there are any remaining at the end of the spawn duration spawn them then.

[native elbow]

The user specifies a rate in float. I don’t see how your proposal avoids any imprecision

[remote ice]

Can't we just emit an extra particle by rounding up slightly at the end?

(Like floor(n + 0.1))

[weary abyss]

I fixed the issue. Kinda hard to explain here

I keep track of the integer number of particles spawned and also recalculate the number of particles spawned in absolute terms every frame instead of accumulating, so that floating point error doesn't accumulate. This requires a little bit of trickery when multiple cycles happen per frame but I believe my code is correct, and it avoids the problem.

[weary abyss]

Just fixed another bug with batching whereby child event offsets weren't being taken into account. Will push to my batching-2 branch soon

[native elbow]

No. Where do you put the limit? There's always an epsilon where someone will complain that a particle "should" or "should not" have been spawned but wasn't/was. Just because the example is 0.99999 doesn't mean we should spawn; there may be a legitimate case where you have "close to" 1 particle but not yet accumulated enough. If you start rounding you'll get random oscillations in spawning. The issue is not the rounding it's the error accumulation.

That may not matter in common cases where the effect spawns forever at a given rate, and is the only effect. But as soon as you try to synchronize multiple effects, if they spawn a few frames too early or late you break the overall visuals, even if "on average" you spawned the correct amount. So you just moved the problem compared to now.

[remote ice]

Ah, yea, then you start needing funny solutions like what I do for DPS status effects in my game ... Which is basically what pcwalton did. Calculate how many particles you should've emitted, subtract how many you did emit, then emit that number

I have the benefit of doing it with integer per-second numbers there so I can always look at the past second and thus never have issues even with infinite effects

[weary abyss]

Pushed another bug fix that could cause child events not to be emitted when you have 3+ separate effect assets (not instances), two of which are children of the other one.

[weary abyss]

I'm out of F32XN attributes in my Unity particle system loader, can I add a couple more?

[weary abyss]

OK, I've had a grand old time casting booleans to floats and using mix() to perform if/then in Hanabi expressions, but I think it's about time I submit a PR to add select to TernaryOperator 🙂

[junior glen]

Hehehe that's clever

[native elbow]

@weary abyss are all those fixes in your PR https://github.com/djeedai/bevy_hanabi/pull/480 ?

I've run it again, the instancing example clearly has issues

Like, some particles have a velocity 2x or 3x occasionally, for no apparent reason

[weary abyss]

My batching-2 branch has all the current fixes

Well, almost all

That PR is old and has issues, I'm pretty sure

I've basically just forked Hanabi

There are some bugs in upstream Hanabi that are only fixed in my batching-2 branch

Right now I suspect that there's a cache invalidation problem with render bind groups (absolute nightmare to debug)

[weary abyss]

I think it'd be best for me to iterate on my fork right now to get all the bugs out before upstreaming. That way I'm not upstreaming broken stuff. Batching adds a lot more indirection so it's easy to get things wrong.

[weary abyss]

I need transmissive materials for Hanabi (useful for e.g. soap bubbles). Unity supports this. I'm currently adding them to my fork. Is this something upstream is interested in?

[lament basalt]

I am at least interested in this

[lament basalt]

this is just an idea for now? was looking to do this about 5 minutes ago. is this in batching-2?

[weary abyss]

It is now

I just pushed a bunch of ad hoc fixes for various ways in which buffers could leak via bind group caches when resizing them. I think we need a more holistic way to solve this: making cached bind groups weak somehow so that when the buffers go away we automatically drop the bind groups.

[weary abyss]

I don't think this is feasible when looking at it more, but I'm going to at least try making a unified BindGroupCache that tracks things like total number of bind groups and total allocated buffer size so we can more easily detect leaks.

[native elbow]

Upstream is interested in anything that makes it better and closer to a production-ready crate, yes 🙂

Disclaimer, I know this is not nice at all, but because the current code is so complex to maintain and debug, I've started actually looking at cleaning it up. This means conflicts ahead with your fork @weary abyss. Unfortunately I've looked at your PR and it's just unreviewable, less because of the change itself, mostly because the bits it touches are so complex and easy to break that even checking the code locally I've little confidence I can catch bugs. So instead I'm looking at fixing the core maintenance issue and making the code more readable and testable.

I've started by moving the indirect draw args out of EffectMetadata, because the former is almost pure GPU access (except if you change the mesh completely, which is rare; basically it's a different effect), while the latter contains data that may change frame-to-frame (mesh location notably, which is dictated by Bevy, and I have to assume can change at any point) and is dictated by CPU only (and read back by GPU). This basically addresses the warning of #471. I'd like also to look at cleanly separating management of bind groups and layouts from GPU buffers, instead of shoving some in the EffectsMeta resource and some in other places. That should help identify bugs around bind groups, and also make it easier to add new ones (which currently is a brake to adding features).

[weary abyss]

By the PR do you mean my branch?

[weary abyss]

So the main thing that my branch does is to add batching across effect instances. There are other things, but those are fairly localized and can be submitted as individual PRs relatively easily. What I'm hearing is that you might want to just do batching in some other way. I think this is actually fine: if you want to do batching yourself, I can go ahead and submit PRs for my non-batching things (e.g. transmission, more expressions, insertion sort -> heapsort), and you can do batching however you'd like to do it, and then when we're ready I can just ditch my fork and go back to upstream.

[native elbow]

No not really, I think I'll grab your sorter for example, and for batching I'm not sure yet. What I'm saying is that I'm moving a bunch of code around and doing renames etc. to clarify the code, which will cause git conflicts with both your PR and your branch.

But I just got interrupted because I think I have a RenderDoc capture of the ribbon artifacts we saw in the PR 🙂

[weary abyss]

My current guess is that it has to do with one effect loading in before the other somehow

[weary abyss]

Yeah, what I mean is that I'm probably not going to merge with upstream at all.

I'll eventually just abandon my branch once I can use upstream (right now lack of batching makes it unusable)

But feel free to cherry-pick things over, and I can also send PRs of small things like the sorter

[weary abyss]

I have a feeling you won't like what I did with batching anyways. I introduced a new batching type on top of EffectBatch called EffectRenderBatch, ported everything over, and then renamed EffectBatch to EffectInstance and EffectRenderBatch to EffectBatch. This allowed me to proceed incrementally. Currently most shaders use linear search to find the effect instance, which is obviously slow (I'll change it to binary search if it starts causing performance problems). Also I use multi-draw indirect which isn't really necessary as the meshes within a batch are always the same mesh, and I have a feeling you won't like that either because it sacrifices compatibility with WebGPU right now.

tl;dr there's a good chance you might want to rewrite my batching code anyways.

[native elbow]

Noted, thanks for the details

I have a RenderDoc capture that randomly exhibits the ribbon bug. That is, switching back and forth between 2 render calls, I see different render results on screen. I had that once in the past, opened a RenderDoc bug, and the explanation was that the shader code was non-deterministic. So I'm getting slowly convinced that there's a non-deterministic bug (so, around atomics) and that's why it's so hard to repro. Running the ribbon example again and again I have ~15% repro rate (once every 6-7 runs or so only).

[native elbow]

I found the main part of the bug:

• The vfx_indirect always runs, unconditionally swaps the read/write buffers for indirect indices.
• Sometimes, presumably because some GPU resources are not ready, the vfx_update doesn't run. In that case, it doesn't copy the indices from one buffer to the other, which it would have done if it had run to indicate which particles are still alive after the update.
  After that, the buffer instead of containing the list of alive particles contains a bunch of undefined values (generally, 0) at the place where the previous frame particle indices should have been. This continues to propagate inside the indirect index buffer after that.

Yay for GPU debug markers. The pipeline resource is not finished creating.

This delayed background creation of pipelines randomly stalling for several frames is the gift that keeps on giving really.

[weary abyss]

Called it 🙂 I suspected it was something like that after tearing my hair out trying to figure out what it was.

[native elbow]

Yeah but I didn't foresee the interaction with sorting and the indirect dispatch to be honest, that was pretty tricky

It's annoying because that ties straight into the issue of trying to delay non-ready effects and/or warn the user which is a non-trivial one, so I'm not sure how best to fix.

I think I'm going to try at least to skip during prepare the effects which don't have a PSO ready

[junior glen]

No rush, just asking to plan ahead: it will probably take a while until hanabi is updated to the RC, right?

[weary abyss]

I'll probably have Hanabi-Batched (what I'm planning on calling my fork) updated before too long once the new version of Bevy ships. I don't think the changes from 0.16 to 0.17 in rendering were nearly as drastic as 0.15 to 0.16.

[junior glen]

ah, that's nice to hear 🙂

So I take it it won't participate in the RC?

[weary abyss]

I can't speak to what @native elbow will do, but I wasn't planning on it. I don't have a lot of time to spend chasing upgrades.

I do plan to move to 0.17 though.

[junior glen]

Makes sense! As I said, no rush from my side either 🙂 Was just wondering

[weary abyss]

I gave my fork a name, Hanabi-Batched https://github.com/pcwalton/bevy_hanabi

I still intend for it to be temporary and to deprecate it once upstream has comparable performance

[weary abyss]

I think I'm going to add a debug option that dumps the data for each particle every frame to CSV. Cross-referencing in RenderDoc when batching is enabled is very time consuming.

[native elbow]

It will depend on how hard this is and how much breaking changes there are

[weary abyss]

I also realized we can try to add collisions against the depth buffer. As I suspected, I'm not the first to invent this technique, and this is a thing that Unity VFX Graph can do

[weary abyss]

https://docs.unity3d.com/Packages/[email protected]/manual/Block-CollideWithDepthBuffer.html

[near zealot]

does bevy_hanabi make a mesh for each particle? (I'm using 3d and doing things like the billboard particle example)

[weary abyss]

Can you elaborate as to what you mean?

[near zealot]

hah sure. I have a particle effect and I was wondering if there was a way to add a component to the particles.. but I'll be honest, I haven't finished my coffee yet and now I'm realizing that probably doesn't make sense since the particles are shaders, right?

[weary abyss]

each particle can be any mesh you want

[near zealot]

hmm.. so, would there be a way to add a component to one?

[weary abyss]

I'm not sure what you mean by "a component". Which component?

Individual particles aren't entities

[near zealot]

I think that's somewhat what I was wondering. which makes sense

the coffee is hitting 👍

[weary abyss]

It's interesting to think of Attributes as components and Modifiers as systems

[native elbow]

Hanabi is a GPU-based particle system. Particles are stored in a GPU buffer, spawned and initialized from GPU, updated each frame from GPU, and obviously rendered there. There's no representation of the particles on CPU, even less so in the ECS, so there's no way to attach a component.

As @weary abyss mentioned you can attach some data with particles, which are called attributes. And in fact a particle is just a collection of attributes. Note however that all particles in a given effect have the same set of attributes, it's not like an ECS entity which can have different components from another entity.

The set of attributes is called the particle layout (ParticleLayout in code)

[near zealot]

I'm trying to add property-driven acceleration like in the spawn example. When I run the example, I can see it works but when I try it in my game it just locks it up.. what could be causing that?

[native elbow]

"locks up"?

[near zealot]

the game freezes. it stops rendering new frames, I have to kill the terminal to exit the game

oh it's.. if I have more than one instance of the effect running at a time 🤔

[native elbow]

ok well it obviously shouldn't, but it's hard to tell if it's related to properties or anything else. does it work without properties?

[near zealot]

I can trigger the particle multiple times and have them overlap without a problem but once I have the writer do this

let my_accel = writer.add_property(PARTICLE_VELOCITY, Vec3::new(0., -3., 0.).into());
let accel3 = writer.prop(my_accel).expr();
let update_accel3 = AccelModifier::new(accel3);

it freezes if two of that particle exist at the same time. With and without the .update(update_accel3) in the EffectAsset

[native elbow]

when you talk about "particle" here you mean ParticleEffect right?

[near zealot]

I have an update_accel system similar to the one in the spawn example (except it iterates over the query rather than doing single_mut) and adding it on Update, FixedUpdate or not at all doesn't seem to have an effect

[native elbow]

You have added the EffectProperties component? You're sure the iteration works?

[near zealot]

yeah, I have a spawn system that does

    commands
        .spawn((
            ParticleEffect::new(particle.clone()),
            input.transform,
            ChildOf(game_root.vfx),
            EffectProperties::default(),
            DynamicRuntimeVelocity,
            EffectMaterial {
                images: vec![input.image],
            },
            Name::new("Particle"),
        ))
        .insert_if(
            DespawnAfter(Timer::from_seconds(config.despawn_after, TimerMode::Once)),
            || config.despawn_after > 0.0,
        );

[near zealot]

I have a println in the iteration that starts outputting when I spawn the first one

fn update_accel(
    time: Res<Time>,
    mut query: Query<(Entity, &mut EffectProperties), With<DynamicRuntimeVelocity>>,
) {
    for (entity, mut properties) in &mut query {
        let accel0 = 10.;
        let (s, c) = (time.elapsed_secs() * 0.3).sin_cos();
        let accel = Vec3::new(c * accel0, s * accel0, 0.);
        println!("Setting {} {}", entity, accel);
        properties.set(PARTICLE_VELOCITY, accel.into());
    }
}

[native elbow]

How do you create your effect? Are you sure the particle has the Attribute::VELOCITY? (unlikely it doesn't, but just checking)

The spawn.rs example explicitly adds init_vel3 which will force the particle to have a velocity attribute.

You can add InitAttributeModifier::new(Attribute::VELOCITY, Vec3::ZERO) or something like this, that will force the particle to have a velocity attribute

Normally it should have one, but I can't recall the details on top of my head, and I'm not sure Hanabi correctly propagates the dependency from "properties using an attribute" to "particle needs that attribute"

You can print the ParticleLayout from the effect and see what attributes are there

EffectAsset::particle_layout()

[near zealot]

I have...

let center = writer.attr(Attribute::POSITION);
let speed = writer
    .lit(config.min_speed)
    .uniform(writer.lit(config.max_speed));
let dir = writer
    .rand(VectorType::VEC3F)
    .mul(writer.lit(2.0))
    .sub(writer.lit(1.0))
    .normalized();
let init_vel = SetAttributeModifier::new(Attribute::VELOCITY, (center + dir * speed).expr());

and then later
    .init(init_vel)

[native elbow]

Ok it's not that then

It all looks OK to me, not sure what's going on

Any chance you can break in a debugger see why the app freezes?

Crashing/panicking I would understand, but flat out freeze it's a bit less common.

[near zealot]

Effect Asset: [(+0) position: vec3<f32>, (+12) age: f32, (+16) velocity: vec3<f32>, (+28) color: u32, (+32) lifetime: f32, (+36) pad0: u32, (+40) pad1: u32, (+44) pad2: u32]

[native elbow]

Looks all OK

[near zealot]

let me setup a debugger.. I haven't done this with a bevy game in years 😅

[native elbow]

🙂

[near zealot]

lol ok, it doesn't freeze when I have a debugger attached.

[near zealot]

yeah actually.. running in release doesn't freeze but running in debug does freeze.. quite peculiar 🤔

for the record, I can run the example spawn in debug and release with multiple instances of the property-driven effect just fine. there must be something altering my rendering pipeline in debug or something

[native elbow]

hum.. I wonder if it's some bug with the forced destroy() on the bind groups. It vaguely rings a bell of someone complaining that those destroy() calls sometimes occur when the buffer is still in use by the GPU and that causes issues (can't recall if that was a freeze or something else).

Are you by any chance on a Mac?

[near zealot]

Ubuntu

[weary abyss]

Oh yikes, has_side_effect is broken for binary expressions like UniformRand (it's never checked) which cost me hours of debugging

I'll make a PR

[weary abyss]

Here's the fix https://github.com/djeedai/bevy_hanabi/pull/497

[bold ocean]

Just wanted to say I've been following Hanabi's progress and I really like reading all the updates. Thanks for all you guys do

[weary abyss]

@native elbow When you get a chance let me know how you'd like to proceed with the failing test. By the way, my inclination is to actually err on the side of generating more temporaries -- otherwise you're relying on the shader compiler's GVN to perform aggressive common subexpression elimination everywhere which is probably a safe assumption for popular GPUs but it feels messy.

[weary abyss]

Submitted another bug fix for particle effects not showing up if they were spawned invisible and later became visible. https://github.com/djeedai/bevy_hanabi/pull/498

[tranquil spade]

Hello everyone. I started experimenting with bevy_hanabi not long ago and stuck trying to construct expression for generating randomly angled velocity vector in range for particles (for example between -30 and 30 deg).
Here is a gist with my setup function for the effect: https://gist.github.com/alcron/3a6d0cad47eba4fc2e2d865b3292ce3e
It would be great if someone could point me in the right direction.

[weary abyss]

Do you want the particles to be aligned in a plane with a 60 degree spread or aligned in a cone shape with a 60 degree spread?

[tranquil spade]

In a cone.

[native elbow]

It’s annoying to do. In fact the formula in the existing position modifier is wrong, in the sense that it doesn’t generate some uniform distribution across the cone. But if you don’t care about statistical uniformity you can use that formula.

The correct formula, I have yet to see it or manage to derive it myself. The complexity comes in part from the fact we want to handle a truncated cone. I think for a half-cone it’s a bit easier.

[weary abyss]

let (zero, max_azimuth) = (module.lit(0.0f32), module.lit(2.0f32 * PI));
let max_inclination = module.lit(30.0f32 / 180.0f32 * PI);
let azimuth = module.uniform(zero, max_azimuth);
let inclination = module.uniform(zero, max_inclination);
let (sin_phi, cos_phi) = (module.sin(azimuth), module.cos(azimuth));
let (sin_theta, cos_theta) = (module.sin(theta), module.cos(theta));
let x = module.mul(sin_theta, cos_phi);
let y = cos_theta;
let z = module.mul(sin_theta, sin_phi);
let direction = module.vec3(x, y, z);
let init_vel = SetAttributeModifier::new(Attribute::VELOCITY, direction);

untested.

See https://en.wikipedia.org/wiki/Spherical_coordinate_system#Cartesian_coordinates.

Make sure you're using main, not the version on crates.io or https://github.com/djeedai/bevy_hanabi/pull/497 will ruin your day.

[tranquil spade]

Oh, great. Thanks for the info. The only problem remaining is that in module there is no ".vec3" only ".vec2" for creating direction vector expression. As far as I can see in the docks there is no alternatives. Again any tips would be appreciated .

[weary abyss]

Pretty sure Hanabi-Batched has it 😉
But you can do vec3 with:

let x_axis = module.lit(Vec3::X);
let y_axis = module.lit(Vec3::Y);
let z_axis = module.lit(Vec3::Z);
let x_vector = module.mul(x_axis, x);
let y_vector = module.mul(y_axis, y);
let z_vector = module.mul(z_axis, z);
let xy_vector = module.add(x_vector, y_vector);
let xyz_vector = module.add(xy_vector, z_vector);

[native elbow]

NB: Your code sample a random direction. That should work. However that produces velocities all equal (in speed/amplitude). And if you rand() the length to get a true random velocity, you will end up with a non-uniform distribution. Just FYI.

[native elbow]

I think I've fixed the bug where the burst/one-shot effects fail because they try to spawn particles before the PSOs are compiled. https://github.com/djeedai/bevy_hanabi/pull/499

This decouples "add an effect, start allocating all GPU things" from "can we simulate this frame if everything is ready and the effect is visible"

[silver veldt]

hanabi doesn't work well with wasm right? any way to fix that? if not would it be possible to automatically disable particle systems (or have some sort of run_if condition) when compiling for web?

[lyric flume]

webgl would be the issue, not wasm generally. webgpu should be fine these days afaik

[silver veldt]

how do i build for webgpu instead? i think i've tried just adding the feature and it didn't work iirc

maybe i just did something wrong

[lyric flume]

it should be enabling the feature

[silver veldt]

alright i'll build the project with web enabled and see what happens

[lyric flume]

there's a whole wasm examples directory in the hanabi repo, so if it didn't work that would be surprising

[silver veldt]

oh hey it worked lol not sure what happened last time

[native elbow]

Yes webgl2 doesn't work because it doesn't support compute shaders. It's not "doesn't work well", it's "doesn't work at all" 🙂

RFC - Merging examples

Looking for opinions from anyone on merging all examples into a single binary: https://github.com/djeedai/bevy_hanabi/issues/501

[weary abyss]

Hanabi-Batched is now updated to Bevy 0.17: https://github.com/pcwalton/bevy_hanabi/

The patch will probably apply upstream too if you're interested

[native elbow]

Hanabi already released yesterday

[weary abyss]

Oh that it did, sorry for the confusion 🙂

I should mention that the new RenderTarget::None that I added for cameras in 0.17 is useful for prewarming effects during loading screens in Hanabi. Just spawn a Camera3d, set its Camera::target to RenderTarget::None, aim it at the origin, and then spawn all your VFX during your loading screen. This will trigger a shader compile.

[junior glen]

(BTW this kind of preloading made the difference between playable and not playable for me on Wasm)

so it's neat seeing some better support for the pattern!

[junior glen]

Just upgraded and I'm getting a ton of these guys:

 WARN bevy_hanabi::render: Missing sort-indirect-batch bind group.

but it renders correctly

I'll try WebGPU now

oh, looks like you're on an older getrandom :/

mind upgrading that to 0.3?

Otherwise I get this

note that I cannot activate the wasm_js feature of [email protected] since I already depend on 0.3

let's try the official Hanabi now

Can confirm official Hanabi works on WebGPU 🎉

and doesn't produce the warning above

[weary abyss]

Yeah, I have that too

Need to fix it, whatever it is

It seems harmless

[weary abyss]

mmm, Unity's "Freeform Stretching". The artists love it. I do not.
Wasted nearly a week reverse engineering how it works and interacts with all the other features to implement it in Hanabi. Almost done...

[iron turtle]

Hi, I'm having a weird crash after upgrading. I've a bullet tracer that I spawn
like

        let mut effect_properties = EffectProperties::default();

        let ribbon = match event.bullet_source {
            BulletSource::Player => &particles.on_shoot_ribbon_blue,
            BulletSource::PlayerHelper => &particles.on_shoot_ribbon_blue,
            BulletSource::Enemy => &particles.on_shoot_ribbon_red,
            BulletSource::Other => &particles.on_shoot_ribbon_red,
        }
        .clone();

        commands.spawn((
            transform,
            ParticleEffect::new(ribbon),
            effect_properties,
            Follow {
                entity: bullet_entity,
                offset: Vec3::ZERO,
            },
        ));

It works, until I spawn some other. If I wait to particle to despawn I can spawn it again but not two at the same time.

I get two errors

thread '<unnamed>' (33324) panicked at C:\Users\stan\.cargo\registry\src\index.crates.io-1949cf8c6b5b557f\wgpu-26.0.1\src\backend\wgpu_core.rs:2391:18:
wgpu error: Validation Error

Caused by:
  In a CommandEncoder
    In a pass parameter
      Encoder is invalid

thread '<unnamed>' (33324) panicked at C:\Users\stan\.cargo\registry\src\index.crates.io-1949cf8c6b5b557f\wgpu-hal-26.0.4\src\vulkan\instance.rs:192:58:
Trying to destroy a SurfaceAcquireSemaphores that is still in use by a SurfaceTexture
stack backtrace:

Any idea where should I look?

[native elbow]

Well that’s not needed anymore since effects won’t tick until they’re compiled. So you can just set them as inactive and wait for is_ready(), no need for a special camera (I think)

[native elbow]

The second error is generally a fallout of a panic earlier, which wgpu doesn’t handle correctly. So you can ignore it unless it’s the only error.

[native elbow]

I’ve never seen the Encoder error. I have no idea what that means. It sounds like an internal error to me, but not sure.

[neon trail]

I'm getting the same Encoder error in bevy 0.17.2 when spawning more than one ParticleEffect that uses ribbons

[native elbow]

Do you get the error with the ribbon.rs example?

[neon trail]

let me check

hmmm no I don't, I wonder why

OK, if I change the ribbon.rs example to spawn more particles on update I can reproduce the panic

I'm on MacOS (so using the metal renderer) if that's relevant

I also get a nasty pink screen flash when running any example or my game if I have the hanabi plugin enabled btw

[native elbow]

Pink sounds like the fallback Bevy texture when not loaded

[neon trail]

Pink sounds like the fallback Bevy texture when not loaded
Right, but this issue happens on all the hanabi examples even those that don't use any textures, so I wonder what's up with that

[native elbow]

I investigated a bit:

• Repro on macOS, doesn't on Windows
• Repro on all Hanabi examples, didn't on the one Bevy example I tried
• Managed to get a Metal capture, I see weird things: I can't see a full-pink screen, but I see the text UI of the demo rendered in pink. And the UI pass definitely binds an all-pink texture.
• I couldn't find a single source of pink texture in Hanabi.

My (partial) conclusion is that it's coming from Bevy itself, and more specifically bevy_ui and its font atlases I suspect, but I don't know why it doesn't repro on some Bevy examples.

[neon trail]

Interesting. Thanks for checking it out.
I do not see it in my Bevy game, only when I enable the hanabi plugin.

Let me try to get Metal capture working

[neon trail]

Hmm... I tried setting debug_settings.start_capture_this_frame = true; on the very first frame. I do see a pink flash but it's gone by the time the capture starts, which is weird. There's definitely an all-pink texture binded.

Unfortunately I don't have enough GPU experience to be of any more help, but do let me know if there's anything I can do on my end

Did you manage to reproduce the ribbons panic?

[native elbow]

No I can't reproduce the ribbon panic.

I found while debugging that start_capture_this_frame is kind of broken, or at least it's a footgun : you have to make sure to turn it back to false immediately on the next frame, otherwise it'll stop and start again every frame.

My capture also didn't have a pink frame. But I couldn't tell if it's because it was missing the first frame, or something else.

I did reproduce the error "GPU fill dispatch buffer operation bind group not found" but that was when some shader was wrong, so the error is not meaningful (it's just we're trying to submit a compute dispatch but the bind group was not created because the shader never compiled correctly). But at least with the fix we're not showing that error, only the original one.

[neon trail]

I see.

I tried something like this running on Update:

fn debug(mut res: ResMut<DebugSettings>, mut local: Local<usize>) {
    res.start_capture_this_frame = *local == 1;
    *local += 1;
}```

setting `local == 0` makes the capture happen before the pink flash. setting it to `local == 1` makes it happen after the pink flash. this is incredibly weird

[neon trail]

i think pink flash might be related to this so I guess there's nothing to do on your side, sorry

https://github.com/bevyengine/bevy/issues/20756

encoder is invalid error may be related to this https://github.com/gfx-rs/wgpu/issues/8009

[neon trail]

I used the debugger and found the real cause, it seems like it's a DynamicBindingOutOfBounds error

[native elbow]

Any chance you can repro with an example?

[neon trail]

Sure, here you go. This crashes for me on Metal

Thanks for looking into it

[neon trail]

This also crashes for me on Windows with Vulkan, just tested

[weary abyss]

@native elbow It turns out that in practice VFX artists love making particle systems that have 1-5 particles in them, for the simple reason that they don't want to have two incompatible systems, one for "small-scale" particle effects and one for "large-scale" particle effects. Hanabi's not very efficient at this, though it's not causing problems for us yet. In such cases the CPU-side driver/wgpu overhead of just submitting the compute invocations is more computation than just doing init/update on CPU would be, and that's before you get to all the wasted GPU threads.
I wonder what the best solution is. Things I can think of:

1. Run small particle systems on CPU.
2. Ubershaders?
3. Doom Eternal's VM approach? (Basically a variant of ubershaders)
4. Something else?
   Nothing I can think of is simple, unfortunately.
   Again this isn't causing me any problems right now, but it's food for thought. I wonder if you've given any thought to this.

[native elbow]

If all systems have different shaders, there's no way around ubershader/VM.

If they're the same, then batching.

I don't think there's much more alternatives? I'm definitely lacking first-hand practical experience though, so happy to hear about usages I might be missing.

To be honest if the particles have roughly the same set of attributes, for some definition of roughly, then you could abuse a single Hanabi effect and expressions/modifiers to write the equivalent of a ubershader

We could even imagine going completely crazy and have dynamic layouts per effect, and have the shader byte-read them, although reading bytes instead of structs is very not nice in WGSL

(as you've seen in vfx_indirect.wgsl)

Another thing I think Unity does is split attributes. I think they do it for POSITION only to optimize things like depth pre-pass or any other pass where you only need the position (and so it's faster to have a compact position array without gaps). But we could generalize that. That's a LOT of complexity though.

Unrelated, I've tagged you on the wgpu bug I opened, I didn't know you had opened one too.

@neon trail I made a local change and reproduced the Encoder error. Indeed it's a completely unrelated error which triggers that one, although in my case I can't tell what's the error (it's probably due to my local change).

[weary abyss]

Yeah, that was what I was dreading 🙂

I do have to say, testers lately have been really impressed by Hanabi's effects in the hands of skilled VFX artists, so great job 🙂

[neon trail]

Thank you, I’m glad it reproduced!

I was able to get the original error on my end by adding a breakpoint here (instead of modifying wgpu) https://github.com/gfx-rs/wgpu/issues/8009#issuecomment-3207206186

[native elbow]

Great job to the VFX artists I guess 🤣

[wise plinth]

Hmm so as far as I understand, the only real way to bundle effects together is to do them as a single hierarchy, but I don't quite get how to do the root effect for the oneshot effects ?

Currently I have zero age almost zero lifetime effect that emit events on death, but it has a bizarre side effect: exactly on the 15th reset it changes from OnDie events to Always events (or maybe it's something else, but it looks like nested spawners freak out a lot on the 15th parent spawner reset).

Am I doing something cursed ? I tried to hack a new emit event OnInit, but it's not that simple due to init phase not being able to emit any events (it only consumes events atm, I'm not even sure if will conflict ?)

[native elbow]

I've seen that the firework event, which is supposed to create the explosion OnDie, sometimes creates multiple explosions. I didn't have time to look into it, but that smells like a bug.

@weary abyss look what's landing 😅 I'm slowly catching up...
https://github.com/djeedai/bevy_hanabi/pull/508

I think unfortunately the next one will be "at 2200 particles in worms.rs it takes 265ms to sort" 🙄

Gosh I really don't want to implement a GPU sort

By the way #508 is heavily inspired by your PRs and branch, thanks for that! I also merged your sorter in an earlier PR.

[mortal falcon]

also getting that panic with ribbons, glad it wasn't just me

[weary abyss]

Yeah, I'm also starting to think this is inevitable. I looked into the possibilities and unfortunately with 64 bit keys you end up with something like 16 dispatches needed for the typical radix sorts at the least which seem like such overkill

@native elbow My thought was maybe to do a "double mergesort" where instead of merging 2 sublists, each step merges 4 sublists. This would make the number of dispatches log4(n) instead of log2(n). For example:

• 100 particles: 4 dispatches
• 1k particles: 5 dispatches
• 10k particles: 7 dispatches
• 100k particles: 9 dispatches
• 1M particles: 10 dispatches
  This seems reasonable?

[native elbow]

I mean, I have no idea which is best, https://linebender.org/wiki/gpu/sorting/ seems to say on wgpu anyway things are not ideal. My issue is, I don't even want a fast one, even a bad one is so much work to implement.

[native elbow]

But probably the log2(N) default is too naive. I mean, you obviously can pack a lot more passes in a single dispatch. You can do "block sort" of e.g. (wild guess) 256~1024 particles locally in a single dispatch, then use multiple passes to scale to 1M. But doing a single mergesort pass per dispatch sounds like using 3 ALU per thread to read/compare/store 2 keys, and paying the cost of an entire dispatch just for that, so unless I'm missing something fundamental there's no way this is efficient.

[native elbow]

Also for the case of ribbons, normally most particles are already sorted from the previous frame. I think we can probably use that somehow to accelerate the sort.

[weary abyss]

Yeah, when I wrote that I forgot that your first few mergesort passes (up to the workgroup size) are done within a single workgroup.

So it's actually significantly fewer dispatches than I wrote there.

You only need multiple passes when you start needing to look beyond the current workgroup.

[weary abyss]

Firefox actually uses a bubble sort in one place because it's faster than insertion sort if the data is almost completely sorted

I would not recommend it here though 🙂

[weary abyss]

If workgroup size is 256 then doing a double mergesort makes it ceil(log4(ceil(N/256))) + 1 passes I think. So:

• <=256 particles: 1 dispatch
• 1k particles: 2 dispatches
• 10k particles: 4 dispatches
• 100k particles: 6 dispatches
• 1M particles: 7 dispatches
• 10M particles: 9 dispatches
  This seems quite reasonable.

Though because every pass has to be indirect (as CPU doesn't know how many living particles there are) you'll probably be in the upper part of the range as far as CPU overhead. And of course double that if you haven't disabled wgpu compute validation.

By comparison, FidelityFX radix sort needs 1 dispatch per 4 bits of the key no matter what. So you're looking at 16 dispatches. Double that if you haven't disabled wgpu compute validation. 32 dispatches feels like it starts to hurt with how slow wgpu is.

[native elbow]

I’ve started looking seriously at GPU sorting. At the minute we have 64 bit keys, I’d like to reduce that but that’s a large piece of disruptive work so I’ll stick with that for now. And so as you said radix sort is out, especially FidelityFX, but even OneSweep (8 bits) is quite a lot of dispatches. So I’m looking at some merge sort from ModernGPU.

The merge path paper for parallel merging of large (> shared workgroup memory) sizes is super interesting. That should produce a decently fast
merge sort.

I already have a simple odd-even merge sort for smaller sizes working.

And, I wrote GPU tests this time 🫡

[weary abyss]

Yep, I think mergesort is the way to go

[near urchin]

Upgraded to bevy 0.17 and noticed a pink flash as soon as I add the bevy_hanabi plugin at the start of the game.

Has anyone else experienced this?

(I use more than one camera, not sure if that might contribute to the issue?)

[junior glen]

@near urchin

[near urchin]

That is interesting that it might related to the font_atlas specifically if I combine bevy_hanabi with bevy_rich_text3d I get sometimes missing fonts when multiple entities are spawned.

(which is not the case if I disable the hanabi plugin)

[mortal falcon]

Just encountered something strange, I'm using Avian physics but I'm manually advancing Time<Virtual> to run the physics simulation at a set speed. Just by adding the HanabiPlugin to my app, the avian Time<Physics> stops advancing when Time<Virtual> advances

[ember pumice]

Is there a way to get the default hanabi particle to be round instead of square?

[native elbow]

@weary abyss implemented squircles, see the 2D example.

[ember pumice]

Got it, thank you!

[wise plinth]

I have updated my project to 0.17, and the issue is still there, but instead of spawning OnDie effects as Always effects, it doesn't spawn them at all. It's like the effect has capacity of 14 emitters and that's it. I'm thinking it might be linked to https://github.com/djeedai/bevy_hanabi/issues/510, because it's the same effect for both issues. Perhaps a sneaky bug with indices and/or event buffers, sadly can't reproduce it in examples

[native elbow]

I think 510 is very specific to 0.17 because the internals changed quite a bit. So not sure it’s related. Also you’d see some asserts if that was the case, do you?

Unfortunately there’s a long list of reasons for an effect to not spawn anything. Maybe running with trace-level logs could hint at what’s breaking but fair warning it’s called “trace” for a reason, it’s very verbose.

[near zealot]

is there like... a first-time compilation or something that has to happen before an effect is visible? It seems like mine are never visible the first time they're invoked

[weary abyss]

Yes. Pre-warm your effects so they're compiled

@native elbow maybe we should add this question to the readme as a FAQ 🙂

[near zealot]

ah so like.. is it as simple as just try running them before I need them?

[weary abyss]

Pretty much, yeah.

[native elbow]

The main part is the shader compile and that’s the same as any other rendering, that’s why most games precompile shaders on start. (technically it’s the entire pipeline compile, but let’s simply and say it’s the shader)

That’s not specific to Hanabi. You have the same issue with Bevy standard material. Except that there’s a single material shader there whereas Hanabi has multiple per effect.

[near zealot]

is there a typical pattern to follow or a function I can call to do that? Like, beyond just looping through my effects and running each one? Mostly wondering before I implement something that is redundant

[native elbow]

In 0.17 the effects should wait by themselves if the PSO is not ready so you shouldn't have to do anythign

[near zealot]

you're saying if I trigger an effect for the first time, it may be delayed while the effect compiles and then play? am I understanding that correctly?

[native elbow]

Yes

[native elbow]

See CompiledParticleEffect::is_ready()

[weary abyss]

I'm switching UnaryOperator::X and friends to emit v[0] instead of v.x so they can be used on matrices too. Does that make sense?

[native elbow]

If that works I have nothing against it

Except maybe mildly less readable

[tender pulsar]

hi! ok so i have kind of two questions. right now i can set spawn location and velocity etc. in rust code by calling EffectProperties::set and having my pipeline use that for the relevant setters. but what if i want to set more than one? i'm .. not sure if i can use vectors like that ?
this kind of leads into the second question, which is really just "how do i make an Image explode into particles" but it ends up with the same issue: how do i spawn a large vector of known positions/velocities?

[weary abyss]

you'd probably want to write your own init modifier that samples a texture to populate particle data

[tender pulsar]

ah ok

[weary abyss]

you might have to hack Hanabi to add an optional extra texture binding to the init modifier though. I don't think init has access to the existing one.

[tender pulsar]

PR welcome then?

[weary abyss]

You'd have to ask djee

[tender pulsar]

i'm just not sure how to fit this all together yet. i'll try it and see assuming i need to do my own init modifier

fork+PR is easy

[coral phoenix]

Is there any way to write a custom shader (for both vertex & fragment) using a wgsl file, instead of using the ExprWriter?

[weary abyss]

Make a custom modifier and then include_str!() your WGSL file

[cerulean dune]

hey ! would you like a PR with this example i wrote ? showing off ribbons. ping me you want @.pcwalton or a maintainer ?

[weary abyss]

Hmmm, the performance problem I'm having is almost entirely one Hanabi compute shader that's taking 8ms/frame on a 4070

Ahhhh, pretty sure it's the sort

[weary abyss]

I spent time reading about GPU sorts again. I’m starting work on mergesort. It should take log2(N)/8 dispatches, where N is the total number of particles that need sorting. This shouldn’t be too bad and is certainly likely to be much fewer dispatches than radix sort would be, in addition to being much simpler.

[weary abyss]

I prototyped mergesort. It's not fully working yet but it's tentatively looking like it should solve the performance problem: the sort phase is well under 1ms now for 600 particle effects and is dominated by the actual rendering cost.

[weary abyss]

Just implemented a parallel GPU mergesort, dropping the total compute time to 17% of the frame time under load and the sort time to <5% of the frame time I believe

It's slow as far as GPU sorts go, but optimizing it more isn't worth it

[weary abyss]

My Hanabi-Batched fork now has the parallel mergesort in it. Feel free to pull it upstream if you want

[weary abyss]

I'm currently removing use of the render-world ECS in Hanabi-Batched since I need to go retained for performance. I already pushed a change that avoids reextracting effects if they haven't changed or spawned anything, which saved me 1.5ms or so a frame.

[weary abyss]

Ok, locally in Hanabi-Batched I've reduced prepare_effects from ~650us to ~200us if nothing has changed. Working on batch_effects now as that's dominating the profile.

[weary abyss]

batch_effects now caches the sort buffers if there are no changes, improving its performance by 50%-70% in most cases.

[weary abyss]

Yikes, compile_effects is incredibly slow. I'm working on a fix, feel free to steal it from Hanabi-Batched when it's done

Yeah, dropped it from ~1.5ms to 0.07ms per frame 🙂

[junior glen]

Any chance you could look into Hanabi-Batched running on WebGPU?

Last time I tried it failed, but it would be neat if I could use it for the next jam

I imagine that would need to be done anyways for when Hanabi-Batched is upstreamed

[weary abyss]

I don't have a lot of time for that right now, but please feel free to file bug reports and/or send PRs

[gilded fox]

Is there a way to scale an event dynamically?

Meaning- if I have an effect playing I can change its translation and it would play from different places. I noticed that changing the transform's scale won't change the scale of the effect. Is there a way to achieve something similar?

[midnight hull]

Hi folks, opened up hanabi for the first time today to add a few trails to a prototype vehicle controller, and saw performance plummet a lot faster than I expected when ribbons were enabled, with relatively few particles (240 particles per ribbon x 4 ribbons was giving me a ~40ms bottleneck on relatively high end mac hardware).

Performance was great without ribbons enabled, and the problem seemed to scale directly with particle count. Is this expected with ribbons in the current state of the crate, or is there a chance that I'm holding it wrong?

[weary abyss]

This is because of the slow single-threaded heapsort in the main branch. I have a fix for the issue in Hanabi-Batched by switching to mergesort.

[weary abyss]

I might need to implement reading from images in init/update modifiers. This shouldn't be too bad as I don't need per-instance images, just per-graph images. This is useful for efficiently implementing noise, or for efficiently sampling a curve that an artist defined by rasterizing the curve to a floating point texture and using the texture filtering hardware to sample.

[weary abyss]

Added some quaternion binary operators to Hanabi-Batched. Feel free to grab them upstream

[tender pulsar]

that would be great for my use case of 'explode an image into particles that sample image color across a grid of points'

[weary abyss]

Implemented 🙂 About to push to Hanabi-Batched

This is an example of sampling from a Perlin noise texture to apply acceleration

I called these textures "LUTs" (lookup textures) to distinguish them from the existing Hanabi textures, which are associated with the material. LUTs are associated with the asset, and you use the LutSample expression to sample them.

[tender pulsar]

should i be using that fork if i want bleeding edge? already having to think about what to do about 0.18 out now

[weary abyss]

Yeah, I should take the upgrade

Hanabi-Batched does have some bugs, some severe. It's considered experimental

[tender pulsar]

if it works for my (quite limited) use case, i’m fine
and potentially i can find/patch bugs too

[weary abyss]

Feel free then 🙂 I'll be fixing bugs myself of course

[tender pulsar]

have you looked into what’s required for that?

[weary abyss]

Nope, I didn't realize 0.18 would be out today. I don't think the changes are that bad

[ember kindle]

internals didnt really change much, would expect an easy port. if anything it'll be mostly the wgpu upgrade

[tender pulsar]

same and same haha

[ember kindle]

is there an issue tracker somewhere for hanabi batched?

[weary abyss]

Oops, forgot to enable them. They're at https://github.com/pcwalton/bevy_hanabi/issues

The issue I'm thinking about is that effects can randomly fail to appear because of a bug in retained mode, depending on the order in which things load. I tried to fix it but there are still issues.

[ember kindle]

wow, hanabi-batched has no issues, its bug free 😁

[weary abyss]

The 0.18 upgrade will probably be in a separate branch because I want main to be buildable with my project, and I have to wait for my dependencies like egui to upgrade

[ember kindle]

id be interested in taking a look, is there a repro case for the retain bug?

[weary abyss]

it's extremely random

[ember kindle]

i see

[weary abyss]

Try the firework or worms examples

It has a tendency to reproduce on my complex effects that artists have created, which are unfortunately NDA 🙁

[weary abyss]

I believe I fixed it, feel free to test

[weary abyss]

OK, I have direct lit particles working. Indirect not yet because I ran out of bind groups. I broke 2d though so I need to fix that

This depends on a Bevy PR I need to submit

[weary abyss]

I have indirect lit particles working now in a branch: https://github.com/pcwalton/bevy_hanabi/tree/lit-particles

The way I remain compatible with Bevy's PBR bind groups is quite a hack, but it ends up OK and actually let me clean up a little code.

It depends on a Bevy PR: https://github.com/bevyengine/bevy/pull/22526

Once the Bevy PR lands I'll clean it up and merge to Hanabi-Batched.

[narrow gust]

srry

which one is the official repo ?

is pcwalton's one the maintained one ?

[lyric flume]

the djeedai repo is the official one, pcwalton's fork is a fork they use for their studio with stuff they need for that use case, so has newer stuff at the moment with the goal for the official repo to upstream or implement similar things

[sour dock]

how can i make a particle rotate with an entity

[sour dock]

Found the solution !

[simple falcon]

I'm trying to orient myself to using this crate. When should I be using ExprWriter as opposed to Module directly?

[simple falcon]

It seems that all the examples use ExprWriter, but the README example uses Module::new. Why?

[vast aurora]

I created a pr for bevy 0.18 update: https://github.com/djeedai/bevy_hanabi/pull/518

Be careful, details in my comment!

[weary abyss]

I personally never use ExprWriter.

[weary abyss]

I have a Bevy 0.18 upgrade ready to go for Hanabi-Batched as well.

[weary abyss]

Just pushed the 0.18 upgrade for Hanabi-Batched.

[sinful urchin]

Hey, what's the difference between ColorBlendMode::Modulate and Add, because for some reason when I change it to Add, the particle effect seemingly only shows like a full second late. Idk if this is a known thing

[sinful urchin]

Also, the random attribute seems to always use the same seed when it is first summoned, which feels like it goes against being "random"? (this is on 0.17 btw)

[weary abyss]

Quite possibly isn't related to the blend mode but rather is that your change perturbed compilation time

I redid the way Hanabi-Batched handles visibility: invisible effects are no longer yanked from the ExtractedEffects structure but are instead just marked as inactive and skipped at the sorting stage. This should be fine because Hanabi-Batched uses a retained render world so they should have no overhead.

[weary abyss]

Pushed a whole bunch of fixes to Hanabi-Batched. You can also now query the dimensions of a LUT using the new lut_dimensions expression. I'm using the new LUT feature to make artist-defined curves that evaluate efficiently using the texture sampler, and also to make Perlin noise gradient based velocity perturbation.

[near zealot]

has anyone used bevy_hanabi (or batched) for rain?

[weary abyss]

We're using it for water splash effects, but not rain yet

(Water splash effects were the motivation to add PBR particles to Batched, in fact)

[near zealot]

hmm, would rain be a difficult undertaking? Considering tackling it in a little bit but am worried about going down a rabbit hole

[weary abyss]

I'm actually not too familiar with the state of the art for rain in AAA games

[near zealot]

I was taking a look at the batched bevy_hanabi and ran into some errors on 0.17 (using the commit before 0.18)

I'm probably going to wait until I update to 0.18 to try again, but it was failing to compile because of references to binding_index_to_textures which is private (at least in 0.17?). I'm mostly curious if you've seen that and if there's something I should know about. Again, I'm probably going to wait until I update so no worries if it's like.. a weird thing, it might just be my setup

[weary abyss]

Yeah, that's landed upstream but missed 0.18 so you have to backport it. Unfortunately there's not much I can do as I need that for PBR.

I should add that to the README.

[near zealot]

ah, are you saying you currently have to be on bevy main? just making sure I understand

[weary abyss]

I think you can be on Bevy main, but then you would have to update the version numbers in Cargo.toml

That won't be the case for long though because #rendering-dev is planning to break everything Very Soon Now

[ember kindle]

it might already be broken tbh

[weary abyss]

Unfortunately, there's kind of a perfect storm of problems here. The sensible thing to do would be to just #[cfg] off the PBR stuff if you're on 0.18. But since you're talking about rain presumably you want PBR.

[ember kindle]

we could probably put the public-ing of the thing you need in 18.1

[weary abyss]

Locally my studio uses a private branch of the latest release version of Bevy, and I cherry pick back fixes

[near zealot]

I personally am using local forks for everything, so I can always just patch bevy if needed. I try to minimize the amount of that I do. But, also, I don't mind waiting 👍

[weary abyss]

It'd be a 3 month wait at least

It just missed the 0.18 cutoff

[near zealot]

what is time

[split quail]

how to achieve rotation of a particule in Hanabi?

I don't find angularAcc or Rotation attribute

rotation over time not random rotation on init

[weary abyss]

Use the AXIS_X/AXIS_Y/AXIS_Z attributes

[split quail]

I am tring to make a healing circle 😄

simular to this https://www.youtube.com/watch?v=O8Qm8DQZv5A&list=PLpPd_BKEUoYh40LeJXTgA6E53gCMPq3MX&index=2

[split quail]

can I make the texture facing the sky instead of facing the cam?

[red trellis]

hi - i'm trying to use your fork but HEAD fails to compile because it attempts to access a private field of https://docs.rs/bevy_pbr/latest/bevy_pbr/struct.RenderViewLightProbes.html

[weary abyss]

Yeah, it was just discussed in here -- it requires a backport of a change that landed too late for the 0.18 cutoff

Unfortunately there's not much I can do.

[red trellis]

oh like just above?? 🤦‍♂️

haha ok thanks

[weary abyss]

Yeah

[red trellis]

backporting your bevy_pbr commit from 2 weeks ago seems to work. thanks!!

[split quail]

so can I make the texture not facing the camera? in OrientMode I dont understand the others mode than FaceCameraPosition.

[split quail]

if I have this paticule : using OrientMode::ParallelCameraDepthPlane or OrientMode::FaceCameraPosition

when i change it to OrientMode::AlongVelocity:

nothing. can you please explain to me the issue here?

[sour dock]

@weary abyss https://github.com/djeedai/bevy_hanabi/issues/510 is this fixed in your fork ?

[weary abyss]

Dunno, but I do despawn effect hierarchies all the time in my project, so I would imagine it's fixed?

[split quail]

I make it plane with texture with spinning system 😄

[sour dock]

Caused by:
  In Device::create_bind_group, label = 'hanabi:bind_group:vfx_indirect_batch@0'
    Binding size 32 of Buffer with 'hanabi:buffer:batch_descriptor' label is less than minimum 256

getting this error

using this commit ff5709bb4a1106a8d015b8f7655cc129053c0f75

[junior glen]

@weary abyss hanabi-batched is not compiling for me. I suspect you're using it while pointing to a Bevy fork that has more things pub than upstream?

the offending field is from bevy_pbr

[red trellis]

see above convo 🙂

[junior glen]

oh thank you very much!

[weary abyss]

Gimme a sec, I'll go ahead and put the stuff that doesn't build on 0.18 behind a feature flag.

Given that Hanabi-Batched is going to be the only supported way to use Hanabi on 0.18 for a while I'll try to make it minimally usable.

Pushed a change, now Hanabi-Batched should work on 0.18.

Also updated the README to mention 0.18 support and the new features in Hanabi-Batched.

[weary abyss]

If anyone is interested in being an official maintainer for Hanabi-Batched, feel free to get in touch with me... I don't have the time myself, but since Hanabi is such an important piece of Bevy infrastructure for shipping games it deserves official maintainership.

I'm aware that Hanabi-Batched has a bunch of regressions right now which I'm kind of drowning in, but given that it's feature complete as far as my VFX artists' needs right now are concerned, I suspect its stability/maturity is going to significantly improve over time.

(The main large missing feature that we might need is particle collisions against the depth buffer, but I'm holding off on that until my VFX artists tell me that they need it for something.)

[quasi wharf]

i want to talk with <@&1064694928589991936> about upstreaming hanabi-batched. i am busy this cycle but will hopefully have bandwidth next cycle

[nova mauve]

Agreed on this as a goal

[weary abyss]

It's got too many bugs to upstream right now. It needs to be stabler before that happens

[quasi wharf]

i think that could be part of the upstreaming work, particularly useful as a way to familiarize with internals. we wouldn't just copy/paste anyway. this would be a majorly chunky task but i think worth it given how much work you've done here on top of the existing library's work

[weary abyss]

I’m still breaking stuff a lot and not always getting reports, which leads me to the belief that I’m the only one using a lot of Hanabi. That makes me nervous about upstreaming.

I’m not sure why at the moment. Possibly people just tend to use mesh animations and ad hoc CPU particle systems for VFX in Bevy today instead of Hanabi?

Bevy rendering is fast enough that most indie level games can get away with just spawning a bunch of quad meshes and animating them ad hoc in a system, which I bet a lot of folks are doing

[quasi wharf]

happy to defer to your experience here if you think it really shouldn't be upstreamed, but this seems as much social as technical. i think we could have strategies for mitigating risk (i.e. experimental mod, don't publicize too much to start) but it seems like a bit of chicken and egg in terms of being able to socialize the maintenance and also get more users to flesh out bugs. the alternative is that we do vfx from scratch which also could be a viable option, esp if you were willing to do a retrospective on all the requirements and battle tested production fixes you've made

[weary abyss]

I don’t think VFX from scratch makes sense. From scratch is for when the architecture is unsound, but Hanabi’s architecture is fine. It just needs a lot of cleanup, which is mostly a question of getting more contributors

My hesitancy for upstreaming is mostly that it's in too immature of a state for Bevy's relatively heavyweight review processes, honestly. There's no way I could find even one reviewer for most of my code changes, let alone 2

[quasi wharf]

that's really fair. cart is going to discuss some process changes soon that i think will help clarify whether this could be in scope, i.e. whether we have enough resources to staff that effort. particle systems are critical to the kind of installation art i want bevy to be able to support and so it's a major goal of mine, and i've spent a small but non-trivial amount of time reading hanabi's code base. i have some big items i still need to finish but would be willing to make myself available to make this a priority if we have enough other parties that would be willing to form a working group (i.e. contribute review)

[weary abyss]

Honestly, if you wanted to take over maintenance that'd be the biggest thing

Just to keep crates.io up to date and coordinate releases

[quasi wharf]

okay, totally. i'd be happy to do that in the meantime. let me clear some space next week to do a deep dive into the batched changes vs upstream hanabi

[junior glen]

@weary abyss I took a stab at Hanabi-Batched + WebGPU, and updated the required rand stuff: https://github.com/pcwalton/bevy_hanabi/pull/1

unfortunately, I still get stuck at Web backend does not support BINDING_INDEXING extension

but this should be a start

[junior glen]

https://github.com/djeedai/bevy_hanabi/pull/518 works

it's AI-generated, so I don't trust it terribly much, but it's working on 0.18 + WebGPU

[weary abyss]

Merged

[junior glen]

so it looks like I'm forced to use that for a while :/

[junior glen]

that was quick, thanks!

[weary abyss]

Yeah, I never bothered to have a fallback for our non-bindless PBR path

[junior glen]

Does WebGPU not have bindless?

[weary abyss]

It does not 🙁

[junior glen]

the heck

TIL

[weary abyss]

Yes, it is a huge source of frustration for me

[junior glen]

now it is for me as well haha

[weary abyss]

especially since the last non-bindless GPU on desktop shipped 14 years ago

[junior glen]

but yeah given that you only ship native, I would not have bothered in your case either

[weary abyss]

It's not that I don't want to support the browser, it's just that not having bindless is incredibly antiquated

[junior glen]

I also only target native, but for the jam web builds are kinda a must

[junior glen]

yeah totally

[weary abyss]

tbh there is a bit of a chicken and egg problem here, in that Unity and Unreal don't use bindless either in their "normal" mesh rendering paths I don't believe, so there isn't a huge amount of demand for it

but 14 years is extreme

[junior glen]

o.O

[weary abyss]

("normal" meaning non-RT, non-Nanite)

devs have been asking Unity to use it for years and Unity keeps refusing

citing lack of support

like I said, chicken and egg problem

[junior glen]

but that's just not true

[junior glen]

I see, thanks for the explanation

[lyric flume]

(also probably notable that maintainer doesn't even think its the right change)

[junior glen]

yeah this is totally just a bandaid for now to have GPU particles on web at all

[native elbow]

@weary abyss do you have an example of ⁨compile_effects()⁩ being slow I could grab? I profiled now, I'm at <0.1ms always

@junior glen v0.18.0 is released now, supports Bevy 0.18. I quickly tested the wasm examples and they work. Let me know if there's an issue.

[junior glen]

oh HECK yeah 😄

that's great news, thanks a bunch!

and just in time for the jam too 🙂

[native elbow]

😄

[weary abyss]

Uh... honestly I don't remember. I'll let you know if I find something

[weary abyss]

Things I (or someone else) will probably want to implement at some point:

• Depth sorting for particles within a single system (every other particle engine has this; djee had the foresight to make our sort generic and I upgraded it to a mergesort so it shouldn't be too bad; annoying part is doing it per-view)
• Collision against depth buffer (Unreal & Unity VFX Graph have this)
• Skinned particles (Unreal has this)
• Lights (Unreal has this; requires my Bevy GPU light clustering patch to land, but is actually quite easy after that!)

None of this requires architectural changes. Hanabi's the little VFX system that punches above its weight 🙂

[cloud solar]

Anyone else noticed a pink screen on startup in bevy_hanabi since 0.18? This is on AdapterInfo { name: "Apple M1 Max", vendor: 0, device: 0, device_type: IntegratedGpu, driver: "", driver_info: "", backend: Metal }

Also happens in release mode: cargo run --example firework --release.

[near zealot]

for what it's worth, I'm on v0.18.0 tag with AdapterInfo { name: "AMD Unknown (RADV REMBRANDT)", vendor: 4098, device: 5761, device_type: IntegratedGpu, driver: "radv", driver_info: "Mesa 23.2.1-1ubuntu3.1~22.04.3", backend: Vulkan } and I don't see a pink flash like that :\

[quasi wharf]

am wrapping up some work and will have some more time to start getting deeper into hanabi, i may try to tackle one of these as a first project. depth sorting or collisions maybe?

[weary abyss]

Collisions would be both better as a first project because it's less restructuring and more visually impactful

and that'd be awesome!

It's also fun "pure graphics" work 🙂

[quasi wharf]

okay great!

yes, i've been craving some

[weary abyss]

@quasi wharf You probably want to make a CollideWithDepthBuffer modifier that takes a reference to a camera entity. It’s a little weird because the app has to specify which depth buffer to collide against: there may not be just one and the particles will behave differently depending on which one you use!

[small prism]

Hi, I am looking to make a 2d snow effect with a foreground and a background. If I wanted to use say a ConformToSphereModifier is there a simple way to have it only effect particles from one of the layers and not the other? Thanks. Edit: Think I got it, just use different effects

[gilded fox]

My effects that have .with_simulation_space(SimulationSpace::Local) spawn on weird offsets. I saw nothing about parameter tweaking when setting simulation space to local in the docs. Have you guys ever encountered similar bugs in your code and fixed them?

[gilded fox]

Ok so I now know exactly what's happening- the Y axis of the effect's transform is ignored. I don't know why. It doesn't matter whether it's a child of another transform with an offset or not.

[gilded fox]

here's what the init example looks like when the y axis is used instead of x

So it's a problem with the crate

(or with my computer)

[gilded fox]

Here:
https://github.com/djeedai/bevy_hanabi/issues/522

[tender pulsar]

ok so i can't use 0.18 (yet) til all my deps update .. i'm still unclear on if the 'batched' branch solves my issues or not
fundamentally, really, i would love it if i could have a variable size vector of "particles to spawn" set somewhere and hanabi reads from that when there are new particles to spawn.. that would be great. the information would include e.g. position, velocity, gravity, lifetime

[native elbow]

That’s a bit complex to do by design, and probably quite inefficient. The entire point of the Hanabi design is that particles are initialized on GPU directly by a compute shader when they spawn, which is much faster and avoids having to upload data from CPU, leaving the limited bandwidth for other usage. You can workaround this by using properties, uploading the CPU data you need in them, and reading it back from GPU with a property expression in the init pass. But this is quite convoluted, has the inefficiencies mentioned, so I’d suggest to reconsider why you need this in the first place. If you have a use case not covered by GPU init (for example, spawn particles exactly at a bunch of positions calculated by another CPU system which is not doable on GPU for example because it’s from an animation), could you please open an issue on GitHub and describe it in details so we can discuss how to best implement it?

[tender pulsar]

i have an existing game that expects to be able to spawn particles like the above .. it's possible for me to change these from individual 'spawn particle' calls to describing where to put spawners. that seems like the better solution anyway

i'm just evaluating options, and 'mimic the behavior of individual spawn particle calls' didn't seem like the worst option
