karmic monolith
#

I'll try my best to ship a new release today 🙂 Thanks @river cliff for all of the great work this cycle

flat coral
#

💯0️⃣

#

Suppose we'll get some of that system and component magic to allow both chords and regular inputs in insert?

#

like implement InputKind for all buttons but also for chords

#

or something like that

karmic monolith
#

oh hmm 🤔

#

Make an issue please

#

That's a good idea!

river cliff
#

@karmic monolith I can tackle this issue if you'd like? I have a working idea about using a match statement in insert to see if it is a chord. Haven't tried anything yet but looks straight-forward

flat coral
#

I don't think it is straight-forward tbh

#

The only reason I know it's even possible is cause Bevy did it

#

We could even do tuples like Bevy so we don't need all the members to be typed the same

#

Wait, would we need all the members to be typed the same?

river cliff
#

insert() takes a UserInput which is an enum that has Single and Chord among other variants. So, I think it might already be possible? I would have to do some testing so it might or might not be straight-forward.

river cliff
flat coral
#

Although we probably don't want Bevy's nesting behaviour just because it's sorta nonsense for chords

flat coral
#

Btw unrelated but what numbers are the mouse side buttons

karmic monolith
karmic monolith
river cliff
flat coral
flat coral
#

I'm trying random numbers until it works

karmic monolith
flat coral
#

Anything over 3 inputs is already very questionable and IIRC it currently only supports some low number already

karmic monolith
#

Yeah okay maybe just do two and three

flat coral
#

8 apparently

#

which is not really a low number

#

maybe nesting chords makes sense, in some hypothetical case where a GUI has someone bind ctrl+a to 'open menu' and shift+'open menu' to 'open dev menu'

#

ooh I found one, Other(1) is the mouse button closer to the user, I think that's mouse button 5

karmic monolith
river cliff
#

So, I'm looking at it but I don't know what the exact feature that is wanted lol. Like how in Bevy, systems can be added with a tuple?

// Is this add a chord or is it like `.many_to_one()`? Or, something different?
.insert((GamepadButtonType::South, GamepadButtonType::North), Action::Jump)
karmic monolith
#

Imp Into<UserInput> for tuples 🙂

#

So yeah, exactly that

flat coral
#

the magic happens in the macro I would guess

karmic monolith
#

The magic is blanket implementations

#

The tuple just reduces tedium

placid furnace
#

I was just reading the readme and it doesn't seem like this the case anymore:

Development occurs on the dev branch, which is merged into main on each release.

bold lodge
#

Yep, it was changed.

karmic monolith
placid furnace
karmic monolith
#

Merging! Thanks 🙂

wicked crypt
#

I don't seem to be getting values <0.6 when using my controller trigger, any ideas ? 😅
I can definitely see values in the full range when I try with the bevy gamepad viewer so I know my controller is capable of it

.insert(
    InputKind::GamepadButton(GamepadButtonType::RightTrigger2),
    InputAction::Gas,
)

let acceleratebevye = a.clamped_value(InputAction::Gas);
karmic monolith
austere pasture
#

Does it happen with other controller hardware/other input viewers?

fathom scroll
#

can this library used for controlling camera movement? i got the direction is only vec2, but transform need a vec3. how to use it?

flat coral
#

You can use it, but it won't do much of the work for you. LWIM is a pretty thin abstraction layer between key presses and actions. It helps with rebinding and adds a concept of single-axis and dual-axis inputs, but that's about it

#

I always use it for my projects because the abstraction it does is something I'll always want, but it doesn't do much "work" at all

river cliff
flat coral
#

There may be other crates for camera movements, but nothing super established afaik

#

Well. I know there are other crates for that, but when last I looked most were not up to date with Bevy

fathom scroll
#

and maybe the camera rotating over character.

river cliff
# fathom scroll some over shoulder third person camera.

Thanks for the info! Here is a thrid person crate for an example https://github.com/AndrewCS149/bevy_third_person_camera. It doesn't use leafwing-input but it can give an idea for some of this. If you using the mouse, I would recommend using DualAxis::mouse_motion() to move the camera. You only need two axis for the rotation as you probably not need to roll your camera? For shoulder position, you could spawn the camera as a child of the player entity and offset the position to the shoulder of the player.

fathom scroll
river cliff
fathom scroll
#

ok. ill ask again later.

spring robin
#

There's something weird going on with Bevy UI and leafwing input manager where when I click on a button in my UI that leafwing input manager's state doesn't match the raw Res<Input<MouseButton>> state. This seems like new behavior since I recently upgraded to Bevy 0.11.

.just_pressed(MouseButton::Left) always correctly yields true when clicking regardless if it was on a UI button element but it seems like leafwing will never yield true for action_state.just_pressured(InputAction::Click) when I'm clicking on a UI button.

Is this expected? Is there any known interactions between bevy_ui and leafwing that could cause something like that?

river cliff
#

I think the code that does this in systems.rs.

// If use clicks on a button, do not apply them to the game state
    #[cfg(feature = "ui")]
    let (mouse_buttons, mouse_wheel) = if interactions
        .iter()
        .any(|&interaction| interaction != Interaction::None)
    {
        (None, None)
    } else {
        (mouse_buttons, mouse_wheel)
    };

If a Interaction is anything but Interaction::None (so mouse is interacting any button) then it will return (None, None).

But, the issue your having is that even when you hide the button, it is still blocking input?

spring robin
#

I think so. But just in general it was a surprising that interactions with Bevy UI would result in different leafwing behaviors. In general, I'm a bit against the idea of leafwing implicitly changing the result of "just_pressed" based on other interactions. Why would it return false just because a button was clicked? It seems like that's a level of control above what I'd expect an input manager to be responsible for. What if I want to create an visual effect when you click regardless of if the user clicks a button? Or a diagnostics plugin that tracks the number of clicks, etc.

#

Maybe it just shouldn't be a default feature? For my case I'll just turn it off. Appreciate the code pointer!

karmic monolith
#

Or whoever really 🙂

river cliff
#

Like #[cfg(all(feature = "ui", feature="block_ui_interaction"))]

toxic flame
#

i have a ui widget that outputs a Vec2 that can be -1.0 to 1.0

and my input map uses a virtual dpad and a dual axis both bound too the same move action. how would i set the action as pressed whenever that value is not zero?

none of the methods ive tried have worked and it feels like im pretty close. any help would be appreciated

i have an update_joystick system that is preupdate

                let mut player_input = player_input.single_mut();
                info!("player move values {}", Vec2::from_array([x, y]));
                // player_input.press(Combat::Move);
                // player_input.action_data_mut(Combat::Move).axis_pair = Some(DualAxisData::from_xy(
                //     Vec2 { x, y }.clamp(Vec2::splat(-1.0), Vec2::splat(1.0)),
                // ));

                player_input.set_action_data(
                    Combat::Move,
                    ActionData {
                        axis_pair: Some(DualAxisData::from_xy(
                            Vec2 { x, y }.clamp(Vec2::splat(-1.0), Vec2::splat(1.0)),
                        )),
                        consumed: false,
                        ..default()
                    },
                );
#

im not sure if it was this or if it was because i was clamping this twice
but i fixed it

                player_input.set_action_data(
                    Combat::Move,
                    ActionData {
                        axis_pair: Some(DualAxisData::from_xy(
                            Vec2 { x, y }.clamp(Vec2::splat(-1.0), Vec2::splat(1.0)),
                        )),
                        consumed: false,
                        state: ButtonState::JustPressed,
                        value: 1.0,
                        timing: Timing { instant_started: Some(Instant::now()), current_duration: Duration::from_secs(1), previous_duration: Duration::from_secs(0) },
                    },
                )}
placid furnace
#

I'm getting an (expected) panic when using leafwing input manager with just the MinimalPlugins (this is on a server, but my gamecode always adds the plugin since my game code is unified between the server and client) in update_action_state. I checked it out to see if it's reasonable to make it not crash when the Input Plugin isn't added, and it seems like about half of the input types are already Options, so there seems to be a precedent for this. Would you be open for a PR that just adds Option to the four gamepad input types in this method (and whatever other changes that'll cascade from that) to make the plugin compliant when used alongside no InputPlugin?

flat coral
#

What's the point of still using it?

placid furnace
#

I have a GamePlugin that I add to both the server and client, so they run the exact same code, and part of that is adding this plugin

#

For now though I just added the InputPlugin to the server, it's not gonna do anything anyway

karmic monolith
flat coral
#

seems oddly wasteful to insert LWIM into the server

karmic monolith
#

LWIM is intended to be able to be used as an AI abstraction too, so it makes sense there

flat coral
#

I guess

placid furnace
#

Is it possible to get the just_pressed functionality to work with a custom FixedUpdate-like schedule?

#

Currently it either doesn't get triggered or it gets triggered a couple of times in a row (presumably because they run multiple times during the frame it's set as JustPressed, and sometimes no times during that frame)

river cliff
placid furnace
#

Aw okay, I'll see if I can manage to hack around it for now

#

I already store the input history, and it seems the internal data is accessible through some getters, so I should be able to postprocess the data and do my own Just-processing on top

karmic monolith
#

Yep. It's extremely annoying to me too

placid furnace
#

Yeah, I know the Update vs FixedUpdate is a continuous issue in bevy, but it's a really difficult issue to solve, so that's very fair. I'm sure there'll be a lovely api for it in due time 😄

karmic monolith
#

Yeah, I think we have a pretty good plan, but it's like 3 controversial PRs in sequence to implement it T_T

placid furnace
#

Ohhh, are they linked in the bevy issues?

karmic monolith
#

Not yet implemented. The basic plan is:

  1. Unify Time and FixedTime
  2. Add input time stamps
  3. Swap events to a pub-sub model with a max capacity so they're not missed
placid furnace
#

Ah okay, I'll have a look, maybe I can help, though I probably shouldn't pick controversial PRs as my very first contributions to bevy hehe

karmic monolith
#

@errant coral and @tired isle will both have interest in the implmentation details though

tired isle
#

There's no need to enforce a max capacity. Just need to have FixedUpdate signal when it's OK to swap the event buffers.

karmic monolith
#

Great thank you

tired isle
restive knoll
#

Honestly even having a super sketchy version of 2 and 3 that just has a timestamp of when bevy got it (which would be limited in accuracy to your FPS) would be nice at this point, at least then we would have a working solution for input in FixedUpdate and just need to improve the accuracy

placid furnace
tired isle
#

FixedUpdate is always <= the rest of the frame in Time, so if systems in FixedUpdate would have seen an event, then we can drop it

placid furnace
#

Oh true

#

Wait no, that could still miss events, which isn't a perfect fix

tired isle
#

it wouldn't miss events

restive knoll
tired isle
#

well, rn it's a swap each frame, we have to delay the swap until systems in FixedUpdate could have seen the events

placid furnace
#

What if the FixedUpdate is once every 3 frames? Then it'll start missing again

#

I'm not sure if it's possible to get this working perfectly with both, but it definitely should be possible to get both working individually (and then expose a way to select) as a temporary fix at least

tired isle
# placid furnace What if the FixedUpdate is once every 3 frames? Then it'll start missing again

I think you're not seeing it. Double buffering is just how we can discard events while new events are being added. Right now the two buffers swap every frame unconditionally. That's why FixedUpdate systems can miss events (they get dropped before FixedUpdate runs). Therefore, the solution is to only swap when FixedUpdate signals that it has run (then it has seen all available events).

placid furnace
#

Ooh, yeah my understanding of the double buffering was very wrong, so each system with an EventReader already tracks that they've seen the ones in the "old" buffer? And that's why you don't get the same event in that system again? I thought it was more integral to the actual function of events, but it's really just a convenient way of tracking which events can be dropped?

tired isle
placid furnace
#

Awesome, that seems like it can be implemented without the other dependencies and have it be backwards-compatible

tired isle
#

I think so

karmic monolith
#

Yep: @placid furnace let me know if you want to tackle this. Otherwise I'll submit a PR of my own

tired isle
placid furnace
#

I think this solution is pretty neat. I'll make sure this would allow me to run this same system in my own custom FixedUpdate. I do see one definite problem with this however, if there is no FixedTime the event queue will grow forever (if FixedTime is simply very large that's fine, the user chose that, but the absence of a FixedTime altogether is the default state, and that obviously needs to work like it did before

#

This is definitely a sensible solution to make it at least not drop events, though I see now why the timestamps are required to get it working truly correctly

tired isle
#

yeah, need some way to still do the right thing in the absence of something running FixedUpdate

#

k I think I found a way to handle it

#

indirect crate coupling 📈

open trout
#

is it possible to have lwim throw an error if a InputManagerBundle::<TAction> is inserted but app.add_plugins(InputManagerPlugin::<TAction>::default()) hasnt been called? (asking for a friend who keeps stubbing ver toe on this and wondering why there's no input coming through)

open trout
#

DeadZoneShape::Ellipse is not NaN-safe and misbehaves when either radius is set to zero:

    fn outside_ellipse(&self, x: f32, y: f32, radius_x: f32, radius_y: f32) -> bool {
        ((x / radius_x).powi(2) + (y / radius_y).powi(2)) > 1.0
    }

if x is not zero and radius_x is zero everything is fine, because its infinity and infinity > 1.0
but if x is zero and radius_x is zero, then the entire left side becomes NaN regardless of the value of y, and the input gets discarded because NaN > 1.0 is false so the input gets eaten

Possible fixes:
a. flip this around to be !(((x / radius_x).powi(2) + (y / radius_y).powi(2)) <= 1.0) (NaN comparison is always false regardless of operator) but then we'd be letting through x = y = 0 as being outside the deadzone
b. add DeadZoneShape::None and have it do no filtering, make the standard enum constructor private then have a public constructor that does validation, but thats not possible in rust afaict?
c. make it behave like DeadZoneShape::Rectangle of the same dimensions when either radius is zero, but that might be a lot of extra checking for an uncommon case.
d. error/panic at runtime if a 0 width DeadZoneShape::Ellipse is found
e. silently replace deadzone type to DeadZoneShape::Rectangle of the same dimensions at runtime if 0 width DeadZoneShape::Ellipse is found

@karmic monolith I'm not sure what the best approach is here but whichever approach you think is best i can make a PR for

#

i can also just make an issue and forget about it, the workaround is to simply not make 0 area ellipses and go for 0 area rectangles instead

placid furnace
open trout
#

assume at least one InputManagerPlugin was not forgotten

placid furnace
#

Still not possible, InputManagerPlugin<A> has no way to know about InputManagerBundle<B>, as it does not know about B

#

There's no way to look for all instances of generic types, as they're entirely separate types

karmic monolith
karmic monolith
river cliff
# karmic monolith d or e are my preferences. Probably just d

d would be inconsistent with the other deadzone shapes, as both Cross and Rect would return any value when shape size is 0. With d, a shape size of 0 would throw a panic instead of letting any value go. Instead, would it better to check on outside_ellispe() if any radius is 0, then return the false?

if radius_x == 0.0 || radius_y == 0.0 {
    return false
}
karmic monolith
brazen iris
#

Wow, great that there is also a chance for help with other crates commonly used. I would love to define a set of inputs for an action, let's call it PAN

  • with keyboard, a SingleAxis is sufficient and I could map SingleAxis.ad()
  • with mouse, I want to use the horizontal motion delta, but only, if the right mouse button is pressed
    For keyboards (where I dont need it in the current case), I can insert_chord with an iter of keys I have to combine to trigger the action, if I understood that right. For mouse, I'd have to combine a modifier (RMB) with a SingleAxis.mouse_motion_x(), so that the action_state.value is the axis value. Is that possible? In the engine I used for quite some time (lets call it installation-fee-engine) that was possible in the new InputSystem: https://docs.unity3d.com/Packages/[email protected]/manual/ActionBindings.html#one-modifier
river cliff
#

Yes this is possible! On the InputManagerBundle's input map something like this should work:

input_map: InputMap::default()
    .insert(VirtualAxis::ad(), Action::Move),
    .insert_chord([
            InputKind::SingleAxis(SingleAxis::mouse_motion_x()),
            InputKind::Mouse(MouseButton::Right)],
            Action::Click
    )
    .build(),

But, on the current crates.io build it won't work as Chord will basically act as a button. This is fixed on main though so you can point leafwing in the Cargo.toml to git.

open trout
river cliff
#

Could just say the boundary is outside as that probably makes more sense. If the deadzone is 0, users would probably want any input to work. So, changing the < and > on outside_rectangle() to >= and <= would fix that.

#

This would also make the value filtering more of a volume approach i think. So if the volume of a shape is 0, then every input is let through.

river cliff
#

@karmic monolith If you'd like me to change deadzones to be like the above I can get a pr finished today :). This should make everything consistent.

karmic monolith
brazen iris
open trout
river cliff
open trout
#

There's also another issue with DeadZoneShape, and its DeadZoneShape::Cross. Its a bit more conceptual here but essentially, using that shape is never useful. I think it arose from a desire to make moving in cardinal directions easier with gamepad, but it does exactly the opposite. it should be a per-axis filter, but it filters both with the same shape. its essentially doing a union of deadzone instead of a per-axis intersection, if that makes sense. Desired behavior would be that an axis is kept zeroed if its within its deadzone, but the other one is allowed freedom if its outside of its deadzone. And you'd think you can get away with using the per-axis positive_low and negative_low to pre-filter, but no, DualAxis is handled as such:

            InputKind::DualAxis(axis) => {
                let x_value =
                    self.input_value(&UserInput::Single(InputKind::SingleAxis(axis.x)), include_deadzone: false); // per-axis deadzones ignored
                let y_value =
                    self.input_value(&UserInput::Single(InputKind::SingleAxis(axis.y)), include_deadzone: false);

                axis.deadzone.input_outside_deadzone(x_value, y_value)
            }
open trout
river cliff
#

ah

#

So will an input of (0, 0) and a deadzone of (0, 0) you don't want pressed() to be true?

open trout
#

yep

#

because 0,0 is inside the deadzone of 0,0

#

i do like that the docs of these things made that clear, that things on the boundary are considered inside

#

that is good and useful behavior

river cliff
# open trout There's also another issue with `DeadZoneShape`, and its `DeadZoneShape::Cross`....

agreed. This Cross shape arose from when the previous deadzone was that snapping. But, it was technicality "snapping" and not deadzone so was changed. I think it would have to be a separate thing like https://github.com/Leafwing-Studios/leafwing-input-manager/issues/372 ? What do you think?

GitHub
`DualAxis` Directional Snapping · Issue #372 · Leafwing-Studios/lea...

What problem does this solve? While working on #370, it got me thinking about joysticks being used as a dpad or an input that requires the full 360° to be split up into snap-able angles. What solut...

#

setting the snap to 4 directions in the config would I think make this work again

open trout
#

what im thinking right now is:

  • DeadZoneShape::Cross probably needs to go, i dont think its useful for anyone but i dont really need it gone myself if anyone truly does. I just think its a footgun
  • add DeadZoneShape::None that 1. does no deadzone filtering of its own and 2. passes true to self.input_value(... include_deadzone: true) . this is multifunctional: it covers the DeadZoneShape::Cross use case of per-axis intersection filtering properly, and also allows the "even no input is input" use case
  • DeadZoneShape::Ellipse needs to check if either radius is zero, and if it is, it must have logic identical to DeadZoneShape::Rectangle
#

i just realized the second bullet point has an issue, we still need to unify the results of both individual deadzone checks somehow, and theres two possible behaviors there

river cliff
open trout
# river cliff 1) I think Rocket League has a cross deadzone that players prefer over square. S...
  1. a quick google (to see how rocket league cross input behaves) says its actually a circle input zone "It's not a "cross" deadzone. It is a circle input border shape." I personally cant see a reason a true Cross deadzone would be useful to anyone, as it filters movements that are large enough to be outside the deadzone for one axis just because the other axis is in its deadzone
  2. i cant find extract_dual_axis_inputs anywhere, can you link me it? i also dont see how direction snapping is related here
  3. I didnt get to review these and one is already merged. I appreciate the eagerness but can we slow down a bit? The fix in main does not behave as the documentation says it should, and im against the unmerged PR's changes
river cliff
#

said the wrong function sorry

open trout
#

all good

#

i just ctrl+f'd, im not familiar enough with the codebase to silently correct it to what you meant

river cliff
#

Just to clarify, are you looking for the directional snapping of DualAxis deadzones before the rework?

open trout
#

nope

river cliff
#

ok so just the pressed(0 being always true on a 0 volume deadzone?

open trout
#

i just want a way to have a dual axis input that doesnt have a unified deadzone and instead just uses the two sub-axes deadzones individually

#

and that

#
    fn outside_ellipse(&self, x: f32, y: f32, radius_x: f32, radius_y: f32) -> bool {
        if radius_x == 0 || radius_y == 0 { outside_rectangle(x, y, radius_x, radius_y) }
        else { ((x / radius_x).powi(2) + (y / radius_y).powi(2)) > 1.0 }
    }
#

this would be ideal

river cliff
#

I like the new logic based on volume and think that a None would require extra matching in the extract function. Maybe adding an option to turn of deadzones?

open trout
#

the alternative is to fix the behavior of Cross

#

im not sure ive effectively communicated how Cross is broken

river cliff
#

btw, what is the use-case? As normal controller can't rest on (0, 0) unless it's a hall effect controller

#

input mocking?

open trout
#

mice rest on zero just fine

river cliff
#

ah

open trout
#

but im also using a gamepad for testing

#

Cross is just not useful as is, and i want it to be useable

river cliff
#

I think turning off deadzone calculates on a the axis level would get the desired effect?

open trout
#

is there some paper or something that actually describes Cross as being the current implementation? i hate to be ragging on it so much but like im almost certain no one wants that behavior and its just a small oversight

#

what do you mean turning off

river cliff
#

Cross is more used as the volume/shape that the deadzone is taking. It has nothing to do with a "cross snapping" effect.

river cliff
#

So your None idea but on the DualAxis instead of the DeadZoneShape level

open trout
#

would the per-axis deadzones be used then?

#

if so then im happy with that

#

I dont see how Option<DeadZoneShape> is any different from DeadZoneShape::None in terms of implementation

#

but i dont have a preference

river cliff
open trout
#

where would be the extra new matching

#

i think just adding a case to the existing matches get the desired effect

river cliff
#

in extract(), a I would have to check the enum for none and for the shape in the impl.

#

I should check SingleAxis_mouse_motion_x() to see if it says pressed it see what happens

open trout
#

oooh. to be able to turn on individual deadzoning

#

okay yeah yeah yeah

#

wait

#

that still isnt exactly ideal

#

hmm

river cliff
#

ya, I just have to check if a 0 deadzone SingleAxis is always pressed(), otherwise this chanage won'y do anything lol

open trout
#

yeah actually this isnt the cross we want either:
consider one axis input being large and outside the deadzone, but the other being small and inside the deadzone. the large one should override the small one's deadzone and make it register anyways

#

this needs further thought and i need to do other things, but i dont think any of the considered solutions so far are valid useful implementations of Cross

river cliff
#

Although, wounldn't setting the deadzone really small, like 0.00000001 get the desired effect or no?

open trout
#

for what shape?

river cliff
river cliff
#

so there would still be a volume for (0, 0) to sit in and pressed() would be false. And any other value from the mouse would be registered

open trout
#

ive thought more about Cross, i'll write up the exact desired behavior soon

flat coral
#

I want to have two models for moving a jigsaw piece, that exist at the same time

#

Let's say it's shift+click to grab, then click to release. And the other is click to grab, then release to release. I'm trying to plan how to implement this most elegantly

#

I think there's no way around some kind of hand-implemented state tracking, right? The user is holding the mouse, is that part of a release-click or a grab-click?

karmic monolith
#

Yep, this will have to be hand implemented for now

#

Use bevy_mod_picking though

flat coral
#

No way

#

not gonna use a whole-ass library just to click a shape

karmic monolith
#

[3:55 PM]JoshValjosh: In lwim, is there a way to bind mousebuttons or keyboard buttons to actions?
@foggy osprey Yes 🙂 That's the whole point of the InputMap type (and pretty much this whole crate)

flat coral
#

besides that part is already written

foggy osprey
karmic monolith
foggy osprey
#

I take it back, you could also use InputKind it looks like, correct?

foggy osprey
karmic monolith
#

Yeah, you could manually construct the full enum at either the UserInput or InputKind level

foggy osprey
#

I had a serious morning brain moment and didn't think to look at the examples

karmic monolith
#

But that's very verbose

foggy osprey
#

I checked README on github and docs.rs 🤦‍♂️

flat coral
#

For chords you're still forced to do it this way for now

#

making them into InputKinds or whatever

placid furnace
#

I just did 2 insert_multiple, one for keys and one for mouse buttons 😋

brazen iris
#

Hi. I want to differentiate two Actions; One should trigger, when the right mouse button is clicked, one for when it is hold. As I also have mapped keys to those actions, I want to keep my logic device agnostic. Is it possible, to specify on the input_map, that a button has or should not be pressed longer then n milliseconds. I've seen ClashStrategy, but that seems to be for button chords only.

karmic monolith
brazen iris
karmic monolith
flat coral
#

Gonna try implementing my click hold and click click again control schemes as an abstraction in between LWIM and the rest of my software

#

wish me luck

open trout
# open trout ive thought more about Cross, i'll write up the exact desired behavior soon

@river cliff the cross can be thought of two concentric squares Inner and Outer with the following behavior (Outer is larger than Inner):

  • if the input is outside Outer, then it is considered live input and passed on unchanged. if !Outer.contains(input) { Some(input) }
  • if the input is inside Inner, then it is considered dead. else if Inner.contains(input) { None }
  • if the input is inside Outer, then it is considered live, BUT: if either coordinate x or y would fall inside Inner if the other did, then it is set to zero before being passed on. else { Some(Vec2 { x: if abs(x) < Inner.x { 0 } else { x }, y: if abs(y) < Inner.y { 0 } else { y }})}

the return type of DeadZoneShape::input_outside_deadzone has to be changed to Option<(x, y)>

river cliff
# open trout <@547931778631860242> the cross can be thought of two concentric squares Inner ...

Thanks for the write up! I understand how you would like Cross to work now. But, I don't think I have a good enough mental model of the problem that your trying to solve. Currently, I'm discussing on the basis that this is round-about your code:

// This should only be true when the mouse moves
if action_state.pressed(Action::MouseMotion) {
    let xy = action_state.clamped_axis_pair(Action::MouseMotion).unwrap().xy();
    // Code that handles xy input
}

Is is possible to see the code of what you currently have, what behaviour is currently, and what the behaviour you expected is?

open trout
#

roughly, except im using lwim as a user configurable abstraction over gamepad/mouse/keyboard etc and want users to be able to choose what kind of deadzone to use depending on what kind of axis input they have

#

im using axis_pair not clamped

river cliff
#

The proposed new Cross would look something like this then, right?
🟢 🟢 🟢 🟢 🟢
🟢 🟢 🟡 🟢 🟢
🟢 🟡 🔴 🟡 🟢
🟢 🟢 🟡 🟢 🟢
🟢 🟢 🟢 🟢 🟢
Green means that inputs are send as is, yellow means that is snaps the one axis to 0 (North South snaps x to 0 and East West snaps y to 0), and red is all axis are 0? Is snapping on some of the input values (yellow) also a desired behaviour?

For context, this is how the current Cross works:
🟢 🟢 🟢 🟢 🟢
🟢 🟢 🔴 🟢 🟢
🟢 🔴 🔴 🔴 🟢
🟢 🟢 🔴 🟢 🟢
🟢 🟢 🟢 🟢 🟢

Also, would this solve the issue of input code being called when nothing is moving?

let xy = action_state.axis_pair(Action::MouseMotion).unwrap().xy();

// This is only true when the input moves and is out of deadzone
if action_state.pressed(Action::MouseMotion) && xy != Vec2::ZERO{
    // Code that handles xy input
}
open trout
#

i think that would panic, but if you do unwrap_or_default thats pretty much it

#

the graphics are accurate

river cliff
#

It only panics if there is no DualAxis input for that action, I think. But, unwrap_or_default() would stop any panicking. So, does the code I wrote fix the issue for is there something else that I'm missing?

open trout
#

my code works at the moment, ive just been noting shortcomings

#

is there a usecase for how cross currently works?

karmic monolith
#

It was listed as "a deazone shape that has been used in games"

#

So I implemented it because it was easy

open trout
#

im trying to see if i can find behavior description of cross online because im pretty sure my take on it is what most people would expect

karmic monolith
open trout
#

yes

river cliff
karmic monolith
open trout
flat coral
#

ignore the ugly

open trout
#

what would be a reasonable way to keep track of a stateful input operation over multiple frames like click and drag and drop

#

a resource?

#

a component on the entity responsible?

karmic monolith
flat coral
#

since the inputmap is on an entity I'd be tempted to put these state things as components with it

#

where it makes sense

placid furnace
#

I came up with what I think is pretty neat way to enable use of just_pressed/just_released when you're working within FixedUpdate schedules. It does require you to keep track of the previous action, but that's not too bad.

let mut actions = todo!("Retrieve the current actions");
let prev_actions = todo!("Store the previous action");

for a in actions.get_pressed() {
    if !prev_actions.pressed(a.clone()) {
        actions.action_data_mut(a).state = ButtonState::JustPressed;
    }
}
for a in actions.get_released() {
    if !prev_actions.released(a.clone()) {
        actions.action_data_mut(a.clone()).state = ButtonState::JustReleased;
    }
}
flat coral
#

This just panics on my machine

karmic monolith
#

I'm currently leaning towards "just use a vec" for question 1, and option 2. a)

#

Any of the other options for 2 are messy and end up coupling the inputmap architecture really closely to this "traditional" notion of how keybindings work

#

When we can just handle that at the UI level without much issue

#

cc @austere pasture when you're not busy dying of sick

flat coral
#

I am noob but the way I see it if we want uniqueness guarantees we should just have them, one way or another

karmic monolith
#

I can enforce it during construction

#

But I don't want to lock down the enum completely so it gets bypassed

#

Maybe that's fine?

#

Or maybe we add a sanitization step to .build on the InputMap and then make that mandatory?

#

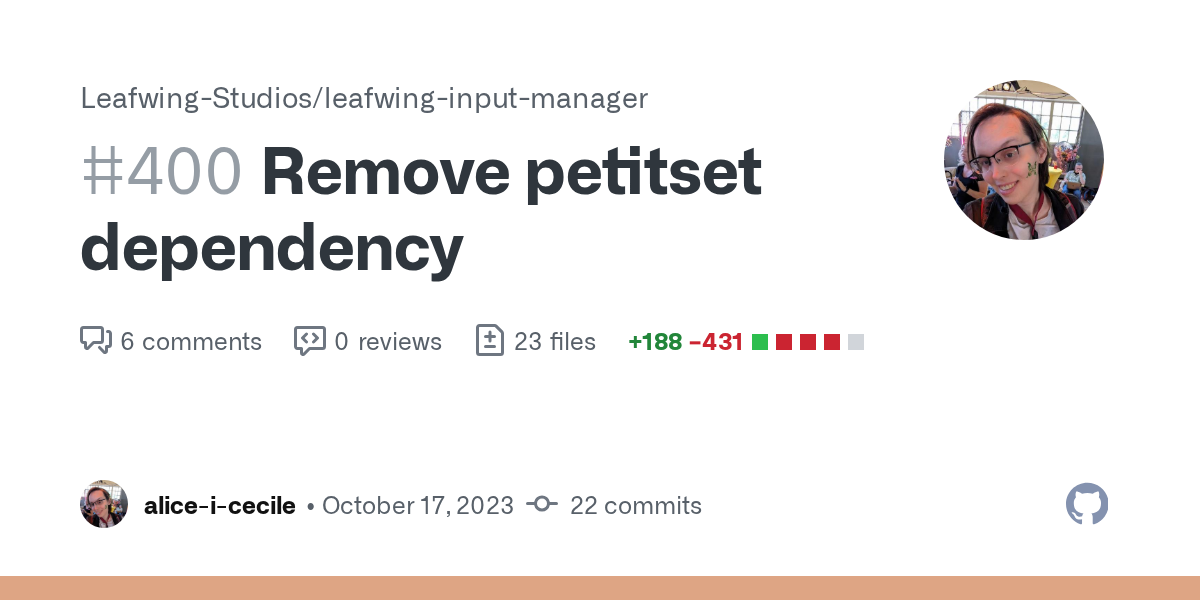

Or we poke at the set crates and find one that works like a Vec, but with uniqueness

#

Like petitset, but using a vec instead of an array

flat coral
#

isn't that like 5 lines of code for a naive implementation?

#

I'm mainly thinking of chords here, which are always small. I don't know all the other considerations

#

I didn't understand this line either HashMap<A, Vec<Option<UserInput>> What does a None represent here?

karmic monolith
karmic monolith
quartz wedge
#

my game runs in FixedUpdate, is there a way to get pressed() but it reports whether the button was pressed since my last fixedupdate tick, rather than the preupdate ticks that the input manager's plugin uses? otherwise i can miss inputs

restive knoll
#

I don't think we have a solution for this issue yet. The way I work around it is by turning inputs into my own event type, which just gets combined until FixedUpdate runs

#

That still has a lot of problems, especially when running at <60FPS. But sadly we don't have input timestamps yet to fix this issue

flat coral
#

You'll have to DIY a solution

flat coral
restive knoll
#

You don't get smooth movement for every FixedUpdate, you get say 1/30th of a second of input in the first tick on that frame, then nothing in the second tick

#

It's probably not worth worrying about people with <60FPS unless you plan to release soon enough that you can't wait until input timestamps fix this issue

flat coral
#

Wouldn't you just track state and press events in the regular loop and read state and consume events in fixed update?

quartz wedge
#

i had a vague notion that it might be collecting inputs in preupdate and allowing me to consolidate them in fixed, but doesn't look like it

#

i can diy something then

restive knoll
quartz wedge
#

yeah

#

i want to do pressed_since(last_tick_i_recorded_in_fixedupdate)

restive knoll
#

But yea pretty much regardless of what solution you chose, it's gonna be a bunch of compromises as long as we don't have input timestamps 🤔

#

My main goal is usually just to stop people with >60FPS from complaining the game doesn't respond to their inputs 😂

quartz wedge
#

i have my own format for serializing anyway, since i need to send entities along with inputs for predicted spawns. so i can just aggregate inputs myself in fixedupdate.

flat coral
#

I still don't really get it, if you go by a just_pressed event, shouldn't you always get at least one shot off

#

and then go by still pressed to decide whether to keep shooting

#

It seems janky in any circumstance to have an action like firing not happen because of a very quick press

#

I use autohotkey in games sometimes and I have run into things like that, but not commonly

quartz wedge
#

ideally yes, but it's sampling inputs in PreUpdate, and just_pressed tells you if it was pressed since the last time it sampled

#

and with logic in fixedupdate, many preupdate can happen before fixedupdate runs again

flat coral
#

but I am talking about making a non-fixed-update system that reads just_pressed and puts it into some resource to be read (and consumed) in fixed update

quartz wedge
#

yeah that's the workaround needed

flat coral
#

What makes this a workaround and not simply a solution?

#

I get that ideally we have a library doing this for us, but the library would just be doing the same thing, wouldn't it?

quartz wedge
#

well yes, I would prefer leafwing inp manager to be doing it 🙂

#

not hard for Boolean inputs. not sure how it should work with non bools like joystick positions

restive knoll
flat coral
#

I think it's much more reasonable to have an extremely short joystick flick produce no motion than for an extremely click fire click to produce no firing

#

Unless flicks have some special meaning, like dashing or whatever

#

in which case you can interpret the flicks beforehand I guess

flat coral
restive knoll
#

FixedUpdate just runs some number of times during the Update loop, but that doesn't mean it maps nicely to the frame it should be on. If you are at 60FPS you could get 2 FixedUpdates, then 0, then 2. Which means that there is no solution as simple as just keeping track of things until FixedUpdate comes around

#

Tracking input in PreUpdate and then executing it in FixedUpdate can only produce incorrect results. Which is why we need input timestamps and a library that is aware of them

flat coral
#

Why does 2 0 2 cause problems?

restive knoll
#

You'd be updating all your inputs on the first of those 2 frames, then continue with the same input for the next

flat coral
#

But the idea is that just_presseds are consumed and presseds are not, and you use these two things accordingly

#

So yes your firing button might be down for 2 fixed updates

restive knoll
#

Yea you'd consume just pressed fine here, but presseds can't get updated in between, and if the just pressed happened on the PreUpdate on a 2 frame it should probably execute in the second of the 2 FixedUpdates, not the first

placid furnace
restive knoll
#

Yea merging inputs into the most recent one is the same thing I do too ... Not ideal, but it works ...

#

Logic for merging inputs can also get kind of weird

quartz wedge
frank charm
#

Trying to reason out how to use this library to support an interaction for a "building" system in my game -
Basic desired workflow is:

  • User clicks a UI button
  • User's cursor is now followed by some visual "placement" indicator (like a building ghost, so variable depending on button click and needs to have some idea of valid/vs. invalid placement)
  • User clicks somewhere in the world, and then spawns the desired entity at the location, if valid, if invalid, ghost should persist
  • User may explicitly exit the placement operation with a separate binding, thus aborting workflow

The part where my brain just stops functioning involves the "spawning desired entity" bit - I can reason out a few ways to maybe use a component or a resource to enable/disable input maps or early-exit the handling system, but I can't think of any reasonable way to record/invoke the necessary spawning function given that any given event could involve somewhat arbitrary types

karmic monolith
frank charm
# karmic monolith Have you seen the Emergence code base? It's FOSS, so steal whatever you want

Ok - I -think- I follow this, but just to check my own understanding:

You store all spawnable entities in a serializable format indexed by a type tagged unique ID, the "manifest."

When a user interacts with your UI, it retrieves that ID from the same resource that you're using to spawn the UI, which is then piped to a system that store it in an intermediary component along with the data from the manifest.

The data (per "sort" of entity, EG, a "structure") in the manifest represents a kind of "super type" containing all variations of spawnable entity component combinations, and when it is time to instantiate an entity from this representation, a custom command is used to interpret that data, spawn a new entity, and associate the necessary components.

Is that more or less what's happening here?

karmic monolith
#

The idea is to push as much of this as you can into data-driven definitions

#

Which is way easier to add variations on

#

And is more designer and modder friendly

maiden trail
#

I'm curious to hear anyone's thoughts on an API that allows you to operate on inputs from specific device(s). For example, InputMap:get_from_devices(Action::Jump, [InputDevice::Keyboard, InputDevice::Mouse]). This way you could create a binding menu for just the keyboard & mouse without needing to rely on the specifc index an input is at.

maiden trail
#

I guess this wouldn't work if you have for example two keyboard inputs. You still need to edit a specific index in that case.

river cliff
maiden trail
#

That's not what I meant. I meant basically InputMap:get() but it only returns the inputs that belong to the devices you specify. The reason you would want this is because rebinding menus only edit certain devices like "Mouse & Keyboard" or "Gamepad". You could use it to easily display the input for the given device in the rebinding menu.

flat coral
maiden trail
#

If your Action::Jump had KeyCode::Space and GamepadButtonType::South bound to it, that method would only return KeyCode::Space because it belongs to the keyboard.

river cliff
#

So kinda like how you can set what gamepad an InputMap gets input from and widen that to allow any input device? So, you can say "I want this InputMap to get input from a keyboard and this other InputMap to get input from this gamepad." Is this a correct interpretation of your example?
If I remember correctly, as of right now, all InputMaps get input from keyboard no matter what, which isn't always desirable.

maiden trail
#

No, that's not what I mean. There would still be one InputMap that contains bindings for keyboard/mouse and gamepad. I'm suggesting an API that would allow you to edit/read the InputMap for inputs specific to the specified devices. That way you could have a rebinding menu that lets you rebind they keyboard/mouse inputs without touching the gamepad inputs.

karmic monolith
#

@river cliff I'm just going to ignore the failing test for now and file an issue

#

I'll push changes, merge and then cut a release

river cliff
#

That's fine. Also, I just recently make commit to update to Bevy's release.

karmic monolith
#

Yep, just saw that, thank you 😄

river cliff
#

How much easier/cleaner, if at all, is it to implement UserInput as a trait after removing petitset?

karmic monolith
#

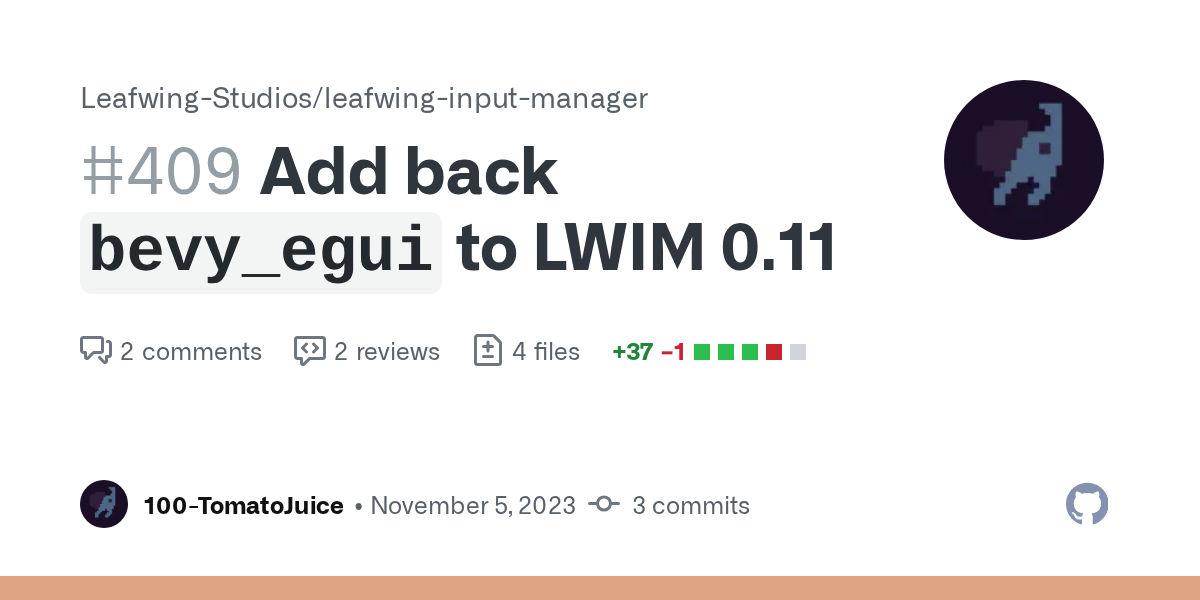

Also bevy_egui made a release; we should readd the egui feature and cut a release

#

I'm traveling this week, so my ability to do so promptly is limited

#

But I can review a PR and then press the buttons

river cliff
karmic monolith
#

You're the best 😄

river cliff
karmic monolith
river cliff
karmic monolith
river cliff
#

@karmic monolith Would you like help on the petitset removal pr, like fixing the failing tests? Or, are there still design decisions your working through with it?

karmic monolith
#

I've been busy with the release and then travelling, so I haven't gotten back to it

river cliff
#

Weird, changing the enum fixes the DualAxis test but now fails the SingleAxis test lol.
This:

enum AxislikeTestAction {
    X,
    Y,
    XY,
}

To this:

enum AxislikeTestAction {
    XY,
    X,
    Y,
}

Any ideas before I start digging?

karmic monolith
river cliff
#

Maybe some short-circuiting variant checking? I'll have to look.

restive knoll
#

Hmmm, did I miss anything I need to change for the new LWIM release? My actions seem to always report being released 🤔

river cliff
#

hmm, that's odd. Is all inputs doing this or only certain kinds?

restive knoll
#

All of them

#

Would be even weirder if it was some of them, since they all have pretty much the same configuration, they're on an entity, and have a ToggleActions that's set to enabled. This is with all features disabled (since I use neither bevy_ui nor egui)

river cliff
#

I don't think it's the ToggleActions as that wasn't touched I think. Plus, ToggleActions defaults to enabled which is the same as yours. Do you have a minimal reproducible example to test? I don't have any ideas yet on what this is. The single_player and the minimal tests both get a pressed for me.

restive knoll
#

The examples work for me too ... I'm not really sure what causing them to break. Can't really tell if it's running as normal from the action state either, it's just a released state, a time at which it started and a duration that keeps going up

#

If I remove thise third line it's fixed ...

.insert_resource(ToggleActions::<ControlAction>::ENABLED)
.insert_resource(ToggleActions::<CombatAction>::ENABLED)
.insert_resource(ToggleActions::<ContextTargetAction>::DISABLED)
#

The actions I'm looking at are all in ControlAction tho

river cliff
#

Does setting that 3rd line to enabled also solve it? I'm thinking maybe some overriding is happening? If so I can make a test later with multiple ToggleActions to try and fix this.

restive knoll
#

If it's ENABLED too it works yea

river cliff
#

Hmm, I'll make a test later to test my suspicions. Which is one disabled ToggleAction will block input from other actions. I could turn out to be wrong though.

river cliff
#

I was able to reproduce by modifying the minimal example like this:

fn main() {
    App::new()
        .add_plugins(DefaultPlugins)
        .add_plugins(InputManagerPlugin::<Action>::default())
        .add_plugins(InputManagerPlugin::<Action2>::default())
        .insert_resource(ToggleActions::<Action>::ENABLED)
        .insert_resource(ToggleActions::<Action2>::DISABLED)
        .add_systems(Startup, spawn_player)
        .add_systems(Update, jump)
        .run();
}

#[derive(Actionlike, PartialEq, Eq, Clone, Copy, Hash, Debug, Reflect)]
enum Action {
    Run,
    Jump,
}

#[derive(Actionlike, PartialEq, Eq, Clone, Copy, Hash, Debug, Reflect)]
enum Action2 {
    A,
    B,
}

#[derive(Component)]
struct Player;

fn spawn_player(mut commands: Commands) {
    commands
        .spawn(InputManagerBundle::<Action> {
            action_state: ActionState::default(),
            input_map: InputMap::new([(KeyCode::Space, Action::Jump)]),
        })
        .insert(Player);
}

fn jump(query: Query<&ActionState<Action>, With<Player>>) {
    let action_state = query.single();
    if action_state.just_pressed(Action::Jump) {
        println!("I'm jumping!");
    }
}
river cliff
#

found it!

#
app.configure_sets(
                    PreUpdate,
                    InputManagerSystem::Update
                        .run_if(run_if_enabled::<A>)
                        .after(InputSystem),
                );

I think it is this, which was chanhed in 0.11

#

if one is off it set the set to not run i think

restive knoll
#

Ah, it sums up all the run conditions on that one set ... Yea I guess the run condition needs to be on the systems for that plugin only 🤔

river cliff
#

both the sets and the systems have that run condition. I guessing the sets condition can be removed?

restive knoll
#

Should be possible to just remove the one on the set then yea

river cliff
#

Made a fix that should work, at least from the minimal example. I'll make a pr rn for you to use if you'd like.

karmic monolith
river cliff
#

@restive knoll Does this fix the issue for you?

restive knoll
#

Seems to work 👍

river cliff
#

n_variants() is fine though

karmic monolith
river cliff
#

That's what I'm saying lol

#

Only input mocking is broken

#

I was also thinking "what if resource InputMaps broke," but nope. I'm now just going though everything that sets input mocking apart from examples and seeing how A::variants() can be affected.

#

Ohhh! Just found that pattern that might lead to something. Minimal is broken until I give Run an action. So, my theory is "if an action does not have an input to it, it will short-circuit A::variants()?"

#

That makes sense! As the uniqueness check sees two empty actions and just "doesn't" Edit: turned out to be wrong

karmic monolith
river cliff
#

Got the pattern!
For this enum, I added inputs for Jump and Run, but not A.


enum Action {
    Jump,
    A,
    Run,
}

The result was Jump worked but Run did not as A blocked of any lower actions for some reason. Now, I just have to find the reason.

river cliff
#

Does this sound true to you Alice? I think it might be due to Petitset storing the interal as an Option but the MultiMap doesn't?

#

Instead, something like map: MultiMap<A, Option<UserInput>>, might fix this?

karmic monolith
#

I think we can probably remove the usage of A::variants in input mocking

#

I'd like to be able to remove that method anyways

#

So then more dynamic actions and ones with nested enums can be more easily supported

river cliff
karmic monolith
river cliff
#

🎉 Changing the loop

// From this
for action in A::variants()

// To this
for (action, input_vec) in self.iter()

works! And the gamepad_axis test is now passing🥳

#

I don't think we even need this line anymore either:

let Some(input_vec) = self.get(action.clone()) else {
    break;
};

As we get the input vec in the iterator. And tests and minimal still pass!

karmic monolith
river cliff
#

I made a pr, do you want me to go ahead and sqash & merge? I also have two commits for the merge conflicts.

#

squash and merge my pr not the petitset one

#

or would a rebase and merge be better? I still don't really understand the difference

placid furnace
#

Hey, I'm wanting to use this for multiplayer, but I'm not sure if it supports what I want to quite yet, so basically I want some things to be directly driven by input (like movement or jumping or shooting), but I also want some things to be abstract, like "swap item in hand and in inventory slot #5", which would be driven by a UI event for example. Basically this is because I don't want the server to have to simulate the UI and camera and mouse of each client to figure out whether they're trying to click on an inventory slot.
But this would require an action like

struct Action {
    SwapItem { slot: usize },
}

Is something like this currently possible in leafwing or should I do a custom thing for this?

karmic monolith
#

In this case, an unsquashed merge would be optimal

karmic monolith
#

The dynamic actions example from @sour oxide might be helpful though

placid furnace
#

Ooh, I'll have a look, thanks!

#

Where could I find the dynamic actions example, nil?

karmic monolith
#

I'm looking for this too 🤔

flat coral
karmic monolith
#

So preserving the atomic commits is nice to help reviewers

#

Then we squash it at the end anyways on merging to main

karmic monolith
#

Yep I think you're correct

restive knoll
#

I actually noticed that before and I'm not sure why I didn't bring it up here 😅

#

Luckily cargo doesn't actually use tags, unlike go's toolchain

karmic monolith
restive knoll
karmic monolith
#

Working on removing Actionlike::variants and friends now

#

So we can support nested enums

restive knoll
#

Can I then finally get my Skill(u8) instead of Skill1-6? 👀

karmic monolith
#

Just another 126 compiler errors to go...

karmic monolith
#

Steady progress!

river cliff
#

What's your solution to removing A::variants() in action state?

karmic monolith
#

And then iterate over the keys

river cliff
karmic monolith
#

Yeah, much more flexible 🙂

#

A heck of a lot of changes required though

tardy verge
#

So, does the leafwing input manager provide a method by which you can parse, like, what mode you're in, and based on that, the keys you press correspond to different actions?

restive knoll
#

I don't think there's anything built-in for a "mode", but my solution so far has been to toggle different action enums based on the mode the player is in

tardy verge
#

oh how do you mean?

#

@restive knoll

#

Like replace the action set component?

restive knoll
#

There's a ToggleActions<T: ActionLike> resource to disable certain actions. You can use it to disable all enums on a certain action, and just toggle those based on what is and isn't available in the mode the player is in. So in one action left click might be shoot, while in another left click is interact

tardy verge
#

OOOOO

#

yes that's exactly what i want

#

is that in the examples anywhere? I can't seem to find it

#

or did you make this resource and you're doing the toggeling manually somehow?

restive knoll
#

Idk about examples, but here's the system I have to toggle the actions

📎 mode.rs
#

The resource is just built-in

#

Tho it feels a bit strange to use a resource when all my inputmanagers are components 😂

tardy verge
#

huhhh

#

very strange yeah i'll have to look into this

#

thank you

tardy verge
#

wait actually okay another question 😅

#

if i have a chorded action, and a normal action or just like, two chorded actions where one is a subset of the other, will both get triggered or only the maximum one?

#

Is there a way to set things up such that I can distinguish between two actions, one that contains a subset of the other?

#

( In my case, I want Right Arrow to trigger a different action than SHIFT + Right Arrow )

#

ah

#

i see a clash strategy enum

restive knoll
#

Depends on the clash strategy you set yea

karmic monolith
flat coral
restive knoll
zenith pine
#

is there a way to have a single input (a chord in my case) press multiple actions, and keep ClashStrategy::PrioritizeLongest? InputMap::insert_one_to_many only presses the last action specified

karmic monolith
#

Like, have a system that reads the action state

#

If that chord is pressed, press the other action you want to trigger?

zenith pine
#

Something like this?

if actions.pressed(Action::AandB) {
    let data = actions
        .action_data(Action::AandB)
        .clone();

    if !actions.pressed(Action::A) {
        actions.set_action_data(Action::A, data.clone());
    }

    if !actions.pressed(Action::B) {
        actions.set_action_data(Action::B, data.clone());
    }
}

it seems to work and I don't think I need more than one double action for my project so I don't really mind doing it

#

Action::A and Action::B are independent so I can't just assume A implies B or vice versa

karmic monolith
tardy verge
#

Is there an easy way to switch leafwing input manager to use the System keyboard instead of the application keyboard? ( I am writing an app and need it to always respond to my keyboard strokes no matter what appliaciton is currently focused )

karmic monolith
#

Nothing built in though

#

That's like at the winit level

tardy verge
#

OWO

#

where bevy crate fox_plead

karmic monolith
#

Search something like "bevy system keyboard"?

#

It was in #crates in the past year or two I think

tardy verge
#

okieee

tardy verge
#

doesn't look like it works with leafwing tho 😔

#

So you were talking earlier about there being some way to hijack leafwing, can i do that here to input these events into it? 👀

#

what would that look like?

karmic monolith
tardy verge
#

OwO

#

hm no not what i mean

#

is there a way for me to emulate keycode in leafwing

#

I wanna pass teh keybaord directly in from this, and then let leafwing figure out the action states and stuff

karmic monolith
#

Aha

#

Need the trait refactor for that sorry

tardy verge
#

nooooooooooooooooooooooooooooooooooooo

#

cruel world

#

cruel mistress

tardy verge
#

ahhah!

#

Okay so

#

I tried bevy_global_input wasn't good enough, tried using willhook but it worked inconstentially, found hookmap_core and that works!

#

then i feed the events from it into the standard bevy input key thing and that works with leafwing!

karmic monolith
#

😄

sour herald
#

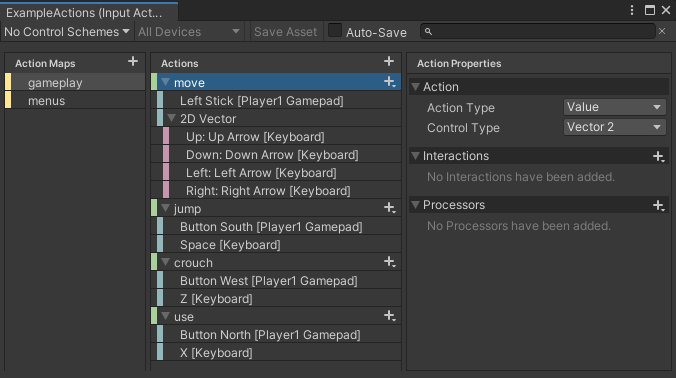

I want to have separate controls for menu and game. Are there any examples out there of how to accomplish this? like how to swap between two different ActionLike enums

karmic monolith
#

usually you'd just declare two different Actionlike enums, and add two copies of the plugin, one for each type 🙂

sour herald
#

Yeah, the idea is to have an FPS game with a main menu

#

Ahh thank you!

karmic monolith
#

Yep! Nice and easy 🙂

bold lodge
#

@karmic monolith just updated from 0.12.0 to 0.12.1 and noticed that action_state.value(Action::ZoomCamera), that mapped to mouse scroll in my case, continue to report the previos value even after I stop scrolling.
But looks like milestone doesn't have anything related to it: https://github.com/bevyengine/bevy/milestone/19
Maybe you know a recent PR that was related to input?

GitHub
0.12.1 Milestone · bevyengine/bevy

A refreshingly simple data-driven game engine built in Rust - 0.12.1 Milestone · bevyengine/bevy

karmic monolith
bold lodge
karmic monolith
bold lodge
bold lodge
karmic monolith
#

Yeah, I'm doing horrible things with ManualEventReader currently for mouse motion, so I wouldn't be surprised if it broke

bold lodge
karmic monolith
bold lodge
#

Got it

karmic monolith
#

I'm currently moving, so it'll be most of a week until I can properly look into things

tired isle
#

xkcd was right

#

if you have an app that installs the TimePlugin but does not run Main schedule, removing the EventUpdateSignal resource in Startup should recover the old behavior

#

well, in general, removing the EventUpdateSignal resource will recover the old behavior

#

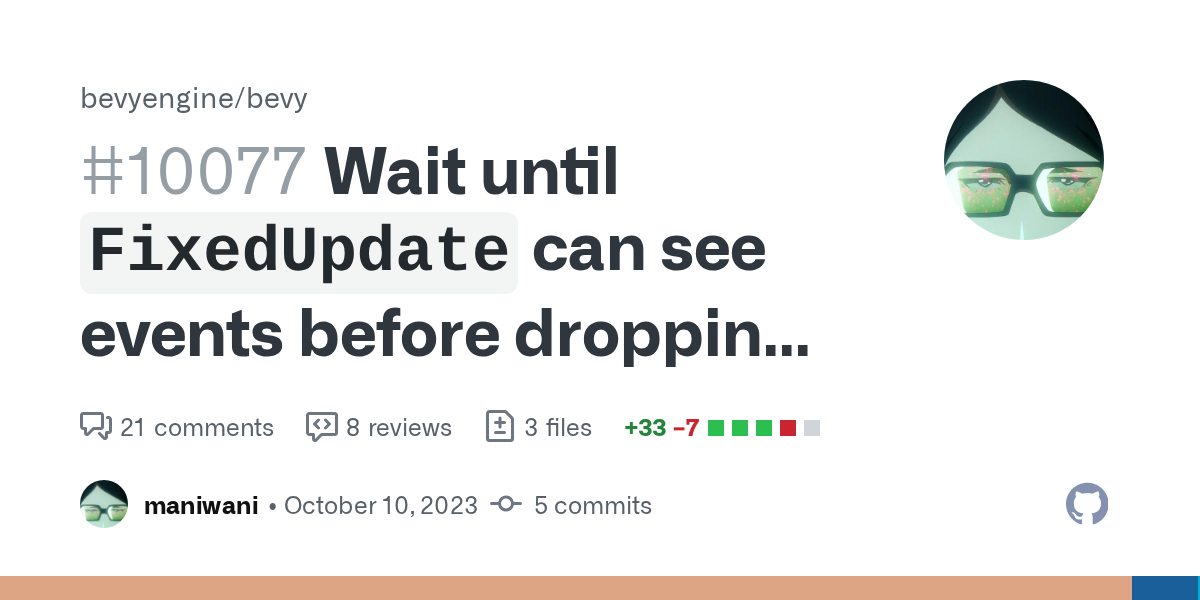

tl;dr with my PR, events persist much longer without being dropped

#

@bold lodge if your app or LWIM has a system like this

if some_condition {
    for event in my_event_reader.read() {
        /* ... */
    }
} else {
    // ignore the events
}
#

you probably want to do this

if some_condition {
    for event in my_event_reader.read() {
        /* ... */
    }
} else {
    // ignore the events
    my_event_reader.clear();
}
bold lodge
#

I suspect that the problem in LFWIM itself.

#

I.e. in my game action_state.value(Action::ZoomCamera) just returns wrong result.

bold lodge
#

Maybe use EventReader instead of Events?

karmic monolith
#

That's exactly where I expected the problem to be 😄

#

IIRC EventReader played badly with input mocking, but I'd be happy to see if we can make it work

karmic monolith
#

Patch release incoming for this

stiff crystal
#

Is it possible to include KeyCode and MouseButton inputs in the same map?

#
        (KeyCode::Space, CardAction::Draw),
        (MouseButton::Left, CardAction::Select),
        (MouseButton::Right, CardAction::Flip),
        (MouseButton::Middle, CardAction::Play),
    ]);
karmic monolith
#

Yes, but not via new

#

You have to use the builder pattern

#

(or do horrible manual enum construction)

stiff crystal
#

ok thanks makes sense

grave gale
karmic monolith
#

I'll aim to get this fixed up in the next couple of days

#

(moving has been very chaotic and draining)

fickle aurora
#

For some reason, the inputs are being consumed by the UI, e.g.:

if !action_state.just_pressed(InputActions::Select) {
    return;
}

Will not run if I enable the UI in my game, and I have tried setting the FocusPolicy to Pass...

Any workarounds for this?

river cliff
#

This is a default feature in LWIM called 'block_ui_interactions', I believe. Turning it off should fix that 🙂

fickle aurora
narrow pasture
#

Is it just me or can you actually not implement chorded inputs with a virtual d-pad? The insert function on InputMap takes anything that implements Into<UserInput> which VirtualDPad does implement, but insert_chord only takes things that implent Into<InputKind> and VirtualDPad doesn't

#

also the doc on the VirtualDPad struct say that you can get a DualAxis from it, but you actually can't (or it's very, very not apparent how) - what it apparently means from looking at the virtual dpad example is that you can read DualAxisData from it in a system, which isn't really the same thing (e.g. in this situation I tried to convert the VirtualDPad into a DualAxis so that insert_chord would accept it, but ran into a brick wall)

#

for context I am trying to implement button holding to run/walk, which has worked fine with the joystick so far but now I am trying to add the dpad and it is Not Working. i can also just manually check for the held button but I thought to point out the disparity

karmic monolith
narrow pasture
#

Sure! would have to be sometime during the week, right now my brain is in Game Jam Soup

karmic monolith
#

Yep, sounds great!

#

I'm very sick today, so there's really no rush

gray arch
#

@karmic monolith is there any way to have like plugin actions?
So basically: I'm making like a simulation testbed thing, so I have lots of different plugins which may or may not be active at any given moment, and I'd like to be able to assign inputs to the plugins in a coordinated manner in each example, without having to keep a list of all of the plugin's inputs somewhere.

karmic monolith
gray arch
#

So I'd have like idk
around 3 or 4 different paintbrushes?
so like one of them (current bound to left click) allows you to drag things and another one of them allows you to paint objects (right click), etc.

I also want to add a keybind for switching between rendering modes &etc
but well
inlining these into the plugins is a bad idea

karmic monolith
#

Right 🤔 And these plugins are enabled/disabled at runtime?

#

Or compile-time?

gray arch
#

compile time

karmic monolith
#

You could use cfg flags on a single action enum

gray arch
#

that still requires me having a single enum somewhere for all of it
and like idk
If someone else wants to have a plugin in a different crate or somebody they're fucked

karmic monolith
#

Hmm yeah

#

So you want an extensible list of actions?

gray arch
#

yeah basically

karmic monolith
#

But all controlled by a single input map?

gray arch
#

yep

karmic monolith
#

Okay! That's getting more clear to me

#

This is why I've been trying to push away from the pure enum actions design

#

Because it doesn't scale properly for more interesting patterns like this

gray arch
#

...yeah

karmic monolith
gray arch
#

well
I probably won't be needing to deal with this anytime soon so I guess I'll just take a look at that issue a while later

karmic monolith
#

Sounds good. I may bug you for review / feedback: this is one of the things I'd like to properly support

#

In addition to nested action enums

gray arch
#

alright

restive knoll
#

Finally got around to implementing the scaling for mouse vs gamepad ... But now I realize gamepad sensitivity is FPS dependant, any solution for that? 🤔

upper island
#

is there an easy way to keep receiving events even if the window isn't focused?

#

trying to build a UI automation tool and I'm running into a problem where programmatically clicking on UI outside of the bevy window naturally unfocuses the bevy window lol

tardy verge
#

ahhh

#

i have solved this

#

lemme find my code

upper island
#

getting a 404, is that repo private?

tardy verge
#

oh is it?

#

i'll just post the code here

#

damn can't make a thread in a thread

#

oh well

#

ah it's big enough to automatically turn into a txt file awesome!

upper island
#

about what I expected, thread that monitors for presses and sends it back to the main game

#

time to do the same for gamepad wearyloaf

tardy verge
umbral linden
#

Hi i noticed that most examples where attaching an InputManagerBundle to an entity.
Is it possible to handle inputs that are not attached to any entities? Or should i just create a fake 'global' entity for these cases

placid furnace
#

Pretty sure you just add both InputMap and ActionState as resources and it'll work as you expect it to

umbral linden
#

Thanks, will try that!

karmic monolith
umbral linden
#

I've been looking a bit at leafwing internals; do you think it could be useful to allow users to choose in which schedule the input systems will run? For example to run them during FixedUpdate instead of PreUpdate

umbral linden
#

My thinking was that inputs should be handled at FixedUpdate because otherwise framerate would affect how fast/slow the user needs to input actions

placid furnace
#

It does even if you run it in fixedupdate (though it would still be nice to provide, but it wasn't possible until the change to allow events to persist across frames, making them always available in fixedupdate, which recently was merged), but this won't be properly fixed until winit supports timestamped input events

umbral linden
#

Which events are you referring to? I was more thinking of having the leafwing systems (tick and update) run during fixed-update instead of pre-update.

#

I have another question; do you think it would be possible to reconstruct an ActionState by processing the ActionDiffs in reverse direction (I know the forward direction works well)? I'm trying to integrate my library with leafwing, and it would be useful for me to handle rollbacks

karmic monolith
buoyant fable
#

I'm working on a gesture recognition library (for my use-case as a layer between input events and mod_picking). Is there a way to feed custom input like that leafwing?

karmic monolith
#

Not yet, but there will be in the next release!

#

Is this VR gestures or mobile gestures?

buoyant fable
#

I'm trying to keep it generic, my focus is touch but I'd like the API to support recognizing mouse and VR interactions. They all require a similar state machine.

karmic monolith
#

Sounds lovely 🙂 Can you describe the state machine briefly? I'm trying to design a trait based abstraction for inputs

#

So far I know we need "button-like" inputs, that can be pressed and released

#

And then both normalized and unnormalized axes

#

Of both the 1D and 2D varieties

buoyant fable
#

On the lower level, each gesture recognizer is a type that implements the gesture trait. Implementers consume pointer events for a certain area of a screen (or region of the world, in vr) and emit an event type whenever the gesture returns is InProgress or Completed. There is a hierarchy of gesture-capable regions, and the pointers are passed down in sequence until they are all claimed or in use. Thats probably all not important for leafwing to know about.

#

On the higher level, you can implement gestures that track, say, when two fingers are pressed to a certain region of the screen at roughly the same time, and then calculate the axis between them and the movement relative to the centroid, and emit that as an event every frame until one of the fingers is lifted.

karmic monolith
#

Right, okay! So ultimately it sounds like you'd want each registered gesture to effectively serve as a buttonlike input, with some sort of complex and custom action value?

buoyant fable
#

I think so.

#

Still familiarizing myself with leafwing. Some gestures, like a swipe, are motion along a clear axis but most are more like holding a button with extra information.

karmic monolith
#

Okay, so it sounds like you'd be able to implement some as each type

#

Which is still fine!

buoyant fable
#

Actually, I bet I could fit most gestures into button-like, or axis movement. The only one that don't really fit either of those would be rotation about a point on screen.

bold lodge
karmic monolith
umbral linden
#

Thanks Shatur; @Alice it sounds to me that it's not possible to reconstruct a previous ActionState by applying ActionDiffs in a backwards order no? Because it wouldn't be possible to get the original timing information

karmic monolith
buoyant fable
karmic monolith
umbral linden
#

Hey i'm seeing situations where an action is marked as pressed even though I am on the same frame where the input should have been updated (i.e. the action should be just_pressed).
It's probably a bug in my library (maybe I have a system somewhere in PreUpdate that is interfering..); but that's not an existing known issue right?

karmic monolith
#

Yeah, I haven't seen that

open trout
#

there is an issue im figuring out on git main

umbral linden
#

latest cargo release

open trout
#

yeah you should be fine then

#

let me know if you figure out the exact circumstance that causes it

#

what im looking at is related to axis inputs as buttons

#

axis data seems to not be reset on every app update

karmic monolith
open trout
#

yeah im trying to fix CI on main as you requested :3

#

got some of them fixed but still figuring that one out

karmic monolith
#

Feel free to split it across PRs if you can get some of them fixed

umbral linden
#

Just so i understand:

  • button presses create an ActionData with state JustPressed
  • this sets the ActionState.state to JustPressed if it was not already Pressed
  • the only way to get Pressed is if I tick the ActionState once
karmic monolith
umbral linden
#

I'm also slowing down/speeding up the Time; but that shouldn't have an impact right? since you're using Time<Real>

karmic monolith
umbral linden
#

alright let me fork and add logs; let's get to the bottom of this 🙂

umbral linden
#

I think I found the issue; it's because the ActionDiff (used for networking) are only generated if just_pressed or just_released, but there are some frames where my FixedUpdate schedule does not run.
I generate the ActionDiff during the FixedUpdate schedule, so sometimes I do not generate any ActionDiff; and in the next frame I also do not generate them because by that point the action-states have ticked, so there's no just_pressed/just_released

#

I have a few ideas on how to resolve this; one thing that would be helpful is:
would it be possible to rework ActionDiff to not contain this ID stable identifier? A lot of networking libraries already handle entity mapping from server/client world in a different way, and it prevents me from using the ActionDiff struct and systems as is (right now i'm just copy-pasting them, but while removing that entity)

karmic monolith
#

Can you make a quick PR?

umbral linden
#

Sure; i'll try to keep the example working

umbral linden
pallid plume
#

I've managed to thoroughly break leafwing Encountered a panic in system 'leafwing_input_manager::systems::update_action_state<convoid::player_controller::PlayerAction>'!

#

Resource requested by leafwing_input_manager::systems::update_action_state<convoid::player_controller::PlayerAction> does not exist: bevy_egui::EguiUserTextures

#

i don't think i'm doing anything super weird either

#

none of the backtrace points to any of my files so i can't really tell what's going wrong

#

is this the first time anyone has run into this?

#

if there are any other details etc i can provide that might be helpful pls let me know

#

if need be i can zip up the entire project

river cliff
river cliff
#

@open trout I'm currently working on a pr to fix the deadzones as per your issue. I am just finishing up input shifting/scaling for DualAxis that uses the equations provided in the issue, but I have a question. Since the input shifts by the deadzone size, a value 1.0 can't be reached on a normal joystick, right? With a deadzone size of 0.1 and an input of 1.0, the shifted input is 0.9. Is this intended/correct?

open trout
#

no, if you rescale the range 1.0 is reachable

#

the expected behavior for deadzone size 0.1 is
-0.1-0.1: 0
1.0: 1.0
the range 0.1-1.0 gets remapped to 0.0-1.0

#

the math would look like this

if abs(x) < 0.1 { return 0.0 }
return sign(x) * (abs(x) - 0.1) / (1.0 - 0.1);
#

plugging in 1.0 gives (1.0 - 0.1) / (1.0 - 0.1) = 1.0

river cliff
#

Ah ok, that makes sense. Thank you! Is there any concern that this makes the value range more sensitive and how that works with sensitivity?

open trout
#

nope

#

id absolutely love to have trait for DeadZones

open trout
#

im not sure sensitivity does anything with gamepad input anyhow

#

it makes sense for unbounded axes like mice input

#

i guess if its mapped to view

#

was thinking in terms of stick -> character movement

river cliff
#

I looked into that but I think that would require removing Copy from InputKind and UserInput as I would have to Box<dyn Deadzone> right? This might have to wait until the trait refactor I think?

river cliff
open trout
#

yeah

pallid plume
#

Leafwing doesn't seem to be initializing properly, is there a specific schedule that each part of initialization (I.e. adding plugin, spawning the input bundle etc) needs to happen at?

river cliff
river cliff
#

I'm almost finished with the deadzone pr, I think. But, there is one small problem I would like input on. In vero's equation below, it uses a sign on a Vec2/f32.

value.signum() * (value.abs() - deadzone_size) / (1.0 - deadzone_size)

I problem arise when there is an input of (1.0, 0.0). The sign will make of 0.0 will compute to 1.0 which then adds an input 1.0 * (0.0 - 0.1) / (1.0 - 0.1) = -0.111111, so the end input is (1.0, -0.111111). Should I create a method to work the way it needs to be or am I missing something? Sign works the way I want it too for an i32 but not a f32 so that's a little funky.

open trout
#

because of the if abs(x) < 0.1 { return 0.0 }

river cliff
pallid plume
pallid plume
#
///System responsible for setting up the leafwing input system and preliminary communication with server
fn init_controller (mut commands: Commands, query: Query<(Entity, Option<&PlayerControllerComponent>)>, local_client_id: Res<LocalClientId>) {
    info!("Initialising Player Controller...");

    for (controller_entity, controller) in &query {
        if let Some(controller) = controller {
            //If this is the local client's player controller then insert a reference in a resource
            if controller.client_id == local_client_id.0 {
                info!("Found Local Player Controller with client id {}", controller.client_id);
                commands.insert_resource(LocalPlayerController{ controller_entity })
            } else {
                //This is not the controller we're looking for
                continue;
            }

            //Initialise an empty input map
            let mut input_map = InputMap::default();

            //Insert the default input mappings
            for action in PlayerAction::variants() {
                //Add Default Keyboard/Mouse Mapping
                input_map.insert(PlayerAction::default_km_input(action), action);
                //Add Default GamePad Mapping
                //input_map.insert(PlayerAction::default_gp_input(action), action);
            }

            //Spawn the input manager
            commands
            .spawn(InputManagerBundle::<PlayerAction> {
                action_state: ActionState::default(),
                input_map
            });
        }
    }
}
#

the error doesn't occur if i remove the egui plugin and leafwing feature (i'm not using it anyway rn so its not a huge deal)

#

but then leafwing tries to access the action state which doesn't exist yet since i have to wait for the server to replicate the player's playercontroller
is it possible to add the leafwing plugin from init_controller after i've already spawned the input manager bundle?

open trout
pallid plume
#

oh wait i could just initialise the input manager from the build function

pallid plume
river cliff
pallid plume
#

I can blow up that bridge when I get to it

river cliff
umbral linden
#

hey is there a reason why we don't have:
app.configure_sets(PreUpdate, Tick.before(Update)) ?

karmic monolith
umbral linden
#

I think it's applied to the individual function

                app.add_systems(
                    PreUpdate,
                    tick_action_state::<A>
                        .run_if(run_if_enabled::<A>)
                        .in_set(InputManagerSystem::Tick)
                        .before(InputManagerSystem::Update),
                )

but it might be clearer to configure the set directly

foggy osprey
#

What's the idiomatic way to properly scale different input types for an input? Clarifying example: I want to wire up mouse, gamepad stick, and potentially even arrow keys or something to my camera look. So I create an action Look and hook up a GamepadAxis, VirtualAxis::arrow_keys(), and probably another virtual axis for the mouse motion I guess? But then those are all producing values in different ranges, the keyboard and gamepad in [1.0, 1.0] and the mouse in (-∞, ∞). I can't use clamped_axis_pair because mouse motion shouldn't be clamped. The values rolling in from the mouse need to be scaled to be usable, but I don't want to do that in my input system because then the gamepad stick and keyboard keys get scaled as well. I'd expect to put a scale on the VirtualAxis or something like that, but haven't found a way to do that. Is this making sense? I can clarify if that was tl;dr

karmic monolith
foggy osprey
#

Is there any concentrated source(s) of discussion on possible solution? I'm happy to be a contributor, I love lwim and I would love to help it get even better

karmic monolith
restive knoll
foggy osprey
#

This'll do for now, but scaling by time delta is something I want to look into

pseudo ledge
toxic flame
#

im using the latest leafwing git commit and my bindings arent working properly

VirtualDPad doesnt seem too output a DualAxisData, instead the value field of the action is equal to the total magnitude?

toxic flame
spring robin
#

I'm getting the following when trying to upgrade to Bevy 0.12.1 and leafwing 0.11.2:

src\index.crates.io-6f17d22bba15001f\leafwing-input-manager-0.11.2\src\systems.rs:152:26
    |
152 |             mouse_wheel: mouse_wheel.clone(),
    |                          ^^^^^^^^^^^^^^^^^^^ expected `Option<Vec<MouseWheel>>`, found `Vec<MouseWheel>`
    |
    = note: expected enum `std::option::Option<std::vec::Vec<_>>`
             found struct `std::vec::Vec<_>`
help: try wrapping the expression in `Some`
    |
152 |             mouse_wheel: Some(mouse_wheel.clone()),
    |                          +++++                   +

I just did a fresh cargo clean and deleted the registry just in case.

karmic monolith
#

Looks like LWIM 🤔

#

Can you lock 0.11.1?

spring robin
karmic monolith
#

The 0.11.2 release was a bit rushed and sloppy, but it should certainly compile

spring robin
#

It seems to be my features? I have { version = "0.11.2", default-features = false, features = ["ui"] } If I just have version = "0.11.2" or version = "0.11.1" it compiles.

river cliff
#

Might have to do with the feature block_ui_interactions then? As, it's the other default.

#

I remember something like this happening as I don't think different feature combos are tested just the default right?

spring robin
#

FYI, it doesn't work with default = false and features = [] either.

#

So it seems not possible to turn off block_ui_interactions, which is what I want to do.

#

I'm the user above who asked for that feature flag I think 😂

river cliff
#

I'll take a look to see if I can fix it if you'd like and send a pr?

spring robin
#

Cool, no rush. I might also just try to fix up my code so I don't need to disable block_ui_interactions.

karmic monolith
#

Ah, yep. We should add a "compiles with all features off" check to CI

river cliff
#

Hmm, I just ran cargo run --example mouse_wheel --no-default-features on main and it worked?

spring robin
#

Another issue now that I turned on default features, this time in my code:

pub fn register_input_enum<A: Actionlike>(app: &mut App) {
    app.add_plugins(InputManagerPlugin::<A>::default())
        .init_resource::<ActionState<A>>()
        .init_resource::<ToggleActions<A>>();
}

147 |     app.add_plugins(InputManagerPlugin::<A>::default())
    |         ----------- ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^ the trait `bevy_app::plugin::sealed::Plugins<_>` is not implemented for `leafwing_input_manager::plugin::InputManagerPlugin<A>
karmic monolith
#

That looks a lot like duplicate Bevy or LWIM versions 🤔

#

Or Actionlike not being implemented correctly for one of your types

#

Which I think was the case last time I saw this error

spring robin
#

I'll try do another cargo clean, maybe something is generally really messed up. The function itself doesn't compile regardless of how it's called / which ActionLike type is passed.

karmic monolith
#

🤔

#

Could be mismatched versions with the macro crate or something horrible

spring robin
#

Seems to be correct as far as I can tell looking at Cargo.lock (leafwing-input-manager only shows up once and the macros dep is the most recent version). Same thing after cargo clean unfortunately.

karmic monolith
#

Can you reproduce it on an empty project?

spring robin
#

.add_plugins(InputManagerPlugin::<FooType>::default()) still works fine FWIW. So it seems it just doesn't like the generic function I had.

karmic monolith
#

There were new trait bounds added IIRC

#

(which is probably a semver violation, sorry!)

spring robin
#

In Bevy for plugins? (i.e. sealed::Plugins<_>?) Maybe InputManagerPlugin just needs a new derive or something. In either case not a big deal, I'm just going to move my add plugin calls, adds a couple lines of boilerplate but no big deal at all.

karmic monolith
#

No, in LWIM for Actionlike

spring robin
#

Ahh 👍

winter stump
#

I'm trying to understand how to reliably distinguish between a single left click and a left click-and-hold (which potentially turns into a left click-and-drag). I understand I can use a chord to detect the drag:

input_map: InputMap::default()
    // Left click select
    .insert(MouseButton::Left, Selection::Single)
    // Click and drag select
    .insert_chord(
        [
            InputKind::from(DualAxis::mouse_motion()),
            InputKind::from(MouseButton::Left),
        ],
        Selection::Multiple,
    )
    .build(),
..default()

but as soon as the mouse stops moving, even if the left button is still depressed, selection_state.just_released(Selection::Multiple) will be true. I imagine there's an approach I'm missing, any tips?

#

To be clear: ideally I'd like to stay in "multi-select" mode as long as the button is held down.

#

...and not have a "single click" detected if it's held down, dragged, then released.

#

Obviously, this kind of construct doesn't quite fit the bill!

fn controls(selection_q: Query<&ActionState<Selection>>) {
    let selection_state = selection_q.single();
    if selection_state.pressed(Selection::Multiple) {
        println!("::: drag :::");
        return;
    }
    if selection_state.just_released(Selection::Multiple) {
        println!("::: end drag select :::");
        return;
    }
    if selection_state.just_pressed(Selection::Single) {
        println!("::: single click :::");
    }
}
winter stump
#

I think it might be something like this. "Seems to work." It'd be interesting to know whether I could do this entirely within the limits of LWIM though!

impl Plugin for SelectionPlugin {
    fn build(&self, app: &mut App) {
        app.add_state::<DragState>()
            .add_plugins(InputManagerPlugin::<Selection>::default())
            .add_systems(Startup, init)
            .add_systems(
                Update,
                select
                    .run_if(in_state(GameState::Playing))
                    .run_if(in_state(DragState::Inactive)),
            )
            .add_systems(
                Update,
                drag_select
                    .run_if(in_state(GameState::Playing))
                    .run_if(in_state(DragState::Active)),
            );
    }
}

fn init(mut commands: Commands) {
    commands.spawn(InputManagerBundle::<Selection> {
        input_map: InputMap::default()
            // Left click to select.
            .insert(InputKind::from(MouseButton::Left), Selection::Single)
            // Click and drag select.
            .insert_chord(
                [
                    InputKind::from(DualAxis::mouse_motion()),
                    InputKind::from(MouseButton::Left),
                ],
                Selection::Multiple,
            )
            .build(),
        ..default()
    });
}
#
fn select(
    mut drag_state: ResMut<NextState<DragState>>,
    selection_q: Query<&ActionState<Selection>>,
) {
    let selection_state = selection_q.single();
    if selection_state.pressed(Selection::Multiple) {
        drag_state.set(DragState::Active);
        return;
    }

    if selection_state.just_released(Selection::Single) {
        // Select single entity
    }
}

fn drag_select(
    mut buttons: ResMut<Input<MouseButton>>,
    mut drag_state: ResMut<NextState<DragState>>,
    selection_q: Query<&ActionState<Selection>>,
) {
    let selection_state = selection_q.single();
    if selection_state.just_released(Selection::Multiple) {
        // Maintain the drag state so long as the left button is held down. This prevents a
        // temporarily-still mouse from ending the selection.
        if buttons.pressed(MouseButton::Left) {
            return;
        }
        drag_state.set(DragState::Inactive);
        return;
    }

    if buttons.clear_just_released(MouseButton::Left) {
        // This catches the case where the mouse is still, but the player is hanging onto the
        // button for an extended period (indecision mode!)
        drag_state.set(DragState::Inactive);
    }
}
spring robin
#

Something I was surprised by, with block_ui_interactions enabled the blocking doesn't work if the same frame you click the button you also set the visibility to Hidden. If that happens the next frame leafwing still says the input is just_pressed.

misty locust
#

Following a conversation in the #1189344685546811564 thread, what is the best way to handle raw cursor inputs in leafwing-input-manager? I thought to send an input with a Vec3 wrapped, but this doesn't comply with the Eq trait bound in ActionLike. I see that in the axislike module, Eq is implemented even with the presence of f32 data: https://github.com/Leafwing-Studios/leafwing-input-manager/blob/15958606b68b45275790927d2b6692287e66cc5d/src/axislike.rs#L186

Is there a best approach to this without a "fake" Eq impl?

GitHub
leafwing-input-manager/src/axislike.rs at 15958606b68b45275790927d2...

A straightforward stateful input manager for the Bevy game engine. - Leafwing-Studios/leafwing-input-manager

violet dock
#

@misty locust Note that the Eq trait is a marker trait and it is by no means fake for being empty, if that's what you are suggesting. Leafwing seems to use bevy's FloatOrd util to make floats well-behaved under equality. Something similar should be possible to do for Vec3

misty locust
#

Not at all. I understood it as "fake" by marking the SingleAxis even though its float values are not technically "Eq".

#

Is that due to the usage of FloatOrd in the PartialEq implementation?

violet dock
#

Indeed, the existence of a PartialEq implementation is necessary in order to mark it as Eq. The float values are Eq due to FloatOrd and therefore it makes sense to mark the whole thing as Eq

misty locust
#

Thanks for your help explaining and pointing out the FloatOrd from Bevy utils. I'll try and pull together something similar for Vec3.

karmic monolith
#

@candid vigil are you done with the non-breaking changes you wanted to make now?

#

Happy to cut a release for 0.12.1 today

#

Or honestly we can skip it and go straight to 0.13

candid vigil
#

@karmic monolith Ahh, sorry for not checking Discord frequently. Right now, there's only a small update with #474. If there's nothing else to change, let's get ready for 0.12.1.

karmic monolith
candid vigil
karmic monolith
#

And published. Thanks a ton!

candid vigil
# karmic monolith And published. Thanks a ton!

I've come up with some ideas that need to be reviewed before moving forward, and some of them are split from my own to continue with https://github.com/Leafwing-Studios/leafwing-input-manager/pull/185

GitHub
Control available input types using cargo features by alice-i-cecil...

Fixes #183. Well, attempts to.
There are some gnarly challenges here:

We need to run more tests in CI, one for each input feature enabled in isolation.
Returned tuple types (like in UserInput::raw...

candid vigil
#

After that, I wanna add support for touch input. But the official examples and assets don't cover Bevy's Touch extensively, making it unclear how to use it properly

karmic monolith
#

And ditto with solving the design for #183

candid vigil
#

I'm indeed currently proceeding as outlined in #183, but I'm still working on resolving those unresolved links.

#

For touch, I think adding support for basic gesture interactions could be helpful. For instance, double tapping (which would also work for mouse input), zooming in and out (for multiple fingers), and tracing (collecting positions into a Vec, ditto for mouse).

karmic monolith
#

Yeah. It's mostly a question of "what's the right abstraction"

#

IIRC gestures typically use listeners, which are registered to parse streams of touch input, allowing them to detect and report specific actions like this

buoyant fable
#

++ I would love it if LIM let me plug in gestures, but I think gesture recognition maybe deserves it's own crate because it can be very fiddly. I have one app where I need to check what on the screen the user is touching before recognizing a gesture (using mod picking), and also have to split up touch pointers across a hierarchy of screen zones so that multiple gestures can fire in different areas at the same time.

karmic monolith
#

Yeah, I suspect that we'll actually want to handle gesture recognition in bevy_input once we have a good design

#

I know @visual venture has poked at this

visual venture
#

I looked into adding them to winit, depending on what the underlying OS supports

#

so some for macOS, many for iOS, a few for Android... and maybe a few for Wayland but no way for me to look at those

#

recognizing any random gesture, you'll be on your own

#

on that note I did some POC gesture recognition with ML (but outside Bevy), could be fun to add 😄

bold lodge
umbral linden
#

My mouse-control doesn't work because the ActionState::Mouse is missing
I'm taking a look at this example https://github.com/Leafwing-Studios/leafwing-input-manager/blob/main/examples/mouse_position.rs
and I don't really see where the ActionState is added to the hashmap.
i.e. why does this not panic: https://github.com/Leafwing-Studios/leafwing-input-manager/blob/main/examples/mouse_position.rs#L64 ?

GitHub
leafwing-input-manager/examples/mouse_position.rs at main · Leafwin...

A straightforward stateful input manager for the Bevy game engine. - Leafwing-Studios/leafwing-input-manager

umbral linden
#

I'm wondering if there could be a bug related to consume?
I upgraded to 0.13, but I see situations where an action is both JustPressed and Consumed at the same time

#

I have cde like

for action in action_state.get_just_pressed() {
                info!(?action, consumed=?action_state.consumed(&action), "action is JustPressed!");
}

And i get a log line with consumed=true

candid vigil
umbral linden
#

I had this example code: https://github.com/cBournhonesque/lightyear/tree/main/examples/bullet_prespawn which works fine in 0.11
But after switching to 0.13 in this PR, I noticed that:

  • "consume" doesn't seem to be taken into account. If I press the space bar key, it will keep spawning bullets, which shouldn't be the case because I called consume
  • "consume" doesn't seem to be reset correctly? If i release the space bar, I keep seeing consumed=true in the logs
GitHub
lightyear/examples/bullet_prespawn at main · cBournhonesque/lightyear

Networking library for the Bevy game engine. Contribute to cBournhonesque/lightyear development by creating an account on GitHub.

umbral linden
candid vigil
#

Ah, I just realized another oversight: there's a breaking change since LWIN 0.12. In 0.11, ActionState stored all variants of Actionlike, but in 0.12 or later, ActionState only stores the variants in InputMap sent by pressing

#

This should be an easily fix by just simply initializing action_data with all variants

#

This seems to unfeasible, but we can export the existing inner helper action_data_mut_or_default

candid vigil
umbral linden
#

Is this related to the mouse_position example or to my consume-related issue?

candid vigil
#

For consume, you could use ActionState::press(PlayerActions::MoveCursor) instead of setting its state = Pressed in 0.12 and move the pressing before updating its axis_pair

#

IIRC, this should work fine

umbral linden
#

I have an issue only with Shoot, not with MoveCursor, sorry for not being more clear: https://github.com/cBournhonesque/lightyear/pull/151/files#diff-e6160fd49686a8172dbf655e9a7ea27d630dd97f1d5d84c45959ad450c45337fR255

GitHub
Cb/0.13 by cBournhonesque · Pull Request #151 · cBournhonesque/ligh...

Use MapEntities
Implement LightyearMapEntities for Parent/Children component

TODO:

create an example with Parent/Children
make sure that replication for hierarchies is well handled (add an option...

candid vigil
#

Ahh I got the problem, another bug arises from #450

karmic monolith
#

I can do another point release when we have a fix up?

candid vigil
#

@umbral linden @karmic monolith See #480

umbral linden
#

Great find, thanks!

karmic monolith
#

@umbral linden @candid vigil 0.13.1 is live 🙂

umbral linden
#

my example works again with 0.13.1 !

karmic monolith
#

Thanks for the bug report and fix y'all

random sparrow
karmic monolith
#

Bah

midnight bramble
#

this is kind of annoying

karmic monolith
midnight bramble
#

not probably

#

that's literally a screenshot of a collision 🥲

#

and the others too

midnight bramble
#

i guess without use::UserInput::*; use::InputKind::*; it wouldn't be a problem, but almost every single one needs it...

candid vigil
#

After the versions where removed the UserInput and InputKind enums, it might not be an issue anymore, but it's probably best to wait a longer, just to be sure.

#

Inspired by #321, I've implemented some parts, but if UserInput is a trait, we might not be able to retain Chord.

midnight bramble
#

@candid vigil for now just updating the example and docs should be fine

#

it might make more sense with UI like unity's input system, but for now it was a bit difficult to set it up

fn kbm_input_map() -> InputMap<PlayerAction>
    {                   use UserInput::*; use InputKind::*; use KeyCode::*;
        InputMap::new([
            (Self::Menu,    Single           (PhysicalKey      (Escape))),

            (Self::Jump,    Single           (PhysicalKey      (Space))),
            (Self::Dash,    Single           (Modifier         (user_input::Modifier::Shift))),
            (Self::Move,    VirtualDPad      (axislike::VirtualDPad::wasd())),

            (Self::Look,    Single           (DualAxis         (axislike::DualAxis::mouse_motion().inverted_y()))),
            (Self::Zoom,    Single           (SingleAxis       (axislike::SingleAxis::mouse_wheel_y()))),
            (Self::Lock,    Single           (PhysicalKey      (KeyR))),

            (Self::LFire,   Single           (Mouse            (MouseButton::Left ))),
            (Self::RFire,   Single           (Mouse            (MouseButton::Right))),

            (Self::A,       Single           (PhysicalKey      (KeyE))),
            (Self::B,       Single           (PhysicalKey      (Digit1))),
            (Self::C,       Single           (PhysicalKey      (Digit2))),
            (Self::D,       Single           (PhysicalKey      (Digit3))),
        ])
    }
#

controller is mostly consistent though

    fn gamepad_input_map() -> InputMap<PlayerAction>
    {                   use UserInput::*; use InputKind::*; use GamepadButtonType::*;
        InputMap::new([
            (Self::Menu,    Single           (GamepadButton    (Select))),

            (Self::Jump,    Single           (GamepadButton    (LeftTrigger))),
            (Self::Dash,    Single           (GamepadButton    (RightTrigger))),
            (Self::Move,    Single           (DualAxis         (axislike::DualAxis::left_stick()))),

            (Self::Look,    Single           (DualAxis         (axislike::DualAxis::right_stick()))),
            //(Self::Zoom, ),
            (Self::Lock,    Single           (GamepadButton    (RightThumb))),

            (Self::LFire,   Single           (GamepadButton    (LeftTrigger2))),
            (Self::RFire,   Single           (GamepadButton    (RightTrigger2))),

            (Self::A,       Single           (GamepadButton    (North))),
            (Self::B,       Single           (GamepadButton    (East ))),
            (Self::C,       Single           (GamepadButton    (South))),
            (Self::D,       Single           (GamepadButton    (West ))),
        ])
    }
karmic monolith
midnight bramble
karmic monolith
#

Ah okay, cool

#

So the idea is to use editor integration to quickly set up default keybdindings?

midnight bramble
#

pretty much yeah

#

you can find videos on how it's done, usually it's called "new input system" despite being 5 years since 1.0

#

c# code is also on github i think

karmic monolith
candid vigil
midnight bramble
#

and you could probably drop the button bool trait entirely and use 0.0 and 1.0

candid vigil
midnight bramble
#

i wouldn't mind Chord2 and Chord3

candid vigil
#

In this new version, we've got Chord<Num>Inputs and a handy chord_inputs! macro that automatically switches for you.

midnight bramble
#

is using chords even necessary?

#

right now i'm just checking if shift pressed && button just pressed {} else if button just pressed {}

candid vigil
#

A lot of times, you need these kinds of chords, like what the current version can do: let move = VirtualDpad::wasd(); let sprint = UserInput::Chord([Modifier::Shift, VirtualDpad::wasd()]);

#

The new chord_inputs! macro is just to make sure it has the same API as the current version's UserInput::Chord. You don't have to use it if you don't want to.

candid vigil
midnight bramble
#

it makes sense for visual manager like unity, yeah

#

for sprint it's usually just something like let speed = if shift { stamina -= delta; 10.0 } else { 2.0 }

#

chords make the most sense for something like MMOs where each button is an entirely different action

candid vigil
#

It's just a way to make configuration easier, because Chord lets you use:

let input_map = InputMap::new([
    (Action::Move, VirtualDpad::wasd()),
    (Action::Sprint, UserInput::Chord([KeyModifier::Shift, VirtualDpad::wasd())]),
]);
if let Some(movement) = action_state.axis_pair(Action::Move) {
    player.move(movement);
}
if let Some(movement) = action_state.axis_pair(Action::Sprint) {
    player.move(movement * 2.0);
}
midnight bramble
#

^ wouldn't that conflict with move if you run out of stamina?

candid vigil
#

And allows you provide input settings for the game players to enable key re-binding

candid vigil
# midnight bramble ^ wouldn't that conflict with move if you run out of stamina?

Sure, it might not be a better use case, but for RTS games or editors like Blender, it still has a lot of practical applications.

let input_map = InputMap::new([
    (ChangeCameraPosition, Chord([MouseButton::Left, MouseMotion])),
    (RotateCameraView, Chord([MouseButton::Right, MouseMotion])),
])
if let Some(movement) = action_state.axis_pair(ChangeCameraPosition) {
    camera.transform += movement;
}
if let Some(movement) = action_state.axis_pair(RotateCameraView) {
    camera.yaw += movement.x;
    camera.pitch += movement.y;
}
#

It lets you easily implement MouseButtonDrag.

midnight bramble
#

oh, ok that does make a lot of sense

#

in that case yeah Chord2 and Chord3 wouldn't be that bad, there aren't enough fingers to use more than 4-5 so macro sounds like overkill

midnight bramble
candid vigil
#

The macro just gives you an API; you don't have to manually implement it

candid vigil
# midnight bramble how do you solve this though

Though the code might not look the prettiest, it's just to show how to use the LWIM library.

let input_map = InputMap::new([
    (Action::Move, VirtualDpad::wasd()),
    (Action::Sprint, KeyModifier::Shift),
]);

const SPRINT_STAMINA_USE: f32 = 5.0;
let able_to_sprint = player.stamina >= SPRINT_STAMINA_USE;
let speed_factor = if able_to_sprint && action_state.pressed(Action::Sprint) {
    player.stamina -= SPRINT_STAMINA_USE;
    2.0
} else {
    1.0
 };

if let Some(movement) = action_state.axis_pair(Action::Move) {
    player.move(movement * speed_factor);
}
midnight bramble
candid vigil
#

Yeah, LWIM is just a library that binds actions to inputs; it can't do much more than that.

midnight bramble
#

chords need a disclaimer that it's not for modifiers that need to fall through to a non-modified version

#

it's really good if you specifically don't want to fall through

#

like if you can't level up a skill with shift+Q, it shouldn't activate Q

candid vigil
#

This setup works, but there's some duplications.

let input_map = InputMap::new([
    (Action::Move, VirtualDpad::wasd()),
    (Action::Sprint, Chord([Modifier::Shift, VirtualDpad::wasd()]),
]);

if let Some(movement) = action_state.axis_pair(Action::Move) {
    player.move(movement);
}
if let Some(movement) = action_state.axis_pair(Action::Sprint) {
    let able_to_sprint = player.stamina > 5.0;
    if able_to_sprint {
        player.move(movement * 2.0);
        player.stamina -= 5.0;
    }
}
midnight bramble
candid vigil
#

Yep, that's the duplication

midnight bramble
#

i actually want the chord one to work because of accessibility, hold 1 button to sprint instead of 2
maybe even allow configuring it as press to hold, press again to release

#

so a clean way to fall through to another action would be great

candid vigil
#

Yep, otherwise you'd have to write it like this.

if let Some(movement) = action_state.axis_pair(Action::Move) {
    player.move(movement);
}
if let Some(movement) = action_state.axis_pair(Action::Sprint) {
    let able_to_sprint = player.stamina > 5.0;
    if able_to_sprint {
        player.move(movement * 2.0);
        player.stamina -= 5.0;
    } else {
        player.move(movement);
    }
}
midnight bramble
#

yeah, and that's a simple action

#

it could be something with >100 lines of code that you wouldn't want to move into another function

midnight bramble
candid vigil
#

Yeah, I guess I oversimplified it. Mainly because I haven't worked on FPS or RPG games, so I didn't consider that aspect.

midnight bramble
#

simple is usually good though
but i didn't even consider making the combination into 1 button, in 1 game on controller i used triggers to switch between action sets
no trigger + north/west/east/south is set 1, right trigger switches to set 2, left trigger to set 3, both triggers to set 4...
that basically allows an easy way to use 16 skills instead of 8, but completely unnecessary on PC
that would be a nice way to unify them

candid vigil
midnight bramble
candid vigil
#

This is what the new UserInput trait aims to do:

/// Trait that allows defining a type of user input.
pub trait UserInput {
    /// The source from which input values are collected.
    type InputSource;

    /// Checks if this input, resembling a button, has been pressed.
    fn button_pressed(&self, input_source: Self::InputSource) -> bool {
        false
    }

    /// Checks if this input, resembling a button, has just been pressed.
    fn button_just_pressed(&self, input_source: Self::InputSource) -> bool {
        false
    }

    /// Checks if this input, resembling a button, has been released.
    fn button_released(&self, input_source: Self::InputSource) -> bool {
        true
    }

    /// Checks if this input, resembling a button, has just been released.
    fn button_just_released(&self, input_source: Self::InputSource) -> bool {
        false
    }

    /// Checks if this input, resembling a button, is being held down.
    fn button_held(&self, input_source: Self::InputSource) -> bool {
        false
    }
}
#

Then we can define a special input method to implement it.

#

The current UserInput and InputKind enums don't allow you to define the specific type of input you want.

midnight bramble
#

what's the difference between button_pressed and button_held?

#

and released and just_released?

#

or is released just !pressed?

candid vigil
#

Oh, I haven't implemented held in the code for the new version yet, so that's a mistake.

#

held should return something like Option<Duration> to express the duration.

#

and should rename to held_duration

#

released = !pressed

#

just_released returns true only if its state changed from pressed to released on this tick.

midnight bramble
#

pressed could just use a better name, so that released isn't needed

candid vigil
midnight bramble
#

it's just for keyboard and doesn't assume controller or touch

#

but with that assumption, pressed -> active, just_pressed -> started, just_released -> ended
would make more sense

#

and i think that's just what unity did

candid vigil
#

controller have their buttons too, and for not button-like inputs, pressed = is_active

midnight bramble
#

oh, "Each Action has a started, performed, and canceled callback."

candid vigil
#

but pressed is the existing API in the ActionState

candid vigil
midnight bramble
#

started is true when it just went from below deadzone to above it
cancelled is true when it just went from above deadzone to below it
performed is true when it's above deadzone

#

and started is called at the same time as performed

candid vigil
#

It's 7 PM China time now, I gotta grab dinner first. I'll be back later.

#

I'm just a new collaborator to LWIM, been on board for less than a quarter. I'm not the one who laid the groundwork for most of its current features, but I think your suggestions could make this library better, though it might mean a lot of breaking changes.

midnight bramble
#

i think it was mainly @karmic monolith

#

either way unity input manager did a lot of things right, the thing they did wrong is confusing everyone by splitting it up into 4 different ways to use it

#

so i think making a visual input manager (or rebind menu) is pretty much required to figure out how to do everything

candid vigil
#

But hey, even Bevy doesn't have an official visual editor yet. There's so much to do for this library!🤣

#

I think we can add integration support once Bevy's official editor comes out.

midnight bramble
#

rebind menu would probably look similar to editor in the first place though

candid vigil
#

Updated #483

midnight bramble
#

basically just without new actions and new action maps

#

released isnt cancelled in unity btw

#

Waiting The Interaction is waiting for input.
Started The Interaction has been started (that is, it received some of its expected input), but is not complete yet.
Performed The Interaction is complete.
Canceled The Interaction was interrupted and aborted. For example, the user pressed and then released a button before the minimum time required for a hold Interaction to complete.

candid vigil
#

That's because the goal of #483 isn't to introduce new features, just to rewrite the underlying architecture to make this library more extensible in the long run and easier for users to customize.

#

How about

  • released becomes waiting
  • just_released becomes cancelled
midnight bramble
#

my preference would be
pressed -> active
just pressed -> started
just released -> ended or finished

#

because cancelled implies that it failed, and that's just what it is in unity

candid vigil
#
  • pressed becomes is_active
  • just_pressed becomes stared
  • released becomes is_inactive
  • just_released becomes finished
midnight bramble
#

as a draft. just add all the options and let alice decide 🤷‍♂️

#

and you have a typo (stared -> started)

candid vigil
#
  • pressed becomes is_active or triggered
  • just_pressed becomes began or started
  • released becomes is_inactive or idle
  • just_released becomes ended or finished
#

This should be able to adapt to the touchscreen and gesture controls I plan to add later on.

midnight bramble
#

you can also add the alias for unity refugees and the old names

candid vigil
#

I've only used Unity and Unreal for some graphics rendering projects back in university, so I'm not very familiar with their input controllers.

midnight bramble
#

it's confusing even after you use it for a while

#

they've definitely put a lot of work into it over the years though, but to get all the arguments for their decisions you'd have to search the forum

candid vigil
#

I'm not really a fan of using strings instead of typed structs and enums like they did, but I'll take a look.

midnight bramble
#

it turns into structs/enums when you save from what i understand

candid vigil
#

But this should be something the editor handles automatically, not something that can be done in the code script.

midnight bramble
#

input.Default.jump.started += ctx => JumpStarted();
input.Default.jump.performed += ctx => JumpReleased();

^ this is how i actually used it in code

#

never had to create it in code

candid vigil
#

delegate? not ctx.JumpStarted() ?

midnight bramble
#

no idea, i was confused enough with most of it that i didn't get deeper into it

#

i just watched the tutorials and copied them back then

#

there's 3 other ways of using it, but 2 are send/broadcast messages which i thought is dumb and ignored entirely

#

with C# events you don't even need the component, but unity events are supposed to be the main way to use it because it allows multiplayer

candid vigil
midnight bramble
#

or context, but half of the time it's useless because e.g. tracking duration of button held shouldn't work if you started holding without necessary resource to use ability, so you have to track it outside anyway

candid vigil
#

I think the visual input manager is really great, but it's not something that can be done quickly with so few contributors right now. I believe releasing a version that supports touchscreen and gestures as soon as possible might address some users' needs in a timely manner.

midnight bramble
#

yeah, unify controls > visual rebind/manager

#

it's just that with context of manager your decisions might change

candid vigil
#

Sure! Could you please introduce its advantages to me? I'm not familiar with it. But now, LWIM's InputMap rebinding is also straightforward because it's essentially a HashMap underneath. It's just a matter of performing operations similar to those of a HashMap.

#

@karmic monolith After #449, maybe we should go with ActionMap or InputActionMap instead of InputMap? It could help avoid confusion and make it easier for new users to get used to it because its keys are Actionlikes now, not UserInputs.

#

In Unity, it's called InputActionMap because its Actionlike is named InputAction.

karmic monolith
candid vigil
#

I feel like even though LWIM is called Input Manager, it's really doing more of the work of an Action Manager. And honestly, I reckon most of the input upgrades might fit better into Bevy. Just a thought

karmic monolith
#

Agreed

midnight bramble
midnight bramble
candid vigil
#

@karmic monolith if there's a release or beta testing schedule available for Bevy Editor?

karmic monolith
#

I'd like to start with getting asset-driven key bindings working smoothly

#

Since that's essential for customization anyways

midnight bramble
#

editor will use bevy_ui, right?

karmic monolith
#

And then the editor can read and write to that

karmic monolith
midnight bramble
#

i guess i'll try making rebind menu just to see how it works right now

#

or is there any crate or example that already does it?

candid vigil
#

@karmic monolith If we're going to build an editor intergration, what do you think about implementing a registry for all Actionlike, and then adding descriptions to Actionlike when there's a feature flag, kind of like debug or dev-mode?

karmic monolith
#

It is also convenient for key binding menus

karmic monolith
midnight bramble
#

alright, then yeah i'll go get started with bevy_ui

karmic monolith
#

Awesome. Show us what you make: I'd really like to have a bevy_ui example of this in the repo

candid vigil
#

It seems like we could introduce a new kind of UserInput: Combo, just like the combos in fighting games.

karmic monolith
#

IIRC VIM uses these too?

#

Fundamentally they would work the same way as gestures I think

#

Where you have listeners trying to detect a given pattern

midnight bramble
#

yeah that's actually a really good idea

candid vigil
#

Is arpeggio a common term in game development? I'm not sure because I don't often talk about games in English, being Chinese. And chord confused me a bit at first when I encountered it in LWIM without checking the document.

karmic monolith
#

With chords, you press all of the keys at once

#

With arpeggios, you play them one after another

#

"combo" or "sequence" are the other terms I've seen

candid vigil
#

got it

karmic monolith
#

I think sequence is probably the most clear?

#

(even if arpeggio is fun)

midnight bramble
#

in some games combo is just a counter for hits without taking damage and delay, or with unique moves
and considering that the same games often also use sequences, yeah, sequence is a better choice

candid vigil
#

Sure, it's super funny! But are chords and arpeggio commonly used in English-speaking? I think it's more important to avoid confusion than to make things sound interesting

midnight bramble
#

bayonetta calls score "combo points", despite the attacks being... combos...

candid vigil
#

Yep, sequence sounds better to avoid confusion

midnight bramble
#

e.g. if you have [shift]+[1] for action 2, and [1] for action 1... you might want to rebind action 1 it to [e], which turns it into a single anyway...

#

or is there a reason it doesn't make sense? i didn't read chord/userinput code

candid vigil
#

I feel like we could add "cancel_if(Action, fn() -> bool)" and "fallback_to(Action)" to ActionState.

#

or InputMap, because it cound be a component attached to an entity

midnight bramble
#

i don't even remember what unity does for that, i wonder if it's even possible there

#

they did the dirty modifiers

candid vigil
#

chord is just a type of user input that requires all specified inputs to be activated.

midnight bramble
#

some fighter games ended up making combos with a simplified option, so basically reducing a sequence to a single button
this basically comes back to the previous topic of turning chords (and now also sequences) into a single button

#

just something to consider

#

oh i found another name for the sequence, input stream

candid vigil
#

But I feel like it's up to the game developers, the users of the LWIM library, to consider this aspect. If users need chords and sequences, the library should provide corresponding support

midnight bramble
#

certain fighting games and action games such as Devil May Cry also include delay attacks which require the player to wait for a period of time before pressing a button for a different result

candid vigil
#

InputStream in LWIM means the stream collecting user inputs

#

So, sequence would be better

midnight bramble
#

sequence seems to be most common name for it

midnight bramble
candid vigil
midnight bramble
#

looks good

#

i have a feeling that before long we'll have a fighting game as an example for LWIM

candid vigil
#

yeah

midnight bramble
#

i'm not sure who uses bevy for a fighting game, but being able to just do it without any hassle is a huge bragging point

candid vigil
#

added to schedule

midnight bramble
#

so i guess time range would be better

#

(minTime, maxTime)

#

i don't think there's any reason you wouldn't want a timeout anyway, it'd just be weird if after more than 2 seconds pressing a light kick would instead continue previous move

#

there's also the same issue as fallthrough
