vestal schooner Jun 16, 2024, 2:57 PM

#

Hi,
this is my DIY Garmin G100 Bezel made for using with my iPad. You can use it with the Simionic G100 App or with Mobiflight and something like Spacedesk. It's not finished but working.

#

#

The ESP is used for emulating an bluetooth keyboard for controling the Simionic App. The Arduino is controlling the Encoders, Buttons and the ESP32. You can also remove the ESP32 and use the G1000 only with Mobiflight and an Screen App like Spacedesk.

#

#

#

I had some power issues with my design so i had to implement an level converter and split the power lines from ESP32, Arduino and the other electronics.

#

The Bezel is 3d printed

digital ibex Jun 16, 2024, 3:25 PM

#

I love how the buttons below line up accurately

amber path Jun 20, 2024, 6:05 PM

#

PCB - 2x enconder - nice

vestal schooner Jul 2, 2024, 4:57 PM

#

My second one is nearly finished

scarlet yacht Jul 2, 2024, 7:13 PM

#

You have drawings for this I would love to make this.

vestal schooner Jul 2, 2024, 7:30 PM

#

#

I nee to make some improvements and then i will release ist on GitHub

vestal schooner Jul 3, 2024, 9:03 PM

#

strong jackal Jan 10, 2025, 3:50 PM

#

@vestal schooner This looks great, I am working on something similar but a little stripped down. I would love to take a look at your stl files for the 3d prints if you dont mind sharing.

vestal schooner Jan 11, 2025, 10:09 AM

#

strong jackal <@241940850588909568> This looks great, I am working on something similar but a ...

hi, I will upload them to my GitHub next week

strong jackal Jan 11, 2025, 11:42 AM

#

Thanks!

vestal schooner Jan 13, 2025, 8:52 AM

#

strong jackal Thanks!

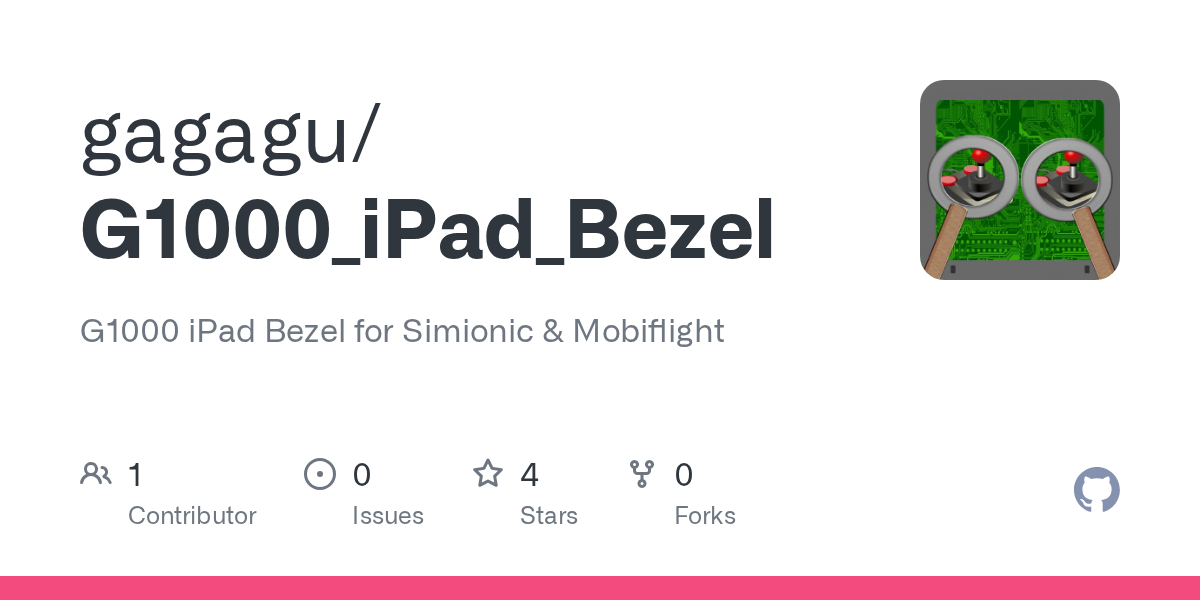

https://github.com/gagagu/G1000_iPad_Bezel/tree/main
