has the SD card been wiped or its content replaced after the update?
#Ranger Micro not working after up dating radiomaster .
mighty seal
is the active model configured properly to use the external rf module?
i.e. !externalrf
rare stump
mighty seal
increase the external RF baud to 5.25M
dull basalt
Okay I'll try that out
That did not not work
I wonder if there was something I missed when updating?
mighty seal
I wonder if there was something I missed when updating?
how did you updated it?
can you make sure the pins in the module bay isn't bent or not properly getting into the tx module?
dull basalt
I was watching a youtube video. Updated from the sd card
mighty seal
I was watching a youtube video. Updated from the sd card
you mean via the bootloader menu?
mighty seal
could you also test the tx module out of the radio, plugged into usb if it's going to power up at least?
mighty seal
It's working with the plug in and lights are flashing
it's flashing orange and then would go into wifi mode, yeah (green-yellow fade cycle)?
dull basalt
It flashing different colors when I first plugged it in and know it's flashing orange
I think I missed this when I did the update?
mighty seal
I think I missed this when I did the update?
this only updates the internal 4-in-1 module on the tx16s..
shouldn't affect the radio itself and how it works with any external modules
so what about those pins?
dull basalt
The pins are fine
mighty seal
The pins are fine
I'd recommend reflashing the radio using the edgeTX buddy, following the edgeTX documentation.
have you also changed sd card contents?
dull basalt
dull basalt
I'd recommend reflashing the radio using the edgeTX buddy, following the edgeTX ...
I think so, how would i know if it was changed?
mighty seal
I think so, how would i know if it was changed?
well, the sd card contents shouldn't really change unless YOU DID, either by formatting it and putting in new files (not from your backup of the factory contents) or if you used edgeTX buddy to format the card to put "new" files in.
dull basalt
I see thanks
mighty seal
I see thanks
so, did you changed the sd card contents or not?
dull basalt
I think so , becasue I do have the new up date on it
mighty seal
I think so , becasue I do have the new up date on it
I mean, if that's the ONLY file you put there, then it will not affect the radio settings/model settings (after it was flashed)
dull basalt
mighty seal
did you, at any point in time, formatted the radio's sd card or not?
dull basalt
I do not think I did formatted the radios sd card.
mighty seal
I do not think I did formatted the radios sd card.
then, again, I'll suggest reflashing the tx16s via edgeTX buddy, and also check the voltage that the external module bay have.. should be equal the the radio's battery voltage

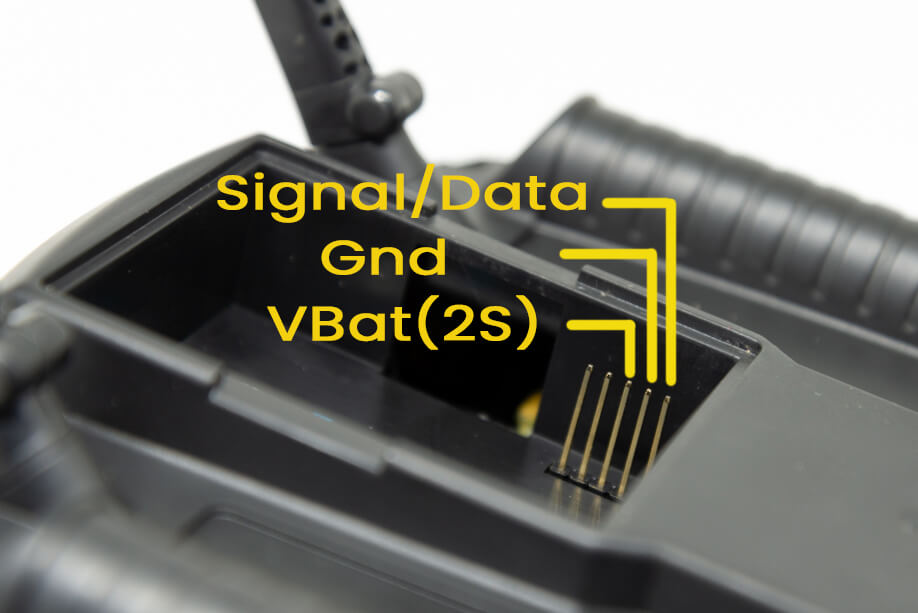

(probe the gnd and vbat pins if they'd be within 2s voltage)
dull basalt
https://www.expresslrs.org/assets/images/pinout-extmicro.jpg
Thanks Ill try that out
alright I remeber what happend the other day when I was updating my radio
I was updating my radio through the bootloader menu, plugged my radio in with usb cable, then I download the firmware and moved after that something happed to my firmware and then my radio would not turn on at all . Then I found https://www.st.com/en/development-tools/stm32cubeprog.html and this fixed my radio for me to turn it on and know the modlue does not work did I do something wrong?
mighty seal
I was updating my radio through the bootloader menu, plugged my radio in with us...
if you did the reflash correctly via the programmer, then the radio should at least power up..
eitherway, I'd still recommend reflashing via buddy
dull basalt
you got a video I can watch on how to use the edgetx buddy?
dull basalt
alright thanks Ill try that out agian
dull basalt
No luck man I cant get the module to work after updating the radio through edgetx
