TMC 5160 - pin stepper_spi_miso_pin is an alias for PA6

[normal geyser]

Hi there. I'm installing external 48V steppers on the Manta following the advanced configuration page. I have run into this error. Jumpers are set, boards are energized. Driver power is set to 24V (external drivers). Any thoughts?

PA6 is connected to the ADXL

50V include from advanced steper configuration guide

Manta 1.1 board def is image, my override in text:
[adxl345]
cs_pin: PC4
spi_software_sclk_pin: PA5
spi_software_mosi_pin: PA6 #SD0 --> MOSI
spi_software_miso_pin: PA7 #SDA --> MISO

Manta 1.1 board def

Looks like the board def for the manta explicitly links the ADXL to pins defined as the same SPI bus motor pins. I'm not sure what the resolution for this would be. Going to explore alternative pins for ADXL while waiting for guidance on this issue.

[normal geyser]

STM32G0B1
VET6
AA008 9R A
TWN AA 209
13

https://www.mouser.ca/datasheet/2/389/stm32g0b1cc-2042221.pdf

[normal geyser]

SPI2 with PB14(MISO), PB13(SCK), PB11(MOSI), in the EXP2 section should be available, but a bit awkward for wiring.

[normal geyser]

ADXL override commented out, now booting.

[normal geyser]

ADXL now swapped to software using the SPI2 pins. It boots. Next step is to rewire the sensor and test.

[lavish raft]

This is the problem. Use the stepper_spi_* pin names. It's the same spi bus.

Klipper complains because you're using 2 names for the same physical pins. Not because you can't use the same physical pin for more than one section.

It's a confusing error, i know.

[normal geyser]

So like this?

cs_pin: PC4
spi_software_sclk_pin: stepper_spi_sclk_pin
spi_software_mosi_pin: stepper_spi_mosi_pin #SD0 --> MOSI
spi_software_miso_pin: stepper_spi_miso_pin #SDA --> MISO

The strange thing about this is that it only started doing this after connecting SPI drivers, which I did not think would cause a name conflict.

[lavish raft]

Yes. Why is that strange? UART drivers don't use SPI, so they don't use the software_spi_* pins 🙂

I'm not sure w hy you changed the adxl345 software spi pins in the first place

[normal geyser]

It's strange that it didn't complain about the name, since that is already in the board definition, even though they are not being used, they are still being compiled. I'm not saying it's an error, just different from my C++ compiler experience.

[normal geyser]

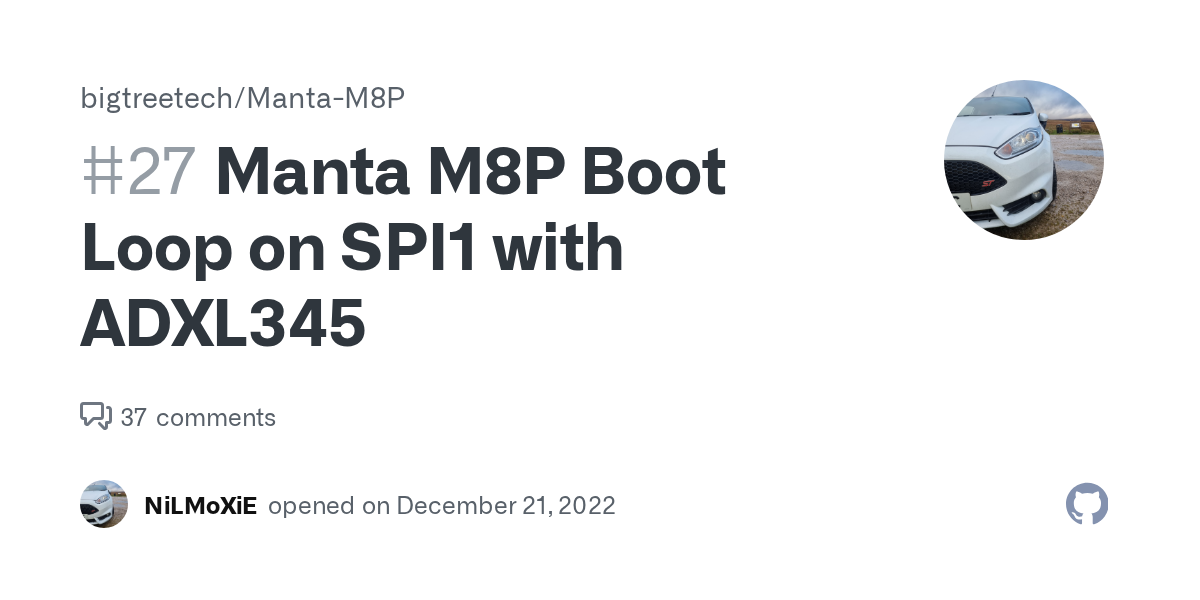

That's a good question: https://github.com/bigtreetech/Manta-M8P/issues/27

The MOSI and MISO pins need to be swapped or the board wont start

This fix contradicts the guidance of the manta manual

[lavish raft]

Yes, as i mentioned earlier the klipper implementation of pin aliases is really odd..

[lavish raft]

Ooh. This should be fixed in the config!

[normal geyser]

Yeah, just got it to work last night after trying a few times a month ago (no idea why it didnt work then), and with this latest issue I wasn't sure if I had fixed it.

[lavish raft]

If you want, i’ll accept a quick PR that swaps those two pins in the board config.cfg.

If not i’ll make the change once i’m back from work tomorrow 👍

[normal geyser]

I've never submitted a PR to somebody else's repo so double check that I don't mess this up :)

Done. That was good to learn. hopefully that fix was appropriate.

[normal geyser]

Thanks for your help.

[normal geyser]

I tried a bunch of things we discussed, but none of it worked. I'm not confident my PR will work. While I figured out how to make a PR, I still have no idea how to handle Klipper aliases.

[lavish raft]

Gotcha, but you can confirm that switching the pins is the fix, yeah?

PR is correct for that at least, so maybe the physical pins have to be swapped.

In which case we'll correct the wiring diagram instead

[normal geyser]

Switching the pins is definitely the fix. You are right though, the wires need to be swapped as well.

[lavish raft]

Got it, will get that fixed

[normal geyser]

I recommend using this wiring:
GND-GND 3.3V-3.3V
PA6-MOSI PA7-MISO
PA5-SCL PC4-CS
GND-X 5V-X

Generic ADXL chip says 3-5, but was very hot at 5 and didn't work any better.

[lavish raft]

It got hot at 5v? It should have a dc/dc regulator on board. The GY291's do 3-6V on VIN

[normal geyser]

Yeah, it didn't fry the chip, but the regulator was toasty

[lavish raft]

I see. The issue is that the voltage drop on 3.3v easily get's too big, depends on the users wiring.

[normal geyser]

Will the SPI motors still work if PA6 is used for MISO on the motors and PA7 is used for MOSI on the motors
but
the ADXL is using PA6 for MOSI and PA7 for MISO?

[lavish raft]

Well i assume the change is necessary because of wrong labelling of the pins. So i'd assume yes. But please test this.

I don't own the m8p 1.1 myself, so best i can do is listen to users like you

[normal geyser]

The motors appear to work fine on SPI with the existing define, but I was unable to test this. Should I be creating a dummy board definition? Because when I put:
cs_pin: PC4
spi_software_sclk_pin: stepper_spi_sclk_pin
spi_software_mosi_pin: stepper_spi_mosi_pin #SD0 --> MOSI
spi_software_miso_pin: stepper_spi_miso_pin #SDA --> MISO
in my overrides, it did not boot.

[lavish raft]

You mean for the adxl right, you're not changing the motor SPI config?

[normal geyser]

It has been difficult to test this because of the namespace problems that I do not understand.

Yeah, motor needs to stay the same, but MISO and MOSI need to swap for ADXL.

[lavish raft]

There's no namespace issues if you use stepper_spi_whatever instead of the actual pins.

The 5160 motor includes use these

The error happens when you use 2 different names for the same pin in your config

[normal geyser]

But it also doesn't let you use the same name? "pin stepper_spi_miso_pin used multiple times in config"

[normal geyser]

Okay, I'll work on testing this

[lavish raft]

Wait, when did you get this?

Hmmm... This might be a problem yeah.. You're not able to use spi_miso_pin for both software mosi and miso at the same time.

There's no way to get around that

no matter what you call that pin

[normal geyser]

Default Manta 1.1 config with:
[adxl345]
cs_pin: adxl345_cs_pin
spi_software_mosi_pin: stepper_spi_miso_pin
spi_software_miso_pin: stepper_spi_mosi_pin
spi_software_sclk_pin: stepper_spi_sclk_pin

in overrides

[lavish raft]

yeah i understand now

[normal geyser]

Yeah, me too. I think it's a bigger problem.

[lavish raft]

And just swapping the physical pins on the ADXL is not enough to get it to work?

[lavish raft]

yeah i'm not sure there's an actual fix :/

[normal geyser]

An override to move the ADXL to another SPI?

I tried this quickly on bus2, but it didn't work and I didn't test it thoroughly. I'm going to read about using the ADXL with the RPI.

[lavish raft]

That's an option, yes

[lavish raft]

Just wire it like this https://www.klipper3d.org/Measuring_Resonances.html#direct-to-raspberry-pi

and then

[include RatOS/boards/rpi/config.cfg]
[include RatOS/sensors/rpi-adxl345.cfg]
[resonance_tester]
accel_chip: adxl345 rpi

[normal geyser]

Okay, ignore my PR, because it will probably break

[lavish raft]

When running queries make sure to specify the CHIP parameter. Ie ACCELEROMETER_QUERY CHIP="adxl345 rpi"

[turbid drift]

Reading this Greek means I'm probably doomed when I get to this stage.

[normal geyser]

Excellent. I'll test this against SPI2

[normal geyser]

What stage are you at?

[turbid drift]

Just wiring the electronics panel.

[lavish raft]

If you're using a toolboard, there's no need to worry about this. If not i recommend going straight for #1181623658502963261 message

Also this is specifically related to the manta m8p 1.1

[normal geyser]

Are you doing SPI drivers on the Manta?

[lavish raft]

This works fine on an Octopus Pro for example.

[turbid drift]

Yes I'm running the newer BTT 5160t Plus with a 1.1 M8P with an EBB42

[valid bronze]

then you are fine, use the ADXL on the toolboard

[normal geyser]

Putting this here: https://www.3docity.com.au/adxl345-and-bigtreetech-cb1-input-shaper-setup/

[valid bronze]

Rat-OS does this already for you

[normal geyser]

Got an error message re the spi bus not being avaialble when implementing the config provided by miklschmidt. I'll have to check it in the morning and compare the names with what was in the board envs, since my board envs didn't match that guide anyway

[valid bronze]

I was the one who worked on the cb1 image and I tested the adxl on the manta boards. I remember having to enable the overlays and that was then added to Rat-OS

[normal geyser]

##Accelerometer connected to rpi
[include RatOS/boards/rpi/config.cfg]
[include RatOS/sensors/rpi-adxl345.cfg]
[resonance_tester]
accel_chip: adxl345 rpi

[normal geyser]

Here's the error. The CB1 github page says:

I confirmed spidev1.2 is commented out in my boardenvs.

[normal geyser]

ADXL queried successfully with SPI2 pins in software SPI:
[adxl345]
cs_pin: PE7
spi_software_sclk_pin: PB13 #(SCK)
spi_software_mosi_pin: PB11 #SD0 --> MOSI
spi_software_miso_pin: PB14 #SDA --> MISO
axes_map: x,z,y
