CoD Warzone streaming:
Anyone else struggle to stream this game?
I’ve had to drop to 1080p 30fps but even then it can still skip frames. Even when I can get the stream to smooth out it will still look pixelated during game movement (running etc). Have lowered game settings. No other games have this or any other problem.
GTX 1660 super oc 6gb ram
Ryzen 5 3600
16GB ram
Any suggestions? Thanks.
#cth-history
barren storm
cunning latch
@civic river 4K Capture Utility already records separate tracks for the Capture Card Audio and Live Commentary. But if you're using VOIP audio that is either mixed in with audio captured from the 4K60 Pro MK.2, or it's not captured by 4K Capture Utility.
If you're sending all audio to the capture PC through the 4K60 Pro MK.2 then it's all mixed into a single stream and you can't split it apart again. You'd need to be routing audio through separate streams to be able to control it on the capture side.
@sharp agate @steep briar Just to tag onto this. The HD60 Pro's H.264 encoder is only accessed/leveraged when recording inside of Game Capture HD.
Recording in other software will use your GPU or CPU. As they only get access to the uncompressed feed from the HD60 Pro.
But GPUs handle encoding amazingly well and using the GPU for encoding is generally the first thing suggested anyways.
@south bronze Got an example of how it looks? Which capture card?
@lost phoenix You've already connected the phone to a TV to see if video shows up?
@fallow tree You're referring to Twitch Chat messages? Are you on the latest 4.8.1 version?
@versed dagger What is the button you're trying to activate? If you're seeing that message, it's likely something to do with the integration between the Stream Deck software and whatever it's trying to control.
versed dagger
Trying to control my StreamLabs screens @cunning latch
or anything on StreamLabs OBS
cunning latch
@hidden jolt Just to confirm, you have a display connected to the 4K60 Pro MK.2 HDMI Output? What sort of signal are you sending through the 4K60 Pro?
Does the PC see the 4K60 Pro as an additional monitor?
@versed dagger Does Stream Deck show any message when selecting the button? Like "Launch Streamlabs OBS"?
civic river
@cunning latch yes all my audio is running through my goxlr and that sounds is all combined going into the capture pc. how exactly could i send my voice audio separately to the capture pc so it isn't mixed in with my game sound?
cunning latch
@versed dagger Just to be clearer, I mean down here below the button previews.
versed dagger
Yeah it's connected
golden crag
can anyone help me would prefer to go in a vc as its a complex problem?
cunning latch
@civic river How do you have the GoXLR setup? Is it connected to the stream PC over USB and the Gaming PC is connected through Line In?
Do you have any audio going into the 4K60 Pro MK.2's HDMI port? Or just video?
Dual PC audio is always a challenge, especially when trying to keep audio sources separate for editing control later.
@golden crag You can always give us a call: http://e.lga.to/phone
golden crag
I’m based in the UK @cunning latch
cunning latch
Our phone support team is open for another 2 hours. It's based in US-West Coast.
versed dagger
Do you know what that icon means @cunning latch
cunning latch
@versed dagger It's a general error icon. Doesn't refer to anything specifically. However, since you're seeing that and the button below it. It makes me believe the app on your phone is working fine with its connection to the PC and it's the integration between Stream Deck and Streamlabs OBS which is breaking.
My assumption is perhaps you need to delete and remake the key. It may be pointing to the wrong object or it's been renamed possibly.
versed dagger
so delete StreamDeck on phone and pc and reinstall it?
Well, deleted and reinstalled apps on phone and pc and still doing it'
Made a new profile and took the picture of the code thing again and nothing
civic river
@cunning latch the goxlr is connected to the gaming pc via usb, and sending sound out to the stream pc. i dont think there is any sound going through the 4k60 hdmi port. The only sound I'm able to choose from is the "line in" and that's coming from the goxlr.
- If I connect the goxlr to the capture/streaming pc, would I be able to separate the voice from the gameplay from the gaming pc? If so, wouldn't that cause an issue with me talking in-game to other players (not in discord, because i would run discord on my capture/streaming pc to capture that voice sound). Since my mic is connected to the goxlr and the goxlr is connected to the capture/streaming pc, i don't think i'd be able to talk to people in-game on the gaming pc. (hopefully that makes sense)
- I feel like this is a goxlr question, but I'm not getting any answers on their discord so I came to the elgato discord channel.
hidden jolt
I got it 'working' @cunning latch but I need to wait on a new PSU I think the second pc psu is going bad.
topaz eagle
Hi there! New to Elgato and streaming. I’ve been an Xbox gamer and streaming via my Mac Mini with solid specs and it’s been great. I’ve been thinking about getting a gaming PC but don’t want to spend too much since I have my really nice Mac Mini.
If I play on let’s say a basic NZXT pc, can I use my HD60S+ to connect it to my Mac and stream via my Mac?
thorny scaffold
I removed my question because I solved it myself
stoic ether
Is the store still under maintenance, I really would like to purchase some elgato products..
mental viper
Hi All! Just got a stream deck a couple days ago and I'm completely stumped as to why a custom plugin I installed is missing from the multi action list of actions
I installed this 3rd party Elite Dangerous plugin that I'm trying to macro out a couple of actions with
sage ridge
Hi All I have a sony a6000 and am exerpeincing quite a bit of motion blur with my CamLink4k and A6000. When I'm sitting still the focus is great but I can't figure out what's cause all the blur when I move in my chair or drink a class of water
and the coloring on skin isn't great either. Any help would be greatly appreciated!
gilded jackal
i keep getting this issue
i have connected everything and idk why this keeps showing up
and i keep thinking
silent pasture
Good luck getting a reply
left ingot
Have a question or two regarding the HD60S+ vs the 4k60S+. I am currently building a two streaming setup utilizing a laptop as my streaming "PC". I'm trying to determine if there is added value of using a 4k60S+ over the HDS+ if I am not trying to stream in 4k. Essentially, will my gaming monitor (1440p144hz) be impacted by using an HDS+ over the 4k? Also, I'm aware of the 200MS capture delay on the 4k, is that also present in the HD? Finally, are there additional benefits of utilizing the 4k when not streaming in 4k? Improved stream quality, etc?
Also, is the HS60S+/4k60S+ capable of capture gaming footage AND the image from a DSLR camera, or do I need an additional Cam Link for the DSLR?
cunning latch
@left ingot Only the 4K60 Pro supports refresh rates over 60hz. So the HD60 S+ will be limited to 1080p60, 1440p60, or 4K60. 4K60 S+ is limited to 1080p60 or 4K60.
All of our devices, except for the 4K60 S+, has the low latency 'Instant Gameview'. HD60 S+ has a very low latency.
These devices only capture from one device at once. So if you wish to capture a camera as well, you'll need another capture card like a Cam Link.
@gilded jackal Please try the suggestions listed here: https://help.elgato.com/hc/en-us/articles/360041082531-Elgato-4K-Capture-Utility-A-USB-communication-issue-has-been-detected
if it continues, pleas email us: http://e.lga.to/help
@sage ridge Do you have a sample recording of what this looks like?
left ingot
@cunning latch can you explain "HD60 S+ has a very low latency" for the layman? Essentially there is not game delay from the capture card to OBS?
cunning latch
@stoic ether Doesn't appear to be under maintenance on my end. Is it still showing it for you? Have you tried clearing cache or cookies for your browser?
@left ingot Correct. I'm referring to the time it takes for video to leave the console go through the capture card and appear on the capture preview.
4K60 S+ is currently the highest of our lineup at ~250ms because it has an onboard video encoder. Which is needed since it does 4K60 HDR recording over USB 3.0.
And... standalone to an SD Card.
@mental viper It's up to the plugin developer to integrate support for Multi-Actions. It's possible they didn't enable multi-action support for it.
left ingot
@cunning latch Ah I understand. And just to understand your first point, if I used any external capture card (HD60s+, 4k60S+), I would be unable to achieve 1440p/144hz on my gaming laptop? I would have to use a PCIE capture card to get use out of my good monitor?
excuse me, not gaming laptop, gaming monitor*
cunning latch
If you were to use the HD60 S+ or 4K60 S+ your source device/PC would only be able to output 720p 60hz, 1080p 60hz, 2160p 60hz. Or 1440p 60hz for the HD60 S+.
So if you wanted to use a setup with a 144hz monitor and run it at 144hz, you'd need to be using the 4K60 Pro PCIe card.
left ingot
Bummer, had no idea
cunning latch
@left ingot There are some workarounds which aren't bulletproof though. You can of course connect the 144hz monitor to the output of the laptop/PC and then connect the HD60 S+ or 4K60 S+ separately to the PC.
Your PC will then see two displays. You can then clone these together. Sometimes you can still set the cloned setup to 144hz and sometimes it will still work. Windows will on its own send 144hz to the monitor and 60hz to the capture card. But this is very hit or miss with most games.
Updating to Windows 10's 2004 update significantly improves this behavior though.
One final option which is generally ideal for dual PC is: http://ltroyalshrimp.com/streaming-with-a-dual-pc-setup-the-obs-method/
But for a "pure" setup where you connect the monitor to the output of the capture card, the 4K60 Pro is the only one which can do this.
left ingot
Dang, that's pretty disappointing. Really appreciate your feedback though. Trying to put this gaming laptop to use, but sounds like there is an increased "risk" involved with the method you explained above. Thanks for the info
cunning latch
If you're just using a single computer and aren't capturing a console, then a capture card probably is not the solution.
left ingot
Gaming source was a PC, laptop was the intended streaming source
jolly rover
Hello everyone! Will the new 2020 iMac with the 8 core i7 work well with 1080p/60fps streaming or should I upgrade to the 10 core i9?
sage ridge
@cunning latch Here's just a quick screengrab from OBS with my camera activated via CamLink 4k https://www.screencast.com/t/f0xyfQVzqg
quartz night
is there an easy way to hide the sidebars on the Elgato Window without going into fullscreen? Sometimes I just want to play my Nintendo Switch as a small window on my screen like any other application. One of the main things I wanted to do when I got a capture card actually.
gritty dragon
@cunning latch hey. I got the standoffs put into my case, and now the card sits correctly. Thank you for helping me to figure that out!
stoic ether
@stoic ether Doesn't appear to be under maintenance on my end. Is it still showing it for you? Have you tried clearing cache or cookies for your browser?
@cunning latch
Yes I have, multiple times. Even tried on other devices.
That happens when I click on “shop now”
restive wraith
Hey! I seem to have a problem with my Elgato HD60S that wasn't there before.
When I'm broadcasting it, it seems to skip frames from time to time and kinda 'tears' the sound as well.
This does not happen on my monitor but on the PC preview.
In addition, if I use 'Elgato Gaming Capture HD', there seems to be a bit of delay, whereas if I use 'Game Capture HD60 S (Video) (#0X)', there's no delay but the tearing is very annoying.
This is for both the Elgato Software and OBS.
For reference, my system's specs are:
i7 7700HQ
16GB Ram
GTX1060
I would say that it was already there before, but it became worse when I updated to Windows 10 May 2020 update.
vivid harbor
I had some issues with some Xbox One gameplay, but I disabled buffering in OBS and it went away @restive wraith
I just need to experiment more with chat audio
vivid harbor
under the properties for the capture device in OBS
vivid harbor
weird
I had some really strange jumpiness while I was streaming from the Xbox where it would seem to skip frames
and disabling the buffer resolved it for me
restive wraith
Skip frames + tear the sound as well
It's very annoying, especially that I review games. :/
Now I'm trying to fix this problem first
We don't want no frame skipping footage over a review hahah
vivid harbor
hehe, I can imagine not
I had a weird chat link audio issue while streaming the other night, but it was during a kill race apex legends tournament so I couldn't stop to fix it
problem went away after a restart of the PC though
calm spindle
hey all, just installed my hd60 pro yesterday and did all i could to set it up properly, but ive noticed my game audio (ps4) sounds a bit muffled and not completely clear and i can't seem to google a video or post regarding audio fixes 😬 help appreciated
supple carbon
Hi there everyone! I just got the hd60 s+ for streaming my switch... I'm using a mac, and have downloaded the OBS Link and NDI... I'm still getting the usb3 error... can someone help me see the light?... I'm lost as to how am I to make the capture device show up so I can select it.
cosmic vine
Are you using a USB 3.0 port?
supple carbon
Are you using a USB 3.0 port?
@cosmic vine I'm not.
don't see the need for it
am I missing something?
everything connects just fine
someone just told me that my mac model does not support the usb 3.0, but I thought this was an S model only issue (per the videos I watched)
calm spindle
anyone know how to fix sound capture from crashing when trying to select an option... 😭
supple carbon
I'm gonna send you a hug @calm spindle cause I too am having tech issues... so, Socially Distanced Hugs ❤️
vivid harbor
USB3 is required for the external HD60S and HD60S+ if I'm not mistaken
supple carbon
I think I'm gonna have to get me a new computer... thank you for the help so far ❤️
cosmic vine
If you have a usbc type you can buy an adapter that has usb3
south bronze
So i got a 4K Cam Link today and the thing worked for about an hour and then bam died on me, whenever i connect my camera to it now, my cameras screen is like a darkish blue color, I also tried reinstalling everything that didn't work, then I also opened up OBS and went to the camlinks properties and i couldn't even select any, there were no resolutions to choose from at all, just blank. Any help on this?
mortal monolith
Does anyone have a guide to getting an HD60s+ working on Streamlabs OBS on a Mac?
I can't get audio from it
I can get video, no problem.
cunning latch
@gritty dragon
Sweet. Glad to hear it's all worked out.
@stoic ether Did you happen to message our team on other social media? I believe someone else was experiencing this. I'll ask about it. If it's happening on multiple devices, that's very odd. So that's Desktop and mobile then.'
@supple carbon You don't need OBS Link for the HD60 S+. That's only for the HD60 S. You can uninstall OBS Link.
HD60 S+ will work directly inside of OBS Studio or other software without special apps needed.
Which Mac model do you have?
@restive wraith So this is the sound cutting out, video looks fine?
@sage ridge What is the shutterspeed on your camera? Are you set to video mode? Honestly looks like you have it on 1/10th of a second.
south bronze
@cunning latch Do you know anything about the Elgato Cam Link
sage ridge
@cunning latch I am on movie mode, with manual exposure with 1080p
silver dagger
Hello all! Has anyone experience an issue where the cam link will just blink flashing blue and then not turn back on? Asking for a frustrated friend that is about to throw her Cam link out the window. Thanks
restive wraith
@cunning latch as mentioned, sound is tearing and video is skipping frames
cunning latch
@sage ridge But what is the shutter speed that the camera is set to?
@mortal monolith Are you using a headset with your console that you're capturing? Do you hear audio in Game Capture HD?
hollow olive
Heyoo, having a weeeird issue with my 4K60Pro MK2. If I ever try to go above 1080p60 on XB1X, this happens, 4k capture utility, obs freak out, my PC resources usage goes through the roof and basically nothing can be captured. The signal itself is unaffected, since on my second monitor I can see everything just fine in the resolution I've selected.
No major changes were done, everything was working perfectly fine just a month ago. What I've tried so far: reinstalling 4k utility, reseating the capture card in another pci-e slot, changing hdmi cables. Nothing works so far.
GPU used for encoding: GTX 1070
south bronze
i like how ive been using an elgato hd60 since 2014 and still works no problem till this day
but i get a cam link 4K and it stops working after an hour
smh
cunning latch
@south bronze If you connect up the camera to a TV or monitor, does the video come through fine?
Do you have another HDMI device you could connect into the Cam Link 4K?
sage ridge
@cunning latch it was shutter speed
well done 😄
now need some more light in the room
cunning latch
My film background sometimes come in handy.
sage ridge
I normally use it to shoot high paced sports like skiing and snowboard and soccer; needed it to be in more movie mode
cunning latch
@hollow olive Try reinstalling the 4K60 Pro MK.2 driver: https://gc-updates.elgato.com/windows/drivers/4k60-pro-mk2/download.php and then rebooting.
GPU seems fine for this, but if resources go really high then make sure 4KCU is set to use the GPU to encode.
hollow olive
Alright, will try that, reinstalled gpu drivers as well just in case.
and yes, 4K utility is set to encode on GPU
Came back after restarting, same :/
cunning latch
I've seen this behavior before, but it usually only lasts for a quarter of a second when the signal is re-attained. Under Video Fidelity & Overscan is it set to Automatic or HDMI? DVI does seem to cause problems.
Do you have anything between the console and the 4K60 Pro like an HDMI Switch, splitter, etc? I might also suggest disconnecting and reconnecting the cables or replacing them.
Oh wait you said you already did that, nevermind.
hollow olive
Video Fidelity settings - you're referring to Xbox settings, correct?
At the moment it seems like if the resolution is above 1080p60 it reinitializes every half a second.
cunning latch
Yea on the Xbox display settings.
hollow olive
No splitters in between, vanilla setup.
south bronze
@south bronze If you connect up the camera to a TV or monitor, does the video come through fine?
Do you have another HDMI device you could connect into the Cam Link 4K?
@cunning latch yeah i tried that my camera works on my elgato hd60 and my montior
But the cam link 4K just absolutely nothing
hollow olive
@cunning latch It was set to auto-detect, managed to set the resolution to 1440p60 and get a signal, 120 does not seem to work at all, the console is freaking out as well atm (restarting it), but at 1440p60 I can hear the audio starts to glitch out, it does it every time when 4k capture utility starts going crazy with the GPU usage.
if I try to set it to 1440p120 it says that it's not supported and forces me back to 1080p120, and 4k utility software does this now:
And it goes in and out of no signal every second
charred raft
Hello I'm having an issue with my Elgato Game Capture HD60 Pro. My there is massive screen tear occurring when I'm using it in OBS (and elgato's capture program).
My gaming Monitor is 240hz, but the only thing being connected to the elgato capture is the hdmi from the gaming monitor. From the GPU I have a DP cable connecting directly to my gaming monitor. My elgato is being cloned off of my Gaming Monitor. Any help?
hollow olive
@cunning latch 1440p60 with task manager reportings for context
tight flax
Is it possible to use a non supported res with an elgato? Like I have a dual pc setup and I play fn in stretched res. Anyway I can get my stream pc to get that and just not say not supported resolution?
supple carbon
Which Mac model do you have?
@cunning latch I think I just need a newer computer... been doing more research... I'm just wanting to get started with streaming from my switch... At this point a Windows laptop is what I'm searching for.
south bronze
Oof 2009
cunning latch
@hollow olive
85% wow. Did you happen to try updating the GPU drivers. I don't personally think it's related to the glitched capture, but that is very odd. My 1080 Ti is at 20% for 4K60 capture right now.
south bronze
Yeah i think u need an upgrade there buddy
cunning latch
@supple carbon Ok that makes more sense with that image, heh. If you have some systems you're looking at, feel free to post em in here.
supple carbon
thank you so much @cunning latch !
cunning latch
@south bronze is this on Windows? I'd disconnect the Cam Link 4K. Then go into Device Manager. Go to View > Show Hidden Devices. Then find any Cam Link 4K listings in Sound, Video, and Game Controllers and uninstall each of them.
Then reconnect the Cam Link 4K and let it reinstall the driver for it. If this doesn't help, I'd email us: http://e.lga.to/help and we can collect some more information to see what is going on.
supple carbon
i'm an unborn streamer wanting to be born lol
cunning latch
@tight flax Which model are you using? Some devices are more flexible than others.
tight flax
hd60 pro pcie
south bronze
@cunning latch ok thanks ill try that
cunning latch
I've never heard of a device going under that fast. So I feel like it's something else conflicting.
calm spindle
my game audio coming through the elgato is muffled/poor quality im not sure why, showed to a few friends who noticed it isn't as crisp as if right from the ps4. can't seem to find a fix, nor will sound capture launch before crashing when choosing pc gaming. stumped
south bronze
Are you an actual elgato employee or someone who knows there stuff really well
cunning latch
Employee. Social Media Support. I come in here to help when my ticket queue is low.
south bronze
Ah ok cool
hollow olive
Doing God's work
tight flax
@cunning latch I have a HD60 Pro PCIE Version
cunning latch
@tight flax What sort of 'non standard' resolutions are you referring to?
tight flax
1722x1070
cunning latch
Ok yea that's pretty nonstandard.
tight flax
What about 1722x1080. Do you think I could do either? Because whenever I try it just says unsupported resolution
cunning latch
HD60 Pro does have an onboard encoder so that may be affecting things. But I can test that on the HD60 Pro and 4K60 Pro to see what comes up.
tight flax
ok, I just don't know how to bypass the resolution not supported so I can stream while in stretched resolution
charred raft
Does anyone know why my elgato is screen tearing in obs?
tight flax
What gpu do you have
hollow olive
@cunning latch rolled back to one driver before the newest one, same readings, audio is glitchy and laggy, 1440p60 at 80 usage, if I go higher refresh rate, capture card just gives up and glitches out in the preview
sick torrent
Hi! I am streaming from xbox with elgato hd60s using obs live. My party chat is always showing on my audio input. Is there a way to control this thru elgato hd60s? I want to stop or lower the volume of said party chat.
cunning latch
@charred raft If you're cloning with a 240hz monitor, you're probably gonna have some tearing. But it's not a fault of the capture card. If you're on a Dual PC setup, you can try something like this: http://ltroyalshrimp.com/streaming-with-a-dual-pc-setup-the-obs-method/
Written by The real Phil up there on the top right. Works around tearing, framerates, refreshrates, and resolution differences.
@hollow olive Well I'm really not sure then. I'd email us here: http://e.lga.to/help
Run this reporter utility: http://e.lga.to/reporter and then attach the SupportInfo Zip file from your desktop to the email form. It will include logs and diagnostics to find out where the issue may be.
hollow olive
Will do
I really don't know if this is just my luck but I always get issues like this that are above my IT troubleshooting skills 😄
charred raft
@cunning latch Hey thank you standby I will try this 🙂
tight flax
I only have one thing wrong with that article. You have to have obs running on your gaming pc. Even just having obs open will hurt your frames. Sometimes you can lose %5-%10 of performance just by having obs open
primal trout
I have been playing musical USB ports and messing up all other parts of my stream just trying to get this thig to work.
^^ original issue.
I messed with a bunch of setting changed a bunch of stuff. All I succeeded in doing was making the video worse. Sound started stuttering.
I have it plugged into a 3.0 port and video is good but now have zero audio.
Also passthrough audio and video is fine.
tight flax
@cunning latch any word on if I can bypass the non supported resolution?
cunning latch
@tight flax I don't believe so. But I was going to try that res on my HD60 Pro and 4K60 Pro to see if the 4K60 Pro did anything different.
urban gust
Hi! I have downloaded OBS and Streamlabs and an currently trying to get it to recognize my capture card as a source but it won't come up for either software. I've tried changing setting and making sure it is only open on one software at a time. I'm not sure what else to do. (Macbook / Elgato HD60 S / Nintendo Switch for reference!) I had also tried using the Elgato Software but the frame capture is so low that I can't use it (between 5-10 fps).
tight flax
oh, well im not paying for a 4k60 lmao
its unfortunate tho because I wanted to stream on my stretched res
sullen lava
Hi guys
how come when using my Asus Rog Phone 3 with Elgato HD60 S
HD60 S+, it won't capture anything
how come?
ebon canyon
Bo audio in elgato
The bar is going up but I cannot hear it
I can hear it in streamlabs but not in the elgato app itself
calm spindle
can i get some help please? im trying to access sound capture but every time i click on pc option it just closes out
dull epoch
I know that the technical support team is busy but I raised a ticket case as I'm getting the Elgato Remote Plugin is missing error and we tired the fixes posted online to no success. Email I got after I submitted the Elgato Windows Reporter utility and received a response saying it was being passed on to technical and would be answered within 1-3 business days. that was on 17/08. I have not heard since and I have sent a follow up email 5 days ago to no response yet. Any know experiencing a big delay in response. I understand they are busy just want the stream deck to work with OBS as designed.
sharp agate
This isn't a channel monitored by technical support. It's just for community members to help each other out.
woeful latch
@dull epoch there isn't official support in this discord. We would recommend calling. With COVID tickets do take a lot longer.
tardy cobaltBOT
If you are having technical problems, please head over to .
PLEASE NOTE: Customer Service does not monitor this channel. If you are unable to solve your issue, please file a ticket at http://e.lga.to/help.
We also have staff available by phone 12hours a day. 8AM to 8PM Pacific every day of the year if you have quick questions and there isn't someone here to help you. http://e.lga.to/phone
dull epoch
I just called the number and it said they are responding by email to all tickets and it then hangs up?
sharp agate
The phone line is open from 8 AM to 8 PM PST.
You might have called as they were shutting down for the day or after.
dull epoch
Yes, I am in Australia I called the Australian number.
I called and it doesnt say they are closed. Its during there normal hours. But they are repsonding by phone
sharp agate
They also might be too busy to take your call and will disconnect you. I haven't had to call Elgato support before but that's happened numerous times with other support lines.
dull epoch
I called when I first had issues and it was the same response today compared to two weeks ago. 'due to overwhelming tickets we are currently only responding to tickets by email til further notice. please wait for an response by email for your ticket'.
woeful latch
Yea, they have been slammed since March.
dull epoch
Yeah, I understand its a tough time with covid restrictions
Anyone here had to elgato remote plugin missing issue with obs on streamdeck? Anyone fixed it another way
tropic storm
Okay, hopefully someone can help me. I'm facing two problems when I stream. The first is, my video is very desaturated and looks like it's basically just a hint of color, and also it's not fitting the entire screen (like there are two black bars across the bottom and top) and I can't find ANY troubleshooting on the internet at all. I'm streaming my Animal Crossing and Spiritfarer games (both on a Switch) through the Elgato HD60s.
jolly rover
Hello @everyone! Will the new 2020 iMac with the 8 core i7 work well with 1080p/60fps streaming or should I upgrade to the 10 core i9?
stoic ether
@stoic ether Did you happen to message our team on other social media? I believe someone else was experiencing this. I'll ask about it. If it's happening on multiple devices, that's very odd. So that's Desktop and mobile then.'
@cunning latch
Nope that wasn’t me. I just checked this few days ago. I tried on PC, LapTop and almost anything else and I still don’t know why.
native elbow
Anyone know how to fix this??
mental pivot
I need some help, I have my elgato properly connected to both my switch and monitor and inside game capture its just constantly trying to detect a signal
I have restarted my computer, the program and unplugged the hd60s to try and fix it
@native elbow is your usb plugged into one that has a little blue bit on the inside? cause if its not then it wont work
native elbow
yes it is I have no idea why it isnt fucking working
mental pivot
yep
native elbow
What games you gonna play live??
mental pivot
pokemon sword
was planning on getting back to masterball rank on stream
but, as you can see
and i dont know why its not working either, the elgato is working as it flashes when plugged in and im using all the correct inputs
mental pivot
Ill try that again
native elbow
did it work @mental pivot
native elbow
yeah it would be
native elbow
__ U S E U S B 3 . 0 __
mental pivot
Im very tilted this isnt working
native elbow
dude there are so many people that have the same problem as me
native elbow
I dont think theres anything i can do ahhhh
mental pivot
like the only problem i think it could be is my switch
native elbow
have you tried googling it?
mental pivot
I would try it on like other usb 3 ports you got or using a diff comp
I have
its just like
ungus bungus your problem doesnt exist
native elbow
imma restart my pc for the 9th time
mental pivot
good luck
native elbow
Didn't work
native elbow
Samee
mighty ledge
I just bough an HD60 S+ capture card and I'm getting no game audio through at all. I've even made sure it's activated in the Windows settings.
Does anyone know where I'm going wrong?
Alot of troubleshoots I've found are only OBS workarounds, my problem seems to be at the source and nothing to do with OBS
I'm starting to wonder if I have a faulty device
native elbow
@mental pivot Lets go our elgatos work lmao
I tried using a different usb cord after I had already used 3 others lmao
supple carbon
@cunning latch would a laptop like this work for streaming from my nintendo switch?... I'm concerned about the graphics card... its an Intel UHD card... Per the elgato system requirements I should get NVIDIA GeForce GTX 10... I know very little about graphics card. Thanks in advance 🙂 (I have the elgato HD60 S+) https://www.bestbuy.com/site/hp-15-6-touch-screen-laptop-intel-core-i5-12gb-memory-256gb-ssd-natural-silver/6413692.p?skuId=6413692
wooden remnant
That should be enough to just stream, I use an Intel intergrated as well no issue
supple carbon
thank you!
cunning latch
While integrated graphics have impoved a lot, I'd still suggest getting a laptop with Nvidia or AMD graphics. Even if you're not recording HDR, being able to offload stream encoding to the GPU is very helpful if your find yourself CPU bottlenecked.
supple carbon
thank you!
wooden remnant
That's a great point as well
Do you, Crest, have experience using eGPU for the task? I'm looking for an excuse to get one 😅
cunning latch
I... do not. I'm mostly a desktop person. Haven't messed with any Thunderbolt enclosures either.
onyx spoke
@cunning latch Any other connector for iPhone? Does elgato have official HDMI connector for iPhone?
wooden remnant
@onyx spoke what're you trying to achieve?
Do you want to stream your phone, because then there may be better solutions for you
I don't know if you can on Windows, but on mac, you can wire up the phone to a mac and record the screen using quicktime
It's not even a difficult process
south bronze
any idea what the issue could be here?
lament lynx
Just picked up a Wave 3. I'm liking it a lot so far, however I notice that the gain keeps increasing on its own and settles at about 62%. I've already read the Elgato Troubleshooting page on this and disabled the Discord Auto Gain Control, yet it still increases the gain in the Wavelink software. Any advice?
supple carbon
@cunning latch I got this for streaming my switch games, with elgato hd60 S+
steep cliff
Ah ibp, good taste
pearl bison
Having an issue with the "Play AD" function. It will work sometimes and others it will do nothing. When it stops working I am able to just run the ad from the creator dashboard on Twitch without issue so there has to be a disconnect between the Stream Deck and Twitch?
flat lodge
Hello
If I wanted to stream my ps4 to my monitor
Do I only need the HDMI going from my Elgato to the monitor and the USB from the Elgato into my Pc?
Or do I need like an additional connecting like a vgi source?
Connection*
tame crystal
Try 1 way and see if it works if not then switch it up
cunning latch
@supple carbon much better option than the laptop imo
Later you may wanna double it's memory to 16GB. 8 is a bit anemic for computing these days.
south bronze
im having an issue with my stream deck, i had it set up so that it did clips on twitch (all linked) and it worked for quite a while, i restarted my computer today and now it just comes up with an error symbol, anyone have any ideas?
pearl bison
Try removing your Twitch account from the Stream Deck then adding it back @south bronze ? It is the only solution I am having with my similar problem where I can run ADs at some points then I just get the yellow triangle at other times.
supple carbon
will do @cunning latch thank you so much!
south bronze
Awesome, that worked, Thanks @pearl bison
calm spindle
hey there im on day 2 of trying to figure this out, but anytime i launch elgato sound capture and try to choose the PC option the program just closes automatically, im not sure if i may have messed up any settings to make it do this or not but ive tried uninstalling everything along with the settings but no fix still doing that
pearl bison
Have you checked to see if any of your audio devices might need driver updates? @calm spindle
potent obsidian
I need help everytime I open Sound Capture it never captures any sound, and Ive looked it up and all I get is ps4 and xbox videos not pc
dusky hawk
I'm hearing a cracking and popping sound in elgato hd60s HDMI audio out. what to do?
I'm using my iPhone XR for gaming. My settings is 1080p 60Fps in elgato.
empty spire
Hello, im in need of some advice. I use the elgato HD60 to send my xbox gameplay to OBS to broadcast and i use the elgato chat link so that my party chat can be heard. My issue is when i talk there is an echo becouse the my usb mic and headset mic for party chat both pick up my voice, when i just talk to chat with my usb mic i have no echo then when i talk to people in party chat the echo is back. Is there away to stop the elgato broadcasting my voice? But still include my friends in the party chat? Any help would be great thank you
mighty ledge
Hello. I just bought an HD60 S+ capture card and I'm getting no game audio through at all. I've even made sure it's activated in the Windows settings.
Does anyone know where I'm going wrong?
Alot of troubleshoots I've found are only OBS workarounds, my problem seems to be at the source and nothing to do with OBS
supple carbon
@mighty ledge does your computer have usb 3.0 ports?
mighty ledge
@supple carbon Yes it does. That's what I'm using
supple carbon
@mighty ledge you capturing a console or PC?
mighty ledge
@supple carbon Console
supple carbon
which one?
mighty ledge
I've tried PS2, PS3, PS4 and the audio issue is persistent in all
supple carbon
I came across this issue during my research for my own technical problems regarding streaming from my nintendo switch... have you looked into the audio settings within the console?
what version of windows are you running?
supple carbon
same
Ima tag @cunning latch because he was very helpful in my research... perhaps he can answer your technical problem before I get back to you.
mighty ledge
👍
supple carbon
@mighty ledge check your dm
unkempt python
I got an HD60 pro yesterday and after installing it the device is recognized but I'm getting no signal in either Game Capture or Streamlabs. I've done all the troubleshooting things Elgato recommends (cold booting, moving PCI slots, disabling and re-enabling it in the device manager, etc) but still no signal. Trying to capture Switch footage. Got the HDMI out on the switch dock going to the In slot on the HD60 Pro, then Out going to my monitor.
tardy cobaltBOT
Sorry to see you're experiencing issues. Have you tried this yet? https://help.elgato.com/hc/en-us/articles/360041857951-Troubleshooting-No-Signal
If you're still experiencing issues, please file a ticket at http://e.lga.to/help.
simple kayak
I'm using HD60s with OBS Studio.
I stream my Iphone 11 pro and the song is delayed by 2 or 3 seconde.
Anyone have this issues ?
What can i do to fix it ?
Or did you have one idea to be able to get the song on my Iphone 11 pro and be streamed in same time ?
mighty ledge
@simple kayak You can delay your mic to sync up in Advanced Audio Properties... If you use a cam you'll have to add a delay to that too. You'll probably have to do some trial and error recordings to get the sync right
frail ingot
need some help with stream deck and obs. it says the remote control plugin is missing
I have reinstalled the stream deck software and I am still getting the same issues
smoky fulcrum
hey guys I need a little help
I have an Elgato Capture Card HD60 S+, it runs perfectly until I try to connect it to the camera on Discord. for some reason the signal on Discord flickers green rapidly while any game is being shown on my PlayStation 4. Is there any way I can fix this?
left ingot
Put this in wave chat, but probably more applicable here. I'm trying to build a two PC streaming set up, and I keep hearing that audio can get a little messy on dual PCs - i.e. monitoring audio through a capture card can add latency, etc. To minimize this, I know people use mixers; however, i don't really have the desire to get one. Does anyone have any experience with this, and how does the Elgato Wave 3 factor into this issue as I heard it has it's own software that doesn't require a mixer?
gentle rock
Anyone know how to stream with the elgato but still have xbox party chat optional to be included or not? Or it will always been included?
wispy socket
I cant hear game audio on my recordings when I have headsets plugged in, I even went and got an elgato chat link cable but still doesnt work. Help would be very much appreciated!☺️👍
cunning latch
Anyone know how to stream with the elgato but still have xbox party chat optional to be included or not? Or it will always been included?
@gentle rock That's determined by this setting here.
sharp oasis
Homies, assuming hte leaks are true and the new 3080 will have a 10gb and 20gb variants of VRAM, which one would be better for streaming/gaming? Does more VRAM impact stuff on OBS? Like effects, replay buffers, etc
urban karma
So @here I'm using mac and playing on PS4. Everything is fine besides that I have no game sound
I don't have speakers on my tv
floral jetty
are you trying to hear sound on your mac?
urban karma
I want to record game sound
floral jetty
which software are you using?
short shale
Hello, I have an issue where if I put a Hotkey on Elgato and use it for replay buffer, it doesnt work UNLESS I have that folder where it saves the replay open
Also elgato hotkey doesnt work on OBS if I want to set it with a press on an elgato hotkey instead of keyboard press
livid pasture
I'm in need of some help. today I reinstalled Windows 10 to my computer, all drivers are up to date, all windows updates are installed. For some reason my WaveLink 1 Mic won't recognize in the WaveLink software. I went through the support page, tried a different port on the computer, also tried a different cable. Windows can see that the Mic and all its inputs are there. any thoughts?
It appears to have fixed itself sorry for a blank post
crude lily
I sent a question yesterday inside #stream-deck-showcase... Idk if here's more convenient...
orchid summit
can I download images from my streamdeck icons?
exotic horizon
can anyone help me with basic setup? i’m super lost 😦
ive watched the vids and such but its still not working for me!
visual raptor
hello
visual raptor
hello, anyone here willing to help me out making sure I got the right settings in OBS for a 4K60 Pro, please?
south bronze
well that was pretty rare turns out my 4K cam link was a defective one
luckily i got a new now and works like a charm
first time i ever saw a defective product from elgato
must be pretty rare for that to happen
worn elk
is it possible to hear elgato audio through the computer? using hd60s and nintendo switch
nvm i got it
vivid parrot
o
young mantle
has anyone resolved an issue with crackling audio on OBS using elgato capture card? Every time I stream on the OBS program, I've been hearing this crackling stop on and off.
finite island
Can someone please help me im super stressed Fall guys alongside a few other STEAM Games arent being recognised as game audio in the wave mixer software. Ive tried solutions online but still no success...
keen narwhal
Has anyone else had a case where the audio comes out with a robotic-like distortion when routing them through Wave Link? If so, maybe you have a solution?
keen narwhal
Ah, never mind, the problem was with the SteelSeries headset
amber lake
Hey guys i've got the wave 3 mic & i've got the Voicemod but im having a lot of trouble having people hearing the voicemod which is a pain any advice or videos i can watch to set it up
vivid harbor
It takes some setup, but I've got it working pretty well @amber lake
I don't use voicemod in exclusive mode, but that's because I like to keep it segregated within discord so that my squad can hear me
I need to mess with the soundboard stuff some more though
amber lake
thank you so much @vivid harbor!
vivid harbor
you're welcome @amber lake
I actually made a youtube video for use with a stream deck via multi-action if you have one of those
amber lake
could you link it to me @vivid harbor via DM plz
vivid harbor
absolutely
I'm still waiting on state buttons for within multi-actions on the wave plugin
I like the toggle for the wave profile, but realllllllly wish I could have segregated input on/input off buttons.
I may experiment to see if I can leverage input levels instead
I just think having hard-coded input levels within a multi-action button could get messy as you have to remember to go in and adjust the values if you ever decide you want them differently on a whole. Like if you set the multi-action to bump something to 0 and then later to 100, but you prefer your new input level to be 70
jade nimbus
This might have been asked before, but does someone know how I can setup my "Elgato Game Capture HD" to capture/live stream PS3 to PC and using one of my PC monitors as "tv"? I have got the picture on screen using HDMI->HDMI and using the Mini-USB to USB into PC... But when trying to use the software to capture it, it only says "no signal". And screen is black/flickering black.
tardy cobaltBOT
Sorry to see you're experiencing issues. Have you tried this yet? https://help.elgato.com/hc/en-us/articles/360041857951-Troubleshooting-No-Signal
If you're still experiencing issues, please file a ticket at http://e.lga.to/help.
low summit
Anyone know why the twitch action buttons dont work on the stream deck sometimes
ill get the error button alot
low summit
Like it wont let me make a marker or clip at all
pearl bison
I am having an off and on issue with Twitch interactions as well. The only fix I have found (which isn't permanent) is to remove the Twitch account and add it back. This suggestion fixed the same problem you had for another user recently @low summit
low summit
Sounds good ill give it a try
tardy cobaltBOT
Sorry to see you're experiencing issues. Have you tried this yet? https://help.elgato.com/hc/en-us/articles/360041857951-Troubleshooting-No-Signal
If you're still experiencing issues, please file a ticket at http://e.lga.to/help.
cosmic vine
Did the bot get ai?
crude lily
Do anyone know why sometimes Twitch actions dossn't work? (Twitch is actually Up)
(That warnings appear only when pressing)
round kraken
@crude lily i have the same error and i thing you need to remove and add again the twitch account what is not the right thing to do the thing not sure why there is that bug
crude lily
It appears eventually. It fixes automatically each day or two and breaks again few days later
It's so weird
First I thought it was Twitch server issues, but I see no issue on Twitch's performance
rotund mountain
Heyo, picked up a HD60 S+ today so run a dual PC stream, and im running into an issue, hopefully someone can help me with. I have the display port going from my 2080 to my monitor, and HDMI to the elgato. Not problems with getting picture on the stream pc, but on my gaming PC, i am getting locked to 60fps in all games. What am I doing wrong here? Surely I should be able to play my games above 60fps correct?
elder dawn
can somebody help me setting up my dual pc setup and i can see my gaming computer on game capture on my stream pc but cant get it to show in obs?
glossy copper
Anyone know how an easy way to make sounds on the stream deck go through discord?
@ me if you have a solution pls
tawny gorge
can the stream deck run on linux?
sharp agate
@tawny gorge There's no official support for Linux from Elgato, but there is unofficial software called streamdeck_ui that allows you to use a Stream Deck on Linux with limited functionality.
tawny gorge
like what for example?
sharp agate
You won't have plugin support like there is for MacOS and Windows, so software won't integrate as well. You can still create shortcuts, key binds, and multi-actions though.
tawny gorge
so plugins like spotify, twitter etc?
sharp agate
Yeah. Honestly, if you're a Linux user and are thinking about buying a Stream Deck to use in Linux, I wouldn't recommend it. If you already have a Stream Deck and you use Linux, then something like streamdeck_ui might help.
tawny gorge
im using windows atm but im thinking of switching over to linux soon im trying it out on a usb stick atm
sharp agate
Linux has always been a little give-and-take. There are some things you end up leaving behind in Windows/MacOS when you swap over.
@elder dawn If you're using both Game Capture and OBS at the same time, you'll want to set your capture source in OBS to "Game Capture HD" instead of the capture card itself.
@glossy copper I think the easiest way would be to use a program called Voicemod instead and have that be your soundboard. It pretty much works the same as the Stream Deck soundboard but the sound goes through a virtual source tied to your microphone rather than through your speakers/headphones. It has a Stream Deck plugin so it feels about the same. The downside is that it's paid software; $20 for a permanent license and a much cheaper subscription option if you just want to try it out for a month.
glossy copper
I downloaded voice mod along with a virtual cable but I have to set that as the input on discord so then I can’t use my mic, is there any other way you know of?
sharp agate
@glossy copper You'll want to set up the microphone in Voicemod as well. With voice effects turned off it's just a passthrough at that point.
prisma gorge
How come when I connect a 4K camera to the Elgato Cam Link, the capture utility only accepts a HD input?
The website mentions something about needing a 9th Generation Nvidia but is that hardware or software?
nova blade
Hi, Ive recently been in contact with Elgato/Corsair support regarding WaveLink, and they keep reffering to "CST" (The CST should check if all the devices in device manager are not disabled (there should be 14 devices with "Elgato Wave" in the name)) - I have no Idea what CST is, and I feel like I should know it xD Any1 have any clue?
south bronze
hello, my elgato capture device is having stuttering frame rate issues across obs and elgato hd capture. anyone know whats wrong?
cosmic vine
@nova blade cst is a file type, but I'm stumped on that too, I would reply asking for clarification. It could also mean central standard time?
pearl bison
I think it means customer?
You would be the only person that would be able to check the devices in your device manager on your computer so I'm assuming it's referring to you.
surreal reef
Hello, I'm experiencing an audio delay (I think it increases as time goes on) when using my 4k60 PRO MK.2 connected to my gaming PC running Elgato Sound Capture to send over audio in OBS. Has anyone else experienced this? I'm running the latest drivers 1.1.0.190.0
tight flax
How do you game on more than 60hz while streaming to an hd60 eglato with a dual pc setup?
slate jolt
I'm using Fedora/OBS Studio. Does Streakdeck work with that - or will I have to 'recompile' software.
graceful shard
i have a huge problem now with my elgato key light, it stops working for me now all the time
somber halo
I need help with record ps3 I have a hdmi splitter but I need help recording ps3 ive had it all set up now I cant fiqure it out now I need help asap
tardy cobaltBOT
If you are having technical problems, please head over to .
PLEASE NOTE: Customer Service does not monitor this channel. If you are unable to solve your issue, please file a ticket at http://e.lga.to/help.
We also have staff available by phone 12hours a day. 8AM to 8PM Pacific every day of the year if you have quick questions and there isn't someone here to help you. http://e.lga.to/phone
somber halo
funny they gonna tell me its not gonna work but yet theres a way around it
elder dawn
whats the best way to get audio from my gaming computer to my stream computer with no delay? right now there seems to be a bit of delay just sending it through the elgato
elder dawn
So your gameplay audio just doesnt sync with the video no matter what?
seems broken im sure theres a fix
somber halo
after u record your gameplay the audio wil be synced
somber halo
it wil still be the same thing
and im trying to record my ps3 or stream I got picture on my screen but not my pc
can someone plz help me im getting frustrated here
runic wing
what do i do if i get the usb 3.0 error
south bronze
does anyone get this issue with cam link 4K in OBS
like when i move i get this weird effect
if theres a fix plz lmk
like it doesnt do that in 4K Ulitity just OBS
sharp agate
@south bronze They're combing artifacts. You can right click on the Cam Link's source in OBS and choose an option from the "Deinterlacing" tab to see which one works best for you.
manic grotto
Hey guys, I have a Canon T6i connected to the Elgato HD60 Pro. In my camera settings its set to record in 720p60 but in the Game Capture Software it says 1080p30 or if I lower it to 720p it says 720p30 not sure if im doing something wrong or if its the camera or the software. I have "allow 60fps" checked as well.
burnt basin
Hello i need help with my audio everything works but when i play games like Siege and Rust people cant hear me
rotund rampart
I used to have Voicemod installed on my stream deck, but now it's not installed and when I try to install it again from "more actions" it refuses to install.
Any ideas on what to do please?
hybrid void
ok guys...i'm not sure if anyone can help, but DAILY i have to close my stream deck, then restart it b/c it continually disconnects form twitch...i have simple chat commands on a button and it just won't work consistently!
I am opening it as admin...i thought it was that but....GAH....its so frustrating!!
everything else works great....but i have to end and restart my streamdeck program multiple times within the same stream
ionic flicker
Have you tired to relink the stream deck to twitch? i found I had the same issue with Spotify and it resolved after resynchronization of the keys I was having issues with. @hybrid void
Also I did this while not streaming *
tepid path
Hello guys! Name's Denis, I represent WELOVEGAMES channel on Twitch.
Due to upcoming stream I need urgent help with my Elgato 4KPRO. See screenshot attached.
What I tried:
- Restarting PC
- Changing HDMI cables
- Removing 4KPRO (cleaning)
- Changing resolution/updating Nvidia drivers/changing 3d setting in Nvidia control panel.
Using XSplit software, these two columns (red/green colors) appeared out of nowhere, i didn't update anything or moved my devices, just switched on my streaming and gaming PC and found this.
Any help would be much appreciated!
Lines always stay in the same place.
Same picture in 4K Capture Utility
tardy cobaltBOT
Sorry to see you're experiencing issues. Have you tried this yet? https://help.elgato.com/hc/en-us/articles/360041857951-Troubleshooting-No-Signal
If you're still experiencing issues, please file a ticket at http://e.lga.to/help.
final locust
foggy grail
Anyone around to help
With audio
I have the 3.5mm cable plugged into my tv and my mic output of the laptop
Input device to my USB mic
Output device to TV or AV amplifier
Is there any setting I need on the laptop
dusk frost
So I have an issue with OBS hotkeys. I'm running my games on a virtual PC through SHadow. Now when I'm in Shadow, MY OBS hotkeys are not working. Is there some way I can generate an action/hotkey through my streamdeck which is not a button on my keyboard? For exampel is tehre a way to just create a button in your streamdeck which you can assign to do anything. Or a button that can be assigned to a function in OBS? In this case its about saving and running a replay for example
cosmic vine
Normally I would say yes, but I'm not sure about a virtual pc, usually those are sandboxed.
hybrid void
@ionic flicker I have tried relogging into twitch...it still happens 😦
tranquil granite
Anyone happen to know how to remove a connection from Stream Deck Mobile?
formal kite
Hey All. Was wondering if anyone had any top tips when it comes to loopback routing into elgato game capture on a mac. Trying to implement background music whilst i chat and not 100% confident on the routing side.
limpid bay
Hey guys I'm wondering if you can help I've used an elgato cam link in a usb 3 port for a year now with no issues suddenly the cam is intermittently freezing so I have to keep refreshing the obs source. I thoiught this might be hardware so i just installed a brand new cam link and it has the same issue........ Any ideas what could be causing this?
meager lily
I have been exchanging emails with Elgato technical support for a week now, I have the impression that I am taken for a fool, the answers are so ashamed. It's a shame.
midnight smelt
I have an HD60. My gaming console input connects to the HD60 which outputs to my gaming monitor. My issue is for my gaming audio to play to my speakers or headset, either Game Capture HD or Streamlabs has to be running. I just want to be able to hear my game audio without Game Capture HD or streamlabs being necessary.
So to be clear: The HD60 audio transmits audio when either of those two softwares are running. Video still runs fine without either software running
south bronze
I'm having trouble with my Hd60s it keeps on saying i need an 3.0 usb port to work when it is plugged into a 3.0 port do i need to update the drivers?
south bronze
So i found out I can upgrade my PC withot voiding the warranty. The only thing I want to do is put a capture card in my system bt Im not sre if its compatible. It's an HP Pavilion 590-p0103wb.
Can someone help me out?
left ingot
what capture card do I need for for a two PC game/stream set up where i am 1. trying to stream at 1080/60, but game with a 1440p/144hz monitor? Does the 4k60pro accomplish this?
warm cove
Has anyone ever run across the issue of their stream deck not being able to retrieve sources from OBS? Out of nowhere today, for all of my activate/deactivate source buttons, when I go to the drop down menu to select the source the list is empty.
bitter osprey
Hi I have 2 questions.
-
I don't think my Elgato is capturing audio. I have the HDMI running to the elgato and then to the monitor, and then outputting audio from the monitor to a splitter, one end to a speaker, and another end into Elgato. When I open up OBS, video capture is working fine, but I can't seem to get Audio to work.
-
The capture framerate is pretty low and laggy, so was wondering how to increase that.
grim idol
Hey what's up everybody! So I'm having kind of a strange issue with my Elgato HD60 Pro. I am sending video via HDMI from my MSI Stealth GS75 HDMI out to my streaming pc (PC2) Elgato HD60 HDMI in port. I have my gaming monitor for PC1 going from USB-C to DP. My native resolution for my gaming monitor is 1440 x 2560. Okay so I can see my desktop on my stream elements OBS but I cannot see any OPEN windows or applications. Including my games.
glossy copper
if i dont have the pro version of voicemod can i still make it so my friends can hear the sounds i click on my streamdeck?
like an actual soundboard
bitter osprey
@grim idol you might be capturing a different desktop screen since you have multiple monitors, try running windows left and right to move an app across desktops and see if that helps.
grim idol
@bitter osprey Okay so I did fix that issue. However, now that my displays are cloned my really nice 1440 @ 144Hz monitor is scaled down to 1080 @ 60Hz. Is there a way to change the resolution of monitors independently while still keeping the monitors cloned?
bitter osprey
Yes should be possible. I'm guessing there should be options in OBS to help you with that. You can access them either via general settings from File -> Settings or from the Video Capture Card's specific settings.
fallow tree
Hello everybody! I'm having some issues with one of my 4K60 Pro. All connections are fine, did all trouble shooting, XBOX image is showing fine on my monitor but shows as NO Signal on Xsplit (Broadcaster) or on the 4K Capture Utility. Not sure what more to do? Any advice?
Thanks for your time!
tardy cobaltBOT
Sorry to see you're experiencing issues. Have you tried this yet? https://help.elgato.com/hc/en-us/articles/360041857951-Troubleshooting-No-Signal
If you're still experiencing issues, please file a ticket at http://e.lga.to/help.
opaque portal
I have an Elgato 4k Mk 2 and I've been recording footage today from a few games. The others appear to turned out okay, but this one, is completely unusable. The game did not look like this on my television screen.
If someone has an idea how I can avoid this, I'd appreciate it!
I think I'm just going to return this card and get something else. I spent an entire evening capturing footage. To have it not be useable is infuriating.
calm crane
anyone else notice discord highjacking audio channel
autumn vortex
Hello, I own an elgato 4k60 pro mk2 with a dual pc streaming setup. In OBS under the capture card properties when i set the video format to xrgb I get massive encoder lag but setting it to YUY2 or NV12 i dont get any encoder lag. Am is there a problem with my capture card? or YUY2/NV12 is the optimal settings for streaming?
glossy copper
if i dont have the pro version of voicemod can i still make it so my friends can hear the sounds i click on my streamdeck?
timber mulch
I'm doing a charity stream tomorrow. My Stream Elements is linked to to Tiltify. The overlay works, the alerts work, but how do I monitor incoming donations? Help anyone? Please DM me. i'm going to sleep.
lyric schooner
does anyone has a canon legria mini connected to his camlink?
somehow it doesnt work for me
i also tried out recording my switch with cam link
this doesnt work
is my camlink broke maybe?
lyric schooner
okay, somehow the camlink can record the menu but stops when im going back to camera mode
lyric schooner

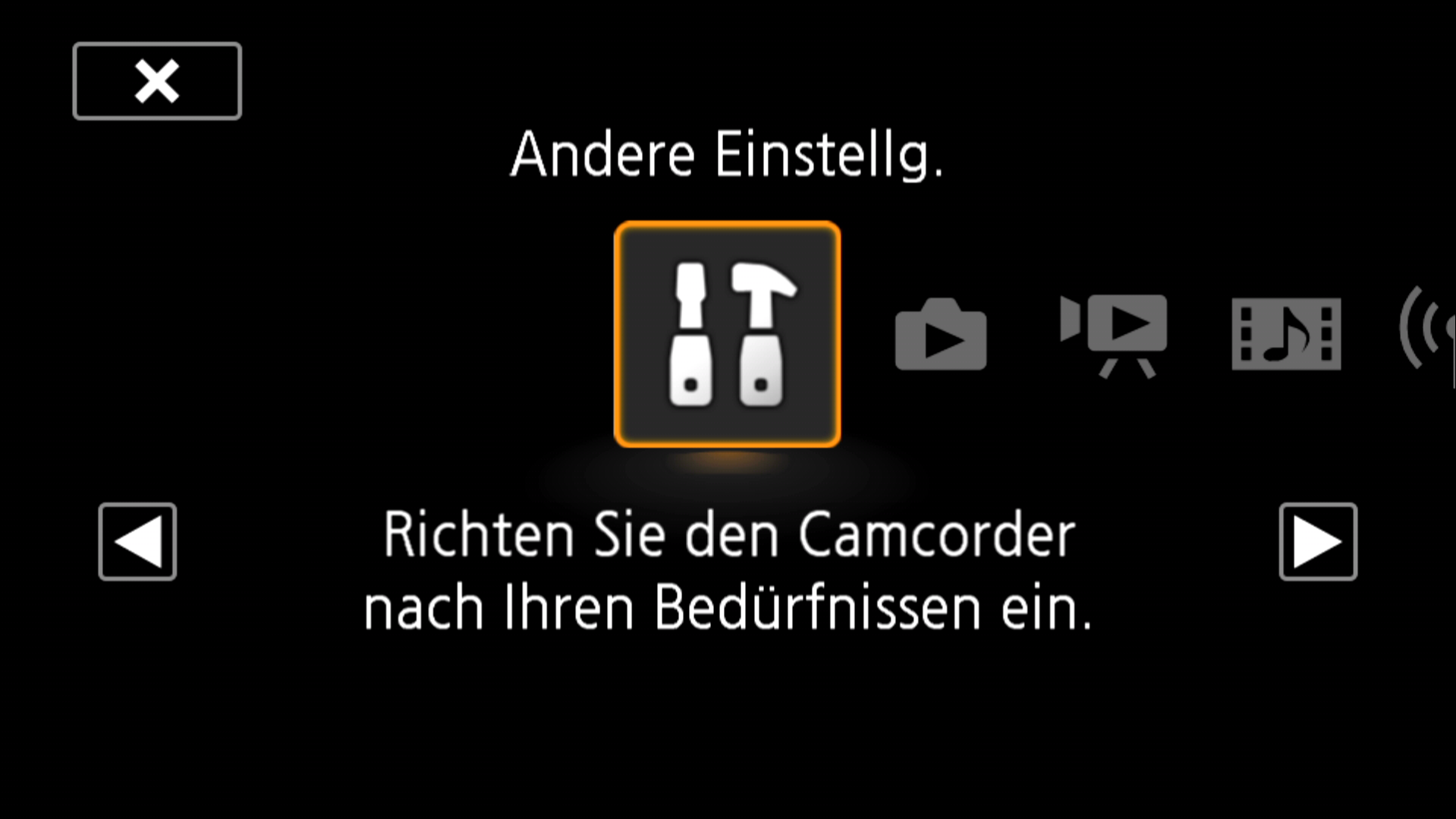

somehow i can get this settings picture, but when i go back to camera theres like no signal
tardy cobaltBOT
Sorry to see you're experiencing issues. Have you tried this yet? https://help.elgato.com/hc/en-us/articles/360041857951-Troubleshooting-No-Signal
If you're still experiencing issues, please file a ticket at http://e.lga.to/help.
lyric schooner
i think my camera isnt compatible
near star
why does it look like this
fiery viper
Quick question w/ hopefully quick fix: I am trying to stream to Twitch from my Xbox One using an Elgato HD60S+ and am having issues with pixelation/blurring. Using SLOBS and I know it’s probably bitrate related but can’t find anything that deals with my problem specifically. Mostly all PC related stuff. My output is 1080p as well and my internet is 10+mb upload so it is capable
primal trout
HD60S+ seems to be a brick. I have played musical USB ports and drivers to get it to work properly. The only thing that works is the passthrough audio and video. I have tried finding literature on the device but there doesn't seem to be any. I am now trying to start all over on a better PC and no luck. Doesn't matter which USB I use. OBS doesn't seem to pick it up anymore. The only options I get are the screen link or USB video device. I have tried getting help from Elgato and here but no luck either way.
Original posts
glossy copper
if i dont have the pro version of voicemod can i still make it so my friends can hear the sounds i click on my streamdeck?
ancient zephyr
I can't seem to get my HD60S+ to show up in OBS
primal trout
Welcome to the HD60S+ Brick club. lol My New PC just bluesceened trying to get the HD60S+ to work. Second PC it has done this to.
glossy copper
how do i make my sound board actually transmit through discord
not just my headset
primal trout
I'm thinking the HD60S+ is just a flop at this point. Elgato has yet to address these issues with anyone else that has that model. I know this because I have asked every HD60S+ owner I can find. None of them have received any guidance from Elgato or Corsair.
dull trench
Hello everyone I recently bought a 4k60 Pro and it seems to work fine for capturing things like my Switch. But using it for Retro games doesn't look good at all. The source I'm trying to capture is 480p through a RetroTink2X. The video comes through but it jitters at random intervals. I've swapped cables around and nothing seems to work. is there maybe a custom EDID I need to be using since the source is 480p?
ancient zephyr
I can't even get my regular HD60S to show up wth
meager sentinel
im trying too follow EVERY guide that i can find, too make my elgato capture in 60fps but still let me see 144hz when playing
but it doest work for some reason
robust grotto
I have a question in regards to the HDS60
If I get a usb c to hdmi cable
Will it capture my android phone
dull trench
@robust grotto i don't see why it wouldn't work, but you can use apps to view your android/ios devices via usb or wirelessly or LAN using something like Vysor and i'm sure a bunch others.
south bronze
@dull trench i think eposvox has a video on youtube that might help you with this.
dull trench
okay thanks i'll do a search real quick and see what i find thanks for the info @south bronze
hybrid void
once again...I haven't touched my PC in two days...and now the buttons on my stream deck that I have set up to put a simple line of chat in twitch doesn't work...WHY do I have to close out stream deck, re-log in, log out of twitch (on the deck) and RE-ADD it EVERY. SINGLE. TIME??? it's the most annoying shit i've ever had to do....
nobody seems to have any answer and i'm about ready to throw my deck in the trash
cosmic vine
Have you tried the official tech support?
near star
why does it look like this
rotund rampart
I use OBS Live and a canon DSLR as my webcam, with a 64GB SD card with Camlink 4K.
Does anyone know why the memory card gets full so quickly and I have to reformat the SD card several times in my streams?
dull trench
Might wanna try turning the bitrate down just a tad
rotund rampart
@dull trench who was that response for?
dull trench
for you @rotund rampart
autumn vortex
Hello, I own an elgato 4k60 pro mk2 with a dual pc streaming setup. In OBS under the capture card properties when i set the video format to xrgb I get massive encoder lag but setting it to YUY2 or NV12 i dont get any encoder lag. Is there a problem with my capture card? or YUY2/NV12 is the optimal settings for streaming instead of XRGB?
obsidian otter
So i have an issue and im not sure how to sort it,
Bassciley my stream deck is only displaying the Elgato logo and wont actually display what it is meant to be displaying
left forge
Hey!
I have an asus maximus x hero motherboard. Could you tell me which PCI slots are OK for my Elgato 4k60 pro? I have and Asus Strix RTX 2080 gpu right now my capture card is right beneath the GPU fan...
woeful latch
Should work in any of the PCI ports. Preferably a full sized port if available
left forge
can I use these?
dull trench
x4 minimum so no
woeful latch
left forge
Unlucky :S The GPU fits only my 1st full sized port :S
so the bottom full size is also ok? 🙂
woeful latch
That's where I have mine with no issues.
dull trench
it is when using SLI or Crossfire you might want to look up your mother board to make sure it doesn't step them down to x8 when both slots are used
woeful latch
If you're not using SLI that non safe PCIe slot should be fine.
woeful latch
obsidian otter
So i have an issue and im not sure how to sort it,
Bassciley my stream deck is only displaying the Elgato logo and wont actually display what it is meant to be displaying
anyone know how to fix?
wispy plinth
Any mad scientists out there using wave link with an external audio source through line in on their mobo?
tame tusk
Hi all, I was just curious. I have a Motherboard that is x16 PCIE or x8/x8 if using 2 video cards. Top most PCIE has a 2070. Would installing a 4K HD60 Pro card in the 2nd slot affect things on the graphics? Or should I go for the PCIE all the way towards the bottom of the motherboard?
The bottom PCIE shares bandwidth with SATA 5 & 6 which I have nothing plugged into.. So was just curious if anyone has any info on that? The video from the website says to "Find an empty PCIE slot" but I didn't want to affect my FPS..
woeful latch
Can I see a pic of the motherboard? Can be a generic pic from the internet.
tame tusk
Sure, one sec.
It's an ASUS ROG STRIX Z-390-E Gaming
I also have a NVME Samsung 970 on the top M.2 slot.. Just trying to get things ready for the 3000 series card which might saturate a x16 lane.. Who knows.. Maybe even moving that M.2 to the bottom slot and the Capture to the bottom as well.. Just not sure if it affects things.
woeful latch
2, 4, and 6 should work for it for the capture cards.
dull trench
i would plug the capture card in the 6th slot @snakey since it sounds like your mobo steps down to x8/8 when both x16 slots are filled. it doesn't have to be another x16 card or setup in SLI/Crossfire for this to happen
tame tusk
That's what I was thinking too, just to be safe. I'll move it down to the bottom slot just to guarantee that x16 for the card.. I plan to go with the 3080 and not sure yet if it would saturate the x16 even! I prioritize FPS over Resolution but cap my FPS enough to give room for the stream to work with no glitches. Thanks everyone 🙂
boreal kernel
Hey guys, I've got a HD60 Pro that continuously drifts out of sync with the video, I've done everything I can do stop it but it continues to happen, is there anything you guys could think of that I can do?
It's been stressing me out for months, plus every so often, for a frame or two, it will say no signal and then come back, don't know if that has anything to do with it?
tardy cobaltBOT
Sorry to see you're experiencing issues. Have you tried this yet? https://help.elgato.com/hc/en-us/articles/360041857951-Troubleshooting-No-Signal
If you're still experiencing issues, please file a ticket at http://e.lga.to/help.
marsh orbit
Anybody know how to fix a problem with the streamdeck updates not working? I haven't been able to update since 4.5
dreamy turret
hey uh, my power breaker tripped (unrelated to pcs) and my cam link 4k is not being detected by my pc anymore.
does anyone have any idea how to get the pc to detect it properly again? :S or could the power breaker flipping have done any harm? etc
second pc isnt detecting it either... this is the second camlink in 2 months if this ones dead now
wtf
trim spire
anyone know how to connect a samsung s20 ultra to elgato hd60s so it shows in obs ?
trim spire
from what im seeing online it seems like i only need a usb c to hdmi, but im not sure
mossy basin
hi guys, quick question: has anyone ever tried to use a capture card with two computers? not to play on one computer and stream with the other, but to receive the elgato signal on two computers. basically, i want to record and stream at the same time, but my pc sucks, so i cant do it unless i drive down the quality of both stream and replay down to garbage levels. i have a laptop though, so i was wondering if i could use some sort of usb splitter cable to record with my pc and stream with my laptop. would that work? i never used a usb splitter cable before, so i dont know how those work.
dull trench
a splitter cable will work @mossy basin you want to make sure its a powered splitter as a cheaper non-powered ones can't display simultaneously. This is what i use and it works great keep in mind this is only for 1080p @ 60FPS so if you're doing 4k you'd have to find a different device https://www.newegg.com/ikkegol-10008-hdmi/p/292-0032-00016?Item=9SIA6U62E73053
mossy basin
well i only have a nintendo switch, so that wont be a problem lol
thats a hdmi splitter though, wouldnt i need a usb splitter?
dull trench
i have no idea if it can do what you are trying to accomplish I've never tried that, only way I've tried is to split the video source and have two capture devices, one in each PC.
you could view the Streaming PC's screen via LAN and record that way but i'm not sure how great the video quality would be
vivid harbor
Re-pasting this here for anyone that can help troubleshoot streamdeck with Xsplit broadcaster:
I wanted to try and experiment with Xsplit Broadcaster, but the streamdeck software keeps telling me to start the broadcaster software. It works with Xsplit Gamecaster
boreal kernel
Hey guys quick question about the HD60 Pro, is there any way to change the audio format? In the Elgato Game Capture software it is showing as 224 kbps AAC, is this the only sound format it has? I stream using StreamLabs OBS and just want to know if I can change the format for the card specifically?
tranquil granite
@woeful latch How did you customize your response images?
graceful shard
how can i block the twitch watch party video sounds from coming through my elgato wave 3 mic
tranquil granite
Shiny, thanks! I figured moving the conversation to this channel made more sense, btw.
fair meteor
Hmm I have a problem with my TV audio through Elgato.
For some reason my audio comes through ONLY when I have Game Capture HD program running.
hollow olive
@cunning latch Sorry for the ping, but just wanted to let you know, that my glitching 4K60 Pro issue has been solved. And the solution is so dumb and straightforward that I hate myself for not trying it out first.
basically all I had to do was plug it into PCIE x16 🙃
I even reinstalled windows today, as per support recommendation
I feel so dumb rn, ngl
cunning latch
@hollow olive
Shouldn't feel dumb at all for that. It only needs a 4x slot. So there much be some collision or underlying behavior issue with the motherboard to cause the previous slot to not be a good option.
hollow olive
yeah, all of my x4 slots malfunctioned so it seems
cunning latch
Depending on the board, the x16 slot might be wired directly into the CPU rather than the chipset
which bypasses some layers
hollow olive
I did not even think that It was possible to plug it into a x16
I thought it was an overkill
the way I realised this is when I went to my friends apt today, and her pc did not have those small slots easily accessible, only the x16 slot
and who would have thought...
anyways thank you so much for trying to solve it with me that other day
really appreciate the help
wintry badger
I have just re-intalled the my OS and now the iPhone Stream Deck app will not connect to the Stream Deck App on Windows. I am getting the "Connection Failed." message. Any help would be welcome.
dull trench
graceful shard
@cunning latch how do i block my wave 3 mic from picking sounds or voices from a laptop
i need help
cunning latch
What do you mean sounds or voices? Sound is coming from the laptop's speakers and it's picked up by the mic?
graceful shard
yes
cunning latch
Well you aren't going to fix that without just using headphones. If sound enters the mic, it's picked up.
Your best workaround if you can't use headphones is probably RTX voice which uses AI to selectively filter out some sounds. But our mic or software at this time doesn't have special filter support for filtering out certain sounds.
hollow juniper
@cunning latch ?
junior patrol
lately my 4K60Pro has been doing this. To alleviate the issue, I would have to restart the system. It only happens when the computer initially boots. Sometimes restart the PC won't fix it and I would have to restart the computer again.
south bronze
Heya, im trying to record my n64 with my elgato and the video is all glitchy
And when I plug the av into my capture card it doesn't show up on the tv and only on elgato
I've set it all up to composite etc
I've tried swapping the av cord with the GameCubes even swapping my n64 with my Pikachu model and its doing the same thing
cunning latch
@junior patrol Try installing this driver: https://edge.elgato.com/egc/windows/drivers/4k60-pro/Game_Capture_4K60_Pro_1.1.0.182.exe and rebooting.
rugged hare
Does anyone have issues with the Wave Link software and Fall Guys? For some reason Fall Guys audio doesn't want to work. It's set to game and other games work when they're set to this channel. Any advise?
vernal delta
Hi all! I’m planning on using the HD60s with my Xbox One S, and wanted to know if using a wireless headset, that I’d still be able to capture game audio?
south bronze
You should be able to
Try a test run it records the sound from the system i believe
vernal delta
Thank you! Just wanted to know my options. I’m due for a new headset, so just wanting to make sure everything will work together!
pine hearth
Hello! I’ve been trying to get the Audio line in to work on the 4K 60 S+. does anyone know how I could get it to recognize and record audio from a microphone ? 😅 I know very little, just learned this weekend the difference between 3.5 mm 3 pole and 4 pole. Thanks. 🙂
cunning latch
@pine hearth The 4K60 S+'s audio input port is for what are known as 'Line Level' signals. So signals which don't need amplification. Microphone signals need a preamp of somekind to be usable.
So you wouldn't be able to directly connect a microphone to the port on the 4K60 S+ or any of our other external cards and have it pick up a signal.
of course if you had some sort of mixer or preamp that may work if you really needed to connect the mic directly.
pine hearth
Ok thanks I’ll have to look into that.
opaque mist
Using a 2 PC streaming setup with a 4k60Pro Mk.2 in the Streaming PC. Anytime I load a game in fullscreen mode I get weird green vertical lines on the 4k Capture preview and in OBS... Is this just a limitation of the card or am I doing something wrong, is there a fix? (Gaming PC is 1440p 120hz)
cunning latch
@opaque mist Can you provide a screenshot of what this looks like?
opaque mist
@cunning latch Easier to take a pic if that’s OK 🙂
You can see a small section of the game in the top 5% of the capture frame the rest is green lines. It does it in both obs and capture 🙂
woeful latch
cunning latch
@opaque mist What have you tried so far when fixing it?
Perhaps try reinstalling the driver for it: https://gc-updates.elgato.com/windows/drivers/4k60-pro-mk2/download.php and then reboot.
ebon sleet
Hey guys, just recently, I tried to update my streamdeck's software, and it failed to update. I was unsure what the cause of the problem was, but then I tried launching the software, and it has deleted itself off of my computer. I redownloaded the streamdeck software, and while trying to install it, I was presented with this prompt. It was unable to install. I was wondering if anyone here knew how to fix it. Thanks :D
woeful latch
Try following the link I just pinned.
opaque mist
@cunning latch It's refresh based, I gave up trying for now 🙂 It's happy if my gaming PC and the card are set to 60hz, anything higher, green bars.
cunning latch
Have you tried it in any other PCIe slots? @hollow olive was telling me earlier that a different PCIe slot solved a similar problem I think.
The 4K60 Pro MK.2 absolutely supports up to 144hz at 1440p to be clear. So something else is happening certainly
jovial canyon
is there a way to fix the long lag while alt tabbing in and out of a full screen game?
opaque mist
@cunning latch I tried reloading both, reinstalling, I did not end up trying a different slot, the machine I'm using the card in wasn't strong enough for a stable stream (6700k) and stuttered so I just stopped for now. Once my new hardware comes in if I encounter the problem again I'll give you a message, I've had it happen before a few times when using PS4 on a single PC, but can't remember cause or how I fixed it.
umbral root
I have the corsair k95 platinum and i went to set up my G keys as streamdeck buttons the other day. Yesterday when i opened the stream deck app It now doesnt show me the buttons and says i have to download and run icue before using the keyboard as a stream deck even though i have already done that. Any solutions?
nm looks like my keyboard needed an update and then i restarted my computer
hallow thunder
hey I was wondering if someone could help me i am not getting any game sound in my stream and every time I click on the pc gaming on the sound capture it closes it self>
.
rustic bane
what's the return policy?
sly magnet
Hey friends I have been using my light no issue. I reinstalled windows the other day and now I am getting this error.
I also tried "resetting" it and just can't seem to figure out what else to do.
untold crane
Hi, posted two days ago i cannot launch wave link. I reinstalled windows at the end and it worked yesterday. Today its not launching again (only a prozess in the task-manager). 🧐
rotund rampart
🔴 LIVE / WE ARE INEVITABLE / Marvel's Avengers / https://www.twitch.tv/cospearlytog
sly star
I am looking for some tech help with my elgato hd 60 anyone able to talk?
cosmic vine
@sly star for the community to better help please let us know in detail what the problem is. If we can help awesome, if not, you may need to contact tech support.
rough lance
Hey guys! So i just got my wave3 and i am getting it setup with the wavelink, and i’m running into an issue where it recognizes my mic enough to start the software, but inside, i have to manually add the wave channel (something an elgato youtube video said would be done automatically) and there is a yellow hazard triangle under in the channel, once it is added. Do we know what that may be or how we can fix it?
Okay wait, never mind, i‘m just technologically impaired haha! I just restarted everything and it worked somehow
south bronze
I hope this is allowed but I've been having a problem lately with my elgato HD60s. For some background, it wasn't working at all a few months ago but I found out my USB-USBC cable was wrong and switched it back and it worked again. It's basically perfect currently... Until about an hour or two after pluging it in it just shuts off. I never record that long so it's not a huge deal but I also have it plugged into a secondary monitor that I use and it's getting really annoying to have to unplug and plug it back in every hour or two I'm on my computer. Ive made sure my USBs don't shut off for power management and I've updated all the drivers. If anyone has any ideas that would be rad!
real badge
I'm sure this has probably been asked before, but when I stream from OBS, the stream is so extremely laggy but from the Game Capture its absolutely fine. but on the game capture, there's a black border around the whole game. I've looked around and I cant figure out any way to get rid of it
orchid pivot
Hello everyone! Is anyone clued up on 2 pc setups and using a hd60s plus as a cap card?
I have it all working other than the sound! It comes through really cracking and I can’t fix it... can anyone help?
cunning latch
@real badge Which model of Elgato are you using?
Do you see this border on your TV?
cunning latch
OBS's settings might be too aggressive for your hardware. Game Capture errs on the side of performance if it can.
Could you share your PC's specs and your OBS output options
heavy wagon
Hi I stream on pc but i want to buy the new xbox I'm a little confused about the game capture cards. I want my overlay to be on my console when i stream. Do I need the Elgato Game Capture HD60 S+ or the Elgato Game Capture 4K60 Pro MK.2?
terse stirrup
Your overlays should be on your PC not on your console
Your game capture card should capture your gameplay from your console and then project onto a PC/Mac. You then use OBS Studios to display an overlay and all that fun stuff.
wicked turtle
AMD RYZEN 5 3600
GIGABYTE B450M S2H
GSKILL 16GB (8+8) Ripjaws V Siyah 3200MHz CL16
GIGABYTE GeForce GTX 1660 SUPER OC
KIOXIA EXCERIA 500GB NVMe M.2 SSD
CORSAIR CV550 550W 80+ Bronze 120mm Fanlı PSU
GAMEBOOSTER GB-L06B RGB Mesh Kasa
what is the my new pc
its good or/bad
prisma wren
Sup! Just got myself 15 key Stream Deck and I love it but.. Darn those multi actions are hard to get your head around. (Or atleast they are hard to me 😄 ) If someone who is played more with it has time or wants to help stream deck noob throw me a dm. Peace!
zenith totem
Hi, need some urgent help with my sound issues (capture card dual pc setup) been having issues for over 2 years now, it's just been gradually getting worse, submitted tickets as well, but I need some simple ground questions of the setup
Oh and I've replaced the capture card into the 4k one, but it's worse now
craggy thorn
hello i want to stream my ps4 with the elgato 4k60 pro for the moment i want to stream in 1080p60 do you need the required configuration?
south bronze
does anyone know a good mic boom to hold the Elgato Wave:3 ?
night ridge
Maybe there is an answer to this or just simply get another capture card:
I have a dual pc setup with my laptop using my HD60s, is there anyway to incorporate my Xbox using an hdmi switch going into my capture card?
slow bay
Hey all trying to figure out this issue. I had an elgato HD60 Pro and just switched out to a 4K 60 pro mk2. Dual pc setup and when I have the hdmi plugged into the 4k60 pro on the streaming PC it bugs out my main gaming pc. Currently stuck at the win10 login screen. I login but it just refreshes and goes back to same login screen. Any ideas? Ive already changed pcie slots but get the same issue
slow bay
Figured it out. Uxthemepatcher was the issue because windows updated
maiden pelican
I just recently purchased a Key Light Air. For the Key Light Air, is there a means of showing on the Stream Deck what the current numeric brightness and temperature levels are so that a preset can me made on the StreamDeck to re-tune the light to that condition? (i.e. brightness at 30% and temperature in Kelvin).
Elgato Control Center only shows the levels graphically but has no numerical equivalents showing the current level.
sullen kettle
Got problems with my PC. I don't hear anything at all. I just started the PC and it was like this.
I have tried to switch device but it doesn't work.
Nvm. Was able to get it to work. It appears it might have been the headphones and a cable that got broken.
signal musk
@hybrid void @crude lily @round kraken are you still experiencing issues with Stream Deck and Twitch actions? This should have been fixed in our latest software update so make sure to update your Stream Deck and let me know if you are still experiencing this issue.
cunning latch
@maiden pelican There isn't currently that sort of feedback on the light itself. But there is a 'Set Brightness' and 'Set Temperature' button which can be used to specify an exact value. And that number will be on the button.
@night ridge Like combine video/audio from the PC and from the Xbox into the same capture card? Not with any of our hardware. And mixer consoles which can combine video inputs are likely much more expensive than just a second capture card.
vivid harbor
@maiden pelican here are some of up buttons for the keylight
cunning latch
@zenith totem Are the support tickets progressing?
What sort of hardware are you working with?
@wicked turtle That system is excellent.
zenith totem
@cunning latch I got the 4k 60pro and the HD60 Pro
both with issues
also had this happen with another HD 60 Pro in my other setup in Sweden
Tickets not progressing, and it takes a couple of days to get an answer, last answer was the same as months ago asking for the Elgato Windows Reporter Utility, which I had already sent 2 days ago in the email and uploaded
yesterday I tried all troubleshooting, and I changed the 44.1 khz to 48khz on OBS
still the same
cunning latch
Could you provide the ticket number?
zenith totem
Definitely, 2003549610
I sent in 2 emails 09-08 and 09-10 to help with the case
Today another sound issue came up, where the sound started stuttering
also happened when i opened the elgato recording software to change colors on the video input from the gaming pc, just because i changed back from 4kpro to hd60pro yesterday again since it has like 20% less issues, but still issues...
cunning latch
I see no SupportInfo on our side. If you sent it over email, it might not have actually gone through due to some email issue. If you want to upload it right here or in a DM to me I can add it to your ticket so that things can move to the next step.
zenith totem
Thats odd, definitely one sec ill DM
crude lily
@hybrid void @crude lily @round kraken are you still experiencing issues with Stream Deck and Twitch actions? This should have been fixed in our latest software update so make sure to update your Stream Deck and let me know if you are still experiencing this issue.
@signal musk fixed for the moment. Saw the update and felt really good about it ❤️ ty
south bronze
I made a streamdeck wallpaper using the tool. How do I put it on my streamdeck?
tropic storm
I am a completely newbie to streaming/recording content and the Elgato so maybe this seems stupid. I am having the hardest time getting my Elgato HD60 to record my audio/game audio. And when it does record my personal audio, I'm getting a small (like half a second) delay in my headphones that is seriously distracting.
quasi brook
@tropic storm I just got the HD60 today, records video perfect, i can't get it to record a single audio thing either so it isn't just you
if i ever figure it out i'll give you a shout. but if anybody else in the mean time can help.. please let us know lol
tropic storm
@quasi brook oh thank goodness! It's so frustrating, because I want to stream some new games that I just recently purchased for my new laptop, and I CAN'T because the audio is not working! I can stream with my Switch just fine, but once I try doing PC things, nope!
rose parcel
hey all! I just got the wave 3 today (already very obsessed) however i am having a double echo for the mic...how do I stop this? lol
vivid harbor
I responded to you in #wave-chat @rose parcel 🙂
wooden remnant
is it sitting properly in the slot?
craggy bloom
Mhmm
round kraken
@crude lily yes the twitch issue was solved with the update thanks but now i have the same issue but with the voicemod
i dad to uninstall and re install the voicemod widget from the streamdeck to make it work...
cosmic vine
You can try this @sullen spoke https://help.elgato.com/hc/en-us/articles/360036243851-Elgato-Game-Capture-HD60-S-OBS-Studio-Setup
south bronze
does anyone know how i could directly interface with my Game Capture HD on Linux without using old, unstable, unofficial drivers
quasi brook
i still can't get any sound out of my HD60S+ if anybody can point me in the right direction. I'm about 15 different guides down and nearly ready to just give up and not bother with it
sullen spoke
same too
tired tiger
I recently build a second PC to dual PC stream so that I could have perfect performance while gaming and streaming. I play games with a higher refresh rate. I just recently lowered from 144hz to 120hz thinking I would have more performance on my 4k60Pro.... for some reason im getting screen tearing on my twitch streams from my capture card why is this? everything is locked at 120hz/120fps on my nvidia drivers and in game. my game is totally fine but my image quality from my capture card is not as good as i would like it to be. how can I fix this? screen tearing drives me nuts.
lyric lava
Hey everyone, I recently purchased an HD60 to stream Xbox games and when streaming with it, there is a significant delay between my reaction time and when the stream sees it. This only occurs when using the Elgato. If I stream from my PC a PC game, stream is real time. IS there a way to fix this? I use Streamlabs OBS and do not have a stream delay anywhere that I am aware of.
cunning latch
@lyric lava HD60 has an onboard encoder which is where that delay comes from. HD60 was before we moved to lower latency models like the HD60 S or HD60 Pro. That's what the Instant Gameview feature is referencing. It's generally around a second.
But HD60 has been discontinued for years. where'd you find one.
south bronze
not to be rude, but it wouldve been helpful to actually answer the question
@lyric lava i dont know what inputs you have, but this should work with everything (mic, desktop audio, webcam):
click on the settings cog next to Mixer
then add a Sync Offset to match the elgato's input. personally 600ms worked perfectly on my Game Capture HD with a component input from my wii
1000ms = 1 second
here's what that looks like for me
lyric lava
@cunning latch I purchased this directly from BestBuy. They are still selling them. Is there a version of Elgato captures that does not have this issue?
lyric lava
@south bronze The issue stems from a viewers perspective. My stream audio and video sync correctly. Its when that stream is displayed to platforms via Twitch and YT is where they see a delay. Example: Chat types "hi". I respond hi immediately in my chat. It takes 30 seconds for them to see my actual response and gameplay on their end.
This issue only occurs when utilizing my elgato. Not when streaming directly from my PC. Would the sync offset help with that issue?
south bronze
30 seconds sounds like a connection issue to twitch
there is no way your elgato generates that much latency
lyric lava
I have low latency enabled on Twitch side and disabled stream delay in Streamlabs.
south bronze
and if it differs, then you likely had a better or worse connection on different days
what is your ping?
lyric lava
37ms
Ethernet connection as well
I had my chat confirm that the issue stems from utilizing the Elgato by streaming Among Us and having zero latency
south bronze
actually i believe it's not related to ping, i'm not good with internet stuff
also, why not check the preview without streaming
if there's a long delay in the preview, it's almost definitely a twitch thing
if you think it still depends on the game, stream a pc game first and then switch to a elgato input
i doubt the latency would just change like that, it just sounds like a coincidence
lyric lava
Yeah thats how I validated my issue
I streamed Among Us
transitioned to my Xbox and Elgato capture and had the issue. I used the Twitch app via the Xbox and had no latency issues
Maybe its a coincidence but it just seems odd that there is such a strong delay
Streamed rocket league the other day, I was at 3:00 minutes left and my chat was seeing the stream 3:30
south bronze
for there to be a long delay, the stream would have to have frozen for 20 seconds for the viewers
obviously unless its a thing in obs
lyric lava
I just am uncertain on what can cause such strong latency issues with the Elgato. I followed all the instructions and it seems consistent with my HD 60
I submitted a support ticket to Elgato to discuss it further but I just wanted to run it by the community since I am struggling to get past this
rich torrent
I have heard slobs has issues with certain games
lyric lava
My chat complained about a delay and I had no idea it was occurring until then. When I streamed Among Us I verified with my chat to see if the issue is still there and they say its practically instant.
I have a friend with the same issue as well
Is it common for stores to still sell the HD60? Is there anyway to 'upgrade' it?
south bronze
try getting your money back from bestbuy
but i don't think your issue is related to the hd60, and if it is an elgato thing, i dont think it's specifically affecting the hd60
lyric lava
If you don't mind me asking, what do you think is causing it? Honestly, if its user error, im happy to admit that but it just seems like its Elgato strictly
Correction: This is an HD60 S
Just checked my receipt.
@south bronze and @cunning latch
south bronze
i have no idea
is there a delay filter on your elgato?
otherwise i cant think of anything
either way i hope u fix it, gn
lyric lava
Appreciate your time gn
cunning latch
Oh HD60 S. How long would yours the delay is?
cunning latch
You mentioned it only happens when the Elgato device is connected, right? Do you see this delay in the preview in the software?
Because that is the only place the delay from the capture card would be involved.
Any other delay is the computer or the connection or Twitch/YouTube/Stream Platform
lyric lava
Yes, when the Elgato is connected. When you refer to the preview are you referring to the preview offered by Streamlabs OBS? In the preview, I do see a delay. When I am live, and looking at the editor screen, I do not see any delay in Streamlabs. I hope that makes sense.
And like mentioned before, without the Elgato, streaming directly from the PC, no issues occur whatsoever. No latency, no delay, everything is smooth
young vale
Will the ACER Nitro 5 17.3" Gaming Laptop - Intel® Core™ i5, GTX 1650, 256 GB SSD run HD60S fine? I tried it on my current laptop and the poor thing couldn’t handle it
south bronze
Hey guys I need help with my el gato hd60s it’s showing up on my tv screen but on my pc it’s saying detecting signal and one moment please... I seen all the YouTube videos and none of them worked please help
cunning latch
@lyric lava Anything in the software controlling the card should have minimal delay. 0.1s at most usually. Only place you really should be seeing a delay is on the website running displaying the stream for viewers.
In the preview, I do see a delay. When I am live, and looking at the editor screen, I do not see any delay in Streamlabs. I hope that makes sense.
I don't quite understand what you mean here.
@young vale Assuming this is the 9300H or 10300H CPU, then yes should be good.
ancient zephyr
Is it possible to use the soundboard from streamdeck as a microphone input
lyric lava
@cunning latch im not sure what you mean by preview. I go live with SLOBS and then when I check my stream I notice a significant delay of 30s. This occurs on all platforms providing the ability to go live.
young vale
@cunning latch It says 9300H so all good 🤞🏻
cunning latch
@lyric lava I'm referring to the software you're running. Its display or screen showing what your stream will look like to the viewers. If there is no delay from the capture card there, then the card is working normally.
If it happens to take 20-30seconds to go from your PC to viewers then that is something quite different.
If it does indeed only seem to do this when the Elgato device is in the mix, what are your system's specs? And could you provide a log from Streamlabs OBS
lyric lava
@cunning latch hmmm I get what you’re saying. My system specs are a Razer Blade Stealth 2019 with intel i7, 16GB, 1.5Tb storage, RTX2060. I can provide a log as well. How would I go about getting a log and sending it to you? I will do it once I’m home.
I can without a doubt attest to it occurring only when using my Elgato. I’ve yet to see an issue when not using it.
rich torrent
Are you streaming on h264 or nvenc?
worn elk
WARNING: LOUD
is this normal??? audio freaked out once i switched to my other pc. using elgato hd60s
vivid parrot
@worn elk is it brand new?
eitherway sounds like a problem with the audio capture card on it
worn elk
yeah, a week ago im pretty sure
vivid parrot
have u tried different cabels
worn elk
it didnt happen on my other computer though
vivid parrot
still could be a problem
worn elk
hmm lemme go find another one
ancient zephyr
What exactly is the point of having soundboard buttons on the streamdeck if the streamdeck can only play it out of my speakers
worn elk
OH
that didnt do anything
would it be possible to connect it to a laptop and capture from there?
like laptop to desktop
spark gulch
Hoping sumone can help me i have the elgato hd60 pro running via 2 pc stream setup and coming across an issue were i am getting crackling audio on obs on my streaming pc from the elgato source
worn elk
tried it on the laptop.. somehow way smoother even though the specs are way worse???
umbral cloak
Hi all, I have a Elgato 4k60 pro. I noticed this with my xbox one x that i couldn't run it in 1440p. I just built a dedicated streaming machine and i'm still seeing the same thing when the EDID is set to anything above 1440p.
fiery dune
I need help my HD60Pro will only do 480p 60fps
lyric lava
@cunning latch can you explain how to find the logs for Streamlabs?
rich torrent
Not sure if the same on slobs but on studio if you click help then highlight it shows log files which you click and the directory where it is opens
lyric lava
@rich torrent how can I find how I am recording (NREC or whatever you mentioned)
pine loom
i cant get rtx voice to capture and output to wave link. i have it set up to capture the wave 3 mic in audio and the output is set to default. The RTX voice is set as a channel in wave link but nothing will come through
vagrant roost
spark gulch
Anyone know a solution for the crackling on obs with the hd60 pro
south bronze
what does the this mean? it keeps switching between No Signal and this error
it is connected to a camera over hdmi
worn elk
just realized my amd only supports vce 2 and not 3 so i'm assuming i just have to get a new graphics card for it to work ?? 😬 (hd60s)
glossy pecan
Hello from Korea, I have used my HD60S+ successfully while streaming from my Xbox Series X. However, when I tried to use it from my gaming laptop is causes the gameplay to lag and changes the visual quality quite horribly. Can anyone help with this? I've searched online for the last week to no avail.
tidal vapor
Hey all. I am sure i have seen an article somewhere, where I can record on OBS and the 4k Capture Utility at the same time? Is this correct? If it is, is there somewhere, that shows me how?
radiant grove
Heyo. I have a 4K60 Pro mk2 in my dual PC setup at my office. Is there any known fix for the "No Signal" popup I get often? I know the screen is what it says it is, but this never happened when I was using the HD60 Pro instead of my 4K. It happens every time I tab in and out of exclusive full-screen applications and it flickers non-stop every 10 seconds or so whenever I'm playing a game thats either windowed or borderless windowed.
More info: I'm cloning displays from the Gaming PC to the capture card. I don't know why it's happening but it's really annoying and would love a fix for it
waxen lagoon
Okay, I’ve been here before and I have the same problems as I did last time I was here; setting up my Elgato to work through Discord’s GO LIVE feature.
If I could get some help in setting up my Elgato so that my mic can be heard as well as my streamed game, I’d be grateful.
(The reason I’m here again is because I had to get a new Elgato after losing the previous one.)
frozen finch
Hello. After the Windows update last week, my streamdeck is stuck like this. Any tips on how to reset?
south bronze
This might be the right chat to help me, so I got a corsair k55 keyboard recently, it has 6 macro keys that are customisable with elgato stream deck software, where do I find the download link for this
cunning latch
@south bronze You'll need iCUE installed with the iCUE SDK enabled. And then you'll need Stream Deck installed: https://gc-updates.elgato.com/windows/sd-update/final/download-website.php
@lyric lava logs for SLOBS should be in C:\Users\<username>\appdata\roaming\slobs-client\node-obs\logs
or you can paste %appdata%\slobs-client\node-obs\logs into the startmenu seach
south bronze
im on ps4
having this error
wont even show up
is there a fix to this?
it keeps on blinking this
i cant see my ps4 at all
all my usbs and everything are set up aswell
rich torrent
Turn hdcp off on your ps4
rich torrent
Yeah
south bronze
😭
rich torrent
Just move around the hdmi
south bronze
from the out or in
rich torrent
Take the hdmi from your monitor and plug it into your ps4. less hassle
south bronze
ty for the help snake
does anyone have any tips on making it look rlly good on stream
rich torrent
No prob
south bronze
this is a dumb q
but how do i go fullscreen after i have done all the settings
its been like 7 years and i dont think theres a fullscreen option still
unless you keep the mouse still
and then it randomly goes in and out of fullscreen on its own and its so annoying
ok
i put my settings at best and 60fps
still dosent look like a normal ps4 setup
stream labs chat box and alert box is not showing up
on the elgato
hidden jolt
Anyone having issues with SD? It seems that SLOBS isn't changing scenes, even tho I verified the right scenes are selected.
cunning latch
@south bronze Only does it "randomly" if the window is maximized. You can also right click on the preview and click Hide Sidebar and it will perma-hide the UI.
south bronze
oki cool
wintry crane
hey all desperately need help. Have a stream in like 15 minutes and my elgato is acting wonky. Like on obs it's just no signal or black screen. I tried to unplug and replug, restarted computer, restarted systems, unplugged hdmi, change switchers, etc and still nothing
please if someone can help
south bronze
Hello, does onyone know where to delete flashback recording files? i just set up my camlink and was testing out the image, however i didnt notice flashback was on and it took up some space on my pc, im tying to find the files to delete them but its not in the destination folder. Im using windows 10.
nvm when i turned it off it populated.
why does it look laggy
can anyone help
its less frames and looks worse
any tips?
Heyyyyy i have a new issue, hah. when i add a video capture device and make it camlink 4k it both freezes my camlink and also doesnt show the video feed. if anyone is familiar with this please let me know
it does work with game capture though.
humble knoll
Hi Everyone! I’ve been having an issue regarding my capture card (ElGato 60 - but I am planning on upgrading). When I attempt to stream Nintendo Switch or N64 at some point my PC will shut down on it’s own - no blue screen simply just a black screen. I can try and give more information if need be. I’d appreciate if anyone could help!
light burrow
hey is there an in game sound coming from the preview in the software? bc im planning to buy a capture card so i can stream on discord on a server and im wondering if theres any in game sound on the preview
cunning latch
@south bronze Can you post a sample? Also what are your system's specs?
@south bronze Also Flashback files are deleted when the software is closed. Shouldn't need to be something you need to manually touch.
@humble knoll Do you have any problems running other software on your PC? If it shuts off on its own that sounds like an issue possibly with the system. Like the CPU is overheating or the powersupply isn't working correctly.
@light burrow Our software can send captured audio to the desktop audio, yes. So if you're piping your system audio to viewers on Discord they should hear it.
humble knoll
I have no other issues with any other software. I have no issues streaming mobile games or PC games. I’ve used MSI Afterburner and have not noticed any alarming temperatures regarding my PC.
south bronze
@cunning latch thanks i have a different problem now, i actually figured that out thanks though. whenever you have the time; OBS only shows a blank screen when i add it to my scene as a 'video capture device', it also freezes the 4k capture utility. ive tried changing the usb port and bus, ive also double checked im using a usb 3.0 port. my hdmi cable is 'hdmi mini to hdmi'. Ive also reinstalled the utility software. Thanks again!
south bronze
@cunning latch these are my specs
16gigs of ram
1060 nvidia
i5 processor
and yet nba2k21 is still super laggy and i cant play
glossy pecan
Hello again from Korea, I have used my HD60S+ successfully while streaming from my Xbox Series X. However, when I tried to use it from my gaming laptop is causes the gameplay to lag and changes the visual quality quite horribly. Can anyone help with this? I've searched online for the last week to no avail.
south bronze
need some help configuring elgato hd60s to stream thru ps4
understandable have a good day.
worthy wyvern
@south bronze not enough info has for what the problem is and in what situation.
Also, i have I5 8th generation CPU, he's recording fine and smooth from my PS4 on 1080p (got 4k60 pro), but 100% i can't record on 4k, i have problems editing my 1080p footage on Premiere pro and lightworks, the vids are choppy and too much for my CPU to handle (usage spikes to 100%), so i'm planning to upgrade for an i9 9th generation CPU in the next blackfriday. Just in general i5 CPUs are not for video editing.
ancient wigeon
Anyone know if you can fit a C920 in the multi mount phone holder? Or if anyone have made a 3d print to fit onto the multi mount for a C920?
rapid eagle
Fwd: Stereo on Wave:3
bitter orbit
wintry crane
hey all desperately need help. my elgato is acting wonky. Like on obs it's just no signal or black screen. I tried to unplug and replug, restarted computer, restarted systems, unplugged hdmi, change switchers, etc and still nothing
please if someone can help
south bronze
you guys desperately need more support staff lol
woeful latch
There isn't any official support in this discord. This channel is for community members to help each other out.
Any staff that help in here are using their free time to do so.
We recommend contacting official support for the quickest experience.
http://e.lga.to/help
copper linden
i dont know where to ask since none of the channels are fitting. does anybody know about the multi mount and when its going to be available again
woeful latch
Every couple weeks. There isn't a specific day. Keep an eye on the #announcements for stock alerts.
copper linden
i am waiting more then a month, no shop in germany has it
south bronze
that doesnt mean you could find people that specifically like to help
i eye this channel in case i can help anyone, but i severely lack the knowledge
woeful latch
That's why we recommend official support if people can't connect with someone who knows the answer.
@copper linden Stock is handled differently per country. I'm sure when its in stock they'll be an announcement. Covid and demand has stock low. I had to wait around 1-2 months to order my multimount as well.
south bronze
yeah, tbh elgato official customer support isnt bad
i'm used to getting help in discord though, it's more compatible with my brain
woeful latch
Official support tickets is also how they track issues and bugs. So they can find problems that are happening to multiple users and are able to come out with software updates. 🙂
copper linden
thanks for your help, the problem with the arm is that i cant even order it in any place. for the wave:3 i needed to wait one month. but atleast it had a timeframe
peak summit
I only need solid arm
copper linden
now i have my mic and not stand 😦
south bronze
perhaps thats why we hardly get qol updates lol
rapid eagle
I'm just surprised that it seems like as if no community member directly knows if there's any stereo support on it
south bronze
fr
umbral root
I have a corsair k95 keyboard and whenever i go to open the streamdeck app to set my G keys as streamdeck commands it says I need to have icue downloaded and open but icue is open so i cant set the buttons anyone know how to fix this?
vivid harbor
under settings is "allow 60 fps" selected?
south bronze
@vivid harbor
i have that on
the game nba2k21 still feels super laggy
and looks blurry
my settings are max
and im not streaming
and it looks so bad
send a screenshot of your settings
when i looked at streams
it looked so much better
mine feels alot laggier
and looks worse than my ps4
is that normal?
my specs i have a i5 intel nvidia gtx1060 and 8 gigs of ram
it looks good in the screenshot lol
looks great tbh
earlier it said 480 at 30fps, it changed since then
but when im playing
does it still look bad?
yea
i dont understand
playing what
vivid harbor
so are you streaming from the game capture software or OBS?
south bronze
it shouldnt just magically change
im not even streaming yet @vivid harbor
but i will use streamlabs
i had in in 720 p in that photo
vivid harbor
is that the HD60 or HD60 S?
vivid harbor
and it is definitely plugged into a USB 3.0 port?
just asking all of the things I can think of 😄
south bronze
no im willing to try anything
it is pluuged it thru usb 3.0
it was not at first
but than it said plug it in thru usb 3.0
and i did
jolly rover
Hello @everyone! Does anyone console game using an iMac? I'm currently going to purchase the new 2020 iMac with 8 core i7 and the Radeon Pro 5700XT GPU and was wondering if using SLOBS will work no problem for streaming my PS4 using an elgato hd60s+.
Thanks for your time 🙂
wispy fern
Can anyone help I just got my first elgato and set it up and seen a timer going up but I was not recording any idea what it is
young vale
That doesn’t mean you’re recording or streaming, more just to show that it’s active or “live”
Also can someone help me with audio please?
wispy fern
Thank you
young vale
Ive got a chat link but it’s not recording my headset microphone 😦 Do I need a separate microphone as well as a headset?
Would it be worth getting a USB microphone?
copper linden
USB Mic is always worth, sound is the most important part of your stream. most viewers watch your stream on the side and only listen to it.
and to that dude that pinged "@ everyone" thats a big nono on a public server
south bronze
Hey guys
Having an issue with my elgato capture card right now. Nearly every time I tab out of game it comes up No Signal and when it comes back the capture doesnt come back right, sometimes upside down, or split down the middle
it's doing it randomly now without even tabbing out
south bronze
whenever you have the time; OBS only shows a blank screen when i add it to my scene as a 'video capture device', it also freezes the 4k capture utility. ive tried changing the usb port and bus, ive also double checked im using a usb 3.0 port. my hdmi cable is 'hdmi mini to hdmi'. Ive also reinstalled the utility software.
tender quartz
ive been trying to find out for weeks, but does wave link have support for midi control? i have a physical device with sliders and knobs that i would like to adjust the volume with. im trying to figure out if this feature exists before i blow $500 on mics and accessories
noble kettle
hey guys I have a question in regards to recording my xbox gameplay via hd60 pro through obs and the sound from the xbox in my headphones is perfect (headphones plugged into controller) but when i listen to the audio via OBS/PC headphones the sound is good but at times almost sounds muffled or slightly dubbed twice over at parts? It's hard to explain but I notice it. Any ideas?
wild wadi
I have a dual pc streaming set up and I want to be able to control some functions on my gaming pc, like muting in game mic so I can still talk to chat on my streaming pc. Is there a way to control both with a single Streamdeck?
young vale
@copper linden Thanks! I’m doing my first stream Friday night and won’t have a face cam so it’s the most important I think
south bronze
Guessing no one knows how to sort my issue above?
odd edge
if no one tries to help you out, you should probably contact elgato support
coarse night
anyone in here really good with the wave link software?
well just ping me if someone can help... for some reason my wave link is capturing my mic into my "wave link game"
daring eagle
Can someone show me how to setup the elgato hd 60 pro to a pc and see ps4 gameplay @everyone
does anyone know how an can show me
floral jetty
@daring eagle please dont tag everyone.
Which software are you using?
