SDNext WebUI on Intel ARC

[fickle plume]

Arc has some issues with VM support, might be it on windows

[restive parcel]

It wasn't working in docker so i tried just running in windows and its still not working, so idk what's happened I took a half year hiatus from my computer so idk what's changed in that time

[fickle plume]

When you ran it in windows, did you run with --use-ipex

[restive parcel]

aye

fresh git clone, webui.bat --use-ipex, no errors, open up webui, select an old model I had > "Queue cannot be constructed..."
ok, odd. lets try with a fresh civitai model from the sidebar, can't possibly mess that up. Downloads fine, select model, loads up, cool. Hit generate > "Engine did not start..." error and the webui crashes

tried it a few times and didn't get any farther

[fickle plume]

@restive parcel what gpu, what driver version

[restive parcel]

a770, current driver is 32.0.101.6458 due to instabilities present in latest

had to revert

[fickle plume]

wanna try 6314?

[restive parcel]

even farther back?

I guess i could, though that'll have to be for another day

[dull shore]

32.0.101.6557_101.6262 from January works alright on an a750, but the most recent driver certainly not

[dull shore]

6647 works alright

[dreamy tree]

6632 works fine

but I'm having difficulty using sd.next, as most youtube sd tutorials are on a1111, which has different settings and layout from sd.next, and sdnext wiki has only the most basic doc

[keen marsh]

you can try the sdnext discord if you need help learning the program.

[teal hinge]

can someone help?

this happened the first time i tried to open it

i downloaded a different driver then it fixed it

but now its happening again after not using it for a while

and also a slight memory upgrade if that matters

[fickle plume]

if alchemist gpu, get driver 6314

and keep it. it will probably vanish from intel's website after the next driver release

[teal hinge]

sry forgot to mention it is an arc a750

[teal hinge]

why

[fickle plume]

that's an alchemist gpu yes, so get 6314

[teal hinge]

i se

ethank you

[fickle plume]

because not all the old drivers are available (in an easy to find way?), something like only the last 10 or so are

[teal hinge]

ok

will do

also

i am supposed to use --use-ipex right?

[fickle plume]

When running for the first time/reinstalling

[teal hinge]

ok

[teal hinge]

after installing the new drivers, would it be necessary to delete the venv folder to make a new one?

[fickle plume]

no need to reinstall anything in sdnext

just try with this older driver, should work fine

[teal hinge]

it worked!! thank u

how do u figure out which drivers work and which dont? just by trying out each of them one at a time?

[keen marsh]

pretty much

[worldly igloo]

Hey all, i finally got SDNext to install on my pc, but im having an issue where when i launch it, the only "error" it gives, is that torch is running in cpu only mode, i am unsure how to fix this. I have tried reinstalling torch, using the command argument --use-ipex, also have tried to force the id to my gpu.

When i use the ipex command, it just won't start properly and gives me the error "torch not compiled with XPU enabled"

Any help would be appreciated.

[grave condor]

which version of python are you on?

if you are on a really old one, it might not find pre built wheels for torch+xpu

[proper cradle]

Torch is not changed after the first install unless you add --reinstall too

You should have been using --use-ipex from the start

[worldly igloo]

Im pretty certain it is the newest since i juat installed the latest one on their website

[worldly igloo]

What exactly do you mean from the start? Sorry I'm a little new to this!. I added ipex to the command line arguments after it was installed and built

[fickle plume]

When you first ran it
Since you didn't do that, run it once with both --reinstall and --use-ipex

[worldly igloo]

Gotcha, ill try that when i get home.!

[worldly igloo]

That fixed it completely, thank you so much!

[keen kelp]

I'm getting the same error now. I've tried plenty of different drivers, and made clean SDNext install.

Using A770. SDNext used to work fine a week ago, unsure why it's acting up.

The full error being: "Queue cannot be constructed with the given context and device since the device is neither a member of the context nor a descendant of its member"

[restive parcel]

i just ended up using Comfy off the backend of I Playground, since it seemed to work for some reason?

never got SDNext to run

[keen kelp]

I managed to fix it! The issue seemed to be the iGPU being enabled and making some conflicts. I had it disabled before but something must have happened to enabled it again, so I didn't consider checking it.

[vapid sierra]

@fickle plume I will continue talking here.

There is no error, I think the Graphics Drivers (or something related to it), crashes.

I am currently trying to do a fresh re-install. Let me try that first and I will let you know what occurs.

I don't have access to the stack trace rn either, I believe.

[fickle plume]

so it just exits when loading diffusers?

how do you know that happens specifically when loading diffusers

and what driver version

and what GPU

[vapid sierra]

It'll get to the point where it it says "6/7: Loading Diffusers", or something along these lines, then crash. It will then say "Press any key to continue", on the same line.

32.0.101.6647, Intel Arc A770 16GB

[fickle plume]

Install 6314, try again

[vapid sierra]

Sounds good.

Also, do you have any resources for how to make Flux1 work on this GPU?

[fickle plume]

dunno about sdnext, I use comfyui mostly now
it should be possible in sdnext

[vapid sierra]

kk

Oh boy, I am not allowed to post my error.

"XPU out of memory. Tried to allocate 2.67 GiB. GPU 0 has a total capacity of 15.56 GiB. Of the allocated memory 6.66 GiB is allocated by PyTorch, and 1.36 GiB is reserved by PyTorch but unallocated. Please use empty_cache to release all unoccupied cached memory."

This was specifically when I was trying to upscale.

[vapid sierra]

Seems to work now, I changed the version and then I changed the virtual memory on my PC.

Thank you for the assistance, I will let you know if I encounter anything else.

[nimble cliff]

Just made the switch to SdNext from A1111 after switching to intel GPU. It's been anything but pleasant.

Can anyone guide me on how to optimise it better?

1. I can't use img2img from images as sdnext will just crash. I have yet to try lowering the res for the image to see if it works.

2. Sometimes generating an image will just take a really long time only for Sdnext to crash. Sometimes when I see that the progress is really slow, I closed sdnext and reopen the webui and it's fast again.

I'm on windows 10, 11th gen intel processor, b580 gpu and 32 gb ram.

I got medvram in the argument as without it, sdnext will push my vram and ram usage to the max.

[keen marsh]

are you running with --use-ipex?

[nimble cliff]

Yes I am

[keen marsh]

It's been awhile since I used sdnext, are you using any of the attention optimization settings? Also what size images are you using?

[nimble cliff]

I can generate 512x512 and 1024x1024 just fine, but when I want to go higher than 1024 most of the time it'll take very long and oftentimes it's just crashed after awhile

I tried to install forge or fooocus but both seems to have issue installing haha

[keen marsh]

How much higher are you trying to go? Its probably spilling over into system ram which will cause slowdown.

Larger res will always be slower

[nimble cliff]

I usually do 768x768 in A1111 before I double it... No reason specifically. So I can just work with a lower res. The thing that bugged me is that img2img doesn't seems to work without it crashing haha. I'm gonna try to lower the res of the image first before I load it up to see if it'll work

[fickle plume]

Run with lowvram, and disable live previews

[nimble cliff]

Even though now I got a higher vram? Was using a 3050 with 8gb ram, and med vram was working just fine... Then again that's an nvidia card. Will give it a try later

[keen marsh]

Nvidia offloads vram to ram by default in the drivers, so basically runs lowvram unless turned off

I used to run 768*768 no problem in sd next though, are you using any of the attention optimizations? I forget which was the best in sd next, but they should help with vram optimization and speed. You have to chose them in the options in sdnext

[nimble cliff]

I enabled tiled VAE to 96 I think and it helped out a lot. Even able to go upwards to 1920x1080. Not sure what attention optimization is

[keen marsh]

I haven't used it in over a year so maybe it's changed, I think the cuda hijacks maybe enable it by default for intel now not sure. You can also try ultimate-sd-upscale or another tiled upscaler to get higher resolution images.

[teal hinge]

is there anyway to fix the "No XPU deviced found" thing without rolling back the drivers?

[fickle plume]

Why do you not want to go back to older drivers

[teal hinge]

i dont know

i just wanna know tho

[keen marsh]

You should probably be more specific with whatever error your getting. Drivers shouldn't cause that, so it's likely something wrong with your environment.

[teal hinge]

you were right im sorry i just needed to disable igpu in device manager

[dreamy loom]

If you manually install torch 2.8 you don't have to disable the igpu. But you must use FP16 or you will get NAN output when decoding VAE.

[proper cradle]

--use-nightly arg will install 2.8 for you

NaN with BF16 is very strange tho, usually it is the reverse

[proper cradle]

Also don't use Clip Skip with SDXL

A1111 doesn't support Clip Skip for SDXL, so any change you make is ignored on A1111.
SDNext supports setting Clip Skip for SDXL and you will have a bad time when you actually use Clip Skip with SDXL.

Pony will simply break and output static colors with non-default Clip Skip for example.

Other SDXL models still work to a degree.

[proper cradle]

HiDream on A770 with qint4:

Full model with CFG gets 10 s/it

VRAM usage is 12 GB with model offload

[proper cradle]

Flux Dev with qint4 + model offload gets 3.75 s/it and uses 8GB VRAM for comparison

[fickle plume]

nice

[fickle plume]

Not so nice for those fingers :(

[teal hinge]

hi guys

what does AssertHandler::printMessage mean?

[fickle plume]

Show the error

The whole stack trace

[proper cradle]

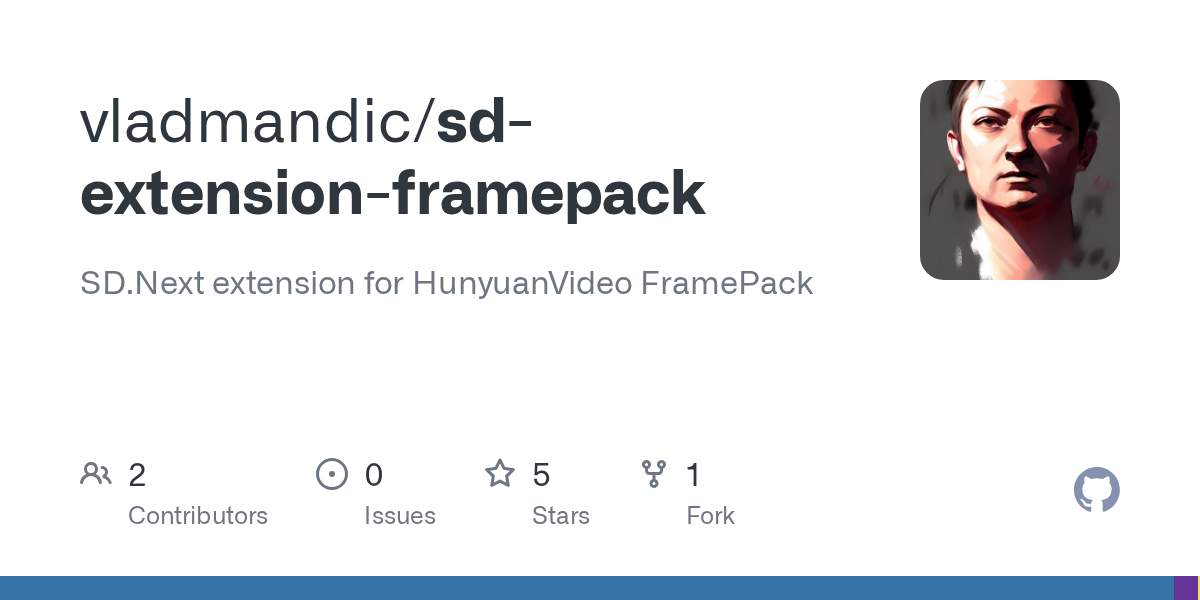

FramePack on Intel ARC A770 16GB

https://github.com/vladmandic/sd-extension-framepack/tree/main

[proper cradle]

Using NNCF INT8 with balanced offload high threshold set to 0.6 and low to 0.

[normal quail]

how's the VRAM usage on this?

[proper cradle]

Depends on the offload threshold

0.6 threshold with 16 GB VRAM GPU means use 10 GB of VRAM for the model weights

It uses 15-16 GB total with these settings

[normal quail]

ouch, so difficult to run on B580

[proper cradle]

You can reduce the threshold but 6 GB will probably be the minimum

As the compute needs 5-6GB

[proper cradle]

It should work fine

Just reduce the threshold

B580 has 12 GB

[normal quail]

yes

[proper cradle]

Also this 24 fps 4 second video took 15 minutes to generate on A770

[normal quail]

thats actually not that much of time

had to generate 120 images and prediction algos etc

[proper cradle]

24 fps * 4 = 96 frames

[normal quail]

ah my apologies i'm blind

😭

then approx 10s per image, seems normal according to benchmarks i saw online

im only wondering about vram usage for things like flux and sdxl

[proper cradle]

Balanced offload is pretty fast

VRAM doesn't matter that much unless you have less than 8 GB

System RAM is more limiting with these models

[normal quail]

ordered a 64gb kit to avoid system ram limitation

i hope its enough.... ddr5 is expensive

[proper cradle]

64 GB is enough for most

Only issue will be if you try to run Hidream at full BF16 as the model weights alone are 64 GB at BF16

Tho you really should use int8 quantization with HiDream anyway

int8 will fit in 64 GB

Some quant tests for HiDream:

HiDream Full
All BF16 / BF16 Transformer + NNCF INT8 TE / All NNCF INT8 / All Quanto INT4

[normal quail]

hidream full itself is quite impressive, but you do have 4gb more VRAM

[proper cradle]

New NNCF Quant modes:
Flux Dev, transformer only quant

BF16 / INT8_SYM

INT8 (the original method with old nncf) / INT4 / INT4_SYM

With SDXL:

BF16 / INT8_SYM without Conv quant / INT8_SYM with Conv quant / INT8 (the original method with old nncf)

INT4 / INT4_SYM without Conv quant / INT4_SYM with Conv quant

On the fly Lora usage is also supported.
with SDXL + LoRa:

BF16 / INT8_SYM without Conv quant / INT8_SYM with Conv quant / INT8 (the original method with old nncf)

LoRa starts to lose its effect with INT4 quants

INT4 / INT4_SYM without Conv quant / INT4_SYM with Conv quant / BF16 without LoRa

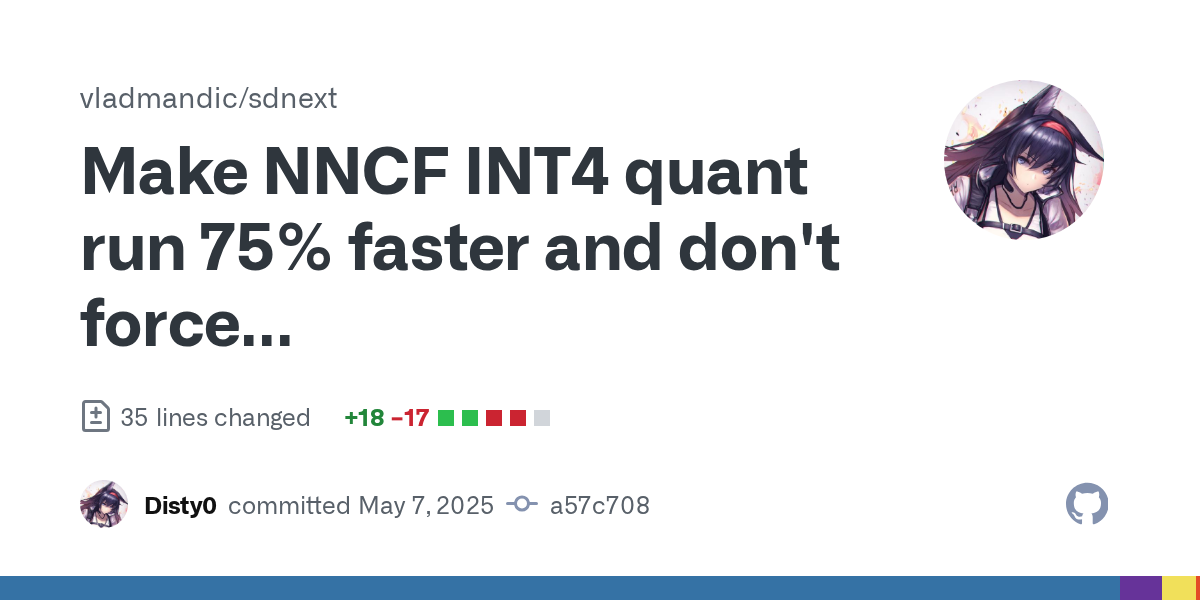

NNCF changelog:

• NNCF update to 2.16.0
  major refactoring of NNCF quantization code
  new quant types: INT8_SYM (new default), INT4 and INT4_SYM
  quantization support for the convolutional layers on unet models with sym methods
  pre-load quantization support
  LoRA support

the new INT8_SYM method has basically the same quality as 16 bit

pre-load quantization support is to support quanting the model while the original 16 bit model is being read from the disk so no out of ram will happen

[dreamy tree]

framepack works on A770? torch xpu nightly is enough?

[proper cradle]

Yes

FramePack extension works in SDNext dev branch rn

[dreamy tree]

is there a tutorial page on using it in sdnext?

[proper cradle]

.

[dreamy tree]

AttributeError: 'MemUsageMonitor' object has no attribute 'summary'

[proper cradle]

Errors snippets isn't helpful, post the full log

also were you on dev branch?

anyway, dev branch merged to main now, it should be able to run on the main branch if you update

[dreamy tree]

i updated to latest dev, so it's working now. can I use only init image to generate?

i've updated to latest dev so it runs now. but it's been 50min , i'm still only 36% doing 4sec 20fps...

[dreamy tree]

GPU's being used, vram's filled, but speed's a joke been 1.5hr, now at 50%

[proper cradle]

what is your offload and quant settings?

you won't be able to run the full model at 16 bit with the default offload settings without going oom

set balanced offload high threshold to 0.5 or 0.6

Enable transformer, video, llm and te from nncf quantizaton settings

[proper cradle]

I explained the settings here

New NNCF update might make it need to reduce the high threshold to 0.5

[dreamy tree]

video did come out after 2hrs...

[proper cradle]

NNCF:

Offload

[dreamy tree]

wonderful, how to have your nice UI?

[proper cradle]

UI settings, UI type -> Modern

Then do a full restart and also clear the caches from your web browser

[dreamy tree]

with the NNCF.. I ran a 8sec video before heading to bed, which took ...3.5hrs

Video 20250429-075742-libx264-f145.mp4 | Codec libx264 | Size 512x768x145 | FPS 20
sample 12303.43 vae 147.78 offload 56.95 move 23.26 vision 19.69 encode 12.46 prompt 11.81 save 1.68 gc 0.87 preview 0.55 | GPU 14852 MB 93% | RAM 31.25 GB 49%

[proper cradle]

What is your PyTorch version?

New update uses 2.7

I was using 2.8 nightly

2.6 is slow

[dreamy tree]

my modern looks different

[proper cradle]

Clear caches

[dreamy tree]

you're right i'm still on 2.6 nightly, i'll upgrade it right now.

been using comfy since 2.6, cuz it's tough to learn sdnext without someone like you, there's very little tutorial out there, most of them on comfy

thank you so much

I did do clear all cache and then restart server. i'll try again after download 2.8

i went into broser setting to clear images and files, but i suppose also cookies and other site data ?

[proper cradle]

Also just checking, did you set modern as the UI type or did you change the theme?
Because they are different things.

[proper cradle]

Cookies and site data

[dreamy tree]

i've been meaning to ask, did you make ipex_to_cuda?

[proper cradle]

Yes

[dreamy tree]

how come it's being used in comfy, but i don't see it mentioned in sdnext?

[proper cradle]

ipex_to_cuda is from SDNext

I originally wrote it in SDNext

[dreamy tree]

so it's still integrated in sdnext under the hood

[proper cradle]

Yes

[dreamy tree]

after clear cookies

[proper cradle]

remove anything that starts with ~ in the site packages folder

[proper cradle]

You probably changed the old ui's theme instead of the ui type

Show the user interface settings

Try setting the theme back to default

Then restart and do CTRL + F5

CTRL+ F5 should force actual refresh

[dreamy tree]

This sycl kernel dll sounds serious,it's been there since a month ago, why is it causing problem now

I restart and do ctrl+f5 still

not sure what to do here

[dreamy tree]

much better with 2.8nightly, 12sec video in 1.5hr !!
but how come you can get it done with your A770 much faster?

[dreamy tree]

turned out that the modern extension was not enabled, one down!

do i need to check voncolutional layers on nncf?

[dreamy tree]

i'm confused with modernUI tho, with old UI, I can do faceswap by start with Image to Image, script->face->faceswap->input image->generate, now with modernUI, after doing the same in scripts tab, hitting generate at the bottom doesn't do anything

[dreamy tree]

Does webui --lowvram invalidate the balanced offloading settings？ do you run webui without --lowvram？i thought with A770 lowvrams a must...

[proper cradle]

--lowvram will override it with sequential offload

Which will probably make it run on a potato but very slowly

[proper cradle]

Modern UI uses the Control tab by default, most scripts doesn't work in there

You can re-enable text2img tabs from settings

It was called something like Hide txt2img tabs in User interface settings

[dreamy tree]

So just webui --use-ipex for A770 ？

[proper cradle]

Yes

You might want to enable VAE tiling if you run out of VRAM on the VAE step

[proper cradle]

Settings -> Variational Auto Encoder -> VAE Tiling

[dreamy tree]

Goodness... but comfyUI guys says to use --lowvram with a770 on comfy

[proper cradle]

ComfyUI doesn't support balanced offload

[dreamy tree]

Gotcha

[proper cradle]

It is offload all or nothing on comfy

We do partial offloads

[dreamy tree]

I tried to find flux1 qint and saw ur hf, but didn't see any checkpoint qint file？

[proper cradle]

It is a diffusers model

Also available in the reference models in SDNext

You can just click on it and it will download & load it for you

[dreamy tree]

Enlightening

[proper cradle]

Tho i recommend using the original model and quantizing it on the fly instead

We support quantizing any model on the fly

https://vladmandic.github.io/sdnext-docs/Quantization/

[dreamy tree]

You mean with nice on, I can load flux.1 dev directly in A770？

With NNCF

[proper cradle]

Yep

Just set a quant mode

We also support quantizing while the model loads with transformers models (like flux) so you won't run out of system RAM

That's called "pre" load mode

post load mode will load everything into RAM first, then quantize

SDXL and UNet models are only supported with post load mode

[dreamy tree]

You guys are so good, really wish you can take over comfys backend

Yes I read thru the wiki that's how I realized about lowvram

[dreamy tree]

sigh, I remembered wrong, haven't been using --lowvram with sdnext

what else could be causing my super slow framepack?...

[proper cradle]

what is your resolution and frame rate?

12 seconds is very long

15 mins was for 4 seconds, 24 fps, 480p

12 seconds, 30 fps, 512x768 will take 1.2 hours just from multiplying 15 minutes with frame and resolution increase

[dreamy tree]

I see. what does lowering balanced low watermark from 25 to 0 do exactly? and how about high watermark from 75 to 60?

Video 20250429-230714-libx264-f73.mp4 | Codec libx264 | Size 384x576x73 | FPS 24
sample 568.83 vae 50.10 offload 37.98 move 13.00 vision 10.95 prompt 10.78 encode 9.78 save 0.65 gc 0.64 preview 0.40 | GPU 12868 MB 81% | RAM 30.97 GB 48%

[dreamy tree]

high watermark i'm guessing from doc that if vram's being utilized more than high watermark, the rest of model get sends to ram? but doc says nothing about lower water mark

[proper cradle]

high watermark is used to reserve x amount of the vram for the model weights

aka model weights will use 75% of your vram with 0.75

low is used for when to offload models

if vram usage is smaller than low watermark, it won't offload

clip models stays in vram with 0.2

llama text encoder uses a lot of vram for compute so setting 0.7 for the high will likely oom

tho it will be fine if windows can use the shared memory

[dreamy tree]

so changing low from 0.2 to 0 makes sure clip gets offload to ram?

[proper cradle]

Yes

[dreamy tree]

Curious if your ipextocuda directs all torch.cuda to torch.xpu, all porjects using torch that only has cuda codes can work with xpu?

[proper cradle]

it direct most

tho anything isn't pytorch won't be directed

[dreamy tree]

possible to do the same with onxx？

[proper cradle]

We don't use ComfyUI in SDNext

[keen kelp]

FramePack was working awesomely yesterday, then I updated the extension and now I get this when starting the server

'ImportError: cannot import name 'ui_video_vlm' from 'modules' (unknown location)'

[proper cradle]

That's a new feature in dev branch

Either downgrade the extension or switch to dev branch of SDNext

[keen kelp]

Ah thanks, I don't have much experience with github but I managed to downgrade after some reading. Framepack is seriously impressive!

[proper cradle]

SDNext updated now

Also here is the new FramePack wiki: https://vladmandic.github.io/sdnext-docs/FramePack/

[dreamy tree]

I tried to do faceswap on video using control tab, sdnext did see 577 frames, but all it does is faceswap on first frame for 577 times

[keen kelp]

are there examples of Loras that work with framepack? I've tried 3 different hunyuan loras from civitai and they all give load errors

[proper cradle]

You might want to create an issue on github for these.

Added multiple performance optimizations to NNCF in dev branch:
https://github.com/vladmandic/sdnext/commit/a4d4462e2a117946925cc81e57c4b984b947de02
https://github.com/vladmandic/sdnext/commit/a57c7087b83fc7ad69e697378e2ee9b59f240574

INT4 quants now runs 75% faster out of the box or 3.5 times faster with torch.compile compared to before.
INT8 quants now runs 30% faster out of the box or 2 times faster with torch.compile compared to before.

torch.compile is only used for the decompression, rest of the model is untouched

Flux.Dev now runs at 2.4 s/it with INT8_SYM quant or 2.5 s/it with INT4 quant

[proper cradle]

NNCF in SDNext beats Bitsandbytes now : )

[dreamy tree]

when trying it on Juggernaut v9 I have
no NNCF 1.65 it/s
NNCF 1.72 it/s
NNCF decompress 1.79 it/s
NNCF decompress+matmul 1.7 it/s
above numbers are on 2nd generation after changing/apply setting, not sure why the first gen right after changing setting has much better speed

[proper cradle]

Those settings require full restart

[dreamy tree]

btw, with this dev version, if I toggle on/off one NNCF setting, screen automatically scroll to top that I have to scroll down manually to NNCF setting area, and repeat this for every setting toggle

can I load gguf models in sdnext? I saved them in Unet folder, but they don't show up in base model dropdowns

[proper cradle]

NNCF settings are on top of the settings menu, just below bitsandbytes

Are you up to date?

[dreamy tree]

i was using show all pages, won't have this problem if going directly to quant settings

[proper cradle]

UNets are in the UNet dropdown

[proper cradle]

Renamed NNCF to SDNQ in dev branch.
I have re-implemented and optimized enough code to not use any imports from NNCF and the modifed code is not really NNCF anymore.

[proper cradle]

HiDream now runs at 6 s/it with uint4 quant on A770

[fickle plume]

that's better than before but to be quite honest imo that's still far from reasonably usable. something like teacache/first block cache would likely help, and would probably be even better than comfyui given the speedup without it

generally a ~2-3x speedup for flux, i'd expect the same for hidream

[proper cradle]

4 s/it with teacache threshold at 0.17 or 3 s/it with teacache threshold at 0.3

[fickle plume]

that's better

[dreamy tree]

I simply git pull repo, I didn't install any hidream modules...

[proper cradle]

did you install your own diffusers?

your diffusers version is outdated

[dreamy tree]

I install torch xpu nightly first, and then requirements.txt and then webui.bat

isn't diffusers latest 0.33.1 on pypi

[dreamy tree]

I see launch.py loads 0.34.0.dev0 , can't requirements.txt reflect that ?

[proper cradle]

installing requirements.txt is not supported

Let webui.sh / webui.bat handle the venv

[dreamy tree]

video on sndq quant should be pre or pro?

[proper cradle]

pre

SD 1.5 / SDXL are post only

Transformer based models supports pre

[proper cradle]

Managed to achieve 2.3 it/s with INT8 matmul and 2.1 it/s with FP8 matmul on on FLUX with an RTX 4090 (on Runpod) without using any custom kernels or CUDA

INT8 has basically the same quality as the full 16 bit model

It would be nice to see int8 or fp8 mm support in PyTorch for Intel

IPEX 2.7 sort of has int8 mm support but not really, IPEX 2.7 is just too slow with everything

[proper cradle]

SDXL with SDNQ, everything except the VAE is quantized

BF16 / INT8 weights + INT8 MatMul / INT6 weights + INT8 MatMul / UINT4 weights

[fickle plume]

@rustic saffron Explain your sdnext issues. What model, did you run with --use-ipex, and so on, show a screenshot of the bad image with the generation settings visible

[rustic saffron]

KIOKIS V20 hyper model, and once i opened sdnext again, it just gave error on webpage and cmd just died without error, so like background timed out trying to load it. as for settings, i just ran default ones it game me, no idea what any of them even do so didnt change it in case i break something, not like they give me something broken out the gate, would be setup already and have options for some skilled people to micromanage and tweak it, at least how i see it.

[fickle plume]

Run sdnext with --reinstall --use-ipex

[rustic saffron]

right so, got it installed, and it does work, with the juggernautXL_v8Rundiffusion, but kIOKISSDXLHyper_v20 just errors out, no error info, just webui says it, and cmd is press enter to continue, after the loading 1 model line. no other info there. so suppose it doesnt support kIOKISSDXLHyper_v20 for some reason maybe, which would suck, its a real top tier 13gb one.

[proper cradle]

how much ram do you have?

SDXL models are 6.5 GB

That 13 GB model is wasting 6.5 GB of space for no reason, find a FP16 version

[rustic saffron]

32gb ddr4, vram is 12gb b580
and i ran that model for ages on my laptop, 16gb ddr4 8gb 3070 laptop gpu. it gets really amazing results. also i dont know what fp16 is.

[proper cradle]

that model is stored in 32 bits

but your GPU converts it to 16 bits to run it

It is 2x bigger for no reason

Find a 6.5 GB version of it, or you can use the models page to convert it yourself

[rustic saffron]

im not smart enough to convert it, ill just use a different model. the 6.5gb ones seem to work, and honestly been good 20 hours trying to get any sdxl to run, so i'll take the w here.

[fickle plume]

do you want to do anime art or realistic things

[rustic saffron]

realistic, dont do anime stuff, did test kiokis 3d model works, a little like 2.something gb one. so can use that for 3d stylized stuff.

[fickle plume]

Try juggernaut xl v9 + rundiffusionphoto 2, it should be better than v8 https://civitai.com/models/133005?modelVersionId=348913

[proper cradle]

SDXL

4 bits / 2bits / 1 bit

[fickle plume]

damn, impressively good at just 4 bits

[restive parcel]

oddly coherent at 1 xD

[keen marsh]

4bit always seems like the cutoff point for coherence

[proper cradle]

Meged to main branch

[proper cradle]

Benchmarks:

[hollow spire]

I keep getting this runtime warning when using ipex on my A580 when using txt2img, especially when faces are mentioned in the prompt. it outputs a black image
i've tried:

• disabling ipex optimizations
• ipex force attention slice 1
• fp16fix VAE model
• lower resolutions
• full precision
• reinstalling
• changing safetensor models
• VAE tiling

it doesn't seem to be a memory issue, i also got 32gb of ram and it doesn't fill up
i've been searching this issue for some time and trying all the fixes i could find but nothing really helped
the only 'stable' way i found was to use openvino but that doesn't really help when most of the things except the steps fall back to the cpu and slows the generation a lot
i'm very new to this so idk what to do anymore

[fickle plume]

Wrong resolution. 1.5 and SDXL are trained with specific resolutions and due to their architecture do not work well outside of them. For SDXL, those are 1536x640, 1344x768, 1216x832, 1152x896, 1024x1024, 896x1152, 832x1216, 768x1344 and 640x1536

[hollow spire]

the first 1-2 generations on the default 1024x1024 work but the ones after trigger the same error again. I also tried 1344x768 and 896x1152 but those either trigger the same error or just output a light purple-ish image

[fickle plume]

What model, what GPU, what driver version

[hollow spire]

Model: Ikastrious V10 (from civitai)
GPU: Intel Arc A580 8GB
Driver Ver: 32.0.101.6874

[proper cradle]

This is the second time i am seeing this issue and that GPU was also an A580
Normally this happens on unsuppoerted iGPUs with BF16

Can you try manually setting the dtype to FP16?

A580 might be unsupported by ipex / pytorch too

[fickle plume]

aaron has an a580 and seems to mostly not have much issues (with comfy)

[keen marsh]

I have an a750^^

[fickle plume]

ah

hmm

[hollow spire]

that fixed it, thank you :D

gpu usage is also way more constistent, so yeah I guess bf16 doesnt work

[hollow spire]

hmmm after quite a lot of attempts, it's a bit inconsistent/odd. some prompts work well, some output the same error, some output a garbled image. i'm rather confused

i guess i'll give comfyui a shot

[fickle plume]

i doubt it'll be much different

[keen marsh]

I remember people using a580's fine must be some updates to either pytorch/ipex or the windows driver.

[hollow spire]

IT IS

the comfyui install with your script works flawlessly, and i mean completely flawlessly

thank you for adding whatever magic to it

[fickle plume]

But are the images sane though

[hollow spire]

yes!

and the time is like 2s/it , sometimes 1.5-1.8

[proper cradle]

Can you try setting IPEX_FORCE_ATTENTION_SLICE to 1

set IPEX_FORCE_ATTENTION_SLICE=1
.\webui.bat --use-ipex

This is the only difference between comfy and sdnext

I disabled dyn atten in sdnext in favor of flash atten with pytorch 2.7

SDNQ Quantization matrix with SDXL
(image is downscaled and webp compressed)

[hollow spire]

if you mean in uhhh sdnext, i did try that, didn't do anything

[hollow spire]

update: I enabled that thing again and --lowvram and it's working, somehow, idk how, but it is

to be fair, I did make a bug report about something similar for blender, where the renderer would just crash when the vram was almost full, so it might be related, funnily enough

[proper cradle]

Balanced offload might be broken on a580

Model offload might work but will have higher vram usage

[hollow spire]

yeah, im also getting worse iterations/s compared to using --low_vram

[keen marsh]

Flash attention works on intel now? Or is it just a flag for compatibility

[proper cradle]

PyTorch has built-in flash attention with all 3 GPU vendors

Intel got support with PyTorch 2.7

AMD got support with PyTorch 2.5

Nvidia got support with PyTorch 2.0

Torch sdpa uses flash, memory efficient, and math attention

Highest priority is flash atten, then memory efficient atten, if nothing works, then math atten

[keen marsh]

So it's still best to use sdpa?

[proper cradle]

yes

[hollow spire]

model offload seems to be working just fine for the generation part but Adetailer breaks, was working under --lowvram
edit: i got adetailer to "work" by using --lowvram and model offload but it's either replacing the face with garble or a mix of garble and the actual character's body on top of its face

• i'm still getting some occasional garbled generations so ig sequential might be the only one that works stable
  I hope it's fixable somehow, i was getting near 1 it/s on model offload but 3.2s/it will have to do for now

[proper cradle]

Use the built in detailer

adetailer is outdated

[hollow spire]

I would but it's worse quality-wise

example: eyes
detailer left
adetailer right

same yolo model, same settings

[proper cradle]

yolo model has no affect on the image

both adetailer and built-in detailer is just inpainting

did you set the denoise / detailer strenght and the detailer steps to be the same on both?

[hollow spire]

yes!

i feel like the built-in detailer doesn't follow the prompt at all, even when i tried to manually give it the prompt

since the eyes dont match

[sly whale]

Question, has the "Unable to allocate more than 4gb" thing fixed for the A series cards?

[proper cradle]

It still exist but there is nothing that needs a single 4 gb allocation anymore

Only the attention needed +4 gb but we now have flash attention, memory efficient attention and my dynamic attention that all uses much less memory and doesn't need +4 gb at all anymore

[proper cradle]

Also unable to allocate +4gb thing is a 32 bit hardware issue, it cannot be fixed, only workarounds exists

Flash attention and memory efficient is much faster than old attention so you don't really need any workaround.

But if you still need a workaround so that you can allocate a single 4gb block for whatever reason, the workaround is this:

export UR_L0_ENABLE_RELAXED_ALLOCATION_LIMITS=1

[sly whale]

Right-o thanks

[umbral summit]

Can somebody help me setup the sdnext for my A750? It's just crashing with no output

I'm new to this

[fickle plume]

Give more info. What is "just crashing with no output", when is it

[umbral summit]

I got it running with a different model, but it's like creating weird stuff when I copied the exact settings of a ytber

Is there any video or anything which tells me how this works

[fickle plume]

IMO the vast majority of youtube tutorials on AI are best case, bad.
Comfy has a handy wiki, but it's for comfy. At a glance, I don't like what explanations sdnext has on its wiki

[fickle plume]

Show what "weird stuff" and your settings

[umbral summit]

https://youtu.be/wZiPYppLu10

I followed this

The weird stuff was just just the top left of the picture being generated and it took like 1hr

rest was all grey

[fickle plume]

Show your settings

your results

[umbral summit]

I did not take any screenshot of the result and can't wait another hour

[fickle plume]

You waited 1 hour for an image?

[umbral summit]

I will just try to show you the settings

[umbral summit]

yeah it took a long time

I knew my settings were wrong but there's just no tutorial anywhere which was useful

they used controlnet in the vid ill try to install that

[fickle plume]

Every image you generate is saved.

There's a gallery, and you can also just open sdnext's folder and go into the outputs folder and find them there as well.

Don't crop

[fickle plume]

And, you ran out of VRAM.

[umbral summit]

you see

[umbral summit]

no it just took like 40 steps or something

40 times

Now if I generate it just takes like a few secs

[fickle plume]

that image is 732x906

[umbral summit]

Forget about that image help me setting up this

I check enable here and apply changes, it turns off itself

[fickle plume]

.

And restart sdnext

[umbral summit]

it shuts down and restarts the webui, but the extension doesnt load

[fickle plume]

.

[umbral summit]

fixed.

output does look good now but not how I want it

[fickle plume]

sdnext should have controlnet built in, and most likely in the composite tab

[umbral summit]

control?

[fickle plume]

This is why I keep asking you to not crop.

If you crop every time, I can't help you

[umbral summit]

oh you mean the screenshot

I thought in the resize settings because you've asked for the deformed result

[fickle plume]

You're using an sd 1.5 model. get the tile controlnet for sd 1.5, use the original unscaled image as input and upscale the image.

[umbral summit]

I found the controlnet in the control tab under control elements

but doesnt have all the stuff in the video

[proper cradle]

Finally managed to achieve performance increase using INT8 matmul on Flux with Intel ARC A770:

2.5 s/it -> 2.0 s/it

[fickle plume]

new pytorch version fixed it? or something else?

[proper cradle]

intel wants the exact opposite strided weights compared to amd and nvidia

intel want contiguous meanwhile amd and nvidia wants non-contiguous

amd is fine with either but performs better with non-contiguous

nvidia dies with contiguous

intel dies with non-contiguous

Also Flux is exactly at the breaking point of INT8 on A770
Anything smaller than Flux will run slower

flux has mnk dim of 3072

sdxl is 1280

[fickle plume]

seems qwen edit is also 3072? sad. well, a minor boost is still good i guess

ah, staring at your graph closer i guess it's not actually that bad

neat

[sullen sun]

What is "M" on this graph?

(Terrible labeling lol)
