Mico GBS Plugins

[unreal haven]

Might as well put these here so that I can notify people when there are new ones or update / fixes

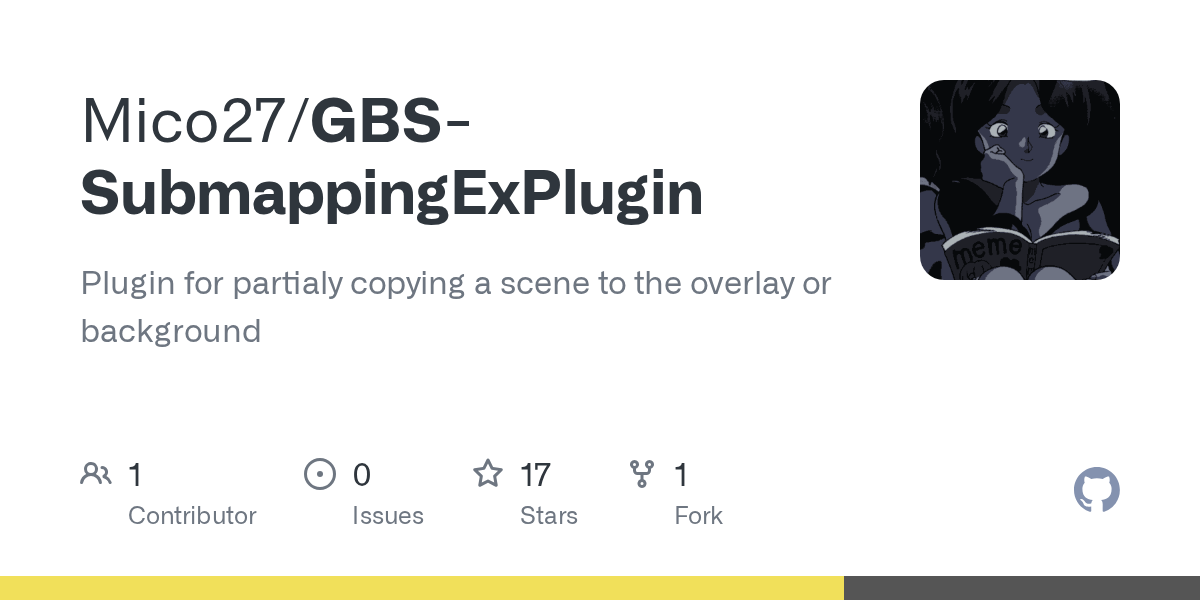

scene to overlay/background submapping

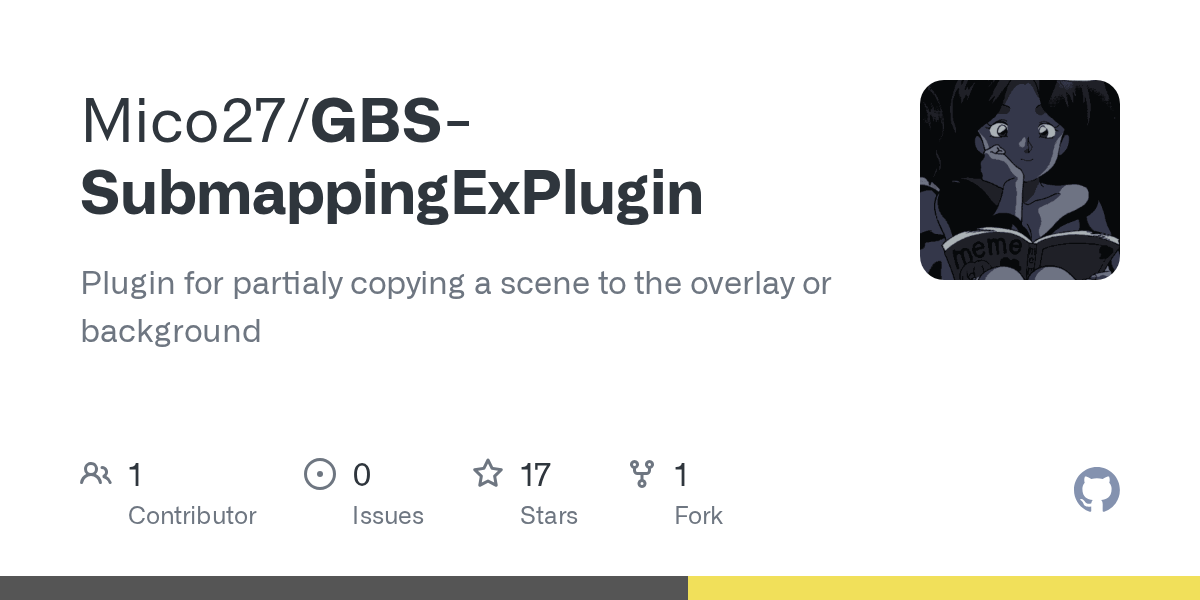

https://github.com/Mico27/GBS-copyBkgSubWinPlugin

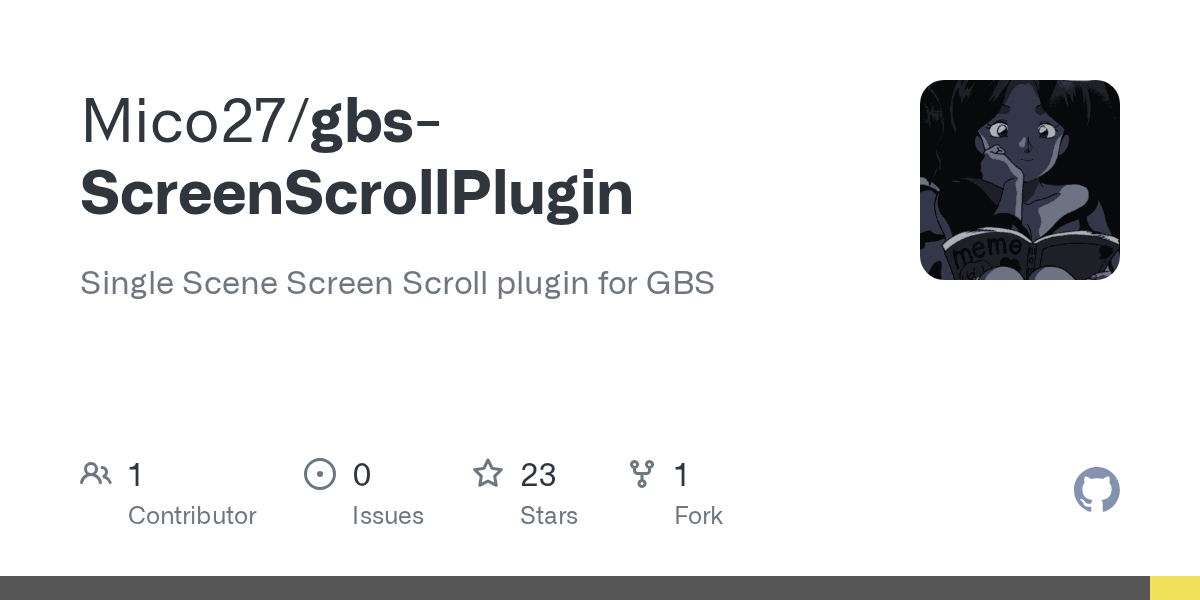

single screen scene scrolling (Link's awakening style)
https://github.com/Mico27/GBS-scrollScenePlugin

Copy banked data to variables

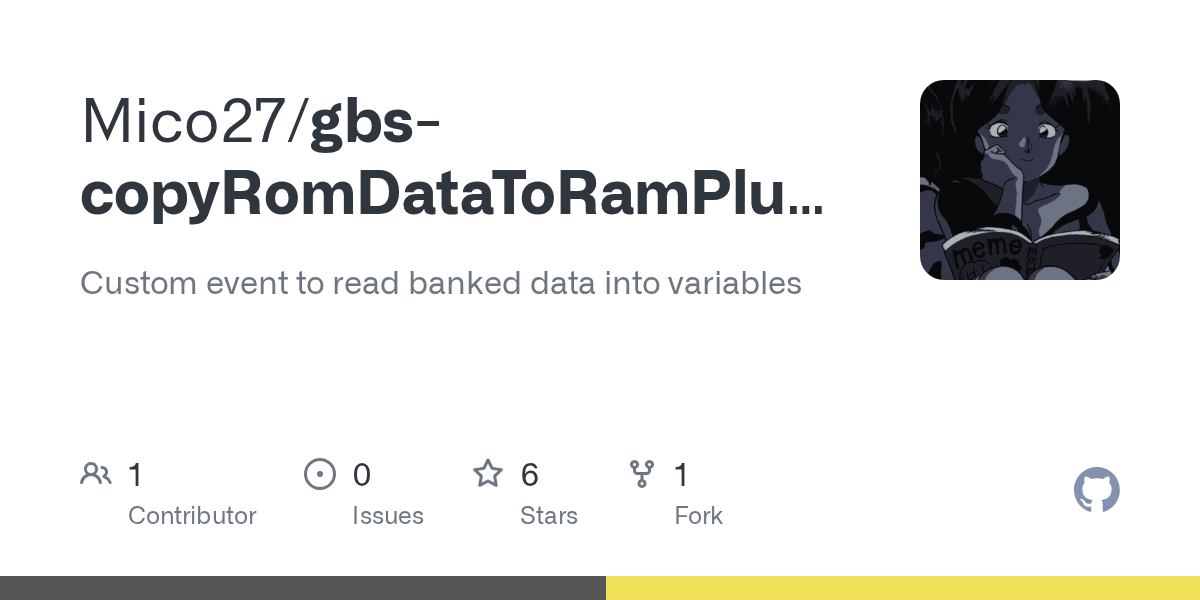

https://github.com/Mico27/gbs-copyRomDataToRamPlugin

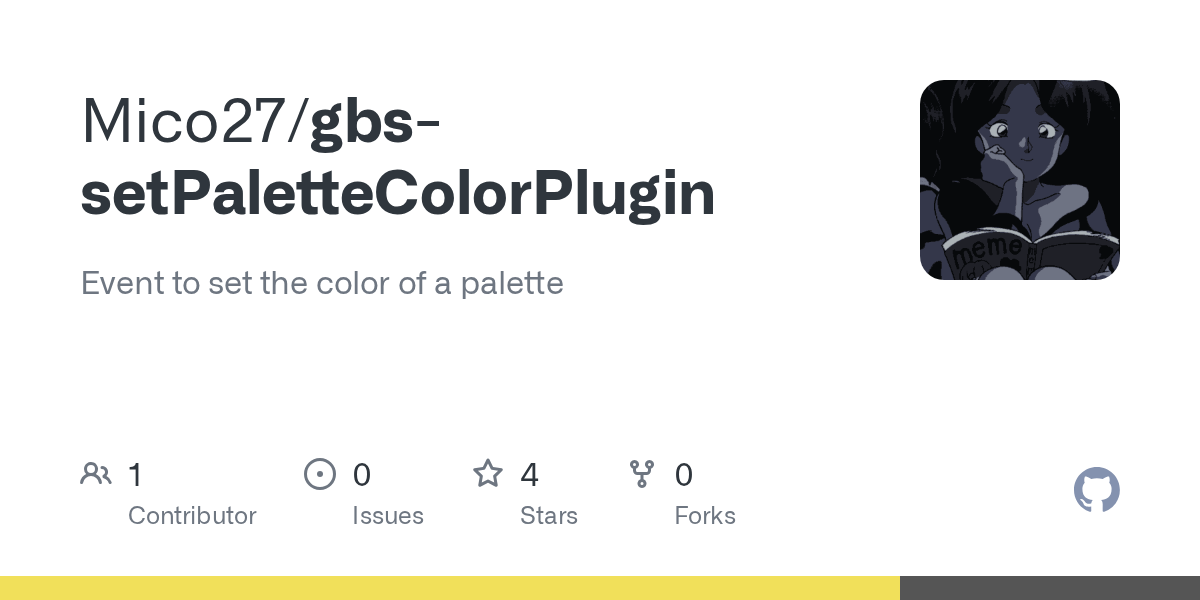

Set the colors of a palette
https://github.com/Mico27/gbs-setPaletteColorPlugin

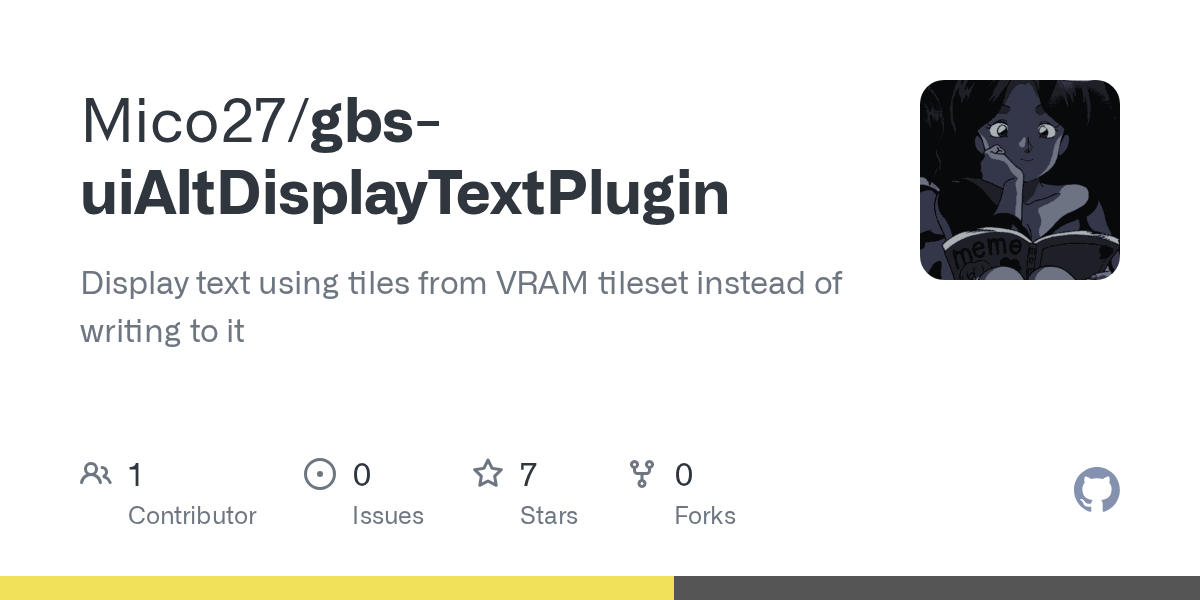

Alternative way of displaying text to use the VRAM tileset as the "font" instead of writing the text in it
https://github.com/Mico27/gbs-uiAltDisplayTextPlugin

Load a tileset to the VRAM tileset (Similar to VM_LOAD_TILESET but you can specify a tileset instead of a background and has a few more parameters)
https://github.com/Mico27/gbs-loadTilesetExPlugin

Reload the current scene tileset
https://github.com/Mico27/gbs-reloadSceneTilesetPlugin

Simulate inputs
https://github.com/Mico27/GBS-simulateInputPlugin

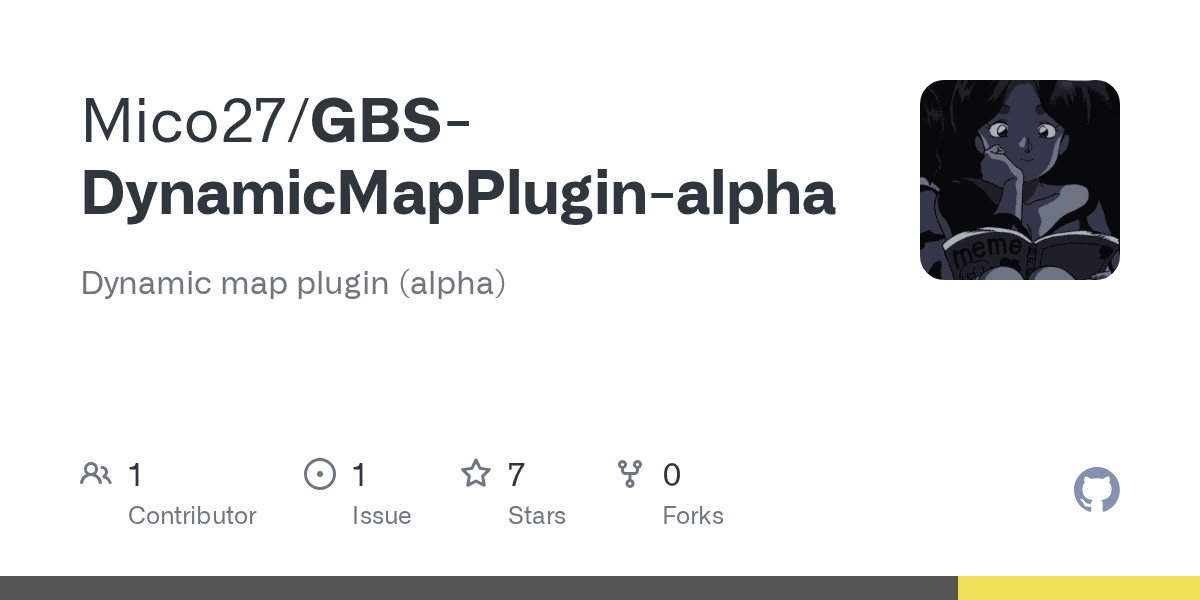

Metatile plugin (old, only VRAM sized and loaded on scroll)
https://github.com/Mico27/GBS-DynamicMapPlugin-alpha

Example use of the Simulate inputs and metatile plugin

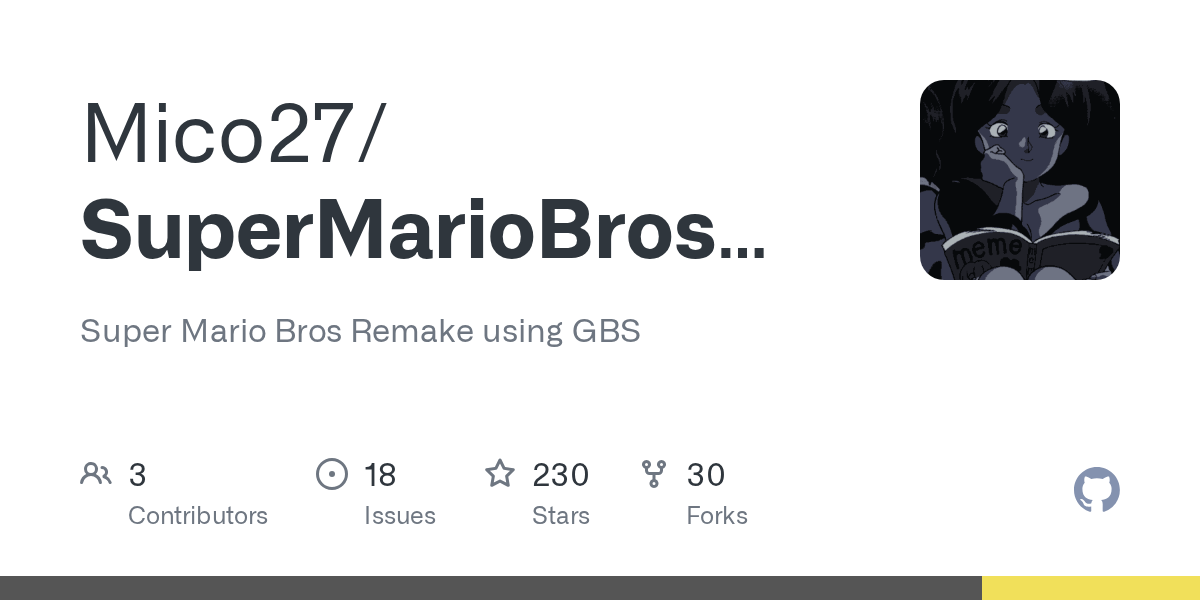

https://github.com/Mico27/SuperMarioBrosMini

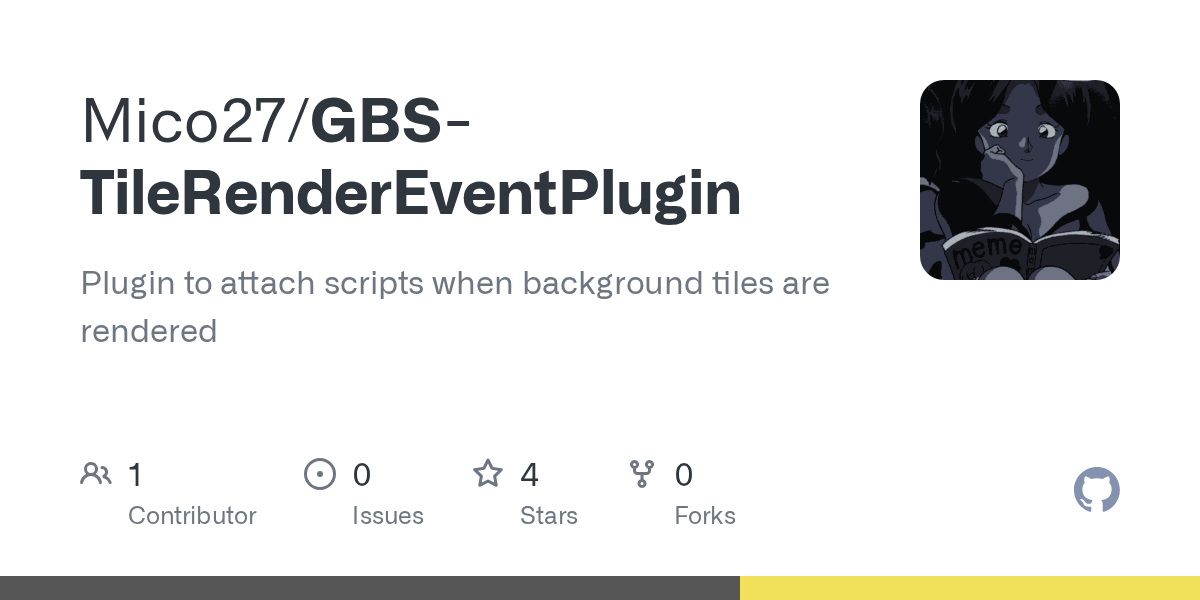

Attaching scripts to when tiles (columns, rows or whole screen) is rendered
https://github.com/Mico27/GBS-TileRenderEventPlugin

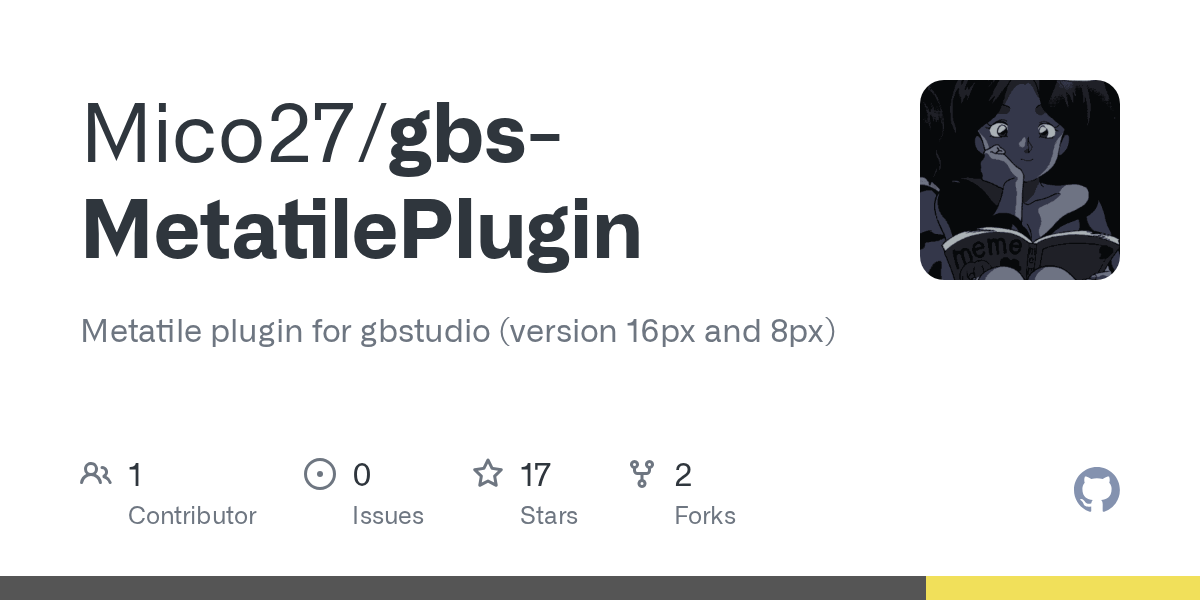

Metatile plugin (16px and 8px) large map version and single screen scrolling version
map is loaded in memory on scene load

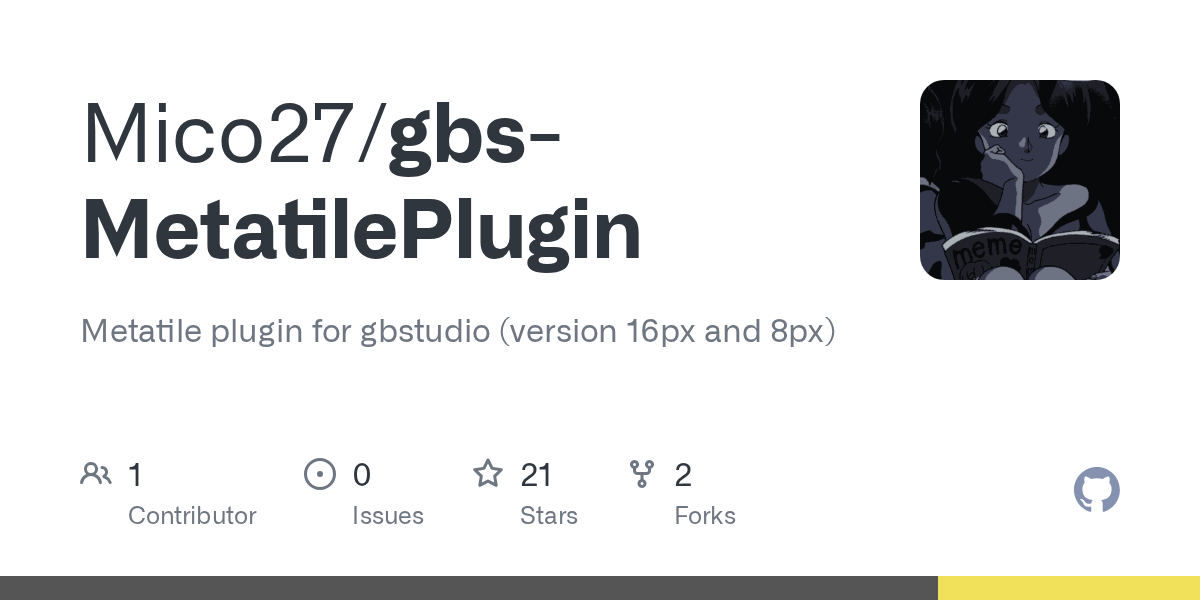

https://github.com/Mico27/gbs-MetatilePlugin

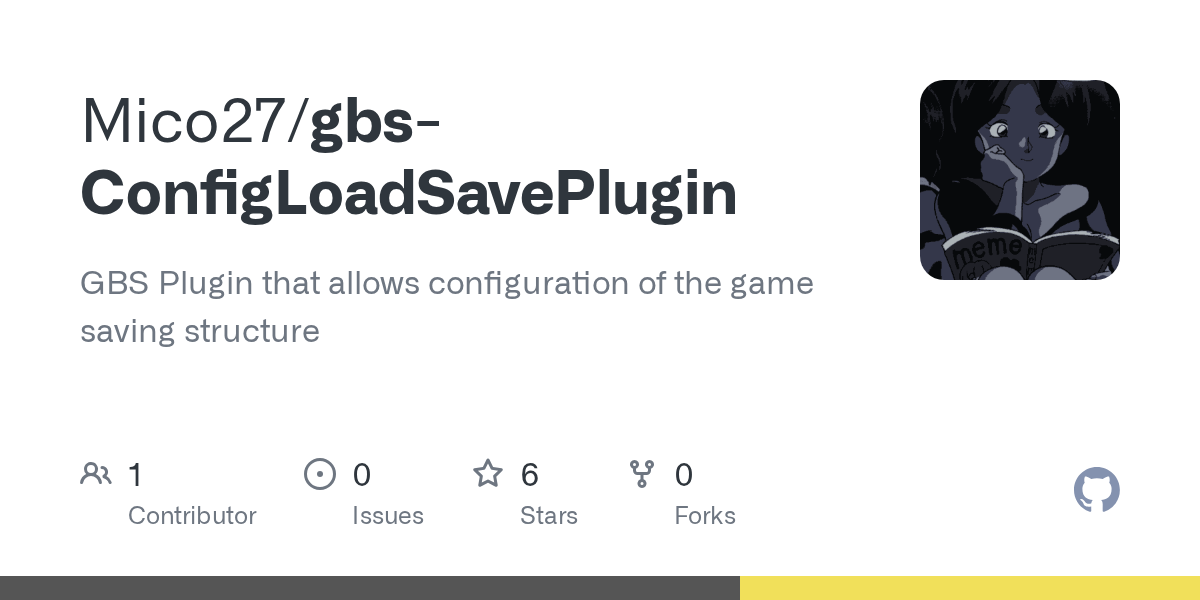

Configurable Save Data Structure
https://github.com/Mico27/gbs-ConfigLoadSavePlugin

Allow to specify an on hold and an on release input script inside an attach script to input event

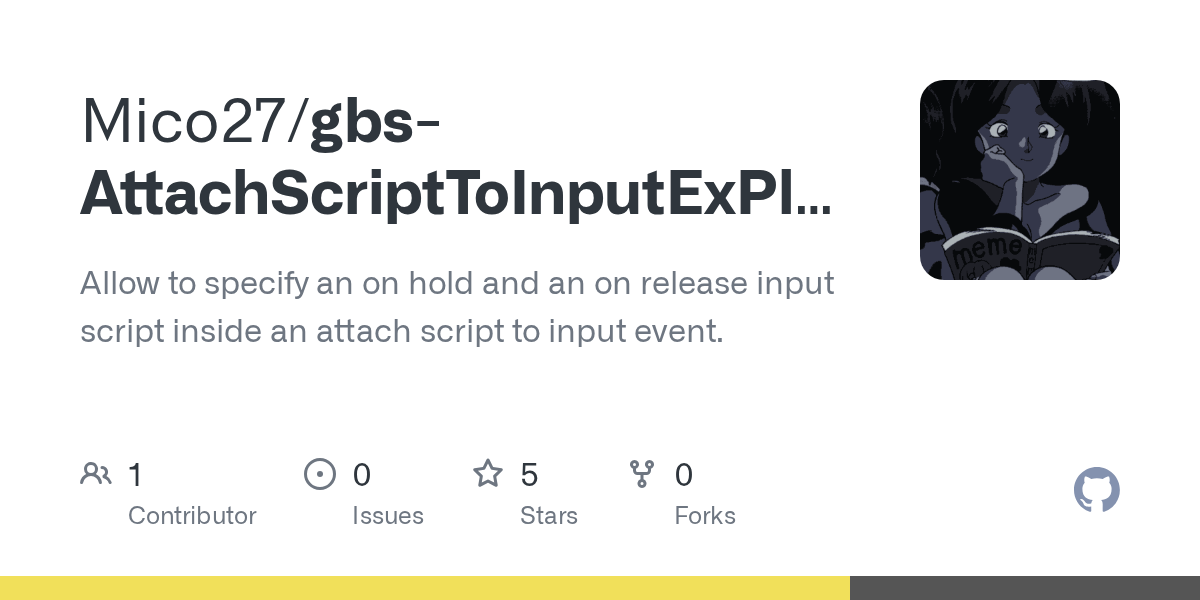

https://github.com/Mico27/gbs-AttachScriptToInputExPlugin

Allows to reorder an actor in the active list, which is used for rendering/OAM ordering (color only)

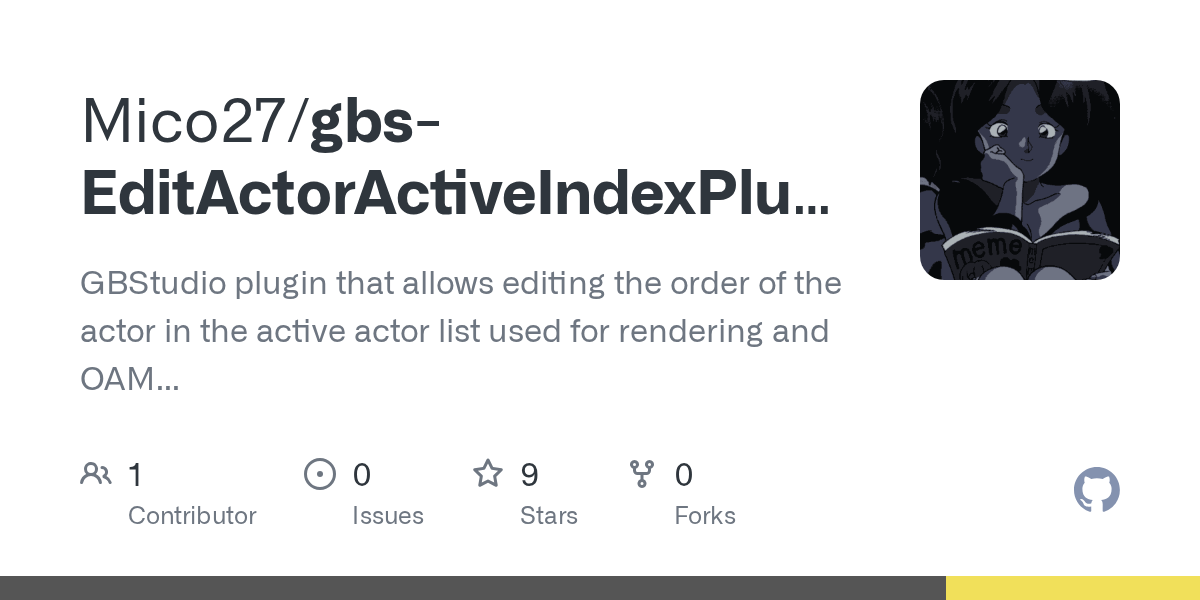

https://github.com/Mico27/gbs-EditActorActiveIndexPlugin

Flicker actors when sprite limit is reached, either from horizontal scanline limit or from OAM limit
https://github.com/Mico27/gbs-flickerActorPlugin

Also just made an update to the scene submapping plugin to support GBS v3 and fixed a few bugs related to big submaps not working correctly. Also added scene to background submapping with tileoffset.

[hot grail]

[unreal haven]

Made an update to the plugin, added a new event called "Copy scene submap to background tileset"
This kinda works like the "replace tile at position" event but you can reference a submap of another scene!
And unlike the "replace tile at position" event it'll also transfer color information from the reference submap!
(I'll be working on an example project to show off how it works, I used someone's asset when working on this but I cant show it here)

(if someone has assets, like for a menu or using lots of different portraits, etc, to share that I can use for a demo, let me know)

[pastel willow]

That reminds me, @unreal haven did this event get renamed or removed? I downloaded the background plugin earlier today for my game and was told that there was an event in there that I didn't have.

[unreal haven]

I know the first version had a bug where I misnamed one of the event that was the same as another one, making that one not display

But the plugin should show 5 different events now

If you add an event and type "Copy background" in the search bar you should see 5 of them

[pastel willow]

I only see 2 of them

[unreal haven]

oh sorry I mean type "Copy scene"

[pastel willow]

You're alright. Also, I got 4 results

[unreal haven]

You sure you downloaded the most up to date version? the repository got split to support both version 3 and 4, so you might have to do some cleaning up if you download it before that, can you show me a screenshot of where you've put the plugin?

[pastel willow]

Yeah, I downloaded the most latest one from eariler today.

I did it through one of the third party "download github directory" sites because github still doesn't give you a way to do it officially. Could it be possible that it's not downloading something in the directory?

oh yeah, and it's v4.0.2 I'm using

[unreal haven]

if you open the directory and open events what files do you see?

[pastel willow]

your plugin is found within the screen category

oh wait that's not what you were looking for

whoops

[unreal haven]

Yeah, you're missing a file somehow

https://github.com/Mico27/GBS-copyBkgSubWinPlugin/tree/main/copyBkgSubWinPlugin_v4/events

you should have 5

[pastel willow]

I guess this site can't be trusted then https://download-directory.github.io/

I downloaded the last js file from the github

[unreal haven]

just put it with the others and you should have all 5 of them in GBS

[pastel willow]

got it

have github directory downloaders been known to miss files?

[unreal haven]

Dunno never used it

[pastel willow]

gotcha

[unreal haven]

Published a lot of plugins
https://github.com/Mico27/gbs-copyRomDataToRamPlugin
https://github.com/Mico27/gbs-setPaletteColorPlugin
https://github.com/Mico27/gbs-uiAltDisplayTextPlugin
https://github.com/Mico27/gbs-loadTilesetExPlugin

and updated the submapping plugin with the option to be able to specify a scene ptr+bank for dynamic loading.

Lemme know if you have any questions on any of those plugins

[pulsar sage]

Heya! I hope I'm not being a bother, I've hit a snag with your scroll background plugin and was hoping for some help. In my game I have an inventory UI scene that uses background text (plugin), tile swapping (native), and tile palate swapping (plugin). If accessed from an overworld scene that hasn't been scrolled yet with your plugin everything works fine. But if I initiate the menu scene (via button press) from a partner overworld scene that has been scrolled to. the X,Y coordinates are offset compared to the scroll. It's worth noting as well that the native tile swapping coordinates aren't effected and work as they should. But any background text drawn is misplaced in the direction of the scroll.

[unreal haven]

Yes that is correct, I had a fix for the ui to take account of it but didnt publish it as it was editing ui.c and I didnt want to bother maintaining that. I can send you the edited ui.c file if you want.

[pulsar sage]

that would be great thanks!

[unreal haven]

Here put this in the engine folder in the plugin

[pulsar sage]

it's giving me an error when compiling: ?ASlink-Warning-Undefined Global '_text_wait' referenced by module 'vm_ui'

[unreal haven]

oh what version of GBS are you using?

[pulsar sage]

4.0.2

[unreal haven]

Ok gimme a second then

here

The previous one was missing UBYTE text_wait; because I was using the dev build and there was an update that removed it

[pulsar sage]

That one runs! Looks like it fixed the background text! but now textboxes created on that scene are empty. the background tiles I swapped the palette of ("Bank 1 functions" plugin) are still offset as well.

[unreal haven]

What plugin are you using for the textboxes?

[pulsar sage]

advanced dialogue and menu, but even native textboxes seem to be affected

[unreal haven]

Anything that might write to the background or submap to the background might be a problem since they dont take account of the screen scroll offset. So I'd suggest to take account of the screen offset when you put in the position values for the meantime. Not really sure how I can make it compatible with other plugins that interact with the background.

I'll try to think of a solution

[pulsar sage]

no worries! & I really appreciate your help thanks

[unreal haven]

After thinking some more about it, I think the best and simplest solution would be to create a custom event that allows you to store the current scroll offset into variables so that you can use it when using plugins that write to the background. I'll get around to make it when I get some free time.

[pulsar sage]

What about an event that resets the scrolled values back to default? Like an instant scroll back. Would something like that be possible?

[unreal haven]

The point of the scolled value is that its needed for the seemless scrolling, the new scene is rendered at that position in the tilemap VRAM, resetting that value would make the whole screen glitch.

[unreal haven]

I updated the screen scroll plugin, there's now a new custom event to be able to store the screen scroll offsets in variable to use to correct positions for background writing/submapping

[pulsar sage]

awesome thanks!

[unreal haven]

Another one added to the heap https://github.com/Mico27/gbs-reloadSceneTilesetPlugin

[pastel willow]

is this one ready to use, or is it still a work in progress?

[pulsar sage]

Got this error on compliling: warning 85: in function reload_current_scene_tileset unreferenced function argument : 'THIS'

[pastel willow]

Same here, but the plugin seemed to still work for me

[unreal haven]

oh its just a warning, I 'll fix it but it should still work

[pastel willow]

@unreal haven How's the metatile plugin coming along?

[unreal haven]

Still working on it

[pastel willow]

That's good to know 👌

[pastel willow]

@unreal haven what does this mean

[unreal haven]

oh thats a bug when your not using color mode, I already fixed it but didnt publish it yet, I'll do it later

[pastel willow]

Ah, gotcha. I was testing out the plugin in a different project before I tried to implement it into my actual game.

I was gonna have it to where my game's hud text didn't have duplicates of the same number in the vram.

[pastel willow]

the test appears to be placed onto the background (and it's also loaded into the vram), but it's not displaying them.

[unreal haven]

You'll have to change the char_tileset_mapping.c file to match your font tileset and where you put that tileset in the vram

[pastel willow]

I see. Unfortunately, I'm not experienced with ascii or similar things, so I'll have to stick with the default text system.

[pastel willow]

wait, so I change this part to something?

I'm really stupid (when it comes to stuff like this)

[unreal haven]

its a mapping table, each values in that table represent the position of a character in the tileset VRAM. Their position in that table represent the value of ASCII characters.
In this example the 49th value in the list (index 48) represent the 0 character in ascii and will display the 0xF6th tile (the 246th tile in the tileset VRAM)

https://www.asciitable.com/

[pastel willow]

So if I'm understanding this correctly, the reason why nothing's being displayed is because the first 10 values are blank?

[unreal haven]

The reason your example wasnt displaying is that you font file dont match the mapping values

[pastel willow]

Ah, I see

[unreal haven]

is your tileset just the numbers?

[pastel willow]

yeah

10 tiles in total in the tileset

[unreal haven]

in your load tileset event, put the Target Tile Index to 246

[pastel willow]

mkay, i'll try that

Also, for context, I was trying to have the numbers system be more like the left than the right

[pastel willow]

it worked

[pastel willow]

Is there a way for there to be a zero before the 3 (like how the %D2 worked in GBVM)?

[unreal haven]

This is the tileset that the example mapping uses btw for reference

and this tileset is loaded at Target Tile Index 128

[pastel willow]

so it looks like it works, but not in the way it does with GBVM

[unreal haven]

weird it should work the same

[pastel willow]

I got it to work

lemme get the footage

[unreal haven]

yeah that looks right

[pastel willow]

and it works right as well when looking at the vram

thanks for the help! 👌

[unreal haven]

Btw if you prefer to write your text in GBVM, it looks like this:

VM_SWITCH_TEXT_LAYER .TEXT_LAYER_BKG
VM_LOAD_TEXT 1
.dw VAR_VARIABLE_11
.asciz "\003\002\002%D2"
VM_CALL_NATIVE b_ui_alt_display_text, _ui_alt_display_text

Its basicaly exactly like you used to, but instead of VM_DISPLAY_TEXT, you use VM_CALL_NATIVE b_ui_alt_display_text, _ui_alt_display_text

[pastel willow]

gotcha

[pastel willow]

so like this

[unreal haven]

yes

[pastel willow]

would I need to include references, or should it be fine?

[unreal haven]

you dont need anything else

[pastel willow]

cool. thanks!

uh oh

[unreal haven]

Looks like you are loading a tileset somewhere, shouldnt be related to the plugin

[pastel willow]

oh yeah, I was using a tileset for the hp as well

[pastel willow]

wait, so I don't need this event?

[unreal haven]

change length to 10

your tileset is only 10 tiles

right now its overflowing and writing sprite tiles in the bg tiles

[pastel willow]

gotcha

[unreal haven]

The hud bar at the bottom is an overlay right?

[pastel willow]

yeah

[unreal haven]

then change .TEXT_LAYER_BKG to .TEXT_LAYER_WIN

[pastel willow]

mkay

[pastel willow]

it works!

thanks 👌

[pastel willow]

@unreal haven there appears to be an issue with the color for the text plugin.

[unreal haven]

It uses the default UI palette

[pastel willow]

later on in the footage, it had the palette of the file select bg

which wasn't this color in the ui

[unreal haven]

show me the scene palettes

[unreal haven]

which of these palettes are you using to paint your pause scene

[pastel willow]

the last one

should I make the first one the same palette as the last one?

[unreal haven]

You shouldnt have too, unless you have scripts that change palettes I'm not sure why its not picking the right one

[pastel willow]

Nope. I have no scripts that are changing the palettes.

[unreal haven]

Try changing the first palette color to see if that fixes it

[pastel willow]

i'll try that

[pastel willow]

it works

[unreal haven]

Ok I'll try to look at why it picked the first palette instead of the default one, It looked like it was using the default UI palette on my end

[pastel willow]

gotcha

how strange

if it makes it easier, I can hand you the source code for my game to see it on your end.

[pastel willow]

@unreal haven I think you should have the mario demo be included with the metatile plugin as a sample project once it's ready

[severe isle]

I downloaded the copyBkgSubWinPlugin from the first commit when it was released. I am updating it now, but I am getting this error. I merged the engine and event folders from the new copyBkgSubWinPlugin_v4 folder to the old one

Edit: Fixed! Delete copy_bkg_sub_win.c in engine\src

Multiple definition of b_copy_background_submap_to_overlay_base
Multiple definition of _copy_background_submap_to_overlay_base
Multiple definition of _copy_background_submap_to_overlay

[pastel willow]

@unreal haven Will the simulated inputs plugin be its own thing, or is it part of the metatiles plugin?

[unreal haven]

its own thing

[pastel willow]

cool

I was thinking of having there be an autodemo in my game for a while. Glad you've made that possible!

[unreal haven]

Published my simulate input plugin
https://github.com/Mico27/GBS-simulateInputPlugin

Also pushed an update to the Alternative way of displaying text Plugin that fixed a bug when displaying text instantly would loop for a frame and eating inputs.

[pastel willow]

Does it also fix the mono glitch and that weird palette glitch where it was setting the text to the first palette instead of the last?

[pastel willow]

@unreal haven One thing I've noticed with the simulated input plugin is that my camera script isn't working in the autodemo I'm putting together. Are "If Button Held" events understood by it?

okay, maybe it was due to the direction not being set in the scene.

False alarm (I think)

[pastel willow]

Actually, it looks like If Button Held events act a bit strange when using a simulated button input.

For example, when it's seemingly pressing the B button, it looks like it's increasing speed (?), but my player's running animation doesn't play.

[unreal haven]

Found the bug, I pushed the fix on github, you can update it

[pastel willow]

cool 👌

thanks!

[pastel willow]

it works!

[unreal haven]

Updated the submapping pluggin, now the "copy scene submap to background tileset" event supports color-only mode and can specify the target on which to copy the tile attributes (colors)

[drifting harbor]

I'm submapping the box at the top right when the player switches the cursor at the bottom left. The boxes are located off screen at the bottom of the background. Any idea why the descriptions at the top of the box only works for the very first one?

[unreal haven]

which event are you using?

[drifting harbor]

copy scene submap to background

i redid it using offsets, and it works fine

using the offset event, i mean

[unreal haven]

mmh, if you are submapping from the same scene it should be working even without an offset

If you can share the background you're using I can try and debug to see whats going on

[drifting harbor]

Note that the numbers work correctly with copy scene submap to background

[unreal haven]

Seems to work correctly? when did you download the plugin?
Also I'd have to see your event setups.

This is my quick test setup for reference:

[drifting harbor]

Try setting the camera to a fixed position? That seems to be the only difference between my setup and yours

I downloaded the most recent version today

[unreal haven]

Not sure what you mean by setting the camera to a fixed position, its fixed where it is?

[drifting harbor]

I have the camera set to 0, 0, so you can’t see the numbers beneath

[unreal haven]

Are you sure you arent using the "Copy scene submap to background tileset" instead of the "Copy scene submap to background" ?

[pastel willow]

I'm not sure what's wrong with this

[unreal haven]

you have more than 256 unique tiles

[pastel willow]

ah, gotcha

[drifting harbor]

I’ve redone it using the offset now, so I can’t confirm. But that’s possible

[unreal haven]

Alright, if your using the event with an offset of 0 its basicaly the same anyway

"Copy scene submap to background tileset" is used for when you wanna do tile swapping but with submaps

which swaps the tileset instead of the tilemap

[pastel willow]

so using the plugin for logo scenes with backgrounds consisting of more than 256 tiles aren't possible

[unreal haven]

nope, if you wanna do what you're trying to do, you'll have to reduce the scene to be 16x16 or switch to color only mode

[pastel willow]

how would you do the first one?

[unreal haven]

Make your frames 128px x 128px

or make it 128x120 so that you can have tiles to frame it

[pastel willow]

wouldn't GB Studio not allow you to make the scenes that size?

or is it okay?

[unreal haven]

no it'll just warn you

[pastel willow]

mkay

also, how did you get the tiles to load instantly with that menu thing?

[pastel willow]

this

[unreal haven]

Its just submapping from the same scene

[pastel willow]

gotcha

so there would be a delay if it's in another scene

[unreal haven]

No the tearing comes from when the area you submap is too big
Or when the amount of tiles you have to update in the tileset from tileset swapping is too big

[pastel willow]

gotcha

[pastel willow]

the Shrek image is 310 tiles, but the test background is 19 tiles. If I were to change the Shrek BG, would it work? It was meant to be a placeholder anyways.

[unreal haven]

again, max unique tile is 256 on dmg, 512 on color

logo not supported

[pastel willow]

wait, for the plugin, or dmg?

[unreal haven]

plugin doesnt support logo, dmg is max 256

[pastel willow]

gotcja

[pastel willow]

what should I put as a constant

I tested it out after changing the logo scene types, and it works

@unreal haven which event in the plugin would work best for faking video playback?

[unreal haven]

"Copy scene submap to background tileset" but you'll have a lot of tearing on dmg unless you do the overlay trick, which you can only do the trick on dmg if you reduce each frame to be 12 tiles by 10 tiles

[pastel willow]

got it

[pastel willow]

is "tearing" referring to how the frames gave a bit of a glitchy effect when changing (I feel like I might've asked this before and forgot)?

[unreal haven]

yes

[pastel willow]

mkay

[unreal haven]

@pastel willow Here use this

and you set it up like this
(obviously pick the scene for your frames)

[pastel willow]

I'll test this out. Also, don't you need a GBVM script like this, or does the background tileset event take care of that?

[unreal haven]

Just do exactly what the screenshot says

(with the correct scenes)

[pastel willow]

how would I go about using this?

[unreal haven]

Its your main scene

and in your main scene, you put the events like in the screenshot, and you alternate between submapping on the left and right side for each frame

[pastel willow]

do I use a set camera position event to switch back and forth?

[unreal haven]

No, I just said do exactly what the screenshot shows, nothing else

this is what show overlay does btw

So the whole script is:

• Submap to overlay the right side of the scene
• Submap to the left the first frame
• Submap to the right the second frame
• Fade in
• Repeat:
• Show overlay
• Idle
• Submap to the left the next frame
• Idle
• Hide overlay
• Idle
• Submap to the right the next frame
• Idle

and if your doing the whole thing, you might want to make something that automates creating the script. But at this point I'd be doing the whole work for you

[pastel willow]

what do you mean by the whole thing?

[unreal haven]

all the frames

of the whole movie, isnt that what you were trying to do?

[pastel willow]

Just the opening scene. There's no way the whole movie would work (at least not with the audio).

[pastel willow]

Also, I have nothing that fits in these dimensions

[unreal haven]

Like I said before, you'll have to redimension your frames to fit

[pastel willow]

alright

[unreal haven]

it has to be 12x10 so 96px x 80px

[pastel willow]

okay

my original plan was to have something sort of like this

[pastel willow]

is the main scene set as a logo?

[unreal haven]

no, ignore the warning

[pastel willow]

but wouldn't it not work properly???

is it the 192 tiles glitch when it was supposed to be 256?

[unreal haven]

There's a warning when you exceed 192 because if you're using GBS default ui system, it reserves the tiles after the 192th ones, but since we arent using that you can ignore the warning

[pastel willow]

okay

[pastel willow]

@unreal haven So this method would not be possible?

[unreal haven]

with full screen size frames, no

[pastel willow]

I see

[pastel willow]

do I put in the same x and y values, or is it different

[unreal haven]

same x & y values, you can set the "copy the attributes to" field to "none" since you're not in color mode

[pastel willow]

okay

[pastel willow]

wouldn't the first and second frames not be seen?

[unreal haven]

Yes, the first on will be seen on the fadein, then the second one will be seen on the first show overlay

You can imagine it like this: you have 2 sheets of paper one over the other and a camera pointing at it
you pull out the 2 sheets of paper out of the camera at the start
then you write the 2 first frames on the two sheets of paper
Then you put the first sheet under the camera, then the second over the first sheet
then you draw the next frame on the first paper while its under the second one
then you remove the second paper out of view, revealing the changed first sheet
when you draw the next frame on the second paper while its not in view
Then you put it back on the first sheet and you keep repeating that loop

[pastel willow]

wouldn't you need to use a wait event if you were doing it at a specific fps like 3

[unreal haven]

The idles are the wait event

unless you want it to be even slower

[pastel willow]

@unreal haven is there a way to use dialog boxes and the alt text plugin in the same scene?

[unreal haven]

Yeah it should work, unless you're using the advanced dialogue plugin, then Im not sure

[pastel willow]

For me, it's showing an empty text box. However, when I go to close it, it shows the dialog text printed on the background.

[unreal haven]

you gotta switch to drawing to overlay if you're using the dialogue

[pastel willow]

okay

[pastel willow]

by turning the numbers for the file select to .TEXT_LAYER_WIN?

or would I just need a gbvm script with VM_SWITCH_TEXT_LAYER .TEXT_LAYER_WIN

[unreal haven]

VM_SWITCH_TEXT_LAYER .TEXT_LAYER_WIN yeah

[pastel willow]

mkay

[pastel willow]

@unreal haven For a data select scene, how would I set this up? I tried it myself, but it didn't work as intended.

I'm wanting to have it to where if there's save data, it loads the right scene's tiles over to one of the files.

[unreal haven]

Make sure both your Data Select scene and the scene containing what you want to submap have a common tileset

[forest hatch]

its probably easier just to do it all in the same scene

[pastel willow]

you mean like have the section be something that's off-screen?

[unreal haven]

Yeah if you can have the part you want to submap in the same scene offscreen, you wont need a common tileset

[pastel willow]

I think I could do that

it would make it so much easier for when I go to update it some more.

[worn pecan]

been having a problem with the simulated inputs plugin

it doesnt work with color

like the set simulated inputs thing doesnt work

[pastel willow]

huh? it works for me.

is your game color only?

mine's the color and monochrome mode (at the moment)

[worn pecan]

yea

[pastel willow]

gotcha

[unreal haven]

mmh that odd it should work regardless if its color only or not, I'll look into it

[pastel willow]

@unreal haven will the metatiles plugin work in a project that has Platformer Plus?

[unreal haven]

Yeah the example project uses Platformer Plus (with some modifications)

[pastel willow]

cool

[worn pecan]

whats the tile idx?

tryna use the copy bg submap to overlay with tile offset plugin

[worn pecan]

if Im submapping a 9 tile tileset into a 2 tile tileset, what should the tile idx be ( in color only mode )

[severe isle]

In color only, I believe 256?

[worn pecan]

hmmm 256 didnt work for me but 128 does

[unreal haven]

The tile idx is the index of the tile in the tileset. Tilemaps (the backgrounds of scenes) are a list of index of the tile in the tileset.
The event "Copy background submap to overlay with tile offset" will take a section of the scene's background then increase that index by the offset amount for each tile. So if you were to submap for example a bunch of tiles with index 5 in the tileset and specify an offset of 128,
Then it will increase those point to the 133th tile in the tilemap. This is used if you are not using a common tileset or that you are submapping from a different scene of the current one because the tilemap wont match and this will prevent being assigned the "wrong" tiles.

If your main scene has 2 tile tileset and the scene you are submapping from has 9, you can load the tileset of the submap scene at index 2 and specify the tile idx offset to 2

[worn pecan]

nice nice

thx

[pulsar sage]

@unreal haven I get this error on updating to 4.1.1 with your scene scrolling plugin:
Any plans to update it to the new version?

    4 | #include "states/adventure.h"
      |          ^~~~~~~~~~~~~~~~~~~~
compilation terminated.

src\states\adventure.c:4: warning 190: ISO C forbids an empty translation unit

subprocess error 1

src\states\platform.c:4:10: fatal error: states/platform.h: No such file or directory
    4 | #include "states/platform.h"
      |          ^~~~~~~~~~~~~~~~~~~
compilation terminated.

src\states\platform.c:4: warning 190: ISO C forbids an empty translation unit

subprocess error 1

src\states\shmup.c:4:10: fatal error: states/shmup.h: No such file or directory
    4 | #include "states/shmup.h"
      |          ^~~~~~~~~~~~~~~~
compilation terminated.

src\states\shmup.c:4: warning 190: ISO C forbids an empty translation unit

subprocess error 1```

[unreal haven]

uh that's weird, I'll investigate

[unreal haven]

mmh, looks like the new GBS version doesnt like when you modify scene states via plugin if you dont specify the header in the plugin too

[pastel willow]

Some of your other plugins also don't have headers. Might be a good idea to add those.

don't remember which ones because I added them in on my and

[unreal haven]

Ah yeah the exact problem is that since GBS now removes scene states that you dont use, the plugin cant find its related header anymore

[unreal haven]

From the looks of it you're only using TopdDown2D scene types right?

The actual fix would be to just delete the scene types from the plugin that you arent going to use

[pulsar sage]

topdown and point&click for some menus yeah

[unreal haven]

in that case you can go in the plugin files and delete adventure.c, platform.c and shmup.c

[pastel willow]

@unreal haven will the metatiles plugin allow you to reset tiles with an event (for when you die) or reset only tiles that you touched after a specific scenario (like touching a checkpoint)? Currently, I’m using flags to keep track of the coin actors (which will be replaced with tiles when the plugin’s released) that get saved in a variable when touching a checkpoint, which the value gets loaded into the variable with the coin actor flags after losing a life. Would there be a way to keep track

[unreal haven]

yes there's a get tile and a set tile event

[pastel willow]

cool 👌

[pastel willow]

would I still need to handle the tiles via the flag method that I have currently, or are the tile changes remembered when changing scenes?

[unreal haven]

No tiles are not remembered when changing scene, unless you change to a scene that doesnt use metatiles, if you switch to a another scene that use metatiles, you lose the previous scene tile data

[pastel willow]

gotcha

what about through flags?

[unreal haven]

If you mean variables, then yes, on scene init you'd have to do the tile change depending on your variables

[wanton jackal]

Question, the scroll scene plugin does not work on the latest version of studio right? (I'm asking because it could be me installing it wrong?)

[forest hatch]

what does your plugin folder look like

[wanton jackal]

This

when I try to load the project with the plugin it gives me an error I'll try to copy it

src\core\projectiles.c:68: error 78: incompatible types

from type 'struct point16_t generic* fixed'

to type 'struct upoint16_t generic* fixed'

since it says it's made for 4.0.0 I'm assuming something changed and broke it?

[severe isle]

Before I make a pull request, can you test this out?

Actually... side note, are you sure that this plugin is causing the bug? This error was caused by projectiles.c, which isnt in this plugin

[wanton jackal]

I really only have this plugin installed and this is like a fresh untitled project

so I think it is

[wanton jackal]

I'll test this one !

ok now it prints something different

    4 | #include "states/adventure.h"
      |          ^~~~~~~~~~~~~~~~~~~~
compilation terminated.

src\states\adventure.c:4: warning 190: ISO C forbids an empty translation unit

subprocess error 1```

[severe isle]

If you arent using any Adventure-type scenes, delete the adventure.c file in src\states\adventure.c

Furthermore, delete any other states that arent in use

#1270176849393221783 message

[wanton jackal]

oh I see, I'll delete these and test

It loads! I'm testing to see if everything works fine

hm, I think there's something wrong with scrolling to the left?

Scrolling to the right is fine

but scrolling to a map that is connected to the left side makes the character go all the way to the left until you can't see it and after like a few seconds the screen scrolls but your character is not really there?

[severe isle]

Hmmm, not sure, I get the same issue. Tried tinkering with it but it led to nothing

[wanton jackal]

yea, that's unfortunate 😔 hope it gets an update, I really don't know anything about C to even try it

when I was getting that first error the upoint16_t, I went myself in the code to change it to point16_t and imported the state files from ejecting the engine and it also loaded but it also had the same issues of not scrolling properly unfortunately

[severe isle]

Maybe try asking @/Mico27?

[spare hornet]

Hey! I'm excited to use this plugin, but I'm getting a weird error. Something about projectiles?

[wanton jackal]

oh my bad I meant that the answer was here already, sorry

[spare hornet]

LOL

whoops

[wanton jackal]

.

[unreal haven]

Yeah I'll get on fixing that, gimme a moment

[unreal haven]

@spare hornet @wanton jackal The single scene scroll plugin is updated for 4.1.2 now

[wanton jackal]

that's awesome, thx btw !

[spare hornet]

Sweet! Thank you so much!

Is the scene scroll plugin compatible with the fade street plugin?

I'm getting these errors, not sure if it's related to that or if it's just a scene scroll issue:

Oh, I'm reading the readme, this could be because my scenes aren't 20 x 18 tiles... my bad

[spare hornet]

Okay, I made a test project and confirmed, there seems to be a conflict with this plugin:
https://gearfo.itch.io/fade-street

Here's a link to the fade street dev's thread: #1246487529180364840 message

Here's the test project I am using

[unreal haven]

Yeah they're not compatible, because fade streets replace files that my plugin also replaces

[forest hatch]

did you set the spawn direction on the scene change event

oh wait i was scrolled up

[spare hornet]

Hey, just commenting for visibility. If anyone has a sprite like mine where the sprite is offset to the middle for animating, I found that making this change offsets the up and down transitions to account for that.

To clarify, this is in regards to the scene scroll plugin

[unreal haven]

You can change the value to HALF_TRANSITION_DISTANCE instead too

Just go where its defined and add that amount

[spare hornet]

Oh yeah lol

I assumed that was used in other places, thanks for the heads up :)

[unreal haven]

tbh I could've named them better and split them to be able to specify an offset for each direction

Guess I'll just do that real quick actualy

[drifting harbor]

Did something change with the way that GBS loads tiles into VRAM in a recent version? I'm using the submap plugin for a menu system. I need literally two sprite tiles and was loading another background into the rest of the sprite VRAM. It's no longer working since I updated to 4.1.3

Here's loading it into slot 50.

Here's the VRAM

Note that this was working, but it's unclear when it stopped.

If I load it in at 128, it works.

But then it gets overwritten by the text buffer.

[unreal haven]

Hard to tell what's wrong with just this information, I dont know what your tileset in statusscreensubmap looks like and how you are submapping it

show me the status of the VRAM before and after you do the load tileset

[drifting harbor]

When set to 50:

before

after

when set to 128:

before

after

[unreal haven]

This looks like it works like it supposed to

[drifting harbor]

So I can't load anything into any slot lower than 128?

[unreal haven]

no, it does load it at slot 50

[drifting harbor]

https://gbstudiolab.neocities.org/guides/vram-tile-limits

I'm using that as reference, am I wrong?

[unreal haven]

wow who wrote this, this is wrong lol

[drifting harbor]

COOL

[unreal haven]

Hold on, food ready in the oven, I'll give you a rundown in a moment

[drifting harbor]

i appreciate the help! take your time

[unreal haven]

Here this is a screenshot from the guide but with correct information

So for background tiles, you start counting the index from the 3rd part of the vram and count down then up to the 2nd part and down

[drifting harbor]

Okay that is actually helpful, thank you

And is there no way to use the sprite tiles in a scene that doesn’t need sprites?

[unreal haven]

No, unless you use logo type scene but that will break other stuff

[forest hatch]

are you in color only mode?

[unreal haven]

If you look at his vram screenshot you can see its not using the second bank, so its not in color only mode

[drifting harbor]

Point and click scenes don’t divide vram differently?

[unreal haven]

No, only logo type scene is different, it swaps which section sprite/bg to use midscanline to be able to use the sprite VRAM area, but it comes with heavy limitations

[drifting harbor]

Right. Well, now that I know what the actual range of tiles I am working with is, I can optimize and make it work in the limitations. Thanks

[pastel willow]

@unreal haven Is the metatiles plugin releasing alongside the SMB project?

[unreal haven]

Yeah

[pastel willow]

cool 👌

[zenith cape]

is there a way to get the simlate input to work wen the player presses A. What I am trying to do is that the player is using the simulated input to go right and then if they press A then i want the jump to be a -> + A. But when i try to do this I just get a regular jump. thx

[unreal haven]

Simulating inputs overrides user inputs except for when cancelling the sequence.
From what I'm undertanding you're trying to do an auto-runner and be able to jump on A press? In that case using my simulate input plugin isnt what you need.

[zenith cape]

yes auto-runner style section but has the platformer physics. do you know if there another way to do this or i might just have to have the player hold the direction manually.

[unreal haven]

If you are using the platformer+ plugin, you could set the player velocity to make it keep moving

[zenith cape]

the platformer plus jump velocity?

[zenith cape]

oh i think i found it the player x velocity

thx got it working

[somber patio]

#scripting-help message

Hi Mico. Would you be able to elaborate more on this? I'm working on wrapping my head around what exactly Metatiles do and how I could use them in the newer update of your plugin for my game.

[unreal haven]

Metatiles arent released yet

[somber patio]

Sorry, I mean in a future update. You mentioned it would be possible to Tileswap before scene change in your planned next update right?

[unreal haven]

Yeah but not this version I'm working on, there's gonna be two version of the plugin
One that has the metatiles stored in a 32x32 table in SRAM that is updated on scroll (the one I'm making for the mario game)
and the other version will be able to store the whole map metatiles in SRAM (with certain limits) This one is the one that'll be able to tileswap before rendering

[somber patio]

So with this other version, I would be able to say get to the edge of the screen, swap the tiles for the scene we are transitioning into, and then complete the pan into the new scene with the tiles already swapped?

[unreal haven]

Yes

[somber patio]

Can you explain a bit what you mean by storing whole map Metatiles In SRAM? Or, what that looks like in practice compared to how your current version functions?

[unreal haven]

Sorry I dont know how to explain it better, see it like an editable version of your background rom data. when a scene will load, it'll copy the background rom data to the ram, rendering will read from the ram instead of the rom.

[severe isle]

Quick question, when the plugin releases, will you still be able to use all 3 save slots?

[somber patio]

No worries! Thank you for breaking it down more. Really appreciate your awesome work, and this Mario port you're making is looking spectacular as well.

[unreal haven]

Right now I dont think it works with saving, since I placed it at the start of the SRAM, I'll have to figure out where to put it without conflicting with it

[pastel willow]

wait, so if you have a save file system in your game, it won't work anymore if you use the metatiles plugin?

[unreal haven]

Release of the Mario demake
https://github.com/Mico27/SuperMarioBrosMini
as well as the metatile plugin
https://github.com/Mico27/GBS-DynamicMapPlugin-alpha

I made it so that it works with the save file system (I use it to save the top score in the game)

[hot grail]

Amazing work!

[pastel willow]

I tried seeing how to use the metatile plugin by looking at the source code for the mario demake, and while there was a folder for it, there was nothing in it. Was another method used instead for the tiles, or does the metatile plugin go under a different name in the mario project?

[severe isle]

Amazing! Are you sure if it works with all 3 save files?

[unreal haven]

Its the DynamicMapPlugin-alpha folder, in the github repo link

[pastel willow]

I know, but when I downloaded the mario project to see how the metatiles plugin is used, I found out that it appears to not be used at all.

[unreal haven]

You have to download it separately, github doesnt seem to download sub repos

[pastel willow]

that's so weird

it downloaded the other plugins in the project

[unreal haven]

because the other plugins dont have their own repo

[unreal haven]

Yes it should work, depending on the sizeof your save file that is

[pastel willow]

except the simulate input and metatiles

[pastel willow]

ah

[pastel willow]

I do see the load metatiles event being used in the project, but that's really it.

[unreal haven]

Yeah thats pretty much all that is needed

[pastel willow]

so if you want to do coins, you just need to have a load metatiles event in a scene?

[unreal haven]

Well that and in the platformer file, I check the collided metatile for different tiles and call scripts depending on its type.
Its more performant that I do it in the engine and aggregate the amount of collected coins and call the script.

for getting and changing the metatile in script there's the "Get metatile at position" and "replace meta tile" events

[pastel willow]

I forgot that you're doing other versions of the plugins, so I should wait for those to come out

[worn pecan]

Ooo awesome

I’m the most interested in the actor behaviour plugin tho

seems rly awesome!!

[worn pecan]

( also if possible maybe someone could explain what do meta tiles do )

[pastel willow]

@unreal haven I found a glitch where you no longer can shoot fireballs as fire mario.

I don't know what triggered it, but it was in 1-3

[rugged owl]

Very excited to check this all out tonight. 🍻

[rugged owl]

Had a quick cheeky play before dinner and holy shit! This is impressive. Maybe the best platformer thing I've ever played in GBS. WOW.

[somber patio]

Looking to give this a try but when I compile (this is on a mostly blank project) I get this error. Any idea why? I should just be dropping the whole folder into the /Plugins folder right?

Also, what an amazing job on the Mario Bros port. It plays and looks wonderful.

[unreal haven]

oh I think I know the issue, probably an actor file I had in the plugin that I didnt end up using that was overriden by some other plugin, I'll remove it.
You can fix it by removing the actor.c and actor.h file from the plugin.

[unreal haven]

Thanks I'll look into it, probably a fireball actor that wasnt linked properly

[somber patio]

Hmm, I'm not finding the files within the plugin itself. Am I looking in the incorrect place?

[unreal haven]

Oh then its not my plugin, are you using the latest version of GBS?

oh nvm Ican see it in the warnings, looks like its the latest

It looks like there an old version of a file somewhere that doesnt match the changed type from one of the latest update

I'll try reproducing it with a blank project too

[unreal haven]

Just testing it with a blank project and it works, are you sure you project doesnt have an old engine eject or something?

[somber patio]

Just tried it again on a new sample project and no dice. Could it be because I'm on Version 4.1.0?

[unreal haven]

which sample project?

Oh I'm on 4.1.3, not sure which version it was where actor position signature changed, lemme look

[pastel willow]

I thought you were on a develop branch version

[unreal haven]

I have both version, I made a blank project in 4.1.3 to see if it worked with the plugin

[unreal haven]

ah I found it, the change was made in 4.1.2 so you'll have to update to at least this to use the plugin

[somber patio]

Ah gotchya, I'll do that. Thanks!

[pastel willow]

gotcha

[somber patio]

Works now, thanks! If it's not too much trouble, would you be able to give a rough description on what each of these events do or how one would use them?

[unreal haven]

Working on a tutorial right now so that it's a bit clearer on how to use it

[unreal haven]

Here I added some more information on how the metatile plugin works
https://github.com/Mico27/GBS-DynamicMapPlugin-alpha/blob/main/README.md

[rugged owl]

Fantastic! One small edit:
".. Then, you main scene's background .."
Should be:
".. Then, your main scene's background .."

[unreal haven]

Thanks! fixed the typo

[somber patio]

On your HitBlock script, where/how does the $Tile_ID ($HitBlockID) get defined?

[unreal haven]

In platform.c when there's a collision I do this

[somber patio]

Ah I see. Awesome thanks!

[somber patio]

Testing this (I just replaced a tile with that "1" metatile) and I find as soon as the camera goes offscreen, the tile reverts to normal on return. Is this normal or am I missing additional steps to assure the tiles don't reset?

[unreal haven]

No that is how this version works.

This version's metatile map in the SRAM is the same size as the VRAM, so it works similary

The other version that I am planning to make will have the metatile map in the SRAM be the same size as the map itself, which, while taking a lot more SRAM space will keep the modified tiles even if off-VRAM

Its two different behaviors for different use. Which is why you cant backtrack in the mario game I made, because changes to the metatiles gets overwritten as the screen scroll

[somber patio]

Interesting. I got a little ambitious and started thinking I could do a giant map instead of a panning one ha. I'll go back to that method.

This is a truly amazing plug in you've made though. My game relies on adjustable collision and required custom arrays and engine code edits. The Metatiles method is gonna open things up hugely for a lot of people.

[somber patio]

You had mentioned before that the Metatile Plugin can be used in conjunction with your scene scroll plugin to swap the tiles of the next scene before scrolling to it. Is that achievable in this version?

[unreal haven]

No that will be for the next version

[sour shoal]

Would the screen scrolling plug-in work with the platformer mode?

[unreal haven]

Technicaly yes, but keep in mind that it wasnt designed with it in mind so there might be some quirks

[drifting harbor]

Just asked this in scripting help, then I realized I should have just posted it here.

#scripting-help message

[unreal haven]

Yes when the submapped section goes offscreen, when the camera scroll back it rerenders the tile from the ROM data, therefore losing the submapped tiles

[drifting harbor]

okay, so a trigger right before it comes onscreen should do the trick?

[unreal haven]

The issue is that you have to do it after it rerenders it, which is at the edge of the screen

[drifting harbor]

okay, i think i can manage that

thanks for the help

[unreal haven]

np

[unreal haven]

https://github.com/Mico27/GBS-copyBkgSubWinPlugin
Added an example project for the submapping pluggin,
Shows how to do background submapping from the same scene,
submapping from different scenes and
Submapping from a different tileset

[young prism]

Did this, for the same reason, but now the player gets stuck going back/forth between two scenes when going vertically

Any thoughts @unreal haven? The top/bottom threshold variables are set to 384 (128 + 256 as per the previously-referenced solution). My impression is that I have to change that somehow but I'm not familiar enough with how the plugin works to be able to guess what I need to change

[unreal haven]

what is the size of your player character?

[young prism]

48x48 canvas, hitbox is 6x7, centered, 16 pixels up. Dimensions: (5, 16, 6, 7) -> (x, y, w, h)

Also, thanks for your help, & thanks for making this plugin! I had looked into making a scene scrolling plugin awhile ago but didn't get anywhere with it

[young prism]

@unreal haven ?

[young prism]

https://tenor.com/view/thanos-gif-25117042

(Found that setting the threshold in the definition doesn't work for some reason, but the "+ 256" solution works just fine)

[unreal haven]

Sorry was busy with something else, yeah not sure why the default values would cause that problem, but if adjusting the values fixes it then good

you're using the latest version right?

[young prism]

Yep

I got no clue. But hey, it works lol

[young prism]

This is still true btw

[sour shoal]

I've got a scene of 255 8xpx tiles high & 64 8xpx tiles wide. Would the single screen scroll plugin still work?

[young prism]

That's a good question which I myself have been wondering. @ me if you get an answer!

[slim agate]

Messing around with the screen scroll plugin https://github.com/Mico27/GBS-scrollScenePlugin and really like it.

However having an issue when I try to use parallax as well. I get something similar even if I done use the scroll to go from one area to the next. It seems as soon as I use it anywhere I have the issue with Parallax. I created a custom tileset between areas as well with https://gb-studio-tile-count.glitch.me/ but the it stays pretty much the same

Having some issue wrapping my head around the scroll offset outline in the github, but if there's a prior post I'd love to read it for help.

[unreal haven]

The plugin doesnt support parallax

[slim agate]

Anyway to stop it running, or if it's used at all it kills parallax?

[unreal haven]

I think paralax should work if you do a simple scene change without usin the plugin's event

[slim agate]

It wasn't for me. Still garbled.

[young prism]

Hey @unreal haven what do I need to change if I want a larger overlay UI?

[unreal haven]

Not sure what you mean by larger overlay UI, unless you mean making it a bit taller, you just have to make your scene a bit smaller

[tired sleet]

Sooo trying to figure out how to display text or ui? for ssome reasson each time i try parts sof the map disapear?

when the game freazzes thats when im trying to load the Text on screen

how does this work and how might i get ui to render?

[unreal haven]

What are you using to display text?

[tired sleet]

advanced diolague, or i was

[unreal haven]

Yeah I think advanced dialogue does funky things like copying background data to overlay so It might not be compatible with it

[tired sleet]

HMMM

oops caps

[distant pond]

Advanced dialogue B does that. Advanced Dialogue doesn't.

[tired sleet]

🤔

how might i draw ui?

[distant pond]

use the normal dialogue event with the non-modal option

[rugged owl]

I'm using the overlay for the UI in Cave Dave. Writing the text there via GBVM

[distant pond]

are you using GBVM because normal dialogue didn't work or for some other reason?

[tired sleet]

i see

[tired sleet]

so do you draw overlay and then Write text via GBVM?

[distant pond]

I don’t see why using GBVM the dialogue event could make a difference. But in not familiar with the metatile plugin so maybe I’m missing something.

[rugged owl]

I show the overlay like so:

VM_OVERLAY_SHOW 0, 17, .UI_COLOR_BLACK, 0 VM_SET_CONST_UINT8 _show_actors_on_overlay, 0
and update the HUD like so:
VM_LOAD_TEXT 3 .dw VAR_BOMBS,VAR_COINS, VAR_ROPES .asciz "\007\002\001\001\003\005\001%D2\003\014\001%D2\003\023\001%D2" VM_DISPLAY_TEXT

[tired sleet]

🤯

Im gona move to Scripting help

[unreal haven]

If you're using the default ui text stuff, you'll have to make sure that your tileset doesnt go over 192 unique tiles

[tired sleet]

mkmk

[tired sleet]

i reduced the tiles to 64 and still nothing

[unreal haven]

what does the VRAM looks like when you write text?

[tired sleet]

: V

how do i check that

[unreal haven]

When you are debugging, its at the bottom left

[tired sleet]

each time the numbers move thats me pressing select or start to change inventory items

[unreal haven]

try with the overlay filled white

[tired sleet]

nope

i dont even think the overlay is rendering

are there any plugin conflicts that i may have overlooked?

[tired sleet]

how does metatile submap work?

[unreal haven]

It allows you to replace metatiles from another scene

Like for example you could have in another scene a background image of a house, and you can "copy paste" the house in your main scene

[tired sleet]

mk 🤔 so i could also use it to load Chunks to make a map?

im guessing thats what EGVroom is doin?

[unreal haven]

No from what I've seen he seems to have made his own code for generating the map

[tired sleet]

ooooooh ok cool

[unreal haven]

But if you have presets section, it can be useful

[tired sleet]

Cool cool ill have to mess around with it.

[rugged owl]

I am generating the map myself yes. It's different every time you play !:)

[tired sleet]

would you possibly be able to show me how to do something similar some time?

[rugged owl]

It's here. #works-in-progress message

You can learn how to generate maps at that Spelunky link.

[tired sleet]

Ah I missed that haha 👍

[tired sleet]

what might i do about this 🤔

[unreal haven]

If you're generating your map dynamicaly you have to not use the scroll code, like what EGVroom did.

[tired sleet]

🤔

[unreal haven]

Go in the dynamicMapPlugin files, open scroll.c, and add a return (without the //) so that it doesnt render over your dynamicaly rendered scene.

[tired sleet]

like this?

[unreal haven]

no, litteraly just do what I did in the screenshot without the //

The point is to not call scrol_viewport in scroll_update

or alternatively you can comment out the scroll_viewport calls,
or add your own condition if you want to enable/disable it

[tired sleet]

i justy noticed i coppied the code from above to bellow it

thank you a ton

[young prism]

It'll just work if I do that? I seem to recall you saying it's only meant for scenes of size 160x144 or 160x128, just wanted to make sure there weren't any constants that I had to change or anything like that

[young prism]

@unreal haven How would i edit the Metatiles plugin to allow for 4x4 metatiles?

My initial thought, looking at meta_tiles.c, is to add some more pointers to different rows of the tileset

[unreal haven]

You'd have to rewrite the way the scroll rendering works, also you'd need an additional mapping to specify how a metatile with multiple tiles is built.
Also you'd have to figure out how you create the scene in gbstudio that support multi-tiled metatiles (best way would probably to have an external way of creating the map data).
Not a simple edit, would be pretty much a whole overhaul of the plugin.
I was planning on making a version of the plugin that support multi-tiled metatiles eventualy but I'm busy with other things at the moment.

[young prism]

Hmm. Ok. What do you mean by figuring out how to create the scene in GB Studio?

[unreal haven]

Well unless you're dynamicaly creating your scene data, you'd have to create a scene in GBStudio to hold your scene data.

[young prism]

I was planning on generating it dynamically, and having a separate scene using the same tileset for organizing the metatiles. I was gonna find a hacky way of combining it with your scroll scene plugin if possible

With a 2x20-tile UI, you can cover the screen in 20 4x4 metatiles

[somber spruce]

Quick question about editing Scroll.c to preserve metatiles when scrolling away and back...

I understand that this will limit the Scene size to 256x256 pixels. My question is, will this apply to every Scene in the game? Or is there a way to turn it on or off for certain scenes?

[unreal haven]

Yes that would apply to every scene in the game so you'll have to add a variable that you can switch on n off to swap between the old scroll code what whatever modifications you do in scroll

[mossy star]

when using the metatile plugin on topdown mode, if the screen moves passed the meta tiles i've replaced, they return to their default tiles. what would i need to edit in order to preserve those tiles when scrolling?

[mossy star]

I had attempted this but I'm not rendering a scene, just replacing a few tiles for collision. It preserved the meta tiles I wanted but the rest of the map was blank. is there any way to keep the map from the current scene while doing this?

[unreal haven]

Nope, to be able to handle more than the 32x32 tile buffer you'd have to rewrite the whole thing and that point it'd be an entirely different plugin

[mossy star]

Awesome, thanks for letting me know. I'm going to try it alongside your scroll scene plugin and see how that works for what I'm trying to do

[mossy star]

i'm attempting to use meta tiles and the scroll scene plugin together, i am now getting this error when attempting to run.

any ideas on how i can fix that?

[unreal haven]

Well they're not compatible because both edit same files

You'd have to rewrite an hybrid of the two

[mossy star]

ah that sounds complicated lol

[mossy star]

would it just be a hybrid of the two collision files since that's the only errors occurring?

i'm just trying to figure out how complicated making them compatible would be

[young flame]

eyooo just used the Copy ROM data to variable plugin to store items data this is gonna make my life so much easier!

[unreal haven]

New plugin that allows attaching scripts to when tiles (columns, rows or whole screen) are rendered
https://github.com/Mico27/GBS-TileRenderEventPlugin

[arctic wyvern]

@unreal haven Is there a way to use your plugin where metatiles could be interacted with projectiles? Thinking brick breaker.

[unreal haven]

You'd need to make a plugin that sends and register the projectile coordinates on collision and send an event, and on the event check the tile it collided with and do whatever you need to do.

[young flame]

Mico have you had the chance to look into text scrolling in ui_alt_draw_text_buffer_char() yet? I compared how \r is handled in your code vs in ui.c and noticed a good bit missing so I copied and adapted it but it doesn't do much. Here's what I did:

 case '\r':  // 0x0d
                //og code
                //ui_alt_dest_ptr = ui_alt_dest_base += 32u;

                // line feed
                if ((ui_alt_dest_ptr + 32u) > (UBYTE *)((((UWORD)text_scroll_addr + ((UWORD)text_scroll_height << 5)) & 0xFFE0) - 1)) {
                    scroll_rect(text_scroll_addr, text_scroll_width, text_scroll_height, text_scroll_fill);
                #ifdef CGB
                    if (_is_CGB) {
                        VBK_REG = 1;
                        scroll_rect(text_scroll_addr, text_scroll_width, text_scroll_height, overlay_priority | (text_palette & 0x07u));
                        VBK_REG = 0;
                    }
                    #endif
                    ui_alt_dest_ptr = ui_alt_dest_base;
                } else {
                    ui_alt_dest_ptr = ui_alt_dest_base += 32u;
                }
                if (vwf_current_offset) ui_print_reset();
                break;

Here is the result of this:

; Text Dialogue
    VM_LOAD_TEXT            0
      .asciz "\\003\\3\\16This is so long\\nI can't believe\\nWe need more\\006\\020\\rthan two lines\\rto display all\\rthis!"

    VM_OVERLAY_CLEAR 1, 12, 18, 5, .UI_COLOR_WHITE, ^/(.UI_DRAW_FRAME)/
    VM_OVERLAY_SET_SCROLL   2, 13, 16, 3, .UI_COLOR_WHITE
    ;VM_CALL_NATIVE b_ui_alt_display_dialogue, _ui_alt_display_dialogue
    VM_DISPLAY_TEXT
    VM_OVERLAY_WAIT         .UI_MODAL, ^/(.UI_WAIT_WINDOW | .UI_WAIT_TEXT | .UI_WAIT_BTN_A)/

and here is the result of using your alt_display_dialogue() function:

; Text Dialogue
    VM_LOAD_TEXT            0
      .asciz "\\003\\3\\16This is so long\\nI can't believe\\nWe need more\\006\\020\\rthan two lines\\rto display all\\rthis!"

    VM_OVERLAY_CLEAR 1, 12, 18, 5, .UI_COLOR_WHITE, ^/(.UI_DRAW_FRAME)/
    VM_OVERLAY_SET_SCROLL   2, 13, 16, 3, .UI_COLOR_WHITE
    VM_CALL_NATIVE b_ui_alt_display_dialogue, _ui_alt_display_dialogue
    ;VM_DISPLAY_TEXT
    VM_OVERLAY_WAIT         .UI_MODAL, ^/(.UI_WAIT_WINDOW | .UI_WAIT_TEXT | .UI_WAIT_BTN_A)/

The \006 to wait for input works perfectly fine tho

[unreal haven]

Oh I fixed that a while ago, I forgot to push it on github.
https://github.com/Mico27/gbs-uiAltDisplayTextPlugin

[young flame]

oh heck yea! im out for the evening but ill def have a look asap! tysm!!

[young flame]

Morning! Ok so i copied the new file but I get the same behavior as before of not scrolling, is there anything else I need to do?

[unreal haven]

weird, I copy pasted your code and it works for me, not sure what's different here

[young flame]

hmm lemme see

Deleted my c file and recopied it from the zip

aaah ok now it works, my bad, apologies and again thank you very much

[unreal haven]

New plugin dropped
https://github.com/Mico27/gbs-Metatile16Plugin

[hot sun]

I'm needing an awesome video tutorial on how to use these plugins, their benefits and example cases. I've played with the demo example and it's pure witchcraft to me, lol!

[somber spruce]

Huge thankyou for this Mico. I'll now be able to have tons of item pickups in my grid-based strategy game, without needing to program individual triggers and leaving tons of room for extra tiles. Absolutely massive 🔥

[unreal haven]

I'll try and improve the documentation, I really suck at explaining things in a structured and comprehensible way haha...

[hot sun]

Oh, that comment wasn't directed at you to complete. The documentation is great, as are the demo projects - I'd just like to see/hear someone explain it to me so I know how awesome it could make my games - Ted Talk style! Haha

Maybe I'm just missing watching some fresh GB Studio videos on YouTube?! 🤪

[unreal haven]

I just updated the metatile plugin on github, nobody told me that the plugin folder was missing from the commit until 30 minutes ago 😅

[sour shoal]

Would this plugin work with version 4.1.3?

[unreal haven]

I think the plugin itself should work, but the example project can only be opened in 4.2.0

[sour shoal]

How did you get coin tile collision to work?

[unreal haven]

In the platformer plugin, I have a function that checks when the player enters a tile and I check its metatile ID, if its a coin, I change the metatile to an empty one and call an event script if I want to do something when the coin is collected. Usualy its for adding the coins to the counter and updating the ui

[hot sun]

I think that was the part I couldn't understand with the demo/testing... I got the scene working with metatiles, collisions etc.. but it was the logic to know if player hits tileX - do something. Is this tile check an event?

[unreal haven]

At the end of the platformer_update function, I have a function that checks if the player entered any new metatiles.
In the check_player_metatiles_entered function, I check for any new tile entered.
Then in the on_metatile_enter function I can check the metatile id of that tile and if it match one of id of a coin, I change it metatile and add to the VAR_FRAMECOINS variable
Which, once its done checking all entered tiles, if its non-equal to 0, I do a script_execute of the script that will append the VAR_FRAMECOINS to the coins total variable and update the UI.

Similary, when evaluating tile collisions, if there is a collision at a tile at a certain collision, I call the on_player_metatile_collision function.
Which I also then check the direction, the metatile ID and if its a brick or some such, I store in variables some info such as the position of the block, its metatile ID, and who hit it (in this case the player = 0) and call the script that will do whatever it needs to do.

[hot sun]

That's awesome. Thanks for the explanation!

[unreal haven]

Another plugin (made by necessity because of the metatile plugin that could use too much SRAM space and conflicting with the default save data structure)
https://github.com/Mico27/gbs-ConfigLoadSavePlugin

[distant pond]

Nice one!

[golden moat]

Out of curiosity, what are metatiles? I've seen mention of the plugin for them several times, but because I'm not that experienced with gamedev I'm unsure what they are.

[hot sun]

It's an advanced technique to build and manage tiles dynamically on a scene, which gives you more options to do more. It's great, but a complex setup if you're just getting into it 👌🏻

[severe isle]

This looks great! The fact that the tiles persist after going ofscreen is amazing

Is there any way to use this with 8x8 tiles? I believe the DynamicMapPlugin can do this, but it doesnt persist like how the Metatile16 plugin does

[unreal haven]

I could, but 8x8 require 4 times the amount of SRAM space, so map size will have to be much, much smaller

making a 8x8 version of the sreenscrolling however seems reasonable

[severe isle]

If 8x8 means needing a much smaller map, Ill probably just use the 16x16 metatiles for my project

(someone else might find it useful though)

I was surpised to see how big the platformer scene was with the metatiles, your plugins always amaze me! 🙏

[severe isle]

@unreal haven I was using the Metatile plugin and noticed that the sample project (with the Mario background) had a modified version of Platformer Plus that retained some of the data from SMB Mini.

I'm using the alpha version of GBS 4.2.0. Previous P+ builds seem to be too large for the engine (playerstates.o and playerstatesb.o in specific), but this minimal version works great.

Do you plan on releasing this minimal version of P+, or merging some aspects of the minimal P+ with base P+?

Do you mind if people (including myself) use the modified P+ plugin found in SMB Mini/Metatile Project in other projects?

[unreal haven]

Sure I dont mind, do whatever you want with it.

[toxic linden]

does this extension allow things like the pokemon crystal save structure to sram?

for things like the pokemon and their attributes

[unreal haven]

For a pokemon crystal save structure, global variables would be very hard to manage that. It would be preferable to define a struct in the engine and have an array of those and create custom events to manage it.
This plugin's event currently only allows global variables to be configured in the save. Technicaly however its possible to specify engine variables to be saved if you write your own save_points files manualy instead of letting the configure save event create it.

[toxic linden]

ohhhh I understand. very interesting. thank you lots for the insight

[unreal haven]

Alternatively, you could also create the engine variable at the SRAM address and read/write directly there so you dont have to use WRAM space for that.

[somber patio]

Hey Mico. I'm messing around with this plugin, would you mind explaining a little bit more about how to use it? I'm trying it on an Adventure plugin scene and can't replicate what you did in the example.

[unreal haven]

Which adventure plugin are you using? you might have to do some edits to match the edits that are in the metatile plugin

[somber patio]

Sorry, I meant Adventure scene type. Do you have to swap tiles using the metatile plug in when using this? Can it be Replace Tile At or a Call Script?

[unreal haven]

If you're replacing tiles, you have to use the "replace meta tile" or the "Submap metatiles" events

Look at the demo project for example, where in the 3rd scene's init it randomly submap the house in depending on a random variable

[somber patio]

You're talking about the Metatile 16 plugin right? I'm looking at the TileRenderEvent, with the Mario coins.

I am making progress, but still understanding at what point the camera considers it has triggered the Render Event. I'm finding the if the XColumn is too close to the initial camera, it won't trigger the even that I have set. But it will if I put it say, 2+tiles away and then move the camera.

[unreal haven]

No I'm talking about the zelda one:

[somber patio]

I did also look at this haha. It's very cool! But I think this plugin of yours may be extremely beneficial to my project if I can utilize it right https://github.com/Mico27/GBS-TileRenderEventPlugin

[unreal haven]

oh right, sorry assumed you were initialy talking about the metatile plugin

[somber patio]

No worries! It's a fair assumption since you just launched it

Pardon the jank, but you can see here, even though the plugin loads the most of the scene, it can't do that first initial column.

[unreal haven]

Well the plugin simply just fires the event whenever a row, column or the whole screen is rendered at once. There could be many reasons why its missing some columns here, could be that they were rendered before you could register to the event, could be that they were fired from before the scrolling because of rendering padding, but I cant be certain especialy not knowing whats happening in your code.

[somber patio]

I have a script that allows me to flip two columns of grass (based on what has or hasn't been cut). So basically when the camera moves to that render spot, I'm having it call the script. I suppose I could call those first columns before the camera move, though that feels less automatic or possibly not as fast.

From what I'm gathering if the camera is already in the spot, it's already rendered. And possibly it's already rendered the nearby surroundings.

[unreal haven]

Just to clarify this is all one scene right?

[somber patio]

Yep yep

Maybe instead of storing the Pending_h_x I can store just the current X first since that's where it starts.

[unreal haven]

there is no other current X, Pending_h_x is the current X.
My guess is that when you first start the scene, you arent managing the padded rendred columns/rows. You'd have to either remove the padding from the scroll code or before moving your camera, reset the scroll_x and current_col (current_col despite its name, is not the actual current rendered column but the previously rendered column position)

Alternatively I'd really recommend using the metatile-scene scrolling plugin instead. It'll fix pretty much all the issues you're currently having and will be much more performant than this method.

[somber patio]

https://github.com/Mico27/GBS-scrollScenePlugin You're referring to this one right?

[unreal haven]

no this one: https://github.com/Mico27/gbs-Metatile16Plugin/tree/main and use the screen-scroll variant

[somber patio]

Hmm. So my project is almost entirely unique tile swapping since it's all about cutting grass. Every camera shift I have to load up that section of grass from memory variables before I pan over to it. My current method is doing this all in one scene utilizing camera tricks. Is there a way I could be adjusting the tiles of a neighboring scene using this plugin before panning over to it? Essentially, could you cut the grass in test_map 2 of your plugin, record it, and then it would always be gone when you panned back to it?

[unreal haven]

yes, there is a demo project in this that shows exactly that (look at the init script of the 3rd scene where it generates a random value and draws a house that will be displayed before the scene scrolls, like I said in a previous post, this one uses the submap metatiles event but it can be done for individual tiles with the replace meta tile event)

[somber patio]

Oh wow, okay I see. I will do some tests with this more tomorrow. Thanks for everything Mico!

[somber patio]

I'm running into this error when I try to compile my project with the plugin in the folder. I am currently using a modified version of the Adventure Plus plugin. Would that be causing the conflict?

[unreal haven]

Check what files the other plugin are changing, from what Im seeing here there's a plugin that changes projectiles.c that didnt get updated with the latest GBStudio version where they changed player position to use signed point, and if interrupts cant find bkg_scroll_x/bkg_scroll_y its probably because another plugin is modifying scroll.c/scroll.h

[somber patio]

Fixed the second part. It was because I had the other tile swap plugin that we were talking about before. As for the projectiles, I'm searching through the plugin files for any mention of "projectiles". That's what I should be looking for right?

[unreal haven]

yeah

[somber patio]

When I search within all the plugins, the only files that mention projectiles are the "data_manager" and "scene_transition" files that are in the metatile plugin

[unreal haven]

which version of gbstudio are you using

[somber patio]

4.2.0 Alpha0. Most recent one I could find on the Github actions tab yesterday

[unreal haven]

are you sure you dont have an ejected engine?

[somber patio]

Ah, yes I did. Apologies, I didn't know that would affect things. Now though it's not recognizing my edits in the Adventure Plus plugin. I only ever made edits to those, so I'm a bit confused why unejecting the engine is causing an issue

[unreal haven]

When you eject the engine, any updates made to the engine by gbstudio wont be made

Imo its better to have your engine edits as plugin instead of ejecting the engine to prevent that kind of situation

[somber patio]

Oh the engine edits are in a plugin. They're just added things to Adventure Plus

[unreal haven]

Now from the error I see here, you probably added a new function in the ejected engine that was being referenced in your scripts

oh ok, then your grasscut function is in adventure.c correct?

[somber patio]

Yep yep. There's a whole bunch of functions the error references, it's all things that are in adventure.c, in that plugin. No changes in the ejected engine (it just was unintentionally ejected)

[unreal haven]

kk, then now what you need to do is to "merge" your adventure.c with the other plugin's adventure.c

I believe all I changed in my plugin in adventure.c was to remove clamping the player position when offscreen

lemme check real quick

Here change this in your adventure.c and you can delete the adventure.c from my plugin

[somber patio]

Gotchya, that worked, it's booting now. Thanks!

[unreal haven]

Lemme know if you have question about the metatile setup

[unreal haven]

Released the 8px metatile version of the metatile plugin, renamed the repo to just the metatile plugin since it contains both the 16px and 8px version
https://github.com/Mico27/gbs-MetatilePlugin

[severe isle]

Nice! Two questions,

Whats the largest scene size possible with the 8px metatile plugin? Would a 1600x288 pixel .png work?

Will you add slope support to your P+ fork? To my knowledge its the only feature in from Super Mario Bros. 3 thats missing in the fork

[unreal haven]

Dimension limitation are the same as normaly, but the total tilewidth×tileheight must not exceed 8k which is the size of the sram, and the more sram to take forit, the less you'll have for save data

[unreal haven]

Another one to the pile
https://github.com/Mico27/gbs-AttachScriptToInputExPlugin

[hot sun]

You're just a plugin machine at the moment! You spoken to @uneven orchid @smoky thunder about integrating any of these into the core? Thinking more of the "simpler" ones than the beast-metatiles plugins, etc. Some of the event based plugins would be handy to have as extended built-in events?

[unreal haven]

Most of them modify or add to the engine so I think those would be best to stay as plugins.
The only "pure" event plugin I have here is the one I just released (the script to input ex plugin)
which doesnt modify the engine.

[hot sun]

ahh... ha, fair enough! 👍🏻

[unreal haven]

I mean, its good to extend the toolset of gbstudio, but imo not at the expense of bloating the engine with stuff that only a few would use or has too much of a specific use case. But I wouldn't object if chris were interested to add some.

[livid epoch]

Thank you so much!! I was in bed at 10.30 last night going through the GBDK docs working out how I would make something like this and here it is. Amazing! Great work

[distant pond]

Honestly this one should be merged into the main GB Studio. Out of curiosity why does it need to be inside an an existing attach script event?

[unreal haven]

I tried at first to make one that replaces the default attach script event but the way it creates the banked script inside didnt work with what I was trying to do. The only way I could make it work is making it inside of the attach script instead.

[somber patio]

I'm working on starting this in its most basic form, using an empty map and just a few tiles, to learn how the replacement goes. My Tileset is the same as the grasstileMeta, but at 160*144. I have the scenes set to share tilesets and load the metatiles on scene load. However when I load, instead of being light, the background is all black.

[unreal haven]

Can you show screenshot of the scene properties and scripts?

[somber patio]

The GBVM here is to disable collision with my specific engine edits. It's still a black bg even with that off.

[unreal haven]

you're in DMG mode right? you can uncheck the "must match metata color attributes" checkbox

Also what does your Remove Cut Grass Collision do there?

[somber patio]

This really may not be necessary, but this was from before your plugins were released. The engine creates a 20*18 Array and references the flags of 5 Variables to determine which 16px squares have or do not have collision. So calling the script in this scenario clears all collision since all the flags are off. It's not doing any actual tile swapping or anything.

To clarify, I haven't called any changes yet. Just opened the scene with the blank bg and the tilesets linked

[unreal haven]

kk, if I were you I'd just make a new project entirely first with just the metatile plugin to make it work so that you're sure there's nothing funky going on here with pre-existing stuff

or if you can send me the current project, I can take a look more in detail on whats wrong

[somber patio]

Kk, I'll give the new project a go and if I can't figure it, I'll send over the project. Thanks!

[somber patio]

Started a clean project and got it working (I think I found the issue with my project too). However, when I replace the top right corner, go off screen, and return, there's a random piece added to the bottom left (also the top left flashes on screen at the start of the transition back). Both BGs are separate PNGs.

Project has none of my engine edits, it's just a new project with your plugin and the BGs and tilesets

[unreal haven]

uncheck commit render

When you replace metatile in the init script, commit render should be unchecked or otherwise weird stuff will happen during screen transition.

only have it checked when for example your character cuts a piece of grass

Oh also, is there a reason you're using 20x18 scenes instead of 20x16 scenes? arent you using a 16px height hud at the bottom?

[somber patio]

When I uncheck commit render, the grass doesn't show on scene load, and still does the double grass when I leave and return.

Yeah, I suppose I'm going off of the old HUD method that used tileswaps. I can adjust to 20*16 if that's a factor

[unreal haven]

Yeah I checked and I think the plugin only support the scene to be at max height of 16, I'll fix that but yeah that should fix your problem. Also for the piece that doesnt show up on scene init I think I know the problem, you'd have to make the distinction between if the init is run during a normal scene change and a screen scroll to see if you check it or not, I'll do a fix for that too.

[somber patio]

Okay cool! Thanks Mico

Oh one other thing, I found that the Source X is requiring multiples of 6? Like instead of 0,2,4,6,8, I can only get those tiles with 0,6,12,18,24

[unreal haven]

I forgot to specify, but if you are replacing metatile, if its for a single tile, use the replace metatile event instead and if you are submapping bigger stuff, you have to submap from another scene that loaded the metatiles, not the metatile scene itself.

[unreal haven]

I updated the plugin, I added to the example project with a 20x18 scene that adds random bushes on scene init so you can see how it works

[somber patio]

Thanks for the edits! I've been working on implementation the past few days. I'm running into an issue as far as I can tell is not from my scripts. When I change scenes, the tiles on the edge the player comes in on only half swaps. And then any time I walk to the left scene, the player disappears. I can't quite figure out why.

[unreal haven]

what does your script look like

[somber patio]

The main script that loads grass checks each flag individually and swaps to the proper tile based on whether or not it's cut, a wall, etc. It works fine on that initial screen load but then moving to the right it gets cut off partially. Wondering if there could be an issue with my engine edits maybe? Changing that code made sure the X position on the right side works, so maybe I need to change something for the other side.

[unreal haven]

Check the commit render, I made a change that you shouldnt need to have it unchecked anymore

[somber patio]

I had it checked previously and was having the same issue. The unchecking was recent to see if it changed anything and it hadn't.

[unreal haven]

I think at this points it hard to figure out the issue like this, can you send me your project It'll be faster to figure out the problem.

[somber patio]

Shoot I spoke too soon and figured it out. Sorry Mico. It was a problem with my collision array. When I swapped back to the normal collision engine, it scrolled just fine. I think I should be able to utilize your collision methods instead of the array.

[unreal haven]

Yeah just use the plugins collisions, its built-in for what you're trying to do anyway

[somber patio]

Yeah it works immediatly haha. This is so much easier than the array. I'm glad you've given the community access to this kind of feature. Really game changing.

[unreal haven]

I updated the screen-scroll version of the metatile plugin, I found a bug where if you were to edit tiles at the border of the scene on scene scrolling there would be some that were not rendered.

[somber patio]

Awesome, thanks Mico. It's working 👍

Is there some code I can change in the plugin so when I check "Round Position to the nearest tile" it will round to the nearest even tile? So only 0, 2, 4, etc.

[unreal haven]

In top down 2D? it should work if you just put the setting to 16px grid.

[somber patio]

It's adventure. It's a specific thing to my game so that when a player transitions to a new screen, at worst it only cuts the one piece of grass they would move into, and not two. No worries though, I got a solution figured out.

[unreal haven]

'nother one
https://github.com/Mico27/gbs-EditActorActiveIndexPlugin

[golden moat]

My saviourrrr

Going to give this one a spin for sure.

[rugged owl]

Oooooh!!! I’ll be taking a look at this for sure for layering the riders etc properly in Hero GP. 👏

[golden moat]

I may have to try and find a way to determine overlap based on Y position using this, if that would be possible.

E.g. if the player's Y coordinate is a larger number, draw the player over an Actor, if the player's Y is less, draw the Actor over the player.

Strange, Github isn't loading for me.

[unreal haven]

reload, maybe its because I just pushed a quick fix

had misplaced an engine file in the plugin hierarchy

[golden moat]

Github in general is suddenly not loading and I don't know why.

The main page too.

[icy flume]

Works for me

[golden moat]

Weird.

Let me try a different browser.

Still nothing.

Strange.

LibreWolf, FireFox and Chrome all can't seem to reach the server.

But other sites and Discord still work, so it's not that my internet is somehow down.

[unreal haven]

mmm dunno, site is up on my end, even in incognito mode so maybe is a region issue

[golden moat]

I'm in The Netherlands, so possibly.

Going to eat some soup and try again later.

[keen pivot]

Been wishing for this functionality for so long, can't wait to get it implemented!

[somber spruce]

For games that are both DMG and Color compatible, will this plugin cause errors when played on DMG, or just do nothing?

[unreal haven]

No it wouldnt cause errors on DMG, it would simply have no effects.

[somber spruce]

Awesome

[rose oracle]

This plugin can be a good solution to combine two buttons?

[golden moat]

Github is finally loading correctly for me, still no idea what happened the other day. If I want to download the Edict Actor Active Index plugin I just need to download the source, right?

[somber patio]

I noticed with the metatile plugin if I go from a scene utilizing the scroll function to a completely different scene, I can no longer use the standard GB Studio collision (where you paint it on the map). I do this for my town area. Is there any way to revert back to that normal collision in a scene instead of the submap way? I'm guessing I could make a new metatile scene but I'd like to avoid having to do that for the already designed and painted non-gameplay areas.

[unreal haven]

Pushed an update to the plugin so this should fix this issue.

btw you dont need to submap stuff to build a metatile scene, you can make it like a normal scene, the tiles just have to match the metatile scene.

[somber patio]

Perfect, works great. Thanks!

I'm almost done fully implementing your plugin and the results are really incredible. At very least it's cut down my screen transition time by almost half.

[keen pivot]

Hello, hoping you can help! I've been testing out the actor plugin which is incredible, but I'm encountering in issue where the actors set to a higher index don't retain their collisions.

For context, I'm using the top-down 2d scene type, and I've set the scripts up on horizontal screen-wide triggers that reorder sprites accordingly

[hot sun]

Some sweet pixel art sprites there

[unreal haven]

urg I was hoping I wouldnt need to edit the actor class but alas.
I updated the plugin, I had to modify actor.c's overlapping detection function to iterate from the end of the active list instead from the Player actor (which was always at the end of the list before).

Make sure you're not using any other plugin that modifies the actor files (if thats the case, make the same edits in the other plugin)

[keen pivot]

That update works perfectly. This is genuinely a feature I've wanted in gb studio since day 1, the amount of freedom this just gave me in designing larger sprites is insane. Really great job!

[mossy star]

So if I'm understanding correctly, we are no longer limited to the screen size when using the meta tiles plugins?!

[unreal haven]

Only the screen scrolling version of the plugin is still limited to screen size, the other two arent.

[mossy star]

That's incredible. That must have been a crazy amount of work! Thank you so much

[somber spruce]

I've been working with the metatiles plugin and it is awesome, truly (and literally) a game changer.

Since I have more than 16 different metatiles, I'm finding I need to use VM_SWITCH rather than the Switch event to account for all the different conditional branches.

Is it possible for me to write the Replace Metatile event in GBVM?

[unreal haven]

you can do:
pushing to stack commit (1 if the change is on screen, 0 if offscreen)
pushing to stack metatile id
pushing to stack y position
pushing to stack x position
then
VM_CALL_NATIVE b_vm_replace_meta_tile, _vm_replace_meta_tile

[rose oracle]

I starting with 8px metatile plugin. In adventure mode works fine but I have a doubt with platformer type.

How I simulate jump to a block (like super Mario) and player doesn't cross the block

[unreal haven]

Did you check the example project for the 8px metatile plugin? it uses platformer type and has Mario blocks

[sour shoal]

Does the 16x16 metatile plugin work with P+ with slopes?

[young prism]

I check back in after a couple months and find that you went and dropped like four new plugins smh how am I gonna keep uppp

[unreal haven]

Yes

[young prism]

Hey @unreal haven question: Is there a way to store scenes in ROM as metatiles, other than converting a normal scene to metatiles upon load? Also, is it possible to convert the metatile16 + scroll scene plugin to use 4x4 (32x32) metatiles? It looks doable but IDK if it would break something

To clarify re: my first question. I want to know if it's possible to "define" a scene of metatiles in an external c file and then "load" that scene as you would load a regular scene

Or, possibly, replace all the metatiles in a particular scene with the predefined ones

[unreal haven]

For the ability to have an external file, not really, which is why it work the way it does right now by having the load metatile event which upon compiling will rewrite the scene tilemap file with the metatile ids.

As for having it a 32x32 metatile version that would require to rewrite a separate version (again) with it in mind.

[young prism]

Wait, so when the game is compiled, the actual scene data is saved as metatiles?

[unreal haven]

yes thats how it works

[young prism]

Oh cool

That kinda eliminates the need for separate files then

[unreal haven]

If you check the code of the load metatiles event, you'll see that on compile it'll parse trough the scene tiles to check for matches with the tiles in the metatile scene and then assign the Ids of the matching metatiles, if a tile or group of 2x2 tiles is found in the scene that it cant match a metatile, it will throw an error during compile with the position of the non-matching tile

[young prism]

I assume that reduces the amount of bytes used by each scene?

[unreal haven]

yes

If you're using the 16x16 version that is

[young prism]

Ah yes

[unreal haven]

but even with the 8x8 version it'll remove the attribute tilemap

[young prism]

Can you have multiple metatile maps?

[unreal haven]

yes

[young prism]

This is game-changing

(pun intended)

Do you have to use a common tileset to scroll between metatile and non-metatile scenes?

[unreal haven]

You have to use common tileset to use the metatiles in general anyway

[young prism]

oh duh lol

Sorry, I'm at work and trying to get a grasp on how much I can do with this gigachad of a plugin

Approximately how fast is it to switch out an entire scenes' worth of metatiles on load? For generating new scenes

[unreal haven]

You're doing procedural scene generation?

[young prism]

Partially. At least, thinking about it

Right now I'm working on two ideas--one using metatiles + partial scene generation to get a massive game world, one using entirely procedural generation for the same thing

[unreal haven]

Well its doable, "fast" will be depending on what your generation code does

[young prism]

For example: in #graphics-help there's a post saying that you can probably fit about 300-500 unique scenes in the 4mb ROM size. Roughly, using metatiles, you could extend that to an upper limit of 2000, but GBstudio itself might run into performance issues with that many scenes. So I'm looking into alternatives, namely, reusing as many scenes as possible and changing metatiles here and there to make them less repeatable

[young prism]

How fast simply to replace all 80 16x16 metatiles in a 160x128 scene?

I'm working on optimizing my generation code as much as possible

For some scenes, the replacements will be static, so those would be the quickest

[unreal haven]

Havent really benchmarked such a thing, so you'll have to see for yourself, but its litteraly just puttin an Id in an array, so the bulk of the workload is gonna be your algorythm

[young prism]

Thanks 👍

[unreal haven]

And also its best to do the generation in c code instead of script, since with scripting there's a lot of back and forth thus making things slower

[young prism]

I'm using multithreading combined with simplified generation schema in order to pre-generate the data before it's actually required, which is working out so far

[unreal haven]

There's also a submap metatiles event which allows you to submap sections of metatiles from another scene so that can be usefull too

[young prism]

Yeah, I'm thinking of using that to copy 4x4 chunks

This is the arrangement I'm trying to go with. I think it's a good compromise between unique elements and simplified processing

[severe isle]

Which P+ plugin is compatible with slopes?

Using P+ 4-alpha-0.1 results in the error:

Object file too large: playerstatesb.o
Cancelled Build ```

Using `P+ 2-alpha` results in the error:
```Object file too large: platform.o
Cancelled Build ```

Using the fork of P+ provided by the metatile plugin works, but attaching slope collision to a tile is like attaching no collision to a tile

[unreal haven]

Oh right, would probably need to rearrange P+ to be split even more, I remember P+ being pretty thigh on single bank space

[unreal haven]

Are you planning to have scenes that are not using metatiles where you want to have collisions?

[severe isle]

Potentially, but I could work around giving every scene metatiles if need be

[unreal haven]

well you can try going in the plugin's collison.h file and

Remove the else section and see if it'll fit the bank after

[severe isle]

Doing this now

Would it be possible to fix the Object file too large: playerstates.o error by deleting some features of P+?

[unreal haven]

Yes if you delete feature or straight up states that you dont want to use that can help

like for example, in 4-alpha-0.1 this is playerstates.o which doesnt fit the bank
You could get rid of the kockback state if you dont need it for example, or you could create a playerstatesd.c file and move some states in that new file

Same with playerstatesb.c which if you dont need wall jumps in your game, you could remove the wall_state

[young prism]

One more question: If I change the tileset a map is using, will the metatiles be affected?

[unreal haven]

You mean like, tileswapping the tileset to animate tiles?

I made a chart that is on the plugin's github that explains how its all mapped out
if you were to change the tileset, it would act just the same as without the plugin

[young prism]

Yes, but with the entire tileset at once

[unreal haven]

Yeah same thing, it would work the same way as before

[young prism]

Cool. Thanks!

[severe isle]

With a few edits, slopes and metatiles now work! No edits to the collision.h file were needed

[severe isle]

You have stated the total tile width * height must not exceed 8k. Using this formula, average platformer scene in my game is less than or equal to 7200.

How can I calculate how much space I have for regular saving?

[unreal haven]

Which version of the metatil plugin are you using again? 16x16?

[severe isle]

8px

[unreal haven]

ok I was asking because the screenshot you posted above was using the 16x16 example project

[severe isle]

Ohhhh yeah, I was using that as a base to test out slope collisions

[unreal haven]

this is the limits for the 8x8

that leaves 1024 bytes for saves

[severe isle]

So if one variable is 2 bytes, that leaves 512 variables spread throughout three save slots?

[unreal haven]

GBS default save size depends on how many variables you use and I dont think it would fit 3 save slot in there, If you have issues with save space,
uses this plugin to save only the variables you need to save so that it can fit in
https://github.com/Mico27/gbs-ConfigLoadSavePlugin

The thing is that default GBS saves doesnt only save variables but a lot of other things like script context, stack, current scene, etc

If you were to use this plugin and want to use the 3 save slots, you could fit 170 variable (1024 / 3 / 2)

or triple that if you only use 1 slot

[severe isle]

Thanks for the help! Is it possible to exceed/change the MAX_MAP_DATA_SIZE without any issue?

[unreal haven]

You can change it but you have to make sure that :

• it leaves enough SRAM space for the collision data + save data
• the "width" must be a power of two (your scene width can be smaller but cant exceed this) and cannot exceed 256
• Gotta recalculate the position of the __at()s for sram_map_data and sram_collision_data
• Make sure to update meta_tiles.c and collisions.h with the same values

[slim agate]

Just wanted to say, whatever changes have come to the MetaTile16 plugin since feb 13th, seemed to have fixed this issue with parallax. I wasn't even using it, but having it in the plugin folder caused this issue.

The Newest ones from today dont have that issue.

[unreal haven]

mmh was probably fixed by another bug I spotted, glad that also fixed your issue

[golden moat]

Does the metatile plugin require GBS v4.2? When I try to open the demo projects without the screen scrolling support using v4.1.3 I'm not seeing anything.

[somber spruce]

The plugins work in 4.1.3 (except screen scrolling), but the demo projects seem to need 4.2 to open

[golden moat]

That's unfortunate, because I wanted to poke around with the demos so I understand the plugin better.

I've been hoping to use it for environmental hazards that vanish when you collide with them (so not walking on top, but touching the sides) and I have no idea whether that's possible or not with this plugin.

[young prism]

Hey @unreal haven sorry for the ping, but I have a couple more questions--

1. Does the metatile + screen scrolling plugin work in color-only mode? I seem to remember there being limitations because of the split VRAM but i don't remember what they are

2. If I disable automatic tileset loading by commenting out the appropriate function calls, would I be correct in assuming that it would use whatever tileset is currently loaded when rendering new scenes? And thus I could have more direct control over what tilesets are loaded at particular times

[unreal haven]

1. all versions of the metatile plugin support color-only mode
2. Yes you would assume right

[young prism]

Thank you!

[golden moat]

@unreal haven Can Metatiles have solid collision, yet still trigger something to happen when the player pushes against them, like an Actor set to a collision group?

(If not I'll just have to use invisible actors, but if I don't need to I would much prefer that.)

[sour shoal]

Will it also work in Monochrome mode?

[unreal haven]

It works in all mode

[sour shoal]

Looking at my platform.c code, I'm confused as to where I should put the coin collision code at. Can you help me please?

[severe isle]

@unreal haven Could you please document how to get metatiles functioning for other P+ versions? Like what/where to modifiy a fresh P+ build to work with metatiles

The P+ plugin provided in the Metatile 8px project seems to be a modified version of the fork used in SMB Mini. I am not sure how to get the changes from the file working with a different version of P+, such as 4-alpha-0.1 which supports slopes.

[young prism]

Piggybacking off the above question, how drastically should I conserve space in SRAM in order for metatiles to work properly? I'm using single-screen (20x16) scenes

[unreal haven]

I'll try to come up with something to document this, its mostly an issue with how cramped P+ code is in a single bank which make just modifying the collision check function break it.

[unreal haven]

if you're using the 16px screen scroll version, it takes the last 1280 bytes parts of SRAM leaving 6912 bytes for save data
if you're using the 16px version, it takes the last 3072 bytes parts of SRAM leaving 5120 bytes for save data
if you're using the 8px version, it takes the last 7168 bytes parts of SRAM leaving 1024 bytes for save data

Those limits can be edited in the plugins engine files

[torn laurel]

hey with ur copy scene submap to background plugin, does it not work if they scenes tiles are different? i was trying to kinda override the tiles from 1 scene to another as a workaround the tile limit

@unreal haven

[golden moat]

Did you put a common tileset between the scenes?

[unreal haven]

The "Copy scene submap to background" event needs to have the scene your copy from share the same tileset as the scene you copy to.
The "Copy scene submap to background tileset" can replace the tiles copied in the tileset VRAM but require that all the tiles you copy "into" must be unique tiles (see the pokemon example screenshot)

[torn laurel]

no i think i used it wrong, to get what i wanted i just used the tilemap one but im now getting this issue, any ideas?

[unreal haven]

What does your setup looks like so I can have a clearer view of what you're trying to do

[torn laurel]

oh yeah ofc one sec!

here ya go

am i just being stupid? 😅

[unreal haven]

If you're not in color only mode, this wont work since there's too many unique tiles

[torn laurel]

yes but without sprites cant u go over the limit at all?

and even in color mode, it does this 😵‍💫

[unreal haven]

you still cant go over 256

[torn laurel]

for either scene? i assumed when i printed over the other scenes tiles what have less than 256 it would be fine? or am i mistaken?

[golden moat]

Are you using Monochrome + Color or Color Only? Color Only allows more than 192 unique tiles per scene, but Monochrome + Color does not.

[torn laurel]

nope, just color!

[unreal haven]

both scene have to be below 256 unique tiles if its not in "Color only" mode

[torn laurel]

but it is in color only mode now, so i am a bit confused?

[unreal haven]

As for why this wouldnt work in color only mode, Im not sure whats wrong, try setting the Copy tile attributes parameter to background

[golden moat]

Are you comfortable uploading your project? If yes, it might be easier to see what's going wrong.

[torn laurel]

yes ofc!

i was just messing around but i noticed it

ill send it over!

here ya go ❤️

[young prism]

You can't "get around" the limits, you have to be creative with how you use tiles to make it seem like there are no limits. If you copy a tile into a scene, it doesn't get "added" to the scene, it replaces a tile already there (and the limit is preserved). You also won't be able to see the "new" tile without redrawing the scene, and once you redraw, it'll replace every instance of the previous tile (because the previous tile no longer exists) and the limit is preserved.

The reason why the "copy scene submap to background" event requires a common tileset is because it's modifying the background data using the tiles already loaded. The "copy scene submap to tileset" plugin won't modify the background, but will modify the loaded tiles and replace the specified ones. So every instance of those tiles in your scene will be changed upon next redraw

[unreal haven]

Ah I figured out the issue, it was an issue with the plugin,
I wasnt checking if the tile Im copying from was from the other VRAM bank before deciding which tileset to read from

I'll upload the fix in a moment

@torn laurel Fixed, you can redownload the plugin from the github, I updated it

[torn laurel]

oh wow!!

thank u mico!!!

[unreal haven]

thank you stress testing it :p

[torn laurel]

glad i could help ya find a bug!!

[torn laurel]

when it comes to my projects, stress testing is what i do best XDDDD

can u resend the git? 😊

[unreal haven]

https://github.com/Mico27/GBS-SubmappingExPlugin

[torn laurel]

i assume i use v4? 😊

[unreal haven]

yes

[torn laurel]

thank you

❤️

works flawlessly now 😊

@unreal haven question! can it transfer over palletes? 😊 so if the scene im copying from has a different pallete, how good is it at transfering that? 😊

[unreal haven]

if you set Copy tile attributes parameter to background it will also copy palettes

[torn laurel]

okay thank u! ❤️

@unreal haven so i assume it doesnt work with automatic palletes? 😅

[unreal haven]

sadly no

only manual palletes

[torn laurel]

ah :/ is that at all planned for the future? 😊

[unreal haven]

I dont think its possible unless GBS changes how it is handled
Also when you copy the palette, it will still use the main scene colors since it only copy the palette indexes
So you'll have to change the main scene palette color depending on which scene you copy from

[torn laurel]

ah okay! 😊 thanks anyways!! im hoping its possible in the future!! could i possibly pay u to try see if its possible? 😊 idm paying!

[unreal haven]

No I'd rather not I dont like doing hobby stuff when it involves money, I keep that for work

[torn laurel]

oki doki!! ❤️

[unreal haven]

But I can think up of something and see if I can copy palette data from another scene

[torn laurel]

thank u!!!

it would just REALLY help is all

[unreal haven]

Here use this plugin and use this event before submapping, it'll copy the color data from the other scene. It'll work with automatic coloring
https://github.com/Mico27/gbs-setPaletteColorPlugin

[torn laurel]

OMG THANK U!!

@unreal haven what does the commit function do? 😊

[unreal haven]

Commit will commit the color change imediately, so you have to keep it unchecked if its in a scene init script before the fadein, otherwise you'll see a flash

[torn laurel]

oh okay!

thank u!

[severe isle]

Made a quick Metatile test project with Mico27's new state-split P+ fork.

I tried to make it as generic and broad as possible for use in other projects

Heres the sole P+ plugin, compatible with metatiles, split state files, slopes, and the regular functions of P+

[sour shoal]

I got this error while compiling. src\core\meta_tiles.c:99: error 20: Undefined identifier 'tile_buffer'

src\core\meta_tiles.c:99: error 22: Array or pointer required for '[]' operation

src\core\meta_tiles.c:101: error 20: Undefined identifier 'tile_buffer'

src\core\meta_tiles.c:101: warning 154: converting integral to pointer without a cast

from type 'int fixed'

to type 'const-unsigned-char generic* fixed'

src\core\meta_tiles.c:107: error 20: Undefined identifier 'tile_buffer'

src\core\meta_tiles.c:107: error 22: Array or pointer required for '[]' operation

src\core\meta_tiles.c:109: error 20: Undefined identifier 'tile_buffer'

src\core\meta_tiles.c:109: warning 154: converting integral to pointer without a cast

from type 'int fixed'

to type 'const-unsigned-char generic* fixed'

1
Cancelled Build

[severe isle]

Odd, which metatile plugin are you using?

The project has a slightly older version of the metatile8 plugin, if you use the newest one it may cause an error

It looks like tile_buffer is defined in scroll.h for all metatile plugins, so make sure that file is located in the engine/include directory and no other plugin/engine edit modifies it

[sour shoal]

The version i'm using is the most recent one.

[severe isle]

I mean, which type of metatile plugin (8, 16, or 16+screenscroll) do you have?

Have you checked to see if any of your plugins have overlapping files? If two plugins edit scroll.h, only one plugin's edit will be accepted, which may be causing this error

[young prism]

This type of error occurs whenever a function referenced in one area of code isn't present where it should be, usually because a plugin file is missing or not what it should be. See KirbyKing's question ^^^

[sour shoal]

Testing the 8x8 plugin. It was a conflicting plugin that caused the issue. But I ran into another problem. src\states\platform.c:349: error 20: Undefined identifier 'VAR_FRAMECOINS'
src\states\platform.c:416: error 20: Undefined identifier 'VAR_FRAMECOINS'
src\states\platform.c:426: error 20: Undefined identifier 'VAR_FRAMECOINS'
src\states\platform.c:512: error 20: Undefined identifier 'VAR_HITBLOCKID'
src\states\platform.c:513: error 20: Undefined identifier 'VAR_HITBLOCKX'
src\states\platform.c:514: error 20: Undefined identifier 'VAR_HITBLOCKY'

1
Cancelled Build

[young prism]

Same fundamental problem. Conflicting plugin. Id recommend building the project with only KirbyKing's version, then adding any other plugins one by one and seeing where the error occurs.

There isn't really a good solution for conflicting plugins other than manually merging them, which can be kinda tedious but allows you to use many plugins which alter the same files. Does require a little bit of programming experience, though, in case multiple plugins change the same element of game logic and you need to actually edit the plugins to make both possible

[severe isle]

I know this issue, thankfully its not plugins this time. You need to have a six variables named “COINS”, “FRAMECOINS”, “HITBLOCKID”, “HITBLOCKSOURCE”, “HITBLOCKX”, AND “HITBLOCKY”. Once you have them named, make sure they are used somewhere in the project. This is crucial for variables to be recognized by engine files.

This can be done by simply having an event group like:
Set $COINS to 0
Set $FRAMECOINS to 0
(continued)

[unreal haven]

Why are you using the super mario mini version of the platformer engine

[severe isle]

I imported the coin code from the Metatile8 project, is that alright?

The metatile8 project seems to be built off the MarioMini project

[unreal haven]

oh yeah right, I used the for the demo project

Wasnt meant to be used as a plugin itself (since I hardcoded a few things like those variables)

[sour shoal]

I don't even know what I did wrong this time. terminate called after throwing an instance of 'std::bad_alloc'

what(): std::bad_alloc

Caught signal 22: SIGABRT

1

[young prism]

Bad alloc is a failed memory allocation

Not sure what threw the abort signal but something funky is going on

[severe isle]

Im not sure what could have caused that error, Ive never seen it before and looking up “SIGABRT” or “bad_alloc” in this server brings up no results.

I would suggest restarting your computer and recompiling.

Also possibly try the Metatile and P+ plugin together in a blank project, and see if this same error occurs

[sour shoal]

It had something to do with my computer's memory. Closed a bunch of programs & shut off my computer. Turned it back on and it compiled nicely.

[somber patio]

Running into an issue copying to the BG. Everything from scene 1 copies fine, but scene 2 gets corrupted at the end. I initially had it strung together as one big scene and was getting the same issue. This is using the most up to date of the plugin.

[unreal haven]

mm Yeah looks like there's a bug with the plugin when you submap from a scene that has between 128 and 192 unique tiles (lower than 128 and higher than 192 doesnt have that problem.)
I'll look into fixing it

My guess its probably due of how gbstudio compile the tileset to not cover the UI reserved area

Temporary solution would be to make sure the scene you submap from has either less than 128 unique tiles or between 192 and 256 unique tiles

[unreal haven]

Here, I pushed the fix on github

[somber patio]

Awesome, I'll check it out, thanks Mico!

[sour shoal]

I'm trying to add GumpyFuction's 'One-way Platform Snap Threshold' setting in the modified Platformer+ I got this error "src\states\playerstate_fall.c:504: error 57: Label undefined 'endYCollision'
" Here's the folder if anyone is interested in helping me out.

[severe isle]

I searched up "One-way Platform Snap Threshold", it looks like this is paid content from Gumpy Function's course?

I dont think Ill be able to help you, sorry

[sour shoal]

It's from lesson 6 which is free. Lessons 7 onwards have the paywall.

[severe isle]

Thanks for informing me! I was looking at the Lesson 6 overview, when this page has Lesson 6 project files:

https://gumpyfunction.itch.io/lets-build-a-platformer

Do you know if any of Gumpy Functions’ LBaP project files have any usage licenses?

I saw that he commissioned this specific P+ change, so Id like to make sure its alright to use

[young prism]

^^^ this is a generalization, not everything which is free to download is usable in a commercial project, but generally it's a pretty good rule of thumb. Check the license on the project.

[sour shoal]

I can message Tom and ask him if It's okay to use.

[sour shoal]

I just now DM'ed him those exact questions.

[sour shoal]

I just got a response from Gumpy, he says it's ok to use. 🙂

[hot grail]

Hi Mico. If I remember correctly, you wrote a pull request that put animation states into the global header data? How would I use that to check an actors animation state?

[unreal haven]

Its to be able to get the define to set the animation state via code, but you cant get the actual actor current animation animation state, as there is no field on the actor that stores the actor current animation state and the load_animations function simply does a memcpy

[hot grail]

Got it thx

[severe isle]

Note: this was made for @sour shoal's project. This plugin may not be compatible for other projects.

Heres the PlatformerPlus plugin, with metatile functionality and the 'One-way Platform Snap Threshold' feature. The P+ Dash and ladder functionality were cut for space.

[unreal haven]

Uh I could've sworn someone asked if you can replace all instance if a metatile, anyway
I added a replace collision event so that you can edit the collision of a metatile. Using that event with replacing the tileset tiles, you can do things like the P switch in mario games where it replaces coins for bricks and bricks for coins
https://github.com/Mico27/gbs-MetatilePlugin
The 8px metatile and 16px metatile example project shows exactly that

[torn laurel]

hey question for mico27! what do all ya plugins do? 😊 just asking cuz they all seem very useful ❤️

[somber spruce]

Hey that's amazing Mico. I asked that question but then deleted it, because I was like, "That's a ton of work for Mico, I should figure out how to solve this on my own." But you ended up saving me rewriting a lot of code so huge thanks!

[somber spruce]

What do the collision value fields in that plugin refer to, by the way? Are Spare Collision Types supported?

Ah right, I got it. For anyone else wondering:

Spare 8: -128
Spare 9: -112
Spare A: -96
Spare B: -80
Spare C: -64
Spare D: -48
Spare E: -32
Spare F: -16

[unreal haven]

You can see see which collision uses which flag values in the engine.json file for each scene types

[young prism]

If I've defined custom collision in engine.json, I assume that will be copied as well if it's part of the metatile?

[unreal haven]

yes

Just make sure your scene containing your metatiles uses the same scene type as the scene that uses them so that you can use the same custom collision configuration

[young prism]

Thanks!

[somber spruce]

Ah, those values might be due to using Tomo's Actor Walkability plugin. Maybe. I'm very braindead right now

[unreal haven]

the values you posted fit what the config has, flags are unsigned 8bit values so when you put in -16, its actualy 240 when casted as an unsigned 8bit.

[sour shoal]

How does this work exactly? Does it detect certain tiles or do I have to assign certain tiles as Collectables/Coins?
