heres the setup, the intended result is

[random warren]

The UI is trying to warn you that it is not right

The documentation I linked earlier
(https://docs.unity3d.com/Packages/com.unity.animation.rigging@1.4/manual/RiggingWorkflow.html)
starts off with clear images how it should be done

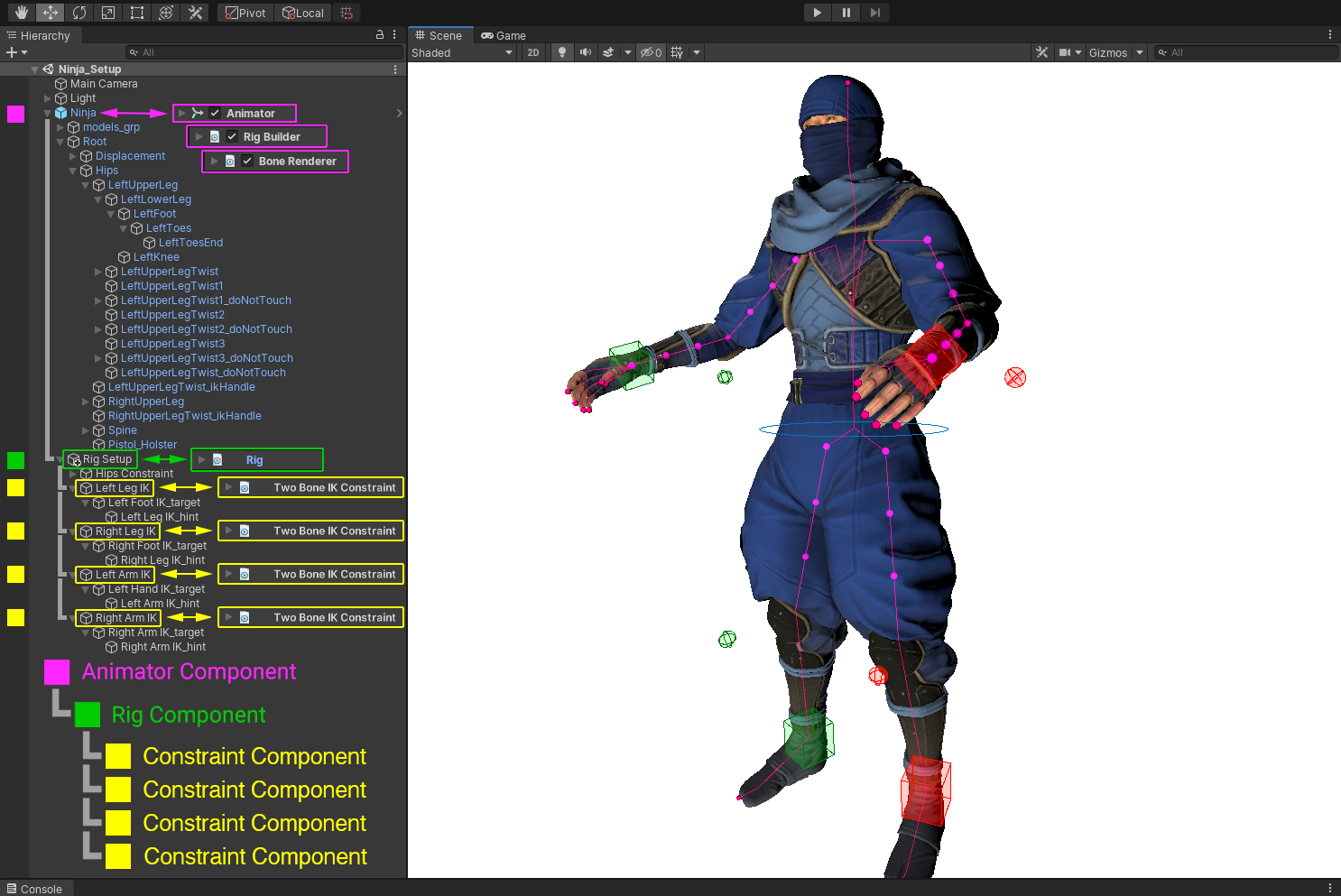

The first image shows the hierarchy
The second shows where to assign the Rig into Rig Builder

[delicate thicket]

Thats a warning, not an error. that just says to remove the rig component but the documentation says to add it

the rig builder has the rig attached to it aswell

Do you know the system you are helping with?

I can remove it i guess, but then you'll just bug me to add it again lol

[random warren]

Yes

[delicate thicket]

Okay, whats the issue?

Why doesn't IK work?

[random warren]

I can be wrong, but as far as I can see the setup you are showing does not match the example of the documentation

So that seems like a clear problem

[delicate thicket]

it has rig builder, and says nothing about two bone constraints actually.

[random warren]

https://docs.unity3d.com/Packages/com.unity.animation.rigging@1.4/manual/images/rig_setup/rig_setup_overview.png

Do you not see this on the page

[delicate thicket]

animator, rig builder, bone renderer all apart of the same object.

then the rig you drag into the rig builder which i did

then two bone constraints on multiple objects which i also did as a child of the parent.

[random warren]

Where is the Rig in your hierarchy?

Instructions say it should be a child of the Animator + Rig Builder transform

[delicate thicket]

where it normally is? as part of the prefab?

[random warren]

These components are hierarchy-dependent precisely

[delicate thicket]

then why do they have transform containers to reference each other?

ill move the components to a parent to test

[random warren]

That is the reason why
Transform containers are used to confirm it all happens in the right way
Animators themselves modify their own transform hierarchies with parallelized code, and IK Rigging works in tandem with it so it has to follow these setup requirements to avoid circular logic and race conditions

I still believe all of this hassle could be avoided if you download the IK Rigging samples from the package manager and reference exactly how they did it

A lot of the time just figuring out why something doesn't work is not realistically happening
So all you can do is find something that verifiably works that's as simple as possible, and either work towards it or work off of it to make your setup

I probably had to deal with the same confusion when I started out
And keep having to deal with it as I keep learning new systems
But ultimately the only relevant difference between me and you is years of learning patience for facing the unknown

[delicate thicket]

better?

oh do the constraint objects have to be childs of the prefab container?

cause that would suck

[random warren]

Yes

[random warren]

Why exactly?

[delicate thicket]

Cause then it'll probably break on reimport

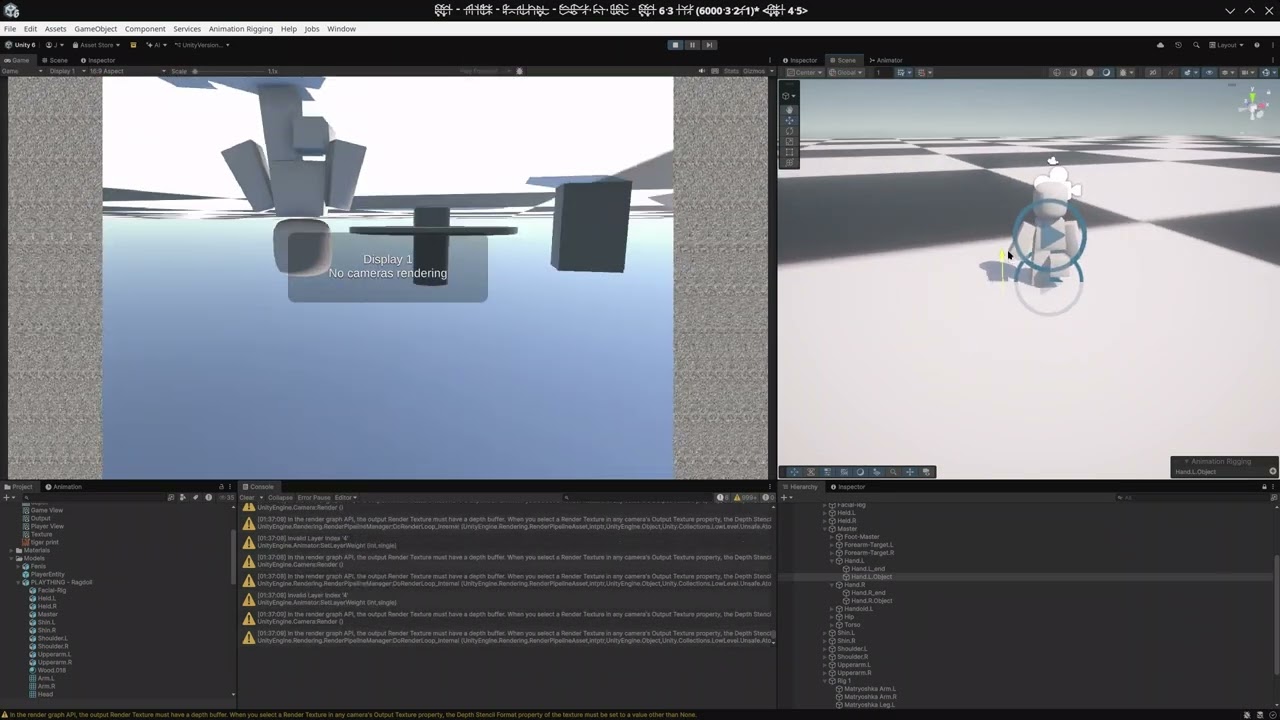

https://streamable.com/dc61tf

[random warren]

I'd expect not, if the hierarchy doesn't change, but not sure if it breaks anyway, or doesn't break even if it changes
Depending on what you're changing, if only the mesh you can import it separately and replace just the mesh of the prefab, if just animations you can use them from other soruces too

[delicate thicket]

poor guys legs broke

Like, here my logic is lost cause i made the animations using the constraints so them being static and in a weird pose makes no sense to me

[random warren]

They could be static if your IK target is not being moved in any way
You have to consider the Unity IK is totally ignorant of what IK you had previously

[delicate thicket]

Thats why the constraints tell unity what the setup is

[delicate thicket]

but they are

[random warren]

Weird pose could be explained by a change in bone axis
Iirc Unity expects Z-forward bone chains, but between Blender and FBX that is ambiguous

[delicate thicket]

I mean, my rig always faces forward when importing into unity

so it should be forward in unity aswell

[random warren]

No, I mean these

are totally arbitrary

[delicate thicket]

I thought that was what the pole target was for? to bend in the direction of it?

or the hint in unity ig

[random warren]

It is for bend direction

But because ultimately IK points a specific axis of a bone towards a calculated point, it has to work on the correct axis

I don't see evidence if that's the case in your case, but that comes to mind

Could have shown where the IK targets are in your video

It looks like they can be seen briefly at the end in scene view, and they seem static

[delicate thicket]

i mean, why are the bones completely stationary though?

[random warren]

I think the more relevant question here is why do you expect them to be moving
Which is why I want to see how the IK targets are moving

Also, I'm just assuming the IK setup is correct now, but I have not seen that either

You should test it by moving the IK target during play mode and having the leg follow it

It could be working for all we know, but if the hint remains stationary relative to the player controller, we would not know

[delicate thicket]

I'm not sure if i can directly move bones in unity play mode

[random warren]

You'd move the target, not the bones

Animator controls its transform hierarchy
Rig hierarchy overrides the Animator hierarchy

[delicate thicket]

the target are bones though

ill try it temporarily though

[random warren]

That doesn't sound correct

[delicate thicket]

How else would i animate arm bending?

[random warren]

https://docs.unity3d.com/Packages/com.unity.animation.rigging@1.4/manual/constraints/TwoBoneIKConstraint.html

Source Objects are in the Rig hierarchy

The controlled bones are in the limb hierarchy

[delicate thicket]

https://streamable.com/ev694d

[random warren]

Here you are moving the Hint, which doesn't do anything unless there is bending as it determines bend direction

[delicate thicket]

thats what the hint or pole target is supposed to do.

it controls bend and arm rotation.

[random warren]

Additionally the Target is in the bone hierarchy, which I expect will not work

[delicate thicket]

but- you animate a character with bones? not game objects?

that doesn't make any sense

[random warren]

"Bones" are transforms which are gameobjects
Usually referring to limb hierarchies or specifically deform bones, as opposed to IK
Maybe you are asking how you can animate the IK targets with keyframes?

[delicate thicket]

Yes, thats how your supposed to do it.

you animate a character with bones.

[random warren]

Your confusion probably is related to the hierarchy separation
The Rig hierarchy has to be totally separate because of the way it works on top of and overrides the limb hierarchy's transforms

[delicate thicket]

i can get using game objects for handles

that makes sense

but i just want bones to point toward other bones

[random warren]

Iirc Blender doesn't allow IK objects to be in the transform chain that is itself controlled by IK
That'd be circular logic

[delicate thicket]

bone, points toward other bone?

that isn't circular cause the target isn't attached to the object that is pointing to it

that would be circular

[random warren]

In your video it looks like your Target Hand.L is in the arm limb hierarchy

Or so I assume because it's not in view, and it's not in the Rig hierarchy

So the target would be attached to the object that is pointing to it

[delicate thicket]

Hand is the target, not the actual hand.

[random warren]

Where is it in the hierarchy

[delicate thicket]

it goes shoulder -> upperarm -> forearm -> handdriver (unused)

hand is attached to the master and is the arm target

forearm target is the pole target

its also attached to the master

[random warren]

So, it is in the limb hierarchy that is being controlled by IK, which is circular
Transform in a chain inherits values from it every parent, technically anyway

Regardless, Source transforms must be in the Rig hierarchy

[delicate thicket]

no? where is it circular?

the arm doesn't affect master or the hand

it doesn't give any data to them

theres no circle

[random warren]

It does
Every transform component is a function of its transform lineage
For the engine to know where a transform is, it has to be transformed by all its parents
"Transformed" meaning multiplied by the transform matrix to figure out its position, rotation and scale relative to scene origin

[delicate thicket]

What

[random warren]

That gets into the weeds of how Unity tracks changes to objects in a scene in memory and updates them in a performant way without causing breaks in the dependency chains
Which is interesting but rarely relevant

[delicate thicket]

either way its dumb.

I didn't know i needed to know computer science to animate

[random warren]

I don't know of a 3D engine that doesn't work this way

[delicate thicket]

blender doesn't, i feel it must be like black magic to you

if you see if your brain might actually explode when you realize things can actually be intuitive

[random warren]

It does, and that becomes very much apparent when you have to use constraints like Transformation and Copy Transforms

For example when you need IK or other bone constraints work relative to a specific variety of local space

[random warren]

Really you do not
This whole misadventure occurs because you ignored the documentation's instructions to place Source objects in Rig hierarchy

[delicate thicket]

There's no reason for it to even need it to be there! Its a child of the object, its referenced in the parent, why does it still need more?

also, easy to miss.

[random warren]

It is not documentation's fault that you are constantly diverging from its instructions
And from mine as well

[delicate thicket]

they made it intentionally confusing

it just isn't well designed.

[random warren]

And even if the reason for things being the way they are is not apparent, or you do not like it, doesn't change there being a reason somewhere
Especially if the reason isn't really relevant to correct operation if you follow the steps

[delicate thicket]

The "reason" is irrelevant, its bad. It's just a bad way to do it

if it needs to be a child, why not actually throw up an error

That would be nice.

[random warren]

I agree that game engines like Unity should do a whole lot more to guide the user into the right workflows
Most of these systems do seem nonsensical for no good reason
And all that stems from is the underlying reasons not being communicated properly

[delicate thicket]

thank you

[random warren]

I have a long wishlist of how a game engine should work to avoid countless hours of trial and error ^^

[delicate thicket]

that sounds great id love to hear that

for real

[random warren]

But I'm not an engine coder or involved in that in any way so it's just a pipe dream

[delicate thicket]

would still be nice to hear, godot is open source people could always help with it

[random warren]

Practical reality is that engine coders are not communicators, or even UX designers
And even if Unity is actually above average in documentation and examples, having to develop learning and troubleshooting methods to deal with confounding unknowns is an essential skill for a dev and probably most of what you'll be doing

[delicate thicket]

that seems so weird to me.

game devs make giant systems, but none of them want to make an engine that doesn't suck.

[random warren]

It's a matter of perspective
The engine doesn't suck for them, because they understand it
And really it doesn't suck at all technically
Not understanding it is what sucks

If you or I were making tools, we would default to making them in a way that suits our purposes and makes sense to us
Which even if good would suck for others if we didn't put extra care and real expertise into UX and documentation as well

[delicate thicket]

I don't know who looked at how these systems import stuff and thought it was okay

all you have to do is simplify.

[random warren]

The challenge is you need someone who really understands what the user pain points are, and figure out the solutions
And probably bend the arms of programmers to get them to implement them ^^

Gets even more difficult when the engine has been built layer by layer for over 15 years

[delicate thicket]

So, just make sure you have any knowledge of the thing your making support for

I would just work on making importing better for godot

[random warren]

You change something, someone somewhere will miss the functionality you removed
Simplify something, it becomes too simple for someone

[delicate thicket]

what could you possibly want out of an importer rather than import your files based on a set of rules

[random warren]

And sometimes this stuff is just hard if not impossible to communicate effectively
Like that transformation matrix parenting stuff

[random warren]

If only it was that simple
With exporting and importing you're working with file formats that themselves are separately developed, full of flaws and legacy code
Both that may be there for a reason to maintain compatibility across different 3D engines, and to deal with ambiguities between them

These engines are pretty much rocket science
If something seems nonsensical but made by a smarter person than us, chances are there's a technical reason we don't understand, or a legacy reason that can't be mitigated, or it's designed for a use case different from ours
And sometimes indeed it may be poorly communicated or even buggy
But at the end of the day all we have is the documentation, the resources we can search and our wits

Assuming you don't have the resources to pay an eye-watering hourly rate to have someone like me watch over

[delicate thicket]

man.

[random warren]

So sharpening our wits is typically all we can do
If you look at devs who actually get games made, they seem to either be the type who have really high technical expertise and have spent a lot of time studying and demystifying game engines
Or who don't really care if stuff makes sense or not, just getting things done rather than worrying about it being good, using whatever guides and samples they can scrounge

I'm in between, worrying about it being good and trying to make everything to make sense
And I get very little game development actually done

@delicate thicket Anyway, one question you probably still have is how do you animate the IK targets if they can't be in the limb hierarchy
The Rig hierarchy can be animated, and you might be able to include the Rig rig hierarchy and IK targets in the exported animations, so that you might even be able to re-use the IK bones directly from Blender
But I haven't done that or seen that done so I can't predict what gotchas there might be
Besides the obvious that you need to enable exporting non-deform bones

Something I'd do a very simple test for before trying to work the whole character into that workflow, naturally

[delicate thicket]

why can't i just use bones?

[random warren]

If by bones you mean limb bones, it's because IK must be in its own Rig hierarchy as we discussed at length

[delicate thicket]

Still don't understand that but whatever

so i use objects for targets, okay.

[delicate thicket]

Dude,

i think unity uses world coords not local for IK

i tried parenting the object to the bone, and while it moves all over the place the ik doesn't move

That makes this a total dead end

[random warren]

It helps to nail down the use of precise names for things

1. Pretty much everything is an "object", that one doesn't hint what kind of object you are referring to
2. "Transform" is an object with a position, rotation and scale
3. "Gameobject" in Unity is a container of components that must always have a transform, so it can be used interchangeably with transform but may imply use of other components
4. "Bone" is a transform used for rigging purposes, be it for skinned deformation or for IK, that one is not an exact term. In Blender bones are transforms contained by an Armature, which can be deform or IK, or something else. In Unity "armatures" or "bones" are not technically distinct, they are just transform/gameobject hierarchies, same as all other objects in your scene

[random warren]

That sounds like a wrong conclusion, IK doesn't use any coordinate system directly the way we see them as users

[random warren]

So, does that mean your Target transform is outside the Rig hierarchy again?

[delicate thicket]

ik has to be inside the hierarchy since the whole point is to point a bone somewhere on an animation

Sigh, i might just fork over the cash for final IK since i cannot stand this anymore lol

[random warren]

That is not a practical requirement, even if it were technically possible
Seems the root of your problem is latching onto these assumptions

Even the importable sample of the 2-bone IK that I have been reminding you to get for quite a while now shows the same clip keyframing the IK targets in the Rig hierarchy and bones of the limb hierarchy at the same time

[delicate thicket]

I have no idea what your saying sometimes

[random warren]

Best to focus on what's unclear, rather than let it slide and misunderstanding to pile up

IK targets and poles can not be within the same bone hierarchy as the limbs controlled by IK, because of unimportant technical reasons
And they do not have to be inside the limb hierarchy
They can and should be in the Rig hierarchy next to the limb hierarchy
The Rig hierarchy's transforms aka bones can be keyframed by your animation clips
It seems you assume they cannot be keyframed

[delicate thicket]

Wouldn't i still have to manually redo the animations though if we went that route

[random warren]

You have to adjust the IK bones to export the same hierarchy as Animation Rigging expects
That's something I haven't had to do so I can't predict what challenges there might exactly be
But no, you don't have to "redo" the animations themselves or even the animator

[delicate thicket]

Wha

[random warren]

If you want to benefit from my experience , you have to engage with my advice more than that
Give feedback constructively
If you are feeling overwhelmed or burned out, that is not necessarily anyone's fault as you are solving a complicated problem and learning new systems and complex concepts one after another

[delicate thicket]

so, export hierachy what do you mean by that

do you mean like, on unity backend

like when it looks at the object they can't be in the same heirachy

whats the limits on that

it can't be a parent, or it can't be a child of the other

cause they will share the same parent by guarentee

since they are all desended from the scene

[random warren]

I mean the animations and the armature you export from blender should save the same hierarchy as shown here:

https://docs.unity3d.com/Packages/com.unity.animation.rigging@1.4/manual/images/rig_setup/rig_setup_overview.png

[delicate thicket]

yea i did that

Ik is working its just, the behavior is just not good enough

unity does like, snapping on when ik is enabled or not

since there seems to be a minimum distance for the target to travel or deviate from the intial position before IK solving kicks in

[random warren]

News to me that it works, good

[delicate thicket]

i thought it was broken cause the arms and legs were stuck

but ik might just be like that i guess.

[random warren]

Do you have an idea in mind how you could confirm that assessment

[delicate thicket]

oh yea, i started uploading a vid to youtube since it was so big

https://youtu.be/TXjtGL7_Rd4

[delicate thicket]

I mean, i moved the target a bit, i tried moving it really far away but it only started solving when the angle it would point in with ik was drastically different

also the shoulder got locked in place for some reason

maybe because the shoulder is only losely connected to the torso in the first place

or not at all now i guess since exports kill constraints, thats weird to think about.

wait this system might be complete bunk due to that.

shit

[random warren]

So you have two theories you can verify

1. Does IK actually have a "limit" for distance
2. Are your character's bones actually ignoring the target movement
   Otherwise you may go forward with the wrong idea of how the system works and get compounding problems

[delicate thicket]

the bones aren't ignoring it, its just kinda weird.

IK doesn't have a limit for distance it seems though, so thats good.

[random warren]

You could get insight on 2. by setting up the bone renderer again

[delicate thicket]

Oh for number 2 thats a guarentee, the bones are just static.

[random warren]

And set up other gizmos too

[delicate thicket]

should be in the vid, i don't know why it does that.

[random warren]

It hinders my ability to help that your IK constraint setup is now different form before, but I haven't seen which transforms it uses now for which purpose

[delicate thicket]

again that might be because the solvers are no longer connected to the root of the rig and it just panics

[random warren]

Yes

If you want your character's singular leg bone to just point at the target no matter the distance, it makes a lot more sense to me to use Multi-Aim Constraint instead

[delicate thicket]

how is it different?

[random warren]

In a 2-bone IK system neither of the two bones have to point towards the Target
The solver tries to bend them relative to each other so that given their lengths the tip of the last bone ends up at the Target

Multi-Aim just aims a bone towards a Target (or optionally several, hence the "multi")

[delicate thicket]

i mean, bending is still kinda in the equation, but pointing is the more important part. most bending is kinda already baked in and i won't have much of it

[random warren]

Why does your character have two bones per limb, if the model itself has only one anyway?

[delicate thicket]

ease of animating and for future proofing more complex skins

they still do very human movements

so they benefit from a human esk skeleton

[random warren]

Hmm the challenge there is that you have to consider all bones per limb when animating and making the animator, while you can't see them all

Your placeholder should visualize the most complex type of skin

[delicate thicket]

I wonder if i should've made my rig differently, but i can't really think of any better way to do it. My rig will still do very human like movements so they benefit from such a rig, but i also didn't feel like creating special bones for shrugging the shoulders and the likes cause honestly those are probably the hardest part to get right and work with during rigging and animation so i really didn't want to do that.

[random warren]

Also a lot of movement made for two-bone limbs doesn't translate well into one-bone

If the one-bone arm works by just using the upper arm bone for example, and your two-bone limb animation brings an item close to the character so upper arm and forearm both bend, so a limb using only the upper arm will no longer point towards the item or make contact with it at all

Same issue can occur with legs, for example when crouching, and in other unforeseen situations

It might not become a problem, but something to keep in mind

[delicate thicket]

The rig does have two bones.

[random warren]

Yes, but it makes testing harder if you can't see them

[delicate thicket]

well, i use bone renderer idk

[random warren]

Might not cause an issue, but also might so something to keep a mental pin on

[delicate thicket]

1 bone IK isn't even an ik is it? like it can't bend

[random warren]

Indeed, for that you'd use the aim constraint or something similar
But just using one of the two-bone limb's bones, as you've done, will work for most situations

[delicate thicket]

Like, my rig is basically 4 floating IK solvers attached to a torso with child of constaints.

[random warren]

As long as you're aware of the bones your placeholder doesn't show
And that some 2-bone motions can look weird with one-bone limbs, even if they're perfectly correct

[delicate thicket]

What exactly are you talking about? i said my rig uses two bones for the bending

[random warren]

Yes, but your character model doesn't

Like in the last video posted, we don't see what the bones are actually doing becuase your character model (nor bone renderer) doesn't include them

[delicate thicket]

do you want ALL bones in the bone renderer? most aren't important to the IK solving i was trying to debug

[random warren]

I want the bones we actually care about for the limb movement
So, two

And you should really look into setting up gizmos for the IK

[delicate thicket]

the gizmos are just the visual stuff which we see in scene view yea?

[random warren]

Related to that I want you to do me a favor

[delicate thicket]

okay

[random warren]

Get the package's samples

[delicate thicket]

hmm, okay.

[random warren]

Go through all of the scenes and take a particular look at the 2-Bone IK example

It is what I was pointing you to on day 1
And it really seems you could've saved a whole day or maybe two of just being stuck if you had taken a time to study this example

[delicate thicket]

Then i wouldn't have understood what works, i would've just been copying

like most coding tutorials try when teaching people

and then i don't learn anything

Not like i learned anything here, most of unitys logic is "just because"

[random warren]

Not the same at all
Coding logic is "just because"
Which you first have to learn from example before you can improvise

It's like trying to write a for loop for the first time without looking up what a correct for loop looks like

[delicate thicket]

Coding logic isn't "just because" it has rules like the . part usually is about looking for something inside something else

and i didn't know till someone explictly told me

[random warren]

You have to learn the rules first

[delicate thicket]

okay how do i look at these

oop found it

Bro she's cooked outta the box, this is not helping.
https://streamable.com/knf3n8

you can just pick up the rig and move it away from the body, the ik just does nothing.

[random warren]

Don't the IK always work in Play mode only?

This example is meant to be driven by the animation, so if you want to move the IK manually, either pause the animation through Animation window, or giving the Animator an empty state as default

[delicate thicket]

it doesn't seem to work in play mode either.

[random warren]

By "doesn't work" you mean it doesn't even animate?

Sure you didn't make changes before entering play mode

[delicate thicket]

i mean the ik just does nothing when i move it

i didn't.

[random warren]

But it is animating?

[delicate thicket]

yea

https://streamable.com/2ng4xe

[random warren]

That is the position of the effector gizmo, not the IK transform

[delicate thicket]

what do you mean, the ik is a game object right?

this is an object under the folder "Root -> Rig -> IK-> LeftIK -> LeftIK hint"

like,,, what else would it be?

[random warren]

Yes, but the little window is for setting up the gizmo
Meaning the editor only handle for visualizing and easily selecting the object

[delicate thicket]

What.

so is it a bone this time?

is it a number?

it would really suck if it was a number.

[random warren]

If you recall my earlier explanation
bones are transforms
transforms are gameobjects
they're all objects

Nothing has changed suddenly but you're in the wrong window, changing the wrong variable

[delicate thicket]

so this is the ik object

this is the scene view, i'm moving the ik object.

how could i possibly be screwing this up

[random warren]

This is the position of the bone transform

this is for setting up the visual handle meant to make it easier for you to see and use the IK bone/transform

^ these do not have any tangible effect on where the bone is or what it does

Just how you see it in the editor

[delicate thicket]

So LeftIK number transforms, got it.

It doesn't work either.

I can't modify the Ik numbers since they're being controlled

i can move the rig still but that still does nothing

[random warren]

I also explained that

[random warren]

👆

[delicate thicket]

I'm so confused

so this sample is useless? i- WHAT

If i can't even see it work then what am i supposed to do with this

[random warren]

You can? That is my explanation how you can

[delicate thicket]

You are frying my brain here good sir

This sample is just the Ik being controlled by an animation, but i can't do anything with it. This is effectively not even ik its just a baked animation. Whats the point of IK if i can't move it around?

[random warren]

A transform that's overridden by animation keyframes cannot be moved by you in the editor, as you probably have noticed before
-> So you have to stop the animation to be able to move them

But you cannot disable the Animator because IK is an extension of it

[delicate thicket]

LOL

do i just remove the animation from existence

[random warren]

So you either

1. Pause the animation using the Animation window
2. Give the Animator an empty state and set it as default (or Jump to it during play mode)

Besides, for you it should good news that the Targets are driven by animation here
Because that's exactly what you wanted to figure out how to do earlier
And this is a controlled case of how to do it, and how it responds

[delicate thicket]

I guess.

[random warren]

If the example "doesn't work" you can be 99.99% sure you're just using it wrong in some way
If you encounter the same issue in your own character, you have little idea whether it's because of using it wrong, setting it up wrong, or one of your tests or other systems is interfering with it

And these examples are something others can easily test alongside you, unlike your own project

[delicate thicket]

Yea, you're right.

sorry i can be kinda hard to work with

i guess ill try to study this later

[random warren]

That is true, but really only when you rush past advice or resources
Despite that I can tell you are trying and want to improve, and are improving

Takes some real effort to get good at understanding this stuff when it's just one arbitrary or nonsensical seeming thing after another

[delicate thicket]

from what i see they just manually keyed the IK, but i want the targets to follow bones but it seems they can't exist in the same place.

Doesn't look like i can copy keys either from my animation bones to objects

so it seems the only option is to find some way to link them together without "breaking" unitys hierarchy.

[random warren]

When you do IK animation in blender that's what you also do over there
But normally when exporting, those IK target bones get removed and the motion from IK constraints and other constraints gets baked into the limb bones' keyframes

[random warren]

No, because keyframed transform properties are relative to parent transform, which is relative to its parent transform and so on
The IK target bones have different parent transforms in the armature than the limb bones, so their keyframed properties must be different also

[random warren]

Well, there are a bunch of options but not many good ones
The best like I suggested before is to export the armature with the Blender IK bones and using them again for Unity's IK constraints

[delicate thicket]

But ik isn't additive, it'll still work if you repair it.

[delicate thicket]

But i can't? I need to use objects i thought

I tried plugging in the bones for the constraints and it didn't work

[random warren]

What do you mean by "objects"
Everything is an object

[delicate thicket]

Bones are just empty objects and they will work fine?

I guess your right

Hmm, i wonder what i did wrong then.

[random warren]

"Bone" has multiple possible meanings depending on context
#1457298414298595338 message

[delicate thicket]

Brah

You know what i'm talking about

[random warren]

There's been more than a few times already when you refer to things by incorrect or inaccurate names
I'm not sure how you expect me to give accurate and correct answers in those situations

[random warren]

No idea how additiveness relates to the current issue
Animation clips can be additive, constraints in Unity cannot
And you should be specific what you mean by "repair"

[delicate thicket]

I exported a rig that had ik, it no longer has ik. Repair means to fix it, since it used to work

[delicate thicket]

Wait does that mean Ik can't be additive at all? that might be why all the other bones in the ik chains were being set to have no animation.

[random warren]

• IK is an operation that moves the Source bone transforms relative to Target. Only the Target has animation keyframes in that situation
  (This changes when baking and exporting animation from Blender, by default the IK targets are removed and the Source bone motion from them is converted into keyframes for the Source bones)
• Additive animation deals with how two separate clips are combined if played at the same time, whether keyframed properties are interpolated or added together
• IK constraint is not a clip, nor animation by itself, so it can't be "added", as it's a calculation that works on top of the animator to override Source bone positions
• But an animation clip that moves the IK Targets can be additively blended with another clip

[delicate thicket]

ONLY the target, then that overwrites all animation from the shoulder which is annoying.

Still this feels like it should be doing something

The bones were converted to objects, so they have animation and those targets should be moving and affecting the rest of the character

I can move the bones which i couldn't do with the example, so that means the animation just ceases to function, but the animation is playing for the bones that aren't being controlled by IK

I'm so confused.

[random warren]

The bones were converted to objects, so they have animation
This makes no sense to say
Bones are "objects"
All objects can be animated
You can move a bone / a Transform if its position isn't overwritten by either an animation clip or by IK solver

[delicate thicket]

Yea i can see that, but why.

Where did the animation go

I move the constraint into the rig part and the arm just seizes up

I don't get it.

[random warren]

Move from where? What were you doing precisely

[delicate thicket]

https://streamable.com/2ox1k1

like, if i move the constraints into the rig the animation just falls apart

I don't get why

[random warren]

Is Master the gameobject with the Rig component or Rig 1 the one with the Rig component?
Where are the constraint components in this hierarchy
Is Arm.R or Hand.R the Target?
Clicking through these with the inspector would go a long way to not have to make me guess and you not have to explain more

[delicate thicket]

Ill give a small clip of me doing it

https://streamable.com/xp2ep7

[random warren]

Right, the Targets like Hand.R are outside of the Rig component hierarchy, which is not how it's meant to be as per the instructions

[delicate thicket]

I can't move the bones though, that's against the rules.

So i need to copy the animation, paste keyframes, or completely break the prefab

[random warren]

You can if you unpack it like the warning says, but that will break the keyframes of those bones
Which is not my suggested solution

[delicate thicket]

What is your suggested solution

[random warren]

To set up the armature in blender and export it with the Rig constraint hierarchy and limb bone hierarchy already set up separately within the armature

[delicate thicket]

Is that a thing?

[random warren]

My only uncertainty with that method is if exporting automatically creates a root transform as a parent to both hierarchies between them and the Animator gameobject, in case Rig hierarchy must specifically be a child of the Animator

[delicate thicket]

I don't think thats a thing.

I can't just export the rig with a rig component, since it isn't a thing in blender and probably not even a thing in fbx

Like, all the bones are desended from the armature in blender

[random warren]

Only the right hierarchy

[delicate thicket]

but unity says haha no

[random warren]

This is what I'd try
Using this order of bones to set up IK in Blender
Then set the same bones to use Unity's IK components instead, after exporting

If it turns out that both Root and Rig get another "armature" transform between them and the Animator and that breaks it, there are still options but they get more technical
And who knows if there's a simpler way, I have not had to deal with this specific problem before

Not easy or fun to look for such a solution before you're familiar with the systems involved here, but it is one way to learn

[delicate thicket]

That's just a bone named rig, not an object?

If the rig isn't a special object, i could just make master hold the component

That is if you can add components to a prefab part

I could try renaming the master bone too, if it attaches the special component to an object named rig

[random warren]

Naming is not a requirement
At least I don't recall having to care about it nor seeing it in the docs
Where the components are in the transform hierarchy however is a requirement, and seems to be the same issue you keep running into

[delicate thicket]

But in this example the targets are just another parent to the armature that cannot be moved

Like, what would this solve

Unless it can be fixed after export, or unless theres rules about where the rig object is placed in the prefab, i can't do anything,

Cause its a special object right? if it isn't i could just give the properties to a bone and this issue goes away

[random warren]

The Targets are not a parent to the armature
They're parented under the armature, separate from the limb hierarchy, like the picture shows

[delicate thicket]

I mean, the targets are already seperated from the limb, they're targets and childs of the master. If i can't have a target be a child of the master HOO BOY do we have a problem on our hands and the nonsense keeps going

[random warren]

Your Targets would be outside the limb hierarchy, inside the Rig component's hierarchy, but also within the armature hierarchy
Meaning the animation clips made and exported with the armature should be able to keyframe the Targets

[delicate thicket]

What? the rig is a seperate object that's a child of everything else that is generated upon import. There is no way to place bones in a nonexistant object, and i can't move then after the prefab has been made.

It's a closed system, i can't do anything lol

[random warren]

It seems too often when I explain how you can do something your takeaway from it is "so that means it can't be done"

And when I explain that you cannot do something you just keep doing it

[delicate thicket]

That's because your explanation makes no sense, i have no idea what you are talking about.

My understanding of this is that its a closed loop

[random warren]

What is?

[delicate thicket]

The rig is a special object that is generated by import yes? It isn't in my blender files and it makes no sense when armatures are the parent and not a child alongside the bones.

But the rig would need to contain the bones, but cannot be moved when the prefab has been created

[random warren]

"The bones" being Rig component and IK constraints?
Where do they need to be "moved"

[delicate thicket]

Uh, the bone targets need to be in the rig part to use constraints

And they cannot be moved

Hand.L and Hand.R

[random warren]

By "rig part" you mean Rig component's transform? Not the limb bones

[delicate thicket]

The Rig game object, the thing that the targets need to be a child of?

[random warren]

A child of
But yes

[delicate thicket]

yea

[random warren]

Where do you propose to move them to, and from where

[delicate thicket]

Uh- Id like to put the hand targets, into the rig game object, so they can be used in the Ik chain.

[random warren]

From where?

[delicate thicket]

From the prefab

where else would the bones be

outside? that's crazy talk.

[random warren]

The Rig gameobject is also "in" the prefab so that's not by itself an issue

Rather that you may be trying to move them from a specific place in the prefab hierarchy?

[delicate thicket]

I'm sorry, did you not see the error message i sent you? "Children of a prefab instance cannot be moved"

[random warren]

Did you not see my reply that you can move them if you unpack the prefab like the warning advises?

Just that I don't recommend it because there probably are more elegant solutions

And I'm not sure how it even helps, if the goal is to keep the keyframed motion of the 'imported' IK bones

[delicate thicket]

You said it would break the keyframes

Then what is the solution here, i'm waiting please tell me.

[random warren]

Yes
That's why I suggested creating the armature and animations with the IK bones already in the right place
So there's no need to move anything

[delicate thicket]

deep breath Lets try this again.

The rig is a special object that is generated by import yes? It isn't in my blender files and it makes no sense when armatures are the parent and not a child alongside the bones.

[random warren]

I'm not sure what that means

[delicate thicket]

WHAT DO YOU MEAN

The rig game object, isn't a thing in blender. It was never real and unity just made it up.

I have no control on where it is placed

or what is inside it

[random warren]

It's generated to match the Armature object's hierarchy form blender
If the IK bones already exist as part of that hierarchy, I don't know of a reason why it wouldn't work when you add Rig and IK components to them

[delicate thicket]

before it appears in unity

[random warren]

You do, it's the Armature

Bone hierarchies are inside it

Those get converted to unity transform hierarchies one to one

[delicate thicket]

Everything is in the armature by default! You cannot spill the bones

The armature is an object, you HAVE to make bones inside of it they physically cannot exist anywhere else

therefore this is not my fault

i feel like i'm losing my mind here.

The rig game object is just a delusion unity creates for whatever reason to make this as stupid as possible

[random warren]

Yes, like I explained originally that is not necessarily a problem but something to test
The Rig needs to be separate hierarchy from the hierarchy of the bones that its IK is controlling, and it needs to be under an Animator
But it shouldn't matter at all if they came from the same imported Armature
I predict it would only be an issue if the import process automatically places another parent transform between the two hierarchies and their Animator, and the Rig component specifically is required to be a direct child of the Animator

[delicate thicket]

This isn't a problem? we didn't have to do any of this?

Then why does the bones just fail to animate, i thought it was because they aren't a child of the rig

[random warren]

The last video you showed still had the two hierarchies mixed together

The Targets weren't under Rig hierarchy

[delicate thicket]

We are going in circles, THEY CANNOT BE THERE!

I just told you they cannot be moved!

I can't do this anymore.

[random warren]

Like I said I didn't suggest moving them but having them in the correct placement already when making the Armature
Speaking of that I have good news and bad news
I had time to test my solution and it works exactly as I described
And it turns out it's not an issue that Rig component is not a direct child of Animator gameobject

When you create this kind of hierarchy in blender

[delicate thicket]

But- the rig isn't an object.

[random warren]

It shows up in Unity exactly the same way:

Everything already where it's meant to be

[delicate thicket]

Thats just an bone converted to an object that's named rig

the real rig object is white, not part of the import prefab and has like a plus icon

If it was just a generic object, again this issue wouldn't exist.

[random warren]

That's not related to the issue at all

[delicate thicket]

What

[random warren]

The white name and green plus means it's a gameobject that has been added to a prefab as a local override
The gameobject itself is not "different" in any way

But one issue is that because it was added later, you couldn't have keyframed it in Blender

[delicate thicket]

If the game object is not special then why can't i just have the bones work by default

[random warren]

Obviously there was something wrong with your setup

[delicate thicket]

snicker yea, i know. The issue is that we physically couldn't fix it due to the prefab

[random warren]

Like Targets outside of Rig hierarchy as I kept mentioning
Later I also spotted Hints in the wrong hierarchies, and the same bone being used as both Mid and Tip of your two-bone IK

[delicate thicket]

Those hints weren't even being used, they're temp objects i used for testing

the vid i sent showed all the bones being used, which again can't be moved.

[random warren]

It was fundamentally the wrong way to use it
Target is not supposed to be a child of the limb that it controls

Whether you can move it into that hierarchy or not

Am I being unclear here

[delicate thicket]

YES!

[random warren]

How?

IK components go under Rig component
Which you never mix with the hierarchy the IK controls in any way

[delicate thicket]

Do you not get my logic here?

[random warren]

As far as I can tell you understand that
But just assume you have to use IK in some different way

[delicate thicket]

Bones can't be under rig object.

Game over.

The rig object doesn't exist before export and the bones can't be move after import

It's a catch 22.

[random warren]

What do you think a "bone" is

[delicate thicket]

DOES IT MATTER?

[random warren]

Obviously

If you think bones and gameobjects are fundamentally different somehow

[delicate thicket]

no it doesn't??? they're all converted to objects at import

They might aswell be the same thing here

You are dodging my answers like a ninja

[random warren]

Do you mean that you assume you'd have to move the hand itself (or a Target that's parented to the hand) from the arm to the Rig hierarchy?

[delicate thicket]

I have to move the bone (now game object) into the rig game object

[random warren]

Why?

[delicate thicket]

Because the bones can't be used as an IK target unless they are there

[random warren]

To me this feels like you're going on whole mental misadventures between sentences and assuming I'm fully aware of them

[delicate thicket]

because of unity thing

[delicate thicket]

I tell you my answer and you just give me a question

That is unrelated

[random warren]

So why is your IK target in the hand's hierarchy?

[delicate thicket]

Because its a bone, that i animated. And i want to use as a target.

Also, I told you they can't be moved

the bones can't be moved

listen to meee

[random warren]

That's not possible because Target can't be in the hierarchy that it controls
Afaik that rule is not limited to Unity

[delicate thicket]

I KNOWWW

THATS MY ISSUE

[random warren]

Why is it an issue? That's not necessary for IK
Or for what you're trying to do either

[delicate thicket]

What do you mean, the tutorial says the targets HAVE to be there

Which means they need to be moved, but can't.

[random warren]

They don't need to be moved because they don't need to be in the wrong place to start with

Did you look at the pictures I posted

[delicate thicket]

THAT ISN'T THE ACTUAL RIG OBJECT

AAAAAAAAAAA

[random warren]

What's the "actual rig object" in precise terms

Because I really don't know what you're referring to by that

[delicate thicket]

The object created on import! the object NAMED rig that is special

cause you have to put the targets into it

and then it magically works or something

I don't actually know what it is because its purpose is abstract

[random warren]

The name could be anything

[delicate thicket]

On the tutorial and my imported asset it is named rig

yes, you can rename it thats cool.

LIke, objects don't have any info besides their name

I don't even know what metadata insanity is happening with it.

[random warren]

None? What makes you think there is

[delicate thicket]

Because putting the compnent objects into it magically makes the rig targets work

for no observable reason

[random warren]

Unity is only looking for components in specific places of the hierarchy

Because components can pass data between parents and children

[delicate thicket]

Is the rig object special or is it just a component

[random warren]

Just the component
The important part is it requires Animator and Rig Builder (with reference to it) as its parent

[delicate thicket]

I feel i should've been told that 5 moons ago

[random warren]

IK component looks for the Rig component above it in the hierarchy, and Target, Hint and other specified transforms below it (or at least within the Rig hierarchy but for best practices they should be there blow their own IK component)

[random warren]

I did tell you that a bit over a week ago and it says that on the docs but you have a bit of a tendency to rush past instructions and jump into conclusions

[delicate thicket]

You tried to modify the blender file and throw me on wild goose chases

[random warren]

Anyway, like in my screenshots when you build the correct kind of hierarchy in Blender you get it ready to go in Unity and only have to assign and set up the components without moving or renaming anything

[delicate thicket]

Then why are you even restructuring the blender file

why

What's wrong with my file if the rig component can be anywhere

[random warren]

I believe it's a necessary step to use the IK with their targets in Unity which you had in Blender

[delicate thicket]

No, the step is to put the bones under the rig component.

[random warren]

Not anywhere, it has to be separate from the limb bones (meaning any body part bones)

[delicate thicket]

what does that even mean

the targets have to be a child of the master, and the master doesn't have any body part weights or whatever

like, what does that even mean

all bones are "body part bones" they control the body

[delicate thicket]

But, i want them to be a child of the master

that would be nice.

[random warren]

Yes, luckily there isn't any reason you'd really need them to be mixed in the same hierarchy

[delicate thicket]

i just said the reason

[random warren]

You can use Blender's constraints to make the bones in IK hierarchy follow any bone in the limb hierarchy

[delicate thicket]

Master bone

I GUESS

But that makes this even harder for unity since it doesn't have those

[random warren]

In some situations yes
Blender's constraints are very advanced
But most of them are still beneficial even when baked

Back to the good news, with this workflow a Blender armature can be exported as a hierarchy that's compatible with Unity's equivalent IK and it works

But the bad news is it's a bit more complex than that because those IK constraints are not exactly compatible, those unforeseeable issues I cautioned about

[delicate thicket]

Works is relative, i still need to fix the shoulder and shin animations but we will try it

[random warren]

Mainly that Blender uses a "pole target" while Unity uses a "hint"
Those names alone don't mean anything but their difference is that they're opposites of each other
In Blender the arm's elbow/knee points away from the Pole Target, in Unity the elbow/knee points towards the Hint

So if you want the IK to work the same, you need to convert between the two in either engine
Blender won't require you to code such constraints yourself, but it'll only work with baked clips and when blending between them
Still would get benefits of IK though

And admittably this part is not easy unless you really understand these systems

In my setup I'm basically constraining an extra bone to always between the Target and the shoulder where the IK begins
Then using that as the reference position to remap the Hint bone's transform relative to Pole Target

(Despite the funny colors and appearances these are all just bones)

(wait forgot to show some constraints)

(^The final Track To and Copy Rotation are just for visual purposes, not functional)

These probably don't work as instructions, but more of a glimpse of what these kinds of IK systems often involve
It's not simple stuff

[delicate thicket]

Look better?

The hands, the arm hints, and the feet are are disconnected from the parents and use constraints instead.

[random warren]

Which one is the bone that's going to be the Rig hierarchy?

[delicate thicket]

What

I was just gonna attach the rig componet to the player entity

[random warren]

The blue one here

[random warren]

That wouldn't make it a child of the Animator & Rig builder components, and that wouldn't keep it separate from the limb bones

[delicate thicket]

Oh i see, you want a buffer.

[random warren]

Separated hierarchies

[random warren]

That looks better

As long as there are no limb bones in there

[delicate thicket]

None of them control a mesh

i just named them after the limb and not the target cause thats what people use to interface with the rig so it makes sense to just name it like that

[random warren]

A warning again though, before I did all the constraint stuff to mirror the Pole Target into Hint it was glitching too much to tell if it was working even halfway

The Hint is necessary for IK, and it has to be placed correctly

There also seems to be a bug with the Hint that if it's perfectly axis-aligned with the limb bones and/or the Target, two-bone IK will glitch out
Even if the setup is otherwise correct

[delicate thicket]

I wouldn't know how to fix an issue that has never existed before

[random warren]

This can occur for example when all bones involved have precisely the same vertical position
The fix is to move them just a little

[delicate thicket]

hmm they look spread apart enough

[delicate thicket]

I'm just trying to reassign the targets and Unitys inspector just fricking freezes and dies

Can't even close it or save the project

I guess i have to change them in bursts or reopen before i do it

this is so dumb

[delicate thicket]

https://streamable.com/o4w980

i just have no idea what's happening

[random warren]

Since the preview shows the blend tree working right, stands to reason the problem is something affecting the animation outside of the blend tree
Though the video doesn't show any clues of what's happening outside it or what steps lead to this issue
I'd expect this kind of symptom to come from changing the transform hierarchy in such a way that the keyframed transform properties no longer make sense (especially if done at runtime), or from faulty IK setup

But it may be hard to tell if your current setup is too complex for you to get clear clues from the tests

[delicate thicket]

I don't even have any ik running, atleast not for the legs

They're just frozen in their baked pose

[delicate thicket]

https://youtu.be/7N8KU3cLu9M

[random warren]

I would select the animator gameobject and check the clips through animation window, that'll mark keyframed properties as "missing" if they've become disconnected by some of your modifications
But more importantly I notice the pose it's stuck in is different, so you did something that affected the problem and therefore is likely related to it

[delicate thicket]

https://streamable.com/hmhdfh

spent a long time rebuilding parts of my rig to use parents instead of constraints without breaking anything and IK still doesn't work

[delicate thicket]

I don't even know what the problem was here, i just ended up copying the entire file instead of just the rig cause i was too angry to figure out the issue

[random warren]

Parents instead of constraints in what way?
It doesn't look like you're using my suggested method, because you are trying to move the hierarchies around which my method would eliminate the need of
Again it's not visible from this video where the components are in hierachy or where the bones are in game window because they're not visualized, so I cannot really get a picture of what exactly you are doing or what the precise symptoms of the issue are
For example we can't see if the IK bones are not moving, or just the legs' deform bones

Also, this is the first time I see you are using a Humanoid Avatar
They have their own foot IK system separate from the Animation Rigging package
If there are conflicts or quirks to watch out for for using Animation Rigging with a Humanoid Avatar, I would not be able to warn you because I have no experience with Humanoid Avatars
But it's certainly one extra thing that's making your test setup more complex

[random warren]

Not knowing really is the root of the problem isn't it
To make something that works as you intend you have to test and learn the systems bit by bit
With multiple systems and multiple issues and multiple assumptions overlayed, you will not be able to find out what's breaking and what's working
I would not be able to find out that way either, at least not without spending an exorbitant amount of time

[delicate thicket]

I'm not using a humanoid one, i imported my own skeleton as you can see in the transforms

also i mean i used parents instead of child of constraints, so now the rig one thing

[random warren]

Right, my misinterpretation

[random warren]

Parents of which transforms for what purpose? I think I am missing context

[delicate thicket]

the shoulders and the thighs were disconnected from the main body

my idea was that the disconnection was the problem with the IK

since it was replacing the whole rest of the chain

if i connected it to the torso it would work

but it doesn't and i am lost

"To make something that works as you intend you have to test and learn the systems bit by bit" Or you could make it obvious? make it as simple as possible and tell users about their system, but i keep running into stuff that makes no sense lol

[random warren]

IK that relies on chains of bones (like two-bone and chain) likely requires the bones to be hierarchically connected in the right order

[delicate thicket]

Yea, das why i fixed it

[random warren]

But more importantly, keyframes find their transforms and properties by their path in the hierarchy
So reparenting anything that's keyframed will cause the keys to become missing (which the Animation window will show warnings about)

[delicate thicket]

Firstly, why would they do that? Secondly i didn't move anything. I just moved the constraints into the player frame it doesn't even touch the player body.

[random warren]

Just guessing potential issues because I cannot directly see what the hierarchy is this time regarding components and keyframes

Keyframes do that because they are stored as explicit paths
Something like
Root/Hip/UpperLeg/LowerLeg.transform.rotation = *value*

[delicate thicket]

is there something you want to see?

[random warren]

Well, helpful information could be to expand the whole hierarchy, showing where Animator, Rig Builder, Rig and constraint components are, as well as which objects they are referencing
Seeing the bones with a bone renderer or another type of visualization when in motion would be very useful

Not just to me but to you, it's way harder to debug IK for bones you can't see

But currently it looks like you're cooking up your own solution, not the one I demonstrated to work, nor are you learning the IK with a simpler test setup, so I am not sure if I can help you on this route

[delicate thicket]

https://streamable.com/n8jdp5

I just don't know what the solution is, i keep trying stuff on a logic hunch but nothings working. Unity is where logic goes to die

[random warren]

Two-bone IK Targets and Hints (Hand.R, Forearm-Target.R, Foot.L, Thigh-Target.L, etc) are not under the Rig component transform (stupid constraints)
I don't know how I can reiterate that they must be under it to work
PlayerBody has one Animator, but PLAYTHING - ragdoll has another Animator, that alone can break animations but with IK it also breaks the rule of Rig component's parent Animator having the Rig Builder component

[delicate thicket]

Thats right! i forgot about that

yea the player body animator does nothing

i was testing stuff but it has to be on the prefab

[random warren]

IK at this technical level is too complex to explain in an "obvious" way unless you're prepared to learn how the underlying tech works
The samples are the closest thing to an obvious guide, because if you do what they do it'll work the same way
But you start by doing something else entirely

[delicate thicket]

okay i moved it and the result is the same

[random warren]

I don't know what you moved or where

Is the Rig Builder still on the wrong Animator?

[delicate thicket]

I put the rig component on the unity bone

omg it works, kinda.

[random warren]

Remember that the IK may still produce totally wrong results even when the setup is right, if the Targets or Hints have incorrect or unexpected scene positions (too far away, wrong side of limb, perfectly axis-aligned)

[delicate thicket]

https://streamable.com/8gb53y

[random warren]

You should confirm what it is actually doing, using the visualizations I suggested
As well as testing the IK in the way I explained long ago, with an empty animator state that doesn't override any object positions, then moving the targets and hints around manually
It'd speed up your process a whole lot if you see what's happening rather than just seeing that "something" is happening

[delicate thicket]

Huh? you want the player to just slide around in a tpose and then move the targets?

Is there some kinda menu that shows IK numbers and how its evaluating or something

I'm confused

[random warren]

That will give you an understanding if and how the IK works, separately from any keyframed motion

[delicate thicket]

I already know that it works like that. I've done that before.

[random warren]

From the video all we can tell is that the animation clips and IK are both moving the bones in some way
Don't you want to confirm how exactly each system is working in this instance?

Instead of just assuming it works like you hope
And then later being confused when slowly it turns out it actually didn't

[delicate thicket]

Right, silly me using my logic again. Why would IK work like in every other animation software

Sure, i can freeze the animations quickly

[random warren]

Did you miss the part when I explained that two-bone IK in Unity and Blender are different by how they utilize the Hint?
But this is not even about that necessarily, what you want to confirm is what exactly the IK is doing, and is it moving the bones exactly as you would expect two-bone IK to move them

[delicate thicket]

The hint is just the pole target though

[random warren]

It isn't, they are the opposites of each other

#1457298414298595338 message

[delicate thicket]

So it bends in the other direction?

[random warren]

When I tested it, the IK broke completely if I used Pole Target as Hint, specifically when it was controlled by animated keyframes

I had to disable the animation with an empty state, then move the IK manually before it revealed that the setup was correct but the Hint was not

[delicate thicket]

Well the hints are bones i can't move them

[random warren]

By revealed I mean the chain of bones remained intact and correctly reached the Target
It was necessary to see all the bones to confirm that visually

[delicate thicket]

They would have to work like they do in blender

[random warren]

"Work" in what way?

[delicate thicket]

The bones face toward the pole target and so they bend in that direction

[random warren]

You can move the hint or any bone when an animation clip is not controlling it

[delicate thicket]

I don't remember how to disable the animator without breaking the thing, on the sample i just deleted all animations

but i can't really do that here

[random warren]

An empty state in the animator

Did you miss me mentioning that a few times already, or dismiss it for some logical reason?

[delicate thicket]

I did miss that i guess

I don't know what you are really saying most of the time

thats why i keep trying to confirm

My rig kinda dies without animations for some reasons, it sinks into the floor.

https://streamable.com/5nqi53

No idea why, might be because i made my rigs root be the absolute bottom. Animations do that correctly but maybe the object resets the origin to the middle

It's a whatever problem, doesn't really matter.

[random warren]

If something is not clear, you have to ask about it
That's why I ask even "stupid" questions to be absolutely sure, and you should too, because otherwise we both go ahead with wrong assumptions and totally talk past each other

[random warren]

Indeed, the origin offset may be fixed by the clips, but you are specifically testing the IK

You still have no bone renderer

[delicate thicket]

I removed that a while ago when i was moving stuff around

[random warren]

The IK might even be moving bones, just not ones we can see

[delicate thicket]

But that isn't the issue we are trying to fix

we need to make some kinda compat layer for unity to use blender pole targets or something

cause unity doesn't have a value for rotating them i guess

[random warren]

That's what the photoset and related explanation of the last link was about

[delicate thicket]

Oh, NO.

Okay uhhh,,, my idea is that i use a child of constraint and basically attach the second target to the first one with an offset maybe

That might work

[random warren]

It could

[delicate thicket]

Again, ideally i would want unity to just have a silder so you could just change that like in blender

that would be nice.

[random warren]

A lot of things would be nice
But ultimately in game dev you end up having to modify and make a lot of tools yourself

[delicate thicket]

augh

[random warren]

It goes a long way to having a curiosity of how this stuff is meant to work and why it works the way it does, rather than just frustration that it isn't as simple as it could and should be

[delicate thicket]

If you don't have frustration things won't ever get better

Thats why these systems still exist

[random warren]

Exporting, animations or IK are not unique in this sense at all

[delicate thicket]

They could all be better though

[random warren]

Then you probably want a balanced diet of both

[delicate thicket]

Imagine trying to open a png and its flipped, monochrome, and 50x smaller

Thats basically what we are dealing with

[random warren]

Most of us have little to no impact in improving these tools, we just have our own projects to make

[delicate thicket]

I don't like that most art programs don't export layers but you can still use an image sequence

People do have impact, it's just they used it against you

you now have to maintain their closed software while they take money from you fixing their problems

[random warren]

Regardless of if you want to use the tools or for the tools to be better, you do need an analytical approach if you hope to get results or to produce actually good UX feedback

And eventually you do have to get into the weeds because it's not possible for an engine to be very smooth to use but also fit every user's own needs and unique intuition

Like, C# is not logical to someone who hasn't learned its logic
So visual scripting was offered to avoid that friction
But it then ends up hiding the harder concepts to protect the user from confusion, even if some problems can't be solved without them

If you want to improve the visual scripting to not have such a limitation but still be easy to use, you would have to have a good grasp of how it must interact with the fundamentals of the engine
"Doing X or Y with visual scripting is too hard" is just the very first step

[delicate thicket]

Unity is still not logical after learning this

Theres better ways to do it that already exist

You can't gaslight me into liking it, this sucks.

[random warren]

I agree
But that has no effect on what we're doing currently

[delicate thicket]

'Things could be better' "WHO CARES! :D"

[random warren]

Not my intention
Rather if you spent less time and energy hating it I believe you would've reached this point two weeks ago

[delicate thicket]

All that time and energy was me bashing my head into it's systems

[random warren]

You can learn how it's meant to be used while acknowledging what flaws the process has

[delicate thicket]

yea, if i spent less just being unhappy and depressed about it, i could've been more productive

[delicate thicket]

das what i'm trying to do

[random warren]

Going head first is the problem
I too had to learn there are better ways to get to the other side of a brick wall than that

[delicate thicket]

But the system is just kinda illogical, my brain is trying its hardest

[random warren]

Every system has its own logic, sometimes it clicks with your own, sometimes not
Going slow and testing assumptions one at a time helps

[delicate thicket]

All of my assuptions were wrong

every single one

[random warren]

Over the years I've met the people who make the tools I use that frustrated me on many occasions
And what I learned in each case that they're way better software developers than me, using math and engine concepts way beyond me, and working under a lot of pressure and many technical constraints

[random warren]

Genuinely not that bad of an assumption to have when learning a totally new system
At least test your assumptions, even the ones that seem obvious

90% of all issues of this type that I help with can be ultimately solved by:
"show me how it works while explaining how you think it works"

[delicate thicket]

Then call me the sin of wrath because i don't care how much experience they have, they made a bad system that is bad and my anger is pure.

I don't need to have these problems how things should work because i can fix them at any time, like the pole target is reversed? just move the pole angle slider!

That is a 2 second fix where in unity i have to spend an hour making new bones.

[random warren]

Unless your primary goal is just to be angry all the time I recommend keeping the anger in a kind of a jar, as a treat for later

The devs are fallible working with limited resources, and we are fallible working with limited resources

[random warren]

For example I missed the "pole angle" slider entirely before you pointed it out
That means my convoluted constraint setup for reversing the pole was unnecessary after all

So, you can animate in blender with a reversed pole and it'll work directly in unity

[delicate thicket]

ehh, no i still need to move it for unity

But ill figure something out

[random warren]

It doesn't seem I have to move it in my setup, so why should you?

[delicate thicket]

Because the pole target isn't parented to anything.

i would have to go in and mirror every frame for it

which would still not really work

it needs to be rotated along a nonexistant axis

which of course will complicate things

It might not even be possible.

if unity had pole angle though, then i could match it up with my blender bones easily

it doesn't really go both ways though.

[random warren]

Right, referring to converting your already authored clips to a different pole angle?

[delicate thicket]

ill make a small thing to see it it works.

[random warren]

You are right to do that

Starting with a simple test rig could have revealed this pitfall, which is why I recommend them

And means reversing the pole with constraints is still a viable option

In this instance I didn't study the tool carefully enough to notice the Pole Angle slider, just falsely assumed it wasn't there
As a result I did things in a much harder way
So I'm definitely not immune to this mistake either

[delicate thicket]

Yea, like the axis i would need to mirror the world space target on doesn't exist

[random warren]

Just something you get better at
Same reason why rubberducking is useful for even seasoned programmers

[delicate thicket]

the pole target never rotates

maybe you could do a locked track that points to the chain and then flip it?

This is probably impossible though.

I would have to remake every single animation and the rig would be irreversibly changed.

[random warren]

My solution was the two extra IK bones you see in the images
The middle one is constrained to always be between the shoulder and the Target
Then the "Hint" which mirrors the position of Pole Target relative to the middle bone

[delicate thicket]

Ehh, i don't see how that would work

[random warren]

You may be able to copy the constraints from my images, or at least get a jist of which ones could be used as the same values may not work exactly with your rig
But it required a lot of trial and error

[random warren]

It certainly seems to

[delicate thicket]

Oh my goodness

How many is that? I counted 10 constraints just to fix that single issue

If you wanna walk me through that be my guest

That is crazy

[random warren]

Result in Unity
Keyframes are only moving the Target and Hint, and it still appears the same way

[delicate thicket]

literal black magic

[random warren]

PoleMirror bone

1. Copy Location "Position to Target": moves to IK Target
2. Copy Location "Position to 50% Shoulder": Move to (tail) of Shoulder bone with 50% Influence, so as a result it's always at the halfway point between Target and Shoulder tip
3. Limit Distance: Optional, prevents MirrorBone from overextending if Target is overextended
4. Track To: Aligns -Z towards PoleTarget for later mirroring across its Z axis
5. Locked Track: Optional, tilts the bone towards Target so it's planar with both Target and Shoulder which is nice, and could be useful for some other purpose
   PoleTarget bone
6. Track To (not active, works alternatively to Copy Rotation but with reversed axis)
7. Copy Rotation: Optional, aligns Pole Target with the mirror (which is nice visually but pole rotation is not actually used for anything)
   Hint bone
8. Transformation: Mirrors by negating transform values using PoleMirror as its space, so it actually acts like a mirror
9. Track To (not active, alternative to Copy Rotation but without tilt)
10. Copy Rotation Optional, same as PoleTarget's Copy Rotation

So at the end of it PoleMirror's 1, 2 and 4 and HintBone's 1 are actually necessary

Two in total were inactive which I forgot in, though can have their uses

[delicate thicket]

Position to target?

[random warren]

Looks about the same
As long as your shoulder bone's tip/tail is exactly where forearm begins
That is not guaranteed with all rigs

[delicate thicket]

it might...

[delicate thicket]

Hmm, I'm not sure if i'm doing this right.

[delicate thicket]

https://i.imgflip.com/5lekej.png

[delicate thicket]

like this?

theres actually two bones here, forgot to enable the other ones visibility

[random warren]

Not sure if I can clearly see everything
Is the Target meant to be the Pole Target specifically?
IK Target should be at the hand / end of the chain

[delicate thicket]

yea its the pole target

The normal targets are just called the hands, since they don't have any hands and because its the main bones animators interact with

[random warren]

"Main bones" meaning what?

[delicate thicket]

everything else is IK

[random warren]

You should use a separate IK bone as the Target

[delicate thicket]

? the target is its own thing

okay i meant like

people use ik to move the whole arm

the forearm has the ik constraint

and the ik is part of that chain

[random warren]

Just confirming you're not using the arm's child hand bone as the IK target

[delicate thicket]

those are both ik and people don't need to touch em

[delicate thicket]

no no

That would break completely lol

[random warren]

Indeed

[delicate thicket]

What is the pole mirrors purpose and why does the target itself have constraints?

the pole target stays between the bone chain, in the middle, and then the hint uses the pole targets position to somehow mirror to the other side?

is there some kinda seesaw action happening where its just like a rotating pole in the middle with the target and hint at either end?
