#``` void CrosshairDetect()

1 messages · Page 1 of 1 (latest)

spice river
#

I think there's a way, with a raycast, to check which pixel maps to what object in your game world

#

Actually, I think this is the right implementation, because this accounts for varying distances and stuff

solid hatch
#

But line lockAreaImage.rectTransform.rect.width/2 does not give the right radius

spice river
#

Here's a snippet that I have in my game to check where the player's cursor hits a plane:

public void OnAim(InputAction.CallbackContext context) {
  Vector2 InputAimPosition = context.action.ReadValue<Vector2>();

  if (Camera.main != null) { // yells at me when the game is closed
      Ray ray = Camera.main.ScreenPointToRay(InputAimPosition);

      if (aimPlane.Raycast(ray, out float distance)) {
          Vector3 aimPoint = ray.GetPoint(distance);
          // cursor position getting locked to Z by inputrelaimpos set
          InputAimDirection = MovementUtils.inXZ(aimPoint-cc.transform.position);
      }
  }
}
#

wait, have you looked into aim assist implementations? I imagine this is a well-defined task

solid hatch
#

I got this idea from Armor Core 6 and want to put it in my game

spice river
#

Actually, I think what you should be doing, ideally, is just base these calculations off of rotation. Check the orientation of your camera's view, compare that orientation to that of your camera and the targeted object, and if the difference between those angles are below a threshold, snap to that target.

#

I don't think you should be comparing any positions

solid hatch
#

I don't want to use angles because a cone does not fit perfectly into the Circle in the center.

spice river
#

I don't think the rotations necessarily have to be circular

#

I'm sure there's some manner of getting the range of rotation to fit an oblong shape

solid hatch
#

How would you do that?

spice river
#

dunno

#

Do you want the snapping to happen on a round shape, or in a rectangle?

thin pewter
solid hatch
#

round shape

spice river
#

@thin pewter because the raycast my or may not hit anything, and the position of the raycast hit could be any distance from the target. Maybe the target is 10m from you, but the raycast can hit something from 1m away or 1000m away.

#

In the code shared, the target is known, so you don't even have to try to find it with any raycasting. Even if you didn't know the target at function call, I think the performance would be fine if you just checked against some number of targets in the game world. But if you have like 100+ potential enemies, maybe performance becomes questionable

#

anyway, for a noncircular round shape, hmmm

solid hatch
final sentinel
#

Just gonna put something here if you are trying to do aim assist: just make the hit points bigger (if they are invisible) or make new hit points to use with aim assist that are bigger over the target

#

It's not laggy + It doesn't move the camera so it's not disorienting

#

If that's what you are doing

#

I just skimmed over

spice river
#

@solid hatch off the top of my head - I think you can find the yaw and the pitch between you and the target, and see if the vector made by those angles is outside of some oblong shape - see here

solid hatch
#

I thought this was what I was trying to do.
I convert the target World Position to the Screen Position and find the distance between the center of the Screen and the target.
And if the distance is less than the radius of the Lock Zone, than I know the target is in range. The crosshair hover on the target.

thin pewter
final sentinel
#

What if you just devided the actual lock radius thing size in the code so it doesn't go out of bounds, just goes in bounds because clearly it's getting the size too big for some reason, so maybe just test for a sweetspot in the division until it's correct?

#

Nobody is going to complain about a small bit of distance either way, so it's not like you need to worry, if anything, just make it go a little inside bounds, rather than outside, as that is better even if it's not perfectly on the circle

spice river
#

@final sentinel somebody already suggested that, and the math doesn't work out

final sentinel
#

Just one of the simpler options to do it

spice river
#

it doesn't produce the effect that you would think

final sentinel
#

What does it do then?

#

Cause i've done that type of division and it did work how i thought it did

spice river
#

the farther your camera is from the point, the farther off the box gets

#

honestly I don't understand the math of it, but it's a problem I ran into in one of my projects, and then I finally figured out how raycasting works

final sentinel
#

well I only read the original, and skimmed through previous said stuff here, so I'm only going based off the original and some of the messages here

solid hatch
final sentinel
thin pewter
solid hatch
final sentinel
solid hatch
thin pewter
#

u should cause or else the ui wont change to fit different resolutions

#

wait i got mixed up mb lol

#

its scale with screen size

solid hatch
#

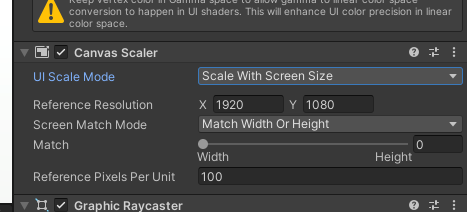

This is my UI setup

solid hatch
thin pewter
#

the issue is that the ui changes sizes but the lock radius does not right

solid hatch
#

Ah

#

Oki

#

and It work

thin pewter
#

yay

solid hatch
#

Is there a way I can apply this to the "Scale With Screen Size" mode?

spice river
solid hatch
#

Yup

#

As long as the target is inside the circle

spice river
#

nice

thin pewter
#

you get the users screen resolution with Screen.currentResolution by the way

#

I think you could change the lock area size with that
