austere grotto
#

Did you enable INPUT_MASTER?

craggy oar
#

yep, strangly enough all the other events are working except the switchtab left and right

grand furnace
#

I am programming a 3D game where a character gets moved by mouseclick (point and click like). The character will interact with different gameobjects.
In the beginning I used NavMesh for the player character but saw that this system just gets used for NPCs? Is it wrong/more difficult in the future to use navmesh for the player character?

austere grotto
#

It's also not really related to the input system

grand furnace
little epoch
#

@austere grotto I was able to fix my problem by reverting the package changes in source control

sick lake
#

i have made a 2d vector input and hooked it up to my movement system, and it works perfectly fine with the gamepade, but doesnt work at all with WASD. any clue why?

#

i figured it out!

#

had to add them as supported devices

sick lake
#

any documentation of return type of every action control type? or even a description of each action control type?

austere grotto
sick lake
#

i have been using the runtime way, thanks for the docs page😸

tawdry heart
#

I've been working on AI for my thesis the past couple of days, and i've reached the point where i need to "Fake" a Device.

as a nutshell, my GameObjects that are either playable characters or enemies can technically be played by the player, this is done by having a component which is basically an InputBank for the gameObject. and having a "Master" game object which feeds the inputs to the input bank.

for the playable master its easy, i just made a custom component that uses the PlayerInput component and tie buttons to actions.

However, for AI, the AI itself wouldnt have a device, yet i would still need to "fake" certain inputs like buttons, how could i achieve something like this?

tawdry heart
#

i think i might be able to "fake" the inputs by adding devices that arent wired to hardware directly

austere grotto
# tawdry heart I've been working on AI for my thesis the past couple of days, and i've reached ...

Highly recommend abstracting input handling away from the code with something like a per-fixedupdate "input struct".

Basiclly the technique used by networking frameworks for input are the sme concept. Example from photon fusion:

https://doc.photonengine.com/fusion/current/manual/network-input#simulationbehaviour___networkbehaviour

Network Input | Photon Engine

Input definition, polling and consumption lie at the core of Fusion. Back To Top
  The input struct can store as simple or as complex data as needed.

#

In essence your AI then just needs to populate an input struct as its output each frame

tawdry heart
#

hm, i see

#

so basically make it so the "Button" struct isnt precisely tied to an input action

#

thats what i understood anyways 😓

#

actually

#

ok yeah i get what you mean

austere grotto
#

Basically you want to separate the input from the gameplay entirely

tawdry heart
#

yeah

austere grotto
#

each frame you want a chunk of data. Just a contrived example:

public struct InputState {
  Vector2 stickDirection:
  bool jumpPressed;
  bool crouchPressed;
}```
#

your input handling code (input system related) should just populate that struct

#

your gameplay code should just consume this struct each frame

tawdry heart
#

noted

austere grotto
#

the AI can then easily replace the input system input handling code by simply generating this struct each frame

tawdry heart
#

yeah thats what i realized

#

this is a good idea, lol

austere grotto
#

it doesn't have to deal with the real input system at all

tawdry heart
#

due to the nature of inputs, i should ideally always handle it on Update instead of something like fixed update, right?

#

otherwise i think i run the risk of the player ending up with ghosted inputs

#

(i think thats the term...?)

austere grotto
#

Yes that is true, but you can populate the input struct in Update and consume it in FixedUpdate

tawdry heart
#

aight good

#

i dont have to modify too many things then

#

this is perfect

tawdry heart
#

aight just finished moving my playable character's input to this system

#

so, just gotta start working on the ai side of things

#

thanks

limpid flint
#

what is Gravity in input Manager?

#

I'm trying to make 3 axis in plane

#

oh nvm just found docs

glad crypt
#

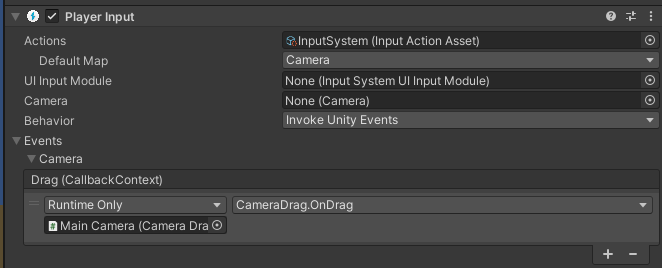

Can a player input component only exist 1 spot? I am trying to put 1 for movement and 1 for looking but when I enable both only one works, when I enable one, it always works

austere grotto
#

It's intended to be one PlayerInput per user

glad crypt
#

ok

dusky totem
#

The new input system is not working on build. In Windows there is no input detection at all. In WebGL I get this error showing up. I'm using new input system 1.3.0 and Unity 2021.2.17f. If I use the old system in code then the build works fine both in webgl and windows.

image.png image.png
austere grotto
tawdry heart
#

how can i check if the Tilde key was pressed on the current Keyboard device

static hedge
#

is there a fix for when the input system just stops working? right now it seems i have to change the player input behavior, then change it back to get it to work again.

#

i spent a good chunk of today working on the input system

ebon swift
#

So I'm having a bit of an odd issue here. I've made a scriptable object to handle my player input and have a function that swaps between the UI and Player maps. So while my UI pops up the player is still able to move. I feel like it might be an issue with how I assigned each event in the editor but I'm not entirely sure

image.png image.png image.png
austere grotto
plucky fulcrum
#

Could someone help me by explaining the basics of CallbackContext? I've read the unity docs but its left me more lost than trying to figure it out by myself 😂😭

timid dagger
# plucky fulcrum Could someone help me by explaining the basics of CallbackContext? I've read the...

The system responsible for handling inputs collects the context before invoking the input actions. Access to this context lets the developer read some additional info about the input, e.g. you can check what kind of button was pressed, when the action started, or what device registered this event. This kind of info can be used for debuging purposes (e.g. to figure out that "charging" might be also registered as device input) or to use it for gameplay/UI purposes (e.g. when someone presses a gamepad button, you could switch all the key buttons displayed in your UI from keyboard buttons to gamepad buttons).

The context itself can be completely ignored if you don't need it. It's just here to help you if you need it.

plucky fulcrum
timid dagger
limber mural
#

Hello. I’m having issues with the on-screen controls with the new input system. I’ve had it working perfectly before so I’m not sure what broke. I’ve also followed tutorials that produced the same results. Basically, I subscribe to the action, and then call one of the buttons like “gamepad left stick” with the on-screen stick controls. It only seems to work if I enable the “auto-switch” button in the player input class. However, the controls are extremely jerky, get stuck, and don’t move properly. If I turn off “auto-switch”, things move smoothly but don’t call the actions anymore. I've linked my settings. Any help would be greatly appreciated.

ebon swift
# austere grotto You'd have to show the code that handles the input. Most importantly are you cer...
{
    [CreateAssetMenu(fileName = "Input Reader")]
    public class InputReader : ScriptableObject, PlayerController.IPlayerDefaultActions, PlayerController.IUIActions
    {
        private PlayerController _playerController;

        private void OnEnable()
        {
            if (_playerController == null)
            {
                _playerController = new PlayerController();

                _playerController.PlayerDefault.SetCallbacks(this);
                _playerController.UI.SetCallbacks(this);

                SetActionMap("PlayerDefault");
            }
        }

        private void SetActionMap(string newInputActionMap)
        {
            foreach (InputActionMap inputActionMap in _playerController.asset.actionMaps)
            {
                if (inputActionMap.name == newInputActionMap)
                {
                    Debug.Log(inputActionMap.name + "is Active");
                    inputActionMap.Enable();
                }
                else
                {
                    Debug.Log(inputActionMap.name + "is Inactive");
                    inputActionMap.Disable();
                }
            }
        }

        #region Player Event Actions

        //Directional Movement
        public event Action<Vector2> MoveEvent;

        //Player Action Buttons
        public event Action JumpEvent;
        public event Action PrimaryFireEvent;
        public event Action AlternateFireEvent;

        //Mouse Look
        public event Action<float> LookXEvent;
        public event Action<float> LookYEvent;

        //UI
        public event Action PauseEvent;
        public event Action ResumeEvent;

        #endregion```
#

        public void OnLookY(InputAction.CallbackContext context) => LookYEvent?.Invoke(context.ReadValue<float>());

        public void OnLookX(InputAction.CallbackContext context) => LookXEvent?.Invoke(context.ReadValue<float>());

        public void OnJump(InputAction.CallbackContext context)
        {

            if (context.phase == InputActionPhase.Performed)
            {

                JumpEvent?.Invoke();
            }

        }

        public void OnPrimaryFire(InputAction.CallbackContext context)
        {
            if (context.phase == InputActionPhase.Performed)
            {
                PrimaryFireEvent?.Invoke();
            }
        }

        public void OnAlternateFire(InputAction.CallbackContext context)
        {
            if (context.phase == InputActionPhase.Performed)
            {
                AlternateFireEvent?.Invoke();
            }
        }

        public void OnSwapWeapon(InputAction.CallbackContext context)
        {

        }

        #endregion


        #region UI Mapping

        public void OnResume(InputAction.CallbackContext context)
        {
            if (context.phase == InputActionPhase.Performed)
            {
                ResumeEvent?.Invoke();
                SetActionMap("PlayerDefault");
            }
        }

        public void OnPause(InputAction.CallbackContext context)
        {
            if (context.phase == InputActionPhase.Performed)
            {
                PauseEvent?.Invoke();
                SetActionMap("UI");
            }
        }


        #endregion

    }
}```
proven kindle
#

Is there an easy way to make a Scrollbar move a ScrollRect smoothly?
Or alternatively, make a Slider scale it's own handle's size like a Scrollbar does?

If I use a Slider I can easily write a little script that uses Smoothdamp to make the UI slide in a really pleasing way.
It's also easy to set step size for them.
...But it won't resize like a Scrollbar does.

If I use a Scrollbar it resizes well, but looks kind of garbage when scrolled with a keyboard.
It just sets ScrollRect position with 0 smoothing and after several hours I found no way to change that behavior.

The best solution I've managed so far is to have an invisible Slider behind the scrollbar that "hijacks" controls, but... I feel like I'm going something questionable. UnityChanThink

ebon swift
austere grotto
#

or is it two classes

ebon swift
#

all one class

#

reached discord message limit smh

austere grotto
#

Next time use a paste site

#

!code

sonic sageBOT
#
Posting code

📃 Large Code Blocks
Large code blocks should be posted as links to services like:
https://gdl.space/, https://paste.ofcode.org/, https://hatebin.com/
https://paste.myst.rs/, https://hastebin.com/

📃 Inline Code
Surround code with three backquotes. Not quotation marks.
To get C# formatting the first line should only contain cs or csharp.
Add a comment with a line number if there is an error message.
```cs
// Your code here
```
Do not share screenshots of code unless requested.

ebon swift
tacit pecan
#

I can not for the life of me figure out what is going on here.
So I got a new PC, and haven't worked on this game for a little bit. Now I want to get back to it, and the input system (new) is just not reacting at all. The "Active Input Handling" is set to "Both" and I still see all the settings/setup of the input system, etc.

Just to confirm some of the other things I've checked:

  • Code is still set up and does enable the right action map
  • The Actions are still set up correctly (just testing WASD for now)
  • The code is calling it correctly
  • Attempted to debug the 2D Vector of WASD, and it just return 0.00, 0.00. As if nothing is affecting it, no matter what I am pressing.

Anyone got any idea?

austere grotto
ebon swift
#

I put both of them in UI Mapping for readability's sake. As for OnPause and OnResume themselves the resume and pause are on different action maps

image.png image.png
austere grotto
#

ah gotch

#

that makes sense

austere grotto
ebon swift
#

Whenever I start the game I get both that the "PlayerDefault" is active and that UI is Inactive

#

which changes when I press escape to pause

#

wait now I can't move the player what

austere grotto
ebon swift
trail kite
#

Hey guys, I want something to be applied while a button is being pushed down, but reverted on release. Think like Tetris, how holding 'down' speeds the block up, but letting go returns it to its regular falling speed. Is this possible?

hushed coral
#

Not a question, just a huge thank you to whoever works on the new Input Action system and added a full explanation to the Enable(). This is extremely convenient and helpful ❤️ Whoever made that THANK YOU

#

(I know that this will probably never reach that developer but one can dream and hope that it somehow may reach them.)

woeful inlet
#

so i am trying to make some controls for mobiles using the on-screen button,it works as usual,but when the touch moves from the button,it stops sending input,even when the touch is still on the button,any idea how to fix this?

trail kite
timid dagger
trail kite
#

I have now and it's still not triggering the debug log

woeful inlet
trail kite
woeful inlet
austere grotto
#

Also your action is set as a 2d vector so canceled will happen when you fully release the joystick

trail kite
#

there's no joystick, it's only on S

trail kite
austere grotto
#

set up the action and bindings properly

#

What button do you want to perform this action?

trail kite
austere grotto
# trail kite S

ok so just make it a button action and make a binding for the S key

#

remove any and all interactions

trail kite
austere grotto
#

that's a huge missing puzzle piece here

#

and key to your problem

#

if you are only subscribing to the performed action, for example, that explains it quite easily.

trail kite
austere grotto
#

i saw this already

#

you need to show how this function is hooked up to the action

#

there's a piece in the middle

trail kite
#

idk what you mean

austere grotto
#

show your full script

#

or are you using the PlayerInput component?

#

there is a glue piece

#

otherwise how does it know that function is linked to that input action?

#

there's a huge piece missing from your description here

trail kite
austere grotto
#

yep exactly as I thought

#

you are only subscribing to the performed event

#

if you want canceled events, you have to subscribe to canceled

#

e.g. moveDown.canceled += SomeFunction;

trail kite
#

ah i see

austere grotto
#

you can either subscribe the same function and do the if / else you are doing now, or you can use two different functions

trail kite
#

moveDown.cannceled += MoveBlockDown;

#

so i need to add that?

#

canceled*

austere grotto
#

that's one option

trail kite
#

huge tyvm

woeful inlet
muted stirrup
#

_PlayerInput = The player input component on the same game object. Not getting any readouts from this

#

I am pretty sure I was earlier

woeful inlet
muted stirrup
#

I mean I have a bunch of stuff working for input already using the input-system

austere grotto
#

also what is OnStart?

#

That is not a thing in Unity so it won't run unless you run it yourself

#

Maybe you meant to write private void Start() ?

woeful inlet
limber mural
#

I'm having a similar problem as @woeful inlet with the on-screen buttons not sending events. I found that if I turn on "auto-switch" in player input, it makes the events fire, but the buttons/joystick don't work properly and get stuck. If I turn off "auto-switch" the buttons/joystick move smoothly but don't trigger events.

woeful inlet
limber mural
mellow sedge
#

Is there a way to subscribe the whole action ? I mean not only one callback ?
Should I subscribe every different Callback ?
I mean, hmm, strange.

#

Don't hesitate to @ me or even dm me ! <3

muted stirrup
#

When creating an instance of ScriptableObject from code, how do you point to a specific Object that you made off of that ScriptableObjectClass?

austere grotto
muted stirrup
#

I make a scriptable object class

#

I then make a new asset based off of it and give it data through the inspector

austere grotto
#

MyClass newInstance = ScriptableObject.CreateInstance<MyClass>():

#

Is this what you mean?

muted stirrup
#

Right but that returns only the base

austere grotto
#

Wdym by the base

muted stirrup
#

not an asset made from it

#

if I make something like this

#

i won't get it's data from creating an instance for the SO

austere grotto
#

Drag and drop it in the inspector

muted stirrup
#

Is that the only way to get it's data?

austere grotto
#

That's the most straightforward way...

#

What's wrong with that

muted stirrup
#

Well like if I want to create data off of the SO for each type of weapon for example, and then have a parent class for weapon automatically select the the correct data on Start based off of the parent game object name or something

#

rather than drag the relevant asset to the prefab every time

#

There is no way to do something like

WeaponsSO swordData = ScriptableObject.CreateInstance<WeaponsSO>(IronSword):
Print(swordData.Damage);

austere grotto
#

Much better than using inheritance

grim scroll
#

Is it better to trigger player movement using the event-based approach with the input system, or should I use the auto-generated input actions and read the value each frame in update? I would think the event-based approach would be more performant, but a lot of the tutorials seem to readvalue in update so I'm a bit confused

austere grotto
#

not sure how the event would be more performant in that case considering it would just be running more or less every frame anyway

grim scroll
austere grotto
#

It might matter if this was for many objects, but an update loop on the single player instance in the game is nothing

#

also the event system is polling the input every frame anyway

#

you're simply not going to see a noticeable performance difference either way

grim scroll
#

So they're essentially equivalent?

#

That's good to know that the event system polls input every frame. If that's the case, then I'd imagine I can just leave my code the way it is. One of the concerns I had was if the events could come in late and cause input lag

stuck aspen
#

hey so ive got this issue where when i switch from one weapon to another my way of "looking" changes. i think this has something to do with the code of both of the weapons. ignore the errors, would really appreciate the help since ive been trying for over a day to get this issue fixed

Screenshot_352.png Screenshot_351.png
austere grotto
stuck aspen
#

i meant to show that the pov changes when i switch from one weapon to another as it shows in the screenshots

austere grotto
#

ok well.. seeing the code owuld obviously be helpful

stuck aspen
#

it wont let me send the entire code, instead it gives me a .txt document, is that okay?

#

im hoping it isnt against server rules

austere grotto
#

!code

sonic sageBOT
#
Posting code

📃 Large Code Blocks
Large code blocks should be posted as links to services like:
https://gdl.space/, https://paste.ofcode.org/, https://hatebin.com/
https://paste.myst.rs/, https://hastebin.com/

📃 Inline Code
Surround code with three backquotes. Not quotation marks.
To get C# formatting the first line should only contain cs or csharp.
Add a comment with a line number if there is an error message.
```cs
// Your code here
```
Do not share screenshots of code unless requested.

stuck aspen
#

i cant really send the entire code because of not having nitro

#

bare with me

#

ill send the code by chunks at a time

timber robin
#

Use a bin site

#

As directed to you via the bot

austere grotto
#

you didn't read the thing

stuck aspen
#

alr dude lol

#

im reading the thing

#

read the thing

#

im guessing this is the wrong channel

austere grotto
#

but

#
private Vector2 _currentRotation;```
#

each gun has its own rotation variable

#

so when you switch, it's gooing to switch rotation

#

it's unclear why this FPS controller stuff is on the gun script?

stuck aspen
#

i tried to make everything work using as little scripts as possible but that didnt realllly work out

austere grotto
#

"as few scripts as possible" is not a good plan for laying out code

stuck aspen
stuck aspen
stuck aspen
austere grotto
#

I suggest refactoring your scripts so that there's an FPS controller on the player itself and the gun scripts only handle gun/shooting stuff

stuck aspen
#

man i want to shoot myself

austere grotto
#

refactoring and redoing your scripts is a constant process

#

you can't expect to just write code once and forget about it, that's not how game develeopment or any programming project works

stuck aspen
#

there has to be an easier way

austere grotto
#

Welcome to game development

stuck aspen
#

listen can you lend me a script that you use that makes you look around?

austere grotto
#

no

#

scripts don't really workj that way

#

you can't just drop them in

stuck aspen
#

let me try atleast man

limpid flint
#

Does Input.GetAxis("Mouse ScrollWheel") works fine?

#

It seems trash

#

this thing can't catch My Mouse wheel Scrolling

limber mural
#

Is anyone else having issues with their on-screen controls? My on-screen joystick/button aren't working properly, they keep getting stuck. If your controls are working properly, could you send me a screenshot of your event system and player input settings? I would greatly appreciate it. Thanks!

lofty fiber
#

im using cinemachine and i havent added an ui for the touch screen but touch is still working , i wanna know how can i make the screen movement touch not work on some parts of the screen
as im using package for the movement controls the camera touch is still working on top of the movement joystick button

woeful inlet
woeful inlet
lofty fiber
#

im having two inputs
the delta for camera control and a joystick for movement
but these buttons are overlapping when i touch on screen
can someone help me fix this ?

ebon furnace
#

how do I add scrolling in/out into my game using Input manager

gloomy wren
#

I'm making a game and I'm trying to change to the new input system. I have a prefab that is used as different signs and is currently having "DialogInteraction" script. The thing is this DialogInteraction script was made to be customable(the text). It has 2 box collider; 1 for making it physical and 1 for the TriggerEvent to activate when the player is in this boxcollider. The Player Input is a component on the player and not the prefab. I really don't know how to solve this...

image.png image.png image.png
gaunt escarp
#

i just started a new project and im trying to setup the new input system. sendmessages isnt working at all for some reason

#

am i doing something wrong here? when pressing any of the movement keys the function never gets called

austere grotto
gaunt escarp
austere grotto
#

should work 🤔

#

What buttons/keys are you pressing?

#

also do you have any errors in console?

gaunt escarp
#

no errors, ive tried replacing the method with onjump (space) and onfire (mouse left) but nothing works

#

for move im doing keyboard A and D

dawn rune
#

can you use
Input.GetAxis("Axis name") with the new input system

tulip tartan
#

Yes, in player. And it's called "Active Input Handling"

dawn rune
#

I don't want to use both input systems I was just wondering if you get inputs using the same method

tulip tartan
dawn rune
#

ok

#

what is the new system

tulip tartan
dawn rune
#

like in code

#

how do I get inputs

tulip tartan
#

That is a huge topic. There are a ton of guides you can find online. There's a few different methods too. Like event and message based. Or more reminiscent of the old system with: Keyboard.current.AKey.isPressed (i think that's right).

It's way too much for me to explain here though

dawn rune
#

ok I'll just find a brackeys tutorial lol

limber mural
#

If anyone has on-screen controls working properly, could you send me a screenshot of your event system and player input settings?

gloomy wren
tulip tartan
#

So just get rid of the part startung with the old input and put it in the callback method

gloomy wren
#

(Some context) The Player input is a component of Player, and this script is a component of Sign.

tulip tartan
#

You could have the sign script give itself as a reference to the player (and when out of range, that reference is null). You just nullcheck when you get the input callback, on the reference on the player. If not null, call the method through the reference

#

That would probably change your scripts the least

#

Otherwise I would invert that, and have ALL that logic on the player, and simply see if the DIALOGUE box is in range

gloomy wren
#

Yeah I thought of that too but wasn,t sure on how to see which specific Signs is since I will have multiple displaying different text

#

Would there be a way to get text from an object close to the Player?

tulip tartan
tulip tartan
gloomy wren
#

But that would mean the method would display a static text?

tulip tartan
gloomy wren
tulip tartan
gloomy wren
# tulip tartan By range, right? Just like before, when you enter trigger range

I will try things with what you told me I'm not sure if we understand each other. But here some precision and you tell me if it's what you understood or not: I have a Player and when the player is around a Sign, the Player can interact with the Sign. The sign would need to have a specific and customable text to it since there would be many with different things to say. When the player hits the interaction key, the dialog box show up.

If I try your idea, that means I need a way for the text contained by the Sign to go to the method in Player which I don't know how to do or maybe I forgot how.

#

Or maybe I didn't understood your explanation? Feel free to say if I'm wrong

#

(If it can work your idea is great!)

tulip tartan
#

So, your sign has ontriggerenter. If it detects the player, it gives the player a reference to itself. If the player hits the input, it checks if that reference is null. If not, it says sign.DisplayText and the sign displays its own text

#

In the signs ontriggerexit, it tells the player to set that reference to null.

#

Or the opposite, where the player gets and nulls that reference. Doesn't matter.

The player does NOT need the text

gloomy wren
tulip tartan
#

The sign would have

OnTriggerEnter2D(Collider2D collision)
{
  if (collision.CompareTag("Player")
  {
    collision.GetComponent<Player>().SetClosestSign(this);
  }
}
gloomy wren
#

Ok, and so I would need to make a function "SetClosestSign(text parameter)" to set the text?

tulip tartan
#

Player would just have:

if (closestSign != null) {
  closestSign.DisplayText()
}

In your callback method

tulip tartan
gloomy wren
#

Oh oh ok

tulip tartan
#

SetClosestSign(SignScript sign)

#

You would just write "this" in the parameter, which would refer to the script itself

gloomy wren
tulip tartan
#

No. You would make it. It would just set a variable to the script

#

And you'd have to make one to set it null in the OnExit method. Or use a default parameter of null so you can just do SetClosestSign()

gloomy wren
#

Sorry for the waiting I'm trying to understand

tulip tartan
#

To break it down:

Sign has text. Player has input. Sign tells nearby player it is close. Player responds to input by asking nearby sign to show its text. Sign shows its text

tulip tartan
gloomy wren
tulip tartan
#

Btw, there are plenty of ways to do this, I just thought this would just be the easiest to explain and require the least change to your code.

So someone may recommend a different way later

gloomy wren
#

Yes I needed a little help to get into this it's not solved but at least I have more ideas now because of you 👍

tulip tartan
gaunt escarp
dawn rune
#

so I was following a brackeys tutorial (https://youtu.be/p-3S73MaDP8) and I am getting error error CS0246: The type or namespace name 'PlayerControls' could not be found (are you missing a using directive or an assembly reference?) when using this code:

using UnityEngine;
using UnityEngine.InputSystem;

public class PlayerController : MonoBehaviour
{
    private CharacterController control;
    public Transform cameraTransform;
    PlayerControls controls;

    void Awake()
    {
        control = GetComponent<CharacterController>();
        controls = new PlayerControls();

        controls.Gameplay.Jump.performed += ctx => Jump();
    }

    void Jump()
    {

    }

    void Update()
    {
        cameraTransform.position = new Vector3(transform.position.x, transform.position.y + 1.2f, transform.position.z);
    }
}

I am fairly new to this and don't even know where to start troubleshooting which is why I came here

tulip tartan
dawn rune
#

thanks I forgot about that

gaunt escarp
#

im so confused, now whenever my playermovement script (which is totally empty btw) is attatched to the gameobject with the player input component, i get this error when pressing A or D (bound to the move action in my input settings)

MissingMethodException: Method 'PlayerMovement.OnMove' not found.

#

adding the method changes nothing

#

none of the other actions like jump (spacebar) or attack (mouse left) bring up an error or do anything at all

#

why doesnt sendmessages work 😭

tulip tartan
gaunt escarp
#

turns out that both input systems were enabled, changing it to only the new one fixed the problem

gaunt escarp
#

whats the proper way to do movement with the Player Input component? not really sure how since things like the OnMove function is only called the instant a key is pressed

woeful inlet
austere grotto
#

It depends on the type of movement though

mellow sedge
#

Hello, I'm not sure I've understand this well (Bc I feel like english used is a little complex), if someone car take 2 minutes and tell me if I understood well this chapter of the video (https://youtu.be/rMlcwtoui4I?t=624)

So, actually, what I understand is that when having an input action on a binding and on an action, the bindings one will have the priority on the action one.
Using this concept, if I have a hold interaction on the binding and a tap interaction on the action what it will do is check the hold one first and then, if I cancelled the hold one, it will check if the tap one has been performed and return true if one of those two is succesfully performed.

Too, it seems like having more than one interaction on a binding or an action have the same kind of behaviour, it will first check the interaction which is the most down and then, start to check the upper one.

Btw, I'm so sorry for asking that, as I said it's just that it seems a bit complex for me but I guess if I understood this well, I can understand way more than I think !
YouTube
(It's a repost of the #💻┃unity-talk because I don't know where to post it lol)

YouTube
samyam
Input System Interactions Explained | Press, Hold, Tap, SlowTap, Mu...

Today we go over Interactions in Unity's New Input System. I go what makes an interaction, how it impacts the actions, the individual actions themselves, code overview, interaction priority and multiple interactions, and custom interactions.

📥 Get the Source Code 📥
https://www.patreon.com/posts/54177140

🤝 Support Me 🤝
Patreon: https://www.patr...

▶ Play video
terse grove
#

im using C# events for my input system, i want to make a 2 player fighting game, ive set up my script and action map. player one and 2 are both moving together when im using either of the controls that the players are paired too.

heres the code i have so far

`private PlayerControls inputs;
private float iputrefersh;
private float reshreshtimer;

protected override void Awake()
{
    base.Awake();
    inputs = new PlayerControls();
    inputs.PlayerController.Attack.started += Attack_Started;
    inputs.PlayerController.Attack.performed += Attack_performed;
    inputs.PlayerController.Attack.canceled += Attack_canceled;

    inputs.PlayerController.jump.started += Jump_Started;
    inputs.PlayerController.jump.canceled += Jump_canceled; ;

    inputs.PlayerController.skillSetup.performed += SkillSetup_performed;
    inputs.PlayerController.skillactivation.performed += Skillactivation_performed;
    inputs.PlayerController.Dash.performed += Dash_performed;
    inputs.PlayerController.Enable();
}


public Vector2 Movement()
{
   Vector2 rawMovement = inputs.PlayerController.movement.ReadValue<Vector2>();
   int normInputX = (int)(rawMovement * Vector2.right).normalized.x;
   int normInputY = (int)(rawMovement * Vector2.up).normalized.y;
   Vector2 movement = new Vector2(normInputX, normInputY);
  return movement;
}`
austere grotto
#

the code you have here does nothing whatsoever to distinguish the players and split up the input devices by player

#

PlayerInputManager handles all of that for you

terse grove
#

ah i get it thanks

#

can i modify my code so that it uses the "player Input " rather then the genreated C# script, cause i dont want to setup things in the inspector

terse grove
dawn rune
#

any tutorials on how to convert a script from the old input manager to the new input system

azure hearth
#

not really

#

but you can use Keyboard.current or Mouse.current

#

these can't be changed dynamically though

radiant cypress
#

Hi, How do I detect both mouse down and up with the new input system? I'm using Unity Events to connect to scripts

austere grotto
radiant cypress
sweet roost
#

is there a way to increase the update rate of the input system? seems that is at ~60hz

austere grotto
sweet roost
#

doubt, as i turned off vsync and i am still at ~60

#

anyways, is there a way to increase it to 250hz oder even more ?

austere grotto
sweet roost
#

logging it

#

i log the change

austere grotto
#

these are the settings

austere grotto
sweet roost
#

input change of single actions/bindings

austere grotto
#

like in a performed callback?

#

That will only happen when the value of the thing actually changes

sweet roost
#

i log the raw value

austere grotto
#

but where

#

in a callback yes?

sweet roost
austere grotto
#

Ok that's a screenshot of your settings but not an answer to my quesiton

#

though it is an answer to your question

sweet roost
#

yeah give me a sec i ll fire up vs

austere grotto
#

you have ti set to FixedUpdate

#

so it will be tied to your fixed timestep

sweet roost
#

fixed update is @333hz

austere grotto
#

I would try this:

  • set update mode to dynamic update
    code:
void Update() {
  print($"Frame {Time.frameCount}, value: {someAction.ReadValue<float>()}");
}```
#

see if it changes every frame while moving a joystick around

sweet roost
#

and yeah it goes via the events of the player input to my own class

austere grotto
#

which only happens when it detects a change

sweet roost
#

ok so the change has a threshold ?

austere grotto
#

I don't think so - but your hardware device might, or it might not be changing that fast

sweet roost
#

i would rather use the fixed update than dynamic one as i need the fixed rate

#

hardware device can atm go as fast as the usb controller and windows is actually allowing it

#

over air i can reach paket rates of over 1khz

#

so HID would be limiting factor

sweet roost
#

orange graphs are changes of analog sticks

#

as you can see they are irregular

#

hm

#

or it is really the fixed rate ...

austere grotto
sweet roost
#

oh nice

#

default is 60 😄

#

time for testing

#

i think i also have to detach the input update from the fixed updates, as fixed updates happen all at the same time more or less...

austere grotto
#

yeah I don't think the fixed update mode is that useful unless your fixed timstep is much lower than your framerate

sweet roost
#

yeah you are 100% right

#

but it is usefull for the other stuff i have 😄

#

hmm On Win32, for example, only XInput gamepads are polled.

#

but still i guess i have to get rid of the updates in fixedUpdate

sweet roost
#

state updates in the input debugger are ariving really fast at ~2ms

#

but i dont know if the values actually change there...

dawn rune
#

how do you add keyboard input

#

or how do you add wasd input for a vector 2

austere grotto
topaz galleon
#

in action with modifier. the modifier and binding are interchangeable?

#

i want to have a directional dash. but I want the character dash back without turning if player pressing shit + A (or thumbstick left + r1)

magic stump
#

"ide

#

!ide

sonic sageBOT
#
💡 IDE Configuration

If your IDE is not autocompleting code
or underlining errors, please configure it:

• Visual Studio (Installed via Unity Hub)
• Visual Studio (Installed manually)

• VS Code*
• JetBrains Rider
• Other/None

*VS Code's debugger plugin is unsupported.
We recommend using VS or Rider instead.

azure hearth
#

I am having some trouble with interactions

#

specifically the tap interaction

#

no matter what I do it always takes a bit too long to register that was pressed

#

you can see the delay between the "started" message and the other interaction types

#

multi tap and hold work as intended

#

but tap just takes a bit too long

austere grotto
#

It's impossible to tell the difference between a tap and a multi tap without waiting for the multitap time limit

azure hearth
#

oh

#

that makes sense

#

so the only way to make the tap faster is to make the multitap ludicrously fast

heavy quest
#

How can I get the current control scheme used without using the PlayerInput component? I'm generating C# classes on my input actions instead and reading the values directly

woeful inlet
#

is an action with the press interaction with "press only" supposed to fire only when pressed and not on release,right?

austere grotto
#

the only reason to use it is to customize the "pressPoint"

woeful inlet
#

i already found a solution,but thx anyways

austere grotto
#

You didn't present an issue, just a question ¯_(ツ)_/¯

woeful inlet
#

well it was a question for an issue

winter crown
#

I have an issue where my xinput controller (8bitdo sn30 pro) maps both the left and right shoulder buttons to the left stick press when I export my game to android, but it does not happen in the editor, so what could be the cause of it?

wintry marsh
#

Is anyone getting this problem?
I double the number of PlayerInputs every time I reload the scene.

wintry marsh
winter crown
#

@wintry marsh try starting at 0 instead of -1, -1 is the last item in the list, thus leaving the rest of the list untouched

spare epoch
heavy quest
brazen pewter
#
public class GetSteps : MonoBehaviour
{
    public TextMeshProUGUI text;

    void Start()
    {
    #if PLATFORM_ANDROID
            if (!Permission.HasUserAuthorizedPermission("android.permission.ACTIVITY_RECOGNITION"))
            {
                Permission.RequestUserPermission("android.permission.ACTIVITY_RECOGNITION");
            }

            InputSystem.AddDevice<StepCounter>();
            InputSystem.EnableDevice(StepCounter.current);

    #endif
    }

    void FixedUpdate()
    {
        if (StepCounter.current.enabled)
        {
            text.text = $"Steps: {StepCounter.current.stepCounter.ReadValue()}";
        }
    }
}

when i launch the app it asks for permission to track physical activity which i allow, but the number of steps always stays 0 on my android phone. is there something im doing wrong here?

small magnet
#

if (input)
move(pleyer.input)

def move(waht)
foreach(waht in pleyer.burger)
pleyer.changepos(waht - Screen.height();)

lucid bramble
#

I'm very embarrased at the fact that this Input System is really getting my emotions out.

#

Anywho, i can't jump, for some random reason. the jump bool in the following script simply does not want to co operate and just show as true:

#

here's my code:

using UnityEngine;

[RequireComponent(typeof(CharacterController))]
public class Movement : MonoBehaviour
{
    CharacterController controller;

    [Header("Movement")]
    [SerializeField] float speed = 11f;
    [SerializeField] float jumpHeight = 3.5f;
    [SerializeField] float gravity = -30f; // -9.81

    [Header("Looking")]
    [SerializeField] float sensitivityX = 8f;
    [SerializeField] float sensitivityY = 0.5f;

    [SerializeField] Transform playerCamera;
    [SerializeField] float xClamp = 85f;
    float xRotation = 0f;

    [Header("Basic Flags")]
    [SerializeField] bool Move;
    [SerializeField] bool Jump;
    [SerializeField] bool Look;




    [Header("Internal Variables")]
    bool jump;
    Vector2 horizontalInput;
    Vector2 verticalInput;
    Vector3 verticalVelocity = Vector3.zero;
    [SerializeField] LayerMask WhatIsGround;
    [SerializeField] bool isGrounded, jumping;


    NewInput controls;
    NewInput.FPSControllerActions _FPSController;




    private void Awake()
    {
        controls = new NewInput();
        _FPSController = controls.FPSController;




        _FPSController.Jump.started += _ => OnJumpPressed();


        controller = GetComponent<CharacterController>();
    }

    private void Update()
    {
        isGrounded = controller.isGrounded;
        jumping = jump;
        if (Move)
            DoMove();

        if (Jump)
            DoJump();

        if (Look)
            DoLook();


    }

    void DoJump()
    {
        if (jump)
        {
            if (controller.isGrounded)
            {
                verticalVelocity.y = Mathf.Sqrt(-2f * jumpHeight * gravity);
            }
            jump = false;
        }

        verticalVelocity.y += gravity * Time.deltaTime;
        controller.Move(verticalVelocity * Time.deltaTime);
    }




    public void OnJumpPressed()
    {
        jump = true;
    }


}```
austere grotto
lucid bramble
austere grotto
sonic sageBOT
#
Posting code

📃 Large Code Blocks
Large code blocks should be posted as links to services like:
https://gdl.space/, https://paste.ofcode.org/, https://hatebin.com/
https://paste.myst.rs/, https://hastebin.com/

📃 Inline Code
Surround code with three backquotes. Not quotation marks.
To get C# formatting the first line should only contain cs or csharp.
Add a comment with a line number if there is an error message.
```cs
// Your code here
```
Do not share screenshots of code unless requested.

winter crown
#

how can I fix incorrect mapping of gamepad inputs on android, my left stick press and both shoulder buttons all trigger the left stick press on my phone, but not in the unity editor.

ornate saffron
lucid bramble
#

so i dont have to make different scripts for different things, if i want the player to be ABLE to jump, i set the Jump flag to true in Inspector

ornate saffron
#

oh i see, it's very confusing to have jump, Jump, and jumping in the same script lol

lucid bramble
#

😭ye i just realized

#

maybe i shouldnt do that lmao

#

but regardless, its all good, i just rrwrote it in a different way, and i broke a different part of the script, but hey, at least jumping works!

queen grove
#

How do I get rid of these? They got added automatically at some point and if I delete them I get errors like this in console: ArgumentException: Input Button Enable Debug Button 1 is not setup.

austere grotto
#

I don't think you can remove them nor is there much of a reason to

queen grove
#

I see. They're just ugly and make it seem like I set something up incorrectly

austere grotto
queen grove
#

gotcha, thank you for the context

lime ibex
#

Hey this one right here doesnt work, ONMove is a built in function right? It doesnt even Debug tho

karmic zephyr
lime ibex
austere grotto
#

it would depend on how you set up your input actions asset

#

if you have an action named "Move" and are using "broadcast messages" mode on your PlayerInput component, that's when this function would be called

lime ibex
#

How can I Lerp scaling from 1 to 0 over 3 seconds?

lime ibex
austere grotto
#

you add a binding to it

#

You probably want Action Type - Button

#

if you just want to detect presses of a key

neat plinth
#

I am trying to use new input system...

public void Move(InputAction.CallbackContext context)
        {
            if (!IsEnabled)
            {
                return;
            }

            if (context.started)
            {
                _direction = context.ReadValue<Vector2>();
                Debug.Log(_direction);
            }

            if (context.canceled)
            {
                _direction = Vector3.zero;
            }
        }

This is my WASD movement method, but it moves only horizontally, or vertically, but never diagonally (when i hold e.g. W+A) anybody have solution for this, I am really frustrated by this issue 😦

austere grotto
#

which is like... 99% of the callbacks you will get

#

there's not really any good reason for you to be caring about the phases at all here honestly

#

you can replace

            if (context.started)
            {
                _direction = context.ReadValue<Vector2>();
                Debug.Log(_direction);
            }

            if (context.canceled)
            {
                _direction = Vector3.zero;
            }```
all of this^ with:
```cs
_direction = context.ReadValue<Vector2>();```
neat plinth
#

Do I understand correctly that "Performed" is like "In progress" state?

austere grotto
#

performed is when the action is performed

#

it's when "the thing" happens

#

it's very vague because the input system has such a wide variety of use cases

#

for example, you have an action with a "Hold" interaction. After you hold the button for the designated time, then performed will happen

#

but for a typical joystick bound action, performed happens every time the stick moves to a new non-zero actuation position

neat plinth
#

Oh I see. Thank you a lot for clarification 🙂

vivid beacon
austere grotto
vivid beacon
# austere grotto I'm sorry I read your question and cannot make heads or tails of what you are tr...

My bad. Let me try to rephrase.

I want to have a button on the ui and button on the keyboard that acts in the same way.

When I tap it. It will toggle X on. Tap it again will toggle X off.
When I start holding it will toggle X on and when I release that hold it will toggle X off. ( so the user doesn't need to double tap to toggle off).

I have done this with the keyboard press and works nice.

Yet how do I add a UI button to this action? So when I press on screen image button it will act the same way as the keyboard button.

I can't seem to figure out if there is a way to do this,
i.e.

mouseDown on image
  inputaction?.invoke( performed)

mouseUp on image
  inputaction?.Invoke (cancelled)
austere grotto
vivid beacon
vivid beacon
#

@austere grotto SendValueToControl(1.0f); Inside the OnScreenControl. doesn't seem to be working.
Any ideas why?

#

I imagine that it's just supposed to just trigger the button as it would be keyboard button.

#

I have created also custom class. Where debug gets triggered yet it doesn't trigger the button like a keyboard button does. ```public class TestUIButtonControlMono: OnScreenControl, IPointerDownHandler, IPointerUpHandler
{
public void OnPointerUp(PointerEventData data)
{
SendValueToControl(0.0f);
}

    public void OnPointerDown(PointerEventData data)
    {
        Debug.Log("TestUIButtonControlMono d");

        SendValueToControl(1.0f);
    }

    [InputControl(layout = "Button")]
    [SerializeField]
    private string m_ControlPath;

    protected override string controlPathInternal
    {
        get => m_ControlPath;
        set => m_ControlPath = value;
    }
}```
austere grotto
#

Is there a reason you're doing all this?

vivid beacon
austere grotto
#

wdym

vivid beacon
#

so i was making sure that the ui buttons works at all

austere grotto
#

what's wrong with it

vivid beacon
#

It has the same code as my class right ? Where my class debug.log gets triggered. The send value doesnt appear to do anything

austere grotto
#

How can you assume that

vivid beacon
#

i opened it ```#if PACKAGE_DOCS_GENERATION || UNITY_INPUT_SYSTEM_ENABLE_UI
using System;
using UnityEngine.EventSystems;
using UnityEngine.InputSystem.Layouts;

////TODO: custom icon for OnScreenButton component

namespace UnityEngine.InputSystem.OnScreen
{
/// <summary>
/// A button that is visually represented on-screen and triggered by touch or other pointer
/// input.
/// </summary>
[AddComponentMenu("Input/On-Screen Button")]
[HelpURL(InputSystem.kDocUrl + "/manual/OnScreen.html#on-screen-buttons")]
public class OnScreenButton : OnScreenControl, IPointerDownHandler, IPointerUpHandler
{
public void OnPointerUp(PointerEventData eventData)
{
SendValueToControl(0.0f);
}

    public void OnPointerDown(PointerEventData eventData)
    {
        SendValueToControl(1.0f);
    }

    ////TODO: pressure support
    /*
    /// <summary>
    /// If true, the button's value is driven from the pressure value of touch or pen input.
    /// </summary>
    /// <remarks>
    /// This essentially allows having trigger-like buttons as on-screen controls.
    /// </remarks>
    [SerializeField] private bool m_UsePressure;
    */

    [InputControl(layout = "Button")]
    [SerializeField]
    private string m_ControlPath;

    protected override string controlPathInternal
    {
        get => m_ControlPath;
        set => m_ControlPath = value;
    }
}

}
#endif

austere grotto
#

what control path did you use?

#

and if the code is the same what was the point of overriding it?

vivid beacon
#

I tried several Keys L S LCtrl

vivid beacon
#

this to make sure

austere grotto
#

but did you actually bind any of those things to the action in question?

vivid beacon
#

its not my fault at setting just a button

#

normal keyboard button works

#

when I press L on my keyboard i can see it changing and working

#

when i press the on screen one it doesnt work

austere grotto
#

was your log printing?

vivid beacon
#

there is no message from the inputsystem there is a message that I made in custom class only

#

no error from input system

austere grotto
vivid beacon
#

Wdym. I have said that when I press L on keyboard it works normally , so its bound right ?

austere grotto
#

SO what exactly did you put as the control path for L

vivid beacon
#

You mean in game what happens or the component path?

#

the component path has the menu for listen to keybind

#

so its automatic

austere grotto
#

ok. I'm not sure then

#

that should work

austere grotto
# vivid beacon

one question - how are you setting up your code that listens for inputs?

vivid beacon
#

you mean the reaction method?
inputaction.performed += performedMethod

#
                .canceled += SkipIACanceled;
abstract hawk
#

Help, I am implementing the new VIVE OpenXR Plugin Windows, in a Unity 2021.3.25f1 project with a Vive Pro device, the hand detection works perfectly, but now I can't find information on how to manipulate the hand gestures and implement functions in unity. Does anyone have information on how to do this, in the VIVE OpenXR Plugin Windows v1.0.13 documentation there is no information on how to implement it.

vivid beacon
#

@austere grotto it registeres as a 'keyboard1(onscreen)' but it doesnt register as 'Keyboard'. Does this help in any way?

#

I'm not really sure what this means

austere grotto
#

I think it's just being registered as a second keyboard basically

#

and maybe that's why PlayerInput won't detect it

#

because it thinks it's a second player

vivid beacon
vivid beacon
#

Holy shit.... @austere grotto
I almost want was sent to mental hospital.
I created control scheme. I test it . It works.
I run it again. Now i cant even click any button on screen. Its like every button in broken. Wtf is happenign everything worked just now.

I tried messing around with player input component changing default map or auto switch. Sometimes I though it was working sometimes it didn't.

Someone is knocking at my door, no... its just unity giving me a headache...and halucinations...

Not only that I was duplicating an button on screen or removing it and the buttons started working again...
Then i restart and they don't work again. Sometimes deleting and and duplicating random object repaired all buttons... (or same button multiple times duplicating, so it wasn't covered)

At this point I am starting to see dragons in my room, talking to me and trying to tell me to stop the development.

At the end I go back to normal scene. It doesn't work again. I go back to the scene it was working a second ago. It's f.

I am downgrading to 2021 LTS

hard shadow
#

I set up the input system.
On pressed works, on released doesn't.
I rebind the controls to the exact same things(still in play mode)
Both work
I stop play mode and start it again (Input Actions asset same as when I stopped play mode)
On released doesn't work again

#

I fucking hate the new input system

#

What the hell did I do wrong

#

This is the input actions asset

coral jasper
#

@tame oracle ok im back

#

to check whether u have the gamepad attached, to play safe, we validate it in two way

#

make sure u have a gamepad attached to pc and unity can detect it

#

open the script u have, u should have these already

    public void OnDeviceLost()
    {
        if(mouse == null)
        {
            Debug.Log("mouse is not connected!");
        }
        if(keyboard == null)
        {
            Debug.Log("keyboard is not connected!");
        }
    }

    public void OnDeviceRegained()
    {
        Debug.Log("device reconnected!");
    }

    private void OnEnable()
    {
        playerMap.Enable();
    }
    private void OnDisable()
    {
        playerMap.Disable();
    }```
#

note that these four function is intrinsic functions that is with the new input system or unity monobehaviour itself

#

OnDeviceLost u can do gamepad instead, dont just copy the code

#
    private Gamepad gamePad;

    private void Awake()
    {
        gamePad = Gamepad.current;

        if(gamePad == null)
        {
            Debug.LogError("GamePad is not connected ! ");
        }
    }```
make sure u have this to check if gamepad connected during runtime
wraith rapids
#

Hello every one,
I've just look at the local multiplayer tutotrial of Samyam. All is working great but as the control with a keyboard+Mouse is different with gamepad, I would like to detect the kind of controller in use (so if it is a keyboard or a gamepad). Could you please tell me how to do that ?

If the player1 is using a keyboard, do this
else if it a gamepad do this

I've seen that in the "Player Input" Component, we have "Control Scheme" and "Devices"
So I tried "GetComponent<PlayerInput>().devices" and "GetComponent<PlayerInput>().controlScheme"
But I 've got a error : "ArgumentException: GetComponent requires that the requested component 'PlayerInput' derives from MonoBehaviour or Component or is an interface."
Anyone have a solution please ?

dire quartz
#

Hello so everytime i press play then stop the script attached to the Event system goes missing

#

and i get this error

#

SerializedObjectNotCreatableException: Object at index 0 is null

#

this is after i stop play button

molten nest
#

Okay I have a problem. I helped a friend migrate to the input system (as opposed to previously they were using Input.GetKey and other methods). We have movement bound both to left stick and to WASD, however the WASD input causes the character to instantly snap to a direction whenever they rotate, whereas the joystick works fine and delivers smooth movement (which makes sense keyboard input lacks pressure). Somehow, Input.GetAxis magically solves this and applies motion smoothing to keyboard inputs. How do I make it so that joystick and keyboard movement are similar in the least complex way possible using the input system.

austere grotto
#

the new input system doesn't have it built in

#

but it's very easy to replicate

#
float horizontalInput = 0;
float gravity = 2; // similar to the "gravity" setting in the old input manager

void Update() {
  float current = myInputAction.ReadValue<float>();
  horizontalInput = Mathf.MoveTowards(horizontalInput, current, gravity * Time.deltaTime);
}```
#

if you are event based or using PlayerInput then something like:

float horizontalInput = 0;
float gravity = 2; // similar to the "gravity" setting in the old input manager
float currentInput;

void Update() {
  horizontalInput = Mathf.MoveTowards(horizontalInput, currentInput, gravity * Time.deltaTime);
}

void OnMove(InputValue iv) {
  currentInput = iv.ReadValue<float>();
}```
molten nest
wet isle
#

How to recreate this on new Input System Ray ray = Camera.main.ScreenPointToRay(Input.mousePosition); if (Physics.Raycast(ray, out RaycastHit hit, 100f, layerMask.value))

#

In short: old system when aiming shoot Raycast and set target for AimIK in this position

#

so when I press right mouse button its shoot Raycast in Input.mousePosition

#

In InputManager i allready add this

#


        // Aim
        aimAction = currentMap.FindAction("Aim");
        aimAction.performed += onAim;
        aimAction.canceled += onAim;

    private void onAim(InputAction.CallbackContext context)
    {
        IsAiming = context.ReadValueAsButton();
        playerController.AimHandle(IsAiming);
    }```
tulip tartan
#

Should these be playing sound? Lol

#

Butt dial?

coral jasper
#

WTF

#

and it held 4min

tame oracle
#

hello everyone i have a problem with a FPS controller camera using the new input system

#
using UnityEngine.InputSystem;

public sealed class CameraConrols : MonoBehaviour
{
    public float _mouse_x_sens;
    public float _mouse_y_sens;

    public float _controller_sens;

    void Awake()
    {
        Cursor.visible = false;
        Cursor.lockState = CursorLockMode.Confined;



    }

    Vector2 _mouse_look = new Vector2();
    [SerializeField] Transform _player_transform;
    public void OnMouseLook(InputAction.CallbackContext context)
    {

        _mouse_look.x = _mouse_y_sens * context.ReadValue<Vector2>().x * Time.deltaTime;

        _mouse_look.y -= _mouse_x_sens * context.ReadValue<Vector2>().y * Time.deltaTime;

        transform.localRotation = Quaternion.Euler(_mouse_look.y, 0, 0);

        _player_transform.Rotate(Vector3.up * _mouse_look.x);
    }

    public void OnControllerLook(InputAction.CallbackContext context)
    {
        _mouse_look.x = _mouse_y_sens * context.ReadValue<Vector2>().x * Time.deltaTime;

        _mouse_look.y -= _mouse_x_sens * context.ReadValue<Vector2>().y * Time.deltaTime;

        transform.localRotation = Quaternion.Euler(_mouse_look.y, 0, 0);

        _player_transform.Rotate(Vector3.up * _mouse_look.x);
    }
}``` this is my current implementation
#

The camera only moves a little bit each time i move the right stick on the Controller my mouse works fine

half pebble
#

This unity button works just fine when in screen space positioning, but when turned into world space positioning, the game does not register the button press, or even react to a mouse over.

It is placed the highest on the hierarchy (ui, highest tier), and has a level 10 on hierarchy.

wraith rapids
clever oyster
wraith rapids
#

To detect if the input device is a gamepad or keyboard (as the control script has to be a littlebit different due to mouse vs stick aim)

livid glade
#

PlayerInput literally extends MonoBehavior

#

Also, you might be able to use the OnControlsChanged or OnDeviceRegained callbacks to set a variable in your script. I'm not sure what they do exactly though, I was trying to find out but the documentation is actually horrid for the input system.

wraith rapids
#

@livid glade
I found the problem. I had another element in my project named the same way and when I used VS Code autocomplete, it returned the wrong element (the one I shouldn't have called "PlayerInput").
So either I changed the name or I used "GetComponent<UnityEngine.InputSystem.PlayerInput>().currentControlScheme" which references the correct "PlayerInput" component.

Why, VS Code autocomplete with the wrong "PlayerInput", I don't know. I'm using Linux and have some issues to make autocompletion working so maybe it's not resolve completly.

austere grotto
#

don't crosspost. This has nothing to do with the input system either

lusty nimbus
#

mb sorry

#

now a input-system question : I wrote the code for the PlayerController.cs but my character still doesn't move, why?

austere grotto
#

I guess there's a bug in your code

#

or you set something up incorrectly in the editor

#

Without any details from you, impossible to say more

lusty nimbus
#

What can I send you to fix this?

austere grotto
lusty nimbus
austere grotto
lusty nimbus
#

oh

austere grotto
#

unless you[re specifically having a problem with the input handling

lusty nimbus
#

ok im sorry

sterile citrus
#

I just upgraded to unity LTS 2022.3.6f1 (windows), and am noticing that InputSystemUIInputModule no longer compiles. Inside InputSystemUIInputModule.cs (which is a cached package script) I'm noticing these compiler flags, which I'm guessing are no longer set (and setting UNITY_INPUT_SYSTEM_ENABLE_UI manually doesn't seem to do anything, not exactly sure why):
#if PACKAGE_DOCS_GENERATION || UNITY_INPUT_SYSTEM_ENABLE_UI

Anyone else having this issue? Looks like a bug with the latest LTS. If I go ahead and remove the broken script > add the standalone input module > replace with new input system, it will add the input system input module but it will break as soon as I enter play mode with the warning: The referenced script (Unknown) on this Behaviour is missing!

EDIT: looks like this is the same issue: https://forum.unity.com/threads/unity-new-input-system-multiplayereventsystem-and-inputsystemuiinputmodule-is-commented-out.885214/

austere grotto
#

are all of your packages up to date?

sterile citrus
gaunt copper
#

Does anyone else have issues with the Input System UI Input Module occasionally dropping navigation inputs?

#

Sometimes I have to press the key multiple times before it moves the selection to the next button.

#
  • I made a brand new project using 2021.3.29 LTS
  • Installed Input System 1.6.3 and switched the input handling to use it
  • Added a canvas with an Event System, Input System UI Input Module, and some buttons
  • Set the First Selected button on the Event System
    When I enter play mode and use W and S to change the selected button, it occasionally just drops the input and doesn't change the selection
gaunt copper
#

It seems to be related to having a (ps4) controller connected. The input system will read the input event from the keyboard, but sometimes another (0, 0) input event will come in from the controller and overwrite the keyboard input before it has actually been processed by the input system.

winter crown
#

Is there a way to find out what binding on an action is currently being used, like if you had a camera look action, that was binded to mouse delta and right stick, how would you detect if the gamepad was currently in use?

bronze tusk
#

I'm getting some unexpected behavior using IPointerEnterHandler/IPointerEnterHandler on an object with a BoxCollider2D Collider. It seems to trigger both OnPointerEnter and OnPointerExit whenever my mouse enters or exits. Increasing the Edge Radius made the distance between Enter and Exit bigger, but it still triggers both before my pointer is over the object. Is there some other Collider that makes a "filled" rectangle rather than just the outline of a rectangle?

austere grotto
#

are you perhaps displayinga ui element over it or something>?

bronze tusk
#

I plan to, but right now I'm just Logging

bronze tusk
austere grotto
#

or a tilemap collder in edges mode

bronze tusk
austere grotto
bronze tusk
split elk
#

Hello, I was just experimenting with the new Input System when I noticed something weird: When I added a new Action to my Input Action Asset, I can select many control types (when action type is value). However, when I click on another action and then check again the previous action, those control types are just gone!

Here are some screenshots:

image.png image.png
#

I just wanna know if it is normal for this to happen

river finch
#

So Im trying this new input system out. I generated my Input Action Set, I added input mappings to it, and hit the "generate C# code" button to generate the classes+structs.

How do I actually subscribe to its events inside of C# code (not via the drag and drop interface as my classes are not monobehaviors, but POCOs)

#

I can have a serialized field ref to an InputActionAsset but thats the generic one, which doesnt seem to have my actual generated input events on it

#

Nah is there a way to do it without the whole player input thing

#

Im looking for lower level hooking in

coral jasper
#

unity event , but its limited and still need coding

#

normally for advanced movement u need to invoke C#

river finch
#

nah not unity events either, there appears to be this interface I can implement and inject?

coral jasper
#

aight then idk honestly

river finch
#

the generated code has this interface:

public interface IGameplayActions
{
    void OnMove(InputAction.CallbackContext context);
    void OnPauseAttack(InputAction.CallbackContext context);
    void OnAbility1(InputAction.CallbackContext context);
    void OnAbility2(InputAction.CallbackContext context);
    void OnAbility3(InputAction.CallbackContext context);
    void OnGuard(InputAction.CallbackContext context);
    void OnMouse(InputAction.CallbackContext context);
}

Which are all my methods

#

thats on the GameplayActions struct

coral jasper
#

im not those devs that obcessed with professional structures or concepts lmao

river finch
#

and it has this method:
public void AddCallbacks(IGameplayActions instance)

#

So I presume I can just implement that interface but then I dunno how I get like... the "real" struct I should be calling that method on

#

I mean that interface looks right, thats all my events with the callback contexts on it

#

boy this is really weirdly defined, its like nested inside of itself

#

major inversion of control has been done on this stuff so its extremely obfuscated on what is the actual "who owns who" you end up with by the end

#

No straight up the guide on the page is just different from what my code is generating, Im not seeing how I can drag and drop a ref to this POCO, because its just implementing 2 interfaces

#

What I have generated:

public partial class @InputActionSet: IInputActionCollection2, IDisposable
    {

What they have in their example:

    // MyPlayerControls is the C# class that has been generated for us.
    // It encapsulates the data  from the .inputactions asset we created
    // and automatically looks up all the maps and actions for us.
    MyPlayerControls controls;

Implying its a field they can serialize I guess?

#

oh wait

#

no wtf... they just new one up?

#

yeah okay, Ill try that, weird but... okay lol

#

Got it working with zenject, this is what I needed to do:

Registration:

var inputActionSet = new InputActionSet();
Container.BindInstance(inputActionSet);

Container.BindInterfacesTo<InputService>().AsSingle();
Container.BindInterfacesTo<GameplayActionService>().AsSingle();

Implementing Interface:

public class GameplayActionService : InputActionSet.IGameplayActions
{
  // Just implement the interface, with dependency injection working fine!
}

Wiring events up:

public class InputService : IInputService, IInitializable
{
    private InputActionSet Inputs { get; }
    private InputActionSet.IGameplayActions GameplayActions { get; }

    [Inject]
    public InputService(
        InputActionSet inputs,
        InputActionSet.IGameplayActions gameplayActions
    )
    {
        Inputs = inputs;
        GameplayActions = gameplayActions;
    }

    public void Initialize()
    {
        Inputs.Gameplay.SetCallbacks(GameplayActions);
        Inputs.Gameplay.Enable();
    }
}
mystic blaze
#

i need help
have problems using the new input system
AD on keyboard works fine but
WS is just moving my player up nd down instead of forward and backward

river finch
#

whats your code in the event?

mystic blaze
#

nvm fixed

fading latch
#

NullReferenceException while executing 'performed' callbacks of 'Player/Interact[/Keyboard/e]'
GameInput.cs

using System;
using System.Collections;
using System.Collections.Generic;
using UnityEngine;

public class GameInput : MonoBehaviour
{
    public event EventHandler OnInteractAction;


    private PlayerInputActions playerInputActions;
    private void Awake()
    {
        playerInputActions = new PlayerInputActions();
        playerInputActions.Player.Enable();

        playerInputActions.Player.Interact.performed += Interact_performed;
    }

    private void Interact_performed(UnityEngine.InputSystem.InputAction.CallbackContext obj)
    {

        OnInteractAction?.Invoke(this, EventArgs.Empty);
    }

    public Vector2 GetMovementVectorNormalized()
    {
        Vector2 inputVector = playerInputActions.Player.Move.ReadValue<Vector2>();

        inputVector = inputVector.normalized;

        return inputVector;
    }
}

need help finding out how to fix

austere grotto
#

It will have the exact filename and line number of the error

fading latch
#

NullReferenceException while executing 'performed' callbacks of 'Player/Interact[/Keyboard/e]' UnityEngine.InputSystem.LowLevel.NativeInputRuntime/<>c__DisplayClass7_0:<set_onUpdate>b__0 (UnityEngineInternal.Input.NativeInputUpdateType,UnityEngineInternal.Input.NativeInputEventBuffer*) UnityEngineInternal.Input.NativeInputSystem:NotifyUpdate (UnityEngineInternal.Input.NativeInputUpdateType,intptr)

fading latch
austere grotto
#

That's the full error? Doesn't seem like it's even getting to your code

fading latch
#

wait theres this too

#

NullReferenceException: Object reference not set to an instance of an object ClearCounter.Interact (Player player) (at Assets/Scripts/ClearCounter.cs:17) Player.GameInput_OnInteractAction (System.Object sender, System.EventArgs e) (at Assets/Scripts/Player.cs:45) GameInput.Interact_performed (UnityEngine.InputSystem.InputAction+CallbackContext obj) (at Assets/Scripts/GameInput.cs:23) UnityEngine.InputSystem.Utilities.DelegateHelpers.InvokeCallbacksSafe[TValue] (UnityEngine.InputSystem.Utilities.CallbackArray1[System.Action1[TValue]]& callbacks, TValue argument, System.String callbackName, System.Object context) (at ./Library/PackageCache/com.unity.inputsystem@1.6.3/InputSystem/Utilities/DelegateHelpers.cs:46) UnityEngine.InputSystem.LowLevel.<>c__DisplayClass7_0:<set_onUpdate>b__0(NativeInputUpdateType, NativeInputEventBuffer*) UnityEngineInternal.Input.NativeInputSystem:NotifyUpdate(NativeInputUpdateType, IntPtr)

austere grotto
#

There you go.
ClearCounter.cs line 17

#

That's where the error is

fading latch
#

there's this
Transform kitchenObjectTransform = Instantiate(kitchenObjectSO.prefab, counterTopPoint);

#

idk what's wrong with it though

austere grotto
#

The prefab reference is null

#

You failed to assign it

fading latch
#

oh

#

so kitchenObjectSO.prefab?

#

I assigned them though

austere grotto
#

Just kitchenObjectSO probably

fading latch
#

it's jsut a serialized field

#

and they're set correctly

austere grotto
#

Maybe you assigned it in one place

#

And forgot in another

fading latch
#

wdym

austere grotto
#

Not sure what's unclear about that

#

Your script may be on multiple objects

#

On one, you assigned the fields

#

On another, you didn't

fading latch
#

I assigned it on all

#

it's a scriptable object

#

all of the scriptable objects have the prefab field set

austere grotto
#

the error doesn't lie

fading latch
#

me personally I think the error does lie

austere grotto
#

add some logs to:
Assets/Scripts/ClearCounter.cs:17

fading latch
#

k

austere grotto
#

log everything right before that loine

#

see what's null

#

something will be

fading latch
#

errors lie a lot in c++ atleast lol

austere grotto
#

never

fading latch
#

in c++ errors are horrible

austere grotto
#

It's always human error

fading latch
#

na

#

what if the engine bugged though

#

then it's not a engine error

austere grotto
#

it isn't

#

this is 100% a bug in your code

fading latch
#

yeah im not saying it is

#

but what if it was 🤨

#

then the engine would be lying

#

what

#

why does it say nothing

#

not even null

#

wtf

#

i have these debug.logs and its not saying anything

austere grotto
#

they need to go BEFORE the error happens

fading latch
#

oh right

#

lmao

#

brain fart

austere grotto
#

none of your code after the error will run

fading latch
#

still doesn't say anything

austere grotto
#

wdym it doesn't say anyhthing

#

it will say something

fading latch
#

doesnt say anything

austere grotto
#

show your new code

#

and make sure you saved it

#

and if it still says nothing then that code isn't even running

fading latch
#

`if (kitchenObject == null)
{
Debug.Log(kitchenObjectSO.prefab);
Debug.Log(counterTopPoint);
Transform kitchenObjectTransform = Instantiate(kitchenObjectSO.prefab, counterTopPoint);

        kitchenObjectTransform.GetComponent<KitchenObject>().SetKitchenObjectParent(this);`
austere grotto
#

ok so what are you seeing in the logs

#

are you seeing the error still?

fading latch
#

yes

austere grotto
#

show a screenshot of your console

fading latch
#

but no logs

austere grotto
#

and also is this the right line?

austere grotto
fading latch
austere grotto
#

is this script actually attached?

fading latch
#

yes

austere grotto
#

you have broken script references it seems

fading latch
#

ok what the hell

austere grotto
#

so two things here:

  • broken script references need to be resolved
  • Make sure you put the logs in the right place
fading latch
#

the kitchen object so just dissapeared

#

now it works.. 💀

uneven mulch
#

I have a question for the pro's ... I seem to have a little bit of accuracy issues with nav mesh.. here's my question , what's better A* or nav mesh?

austere grotto
#

Unless you're asking about a very specific thing like Aron Granberg's "A* Pathfinding Project" Unity asset?

uneven mulch
#

No just in general. Using it for indoor navigation system for my job. And the nav mesh like to indicate it's reached the target but there can be a wall between the user object and target.. nav mesh doesn't seem to wanna walk around objects sometimes

#

I'm also using pro builder , thought A* would work with the grid system in pro builder

austere grotto
#

In order to use A* you will need to somehow convert your 3D space into a graph or grid data structure to run the alogorithm over. Depending on how your game works this may be easy or hard

rare gulch
#

Hello, why is Callback cancelled not called on actiontype value with vector2 when releasing the mouse? I red sth about it being a bug...

#

Canceled is only called when i tap outside the game window, which is not how it should work

austere grotto
#

wait actually - sorry if you bound osmething to the mouse position that's different from a mouse click

#

mouse click would be a button action, not a value/vector2

#

mouse position is totally different

#

if you want to klnow when the mouse is released you would bind it to the mouse button, not the mouse position

rare gulch
#

@austere grotto i want to tap, then move the mouse, then release
thats why i used vector2 bc i need the position of the taps and movement

austere grotto
#

but this kind of sounds like a UI/event system kind of interaction

#

I would recommend using that instead of directly processing input

#

e.g. IPointerDownHandler
IBeginDragHandler
IDragHandler etc

rare gulch
#

i know what you mean but this isnt for UI Interaction 🙂

austere grotto
#

as long as you:

  • put colliders on the object(s)
  • have an event system in the scene
  • Have a Physics Raycaster on your camera
rare gulch
#

mh i think this goes into the wrong direction

#

i could try it with these interfaces

austere grotto
#

what are you trying to accomplish?

#

that's probably where you should start

austere grotto
#

very easy to combine them

rare gulch
#

which one is for releasing? i tried button and release, but this is only called when i only tap without moving, so thats wrong

austere grotto
#

listen for the canceled event

austere grotto
rare gulch
#

alright, will give it a go. one minute

rare gulch
# austere grotto but^

its drawing with the mouse/touchscreen in AR, i have one version which kinda works but is not what i really need

#

and the current version would work if the cancelled would be called

austere grotto
#

if you set up the button properly

#

just a simple button action

#

tied to the mouse button

#

and listen for the cancel event

rare gulch
#

ok one sec

austere grotto
#

if not working - show the details of what you tried

rare gulch
#

@austere grottothe button action type is only called if i dont move the mouse at all

austere grotto
#

you keep just telling me that

#

and not showing anything

#

I can't help without seeing details

rare gulch
#

ok should go into dm?

austere grotto
#

no

rare gulch
#

this is for events

#

can ignore releaseRefernece

ivory bane
#

well i cant really tell yet nvrmind

#

its being weird

austere grotto
#

that;s not going to work

#

as mentioned, make a separate action for the position or delta of the mouse, and a separate one for the button

rare gulch
#

i dont quite understand, one second

austere grotto
#

Which action is that bound to

rare gulch
#

move is touchPosition with vector2

austere grotto
#

wdym "move"?

#

you only have something here called tapMoveReference

#

presumably that is referring to either TouchPress or TouchPosition

#

you will need two references

#

tapReference and touchPositionReference

rare gulch
#

yes, touchPositionReference would be action type value with vector2
what should i use for the tap?

austere grotto
#

you probably want "Primary Touch / press" NOT "PrimaryTouch / Tap"

#

Tap is literally to detect a tap interaction

#

aka the quick press thing

rare gulch
#

oh, that could be it

#

will try

#

without interactions i guess?

austere grotto
#

yeap

ivory bane
#

this wont normalize diagonal movement is that normal?

austere grotto
# rare gulch without interactions i guess?

imagining the code something like this:

void OnEnable() {
    touchPressRef.action.started += OnTouchOrRelease;
    touchPressRef.action.canceled += OnTouchOrRelease;
}

void Update() {
    if (isDrawing) {
      touchPos = touchPosRef.action.ReadValue<Vector2>();
      // continue drawing the line
    }
}

void OnTouchOrRelease(CallbackContext ctx) {
    if (ctx.started) {
      isDrawing = rtue;
      // start new line
    }
    else if (ctx.canceled) {
      isDrawing = false;
      // end the current line
    }
}```
rare gulch
#

yeah exactly

austere grotto
rare gulch
#

instead of update i would use action.performed

austere grotto
#

why not just bind it directly to Left Stick

#

you don't need a composite

#

that's probably breaking it somewhat

ivory bane
#

im confused, does that mean use stick instead of composite type 2d vector

austere grotto
ivory bane
#

or wait thats control type

austere grotto
#

that's all you need

#

no need for a composite binding

rare gulch
#

@austere grottothank you for helping. Should work now. Not a fan of the new input system. I still think it doesnt make sense that cancelled of value vector2 isnt called. That definetly shouldnt work like that

austere grotto
#

what should the "cancelled" state of touch position be?

#

when the position is the bottom left corner? (0,0)

rare gulch
#

idk, but it is an option which i can chose from 😅

austere grotto
rare gulch
#

i did at first but needed to change it because it wouldnt call phase.began and ended

#

which was really confusing bc it worked in one script, but not the other, thats why i tried to use the input actions

#

need to look into it a bit more

#

again, thanks for taking your time
have a nice day 🙂

ivory bane
#

hmm still wont normalize the diags. and the left stick zones for switch seems way off, it goes diagonal when im holding straight left.

#

im reading the value directly and it never reaches 1

#

(on the diagonals)

austere grotto
ivory bane
#

float values between -1 and 1. With it the 4 regular directions get normalized but the diagonals still use floats.

ivory bane
austere grotto
#

it just means the vector will be of length 1

#

maybe you're misunderstanding what normalizing a vector means

ivory bane
#

Which means it should read as 1 0 -1 values only right?

austere grotto
#

a normalized vector is any vector on the unit circle

#

it basically means you will either be at 0,0 or full tilt

#

no partial tilting

#

these d1 and d2 are normalized, for example

#

because their length is 1

#

anything inside or outside the circle is not normalized

#

(1, 0) and (.707, .707) are both normalized vectors

#

(.5, 0) and (.5, .5) are not

ivory bane
#

Ohh, okay they is there a way to force the .707 value on diagonal holding.

austere grotto
#

What do you want

#

8 directional movement?

ivory bane
#

Yeah

austere grotto
#

probably something like:

Vector2 input = whatever;

int segments = 8;
float degreesPerSegment = 360f / segments;
float angle = Mathf.Atan2(input.y, input.x) * Mathf.Rad2Deg;
angle -= degreesPerSegment / 2f;
angle /= degreesPerSegment;
angle = Mathf.RoundToInt(angle);
angle *= degreesPerSegment;
angle += degreesPerSegment / 2f;

input = Quaternion.Euler(0, 0, degreesPerSegment) * Vector2.right;```
ivory bane
#

The dpad reads it properly, do you know of a way to make the leftstick read as a dpad?

austere grotto
#

yeah the code I just wrote

ivory bane
#

Sure

#

Ty

ivory bane
#

this doesnt seem to work for wasd, is anything obviously wrong?

maiden pasture
#

Hey everyone!
Can someone tell how I can "exclude" modifier?
I have a case where I have a composite Shift + 1. However I also have a 1 input. I want the single 1 input only to be performed if no modifier is used at all. Otherwise I have two input actions being performed.
Any how to do this?

Unity Muse tells me this:

  noModifierAction = new InputAction();
  noModifierAction.AddCompositeBinding("ButtonWithOneModifier")
            .With("Button", "/1")
            .With("Modifier", "None");

  noModifierAction.performed += _ => OnNoModifierAction();
  noModifierAction.Enable();

But it does not work. Is None a valid value here intented to negate the modifier? Or is it just some "dreamed" stuff of Unity Muse 😄

worthy berry
#

The mouse delta vector in the new input system seems to be much faster than the previous GetAxis("Mouse X") and GetAxis("Mouse Y"). Is there a constant to scale it down to how it previously worked?

glass yacht
worthy berry
# glass yacht How are you using it? They're both in pixels afaik

Old:
float mouseX = Input.GetAxis("Mouse X") * Time.deltaTime * XSens * 100;
float mouseY = Input.GetAxis("Mouse Y") * Time.deltaTime * YSens * 100;

New:
var lookAxis = GameInputManager.Actions.Player.Look.ReadValue<Vector2>() * new Vector2(XSens, YSens) * (Time.deltaTime * 100);

And this is being polled in update not by events

glass yacht
#

Both are wrong, neither should be scaling mouse by deltaTime. It is already a delta.

worthy berry
glass yacht
#

It has been annoyingly proliferated by a lot of bad tutorials that are generally all copying eachothers' homework

worthy berry
#

Thank you so much tho

#

But wait, doesn't that still mean that the new input system is faster than the old one?

glass yacht
#

I have no idea how you're testing it, are you comparing those values directly or are you just doing it via feel?

worthy berry
#

Well if we isolate the vectors themselves from both "equations" then they should be the same if both systems havent changed. But when actually playing the game it's not just a small difference that I can "feel", it's literally about 1000 times faster than the old one. Like I move the mouse a bit and the camera has a seizure.

#

I'm gonna compare the values right now and tell you the result: Old: (-175.00, 25.00) New: (-3500.00, 500.00)

glass yacht
#

Mouse X and Mouse Y are scaled by the Sensitivity factor which is 0.1 by default

#

and then they also seem to be scaled by 0.5 for some reason

#

The new input system is just reporting pixels

#

Yeah, rando 0.5 scaling

worthy berry
#

Does it mean that on non-windows platforms I need to omit the .5?

glass yacht
#

I have no idea, the input system is doing things properly without default scaling and without this random 0.5

worthy berry
lethal kayak
#
public void OnKeyPressed(InputAction.CallbackContext context)
        {
            Debug.Log($"{context.control.displayName} was pressed");

        }

How do I get the specific key? I keep just getting ANY KEY

image.png image.png
#

I'd rather not have to go in and assign every key to something that could be modular

austere grotto
#

There's likely a better way

lethal kayak
#

Uhhh so, I have a hotbar with a String of the Key assigned to it. and want to use the ability based off of that.

austere grotto
#

you should make 12 input actions

lethal kayak
#

hahah

austere grotto
#

that is by far the most supported and flexible approach here

lethal kayak
#

shid.

austere grotto
#

12 is really not many

#

it will take you 5 minutes at most

lethal kayak
#

Well. I was going to have to do the whole keyboard just about

austere grotto
#

this will also let you rebind

austere grotto
#

don't think of this as a keyboard

#

think of it as "Action bar Slot 0", "Action Bar Slot 1" etc

lethal kayak
#

Essentially this

austere grotto
#

this is how e.g. World Of Warcraft does it

austere grotto
#

this is not a list of all actions in your game

#

this is the inverse

lethal kayak
#

Could you elaborate a little please? im kinda confused

austere grotto
#

every key on this image is not a bindable action the game

#

only the colored things are

#

you don't need to make an action for every key on the keyboard

#

you only need actions for the things you can do in the game

#

basically your first and second screenshots are completely different things

#

This is how world of warcraft does it for their hotbars

lethal kayak
#

AHhhh i think im starting to get what ur saying.

austere grotto
#

you can have code that displays those bindings in the game too, no problem

#

but conceptually in your code, that's Action 0

#

the binding is separate

lethal kayak
#

And i essentially can still Bind it to Q W etc from the start

#

But what im calling is, OnAction1(InputAction.CallbackContext context) { blah blah}

austere grotto
#

exactly

lethal kayak
#

Rgr that, thanks a ton!

#

Gonna be annoying to type but ill have to do it lol

thin musk
#

Hey

https://i.gyazo.com/0abdb9a6068f93d2938bace39f58b447.png
Main camera script

    public void OnDrag(InputAction.CallbackContext ctx)
    {
        if (ctx.started) _origin = GetMousePosition;
        _isDragging = ctx.started || ctx.performed;
    }

    private void LateUpdate()
    {
        if (!_isDragging) return;
        _difference = GetMousePosition - transform.position;
        transform.position = new Vector3(_origin.x - _difference.x, transform.position.y, transform.position.z);
    }
    private Vector3 GetMousePosition => _mainCamera.ScreenToWorldPoint((Vector3)Mouse.current.position.ReadValue());

How can I add touch support with this type of script?
Is there a way to detect that?

Is the above code even proper?
Do I need to check for mouse position or do I check for input position somehow?

lethal kayak
#
public void OnHotBarAction1(InputAction.CallbackContext context)
        {
            if (context.started)
            {
                PlayerCombatSystem.UseAbility(HotBarManager.Instance.HotBarSlots[0].ability);
            }
        }
#

@austere grotto So you think this is still the way huh?

zinc stump
#

@lethal kayak No off-topic media, please

austere grotto
#
hotBarAction1.performed += ctx => PerformHotbarAction(1);```
ivory bane
#

for some reason wasd doesnt work with my controls,. Heres how its set up. I cant find other people with this problem not sure whats wrong with it, my keyboard works with the start button (bound to enter) for example but wasd wont control the leftstick vector2.

xzxv.JPG dc.JPG
#

the sticks control the script just fine as well

austere grotto
ivory bane
#

no it doesnt

#

also after some testing nothing works with keyboard after the main menu, I can press the enter button to start the game but after that the keyboard is borked

forest dragon
#

if you want to change the keybinding of a HotbarAction to something else, just change the key of the HotbarAction to the new KeyCode.

lethal kayak
gilded osprey
#

I have one question - how would you typically implement wasd with ability to press shift to speed up, or control to slow down - w, a, s, d, shift and ctrl being separate inputs or there's better way?

austere grotto
analog marsh
#

I'm pretty sure they want to know how to do that

austere grotto
#

IDK how to interpret the question really, but the composite was implied in my answer

analog marsh
#

its just in the plus menu next to the control

analog marsh
analog marsh
#

And yes, the combined form is preferred and easier to manage

gilded osprey
#

yeah, that's what I have so far - and I assume now modifier actions would be a separate (value - button) action?

analog marsh
#

what I would do is just make it a separate button and depending on the one you press, it modifies your speed value

#

i dont think it being a modifier would be very useful, but it might be in your scenario

gilded osprey
#

something like this basically

analog marsh
#

yeah

gilded osprey
#

thanks, I'm starting to learn how new system works so it's nice to have something to experiment around with and expand from already 😄

analog marsh
#

np, im still figuring it out too lol

#

in fact i literally was about to ask a question of my own lmao

#

i already have it typed out and ready to go

#

Voila, here it is:

I'm trying to get the direction from the player to the cursor so that I can fire a projectile, but for some reason ScreenToWorldPoint is returning zero (or more accurately, the camera's position)?

Essentially, I have a camera that slowly follows the player and the raw position of the mouse is accurate. But after putting it through ScreenToWorldPoint, it's returning zero and has no velocity before moving, but then shoots backwards towards the camera's position after moving. When the camera catches back up and overlaps the player perfectly, it still shoots backwards.

This is exactly what I did with the old input system (if I'm not mistaken), but this doesn't seem to be working? Any help or ideas would be appreciated.

Also, this is 2.5D, but I don't think that matters. The movement is all 2D across x and y.

Vector3 rawCursorPos = Mouse.current.position.ReadValue();
Vector3 playerPos = Player.players[1].transform.position;

Vector3 mouseDirection = Camera.main.ScreenToWorldPoint(rawCursorPos) - Player.players[1].transform.position;
mouseDirection.z = 0f;

(the code is part of the intialization for the projectiles' velocity, which never changes)

#

And I guess this might not even be an inputsystem issue, but i figure someone in this chat would probably know why

#

I can also send a video if anyone wants it

austere grotto
#

first person?

#

third person?

#

top down?

analog marsh
#

2.5d top down

austere grotto
#

ok I wouldn't use Camera.ScreenToWorldPoint

analog marsh
#

so at an angle, but the core is 2d with 3d graphics

austere grotto
#

I would use Plane.Raycast here, with Camera.ScreenPointToRay

analog marsh
#

okay lol, ive only ever made 2d so that would make sense

austere grotto
#

e.g.

Plane worldPlane = new Plane(Vector3.up, Vector3.zero);
Ray r = Camera.main.ScreenPointToRay(rawCursorPos);

worldPlane.Raycast(r, out float enter);
Vector3 mouseWorldPos = r.GetPoint(enter);

Vector3 dirToMouse = mouseWorldPos - playerPos;```
analog marsh
#

okay, im gonna try this out one sec

austere grotto
#

this asumes your game world is flat

#

and that it is at height 0

analog marsh
#

Vector3.up would mean the plane uses x and z right? so x and y would be Vector3.forward?

austere grotto
#

yes

analog marsh
#

nvm this works great! just had to change to forward since i use x and y and set the z value to zero afterwards

austere grotto
#

oh, that sounds like a 2D game then >_>

#

top down implies x/z plane to me

analog marsh
#

was 2d lol

#

i kep x and y

austere grotto
#

but yeah, you got the idea

analog marsh
#

yeah

#

thanks for the help though!

#

I thought it was my logic that wasn't working, so i spent like three hours banging my head against the wall lmao

#

this solution is actually amazing though, since even when i tilt my camera back and offset it, it still works flawlessly

ivory bane
analog marsh
ivory bane
#

Yeah thats exactly what mine looks like and it doesnt work

#

It only accepts the controller input

analog marsh
#

Do you have them on separate control schemes or on the same one?

ivory bane
#

The same one. Im just putting every controller in a single actionmap

analog marsh
#

I couldnt get that way to work

#

I just made them separate

ivory bane
#

Up above what you have works though?

#

What was wrong with it when you tried it

#

Just didnt accept inputs?

analog marsh
#

Idr, but I'm pretty sure that controller overrides keyboard

#

unless im mistaken

#

have you tried unplugging your controller?

ivory bane
#

Yeah it still doesnt work

#

It only accepts keyboard input on the title screen

#

Once i switch to another scene it borks

analog marsh
#

Do you have them on different action maps?

#

Like wasd in a ui map then wasd in a gameplay map

ivory bane
#

Nope everything is on the same one

analog marsh
#

huh

ivory bane
#

Im not making it like a pseudostatemachine

#

Just controls on a controller map to inputs

analog marsh
#

idk, sorry man

#

thats a weird problem

ivory bane
#

Yeah it sucks ty for trying to help

analog marsh
#

np

#

it took me so long to set up my dual support, its just a pain lol

#

finally figured out that my switch pro controller just spazzes out lol

ivory bane
#

Okay wait now it works if i start the game with my controller turned off but it locks out the keyboard if i ever turn on the controller

#

Even if i turn it back off

analog marsh
#

okay wait

#

it might actually be control schemes then

#

possibly

#

if you just try making one for each and then set the buttons for the specific schemes it might work

ivory bane
#

heres what mine looks like

#

Im basically pretending all input is like a controller
