↕️┃editor-extensions

[old ravine]

Then I run the game, and all the links disappear!

Even if I save before running the game.

[visual stag]

Presumably you are not dirtying the objects you make changes to

#↕️┃editor-extensions message

@old ravine

[peak bloom]

How can I get the center position of an active area of graphview, so I can get the center of it later on?

[severe plinth]

https://forum.unity.com/threads/add-game-view-resolution-programatically-old-solution-doesnt-work.860563/#post-7594747

[plain lake]

For nested fields/props, how can I calculate the correct position for them?

 var initialPos = EditorGUI.PrefixLabel(position,label).x;

It only works for root fields

 var initialPos = (EditorGUI.PrefixLabel(position, label)).x - 15 * EditorGUI.indentLevel;

It solves the initial position of nested fields but width is wrong!

.

[old ravine]

Thank you, EditorUtility.SetDirty did the job. I didn't realise there was a pinned message with so much useful links, thank you.

[gloomy chasm]

How so?

Btw there is EditorGUI.IndentRect(..) for indenting the rects the proper amount. (Or maybe it is EditorGUIUtlity, I can't remember)

[cosmic inlet]

does anyone here happen to know how to use the currently experimental Graph View?

I created a system where for every variable in a node script with the attribute of [Port], a port will be created

it's currently really slow but the point is, it works

and I need to somehow link references using edges

[visual stag]

There's a tutorial on graph view pinned to this channel that's a good starting point

[cosmic inlet]

yeah but I don't know how to adapt them to my method of creating the links

the edges

I will check it out nontheless

oh

I already watched that one tho

[short tiger]

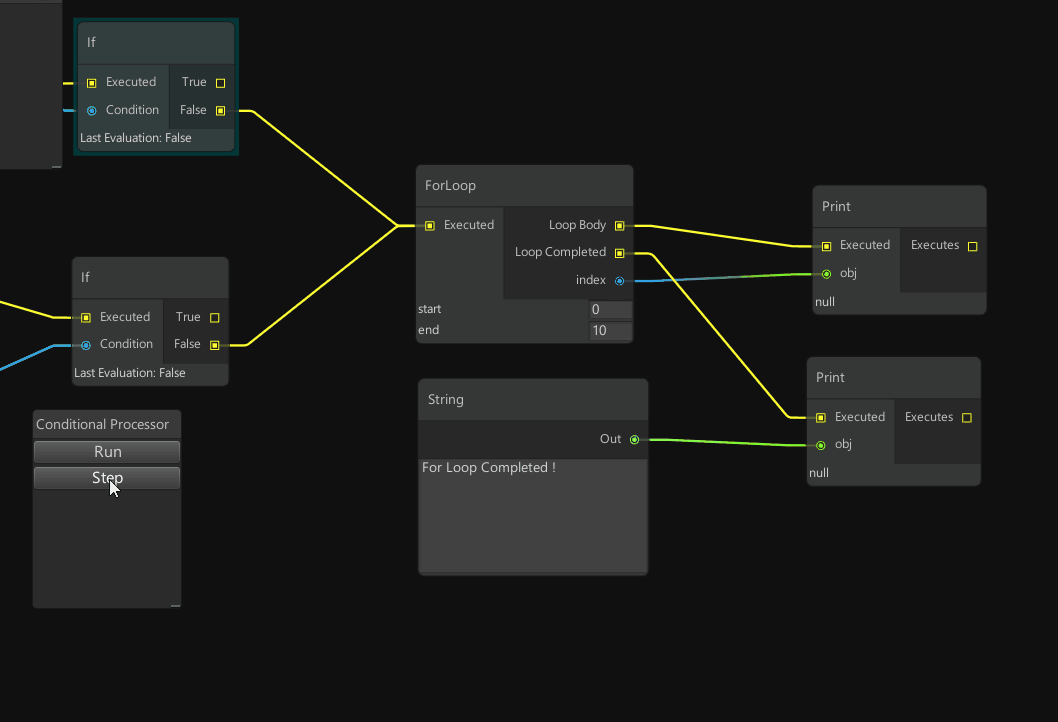

I use this higher-level library to create my own tools with GraphView. It's made by a Unity employee as a personal project.
https://github.com/alelievr/NodeGraphProcessor

[cosmic inlet]

oh wow I guess I'll use this one

it seems to be doing exactly what I want it to do, in the same method I made

thanks!

[native stream]

whats happing inspector not sees my project and unity can open project only if make new
and sends error of method axess team license

[native stream]

I cant edit my project
please help me
i find questions but is nothing

[delicate pivot]

hey, I have an EditorWindow with a ReorderableList

problem: as my items are Types (and therefore not serializable) I have to use the Type ctor and dont have access to ReorderableList.serializedProperty ```cs
m_list = new ReorderableList(m_managers, typeof(Type), true, true, false, false); //with m_managers = List<Type>

How can I reorder my m_managers after moving elements in list please?

[visual stag]

It will do that already, will it not?

[delicate pivot]

nope, unfortunately

it keeps reordering itself when i click the "add" or "remove" buttons

[visual stag]

how's that implemented?

[visual stag]

In the Unity version I'm testing in (2022.1) reorderable list modifies the list you pass in

If you reorder the list in the inspector, the original is modified. No copy was made.

[delicate pivot]

with non-serializable items?

[visual stag]

Yes

[delicate pivot]

i see

thx anyway :/

would you mind if I take a look at your code? (you cans send me a dm if you agree)

maybe i'll find what i did wrong xD

[visual stag]

public class Managers : EditorWindow
{
    [MenuItem("Window/Managers")]
    private static void ShowWindow()
    {
        var window = GetWindow<Managers>();
        window.titleContent = new GUIContent("Managers");
        window.Show();
    }

    private readonly List<string> m_managers = new();
    private ReorderableList _mList;

    private void OnEnable()
    {
        _mList = new ReorderableList(m_managers, typeof(string), true, true, true, true)
        {
            drawElementCallback = (rect, index, _, _) =>
                m_managers[index] = EditorGUI.TextField(rect, index.ToString(), m_managers[index])
        };
    }

    private void OnGUI()
    {
        _mList.DoLayoutList();
        if (GUILayout.Button("Test"))
        {
            foreach (string mManager in m_managers)
            {
                Debug.Log(mManager);
            }
        }
    }
}```

[gloomy chasm]

Yeah, ya did something wrong I think 😛 It has always modified the list that you pass.

[delicate pivot]

string is serializable

[visual stag]

it's not being serialized, and it wouldn't matter if it was

[delicate pivot]

ahhh i just wanna throw my computer by the window lmao

[visual stag]

What's the Add implementation?

[delicate pivot]

you mean when I fill the list?

[visual stag]

what's hidden here

[delicate pivot]

ahh

if (GUI.Button(new Rect(_rect.x + _rect.width / 2, _rect.y, _rect.width / 4, _rect.height), "Add",
                    EditorStyles.miniButtonLeft))
{
    //switch current manager style: dedicated object or common object, then process it
    switch (attr.m_style)
    {
        case ManagerStyle.COMMON:
            ProcessAddCommon(ref managersObject, manager);
            break;
        case ManagerStyle.DEDICATED:
            ProcessAddDedicated(manager, attr);
            break;
        default:
            throw new Exception("unsupported");
            break;
   }
   //mark scene as dirty
   EditorSceneManager.MarkSceneDirty(SceneManager.GetActiveScene());


it's to add it in scene

[visual stag]

how does the window.m_managers list get modified here?

[delicate pivot]

it does not

[visual stag]

so why would the add button change the order of the list

[delicate pivot]

i fill it at beginning and never edit it manually

it's just that when i click the button it resets list order

[visual stag]

That's bizarre. Is the window being reloaded?

[delicate pivot]

nope

that's just.. weird

omg wait

hahaha found it

i forgot i called the init function in my 'OnHierarchyChange' i'm so dumb

[plain lake]

Now, it is OK. I set the indent level to zero and then revert back at the end.
My problem
Field labels do not have indent. (ip2 and ip3)

EditorGUI.LabelField has not been used. I do not know how they are rendered!

  public override void OnGUI(Rect position, SerializedProperty property, GUIContent label)
    {
        var height = position.height;
        var posY = position.y;
        var offset = height / 2f;
        //EditorGUI.LabelField(position, property.displayName);
        EditorGUI.BeginChangeCheck();

        var ipValue = (IPAddressV4)property.GetValue();
        var indentLevel = EditorGUI.indentLevel;
        EditorGUI.indentLevel = 0;
        // render int fields
        EditorGUI.indentLevel = indentLevel;

[flint hinge]

Can anyone explain me how I can override the function of that add element button on a normal inspector list. I already made a custom editor for that script but now I don't know how to proceed...

[vagrant stirrup]

Hey, I'd like to query gameobjects in (unloaded!) unity scenes. I'd like to get the positions of all the gameobjects that have a collider component.
What I can do here is to parse the unity yaml file with YamlDotNet and resolve the transform hierarchy manually. I'm wondering if there is a better solution for this?

[crude relic]

what is your end goal?

@vagrant stirrup

[vagrant stirrup]

to have all the physics colliders loaded in my backend (I started with this manual loading because like this I could support hot reloading for local development)

Beyond physics objects, I'd like to also be able to define things using the unity world editor like placing monster spawners, defining player spawn points, points of interests, zone bounding volumes, etc.
^This is a no-brainer after I can query the boxcolliders, just writing this to give better context

[vagrant stirrup]

Btw @crude relic I successfully parsed the scene file but hit the roadblock with prefabs, it points to a guid and I can only resolve those with access to assetdatabase, so if I see it correctly, I'm unable to parse the scene file completely outside of Unity itself.

[plain lake]

EditorGUIUtility.editingTextField does not work correctly!
I would like to have a normal style when a text field is editing but when I click on a button and not focused, it should have another style.

After switching between windows and again click on a button, it would be OK

Also, there is a null error, it is destroyed (texture) unity editor after playing and close
Is it a standard way to solve it?

public class BackgroundStyle
{
    private static readonly GUIStyle Style = new GUIStyle();
    private static Texture2D _texture = new Texture2D(1, 1);


    public static GUIStyle Get(Color color)
    {
        if (_texture == null)  // here
        {
            _texture = new Texture2D(1, 1);
        }
        _texture.SetPixel(0, 0, color);
        _texture.Apply();
        Style.normal.background = _texture;
        return Style;
    }
}

[gloomy chasm]

It didn't destroy the texture, simply lost the reference to it since it is only in memory. And when you enter/exit play mode or recompile scripts, the domain is reloaded and all C# static fields and events and such are reset to their default value.

[wispy delta]

Is it possible to use a fade group in a property drawer? I'm making a property drawer for a class that contains a list and I want the foldout to animate open to reveal the list instead of opening immediately. it seems this is not possible since property drawers don't use the layout system tho. can anyone confirm this?

[nocturne geyser]

if(Event.current.commandName == "ObjectSelectorUpdated") Object reference not set to an instance of an object

[gloomy chasm]

Yeah, guess the event doesn't propagate to the update method

[nocturne geyser]

so no can do?

[gloomy chasm]

Correct-ish

It gets uglier from here 😛

What is it that you are wanting to do? Perhaps there is a better solution

(Just fyi, memes and such are not allowed in the server because they take up so much space and can clog up or derail conversations)

[nocturne geyser]

oh, whoops, sorry

[nocturne geyser]

I wanted to create a MenuItem that would (essentially) do something similar to a UI Image (albeit with some differences that aren't necessary to the context). When you click it, a "Select Sprite" window would pop up (similar to what happens when you change the image on a UI Image). Once you select one, it would automatically make a UI Image with the selected sprite already assigned to the object along with it correct size.

[gloomy chasm]

Oooh, hmmm

[nocturne geyser]

I already know how to create the object and give it the same properties, what I dont know how to do is to display that "Select Sprite" window and assign it to the new image component.

[gloomy chasm]

Righto, so taking a look at the source code, it looks like you can do it using some reflection if you want.

You would get the ObjectSelector class and then get this Show(..) method and use that to open it https://github.com/Unity-Technologies/UnityCsReference/blob/master/Editor/Mono/ObjectSelector.cs#L417

As you can see @nocturne geyser it takes a Action<Object> onObjectSelectorClassed delegate as a param.

So it should be pretty easy to setup! No need for funky update loops or anything.

[nocturne geyser]

how would I use that in code? Is it a ObjectPicker.Show() along with some sort of using UnityCsReference; kind of thing?

[gloomy chasm]

Have you used reflection before?

[nocturne geyser]

No

[gloomy chasm]

Right-o so I would read up on it a bit. It is really handy, especially when doing editor scripting. It allows you to 'dynamically' get members (fields, methods, properties etc.) of a class, and also get private or internal members.
https://docs.microsoft.com/en-us/dotnet/csharp/programming-guide/concepts/reflection

[crude relic]

you sure there isn't a public api for that? I swear I've used the object selector before w/out having to do reflection shenans

🤔

mb I'm just making stuff up

[gloomy chasm]

There is only the EditorGUIUtility.ShowObjectSelector(..)

[crude relic]

ahhh that must be what I'm thinking of

[peak bloom]

Managed to center newly spawned nodes into graphview, I bet there is an easy way to do this rather than rolling your own math

                    schedule.Execute(() =>
                    {
                        var graphView = vg._vviews.viewTransform.position;
                        var graphViewScale = vg._vviews.scale;
                        var editorWindow = vg.position;

                        vnode.SetPosition(new Rect((-graphView.x + (editorWindow.width/2)) / graphViewScale, (-graphView.y + (editorWindow.height/2)) / graphViewScale, editorWindow.width, editorWindow.height));
                        vnode.RefreshPorts();
                        vnode.RefreshExpandedState();
                    });

i'm open for suggestion

[peak bloom]

pretty sure xMin yMax do the same thing.. ugh

[old ravine]

I'm trying to create my own click & drag functionality in my EditorWindow script, but it seems I can't get the event for that, the built in "box select" behaviour overrides what I'm doing, and I don't get any more events until the mouse button is released and the built in blue selection box disappears.

This page seems to describe exactly my problem, and an apparent solution, but not quite what I want - he's clicking on some object he created. But I need to start clicking and dragging from any collision the user clicks on. Kind of like the way you click to drag select units in a 3D RTS. Wherever you click on the terrain, a box will drag out horizontally from that location.
https://stackoverflow.com/questions/63040319/unity-editor-capture-hold-mouse-down-and-move-event

[craggy latch]

I'm currently having an awful time trying to fight the scene camera. I have a level editor that runs in scene view. A part of that is scrolling to change the placed tile. As far as I can tell, there's no way to stop unity zooming on scrolling, so instead I have to set it back on Camera.onPreRender which will jitter half the time. I need to subscribe to that event though, which doesn't survive any sort of reload, so I need to run IntializeOnLoadMethod to reset it, but that only works for static methods, so I need a singleton to actually set it. I don't even know what's going on memory leak wise with the very dodgy subscribing and unsubscribing, but I don't imagine it's good.

Any advice? Some way to stop the zoom? A better place to set the camera size to avoid it jittering? Some way to make the event subscription not awful?

Also forgot an additional pain. You can't get the sceneview at InitializeOnLoadMethod. I don't even know how I had this working earlier. This is pain.

[peak bloom]

anybody knows how to show default inspector on top of uielements?

Found the exact example for this https://github.com/Unity-Technologies/UIElementsExamples/blob/master/Assets/Examples/Editor/Bindings/InspectorComparerWindow.cs

[crude relic]

@craggy latch if you subscribe to https://docs.unity3d.com/ScriptReference/SceneView-beforeSceneGui.html you can override keyboard and mouse events that would otherwise be consumed by the sceneview

make sure to call Event.current.Use()

[old ravine]

I got it to behave the way I want during the drag, but the built in blue drag-box still appears over the top of it, and then I don't seem to get the MouseUp event. Probably need to fiddle with it some more...

[crude relic]

@old ravine same applies to you lol

subscribe to beforeSceneGui

it allows to override default scene behavior

[craggy latch]

Oh thank god, I couldn't find anything on this. Thank you.

[crude relic]

np

[old ravine]

Oh, hahah.... ok I will do that in the morning, thank you 🙂

[craggy latch]

And I after I'm back at my PC. Let's hope this goes smoothely.

[crude relic]

you also need to manage GUIUtility.hotControl

if you don't register/set your own control id it won't override the default functionality

[old ravine]

@crude relic Also It's doing a weird thing where the DrawLine that I'm using smears across the screen and only refreshes the 3D view correctly at some kind of intervals that I can't determine, seems when I stop moving the mouse. Maybe your solution will help with that too.

[crude relic]

whenever you're doing mousedrag stuff in the scene, make sure to call SceneView.RepaintAllViews or whatever it is

so it repaints consistently

never run into smearing before tho

are you using Debug.DrawLine

[craggy latch]

I'd absolutely have made that mistake. Would you mind if I @ you if I have any troubles with this when I get back? I haven't done too much with editors before.

[crude relic]

you should be using Handles.DrawLine

[crude relic]

sure

cant guarantee I'll be online tho 😄

[craggy latch]

👍

[old ravine]

Ahah, yes I am

Works great for in-game

[crude relic]

yes, Debug.DrawLine is runtime-only

for editor you either want gizmos or handles

handles in this case

[old ravine]

Lifesaver man, it works perfectly 🙂

[crude relic]

it will behoove you to dig into the Handles and HandleUtility classes

they are necessary for sceneview editors

[old ravine]

Yes I'm compelled to do that now

[near plover]

I have an editor extension that opens a simple EditorWindow when I press a button. Is it possible to persist that EditorWindows location in unity's layout after I exit and re-open unity? Pressing 'save layout' doesn't seem to save the location of my extension's window.

[crude relic]

hmm

not sure it is possible to save positions of external windows

[near plover]

Usually the first thing I do is dock the window

It opens as a popup, but I want it to just be another panel

[crude relic]

it is possible to save the position of the panel if it's been docked

[near plover]

Oh, when I load the editor layout, I get this error: The editor layout could not be fully loaded, this can happen when the layout contains EditorWindows not available in this project

[crude relic]

yah makes sense

it can't find your window

make sure it's in a file that matches the class name

and isn't an inner class

[near plover]

It is not in a file matching the class name 🙂

[crude relic]

that would explain it then

[near plover]

I had to delete the layout, but it seems like that worked.

Thank you so much!

[crude relic]

👍

[whole steppe]

Hi everyone! I'd like to create a prefab that when dragged into the hierarchy, the user will be prompted to input an integer. Then that number of prefabs will be created as children of an empty game object. Is this possible with code? If prompts aren't possible, public variables in the inspector should be fine as well!

[craggy latch]

How would you go about subscribing to this? Right now I've got some akward singleton stuff going on because there is no 'onenter/exiteditmode' I can find.

[gloomy chasm]

Idk what you are doing, but would just subbing in a InitializeOnLoad static constructor work? And if you need playmode state change there is this
https://docs.unity3d.com/ScriptReference/EditorApplication-playModeStateChanged.html

[craggy latch]

That's what I'm currently doing, though I'm not sure that's a good idea since that runs everytime there's a reload and I'm not unsubscribing properly. It also requires me to make a singleton since that needs a static method.

[gloomy chasm]

No need to unsub since it is cleared on domain reload. And no need for a singleton either (not sure what you are doing currently so not sure what to suggest instead).

[craggy latch]

How would I statically subscribe it? Unless I make the whole thing static.

[gloomy chasm]

[InitializeOnLoad]
public class Example
{
    static Example()
    {
// Sub
    }
}

or

public class Example
{
    [InitializeOnLoadMethod]
    private static RunExample()
    {
// Sub
    }
}

[craggy latch]

Yes. You would need the instance of Example to sub to the event.

[crude relic]

No you don't

Just make the method you're subbing to static

[crude relic]

There no good way to prompt the user for values before continuing

What are you trying to accomplish?

[gloomy chasm]

Anyone know if there is there a good way to serialize the value of a SerializedProperty?

[crude relic]

Uh

[craggy latch]

Ok, but I'm suspicious of making things static to solve problems like that.

[crude relic]

It's perfectly fine in this case

It's a problem of your own making

Initialize on load is static

Event handler is static

Event delegate is also static

Everyone wins

[crude relic]

I'm assuming you mean like, write the value to disk?

Bc the obvious answer is that it is already serialized

I don't think there's a way where you're not having a giant switch case

[crude relic]

You can also look into constructing a custom tool

That may appeal to your non-static sensibilities a bit more

And then you have a strict lifecycle since it's tied to having the tool enabled

[craggy latch]

Noted. Thanks.

[craggy latch]

@crude relic I've got this running and it works great.

private static void BeforeSceneGUI(SceneView sceneView) {
            Event guiEvent = Event.current;

            if (guiEvent.type == EventType.ScrollWheel) {
                if (!guiEvent.shift)
                    guiEvent.Use();
            }
        }

Small problem though, I need to use the scroll event for another script. You mentioned the hotcontrol thing for that, but I don't understand it. Could you give me some pointers? I could also just tell the other script to do it's thing from here, but want to learn what the hotcontrol thing is.

[gloomy chasm]

Haha yeah I mean write it to some sort of serialized format (bytes, json string, etc.).
Part of the problem is that I need it to be really generic, so it can handle any property value. The reason being is I basically need to be able to store the value of any given property and then restore the property to that value at another point in time.

[whole steppe]

I'd just like to make a prefab which help other developers easily spawn a specified number of object by just specifying an integer.

[slim vector]

so im making a tool to make duplicating a lil bit easier. the duplicating of the object with its position, rotation and scale are working fine but im having issue with the preview mesh it is displaying. as seen in the video, the preview mesh itself has a different rotation than the actual mesh itself and im scratching my head for a fix, any idea on how to fix the preview mesh rotation issue?

the code for the preview mesh itself. i suspect the issue is with the Matrix, not sure...

if (inputInstances > 0 && Selection.gameObjects.Length == 1)
{
    GameObject go = Selection.gameObjects[0];
    MeshFilter[] meshFilter;

    // Get the existing MeshFilter component from the selected gameObject
    // If it doesn't exist, then get the MeshFilter component from the child gameObject(s) instead
    if (go.GetComponent<MeshFilter>() != null)
    {
        meshFilter = go.GetComponents<MeshFilter>();
    }
    else
    {
        meshFilter = go.GetComponentsInChildren<MeshFilter>();
    }

    if (meshFilter != null)
    {
        foreach (MeshFilter filter in meshFilter)
        {
            GameObject currGO = filter.gameObject;
            Mesh currMesh = filter.sharedMesh;

            for (int i = 1; i <= inputInstances; i++)
            {
                Vector3 finalPosition = CalculatePosition(currGO.transform.position.x, currGO.transform.position.y, currGO.transform.position.z, i);

                Quaternion finalRotation = currGO.transform.rotation * Quaternion.Euler(inputRotation.x * i, inputRotation.y * i, inputRotation.z * i);

                float scaleX = inputScale.x;
                float scaleY = inputScale.y;
                float scaleZ = inputScale.z;
                Vector3 finalScale = new Vector3(scaleX, scaleY, scaleZ);

                // Create a translation, rotation and scaling matrix
                Matrix4x4 matrix = Matrix4x4.TRS(finalPosition, finalRotation, finalScale);

                _previewMaterial.SetPass(0);
                Graphics.DrawMeshNow(currMesh, matrix);
            }
        }
    }
}

[wise yoke]

does anyone know why AssetDatabase.Refresh doesnt refresh resources folder? I can only get it to refresh by recompiling my code

[plain lake]

After using var inputRect = EditorGUI.PrefixLabel(position, label);,
I see text value which is in the text field on the label overlapped!!!

.

[gloomy chasm]

Are you using inputRect for the second label?

[gloomy chasm]

It should. What are you wanting and what are you seeing/not seeing?

[crude relic]

The traditional way to do something like that would be to create a custom editor window

[plain lake]

yes

   var inputRect =  EditorGUI.PrefixLabel(position, label);
        inputRect.x -= EditorGUI.indentLevel*15;
        inputRect.y += inputRect.height;
        inputRect.width -= 60;

        _input = EditorGUI.TextField(inputRect, _input, _style);

the first one is pattern and the second one is input rect

[wise yoke]

I have an icon generator that makes pngs of items in my game, it runs in the editor, it generates and imports the icons just fine (saves them to resource folder) I call asset database refresh after that, but it never finds them until I force I manual recompilation of all scripts (by changing random code around or adding a comment etc)

[whole steppe]

Ouch, might be out of my expertise. Thank you though!

[gloomy chasm]

This is inputRect.x -= 15 * 15;

[wise yoke]

After that code runs I want to assign the icons to the items, but resources.load never finds them

so I have to do a manual refresh for it to work

[plain lake]

what?!

EditorGUI.indentLevel*15

[gloomy chasm]

Sorry I just reread it, I thought it was indent width, my bad

[gloomy chasm]

But you see the files in the project browser?

[plain lake]

The second text field should not have any label

[wise yoke]

Yes

I have an import preset and everything, they load in just fine, only thing that fixes it is me manually compiling the assemblies

[crude relic]

Assetsatabase.refresh won't import them, you need to import them

I can't remember the overload

Is it in assetdatabas

?

Something like assetdatabas importassets

[gloomy chasm]

AssetDatabase.ImportAsset(..)

[crude relic]

Yah

[wise yoke]

They get imported just fine, I can see them in the unity browser, just resources folder can't see them

[wise yoke]

I'll try this in a bit

[crude relic]

You should turn off automatic imports before and turn them on after

And then use the bulk import overload

Will make it much faster

Off automatic refresh actually I think it is

[gloomy chasm]

Make sure to use a "try catch finally" to enable it again!

(@crude relic you have too much faith that people understand what they are doing!)

[crude relic]

I like to give the broadest solution and then work inward as necessary

Saves me effort and lets people draw their own conclusions. Better for learning! 😁

[gloomy chasm]

Until stuff breaks and they come here asking for help 😛

[crude relic]

Yah that's fine

[wise yoke]

I like to think I know what I'm doing 🥲

[crude relic]

You don't but its ok neither do any of us 👍

In the grand scheme of things

[gloomy chasm]

I didn't mean that as a slight against you. I have no idea what you do or don't know. So I try not to give people stuff that is too complicated if I can help it until I do know.

[crude relic]

Basically the opposite strategy of me 😂

[gloomy chasm]

LOL

[wise yoke]

Yeah I know, don't worry about it! Just having some fun haha

I'm the same way when I help people as well

[gloomy chasm]

Is there a way to override a prefab property from script?

[visual stag]

Just change the instance?

[crude relic]

do you mean apply the override?

there's the PrefabUtility class

[gloomy chasm]

I am trying to understand exactly how the prefab override system works. And I want to see if it is possible to override a generic property without overriding one of its fields.

So override _myClass but without overriding _myClass._fooFloat

[visual stag]

I don't understand what that even means, _myClass is not what it serialized if it contains children

so you cannot override it at all

[crude relic]

do you mean overriding what type _myClass is

[visual stag]

Is _myClass being serialized with SerializeReference or something?

[gloomy chasm]

Well that is what I am trying to figure out, because it has an 'override state' myClassProperty.prefabOverride will be true if one of the fields in _myClass is overridden.

// In Mono
[SerializeField] private TestClass _myClass;

// In its own file.
[System.Serializable]
public class TestClass
{
    [SerializeField] private float _fooFloat;
}

Again, there is no 'end goal'. I am just trying to understand exactly how the system works so I can mirror it in my ScriptableObject Variants

I think I have figured it out, basically it just keeps track of which if any of its properties are overridden. And if any are, then it is too.

[visual stag]

I imagine that's the case, because _myClass has no member in the serialization hierarchy

it isn't present in the YAML at all

you cannot override its value in any sense, only the values of the serialized properties that are the lowest children

[crude relic]

SO variant is something that makes a lot of sense

surprised (not really) they haven't done that yet

[gloomy chasm]

That makes yeah

[wise yoke]

@gloomy chasm @crude relic sorry for the incredible delay, but using assetdatabase.importasset doesnt work, any ideas why?

[crude relic]

nope, would need to get my hands on it

asset shenans are sometimes unintuitive

[wise yoke]

yeah and alot of it isnt well explained in the docs unfortunately

cant really share the project, it's for my job :/

[crude relic]

I wasn't suggesting that you should share it lol

[visual stag]

Good a time as any to get fired 🤷

[wise yoke]

fr

in all seriousness its not that big of a deal, im just an automation freak lol

[visual stag]

What's the setup with the Resources folder?

are you certain you're not just screwing up the call to Load

(like, does it work if you manually make the assets)

[wise yoke]

editor script spawns prefab, positions it, takes icon screenshot, saves it to resources folder, i call assetdatabase.importasset, it cant find at all, but if i force a recompilation of the project, it can find it, so something is going wrong with the resource folder refresh

[visual stag]

If that's all good, try a AssetDatabase.Refresh perhaps?

[wise yoke]

thats what i was doing initially

it all works great if i manually compile the project (which i assume reloads resources)

but i cant get it to be automated

[crude relic]

what do you mean it can't find it at all

resources can't find it?

[wise yoke]

resources.load

returns null

[visual stag]

If you're running the load directly after creating the icon, are you using ImportAssetOptions.ForceSynchronousImport?

[crude relic]

^

[wise yoke]

no, ill try

didnt work

[crude relic]

@wise yoke if you're making a lot, use AssetDatabase.StartAssetEditing to queue up the calls also

and StopAssetEditing of course

[wise yoke]

i will, but what does that do?

[visual stag]

Well I think the answer is just to have a breakdown

[crude relic]

queues up imports so it can batch them

makes importing faster

when you're doing lots of it at once

https://docs.unity3d.com/ScriptReference/AssetDatabase.StartAssetEditing.html

[visual stag]

If you're making a load of assets a Start and Stop AssetEditing call will make it so there's one loading bar instead of a flickering mess of loading 😄

and it will be significantly faster

[crude relic]

on a tangential topic I'm designing an asset that may generate lots of textures, and I'm contemplating generating the meta files myself so I can avoid the initial import step 🤔

[visual stag]

I imagine the thing that takes time is messing with the Library, not the meta files

but I could be wrong

[crude relic]

you're correct, but the messing with the library is what I'm trying to avoid

if you write a png file to disk then it needs to import that

if you then want to immediately change the import settings via code you need to reimport it

if I just set up the meta file with the import settings I want then no reimport necessary

[visual stag]

If you StartAssetEditing it won't reimport until you're done modifying

[crude relic]

yah but I need to get the importer to change and serialize the import settings

[visual stag]

Ah I see

[crude relic]

the whole texture gen workflow is garbage lol

making the meta file by hand just sounds super janky though

so I'm hesitant

[wise yoke]

sounds like something easy to break

[visual stag]

I still am unsure whether having the meta file would skip you importing the asset before loading the importer

I would use a Preset over a meta file, but I'm unsure whether that helps the problem either

[crude relic]

if it were possible to write a png to disk and apply a preset to it on first import then I'd be all over that

[wise yoke]

presets as in?

[visual stag]

ye

[crude relic]

it doesn't.

here -- the chain is like this:

write file -> import -> get importer, make changes -> re-import

[wise yoke]

is this why my thing doesnt work? i am using a preset for the icons

[crude relic]

if I write the meta file by hand, it becomes this:

write file & meta -> import

[visual stag]

Ah right, that makes sense, you don't need the importer if it's fine to begin with

[crude relic]

I have no idea if my issue applies to your issue lol

[crude relic]

exactly

but meta file is prone to breaking with version changes

so potentially lots of upkeep

maybe unity's serializer is robust to missing properties, so I can just write what I care about and let it fill out the rest lazily on some future re-import

I'd only need to do the manual part once, if the file already exists I'd just grab the importer

@wise yoke can you post the relevant snippet

tired of speculating w/out code

[wise yoke]

yeah sorry, cleaning it up so its easier to understand, 1 sec

[crude relic]

no worries

[wise yoke]

this should be all thats relevant

i do the try catch finally thing around this method

[crude relic]

you do have a double / in your path

not sure if it matters

[visual stag]

The leading forward slash seems odd too

[crude relic]

/Resources//UI/Icons/...

[wise yoke]

it doesnt matter, windows changes it to the right way around

afaik

[gloomy chasm]

You don't even need to do Application.dataPath

[crude relic]

ImportAsset still needs the extension

[gloomy chasm]

It has it

[crude relic]

oh so it does

nvm

[visual stag]

The mixing and matching of string interpolation and concatenation is killing me 😄

[crude relic]

lol

yah it's not pretty

[wise yoke]

i like to live life on the wild side

[gloomy chasm]

Is it possible that the AssetDatabase hasn't had time to update yet?

So Resources can't find it because it isn't there yet?

[crude relic]

Also, you don't need to use Resources Load

just load it via AssetDatabase

AssetDatabase.LoadAssetAtPath

[visual stag]

Yeah, that's what I would do. Already in an editor context

[gloomy chasm]

Hold up, what if it can't load it because you are trying to load it as a sprite and it isn't set to sprite?

[visual stag]

I think a preset was mentioned

I am not sure when presets applied to folders runs, which could certainly be the issue

[wise yoke]

it is, the preset sets it

yeah idk if the preset is messing it up

[gloomy chasm]

I would try loading it as just a Texture2D just to check and simplify the setup

[crude relic]

and also try assetdatabase

[gloomy chasm]

(For testing I mean)

[crude relic]

yah there's a lot of ways to break this down and test this implementation that you can do

[wise yoke]

does loadassetatpath need file ext?

[crude relic]

yes

Resources is the odd man out, everything else wants extensions

[visual stag]

Use the same path you use for the ImportAsset

[crude relic]

as a rule

[gloomy chasm]

Literally just today did it click with me why it doesn't use extensions. Been using Unity for 4+ years xD

[crude relic]

because they're not files?

[gloomy chasm]

Yeah

[crude relic]

makes sense

[gloomy chasm]

I had to think of it within the context of builds to realize

[visual stag]

I enjoy never using the resources folder

[crude relic]

I just use it because it's stupid simple

I don't want to bother with enterprise tooling unless I have to

[wise yoke]

this works :D (the loadassetatpath method fixed it)

[gloomy chasm]

I only ever use Resources.FindAllOfType, and that is for editor tools

[crude relic]

yay

[wise yoke]

Thanks so much guys, ive automated some of my job now lol

[visual stag]

Hrm, that's interesting. I wonder if that means that it's the Resources folder that hasn't recalculated its index

[crude relic]

probably

but there's no public api to know that

interesting

[visual stag]

It's odd how those functions have nothing to do with the resources folder

[crude relic]

anyway lesson is not to use resources in the editor

[wise yoke]

also, i fixed all the interpolation and concat mixing :)

[crude relic]

or at all, depending on how much you hate it

😄

you still have a double //

just saying

[wise yoke]

where? i thought i got rid of it

[gloomy chasm]

Yeah, I was surprised when I first learned that. But it makes sense

[crude relic]

when you concat everything together it will become /Resources//UI

[visual stag]

You have a mixed slash setup

this one should go, the others should exist

[wise yoke]

found it thanks

[visual stag]

like here

[crude relic]

👍

[wise yoke]

ok

blame it on my lack of sleep lol

[gloomy chasm]

You can also get rid of the Application.dataPath

[wise yoke]

dont i need it? im using normal c# file.io, so shouldnt it not understand unity context?

[visual stag]

All the methods can just use the same "Assets/Resources/etc" path

[crude relic]

unity sets your cwd

of the process

[gloomy chasm]

Yeah, it's target directory thing is set to the project folder

[crude relic]

doesn't matter what type of file

it's all the same process

[gloomy chasm]

Its magic

[visual stag]

It's nice not having to create so many random paths 😄

[crude relic]

🪄 ✨

[wise yoke]

it doesnt seem to work without it

[crude relic]

rip

guess we all have egg on our heads

[visual stag]

Assets/Resources

[crude relic]

oh mb the leading slash

get rid of that

[gloomy chasm]

Not me, it works on my machine!

[visual stag]

It should be the same path as the others, not /Resources

[crude relic]

yah

[wise yoke]

this works

very epic

[gloomy chasm]

I can't tell you how long I did some stupid Application.dataPath.Remove(Application.dataPath.Length - "Assets".Length) or whatever to get a project relative path before I learned I didn't need to... 🥲

[visual stag]

epic

[crude relic]

nice, very cool

[wise yoke]

this feels so good, i used to assign the generated icons by hand like a fkn cave man

[crude relic]

now you are a cave man with fire

[visual stag]

I am happy to have never known a world where I did dumb things with paths

[wise yoke]

now that we are getting exponentially more items in the game i cant do it that way anymore lol

[gloomy chasm]

@visual stag Just wanted to say thanks for the thing about SerializedProperties earlier being not able to be set because they are not saved to YAML. That helped it finish clicking in to place and change how I see the problem I was having! 🙂

Is there a way to convert a UnityEngine.Object reference to a string and then back by chance...?

Oh, GlobalObjectId will work I bet

Because of the change of how I am thinking about SPs a bit, it should also solve my problem I was having earlier about how to save SP values! This is great! 😄

[crude relic]

I like how all of the methods in GlobalObjectId are tagged as slow with no alternatives

[gloomy chasm]

Right!? Like... why even call them slow then? Maybe just so we will all know like "Hey, these are really slow..."

[crude relic]

I think that's why

[gloomy chasm]

Maybe they realized people be doing GameObject.Find(..) inside of an Update() loop and thought they should make it explicitly clear that this new API is slow.

That is all I can think of

[zenith estuary]

GlobalObjectId is the correct approach, yeah

You can ToString that, then TryParse it back to a GlobalObjectId and use GlobalObjectIdToObjectSlow

The methods have "slow" in the name but that's only because (afaik) they will iterate over all objects in a scene to locate the target

That's why there are "batch" versions of them, since calling the single-object one repeatedly for a bunch of scene objects would add up in a large scene

As far as I know, the slowness doesn't apply to asset references, only scene references

[crude relic]

interesting

if only there was a way to limit it to assets

[zenith estuary]

That's not too hard

https://docs.unity3d.com/ScriptReference/GlobalObjectId.html

You can check the type

If it's a scene reference, remove it

or don't process it

[crude relic]

ooh I see

the type is encoded in the id

smart

so it never searches what it doesn't need to

[zenith estuary]

I used it to reimplement the internal SceneObjectIdentifier type

https://github.com/NewBloodInteractive/com.newblood.lighting-internals/blob/master/Editor/LightingData/SceneObjectIdentifier.cs

[crude relic]

nevermind, my comment is totally useless

😄

very cool

that's a part of the editor I've never touched

[zenith estuary]

Normally that type is only usable by Unity internally since the functions to use it are in C++

But GlobalObjectId is a superset of its functionality, so you can use that to reimplement it

Which I had to do in order to access objects stored in the LightingDataAsset

[crude relic]

interesting

that could potentially be useful for my importer...

I'm wondering about ways to orchestrate having a single asset import generate many files

and keeping those files' relationship with the root asset

[zenith estuary]

If you define a "fake" serializable version of an internal type, you can read/write it with EditorJsonUtility

The field name has to be the same as the class name

LightingDataAsset in this instance

[crude relic]

that is a clever way to do that

[zenith estuary]

it's trivial from there:

I used to use SerializedObject, but I had to use reflection to set its internal "inspectorMode" value

[crude relic]

I always have compiled lambdas to access internal stuff

though usually I'm calling methods

[zenith estuary]

But this approach doesn't need reflection and works better, so I ditched that

[crude relic]

I will definitely keep that technique in my back pocket

[zenith estuary]

There is a catch though

Since your field names has to match the names Unity uses in serialization, you will run into situations where the name you need to use isn't a valid identifier

Such as here: https://github.com/NewBloodInteractive/com.newblood.lighting-internals/blob/master/Editor/LightProbes/Tetrahedron.cs

I implemented a custom attribute + an assembly post processor (https://github.com/NewBloodInteractive/com.newblood.lighting-internals/blob/master/Editor/AssemblyPostProcessor.cs) that will modify the IL to rename the field after the assembly is compiled

[crude relic]

oh, bc of the identifier indices[4]

[zenith estuary]

indices[0] through indices[3] rather

public fixed int indices[4]; is just how I expose the value publicly so it's still seen as a fixed buffer

[crude relic]

oh I see

this is your code

[zenith estuary]

yeah

It's also annoying that Unity doesn't expose its Matrix3x4f type, only Matrix4x4f (as UnityEngine.Matrix4x4)

So I had to implement that too

[crude relic]

what does tetrahedron have to do with lighting probes

random question 😄

[zenith estuary]

It generates a tetrahedralization for more efficient light probe interpolation

[crude relic]

fascinating

[zenith estuary]

You can refresh it too: https://docs.unity3d.com/ScriptReference/LightProbes.Tetrahedralize.html

[crude relic]

I've always wanted to sit down and learn some of the guts of rendering

just never had the drive so far

[zenith estuary]

In my case this is driven by a need for it at work

Since we do a lot of custom lightmapping stuff

[crude relic]

makes sense

[zenith estuary]

(We can control the color, intensity, etc of baked lights)

[crude relic]

without rebaking

?

[zenith estuary]

yeah

all dynamic

[crude relic]

that's cool

isn't it baked into a texture?

so you're modifying the texture at runtime

[zenith estuary]

nope

it's still baked into a texture yes, but we don't modify the texture

It's very similar to how games like Thief or Quake did this in the 90s

[crude relic]

you modify how it's mixed into the scene

[zenith estuary]

Yeah

It's very cheap and lets us get really high quality lighting without paying the cost of dynamic lighting

[crude relic]

so all the lights are baked as white I'm assuming

[zenith estuary]

Yup

[crude relic]

gotcha

[zenith estuary]

The bake script stores their colors, sets them as white, and then bakes them

[crude relic]

it's just not GI which means you can't move the lights

[zenith estuary]

Yeah, I refer to it as "composited baked GI"

[crude relic]

cool

well thanks for sharing that was really illuminating

[zenith estuary]

lmao

[crude relic]

no pun intended initially

until I started typing it out

haha

[zenith estuary]

at some point I wanna do a writeup about how it works, since there's a lot of stuff involved

[crude relic]

no kidding

[zenith estuary]

unfortunately a lot of the work is actually because Unity's lightmapping API sucks

[crude relic]

I am definitely saving your tip of accessing internal data structures

[zenith estuary]

Very little is exposed, and the actual lightmapping process is hard to hook into

Most of the work involved was related to reverse engineering the engine lol

[crude relic]

doesn't help with my need for method calls, but sure it'll come in handy

it always is 😄

[gloomy chasm]

Hey, a bit off topic, but do you know the diff between EditorJsonUtility and just JsonUtility?

[zenith estuary]

EditorJsonUtility can modify native objects, JsonUtility only works on managed objects

i.e., EditorJsonUtility can modify anything SerializedObject can

JsonUtility can only really modify what reflection can modify

So EditorJsonUtility can change the internal m_LocalPosition value in a Transform for example, while JsonUtility wouldn't know what to do with one

[crude relic]

well in return for that juicy information here's a class that lets you create an importer platform-specific settings group with a default tab:

[zenith estuary]

EditorJsonUtility also skips validation when modifying the data, unlike SeralizedObject

Which I take advantage of

[crude relic]

if you ever find yourself in need of making a very slick and native-esque importer 😄

[crude relic]

because for some reason the exposed method doesn't let you create a default tab 🤔

[zenith estuary]

Unity and not exposing useful APIs, name a more iconic combo

[crude relic]

anyway I'm wondering if I can leverage globalobjectid to maintain a parent-child relationship between my imported textures and the source asset 🤔

so that I can write to the files wherever they are even if people move them

[gloomy chasm]

asset GUID 😉

[crude relic]

hm

[zenith estuary]

asset GUID doesn't work for scene objects

since they don't have a GUID

[crude relic]

wouldn't need to be for scene objects

[zenith estuary]

Then a GUID will work

[crude relic]

cool

[zenith estuary]

Well actually

GUID also won't work for sub assets

eg, if you have one asset, and the texture is a sub object of it

such as when you use AssetDatabase.AddObjectToAsset

[crude relic]

I think that should be ok

[zenith estuary]

but that's a very rare case

so yeah, probably not worth complicating over

[crude relic]

I'm generating images, so I'd just always refer to the base imported texture

[old ravine]

In my custom EditorWindow "BuildingCreator" I want to create a building prefab that I can then continue to tweak with a custom Inspector, to set its position and size, number of floors in the building etc.

What's the workflow for this? Instantiating prefabs seems to be done by dragging a link to a prefab into a public variable of a script component attached to a GameObject already in the scene, and then calling Instantiate using that variable as a parameter. Can my EditorWindow access that?

I made a new GameObject in the scene called "EditorInfo", attached a custom "EditorInfo" script, and made a "BuildingPrefab" variable to hold the prefab, dragged the "Building" prefab into the variable OK, and back in my EditorWindow script, I'm using this line to access it:
EditorInfo editorInfo = GameObject.FindObjectOfType<EditorInfo>();

But I'm getting the error: Assets/Editor/BuildingCreator.cs(28,9): error CS0120: An object reference is required for the non-static field, method, or property 'BuildingCreator.editorInfo'

[gloomy chasm]

Building Creator

[heavy path]

Anybody know if there's something or an asset store plugin that can convert an entire GameObject into a script?

So like say there was an empty GameObject with a few cubes and text inside it

Ah wait this is the wrong place isn't it

My bad

Actually I'll make it myself if I have to

Anyways so like I said if there was an empty GameObjects with a few cubes and text inside it

How could I convert everything in that empty GameObject

Into a script that builds it

If you kind of get what I mean

[lime flicker]

Not sure exactly what you mean. Drag the topmost gameobject it into one of your data folders to create a Prefab that you can instantiate repeatedly?
If you want to build it from script you'll just have to write the code to assemble the right parts according to whatever rules you want...

There are plugins to do procgen modelling according to a node graph though, would that suit?

[gloomy chasm]

I don't want to jump to conclusions... but I think I have found a bug...

So.... turns out

serializedObject.CopyFromSerializedProperty("_myList.Array.size");

works fine, but

serializedObject.CopyFromSerializedPropertyIfDifferent("_myList.Array.size");

will cause the above crash...

[crude relic]

so good news, you can indeed generate a minimal meta file and unity will happily fill it out with defaults for you

[delicate pivot]

Hey, Does anyone knows if it is possible to add a button in this bar to perform custom actions?

[delicate pivot]

(please ping me if you know, im going to bed i'll see tomorrow)

[tired crane]

Does anyone know how to enable unity debugger and snippets in visual studio code, this is really bugging me 😭

I have them installed and it says they're enabled but they dont seem to work

[crude relic]

@delicate pivot https://assetstore.unity.com/packages/tools/utilities/custom-toolbar-189047

[delicate pivot]

thanks man

👌

[crude relic]

np

[delicate pivot]

(how the f*** does this work 😰 )

[crude relic]

which part lol

I've never used this plugin

[delicate pivot]

how did he manage to extend it lmao

[crude relic]

iirc you can hook into the gui using shenanigans

[delicate pivot]

haha

dark magic

[crude relic]

here's the repo

https://github.com/Team-on/CustomToolbar

here's the dark magic

https://github.com/Team-on/CustomToolbar/blob/master/Editor/CustomToolbar/Scripts/ToolbarCallback.cs

[delicate pivot]

haha i think i'm just too tried to try to understand now, i'll take a look tomorrow

[crude relic]

looks like it takes advantage of unity's UI being based around visualelements now

[delicate pivot]

mmh i see i see

[wispy delta]

I'm struggling to figure out how to record a full hierarchy undo when in the prefab editing context.
Does something look wrong with this function?

[ContextMenu("Apply Style")]
private void ApplyStyle()
{
    #if UNITY_EDITOR

    var prefabStage = PrefabStageUtility.GetCurrentPrefabStage();
    if (prefabStage != null)
        Undo.RegisterCompleteObjectUndo(prefabStage.prefabContentsRoot, "Apply Style");

    #endif

    bindings?.Apply(style); // changes a buncha properties on self and children that I'd like to be undoable
}

ah silly me. i wanted RegisterFullObjectHierarchyUndo not RegisterCompleteObjectUndo

[barren moat]

I'm trying to build a property drawer using UIElements but getting this error:

using UnityEditor;
using UnityEditor.UIElements;
using UnityEngine.UIElements;

namespace EffortStar {
  [CustomPropertyDrawer(typeof(AssetName))]
  public class AssetNameDrawer : PropertyDrawer
  {
    public override VisualElement CreatePropertyGUI(SerializedProperty property)
    {
      var container = new VisualElement();

      var foo = new Label("Foo!");
      container.Add(foo);

      return container;
    }
  }
}

Does anyone know how to address this?

I copied the structure from https://docs.unity3d.com/ScriptReference/PropertyDrawer.html

[wispy delta]

i believe editors are either all imgui or all ui elements. so if your ItemConfig's editor uses imgui it will try use OnGUI instead of CreatePropertyGUI. you're currently seeing the default unimplemented imgui for a property drawer

[old ravine]

How do I "make an object" on the click of a custom editor button?

I found examples that do GameObject.CreatePrimitive, but I think what I want to do is spawn a Prefab

Or maybe create an empty and attach a component

[crude relic]

@old ravine well, which are you trying to do 😄

the method varies

depending on what you're doing

[barren moat]

I didn't make a custom editor for it

Maybe NaughtyAttributes is taking control actually

[old ravine]

I'm not sure 😆
My goal is to create a "building entity" by clicking and dragging out a square on the ground that defines the size and placement of this building, a building pops up in that location and from there I can click on this building entity and customise its properties, like how many floors it has, etc.

So my question is: what should this bulding entity be in Unity terms. A Prefab?

[crude relic]

is this meant for you or is this going to be a public plugin

do you want to be able to edit properties after you finalize the parameters?

or do you just want to have it be a one-and-done kind of thing

[old ravine]

Just me :) goal is to make my life easier making my specific kind of levels.

[old ravine]

Edit properties, this is a very dynamic thing. But baked down before gameplay

[crude relic]

ok, I would just instantiate a prefab with a component

you can make the component editor only, so it'll get stripped out when you play

you can build the building in OnValidate but that's not super efficient, so I'd be more likely to use a custom inspector

and trigger the build there

the build code can still be in your component tho

and called from the inspector

use PrefabUtility to instantiate the prefab

check out the Undo class to help integrate undo support

[old ravine]

That's awesome, I didn't even think of a component being editor only.

[crude relic]

you can use component.hideFlags = HideFlags.DontSaveInBuild;

[old ravine]

Nice, I can do that. I have a custom inspector. I might just have a button that says "update building" that you click after changing some properties

[crude relic]

yah, or you can detect changes and update it on the fly in your inspector

[old ravine]

Yes, I can do that but I assumed it might be slow for how I'm generating the building, but I will just do it and see how it performs

@crude relic Thanks man! Just needed some pointers, seems like there's a million ways I could go about this

[crude relic]

@old ravine can always make auto gen a toggle 😛

[old ravine]

Ah that's a cool idea!

[crude relic]

looks like my idea to write the meta file by hand works & cuts out a re-import cycle

🎊

[barren moat]

Is there any way to get mouse input event in editor, regardless of the focused unity window? I'd like to create some mouse shortcut macros.

(the shortcut editor doesn't support mouse buttons)

[old ravine]

Here's a post from @crude relic from earlier that may be the answer, not sure, hope it helps. I can't copy a link to the post on mobile so I've copy pasted it

if you subscribe to https://docs.unity3d.com/ScriptReference/SceneView-beforeSceneGui.html you can override keyboard and mouse events that would otherwise be consumed by the sceneview
make sure to call Event.current.Use()

[barren moat]

Hm, I didn't try that event. I tried another SceneView event and it only worked when the scene view was focused.

I'll try this one

Yeah, same issue. Requires scene view to be selected.

[old ravine]

Ah OK, it was worth a punt

[peak bloom]

Same situation but with keyboard presses instead.. I'd be very grateful if you post your finding, regarding this later on

[barren moat]

I gave up. From what I can tell it's not easily achieved.

[peak bloom]

I'll skip mine too for now 😆 thanks for letting me know! 👍

[long oak]

Hey, has anyone made any experience implementing IPreprocessBuildWithReport on a monobehaviour?
Reasoning being I've created an additional sceneloader mb, which serializes the path & guid of the scene asset during editor time and also serializes it's buildIndex - but if the build order get's changed and the object isn't selected/loaded it wouldn't get notified.

[long oak]

so, if anyone is interested: you can implement it with some additional #ifdef but it seems to not have access to the proper instance of the mb at that time

[crude relic]

@barren moat you can do this if you hook into native windows functions and intercept mouse and keyboard

but you're outside of the unity ecosystem at that point

and obv it's not cross-platform

here you go @barren moat

I implemented this ages ago to get better mouse wrapping behavior a la blender

[light hearth]

I'm having trouble with my property drawer extension. This is the error I'm getting every time i try to edit my scriptable object, and google isnt really helping me:
ArgumentException: Getting control 9's position in a group with only 9 controls when doing repaint
Anyone know what causes this, and how to solve it? I can share code if needed.

[crude relic]

@light hearth it means you're modifying something in between the layout and repaint pass

which is a no no for IMGUI

[light hearth]

Yeah thats what it says when i google it too. I just dont have any idea what it means lol

[crude relic]

which part dont you understand

specifically

[light hearth]

I dont understand what they layout pass is, nor the repaint pass, nor how Im modifying it between those passes, when this property script works for some scriptable objects but not others

I guess I have some reading to do

[crude relic]

@light hearth here's your two second overview:

the way that IMGUI's automatic layout works is that it calls your code multiple times to draw the final inspector

first it does the layout pass

which determines all of the rects it needs

this needs to be a separate pass because some layout notions can't be finalized until after the layout item has been created

[light hearth]

Hm I see.

[crude relic]

after that, it goes through again and draws everything to the screen, this time using the rects that it calculated

however, if you change something about what layout functions you're calling in between layout and repaint, the saved rects generated in the layout pass won't line up with the objects you're trying to draw

it panics and throws an error

in other words: if you change state in your drawer, that state needs to be consistent at least between the Layout pass and the Repaint pass

if you post your code here I may be able to tell you how that's happening

[light hearth]

Okay I understand that. So I need to specify which pass each instruction is in? Or repeat the instructions, once for the layout pass and then the repaint pass? This is my code: https://gdl.space/azuyunijin.cs

[crude relic]

usually these passes are taken care of automatically

but there are certain things you can do in the code that will cause a disconnect

ok, your issue is being caused by the fact that you're trying to use layout methods inside a property drawer

on lines 51 and 54

[light hearth]

Strange, because this works in some cases. But I believe you

[crude relic]

for property fields, it precalculates the layout size using GetPropertyHeight

once you're inside OnGUI in the property drawer you're no longer in a layout context and you can only use GUI methods

[light hearth]

Ahh i see

[crude relic]

that's what's registering the controls it doesn't expect, because OnGUI doesn't receive a layout pass at all

you can check this for yourself (for educational purposes) by logging Event.current.type in the property drawer

[light hearth]

That makes sense

[crude relic]

you'll never see a Layout event

[light hearth]

So OnGui is just being called in the repaint pass

[crude relic]

yes, and also the mouse and keyboard passes

your gui functions get called many times, for any event that happens in the editor

layout and repaint are just two of them

that's why it's so easy for imgui code to become so slow

[light hearth]

So I need to find the separate function that is called on the Layout pass and do my EditorGuiLayout things there?

[crude relic]

there is no easy way to do layout stuff in PropertyDrawer

I would advise you stick to non-layout methods

this just means you need to calculate the rects yourself, which isn't usually too big of a deal

[light hearth]

Hm thanks for the advice, i guess I have some reading up to do. I thought doing a simple "drop down" to display different variables would be simple.

[crude relic]

by drop down do you mean a field toggle?

like this?

dynamic height stuff is a pain in property drawers

not impossible but still a pain

[light hearth]

Hm maybe could work. I mean more like i have a drop down list. and when a specific drop-down entry is selected, a specific set of fields are displayed. And other drop down entries show another set of fields

[crude relic]

I see

[light hearth]

Thats sort of what my propertydrawer does now. But it doesnt work for some scriptable objects

[crude relic]

yeah, complex inspector stuff is outside the scope of propertydrawer

you would need to specify the heights each of your dropdown fields need to take up

in your getpropertyheight method

[light hearth]

Ah rip. Thought this was such a common problem that there would be some go-to solution that most people use

[crude relic]

most people use custom editors

[light hearth]

lmao i legit thought that was what property drawers were

[crude relic]

no, property drawers are for specific types or attributes

[light hearth]

But property drawers are more for individual fields

[crude relic]

to be drawn inside an editor

[light hearth]

or htat, yeha

[crude relic]

yes

[light hearth]

Well I appreciate the help, now I have a starting point of where to look.

[crude relic]

np

@light hearth https://github.com/vexe/VFW this package has some fancy features including better property drawers

[light hearth]

Thanks ill check it out. Also found this source that does something similar to what i want to accomplish : https://www.youtube.com/watch?v=BKaIn3hIuyo

[crude relic]

looks like that video uses a custom editor, rather than a property drawer

if you want your PassiveEffect drawer to be used in many different classes this won't work for you

[light hearth]

Oh yeah, thats correct. thanks for the heads up.

[gloomy chasm]

My mind is drawing blank, is there a way to only iterate the children of a serialized property besides comparing propertyPath?

[crude relic]

if you do Next( true ) it'll step into the children

what do you mean by "only"

[gloomy chasm]

Well lets say there is

_floatValue
_myClass // I only want to iterate the direct children of this (foo, bar)
  _myClass.foo
  _myClass.bar
_otherFloatValue

I can do while (property.Next(true) && property.propertyPath.StartsWith(basePropertyPath))

But wondering if there was a nicer way

[crude relic]

use depth

that's what I did

[gloomy chasm]

ooh, good idea. I forgot it was a thing

[crude relic]

while( Next && depth > startDepth )```

[haughty ruin]

Hey, does anyone know of a page where I can find all the available EditorGui controls with screenshots? Sometimes I'm trying to find a specific thing, but I have to try a few because there are no screenshots of what it looks like anywhere

[wispy delta]

would Window/UI Toolkit/Samples be helpful?

[haughty ruin]

maybe? I actually found what I needed luckily 🙂 (All I wanted was a menu to popup from a generic button, and that control is literally called GenericMenu hahaha)

who knew 🙂

[wispy delta]

I am trying to find all overridden properties on a prefab variant, as well as their original values on the source prefab so that I can revert the overrides whose values are unchanged. I've been fumbling around the PrefabUtility API all day and am struggling. Does this sound possible?

So as an example, if you have a prefab variant that changes an images color to white, but the source prefabs image color is also white, I wanna detect that and revert the redundant override

[old ravine]

How do I instantiate a Prefab from within an EditorWindow?
The only way I know to instantiate anything is by making a public variable on the object in the scene that holds a reference to the prefab, this variable is passed to the "Instantiate" function. But the EdtorWindow script doesn't exist in the scene so we can't set its public variables in this way.

[wispy delta]

You can load prefabs with the AssetDatabase or write some gui for an object field within the window

[old ravine]

Thanks 🙂 I will look into AssetDatabase because it should be the same prefab every time

Hope someone helps with your question

[gloomy chasm]

Oh well you happen to be in luck be cause literally just yesterday I needed to do this as well! PrefabUtility.GetPropertyModifications(targetObject) is what you want

It will give you an array of PropertyModification which contains a string for the value and a string for the property path

Also has an UnityEngine.Object field for object references

[whole parcel]

Hey! How so I have an enum of states and each of them has different values which works as intended, but how would I make a List above all this which would give the state enum dropdown list again?

Work around is adding the script multiple times like this:

[cedar condor]

Sorry, could you explain this a little more?

[whole parcel]

so I have public struct HorrorData containing enum and some variables

then I have a class Horror with the list of HorrorData

[cedar condor]

So what's the issue?

[whole parcel]

and in my HorrorEditor I have this

this way it makes the list

but this part doesnt do anything

before I added the list it worked and filtered only the variables that I needed but now after I added the list this is completely ignored and it shows all the variables

[cedar condor]

Did your Horror class exist before this?

[whole parcel]

yes

but everything in the struct HorrorData was in the Class Horror

[cedar condor]

Could I see the entire HorrorData script?

[whole parcel]

using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using UnityEngine.UI;



public class Horror : MonoBehaviour
{
    public List<HorrorData> hor = new List<HorrorData>();


}

[System.Serializable]
public struct HorrorData
{
    public enum HorrorEvent
    {
        DisableAtStart,
        DisableMovement,
        MoveObject,
        Teleport,
        LightOnOff,
        Jumpscare,
        LookAt,
        PlaySound,
        DropObject,
        Levitate,
        ThrowObject,
        EnableOtherTrigger
    };

    public HorrorEvent state;

    private GameObject player;

    //Disable At Start
    public bool disableAtStart;

    //Disable Movement Settings
    public float delayBeforeMovingAgain;

    //Move Object Settings
    public MovableObject movableObject;
    public float delayMoveObject;

    //Teleport Object Settings
    public MovableObject teleportObject;

    //Lights ON/OFF Settings
    public bool lightsOnOff;
    //public List<Light> Lights = new List<Light>();

    //Jumpscare Settings
    public Image jumpSImage;
    public float stayOnScreenFor;

    //Look At Settings
    public GameObject camera;
    public Transform lookAt;
    public float lookAtDelay;
    public float damping;
    //private Vector3 lookPos = new Vector3();
    private bool startLook;

    //Play Sound Settings
    public string clipName;

    //Drop Object Settings
    public GameObject dropObject;

    //Levitate Objects Settings
    //public List<FallObject> LevitateObjects = new List<FallObject>();
    public float forceUp;
    public float forceDown;
    public float delay;

    //Throw Object Settings
    public FallObject throwObject;
    public float force;

    //Enable Other Trigger Settings
    public GameObject otherTrigger;
}

this is the Editor

Lets say I move it back and comment out the list

public class Horror : MonoBehaviour
{
    //public List<HorrorData> hor = new List<HorrorData>();
    public enum HorrorEvent
    {
        DisableAtStart,
        DisableMovement,
        MoveObject,
        Teleport,
        LightOnOff,
        Jumpscare,
        LookAt,
        PlaySound,
        DropObject,
        Levitate,
        ThrowObject,
        EnableOtherTrigger
    };

    public HorrorEvent state;

    private GameObject player;

    //Disable At Start
    public bool disableAtStart;

    //Disable Movement Settings
    public float delayBeforeMovingAgain;

    //Move Object Settings
    public MovableObject movableObject;
    public float delayMoveObject;

    //Teleport Object Settings
    public MovableObject teleportObject;

    //Lights ON/OFF Settings
    public bool lightsOnOff;
    //public List<Light> Lights = new List<Light>();

    //Jumpscare Settings
    public Image jumpSImage;
    public float stayOnScreenFor;

    //Look At Settings
    public GameObject camera;
    public Transform lookAt;
    public float lookAtDelay;
    public float damping;
    //private Vector3 lookPos = new Vector3();
    private bool startLook;

    //Play Sound Settings
    public string clipName;

    //Drop Object Settings
    public GameObject dropObject;

    //Levitate Objects Settings
    //public List<FallObject> LevitateObjects = new List<FallObject>();
    public float forceUp;
    public float forceDown;
    public float delay;

    //Throw Object Settings
    public FallObject throwObject;
    public float force;

    //Enable Other Trigger Settings
    public GameObject otherTrigger;

}

[cedar condor]

I think I see the issue

[whole parcel]

this works as intended but I can only select one enum

[whole parcel]

😲

[cedar condor]

You're drawing the properties of HorrorData with the custom editor

But since HorrorData is a struct and not a Monobehaviour instances of it only appear within the Horror data class, which doesn't have a custom editor

[whole parcel]

ooh I see

[cedar condor]

I think you have to draw the properties accessing them through the Horror class

Since there are no instances of the HorrorData struct outside of the Horror class

[whole parcel]

like move everything from HorrorData to Horror?

[cedar condor]

Not exactly

[whole parcel]

this works and it draws the correct properties but then I'm not sure how to make a list out of that

[cedar condor]

If you accessed the properties THROUGH your Horror class then it should work fine

I'll try to give an example

[whole parcel]

that would be awesome, thank you very much

[peak bloom]

Will VisualElement.MarkDirtyRepaint also mark the children as dirty then repaint them all? I didn't see this mentioned in the docs anywhere

[cedar condor]

It's a little trickier than I expected

Still trying

[whole parcel]

no worries, take as much time as needed

I really appreciate the help

[crude relic]

@zenith estuary I just used your EditorJsonUtility trick for the first time -- thanks again for sharing that, it's great!

[cedar condor]

It might not be possible with the current system you have

Since you don't have access to the variables inside of HorrorData as SerializedProperties, it's impossible to custom draw them

[whole parcel]

right

[cedar condor]

The SerializedProperties for those variables are never created since that's not the object being inspected

[whole parcel]

oh okay I see

is there an other way I should go about this?

[cedar condor]

Not sure

I just recently started messing around with editor stuff a few weeks ago, and while I have learned a lot I'm definitely no expert at this stuff

[whole parcel]

Well I started 7 hours ago 😄

[cedar condor]

Heh yeah

[whole parcel]

thank you for the help anyways I really appreciate it

[cedar condor]

I'm not sure if you could write a custom inspector for your HorrorData class

Change it to a class instead of a struct and you might be able to

[whole parcel]

I'll give it a try

How would I make a list out of the class tho?

[cedar condor]

Personally I would see if there's a way to make a custom inspector for you HorrorData class first

[cedar condor]

You could also try using a list of scriptable objects

[whole parcel]

I haven't thought about that, that could be an option

[cedar condor]

Oh actually, you could potentially put your HorrorData class inside of the other one, and see if you have access to the vars that way

[whole parcel]

yeah it works that way

but how would I make a list of the Horror class now 😄

[cedar condor]

Exactly

That's the issue that we're struggling with

[whole parcel]

yeah

[cedar condor]

Try something like this:

public class Horror : MonoBehaviour
{
  public List<HorrorData> data = new List<HorrorData>();

  public class HorrorData
  {
    //Your data
  }
}

And then see if you're able to access the properties of HorrorData through the custom inspector

[whole parcel]

can't access them that way :/

[cedar condor]

Damn :/

I've only ever tried to do something similar once and I failed miserably 😦

[whole parcel]

wait I can

[cedar condor]

You can??

[whole parcel]

with System.Serializable

[cedar condor]

Try to access the SerializedProperties through the editor class though

[whole parcel]

weeeell yeah that doesnt work 😄

[cedar condor]

Try using Editor.CreateEditor on each of your HorrorData classes then try accessing the properties

I'm a bit out of what I know at this point

From what I've found online though this should be what you're looking for https://docs.unity3d.com/ScriptReference/Editor.CreateEditor.html

[whole parcel]

you have done more then enough, thanks a lot

I'll go and play with that documentation now hahha

[cedar condor]

Sounds good

Good luck with that

[peak bloom]

You can make a serializeable custom class with your enums in it

then instantiate the custom class as serializeobject as array
you don't even need customEditor for that

[cedar condor]

We're trying to figure out how to access the SerializedProperties on the HorrorData class through the Horror class, do you know how?

[zenith estuary]

My curiosity is piqued now, what'd you use it for?

[crude relic]

Marshalling the internal BuildPlatform class to my own for the purposes of implementing a 1:1 platform specific settings box for my inspector

without it I'd need to build the conversion into the lambda

which is annoying

[zenith estuary]

Yeah, and SerializedObject is also a bunch of effort

[crude relic]

doesn't serializedobject only work on unity objects too

BuildPlatform is a POCO

[zenith estuary]

Yeah

If you wanted to use SerializedObject you'd have to use a wrapper ScriptableObject or something

[crude relic]

the platform specific settings methodology is really convoluted

I'm just digging into it in the reference source

they use a bunch of proxy objects and stuff

[zenith estuary]

Editor code is constantly a mess I swear lol

[crude relic]

all to make the editor experience smooth and limit what they need to serialize

it really is

[cedar condor]

Agreed

Although I really don't know enough to be efficient with it anyway

[misty igloo]

Howdy Mech, tried doing a build using this library but there appears to be an issue with my version in "UHashSet" line 357,

Assets\_Assets\Scripts\Utilities\Runtime\UHashSet.cs(357,44): error CS0103: The name '_serializedItems' does not exist in the current context```

is there an issue with just changing this to "_serializedValues" as that appears to compile, or is _serializedItems a different form of object altogether and this shouldn't be happening?

[gloomy chasm]

Woops, I had refactored something but didn't change it in the #if UNITY_EDITOR. Fixed

[misty igloo]

all good, glad it was a quick fix.

[turbid ruin]

Anyone have experience with Playfab? Trying to see if its possible to send a password recovery email to someone given their username. I dont want users to have to login with email or type it in for recovery. Is it possible to find their email based on their username? I tried using GetAccountInfo but it says u need to be logged in to make the api call, which obviously user will not be since they need their password to login

[waxen sandal]

I doubt this is the rigth channel for that

[turbid ruin]

Whats the right channel then? i figured playfab is closer to an extension than anything else in the list on the sidebar

[waxen sandal]

This channel is for developing extensions

Not questions about random plugins

Playfab's official resources are your best bet, but you can try in #archived-code-general I guess

[turbid ruin]

Okay i didnt think it fit in code general but i'll try that. There's nothing i can find on the documentation about this

[waxen sandal]

They probbaly have a forum or a discord themselves for questions

[cosmic inlet]

anyone know how to pass data from Port to Port in Graph View?

[turbid ruin]

there is a forum but none of my questions have been asked there and the ones i submitted havent been either

[jolly delta]

I'm looking for a way to see the Scene as a node graph, to see the relations between every gameobjects and their monohabeviours

and add/remove relations between those behaviour properties using node links

anyone know something like that ?

[shadow violet]

If a script is in the Assets/Editor folder, shouldnt it automatically NOT compile with a build? Do you absolutely HAVE to encapsulate every Editor script in a Editor folder with #if UNITY_EDITOR for it to exclude from a build?

[visual stag]

If you are not using Assembly Definitions, things in the editor folder are not included in the build.

[shadow violet]

Ah I see, is there a way to make every script of a assembly definition get excluded or is it just best to delete the assembly definition file when I want to make builds?

[visual stag]

https://help.vertx.xyz/building/assembly-definitions

[shadow violet]

Awesome, that might be what im looking for - thanks!

[peak bloom]

You can do so, very restrictively via .userData note, it will be object type so the casting is required

not from/to Port but to Nodes specifically

if you required to have some function to detecting Ports for example then that depends on your implementation, but you can still use userData as a self-contained container

you can sorta see it in action in here https://github.com/Unity-Technologies/UIElementsExamples/blob/e940d1c9dddfe99fd500c9f34f4801856ad37f18/Assets/Examples/Editor/E17_Transitions.cs

just to note, I said sorta 🙂 bcos the example is not for graphview, but it still applies

either way, you can do this without it, as filtering connected ports should do the job for most use cases

another example from my graphview's node

            //Associate VParentNode class upon creation
            vnode.userData = new VParentNode(vnode.VNodeId) as VParentNode;

[cosmic inlet]

I'm still struggling

ughhh

[south beacon]

Hi, I'm constantly forgetting to assign serialized Fields after creating/refactoring scripts. Since Unity doesn't seem to have a "require"-feature for fields (or does it?), I'm thinking about writing an extension that checks all serializefields in my scene/prefabs to not be null, unless i specifically annotate it to state otherwise in my code. Does somebody know if such an extension exists or how I would approach building my own? Maybe some kind of hook that's executed after the compile process, where I can iterate over all scripts in the Scene

[crude relic]

You would want to create a script that iterates over your objects, collects the fields, and checks if they're null

Excluding any that contains your attribute

You can do this using reflection

I would also cache your class types so you don't repeat work

@south beacon

[south beacon]

Okay, I'll give it a try. Thanks!

[cosmic inlet]

ok so I think I figured out a way to transfer ports-

how can I like

get the custom attribute of a variable

public string stringName;

void OnEnterNode()
{
  string = { variable from the Port attribute };
}```

something like this

I have the Port with a constructor

which takes in some variables

and then another variable that is assigned sometime else, outside of the constructor

[zenith estuary]

You need to get the FieldInfo in order to get the attributes

A simple example that would work for the above code:

[cosmic inlet]

oh?

[zenith estuary]

var attribute = GetType().GetField(nameof(stringName)).GetCustomAttribute<PortAttribute>();

Ideally you would want to cache this stuff somewhere, since you don't want to constantly be using reflection

For editor code, Unity also has a TypeCache class

You can do TypeCache.GetFieldsWithAttribute<PortAttribute>() to iterate over every field in your code with that attribute

[hoary grove]

I'm looking to have a Rightclick menu that creates a new Prefab based on an existing Prefab? Whats the best way to go about doing this?

[cosmic inlet]

yeah, this is a pain

I have to somehow get variables, when all I know is the port that corresponds to them, which is kept inside their attribute

I have literally no idea how to do such a thing-

[peak bloom]

the graphview is just a representation of your data, you can check which port connected to which...

literally just a graphical representation...

[crude relic]

What are you trying to do

Why do you care which port something is

[cosmic inlet]

yeah but the way I'm telling it to create ports is by making variables, assigning a custom attribute, and then get all of the variables with that custom attribute and run some logic to create the ports in a NodeView script

the issue however, is that I need to get the variables from an output port from Node A to the input one on Node B

it's really hard to explain-

uhh

variable has a custom attribute
custom attribute of that variable has a reference to it's corresponding port that gets assigned when I create it
and then I need to get the variables that correspond to those ports

the ports are store in the custom attribute of those variables

and I somehow need to get the variables

this is the function to create ports:

    {
        BindingFlags flags = BindingFlags.Public | BindingFlags.NonPublic | BindingFlags.Instance;
        MemberInfo[] members = node.GetType().GetMembers(flags);

        foreach (MemberInfo member in members)
        {
            if (member.CustomAttributes.ToArray().Length > 0)
            {
                PortAttribute attribute = member.GetCustomAttribute<PortAttribute>();
                if (attribute != null)
                {
                    PortAttributeInfo info = new PortAttributeInfo(member, attribute);

                    Port newPort = InstantiatePort(Orientation.Horizontal, info.portAttribute.direction, info.portAttribute.capacity, info.portAttribute.dataType);
                    newPort.portName = "";
                    info.portAttribute.correspondingPort = newPort;
                    Debug.Log(info.portAttribute.correspondingPort.userData);
                    Debug.Log(info.portAttribute.correspondingPort);

                    if (attribute.direction == Direction.Input)
                    {
                        inputPorts.Add(newPort);
                        inputContainer.Add(newPort);
                    }
                    else
                    {
                        outputPorts.Add(newPort);
                        outputContainer.Add(newPort);
                    }
                }
            }
        }
    }```

it just takes in a Node, gets all the variables that have an attribute of PortAttribute, and creates a port based on the values from that attribute

This line is where I tell that variable which port corresponds to it
info.portAttribute.correspondingPort = newPort;

so now I have this function where o is the parent and c is the child Node

//Assign userData to parent first using the Ports
c.userData = o.userData;
AddElement(edge);```

[zenith estuary]

You can optimize that a bit by using TypeCache, which will avoid a lot of the work involved in scanning types for attributes etc

Though it depends on the Unity version you're on

[cosmic inlet]

2021.2

[zenith estuary]

You can use it then

[cosmic inlet]

yeah

[zenith estuary]

https://docs.unity3d.com/ScriptReference/TypeCache.html

[cosmic inlet]

I will optimize it after

[crude relic]

I'm confused, why is there an issue

[zenith estuary]

Unfortunately there's no GetMembersWithAttribute, only fields and methods

[crude relic]

If you're building ports you already have the fields

[zenith estuary]

So there's nothing for properties

[cosmic inlet]

because I can't figure out how to get the variables that correspond to those ports

[crude relic]

Bc you're in the middle of doing the scanning

But the member is the variable...

[cosmic inlet]

because the ports are stored inside of the attribute corresponding to that variable

so I have 2 ports, start and end, which I need to assign data to

[crude relic]

The memberinfo contains the variable

Or describes it

[cosmic inlet]

this is where I keep the port reference for the variable

[cosmic inlet]

yeah I just have no idea how to code this all

[zenith estuary]

So your PortAttribute describes the data that you want to receive in the stringToDebug field?

[cosmic inlet]

I can get the node from the start port and the end port

it describes the port that I assign the variable to

the correspondingPort variable is referenced in the CreatePort() function I posted earlier

[zenith estuary]

It's best to not store Port in the attribute itself

[crude relic]

Why would the port attribute know where the corresponding port.is

[cosmic inlet]

then where?

[zenith estuary]

Attributes are for "constant" data

[crude relic]

That makes no sense

[zenith estuary]

You would store it elsewhere, in a cache or some other location

A static dictionary could work

[crude relic]

Yeah, you should make a list of connections on your graph object

With start ports and end ports

Or something

Or a dictionarry

[cosmic inlet]

a dictionary might work

[zenith estuary]

Also, is DataType always supposed to be set to the field's type?

[cosmic inlet]

uhh

[zenith estuary]

[Port(...)]
public T Something;

should it always be typeof(T) in this example?

[cosmic inlet]

I didn't know how to do that

thanks

[crude relic]

You can just get the type from the firld

Field

Memberinfo

[zenith estuary]

Yeah that's what I was about to mention

But wanted to be sure that's what the data is meant to be

[crude relic]

Yah

Yeah you can't really write data to attributes

And if you can then you shouldn't

[zenith estuary]

The attribute should probably be:

[AttributeUsage(AttributeTargets.Field, AllowMultiple = false)]
public sealed class PortAttribute : Attribute
{
    public Direction Direction { get; }

    public Capacity Capacity { get; }

    public PortAttribute(Direction direction, Capacity capacity)
    {
        Direction = direction;
        Capacity  = capacity;
    }
}

[cosmic inlet]

it is that now

ok but dictionaries are composed of multiple variables

[zenith estuary]

And then you can do:

foreach (FieldInfo field in TypeCache.GetFieldsWithAttribute<PortAttribute>())
{
    var attr = field.GetCustomAttribute<PortAttribute>();
    // set up the port for this field
}

[cosmic inlet]

ok my brain is just, fried

[zenith estuary]

Your dictionary could be Dictionary<FieldInfo, Port>

[crude relic]

Are you trying to serialize connections in your graph

[cosmic inlet]

I really don't know how to do any of this

I have variables with attributes, a script takes the attributes and creates the ports, and then I need to somehow make the variables in the second Node be equal to the ones in the first

like

[crude relic]

You only need to do that when you're executing the graph

[cosmic inlet]

yes

and while it's running

I don't know how to tell it to take the variable from the port it's connected to

[crude relic]

That's what I said

[cosmic inlet]

because the code has no idea what ports correspond to which variables

[crude relic]

That's what your scanning code is supposed to be setting up

[cosmic inlet]

ok then in what way should I keep track of which ports correspond to which variables

[crude relic]

Make a port class that contains a memberinfo

Create a port for each port attribute

Assign all the relevant fields

Save it in a list or dictionary

Tada

You now have a list of ports corresponding to variables

[cosmic inlet]

sometimes I realize I am not very smart lmao

[zenith estuary]

(also it should be FieldInfo and not MemberInfo since you don't seem to be using this with properties or methods)

[crude relic]

Yes
