[low pike]

and the anchor set to -5 (or whatever) on a recttransform

[light mulch]

tried changing the sprite to default unity uisprite but didnt help either

i dont have any scrollbars assigned :o

[low pike]

right, but by default they are there and the anchors are set to make space for them...

[light mulch]

is there any way to remove the gap you think?

[low pike]

By setting this to 0..

[lilac egret]

the whole project was broken cuz im still kinda new to unity but almost nothing was done it was still just f-ing around so i made a new project.

Btw why can't we tile materials? This would be a great feature for me rn...

Oh nvm i just screwed up something, works fine now

i dont even know what wrong lol

[low pike]

I've never used a material on UI

[fallen barn]

when the button is selected, how do you also select its child TextMeshPro? Do I need to use the script to achieve this?

[mortal robin]

You can't because TextMeshProUGUI is not a Selectable

Can you explain what you're trying to achieve?

[fallen barn]

when the button is selected, it will change the sprite, and I also want to change the TextMeshPro text colour(to show it is selected), i have added selectable to TextMeshPro for it to be selectable

[mortal robin]

If you want to change more than one graphic at a time you can't do that directly with the Selectable thing.

Add an EventTrigger component to the Button and implement the OnSelect and OnDeselect events (or use a custom script with ISelectHandler/IDeselectHandler)

[fallen barn]

thanks, will look into that

[lilac egret]

I need to. Dynamic patterns. Design choise 🙃

[limpid torrent]

I have a Dropdown menu and on the OnValueChanged field in the inspector i want to pass the value of the dropdown into my function, is there a way to reference that value from the field in the inspector so I can pass it into my function? like right here:

[mortal robin]

Assign the function with the dynamic parameter instead of a static parameter

[rapid ferry]

@supple basalt

[supple basalt]

"Screen Space - Camera" puts the canvas at a certain distance from the camera

It doesn't matter where the canvas is in the hierarchy.

You could set "Plane Distance" to something like 1

[rapid ferry]

Does anyone know why after compiling my game the score / "0" Text does not show.

^ in unity

^ compiled

[supple ingot]

normally people use 2 cameras for this

1 camera is for the UI and one for the game

noticed your the camera set in the canvas is named Main Camera which makes me think you are using the same camera for both things

so could fix that, or see if ScreenSpace - Overlay is a better choice since it does not require its own camera

really would just start with ScreenSpace - Overlay as the canvas render mode since your UI does not look complciated enough to need its own camera

[wide sedge]

How would I get my damage numbers to display nicely on the right, and expand to the left as they get bigger?
I have MinDmg and MaxDmg
You can see the structure on the left.
I added a Horizontal Layout Group on the DamageNumbers wrapper, but now the texts are displayed at the top and not sure if they will expand properly

That's what I have now

[fickle bloom]

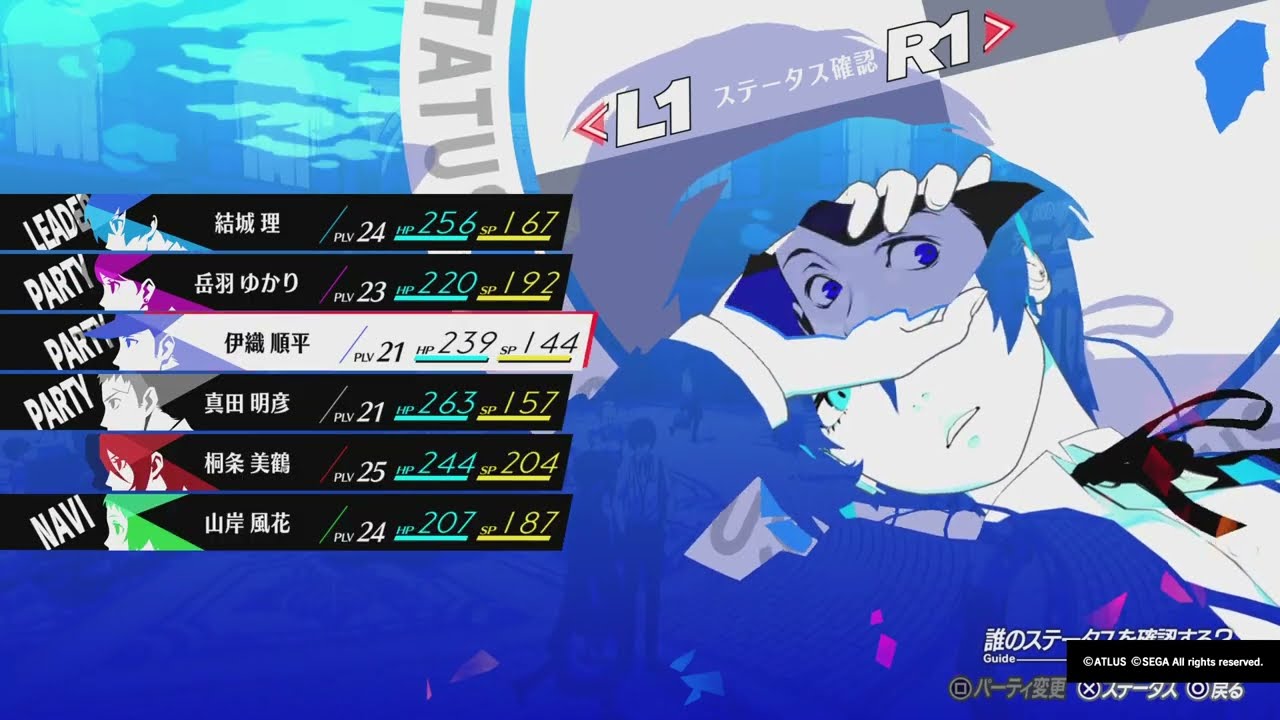

Hi guys any idea how to make wavy UI? like that picture and those ui keep moving

[mortal robin]

A shader

[lilac egret]

So - UI anchors work on "X pixels away from anchor", but i need procentages. Similar to how in CSS i'd do top: 10%; instead of top: 10px;

how

This is my goal

And i need it uniform

[supple ingot]

looks like you need to decide what your reference resolution will be then use a canvas scaler

since if its all based on a reference resoultion, then scaled to fit other resoultions you can easily know where 50% is and just say 50% is 540 for exmaple since its half of 1080

or that 10% becomes 192 and so on

[low pike]

and don't work in 'Free Aspect'

[supple ingot]

oh yeah 100%, set that to a actualy resoultion or atleast set it to like like 16:9 or what ever ratio you want to test for

[lilac egret]

so... still choose pixels but now i have it on a fixed resolution? Meaning the game might be playable in only one resolution?

[supple ingot]

no look up what the canvas scaler does

and what the reference res is for

[lilac egret]

will do. 1920x1080

[fallen barn]

if this is my scene, every red square is an individual sprite, what component do you suggest to achieve this page? Grid layout, vertical/horizontal layout, or just drag them to their corresponding position?

[mortal robin]

not enough information

~~are these UI elements? ~~- sorry dumb question just saw what channel this is

How do you want it to respond when the game window is resized or has a different aspect ratio?

[fallen barn]

yes, i was thinking a fix size screen, like full screen

[mortal robin]

You mean fixed aspect ratio?

[fallen barn]

yep

[mortal robin]

If you use a fixed aspect ratio then it doesn't really matter too much

just use the canvas scaler for "scale with screen size" and nothing else will change when you resize the game window so it doesn't matter

[fallen barn]

thanks

[proper ether]

Hi - I have built enemy nameplates (health bar and name that appear above an enemy head) similar to in WoW. The problem I have is that because when you make a canvas is it huge in the unity editor, as it is a child of my enemy gameobject, the center point/ transform axis is now proportionally between the enemy gameobject and it's child giant canvas.

This makes it very difficult to manipulate my enemy gameobject because of the transform center location due to the canvas i use for the enemy nameplate being a child of the enemy.

Is there a quick solution to this where I can just reset the transform to be at the gameobject of the enemy and not the average of also it's children?

See here for what i mean ^ enemy is selected, but because of the canvas giant in it's children (which i use for the screenspace enemy nameplate hovering above it's head) the axis is miles away

[mortal robin]

So many things wrong with this

1. The canvas will only be giant if it's an overlay canvas

If it's an overlay canvas it has no business being the child of your enemy object in the first place

2. You can set your tool handle position to Pivot instead of Center

That's this here

Note this doesn't actually change anything about the object. It just draws the tool at the object's actual position instead of an average of all of its children

[proper ether]

Ok gotcha - thanks that's super helpful - i knew i was doing something fundamentally wrong - should all overlay canvases just live separately in the hierarchy? Should I have every overlay canvas under one master canvas? Thanks in advance

(FYI the logic of this nameplate is that, it enables the screen-space overlay canvas for the enemy healthbar when I get close to the enemy - code works well)

[proper ether]

all fixed now thanks

[tiny spade]

i have two transparent ui images, and i want to overlap them, how can i hide the ui image below? with a mask? if yes how

[proper ether]

How can I create a Border (or outline - it's for a rect) on a gameobject? I've tried using the 'outline' component but that is not actually a outline it colours the whole thing

[proper ether]

How can I create a Border (or outline -

[jagged moon]

how can I lower the viewport resolution and upscale to create a low quality look?

is the render texture thing the only way to do this?

[subtle trout]

Having a slight issue with trying layout dynamic textboxes within a scrollrect.
The scrollrect isn't aware of overflow text for obvious reasons, but I don't really know the approach to solve this. I could try programtically changing the rect of the text box, but that sounds janky. Is there a cleaner solution that makes the scroll rect aware of the true height of the text?

[subtle trout]

Nevermind I figured it out...

[azure flame]

If you are posting about solving something, you should share what you did. Also there might be a better solution.

[subtle trout]

In that case, my issue was pretty simple, the tools were all there, I just wasn't using it right. That's why I didn't really want to explain myself, and the reason for the ellipses. I was just not exhausting every option.
The solution was to give the text a parent, and that parent has a Vertical Fit set to Preferred Size. That way the area of the text is not predefined on the vertical axis.
Then along with that, another issue I was having was improper anchoring. I was leaving stuff on center anchoring, thinking it wouldn't matter... It did.
And much to my continued confusion, the vertical layout group should have it's horizontal set to expand and control size. Not the height, the WIDTH, no clue why, but otherwise it all falls apart. =

MotS:

[azure flame]

There's also Content Fitter component that can expand content area to fix updated text elements. Although sometimes it requires to run manual UI update to update it midframe to react to changes.

[subtle trout]

The Content Size Fitter? If that's what you're referring to, that's what I meant by "Vertical Fit"

[azure flame]

Right, that's one its properties.

[gaunt bough]

Does anyone know how to make TextMeshPro's button overlay on top of an image?

These are the settings for the button:

And there are the settings for the image:

The image is placed as a child of the button.

[azure flame]

UI is sorted by order in hierarchy.

[gaunt bough]

Do you mean I have to place the button above the image in the hierarchy?

[azure flame]

Swap their order, yes

[gaunt bough]

How do I do that while the Button is the parent to the image?

[azure flame]

Use containers to change their order

[gaunt bough]

Oh ok thanks!

Nevermind even if the button is placed above the Image it still doesn't overlay it?

[azure flame]

Show the hierarchy

[gaunt bough]

Here

Map1 Button and Map1Image

[azure flame]

The one that is lower will be on top

[gaunt bough]

Oooh my bad

Thank you man!

[lilac egret]

Is there a component that can make the child objects of the empty object scale down along with their parent?

Oh, right, Scale! NVM, im stupid

[fallen barn]

hello, is there a component that can toggle the raycast of an object?

[sacred stirrup]

Hi I am new to unity and need some help
I want to create a unity UI searchable dropdown element but do not have an idea of how to approach it
The UI Search element will have (say for example)40 possible options to chose from, the user should be able to click on the element, type in text and the most appropriate option(by matching alphabets) shall appear in the dropdown similar to google search bar
Please guide me further

[white solar]

Running into this issue where text overlaps with choices. How do I fix this?

[devout hearth]

Got this issue, i have a camera drag script that works when you hold left mouse and move cursor.
The problem is, if i start dragging on a clickable button (its a town management game, so buildings are buttons on world canvas), the button will be clicked on after i let go of LMB.
Is there any way to cancel holding a button when i drag? Or maybe put a timer on the button that cancels itself if the button is held for some time?

[past coral]

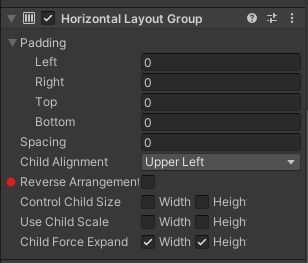

I have Layout Group and I want the elements to stack in center. How can I do it?

[supple basalt]

You currently have "Child Force Expand" turned on. Turn that off and set the layout group to control child size instead.

This may cause the boxes to shrink to 0px if you have other layout problems

[past coral]

Yes, it work nice. Thank you

[supple basalt]

I wish this was the default for a layout group :p

[gentle vapor]

i just built my game and i have a button that is supposed to show up at the end of the start scene that leads to the second but the button doesn't show up in the build (it works fine in normal play mode in unity)

[supple basalt]

your button is at Z=-2000, which is a bit weird

that will move it further away from the camera

[supple basalt]

the canvas also currently has a scale of 0

i presume it'll get changed once you activate the game object, though

[gentle vapor]

this is what its supposed to look like

when i change to free aspect its gone so i think youre on to something but im not quite sure i understand how to fix it

[gentle vapor]

yes this is it activated

[supple basalt]

Show me where the button went in this screenshot

(you can hit F to focus on it in the scene view)

[gentle vapor]

oh yeah she went all the way oer here

[supple basalt]

I'm surprised it moved so far, since its X and Y positions are very small.

The button is directly parented to the canvas, so it's not like its parent has an extreme position

If you set those to 0, does it snap all the way back into the center of the screen?

[gentle vapor]

it snaps to here

[supple basalt]

Ah. That's why it had the huge negative Z position

(which moves it closer to the camera, not further. whoops)

[gentle vapor]

but it screws up the position of the button in the one where it works

[supple basalt]

You can change how far the canvas is from the camera

change the "Plane Distance" on the canvas

[gentle vapor]

ohh ok now the button is tiny but i can simply readjust it to a good position and now it shouldn't move as much anymore right?

i have made the canvas a lot smaller does this size seem reasonable?

[supple basalt]

oh yeah, you should switch the Canvas Scaler to "Scale With Screen Size"

this will make the button take up the same proportion of the screen as the resolution changes

[gentle vapor]

ok nice it seem to be working, thank you so much!

[supple basalt]

It got so small because your canvas was set to a 4K resolution, then scaled way down to fit in front of the camera properly

the button's size was 80x30 or so

I'm still confused about how it wound up so far from the center with such a tiny X/Y position.

Maybe something was going haywire because the canvas started out with a scale of [0,0,0]

[proper ether]

Question about UI in unity - is it possible for bools in a script attached to a UI component, to turn off/ on UI components in the Scene editor?

E.g. in this screenshot I have built a sliderbar, I will now create a script for it, where I woudl like to have toggle for things like 'image' and 'textleft' where if unselected they are not visible by default

I know that this will work at runtime because the script would effectively disable those gameobjects, however I'm wondering if I can also have that appear in the scene editor/ inspector by toggling bools in the script

Thanks in advance for any pointers

[dreamy river]

why is my crosshair "smushed" it's set to 10x10 but it feels like it's 10x8, also it has really low quality while it's 2048x2048 texture

[low pike]

impossible to tell from the information given

[dreamy river]

it's not a perfect circle + it's really low quality and its edges are sharp

[low pike]

I mean, the problem can be understood, but the reason why ¯_(ツ)_/¯ ... no details have been given about the setup

[proper ether]

Is it squashed on all resolutions when running the game? Does it squash differently on different resolutions?

[dreamy river]

i'll check

[proper ether]

also show a screenshot of the hierarchy and inspector of the crosshair so we know what components / setup you have for that

[dreamy river]

it looks better on 16:10 aspect ratio

[proper ether]

Is this the 'Image' in your hierarchy that you're sharing ? How is the Panel and Canvas set up in the inspector?

[dreamy river]

yes

[low pike]

it's not related to the issue - but that image on the Panel game object is pointless (assuming you keep the alpha at 0) .. you can remove it

Show all the components on the canvas game object

[dreamy river]

okay i did it and this is the canvas

[low pike]

Try changing the UI Scale mode on the Canvas Scalar to Resize with ...
Then set the reference resolution to 1920x1080, and the slider at 0.5

[dreamy river]

i did it and it's even worse now

[low pike]

Change the width/ height of the dot to 1024x1024 (as a test)

It might be because you're taking something from 2k down to 10..

For something so small, I'd have this image at like 32x32

[dreamy river]

okay i'll create a new one

yea it worked but it's still a little squished and i'm scared that i'll affect the rest of my ui

[low pike]

it shouldn't..

that looks fine, it looks "squished" because the top/bottom pixels are alpha'd a bit. set the alpha to 1 and they won't be (probably)

[dreamy river]

okay, thanks a lot

[gaunt bough]

Does anyone know how to make a 2D game object that is completely invisible except that the player is invisible behind it??

[mortal robin]

https://docs.unity3d.com/Manual/class-SpriteMask.html

[gaunt bough]

Thank you!

[echo oracle]

Does anyone have a Korean font asset for text mesh pro please? There is a bug in my version and I cannot convert a font for text mesh pro

[fierce rampart]

Can anyone tell me what continuesly causing this to happen with my UI Elements?

[mortal robin]

The red x means it has a negative width or height. This will happen due to your RectTransform settings. Such as having a "right" value of -100 when the parent is only 50 wide, for example

[fierce rampart]

Okey thats what I thought about, but I have accutally no reason why its happening. Most of the time its happening after save and closing the project and then the next time ill work on it, that problem comes up.

Could it be, that its cause of the Anchor Presets?

[low pike]

no, it would be silly if the presets had any negative numbers

it will be something doing an auto layout

[fierce rampart]

Okey but you didnt said anything abt a solution yet so you dont have a clue either?

[supple basalt]

Is there any good reason to use mipmap limits for UI textures?

I'm deciding whether to put them in a "UI" mipmap limit group that's forced to full resolution or to just disable limits on them entirely

[low pike]

You need to confirm the problem first.
And you haven't shown anything that can confirm the problem, no one here can give you a solution until you give details.

[limpid torrent]

if i have an Input Field UI game object in my scene how can i get the input field component... doing GetComponent<InputField>() just returns null

in unity 2023

or is there any way to set the value of the text of an input field from code?

[mortal robin]

Are you sure you're using the legacy InputField and not TMP_InputField?

[mortal robin]

of course, you set it once you have the reference

[quiet radish]

I'm having a weird issue where my UI Image components that have a material attached to them are disappearing when I enter play mode. They were working 24 hours ago, and I have no idea what I did to make it stop working. Strangely, you can see the materials while I resize the game window, as shown in this screen capture.

The cards are being initialized at runtime from scriptable objects, with the materials being assigned then - but I made a sample image to the left of the cards with one of the materials attached and it also disappears when I click play

[golden stump]

I can't see any treeview component for UGUI other than asset store ones. Anybody seen? I guess will have to DIY again

[mortal robin]

UGUI doesn't have a TreeView afaik.

UI Toolkit has one and IMGUI has one (I think)

[golden stump]

yes but I am not making an editor tool or wanting to switch yet so after a UGUI one. Anyway found 1 free one on asset store so checking it out

[upbeat moon]

Hey guys just asking what the best website is to showcase my UI/UX work professionally?

[mortal robin]

Make your own 😉

[lilac egret]

Idk why but my circle dissapears when i click Play

[upbeat moon]

you’re not wrong. i was going to but went down the lazy route.
i’ll set sail i guess

[onyx ginkgo]

Does anyone know why my TMP text looks blurry? I've tried increasing the fontSize and decreasing the transform scale but that didn't work.

[mortal robin]

You shouldn't be scaling UI elements manually

But also, where are you seeing them being blurry?

[onyx ginkgo]

In the game view (not scene)

[mortal robin]

Is your game view zoomed in

[onyx ginkgo]

yes it is 🤦‍♂️

thanks yeah that muse be why its blurry

oops

[old patio]

Anyone know any good courses to help with UI in unity and animated UI?

[upbeat moon]

not necessarily courses but i can recommend looking into a plug-in called LeanTween

if you look it up on youtube. guys shows how to use it for some mobile UI

documentation is decent too

[old patio]

Thanks

[night lake]

Hello, I am trying to recreate a Clash Royale style horizontal scrolling main menu UI for my mobile game, It works great until I try changing my resolution and things get wonky really quickly. My problem is I don't really know how to account for changing the resolution and the way that effects my camera size, if anyone would be willing talk me through what I'm doing wrong I would appreciate it massively (I have included a few screenshots that hopefully convey some of the problems better than I can)

[lilac egret]

I want the BG image to fill the Image but keep aspect ratio. Just like CSS object-fit: cover;

Nvm got it

[merry owl]

I really like the persona series ui and want to try recreating them, where do I start?? I mean do they use adobe illustrator or figma to do the actual ui design or

Stuff like this: https://m.youtube.com/watch?v=IpXuhmtWrHw

I have a bit of background in visual arts if that matters, I’m all ears for any advice

[cunning wing]

how to animate an image in the ui? im doing the same thing i do with other stuff not in the ui (using the animator) and it dont work

[cunning wing]

solved :D

[bold edge]

I have these assets, and I want to achieve the slider in the second pic, with 25% marks, how can I do it? Is there any tutorial on it?

[mortal robin]

Just a few such images next to each other. Probably using a horizontal layout

Think of it as just a static background image behind the slider

[wide sedge]

Why is my image not displaying?

Ah the scale is 0, how did that happen? This worked perfectly yesterday, didn't change anything

WTF? So I changed the scale of one item while running the game (so this should reverse as soon as I stop the game?)
The items are generated from a prefab, which was still set correctly.
I re-load the game and it works again???

[lilac egret]

Help - i need to achieve a nice text using this font (i got on Google Fonts) that is white with an outline but i keep having issues: legacy has low res and no outline, TMP converts it to a font that can't be switched to bold, when in Game or when zooming out in Scene, these rectangles form around the text, and it also doesn't have an outline.

[solar wadi]

why I got black squad shadow

[solar wadi]

there's no people who read this channel or can answer me a question

[honest saffron]

google says this: "Typically a semi transparent box around the text is the result of the sampling point size to padding being too small. You should normal aim for a ratio of about 10%."

this can be done in the font asset creator

Window > TextMesh Pro > Font Asset Creator

it should show your ratio there and you can change your padding and stuff there

[azure flame]

No-one is obligated to jump on your questions. People look in when they have free time. (and do your own research meanwhile, then you can post the answer yourself)

[azure flame]

You have the same problem of SDF font atlas characters bleeding into each other because of low resolution/lack of adequate padding.

[solemn pivot]

I'm having a UI problem with unity sliders(?) maybe?

    private void Start()
    {
        OnColorSliderValueChanged(0f);
    }

    private void DebugValues()
    {
        Debug.LogWarning($"H = {currentHue}, S = {currentSaturation}, V = {currentValue}, and color is {col}");
    }

    public void OnColorSliderValueChanged(float value)
    {
        DebugValues();
        currentHue = value;
        UpdateColor();
        DebugValues();

    }

    public void OnLightSliderValueChanged(float value)
    {
        currentValue = value;
        UpdateColor();
    }

    public void OnSaturationSliderValueChanged(float value)
    {
        DebugValues();

        currentSaturation = value;
        UpdateColor();
        DebugValues();

    }

    private void UpdateColor()
    {
        DebugValues();

        Color color = CreateColorFromHSV(currentHue, currentSaturation, currentValue);
        DebugValues();

        cursorPreview.color = color;
        icoPreview.color = color;
        col = color;
        ClientsideNetworkMessenger.instance.SetPlayerColor(color);
        DebugValues();

    }

    public Color CreateColorFromHSV(float h, float s, float v)
    {
        DebugValues();

        return Color.HSVToRGB(h, s, v);
    }

The instant 'OnSaturationSliderValueChanged' gets called, even before it assigns to anything, currentHue becomes 0. It just becomes zero, but nothing is setting to it.

Can the ui sliders cause this? Why would a slider not being interacted with change its value?

Solved it

saturation had its own separate instance of the color selection code on it

it wasnt 'assinging' them to be zero, they were just zero in its unique instance

[pliant crescent]

I'm setting Toggle.isOn to false, but it's not hiding Toggle Graphic (the changevalue event is being fired though)
is there a way to make the toggle toggle properly?

the situation is I have two toggle groups with the same items listed (it's a primary and secondary language selector) and I'm trying to remove the secondary language selection when the primary is selected, if they match

[limpid torrent]

i have a UI that has a bunch of objects with Image components in a hierarchy and now I want to put a Sprite (with and Animated Sprite Renderer) on top of these images but the sprites doesn't show up even if I increase Order in Layer value. I can see the sprite in Scene view but not in Game view

oh it seems to be in a different coordinate space maybe

[mortal robin]

If your canvas is in overlay mode it draws on top of everything

And yes

It's a different coordinate space entirely

If you want a UI element, you need to use the Image component

Not SpriteRenderer

[limpid torrent]

then i would have to make my own script to animate the Image component? if i cant use Animated Sprite Renderer

[mortal robin]

SpriteRenderer is for the game world, not for UI

[mortal robin]

I have no idea what "animated sprite renderer" is

[limpid torrent]

or can i put a gif as an image?

[mortal robin]

You can use Unity's Animator component with the Image component as normal

No, animated gifs aren't supported

[lilac egret]

I need help with giving my custom font an outline

[low pike]

scroll down and look at the bottom of the TMP component and look at the material

[elder hawk]

Hello, can somebody help me figure out why my canvas is not showing up?

[mild kernel]

Do you have anything on the canvas to actually display?

[elder hawk]

yea i do, i. figured it out and it was so ridiculously stupid

I was zoomed in slightly in the editor 0-0

[mild kernel]

That'll do it

I suggest you change your reference resolution to something more standard as well, like 1920x1080.

Especially if you intend on making your own artwork, though if you're using packs, they're likely done to that scale as well since it's the most common.

[elder hawk]

Alright, thank you for that

[upper raft]

Hello im trying to replicate this video guide, but there is one step im having trouble with. After creating the calendarholder and equipping it with the vertical layout group im unable to stretch the calendardaytitle in the Y axis and therefore replicate the tutorial. Any tricks?

[maiden tinsel]

how do i disable Text Mesh Pro text wrapping, so letters that can't fit into one line won't jump to next line?

[mortal robin]

in the inspector there's a text wrapping mode

[maiden tinsel]

ok, thanks

[supple shoal]

I have some TMP text that is being stubborn. It's appearing in play mode IN ALL RESOLUTIONS but not appearing in the build. I checked the canvas scaling, updated unity to the newest version, and tried deleting the scene from the build and putting it back. No luck yet, any suggestions?

[supple shoal]

Got it! It wasn't a problem with the UI. For some reason a timeline asset alone can't play animation events, it need to have an animation with events in it instead. That was making stuff not appear

Only in the build though which is weird

[proven venture]

how do i fix the text overflowing

[high tartan]

do you guys think this looks good? any suggestions

[rapid ferry]

can do some changes, first center texts, second instead of "increased", you can say `+35% blablablah"

also that coins didnt really got aligned properly

[rapid ferry]

you should use rect masks for that

[high tartan]

better? also the "increased" part is a major part of my stat system to tell how different stats will stack

[rapid ferry]

in that case, you should reduce the font size by a little, 1px should be enough

currently the description is as large as subheaders, that's not nice

[high tartan]

kk, anything else?

[rapid ferry]

should be all for me

[high tartan]

thanks

[soft swallow]

hey! if you are still not set on the layout, you can do something like this to make it more interesting, adds a little bonus UI depth to your game

[rapid ferry]

yea, single vertical layout can be quite boring

[high tartan]

yeah I might, right now its just a text box formatted with rich text. trying to get the satisfying item feel like in Diablo and path of exile

also is there a better way to keep the box within the screen window? right now i have this and it works but when the box is hidden then activated again when hovering a new item, it briefly flickers outside of the screen before correcting.

        if (anchoredPos.x + rectTransform.rect.width > canvasRectTransform.rect.width)
        {
            anchoredPos.x = canvasRectTransform.rect.width - rectTransform.rect.width;
        }
        if (anchoredPos.y + rectTransform.rect.height > canvasRectTransform.rect.height)
        {
            anchoredPos.y = canvasRectTransform.rect.height - rectTransform.rect.height;
        }
        rectTransform.anchoredPosition = anchoredPos;```

this is within update

[soft swallow]

do it OnEnable

[high tartan]

it has to be on update?

since it reads mouse position

and it moves with the mouse

[soft swallow]

do it both

[high tartan]

ok

nope didnt fix

[soft swallow]

lemme actually read the code lol

[high tartan]

i got a screenshot of what i mean

this is the frame where its outside of the bounds

next it is fixed

[soft swallow]

you should use layout groups

then content size fitter

[high tartan]

i do

the box automatically resizes to the content in it

[soft swallow]

ahh the panel is out of unity screen

[high tartan]

im talking about it leaving the bounds of the screen

it works fine besides that 1 single frame when its enabled

[soft swallow]

Let me look at how i did mine before

[soft swallow]

https://gdl.space/bibuzipifo.cs

just call that after moving the thing

then enable the object

    void Update()
    {
        UpdatePositionAndPivot();
        ClampToBounds();
    }```

[high tartan]

its just locked to the bottom left of my screen

[soft swallow]

is the parent canvas rect transform larger than tooltip recttransform?

also this code only change the position, you need to set the resizing properly using layoutgroups and content size fitters

[high tartan]

the tooltip is on a seperate canvas

which inherits from the main canvas

[soft swallow]

the idea for this method is so that the green box stays inside the red (as long as it's smaller)

https://gdl.space/uwikibuvuh.cpp here with Y axis being fixed as well

[high tartan]

its doing the same thing as my old code

[soft swallow]

idk why it is working for me then..

[bright plaza]

I'm looking for advice about some other Unity ui

[mortal robin]

What does that mean?

[bright plaza]

I want to design a furnace menu

With animations in thé température,fuel, an timer an température clock

Thé problem is ,how to anímate all in a ui? In différent gamme objects?

Y have other interfaces

But thé problem is, i cannot anímate all and Connect them

Like this examole

Thé blue things are things that show thé level off thé water or Gate or level off thé distillated water ,i dont know how i can anímate

[slender flame]

Anyone knows an asset, how could i make this? i really like this ring type of inventory but i have no clue how to mess with Unity's UI system for something like this, any help is well appreciated

(if anyone also knows the name of this type of system)

[mortal robin]

It's called a carousel in UI terminology

[lyric venture]

why tmp text is not showing after changing during runtime
but the text is getting updated in the inspector.

[obsidian flax]

hello, my canvas shows a ridiculous rectangle in my game, i want to hide it but without hiding the canvas objects inside, how can i do it ?

[mild kernel]

That white rectangle is the canvas borders, which is just a gizmo. It won't show up in your game.

[obsidian flax]

oh okay

thanks

i still see it in the game in the editor, it will be removed during the build ?

i also see a camera icon which is horrible

[mortal robin]

turn off gizmos if you don't want to see gizmos

[supple shoal]

@obsidian flax You're project looks really interesting! Keep it up! 😄

[mortal robin]

How many cameras do you have

And... Another in the scene?

I didn't say there were more

And what is the canvas render mode?

And if you deactivate the "Background Panel" object what happens?

But both renderings disappear?

Try restarting Unity

Something is fishy here

Very fishy

[mortal robin]

The overlay UI probably doesn't do any kind of clearing of the buffer. So it probably drew once, did a layout, then drew again elsewhere. And nothing cleared the buffer

It's not advisable to have a scene without a camera

[timber leaf]

Does anyone know how i can make it so that only the borders of the image scale and not the cutout part?

[supple shoal]

Just so I understand better, why do you want to do that?

[timber leaf]

it's a scope, when the game is played on some other aspect ratio like 21:9 or 16:10 it stretches

[supple shoal]

If you want your UI to stretch then select the canvas scaler component, and set UI Scale Mode to "Scale with screen size" and then set the default resolution by typing in your width and height (4k would be 3840, 2160. 1080p would be 1920, 1080)

[timber leaf]

yeah i know, it streches with the screen size n stuff, issue is that the cutout part is also streched which makes the scope turn weird

[supple shoal]

Can I see how you anchored it?

Can you also show what it looks like in game view?

[timber leaf]

ook 1 sec

srry embed fail

[supple shoal]

Worked on my end!

[timber leaf]

last one had no audio lol

[supple shoal]

Ooh

[supple shoal]

Ok here's what I would do if you dont want it to look that way: I would go into illustrator, or photoshop, or whatever sprite editor you use, and then I would add a wider black part to the scope. And then I would set the canvas to not scale with screen size so it doesn't stretch. A bit of an awkward workar-aound but it works. Do keep in mind, that a lot of games that have features for stretched resolution have that odd looking stretched scope effect. Think of games like cs:go or fortnite. Both of these triple A games have that weird stretching effect so I wouldn't worry too much about it. But if you do end up trying that work-around, let me know your results!

[timber leaf]

I was doing this, but what if it's smth like 16:10 4:3 etc

fkin goofy ahh UI system

imma make a 10000x10000 image fk it

[supple shoal]

Unless you expect players to have a 2006 monitor or are playing on mobile, I wouldn't worry about those resolutions 😂 . Even still, If you want to fully fix it, I do think making a larger image is your best bet

[timber leaf]

yeahhhh

[timber leaf]

christ this is such an abomination

[supple shoal]

Did it work?

[timber leaf]

yeah

goofy ahh though ahhaha

[supple shoal]

Stuff like that is frustrating 😂 . I checked out your steam page. Looks awesome, keep it up!

[timber leaf]

oh, the steam page is like 2 years old, game is completely different now, if ya search up "Project Nova Pre Beta Gameplay Footage" you'll find newer gameplay

[supple shoal]

You should update that on your page!

[timber leaf]

I don't have art for the page lol

[dreamy river]

how can i remove the overflow?? it's a canvas in world space

[timber leaf]

Mask

or png

[dreamy river]

how can i do that??

[supple shoal]

I would either go into photoshop and manually smooth the edges, or you can look up "how to mask UI elements" and I'm sure you'll find something helpful there!

[dreamy river]

okayy, thanks

[obsidian flax]

Thanks !!

[wicked mural]

Hey everyone,

I'm currently developing a 2D pixel art game with a global light to simulate day-night cycles, using URP. This global light affects every sprite in the game.

However, the UI looks strange at night because the entire game is dark while the UI maintains its original brightness, creating an ugly contrast.

I've experimented with setting the material of my UI images to Lit-Default, which makes them affected by light. Visually, this works well, but it causes issues: images with that material no longer work with RectMask2D or register cursor hovers. I'm sure there are more problems I haven't encountered yet, as I assume the Lit-Default material isn't designed for UI.

Does anyone know a practical way to make the UI respond to lighting?

[supple shoal]

If I were you I would write a script that tracked what time it is in game and adjust the white levels of your UI images accordingly

[wicked mural]

But that would mean having an extra script attached to every UI image.

I have pretty complex UI, so it can get messy.

[supple shoal]

Not necessarily, I would make one script and attach it to the canvas, and then make an images array in that script for modularity

If you need exaples I can do that ❤️

[wicked mural]

I see.

Well, another concern I have is that the global light in the game's world affects both brightness and hue. Adjusting the white levels on my UI images would only change their brightness, not their hue, correct?

[supple shoal]

That's true. If you want to adjust the hue then you would edit the entire color rather than just the white. (Which, either way you would be editing the entire color, but in my first message I was under the impression that you only wanted it to get darker)

[supple shoal]

It's also worth noting that if you adjust the color of a yellow object, and set it's color to blue. That object won't be blue. It will be yellow with a hue of blue

So you wouldn't have to adjust each individual color, you could edit all of them at the same time so they all had the same hue

[wicked mural]

Oh, that's true actually.

That definitely sounds like a better solution that what I had so far.

I'm still a bit concerned about having to link every new image I add to the UI to the script attached to the canvas, but I guess you can't have it all.

[supple shoal]

You could tag all of your UI elements something like "UIcolor" and then attach each tagged item to the array instead of doing it manually

[supple shoal]

If it were me, I would rather do it manually though. It's a bit easier to debug even if it takes more time

[wicked mural]

Will try that. Thank you so much for your help! 🙏

[supple shoal]

Good luck! ❤️

[pliant crescent]

my UI buttons aren't working, but they worked previously. looking at the EventSystem inspector, clicks on them aren't showing up. how can I check if something is blocking them?

is there any more debugging I can do on a UI element other than that?

[supple shoal]

I would go into play mode, and disable all other UI elements that aren't your buttons, and then start enabling them one by one and find out when your buttons stop working. Then, go out of play mode, click on the culprit, and disable "raycast target" on the image component of the element. Note that you may need to do this process multiple times because there may be more than one thing blocking your buttons!

[pliant crescent]

kk, thank you

yup that nailed it, cheers

yeah so I have a couple of toggle groups. they're not overlapping, in fact they're all in a vertical grid together. but if I switch them off my buttons work. what could that be?

I'm not completely up on how things like canvases and graphic raycasters work. I have multiple instances of both, is that okay?

[supple shoal]

The "Canvas Group" component also has a bool that blocks raycasts. If you disable that it should work

[pliant crescent]

okay

do you know which option it is?

[supple shoal]

Yes that should be fine, as long as they aren't blocking each other

[supple shoal]

It should be a bool called "Blocks Raycasts" on the Canvas Group component

[pliant crescent]

okay, ty

[supple shoal]

Did that fix your issue?

[pliant crescent]

finding out now

I couldn't find the option in anything that shouldn't have it

only my actual buttons have it

it was "Raycast target" right?

I never saw anything called Blocks Raycasts

[supple shoal]

"Blocks Raycasts" is a bool in the 'Canvas Group' component. "Raycast target" is a bool in the 'Image' component. They do the same thing but are on different components

[pliant crescent]

I have this as well

I guess I don't have a canvas group component anywhere

the thing grouping everything is this

(wasn't a grid)

I actually don't know when this broke so I don't even know if it was the last thing I added

[supple shoal]

Oh I see. If you set your blocking mask to nothing are your buttons still interactible?

[pliant crescent]

oh,. my preview text element which is BELOW the buttons is acting weird. turning off the thigns above it helped but maybe only incidentally

lemme try your suggestion first though

ended up trying both, no difference

I guess I'll just try moving everything around a lot and putting padding on everything

I just wondered if there was some kind of component collision rather than screen collision

instead of occlusion, maybe something is discarding the event

[supple shoal]

I have one more suggestion

Remember earlier when you disabled objects one by one to see which one was the problem? Try that, but this time only do it to the objects INSIDE the group that you know is causing the issue

[pliant crescent]

with that last layout change, just disabling the bottom toggle group makes it work now. before it had to be both.

must be occlusion

oh good idea

[supple shoal]

Hmm odd. Glad you found a solution!

[pliant crescent]

it didn't help so it must be the grid layout group causing it

there isn't really anything in there specifically related to blocking

and the toggle group above doesn't affect the toggle group below. lemme show you what I'm working on

the two buttons not working are "smaller" and "larger"

if I disable the grid group for the bottom row of flags, the buttons work

like this still doesn't work if the flags are disabled

[supple shoal]

Really weird. I have never used that grouping component before. You should look up if other people have had this problem! It may be a Unity bug

[pliant crescent]

thank you for the help, I'll keep poking at it. those were good ideas 🙂

I might put all the flags into another group just to pad them out

[supple shoal]

No problem at all. I really like the look of your project! very few unity devs make educational content and that makes it unique

[pliant crescent]

niche is where the easy money is!

thank you 🙂

[supple shoal]

With proper marketing!

[pliant crescent]

k we're on to something. a new vertical layout group has tidied it right up

[supple shoal]

Awesome

[wicked mural]

Hey, I have another quick question if that's alright.

You mentioned creating a script on the canvas to keep a reference to all UI images. How would you handle UI elements that are spawned or despawned at runtime, like the interfaces for inventories, chests, crates, etc.? I don't keep every UI element in the scene, I spawn them as needed.

Would there be an easy way to reference their images in that script?

[supple shoal]

I see. I would tag all of your prefabs that you want to be affected and then use GameObject.FindGameObjectsWithTag("TagName"); to add the tagged objects to the images array we talked about earlier in a FixedUpdate() { }

[wicked mural]

Alright then, will try that.

Thank you once again.

[supple shoal]

❤️

[jagged monolith]

This is a really bad idea, it's a very heavy method that should not be run in any update loop. Even in FixedUpdate it's gonna run multiple times a second. If you want to manage objects spawned during runtime @wicked mural, my personal preference would be to have some sort of manager that is available statically, like a singleton (even though those shouldn't be overused either). Then when a button spawns, it is responsible for registering itself in the manager, and detach when it is destroyed.

[wicked mural]

I found out that Unity 6 supports UI shaders, and I tested it out - it's true.

I might switch to the new version. This way, I can simply change a material, and all images using that material will respond to the color changes I make.

I figured using FindGameObjectWithTag would affect the performance quite a bit.

[low pike]

UI shaders aren't new to Unity 6..? 🤔

[mild kernel]

The canvas shader graph is new with 6. They mentioned it during Unite

[wild pebble]

Yup. You could have made handwritten UI shaders forever but the shader graph support is a new feature. Nothing would have prevented from using, lets say, unlit graphs for UI materials previously either but the unlit graph doesn't have ZTest [unity_GUIZTestMode] and UI masking so the shader might have been bit buggy but somewhat working

[steel patio]

i'm making an inventory system for a 3d unity project. right now i'm trying to add a drag and drop system to the items but it doesn't work.. I only have debug.logs right now and nothing shows up in the console

DragDrop - https://hst.sh/cufazifuva.cpp
ItemSlot - https://hst.sh/movubemodo.csharp

i've read forums talking about adding a StandaloneInputModule to the event system but because im using new InputSystem i need to use a InputSystemUIInputModule. I've added a canvas group to the item, made sure the canvas has a GraphicRaycaster. I also did an Event System debugger - https://hst.sh/musobofono.cpp and still nothing shows up in console. when i click on the item absolutely nothing happens

[high tartan]

anyone know why my UI has gaps when my game is ran at 1440p? it looks fine at 1080p. I believe it from using pixel perfect mode on the canvas, but not sure. Anyone know how to properly make a pixel perfect UI or fix the issue?

[supple shoal]

@jagged monolith @wicked mural If you are going for optimization, then you could add a script to your prefabs that adds then to your images array on their start rather than using GameObject.FindGameObjectsWithTag("TagName");

[supple shoal]

When you say nothing shows up in the console, what do you want to show up? Can I see some of the components?

[supple shoal]

Is your canvas set to scale with screen size?

[steel patio]

all the debug.log show nothing in console. i did make a proper drag and drop system but after seeing it didn't work i replaced it all with debug.log and they're there to make sure everything works and apparently nothing works. console is completely empty

i'm still fairly new to unity

[supple shoal]

Don't sweat it! This is most likely a question for code-beginner rather than ui-ux. I would check there and see if anybody has any suggestions. If not, feel free to come back here

[fallen barn]

If i understand this correctly, the Scale With Screen Size option adjusts everything under the Canvas to the proper size according to the screen size. How do I do the same for the player sprite?

[mortal robin]

Why would you want to do the same for the player sprite?

that would mean physically changing the player's size

which means the game will behave differently

This is really for UI which is more concerned about looking good on the screen than being part of an actual game simulation

[fallen barn]

I initially thought if ui size changed, wouldn't you need to change the player sprite as well?
Got it, thanks.

[mortal robin]

depends on your game and your goals

in the vast majority of games, you don't change the size of any objects in the game world itself to suit the screen.

What you might do is zoom the camera in or out based on the aspect ratio, if you have a desired physical height or width of the camera viewport.

[foggy heron]

I'm using the localization package
Is there really no way to do nested localization string lookups without manually inputting persistent variables? I want an entire string table to be available for nested lookups (these strings have no params)

[pliant crescent]

omfg it's everything at the bottom half of the screen that's not interactable

found it!

woo

is there a way to convert a group of selected objects into a prefab in-place?

[supple shoal]

Drag and drop the parent object into your assets folder somewhere

[supple shoal]

I bet you'll find an answer in one of the code chats!

[foggy heron]

discord is such a pain in the behind to search through

[high tartan]

yes

[karmic plinth]

i created one ui design for webVr project and ui size is 1920*1080px
but i need to develop the responsive webui for my project so anyone can suggest me for project

[grand night]

Hey I have a slider with a 9-sliced fill, but whenever the value of the slider is very small, Unity scales the fill instead of using 9-slicing, how can I fix this?

[proud sandal]

Try adding negative padding to the fill transform (make it bigger than the track it slides in)

[mortal robin]

Is this for a Health bar or something?

[grand night]

Thanks it works now!

[grand night]

Yea its an energy bar

[mortal robin]

You shouldn't use a slider at all

Just use a filled Image

[grand night]

i'll keep that in mind next time

[hoary kindle]

is there any way to make the objects spawn opposite direction under a horizontal layout group

[gloomy marten]

setsiblingindex(0) for spawned object?

there should be a flag called reverse arangement on Horizontal Layout Group

https://i.sstatic.net/mkxy0.png

[hoary kindle]

it only reverse the arrangement of the objects

[gloomy marten]

combine that with child alignment set to XXX right

[dusty spindle]

I'm using a Drag-n-Drop (Golf game like) game mechanic which uses OnMouseDown function.
Problem is that i also have a UI button that toggles a camera zoom function but clicking that button affects gameplay by beginning a drag action.

How can i prevent clicking on the button to affect gameplay?

I tried having this line of code in the player movement script, but problem didn't dissappear. I might be using it in the wrong way. Dragging triggers still.
if (EventSystem.current.IsPointerOverGameObject()) { return; }
How do mobile games solve problems like this between UI and the Game?

[mortal robin]

Don't use OnMouseDown

Use the event system for everything

IPointerDownHandler

You will get the correct behavior for free

[dusty spindle]

thank you i'll try switching to that

[solar dove]

How can you change the colliders for sliders as mine are way too big

[mild kernel]

Sliders don't have colliders?

UI elements will use whatever images they have for example.

[solar dove]

when dragging the colliders the mouse will clicke quite far away from the image and still connect with it

[mild kernel]

You have some UI elements that are inside that object that are big, then. You can turn of raycast target on components (image components, text components, etc.) for ones you don't want the mouse to consider.

[solar dove]

thanks ill try that

TY so much thats perfect ill keep that interaction in mind from now on!

[steel patio]

i've posted it there quite a few times and noones replied

[wide sedge]

Can someone help me figure out why Unity keeps setting the Scale of my items to 0/0/0?
I Instantiate my items from a prefab, the prefab's scale is set to 1/1/1, nothing in my code touches the scale, the item is placed in a Grid Layout Group parent
The prefab contains an empty gameobject with a fully transparant image on it and an empty gameobject child with a Horizontal Layout Group and the item image on it

[mortal robin]

Where are you seeing a scale of 0,0,0

[mortal robin]

Well first off - shouldn't you show the Item object here?

Since that's the one that is being scaled incorrectly?

(the prefab root)

[wide sedge]

that is what I'm showing, it's renamed when instantiating the item

[mortal robin]

you're showing a child object

[wide sedge]

ah

[mortal robin]

OK so - can you show your code that instantiates these things?

and/or configures them

[wide sedge]

        {
            GameObject itemGO = Instantiate(itemPrefab);
            T item = itemGO.AddComponent<T>();
            item.ItemData = itemData;
            item.name = itemData.ItemName;

            if (item is Weapon weapon)
            {
                weapon.WeaponSO = (WeaponSO)Resources.Load("Items/Weapons/" + itemData.ItemName, typeof(WeaponSO));
                weapon.transform.GetChild(0).GetComponent<Image>().sprite = weapon.WeaponSO.Sprite;
            }
            else if (item is Armor armor)
            {
                armor.ArmorSO = (ArmorSO)Resources.Load("Items/Armor/" + itemData.ItemName, typeof(ArmorSO));
                armor.transform.GetChild(0).GetComponent<Image>().sprite = armor.ArmorSO.Sprite;
            }

            item.ItemDescriptionPrefab = CombatController.Instance.ItemDescriptionPrefab;

            if (itemData.IsEquipped)
            {
                item.transform.SetParent(EquipmentSlots[itemData.EquipmentSlot].transform);
            }
            else if (itemData.InventorySlot > 0)
            {
                item.transform.SetParent(ItemSlots[itemData.InventorySlot].transform);
                EmptyItemSlots.Remove(itemData.InventorySlot);
            }

            //item.transform.localScale = new Vector3(1, 1, 1);
        }```

[mortal robin]

you should determine the parent first and instantiate it directly as a child

rather than instantiating and setting the parent later

that really messes with UI/layout groups

[wide sedge]

cool, let me try that 🙂

[mortal robin]

To be clear I mean that you should use the Instantiate(prefab, parent) form of Instantiate

Something like:

Transform parent = null;
if (itemData.IsEquipped)
{
  parent = EquipmentSlots[itemData.EquipmentSlot].transform;
}
else if (itemData.InventorySlot > 0)
{
  parent = ItemSlots[itemData.InventorySlot].transform;
}

GameObject itemGO = Instantiate(itemPrefab, parent);```

[wide sedge]

the issue is I don't have the Script that contains the correct parent when I need to instantiate the object
because depending on what Item type it is I add a different script to the prefab
but I guess I'll just manually set the scale to 1 then at the end

[mortal robin]

Wdym?

That has nothing to do with the Instantiate part or the parenting part

I just showed an example of exactly how to do it

[wide sedge]

ah yeah, I got a bit confused there 🙂 I do have ItemData from the function parameter 🙂
this actually fixes my issue, thx!

[vague oriole]

I'm having issues with centering rect transforms so I made a quick example. Does anyone know why the canvas' 0, 0, 0 is like a bit to the left?

The pivot on the quad is fine

Wait no it's an issue on my end sorry!!

I had the pivot set to always be the center instead of the actual pivot. The plane's pivot is off

[mortal robin]

Use the rect tool for RectTransforms

[mortal robin]

yeah this was going to be my guess

[dreamy river]

why are my buttons in "world space" canvas not working in some position

feels like there's something on top if them but there's really not

and this is my canvas (the event camera is set in a script)

[mortal robin]

Slect your event system object at runtime

and look at the preview window, to see what's overlapping it.

[dreamy river]

hmm, it feels like the game doesn't know the canvas is "tilted"

[mortal robin]

How is the tilting happening? Is it physically tilted or a shader? Which camera is the event camera? Is it the same camera we're seeing out of? Is there postprocessing?

[dreamy river]

yea there is post processing, and it's happening physically

[sullen shoal]

Hey! does the world space uses the hierarchy order in what to draw first?
I have a problem with world space ui elements on single canvas, that its not order from the closest to camera to farthest

Do i need to sort it manually?

[upbeat moon]

Any tips on continuing to build a UX UI portfolio when you currently arent working on any game projects with anyone

[sullen shoal]

Unless i should use world space canvas for each characters, cuz right now im using only 1 worldspce that is used for spawning / despawning World UI Elements

[dreamy river]

oh, it was my lens distortion

[rain grove]

I'm trying to mask an image on a world space canvas, but if the player/scene camera is a certain distance away the mask seems to stop working and the entire image is visible. If the camera is closer than that distance it works as expected. I'm using Forward rendering, but not sure what could be causing this

[sullen shoal]

At the end of the day i just switched from using canvas to sprite renderer

[violet sandal]

does someone have a clue what's causing this flickering behavior?
(watch it fullscreen)

maybe the edges share 2 pixels and the GPU doesnt know where to render ?

[brisk monolith]

Is there a way to make the screen darker besides a specific rectangle? I guess it should be something with UI mask maybe? I'm thinking about some inverted mask
or cut out a part of an UI image

[proud sandal]

That or a custom full screen render feature or a quad in front of the camera with a transparent shader doing the masking (which is essentially a full screen render feature)

[sand sorrel]

Hi, I'm making a drifting mobile game (see #1263105452112351232) and I have a level selector menu that looks like Candy Crush (it's a road with the levels on it and you click a level to play it) but I need help finding how to represent the levels

https://cdn.discordapp.com/attachments/1034143884932038807/1262799463718719558/Enregistrement_de_lecran_2024-07-16_175330.mp4?ex=66993aa5&is=6697e925&hm=22360aa844361fea1d2b7ea71690254f3cc18ac05cd1e57d61e3f1a41e24dad6&

Right now the levels are the pink squares but I need a better design (I'll make it myself, just need an idea knowing it has to be a cartoon 3D model)

[supple shoal]

What was the problem again?

[steel patio]

i'm making an inventory system for a 3d unity project. right now i'm trying to add a drag and drop system to the items but it doesn't work.. I only have debug.logs right now and nothing shows up in the console

DragDrop - https://hst.sh/cufazifuva.cpp
ItemSlot - https://hst.sh/movubemodo.csharp

i've read forums talking about adding a StandaloneInputModule to the event system but because im using new InputSystem i need to use a InputSystemUIInputModule. I've added a canvas group to the item, made sure the canvas has a GraphicRaycaster. I also did an Event System debugger - https://hst.sh/musobofono.cpp and still nothing shows up in console. when i click on the item absolutely nothing happens

i just copy and pasted my last message

[wide sedge]

How would I make my numbers appear on the right and auto-expand to the left as needed?

This is what I currently have:

[young sinew]

I'm adding UI stuff for the first time. I started with a HUD for stats using UI Builder but then started doing the right-click > UI > Canvas > Panel stuff for in-battle menu stuff. Is it best practice to only use one of these UI systems rather than both or no?

Looking online it seems like Legacy might be better for beginners working in 2D.

Would you guys say that's pretty correct?

Seems maybe easier to find resources since it's been around longer

[blissful kraken]

When using TMP I can't find the option to combine an inside and outside text. For example, this "0" is made of two fonts, the white and black, and I need to use two text objects and change them in my code any time I want to alter the text. Can they be combined into one object

[mortal robin]

Just make your own wrapper function or property that sets them both

[autumn rapids]

Isn't it possible to use a textoutline instead?

[low pike]

the text outline component is for legacy text, not TMP

[faint spindle]

I have a tmp button, but for some reason it cannot be highlighted, clicked or anything. Does anybody know how I can fix this issue? I tried so much but nothing seems to work

[mortal robin]

1. Make sure you have an event system in the scene, with an appropriately configured input module
2. Make sure there are no other things blocking the button
3. Make sure the button is interactable and enabled

[faint spindle]

i checked that already, doesn't work

[mortal robin]

it works, those are the things you need

if you think you have everything set up properly, feel free to share screenshots

[carmine canopy]

Can I make it so the grid cells scale to fit the area it is inside? I'm aiming to create a 5x5 grid of items that scale to fit their parent with equal spacing.

[proud sandal]

you cannot do that with a grid layout group, but you can nest horizontal and vertical layout groups to achieve that effect. Alternatively you can implement a custom variant of the grid layout group.

[vagrant nova]

Hello,
I've created a basic UI already and I'm not looking to make it more "beautiful" but I seem stuck on a very basic topic, and I'm afraid I need someone to explain it to me very slowly 😦
I've got a menu, which I would like to put a background to. That background is an jpg image (for now) and illustrates a soccer field. I've managed to 9-slice it so that it can neatly scale depending on the size of the menu.
I've create a object which I've attached the "Image" component to and assigned said image as "source image" property.

Now my problem, which I'm sure is an easy fix, that I was simply not able to find and/or understand:
The "color" property (as I understand it) is working multiplicative in unity. This means my existing image is being "multiplied" by whichever color I choose. This is great when my image is white, because it lets me change the color. But my background already has colors, which I would like to use as-is.
The best I could come up with, was putting the color to white (255,255,255,255) but that still looks like the colors are loosing some of its "power/intensity".

I've read things about custom materials that might solve the issue, but I did not quite understand that.

So: Is there a way to use an image "as-is" on an image component without the multiplicative color or is white(255,255,255,255) the right solution anyway and my eyes are playing tricks on me.
Thanks for any pointers.

[honest saffron]

cant you leave the parts that need to be colored as separate objects and leave them completely white? and then color them

[vagrant nova]

yeah, that would be solution, but that would mean splitting the soccer fields into a bunch of rectangles for the various colors. And somehow that feels like I'm "redrawing" the image in unity with multiple objects. I'm not quite convinced thats the intended way to include a background image with its original colors as created by the illustrator.

[honest saffron]

1 image for colored stuff, 1 image for the rest. all you need is 2 images total

or will you color them all different colors?

[vagrant nova]

if thought explaining the image, but i think its easier to just show it 😄

If i understood you correctly, i would need to put the rectangles of one green as an object, the ones from other green another object and then some for the white lines - although I'm not yet sure how to do the circles

[honest saffron]

what are you trying to color here exactly?

[vagrant nova]

nothing really, thats my problem.
i want to use this image as background as is and then put a bunch of UI on top of it.
but with the color property of the image component, the best I could do to put it to white with full alpha, which still changes the colors slightly (or so my eyes tell me)

[honest saffron]

no i mean, what do you want to change the color of? the white lines?

[vagrant nova]

i dont want the colors to change at all

but I cant set the color to "none", because that will just hide the image all together

[honest saffron]

keep the color as default then. which is white. why are you even tinkering with that if you dont want colors to change?

white means the image is not colored and looks normal

[vagrant nova]

but it doesnt.

left is the original image, right is in unity with color "white"

the right one looks like there is a "filter" on top of (at least to me)

[honest saffron]

its not an issue with the image's color property, it could be unity's color space then https://docs.unity3d.com/Manual/LinearRendering-LinearOrGammaWorkflow.html
see if that changes anything?

[vagrant nova]

I'll give that a read, thank you.
just to make sure:
a) on the example above, you would also say that the right one is less "intense" (at this point I'm skeptical about my own eyesight)
b) generally speaking: setting the color property to white with max alpha should preserve the original color, correct? (which makes complete sense, when you think about it, but it just did not add up for me)

[honest saffron]

yeah the colors look different, and yeah the white with max alpha keeps it at the original color
set your color space to the other option and see if that fixes it

[vagrant nova]

doesn't seem to have changed much (i've adjusted the aspect ratio to make the comparison easier)

hmm... but for the soccer pitch it helped. so maybe its something about this graphic in particular.
thank you so far

[honest saffron]

maybe theres a transparent white panel on top of this image thats causing this?

[vagrant nova]

hmm... there is multiple objects there, but the image should actually be the last one / top most, but I'll check once I'm back to reorder them and see if that helps 🤞

[wide sedge]

Is it ok to remove the Graphics Raycaster component from a Canvas if I'm only going to use that canvas to display damage numbers?

[mortal robin]

If you don't plan on any event system interaction it's fine to remove

[grim tinsel]

hello it's the first time i ask for help so maybe there is an appropriate channel for questions but I've been trying to figure out how to make a sprite clickable for a while now. In fact, what I'd like is for an interface to appear when I click on a sprite.

[mortal robin]

IPointerDownHandler or IPointerClickHandler

You will also need:

• a 2D collider on the sprite
• a PhysicsRaycaster2D on the camera
• an event system in the scene

[untold vessel]

what did i do wrong, why is my UI under the Map

[azure flame]

Your UI is in camera space, and camara looks like under tiles in world space on the screen. It's irrelevant for UI display.

If you want to not show camera frame hide it in layers display, there's other way I think too

[leaden mason]

so i have player in which HealthBar script is attached and i make prefab of the player , and in Healthbar script i have {public Text GameTimerLeft;} this , but when i drag any text into it it says Type mismatch

[honest saffron]

put "using TMPro;" at the top and use TMP_Text instead of Text. cause thats the legacy text (unless ur using the legacy text for some reason)

[grim tinsel]

thank you very much it works now

[heavy jungle]

what is the best practice for enabling/disabling Unity UI? Should I use canvas group and set the alpha or should I set the UI GameObjects.setActive(true/false)?

which is more performant?

[uneven holly]

Excuse me, I'm seeming to have trouble with UI stuff. I'm trying to set up a border around an image, but I can't add the border component to the image directly, so I need to have a panel in the background with the border instead. The issue is for some reason, the panel is rendered over the image and idk how to fix it

I need the image to render in front of the panel, not behind it. I tried changing the Z position of the UI so it was closer to the camera than the panel, but that didn't change anything

[uneven holly]

Nvm I figured it out

[warm fulcrum]

Why is text ends abruptly?
It should go to the next line once it reaches the "end" of parent, but it looks like it's just going to the next line whenever it wants.

[somber light]

How can I disable gamesession temporarily while in cutscene? I have tried many methods on web but it didn't work.

[mortal robin]

Wdym by "gamesession"

[somber light]

Like I want to disable temporarily UI while in cutscene.

[mortal robin]

Deactivate the GameObject that makes up the UI

[lofty moon]

How do I make a button holdable.

[mortal robin]

Use the EventTrigger component to capture other events like pointer down and pointer up

Or IPointerDown/UpHandler on your script

[sleek remnant]

Hello, i've encountered a weird bug where my text in my World Space canvas get glitched when the player travel 5000 or more units in distance 🤔 tried to reconfig the camera, the canvas, but no success... maybe an engine limit ?

[mortal robin]

when the player travel 5000 or more units in distance 🤔

This is an expected side effect of being so far away from the origin due to the limits of floating point precision. You should avoid having objects that far away from the origin

If your game is such that such distances are required, you should look into a "floating origin" scheme

[sleek remnant]

yeah i need these long distances

i'll look into it, thank you 🙂

[warm fulcrum]

Updated info on this

[azure flame]

Select the text object and examine its gizmo, make sure you are actually resizing it.

[warm fulcrum]

Oh, that's was the problem, thank ya

[teal wedge]

how can I make a TPM text be as large as possible without it going out of bounds depending on the text?

[mortal robin]

there's an auto size checkbox

[teal wedge]

but that makes it go on the same line

[mortal robin]

same line as what

[teal wedge]

as the text

it makes it go all on one line

[mortal robin]

That's more to do with the height you set and the text wrapping setting

[lofty moon]

Alright thanks

[teal wedge]

no, the wrap mode is normal and there is enough space below

[mortal robin]

there are more auto size options than just the checkbox

https://docs.unity3d.com/Packages/com.unity.textmeshpro@4.0/manual/TMPObjectUIText.html#font

e.g. line height

[teal wedge]

do you mean WD% ?

[lofty moon]

I added the event trigger but it still is not wrking

[mortal robin]

define "not working"?

What are you expecting this to do?

why are you using SendMessage?
What is mForward?

and you have nothing in PointerUp

[lofty moon]

It's meant to move my player forward

[lofty moon]

I thought i wasn't supposed to put anything

[lofty moon]

When i click it it works, but i want it so i would hold it

[mortal robin]

PointerDown happens when you first press the button. PointerUp is when you release it

[lofty moon]

yeah i dont want anything to happen

other than the bot would stop moving

[mortal robin]

I would expect code like this:

bool buttonHeld = false;

public void OnPointerDown(BaseEventData _) {
  buttonHeld = true;
}

public void OnPointerUp(BaseEventData _) {
  buttonHeld = false;
}

void Update() {
  if (buttonHeld) {
    MoveForward();
  }
}```

I have no idea what your code currently is

but based on your button setup it doesn't look promising

[lofty moon]

Imma do that rn

[mortal robin]

Also don't use SendMessage

[lofty moon]

👀 code?

[mortal robin]

set up the actual functions

[mortal robin]

How do you expect anything to happen if you haven't written any code?

You need a script of course

[lofty moon]

My bad 😓

[lofty moon]

My functons dont show

they only show these

[mortal robin]

you didn't make them public probably

and/or you didn't give the right parameters

[lofty moon]

OOh

[lofty moon]

yeah i didnt make them public

[mortal robin]

Also you don't want to select it from "Static Parameters" if possible

should be from the Dynamic Parameters list

not that you're really using the parameter in my example

[lofty moon]

yeah

[lofty moon]

TYSM

Its working

ive been trying for days

even google didnt help

[hushed elm]

Is there a way to scale the game to different screen sizes properly?

I have tried ways but they all increase / decrease the distance between objects or zoom super in or out which affects gameplay.
I want each player to have the same experience

[lofty moon]

Do you mean canvas?

[mortal robin]

You absolutely don't want to scale or change the size of any game world objects, no.

What you can do is zoom the camera based on the aspect ratio of the display

Note UI is a different story

UI you should be handling via proper anchoring and the canvas scaler

[hushed elm]

ty i also found a setting for image called precive aspect ratio and that does wonders but there isnt a option for that on objects only images 😦

[mortal robin]

Again you wouldn't want to modify the size of a game world object

"objects" by which I assume you mean game world objects are not going to stretch according to the screen shape anyway so that setting wouldn't affect them anyway

Unless you're doing something really weird and unusual

[hushed elm]

So to make the screen scale to most devices and have the same space between objects / ui i use anchors?

[mortal robin]

anchors are only for UI

for game world objects you should not be doing anything

[steel patio]

does anyone know why my drag and drop system for an inventory doesnt work? it works fine in a completely new project but doesnt in the current one
item slot - https://hst.sh/ariruvahas.csharp
dragDrop - https://hst.sh/vakahelodo.cpp

[hushed elm]

Ty

[mortal robin]

can you elaborate more on "doesn't work"?

[steel patio]

like absolutely nothing happens

no debug.logs

it doesnt move

[mortal robin]

Sounds like you forgot to put an event system in your scene or something along those lines

[steel patio]

there is an event system

[mortal robin]

Ok and... you attached the scripts to what exactly?

Show screenshots of the setup

and the hierarchy

etc

the less cropping the better

[steel patio]

the item (stone) has the DragDrop script

the inventory slots have the ItemSlot script

i quickly remade it in another new project and it worked fine

[mortal robin]

likely you have something blocking the mouse

Click on your event system

and run the game

and watch the preview window

it should tell you waht your mouse is hovering over

[steel patio]

ahhhh omds

its selecting the damage overlay

tysm

[fresh salmon]

has anyone tried this way of organizing TMP font ?

the default font is an empty font with nothing in it, then fallback font are ordered based on the current system language

so bascially every single character displayed in the game are coming from fallback
im wondering how is the performance by structing like this

[formal slate]

hello anyone here knows how to design UI in unity

[honest saffron]

yeah

[formal slate]

can you help me with the UI im very bad at it

[honest saffron]

maybe this can help https://www.youtube.com/watch?v=IuuKUaZQiSU

[fresh salmon]

how to edit glyph less painfully ?

im trying to create a bitmap font with text mesh pro, but the glyph adjustment part is way to troublesome

[glossy junco]

how do I upload fonts to unity? as I can't figure it out

[low pike]

google -> unity how to create font for tmp

[covert tiger]

It's supposed to be automated. Your font hasn't separated the glyphs?

Are you using the asset creator window? It turns your ttf font into a tmp font asset (from there you can decide what material to use)

[formal slate]

Yea I'm not good at ui anyone please I need someone to do ui for a open world game I'm creating with my team

[idle echo]

how do i make it where they don't activate each other

[lofty moon]

Did you test it and they activate each other?

I'm asking cuz my buttons look like that and they don't activate each other

Although I use legacy buttons

[idle echo]

yeah they activate each other and i tried legacy

@lofty moon

[fresh salmon]

im trying to create a bitmap font, so it is created using png instead of ttf

[proud sandal]

There are tips on the forums for how to do it. But it’s tedious in any case. You could write a custom script for your font though

bitmap fonts are also somewhat of an antithesis to the principle on which TMP is based, or rather derived its power from.

[sleek sundial]

https://cdn.discordapp.com/attachments/1077828875326849096/1265956962130989139/74359082421__A391F116-6067-4011-9921-E5AA70EDCF3A.mov?ex=66a365cc&is=66a2144c&hm=5bb083c32bcc010303ce07a0937f31a1d76a2795d8eb1104485feb55aa9ca89d&

hey guys can anyone help me with this

this issue only happens in some device

like touch goes back and forth for a while

while in other devices it works fine

any solution?

[austere jewel]

hi guys

how can i add message box ?

[austere jewel]

give me video

[old patio]

QUESTION: When importing a Photoshop psb to unity, the level instance comes with Transform, but I need to have Rect Transform on it. How could I change it? I cannot unpack it, since it is a Psb.

[mortal robin]

You can unpack anything.

But also you don't need to. Just use the various assets in it

There's no need to use the prefab

[austere jewel]

can you help me bro

[honest saffron]

is it just me or using transform.localposition with an ui element gives me a random position? is it broken?

[mortal robin]

It works fine

Just note that localPosition is not the same as canvas space positions

Depending on what the canvas settings are

It's a completely different coordinate space

[honest saffron]

oh, i changed my canvas settings at some point, that must be what messed the localposition up? before the position was completely understandable but now it seems completely random

[mortal robin]

It all strongly depends on the canvas settings yes

You maybe want RectTransform.anchoredPosition and/or sizeDelta

[lofty moon]

When I setup ui on a canvas on my PC it is satisfactory and when I try it on mobile it is also satisfactory but when I build it and run it on my mobile device it shifts towards the center

[mortal robin]

Sounds as though you haven't set up your UI properly with anchors and/or the canvas scaler.

[lofty moon]

Oh

Alright I'll do that

[austere jewel]

how can i make this . help me
give me video

[merry owl]

Is there a way to only make a text with borders and transparent insides?

Also trying to use TMP with Mask but this stencil thing keep dissappearing after every time I hit save so I can't see things in editor

[merry owl]

My issue is the exact same as this post: https://discussions.unity.com/t/textmesh-pro-as-mask-in-image-ui-component/664805

[teal wedge]

how can I prevent this form happening:

the text has autosize enabled, but it isn't prevented from beeing as large as the maximum size

and it just resized the parent panel

[random pond]

Is there a way to make the width/height outline for RectTransform better visible? I have a hard time to see this thin grey outline 😦

[low pike]

Press T and use the UI tools..!

[random pond]

ah ok that's a bit better. Any way to customize the outline color/thickness nethertheless?

[low pike]

not by default, you'd probably be able to do it by writing custom editor code

[honest saffron]

you gotta change wrapping and overflow settings on the textmeshpro

[teal wedge]

wrapping is set to normal and overflow is set to overflow

[honest saffron]

try disabling them both then

[teal wedge]

but then it will only be on one line

[honest saffron]

i thought thats what you wanted

[thorn peak]

Hey, i made a slider, its set to 100 (max value) but u can see that its not fully filling up, does someone know how to fix this?
https://gyazo.com/d0a57b2e907724fac5e9177d0ffc7837

[upbeat moon]

id recommend using image fill

duplicate the bottom layer, apply a new colour

and use image fill

saves a lot more time and issues

(im assuming this bar is for health)

[steel cradle]

Is there a way to make it so when you reduce the light in the scene, the UI buttons/text also get dimmer?

it seems like UI elements are unaffected by light

[north void]

is there a way to make the object collider just sort of stay visible

[proud sandal]

You can use a lit shader on your ui components and put it in world space

[thorn peak]

Stamina but yeah

[upbeat moon]

https://docs.unity3d.com/2019.1/Documentation/ScriptReference/UI.Image-fillAmount.html

set the top to an image fill

its what i do

way easier

[elfin niche]

heya, does anyone have experience working with multi colored fonts in unity? I'm not really sure how the process should differ from typical fonts if at all.

My end goal is to get a clean pixel font with a tight outline like my reference. This is apparently quite a hassle to do with tmp's typical font outline.

[rapid ferry]

im kinda going insane trying to do this also sorry i am very new to game development!!

so im using a dropdown and it has a scrollbar but i want to keep the handle the same size constantly no matter how much content is added to the dropdown but anytime i resize it and press play it streches back and the texture i add gets stretched out incredibily any help would be useful!!!

[steel cradle]

professional UI/UX development
designing a whole UI in MS Paint

LOOL

let's goo

[elfin niche]

figma is free, I would highly recommend trying that instead

it's going to be a lot easier to change shapes around and change font sizes

[tulip stag]

Hi, I could use a hand with understanding whether the warning about Parent has a type of layout group component. A child of a layout group should not have a content Size Fitter component, since it should be driven by the layout group is something I need to worry about in this context, or whether my approach to this particular UI is just incorrect. Game is non-realtime and this hierarchy is only updated on movement, so I'm not concerned with the performance cost of rebuilding the layout

So what's going on is I have a cascading highlighter on the left side of the screen, starting at where it says "Dinzo" in the green circle. In the scene view this is the result of nesting vertical layout groups and content size fitters

so for example, the highlighted entry is where "Task Force" appears in the highlighter

[elfin niche]

hey, I've done this too before and never worried about the warning, but I found this thread that has some good solutions https://discussions.unity.com/t/layout-group-and-contentsizefitter-in-child/590686/7

there's also a handy point in the unity documentation about fitting children of a layout group fit their respective sizes

[sand sorrel]

Hi, I'm having problems with my scroll view, it won't scroll, like if the container size was 0, 0, here's what I have:

First screen is ShopTilesManager's inspector

I don't understand why it doesn't work

[mortal robin]

does your scene have an event system?

[sand sorrel]

Yes

[mortal robin]

shouldn't there be a Viewport assigned in the Scroll Rect inspector?

[sand sorrel]

It scrolls when I set it to elastic but it goes back right after it

[sand sorrel]

Idk, I followed a tutorial and he did not use one

[low pike]

content game object is too small

[mortal robin]

Probably just do the size and acnhoring of the RectTransforms then

Make sure you use the Rect tool when working in UI

[sand sorrel]

Yeah but why is it?

Cause it has childs

with UI elements

which are not small

[low pike]

The children aren't relevant.. the height/width are at 0,0

the scroll functionality doesn't know about the children, it only knows about the size of the content object

[sand sorrel]

That's why I added a Content Size Fitter

Well I found why

[low pike]

It's not doing anything, you've left it set to unconstrained

[sand sorrel]

It was on unconstrained

[sand sorrel]

Yeah, I just found out

Thanks!

Another quick question, how can I align my vertical layout? I want all the childs (4 here) to got to the right of the parent (the arrows)

[mortal robin]

you really should use the Rect Tool

[sand sorrel]

Changing the chil alignements setting does nothing

[mortal robin]

also that looks like a horizontal layout, no?

[sand sorrel]

Yes

my bad

[mortal robin]

without seeing the RectTransform boundaries it's hard to understand what you want

[sand sorrel]

I want all the childs to allign to the right of the middle point

Because right now they are centered

And this thing does nothing:

[mortal robin]

you need to anchor the layout group itself so the left part of it starts there

i.e. use one of the Left anchor options here

Then adjust the left anchor until it's where you want

If you don't understand anchors it's a good idea to read through this at least once https://docs.unity3d.com/Packages/com.unity.ugui@2.0/manual/UIBasicLayout.html#anchors

[sand sorrel]

I'm dumb I think cause I can't manage to do that

Nvm, I did it

It works so well, thanks

[formal carbon]

what could be causing my grid snapping to be disabled?

on rect tool

[mortal robin]

Does grid snapping work with the rect tool? I thought it was only for Move, Scale, and Rotate

[formal carbon]

Oh maybe, I just remember when adjusting my panel it snapped

Maybe I’m just misremembering

Is there no way to snap the edges?

[mortal robin]

Afaik they snap to each other but not to a grid

[formal carbon]

Ohh gotcha, canvas included?

[supple vale]

Hey, any ideas, how to make cropped like filled bar?

[mortal robin]

Image component

In filled mode

[supple vale]

Yes, but you see chopped end?

[mortal robin]

Yes that's what filled mode is for

[low pike]

filled mode cuts off the end flat, it doesn't allow for a nice end - in the image provided, the end is at an angle

[mortal robin]

oh

do a 9-sliced thing and resize the bar with anchors then

[supple vale]

Interesting idea, thanks!

[native spindle]

Anyone know why Im getting this error. I installed the latest TextMeshPro, along with the resources for Unity 2022.3..39f1.

NullReferenceException: Object reference not set to an instance of an object
TMPro.MaterialReference..ctor (System.Int32 index, TMPro.TMP_FontAsset fontAsset, TMPro.TMP_SpriteAsset spriteAsset, UnityEngine.Material material, System.Single padding) (at ./Library/PackageCache/com.unity.textmeshpro@3.0.9/Scripts/Runtime/MaterialReferenceManager.cs:525)
TMPro.TextMeshPro.SetArraySizes (TMPro.TMP_Text+UnicodeChar[] unicodeChars) (at ./Library/PackageCache/com.unity.textmeshpro@3.0.9/Scripts/Runtime/TMPro_Private.cs:980)
TMPro.TMP_Text.ParseInputText () (at ./Library/PackageCache/com.unity.textmeshpro@3.0.9/Scripts/Runtime/TMP_Text.cs:1902)
TMPro.TextMeshPro.OnPreRenderObject () (at ./Library/PackageCache/com.unity.textmeshpro@3.0.9/Scripts/Runtime/TMPro_Private.cs:1533)
TMPro.TextMeshPro.Rebuild (UnityEngine.UI.CanvasUpdate update) (at ./Library/PackageCache/com.unity.textmeshpro@3.0.9/Scripts/Runtime/TextMeshPro.cs:280)
TMPro.TMP_UpdateManager.DoRebuilds () (at ./Library/PackageCache/com.unity.textmeshpro@3.0.9/Scripts/Runtime/TMP_UpdateManager.cs:177)
UnityEngine.Canvas.SendWillRenderCanvases () (at <a32ab74da9ab4308ad5497a9a178f6fc>:0)

[low pike]

remove the pacakge and re-add it

[native spindle]

Funny, that worked. Thanks!

[low pike]

It's the first thing to try with pacakge issues

Well, maybe second after googling the error 😄

[sullen field]

is there a reason, maybe complexity or something, that I shouldn't be using UI toolkit over the other gui options for simple things like a yes or no confirmation button?

[mortal robin]

The only reason would be if you were more comfortable or familiar with another system, or unwilling to learn/invest in learning UI Toolkit.

[sullen field]

That makes sense. I did learn the uGUI in the past but that was a long time ago so i would have to relearn anyway. Just wasnt sure if there was some hidden benefit in the older stuff like maybe easier scripting usage or something

[mortal robin]

I mnean I definitely think UGUI has an easier learning curve

[sullen field]

But performance and functionality UI toolkit is probably just better?

[mortal robin]

FOr somethign basic it's not going to matter either way

In my understanding the main draw of UITK is the ability to use HTML/CSS-like tools for the UI.

[teal wedge]

If I click a short time before the scene reloads on a button (normal Unity UI button) in my quiz project, it will click in the next scene. Is there a solution for my problem?

[mortal robin]

disable your buttons before reloading the scene

[teal wedge]

that already happens

[keen sigil]

Hey! I have a question regarding IMGUI, not sure if this is the right channel but i cant find any better one. Ive been trying to change the background color of a button. Searching the internet the usual tip is to create a texture2d and set it as the background. But that doesn work for me when it comes to buttons. It just shows like a grey bevelled image no matter what color i use. From reading online it seems that it used to be possible. Can anyone confirm that it still is possible to do for buttons? Or maybe something has changed? Im using 2022.3.

[frosty pewter]

Yes, you should be able to set the GUIStyle's content and change it to whatever you want

[keen sigil]

Thanks! Then there is definetly something weird going in. Would you mind pointing me to a resource that shows how the backgroundcolor of a button should be changed that you know to work?

[frosty pewter]

I've not used IMGUI for a few years, but it's all just in the GUIStyle's normal, hover, GUIStyleStates. That you can use an EditorStyle and swap out the style completely indicates that it works

usually for coloring the global tint is easier than styling

[tall shale]

Hi, how many batches should be my ideal limit for a android game based on ui only ?

[teal wedge]

how can I make buttons disappear with code so other buttons take more space?

[keen sigil]

Show me the code that you have now.

[teal wedge]

most variable names are Dutch:
`void GetRandomQuestion() {
int willekeurigitem = UnityEngine.Random.Range(0, onbeantwoord.Count);
vraagzichtbaar = onbeantwoord[willekeurigitem];
vraagtekst.text = vraagzichtbaar.vraag;
List<string> antwoorden = vraagzichtbaar.antwoorden.ToList();
antwoorden = antwoorden.OrderBy(a => UnityEngine.Random.value).ToList();
Debug.Log(antwoorden.Count);
for (int i = 0; i < knoppen.Length; i++) {
Debug.Log(i);
if (i < antwoorden.Count){
opties[i].text = antwoorden[i];
if (antwoorden[i] == vraagzichtbaar.antwoorden[vraagzichtbaar.goedantwoordnummer - 1]) {
antwoord = i;
}
}
else{
Destroy(knoppen[i]);
knoppen[i].gameObject.SetActive(false);
}
}

onbeantwoord.RemoveAt(willekeurigitem);

}`

[keen sigil]

How are the buttons (knoppen[]) set up? I guess you have a group of buttons under a canvas object and you want one of them do dissapear and the other ones to spread out? Are you using a vertical layout group (or horizontal)?

[teal wedge]

the buttons are in groups of 2 in a panel with horizontal layout group. the 2 panels are in a panel with vertical layout group

[keen sigil]

If you set up the horizontal layou groups correctly then one button should take upp all the space if the other one is disabled. Is this what you want? What happens when you disable one of the buttons manually in the editor?

[teal wedge]

If I disable the bottem 2 buttons the above 2 buttons stay in place 😦

[keen sigil]

Oh... you want the 2 vertical groups to expand if the other vertical group is disabled? In that case the code needs to disable the gameobject of the vertical group that the button is in. Which would be the parent i think. You can try knoppen[i].transform.parent.gameObject.SetActive(false);

But i dont think you want to destroy the button right?

[teal wedge]

thank you. and why not?

[keen sigil]

I dont have a good reason. I just assumed maybe you tried to delete it to see if it changes something. But ofcourse i you dont want to be able to use it again after that then it makes sense to destory it. Lets see if it helps your expansion problem!

[teal wedge]

I can still see the buttons after destroying

what should I do?

[keen sigil]

Then its probably that you havent set up the vertical and horizontal groups correctly. You dont need to run the code. They should behave the way you want in the editor when you manually disable one of the groups. Try looking up documentation or a tutorial on how the layout group works. Its a bit of hassle with them i know.

[teal wedge]

oh, it works now, but thanks for helping

[keen sigil]

Oh great! No problem. Good luck

[teal wedge]

If I click a short time before the scene reloads on a button (normal Unity UI button) in my quiz project, it will click in the next scene. Is there a solution for my problem?

[keen sigil]

I think thats too little information to answer.

[teal wedge]

oh it didn't happen when I tried it on my mobile phone

[tall shale]

my ui in a horizontal layout group has 3 buttons each with same material but different images in the same atlas still they have different batches in the unity and it shows different material instance

[crystal swift]

I want to add an external outline to tmpro but setting tmpro.outlineWidth = 1f gives me this, which is of course not external

[low pike]

afaik TMP doesn't have any other outline

[crystal swift]

well, I'll have to pre-render every static text on a png image and load it then :(

thanks

[low pike]

I have skimmed this thread, some info in here for you - I didn't skim to the end, may have a solution https://discussions.unity.com/t/tmpro-draw-external-outline-before-faces/682390/21

[proud sandal]

you can probably use a glow/underlay and push the power value to make it solid

[sage nova]

I’m using a render texture to display a 3D object within my UI but the raw image that will show the 3D objects displays it super pixelated and low quality, how can I fix this?

[pliant ether]

Use a high quality image?

Are you using render textures?

[sage nova]

Yes

[pliant ether]

Ah. Did you apply anti-aliasing to the camera?

It will reduce the jagged edges, which could make it look nicer.

Otherwise, increase the resolution of the render texture

[sage nova]

Thanks I’ll try that

[sage nova]

Hey is there anyway I can show a raw image in a render texture. My menu uses a 3d object so thats why i need the render texture but then my buttons have a raw iamge child, which wont show when i run the game

[mortal robin]

You have it backwards

the RawImage component displays textures

not the other way around

[sage nova]

so how can i see the raw iamge which is a child of my 3d object

[mortal robin]

Maybe show some screenshots of what you're trying to achieve here

it's kind of vague/abstract so far

why would a 3D object have a child that's a RawImage (UI component)?

[sage nova]

i havea scrolling background (blue eggs) which is a raw image, but when i run the game, the obejct loads but not the scrolling background

[mortal robin]

why use RawImage

why not just put the texture on a Quad

Make a material
Set the shader of the material to Unlit
Assign the render texture as the main texture on the material

Create a Quad (GameObject -> 3D -> Quad)
Assign the new material to the quad
Position the quad where you want.

voila

[sage nova]

the raw image has a script to scroll the image, but in the future i want to add buttons with raw image onto the 3d object

[mortal robin]

Pick one

UI or not UI

you can make world space buttons if you want

[tough tide]

is it possible to make the leaderboard not deform according to screen dimensions, but just to make it shrink or enlarge without deforming it?

[mortal robin]

Of course, by setting the appropriate anchor and pivot settings

And canvas scaler settings

[tough tide]

I litteraly tried every possible combinaison but none of them as worked properly 😅

[tough tide]

I achive to not let the leaderbord deform but sometime it's just to big

[tulip stag]

Running into an issue where some of my UI elements are wandering off to very large z positions seemingly arbitrarily upon either instantiation or being child'd to a layout group. The Z position appears to be the result of Canvas Position.Z / Canvas Scale.Z * -1f Any clue why this is occuring? Canvas is Screen Space - Camera

[azure flame]

@potent fossil #1180170818983051344 is for requesting feedback.

[tough tide]

Why I can't click on the change team button ?

[mortal robin]

I don't see an event system in your scene

[tough tide]

I'm sorry I completly forgot what is an event system

[mortal robin]

Is that a question?

[tough tide]

yes why ?

[mortal robin]

Well it wasn't phrased as a question at all so I wasn't sure

[tough tide]

oh sry

[mortal robin]

GameObject -> UI -> Event System

[tough tide]

but I never use that to use a button ?!

[mortal robin]

UI interaction doesn't work unless you have an Event System

ever

You never noticed before because it creates one for you automatically when you create a UI element in a scene through the menus

[tough tide]

OK ! thx for your help

[solar wadi]

Hello guys, if I add an event trigger to the UI that is in the scroll, the scroll will not be able to scroll. But I want to make animations for mouseEnter, mouseDown, mouseUp or mouseLeave. How to fix it

[mortal robin]

Use a custom script with IPointerEnterHandler etc

The problem with EventTrigger is it captures all events

[solar wadi]

okay

thanks

[karmic stag]

hey

what is the best UI lib/framework for unity 6?

[mild kernel]

The same as before UGUI or UIToolkit

[solar wadi]

public class UIScale : MonoBehaviour, IPointerEnterHandler, IPointerExitHandler, IPointerDownHandler, IPointerUpHandler;
{
    public void OnPointerEnter(PointerEventData eventData)
    {
        gameObject.transform.localScale *= 1.05f;
    }

    public void OnPointerExit(PointerEventData eventData)
    {
        gameObject.transform.localScale *= 1.05f;
    }

    public void OnPointerDown(PointerEventData eventData)
    {
        gameObject.transform.localScale *= 1.05f;
    }

    public void OnPointerUp(PointerEventData eventData)
    {
        gameObject.transform.localScale *= 1.05f;
    }
}```
Like this?

[mortal robin]

yes

[still perch]

why is the auto slicer giving me these small square slices it's weird

[icy stag]

hey there! i want to make it so the opacity of text is lowered when it's closer to the top of the menu in a gradient, just like this

what would be a way of doing that? is there some way i can add a layer on top that affects opacity in a gradient?

i'm using dialogue system if that helps
