LED Cube 64x64 p2.5 panels

[tropic crag]

Built a cube

[latent ivy]

So cool will done . Did you made it using WLED ? How did you achieve to display a picture . I'm working with Hub75 with wled image display . it's too complicated . But yours it's wonderful 👍🏻😉

[tropic crag]

Yeah pretty much just said it’s a 320x64 display. Then I mapped out each 64x64 to each display, then photoshopped a 320x64 picture to match the correct displays

[latent ivy]

I'm making the same but I don't know what is the best way to display picture . Because WLED is not support fully crazy The amount of LEDs it's too much to handle .

Do you have any advice

[tropic crag]

Yes did you see this? https://mm.kno.wled.ge/2D/HUB75/

[tropic crag]

That should help you with wled

[latent ivy]

I made it before but I'm saying for displaying image because it won't save the pic

[tropic crag]

For me it saves I used the WF2 Huidu board

https://www.hdwell.com/Product/index46.html

You can find these on AliExpress for like $3

[latent ivy]

How did you manage to uninstall WLED on it ?

[tropic crag]

It’s in the guide

You have to upload it with USB A to USB A or USB A to C vice versa which worked for me

It does say it’s limited but the WF2 board does 320x64 no problem

It says max is 120x64 but this board can handle the bigger load no problem

[latent ivy]

All I want to try is displaying GIF but it's kind of possible with WLED and ESP S3 64X64 AT LEAST

[latent ivy]

It's better to check this I will look around

[tropic crag]

Yeah I have gifs playing no problem

[latent ivy]

So do you use WLED effect on that cube ?

[tropic crag]

If that doesn’t work try with this https://github.com/Pixelvation/Pixelvation

[latent ivy]

Yeah I've checked that board its good. But for now I only have ESP s3 . 16MB flash + 8MB PSRAM

[latent ivy]

So is that only for that board ?

[tropic crag]

No that can be used with wled with the 3 pins buts complicated

MatrixPortal M4 is pretty good too

[latent ivy]

Yeah it has second SAMD51 32bit it's good for animation .

[latent ivy]

Yeah you're right . But I only focus on WLED how can it be able to run GIF . Anyway I appreciate your time

[lament trail]

What are these panels?

[latent ivy]

HUB75 64x64

[lament trail]

Thanks

Have you figured out yourself how to make these work with wled? Specifically connect to some board, or did you use some guide?

Also are these just snapped together panels or use some structure inside to hold them together?

[latent ivy]

Me?

Or @tropic crag

[lament trail]

Oh sorry, messed up people

Ill figure out how toonnect them

[tropic crag]

ESP 32 device will work

[latent ivy]

I did made it work with WLED but @tropic crag did not used WLED

[lament trail]

Thanks

but i see they are preety thuck so how did you managed to merge them almost seamlessly?

[tropic crag]

Or you can buy the Huidu WF2 hub75 controller and flash wled firmware

[lament trail]

on the edges?

[tropic crag]

They’re angled panels 45 degrees

Just hot glued them together

[lament trail]

Talking bout the edges

[tropic crag]

Yeah they’re 45 degree panels

[lament trail]

Ok thank you soo much

[latent ivy]

@tropic crag I bought WF1 yesterday what is the best PC application for it

[lament trail]

And you have used 6 of the panels?

[tropic crag]

Download LEDArt app on phone and connect via Wi-Fi or you can download this software but make sure your pc has Wi-Fi https://www.hdwell.com/Download/index_100000011189287.html#download

[latent ivy]

PC

Or can I install another firmware

[tropic crag]

Yes I used 6 panels I mapped it out to 386x64 and each 64x64 is an image

You can use that software it’s made for it

[lament trail]

Ok, esp32, six of these panels

[tropic crag]

Get Huidu wf2

Supports it better

[lament trail]

so im wondering, how do you acces inside of the cube if its glued?

[tropic crag]

I don’t have one on the bottom just cardboard

Spare parts panel if anything

[latent ivy]

If you want WLED go with ESP32 S3 N16R8 .

[tropic crag]

Here is how it’s mapped out

You can use gifs and stuff

[lament trail]

Ok how many power for it?

And can i just use it with usb c?

Yeah sry i can, usb c is something like 210w

or even 300max as port alone

[lament trail]

Im wondering if i could use magnets instead of gluing

[latent ivy]

Dude the music matching the video perfectly that's awesome 😂✨

[lament trail]

or design some hatches and 3d peint them

[latent ivy]

I was about to suggest that ✨

[tropic crag]

Yeah you can

But I don’t have a 3d printer rip so I just glued it lol

Hot glue isn’t bad I had the panels aligned wrong at first some were upside down make sure to see the arrows on the back of them

The top one doesn’t matter which way it’s facing really

[lament trail]

Im getting into deep water now, only did some 32x8 matrix and like 3 meters of 2 section leds

[latent ivy]

I guess WF.x. board is not for addressable RGB

You need HUB75

[lament trail]

Would it be possible to use both wled and that led art for gifs?

[latent ivy]

I did

[tropic crag]

I mean you can get crazy and buy a receiving card and sending card then you can share your pcs screen on it

[lament trail]

Would esp32 work with that app?

[tropic crag]

Or put it into like resolume VJ software and go from there but you have to UV map the cube correctly

[lament trail]

Cuz i would use both, 1 for gifs and alone lighting and wled for ayncing it with pc leds

[tropic crag]

Like novastar receiver and sending card

[latent ivy]

No

[lament trail]

i use signalrgb for ayncing all leds togwther, with matrix and leds included

[latent ivy]

WLED with Hub 75 is enough for simple GIF

[tropic crag]

https://www.novastar.tech/

this is for more large scale

But it works too so

[lament trail]

Does wled support some types of gifs displaying?

[tropic crag]

Moon modules might with wled

[latent ivy]

Yup but not the regular moon module .

[latent ivy]

Moon module does not support yet .

[tropic crag]

Ah okay and moon modules is also limited to 128 x 64 pixels

Can’t do a 386x64 array

[lament trail]

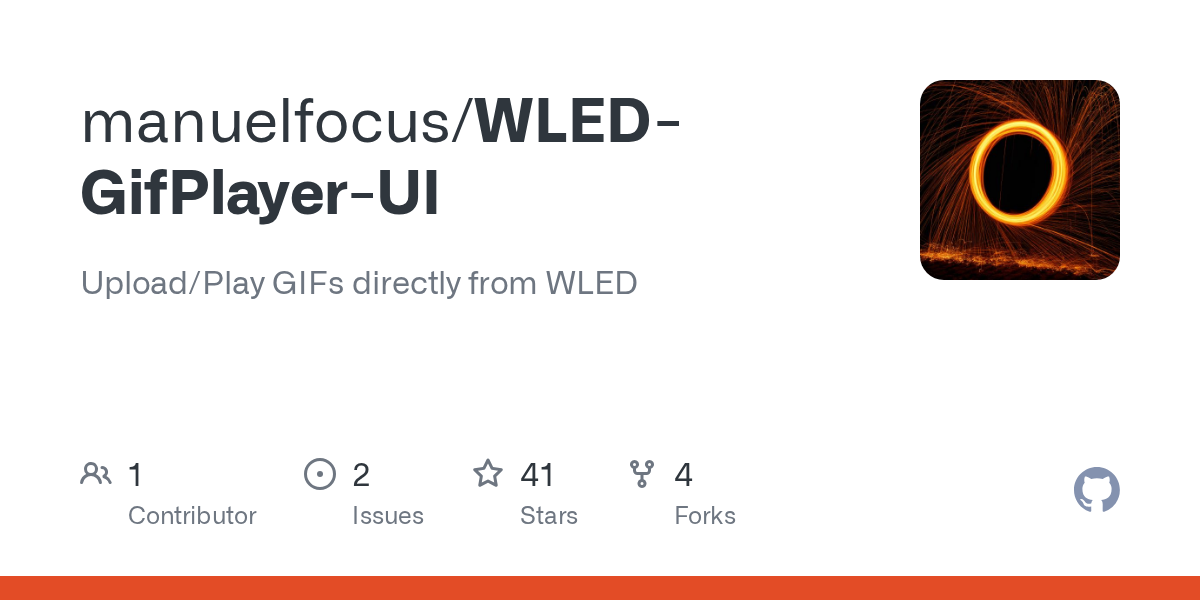

https://github.com/Manut38/WLED-GifPlayer-UI

[tropic crag]

Huidu LED Art app on phone it’s easier to use and you can just send programs and make your own very simple

1-4 are chained together then 5 // 6 if you add it

1-4 are sides 5-6 are top // bottom

[latent ivy]

This is not going to work with hub75 very well . The max it can handle 32x32

Simple gif with WLED

[lament trail]

Im just wanting rly bad to work with wled beacause of whole setup sync

[lament trail]

64x64?

Beacaus it doesnt look like 32

[latent ivy]

Yes max 128x64

[latent ivy]

It is 64x64

[lament trail]

So now i stand between two options

1, gifs and standalone gretness in one cube
2, whole setup sync

[latent ivy]

If you want WLED with GIF check this previous chat but keep in mind it only worked with ESP32 S3 #861288538863960095 message

[lament trail]

Dont work for me (link) apparently no accea

wait

[latent ivy]

You need to join it's WLED Moon module

[lament trail]

So to sum up, wf2 to work with this mobile huidu app, or esp32(sometype) to work with wled, no gifs supported

[latent ivy]

If you want WLED gif HUB75 you need ESP32 S3 specifically that Bin file that in the previous chat and flash it but if you want easier option and much reliable with GIF go with wf1 or2 or 3 Or4 depends on the chain .
If I choose between them for GIF I will pick WF

[lament trail]

Cant connect wf to wled unfortunately?

[latent ivy]

They are different firmware no

Wled specifically made for ESPs not wf

[lament trail]

Ok understood

[tropic crag]

Maybe if you figure out how to send wled data and everything through artnet you can use esp32 to send artnet data to the hub75 displays

[lament trail]

Yeah, But in my imagination it could work with both, to use gifa nad to sync it automayically with pc

i think ill just go with wf and that app only

thank You so much for help!

[latent ivy]

It's way better and easier

[tropic crag]

Artnet can get a little confusing never really played with it

[latent ivy]

For Hub75

[tropic crag]

But yes wf2 is easier I want to make it reactive to sound

[latent ivy]

Cool

[tropic crag]

I have to decompile the wf2 firmware and probably write and code in a function for it. Then solder a microphone to the few GPIO pins on the wf2 board

[latent ivy]

That would be awesome

[tropic crag]

I’m trying to get the cube to work with 2 portable batteries for a phone wired in parallel because 1 power bank doesn’t have enough amps to run 5 panels. I mean I can get it to run with one power bank but it’s not really ideal

Right now it’s just ran through a power supply

[latent ivy]

For charging I think make it wireless if it's possible so you cannot disassemble the whole cube

[latent ivy]

Same with WLED full brightness if it's not enough current it will shutdown

Just lower the brightness down

[tropic crag]

Yeah even with lower brightness it still kinda bugs out sometimes not enough amps to send data and some of the panels start flickering and stuff

Power supply is most stable right now

[latent ivy]

Sometime the bad connection made the flickering double check that . It's a great cube

[tropic crag]

this this the bottom I don’t have a panel incase I need to fix something

[tropic crag]

I don’t have bottom panel because idk how to run the power cable out you can add portable power banks inside that’s my next goal to make it powered by that so I can take it to music festivals and stuff lol

And also hide a tiny bottle of alcohol 🤣

[latent ivy]

If it's possible make it wireless charge or powered like coil you will have 6 panel

[tropic crag]

Not really how would you do that? Just get 2 power banks

[latent ivy]

My option is for six panel without disassembling for charging 5 amp wireless transmission and receiver will be perfect .

[tropic crag]

The gap between the panel and wireless charger will not work

It would have to be magnetic like iPhone

Or anything wireless because it magnetic and even 2cm spacing won’t cut it

You’d have to open it up and charge the packs manually then yea

[latent ivy]

"I see. Hopefully, the power bank will last at least 24 hours."
I think power bank will be better option

[tropic crag]

Yeah power 3 panels with 1 power bank

And the other 3 with the other

Or 3:2 ratio too if you use 5 like I do

Would be the best option since the panels run off 5v no problem just wire a usb C or type A connector for 3 panels

[latent ivy]

Yes exactly . 👍🏻✨

[dreamy cedar]

im also using an esp32 s3 with 16 MB flash and 8mb psram and a hub75 64x64 led matrix but i cant get it to work with hub75 how did u get urs to work or what other ways are there?

[latent ivy]

How is . Connected!
R1 -> GPIO 1
G1 -> GPIO 5
B1 -> GPIO 6
R2 -> GPIO 7
G2 -> GPIO 13
B2 -> GPIO 9
A -> GPIO 16
B -> GPIO 48
C -> GPIO 47
D -> GPIO 21
E -> GPIO 38
LAT -> GPIO 8
OE -> GPIO 4
CLK -> GPIO 18

Use this one let me know if it's work

[dreamy cedar]

Tried it but it doesnt work what code did u use?

[latent ivy]

.

@dreamy cedar

Read the chat plz .
