Phaetus Rapido X mount

[cold raft]

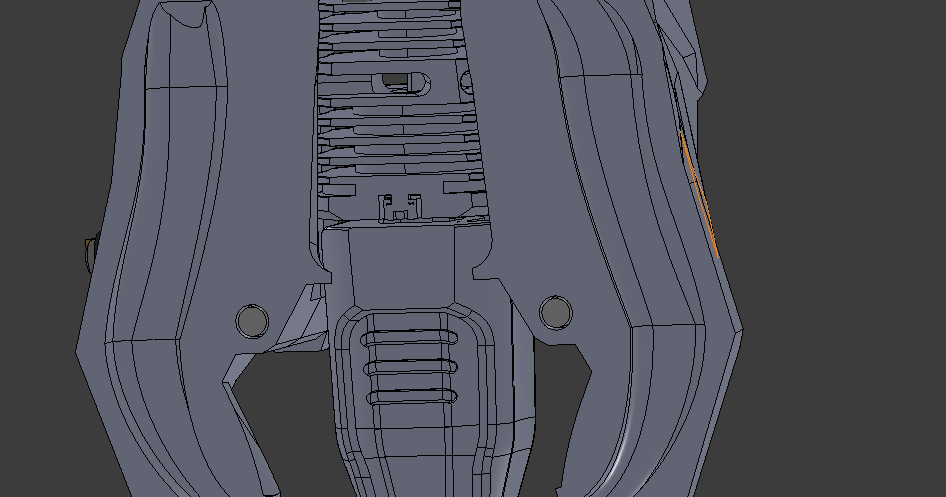

Hey everyone! I ran into critical geometry issues with the official Phaetus Rapido X mount (cable routing intersecting screw holes, bad CAD mesh), so I completely redesigned the mount and part-cooling duct for the Voron Stealthburner from the ground up using official Voron CAD source files.

Key Features:

⚡Maximized Z-Height: Shifted as high as possible inside the body to save Z-travel (requires M3×6mm screws instead of stock long ones).

❄️ Redesigned & Extended Ducts: Extended cooling ducts precisely aligned with the new nozzle position.

💨 Enlarged Heatsink Vent: Deeper seating with improved airflow for the hotend.

🔧 Widened Body Mounting Holes: Spaced out the toolhead assembly holes to fit the wider Rapido X body cleanly.

🎨 100% Stock Cover Compatible: Fits standard Stealthburner front covers without modifications.

📁 Files included: STEP, STL, and 3MF (under GPLv3).

🔗 Printables: https://www.printables.com/model/1870643-voron-stealthburner-phaetus-rapido-x-toolhead-moun

Feel free to check it out and let me know if you have any feedback!

[grave lark]

I would have been very keen to see test prints of the mount,fit-ups, and actual test prints from the setup itself, before publication of a modification like this- do you have anything like that yet?

[cold raft]

Yes, Once I finish the build, I'll take some good photos, definitely.

[cold raft]

All came together, perfectly

[grave lark]

Good stuff, thank you.

What solutions do you envision people using for things like cartographer and beacon? I know cartographer offer a mount with a UHF extension.

[cold raft]

My experience with them has been extremely negative. I don't want to deal with these solutions anymore. I'll go with TAP or Klicky.

[grave lark]

just bear in mind by publishing a mod like this you are opening yourself up to questions like that
