Question about the gamma parameter in shake&tune

[upbeat fable]

Hi,

I don't know which pictures to post,but I have a question.

Build is V 2.4 with SB2209, cartographer, manta board etc.

Both diagrams are from different adxl modules. One (21:19) is from ADXL from SB2209, and the other (22:03) is from Cartographer adxl module. Both are ADXL345.

I mainly ask about this gamma parameter and how to adjust it? Secondly which module should be more accurate (Carto is closer to nozzle, SB2209 is closer to rail)?

Thank You for answers 🙂

[viral barn]

what gamma parameter.

are you talking about the damping ratio>?

[bright swan]

👋

first of all u have sweeping enabled. we do not want that.

see top middle of your pictures "mode: sweeping"

we want "mode: pulse"

[upbeat fable]

how to change that?

[bright swan]

secondly do u just care about the belt graph?
because we have rules here regarding what must be posted 🙂

[upbeat fable]

i mainly ask about this parameter in graph. I was summoned here 😛

[bright swan]

ok so just belt graph 🙂
then we will make an exception for this.

disable sweeping and post the new graphs

[upbeat fable]

sec, I'm trying to figure it out

[bright swan]

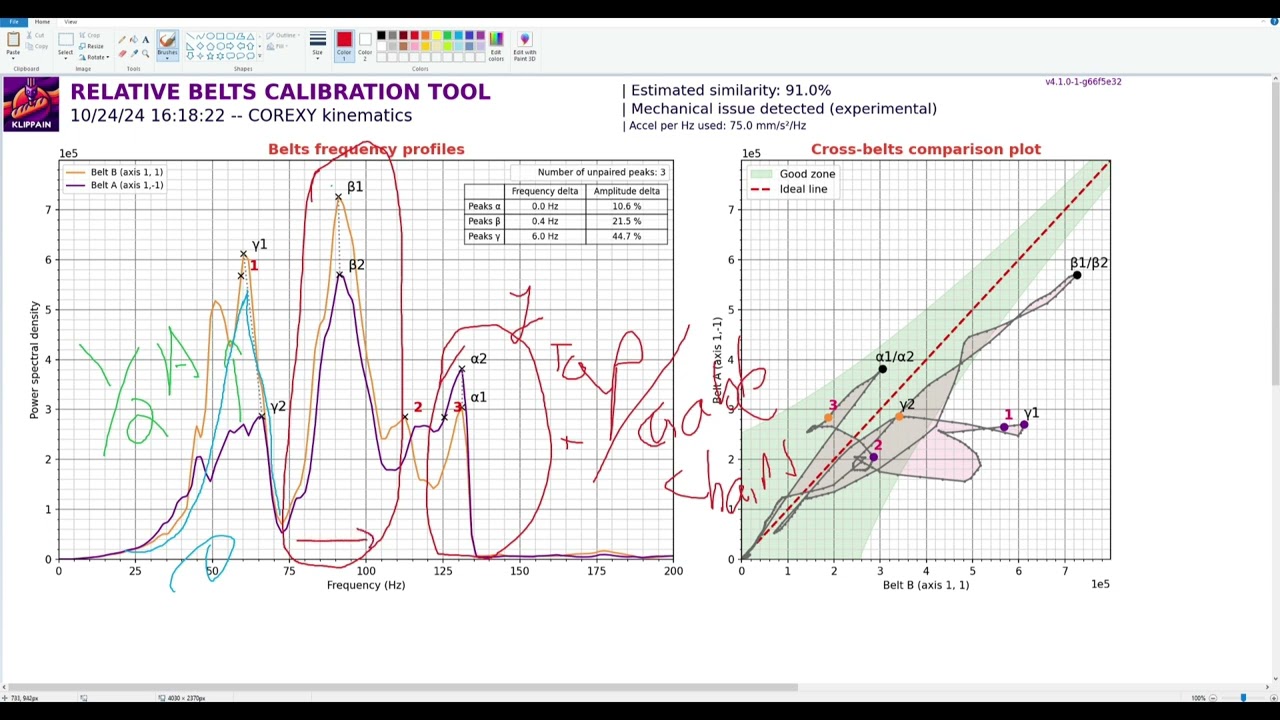

Reth also has a great video regarding how to read and understand the graph https://youtu.be/-fKI9xY3LLI?si=_L0l1wmbYIEcsZfv

[upbeat fable]

Yeah, I saw that video, but still wanted a answer from proffesionals 😄

ahh, so this disables the movement right/left. Ok 🙂

still "gamma" parameter appears after change

and there is omega also XD

[bright swan]

I still dont understand the question to be honest

Multiple spikes are labeled with alpha, beta, etc.

Toolhead board is better for general troubleshooting

[upbeat fable]

why there is more than 2 parameters (alpha and beta) which are in most videos and pictures?

[bright swan]

U cant just adjust one spike

[upbeat fable]

ok, so more than one spike means more parameters

[bright swan]

Because thats how the ADXL measured it 🙂

Sometimes its just 2, sometimes 4

Nothing bad

U also have to be very careful

This graph only shows relative tension

And NOT absolute tension

[upbeat fable]

And which adxl is better for belt tension and which for vibrations? I would assume SB2209 for belts and Carto for vibrations?

[bright swan]

I already told u 😉

#1431018676592709714 message

[upbeat fable]

Okay, thank You 😄 Case closed 🙂

[bright swan]

Before we close this, to set absolute tension its the best and smartest to use the pf tension tool. U can buy a hardware kit from #replimat-🇩🇪-🇪🇺 . This is the only valid tool to use

https://github.com/Diyshift/3D-Printer/tree/main/GT2 Belt Tension Meter

[viral barn]

I understand the labels alpha gamma etc are used instead of 1 2 3 for the peaks

[upbeat fable]

i have that, yeah 🙂

[bright swan]

Perfect 👍

[bright swan]

Do u have a nut or screw head here?

Looks like nut

[upbeat fable]

nut one

stock Voron on XY gantry

[bright swan]

Time to look into the CAD😉
U have them installed wrong

[upbeat fable]

180deg?

[bright swan]

Check CAD and compare with yours.

Screw head vs nut

[bright swan]

No no , u cant just flip them

[upbeat fable]

yeah, I know

[bright swan]

Thats why I Said check the CAD

[bright swan]

In your current setup the screw can fall out. I think u can Imagine thats not good and can cause damage to your printer

If the screw head is on top, like in the cad, its impossible for it to fall

[upbeat fable]

ahh, I see now...

[bright swan]

Spoko

[upbeat fable]

czyli polak XD

I'll repair that later 🙂 thank You all for assistance 🙂
