#E-Mod Backpack Slider
101 messages Β· Page 1 of 1 (latest)
That looks interesting but damn its big :D
got some pictures from inside the enclosure for us?
The first version is now a bit too big for me. That's why I came up with the idea of designing a version that is completely printed and smaller. Backpack because I wanted to put it behind the printer first. In the meantime, however, I have come to the decision to construct a desktop stand and the option of installing the backpack on the side or above the printer. At the moment everything is still under development and I'm still waiting for parts. However, I may print some or all of the first parts in the near future. I'll keep you up to date. The backpack is designed so that an Octopus or a Manat board can be installed there. Now there are a few pictures.
all values in mm
Yeah, that is the old one π , see text below your comment
cable protection added
that looks a lot more compact!
would also be compact enough to mount it on the back of the printer so that its no in the way?
I don't know how big a 250 is, but with a 300 and 350 it's definitely the right size. I have also provided a picture with dimensions.
First Test print π
Test print no2
Okay, it worked but the screws were too long π
Next step: Adjust the orientation so that the beautiful side can be seen from the outside
Yay first package with the 25x0.5 control cable π
I still have to make a few test prints and then fine-tune the material I want to use. The 24-pin CnLinko will arrive between February 11 and 18, and once they are there I will compare them with the CAD data again. I continue to use the 770-713 plug from Wago to supply the bed. A CnLinko 3 pin would also fit, but I have the Wago and it's cheaper π . If anyone would like a board with CnLinko 3 pin, just let me know.
Some pictures with possible positions. The aim is to have as many identical parts as possible for different mounting positions. For size comparison, this is a V2.4 250 mm.
Love the strap-on idea!! π
Kidding aside...the cabling system here is awesome! This makes reconfiguring your machine so much easier by having the electronics and printer frame as separete entities. And we ALL know these machines don't stay in one config for long! It just makes sense.
An idea of how the Bachpack can be installed
I'll wait until I have all the parts. Then I'll continue when I've built the first backpack.
Looks really interesting! Reminds me of the LH stinger
π«£
One per day is enough
I give up, soldering the plugs sucks. Maybe I don't have the skill. But there are 19 pin plugs with cable, then you "only" have to solder the sockets. I go back to ATX or Micro Fit connectors.
Then I'll get to work in the next few days and create a model for ATX/ Micro Fit connectors
Damn. Too bad they don't use pins vice solder cups. Amphenol connectors do, BUT they're insanely expensive. What about phoenix connectors?
I made it after all, somehow I'm always annoyed by something like that and I carry on anyway.
Is there a compact version with 20 to 24 pins?
I filtered down their product range by 2.54mm pitch connections and found that that pitch maxes out at 24 pin positions, so yeah π

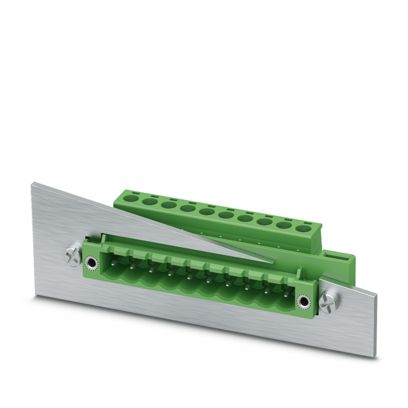

https://www.phoenixcontact.com/en-pc/products/feed-through-plug-dfk-mstb-25-24-stf-508-lr-1230719
Part number details:
DFK-MSTB 2,5/24-STF-5,08-LR - Feed-through plug
1230719
Feed-through connector, nominal cross section: 2.5 mm2, color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Sn, contact connection type: Pin, number of rows: 1, number of positions: 24, product range: DFK-MSTB 2,5/..-STF-LR, pitch: 5.08 mm, connection method: Screw connection with tension sleeve, screw head form: ...
Nice! After all the pains in the ass, would you say this checks the box? I had to put this project on the side burner because of work and other things, but man I still love this idea!
The CN Linko plugs are great. But if I had found the 19 pin version with cable first, I would have bought it and just soldered the sockets
I still have to solder the second pair. At the same time, I'm trying to optimize my printer in terms of tolerances. I'm currently at around +/- 0.2 mm and I'll see if I can leave it that way.
I'm also just working my way forward bit by bit, as I have time.
When it works, it can even be relaxing π
From sucks to relaxing = soldering π
First test assembly and the cover panel is currently being printed
The printer fiddled around and then ran out of filament, but this is what it looks like now
Forget to think about the tolerances π
Everything looks good, now I just need a quiet minute to rebuild everything. I'm also thinking about converting everything back to the JST, with a box to throw the cables into so it's a bit more plug and play and you don't need all the Wagos. Maybe I'll even do that before I convert it π
Now I'm making a distribution box for the printer after all. The advantage is that you can simply continue to use the crimped plugs. Here is the first sketch of how the plugs should be arranged.
With CAN, I immediately thought of the Stealth Changer or similar multitoolhead systems, hence the 5 Wagos
It's crimping time
I had some time again
Now it's getting serious, let's go
This is looking so good!
Wiring π«£
Cable managemβ¦ WHAT??? π€ͺ
Challenge accepted and solved π
The new JSTs will arrive tomorrow and then we'll continue
First Test nothing connected
Size comparison v2.4 350
Nice progress man!!! π₯
Some prints done without problem. The next step is to print the holder.
A minor adjustment
Quickly upload the parts here.π
Essential parts:
CnLinko assignment (for ATX or what I recommend more, simply mark the Molex counterpart with a pen)
For the Pi
Printer-side mounting
Mixture of JST-XH and Wago 221-2411
The Wagos are for CAN and bed power
Only Wago 221-2411
Here is a step file of the connector_side to play around with
Have fun with it!
Pretty cool. Lots of hard work here. Nicely done!
