Shader Stuff

[dusk lynx]

I thought I would make a thread to share techniques I've had to use to push the limits of shader modding, as well as answering any questions people may have.

[foggy glacier]

I will pester you one day greatly 🙏

[dusk lynx]

post_final.frag

The main shader you're likely to edit. This receives flattened foreground and background textures from the engine and applies things like lighting, fog of war, glow, the sky (background) and things like the drug and water refraction effect.

Here's a comparison of it's inputs (the foreground, background, and glow textures) and the output that's rendered to the screen.

There are many other shaders available, but post_final.frag is the only one you can really do anything interesting with.

post_glow1.frag and post_glow2.frag

These shaders apply a simple accumulative blur effect over glowing materials, and then pass the result into post_final.frag.

These shaders feed the previous frame's glow texture back into itself, allowing for multi-frame accumulation to take place. This is the only place that a texture from the previous frame is carried across into the next, which allows for complex visual effects that require state information.

I heavily utilize this for an upcoming mod, completely replacing these two shaders for accumulative lighting and state information. For this reason, compatability between my mod and any other mods editing these won't be possible.

[dusk lynx]

An example of glow shader state and processing persisting on the pause menu and between games

The glow shader texture is alpha multiplied each frame, meaning I can't use the alpha channel and only get 24 bits per pixel to store data. This makes storing everything I need very difficult

[dusk lynx]

I need to store the glow color in linear color space to properly interpolate across it during denoising, AND I really need it in HDR to get the range of brightnesses I need
But I only have 8 bits per channel... I need at least double that

oh well, most people probably wouldn't mind or even notice if things get a bit grainy in low light areas

[polar delta]

apply a dither to low light areas and claim intentional design

[dusk lynx]

I am actually using something similar to dithering

I need to improve my noise profile and fine tune the denoiser. Here's with it off and on

overrunning the noise buffer results in disco mode

[dusk lynx]

small light sources like the flasks are difficult as you need to use a lot of rays to increase the chance of hitting them, or use long frame accumulation which leads to streaking

[dusk lynx]

this visual artefact when landing on glowing materials is still in the game... It might be an issue as this mod works by making every material have glow

[polar delta]

could you add some uniforms which rig the rays to prefer going directly at the flasks if they would go near it?

[dusk lynx]

I would do importance sampling like that if I could, but there is no way to get game state into the glow shader where I do the raycasting other than the material glow texture

[polar delta]

oh yeah its glow shader

hmm

add larger more diffuse glow around flasks?

or is glow just for materials?

[dusk lynx]

the glow is only from materials, so I would need to make the flask sprites physically larger.
However, I'll be trying some different sampling methods to help make smaller sources easier to hit

[polar delta]

spawn pixels that glow around them?

[dusk lynx]

or simply adding more rays

[polar delta]

can cosmetic particles glow?

[dusk lynx]

Potentially, but I would like to avoid introducing more visual elements that isn't the lighting directly.
Doing an energy preserving blur effect when I downsample the glow texture would be a good thing I can try

[dusk lynx]

There is particle glow, yes. It comes pre-blurred from the engine but I can still use it for some soft lighting

I dont think cosmetic particles are included however. It needs to be an actual cell in the world

I've been trying to not think about particles so far, but I know they should be possible to add to the lighting model

[dusk lynx]

Added the ability for different materials (air, liquids, solids, etc.) to have different light transmittance values.
Now I can get that perfect cherenkov glow

[polar delta]

hows this work

[dusk lynx]

I can identify some basic material properties based on the glow color. Namely:

• If it's air or a material
• If it is an occluder or an emitter
• If it's a liquid

Then I embed that into the distance distance field information and use it when raymarching to control light ray falloff

I can store 4 bits of material data per pixel, and this uses 5 of those 16 states. If I can find a way to identify other kinds of materials like gases, I can expand upon it

This can also be used for normal map generation and other fancy effects too. Some of these states could be reserved for special materials if I wanted to apply a cool effect

[foggy glacier]

alex the fucking goat, this shit is so cool 🙏

[dusk lynx]

I made some recent changes to how I pack data to unblock progress on this mod, which has solved a bunch of problems I couldn't figure out and allowed me to normalize all glow sources into one.

However, by doing this I have lost half of my dynamic range, so I'll need to apply dithering or some other smarts to counter banding issues

[polar delta]

just blur with neighbours maybe?

[foggy glacier]

wouldnt that cause aforementioned banding issues?

[polar delta]

it would lessen them

the issue is you dont have enough unique states for representing colours because you need to be very efficient with bit usage

blurring lets you get more states for the same number of bits by guessing what it was before the compression

though it does introduce artifacts of its own which isnt ideal (when the transition actually should be sharp itll be wrong)

maybe only blur if the neighbour is ±1

[foggy glacier]

can you just as easily get colour of pixel 2 neighbours over? minor dithering like that could look fine assuming edges arent straight

[dusk lynx]

I have an advanced denoising algorithm which I use, and I need to apply proper dithering and also adjust the brightness levels to best use the brightness range available. The ranges in this screenshot hasn't been optimised yet

For proper denoising I need to store the output in linear color space, and then convert back to srgb after it's been multiplied into the scene

16 bits per channel is a minimum recommendation for this, with closer to 24 being ideal for linear color. But I have 8

I tried several different encoding schemes to get 16 bits per channel, but it led to unsolvable problems that block progress

[dusk lynx]

So, something I did while making optimizations was to implement a linear time Euclidian distance transform algorithm that is referenced in these papers:
https://pure.rug.nl/ws/files/3059926/2002CompImagVisMeijster.pdf
https://arxiv.org/abs/2106.03503

This lets me build a distance field of the world in Lua, and is efficient enough to run in realtime. Involves a lot of raycasts

This is likely useful for other things if anyone needs a distance field

[dusk lynx]

I noticed that my new downsampling method was introducing aliasing, leading to flickering
running a gaussian kernel over it during downsampling and again during sampling nearly completely removes it. This should also help make smaller items easier for rays to hit

[dusk lynx]

testing automatic exposure adjustment between dark and bright scenes. This is particularly useful for preserving the sudden brightness of things like explosions, allowing the camera to over-expose momentarily

toxic rock has a glow color of full white for some reason, one of the materials I'll need to edit later

This shows the adjustable eye adaptation speed. I'll do a bunch of playtesting to find something that feels right

[dusk lynx]

I've been able to create a brief over-exposure effect by changing where I calculate and store exposure values. There's still a single frame where the wrong exposure value is used but I should be able to fix that

For this to work, I apply exposure adjustment to the glow color to get it into a range that fits in the available 8 bits per channel, then after it makes it into post_final I reverse the exposure operation to get it back into a quantized "HDR" space where I can then use it for lighting and tonemapping. This only works because I can afford to lose color precision in the cases where the glow color dominates the brightness of the image, so the loss in precision won't be noticeable

[dusk lynx]

Comparison of that frame before and after I removed it. Purple pixels shows information loss

[mortal geyser]

this is so cool

[foggy glacier]

looking forward to seeing the new number 1 mod on the workshop release

[dusk lynx]

working on shaping the exposure curve so that players can enjoy a cave being faintly lit by a bit of spilled magic juice, but also make out the details when staring directly into the sun. In this case, I need to boost the low end more

the numbers for those interested:

• Scene average log luminosity
• Smoothed exposure
• Target exposure

It's using a simple quartic shaping function in this video, but I'll need something more complex

[mortal geyser]

interesting way of debugging, what does the sectioned overlay represent?

[dusk lynx]

It's comparing the raw glow color against the final render with ambient lighting, multiplication into the game texture, exposure adjustment and tonemapping. It makes it easier to tell if the glow output is being clipped or not

[dusk lynx]

when working with shaders, things like this is often the only way to debug. How the code is running is a black box otherwise

but you can get used to telling which shades of color correspond to what values. Outputting a value as the pixel color and then using a color picker on the game window is often the easiest way to check what a variable equals

[mortal geyser]

this was always my biggest annoyance when shader debugging, it is an absolute headache to get values out of the shader

just never thought of segmenting the screen like that

usually i just have a toggle

[dusk lynx]

One benefit is that if you're working on a function and you input the screen coordinates, well you've just graphed it

[dusk lynx]

Many logarithms and parameter tuning later
I set the ambient light level very low to enhance the glow colors

[dusk lynx]

So it turns out that the magic creation effect whenever a material is transmuted is the brightest thing in the game. I should be able to catch this in the shader and make it less bright, or maybe this looks cool?
I believe it's a different color from lightning, which I do want to be this bright

[mortal geyser]

oh yeah i am not surprised, it is literally a pure white sphere

It looks cool though

i like how bright it is makes it feel magical

[dusk lynx]

flashbang spell

[dusk lynx]

I've been experimenting with an improved tonemapping, dithering and denoising technique to store HDR color information in a SDR texture. It looks effective so far and should greatly simplify some things

The bottom half shows the raw SDR image, and the top half is the HDR output after processing

[dusk lynx]

Finally, HDR

I'd like to make explosions more punchy with this, a brief over-exposure before eye adaptation catches up

[dusk lynx]

After starting at the game's lighting for a long time, It's become apparent to me that the default fog of war effect is over exposed, leading to color fringing. Compare these two screenshots and you might notice there's a red and green band on the bricks in the left image, which isn't shown in the right image.

It should be an easy fix, worth making into a standalone mod?

Another comparison. I'll need to make other adjustments to keep the dark areas the same size, but you can see the differences in color

I had always thought the lighting looked a bit off, and I was right it seems

[dusk lynx]

the fog of war also adds a slight red tinge to everything in the game...

[dusk lynx]

re-implemented to remove the color fringing but preserve everything else

[dusk lynx]

https://steamcommunity.com/sharedfiles/filedetails/?id=3670519005

[dusk lynx]

Time for me to redesign the entire pipeline again to fix a single problem

[dusk lynx]

Using a pure white material makes that banding a bit more noticeable. There's also banding on light components as well...

[dusk lynx]

The buffer now contains multiple sub-buffers that I can feed into eachother, and allows for a variable number of frames to accumulate light over

This also leaves me with some spare sub-buffers I can use for more efficient normal map calculation

or any other effects I might think to add later

[dusk lynx]

I wonder if I could get away with using a fat ray to skip the denoiser altogether...

casting 127,116,000 rays per second

A bit more optimization and I think this could work, well under budget on a 3080

[foggy glacier]

Seeing you work on it always excites me for the future, lmk if you have a stable build at some point I can use to see how CC materials look

[mortal geyser]

i love how i cannot see the difference at all lmao, i am completely blind to the color banding

[dusk lynx]

Once I figure out what I'm doing with these sub-buffers and have a stable output, I'll upload a WIP version here

[mortal geyser]

oh you know what, i think it might be my screen

[dusk lynx]

I couldn't see it at all on my phone, and only just on my fairly color accurate monitor, so I think most people would be

[mortal geyser]

yeah so in the steam workshop image, the "after" image has color banding aswell on all of my monitors lmao

my screens just have too low a color accuracy to see the difference lol

[foggy glacier]

thats very amusing lmao

[dusk lynx]

It's the difference between a smooth gradient from white to brown to black (fixed), and a gradient between white to yellow to red to brown to black (banding)

I don't see the specific banding I removed in your photo

[mortal geyser]

yeah so the only difference i see is that theres an extra yellow line

[mortal geyser]

this is the after

[dusk lynx]

Yes, that

[mortal geyser]

okay i see what you mean now

i would have not noticed that before lol

[dusk lynx]

yes, it's meant to look like that

[mortal geyser]

it thought by color banding you meant the gradient bands

[dusk lynx]

Well it fixed it for me and makes me happy, so maybe other people as pedantic as me about color representation will find it useful to

[mortal geyser]

yeah thats good, i imagine it mostly starts to bother you when you have to look at this stuff as much as you do with the shaders lmao

[dusk lynx]

yes, I've gotten used to eyeballing 1/255 brightness deltas

Part of the lighting process involves gathering rays over a few frames, but I know that some people (me included) despise the streaking effects this causes in games when the camera moves. So I'll be including an option to blast all the rays at once to remove any smearing at the expense of very high GPU load

[foggy glacier]

streaking effects?

[dusk lynx]

caused when you're trying to accumulate light over multiple frames, but the glowing elements in the scene move between each frame

[foggy glacier]

oh like the glow remains slightly, following behind the source?

[dusk lynx]

Yes

[foggy glacier]

i cant recall if ive specifically noticed that in Noita

[dusk lynx]

It's not present in the base game, no. But it can appear in my lighting implementation

I'll record it once I un-break everything (everything breaks horribly with small shader changes)

[foggy glacier]

ahhhh i see that makes more sense

[dusk lynx]

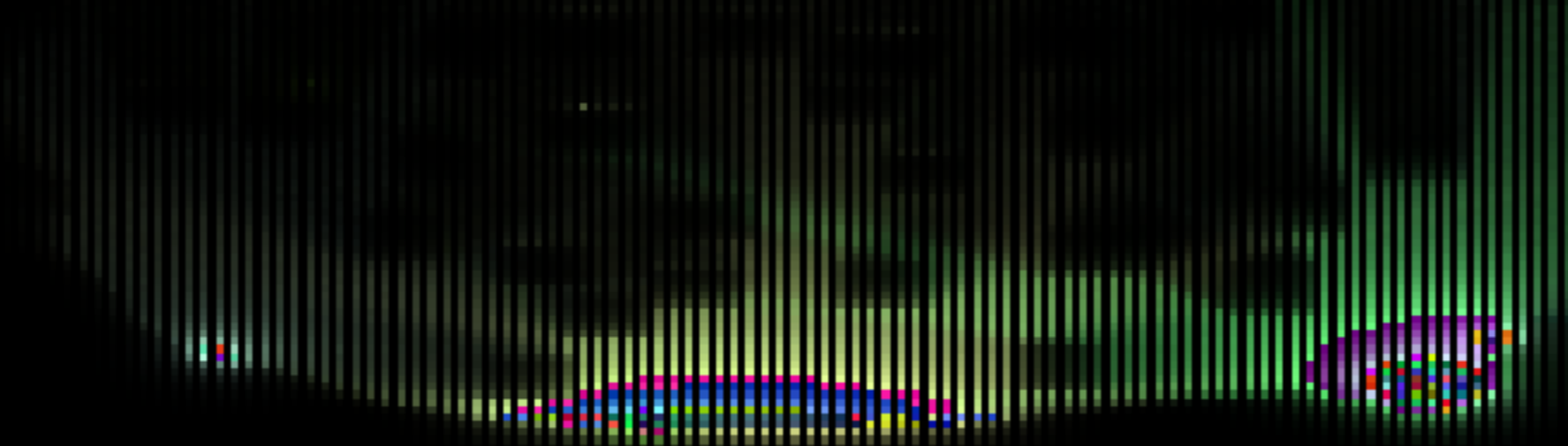

I have somehow broken the replay recorder, it now outputs like this

[foggy glacier]

i think the mod is feature complete, send it to the workshop!

[dusk lynx]

I found that packing 4x 8-bit floats into single 32 bit integers lets me pack even more data into a const array, letting me store more noise while still allowing the shader to compile 👍

[dusk lynx]

I've managed to double the amount of raymarching while not adding significantly to the frame time, allowing me to calculate lighting on each pixel twice to store true HDR16 color without relying on dithering tricks. Should be a lot more stable (and look a whole lot better)

[foggy glacier]

cheatgui?

[dusk lynx]

Yes, cheatgui is very useful for spawning flasks for testing glowing materials

[foggy glacier]

CE is neat, so is Conjurer Reborn 🥺

[meager tangle]

[meager tangle]

yoooo, diagonal replay recorder mod when???

[foggy glacier]

the fact you can mess with the recorder does actually interest me

is it possible to modify the recorder without affecting how the game itself looks?

like can i pass stuff into the recorder that isnt displayed in-game? im p sure you can show things in-game that don't show in the recorder by using GUI at the very least

[dusk lynx]

I only happens with the dev exe when exporting at 50% res, and is persisting without any mods and after removing game data and reinstalling...

[foggy glacier]

ahh i see

cant do silly spooky stuff then where something only showed up in the replay capture then

[polar delta]

i've had this happen before when poking things in memory in normal exe

which doesnt really say much

maybe a bad replay recorder res or something?

[dusk lynx]

I have messed around with the game's resolution values for widescreen mods before, it could be related to that

[dusk lynx]

Left - SDR
Right - HDR

getting the lerp maths wrong makes very pretty patterns

fixed

[polar delta]

should toxic sludge glow?

[dusk lynx]

yes

It can now represent 281,474,976,710,655 unique colors

Still need to re-add the denoising step

and what the actual glow texture looks like underneath it

[foggy glacier]

these two demos looks so cool

[mortal geyser]

damn thats surprisingly fast

[dusk lynx]

After I rearrange some things in my "virtual pipeline", I should be able to get it down to 1 frame of delay including de-noising

Unfortunately, the HDR color uses up all the space I would have done multi-frame accumulation with, so all the rays are done at once now. The size of the color buffer can be reduced to improve performance if needed at the expensive of a lower resolution glow effect

though I could do in-place accumulation if it's really needed, just doesn't look as good as having separate history buffers

[mortal geyser]

i am curious about the section with the vertical lines? whats that for

https://share.evaisa.dev/YpAyf5OWX.png

[dusk lynx]

That's storing HDR color, 2 pixels are used to store each color. One pixel for the low 8 bits and the other for the high 8 bits

[mortal geyser]

ohh i thought those black lines were just wasted space

[dusk lynx]

If something gets extremely bright (~100-200x brighter than usual), you should start seeing those dark columns become bright enough to see

[dusk lynx]

The next thing I need to fix is this shimmer caused by the different grid resolutions being used. I should be able to fix it by changing the raymarching process slightly.

[meager tangle]

The lights add so much depth to it all!

[dusk lynx]

There's an off-by-one error in this line of code that I spent a while hunting down

textureSize returns the dimensions of a texture, not it's bounds. So I need to subtract 1 from the size before multiplying it by the normalized texture coordinates uv or it will be slightly off and result in an out of bounds access if uv is 1.0

It's not like this throws an error or anything, it just results in your pixels being a slightly different shade of color... very difficult to notice unless you specifically test for it

[foggy glacier]

nolla and their off-by-one errors <3

[dusk lynx]

this isn't even Nolla, this is OpenGL itself. Multiplying uv with textureSize feels like obvious way to convert between UV and pixel space (and you see this in lots of examples), but it's actually incorrect

[foggy glacier]

oh really? thats amusing, im surprised it wasnt a classic nolla off-by-one

considering they seem to have quite a few of those

[dusk lynx]

Nolla's shaders have a few off-by-x errors in them, but it all gets smoothed over anyway

[dusk lynx]

off by 1 error before and after

[foggy glacier]

very amusing lmao

[dusk lynx]

It's very satisfying to think of a hypothesis of why something doesn't look right, go spend 5 minutes typing in the shader, save the file and then see the pixels turn the expected color. The pixels are the only feedback you get

[dusk lynx]

I just thought of a way to make several heavy components an order of magnitude faster, time for another redesign

[dusk lynx]

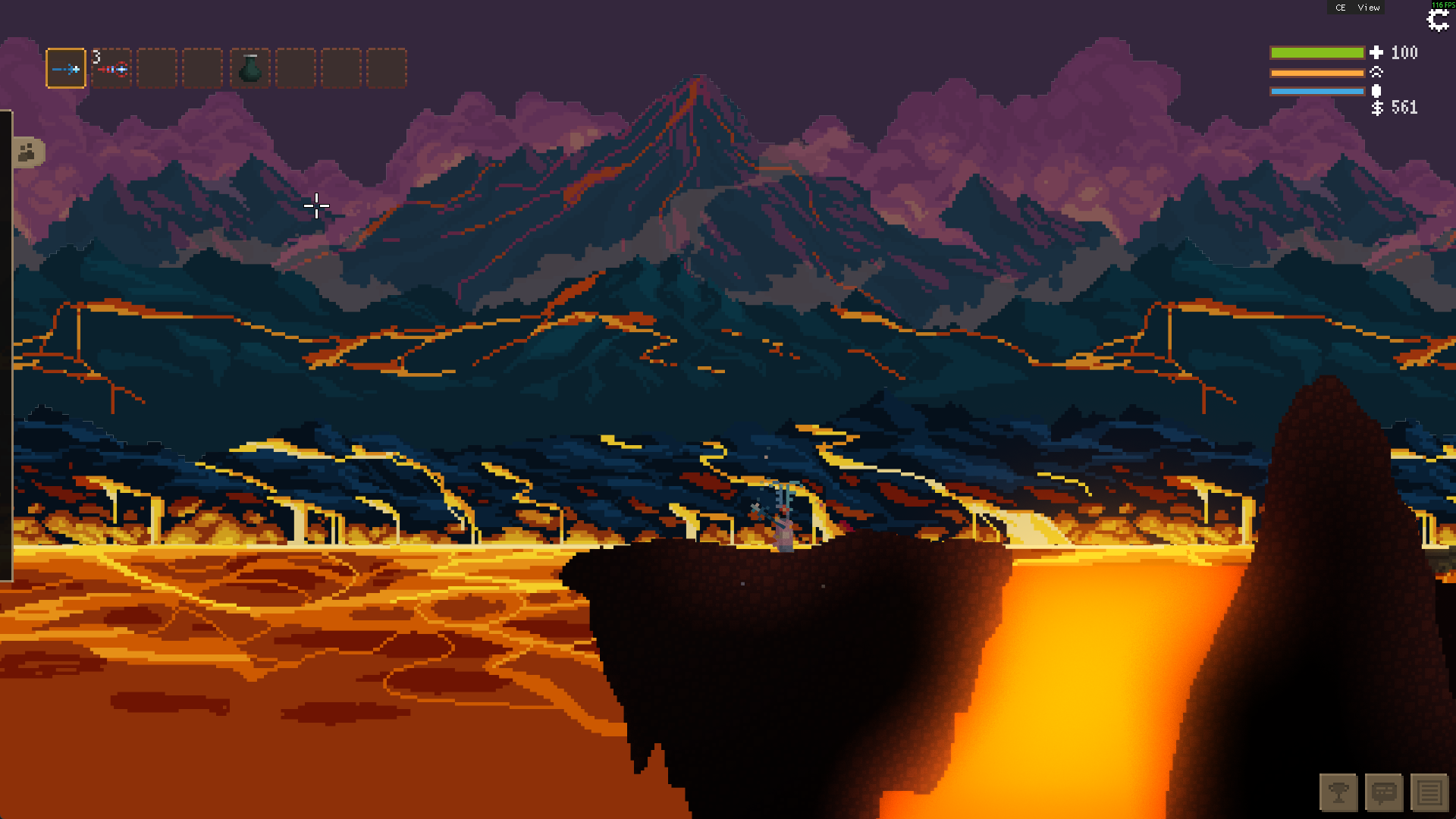

What kind of lava do you prefer?

[foggy glacier]

i think maybe the former

[hasty zinc]

i think the former as well
it feels more textured

[brave geode]

former yeah, seems more molten and warmer compared to just being a bright neon liquid

[hasty zinc]

asked some other people i know, and they agreed on the former being better, but one preferred the brightness of the latter

[dusk lynx]

The difference comes from allowing rays to pass through the lava (left), and stopping rays as soon as they hit a glowing surface (right).
Stopping the ray at the surface gives more natural looking light outside of the lava, but the lava itself becomes a solid color.
I should be able to add a bloom effect to give the deeper lava a more intense color, so I can keep the more natural looking lighting

[polar delta]

i think the top should be red but the sides orange

[meager tangle]

I agree here

[foggy glacier]

@dusk lynx i feel like the answer is probably quite a conclusive "no" but i figured id ask the expert, is there a way to acquire visual data through the shader? like theres no way to read screen colours and save it to create like a camera or anything

to my knowledge data can only be passed to the shader, not from iirc?

i dont see a GameGetPostFxParameter so im assuming its not possible

but i figured if there was a haxx method to do it anyway you'd probably know o7

[dusk lynx]

Your assumption is correct, C- level OpenGL API calls are needed to make the output texture available to the CPU.

So it is possible with unsafe mode at least

[foggy glacier]

maaaan

yeah unsafe mods are a given

[dusk lynx]

However, if you just need to communicate a signal back to Lua, there is one extremely haxx way to do it by purposefully loading the GPU to lower the framerate, and read the frame timings back in Lua. There's so many other things that could cause similar lag, and be careful to not crash the GPU and/or system

[foggy glacier]

do you have any idea how easy itd theoretically be for nolla to implement a way to transfer this data? for the purposes of adding to the API Wishlist

[foggy glacier]

oh? im interested

i would like a theoretical method that allows me to take an in-game screenshot and display it in-game

getting the data is the difficulty

[dusk lynx]

It should be a few OpenGL API calls to get the texture and then it needs to be saved into memory somewhere, but I don't know the specifics

[dusk lynx]

Where do you want to display it, and for how long? It is possible to freeze pixels by not updating them, so an effect can be made that keeps an old frame on-screen. The portals demo I made uses this trick

[foggy glacier]

this sounds interesting, i could make do with a version that simply freezes pixels in the middle of the screen- the idea is i wanna have locations where you snap photos to do something

if this is possible then i will keep this conversation in mind and come back to you when i eventually get around to implementing this

[dusk lynx]

You could resize the entire screen into a smaller region (even rotate it, apply filters, etc.) and then keep those pixels in-place while the rest of the screen continues to uodate

But once in-place, it only lives in screen memory and there is no way to move it or modify it other than overwriting it

[foggy glacier]

my though process is taking a snapshot photo (perhaps with a filter applied as its frozen or some change in the visuals- akin to a ghost that shows up only in photos) and from there the photo is displayed momentarily in the middle of the screen before going away

[dusk lynx]

If Nolla would add a way to manipulate the OpenGL pipeline... I could do so much more

[foggy glacier]

sounds like itd be worth putting in the API Wishlist

[dusk lynx]

Yep, that can be done. You could also fade it out by writing pixels with partial alpha values to blend in color over time

[foggy glacier]

W

and from there i just need to check if the location the player is at is correct in order to confirm or reject the photo (do not need shader stuff at all for this)

[foggy glacier]

you should totally throw up an entry for this if you think its the sort of thing nolla could reasonably add and/or this would greatly help in modding noita

[dusk lynx]

Yeah, I'll think about it. It would be quite a bit of effort to set up, but it would help with shader modding immensely and make previously impossible things possible

[foggy glacier]

yeah, listing the pros and cons would be good, here's hoping for Epilogue 3!

[dusk lynx]

I was looking through old recordings and found this, I'm not sure I ever shared this demo or not. So here it is

[foggy glacier]

this is awesome

inconceivably so

[dusk lynx]

Creating proof-of-concept demos to show some tech is possible: ✅
Actually making content with said tech: ❌

[foggy glacier]

spreading knowledge of tech that is possible is great for inspiring those who make content to come up with something that uses it

i have a project i intend to get to at some point and leaning into wacky shader stuff for it like this is something im considering

[dusk lynx]

with the raymarching this demo uses, you can draw basically any shape you can describe mathematically. You could make some pretty wild things once you start adding more and more shapes, just re-draw anything you want

packing a series of shapes into a texture that's then processed in the shader would be the best way to add many shapes, as long as they are all primitive shapes or combinations of them

[foggy glacier]

knowing what's possible is one thing, but physically seeing it in an example here is what gets the mind racing imo, this is just cool to see

[mortal geyser]

i think you shared something similar before

don't think i have seen this particular one though

[dusk lynx]

the shader debugging experience

[dusk lynx]

Data layout rev. 7, now featuring stability across 3 frames

[dusk lynx]

fine tuning the denoiser and interpolation. The interpolation still looks a bit blocky, I need to work on it more

[dusk lynx]

I'm getting things ready for a preview build for anyone to try out and get some feedback

[dusk lynx]

Prerelease version of Noita RTX for anyone who wants to play with it.

Note that there are some performance optimizations I still need to make so this will be slower than the final release.

Brightness multipliers and debug visualizations can be changed in the rtx_compute() function in post_final.frag which you can adjust to your liking. There may be some amount of automatic exposure adjustment in later releases.

I also plan to do a pass on the game where I change the game's default glow and light colors to better match the new lighting system. If you see anything with strange colors such as toxic rock being white or enemies with incorrect light colors, please let me know.

[dusk lynx]

The ambient light level can be adjusted on line 1056 of post_final.frag, I haven't added a settings menu to adjust this yet

[foggy glacier]

testing with CC later 🙏

[dusk lynx]

Also, those with beefier PCs can up the ray count in post_flow1.frag, line 430. 256 seems plenty and 512 is probably past diminishing returns

[mortal geyser]

okay it does not work alongside the parallax shader you made a while ago it seems

noted

[foggy glacier]

ill give it a go, ill post the results of some of the cool stuff when i try it

[mortal geyser]

(i was trying to use it in arena)

[foggy glacier]

lmao

[mortal geyser]

i like my competitive gamemodes with less visibility

[foggy glacier]

oooo i wonder if itll work fine with CC, since we do some minor shader stuff

mmmm should hopefully be fine

[dusk lynx]

I'm using the data folder while it's still in development, so it would overwrite other things until I set up the shadercode injection

[foggy glacier]

oh this shit's gonna be injected? good luck lmao

i thought this was gonna be dataoverride simply due to how much itd have to change

[dusk lynx]

(post_glow1.frag and post_glow2.frag are 100% rewritten, so those will stay as data files)

[foggy glacier]

ahhh makes sense

[dusk lynx]

but everything I do in post_final.frag can be injected easily

[foggy glacier]

mmmmm got it

really need college to end soon lmao

[foggy glacier]

alex peering into my computer as i download his silly mod test (my computer is now forfeit)

[foggy glacier]

lmao

mmm something seems off, lemme turn off some of my mods rq and test it in a more "pure" environment

@dusk lynx should i be doing this in reg.exe or can i use dev?

[dusk lynx]

Either will work, but dev exe will let you edit and hot reload shaders if you want to tweak lighting parameters

[foggy glacier]

yeah it was a mod issue

[dusk lynx]

I upgraded the GLSL version for some features I needed, which required removing some older things like gl_FragColor. I believe there is a GLSL version that gives me what I need, but still supports the older stuff so mods that rely on it don't break, I'll add that to my TODO

[dusk lynx]

The denoising changes to reduce aliasing hasn't worked well, and has just made things look a bit worse. I'll revert that and look into masking the aliasing some other way

I'll also make a public repo for this so that nightly changes are available

I'll also make a different thread for it, so that this one can remain about general shader modding

[dusk lynx]

https://github.com/alex-3141/noita_rtx

[foggy glacier]

W

just got back to my computer so thats convenient lmao

[dusk lynx]

That repo has the sharper glow lighting I mentioned, so prefer to use that

[foggy glacier]

👍

are particle gfx unaffected by this? will this be fixed or is this unavoidable?

[dusk lynx]

They are yet to be added. I get them pre-blurred, so I need to figure out how to add them

[foggy glacier]

also noticed the screen doesnt dim on pause, is this intentional?

temporary cuz you're redoing how lighting is handled entirely perhaps?

[dusk lynx]

I'm bypassing the whole existing lighting system including the screen effects like the overlay, so it's yet to be re-added

[foggy glacier]

makes sense

[dusk lynx]

Also need to re-add trip effects, liquid distortion, fog of war, etc...

[foggy glacier]

ill stop playing around in this test run and see if i can figure out why lighting was scaled incorrectly before rq

i assume its something to do with the CC shader breaking, in which case i can just disable it for this test

[dusk lynx]

Likely, I repurpose a lot of things in the shaders so any changes to them are likely to conflict

mod compatability is on the to-do list, but anything that modifies or relies on the glow shaders will have issues since they are completely rewritten and repurposed

[foggy glacier]

hmmm nvm mod works fine with cc besides that error

it appears to be conjurer breaking the mod apparently

do you have any idea what conjurer could be doing to mess up the lighting in this manner? appears to be some sort of scale or something thats set incorrectly

[dusk lynx]

Looks like the texture coordinate is having some offset applied to it, or it may be y-inverted

[foggy glacier]

example of the fungus light being super offset to the right

totally appears to be some scale thats fucked

top left area is more aligned and gets more fucked as it travels down right

[dusk lynx]

Yep, this shows some kind of scaling issue

[foggy glacier]

is it likely a magic number that conjurer is messing with?

[dusk lynx]

Possibly yes, if it messes with any of the resolution settings

[foggy glacier]

goot it, i assume this will likely be resolved in the long term but for now ill just override the stuff conjurer is doing to mess this up

ahhh there it is

[dusk lynx]

Aah yes, that seems like it would do it

[foggy glacier]

oh this with CC should be fun- assuming sharpy added light component compat

[dusk lynx]

If it uses cosmetic particles, then it won't be visible yet. Particles that are real cells in the world will work though

[foggy glacier]

yeah probs not however last time i spoke to him i believe he was working on adding lightcomponent support

lightcomponents are calculated in the mod rn, right?

[dusk lynx]

Yes, the mod gets light from 2 sources: Glowing on-screen materials and LightComponents

[foggy glacier]

in which case i hope he got around to adding light components to GE

[dusk lynx]

The raw point light output looks kind of awesome, I've just realised

I'm currently fixing the debug visualizations I broke in the prerelease, commit coming soon

[foggy glacier]

this is awesome lmao

now i should be able to test the mod

took a while but i found out conjurer's zoom setting is broken atm lmao

CC materials are wonderful

need to fix the bug tho cuz it causes init failue and only half the materials make it in lmao

[dusk lynx]

I'm assuming it's not correctly scaling the glow texture? It makes sense, since the glow texture's size is fixed despite being able to change the rest of the game's resolution

[foggy glacier]

do you mean the setting being broken or just how your thing broke because of a different scale?

[dusk lynx]

Checkout the latest commit with fixed debug visualisations, they can help identify materials that aren't getting the right colors

[foggy glacier]

cuz the setting was broken cuz they dont track it properly, i fixed it by setting the value manually in the files lmao, it was just failing to register my stuff

[dusk lynx]

Just a guess from me. Unless Nolla change the game, or some unsafe mode things happen, this mod won't play nicely with camera zoom mods

[foggy glacier]

gooot it

i dont use those so im unaffected lmao 👍

something to throw in the doc later then

[dusk lynx]

The entire glow texture except that top right corner is being utilized lol. Almost didn't have enough room

I'll draw up a flowchart for how this texture is split up and used across 3 frames later on

[foggy glacier]

GE seems to influence light components, W

this is contagiously fun

[dusk lynx]

Absolute chaos!

[foggy glacier]

can i spread the word on the test or would you rather wait to make it more publicly known?

[dusk lynx]

The game loves creating super bright 1x1 pixel spots, I've tried to remove them but some are still getting through it seems...

[foggy glacier]

chaotic pandorium is a tough beast to wrangle

if thers a way to achieve something, cpand never fails

[dusk lynx]

Go ahead, it's now in a "playable state", but also mention that this is still in development and many things are unfinished or to be changed

I was recording some footage and saw this chest... is this normal?

the anticlimax chest

[foggy glacier]

yeah thats normal lmao

finding one is crazy but often they have barely anything of note lmao

[dusk lynx]

Ah I see, lol

I noticed color fringing at the bottom of the screen, I think I forgot to clamp some coordinates somewhere..

Since this mod makes all materials emissive, this old bug when you land on emissive things will happen constantly. not sure if it's fixable

[foggy glacier]

huh, fascinating

[dusk lynx]

Nolla pls fix

[foggy glacier]

i need to restart my testing session, cpand sent a noise-making wisp or smth to NAN and now logs wont shut up no matter where i go lmao

[foggy glacier]

@meager tangle

[meager tangle]

yes!! I recently added this change, and I am desperately hoping it works with this mod

wait

[foggy glacier]

worked fine as far as i could tell

[meager tangle]

i forgot there was a part of it i forgot to finish

[foggy glacier]

hydroxide glimmer on bomb made a pale blue light

[meager tangle]

ill finish it later today

Explosion lights dont change yet

[foggy glacier]

oooo

[meager tangle]

this is visible in Death Crosses

[foggy glacier]

that'll be cool

[dusk lynx]

I discovered a way to differentiate fire particles from the "base" fire color, and applied a luminance threshold to it to make the differences in fire brightness less extreme so there's less flickering. This makes fire much more yellow, I'll do some color balancing

[foggy glacier]

assuming you can, pandorium is gonna look so fucking cool when you get cosmetic particles to work with this

[dusk lynx]

I can, it's just not super straightforward

[foggy glacier]

goot it ill be looking forward to whenever you get around to that then

noita bad game, it failed to save the second gif, heres this at least, this showcases colours in a much more open environment- seeing so much poison gas is certainly interesting

[dusk lynx]

I need to turn this pre-blurred texture into discrete pixels I can feed into the simulation

[foggy glacier]

is that collapsed holy mountain?

[dusk lynx]

Yes, but upsidedown

[foggy glacier]

ahhh

i assumed that was a tp pool, probs the worm crystal

[dusk lynx]

hmm, how to tell where one pixel ends and the other begins. Some kind of deconvolution maybe?

I'll need to isolate a single pixel and determine what kind of blur this is and the kernel size, and then I might be able to do something

[meager tangle]

ded gif

[hasty zinc]

nice, I'll give it a test when I can

[foggy glacier]

let it load a bit first?

[meager tangle]

I did

I downloaded it and WOW

[barren barn]

It's wonderful!

Although there's one problem at the very beginning that some layers seem to be reversed

After investigation, it was found that the problem lies with this setting ( low quality rendering )

Perhaps some setting recommendations should be added to the readme?
Although it is unlikely that low quality rendering will be enabled for players who pursue rtx effects, lol

[polar delta]

does anyone actually use it?

it doesn't give a performance improvement

[brave geode]

yes
#1141534183722852492 message

[dusk lynx]

Interesting, thanks! I'll find out why this is happening and I should be able to fix it

[dusk lynx]

I accidentally broke liquids in a late night commit, it's now fixed

[dusk lynx]

I've added material color overrides to fix some materials that were broken and appearing as bright white.

I think the issue was caused by an interaction with base materials with child materials that use textures, but I haven't figured it out yet

Let me know if you see any other bright white materials

[vernal raptor]

reminds me of that weird phenomenon where some things will subtly glow blue in the dark on contact

triboluminescence iirc

like normal ass shit like sugar and tape

we can just say it's a feature 🔥

all materials now exhibit triboluminescence

[dusk lynx]

I've further reversed how the game processes glow colors and have now got all color sources into the same color range, so no more weirdly brighter than usual materials

[meager tangle]

cant wait till I have time to test this out

[foggy glacier]

i did notice the stuff being weirdly white im glad that was fixed

[mortal geyser]

something seems to be weird

the lighting isn't hitting walls i think

when there is a light source on screen everything is lit up

looks very different from the showcase

was watching xytio play around with it on stream, he turned ambient light all the way down and it stilll looks like this everywhere

the old prerelease version looks correct though

[dusk lynx]

This looks to be because I've submoduled NXML which isn't included if you download the repo as a zip file from Github...

I guess I'll start making releases, and make some install instructions

[polar delta]

yeah, github zip download has been broken for ages

probably not going to get fixed anytime soon :(

[dusk lynx]

I guess it's not technically part of the repo code, and some repos may have huge amounts of submoduled code, so it makes sense.

[polar delta]

apparently its because git-archive didnt support it in 2012

[dusk lynx]

Maybe I should make the mod bail if it can't load NXML

[dusk lynx]

https://github.com/alex-3141/noita_rtx/releases

This is install-ready now

[dusk lynx]

Thank you for sending him the working version in the steam! I had no idea it would be broken like that

[dusk lynx]

I love the instant feedback you can get by setting shader uniforms from the settings menu

[polar delta]

did you kill the pause menu darken?

[dusk lynx]

Yes (or more specifically, I've not re-added it yet)

[polar delta]

my shaders are very sad

[dusk lynx]

That's a lot of errors.. Is that from running this mod? I'm making frequent changes so checking out HEAD may be broken, I'm making a new release now

[polar delta]

i just cloned latest and did submodule update

is master not stablle?

[dusk lynx]

master should be stable, but I make mistakes 😇

Try it now

[polar delta]

its still sad

[dusk lynx]

Hmm, interesting. GLSL should be fairly universal, but it's failing here.
Looks to be an issue with texture2D and the GLSL version I've specified.
If you change the first line of each shader to #version 400, does that help?

[polar delta]

well thats unusual

#version 400

[dusk lynx]

I think I can go as low as version 130 or 120, but I'll need to swap out some conveniences

[dusk lynx]

One of the glow shaders might have failed to compile, if you edit and save them, do you see any compilation errors?

[polar delta]

yeah still some shader errors

array constructor sad

do you know how the line number format for these works?

or is it borked by includes / lua editing

probably uint materialCounts[16] = uint[16](0);

doing uint materialCounts[16] = uint[16](0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0); fixes it

[dusk lynx]

It should be the line numbers, but it seems to not align in those logs. Annoyingly it doesn't tell you which shader the error comes from

[dusk lynx]

There are some conveniences from newer GLSL versions I use, yeah. Your GPU driver may also need specific syntax too, but I've not tested much outside of my own setup

[polar delta]

maybe me setting version 400 is the issue

i dont have any versions which work with (0)

[dusk lynx]

Thank you for the logs, I'll dig through them later to see if I can improve compatibility

[polar delta]

it seems the earliest versions that work are 400 for post final and post glow1, and 330 for post glow2

nvm that might just be my gpu not liking other versions

[dusk lynx]

I use some newer fancy bit twiddling functions in post_final.frag that need v400 I think

[polar delta]

post glow2 seems to work with 130, but the others dont like anything before 400

[dusk lynx]

If you set them all to version 400, does it compile without issues?

[polar delta]

other than this

regardless of version uint16 doesn't work

[dusk lynx]

When you start the game, are you seeing a list of patched materials being printed to the console?

[polar delta]

yes

is it supposed to be so noisy though?

ill get a gif

[dusk lynx]

It should print a line for every material in the game, so yes. I'll reduce the noise later but it's useful for debugging

If you enable this debug visualisation in post_final.frag, line 1152, what does the buffer look like?

[polar delta]

diff --git a/data/shaders/post_final.frag b/data/shaders/post_final.frag
index 26f52fa..383ad5c 100644
--- a/data/shaders/post_final.frag
+++ b/data/shaders/post_final.frag
@@ -1,4 +1,4 @@
-#version 450 core
+#version 400
 #define DITHER
 #define HIQ

@@ -1791,4 +1791,4 @@ void main()
     // Apply Noita RTX lighting
     // TODO: This clobbers the rest of the shader output. Need better integration.
     outColor.rgb = rtx_compute(tex_coord, tex_coord_glow);
-}
\ No newline at end of file
+}
diff --git a/data/shaders/post_glow1.frag b/data/shaders/post_glow1.frag
index 12a818d..56a9925 100644
--- a/data/shaders/post_glow1.frag
+++ b/data/shaders/post_glow1.frag
@@ -1,4 +1,4 @@
-#version 450 core
+#version 400

 #define BUFFER tex_glow_prev_frame

diff --git a/data/shaders/post_glow2.frag b/data/shaders/post_glow2.frag
index 0cfe4d6..eee7957 100644
--- a/data/shaders/post_glow2.frag
+++ b/data/shaders/post_glow2.frag
@@ -1,4 +1,4 @@
-#version 450 core
+#version 400
 #extension GL_ARB_gpu_shader5 : enable

 // TOTAL BUFFER SIZE: 431x242
@@ -339,7 +339,7 @@ float downsampleEmitters(ivec2 st){
 }

 uint mostCommonMaterial4x4(ivec2 st){
-    uint materialCounts[16] = uint[16](0);
+    uint materialCounts[16] = uint[16](0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0);
     for(int y = 0; y < 4; y++){
         for(int x = 0; x < 4; x++){
             ivec2 sample_st = st + ivec2(y, x);

[dusk lynx]

Ah, all looks correct!

[dusk lynx]

Thanks for the diff! I'll add these changes in

What platform/GPU are you on? I gather a Linux distribution of some kind?

[polar delta]

no idea what noita is running on tbh

probably integrated graphics?
05:00.0 VGA compatible controller: Advanced Micro Devices, Inc. [AMD/ATI] Phoenix1 (rev c2)

distro is ubuntu

are you going to get rid of emissives?

[dusk lynx]

Yes, the plan is to patch all emissive sprites on startup and convert them to regular sprites with lightcomponents. But some sprites benefit from being emissive (ghost enemies for example), so I'm not sure yet what to do with those. Maybe I'll selectively change sprites based on what fits the game best

I don't know how possible that is yet, though

https://github.com/alex-3141/noita_rtx/releases/tag/v0.2.2

[mortal geyser]

oh i completely didn't consider that would be the case, i just told him to download the zip because it was the easiest method of downloading lol

[foggy glacier]

oh thats fascinating i didnt know that was an issue

should make a disclaimer about that on projects that use submodules in the future

[dusk lynx]

The first time I use git submodules in a project and it causes issues... I've learnt now, at least

squashing more fireflies (random white pixels that appear). These were showing up on fire and whiskey gas

If any mods add fire particles that are grayscale (r == g == b), then this will remove them since that's the only way I've been able to identify these firefly particles so far

[dusk lynx]

The glow color of freezing vapour gas particles will render at a much higher brightness if some other material is directly to the left of it. This feels like a bug, since I don't know what this would be useful for

I know some gas particles are 2 pixels wide, maybe it's related to that?

[foggy glacier]

i think its likely to do with that

[dusk lynx]

Well it's my problem now. I should be able to filter these particles out

[foggy glacier]

are gasses somehow additive or smth then?

just curious how it happens

[dusk lynx]

Hmm, it could be actually, since I use white as the occluder color and these are right against it.

[meager tangle]

grr, additive my beloathed

[mortal geyser]

the fire flickering is still very strange, theres occasional white flashes that feel a bit jarring

especially noticable with dust turned on

[dusk lynx]

Fireflies are still getting through... I think I'll give up on a way to ID these exactly and just dot it with white and threshold, since the game desaturates these pixels a lot

the dot method also fixes these too

Are there any glowing white (or near white) gasses in the game? This approach would kill them

[foggy glacier]

there is in CC

CC has Potion Gas

Levitatium might get close in va- thats a liquid not a gas im dumb

afa i can remember i think Freezing Vapour might be the closest, at least in terms of gasses that glow

[dusk lynx]

Looking through the base game materials, steam_trailer is the closest to white I could find and it's safe from the threshold

[dusk lynx]

I've added a set of rules that I think does a good job in the latest commit

[dusk lynx]

Experimenting with some new occlusion logic that allows light to illuminate walls, but to not leak through them. This makes harder shadows and better resembles line-of-sight systems which some people like

[meager tangle]

Ooh, I do like this!!

[vernal raptor]

this would go super hard with lightup lanterns

I wonder if it'd be possible to put together a mod that makes lanterns emit cosmetic fire particles that work with this mod

no wait, light comps and such already work, don't they

sleep deprivation is fucking with me

[dusk lynx]

Yes, they do. Im adding the new logic to the light components light sources now

[vernal raptor]

awesome

[mortal geyser]

i love this

[dusk lynx]

the lightcomponent lights are a harder to work with since the lightcomponent can be inside some material like the lamps in hiisi base, and don't seem to be aligned very well with the material pixels

[meager tangle]

[dusk lynx]

It turns out that any physics objects that are rotated are full of holes! A bit of processing and the holes are filled

[meager tangle]

Huh!!!

[mortal geyser]

oh yeah i have noticed that

pretty sure i've seen holes like that in vanilla physics bodies before

it is hard to rotate pixel art without deleting or adding pixels

[dusk lynx]

It is a solved problem though, check out https://www.youtube.com/watch?v=1LCEiVDHJmc
I assumed Noita would be using this technique, it's a perfect use case for it

[mortal geyser]

is this using the skewing thing?

[dusk lynx]

Yes

[mortal geyser]

thats how i rotate pixel art in photoshop because photoshop is notoriously bad at pixel art rotation

lmao

skewing bypasses the weird nearest neighbor scaling it does when rotating

[vernal raptor]

lol yeah

[foggy glacier]

id say a big reason why it doesnt is probs cuz they didnt write the box2d physics code themselves, its just a library that then has the physics body pretend to be a regular material for reaction purposes briefly every frame
though theres a decent chance they also would not have used it even if they had written the physics sim themselves lmao

[mortal geyser]

i mean they did write the rendering and pixel simulation part

just not the physics engine behind it

not reason they couldn't have done the rendering / pixel positioning this way

[foggy glacier]

mmmm i guess thats fair, my perspective was that they just have the pixel follow positions on the box2d so it follows the natural rotation of the physics body, but they could have used skewing instead that is true

[meager tangle]

devs, come back!! we need you to patch the game again!!!

[vernal raptor]

devs!!! more modding api changes!!! I beg of you!!!!

[mortal geyser]

devs please hand over the PDB file

[meager tangle]

the what file?

[foggy glacier]

devs please hand over all the files

[mortal geyser]

PDB files are a debugging file which contains symbols and such which makes reverse engineering the engine WAY easier

[dusk lynx]

I'm using a threshold of how thick a wall needs to be in order to completely block a ray, which you can see how the orange light doesn't leak into the above area once I set it low enough. This treshold needs to be high enough to not block rays trying to reach the emissive pixels of the alters in the holy mountain, however.

[meager tangle]

ooh!!

[mortal geyser]

@dusk lynx how do i stop my parallax from turning weird colors when using your custom parallax script?

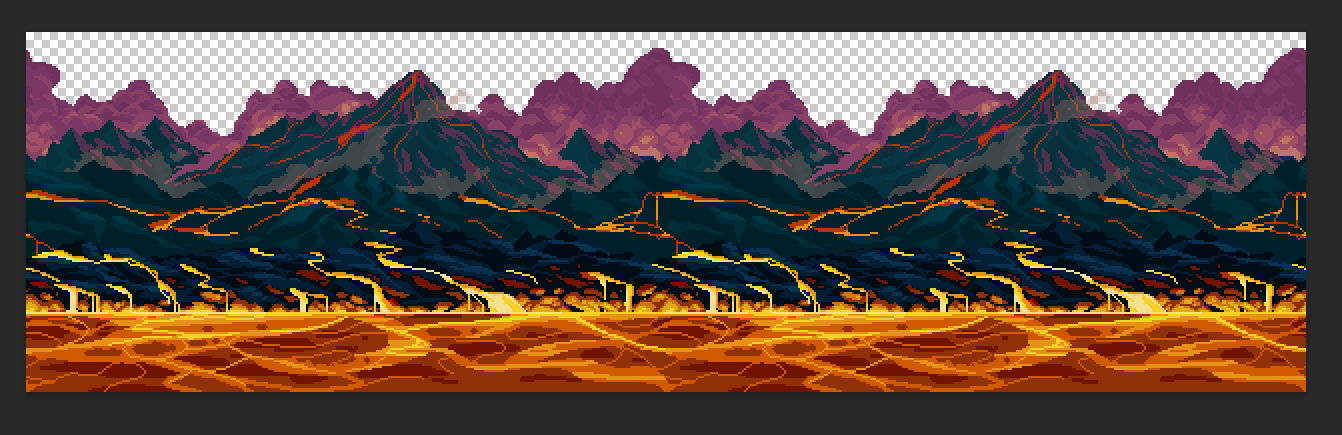

what it is supposed to look like for reference:

https://share.evaisa.dev/D7hPKcj1I.png

seems like the colors are getting inverted somehow

actually no it isn't inverted because the brightness is the same

[vernal raptor]

hue inversion?

+180

[mortal geyser]

oh the red and blue channel were swapped for some reason

unswapping the channels fixed it

[foggy glacier]

i did find it strange that the purple mountains in the distance retained their colour lmao

[mortal geyser]

https://share.evaisa.dev/qKtkBq9kW.png

one thing of note, theres fringing around all the layers

https://share.evaisa.dev/nUsrlJiqX.png

[dusk lynx]

Interesting, looks like it's only happening on layers over the sky color?

[mortal geyser]

it was due to billinear filtering

[meager tangle]

is this the most up-to-date version?

[meager tangle]

...so, i've both tried cloning the latest commit into the mods folder, and i've tried downloading and unzipping the 0.2.2 prerelease, and both versions show me a perfectly white screen. I have no idea why it's doing this, I've fiddled with the mod settings and nothing changed

it lets me play the game

i just can't see anything

@foggy glacier do you know what's going on?

i know you've played with this more than i have

I had to init and update nxml, but like

that still didn't fix it

[foggy glacier]

this is what shaders do when they fail to compile

there some kind of arbitrary error happening causing the entire thing to fail

ill need to check this out tomorrow perhaps

[meager tangle]

i wanted to stream the mod

but it not working kinda killed the hype to try other mods

so like

ig im not streaming

[vernal raptor]

are you running it alongside any other mods?

[meager tangle]

nope

but i'm about to test another github branch of my save00 to see if another mod infected this one

[vernal raptor]

what's the mod folder called?

[meager tangle]

i'm testing my vanilla branch

mods

[vernal raptor]

I mean for this mod

[meager tangle]

noita_rtx

yeah, no, it's not a weird edge case where another disabled mod is infecting this one

[vernal raptor]

unusual

I'll see if it works on my end

[meager tangle]

this happened with both the current version and the featured prerelease

imma test noita_dev

[vernal raptor]

yeah I was gonna suggest trying the other exe

[meager tangle]

nope

[vernal raptor]

seems to work on the normal exe for me

[vernal raptor]

hmmm

[vernal raptor]

maybe it only works if you have comp explorer on..?

[meager tangle]

nope

same error

[vernal raptor]

hmmm, for sanity's sake, try reinstalling and making sure it all lines up right

[meager tangle]

bwahaha

sure

[vernal raptor]

very unusual that this isn't working

[meager tangle]

i'm using Prerelease v0.2.2

[vernal raptor]

as am I

wait

are you using the source code or the release

[meager tangle]

the release

the zip file

not the source code

[vernal raptor]

and you're certain that it's mods/noita_rtx/init.lua, yes?

[meager tangle]

yes

[vernal raptor]

very strange

[meager tangle]

loading

nope

tempted to nuke my mods folder temporarily

....hm

maybe it's a system issue?

iunnno

i'm just collecting as much info as i can for when alex wakes up

[dusk lynx]

Interesting, I've never seen that error before. Based off the message, I think I know the fix

[dusk lynx]

I believe this may be an issue unique to Intel Arc, as I've never been able to test on it before

[dusk lynx]

Thank you for doing that!
Please test if this build fixes the issue. If it does, I'll publish it as the next release

I also noticed your GPU usage was near 100%... If this isn't a side effect of the error and performance on Intel Arc is poor, you can try lowering the number of rays in noita_rtx/data/shaders/post_glow1.frag on line 431. 128 or even 64 rays should still be enough

[meager tangle]

No problem!! I'll give this a test sometime today and will update you on what I find

[meager tangle]

Me when I finally get around to testing this

I just got home from visiting with family for Easter weekend last night!

So now I'm able to work on some personal projects (finally!)

OH YEAH

@dusk lynx it works!! You also fixed the GPU issue!

thanks!! I'm going to give this a playtest tonight on stream! (maybe alongside Fungal Pain + Apotheosis...)

[brave geode]

I’m sure Apotheosis doesn’t have any random light components on various entities that don’t fit cause they were forgotten about when copy pasted over :p

[meager tangle]

If it does, I'll find them!

I wonder what the Wizard's Den biome modifier does in this mod

I wonder how the ToSR looks...

That place could probably look HAUNTING

[brave geode]

well the fog of war stuff is currently unimplemented right?

[meager tangle]

I mean

I imagine so

Given that this mod replaces all fog of war

[meager tangle]

Apoth and noita_rtx are not compatible! Seems like the two mods both add shader stuff, and they clash

I'm not expecting mod compatibility to be the top priority rn, esp given that this mod is still in early development

But it'd be pretty cool if at the very least, Apoth compat was put on the todo list

(given it's the most popular mod in the community :D)

[dusk lynx]

Yep, it will be made compatible with Apoth, I've just not started on that yet

[meager tangle]

:D yay!! thank you!

[polar delta]

given it currently uses data files wouldnt you need to redo a large amount of the shader to make it compatible?

[dusk lynx]

Ill need to move some things around, but the majority of the new code is separated into easy to insert functions

[rancid crow]

Looks great, any chance you can integrate the raytraced black holes mod as an option? Seems like it would fit really well with the theme, but as far as I can tell they aren't compatible
(I'm guessing this has already been mentioned)

[dusk lynx]

It should be possible, yes. I'll likely need to modify both mods to make them work efficiently together. It's also part of the mod compatibility plan once the main feature set of the lighting mod is complete

I'm hoping to find some time to dedicate to this soon

[meager tangle]

Oh!! I'm not sure if this has been brought up, but tablets glow white, not green, and their glow is....

the glow doesnt interact well with the tablet's physics body, I suppose

You'll see what I mean if you check them out

[dusk lynx]

Yes I'll need to change the default glow color on tablets. As for the interaction when light components are inside a physics body, it's something I've not been able to fix yet

[rancid crow]

I think the way the lighting works with the tablet looks really cool, actually. But yeah, I think it should be green/blue for the tablet in the tree

[foggy glacier]

current latest ver

i linked this in noita chat so thought id mark the latest build of the mod

[polar delta]

So called git

[foggy glacier]

@dusk lynx i have a thing i wanna do with shaders and wanna know how doable it is

i wanna in realtime display the current screen really small and pixelated on a little in-world screen

would i be able to have it capture the entire game like GUI and all, but still have the player walk in front of it to block the screen?

(might ask you to assist me with implementation as well if thats fine)

[polar delta]

Gui is impossible

Displaying the rest on a small screen would be pretty easy

You just need to translate the various positions

[polar delta]

Probably hard to make compatible though

[foggy glacier]

hmmm

i could probs fake GUI if need be

maybe, or just entirely ignore it

[dusk lynx]

Easy, but GUI elements won't show

[foggy glacier]

yeahhh got it. ill see if i can get shaders to function on my computer (if you recall, i had issues where shader changes would not update realtime on my noita_dev)

[polar delta]

That feature is kinda unreliable

Sometimes it just doesn't work

[dusk lynx]

Player is in the same layer as everything else. You could only get the player/other ents to render in front of the screen if there is no background sprite in the way (sky layer is visible), or if you DIY a greenscreen

[foggy glacier]

oh really? in the past whenever i brought it up, everyone seemed very confused by it, so i assumed it wa sjust a me-issue

[polar delta]

I've also had it mysteriously break for seemingly no reason

[foggy glacier]

concerning

[foggy glacier]

its an arcade cabinet placed in a custom pixel scene in the lower left of Vault, I kinda wanna have it so you can walk up to it, and then if you interact with it the screen renders in front of the player and zooms in to take up the screen and then you're provide a gui thingy where you can do some stuff before you close it and it shrinks back

[polar delta]

If you fixed the player sprite you could easily make them render in front

[dusk lynx]

That will be easy then, as long as you want to have it render over the top of everything else

[foggy glacier]

when they interact with the machine, yeah i want it to render over everything except the GUI i throw up

[polar delta]

Gui must be above all

[foggy glacier]

sure, even inventory? i can work with that

[dusk lynx]

The effect can be done by moving the existing shadercode into an isolated function that returns a color, and then calling it with modified coordinates based on the position and size of the virtual screen. This should be doable in a mod compatible way as well, if you don't modify any indentation and make some minimal changes

Directly modifying the texture coords is another simpler way that would also work

[polar delta]

You may need to be careful if the screen to world mappings fixed point is inside the screen

[foggy glacier]

wdym?

[polar delta]

You map arcade screen to real world coords right

What if the new coord is in the screen

[dusk lynx]

world pos would be mapped to screen pos, which would then be used to determine which pixels are in/out of the virtual screen

[faint gulch]

oh damn, I've completely missed this, insane that you've already got it to a prerelease state

looks like I was worried for nothing – even in the most extreme gameplay scenarios my gpu utilization never spiked above 50 (most of the time it's a stable 30%; on a defective laptop 3050 btw)

I assume modded materials are not patched to be lit up within lasers yet, so that's why this beam is not emitting? When it does though, the lighting is gorgeous ngl.

very interesting to see the difference having "emissive" turned on makes now

vanilla for comparison

MagicConvertMaterialComponent seems to be a particularly nefarious about pure white ultrabright single pixel spam on reaction (not sure if I've captured it adequately on this screenshot lol)

Lastly, the difference in lighting is so dramatic that the environments previously authored for the vanilla rendering pipeline get entirely ruined upon the transition (frankly, a good thing given how much of a pain it is to design anything except for a variation of barely lit cave under Nolla's reign of terror). The first comparison is with default values, the second one is me tinkering with provided config values until the image looks more-or-less correct.

[dusk lynx]

Yeah, some materials and sprites (mainly emissives) need to be patched during startup to work with the lighting system. I assume that laser was emissive?

[dusk lynx]

Yeah, the game making bright pixels outside of a range I can control is my nemesis... Something that needs more work

[dusk lynx]

I'm hoping to make authoring for the new lighting as easy as I can for other modders.
Scenes like those might need entirely different sprites to look best, though..

Adding a new light component type for directional lights (like that lamp) is something I can absolutely do. I might experiment with a flashlight wand

I'm going to have an abundance of free time in a week from now, in which I'll work lots on this

[faint gulch]

All of the materials it uses are emissive but they are also apparently vanilla (been a while since I've looked at my own xmls lol)

[faint gulch]

Based!

[foggy glacier]

@dusk lynx do you know what controls how the screen reacts to colour grading, and more specifically how i might speed it up?

messing with colour grading option for biomes, wanna be able to see the effects when i enter a biome immediately for testing

[foggy glacier]

oh i think this is it

ill take a look into it later if i dont get a response by then

[faint gulch]

the rays though... 😩
some insane scenes can be setup

wonder how Aloittaa looks

never mind, much simpler geometry than I recalled

[dusk lynx]

Honestly, I haven't looked into that before. There seems to be some vanilla code that handles it, as you've already found. I'm currently bypassing all vanilla code, so it won't be applied anyway

[foggy glacier]

gooot it

[foggy glacier]

do you know what i could do here to speed it up at least?

and/or make it instant?

[dusk lynx]

Replacing color_grading.a with step(0.0, color_grading.a) should do it

[foggy glacier]

got it, thx 👍

[dusk lynx]

Actually, might need to use step(0.01, color_grading.a)

[foggy glacier]

ill try both

but basically smaller steps is faster

ill tinker around with it in a bit

[dusk lynx]

I noticed the vanilla code is averaging color values as a luminance calculation in that code you sent... something Ill need to do properly when I replace it

though if the game and mod authors has already authored biome grading for that calculation, it's best to leave it as-is

[dusk lynx]

Experimenting with applying diffs at runtime in an attempt to avoid mod incompatibility and make development easier

diffs are being generated and applied correctly, but it remains to be seen how much this helps

[polar delta]

I think doing some kind of diff on an s expr of the code would work better

So that it can handle formatting changes

[dusk lynx]

It didn't end up working very well with the current algorithm. Will need to instead try a line based 3 way merge

[dusk lynx]

Instead of using diffs, I made some macros that generate a Lua script to apply the patches instead. This achieves my goal of having a single file with all my shadercode in it while still being syntactically correct for linters.
This makes it compatible with Apotheosis and New Enemies Mod (as in, it compiles and runs), but some effects are likely being clobbered still until I shift more code around

[foggy glacier]

gorgeous

[meager tangle]

Woohoo!!!

[dusk lynx]

seeing how I can adapt the base game's fog effect into the new lighting model. The example here uses the fog to catch more light from light sources
The fog also has it's own color, which is less noticeable when using this method, so I may need to artificially mix in some more of the color to make it look as expected

mixing in 20% artificial fog color, for example.

[dusk lynx]

getting light to interact with fog over the background was more involved, I had to add an extra layer for it.
I think this workaround code is related to it, and is no longer needed

The rest of the pipeline is integrated too - fog of war, worm blood nightvision, liquid distortion, fungal trip, etc.

I'll make a toggle for fog of war to switch between this default style, turning it off, and line-of-sight based vision

[mortal geyser]

it looks so good

though the lights popping in and out of existance at the edges of the screen will always stay jarring for me, but since you don't have off screen data i don't see how that could ever be solved

[polar delta]

it only happens for some people

i added that code because a few people posted about it being broken for them and this seemed to fix it

it definitely is needed

[dusk lynx]

the best I can for materials is make them fade in/fade out as they get close to the edges. The point light sources can kind of be fixed at high expense that probably isn't worth it

[polar delta]

though given they had quite old gpus they might have issues running this idk

[mortal geyser]

increase virtual resolution and crop with shaders (and make everything look like dogshit because the pixels are no longer square)

[dusk lynx]

I see, I'll need to do some testing. Weird things happen when using negative alpha values, maybe it's related to that?

[polar delta]

maybe

this should only change this if alpha is -0 iirc

assuming their gpu implements ieee754 correctly

[mortal geyser]

i did this for my dome keeper mod to add the ability to zoom in and out and it makes it look so bad when zoomed in lmao

[polar delta]

i assume its some weird bug with their gpu

[polar delta]

smh set virtual res to 1080p

[mortal geyser]

i don't even know if it is a multiples of 2 problem

i think it is just noita being weird when pixel perfect rendering is off

[dusk lynx]

I wanted to do that, but the glow shader works on a fixed resolution and it messes up texture alignment... And also the scaling issues you mentioned

[polar delta]

youll need your zoom factor to be near a rational with a small denominator and your virtual resolution to divide your monitor resolution

otherwise itll look bad

[mortal geyser]

yayy nolla making good decisions

perhaps worth in the future to look into having a unsafe addon that increase it?

after you finish the main mod

[polar delta]

@nolla expose the full rendering pipeline to safe api

whats the worst that could happen

[mortal geyser]

adding a spell that explodes your gpu

[dusk lynx]

That would be nice, but this entire mod is built around that resolution restriction at this point

[dusk lynx]

Are there any screenshots of this bug? I should be able to identify if it's a negative/NaN alpha issue if I see it

[polar delta]

yes

#noita-chat message

might have to do some digging to find all the messages

especially given they have deleted their account

[dusk lynx]

Thanks! Looking at that screenshot, I don't see the usual signs I expect... I'm not sure

[polar delta]

yeah its weird

you can see the different tests i tried and the results

to try and figure something out i suppose

i really have no idea what was going on with it

[dusk lynx]

This is the effect from negative alpha - the solid R, G, B pixels

[polar delta]

i think it seems more like sometimes color_fg.rgb = NaN, NaN, NaN, alpha = 0\

[polar delta]

that is a bit unusual

[dusk lynx]

These lines seem the most likely to cause issues when color_fg.a is 0.0. These lines are removed in my mod, at the very least

[polar delta]

that would be it

would make color_fg.rgb nan

[dusk lynx]

I think I've reproduced it if the clamp were to fail

This is another fix that avoids passing NaN into clamp. I've found that it's common for Nolla to use specific alpha values to change behavior in these shaders, so this isn't out of place

[polar delta]

do you know why their gpu does that?

[dusk lynx]

I'm guessing undefined behaviour, though it doesn't say for the specific case of NaN

[polar delta]

what is the result of max / min?

max := y > x ? y : x apparently

[polar delta]

so if theres a nan it should always return the first argument

which will be x

so returning nan is the correct behaviour

does that mean that gpus which dont have the black sky are technically not implemented correctly?

[dusk lynx]

It's now a feature 👍

[polar delta]

are gpu floats supposed to be ieee754 compliant?

yes apparently

ig my gpu is broken

[dusk lynx]

I've pulled these from a more recent GLSL spec (460), it may be different for the very old version Noita runs (110)

[polar delta]

where are they from?

[dusk lynx]

110 - https://registry.khronos.org/OpenGL/specs/gl/GLSLangSpec.1.10.pdf
460 - https://registry.khronos.org/OpenGL/specs/gl/GLSLangSpec.4.60.html

[polar delta]

seems like its technically ok?

As an input value to one of the processing units, a floating-point variable is expected to match the IEEE single precision floating-point definition for precision and dynamic range. It is not required that the precision of internal processing match the IEEE floating-point specification for floating-point operations, but the guidelines for precision established by the OpenGL 1.4 specification must be met. Similarly, treatment of conditions such as divide by 0 may lead to an unspecified result, but in no case should such a condition lead to the interruption or termination of processing.

its not required to return nan for division by 0 seemingly

or be a proper float

[dusk lynx]

Yeah, shaders will let you all kind of things and continue running. I have an older AMD card I could do some testing on

[dusk lynx]

I've made some adjustments that removed the need for Noita RTX to load last, and it now maintains compatibility with other mods regardless of load ordering

[meager tangle]

Really????

How??

[dusk lynx]

I downgraded the shader version to one that still supports the old features, but is still new enough to include the features I need. So I no longer have to upgrade other mod's shadercode (which requires running after they do)

[dusk lynx]

Seems like a good time for a release https://github.com/alex-3141/noita_rtx/releases/tag/v0.3.0

I'll need to go back and update raytraced black holes with all the new shader patch generation pipeline stuff I've built for this

[faint gulch]

updating this has actually improved my debug performance lol (of a completely unrelated project, only running with NoitaRTX to confirm the minimal framerate target), can't trust the old numbers now

getting delta time from with lua is so unreliable
