how on earth is this code working

[wanton junco]

im trying to do something untill i saw some code of the library i use and i say something like this so i make it work but not sure why it happened and how its possible

#bot-spam message

[teal lintel]

When your question is answered use !solved to mark the question as resolved.

Remember to ask specific questions, provide necessary details, and reduce your question to its simplest form. For tips on how to ask a good question use !howto ask.

[wanton junco]

some week ago i ask a question here that basically create something like this but with shared ptr and smart ptr

i just wanna understand how it by passing the base struct as pointer ill be able to pass its child struct

[vernal bobcat]

Pasting the code here for convenience.

#include <iostream>
#include <vector>
#include <string>

struct Base {
  std::string data;
  Base() = default;

  virtual void do_something() = 0;
protected:
  Base(std::string& a):data{a}{};
};

struct person : public Base {
  person(std::string name):
  Base(name){}
  void do_something() {
    std::cout << "im a person and ill do '" << data << "'" << std::endl;
  }
};

struct dog : public Base {
  dog(std::string name):
  Base(name){}
  void do_something() {
    std::cout << data << "bark bark bark" << std::endl;
  }
};

int main(){
  std::vector<Base*> d{5};

  d[0] = new person{"meu"};
  d[1] = new dog{"mutt"};

  for (int i{0}; i < 2; i++) {
    d[i]->do_something();
  }

  return 0;
}

[hybrid scaffold]

what part in particular is surprising to you here?

is it about how virtual functions work or how it interacts with the vector?

[wanton junco]

how is it possible that by passing the base struct as pointer allow me to pass its child struct

[hybrid scaffold]

there is no passing of a child going on

[wanton junco]

line 33-34

[hybrid scaffold]

we don't have line numbers

[wanton junco]

  d[0] = new person{"meu"};
  d[1] = new dog{"mutt"};```

this part

[hybrid scaffold]

that's just converting e.g. the person* returned from new person("meu") to Base* implicitly

you can always convert a pointer to the derived class to a pointer to a (public and unambiguous) base class implicitly

otherwise inheritance would be pretty useless

[wanton junco]

if its Base* how does it able to acces functionality thats not from Base ?

[hybrid scaffold]

because it calls a virtual function

that's what virtual functions do

a non-static member function with the same name and signature in a derived class overrides a virtual function in the base class

when you call the virtual base class function it will call the final overrider of the function, i.e. the most-derived override in the most-derived class of the object that the pointer points to

[wanton junco]

i wanna learn it more in depth like on the assembly side...

i mean compiled side

[hybrid scaffold]

The usual recommendation to learn about how this is all implemented (typically) is "Inside the C++ Object Model" by S. Lippman.

It might not be entirely up-to-date, I am not sure. It is from 1996 so it will be talking about something slightly prior to the standardized C++98.

[oak tartan]

homie, beginners need a lot more detail to understand that

[hybrid scaffold]

that's fine, they can look up what it means and ask follow-up questions

in fact the follow-up seems to suggest that they understand the semantics, but want to know about the implementation

[oak tartan]

so, first, we must observe the binary representation of your classes here, first assuming that do_something was not virtual

and observe how the pointer casts are actually working

let me draw you a diagram

[vernal bobcat]

They specifically asked for "in depth like on the assembly side".

[oak tartan]

@wanton junco
When virutal functions are not used,

#include <iostream>
#include <vector>
#include <string>

struct Base {
  std::string data;
  Base() = default;

  //virtual void do_something() = 0;
  void do_something()
  {

  }
protected:
  Base(std::string& a):data{a}{};
};

struct person : public Base {
  person(std::string name):
  Base(name){}
  void do_something() {
    std::cout << "im a person and ill do '" << data << "'" << std::endl;
  }
};

struct dog : public Base {
  dog(std::string name):
  Base(name){}
  void do_something() {
    std::cout << data << "bark bark bark" << std::endl;
  }
};

int main(){
  std::vector<Base*> d{5};

  d[0] = new person{"meu"};
  d[1] = new dog{"mutt"};

  for (int i{0}; i < 2; i++) {
    d[i]->do_something();
  }

  return 0;
}

the representation is:

this

in your main function, you have
d[0] = new person{"meu"};
this snippet here

the leftside expression is accessing the 0-th element from the vector, the returned type is
Base*&, a reference to a pointer to struct Base, or

using PtrType = Base*;
using RefType = PtrType&;

this

and

on the rightside expression you have a call to operator new for the class person, the return type is person*

in the declaration of your classes, we have public inheritance, not protected inheritance, not private inheritance

which means that, when a person* value is converted to a Base* variable, the conversion is well defined by the compiler, normally any implicit pointer conversion would instantly raise a compilation error,

done by, opening the person object, locating where in memory the raw Base object lives, all done by the compiler (here Base and person are both 32 bytes in size, so they are almost the same) and taking a pointer to that Base value.
Here due to coincidence, the first byte of the person object is matching the first byte of the Base object, thus the returned Base* pointer is pointing to the same memory address.

This implicit conversion from person* to Base* is done via static_cast<Base*>(new person{"meu"}); implicitly.

if person was inheriting from not one but two different structs, well then you would have two nested objects stored within the person struct, and the static_cast would return you two different pointers for that situation.
like:

struct F1
{
  char val = 'A';
};

struct F2
{
  char val = 'B';
};

struct person : F1, F2
{

};

int main()
{
  person human;
  F1* p1 = &human; // static_cast<F1*>(&human);
  F2* p2 = &human; // static_cast<F2*>(&human);

  //these two addresses are different
  std::cout<<p1<<" "<<p2<<"\n";
}

the static_cast usage when used with pointers to structs/classes which are unsing inheritance can also be done in the opposite direction, but it is a bit unsafe cause, you are making blind assumptions about what exactly a pointer is pointing to, which can break badly.

when virtual is used:

#include <iostream>
#include <vector>
#include <string>

struct Base {
  std::string data;
  Base() = default;

  virtual void do_something() = 0;

protected:
  Base(std::string& a):data{a}{};
};

struct person : public Base {
  person(std::string name):
  Base(name){}
  void do_something() {
    std::cout << "im a person and ill do '" << data << "'" << std::endl;
  }
};

struct dog : public Base {
  dog(std::string name):
  Base(name){}
  void do_something() {
    std::cout << data << "bark bark bark" << std::endl;
  }
};

int main(){
  std::vector<Base*> d{5};

  d[0] = new person{"meu"};
  d[1] = new dog{"mutt"};

  for (int i{0}; i < 2; i++) {
    d[i]->do_something();
  }

  return 0;
}

then, the layout is:

this, I decided to forcefully show the base classes here

and, the same static_cast rules for the pointer conversions apply as last time

the vptr is a magical pointer to, a magical global array of mysterious function pointers (every compiler uses vptr differently), which at runtime allows the Base* pointer to programatically guess that it is pointing to, a person instance to run person::do_something()

vptr is placed before any fields you have declared in your code.

[wanton junco]

wow

interesting

so each object store a pointer to the function coresponsing to its child struct?

[oak tartan]

each dog stores a raw person object in itself,
each person stores a raw Base in itself

for your source code

[wanton junco]

why dog store person object?

[oak tartan]

ohhhhhhhhhhhhhhhhhhhhh

wait

I made a mistake

[wanton junco]

so a dog is a person now

[oak tartan]

here, updated

[wanton junco]

thanks for explenation

[oak tartan]

so, now there's one other thing

lets say you have your fancy vector of Base*

buuuuuuuuuut

[wanton junco]

i would save this for future, cus currently my brain didnt understand 100% of it

[oak tartan]

you want to call some function that ONLY A PERSON has

and Base doesnt

you are kinda, screwed

well, unless

you do

[wanton junco]

i'll only do that on private functions... unless it also aply there

[oak tartan]

for(Base* elem : d)
{
  person* p = dynamic_cast<person*>(elem);
  if(p != nullptr)
  {
    p->drive_a_boat();
  }
}

then you need this

dynamic_cast will read from vptr secretly and decrypt what exactly is elem pointing to

here, d[1] is not a person

but d[0] is

so, if you accidentally, forcefully overwrite the person object with memcpy, and thus wipe vptr, guess what happens

[wanton junco]

hmmm wait so if we cast the object into person* and if the object is not a person struct it would ne nullptr?

[oak tartan]

yes, a dog cannot be cast into a person

[wanton junco]

fancy word. dono

how the code knows you cant cast it?

[oak tartan]

if virtual functions are used, dynamic_cast can be used to safely check

if no virtual functions exist, dynamic_cast doesn't compile

[wanton junco]

hmmm how the dynamic cast works on run time 🤔

[oak tartan]

vptr magic

[wanton junco]

dono that word, doesnt exist. next

[oak tartan]

https://knowyourmeme.com/photos/2687801-it-just-works

[wanton junco]

"it just works" 😭

[oak tartan]

checking vptr at runtime can lead to a performance penalty, especially for LARGE inheritance chains

so be careful, if you care about SPEED

[wanton junco]

when do i even check the vptr 😭

[oak tartan]

with the debugger

it's a void* field

[wanton junco]

i dont even know what on earth that is

[oak tartan]

hidden awayyyyyyyy

[wanton junco]

oh...

void pointer okay...

wait...

[oak tartan]

a pointer to something of an unspecified type

yes

[wanton junco]

if its void wtf it is pointing into??

my brain....

[oak tartan]

well, void pointer can point to ints, doubles, arrays, classes, arrays of pointers, anything really

they are EVIL

unless you know how to use them

so, the program will use vptr correctly at runtime

[wanton junco]

wait so void pointer is a dynamic pointer?

i mean..

it can point into any type?

[oak tartan]

yes, void* types are in use since the C language

[oak tartan]

yes, and due to NO TYPE SAFETY YOLOOOOOOOOOOOOOOOO
they should be avoided

[wanton junco]

lmao

[oak tartan]

they have special uses in low level operating system functions

[wanton junco]

i wonder how my linter would react if i use void pointer to point to my object...

[oak tartan]

https://www.youtube.com/results?search_query=cppcon+virtual+table
the real vptr implementation should be shown for some specific compiler in here somewhere

if you are insane enough to want to understand the vptr in depth

[wanton junco]

hey!!

[oak tartan]

anything else you need?

[wanton junco]

im insane tho....

no, thanks for all the info, my brain is currently throttling

[teal lintel]

@wanton junco Has your question been resolved? If so, type !solved :)

[neat elbow]

@wanton junco didn't expect to stumble upon you here hitoya! Have a nice day

[lucid island]

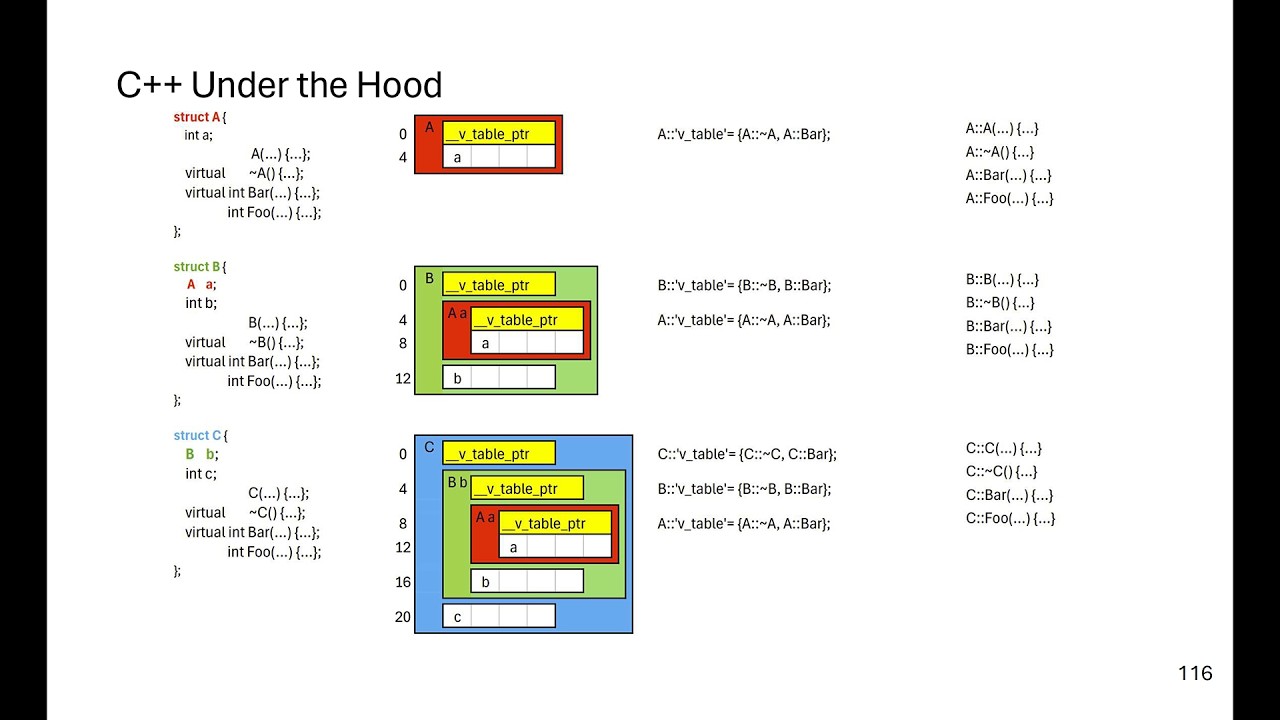

@wanton junco https://www.youtube.com/watch?v=gWinNE5rd6Q&t=1310s

watch this
