[final axle]

then in a later state, the automation should track the trackers in the list and when they change rooms, play music in this rooms

yes, folge_mir add, folge_mir_nicht removes from list

[mighty ledge]

and the list is in the input_text?

[final axle]

my automation i shared over pastebin already did this

[final axle]

yes, because it needs to be persistant

[mighty ledge]

ok, well input_texts have a 255 character limit

[final axle]

there should be max 10 trackers, and even this is really much

for now, 3 trackes would be enough

its a shame you cant make persistant variables in automations

[mighty ledge]

you can use an old school group with group.set

to keep a persistent list of entitys

without it being editable by the user

[final axle]

so let me try to ummerize everything again: if someone presses folge_mir button, the users espresence trackers should be added to a persistant list. when user presses filge_mir_nicht button, all trackers of this user should be removed from the list again

[mighty ledge]

and you can add/remove from that pretty easily. I have to head home, but when I get home, I can help some more

[final axle]

that would be nice. should i pm you?

i continue with my ugly version for now to make the follow part until you can help me make it pretty

[final axle]

ok next thing i need help with: how to use my tracker list in state_changed event trigger as filter....

[mighty ledge]

FYI, here's the automation using group.set

alias: Musik folgen
description: ""
trigger:
  - platform: state
    entity_id:
    - input_button.folge_mir
    - input_button.folge_mir_nicht
condition: []
action:
  - variables:
      user_id: >
        {{ context.user_id }}
      user: >
        {{ states.person | selectattr('attributes.user_id','eq', user_id) | map(attribute='entity_id') | first | default }}
      targets: >
        {{ state_attr(user, 'device_trackers') | select('is_state_attr', 'source_type', 'espresense') | list }}
      items: >
        {% set key = 'add_entities' if trigger.entity_id == 'input_button.folge_mir' else 'remove_entities' %}
        {{ {'object_id': 'music_follow', key: targets} }}
  - service: group.set
    data: "{{ items }}"

that will make a group entity named group.music_follow

and add entities or remove them

[final axle]

cant save....

[mighty ledge]

I don't see how that could be the case

[final axle]

me too

[mighty ledge]

what's the error?

You may have to move this to yaml only

as it uses an advanced feature

ah, nevermind, is ee the blunder

[final axle]

it shows red o the side, so it dont like something....

[mighty ledge]

try copy/pasting it again

[final axle]

i dont know what changed, but its fixed

[mighty ledge]

it was missing a single "

[final axle]

ok

and where i can see the group now to see if it worked?

[mighty ledge]

developer tools -> states page

[final axle]

no group

[mighty ledge]

use the filter on the entity_id area

type group

[final axle]

Service group.set not found.

[mighty ledge]

otherwise, look in the logs for errors

[mighty ledge]

interesting, seems you need to have at least 1 old group in your configuration... odd

[final axle]

???

[mighty ledge]

add

group:
  music_buttons:
    entities:
    - input_button.folge_mir
    - input_button.folge_mir_nicht

to configuration.yaml and restart HA (Do not reboot, just restart)

that will add the group.set service

after the automation runs, you'll have 2 old school groups. group.music_buttons and group.music_follow

[final axle]

this is not great because i make it a blueprint, but for now its ok

[marble jackal]

Just group: in configuration.yaml is enough

[final axle]

@mighty ledge Result:

params:
domain: group
service: set
service_data:
object_id: music_follow
add_entities: []
target: {}
running_script: false

items is empty

[mighty ledge]

what does the variable show for targets?

[final axle]

i dont know where to find it....

[mighty ledge]

in your automation trace

[final axle]

only getting context in changed variables

[mighty ledge]

can you paste the trace?

[final axle]

how?

[mighty ledge]

there should be a button to downlaod the trace where you can copy the contents out

maybe in the 3 dots

[final axle]

to much chars.... pastebin

https://pastebin.com/XQCqw2Yp

[mighty ledge]

ok, see the issue

[final axle]

like you can see, there is nowhere the output of targets found

[mighty ledge]

alias: Musik folgen
description: ""
trigger:
  - platform: state
    entity_id:
    - input_button.folge_mir
    - input_button.folge_mir_nicht
condition: []
action:
  - variables:
      user_id: >
        {{ trigger.to_state.context.user_id }}
      user: >
        {{ states.person | selectattr('attributes.user_id','eq', user_id) | map(attribute='entity_id') | first | default }}
      targets: >
        {{ state_attr(user, 'device_trackers') | select('is_state_attr', 'source_type', 'espresense') | list }}
      items: >
        {% set key = 'add_entities' if trigger.entity_id == 'input_button.folge_mir' else 'remove_entities' %}
        {{ {'object_id': 'music_follow', key: targets} }}
  - service: group.set
    data: "{{ items }}"

[mighty ledge]

it's because the context object wasn't populated

[final axle]

ok, works but little problem: when i add another tracker from outside, it replaces it when automation runs

its not adding, its replacing

[mighty ledge]

it should be adding unless the add_entities property is broken

[final axle]

its not

even remove removes everything

[mighty ledge]

can you paste the trace again please?

[final axle]

user_id: 81f3967ff55f4c94afe6e52400d538d1
user: person.lanea_lucy
targets:

• device_tracker.lanea_z_fold4
  items:
  object_id: music_follow
  remove_entities:
  • device_tracker.lanea_z_fold4

i manually changed fold4 to fold5 but it removes it

entity_id:

• device_tracker.lanea_z_fold5
  order: 1
  auto: true
  friendly_name: music_follow

then after remove its empty again

and the full trace dont show the list before

[mighty ledge]

Do you have the full trace? I know of ways to fix it, I just want to make sure the variables are being populated

[final axle]

https://pastebin.com/0iFWhJrz with some debug....

like you can see, there is fold5 in it and it should remove fold4, which isnt in the group, but after its empty

[mighty ledge]

ok, then we need to use a different path

[final axle]

ok

[final axle]

@mighty ledge could you help me with this too?

[mighty ledge]

alias: Musik folgen
description: ""
trigger:
  - platform: state
    entity_id:
    - input_button.folge_mir
    - input_button.folge_mir_nicht
variables:
  user_id: >
    {{ trigger.to_state.context.user_id }}
  user: >
    {{ states.person | selectattr('attributes.user_id','eq', user_id) | map(attribute='entity_id') | first | default }}
  targets: >
    {{ state_attr(user, 'device_trackers') | select('is_state_attr', 'source_type', 'espresense') | list }}
  current: >
    {{ state_attr('group.music_follow', 'entity_id') or [] }}
  entities: >
    {% if trigger.entity_id == 'input_button.folge_mir' %}
      {{ (current + targets) | unique | list }}
    {% else %}
      {{ current | reject('in', targets) | list }}
    {% endif %}
condition: []
action:
  - service: group.set
    data:
      object_id: music_follow
      entities: "{{ entities }}"

[mighty ledge]

I probably can, but it might be best if you create this in a forum post

I'll be heading out to the bars soon

[final axle]

this dont work at all, even trace is empty...

[mighty ledge]

is there errors in the logs?

[final axle]

nothing, its completly empty....

This node was not executed and so no further trace information is available.

there is a entry in trace but its empty

[mighty ledge]

i'm talking about the HA logs, not the logbook

I edited it, try copy/pasting it again

[final axle]

Error rendering variables: TypeError: can only concatenate tuple (not "Wrapper") to tuple

[mighty ledge]

yes, try the edits

if it errors again, try

alias: Musik folgen
description: ""
trigger:
  - platform: state
    entity_id:
    - input_button.folge_mir
    - input_button.folge_mir_nicht
variables:
  user_id: >
    {{ trigger.to_state.context.user_id }}
  user: >
    {{ states.person | selectattr('attributes.user_id','eq', user_id) | map(attribute='entity_id') | first | default }}
  targets: >
    {{ state_attr(user, 'device_trackers') | select('is_state_attr', 'source_type', 'espresense') | list }}
  current: >
    {{ state_attr('group.music_follow', 'entity_id') | list if state_attr('group.music_follow', 'entity_id') is not none else [] }}
  entities: >
    {% if trigger.entity_id == 'input_button.folge_mir' %}
      {{ (current + targets) | unique | list }}
    {% else %}
      {{ current | reject('in', targets) | list }}
    {% endif %}
condition: []
action:
  - service: group.set
    data:
      object_id: music_follow
      entities: "{{ entities }}"

[final axle]

Result:

params:
domain: group
service: set
service_data:
object_id: music_follow
entities: <generator object select_or_reject at 0x7fc47cacb0a0>
target: {}
running_script: false

when it should remove

[mighty ledge]

k, edited, try again

[final axle]

user: person.lanea_lucy
targets:

• device_tracker.lanea_z_fold4
  current:
• device_tracker.lanea_z_fold5
• device_tracker.lanea_z_fold4
  entities: <generator object select_or_reject at 0x7fc47cacb0a0>

[final axle]

which one?

[mighty ledge]

either

[final axle]

the error is from this

[final axle]

Error rendering variables: TypeError: can only concatenate tuple (not "Wrapper") to tuple
Error rendering variables: TemplateRuntimeError: No test named 'None' found.

[mighty ledge]

ok, use the second one, it's edited

[final axle]

works

now i only need to find out how to filter the event trigger with this list...

and then the rest should be easy

[final axle]

this one....

anyone can tell me or give me a example how to filter event triggers with variables? because i dont want to filter inside the automation, because it then would trigger all the time because the event is state_changed

and @arctic sorrel said multiple times i should ask here, even i think #automations-archived would be more appropriated....

[arctic sorrel]

Sadly you look to mostly have ignored what I told you

[final axle]

you told me to use templates, which wouldn't be the problem, if i knowen, how to use a template as filter for a event trigger

[arctic sorrel]

still, I'm sure you'll get things working in the end

I also told you to stop fucking tagging me

[final axle]

im already almost there

[arctic sorrel]

And none of the above appears to be an event trigger

But ... I'm out

[final axle]

no, this is the thing i want to filter with

[arctic sorrel]

I have no time to help people who can't be polite and do as I ask

[final axle]

i only tagged you one time here

[plain magnet]

@final axle When using Discord's Reply feature it defaults to pinging the person you reply to, which can get frustrating for the target. Use Shift + click on the Reply option, or click @ ON to @ OFF to stop this - on the right side of the compose bar.

You have to change this every time (thank the Discord devs for that).

[arctic sorrel]

And every fucking use of reply

But it's ok, I'll add you to my blocklist and never bother you again... or see anything you post

[final axle]

im sorry i didnt understand it before, now i know what you mean

but isnt the ping the reason you answer?

but again, im sorry

[mystic juniper]

Anyone have some knowledge on templates and JSON ?

[fossil venture]

A few people, yes.

[mystic juniper]

I've got a JSON return with two value pairs, and I'd like them to be addressable separately through the sensor

Sorry, I forgot, whats the perferred paste service here ?

Anywho , I"m using command_line to call out to a server, and it gets a reply of JSON, two values : service_name and PID

[plain magnet]

Please use a code share site to share code or logs, for example:

• https://dpaste.org/ (select YAML for the language, and consider picking a longer expiry)
• http://pastie.org/ (select YAML for the language)
• https://paste.debian.net/ (you guessed it, select YAML as the language)

Please don't use Pastebin, since it can randomly add spaces to the main view. Please also don't share text as images since it makes it harder for people to help you. Remember that others may have colour blindness, impaired vision, etc.

[fossil venture]

Are you using a command line sensor?

[mystic juniper]

the sensor is working w/out a problem, but when I put this up in an entity cars it shows up like json {'process_name: vlah , 'pid: vlah}

yes a command line session

https://dpaste.org/eR6rc

https://pasteboard.co/LQLNwEWFHC04.png

That's what it looks like when I use an entity card to display it

in theory you can use templates to break those out into two separate bits, but I can't seem to get it to work

it seems simple enough, but I am not quite getting it 🙂

[fossil venture]

The command line sensor only returns one state value, but it does support attributes. Which value do you want as the state and which as the sensor attribute?

I'll assume proc. name for the state and PID for the attribute```
value_template: "{{ value_json.process_name }}"
json_attributes:

• pid```

[mystic juniper]

whay can't I use both w/out having to make multiple sensors?

the data is there, I just need to display it differently

it's returning json, so I thought like other sensors that return multiple items , it could handle them

OH ok , hold on state, I get you

ok ok let me try that , I get you now, I misunderstood state, vs value

my bad

ok so once I do that how do I address the value of PID in the card?

it says entity not available for .pid

yeah pid doesn't show up anywhere

maybe I need to restructure my json

https://dpaste.org/8GDpM

ok I changed up the json and set the attributes but they are still not accessible fromt he card.

so the json now looks like this : https://dpaste.org/20KO4

and the yaml looks like this : https://dpaste.org/2SUoR

that should give me 2 attributes

[fossil venture]

You can disaply attrributes in the entities card, https://www.home-assistant.io/dashboards/entities/#attribute

[mystic juniper]

cehcking

i dont see a way to do that

theres no attribute option in the card

does that mean I have to code it by hand ?

ok if you use the entity ( not entities ) card there is an attribute field, but all it does is display the name not the value apparently

under attribute all I can put in there is " friendly name " no other options

there is a field for unit, but that just prints whatever you put in there.

changing up the yaml to see if that helps

yeah that doesn't work either

blargh , so frustrating

so close just out of reach

latest yam : https://dpaste.org/7Axbu

Ive seen ppl using sensors with multiple value outputs so there is some way to make it work

and there are no examples of using attributes

when using the gui editor the attributes show up as state

trying another yaml variant

using json_attributes_path

now I have more options ofor attributes, but not the vales Im looking for

now it's ' unavailable '

resetting yaml

[fossil venture]

I linked you to the page that shows you how. There are examples at the bottom of the page.

[mystic juniper]

those ecaples dont work

and most of them dont address my issue

[fossil venture]

Yeah they do.

[mystic juniper]

show me?

I see nothign aobut multiple json in there

[fossil venture]

Do you have a sensor with attributes showing in Developer Tools -> States?

[mystic juniper]

checking

no attributes showing

just 'friendly name "

https://pasteboard.co/N0yJxYMgIZn1.png

[fossil venture]

Well you need to fix that before you can add the attributes to an entities card. I'm cating up on what you have written. Looks like you made things more complicated for yourself by changing your json.

[mystic juniper]

well it looked like the thing to do

since I neede da state / attribute

I can put it back

but it wasnt workign then either

[fossil venture]

So this did not work?```
value_template: "{{ value_json.process_name }}"
json_attributes:

• pid```

[mystic juniper]

that didnt give me anyting

no pid number, no name , nothing

[fossil venture]

Not even a state?

[mystic juniper]

hold one, Im restoring the json

ok so the json is back to this :

{
"process_name": "vlc",
"pid": 27811
}

[fossil venture]

Try what I wrote.

[mystic juniper]

this is the yaml : https://dpaste.org/inoF6

[fossil venture]

Ok. That should give you both as attributes and the full json string as the state.

[mystic juniper]

ok

[fossil venture]

Run it then check: Developer Tools -> States

[mystic juniper]

https://pasteboard.co/kt2T5iP0AgTh.png

ok , dev tools : https://pasteboard.co/Qcikhxd11imn.png

so that's showing attributes now, right ?

[fossil venture]

Yes.

[mystic juniper]

ok

so now on the card ....

[fossil venture]

Hang on I'm writing you an entities card

[mystic juniper]

ah so by hand, no UI

oh hells donkeys, now the attributes are showing up in the card

[fossil venture]

So all good?

[mystic juniper]

possibly. One moment

I can only show one attribute on the card

[fossil venture]

type: entities
entities:
  - type: attribute
    entity: sensor.vpid
    attribute: pid
  - type: attribute
    entity: sensor.vpid
    attribute: process_name

[mystic juniper]

it looks like the entities card GUI does not support attributes

one glitch, it's vlcpid not vpid, but I got that

[fossil venture]

Take off the training wheels. Paste the yaml intot the card.

[mystic juniper]

I did

that's how I caught the naming issue

[fossil venture]

So now fixed?

[mystic juniper]

is there a way to change the name ?

[fossil venture]

Sure. ```
type: entities
entities:

• type: attribute
  entity: sensor.vpid
  attribute: pid
  name: Whatever you want
• type: attribute
  entity: sensor.vpid
  attribute: process_name
  name: whatever you want```

[mystic juniper]

https://pasteboard.co/okFZwi8PAzhm.png

[fossil venture]

Look closely at my last post

name: ...

[mystic juniper]

yep

it needs a - in it for some reason

but it's working

I've not dealth this much with yaml before

type: entities
entities:

• type: attribute
  name: PROCESS ID
  entity: sensor.vlcpid
  attribute: pid
• type: attribute
  name: PROCESS NAME
  entity: sensor.vlcpid
  attribute: process_name

it wanted a - in front of each type

[fossil venture]

three backticks before and after your code

[mystic juniper]

I do believe we have it

where do I send the beer? 🙂

[fossil venture]

to pate code here

[mystic juniper]

gotcha

[fossil venture]

NP. See yaml aint so hard

[mystic juniper]

https://dpaste.org/YOjut

Oh yeah I just didn't get the - thing until earlier

YAML is not tripping me up , its the config process. too many non examples, or outdated, otr ' that doesn't work anymore ' lol

Thanks for the hand

I managed to fix the playback audio issue last night

that was a monster

see I have an enviromental audio system, it plays background stuff, like thundertorms, box fans, or the ambient sound of the engineering deck of the enterprise D

( not kidding 🙂 )

and the VLC by telnet was not working the way it needed to , to make this work

so I used a command line to call a script on the sound fx box

this is just ot monitor it to ensure it's working

ut oh

it won't save the card now.

hang on

Ahh ther eit goes

https://pasteboard.co/x857XlxofNcZ.png

Srsly, you sesere a beer for that one. It finally works.

🙂

[mystic juniper]

are we having fun yet?

[marble jackal]

🥳

[acoustic arch]

easy if you know the syntax.. but.......
{{ (trigger.to_state.state > trigger.from_state.state) or not is_number(trigger.to_state.state) }}

Only if to state is higher than from state, OR when the to state is not a number...

the first part is working, second part not

if its not a number but a string i want the condition to go through.

[mystic juniper]

Im trying to make a conditional based on an attribute

any wisdom there ?

from what I'm reading it says it can't be done, but I dont' knwo any other way to test this data

oops, sorry, wrong channel

I"m so burned right now, Im trying templates and I think HA hates me

[acoustic arch]

  true
{% elif not trigger.to_state.state | is_number %}
  true
{%else%}
  False
{% endif %}```
maybe ugly but it works

[mystic juniper]

All I'm trying to do is read an attribute from a sensor and show a picture

it took me all day just to get the sensor working / displaying the attributes, like 12 hours

but now I can't make a simple boolen decision based on the attribute

[marble jackal]

Convert the values to a number when you do the comparison, otherwise "10" > "2" will return false

And reverse the order in your comparison

First check if they are numeric

{{ not is_number(trigger.to_state.state) or trigger.to_state.state | float > trigger.from_state.state | float(0) }}

[acoustic arch]

thank you! my ugly if/else works as well. but a oneliners is preferred

[marble jackal]

It worked because you were doing a string comparison

[acoustic arch]

i tested it with < and >

works as expected...?

[marble jackal]

You were possibly doing
"unavailable" > "10"

[acoustic arch]

might...

[marble jackal]

try this on devtools
{{ "2000" > "4" }}

[acoustic arch]

the trigger is a ssh | grep command, maybe ita already a value?

[marble jackal]

Does that give the expected result?

[acoustic arch]

quoted is a string, so false

[marble jackal]

It's an entity state, an entity state is ALWAYS a string

So it will not be a number

[acoustic arch]

okido. i get the point!

worked by accident lol

[final axle]

still need help with it

[mighty ledge]

#frontend-archived

[split hornet]

can you help me please?

[mighty ledge]

No, ask in #frontend-archived. Thanks.

[marble jackal]

You have the group now?

[plain magnet]

@fathom jetty I converted your message into a file since it's above 15 lines :+1:

[foggy jacinth]

How do you access the daily forecast high/low values in a weather entity in a template?

[jolly crest]

Any possible way to format the dates in an custom:auto-entities card?

[plain magnet]

@jolly crest I converted your message into a file since it's above 15 lines :+1:

[mighty ledge]

through the get_forecasts service call & response variable

[mighty ledge]

what's she output of pickup_start attribute?

[jolly crest]

pickup_start: 2023-12-20T21:35:00Z

[mighty ledge]

is that local time or UTC?

@jolly crest ^

[jolly crest]

That is utc

[mighty ledge]

and I'm assuming you want it in local time

[jolly crest]

Yesss

[foggy jacinth]

how do I do that from a jinja2 template?

[mighty ledge]

You can't, you have to make a service call, then extract the data into your template.

typically an automation or template sensor can do that

or script

[jolly crest]

And Im hoping that i dont need to make a template sensor for this

[foggy jacinth]

I want it to be available constantly to a jinja2 template, how do I go about that?

[inner mesa]

Are asking about this? https://www.home-assistant.io/integrations/template/#trigger-based-handling-of-service-response-data

[mighty ledge]

type: custom:auto-entities
card:
  type: entities
  title: TGTG Surprise Bags
filter:
  template: |-
    {% for state in states.sensor -%}
      {%- if state.state|float(default=0) >= 1  and 'sensor.tgtg_' in state.entity_id %}
      {%- if state_attr(state.entity_id, 'pickup_start') is not none -%}
        {%- set start = state.attributes.pickup_start | as_datetime | as_local %}
        {%- set end = state.attributes.pickup_end | as_datetime | as_local %}
        {{
          {
            'entity': state.entity_id,
            'name': state.attributes.friendly_name[5:],
            'type': "custom:multiple-entity-row",
            'unit': false,
            'secondary_info': start.strftime("Pickup on %d-%m between %H:%M") ~ end.strftime(" and %H:%M") ~ ', kr ' ~  state.attributes.item_price[:-3],
            'tap_action': {
              'action': 'url',
              'url_path': state.attributes.item_url}
            }
        }},
      {%- endif -%}
      {%- endif -%}
    {%- endfor %}

[jolly crest]

Oh man, perfect! Thanks @mighty ledge 🙌

[foggy jacinth]

I'll give that a try. Sure would be nice if it was already available as weather.entity_foo.hourly_forecast[] and daily_forecast[] though.

[jolly crest]

Any clue on why this code doesnt work for my friend? The one I provided works fine, but your code give him this error:
Invalid entity ID at position 0: {'entity':

Your code works fine for me haha

[mighty ledge]

it depends on the data they have

[jolly crest]

He has the same outputs as me. Just some more of the "sensor.tgtg_" sensors.

[mighty ledge]

can you post the full error?

[foggy jacinth]

Added the template: specification pretty much verbatim except for the weather entity name from weather.home to my own, and all I'm getting from weather_forecast_hourly is Unknown.

Nevermind, looks like it was waiting for the next hour to trigger. Switched to every minute and required an HA restart.

[prisma thicket]

Hello, I've built a template here, my first one. Unfortunately, this always stays on false, no matter how I set something... Could someone take a look at it? I believe that template is also self-explanatory.

binary_sensor:
  - platform: template
    sensors:
      Terrarium_trocken:
        value_template: '{{ states ("sensor.terrarium_humidity") | int < 77 }}'
        friendly_name: 'Luftfeuchtigkeit im Terrarium zu niedrig'

[inner mesa]

You have a capital T. Needs to be lowercase

And

[plain magnet]

To format your text as code, enter three backticks on the first line, press Enter for a new line, paste your code, press Enter again for another new line, and lastly three more backticks.
```yaml
example: here
```
Don't forget you can edit your post rather than repeatedly posting the same thing.

[prisma thicket]

Based here

https://community.home-assistant.io/t/alert-when-exceeding-humidity-level/15914

[foggy jacinth]

Can I use a template sensor to add an attribute into an existing entity? For instance, weather.forecast_foo has very up to date current conditions, but it lacks today's high/low temps, which are available in the daily forecast. I want both data available in the same entity.

[inner mesa]

No, template sensors are their own entities

[prisma thicket]

No improvement remains at false

[inner mesa]

Just create a template sensor with whatever you want

[inner mesa]

Format the code properly

And hopefully you reloaded and reviewed the logs

[foggy jacinth]

So I basically have to create a template sensor that triggers every minute to have the current conditions from weather.forecast_foo, just to have the daily high/low temps in it that only change daily? That seems a bit inefficient.

[inner mesa]

Create new entities if you want a different cadence

[foggy jacinth]

I need both to be in the same entity because of a limitation of something else.. I was just wondering if there was a more efficient route to it.

[inner mesa]

What is making you check every minute?

[prisma thicket]

What's wrong?

[foggy jacinth]

The up to date info, like wind speed, current temp, and humidity.

[inner mesa]

There's no additional cost to populate additional entities

[foggy jacinth]

It's a limitation of where I want to use that data--to put it in a button on a Streamdeck. The thing only allows me to choose one entity for each button, but I can display different info via different attributes in that entity.

[prisma thicket]

binary_sensor:
  - platform: template
    sensors:
      terrarium_trocken:
        value_template: {{ states("sensor.terrarium_humidity") | int > 77 }}
        friendly_name: 'Luftfeuchtigkeit im Terrarium zu niedrig'

Looks like this now

[inner mesa]

You seem to have removed the quotes surrounding the template

It wouldn't pass a config check

Other than that, and the fact that you're using the legacy format, you need to debug by reviewing the logs

[prisma thicket]

I can't find anything in the logs that indicates problems

[inner mesa]

A) do a config check B) restart HA C) make sure you don't have more than one binary_sensor: in configuration.yaml D) review the template sensor docs

E) do whatever petro says

[mighty ledge]

I can guarantee you that the hourly data does not update once per minute even if you set it to update once per minute. You’re getting cached info that’s retrieved once an hour.

[prisma thicket]

Why can't I have more than one binary sensor?

[mighty ledge]

Because you’re duplicating the key instead of listing them out

[inner mesa]

That's not what I said. You can only have one binary_sensor: tag, and you can have as many sensors under that as you want

[foggy jacinth]

That works then.

[prisma thicket]

Mhh I'm still having a hard time with it, especially I want to try it on the new spelling

I really need an example where I can go, see if I can find one

[mighty ledge]

The intention is to have the ability to update once per minute but I don’t think any integration does that yet

[foggy jacinth]

Is there a way for me to import all the attributes of an existing entity into my new template sensor? something like:

template:
  ...
  sensor:
    name: foo
    attributes:
      weather.forecast_foo.items()

since attributes is a python dictionary, right?

[foggy jacinth]

and how to I copy the icon for weather.forecast_foo over to the template sensor?

[marble jackal]

No, the attributes key itself doesn't accept templates, there is a feature requests (or WTH) open for that.

[foggy jacinth]

What about grabbing the icon from an entity?

[marble jackal]

You can do that if it has an attribute for it

Otherwise not

[foggy jacinth]

Not sure I understand.. weather.forecast_foo has an icon, but it's not in the attributes.

in the template sensor it would be:

template:
  ...
  sensor:
    ..
    icon: mdi:blah

is there no way to get the icon setting for an entity? something like: state_icon('weather.forecast_foo') ?

[marble jackal]

There is nothing like that

[past sigil]

value_template: "{{ is_state('binary_sensor.johndesktop_ping', 'connected') }}"

anyone know why this isnt not reading properly on the switch?

[fossil venture]

value_template: "{{ is_state('binary_sensor.johndesktop_ping', 'on') }}"

[past sigil]

doh

[fossil venture]

Binary sensor staes are only on or off, they are translated by the device class for display in the frontend.

[past sigil]

understood thank you sir

[mystic juniper]

Huzzah!

I found the solution to the audio fun I was having, and I created a soundboard

also I can now deploy Pi's as sound players.

and kiosks

so like the Pi can b e used as a controller for HA and as a sound / music player to an amp/speakers setup in the BG

[past sigil]

is there any way to add a delay/wait to a switch template? turn on pc -> wait :03 -> update ping sensor. as i have it now the ping sensor updates at the same time the pc turns on which means it doesnt see it yet.

[inner mesa]

You can use whatever sequence you want

From the docs: https://www.home-assistant.io/integrations/switch.template/#multiple-actions-for-turn_on-or-turn_off

[clear mist]

so with the sensor - did you mean sensor.suburb_coordinates sensor has a state of unknown, and since it's unknown it's not being picked up as an integer?

or a different sensor?

[inner mesa]

In only one place do you try to convert a state into an integer, and that's with postcode|int

Wherever you're doing that, you need to either specify a default or ensures it always gets a numeric value

[clear mist]

well it should always be an integer value? this is my rest.yaml code:

  resource_template: >
    {% from 'suburbCoords.jinja' import suburbCoords %}
    {% set postcode = states('input_number.postcode') %}
    {% set coords = suburbCoords(postcode | int) %}
    https://www.racq.com.au/ajaxpages/fuelprice/fuelpricesapi.ashx?{{ coords }}&fueltype=37
  sensor:
    - name: "All Fuel Data"
      device_class: timestamp
      value_template: "{{ value_json.Timestamp | as_datetime }}"
      json_attributes:
        - "Stations"```

the postcode comes from an input number helper that i have, which should always be an integer, no?

[inner mesa]

It doesn't in this case

[clear mist]

so how can i fix it? and why does it very occasionally work? maybe 1 in 20 restarts of HA it works perfectly as if there's no issue

then next restart, bam! not working

[inner mesa]

Give it a default

int(0)

I don't know why your input_number is getting garbage

[clear mist]

so like {%- set testPostcode = x["postcode"] | int (4000) -%}

and {% set coords = suburbCoords(postcode | int(4000)) %}

from the two respective files

[inner mesa]

Yes

If that's what you want

[clear mist]

cool, trying now, sec

[clear mist]

ok, tried it and we're back to this error File "suburbCoords.jinja", line 3, in template TypeError: 'NoneType' object is not iterable

i don't know if it helps but i have a txt file within HA that has a bunch of postcodes and their coords - the idea is that i'll be able to change my position based on where i am and it'll show me the cheapest fuel around the place)

so that is imported from this, which is where the sensor in my jinja comes from:

  - sensor:
      name: Suburb Coordinates
      json_attributes:
        - entries
      command: "cat /config/www/suburb-coords/suburb-coords.txt"
      value_template: "{{ value_json.suburbCoords }}"```

[keen gust]

can somebody help me with filters please? I dont really understand the variables.. I have a voltage meter that jumps up and down when the battery gets close to the next value.. it only jumps by .01 V and usually doesnt stay at the next value for longer than a few seconds.. (cant show a picture here).. How would I configure a filter to smooth that out so I get a clean curve when discharging the battery?

[mighty ledge]

#integrations-archived can help.

[amber geode]

I've got a silly issue. There is a PLC pumping out some messages to MQTT that I am trying to template, but I know nothing about how to use Jinja. In template testing I do:

    "cid": "PLC",
    "connected": "true",
    "Front_Gate-Gate_PLC-Feedback-Gate_Beam": "Normal",
    "Front_Gate-Gate_PLC-Feedback-Gate_Unlock_Output": "Normal",
}
%}
{{ json_data.connected }}```
And I get the expected `true`. But when I try:

{{ json_data.Front_Gate-Gate_PLC-Feedback-Gate_Beam }}

I get:
```UndefinedError: 'dict object' has no attribute 'Front_Gate'```
I assume there is something I don't understand about this particular key pair that causes the problem, where as the `connected` key/pair works fine?

The - is the issue I guess?

[mighty ledge]

{{ json_data['Front_Gate-Gate_PLC-Feedback-Gate_Beam'] }}

[amber geode]

Ok, that works. But why? Isn't that key a string in that dictionary?

I mean, the same as I access the "connected" key?

[mighty ledge]

because dot notation does not allow special characters

dot notation only allows a through z, A through Z and _

[amber geode]

Oh wow 🤦

Thanks.

So I have a related question.
I am making a script to produce thise device as an MQTT device.
I can get it working as an example using:

    - service: mqtt.publish
      data:
        topic: homeassistant/sensor/fgplc01_connected/config
        retain: true
        payload: >
          {
            "name": "Connected",
            "unique_id": "fgplc01_connected",
            "state_topic": "CTP_CR3000",
            "value_template": {% raw %}"{{ value_json['connected'] }}"{% endraw %},
            "device": {
                "identifiers": ["fgplc01"],
                "name": "Front Gate PLC",
                "model": "PLC",
                "manufacturer": "SOMEONE"
            }
          }```
But, I have another value `Front_Gate-Victron-System-BatteryVolts` and I am finding it hard to understand in the documentation how to make that use V units and a power symbol MDI for example? Any advice?

[mighty ledge]

add unit_of_measurement and icon to your discovery info. Don't put it in the device dictionary

[amber geode]

Wonderful, thank you.

[past sigil]

Sorry I have the sequence down the way I want, 4 services. Turn on pc, turn on tv, set tv to input 4, update pc ping sensor. Problem is pc ping goes off at the same time as the other services and the pc hasn’t had a second to kick on. I need to add a delay/wait/pause of some sort before the ping goes off. I could use a script and call it but that seems extra for no reason

[plain magnet]

@wintry bay I converted your message into a file since it's above 15 lines :+1:

[wintry bay]

In windows (also in linux) you can setup services that start/stop together with the system. If you like MQTT, you could create a simple script that runs when the pc starts (of course, it waits for the network to be available) and sends an MQTT saying "Hello I'm PC, I'm ON". In this way all you have to do is

- wait_template: >-
  {{ is_state('sensor.my_pc', 'on') }}

The sensor can easily be a template that reads the value of your mqtt message

[inner mesa]

I'm not following why a delay: isn't enough

Or is that what you're looking for?

[wintry bay]

In my case, because if the media_player is playing music and the announcement is over within 2 seconds, you don't want a delay of 10 seconds because the longest announcement you have lasta 10... I can see other people views on the same topic.

[inner mesa]

Whatever you can do in a script, you can right there

[wintry bay]

I used to use this mqtt/service approach, then I realized I could make it simpler with smart_plugs having power metering and I connected them to the Monitor. When monitor is on and > 20W then pc is also on.

I gotta go, but pls if anyone reads my msg and has an answer, tag me to the reply. Thanks!

[inner mesa]

Sure. They asked for a 'delay/wait/pause' and there lots of ways to do that, including delay:

[past sigil]

So this isn’t what I was looking for, I was looking for a delay: like @inner mesa mentioned. I’m new to this so still learning. However, your solution will defeat the whole need for my delay and ping update and I won’t need the wait template either. The only reason I want to update ping is so the state is registered right in my template switch immediately. I don’t want my ping updating every second so I figured I’d have the turn in switch also force the ping to update

I tried power metering with s31 on esphome but it doesn’t update as fast as I’d like

[plain magnet]

@vague crag I converted your message into a file since it's above 15 lines :+1:

[slate fossil]

@vague crag The template that you're trying to work on is actually more of a #frontend-archived question. But, without looking too much into it, for the custom:button-card template, don't use the entity to try to return the entity. For the template, it can either be left out or put in a "spaceholder"; the card that "uses" the template will have to have a defined entity which will overwrite whatever is in the template. I think your name and label only need something like states[entity].attributes.media_title. The custom:button-card has a built-in variable called entity.

You might also consider changing the logic to IF the entity's state is playing THEN return the media info.

[amber geode]

I am writting a template for a device, I get MQTT values like:
"Is_Online_Gate_PLC": 1
I can map that pretty easy in the template. But given it's really a boolean, is there any value/advantage to converting it to bool with in HA? I don't know if HA cares if something is a bool or just a string?

[slate fossil]

I was curious to see HA would handle a "true". I plugged this into Template jinja {% set var = "true" %} {% if var is boolean %} Is boolean {% else %} Not boolean {% endif %} {% if var %} Returned true {% else %} Did not return true {% endif %}It returned Not boolean and Returned true.
EDIT: Per RobC, a string will return true so this was basically a pointless experiment. Tested the var with gibberish and it still returned true.

[inner mesa]

Any string will be 'true'

[plain magnet]

@sterile bear I converted your message into a file since it's above 15 lines :+1:

[slate fossil]

Because it is something and not null?

[inner mesa]

{{ "a" if "false" else "b" }} -> a

yes

[amber geode]

Cool, but does HA do anything with a true bool? Like if you give it a unit of measurement it will graph stuff?

[amber geode]

Nice!

[inner mesa]

Graphs come from the state of entities, and states are always strings

If you give an entity a unit_of_measurement, it's assumed to be a numeric value

[amber geode]

On some devices, the mdi will change based on state. What dictates that behaviour? Essentially, I am on the reciving end of some values from a PLC and making a script to produce auto discover MQTT stuff for HA. Wondering if it's worth the hassle do any of that fancy business or just grab all strings, add unit of measurement and not care any further.

[inner mesa]

the device_class

https://www.home-assistant.io/integrations/binary_sensor/

https://www.home-assistant.io/integrations/sensor

[amber geode]

You're a legend. Cheers.

Honestly, maybe I have an issue or something but I have such a hard time navigating documentation when there is just so much of it. Never know where to even start. Discord/you chaps are life savers.

[sterile bear]

Is it not possible to return a value from inside a conditional block?
I have this script: https://pastebin.com/8fZ33EGk
But it's throwing this error: Template variable error: 'action_response' is undefined when rendering '{{ action_response.text }}'

(Apologies for the double-post, the message->file conversion above kinda killed the formatting and made it hard to read)

[quasi storm]

https://imgur.com/gallery/1Cbn387
What is wrong with my templating/configuration? The entities will not post to HASS.

[marble jackal]

The variable you defined isn't action_response but just response

[sterile bear]

action_response isn't a variable I defined, it's the returned data from the action

[marble jackal]

Which action?

[sterile bear]

Presumably, the stop action at the end of the action block

The global variable response is assigned some string. The local variable response in the if/then block is assigned a different string, which it returns at the end of the block via a stop action. If it doesn't due to the condtion being false, then the final stop action should return the global response. That's what I was expecting to happen, at least.

Should I be asking this in #voice-assistants-archived, instead? Wasn't really sure which channel was more applicable for this scenario.

[fossil venture]

Are variables defined at the top level evaluated before or after the trigger? i.e. can I use a trigger variable like trigger.to_state.object_id in my variables? See https://community.home-assistant.io/t/automation-for-multiple-devices-reference-the-appropriate-device-in-action/658990/8?u=tom_l

[marble jackal]

After

But before conditions are checked

So you can use them in conditions

[fossil venture]

Thanks Fes

I overlooked how they were using the variable.

[marble jackal]

the speech section is where you define the sentences which should trigger the intent_script

the variables are not defined there yet

I was wrong

I think the docs are just wrong

it should be response

response_variable: result

the name of the returned variable is response, not action_response

[sterile bear]

If I remove the if/then block, the stop action returns the value correctly. It's only returning it from inside the if/then block that seems to be causing issues.

[marble jackal]

It should be:

conversation:
    EventCountToday:
      - "How many meetings do I have today?"

intent_script:
  EventCountToday:
    action:
      - service: calendar.list_events
        target:
          entity_id: calendar.my_calendar
        data_template:
          start_date_time: "{{ today_at('00:00') }}"
          duration: { "hours": 24 }
        response_variable: result                     # get service response
      - stop: ""
        response_variable: result                     # and return it
    speech:
      text: "{{ result.events | length }}"   # use the action's response

it is using the outdated service call

or it should be:

conversation:
    EventCountToday:
      - "How many meetings do I have today?"

intent_script:
  EventCountToday:
    action:
      - service: calendar.list_events
        target:
          entity_id: calendar.my_calendar
        data_template:
          start_date_time: "{{ today_at('00:00') }}"
          duration: { "hours": 24 }
        response_variable: result                     # get service response
      - stop: ""
        response_variable: action_resonse                     # and return it
    speech:
      text: "{{ action_response.events | length }}"   # use the action's response

hmm, or not

let me test it

[marble jackal]

@sterile bear I tested it now, and it seems the action_response variable should indeed work

[wintry bay]

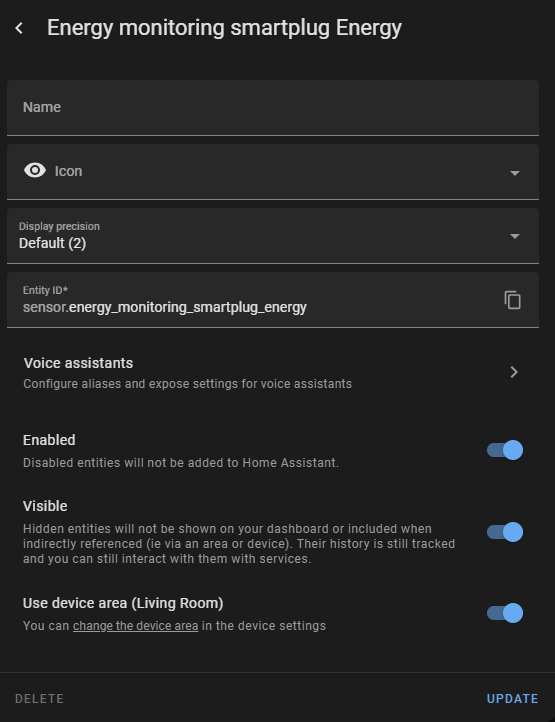

I use Tasmota, in those you can change the telemetry. A few of my plugs report the state every 30 sec, but it can be even lower. Just saying. Delay is good but there are more precise methods

[sterile bear]

Did you try returning a value from inside an if/then action, like in the example I posted? That's where it seems to not be working for me.

[marble jackal]

let me check

[mighty ledge]

You can't return values from a if/else to main action sequence. Automations don't allow this with variables.

[sterile bear]

That's what I was wondering, thank you

[marble jackal]

but also not as variable in the stop action (which he included in the if sequence)

I would say this would work

[mighty ledge]

It's not a separate script

variable scoping still applies

Even as a separate script, I think it wouldn't work

if he can take it down to service calls and do his if statements in a tempalte while creating separate services and separate data, he could avoid the loop scope issues.

[sterile bear]

I'll just throw the condition into the global variable assignment. Was mostly just hoping to avoid repeating that condition twice.

[spark flame]

What is name of the trigger id value in a template yaml? All the documentation points to using them in conditions but I can't find anything that references using it in a template

[mighty ledge]

it's covered in the automation templating documentation

it's simply trigger.id

[spark flame]

I can't even find a reference to that value in the templating docs lol

https://www.home-assistant.io/docs/configuration/templating/ unless this is the wrong page

[mighty ledge]

it's covered in the automation templating documenation

that's templating documentation

[spark flame]

Ahh okay now I found it

google search was completely letting me down in finding this somehow

[spark flame]

Thanks

[mighty ledge]

👍

[floral blaze]

Hi there guys, im working on some code that refers to 'group.light.house' now i have made a group containing all lights from my house but it shows up as an entity called 'light.house' this is not the same as 'group.light.house' right?

[inner mesa]

group.light.house isn't a valid entity_id

But no, legacy groups (group.xxx) aren't the same as entity-based groups

Other than they're all called groups

[floral blaze]

Forgive me for being a noob, so they're all called 'groups' but a group of light will still show up as light.groupname

[inner mesa]

That is a light group and contain only lights and shows up as light.xxx

A group.xxx can contain anything and is called group.xxx

https://www.home-assistant.io/integrations/group/

[floral blaze]

It's about this little pack of code... if im not making any sense

https://pastebin.com/21E37GP4

[mighty ledge]

there's not much in that code that shows your intentions with the light group, other than there's an old school group being used in it.

if your intention is to create a light group that's all of your lights, just change the entity_id in that from group.all_lights to whatever your light group is.

[floral blaze]

Ya, i have tried that, without any luck however...but thanks for confirming that solution im happy to be on the right path

[mighty ledge]

i'm not sure how a find and replace isn't working for you

[floral blaze]

ok, let me try that again then

😦

[mighty ledge]

post what you tried

[floral blaze]

Sec, ill get the link so you have a visual aswell..

so its this code: https://community.home-assistant.io/t/mushroom-cards-build-a-beautiful-dashboard-easily/388590/5993?u=airyphyla with Top Sticky Card - Part 1:

and this is what i have done... https://pastebin.com/i0cPhpZm replacing 'group.all_lights' with 'light.house_2'

[mighty ledge]

alright, so what's the problem?

[floral blaze]

So what you're seeing there is you can click on that lil bell icon, and then a row unfolds with current lights on, doors open, alarm etc etc

That right there is what im not seeing/getting

[mighty ledge]

that code probably doesn 't work with new school groups

[floral blaze]

that would be really unfortunate

what if i try to make a group.all_lights?

[mighty ledge]

why is that unfortunate?

just make the old school group

it's just yaml

[inner mesa]

#templates-archived message

I didn't see anything that wouldn't work with the new style, though

[mighty ledge]

there's a group key being used for the auto-entities card

My assumption is that want's a group entity

[inner mesa]

Could be

Could just use a template?

[mighty ledge]

yeah for sure

but that requires rewriting, which I don't think they know how to do

[inner mesa]

That's the fun part 🤷

[floral blaze]

they dont know indeed

the group workaround isnt working either, ill figure something out guys, thanks for taking the time to help me further along

[fringe remnant]

Hi there! I'm making a mailbox sensor and I want to toggle the state of the sensor between on and off based on signals from two separate door/window sensors. With my current template, I am able to set the state as 'on' but it never turns 'off' when the second sensor is triggered. Here is what I have: https://pastebin.com/EAMxRZfY

[marble jackal]

Use state: "{{ to_state }}" for the binary sensor

[fringe remnant]

Thanks, I'll give it a shot!

[fringe remnant]

It worked, thanks :)

[crimson wadi]

So I think this is the correct place to ask. I want to use the Thermostat Climate Controller in ESPHome however I want to be able to use multiple sensors around the house 1) at specific times of day and 2) manually changed if needed. I'm assuming I need some kind of template that "holds" the temperature sensor that I want to use and then a template that holds the actual temperature of whatever one is selected. Then in the ESPHome config I can use that as the "sensor". Does this make sense? I'm really not sure how to get started here so if anyone has any advice that would be amazing!

[proud cradle]

Does anyone know how I can get the hourly forecast from a weather sensor (met.no) into a new template sensor?
It was available before but was removed in an HA update not too long ago.

From what I can find I'm supposed to use get_forecasts but I just can't figure it out, not even the example I find seam to work.

[marble jackal]

The met.no entity still has the full forecast attribute

[spark vortex]

how can I create a group of lights, but excluding a couple of them, so I can use this group in automation to turn on and off

[obtuse zephyr]

You're wanting to use a group of lights that currently has more lights than you want to act on? You can use expand to get all of the entities and the reject the ones you don't want: https://www.home-assistant.io/docs/configuration/templating/#working-with-groups

[crude tartan]

This is meant to show time 1 hour before light_start time. but it just shows 'unavaiaible' ```sensor:

• name: "hourBeforeLights"
  state: "{{ states('input_datetime.light_start')|as_datetime - timedelta(hours = 1) }}"

[inner mesa]

What does it show in -> Templates?

You're also not following the proper format: https://www.home-assistant.io/integrations/template/

[crude tartan]

TypeError: unsupported operand type(s) for -: 'NoneType' and 'datetime.timedelta'

[inner mesa]

What is the state of that entity?

[crude tartan]

of 'input_datetime.light_start'? '18:00:00'

[inner mesa]

Then use today_at(states('input_datetime.light_start')) instead

[crude tartan]

developer tool indicates ValueError: could not convert str to datetime: 'input_datetime.light_start'

[inner mesa]

Oh, sorry

Fixed above

[crude tartan]

thank you so i ended up with {{ today_at(states('input_datetime.ight_start')) - timedelta(hours = 1) }} should anyone else need this

[slate crystal]

Trying to template getting battery level from aqara temp sensors
{{ states.sensor.garage_back_door_battery }}
but getting a string
<template TemplateState(<state sensor.garage_back_door_battery=70; state_class=measurement, unit_of_measurement=%, device_class=battery, friendly_name=garage_back_door Batteri @ 2023-12-20T16:05:23.711855+01:00>)>
How can i select the state?

[obtuse zephyr]

{{ states('sensor.garage_back_door_battery') }}

[slate crystal]

Thanks! Not really keen with jinja syntax

[obtuse zephyr]

Take a look at https://www.home-assistant.io/docs/configuration/templating/

[static oracle]

using get_events

[wanton girder]

How do I test if two values are equal...

[marble jackal]

{{ value1 == value2 }}

[earnest turret]

When i test templates with trigger.idx in it i get an error that trigger is undefined. What to do to prevent that?

[marble jackal]

You're probably triggering it manually now by pressing the RUN button

There is no trigger then.

There will always be a trigger.idx when it's actually triggered by a trigger

[earnest turret]

no i test my coding in the developer tools, template

[inner mesa]

Then you would need to manually set it

{% set trigger = {'idx': 5} %} for instance

[summer slate]

i'm trying to see what the templow will be for tomorrow's forecast but it keeps showing None.

my message:
message: >- It might be cool tomorrow, switch to Heat based on {{ state_attr('weather.home','forecast[1].templow') }}

any suggestions?

[inner mesa]

That's not how you do that

message: >-
        It might be cool tomorrow, switch to Heat based on {{ state_attr('weather.home','forecast')[1].templow }} ```

You put an expression where the name of an attribute should go

And made it a string

[summer slate]

ah ok that worked, thank you!

[karmic oar]

Can I use a for loop to build sensors? I need to do this 32 times:

  - name: "LDPP_P1C1"
    value_template: "{{ value_json.packs[0]['c1'] }}"
    unit_of_measurement: 'V'```

[karmic oar]

There's got to be a more graceful way to handful a rest sensor that hits a server and doesn't get a response

Last logged: 8:59:04 PM

Template variable error: 'value_json' is undefined when rendering '{{ value_json.packs[15]['c6'] }}'```
This can't be it

[karmic oar]

Simliarly, this has no effect:

      {% if value_json.packs[0]['c1'] in ['unavailable', 'unknown', 'none'] %}
        {{ states('sensor.ldpp_p1c1') }}
      {% else %}
        {{ value_json.packs[0]['c1'] | replace('*','') }}
      {% endif %}```

[inner mesa]

It's value_json that's undefined. You can't keep dereferencing it

Something like {{ 0 if value_json is not defined else xxx }}

[crimson wadi]

I'm wondering if anyone has any idea how to calculate the percent based position of the sun in the sky. For example, before sunrise and after sunset it would be 0%. Solar noon would be 100% and then vary based on the actual height. I feel like it's kinda a half sine wave but I'm sure it's not exactly that.

[inner mesa]

That seems straightforward using sun elevation

[plain magnet]

Why use the sun elevation trigger or condition rather than a time offset from sunset or sunrise? Because the elevation more consistently relates to the light level than a fixed time offset. An hour before sunset is very different light levels on the longest day than the shortest day, for example.

[crimson wadi]

Hmm that might work, this is my template using that value and a couple of helpers to bound the actual value I want {{ (states('input_number.lights_max_brightness')|int - states('input_number.lights_min_brightness')|int) * (max(0, min(100, states('sensor.sun_solar_elevation')|float)) / 100) + states('input_number.lights_min_brightness')|int }}

I'll let it run so I can get some logged data heh

[karmic oar]

This does not have the desired effect, unfortunately.

Disregard, it is working... but every time I make a change to my yaml instead of changing the original sensor it is making _2 and _3 versions of it. That's irritating, but at least your suggestion worked.

[marble jackal]

Add a unique_id to prevent that

[karmic oar]

I guess I thought giving the device a name did that. I'll check the doc and add it in to each of the 350 entities. There has to be a better way to create all these, though.

[inner mesa]

An external script and MQTT discovery

But not within HA

[karmic oar]

Unique_ids do not seemingly work for rest sensors

[inner mesa]

https://www.home-assistant.io/integrations/sensor.rest/#unique_id 🤷

[karmic oar]

That's sensor, not rest

resource: http://192.168.67.218:5000/batterystats
scan_interval: 60
sensor:
#PACK 1
  - name: "LDPP_P1C1"
    unique_id: "ldpp_p1c1"
    unit_of_measurement: 'V'
    value_template: "{{ value_json.packs[0]['c1'] | replace('*','') if value_json is defined else this.state }}"```

[inner mesa]

It's a link to the rest sensor docs

[karmic oar]

No, it's a link to the sensor.rest docs

https://www.home-assistant.io/integrations/rest

[karmic oar]

And yet, after I did set up the code you see up there, HA created the _4 version of all 128 of my sensors

[inner mesa]

Ok

[reef pulsar]

Hey, I removed my template covers but they're still displayed as unavailable. I can't seem to delete them.

[plain magnet]

@reef pulsar Please do not cross post. Read the channel description, post it and wait for folks to respond. Crossposting wastes people's time as they're unaware of the help you're getting elsewhere.

If you don't get any responses after an hour or more, and your message is no longer on screen, it is fine to re-post or post a link to it.

[earnest turret]

i have a simple mqtt-sensor. The sensor sends only and cannot receive. After each restart the sensor says unknown. After a restart i want to see the last value before the restart. How can i do that?

[marsh cairn]

You have to set the retain flag on your sensor's MQTT messages

[earnest turret]

i send mqtt from agentdvr and there is no retain flag.

[lucid horizon]

Hi have be trying to monitor 2nd raspberrypi

#access rpi-64 temp

• sensor:
  name: rpi-64 CPU Temp
  command: ssh [e-mail] cat /sys/class/thermal/thermal_zone0/temp
  unit_of_measurement: "°C"
  value_template: "{{ value | multiply(0.001) | round(2) }}"

But getting unknown returned

Any ideas

Just add if I use ha’s terminal - it can ssh to the 2nd pi and get a reading of its temp

[fossil venture]

See: https://community.home-assistant.io/t/sshing-from-a-command-line-sensor-or-shell-command/258731

[lucid horizon]

Thanks I’ll have a read

[silver tartan]

Hi, newbie-ish template light question:
I want to define a template light that has effects (it consists of three phyiscal lights, and I want to blink them in a certain pattern).

What I do not get: How do I remember the current state the light is in? E.g. if I have states foo, bar, colorloop, and I set the state to "foo", how can I remember/get that value so I can return it in effect_template, if it cannot be reconstructed on the fly, but has to be remembered?

Do I have to use "this" for this?

[inner mesa]

Seems like this.state is what you want

[silver tartan]

thanks

[gritty kelp]

Is there any way to change colour of icons depending on states without HACS?
In this case i'm monitoring a garage port with two door sensors.
It can be closed, open or (not open and not closed) which is partially open or "intermediate position" (not sure what the proper english word for it is).
This means it has three possible states.
(Actually it has four possible states, open and closed at the same time sets state to "Position fault".)
To achieve this i made a template sensor with device_class: enum and a template that sets one of these four states considering what the actual position is of the port.
Now other entities, or rather door sensors on the same card glow yellow when open, and white/blue when closed.
But since this is my template sensor it has no colour, just the appropriate icons.

[quasi storm]

How can I use a text input helper as a data template in this action as part of this automation? I have tried multiple iterations of this and I keep getting [object object] or some variation of it. This is using Browser Mod

service: browser_mod.navigate
data:
  path: value_template: {{ states('input_text.tablet_home_url') }}
target:
  entity_id: binary_sensor.entry_tablet_browser_fullykiosk

[inner mesa]

You need to surround your template in quotes. And I don't know what 'value_template:' is doing there

[quasi storm]

you are a god.

[stuck dock]

how can I convert Wh to kWh using helpers?

[lofty mason]

I believe you might be able to just make that conversion by changing the unit in entity settings.

[stuck dock]

no I think device class is not set in tuya-local

https://i.ibb.co/TgkZfGP/image.png

[lofty mason]

Then just make a template helper and divide by 1000.

[stuck dock]

https://github.com/make-all/tuya-local/issues/1456 opened a issue and it got shot down quickly

should I use that sensor for energy measurement or use the riemann sum intergal from power?

template:
  - sensor:
      - name: "TV plug energy"
        unit_of_measurement: "kWh"
        state: "{{ states('sensor.energy_monitoring_smartplug_energy')|float * 1000 }}"
        availability: "{{ is_number(states('sensor.energy_monitoring_smartplug_energy')) }}"0
``` ?

Energy monitoring smartplug Energy
1    calibration: 2610
unit_of_measurement: Wh
friendly_name: Energy monitoring smartplug Energy

[crimson wadi]

I'm trying to calculate Sun Position in sky as a percent. I have Sun and Sun2 integration enabled so I'm trying to create a helper to calculate the position but it remains 'unavailable'. This is the template {{ (sensor.sun_solar_elevation|float) / (sensor.home_sun_maximum_elevation|float) * 100 }}

I'm sure it's something to do with the way math works but I thought this is correct looking at examples

Hmm I do see this message now This template does not listen for any events and will not update automatically.

Ok looks like I have to wrap it in states ... {{ (states('sensor.sun_solar_elevation')|float) / (states('sensor.home_sun_maximum_elevation')|float) * 100 }}

[spark vortex]

I have a binary sensor like this:

- platform: template sensors: forno_state: friendly_name: "Forno state" value_template: "{{ states('sensor.forno_power')|float > 45.0 }}"

how can I turn it off only if it is < 45.0 for more than 1 minute?

delay_off: 00:01:00 , is something that can work?

[neon lodge]

Is it possible to make one sensor that takes the consumption of a vehicle charger and calculate the cost out of the grid price I have with Tibber ? My goal is to get a "Last charging session cost"

[fossil totem]

The Energy panel should do all that automatically if you have something hooked into HA that can pull realtime power draw from your charger

[neon lodge]

Yeah but I want to pull the data into my front end dash, not sure if it's possible. I'm making a Vehicle Charger card where I want to state how much the last charging session cost

[plain magnet]

@neon lodge I converted your message into a file since it's above 15 lines :+1:

[neon lodge]

but not sure if that will calculate correctly? i have a feeling it will take the current price now, and make the calculation, and not the price when the charging was done

[dry narwhal]

Could someone help me with the correct syntax to check for the string "script" in the entity_id of config.entity?

{% if "script" in states(config.entity) -%}

Obviously it is not states() but it also is not name() or entity_id()

[inner mesa]

Those aren't functions. In any case, this sounds like some card

[dry narwhal]

Oh no, I think I just need to use config.entity without anything else.

[dry narwhal]

It is used in a theme using card_mod and auto-entities. But I thought that the states() part is coming from templating, so the correct expression would probably also be coming from there.
But I think I essentially was trying to derive entity_id(entity_id) from states(entity_id, which was stupid -.-

[spark vortex]

if I have a binary_sensor updated (to ON or to OFF) by 2 different sensors, can I make the state persistent after the HA restart? this is an example of what I have:

- trigger: - platform: state entity_id: binary_sensor.alarm_sensorde0027 to: "on" id: "on" - platform: state entity_id: binary_sensor.alarm_sensordu0027 to: "on" id: "off" binary_sensor: - name: sensore_porta_scale state: "{{ trigger.id }}" device_class: door attributes: friendly_name: Sensore Porta Scale

[cursive fiber]

Hi, I have a sensor of device_class enum (Homewhiz integration). When I read the state (e.g. "{{states('sensor.washing_machine_sub_state')}}") it returns the key of the enum, but not the value that I can see from the sensor history. E.g. in my case, it returns "washer_substate_remove_laundry" while in sensor history the corresponding string is: "Washing cycle complete; remove laundry". Is there a function to invoke on the state object to get what I am after? I imagine that the map should be stored somewhere, otherwise, how would the UI translate the state string into the other value? Thanks!

[lofty mason]

As far as I know translations are not exposed to the template engine, so I'm not aware it's possible.

https://github.com/home-assistant-HomeWhiz/home-assistant-HomeWhiz/blob/main/custom_components/homewhiz/translations/en.json#L456

[lucid thicket]

Any trigger-based template sensor should have a state that is persistent through restarts. If you are experiencing different behavior, perhaps the sensors you define as triggers are changing to unavailable during a restart, and then both revert back to their correct states after startup. It would be a race condition as to which sensor would update last.

[summer arch]

Hi Trying to get a presence detector with wifi SSID detection. The companion app reports my phone wifi ssid and then I want a binary "is home" with a off delay (for patchy wifi connection). This set up only ever shows off, what have I done wrong?

template:

• binary_sensor:
  • unique_id: grant_phone_wifi_status
    state: "{{ is_state('sensor.grants_phone_wifi_connection', 'TP-Link_5DF8') }}"
    delay_off:
    seconds: 10
    attributes:
    friendly_name: "Grants Wifi State"

My wifi connection shows the value I am searching for but as you can see the template is off
https://imgur.com/a/BMq0F8P

Based on
https://community.home-assistant.io/t/ha-android-app-wifi-connection-sensor-for-presence-detection/579685

[mystic juniper]

That looks interesting!

[marble jackal]

The state of a binary sensor in Home Assistant is always on or off

It will show something else on your Dashboard if you add a device class

[summer arch]

Sorry maybe I wasn't clear. It only ever shows off even if I turn wifi off on my phone

Modified op

[marble jackal]

What does the template return in developer tools > templates

BTW why do you assign a friendly name attribute, instead of just using the name key

[visual dawn]

how create a request in Jinja2 to retrieve all items from the todo list with the entity ID todo.spisok_pokupok ?

[spark vortex]

yes, it could be the case, so how can I fix this?

[cursive fiber]

oh - that's unfortunate. Thanks for the help!

[summer arch]

Just because the forum I followed did.

[summer arch]

When I went for dinner it read false. When I came home it read true. But the entity still reads "away" (presence device class)

Result type: string
template:

• binary_sensor:
  • unique_id: grant_phone_wifi_status
    state: "True"
    delay_off:
    seconds: 10

[marble jackal]

Okay, the template returns true, so the binary sensor should be on

[summer arch]

The entity still reads "away"

binary_sensor.grants_wifi_presence
Grants Wifi Presence
off

I can't post screen caps in this channel so here's a copy of the state in developer tools

[marble jackal]

I believe you, but I don't see why it does that

BTW, please format your code properly

[plain magnet]

To format your text as code, enter three backticks on the first line, press Enter for a new line, paste your code, press Enter again for another new line, and lastly three more backticks.
```yaml
example: here
```
Don't forget you can edit your post rather than repeatedly posting the same thing.

[summer arch]

No worries, will do in future.

Where can I start debugging this error?

Is there a way to clear the device class from my template?

Maybe it's an issue there?

[marble jackal]

You didn't assign a device class in your code

So if it has one, you are looking at the wrong entity

[summer arch]

I did in the UI when I made the helper

Under the "show as" drop down I assign oresence

I deleted it and remade it with no device class and I still have the issue so it isn't device class.

Am I doing it wrong by using the helper UI?

[summer arch]

Is it that the binary sensor can't handle true and false from the Boolean call? Is_state will return Boolean and give me true or false in the template editor. But binary sensors are on and off? Do I need to have the template come out with on and off or can it handle booleans?

Do I need to do something more like
https://community.home-assistant.io/t/using-the-my-wifi-ssid-for-presence-detection/420978/27?u=papag

[jolly crest]

I have my google calendar in HA and want to make a template that shows how many hours I have worked in a month. By using the calendar.get_events service with an automation, is it possible to do this? I dont need a template sensor. Just a output that i can send to my phone.

[summer arch]

I tried this. It didn't solve it

template:
  - binary_sensor:
      - unique_id: grant_phone_wifi_presence
        state: >
          {% if is_state('sensor.grants_phone_wifi_connection', 'TP-Link_5DF8') %}
            on
          {% elif not is_state('sensor.grants_phone_wifi_connection', 'TP-Link_5DF8') and (as_timestamp(now()) - as_timestamp(states.sensor.grants_phone_wifi_connection.last_changed)) < 10 %}
            on
          {% else %}
           off
          {% endif %}

[plain magnet]

@summer arch I converted your message into a file since it's above 15 lines :+1:

[marble jackal]

Oh, did you use this entire piece of text for a template binary sensor created in the GUI?

This is the complete YAML config for a template binary sensor

{{ is_state('sensor.grants_phone_wifi_connection', 'TP-Link_5DF8') }}

That's the only part you need to put in that template field

[lucid thicket]

In each trigger you could add

not_from:
  - unavailable
  - unknown

You could also (or instead) try to figure out why the binary sensors are changing state during restart and fix it. Or create a trigger-based template sensor for each one which holds the state.

The problem with any solution is that since your logic relies on the order of triggers, whenever HA starts up it’s not going to know what happened when it was shut down. Whatever assumptions you tell it to make could be incorrect. Ideally your logic should be based on the current state of entities and not their past history and the order in which they occurred.

[summer arch]

Yeaaaaah I've discovered that. It's working now.

There's no way to do the delay_off variable in the GUI?

Ive put it into the configuration yaml anyway because I want the delay off incase of unstable wifi

[marble jackal]

Yes, for that you need to use YAML

[summer arch]

Cool, now that it's in the yaml it worked. Thank you for your help

[summer arch]

I have more for #templates-archived

I have IAQ sensor that gives me a value 1-5 and I want to colour a dashboard icon based on the value. I asked in #frontend-archived and they told me to come here

#frontend-archived message

[chilly hemlock]

Hey all, any ideas for a template the counts the number of entities that haven't changed in X time.

Getting nowhere with chatgpt

[void flax]

how can i condition a variable to equals a value

[lucid thicket]

Try

{{ states | selectattr('last_changed', 'defined') | selectattr('last_changed', '<', now() - timedelta(days=1)) | map(attribute='entity_id') | list | count }}

Since you are iterating over the entire states table, that template will only be rate-limited to only update once per minute

[lucid thicket]

{{ variable == 'some string' }} or {{ variable == 150 }}

[spark vortex]

yes, this is absolutely right, but the sensors do not provide the current state, but just the state when it changes, so I can live keeping the old state for now

[chilly hemlock]

Amazing, thank you

[next pasture]

hello, I'm trying to get some info from old iLO v2. I would like to use command_line sensor for this. I already changed output with sed and awk to get it in json format but HA have still some issue with parsing json. Do you have idea why or how to test it?

Unable to parse output as JSON: {"severity":"NonCritical","date":"03/13/2023","time":"19:42","description":"POST Error: 1704-Slot X Drive Array - Array Accele rator Super-Cap is charging. The Array Accelerator Cache will be enabled once Super-Cap has been cha rged. No action is requir"}

[lucid thicket]

Is the output a string or json? You can play around with the data in the template editor to figure out how to parse it, once you determine what format the incoming data is in

Try this in the template editor:

{% set var = {"severity":"NonCritical","date":"03/13/2023","time":"19:42","description":"POST Error: 1704-Slot X Drive Array - Array Accele rator Super-Cap is charging. The Array Accelerator Cache will be enabled once Super-Cap has been cha rged. No action is requir"} %}
{% set var2 = '{"severity":"NonCritical","date":"03/13/2023","time":"19:42","description":"POST Error: 1704-Slot X Drive Array - Array Accele rator Super-Cap is charging. The Array Accelerator Cache will be enabled once Super-Cap has been cha rged. No action is requir"}' %}

{{ var.severity }}
{{ (var2 | from_json ).severity}}

[pearl grail]

Hello. I have a socket that monitors the power consumption of a desumidifier (which I also have it separately in home assistant).
I've measured that instantaneous power is 228.1W, but I need that smart plug somewhere else.
I tried to make a sensor thst would multiply the total time the desumidifier was on today with 228.1W to give me total power consumed.
I've tried this in configuration yaml

• sensor:
  - name: "Cunsumdez"
  unit_of_measurement: "kWh"
  state: =
  {% set 'sensor.dezumidificator_pornit') | float * 0.2281 | float %}

That should report back 10.63h * 0.2281kW = 2.42 kWh

[next pasture]

it's probably string but it's command output so isn't everytime string? how can I pass json to command line sensor? 🤔

I hoped I can use json_attributes but now I don't know

[lucid thicket]

Not sure. You might find better help for the command line sensor in #integrations-archived

[lucid thicket]

Try your template in the template editor first before you put it into a YAML config. If you want a template to output a value it should be wrapped in {{ }}

[inner mesa]

That's really broken template syntax

[lucid thicket]

And you’re missing states( ) around the entity id

And don’t use ‘set’

Etc….

[next pasture]

there's only one sample https://www.home-assistant.io/integrations/command_line/#usage-of-json-attributes-in-command-output

[lucid thicket]

I meant in the integrations channel, where that link leads. I don’t think you have a template problem, you have a command line integration problem.

[next pasture]

ah okay.. thanks 🙂

[pearl grail]

solved....
created a template helper:
{% set TARGET = states('sensor.dezumidificator_pornit_current_week')|float %}
{% set SOURCE = 0.2281|float %}
{{ (TARGET * SOURCE) | round(3) }}

[marble jackal]

you don't need to use | float on 0.2281

That's already a floating point number

[inner mesa]

But... now it's floatier

[marble jackal]

https://tenor.com/view/you-can-float-float-lifeguard-pool-swimming-gif-14895642438894153706

[pearl grail]

It was copy paste from another template I'm using. Better float an already float number than not use it at all.
Now it's double float!

[neon lodge]

Is it possible to create a template sensor that gives me the session price of a vehicle charger? I tried to make it out of a price sensor i have, but that takes the current price and adds the kWh from last session.

[willow wing]

hey guys, should this in the sensor.yaml or in the template.yaml?

  sensors:
    lets_encrypt_ssl_expiration_datum:
      friendly_name: Let's Encrypt SSL Certificate Expiration Datum
      value_template: >-
        {{ as_timestamp(states('sensor.xxxxxx_net_8123_ablauf_des_zertifikats'), default=0) | timestamp_custom('%d.%m.%Y') }}```

[marble jackal]

That's the legacy format, and should be placed in sensor.yaml

[willow wing]

what is best prectise?
@marble jackal when i split it it should be in the tempalte right, because it is a tempalte? than i need to edit it a little bit

like this

  - name: feiertag_beginn
    unique_id: "feiertag_beginn"
    state: >
      {{ as_timestamp(state_attr('sensor.ics_2', 'start'), default=0) | timestamp_custom('%d.%m.%Y') }}```

[marble jackal]

That's the modern format. The template integration expects a list though

[willow wing]

What exactly do you mean by the list? can you give me an example

[marble jackal]

A list item starts with a hyphen (-)

So it's

template:
  - sensor:
      - name: A sensor

You are missing the hyphen before sensor

[willow wing]

when im on the tempalte.yaml
it it enough to set "sensor:" right?

[marble jackal]

Not if you also want to add other types like binary_sensor or trigger based template sensors

[willow wing]

binary is in a seperate *.yaml

i think it is possible when i write under sensor: als sensors and under binary all binary, i think this was working last time

[marble jackal]

This will work

template:
  sensor:
    - name

[willow wing]

Invalid config for 'template' at templates.yaml, line 28: 'template' is an invalid option for 'template', check: template

template:
  - sensor:
      - name: date_time
        state: "{{ as_timestamp(states('sensor.date_time_iso'), default=0) | timestamp_custom('%d.%m.%Y - %H:%M Uhr') }}"

ah okay

[marble jackal]

But it will stop working as soon as you add another type, like:

template:
  sensor:
    - name:
  binary_sensor:
    - name:

[marble jackal]

Don't repeat template

My examples are not taking the include into account

[willow wing]

ah okay, thank you

[jolly crest]

I have my google calendar in HA and want to make a template that shows how many hours I have worked in a month. By using the calendar.get_events service with an automation, is it possible to do this? I dont need a template sensor. Just a output that i can send to my phone.

[marble jackal]

You either need a template sensor, automation or script, as you need to run the service call and use the data it returns

[jolly crest]

Thats what I have done. The problem is to template it.

This is the output:

calendar.work: events: - start: "2023-12-27T08:00:00+01:00" end: "2023-12-27T16:00:00+01:00" summary: Jobb - start: "2023-12-28T08:00:00+01:00" end: "2023-12-28T16:00:00+01:00" summary: Jobb

[mighty ledge]

iterate the list, subtracting start from end, then sum the list.

use namespace to hold each difference

[jolly crest]

Ah, ill look up namespace. Thanks!

[next pasture]

it works! it looked like one line but it wasn't so I just made little modification in command and now it can read json like I expected

[balmy wedge]

Hello! Can I express the first Friday and third Wednesday of the month as a template?

[mighty ledge]

You can use easy time macro

https://community.home-assistant.io/t/easy-time-macros-for-templates/557374

[hybrid halo]

Hello. Can any of you help me? Via Zigbee2MQTT I have dimmer switches that appear as lights to me! I would like them to appear as switches. Is there a way to solve this via a template? Thank you.

[marble jackal]

Switch can only be on or off

If you want the option to dim, you can't make it a switch

[plain magnet]

@strange geode I converted your message into a file since it's above 15 lines :+1:

[hybrid halo]

Thanks for the reply. I understand that the dimmer switch needs to remain light due to the dimming option. I would like to know if it is possible to make a new entity using the template, which would be a light-based switch and would only be used for ON/OFF?

[marble jackal]

you can make a template switch out of it

[hybrid halo]

Would you be so kind as to help me how to do this. I have an entity: light.zs_ho_l1 that I would like to use for a new entity: switch.zs_ho_l1. Thank you.

[marble jackal]

There is an example for exactly your use case in the documentation https://www.home-assistant.io/integrations/switch.template/

well not exactly, but the idea is the same

you need to use service calls for light, and turn the light on or off

[hybrid halo]

I watched and didn't quite understand. Is this suitable for what I need?

  switch:
   - platform: template
     switches:
       copy:
         value_template: "{{ is_state('light.zs_ho_l1', 'on') }}"
         turn_on:
           service: switch.turn_on
           target:
             entity_id: switch.zs_ho_l1
         turn_off:
           service: switch.turn_off
           target:
             entity_id: switch.zs_ho_l1```

[marble jackal]

you need to turn the light on

not the switch

the input for turn_on and turn_off is a sequence, just like for automations or scripts

in your use case, you need to turn your light on or off

[hybrid halo]

Is that okay?```yaml
switch:

• platform: template
  switches:
  copy:
  value_template: "{{ is_state('switch.zs_ho_l1', 'on') }}"
  turn_on:
  service: switch.turn_on
  target:
  entity_id: light.zs_ho_l1
  turn_off:
  service: switch.turn_off
  target:
  entity_id: light.zs_ho_l1```

[marble jackal]

you can't toggle a light entity with a service call for switches

use the right service call 🙂

[hybrid halo]

I tried. Obviously, the switch I created only shows what is happening with the ety: light, but I can't use it to turn on or off the ety: light with this switch.

[marble jackal]

what do you have now?

[hybrid halo]

New switch.

[hybrid halo]

Is there any way to allow me to do this?

[marble jackal]

the yaml code I meant

What is your current yaml code? (for the template switch)

[hybrid halo]

In switch.yaml ```yaml

• platform: template
  switches:
  copy:
  value_template: "{{ is_state('switch.zs_ho_l1', 'on') }}"
  turn_on:
  service: switch.turn_on
  target:
  entity_id: light.zs_ho_l1
  turn_off:
  service: switch.turn_off
  target:
  entity_id: light.zs_ho_l1 ```

[marble jackal]

again, you are trying to toggle a light (light.zs_ho_l1) with a service call for swithces (switch.turn_on)

use the right service call to turn a light on or off (so light.turn_on and light.turn_off)

the input for turn_on: and turn_off: is an action sequence, you can put any actions there

[hybrid halo]

I wanted to have some kind of virtual device with the prefix switch.xxx that would control light.xxx and get data from it about the on/off status.

[marble jackal]

yes

I understand that

so when the virtual swith turns on, you want the light to turn on as well

for that you need to use the service call light.turn_on and you are currently using switch.turn_on which doesn't work on a light

  - platform: template
    switches:
      copy:
          value_template: "{{ is_state('switch.zs_ho_l1', 'on') }}"
          turn_on:
            service: switch.turn_on # CHANGE THIS
            target:
              entity_id: light.zs_ho_l1
          turn_off:
            service: switch.turn_off # AND THIS
            target:
              entity_id: light.zs_ho_l1

[hybrid halo]

Um! Does not work.

[marble jackal]

what do you have now?

I mean as code for the template switch 🙂

[hybrid halo]

 - platform: template
    switches:
      zs_ho_l1:
        value_template: "{{ is_state('switch.zs_ho_l1', 'on') }}"
        turn_on:
          service: switch.turn_on
          target:
            entity_id: light.zs_ho_l1
        turn_off:
          service: switch.turn_off
          target:
            entity_id: light.zs_ho_l1
        unique_id: 096c3fc0-24cf-45ac-8599-4a7f8498d187```

[hybrid halo]

Is it perhaps important entity: Zs-Ho L1 is via Zigbee2MQTT?

[marble jackal]

You still haven't changed what I indicated above

you are using:

turn_on:
  service: switch.turn_on # This is a service call for a switch
  target:
    entity_id: light.zs.ho_l1 # this is a light entity

you can't use a service call for a switch on an entity which is a light

[hybrid halo]

I'm sorry. I didn't read everything and just copied and pasted. I will fix and try.

[marble jackal]

use light.turn_on (and light.turn_off for the turn_off: section)

So I'm typing all of this for myself?

[hybrid halo]

Of course it works now. Thank you for your help and patience.👏

[velvet valley]

Can anyone tell me why my "Custom holiday" sensor is off now? According to the date it should be on I guess...

template:
  - binary_sensor:
      - name: "Custom Holiday"
        state: >-
          {% set today=now().date() %}
          # Christmas time is always holiday time
          {% if today.month == 12 and today.day > 23 %}
            on
          {% else %}
           {{ is_state("binary_sensor.non_holiday", "off") }}
          {% endif %}

[inner mesa]

It's the line starting with "#". Comments in Jinja are {# xxx #}

or just remove it

[velvet valley]

This is it, thank you so much! I love comments so much because they help me understand things when I look at stuff from a few years ago. But this time this comment really made my hair turn gray.

[strange geode]

Anyone that has an solution to what im missing here 🙂 ?

[dense swan]

In a binary_sensor template can you change the color of the Icon? I know you can use icon_template to set the icon and change it based on other parameters but didn't know if you could do it with color as well.

[honest ravine]

In an automation, I have a define variables blockvariables: target: 5and, further down, an if block with a value template. I would like to access the above variable in the value template such as {{state.state|float - target}}but this doesn't seem to work. Have I missed something simple?

[inner mesa]

How doesn't it work?

[honest ravine]

When I test, I get CONDITION DID NOT PASS in white, regardless of the input values. If I remove target and have {{state.state|float - 5}} I start getting results that make sense again.

Also the pass message is green and fail is orange, so I'm assuming the white fail message is indicating an error, but I don't know how to find the debug output or error logs.

[inner mesa]

I can't follow that

I just tried it and it works as expected

alias: New Script
sequence:
  - variables:
      foo: 1
  - if:
      - condition: template
        value_template: '{{ foo == 1 }}'
    then:
      - service: persistent_notification.create
        data:
          message: Foo

if you have an if with a template condition, that template should evaluate to a boolean, not a number

[honest ravine]

Sorry, just found the full YAMLyaml condition: numeric_state entity_id: sensor.wallbox_quasar_charging_speed above: 0.17 value_template: "{{state.state|float - target}}"

It works if I replace target with 5.

[inner mesa]

alias: New Script
sequence:
  - variables:
      foo: 1
      bar: 5
  - if:
      - condition: numeric_state
        entity_id: sensor.ar_00003777_lightning_count
        above: 2
        value_template: "{{ bar - foo }}"
    then:
      - service: persistent_notification.create
        data:
          message: Foo

works fine

I'm not sure what to say, really. You'll need to debug it

[honest ravine]

After much debugging, it seems that it's the debugging tools that aren't working, and the code is actually correct. The original error was an off by 1 error from an upstream data source.

When testing an if block, it seems that values from a define variables block do not exist, even if you click run on the define variables block first.

[inner mesa]

That could be. I suggest filing an issue

[plain magnet]

Want to see what issues are open (or were open and are now closed)?

• The core (backend) - for HA itself, and integrations
• The frontend (UI) - for cards and display issues
• The Supervisor
• HAOS
• The documentation

Don't forget to check for any alerts

If you think an upgrade broke something then:

1. Downgrade to the previous version to check if it works correctly there
2. If it does then change the logger settings for that integration to debug
3. Upgrade to the new version again
4. Look in the logs for errors
5. Open an issue, following the template provided and including the log information

[inner mesa]

It should set up the environment based on any previous in-scope variable blocks

Might go nowhere

[honest ravine]

I hope this saves someone else from running into the same problem as me.
https://github.com/home-assistant/core/issues/106700

[urban moat]

Is there a way to call a service from within a template? I want to call todo.get_items to determine if a todo item is already created before trying to create one.

[inner mesa]

Nope

You can call it in a separate step and then use the response variable

[urban moat]

Something like?

target:
  entity_id: todo.personal
data:
  status:
    - needs_action
response_variable: current_tasks```

[inner mesa]

Probably. Haven't used it

[urban moat]

I'll try and give it a shot tomorrow. Thanks!

[fair gull]

Hey does anyone have template light setup that on brightness change wall switch is being turned on ?

[mighty ledge]

that's an automation, not a template light

[fair gull]

Can You take a look at my thread ?

[thick prawn]

hey i try to automate a message telling me that one of three dors have bee open for 10 minutes. I have set a trigger ID on eatch sensor that triggers the automation. but i cant get the template for TTS to "say" the ID outloud. any ideas what im doing wrong? I thought this "{{ trigger.event.id }}" was the right template but it only reads the text not the actual trigger ID i try to referance

[mighty ledge]

"{{ trigger.id }}"

[thick prawn]

il try that thx

hmm no luck. what TTS media should i use. i use the play media one now

Error rendering data template: UndefinedError: 'trigger' is undefined

[mighty ledge]

are you testing the service? If yes, that's now how you test something with a template that uses the trigger variable

you have to run the automation normally

[thick prawn]

aaa ofc...

my bad 😛

[fair gull]

Try message: #yourmsg {{ state_attr(trigger.entity_id, 'friendly_name') }}

[mighty ledge]

he wan'ts the trigger id not the friendly name of a triggering entity that may or may not be related to the trigger id

[fair gull]

ok my bad

[mighty ledge]

trigger.entity_id only works with thriggers that have entitys as well

[burnt vine]

Hi ya all, Im currenty trying to setup my solarpower stuff. I want to set the limit of my hoymiles inverter dynamicly with the reading of my smart powermeter. I get the power in -w if power is consumed and w if the solar pannels are providing more power then I consume. I thought of this:

  {{float(states('number.balkonkraftwerk_limit_nonpersistent_absolute')) - float(states('sensor.aktiver_strom'))}}
{% else %}
  {{float(states('number.balkonkraftwerk_limit_persistent_absolute'))}}
{% endif %}```

[plain magnet]

@summer arch I converted your message into a file since it's above 15 lines :+1:

[summer arch]

What have I done wrong with this? round isn't working and the timestamp custom is wrong

{{ now() }}
{{ states.sensor.living_room_thermometer_signal_strength.last_changed }}
{{ as_timestamp(now()) - as_timestamp(states.sensor.living_room_thermometer_signal_strength.last_updated) }}
{{ (as_timestamp(now()) - as_timestamp(states.sensor.living_room_thermometer_signal_strength.last_updated)) | float / 60 | round(2) }}
{{ (as_timestamp(now()) - as_timestamp(states.sensor.living_room_thermometer_signal_strength.last_updated)) }}
{{ (as_timestamp(now()) - as_timestamp(states.sensor.living_room_thermometer_signal_strength.last_updated)) | timestamp_custom('%H:%M:%S') }}

'str' is undefined
Result type: string

2023-12-31 09:52:38.631070+10:00
2023-12-30 23:52:38.617125+00:00
0.0141448974609375
0.00023956696192423504
0.014544963836669922
10:00:00

[marsh cairn]

Round is working. The way you used it, it rounded 60 to 2 digits, which is still 60. You have to use parentheses

[summer arch]

{{ (as_timestamp(now()) - as_timestamp(states.sensor.living_room_thermometer_signal_strength.last_updated)) | (float / 60) | round(2) }}

like htat?

[marsh cairn]

No

{{ ((as_timestamp(now()) - as_timestamp(states.sensor.living_room_thermometer_signal_strength.last_updated)) | float / 60) | round(2) }}
If I'm not too tired and missed something 😆

[summer arch]

So I need to do the float division inside a parenthesis with the variable? What happens with what I sent? Cause the time calc is in parenthesis, then the next pipe is to the float division

[inner mesa]

(float/60) doesn't mean anything

[summer arch]

I thought it would run left to right, doing the timestamp math, then the float/60 and then the round? How does it decide what to execute when

[inner mesa]

Again, float/60 is nonsense

float is a filter

It modifies the value that it's applied to, and filters have the tightest binding in the order of operations

That's why xx|float / 60 works. It converts xx to a float and then divides it by 60

Same with round()

[crimson wadi]

So I'm having a really hard time trying to figure out how to use Sun above horizon in an if . Can anyone help?

Just {% if states('sun.sun') %} doesn't seem to work, nor comparing it to Above horizon

I've also tried using states_attr('sun.sun', 'above_horizon') but again I'm not sure what to compare that to

[autumn flower]

I'm sure there is a better way, but state_attr('sun.sun','elevation') > 0 will work

[crimson wadi]

True that should work

[autumn flower]

But states('sun.sun') == 'above_horizon' appears to as well

[crimson wadi]

Hmm either way, the interface reports that it doesn't trigger on the true statement variables {% if states('sun.sun') == 'above_horizon' %} {{ (max(0, states('sensor.sun_solar_elevation')|float)) / (states('sensor.home_sun_maximum_elevation')|float) * 100 }} {% else %} {{ -(min(0, states('sensor.sun_solar_elevation')|float)) / (states('sensor.home_sun_minimum_elevation')|float) * 100 }} {% endif %}

[inner mesa]

or... {{ is_state('sun.sun', 'above_horizon') }}

[crimson wadi]

Entity: sensor.home_sun_minimum_elevation
Entity: sensor.sun_solar_elevation
Entity: sun.sun```

It's missing maximum elevation

[inner mesa]

it's not missing, it only monitors things that will change the end result

[crimson wadi]

It should though, or is my logic wrong?

[inner mesa]

is the sun above or below the horizon?

[crimson wadi]

Right now? Below. But during the day, the value was 0 all day

[inner mesa]

right, then this bit isn't being evaluated at all:
{{ (max(0, states('sensor.sun_solar_elevation')|float)) / (states('sensor.home_sun_maximum_elevation')|float) * 100 }}

because it's not above the horizon

[crimson wadi]

But doesn't the template get re evaluated throughout the day and that statement would apply instead of the else

[inner mesa]

as soon as the state of sun.sun becomes above_horizon, it will start to evaluate the expression for that

you agree that there's no point in even looking at the expression for "above_horizon" right now?

the only thing that matters is the state of sun.sun and whichever branch is currently active

[crimson wadi]

Ok so I guess it's that my if was probably wrong and just always running the else

[inner mesa]

not "always"

when the state of sun.sun is not above_horizon

[crimson wadi]

Right but that's my new if, the way it's been behaving was never using the true statement during the day. So hopefully this fixes it

[autumn flower]

Out of interest, what is providing those min/max values?

[crimson wadi]

Sun2, https://github.com/pnbruckner/ha-sun2

[inner mesa]

It's a shame that I live closer to Sun1

[autumn flower]

Aha. I only ask because I was making some changes with the aim to submit a pull request for the inbuilt one.
I don't like the way it abruptly changes the time interval between updates (I have some outdoor IR floodlights which it's best to turn on at about -3° but it's very hard to target that exactly because the frequency of updates dropping significantly below 0°)

This is the original: https://i.imgur.com/DBzKv3L.png
This is my current attempt: https://i.imgur.com/AWUCAf0.png
Update frequency adjusts smoothly from minimum of 1 minute up to maximum of 12, according to elevation.

I'm trying to work out whether it's going to be important to anyone to have more frequent updates around noon because that azimuth sensor gets chunky; I did find some threads suggesting people were using it to automate closing curtains, which would suggest you do want better than the ~10 minutes / 7° that was achieving

[crimson wadi]

Ah I've noticed that issue too, didn't know what it was about though

[autumn flower]

https://github.com/home-assistant/core/blob/dev/homeassistant/components/sun/__init__.py#L71
^^ this is why

https://github.com/home-assistant/core/commit/9da74dda431f7a6549695cdc9027da69948ed0bf

Actually there are far more notes in the pull request: https://github.com/home-assistant/core/pull/23832

[solid orchid]

Is there a way to setup a template switch to only allow one switch of 3 to be on at any given time? Like A on is B and C off, B on is A and C off, etc.

Almost like a selector panel, or NOR latches

[inner mesa]

A switch only has two positions

You could write an automation for that

[solid orchid]

I mean as in switch A is on, so B and C are turned off. Switch B is on, so A and C are turned off

Etc.

[inner mesa]

Yes, those are three switches

A single two-position switch can't represent that

[solid orchid]

three seperate switches

Yes, but I was meaning in where a template switch can run multiple commands, so can a template switch change the state of another EXSISTING switch when it is turned on?

[inner mesa]

An automation is the way

[haughty breach]

https://gist.github.com/Didgeridrew/03dbb43963000ce222b9194f382e45c0

[inner mesa]

Yes, that kind of automation 🙂

[solid orchid]

Hmm. Interesting.

One odd bit, when the other switches states are changed to off, their "Off" command CANNOT run.

[inner mesa]

If you want to create 3 more template switches, then yes, you could have each turn off the other two while turning on the new one

[solid orchid]

Only when ALL switches are off can any Off command run.

Webhooks,

Let me start over

I complicated things

Hi, I have a Sofabaton X1 remote, it has a webhook API call for each "Activity". (Ex: Computer, Wii, TV) but it also has an "Off" call for each, but if that is called at all, it turns EVERYTHING off, and I dont want that. I want some way to have my Google Home "Turn On Computer" or "Turn On Wii" and trigger the Webhook API command for the X1. Also if I say "Turn Off <Activity>" then I want it all to turn off.

The tricky bit is keeping track of states without accedentally triggering the off command.

Like if the current activity is TV, I want Game and Computer to appear as "OFF" and only TV to be on.

and if I switch activity, I dont want to turn the whole system off and back on, I just want it to switch.

But if I call off, then turn it all off.

Is there an object that can be passed through to google that is like a "Multi state device" or something?

[fading spade]

Can somebody help me with the "None" state for template cover? According to the documentation provided here https://www.home-assistant.io/integrations/cover.template/ returning None in the value_template should render the cover's state to unknown. In my installation (template cover for garage door) it does not. It either seems to preserve the latest valid state or return closed, I am not completely sure. I have tried to return null which basically works and sets the state to unknown but also throws an error message. As a workaround I am using the availability_template which sets the state to unavailable but this does not reflect the "real" state of the garage door which should be unknown in this use-case. I've tried "none" as well, by the way.

[plain magnet]

@silent flicker I converted your message into a file since it's above 15 lines :+1:

[silent flicker]

is it possible to store the value of any of these things from this zha_event? like the command value which says rotate_left?

i tried {{ state_attr('sensor.your_zha_event_entity_id', 'command') }} but it didnt work

[marble jackal]

You can let a trigger based template sensor trigger on the event, and then store the command as the state

[marble jackal]

What is your current YAML config

[marble jackal]

Based on your post in #automations-archived you seem to be using an automation which triggers on these ZHA events

You can get the command using [Automation Trigger Variables] (https://www.home-assistant.io/docs/automation/templating/)

[silent flicker]

yeah so, i have this as my Trigger, but i want to try and keep it all contained in 1 automation, so i dont have to have 2 (one for left, another for right):

device_id: dcf0275465d389d5d0448fde4ab7b17a
domain: zha
platform: device
type: device_rotated
subtype: left

so to do that, i need to read what the zha_event is to get to command its saying

because when i look under the dev tools -> entities, there is no data for that anywhere

[marble jackal]

No, it's not an entity

It's a single event which is fired

You are now using a device trigger, you need to use an event trigger

[silent flicker]

would that be the Trigger type of Manual event ?

what i wanted to do was an Automation where it starts by me turning my aqara device left or right, and then have an if statement to determine which one it was, then do XYZ.

[marble jackal]

trigger:
  - platform: event
    event_type: zha_event
    event_data:
      device_id: dcf0275465d389d5d0448fde4ab7b17a
variables:
  command: "{{ trigger.event.data.command }}"

That will trigger on any ZHA event coming from the cube and will store the command in a variable called command

[silent flicker]

would i put that into a template sensor?

okay nvm. yeah i see that is a Manual event trigger.

would there be any way i could use command: rotate_left in the Actions of an automation? i was hoping to if/else it. if command=rotate_left do XYZ

if theres no way to reference it without creating an automation for each one, then it will defeat the purpose of what im trying to do. i was hoping to be able to just reference it somehow without having to store it into a template sensor..because doing that would still require 2 automations to perform. (left / right)

[marble jackal]

What I posted above is the trigger itself, and a separate variables section in which I declare the variable command

You can use that in your actions

Using choose for example

You don't need separate automations

[silent flicker]

i dont see that variable command when i go back to visual view. is it hidden?

[marble jackal]

Probably, I don't really use the GUI for automations

But you can also spare yourself a lot of work and use this blueprint https://community.home-assistant.io/t/zha-xiaomi-cube-controller/495975?u=thefes

[silent flicker]

gotcha so that variable you created is only usable inside that automation?

how would you then use the choose action to reference it in the condition?
edit: i think i got it: {{ trigger.event.data.command == 'rotate_left' }}

[fossil venture]

I need a binary sensor to be on all day if there is a scheduled event on that day. Can anyone think of a better way than this?```
template:

• trigger:
  • platform: template
    value_template: "{{ {{ now().day == state_attr('schedule.downstairs_vacuum_schedule','next_event').day }}}}"
    id: "on"
  • platform: time
    at: "00:00:00"
    id: "off"
    binary_sensor:
  • name: "Roborock Downstairs Today"
    icon: "mdi:robot-vacuum"
    state: "{{ trigger.id|bool }}"

The event will be nowhere near midnight, avoiding any race conditions.

[marble jackal]

If you use the variable you can just use {{ command == 'rotate_left' }}

[silent flicker]

gotcha

[marble jackal]

This should work as well (without the trigger)

template:
  - binary_sensor:
      - name: "Roborock Downstairs Today"
        icon: "mdi:robot-vacuum"
        state: "{{ now().day == state_attr('schedule.downstairs_vacuum_schedule','next_event').day }}"

[fossil venture]

Yeah but it will turn off as soon as the schedule is passed. I need the binary sensor to be on all day.

Also way too many {{}} in my template!

The shedule only lasts 30 min.

[marble jackal]

Ah, right, then do what you had, or use a trigger based template sensor with the get_events service call in the action section

[marble jackal]

Missed that

[thorny cargo]

delay: "{{states('input_number.example') | int / 2 * 60}}"
yields 600.0 if i test it in developer tools, but the delay runs for much longer than 600 seconds

[fossil venture]

Hmm. no errors but the sensor remains unknown after a restart. According to the template editor the template in the trigger should update every minute. And it is currently true in the template editor. Oh I just answered my own question. Triggers when false -> true. but it has been true since restart. Doh.

[heavy crown]

Hi, is it possible to acquire the config entry id (in .storage/core.config_entries) via a template, so that I can use it in the service "homeassistant.reload_config_entry" ?

I looked here but this is not providing anything for a config_entry that I have ... so either I donot get it or it does not always work?

https://www.home-assistant.io/docs/configuration/templating/#config-entries

This is in my config_entries

[plain magnet]

@heavy crown I converted your message into a file since it's above 15 lines :+1:

[heavy crown]

there is no entity nor device, hence I cannot use above

[marble jackal]

What kind of entity is it?

[solid orchid]

Is there a type of device that can be passed through to Google Home that's like a multi-select device? Say you have options a, b, c, and off, and when you select any of those options, you can trigger certain events. Like for example, a restful webhook.

[marble jackal]

This is something for #integrations-archived

[solid orchid]

Ok

[karmic sapphire]

Is there a way to get a highest value and a lowest value for a sensor in a specific time frame?

[lofty mason]

Templates can't access history, but I think a statistics integration sensor could do that for you.

[karmic sapphire]

ok ill check that out, thanks!

oh that probably wont do because I would like to display the values on one of the dashboards

[lofty mason]

I don't follow. You use statistics integration to make a sensor.<something>_max entity. Then you can add that entity to your dashboard, or do whatever you want with it.

[karmic sapphire]

oh I was thinking about developer tools -> staticstics got it

[lofty mason]

yeah the term statistics is overloaded quite a bit with different things 😬

[plain magnet]

Statistics

Instructions on how to integrate statistical sensors into Home Assistant.

Quality scale

:house: Internal

IoT Class

Local Polling

Integration type

integration

Documentation

View the documentation

Source

View the source on GitHub

Issues

View known issues

[karmic sapphire]

would I be able to do the max in a given time frame?

well I see a max age

[lofty mason]

I think so, review the docs. There's a max_age parameter.

[karmic sapphire]

yeah

[summer arch]

I'm curious, can I make a sensor that iterates all light entities to get a count of lights on without needing to manually add them to a list?

[inner mesa]

Easy

{{ states.light|selectattr('state', 'eq', 'on')|map(attribute='entity_id')|list }}

[summer arch]

Can you give me a quick explanation?

from states.light
select state == on
to list?
