stone jay

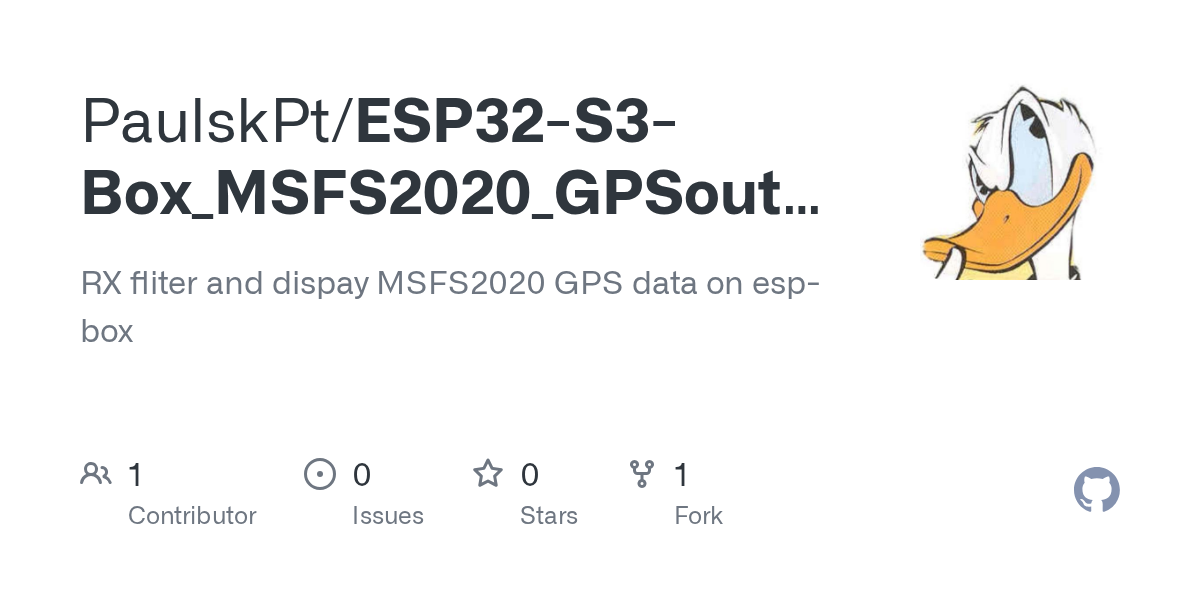

Thanks to @errant plover & @dusk tree, the latter who, on my request, added the ESP32-S3-BOX to the list of boards for tinyuf2 I was able to build the tinyuf2 bootloader for the 'esp-box'; copy CicruitPython latest; copy and ported one of my (ongoing) projects to the 'esp-box'. For those of you who are interested. Here is the link to the repo I just published: https://github.com/PaulskPt/ESP32-S3-Box_MSFS2020_GPSout_GPRMC_and_GPGGA
delicate yarrow
hi, im currently playing with tinyuf2 and got this error while trying to compile, does anyone have solution?
sinful patrol
this test looks like it is missing the trailing all
the first one isn't a valid board name
it also looks like you are windows. I'm not sure its been compiled there
delicate yarrow
it also looks like you are windows. I'm not sure its been compiled there
yes it is on windows
vagrant onyx
yes it is on windows
I use WSL2 on Windows to do my tinyuf2 builds.
delicate yarrow
I use WSL2 on Windows to do my tinyuf2 builds.
well i can conclude that the best solution for me is to do it on linux
thx guys
rocky ridgeBOT
rocky ridgeBOT
rocky ridgeBOT
rocky ridgeBOT
nocturne trench
Can we ask uf2-samdx1 questions here? It looks like there are changes both the Adafruit fork and the Microsoft source. Is there any reason to pick one over the other if the board is in both?
mint gyro
Can we ask uf2-samdx1 questions here? It looks like there are changes both the ...
I think the Adafruit one is more geared towards working with circuitpython and Arduino
Setting up the status led with the neopixel/led and whatnot
It’s been a minute since I glanced at the Microsoft version though
nocturne trench
I'm working with an Arduino MKR board so it might not matter. Thanks for the input.
mint gyro
Gotcha, yeah I imagine either would work.
rocky ridgeBOT
rocky ridgeBOT
rocky ridgeBOT
rocky ridgeBOT
fair bramble
Note for the curious: TInyUF2 does not require the back-end to be an MCU's own flash, it could be another device entirely.
This allows to use a small MCU as an UF2 bootloader for another device.
full moss
i haven't seen any convo here, just bot actions, but here is my question anyway (let me know if i should open an issue or whatever instead)
i just bought this very same board https://github.com/adafruit/tinyuf2/pull/144, is there anything missing that i could (try) implement to get it merged? 😄
sinful patrol
i haven't seen any convo here, just bot actions, but here is my question anyway ...
start by building and testing it
I don't think its been reviewed since it is marked as wip still
coral wind
Hey folks - has anyone successfully gotten both the lib\esp-idf installed and TinyUF2 building on Apple Silicon? If so, what Python version did you need to use?
I cant get the requirements.txt file installed on Python 3.9.17 (lots of getenv errors from gdbgui install, and I'm not even able to run install.sh 😦
Actually, I cant even install the requirements on an Intel Mac with Python 3.11.4
coral wind
I'm able to install and build from the 4.4 release branch, but not the 4.4-beta idf in the lib/esp-idf included with TinyUF2.
But when I build from 4.4 release, it builds ok, no errors, but I get a RED LED and no mass storage drive appears.
Happens with any of my board I build for 😦
coral wind
Ok, I brute forced the lib/esp-idf install by deleting my ~/.espressif folder - but that's not really a solution as I've lost all of my other esp-idf version stuff now as the 4.4-beta version is not compatible for 4.4-release and onwards 😦
I'd be curious to heart from anyone else that has this all working nicely on a Mac? Thanks 🙂
full moss
i haven't seen any convo here, just bot actions, but here is my question anyway ...
Weird... I flashed it a couple days ago and it worked (like, screen turned on + drive showed up), didnt load any .uf2 at it (didnt have any)
I have since flashed a QMK firmware (.bin) on the board and now i tried compiling it as .uf2 but the board does nothing when i flash tinyuf2 back at it 🤔
i guess i could have damaged something with wrong firmware while getting everything on ChibiOS correctly setup.... But, since it runs QMK fine, im guessing this is some kind of bug on the tinyuf2 code for the board, any ideas where/what to look at?
rocky ridgeBOT
violet ice

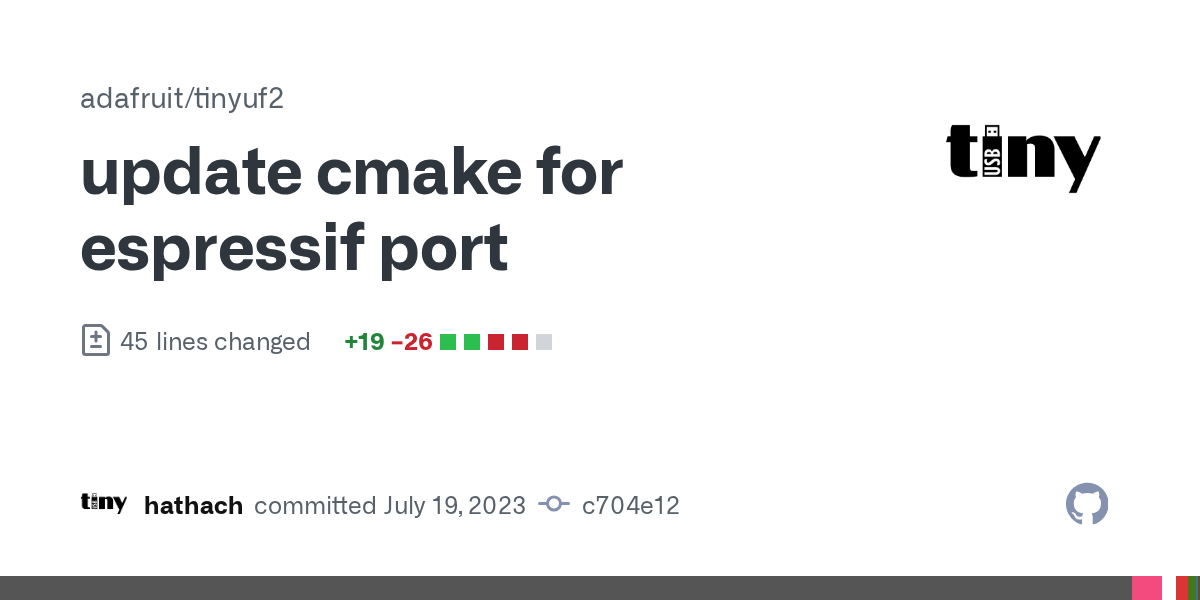

Hi I'm trying to build the tinyuf2 boatloader for a new esp32s2 based board. Installed everything and first tried to compile one of the existing boards but I always ran into the following error. Directory specified in EXTRA_COMPONENT_DIRS doesn't exist: /Users/x/Documents/Github/tinyuf2/ports/espressif/bootloader_components it seems like the CMakeList.txt file was changed in the last 2 weeks: https://github.com/adafruit/tinyuf2/commit/c704e12e1ab70c5a746a4d7f7a397604e2c8a387
Did I missed something to install?
sinful patrol
Did I missed something to install?
I'd suggest filing an issue. Thach is most active on github
rocky ridgeBOT
rocky ridgeBOT
rocky ridgeBOT
rocky ridgeBOT
rocky ridgeBOT
rocky ridgeBOT
rocky ridgeBOT
rocky ridgeBOT
rocky ridgeBOT
rocky ridgeBOT
rocky ridgeBOT
magic cairn
i have an esp32 S3 board. I've been just compiling binaries from Arduino ide but flashing them one by one seems to be quite a lot of work (compared to uf2) so i was wondering can i use tinyuf2 to share my compiled binaries in uf2 format like the pico does?
sinful patrol
i have an esp32 S3 board. I've been just compiling binaries from Arduino ide but...
Yup! the UF2 repo has a script that can covert from bin to uf2
magic cairn
Yup! the UF2 repo has a script that can covert from bin to uf2
thanks, ill try it
should i just need to convert the app bin?
right now im looking at uf2 enabled boards from adafruit, and they only produce app, partitions, and the bootloader
C:\Users\USER\AppData\Local\Arduino15\packages\esp32\tools\esptool_py\4.5.1/esptool.exe" --chip esp32s3 --port "COM22" --baud 921600 --before default_reset --after hard_reset write_flash -z --flash_mode dio --flash_freq 80m --flash_size 4MB 0x0 "C:\Users\USER\AppData\Local\Temp\arduino\sketches\1843405EA0EFF98690B8D8A679B1D802/Blink.ino.bootloader.bin" 0x8000 "C:\Users\USER\AppData\Local\Temp\arduino\sketches\1843405EA0EFF98690B8D8A679B1D802/Blink.ino.partitions.bin" 0xe000 "C:\Users\USER\AppData\Local\Arduino15\packages\esp32\hardware\esp32\2.0.14/tools/partitions/boot_app0.bin" 0x10000 "C:\Users\USER\AppData\Local\Temp\arduino\sketches\1843405EA0EFF98690B8D8A679B1D802/Blink.ino.bin" 0x2d0000 "C:\Users\USER\AppData\Local\Arduino15\packages\esp32\hardware\esp32\2.0.14/variants/adafruit_qtpy_esp32s3_n4r2/tinyuf2.bin
this is the flashing command from the arduino ide for the qtpy
sinful patrol
I bet you only need to include Blink.ino.bin
the rest should already be on the board
magic cairn
I bet you only need to include Blink.ino.bin
ah also the double reset doesnt work for some reason
im assuming i just press the boot0 2 times?
magic cairn
I bet you only need to include Blink.ino.bin
we'll see
sinful patrol
it is double reset on boards that have an extra cap to support it. otherwise reset and then boot0 when led is purple
magic cairn
it is double reset on boards that have an extra cap to support it. otherwise res...
i dont have an adafruit board by the way, only the devkit m
magic cairn
ok ill investigate this more
sinful patrol
make sure you give the converter the right magic number (can't remember what it is called)
there is a number used to say what platform a uf2 is for
and the file will be ignored if it doesn't match
magic cairn
HA!
found the solution
all of the details for using the uf2 converter are in there
havent tried yet with arduino ide, but with esp-idf v5.2.1 it works great 🙂
@sinful patrol thank you for your help again
violet ice
Are there any plans to publish a new TinyUF2 release on github in the near future? We integrated our board last year and also adopted CP but as there is no release with the board so far nice features such as installing through the CP website or downloading the UF2 Bootloader from here: https://circuitpython.org/board/sensebox_mcu_esp32s2/ is not working
sinful patrol
looks at who releases tinyuf2 usually
sinful patrol
Are there any plans to publish a new TinyUF2 release on github in the near futur...
I made 0.18.2
violet ice
fantastic! Thank you!
sinful patrol
np
rocky ridgeBOT
coral wind
Hey @lone hinge - I add board support for my new FeatherS3 Neo for tinyuf2, and I want to raise a PR, but I cant find where to add my board to the github build action - is tinyuf2 not using a build list anymore? Any idea?
lone hinge
Hey <@329766224093249548> - I add board support for my new FeatherS3 Neo for tin...
Thach reworked the CI, if I remember right. It may just build all the boards in the boards directory now.
coral wind
Oh, fantastic. I've really been absent from all of this for a while, so have no idea what's what! Thanks for the info 🙂
rocky ridgeBOT
rocky ridgeBOT
oh, that is an interesting read, the official doc only mentnion max 64KB for v20x. I will give it a try to see if that is possible :)
rocky ridgeBOT
rocky ridgeBOT
rocky ridgeBOT
it may just be that the file is link need to be renamed
https://github.com/adafruit/tinyuf2/releases/download/0.18.2/tinyuf2-lolin_s3-0.18.2.zip
rocky ridgeBOT
going further with the reaserch I found that "Lolin S3" "lolin S3 Pro" and "Lolin S3 mini" may be 3 different designs and need different tinyuf2 after all. I have checked the PID VID and found that S3 pro and mini have the same id
