[rapid hornet]

oh! you need to send an empty chunk

[brazen grove]

goodnight

[rapid hornet]

night!

http 1.0 doesn't do chunked responses

which are nice

[cinder wind]

right yes nevermind then 🙂

[rapid hornet]

could be C escaping

[cinder wind]

there's no escaping from C, Scott

[rapid hornet]

I think credentials: include will work if the html page prompts for the password

[cinder wind]

Scott had the actual working solution. I was just peanut gallery

[rapid hornet]

ah, so that should do it

the prompt is caused by the unauthorized response

I think so. was debugging while you went over it...

I did just get put working

[cinder wind]

thanks Tim!

[inner spade]

Thanks!

[rapid hornet]

nice work! thanks for testing this out

will push put shortly

[brazen quail]

Keep it real...

[rapid hornet]

my code is here: https://github.com/tannewt/circuitpython/tree/cp_webserver/

(for others)

[upper sandal]

heyyyy

[smoky island]

Starting back up, picking up where I left off last night on webworkflow. Hang out here in the chat and follow along on Twitch: https://www.twitch.tv/foamyguy_twitch or YT: https://www.youtube.com/watch?v=Xf5rltQZi50

[inner spade]

‘Morning.

[grand tusk]

Hello.

[upper sandal]

yeah just add the name

it complains if the directory exists anyway doesn't it ?

hmmmm I would think it shouldn't be able to write to the drive, it's a matter of how it's mounted

C or python they should both use the same VFS

but 🤷

well I posted the link in the wrong channel, bu you found it anyway 😉

[inner spade]

Progress on the RGB matrix fader. Working with various displayio objects and group layers now. Also includes normalization and gamma options.

[upper sandal]

does that work on other screens ?

I don't think we can fade groups currently in displayio or ?

[inner spade]

Yes, designed to work with displayio objects on any screen. It’s adjusting displayio palette contents and object color attributes.

[upper sandal]

nice

[inner spade]

Trying to refactor it now for more general use. All in CircuitPython for now..

Envisioning an internal displayio object/group brightness feature at some point, but that’s a bit beyond my current pay grade.

For now, it’ll become a video mixer -like function.

An object or group can has its own instance, just like the demo’s background and foreground layers.

[upper sandal]

yeah I struggled to find something good

I settled for the python minify-html module and adding my own substitutions

I mean, that is a good minification of an empty page

meh it's valid enough

output = minify_html.minify(
    data,
    minify_js=True,
    minify_css=True,
    remove_processing_instructions=True,
)

that's how I used it

I think that's <??> and stuff

in the readme of the repo there is that mention of python interface:
https://github.com/wilsonzlin/minify-html#get-4
and there is that documentation of configuration options
https://docs.rs/minify-html/latest/minify_html/struct.Cfg.html

ah you have to click the triangle >

in front of the python logo

the readme file uses <details> html tags that I suppose are specific to github, so it's not really markdown

it shows .env at the bottom

ah ok

so is it all server side ? I thought the idea would be to have an API and have all the html/js be on code.circuitpython.org ? Or is it like just a minimal version when you don't have internet access ?

(or safe mode)

reset or boot on purple

oh no on yellow

sorry

purple is UF2

oh

storage.disable_usb_drive() ? or eject the drive from the OS ?

not clear on what "active" means

speaking of mpy files, if you feel like looking at the bundle problem after that
https://github.com/adafruit/circuitpython-build-tools/pull/88

the bundles are broken

the single-file libraries mpy contains the py source instead

https://github.com/adafruit/circuitpython/issues/6500
https://github.com/adafruit/Adafruit_CircuitPython_Bundle/issues/384
https://github.com/adafruit/circup/issues/146

oh haha

git fetch --tags or something ?

the bundle uses the pip version of circuitpython-build-tools

it was updated 2 days ago

but it had not been updated since december

yeah because there was no release of the windows change

apparently I'm the only one who noticed, not sure how to ring the alarm bell on that issue 🤷

[inner spade]

🎉 🎉

[upper sandal]

https://tenor.com/view/mission-impossible-we-got-this-you-got-this-aja-oh-yeah-gif-9140872

terminal font issues won't stop us !

[inner spade]

Need an ASCII art tada.

[upper sandal]

I believe translations are strings passed to translate()

we might actually want to localize the text in the html

[inner spade]

Twitch and YT streams stopped.

[upper sandal]

the stream didn't like pushing to github !

[smoky island]

Doh, thank you

just noticed OBS is gone. I guess it crashed :x

I was going to wrap up after making the PR anyhow. And I've got it completed now. PR is here if anyone is interested: https://github.com/tannewt/circuitpython/pull/15

Thanks everyone for watching and helping! Hope everyone has a good day and good weekend 👋

[upper sandal]

👋

[inner spade]

Excellent progress and results today! Thanks for the stream.

[smoky island]

I am able to successfully edit the code files from the browser on my phone as well. This could offer an interesting alternative to BLE workflow for mobile development.

[sand lotus]

@inner spade tada

[inner spade]

@smoky island The editor is looking very nice! The help functionality for the editor is an excellent idea. I highlight and right-click search a bunch.

A huge labor saver

ctrl-i info

ctrl-g for go to docs

[inner spade]

Got to run. Thanks for the stream. I’m learning a little here and there — mostly terminology. Won’t be dangerous for quite a while at this rate.

[viral sail]

Good evening.

[open girder]

The Desk of Ladyada - a QFN swapperoo https://youtu.be/_ZXRFM3UD-Y

[dim wigeon]

Hi all! 👋

[smoky island]

Good evening everyone 👋

[dim wigeon]

Ooh, those are snazzy!

[cinder wind]

knobs!

[dim wigeon]

They won’t continue to be the most popular microcontrollers if nobody can buy any… 🤔

[cinder wind]

ladyada now stashes all the precious chips under the mattress where they're safe

[dim wigeon]

I wonder how long it’ll be before someone gives up and writes a cycle-correct Atmel emulator for ESP32 or RP2040 or something.

[wraith thunder]

Adafruit seesaw is a really good concept, why not using attiny to replace MCP2300X fixed function I2C devices?

[sand lotus]

honestly didn't know an expander was available. i'll definitely try to pick one up as my next project will require a lot of I2C sensors.

get a grand central, oh wait lol. this is where we live now.

[viral sail]

Thanks and good night. 🌗

[wraith thunder]

Thanks!

[dim wigeon]

Thank you!

[cinder wind]

thanks Limor & pt!

[sand lotus]

any idea when the esp32-s3 feather will be in? they sold out like hotcakes this week.

very cool techno art event

just realized after desk of lady ada it switched over to chip shortage from 5 days ago and i was talking to the past.

[robust horizon]

wild, that chip proposed by ladyada on the last Great Search can also implement some (limited) programmable logic -- e.g., you can make an output pin be the AND of two input pins, and more.

[haughty quiver]

woohoo, broadcast software just crashed -- it's a race to the livestream time!

worked!

[tacit garnet]

Today's product brought to you by The Who and Tommy. "Touch me. Feel me."

[haughty quiver]

☝️

[shell mason]

Lars!

[ionic garnet]

Hello you beautiful Adapeoples

[shell mason]

Lars seems touching things again

[tacit garnet]

Soon we'll be Listening To You

[ionic garnet]

I feel this is going to be a real touchy feely episode

[vivid ore]

The number of shopped fingers on your seemingly physically pressed face intrigues me. How much is computer-generated...?

[haughty quiver]

only the tshirt is real

[vivid ore]

but is it for sale

[shell mason]

https://tenor.com/view/bb-how-touching-crosshair-gif-24627968

[ionic garnet]

I've always assumed JP was entirely computer generated. Come on, how many humans look that good on cam?

[cinder wind]

it's all real fingers. have you seen Lars' full body?

[tacit garnet]

His new name is Max Headshmoosh

[inner spade]

👋

[tender wolf]

Hello all!

[shell mason]

https://tenor.com/view/wps-wps-games-touch-controls-indie-game-unity-gif-15854145

[tender wolf]

touch all the things!!!

[queen sentinel]

John, what are the calibration issues with CP?

[tender wolf]

Hey JP, Im aware of the "jobs" section on adafruit website - Do you personally do commission work? I'm looking for help on my midi controller.

[ionic garnet]

Ordered a couple plus that screen for kicks!

[shell mason]

https://tenor.com/view/cat-cats-cat-love-cat-kiss-kiss-gif-24653113

that small display animation too

[cinder wind]

heatwave for everyone I think. bleagh

[ionic garnet]

so far not too hot in Massachusetts. Just came back from walk. Had to call the local police to help a doggy that had no tags or identification in need of some medical help. Be kind to animals people. Please. And to each other too!

[cinder wind]

touch cube?

[ionic garnet]

Thanks as always @haughty quiver .

[inner spade]

Thanks!

[ionic garnet]

Good seeing you all here my lovelies!!!

[tacit garnet]

Wearing flannel in VT. Under 70 last two days

[shell mason]

https://tenor.com/view/summer-solstice-fire-burning-happy-summer-gif-17565594

[grand tusk]

Thanks JP!

[ionic garnet]

yeah similar here in Sturbridge, MA but our New England weather can change in a split second!

As usual, I told a colleague not to scedule meetings at 4pm on Tuesdays. I told her "that's allocated time for me to spend money"

[haughty quiver]

sorry, didn't see this -- are you asking about how to calibrate it for the specific screen?

[queen sentinel]

Yeah, just wondered if you ran into any issues while setting up the ranges for a particular touch screen and what strategies you used for calibrating 0,0 and max,max.
Thanks, John!

[haughty quiver]

Right on -- I just did a simple stream of printing the values and took a little bit off of the min-max values to use in my remap.

It would be neat to write a calibration script like the Palm Pilot and Nintendo DS used to have

touch four corners and center, let it use those for min-max

[inner spade]

This could be adapted, I think. https://github.com/CedarGroveStudios/Touchscreen_Calibrator

Works with the REPL without a screen, too.

[inner spade]

@smoky island Yes, with a value of displayio.Palette.make_transparent(x) where x is outside if the palette range, it would occasionally cause a hard crash of the Matrix Portal distribution.

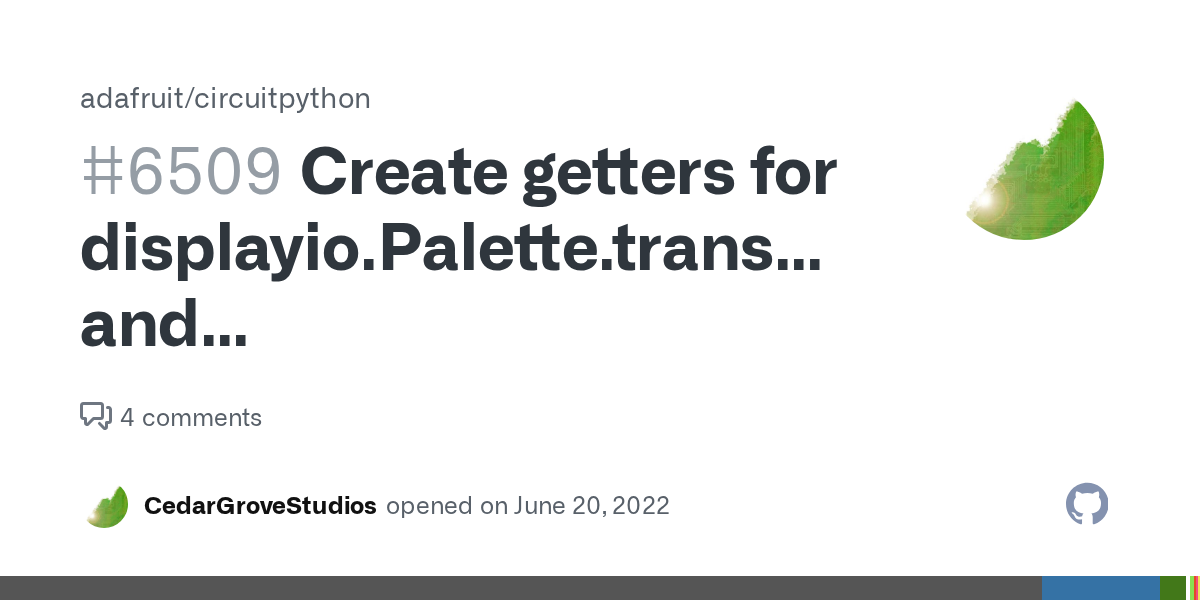

Scott mentioned a bug in https://github.com/adafruit/circuitpython/issues/6509#issuecomment-1162369015

Only occasionally.

Likely once in 100 iterations with a value of -60.

But I was messing with the palette contents at the time, so it could be a memory leak-like event.

So that’s good news that you can have multiple transparent colors in a palette. Somehow I missed that lecture day.

Thanks!

[haughty quiver]

ah, yes, perfect! I forgot you had made that, very cool

[rocky reef]

3DHangouts Episode 369 LIVE Smart Mirror, Droids and UFO Fidget in 1 min! https://www.youtube.com/adafruit/live

[lavish patrol]

Hello, all. 👋

Bleepety - Bloop...

[wise iris]

good morning!

[lavish patrol]

GIFs and GIFs... Cool.

[upbeat coral]

Hey Y'll

[rocky reef]

https://www.adafruit.com/jobs

[shell mason]

https://tenor.com/view/julia-roberts-walk-to-another-dimension-mirror-mirror-queen-portal-gif-8512984

[upbeat coral]

Got all my pieces parts to upgrade my Ender 3Pro. Doing a Dual Z and Direct Drive upgrade.

[rocky reef]

Subscribe to Adafruit Newsletters -  https://www.adafruitdaily.com/

[lavish patrol]

Which Upside Down is that? 🤔

😄

[shell mason]

https://tenor.com/view/star-wars-droids-droid-roger-gif-5349007

Andy tried to do that matrix gif found but not with what gif power in discord

[rocky reef]

Learn Guide for a Mini Smart Weather Display
https://learn.adafruit.com/smart-mirror-with-pyportal

[shell mason]

https://beforesandafters.com/2019/03/29/making-the-magic-mirror-moment-in-the-matrix/

[rocky reef]

PyPortal is in stock https://www.adafruit.com/product/4116

New Parts! 3D Parts on GitHub - https://github.com/adafruit/Adafruit_CAD_Parts

[shell mason]

https://tenor.com/view/evil-grin-fix-hair-mirror-digital-art-gif-13056218

https://tenor.com/view/star-wars-the-mandalorian-droids-gif-15743156

[rocky reef]

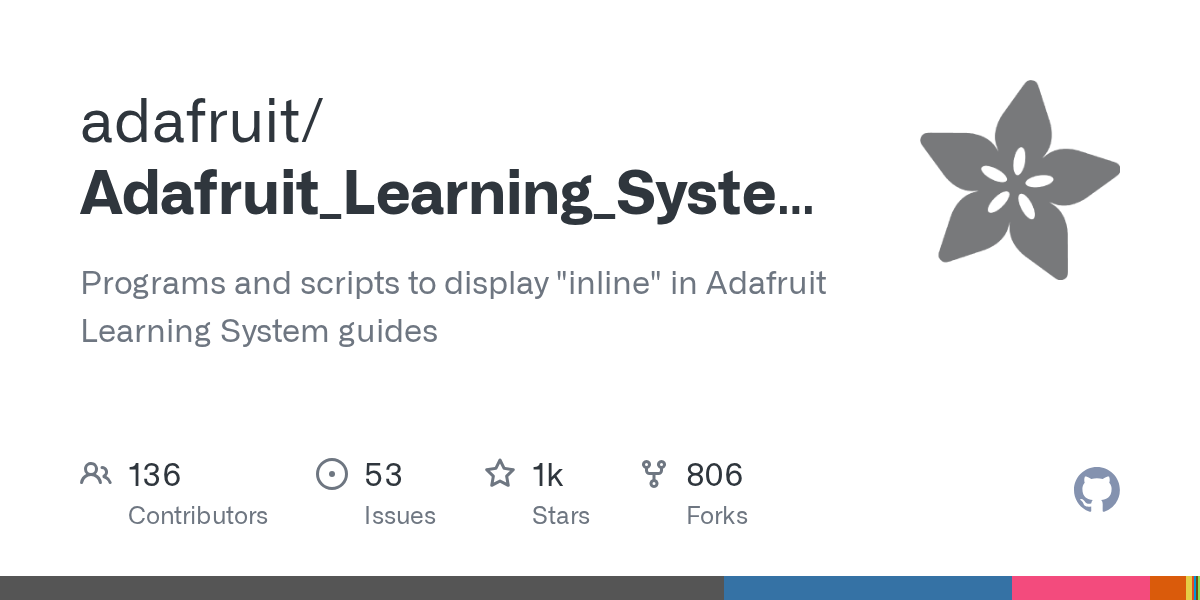

Learn Guide Project Code - https://github.com/adafruit/Adafruit_Learning_System_Guides

[lavish patrol]

OpenWeatherMaps 👍

[shell mason]

gotta go fast

Andy yeah those are great

I have seen some use azure maps for weather so it might use openWeatherMaps on background

would be intereting if there is screen to that shape too

as we have different shape screens

interesting textured filament

[lavish patrol]

A happy little accident.

[shell mason]

astroneer have flowing droid cam what have like similar ear things

[lavish patrol]

Is that a left-hand thread?

[shell mason]

https://astroneer.fandom.com/wiki/Aero

that lego flexiple is like ninjaflex

think if you use for CNC milling for that lego

as Bantam Tools have the one addon board what could lock that patten in place

[rocky reef]

Community Makes: https://www.thingiverse.com/thing:5413539 pygamer case

https://www.thingiverse.com/thing:5415395 darksaber remix

https://www.thingiverse.com/make:1040818 pi hq camera

[lavish patrol]

With that UFO, you could put some of those wireless LEDs in each of those little diffusers.

[shell mason]

desktop CNC fixturing pallet might be good for that lego flex

https://store.bantamtools.com/products/bantam-tools-desktop-cnc-fixturing-pallet as this might work with it

[lavish patrol]

Great show as always, guys. 👍

[rocky reef]

thanks so much for hanging out folks!

[hard hollow]

sweet! @shell mason

[upbeat coral]

Thank you for giving us your time

[lavish patrol]

👋

[hard hollow]

thanks for watching folks, cya tongiht

[drowsy inlet]

I missed it but where was the inductive coil for the ufo wireless led? Was it in the circumference of the ufo itself?

[shadow epoch]

wave!

[drowsy inlet]

thanks guys!

[haughty quiver]

https://streamyard.com/6ni599tquq

[smoky island]

Hello everyone 👋

[nova totem]

Good evening all!

[tulip canyon]

Hello everyone!

[haughty quiver]

Hello

[waxen thistle]

Good evening all you most excellent people! And yes, you too Mr. Lars.

[haughty quiver]

c'mon in, the water is fine

[sick berry]

Hey 👋

[viral sail]

Good evening and Happy Solstice everyone.

[waxen thistle]

Praise to the sun, may we bask in its incandescent glory.

[cinder wind]

woohoo!

[inner spade]

👋

[nimble jackal]

LED are never too bright

[waxen thistle]

When you get to 52,000 lumen in a handheld flashlight....

Current flashlight that I carry is around 1200 lumen 🙂

[nimble jackal]

In search of that perfect tan 😄

[waxen thistle]

Or igniting paper six feet away....

[delicate fractal]

I think blue LEDs appear brighter because blue photons are higher energy than red or green photons. E=hf

[upper sandal]

and install and update libraries from the network !

[waxen thistle]

Mirror mirror on the desk, tell us the project that Noe & Pedro do best....

Spoiler: All of them. They're all awesome.

[wild urchin]

Need to remember that. I have a PyPortal around here somewhere and I could stand having weather near my desk.

[waxen thistle]

Hmm. A nap does sound...zzzzzzz.

[nimble jackal]

DMA LED drivers! Zoom zoom

[nova totem]

There are really some cool new peripherals for writing output fast

[waxen thistle]

Sonic the Hedgehog approves -- gotta go fast!

[cinder wind]

whoa neat @smoky island I love the search thingy!

[upper sandal]

is there webrepl in all that ?

[smoky island]

not yet. I'm connected over USB REPL separately from the web workflow. I think there are plans for the serial / REPL to be exposed to the web also though.

[cinder wind]

reversing the tape! awesome Liz!

[nova totem]

So frustrating when prints break taking them off the printer

[wild urchin]

I like modular synths but I usually don't take it to the breadboard level

That is super impressive

[smoky island]

Ooooh pretty! Great looking LED cube

[waxen thistle]

I totally want to make one of those, that's awesome @cinder wind

[nova totem]

That's a cool cube. @cinder wind also thanks for your circular display examples, just got some and helped to get started quickly

[waxen thistle]

The borg are shiny!

[cinder wind]

https://www.printables.com/model/229632-cube-of-rainbow-torment-led-cube-w-cheap-ws2812-ne

[cinder wind]

thanks!

[cinder wind]

oh excellent! I have some more plans for circular displays too. Can't wait to see what you come up with

[waxen thistle]

Circular displays remind me of a flash gordon style monitor

Very nice Rachel!

[nova totem]

I want to use one in my HUD project and tossing some other ideas about

[cinder wind]

that's not a focus issue that's "camera based LED diffusion"

[viral sail]

The bokeh makes the matrices look cool.

[nova totem]

I totally understand not wanting to move some lego cause it will just fall apart.

[cinder wind]

LEDs and Lego seem destined for each other

[upper sandal]

is it pronounced ell-ee-go ?

[nova totem]

That's a cool lego wall. So many cool projects done with lego and electronics now

[viral sail]

Great projects everyone. Thanks for sharing.

[tulip canyon]

Thanks everyone, great projects all

[cinder wind]

Thanks @haughty quiver!

[nimble jackal]

Nailed it!

[sick berry]

Thanks JP

[upper sandal]

[waxen thistle]

Thanks everyone for sharing your projects -- from Legos to Cubes of Doom! And special thanks to JP for guest hosting!

[dry marten]

Thanks JP

[nova totem]

Great projects everyone and great show JP

[wild urchin]

I love it when some specifications play well together

[haughty quiver]

Great stuff everyone, thank you for sharing!

[turbid hill]

todbot beat me to the mini cube I am still awaiting parts to build it

[open girder]

ASK AN ENGINEER 6/22/2022 LIVE! https://youtu.be/3RM5hwViNrc

[waxen thistle]

Just got some LED panels!

[cinder wind]

The AdaGong has rung

[nimble jackal]

Mirror, mirror, on my desk, who's the hoopiest, who's the best?

[waxen thistle]

Your source for Gongs, neopixels, and other electronics parts used in Star Wars spaceship models!

[wild urchin]

I just love the cymbal ism

[cinder wind]

newest adabox is just a 30cm gong w/ included beater

[waxen thistle]

Ring ring ring ring, banana plug.

[waxen thistle]

It's tied for best adabox ever.

https://adafruit.com/free

[wild urchin]

I mean, mount sensors and contact mic on it,

[waxen thistle]

https://learn.adafruit.com/how-to-set-up-2-factor-authentication-on-adafruit

[nimble jackal]

2FA4Lyfe

[cinder wind]

Think imma get me some new half-size premium breadboards. Noticed this weekend that several of my breadboards are getting frustratingly intermittent

[wild urchin]

Awesome music thing

[waxen thistle]

And be nice when you order a limited-quantity item! We're all in this together!

[nimble jackal]

Shoot. I need to check the mailbox. Forgot I ordered that premium breadboard

[waxen thistle]

?showtimes

[arctic abyss]

Desk of Ladyada - Random hacker times
JP's Product Pick of the Week - 4pm ET Tuesdays
3D Hangouts - 11am ET Wednesdays
Show & Tell - 7:30pm ET Wednesdays
Ask an Engineer - 8pm ET Wednesdays
John Park's Workshop - 4pm ET Thursdays
Deep Dive w/ Foamyguy - 5pm ET Fridays
FoamyGuy's CircuitPython Stream - 11am ET Saturdays

[nimble jackal]

Our Digi-Key Sherpa

[lilac tusk]

I use a handheld scope

[open girder]

10% discount code, code is: bananaplug http://www.adafruit.com

[lilac tusk]

It’s not the greatest but it works

[wild urchin]

I like the Mordax Data, but it's not the most versatile in inputs. 🤓

[waxen thistle]

JP spinning in circles

[lilac tusk]

Cirque De JP

[wild urchin]

Aerial Silks?!?

[haughty quiver]

Similar apparatus— aerial straps

[lilac tusk]

Technically summer now

Lol

Happy summer

Well, seasons are weird so in some places it far more summer than others lol

[delicate fractal]

Adafruit Australian Winter box.

[lilac tusk]

Ugh.. I just had a TI part get pushed back till Feb 2023

[wild urchin]

I just remembered the hall effect T handle faders and looked at my Blipblox and bam you could make a really high end Blipblox clone with great controls

[upper sandal]

now I also want a gif of a spinning JP

[nimble jackal]

Steve Texas is hording them

[nimble jackal]

That can be arranged

[lilac tusk]

Adafruit folks making more than just electronics: making good humans ❤️

[delicate fractal]

"how heart warming" Ba-dum tsss

[waxen thistle]

We have a social and civil obligation to improve the world we all live in together. So to everyone who makes this world a little less bad through good acts....thank you.

https://www.adafruitdaily.com/

https://www.adafruitdaily.com/2022/06/21/python-on-microcontrollers-newsletter-micropython-1-19-released-and-more-python-circuitpython-micropython-thepsf/

[covert meteor]

https://photos.app.goo.gl/MSvWLCC6ArP8nxZK8 Pic of the LED matrix LEGO wall

[cinder wind]

being able to dynamically add frozen libraries to CircuitPython would be amazing

[waxen thistle]

I'm getting an error message:

(oh I think it's supposed to be two separate links)

[wild urchin]

I want that split hand keyboard

[waxen thistle]

It works!

[covert meteor]

Video link: https://photos.app.goo.gl/fU5Y1faM46UizuEo6

[waxen thistle]

https://learn.adafruit.com/guides/latest

[inner spade]

The @open girder morning show on radio K-ADA!

[waxen thistle]

The 3.3v-5v Shock Jocks!

[wild urchin]

I want a soundboard?

[lilac tusk]

Bringing the hottest beeps and boops on the radio

[cinder wind]

They're east of the Mississippi so W-ADA 🙂

[covert meteor]

Here's a link to a video of the programmable LEGO wall in the dark: https://photos.app.goo.gl/gUyKfa8YjkiB5RBg7

[wild urchin]

Oh, and I know I have an idle neotrellis that is about to not be idle

[waxen thistle]

You can get a macropad that triggers playback of MP3s --- or if you want to go all out, take a look at Elgato's Stream Deck.

[wild urchin]

I bought a couple of number pad kits

[waxen thistle]

hahahahahaha

[wild urchin]

So yeah I can do that

[waxen thistle]

PT, you do an awesome radio announcer voice 📻

[wild urchin]

Especially with the funky symbol keycaps

[cinder wind]

yeah PT you should do voice over work

[wild urchin]

Time to cut some Dead or Alive under that

"Like a record, baby" indeed

[nova totem]

That scanned amazingly well

[wild urchin]

Thank you!

[waxen thistle]

We're an inherently creative and curious species -- so go and make cool things 🙂

[viral sail]

That's neat. What app do you use to scan?

[open girder]

@viral sail trying out Trnio Plus

[waxen thistle]

🛸

[sick berry]

👾

[waxen thistle]

https://www.adafruit.com/product/5442

[nova totem]

I need to build a project that reminds me to use discount codes

[sick berry]

and that's why the notes app exists

jk

I mean it's a good concept 😉

[nova totem]

The best part is I looked up a past Adabox code I had to use and 30 seconds later forgot I was going to add it

[waxen thistle]

https://www.adafruit.com/product/4711

[cinder wind]

wait I thought it was just a Corn Chip Shortage

[open girder]

preview (noe and pedro printed this one!)

[sick berry]

love the low-poly look 😄

[waxen thistle]

no joke, that too. I was told that by a Fritos employee when they were out of stock of their Scoops corn chip.

https://www.adafruit.com/product/4753

https://www.adafruit.com/product/5471

https://www.adafruit.com/product/5472

[sick berry]

no wonder why there is a new code

XD

[waxen thistle]

nifty plastic shielding

[delicate fractal]

Very nifty!!

[waxen thistle]

https://www.adafruit.com/product/1085

https://www.adafruit.com/product/1083

[inner spade]

Yeah, but stacked black on red. Yikes!

[waxen thistle]

Stemma....yes. Make it easy to use! Plug and play? More like plug and prototype!

[waxen thistle]

They are the 3.3v-5v Shock Jocks for a reason. 📻

[noble grove]

QUESTION: Can the I2C carry audio sample rate? (WAV)

[cinder wind]

those switches w/ LEDs were on so many 80s test equipment and synths. love them

[upper sandal]

I would love to have some solder-less solution to making beeps, like a stemma-QT breakout with a thing that sends PWM to a built-in buzzer or something

[waxen thistle]

nice anodization on those knobs

[upper sandal]

(or one of those MP3 player boards with an SD Card but with a built-in buzzer and using I2C to trigger files)

[earnest cosmos]

Bana nah nah. Bana nah nah. Hey hey hey...

[open girder]

from YT: "Any intent on making larger versions of those clip-on SOIC socket? I'd really fancy a SOIC-24 one someday. "

[jovial estuary]

hey 8kHz is just fine for POTS-equivalent voice telephony 😁

[nimble jackal]

Curse you, Nyquist!

[upper sandal]

hey fancy making a flexy pin adapter for QT PY ? (and Xiao)
https://shop.pimoroni.com/products/flexypin-adapter?variant=39915460624467

[delicate fractal]

Sparkfun MP3 player. I think she means https://www.sparkfun.com/products/19030

[noble grove]

@jovial estuary Imagine that, I'm thinking of a telephony project.

[wild urchin]

Is that the thing that underlays a Nutella Tsunami?

[cinder wind]

Eagle has become so frustrating lately. I need to go on a KiCad vacation to fully switch over

[sick berry]

I don't know if the ESP-01s are gonna be on adafruit, but it's kinda frustrating to buy one from another electronics shop when I have my cart on adafruit, so my question is: Are the esp-01s gonna have stock on adafruit?

[wild urchin]

I mean, it's not like the Editor Wars didn't rage for years.

It's not a new phenomenon.

[shy topaz]

VI forever!

[upper sandal]

oh yeah, that's doing MP3 things with I2C triggers, I was thinking of something more compact and self contained, but it's a start

[waxen thistle]

Competition -- even within free & open source projects -- breeds innovation.

[wild urchin]

Not always.

Ideally, yeah, agreed.

[nimble jackal]

Oops my sarcastic comment triggered the bot

[wild urchin]

But mostly when you try to be better, rather than trying to sabotage the "Others"

Open Standards!

[sick berry]

aight, thanks! (I should really move on)

[wild urchin]

"We should move on" - from the x86 instruction set, too!

[waxen thistle]

Development teams are usually open to feedback from users.

[wild urchin]

I'm glad you've worked on such healthy teams! That would be the goal.

[sick berry]

we should 😉

but it's good that there are some risc-v boards

[wild urchin]

Indeed.

[waxen thistle]

It takes a lot of effort to be healthy -- both personally and as a team. But I think it's worth the struggle.

[sick berry]

Question: any updates on the rpis?

[wild urchin]

Thoroughly agreed. I'm burned out on Python in specific and programming in general because of a codebase that is so toxic it deserves a New Safe Confinement.

[sick berry]

kindashortonem'

[viral sail]

Thanks @open girder and good night. 🌘

[sick berry]

aight, thanks!

I actually don't have any 😅

[waxen thistle]

Thanks @open girder for another excellent evening of shows! Special thanks to @haughty quiver for hosting Show & Tell! Y'all keep doing good and being good in this world.

[noble grove]

Thanks Fruits!

[nova totem]

I used to work on a codebase that I still maintain is the worse I have ever seen by far. The frustration is real

[wild urchin]

If cluster is what you're looking for, you could get a Turing Pi board and use Compute modules.

[nimble jackal]

Build your cluster on Pi-zero (non "w")

[sick berry]

Thanks @open girder!

[primal fern]

You guys rock

[wild urchin]

Where can we trade horror stories? 😄

[haughty quiver]

thanks all!

[nimble jackal]

Now is the time on Sprockets where we dance!

[cinder wind]

I'm all for the fake adspots voiced by pt

[wild urchin]

Green keys and caps, made from green plastics, not oils but bio-source polymers (to the tune of Greensleeves)

What's the feather-lipo-battery friend board?

[upper sandal]

what do you mean ?

[wild urchin]

They were showing something with a feather with a battery body board?

I must be confused.

[upper sandal]

ah maybe I missed that

[wild urchin]

Rewatching last week product pick, battery BFF for the QTPy r2040

[upper sandal]

ah ok https://www.adafruit.com/product/5397

[sand lotus]

anyone recognize the keys in the latest top secret? how about if you combine them with JP's breakbeat breadboard? https://learn.adafruit.com/breakbeat-breadboard it's the beginning of a classic sequencer, the 808 for example. I have no doubt it's in @haughty quiver 's wheelhouse. 🙂

[haughty quiver]

you're onto us

[sand lotus]

i see you ❤️ make it awesome

[turbid hill]

I thought that was what the US military uses to set defcon levels

[sand lotus]

they have joshua for that

[turbid hill]

Isn't it playing tic-tac-toe with itself

[sand lotus]

actually there was a sequel and spoiler alert, joshua gets blown up

to this day one of the hardest things to do with a vocoder is replicate joshua's digital voice. the original settings on the synth were lost in time though people have figured out with a degree of certainty which synthesizer was involved.

[turbid hill]

I just read the wiki article on the sequel

[sand lotus]

wargames 2 is kinda grade b but does put a modern spin on continuing the story, don't go into it expecting a classic reprisal like the original.

[fast pike]

@cinder wind Nice cube. How did you route the wires out of the cube? Are the panels all secured to the 3d parts without gaps or is there some space to fish the wire out from the center of the cube?

[cinder wind]

There are small cutouts in the 3d-printed parts that let you route the wires. It's a tight fit and kinda fiddly but works. This pic sorta shows it (more pics on the printables.com page)

Basically you wire it up so you have enough slack in the wire length to let you move the panels around as you're screwing them down

[waxen thistle]

Good afternoon all you wonderful people! And Lars too. 🦝

[dense marlin]

Good evening!

[lavish patrol]

Good evening all. 😀

[split gazelle]

good afternoon folks

[haughty quiver]

Oh hey hi there!

[lavish patrol]

Bleepity - Bloop. 🎵 🎶

[dense marlin]

A music related project today it seems.

[haughty quiver]

Le Yikes.

[waxen thistle]

"I see you across parsecs."

[cinder wind]

ahhaha

[waxen thistle]

https://jobs.adafruit.com

[grand tusk]

Yay I didn't miss it!

[dense marlin]

Klangforschung is always a good thing to do.

[grand tusk]

Anything with bongocat is OK in my book.

[cinder wind]

OMG that's amazing @haughty quiver

[split gazelle]

i need that in my life

[lavish patrol]

It's Lars, all the way down...

[cinder wind]

Can't spell "fractals" without L A R S

[waxen thistle]

It's spectacular...s.

[lavish patrol]

L A R S F A C T

[shell mason]

https://tenor.com/view/slicing-satisfying-relax-animation-oddly-satisfying-gif-16548460

lars tapelooper

[grand tusk]

stellar

[shell mason]

https://tenor.com/view/playme-tape-audio-cassette-gif-4549714

[lilac tusk]

DVI/HDMI basically the same thing

[dense marlin]

Just sold my Fades to my neighbour.

But the tape loop was my favourite app.

[cinder wind]

This is why I could never get into Norns / Fates

[shell mason]

https://tenor.com/view/ajustement-your-direct-mix-dj-gif-15026196

[shell mason]

andy that is lars friend?

[lavish patrol]

It's a Norn. Could be Lars' friend I guess.

[sick berry]

what's JP doing?

I mean

[shell mason]

digital tape looper

[sick berry]

ooooo

nice

[dense marlin]

Very chilled

[split gazelle]

i have a used reverb pedal on order because of these projects. i've always been more into delay before

[cinder wind]

reverb & delay are a great way to "sand off" the edges of any mistakes in music

[grand tusk]

John eats fish every day to keep his brain in top condition. Also, did you see the acrobatics last night?

[inner spade]

@haughty quiver sounds like your mic pack battery is marginally charged. Occasional static / loss of carrier / interference. Nothing major and happened only at the workbench.

[dense marlin]

These buttons are really iconic.

[lavish patrol]

It buzzes every now and again.

[cinder wind]

I noticed when you were playing with the Fates it was making buzzes

[dense marlin]

It’s okay here

[cinder wind]

Mic is good now

[glass stag]

It is probably JP's electric personality.

[queen sentinel]

Circuits causing rfi interference with wireless mic?

[inner spade]

Mic is working now in this corner of the workshop.

[cinder wind]

I think AudioMixer auto-gains for you

I would like to see that, because when I tested it, you could not change sample rate once AudioMixer was running

[grand tusk]

Oh yeah, the requirement to have the same sample rate is a bummer.

[ionic garnet]

Hi peeps. Late but not missing

[grand tusk]

Hey RS!

[ionic garnet]

hey Dex

I am always so happy to see y'all

Reverb is like butter

[grand tusk]

Now I gotta build one of these looper devices.

[ionic garnet]

me too

because of my hand problems (RA and carpal tunnel), I play less guitar and more synth type stuffs

but I'm no expert on Midi

[lavish patrol]

You missed the underscore, @haughty quiver .

[cinder wind]

welcome to doing audio on CircuitPython: sometimes saving freezes everything

[ionic garnet]

haven't used since around 1999

[ionic garnet]

I have noticed this TodBot

[grand tusk]

Maybe they could put all the parts into a single SKU.

[ionic garnet]

KeeBoar is an efficient little board

I'm lit. Whoops, was that my outdoor voice?

[grand tusk]

Gosh, if only you had LEDs on your buttons. 😁

[ionic garnet]

or wish we knew of a company with Blinky mojo

[cinder wind]

Toggle switches were invented by Swedish computer engineer Elias Toggle in 1856

[ionic garnet]

His kids were Togglings

[lavish patrol]

When he left the house he would say "Toggle out!"

[dense marlin]

Thanks Elias. I find Toggle switched very satisfying.

[ionic garnet]

Honest question: Y'all know I love and openly promote CircuitPython, but if writing an audio app that needed to run fast and efficient, say on RP2040, SAMD51/M4, ESP32-*, would you use C/C++/Arduino, MicroPython, CircuitPython, or even Rust?

My answer: lots of CP, some C/C++/Arduino, and recently Rust.

[lavish patrol]

@cinder wind 👍

Dynobot is not happy...

[ionic garnet]

@haughty quiver Is CircuitPython the right language for an audio app? Subjective I know

[dense marlin]

This tape loop into Clouds could be nice.

[cinder wind]

I would use Arduino yeah. There's some good libraries for doing efficient audio stuff

[dense marlin]

A toggle switch tape looper Eurorack module.

[ionic garnet]

And FAST FFT

[gaunt plume]

Arduino+Teensy is very popular for audio applications (https://www.pjrc.com/teensy/td_libs_Audio.html)

[cinder wind]

audio conversion tips: https://github.com/todbot/circuitpython-tricks#preparing-audio-files-for-circuitpython

[ionic garnet]

I'm trying Rust now @haughty quiver

[ionic garnet]

I didnt know this

[lavish patrol]

Thanks, @haughty quiver 😀

[ionic garnet]

@cinder wind is my spirit animal

[cinder wind]

awww

[ionic garnet]

Thanks JP

[grand tusk]

Thanks JP!

[sick berry]

thanks JP!

[dense marlin]

This Neotrellis project is very cool.

[cinder wind]

That's integration with VCV Rack is so satisfying

[ionic garnet]

seriously. Often I am googling some topic and often I find your content. Even before you and Adafruit promoted your CP notes. Great stuff

I use M4's a lot with Audio due to hardware float.

[waxen thistle]

Thanks JP and Lars!

[ionic garnet]

Usually in itsybitsy M4 but also Express M4 Airlift, Feather M4... Then I add an Airlift if needed

[queen sentinel]

Thanks, John. Are the text code files for projects and parsecs available as a library online?

[lavish patrol]

👋

[split gazelle]

great stream!

[ionic garnet]

Great show as ALWAYS

[dense marlin]

I hope to integrate the Neotrellis into my Eurorack setup.

Thanks 🙏🏾

[glass stag]

Great show. Have a good day.

[haughty quiver]

Thanks all so very much!

[ionic garnet]

@split gazelle I know you do a lot of audio, what mcu do you like? RP2040 I imagine?

[inner spade]

Yikes!

[clear matrix]

LarsP2040.

[cinder wind]

the best MCU (the "M" stands for "monster")

[split gazelle]

i actually haven't done too many audio proper projects, mainly midi/eurorack, but right now the rp2040 is my preferred chip

followed closely behind by the esp32-s2

[sand lotus]

@haughty quiver the actuator switch used in the TR-808 is still available. https://www.mouser.com/ProductDetail/Alps-Alpine/SKHCBEA010?qs=6EGMNY9ZYDSpiXoBCBNuog%3D%3D

however the lever and key caps might need to be 3d printed, they've been discontinued about a decade.

i think the actuator key lada ada found are a great replacement, you can 3d print or perhaps resin mold new keycaps to replicate the 808 keys.

the only real difference between the one she found and the original is the length and color of the keycap.

if you combine the alps alpine skhcbea010 with some replacement parts you can build an original. expensive but doable. https://syntaur.com/keyboard.php?keyboard=721

[sick berry]

ah here we go

[dim wigeon]

Happy Friday everyone!

[sick berry]

Hello 👋

[grand tusk]

Hello!

[proper prawn]

Hi Tim and all present. Happy Friday from Lisbon, Europe

[inner spade]

👋

[upper sandal]

castellated pins

like the things on a castle

[inner spade]

The entire Edmund Sci catalog was my wishlist.

[sick berry]

I hope this chip shortage settles down on 2023 😅

[grand tusk]

every day...

in every way!

[sick berry]

yup

it's every sunday

that's the magic of open source 😉

[upper sandal]

every board with a stemma-QT port has board.STEMMA_I2C now

[inner spade]

TAPS versus TABS? Would ‘tabs’ create a conflict?

[upper sandal]

it's either an alias to board.I2C or a different port on the QT PYs that have both on different pins

oh yeah we disabled pylint's "consider using f-strings" because not all boards have them, but that's sometimes a good change

I think it might complain about %

also Dan managed to fit f-strings on all boards, but I'm not sure if it's in 7.3.0 or 8

[sick berry]

yeah, it warns you about it

to use the new f-strings (I don't mean they're new)

I think they added it on 1.19

[inner spade]

YW

Appreciate your fix

[sick berry]

lol

[inner spade]

Sometimes just dropping the display brightness to 0.1 works nicely with a camera

Perhaps 0.3? There may be some differences from board to board.

[main flame]

when changing projects from the Adafruit Learn Guide, how do you keep the article text & code snippets in sync with the full code?

As a very specific example, https://learn.adafruit.com/making-a-pyportal-user-interface-displayio/groups#hide-and-show-a-group-3052308-8 has the hideLayer and showLayer functions, but this PR replaces those functions with layerVisibility()

Would this PR require the article text to be updated? Do they just gradually diverge? Something else?

Thanks!

[brazen quail]

Hola from stormy 'rado. :-D

[upper sandal]

yes, named and numbered substitutions

and you can use a dictionary as the other argument

they are kind of necessary for localization for example

[brazen grove]

this is very useful when translating to languages that use different grammar than English and can have things in different order

[upper sandal]

to allow reordering arguments in the template string

**dictionary_name

[brazen grove]

prefix the dict with **

to pass it as keyword arguments

[upper sandal]

I think it works with a literal

[main flame]

does display.height and display.width respect display.rotation? Or do they assume rotation is 0?

[inner spade]

Yes, they respect .rotation

[brazen quail]

Bless you.

[inner spade]

ctrl-q

(ANSI terminal flow controls, ctrl-s to stop, ctrl-q to resume)

[grand tusk]

ctrl-g rings the bell

[inner spade]

Retro VT-100 humor.

Or ADM-3A.

The TFT backlight generates quite a bit of heat on the PyPortal.

[brazen grove]

goodnight

[proper prawn]

Bedtime here. Tnx Tim! All a nice weekend.

[sick berry]

I'm back! what did I miss?

ok

thanks!

[inner spade]

I have some older projects with a delay after show(), but haven’t needed a delay in more recent projects. Should update the older code now.

[brazen quail]

Peace out... . . .

[inner spade]

Thanks for the stream! Looking forward to game coding.

[smoky island]

Thanks everyone! good night! 👋

[sand lotus]

@inner spade so does the TFT featherwing which isn't a bad thing unless you're using a board like the nrf52840 sense that has an on board temp sensor that it'll throw about 10F higher than the real ambient temperature. The temp bias doesn't compensate. I've learned if you're going to use a large TFT don't use it with a board that has on board sensors, better to use SPI or I2C stemma sensors.

pyportal and tft featherwing + feather have the same issue.

[sand lotus]

I actually visited edmund scientific when I was a kid living in NJ. Unlike the amazing catalog they were known for, (like Sears catalog or Toys R Us catalog except for kids science projects). The actual store was more like a weird combination of a military surplus + science and robotics stuff, not what I was expecting but was still impressive. Adabox is definitely similar to some of their science project kits. One of my first memories of Edmund Scientific was a cub scout project using AA battery packs, potentiometer, and motor to make spinning art... very similar to what you'd find on Adafruit. Trust me when I say Adafruit is now 1000x more advanced than Edmund Scientific ever dreamed of becoming but you'll find their name comes up a lot due to 1980's and 90's nostalgia for science and technology learning.

[smoky island]

Getting started now working on the Game & Watch Octopus game on todays stream. Hang out here in the chat and follow along on YT: https://www.youtube.com/watch?v=3ehwI0sY1dU or Twitch: https://www.twitch.tv/foamyguy_twitch

[inner spade]

Yes, I only use external sensors for measurements that are critical to the project. However, one of my projects also uses the on-board temp sensor to reduce TFT backlight brightness and turn on a small fan for cooling the enclosure.

[sand lotus]

oh that's a neat idea and one that is probably what an on-board temp sensor is truly for. i guess it's just the way it's marketed when i bought it thinking it would be an easier built-in way to read ambient temp. yeah i was wrong.

[inner spade]

Very cool. Like Edmund, Adafruit’s catalog is a dream factory full of project ideas. Their learning guides take it to the next level.

[sand lotus]

yup between the learn guides, RSS/blog posts, and hackspace magazine there's always something to keep the noodle groovin

and of course the discord is a constant source of inspiration and learning. lots of cool stuff happening here every day.

oh and can't forget the youtube videos, which i binge watch by category from time to time 😛

oh foamyguy is live now doh. on a saturday?

[clever summit]

Hey Tim and chat.

[inner spade]

Could have some scrolling text that encourages the game player — in Pirate, of course.

[sand lotus]

turn dithering off, unsure if your program has that. dithering is part of what creates some pixelation.

[inner spade]

It’s his usual Twitch stream.

[sand lotus]

i usually don't tune in on sat. had no idea. very cool.

yeah it might look pixelated after a scale but during export disable dithering will clean that up a little

dithering is kind of like anti-aliasing

[clever summit]

I am quite sure I actually played that game at some time in my life.

I still don't understand how you are able to talk and program at the same time.

[sand lotus]

skills

[inner spade]

Context switching. Something I aspire to develop someday.

[sand lotus]

everyone going ham on the 60% keyboards but i can't live without my numpad and media buttons. like you have a full pc why limit yourself with a tiny keyboard. :/

that would take a long time to get used to

yeah that makes sense... also means you're going to be kinda lost without your keyboard. like going to a school lab and all of a sudden you're typing nosedives to 10wpm 😛

[clever summit]

Using a 60% keyboard is like using only 60% of your brain.

I feel the same for using just one monitor.

Lol

[sand lotus]

lol

sounds like a good way to give yourself tourettes

[inner spade]

Some tentacles could be part of the background then covered by a masking polygon layer (one graphic object) that changes size.

[sand lotus]

would it run faster using a polygon mask that updates its shape through math vs tilegrid icons?

[inner spade]

Each item in the group is indexed , so the list of dictionaries may not be needed

[sand lotus]

"Break your code into sections and use the combination of gc.collect() and printing gc.mem_free() to identify how much memory is used in each section."

not optimizing if it works is how windows os got to be like 10GB 😛

is for a learn guide? yeah beginners aren't going to want to mess with gc

which is me. i've never used it before. i'm learning new stuff.

[inner spade]

Also, given all the retro LCD games out there, documenting your approach to make the octopus game will be applicable to making others.

Very similar to your Winamp project approach.

[sand lotus]

that winamp player is sick. i made a winamp skin back then, fond memories. great player.

[inner spade]

For spritesheets, I usually draw a numbered grid in GIMP then cut and paste into that framework.

Makes it easy to test with just the numbered grid before pasting in the graphics.

[sand lotus]

you can do that with a script in photoshop, unsure about gimp

[inner spade]

Maximum headroom

[inner spade]

Wow. That has the LCD game look!

Some of the games had contrast issues that revealed the display ghosting. That would be a nice optional effect.

Just need numbers

Here’s a seven segment font that could be handy. https://github.com/CedarGroveStudios/SevenSeg_font

I manually created this font. Could easily modify it if needed.

It’s just numbers, punctuation, and hex alpha.

Line 15

[sand lotus]

that looks great cgrover

looks real

[inner spade]

Thanks. Really wanted that bubble LED look.

Was for an HP-35 calculator emulator.

[sand lotus]

is there are size limit to a bdf if i want to make my own?

[inner spade]

Don’t think so. It’s just a text file underneath.

[sand lotus]

the temp display on my tft is like 100 pixels high and looks really pixelated when scaled up.

nice. couldn't find any really large ones. biggest one i could find i think was about 36

yeah i'm going to have to make my own if i want it to look clean really big.

[inner spade]

A large seven segment digit could be built from a sprite sheet.

Then just repeated.

[sand lotus]

just checked and the fonts i'm currently using are BDF

i think cgrovers font is perfect for your game

have a great day, looking forward to seeing how your project shapes up

[inner spade]

Thanks for the stream. Great project! Appreciate the opportunity to learn some new stuff.

[inner spade]

@smoky island Just found gimp->image->configure_grid — hoping that’ll help when editing sprite sheets.

[inner spade]

Very good progress. Thanks for the stream!

[open girder]

The Desk of Ladyada -Yet Another Stemma & Seesaw Sunday - PCF8574 & PC Joystick https://youtu.be/nMv20bmsP0I

[viral sail]

Good evening.

[lilac tusk]

Evening!

[opaque hearth]

[lilac tusk]

Question: have you considered making a breakout for the Abracon RTc-32.768kHz-AIGZ-S7 real time clock?

[open girder]

@lilac tusk will get to that in a bit!

[lilac tusk]

I found it using my Digi-Key searchings and it’s honestly pretty cool 🙂

[open girder]

(as in will ask ladyada)

[lilac tusk]

I found this part with the Digi-Key mobile app. https://www.digikey.com/en/products/detail/AB-RTCMC-32.768KHZ-AIGZ-S7-T/3915237

[odd fox]

Have a question for Lady Ada. Have y'all considered stocking 24GHz mm wave radar sensors such as this https://wiki.dfrobot.com/mmWave_Radar_Human_Presence_Detection_SKU_SEN0395. I am interested in creating a Human Presence detector noted here on thingiverse:
https://www.thingiverse.com/thing:5396123

A stemma QT board with this would be awesome.

[viral sail]

Thanks and good night. 🌘

[sand lotus]

The AVR-IoT Cellular pins are staggered. How is that feather compatible, the pins won't line up. Why would they stagger them like that instead of making a straight line of GPIO holes? Would you have to break pins down to each individual pin to solder them in or will a row of pins fit in there even though they're staggered like that? Is there a reason for staggering them like that from a PCB design perspective? I prefer the straight rows of the feather design even if it's only for aesthetics.

[vivid ore]

My guess is that the staggered holes allow for a tighter tolerance with the header pins, considering they do seem to include straight header rows. It may look funky, but if you consider the size of the pins vs the size of the holes, it's actually pretty brilliant in my opinion; they can help align the pins more tightly without any external support or smaller drill sizes.

If the pins themselves have a strict enough tolerance, it may even be possible for the pins to make sufficient contact with the holes to even bypass the soldering step...

Ah, @sand lotus have a look through this: https://www.sparkfun.com/tutorials/114

[sand lotus]

@vivid ore Thank you, that's exactly what I wanted to know. It's just confusing to look at.

[inner spade]

@smoky island Since the tentacle segments all have identical color palettes, would it save memory to use only one palette object to associate with the bitmaps in TileGrid?

Would make it easier to control palette contents when manipulating the collective image, too.

Like when normalizing and adjusting for gamma.

Is the background color overlay in front of the black LCD segments or behind or both? Did they get fancy with those printed layers on the original unit?

Ah the colored layer is on top.
So again, the beauty of CircuitPython is that you can repeatedly tweak the graphics layout and immediately see the results.

You could create layers for the green and blue.

Take the background later, make the backlight color transparent and use it as a layer. No need to create separate color layers.

The color overlay has shadows too.

Thinking about how they manufactured it. The printed color layer appears as foreground with its own shadow. The shadow created a sort of 3-D effect.

Looks very good. Thanks!

[echo canopy]

Is there a John Parks product pick today? YouTube points to tomorrow Ask an Engineer

[haughty quiver]

There is one today, just haven't clicked some buttons yet.

[shell mason]

https://tenor.com/view/click-click-here-mouse-finger-mouse-finger-gif-24787889

[haughty quiver]

Just like that, yes!

[grand tusk]

Bleep bloop

[haughty quiver]

That's the spirit!

🤖

🎙️

🎛️

[viral sail]

Good afternoon.

[ionic garnet]

Hello

[inner spade]

👋

[haughty quiver]

howdy

[ionic garnet]

running late?

[grand tusk]

Running latte?

[haughty quiver]

tech issue w audio

should be up momentarily thank you for your patience

[ionic garnet]

ok. ordered already!

[lilac tusk]

who knew Adafruit had so many doctors in the discord. Everyone has so many patients 😉

[ionic garnet]

it says live now

but no noise

[lilac tusk]

I hear beeps and boops

[ionic garnet]

here they are

[clever summit]

Good Evening Ladies and Gentlemen!

[lilac tusk]

good day to you

[ionic garnet]

I'd doing the boogie woogie

[queen sentinel]

Are you mouth beat-boxing that live? 😆

[lilac tusk]

it's actually Lars

[ionic garnet]

there you are. Go SOLAR!

[clever summit]

Hey there JP.

[grand tusk]

Love the shirt!

[cinder wind]

JP is a synth

[clever summit]

JP's synth sound of the week.

[ionic garnet]

don't know about y'all, but QR codes on screen are relatively useless to me

but 4 digit number eeasy

[lilac tusk]

the chip itself on digikey is "out of stock" but no "Lead Time" button so it's in stock just restricted quantities

interesting way to keep products in stock enough for everyone to get one lol

great chip

[sand lotus]

JP's live ❤️

[lilac tusk]

it is rated for a Single LiPo Cell so be careful charging multicell packs 🙂

[sand lotus]

is he planning on making lars sentient with a solar power core?

[lilac tusk]

he already is sentient

he did the intro music

lol

[sand lotus]

true, now he'll never run out of battery though

[grand tusk]

Wow that's bright.

[cinder wind]

everyone to JP's place when the zombie apocalypse comes so we'll still be able to have a band jam

[sand lotus]

bright as the tesseract

[waxen bough]

Picked up two. (No half-price solar panels though)....

[sand lotus]

what are you powering it for?

the load?

[viral sail]

Thanks @haughty quiver

[inner spade]

Thanks!

[grand tusk]

Thanks JP!

[sand lotus]

i picked one up because you never know.

[ionic garnet]

Bye John. Always a pleasure

Same here. Don't need. But gotta start saving the planet one day

[sand lotus]

i'm in florida so just a matter of time before i do a solar project.

half off deal, no brainer.

[shell mason]

https://tenor.com/view/solar-solar-power-lsw-ökostrom-grünstrom-gif-24035006

[upbeat coral]

Guess I missed another anouncement.

[open girder]

https://blog.adafruit.com/2022/06/29/no-ask-an-engineer-tonight-but-show-and-tell-is-still-happening/

[sand lotus]

@upbeat coral Do you have broadcast announcements enabled?

[shell mason]

was perhaps for the 3d hangout

[upbeat coral]

No. But I did know that there would not be a Ask an Engineer tonight and JP spoke yesterday as though all else was as planned (3d hangout, S&T).

[sand lotus]

i always look forward to watching show & tell even if I don't catch it live.

[hard hollow]

hey folks! if anyone wants to join in, here's ze link to streamyard https://streamyard.com/22bnrtyb27

[viral sail]

Good evening everyone.

[upbeat coral]

Hey Y'll

[nova totem]

Good evening

[sand lotus]

Howdy

[inner spade]

👋

[dim knot]

https://www.youtube.com/watch?v=zt3utnCg29w

[sand lotus]

aww so cool, that's like the cute robots from that movie

batteries not included that's it

[opaque hearth]

like a 3D Hangouts in the PM

[sand lotus]

Jayy's robot has the potential to scare me more than lars.

[cinder wind]

What's a Wokman? It doesn't look like it can make stirfry

[nova totem]

mmm stirfry (I really need to eat)

[sand lotus]

it can chop suey samples tho

JP's got it hooked up to soft synths now. watch out.

[inner spade]

@haughty quiver So very cool. Could you use one of the DACs to gate or adjust the recorder's speaker output?

[alpine nova]

i love vcvrack!

[sand lotus]

so liz hacked the motor controller to create a... motor controller with a microcontroller?

[nova totem]

I vaguely recall that fisher price deck

[opaque hearth]

Style points for the big yellow crank!

[inner spade]

@split gazelle Love the aesthetic. Will the capstan-driven tape loop work if the motor runs in reverse?

[sand lotus]

yeah definitely reminds me of that fischer price tape player for some reason

[haughty quiver]

i wanted to use one of the DAC channels for gating it, but couldn't come up with a good way to control the volume pot. Any suggestions?

[split gazelle]

yes! as long as both wheels are in both directions were working

[haughty quiver]

I'd be OK adding a digital pot for volume, too @inner spade

[inner spade]

Might easy to gate by over-biasing the input to the output amplifier post-tape head preamp. Do you have a schematic?

[smoky island]

Great idea using feathers communicating with each other and checking for power in different outlets awesome job John!

[split gazelle]

super cool @nova totem !

[inner spade]

Yeah, might be the best approach. Probably the least invasive.

[haughty quiver]

@inner spade I haven't found a schematic yet. It's a GE 3-5362A

[hazy tiger]

thanks! It was a super simple project and hopefully its helpful! 🙂 Codes up on github: https://github.com/thinklearndo/circuitbreaker

[sand lotus]

would be great for a watch project

[cinder wind]

woohoo!

very cool @nova totem !

[nova totem]

Thanks, managed to get it done faster then I thought, math was not as scary as I thought

[viral sail]

Thanks everyone and good night. 🌑

[alpine nova]

that round display is sweet

[sand lotus]

yeah where can i find that round display?

[upbeat coral]

Thanks to all for sharing with us.

[nova totem]

Thanks, your examples were helpful to get started

[sand lotus]

great show everyone 👋

[alpine nova]

no aae today?

[nova totem]

I found them on aliexpress. I'll look up the name

[dim knot]

​No Ask An Engineer tonight.

[sand lotus]

no

[alpine nova]

ok thx

[hard hollow]

great projects tonight folks! have a good evening 🙂

[smoky island]

Thanks Noe and Pedro and everyone who shared great stuff tonight! 🎉

[strange mantle]

https://blog.adafruit.com/2022/06/29/no-ask-an-engineer-tonight-but-show-and-tell-is-still-happening/

[cinder wind]

Thanks @hard hollow! Thanks @rocky reef !

[alpine nova]

thanks y’all. those were very inspirational projects tonight

[nova totem]

The round displays are "1.28 inch TFT LCD Display Module Round RGB IPS HD 240x240 Resolution GC9A01 Driver 4 Wire SPI Interface Adapter Board"

[inner spade]

I couldn't either. Sounds like the digital pot may be the best approach.

[nova totem]

There is a community library for the GC9A01 driver that runs the display. The resolution is 240x240 but the corners obviously do not exist

[cinder wind]

you get more resolution with a DAC (most digipots are only 128 pole)

[haughty quiver]

another thought is to use the speaker line out instead of the headphone out, and somehow gate that?

(there's a small speaker built into the case)

[inner spade]

Does VCV rack have the ability to gate audio signals?

[inner spade]

Another on/off gating method would be to light an LED coupled to a photoresistor with a GPIO pin -- to gate the headphone signal.

[sand lotus]

i've never played around with vcv rack but just looking at how big the synth is i'm sure theres a way to gate, i mean just look at the size of that thing ;P

[haughty quiver]

Ah, gate in Rack isn’t my question, it’s about how to have the walkman output gated with hardware

[sand lotus]

decouple the tape head?

that would take too long mechanically if you wanted a high speed gate

a normal gate should be easy with a volume on/off switch controlled through digital or analog out pin.

it would be a straight cut gate, but a gate is a gate.

[inner spade]

@haughty quiver @cinder wind I used a 256-step linear digital potentiometer for an ADSR on a project a couple of years ago. Resolution artifacts didn't seem to be an issue, but I played in a rock band for a few years... Perhaps a logarithmic digital potentiometer could work even better.

[haughty quiver]

that's great, I also love your vactrol gate suggestion 🙂

vactrols always have a nice, syrupy envelope to them 🙂

🥞

[inner spade]

Just the idea of a vactrol feels soothing and organic, doesn’t it?

I suppose you could PWM the LED and smoothing capacitor if you wanted an analog-like response.

[ionic garnet]

Dropping in to say HI @haughty quiver and all you AdaLovelies. I will miss this today. 4 more hours of meetings. Busy day. Some very interesting meetings though. LifeOfACTO

[shell mason]

https://tenor.com/view/drone-gif-10394279

that is totally cool even its chair legs

[lavish patrol]

Greetings, all.

[shell mason]

greetings

[drowsy inlet]

hello all

[shell mason]

https://tenor.com/view/mavic-dji-drone-gif-12982117

[lavish patrol]

Waiting for the Bleeps & Bloops...

[cinder wind]

I can't believe it's been like 12 hours and CircuitPython doesn't support the new PicoW yet.

[shell mason]

https://tenor.com/view/pico-pico-fnf-pico-day-april30-fnf-pico-gif-21375648

[haughty quiver]

hello!

[open surge]

hi!

[dense marlin]

Hi there!

[tender wolf]

howdy!

[shell mason]

https://tenor.com/view/rasp-berry-memory-feed-gif-9812935

[haughty quiver]

hello!

[dense marlin]

More Drone loops please.

[shell mason]

hello johnPark

[lavish patrol]

We have Bleepage.

[midnight plinth]

Bloops

[lavish patrol]

We have Bloopage.

[clever summit]

🇸🇪 👋

[inner spade]

👋

[lavish patrol]

Good evening @clever summit 👋

[viral sail]

Good afternoon.

[grand tusk]

I didn't miss it! 😂

[shell mason]

Lars Drones

[lavish patrol]

🎶 🎵

[dense marlin]

Here

[shell mason]

There

[smoky island]

👋 Hoooray workshop day!

[lavish patrol]

Everywhere

[tender wolf]

all the good stuff 👌

[clever summit]

Oh, snap! He doxxed us all.

Hey Foamy!

[still imp]

Good afternoon

[lilac tusk]

Dyslexia is great because I’ll be scrolling through twitter, see John Park’s workshop and my brain stops working and goes Pohn Jark’s workshop! It’s great for a laugh every once in a while

[smoky island]

pierrier sparkling water for me.

[shell mason]

https://tenor.com/view/retro-rocktopus-hologram-loop-neon-gif-18518847

[lilac tusk]

Sometimes I’ll just roll with the dyslexia because my brain has already formulated the sentence wrong. Makes communication extra spicy

Anyway, happy Thursday everyone!

[shell mason]

https://www.raspberrypi.com/news/raspberry-pi-pico-w-your-6-iot-platform/

[lilac tusk]

Pico WH = Pico White House 😉

[cinder wind]

Raspberry PICOW 🥧 🐮

[inner spade]

Oh, a drink named after Topo Gigio! “Hello Eddie.”

[shell mason]

Pico LW = Pico Lars Web

[lavish patrol]

Raspbery Pi Pico W - now in many flavors - chocolate, vanilla, strawberry...

[lilac tusk]

You say strawberry and it makes me think of cloudy with a chance of meatballs

[drowsy inlet]

so sad i missed that PPotW

[unreal bay]

Same, rare treat, although would love m00re power!

[shell mason]

https://tenor.com/view/blueberry-tony-stark-avengers-steve-rogers-gif-22604826

[drowsy inlet]

been thinking of a diy solar light around the house. that probably would have helped towards that

[glass stag]

I think I will wait for the Raspberry Pi Pico USB-C.

[lavish patrol]

Lol

[lilac tusk]

https://youtu.be/e6E7QiU8xk4

This scene of anyone forgot it lol

[lilac tusk]

I wish

[grand tusk]

Oooh, flying leathery avians.

[dense marlin]

Cheers 🍻

[lavish patrol]

Been playing with Inkscape today. 👍

[lilac tusk]

Weird.. tried to share a picture of my rp2040 board

[smoky island]

Super cool! I didn't know there was a converter for SVG -> vectorio. Thanks sharing that @cinder wind and JP for showing how to use.

[haughty quiver]

https://todbot.github.io/PathToPoints/

https://gist.github.com/todbot/05d8e64ba8c6a7a584c1956c817a8779

[open surge]

Nice work @cinder wind!

[lilac tusk]

Dang maybe it thinks I’m spamming images

[lavish patrol]

Cool

[shell mason]

https://tenor.com/view/batman-robin-and-im-bat-gif-20652919

[lilac tusk]

Need to let it cool down I guess

[cinder wind]

it's not exactly a SVG, it's more like: a list of x,y points created from an SVG

[lilac tusk]

Either way, JP will probably have some high flying Pico based adventures coming up

[dense marlin]

Thanks for dose guides.

Nice little EuroRack setup.

[grand tusk]

I think you could you make a vactrol with two LEDs?

[sand lotus]

i think it's called an optical switch. opti-... something or other

[shell mason]

https://tenor.com/view/synthesizer-modular-richarddevine-technology-music-gif-13423466

[cinder wind]

Vactrol gates are a great DIY project if you're getting into modular synths. Here's one example https://www.youtube.com/watch?v=8BOnvSQpoGY

[shell mason]

cool Todbot

[sand lotus]

the first step in a DIY sequencer. timed gates are steps in a sequence. 😉

aha, see 🙂

[spiral vale]

late to the party

[shell mason]

https://tenor.com/view/cute-dancing-party-dj-minion-gif-3478410

[sand lotus]

sequencers are a beautiful thing

gate is basically pull_up and pull_down 😛

i still think trying to decouple the tape head with a mechanical piston switch really fast would be oddly satisfying.

[grand tusk]

loose wires

[spiral vale]

dont anger the cassette

[grand tusk]

Someone's phone is ringing.

[shell mason]

CircuitPython Casette player

[sand lotus]

didn't know those kind of optical switches were in synthesizers. cool lesson

[dense marlin]

Are there other cassette players that could be recommended? The GE 3-5362A is not available so wild in Europe.

[sand lotus]

JP's thought all of this out really well.

could use a pcb with some solder. 😉

[tender wolf]

Here’s my WIP Cassette build

[sand lotus]

great demo, you'll get it all sorted out eventually JP. it's coming along nicely.

[cinder wind]

the sound engine causing CircuitPython crashing is so frustrating for me

key yer on? okeyron?

[sand lotus]

What is seesaw? --> "Adafruit seesaw is a near-universal converter framework which allows you to add add and extend hardware support to any I2C-capable microcontroller or microcomputer. Instead of getting separate I2C GPIO expanders, ADCs, PWM drivers, etc, seesaw can be configured to give a wide range of capabilities"

[tender wolf]

is the gain value implemented like a gate? sounds like it activates after you turn the knob then press the button

that explanation just answered my question

[sand lotus]

I2C = I squared C. Seesaw is a play on the letter C. Easier way for me to remember it.

ohh i'm definitely going to pick up some of those switches when they get stocked!

always look forward to the music stuff JP and Liz are doing lately. really cool stuff.

[cinder wind]

this thing I think https://www.hackster.io/news/retro-audio-player-with-modern-functionality-f6a0b2653d4c

[lavish patrol]

Neat.

[glass stag]

Reel-to-Reel LCD's would be cool. How big do the Adafruit round TFT's get?

[grand tusk]

It's cute!

[sand lotus]

great design!

[grand tusk]

Thanks JP!

[dense marlin]

Thanks, great Show again.

[lavish patrol]

Thanks, @haughty quiver 👍

[viral sail]

Thanks @haughty quiver

[inner spade]

Thanks @haughty quiver !

[smoky island]

Yep, Deep Dive tomorrow evenning. Thanks JP Great Show 🎉

[shell mason]

modern casette drive could have features like if tape get stuck

[haughty quiver]

thank you all for hanging out!

[glass stag]

Great show. Have a good day all.

[dawn iris]

I got there late

😦

[drowsy inlet]

thank you!

[grand tusk]

Thinking about using a watchdog timer to detect stalls in my 3 node RP2040 cluster. I'll have to consider adding the power of W.

[shell mason]

all the fine controls now what maybe in the back in the days was guessing work

[sand lotus]

@dense marlin any casette player with a volume and speed control potentiometer will work as they'll both be electronically controlled.

[dense marlin]

Thanks.

[haughty quiver]

i think Sony TCM-353 may be a good choice for you, seems available on German eBay and has a speed control knob

something to look for in searches is "dictation recorder" or "voice recorder" as they are more likely to have a variable speed switch or pot.

[dense marlin]

Thanks @haughty quiver, I will have a look.

[brazen grove]

there is sound now

[inner spade]

Sounds good on YT

[upper sandal]

H is headers

they actually have a different PCB without the castellations for the headers version

the wifi module's API is apparently under NDA 🤷

[left pier]

👋

[brazen grove]

classic rpi :)

[upper sandal]

I didn't verify that information though, I didn't look at the available docs

[brazen grove]

I will stick to the open source hardware, thank you

[upper sandal]

what they say in the news is:

The network stack is built around lwIP, and uses libcyw43 from Damien George (of MicroPython fame) to communicate with the wireless chip. By default, libcyw43 is licensed for non-commercial use, but Pico W users, and anyone else who builds their product around RP2040 and CYW43439, benefit from a free commercial-use license.

[brazen grove]

for me it's not about how much they are doing — I agree that community-wise they are great — it's about future-proofing my own projects
