jepler@rat:~$ curl --http1.1 -v -H "Accept-Encoding: identity" https://analytics.usa.gov/data/live/top-traffic-sources-30-days.json -> prints (among other things < Content-Encoding: gzip
#circuitpython-dev
onyx hinge
solar whale
probably should have just said .gov
idle owl
You have to enable them per board.
lone axle
Looks like matrixportal has nothing frozen currently: https://github.com/adafruit/circuitpython/blob/main/ports/atmel-samd/boards/matrixportal_m4/mpconfigboard.mk requests and PortalBase + associated libs would be great to have frozen in I think.
idle owl
@gilded cradle Yeah, basically, check out CPX, and mimic the mpconfigboard.mk file.
gilded cradle
<@!478616919721771019> Yeah, basically, check out CPX, and mimic the mpconfigboa...
Ok, thanks
idle owl
Ok, thanks
I think you might have to add the submodule to CircuitPython though. It's been a while since a froze in a new library.
lone axle
For ones that aren't already in the frozen dir inside the core I think you may have to add them as new submodules to the core repo as well.
idle owl
Otherwise, it doesn't know what it's looking for.
gilded cradle
I think you might have to add the submodule to CircuitPython though. It's been a...
For PortalBase, yeah I figured.
idle owl
For PortalBase, yeah I figured.
Exactly.
gilded cradle
I think that'll be really helpful for folks
mental nexus
Thanks all!👋
idle owl
I think that'll be really helpful for folks
Yeah boards that require bonkers levels of libraries to do their basic function (or are small) and you are super tight on blowing out the memory, frozen libs are really helpful. Be aware, CircuitPython looks for libraries in root (CIRCUITPY/) first, then frozen libraries second, then the /lib folder third. And the thing about Project Bundles is that they're not smart enough to know where libraries are frozen in. The memory issues come from running the library code, not simply having it on the board. Verify how much better it works once they're frozen, but it's possible you'll end up having to tell folks to do some fiddly things with the project bundles. In theory, you shouldn't, and the Project Bundle will still work fine. CPX project bundles include the CircuitPlayground library, but it doesn't run the code from inside the lib folder, so there's not memory failures. Etc.
jaunty juniper
I uploaded my pyflate stuff here btw: https://github.com/Neradoc/pyflate-lib
lone axle
I uploaded my pyflate stuff here btw: <https://github.com/Neradoc/pyflate-lib>
Thank you!
crimson ferry
@tulip sleet blocking Requests was the motivation for my singular CP wish list item in 2020 and in 2022 (didn't do 2021)... don't hesitate to ping me for testing, or any other way I could help https://twitter.com/anecdat/status/1478090306902020096
slender iron
@mental nexus here is my touchscreen viz I did in college: https://www.youtube.com/watch?v=MeLUxsvIVuU
mental nexus
<@!366059101203202052> here is my touchscreen viz I did in college: https://www....
Nice. 13 years ago! I like that you had to call in for help to get to 12 touches.
lone axle
@mental nexus if you get a moment I would be grateful if you can point me towards the capacitive overlay / display that you're using. Honestly I had never run across the FocalTouch library before, didn't even know we had support for capacitive screens. I would love to get one set up to tinker with as well.
lone axle
Possibly a root cause inside the behavior of S3. I suppose that makes it somewhat likely there are other services out there that made a similar decision
I would not have guessed this site / data API was available that long ago tbh. Good on them for actually making the data available even if not in the most convenient of formats (and for doing their development in the open on github). It will make an interesting IoT data displaying project for us but I could also be it being very valuable to web designers trying to figure out how to allocate their resources across so many client OS/browser/display sizes.
mental nexus
<@!366059101203202052> if you get a moment I would be grateful if you can point ...
The Adafruit capacitive touch displays will provide single-touch capability. I've used the 2.8" version https://www.adafruit.com/product/2090. For the multi-touch capability, I found a conference-room schedule display (Crestron TSW-732) and pulled it apart and was able to decode the touch display pinouts. https://hackaday.io/project/183895-crestron-tsw-732-teardown. It has a multi-touch display using the FT5406 chipset.
lone axle
Neat! I may have access to some old Android tablets I should open one of those up, I would guess it has a similar driver inside of it.
mental nexus
I'm interested whether I can also reuse the display, but only if I use a chip with RGB and dot-clock driving capability. Perhaps the ESP-32 S3 can do that, but will need some coding.
I've been perusing the bewildering array of displays with touchscreens and have been a bit overwhelmed by the wide array of display controllers and touch controllers. I'm looking to see what chips are most common, but I think there are two or three of each that are in most common use. I'm especially looking for a 7" screen since a larger screen will be more usable for multitouch sensing.
This week I'll plan to finally dive in and order a couple of displays and start seeing what it will take to make them work in CircuitPython (maybe a new display driver library is required).
First look at polling the touchscreen in CircuitPython I can get responses every 7 ms. But let's see how that changes when display updates are going on too.
slender iron
Here is the notes document for Tuesday's CircuitPython Weekly meeting. It is at the normal time of 11am Pacific / 2pm Eastern here on Discord but 24 hours later. Everyone is encouraged to attend! Please add your hug reports and status updates even if you’ll be attending the meeting - it’s super helpful! If you are unable to attend but would still like to include updates, feel free to include them in the notes and we’ll read them off during the meeting. Hope to see you there! <@&356864093652516868> https://docs.google.com/document/d/18qlzNr5o2KUEwxZWGmxTlj0CBFyns3sBlGcCfc1j1D0/edit?usp=sharing
mental nexus
Here's the link to the Focaltouch library https://github.com/adafruit/Adafruit_CircuitPython_FocalTouch
jaunty juniper
anyone knows if the ESP32-S3 has more USB endpoints that the S2 ? (where you basically can't enable CDC2 without disabling Mass Storage)
viscid pine
anyone knows if the ESP32-S3 has more USB endpoints that the S2 ? (where you bas...
Just tried it on tinys3, not enough endpoints to enable the other cdc
proven garnet
Catching up on the meeting, thanks again to everyone for being so welcoming! I forgot a hug report for @lone axle for helping me do my first reviews and become more comfortable with that process.
jaunty juniper
Just tried it on tinys3, not enough endpoints to enable the other cdc
it is hard encoded in CP and might not be updated for the the S3 if different
https://github.com/adafruit/circuitpython/blob/d4c2ffea27f8b5d7d00b1d7ea6c8ae8aa76e3199/ports/espressif/mpconfigport.mk#L60-L70
though the comment reference S2/S3 so it might be up to date
tulip sleet
Both the S2 and S3 datasheets say
Device Mode Features
• Endpoint number 0 always present (bi-directional, consisting of EP0 IN and EP0 OUT)
• Six additional endpoints (endpoint numbers 1 to 6), configurable as IN or OUT
• Maximum of five IN endpoints concurrently active at any time (including EP0 IN)
• All OUT endpoints share a single RX FIFO
• Each IN endpoint has a dedicated TX FIFO
jaunty juniper
oh well
tulip sleet
do you want midi too?
jaunty juniper
thanks for the clarification
manic glacierBOT
jaunty juniper
I was just wondering if there was more wiggle room on the S3 in general
proven garnet
@danh, does the new typing module mean we'll unify types between Blinka and MCs? I don't think Blinka can support ulab.numpy.ndarry so curious what the solution should be for that and maybe other discrepancies
tulip sleet
@danh, does the new typing module mean we'll unify types between Blinka and MCs?...
I am just factoring it out of Blinka. is the ulab.numpy.ndarray thing for ReadableBuffer, etc.?
https://github.com/adafruit/Adafruit_CircuitPython_Typing. I have not made a release for this yet. I was going to see where I might use it and double-check it before release.
slender iron
@tulip sleet @onyx hinge want to chat now or pick a time tomorrow?
tulip sleet
now is fine for me
slender iron
I'm in the marie curie voice room
proven garnet
I am just factoring it out of Blinka. is the `ulab.numpy.ndarray` thing for Read...
Yeah, there's also rgbmatrix.RGBMatrix too I realize
Not sure about the other typings or where they'll get used though
Ohhhhh I think I see, this is really still only the implementation for Blinka, just not in the Blinka repo
onyx hinge
@slender iron I've been chatting with kattni, sorry. I think we'll be done soon, so I'll join if you're still talking
warm stump
2 questions that came up from the Weekly Meeting stream:
1) What happens if you run CircuitPython on a new board with a Multiple Architecture chip? (e.g. 4x Cortex-M0 + 4x Cortex-A53 + V3D + etc...)
2) How would you go about adding and removing Secondary Memory to a CircuitPython System? (memoryio &&|| ramio and which protocols physically connect it)
slender iron
@warm stump 1. we don't have any multiarch chips and don't do multicore anyway. 2. we can't support that now. is there anywhere it actually happens?
onyx hinge
Nice thanks!
warm stump
<@!539881446756843560> 1. we don't have any multiarch chips and don't do multico...
namely the broadcom port in future releases, the pi has many more peripherals than it lets on (some need re-integrating and other things need automatic loaders as far as Pi4 has reached)
it may also be a useful thing for boards which run out of memory very quickly, with that being the reason why the libraries they include are limited
slender iron
@warm stump I think you are getting ahead of the game
warm stump
<@!539881446756843560> I think you are getting ahead of the game
might as well consider it first and foremost before it becomes a problem later (and not on your own)
slender iron
gotta get the broadcom port stable before worrying about the possible future
onyx hinge
if retry_count > 0:
if any(self._socket_free.items()):
self._free_sockets()
else:
raise RuntimeError("Sending request failed")
retry_count += 1
main furnace
What about using a proxy server to uncompress gzip streams?
onyx hinge
an adafruit io feature to act as a proxy for "challenging" servers could be cool. or maybe you could make your own out of a serverless platform.
thorny jay
Let's call that ReverseProxyIO?
blissful pollen
A rare time I miss the end of a meeting and a bunch of in the weeds I am interested in (of course)
-
For the gzip item I am still planning to look at it more this week, but if anyone else does as well no worries. Seems straigh-forward though.
-
For the native mod hope I didn't open up too much of a can of worms. I agree with basically all the points brought up. Willing to have a longer discussion about it if ever needed as well. I saw a lot of the points discussed on reasons why it has some potential use today but could cause issues too.
fiery fossil

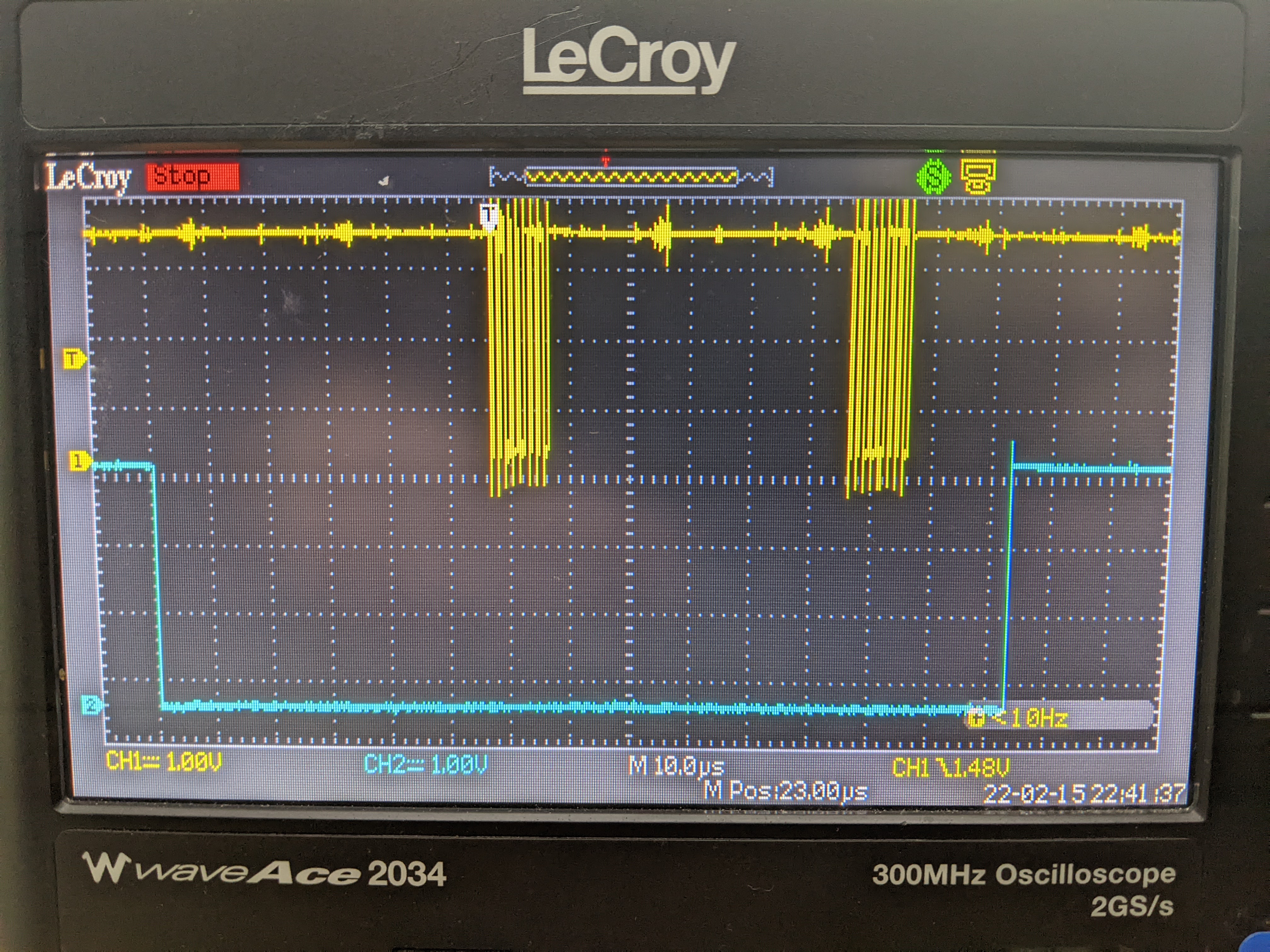

I think I'm seeing an issue with adafruit_bus_device with SPIDevice set up for polarity=1. The SCK should be idle high before chip select goes low. Right? SCK does idle high in between the 2 clock pulses. But because it's not idle high before chip select is low, technically there are 9 rising clk edges in that first set of clk toggles.
Zoomed in sck
onyx hinge
@fiery fossil it's not unlikely that there's a bug, for the less common phase & polarity settings. It's also curious that in your trace SCK is slowly decaying at the end of the SPI transaction. I would have expected it to be acting as a push-pull output and remain high.
what circuitpython board?
onyx hinge
OK, I'd try to figure out why SCK is slowly falling when the transaction finishes -- like, is the pin mode just incorrect somehow?
fiery fossil
Yeah, i'm guessing it's deactivating the SPI again before setting chip select high again
onyx hinge
you'll need to make the busio.SPI get the boardmicrocontroller in a state where it maintains the SCK pin's output value
fiery fossil
I am looking in common_hal_adafruit_bus_device_spidevice_enter in shared-module/adafruit_bus_device/spi_device/SPIDevice.c, thought that might be where it's setting chip select before grabbing the SPI
but it looks like it should be grabbing the SPI first...
onyx hinge
but it's just a convention that some users 'manage' the chip select pin using adafruit_bus_device. You could also manage CS manually in your own code if you wanted. busio.SPI must drive SCK into its idle state the whole time the device exists and is idle.
crimson ferry
@lone axle not sure if this tidbit has been surfaced yet, but I re-visited the jwst.nasa.gov URL on a DEBUG build and the errors that arise are:E (804107) esp-x509-crt-bundle: Failed to verify certificate E (804107) esp-tls-mbedtls: mbedtls_ssl_handshake returned -0x3000 E (804107) esp-tls: Failed to open new connection
we have a facility in the CircuitPython API:py context = ssl.create_default_context() context.load_verify_locations('path/to/cabundle.pem')but I'm not sure if / how to get a pem file appropriate for that server to maybe override the default bundle, to test?
lone axle
Interesting! so it does seem likely that it's just the certificate being expired or otherwise non-working for some reason.
Thank you for trying that out!
crimson ferry
the certificate per se is probably fine, but something in the chain from our bundle seems off
lone axle
@prime flower I'm curious if you have any insight into SSL errors in CircuitPython. The initial discussion around this is in a thread here: https://discord.com/channels/327254708534116352/940343619217403984 if more background would be helpful, there was also some discussion in the weeds of today's (and a bit during last weeks) meeting.
Do you have any ideas about why we might be having the certificate fail to verify? or how we could go about getting a .pem file in order to try manually setting it to see if we can get the request to complete? Or really anything you can share about where the certificates that circuitpython uses come from. I'm willing to poke around a bit and try out some different things, but no idea where to go looking.
fiery fossil
@onyx hinge It should at least be driving idle high while chip select is active low. outside of chip select active low, I don't think it should matter too much
I'm not understanding how adafruit_bus_device and busio interact, I'm missing something
onyx hinge
@fiery fossil I see what you are saying, and it could be true in some systems -- particularly those which use hardware management of chip selects -- but CP doesn't force any particular management of chip select. You might have a device without chip select (its /CS wired low on the PCB), and this behavior of letting the SCK output float when "not in use" would cause spurious clock edges as well. I still recommend changing the busio.SPI implementation until it drives SCK all the time, rather than letting it float.
fiery fossil
Agree, looking into it
crimson ferry
@lone axle Got it! The esp-idf example worked, so I just grabbed the cert from there and plugged it.
I'll post code in the old thread.
lone axle
<@!382939733107408897> Got it! The esp-idf example worked, so I just grabbed the...
That is awesome!! Thank you for all of your help!
crimson ferry
I suspect we just need an update to our bundle?
fiery fossil
@onyx hinge It looks like every time the busio spi object is exited, it calls the same deinit function as a busio spi object deinit. Think that is why the clock goes away? https://github.com/adafruit/circuitpython/blob/main/shared-bindings/busio/SPI.c#L114-L141
and the common hal deinit for stm disables the clk spi_clock_disable(1 << (self->sck->periph_index - 1)); https://github.com/adafruit/circuitpython/blob/main/ports/stm/common-hal/busio/SPI.c#L261-L279
and actually also resets the pin reset_pin_number(self->sck->pin->port,self->sck->pin->number);
yeah, that seems plausible...
mild widget
Hi
manic glacierBOT
@jepler I was able to get this result by setting the SCK GPIO_InitStruct.Pull to GPIO_PULLUP.
https://github.com/adafruit/circuitpython/blob/main/ports/stm/common-hal/busio/SPI.c#L183
onyx hinge
hmmm does 1.18 remove support for deprecated FROZEN_MODULES? This will be a bit of work, if so.
orchid basinBOT
tulip sleet
@minor plume @lone axle @proven garnet @idle owl I am thinking about the outbreak of problems when a library is updated with type annotations but adafruit-blinka is not updated. The problem is that we didn't specify the blinka version. I think we should add a minimum version adafruit-blinka>=6.20.4 in setup.py install_requires and in requirements.txt for type-annotated libraries that depend on circuitpython-typing types. That would force the latest adafruit-blinka to be downloaded, and also complain on systems where python is too old (e.g v3.6) to handle that blinka.
Does this make sense to you?
But I would also like to get circuitpython-typing into the mix in the future. We can make blinka depend on circuitpython-typing later.
we might consider bumping blinka a major or minor version after the circuitpython-typing change to make this easier to remember (e.g 7.0.0 instead of 6.20.4)
@gilded cradle also of interest to you ^^
gilded cradle
Sounds good to me
tulip sleet
I think it would not be all type-annotated libraries because many don't depend on the circuitpython-typing types -- they just depend on regular from typing types
so it doesn't have to be a huge sweep
gilded cradle
👍
lone axle
Yep makes sense to me as well.
minor plume
That makes sense to me. I guess I should look at the circuitpython-typing module at some point soon.
tulip sleet
I need to release it. It is in a repo but I didn't release it yet.
it will not be in the bundle
lone axle
@gilded cradle on a somewhat related topic, yesterday I updated this guide page: https://learn.adafruit.com/circuitpython-on-raspberrypi-linux/installing-circuitpython-on-raspberry-pi to list python 3.7 or later (previously 3.6). And the RasPi OS version to Bullseye because it Buster is now marked as legacy.
Do you know of anywhere else that we would need to update to reflect python 3.7?
tulip sleet
or, more accurately, it doesn't need to be in the bundle.
minor plume
@tulip sleet So I’ll change requirements.txt and setup.py in my pull request, and the collective we can deal with the larger stuff separately.
gilded cradle
<@!478616919721771019> on a somewhat related topic, yesterday I updated this gui...
I'm not sure. For Blinka on Raspberry Pi specifically, that's fine. It does run on other OS, boards, etc too.
tulip sleet
<@!329766224093249548> So I’ll change `requirements.txt` and `setup.py` in my pu...
that would be a good test, thanks!
idle owl
<@!353373147199832074> <@!382939733107408897> <@!135415127879974912> <@!33022745...
Sounds alright to me. Do we know how many libraries would need to be updated at this point?
proven garnet
<@!353373147199832074> <@!382939733107408897> <@!135415127879974912> <@!33022745...
I think that makes sense
tulip sleet
I don't think it is that many, because it's mainly libraries that have ReadableBuffer, etc. annotations
is that right, the issues have been with libraries that have such from circuitpython_typing annotations?
proven garnet
If it was required for Bus Device does that mean the other libraries that depend on it would get the same error?
proven garnet
is that right, the issues have been with libraries that have such `from circuitp...
Yeah, the major one is Bus Device which so many of the libraries depend on
tulip sleet
yes, the transitive bus device dependency is the issue. So let's fix bus device first
proven garnet
So could we put it there and all the others we get made? Like just requiring it for Bus Device would trickle that requirement to anything that uses it right?
My python packaging knowledge is limited, but you could trigger the Blinka and Bus Device update when wanting a new version of a library using it, right?
As opposed to having to also put that requirement in every library that uses it directly
tulip sleet
if you install library A, and it depends on busdevice, but not a specific version, then busdevice will not get updated, and blinka won't either, and then you might get a failure. So it needs to propagate to the other libraries that need updated blinka and busdevice
but many libraries don't need updated busdevice and blinka
the mistake was that we started adding type annotations to libraries without updating their busdevice or blinka required version
idle owl
My only concern is inconsistent infrastructure files.
Wait, no, those are inconsistent anyway.
Nevermind.
proven garnet
Making sure I understand: basically anything that uses Bus Device should get minimum Blinka requirement so it doesn't freak out, is that right?
I guess there's no harm in using an older bus device though regardless of Blinka version, the old one works fine still if someone has it.
tulip sleet
right, the issue is that the addition of from circuitpython_typing import ReadableBuffer, WriteableBuffer into busdevice did not also force the requirement of a version of adafruit-blinka that supports that
onyx hinge
@tulip sleet this is puzzling me with the micropython merge, maybe it rings a bell immediately for you. all or almost all asyncio tests fail in the unix port ```Traceback (most recent call last):
File "extmod/uasyncio_basic.py", line 51, in <module>
File "/home/jepler/src/circuitpython/extmod/uasyncio/core.py", line 222, in run
File "/home/jepler/src/circuitpython/extmod/uasyncio/core.py", line 191, in run_until_complete
File "/home/jepler/src/circuitpython/extmod/uasyncio/core.py", line 176, in run_until_complete
File "extmod/uasyncio_basic.py", line 31, in main
AttributeError: 'SingletonGenerator' object has no attribute 'await'
SingletonGenerator has a __next__ but no __await__; is this related to how micropython sort of conflates the two?
tulip sleet
<@!329766224093249548> this is puzzling me with the micropython merge, maybe it ...
micropython did not add __await__ when they implemented async/await. Kenny/WarriorOfWire did add that when he added async/await to CircuitPython. I had to add https://github.com/adafruit/Adafruit_CircuitPython_asyncio/blob/19f0ce9e34ce5cc5d0cc156b1874a47bd9e33bbd/asyncio/core.py#L52 (SingletonGenerator.__await__) and Task.__await__. to the basic asyncio library.
I have not yet figured out how to add __await__() to _uasyncio. I tried it but it didn't work.
so we are not using _uasyncio in our version of asyncio
onyx hinge
Thanks, that helps! I think I fixed my tests.
by changing __iter__ to __await__ in extmod/uasyncio for the sake of the tests
idle owl
Who's around who understands the type hint stuff we've been doing? I added two things to a library that's already hinted, and I don't want to leave them undone since they'll get missed.
blissful pollen
@onyx hinge Quick question in regards to the natmod stuff, I noticed you were building x86 tests. To do so locally so I just go to the unix port and run make from there? Haven't came across it before
idle owl
Basically, can someone typehint this property and setter for me 😄
slender iron
https://github.com/adafruit/circuitpython/pull/6031 is breaking ru builds but not just by overflowing memory
idle owl
I think the setter is -> None
onyx hinge
@slender iron I'll look into it. This? ../../supervisor/shared/translate.c:91:38: error: right shift count is negative [-Werror=shift-count-negative] 91 | return 1 + (compressed->data >> (8 - compress_max_length_bits)); | ^~
idle owl
except it's a tuple, not an int, so the other setter I was going to model after is not appropriate I think.
proven garnet
I think the setter is `-> None`
Setters are typically None yeah
slender iron
<@!252717193496756235> I'll look into it. This? ```
../../supervisor/shared/tra...
yup
idle owl
Setters are typically None yeah
But it takes a value which is also in need of something...
proven garnet
Is the library on GH?
idle owl
This update isn't. I'll start a thread with the code.
proven garnet
Sweeeet
onyx hinge
@blissful pollen I think you need to make -C ports/unix VARIANT=coverage -j2 then run the steps you can see under "Build native modules" and "Test native modules" in .github/workflows/build.yml in my PR
you can change -j2 according to the number of CPUs / cores in your computer
quick update on the merge of 1.18: unix port builds & passes make VARIANT=coverage test. Haven't tested anything else. Will go look at this message compression thingy first.
blissful pollen
Thanks I'll take a look into it! Just needed that starting place
onyx hinge
yup
so it looks like I assumed a translated string would always be <256 bytes in the utf-8 encoding, but the russian translation has this which comes in at 262 bytes in the utf-8 encoding: Pinout использует %d байт на элемент, что потребляет больше, чем идеальные %d байт. Если этого нельзя избежать, передайте allow_inefficient=True в конструктор
gilded cradle
@slender iron @tulip sleet quick question. I'm trying to add boards to circuitpython.org and a couple of boards (espressif_esp32s3_devkitc_1 and espressif_esp32s3_devkitc_1_nopsram) are on the site, but don't seem to be in circuitpython. Were they renamed or removed?
onyx hinge
@gilded cradle they were renamed, I think
espressif_esp32s2_devkitc_1_n4r2
espressif_esp32s3_devkitc_1_n8
espressif_esp32s3_devkitc_1_n8r2
espressif_esp32s3_devkitc_1_n8r8
Ok cool. I'll just remove those from the data file because the other ones are accounted for
tulip sleet
so it looks like I assumed a translated string would always be <256 bytes in the...
I think we could get our Russian translator to trim some of these.
onyx hinge
it turned out there were more variations (2 levels of flash, 2 levels of RAM), so we renamed them.
tulip sleet
or do it ourselves for now with Google translate
gilded cradle
Thanks, I was a bit stuck on that.
onyx hinge
if (compress_max_length_bits <= 8) {
return 1 + (compressed->data >> (8 - compress_max_length_bits));
} else {
return 1 + ((compressed->data * 256 + compressed->tail[0]) >> (16 - compress_max_length_bits));
}
}
``` It's supposed to be handled, but gcc throws up an error in the unreachable arm of the if-statement..The translations in Russian are less telegraphic than they are in other languages.
onyx hinge
so I also have a pretty simple fix, I think.. turn it into a #if / #else / #endif instead
tulip sleet
If the Russian is in UTF-8, are most characters one byte or two? I was just wondering whether these non-Latin character sets cause double-length strings in general
onyx hinge
Most characters will be 2 bytes in the UTF-8 representation.
tulip sleet
I wonder if for these languages some other encoding would be better, though I'm not sure what
better -> "shorter"
onyx hinge
when it comes to the huffman code table and the "words" table we write them out as a 1-byte or 2-byte encoding, depending whether there are any code points >255 (so only code points <65536 can be used). so everything except american & western european ends up using 2 bytes
tulip sleet
i should look at some Russian websites and see what they serve up
onyx hinge
const mchar_t values[] = { 32, 97, 105, 115, 116, 99, 100, 101, 128, 109, 110, 111, 112, 114, 117, 1072, 1074, 1077, 1080, 1086, 39, 46, 131, 138, 98, 147, 144, 102, 103, 108, 136, 132, 141, 133, 146, 140, 120, 1076, 1083, 1084, 1085, 1089, 1090, 1091, 245, 217, 193, 216, 130, 129, 149, 45, 48, 95, 155, 169, 158, 177, 148, 104, 156, 139, 118, 119, 121, 1073, 150, 163, 1079, 1081, 1082, 157, 142, 137, 154, 1087, 151, 135, 1095, 1099, 1103, 134, 191, 207, 200, 223, 199, 194, 40, 41, 49, 50, 67, 68, 73, 79, 80, 82, 83, 84, 85, 176, 238, 218, 159, 171, 107, 167, 224, 165, 205, 170, 246, 192, 195, 172, 1053, 1055, 1075, 175, 181, 1078, 166, 164, 152, 143, 153, 160, 1088, 145, 162, 161, 173, 174, 1092, 1096, 1100, 219, 247, 37, 186, 47, 168, 51, 52, 53, 54, 56, 58, 61, 65, 66, 69, 76, 77, 78, 87, 225, 198, 187, 179, 201, 184, 178, 226, 180, 204, 206, 208, 122, 1041, 1042, 1044, 252, 1054, 239, 182, 183, 196, 1093, 1094, 1102, 242, 243, 210, 34, 42, 60, 189, 71, 72, 213, 188, 185, 86, 228, 215, 227, 214, 229, 231, 106, 234, 230, 113, 236, 235, 197, 1047, 1048, 253, 1050, 1052, 248, 251, 241, 1057, 1060, 220, 212, 190, 244, 209, 202, 254, 221, 203, 1097, 1098, 1101, 222, 33, 44, 211, 57, 59, 62, 250, 70, 237, 88, 96, 232, 1040, 1056, 1058, 1064, 1069, 1071, 233, 35, 43, 89, 91, 93, 126, 1045, 1059, 1063, 240, 55, 74, 123, 125, 1043, 1062, 249, 1105 };
tulip sleet
Korean is not currently turned on, are you saying if there is a single two-byte character, they are all 2 byte?
russian is the new largest language
and the translation is not close to done
onyx hinge
What choices besides storing UTF-8 or UTF-16 seem feasible to you?
tulip sleet
that's the thing, I don't know of any
onyx hinge
"Pinout uses %d bytes per element, which consumes more than the ideal %d "
"bytes. If this cannot be avoided, pass allow_inefficient=True to the "
"constructor"
msgstr ""
"Pinout использует %d байт на элемент, что потребляет больше, чем идеальные "
"%d байт. Если этого нельзя избежать, передайте allow_inefficient=True в "
"конструктор"
```to be fair, this is not much larger than the English.. in code points
153 -> 160. it's in utf-8 bytes, which because of reasons led to a more efficient implementation of "know when decoding a string is complete", it's over 255.
tulip sleet
moscowtimes.ru is UTF-8
onyx hinge
``` If you had an efficient way to use 12-bit values instead of 16-bit values you'd get some savings, since the highest unicode code point is <2048. but that doesn't help with all languages, CJK languages have lots of higher numbered code pointsyes, CJK is going to be big. But since a code point can be a whole word, it might be a bit of a wash.
onyx hinge
making the entries in values[] and words[] variable length like utf-8 hurts in cases like CJK (because some things are 3 bytes) but also it creates a problem for efficiency, you can't just index you have to count by code points
tulip sleet
albert@tuna:~$ cat >foo.txt
использует
halbert@tuna:~$ more foo.txt
использует
halbert@tuna:~$ od -c foo.txt
0000000 320 270 321 201 320 277 320 276 320 273 321 214 320 267 321 203
0000020 320 265 321 202 \n
0000025
in the UTF-8 of the Russian above, the first byte of the pair is always 320 or 321 (octal!)
since it's a small-alphabet language. I am not pushing for a solution here, I am just wondering how to store such UTF-8 strings more efficiently in general.
that is, it's a small number of codepoints, but not in the zero block
onyx hinge
there are some other 'compression' schemes for unicode separate from huffman & dictionary style compression. They tend to be optimized for certain scripts. Often they have a code saying 'all the next values will be from some other 'page' of unicode, but they're all 1 byte' and have control characters to switch among some common or recently used pages
I forget what these algorithms are named
it's also worth noting that for our "dictionary" encoding we take advantage of the fact that character values 128..160 (?) are always unused, and for non-western-european, 128..255 are unused. those are the values[] entries that stand for whole sequences of code points.
switching to utf-8, or something else that would use more 'single byte values' would take away from that space of numbers we can use to represent repeated character sequences (that we call 'words' sometimes, even if it's a bit erroneous as they're unrelated to whitespace breaks)
It's almost certain that there's a better way than I have thought of, but there's a whole series of trade offs and layers that have been piled here and you may have to pick more than one thing apart in order to do better..
tulip sleet
thanks for the background on this, I ddin't know we used the upper byte values for word entries
onyx hinge
@tulip sleet SCSU and BOCU
https://www.unicode.org/notes/tn6/
The byte/code point ratio is 1 for runs of code points from the same block of 0x80 code points (and for Hiragana), and 2 for runs of CJK Unihan code points, as with [SCSU]. The startup overhead is very low (similar to [SCSU]), which makes it useful for very short strings like individual names. The maximum number of bytes per code point is four.With BOCU-1, texts in languages with Latin-based scripts take about the same amount of space as with UTF-8, while texts in all other languages take about 25%-60% less space. Compared to UTF-16, texts in all languages with small character repertoires take approximately half as much space in BOCU-1. For large character sets, i.e., Chinese/Japanese/Korean, texts are about the same size for UTF-16 and BOCU-1.
fierce dust
Got the following error when build for raspberry pico on master branch.
make BOARD=raspberry_pi_pico -j 2
Use make V=1, make V=2 or set BUILD_VERBOSE similarly in your environment to increase build verbosity.
mkdir -p build-raspberry_pi_pico/genhdr
text data bss dec hex filename
250 0 0 250 fa build-raspberry_pi_pico/boot2.elf
GEN build-raspberry_pi_pico/genhdr/moduledefs.h
QSTR updated
../../extmod/ulab/code/numpy/transform.c: In function 'transform_compress':
../../extmod/ulab/code/numpy/transform.c:85:15: error: 'shift_ax' may be used uninitialized in this function [-Werror=maybe-uninitialized]
rshape[shift_ax] = true_count;
^
cc1: all warnings being treated as errors
make: *** [../../py/mkrules.mk:74: build-raspberry_pi_pico/extmod/ulab/code/numpy/transform.o] Error 1
make: *** Waiting for unfinished jobs....
idle owl
@tulip sleet There are a few things hardcoded into the Adabot library checks for ignoring - if you're not going to put Typing in the bundle, it may be courteous to also add it to the hardcoded ignore list. I'm verifying the other things Adabot checks for right now on this repo so it's not an issue that it'll ignore all library infrastructure checks.
Should CircuitPythonLibrarians have access to the Typing repo? @tulip sleet
fierce dust
The same build seems to work just fine with 7.1.1 tag
idle owl
I can add if so, but wanted to verify first.
tulip sleet
<@!329766224093249548> There are a few things hardcoded into the Adabot library ...
I could put typing in the bundle. I'll fix the Circuitpython librarians thing
idle owl
I could put typing in the bundle. I'll fix the Circuitpython librarians thing
I'm literally already on the page.
tulip sleet
it's not bad to be in the bundle, it's just not necessary
onyx hinge
@fierce dust when you check out a different branch or tag, make sure your submodules are up to date. I am not entirely confident of the commands, I know what I run but I think it's different than what is suggested for the community. make fetch-submodules; git submodule update may be it, @tulip sleet do you want to say what's actually right?
idle owl
it's not bad to be in the bundle, it's just not necessary
Up to you. Add to bundle, or add to Adabot's ignore list 🙂
I fixed the other settings on that repo too. So it should be good to go.
onyx hinge
If it's actually in the bundle then won't circup actually install it? do not want.
tulip sleet
it got uploaded to pypi as adafruit-circuitpython-typing; does that or just circuitpython-typing make more sense to you? The actual repo is Adafruit_CircuitPython_Typing, but the import as you know is import circuitpython_typing
fierce dust
This is exactly what I did with fresh cloned master branch. make fetch-submodules the make BOARD=raspberry_pi_pico -j 2
tulip sleet
i was also thinking it might get included in Learn Guide project bundles
onyx hinge
@fierce dust otherwise, make sure you're using the specific arm toolchain that we are using during CI, because sometimes different compilers give different diagnostics.
idle owl
it got uploaded to pypi as adafruit-circuitpython-typing; does that or just circ...
Not sure the PyPI name matters to imports. I guess it might alleviate confusion...
onyx hinge
(gcc-arm-none-eabi-10-2020-q4-major)
idle owl
Sounds like maybe it doesn't belong in the bundle then with all of those concerns.
fierce dust
@onyx hinge Ok, will give it a go. Thanks.
tulip sleet
make fetch-submodules at the top level is the "best" way, but is slower than git submodule update. Do make fetch-submodules the first time or else it will fetch 10GB of RPi broadcom firmware
ok, let's put it on the omit list. I can do that if you tell me where, or you can do it
onyx hinge
speaking of submodules, something in ports/stm seems to be making things very grumpy. Switching branches is telling me things like ```warning: unable to rmdir 'ports/stm/st_driver/stm32f0xx_hal_driver': Directory not empty
maybe I will leave it, in case someone else uploads their own version. adafruit-circuitpython-asyncio is similarly inconsistent when it comes to the actual name to import
idle owl
maybe I will leave it, in case someone else uploads their own version. adafruit-...
That's fine with me.
I prefer consistency in naming in general.
tulip sleet
speaking of submodules, something in `ports/stm` seems to be making things very ...
this is the result of making new submodules for the STM HAL libs. I eventually recloned my fork instead of trying to figure out how to fix it
onyx hinge
@tulip sleet that's frustrating, OK
tulip sleet
i tried a bunch of ways to fix it, but did not succeed
onyx hinge
every once in awhile something really seems to leave git confused
tulip sleet
I prefer consistency in naming in general.
it means the dependency will be on adafruit-circuitpython-typing in install_requires in setup.py, and in requirements.txt. I'm confused about whether this will be confusing or not.
idle owl
Nah because most imports aren't the full name.
tulip sleet
thanks for another brain on this
fierce dust
@onyx hinge Change arm tool change to the correct version solves the problem. Thanks.
idle owl
I thought Black ran on the entire library repo. I ran pre-commit manually and it ignored some obvious issues, so did Pylint. I'm a little confused.
@lone axle Are you around for a type hint question?
Nevermind! Got it sorted with Tekktrik.
idle owl
Oof, Learn in the editor is loading images like it's the 90s. It's not stopping me from doing what I need to, but it's combination annoying and hilarious.
stuck elbow
they don't make them like they used to anymore
idle owl
Not even close.
stuck elbow
even nostalgia is not the same anymore
idle owl
Hah, truth.
tulip sleet
@idle owl cookiecutter, etc. are still using black 20.8b1. Circuitpython, when it does black uses the latest (it doesn't specify the version in the pre-commit yaml file).
Are we planning to move to black 22.1.0? The main difference I see is that it is now putting spaces around the ** operator
idle owl
<@!330227457296957440> cookiecutter, etc. are still using black 20.8b1. Circuitp...
Um.... Oh, CircuitPython itself. We can move the libraries whenever, really. It's a relatively easy Adabot patch for Eva. But she's going to be teaching Tim and I how to use Adabot, so we could do that for the example patch when we're learning. That's at the end of this month.
Does that work?
tulip sleet
sure, I am just asking because I accidentally ran the 22.1.0 black over adafruit-blinka, and it made one change with **, which then the test job complained about. blinka doesn't use pre-commit (I opened an issue about that), so I could just change the version blinka uses now.
or I could undo the change
idle owl
sure, I am just asking because I accidentally ran the 22.1.0 black over adafruit...
That works on both counts.
Nah, update it.
We'll do the rest later this month.
tulip sleet
tnx fer guidance!
idle owl
You're welcome!
jaunty juniper
hey, so, I've had a Hiibot IOTS2 for a few months (well a year), and it shipped with tinyuf2 and CP6 on it. I'm not sure I identified who makes them outside of the github user (BradChan) associated with the tindie page, who tried and failed to PR it to Circuitpython repeatedly (due to not having a PID and not responding when asked about it).
I have a PR ready, should I just get a pid from Espressif myself ?
proven garnet
@idle owl no worries to do now, but just wanted to clarify what route you were picking for the getter method: do you want it to throw an error or return None?
It sounded like returning None was the move but just wanted to clarify.
fierce dust
Got a question on free memory on esp32s2 wroom based board. It has 320k sram onbaord. However under micropython it shown as have 140k+ mem free, but the same board on circuitpython only shown as 46k+ mem free. Was wondering what is the reason behind the discrepancy?
proven garnet
@tulip sleet the PR for bus device, should Blinka version be specified in requirements.txt?
Saw it and want to know the fix if I come across it during typing
tulip sleet
you're right, that should be done on both of those PR's! I'll fix
proven garnet
Is the goal to release those now and then finally do the Blinka one?
At least in terms of order of operations
tulip sleet
Is the goal to release those now and then finally do the Blinka one?
yes, that's the idea. Then I could go back and release Blinka as 7.0.0 and redo those, if we wanted to.
it turns out the circuitpython_typing/ directory in adafruit-circuitpython-typing overrides the circuitpython_typing.py file installed by adafruit-blinka, so you get the new circuitpython_typing if both are installed
slender iron
Got a question on free memory on esp32s2 wroom based board. It has 320k sram onb...
I think it's a tradeoff we make to leave room for the lwip sockets and IDF allocations
fierce dust
I think it's a tradeoff we make to leave room for the lwip sockets and IDF alloc...
Thanks.
stuck elbow

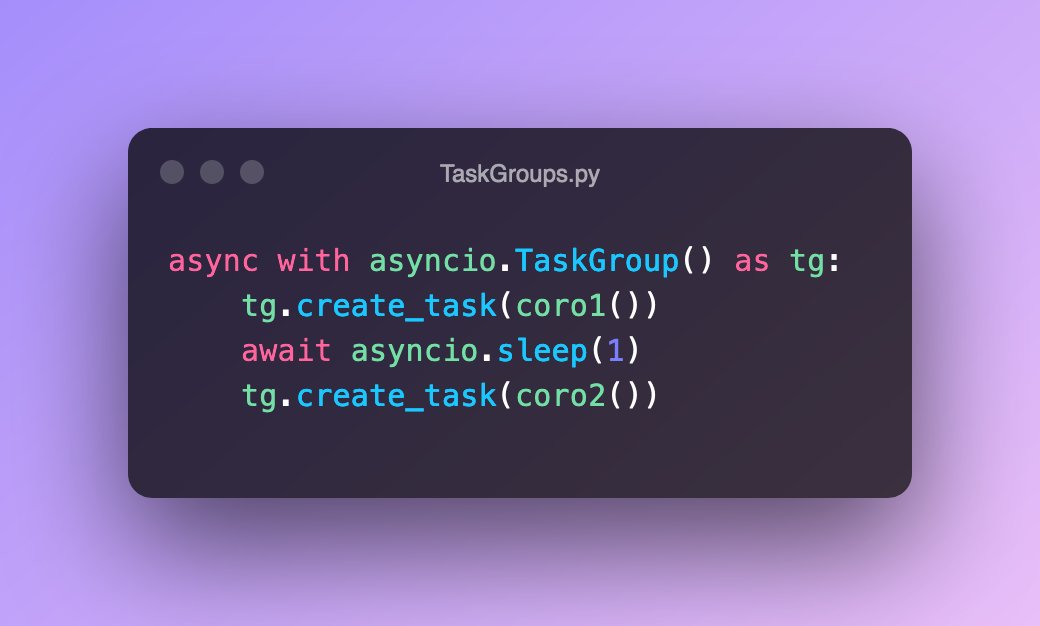

@tulip sleet you probably saw this: https://twitter.com/1st1/status/1493748843430567942
winter mortar
<@!329766224093249548> you probably saw this: https://twitter.com/1st1/status/14...
Here's Rossum's issue discussing TaskGroup: https://bugs.python.org/issue46752
lone axle
If any reviewers have a moment today. Would appreciate if anyone can take a look at: https://github.com/circuitpython/CircuitPython_Library_Screenshot_Maker/pull/11. This change is needed to make the project files screenshot for my PyPortal Winamp guide look correct. (There are some files meant for PC only that should be excluded from the CIRCUITPY drive screenshot). It's in CircuiptPython org so I can't tag librarians as a group, but happy to have anyone who can take a look.
tulip sleet
<@!329766224093249548> you probably saw this: https://twitter.com/1st1/status/14...
I did! I liked several of those tweets.
tulip sleet
If any reviewers have a moment today. Would appreciate if anyone can take a look...
approved!
lone axle
Thank you!
orchid basinBOT
proven garnet
@tulip sleet I'll probably get started on writing the docstrings for asyncio. Is taking the existing documentation and porting it into the code as docstrings sufficient?
Well, I guess the existing documentation is for uasyncio right? I guess that's a starting point, but (correct me if I'm wrong) there are differences between that and asyncio.
Not sure how that will translate for docstrings though
tulip sleet
Well, I guess the existing documentation is for `uasyncio` right? I guess that'...
The differences are very minor. Note that I did not use black on the asyncio code - it's very close to the micropython code, and if I blacken it, it will be much harder to merge changes. I will ask upstream if they could use black on the original.
proven garnet
Okay, I think I saw the comment disabling pylint and black in at least one of the files, I'll be sure not to touch them
At this point, are type annotation for the library going to be more in the way than not? I was going to do them in a separate PR but if there's the want to keep it close to the MicroPython code, I could see the value of not doing it right now.
tulip sleet
yes, I'd say omit them for now
proven garnet
Sounds good!
jaunty juniper
note that type annotations are mostly relevant to code completion in IDEs in my opinion, and they already have that for asyncio
tulip sleet
@proven garnet I looked more closely, and they do use black on the files, but as black --fast --line-length=99
it was pylint that had many more complaints, now I remember
without the 99, it changes about 12 lines across three files
so don't do it for now, but it's less of a worry than I thought
proven garnet
Got it, thanks for the clarification!
idle owl
@proven garnet I think I understand what I was missing with regards to your PR question. I wasn't considering that you can also "get" the range... so the NotImplementedError needs to be in both. It was initially, but I removed it from the property because it seemed redundant. But if you can also print(range) for example, it needs to raise the error in both. I'll update it and submit the fix.
@proven garnet So does that mean the @property should be -> None as well now?
proven garnet
I would say if you're adding NotImplementedError it's appropriate to use the "eventual" type because it's impossible to actually get anything at (for example, you don't even get None since it raises the exception). So keep it as int in that case!
idle owl
Ok thanks
@proven garnet When you have a moment, https://github.com/adafruit/Adafruit_CircuitPython_ADXL37x/pull/2
@proven garnet Also you don't need to comment if it's all good, but you could also check the type hints in the new sections of this one in case I did them wrong https://github.com/adafruit/Adafruit_CircuitPython_ADXL34x/pull/34
proven garnet
<@!135415127879974912> When you have a moment, https://github.com/adafruit/Adafr...
Just approved! I can take a look at the other too
idle owl
Thank you!
proven garnet
Looks like you could remove the pylint: disable for busio there too
proven garnet
Looks good to me!
idle owl
@proven garnet Has anyone gone over doing releases with you yet?
proven garnet
No, just approving and merging
idle owl
No, just approving and merging
Ok, if no one else gets to it, how about Friday we can go over it on your lunch? I've got Things ™️ today and tomorrow to deal with.
proven garnet
Sounds great to me!
idle owl
Perfect. Added to my calendar. Wait - 12p-1p ET is your lunch?
proven garnet
ET, yup!
idle owl
Ok great. It's in my calendar so I'm more likely to remember. 😄 @proven garnet Don't hesitate to ping me on Friday though if I end up missing it.
proven garnet
Will do, and same here 🙂
proven garnet
@tulip sleet is this correct? I assume this is written this way intentionally for under the hood but Sphinx gives a SyntaxError for doing return True from an async function. Trying to see about how to get around that, but just making sure.
tulip sleet
<@!329766224093249548> is this correct? I assume this is written this way inten...
this should be ok. I tested the construct in CircuitPython and CPython, and it doesn't raise an error. I wonder if Sphinx is assuming an older version of Python
idle owl
@tidal kiln For the TFT feather, the final pin name is TFT_I2C_POWER ?
I mean I can dig it up, and so on, but you were in there recently, so I figured ask.
tidal kiln
for arduino
idle owl
Oh hmm
I meant for PrettyPins
Let me check CP
I2C_TFT_POWER
Blergh.
That's why that's what it is on PP.
idle owl
Yah.
I will ask Limor which one she wants as canonical.
And submit a fix to the other I guess.
tidal kiln
MAKE_STUFF_GO is my submission 🙂
idle owl
Duly noted! 😄
tulip sleet
And submit a fix to the other I guess.
All the other TFT pins are names starting with TFT_, so the arduino choice is more consistent
idle owl
All the other TFT pins are names starting with `TFT_`, so the arduino choice is ...
Noted, and mentioned. Thanks
Did a git pull and then git status on CircuitPython... what is all this? Untracked files: (use "git add <file>..." to include in what will be committed) ports/stm/st_driver/CMSIS/ ports/stm/st_driver/README.md ports/stm/st_driver/STM32F0xx_HAL_Driver/ ports/stm/st_driver/STM32F1xx_HAL_Driver/ ports/stm/st_driver/STM32F2xx_HAL_Driver/ ports/stm/st_driver/STM32F3xx_HAL_Driver/ ports/stm/st_driver/STM32F4xx_HAL_Driver/ ports/stm/st_driver/STM32F7xx_HAL_Driver/ ports/stm/st_driver/STM32G0xx_HAL_Driver/ ports/stm/st_driver/STM32G4xx_HAL_Driver/ ports/stm/st_driver/STM32H7xx_HAL_Driver/ ports/stm/st_driver/STM32L0xx_HAL_Driver/ ports/stm/st_driver/STM32L1xx_HAL_Driver/ ports/stm/st_driver/STM32L4xx_HAL_Driver/ ports/stm/st_driver/STM32L5xx_HAL_Driver/
tulip sleet
a bunch of submodules in STM were changed
idle owl
But if they're remote, why are they untracked locally?
Also the espressif/esp-idf is still showing "modified" after doing the submodule update thing. 😕
tulip sleet
you could do git clean -xxffdd ports/stm and that might help. got to the top directory and do make fetch-submodules again. But Jeff and I found that our clones were somewhat messed up
idle owl
Usually the submodule thing fixes modified files.
Oh hmm ok.
Should I simply reclone then?
tulip sleet
you can do git submodule init --update again too, and it should not pull the the whole broadcom repo
If you don't have a lot of ongoing work, that would be easieest
idle owl
I think I already blew away the only ongoing stuff I had. So no, there's nothing.
tulip sleet
you'll need to do make fetch-submodules which will take a while, and rebuild mpy-cross
I ended up doing that, and i pushed a bunch of in-process work, so it was worth ti
idle owl
Is my ESP build environment going to disappear too?
I mean whatever, I'm redoing it regardless. But want to know.
tulip sleet
yes, you'll have to do esp-idf/install.sh again
too
but that fetches stuff elsewhere, so it won't take as long
idle owl
Alright, setting up new one now.
@tulip sleet OK, so I did the fetch-submodules and rebuilt mpy-cross. I should be good to go?
tulip sleet
esp-idf/install.sh, but you don't have to do that now
idle owl
I'll do it now because I'll forget what's involved when I need it.
@tulip sleet Where do I run that from?
What directory
tulip sleet
cd ports/espressif
idle owl
ok
weary hill
@minor plume Hey, sorry I missed your PR, I have been slammed with work. I left a small comment, but besides the quote format looks good to me. I also have a change I haven't had a chance to merge I would love for you to take a look if you have time sometime. I'll probably push it up to github later this week, but it should allow you to install any version of a package like poetry/npm etc.
minor plume
<@!353373147199832074> Hey, sorry I missed your PR, I have been slammed with wor...
No problem. Happy to look at both things. I’m traveling at the moment but I’ll get to them as soon as I can.
weary hill
Thanks, enjoy your travels. I'll make a PR when I finish. I think in the long run it might be best to actually use Poetry Core to do dependency resolution, but its a but tricky right now for a number of reasons. I looked into using CircUp as well but even though there is a lot of overlap I think Poetry core really fits the paradigm best in the long run.
weary hill
For now I did the resolution myself using the bundle index. Also I looked into the Github api which I know Circup uses but they have an api limit of like 60 requests per hour for anonymous requests, which makes it hard to do complete resolution. Poetry uses Pypi when it can but because of gaps in the Python ecosystem also installs and resolves dependencies that way when necessary. Basically I'm saying, everything has a lot of workarounds because the Python community has only recently been addressing all this.
tulip sleet
Thanks, enjoy your travels. I'll make a PR when I finish. I think in the long ...
a small warning: poetry does not yet support yanked releases: https://github.com/adafruit/uf2-samdx1/releases/download/v3.14.0/update-bootloader-feather_m0-v3.14.0.ino. This came up when we had a bad release for something which we had yanked. Eventually we just deleted the release
we weren't using poetry, but someone else was
weary hill
@tulip sleet That's very good to know. I have had one question lingering perhaps you know the answer to. Are the bundles just auto-built when a package has a new release, or do they promise any sort of compatibility between the packages?
tulip sleet
a bundle is just a snapshot, produced when any library in the bundle has a new release
jaunty juniper
circup doesn't use the github API, it uses direct links
idle owl
@tulip sleet I ran pre-commit manually before doing the PR, and it altered the circuitpython.pot file. I git stash'd and git stash dropped to get rid of the changes, and uninstalled the pre-commit hooks. It passed remotely without issue. What's the deal there?
weary hill
Also poetry is suuper slow, but I think its because the pypi dependency support is still being improved.
tulip sleet
<@!329766224093249548> I ran pre-commit manually before doing the PR, and it alt...
it would do that if it thought the translations were out of date. Did you bring your fork up to date before the PR?
weary hill
@jaunty juniper Oh okay, good to know. So it downloads for dependency resolution?
idle owl
it would do that if it thought the translations were out of date. Did you bring ...
Probably not.
It was a fresh clone though.
I'll try to fix it once this PR is merged.
tulip sleet
before starting a PR branch, I always bring main up to date
proven garnet
<@!329766224093249548> is this correct? I assume this is written this way inten...
Okay so it's not Python version because it fails to build the docs even at Python 3.7... I also can't wrap the code in question with a try/except for SyntaxError as it still gets raised. I tracked down what is actually throwing the error in CPython because @tulip sleet is right in that it is valid syntax and I also confirmed that it is like he did. Here's what's throwing it but I'm C illiterate, so if anyone knows what this code is in CPython and why Sphinx autodoc would throw it when parsing an async function that returns a value, that might help
Ah, the line number would help wouldn't it...
idle owl
before starting a PR branch, I always bring main up to date
I didn't think about it because I cloned it just now.
proven garnet
Ah, the line number would help wouldn't it...
idle owl
I forgot about my fork until after, and didn't want to get caught up in a rebase. The merge was clean, so I left it alone for now.
weary hill
@jaunty juniper Nevermind I just went through the code.
jaunty juniper
<@!199811382793863168> Oh okay, good to know. So it downloads for dependency re...
the dependencies are in the bundle zip, and it uses the headers from https://github.com/adafruit/Adafruit_CircuitPython_Bundle/releases/latest to extract the latest tag of the bundle:
server: GitHub.com
date: Wed, 16 Feb 2022 21:41:13 GMT
content-type: text/html; charset=utf-8
vary: X-PJAX, X-PJAX-Container, Accept-Encoding, Accept, X-Requested-With
permissions-policy: interest-cohort=()
location: https://github.com/adafruit/Adafruit_CircuitPython_Bundle/releases/tag/20220216
that error message is gone in main in cpython
what is the version of python you are using?
proven garnet
I can't build the docs locally for some reason so I'm having the CI do it. I've tried 3.10 and 3.7 and neither work
In my local repo
weary hill
the dependencies are in the bundle zip, and it uses the headers from <https://gi...
Okay that's what I have piku doing as well. I would like to use PyPi in the long run, is there a reason you chose not to?
manic glacierBOT
tulip sleet
In my local repo
i am forgetting which repo this is, and could you show me the command line you are using?
proven garnet
that error message is gone in `main` in cpython
It is? I think can see it in main (sorry thought I linked main): https://github.com/python/cpython/blob/main/Python/compile.c#L3089
tulip sleet
i'll try it
you're right, I typed the search string wrong
it thinks it's a generator
now I remember it's asyncio. I'll try building the docs
proven garnet
i am forgetting which repo this is, and could you show me the command line you a...
Sounds good, I ask because I'm sitting on a PR for the docstrings
I can add it as a draft if that would help
jaunty juniper
Okay that's what I have piku doing as well. I would like to use PyPi in the lon...
you mean pypi to resolve dependencies ? Many libraries are not on pypi.
tulip sleet
@proven garnet
albert@tuna:~/repos/Adafruit_CircuitPython_asyncio$ sphinx-build -E -W -b html docs _build/html
Running Sphinx v4.4.0
loading intersphinx inventory from https://docs.python.org/3/objects.inv...
loading intersphinx inventory from https://docs.circuitpython.org/en/latest/objects.inv...
building [mo]: targets for 0 po files that are out of date
building [html]: targets for 3 source files that are out of date
updating environment: [new config] 3 added, 0 changed, 0 removed
reading sources... [100%] index
looking for now-outdated files... none found
pickling environment... done
checking consistency... done
preparing documents... done
writing output... [100%] index
generating indices... genindex py-modindex done
writing additional pages... search done
copying static files... done
copying extra files... done
dumping search index in English (code: en)... done
dumping object inventory... done
build succeeded.
The HTML pages are in _build/html.
halbert@tuna:~/repos/Adafruit_CircuitPython_asyncio$ python --version
Python 3.9.10
building for me, hmm
weary hill
Yes. Okay. That's good to know. I have just started looking into all this, been very busy with work. I guess that makes using Poetry / PyPi more challenging.
Thanks for the info!
jaunty juniper
Yes. Okay. That's good to know. I have just started looking into all this, bee...
the dependencies are in the requirements directory in the bundle. There is a json file with all the dependencies, computed by the bundler, like that: https://github.com/adafruit/Adafruit_CircuitPython_Bundle/releases/download/20220216/adafruit-circuitpython-bundle-20220216.json
circup does not use it yet (but the learn guide bundler does)
weary hill
I'll stick with using the bundle json indices for now.
proven garnet
<@!135415127879974912>
```sh
albert@tuna:~/repos/Adafruit_CircuitPython_asyncio...
Are you on main?
proven garnet
I think main is only building the __init__.py file so it doesn't hit the error
In my PR I expanded the files it would document, I'll draft and tag you on the PR
(Based the contents of api.rst)
weary hill
@jaunty juniper Okay that's what I have working currently (if I understand you correctly). I need to dig into CircUp more. Is there an index anywhere mapping version of a package to build, in the long run thats what would be most helpful for Piku.
tulip sleet
@proven garnet i believe you, i'm looking at whether we can change the code
gilded cradle
@onyx hinge or @tulip sleet regarding frozen libraries, would it make more sense to point to the library folder inside of frozen directories instead of the entire repo or does it sort that all out automatically?
weary hill
Currently basically I take the version, use poetry core and find a candidate package using the bundle package indices. Then use the bundle package index to resolved dependencies. But by allowing installation from different bundle builds and using those json files I havent figured out how I am going to resolved dependencies between bundle builds yet. I guess I just assume it will work.
I also haven't addressed some of the issues CircUp does like checking that the dependency is micro-controller only etc.
tulip sleet
<@!426200547024961539> or <@!329766224093249548> regarding frozen libraries, wou...
it sorts all that automatically. It is assuming the libraries it's freezing are the top dir in a submdoule
gilded cradle
Ok, cool. Thanks.
tulip sleet
(I may be missing some context in this conversation)
ornate breach
I was looking in the issues for circuitpython related to i2c issues on the RP2040 but I can’t find any. I was wondering if anyone was having issues using i2c scan on the RP2040?
gilded cradle
MatrixPortal build was too big because I added a bunch of frozen libraries
I'm just trying to figure out what to shave off
ornate breach
Someone messaged my tindie shop saying they couldn’t run the i2c scan on an RP2040 board with circuitpython using a similar code as they used on CPX
tulip sleet
you have to remove an entire library
ornate breach
I’m waiting to get code and whatnot back from the person but I figured I’d ask here if any i2c scan issues have been seen
idle owl
I’m waiting to get code and whatnot back from the person but I figured I’d ask h...
I haven't run into any that I can remember, and I've been doing a lot of STEMMA QT breakout stuff with a QT Py RP2040 recently.
tulip sleet
Someone messaged my tindie shop saying they couldn’t run the i2c scan on an RP20...
there were issues in the past but they were fixed. Find out what version they are using. MicroPython had a few potential issues until recently -- if they might happen to have been using MicroPython
idle owl
Not necessarily with I2C scan, but no issues using I2C boards.
ornate breach
Yeah, I’ve not run into any issues myself but I’m hoping to figure out the details
tulip sleet
the scanning is done with a zero-length I2C write, which has to be done with bitbangio because the RP2040 hw I2C doesn't support zero-length writes. There is a 1-sec potential timeout on that (which is too long, it should be shorter). There are a few badly-behaved devices that don't like zero-length writes, but very few
@proven garnet change the yield in that function to await asyncio.sleep(0). I think that will fix the problem. We don't generally want to use bare yields like that. In this case it makes the compiler think it's a generator
proven garnet
Sounds good, I'll make that change! Thanks for that
manic glacierBOT
onyx hinge
I need to test the builds (and make sure I'm comparing apples to apples) but it looks like we get ~300 bytes of flash space back from the 1.18 upgrade. if accurate, not bad!
jaunty juniper
by the way, let me re-ask, I'm not sure what to do about the Hiibot IOTS2: I have a PR ready to add it, should I get a pid from Espressif ? The github user (BradChan) associated with the tindie page where the board is sold, tried and failed to PR it to Circuitpython repeatedly (due to not having a PID and not responding when asked about it). I'm not even sure of who Hiibot are or if the Bluefi and IOTS2 are actually affiliated with them...
proven garnet
@tulip sleet That worked but now getting the draft PR has a new error for using await outside of async function, different part though so progress!
idle owl
@tidal kiln CircuitPython pin name updated to match Arduino. PrettyPins updated to reflect change. Warnings and text added about Arduino requiring manually setting the pin. Please take a look at your convenience. https://learn.adafruit.com/adafruit-esp32-s2-tft-feather/pinouts
@tidal kiln You might have better wording for the warnings.
jaunty juniper
I mean, that looks cool, but I see no reference to the products added to CP with the hiibot name
http://www.hibottoy.com/HiiBotCircle.html (though the site is in chinese, so I'm navigating blind)
idle owl
@lone axle Do you have a TFT Feather ESP32-S2?
lone axle
<@!382939733107408897> Do you have a TFT Feather ESP32-S2?
I do
idle owl
Hmm. I was going to see if you wanted to toss together a simple CP graphics test, but it looks like this is what I want - https://github.com/adafruit/Adafruit_CircuitPython_ST7789/blob/main/examples/st7789_240x135_simpletest.py Does that seem correct?
idle owl
@lone axle I need to put together a page in the guide on using the display. Wanted to start with a simple thing, and then I'm going to show a GitHub Stars thing that Limor already has code for. I think that simpletest will work.
idle owl
and pin names also
Good catch thank you
tidal kiln
have you tested the neopixel behavior in arduino? says that's auto also
idle owl
@tidal kiln Updated.
idle owl
have you tested the neopixel behavior in arduino? says that's auto also
No, but I thought you did?
And it should be changed?
lone axle
<@!382939733107408897> I need to put together a page in the guide on using the d...
How simple are you thinking? Label with "hello world" only or a bit more? It could show a Blinka BMP file as well maybe? Text and bitmap images are two things most people end up wanting to do I think.
idle owl
Good call.
idle owl
How simple are you thinking? Label with "hello world" only or a bit more? It cou...
Probably want to do two separate example for that. That simpletest seems simple enough for displaying Hello World. But a really simple bitmap example would probably be helpful.
tidal kiln
@idle owl not automatic
tulip sleet
<@!329766224093249548> That worked but now getting the draft PR has a new error ...
I think making line 22 be async def runner(... would work, but it needs to be tested
idle owl
<@!330227457296957440> not automatic
OK updating now.
tidal kiln
#include <Adafruit_NeoPixel.h>
Adafruit_NeoPixel strip(1, PIN_NEOPIXEL);
void setup() {
pinMode(NEOPIXEL_POWER, OUTPUT);
digitalWrite(NEOPIXEL_POWER, NEOPIXEL_POWER_ON);
strip.begin();
strip.fill(0xADAF00);
strip.show();
}
void loop() {
}
Text updated
tidal kiln
comment out the power stuff and no neopix
tidal kiln
maybe....if it'll fit.
idle owl
Sure
idle owl
@tidal kiln After the section is fine.
For people not reading the text and only the alerts, it's close enough.
tidal kiln
yah...it's a neopixel section. ok. yah. that should work.
idle owl
Found a copypasta fail on my part and fixed that too.
tulip sleet
<@!329766224093249548> That worked but now getting the draft PR has a new error ...
I mean I need to test that the change doesn't break asyncio
idle owl
@tidal kiln Thanks for proofing this for me.
lone axle
Probably want to do two separate example for that. That simpletest seems simple ...
Just double checked, this one works as is on TFT Feather to show a Hello world label: https://github.com/adafruit/Adafruit_CircuitPython_Display_Text/blob/main/examples/display_text_bitmap_label_simpletest.py
idle owl
Just double checked, this one works as is on TFT Feather to show a Hello world l...
Oh I was looking in the ST7789 library (or whatever one it is).
That example is far simpler though.
the other one includes shapes.
Which is also ok.
lone axle
Ah, the purple and green rectangles? I think that is the standard driver one.
idle owl
I'll have to redo them anyway for the pins.
Right. Yeah, I was thinking that one, but it occurs to me that I'm already doing a complicated example, so maybe the basic one is better for this
That one plus a Blinka bitmap example to start
Then the GitHub Stars viewer.
@lone axle Can you toss together a centered Blinka bitmap display example? Or to the left if it's easier, doesn't really matter, but centered might look nicer on that display. That or find one that already exists which I suppose is also likely...
slender iron
I mean, that looks cool, but I see no reference to the products added to CP with...
Ya, please see if espressif will grant a PID for it
idle owl
ok BBIAB again, hopefully pizza is ready this time.
tulip sleet
@proven garnet still works with async def runner(...) so add the async there too
manic glacierBOT
idle owl
https://gist.github.com/FoamyGuy/d05cd1cda47880d4c7ba0b32ab6ce8b9
Hah! This is why I asked you... That would have taken me significantly longer.
So simple too!
Excellent. This is really helpful.
lone axle
Hooray!
proven garnet
<@!135415127879974912> still works with `async def runner(...)` so add the async...
Will do, thanks for the help!
idle owl
@lone axle Oh, while you have it there, can you do a simple example that displays the battery data from the onboard sensor? That's the other one we thought folks wanted.
There's a spot for a BME280, but it's not populated yet.
But there's the battery monitor on there.
lone axle
Ooo nice, I didn't realize it had the battery monitor
idle owl
Yep!
lone axle
Yeah I can make that one as well in a moment.
idle owl
Thank you!
jaunty juniper
<@!382939733107408897> Oh, while you have it there, can you do a simple example ...
is the screenshot the default code it ships with ? https://cdn-learn.adafruit.com/guides/cropped_images/000/003/501/medium640/FTFT_display_on.jpg?1641832392
I like the idea of reproducing those in CP, sometimes people ask for the demo code and are disappointed that it's not CP
idle owl
is the screenshot the default code it ships with ? <https://cdn-learn.adafruit.c...
I have the factory source code if that would help you.
It's obviously Arduino.
I'm not certain about what it looks like, I think I already blasted both of mine so I can't verify it is the product image.
jaunty juniper
ah, I meant that as a suggestion to put in the guide, and guides in general: people get the board, there's something displayed on it, they want to look at the code to see how it's done (obv. it's not originally in CP, but having CP code to do it sounds like a good place to start)
idle owl
Oh!
I do like the idea. I think it's not something Limor would necessarily want me to be putting time into, but if you're interested in doing it, I can think about where to put the examples in the guide. Would you be interested in doing a short writeup for it as well? Basically, if all the info is there for me, adding it to the guide is trivial. It's writing everything out that I would be told not to put time into.
I did it ages ago with the Circuit Playground Express for the same reason you're thinking of. I agree with the concept.
idle owl
FWIW, it's typically the product image when it's a display, so that's probably an accurate thing to mimic. But we also have been trying to post the source code as well, which might be easier than simply trying to do it based on a photo.
idle owl
https://gist.github.com/FoamyGuy/9fa32723fe39c261f4bf8529ddc50409
Beautiful! Thank you!
lone axle
Beautiful! Thank you!
I had the units and properties backwards. Just updated the gist with those corrected.
idle owl
I had the units and properties backwards. Just updated the gist with those corre...
Thank you! I will be adding it tomorrow most likely, so no worries.
tulip sleet
@jaunty juniper Re your wsgi server: I was primarily interested in serving up files (and large files, at that; the javascript for the game is quite large). I added the routing only because it was in the original code I adapted.
But having a WSGI server for wifi.radio would make a lot of sense
jaunty juniper
I basically just ported the code from ESP32SPI
a couple of people contributed fixes and a file serving demo
tulip sleet
i don't actually know very much about the general use of wsgi, and how one would use it to serve static files efficiently
we could put it in the community bundle, or possibly adopt it
is it non blocking in some way, or does it just return after each serve
jaunty juniper
it returns after each serve, polling in a loop for the next
or more accurately, you poll it in the main loop
devout jolt
whenever I see party parrot I always think of @candid sun now
tulip sleet
it returns after each serve, polling in a loop for the next
well, i could just throw away what I have and adopt that, it's really doing the same thing
i didn't start with the old wsgi server because it wasn't a fileserver inherently
candid sun
whenever I see party parrot I always think of <@!347203168121126912> now
Everything can be a party parrot if you put your mind to it
devout jolt
(wrong chat window sorry)
tulip sleet
i was just trying to make the tiniest simple server in a hurry
jaunty juniper
unless it's better to start clean ? a webserver could be an application for wsgi, but are there file serving optimizations that would be missing ?
tulip sleet
the fileserver in your examples does read chunking, which is all I was doing, and the code does EAGAIN, which the original code I had didn't do... it's really pretty much the same. I was thinking how to add route parsing, but wsgi has that already
i was just websearching about using wsgi servers for serving up files
viscid pine
scott noticed it on his deep dive stream and i noticed it about a week ago
crimson ferry
Would select be useful in coordination with asyncio? Or does async accomplish the same thing? µP has uselect. There's not really a peek or available in CPython sockets that I can see.
manic glacierBOT
wide mantle
Hello! I'm trying to build CP 7.1.1 and having a few issues. I followed the Adafruit article about it, and ran this on a fresh checkout after installing the required dependencies:
make fetch-submodules
git checkout 7.1.1 # this is commit ea3c70a95
make -C mpy-cross V=2
It starts to build mpy-cross, but soon fails trying to build ../py/objgenerator.c due to unused variables and -Werror being set:
../py/objgenerator.c:83:66: error: variable 'n_kwonly_args' set but not used [-Werror,-Wunused-but-set-variable]
size_t n_state, n_exc_stack_unused, scope_flags, n_pos_args, n_kwonly_args, n_def_args;
There are 5 warnings total in this file, this is the first one. I edited mpy-cross/mpy-cross.mk and removed -Werror from CWARN , and it eventually finished building, with more warnings (4 in ../py/vm.c).
I couldn't find any reference to these warnings with Google searches, or in GitHub issues, or in Discord logs here. Am I missing a step? I can't reconcile the presence of -Werror and these unused variables in the tagged version; I don't see how it could possibly build. Is there another way to build 7.1.1 without making these changes? – edit: I'm on macOS 11.6 if that makes a difference.
slender iron
@wide mantle what version of gcc are you using?
wide mantle
<@!736255246895939606> what version of gcc are you using?
I installed the toolchain as explained in the docs; the command is xtensa-esp32s2-elf-gcc. Calling it with --version returns 8.4.0.
slender iron
I'm not sure what compiler the mpy-cross version uses. it might actually use clang
wide mantle
oh ok; in that case that would be 13.0.1
slender iron
if you got it building, then you should be able to use mpy-cross
I wouldn't worry too much about hacking it
I used to develop on mac but have switched over to Linux for it now
wide mantle
that's also what I thought for mpy-cross, but I'm getting tons of other errors trying to build the rest for a FeatherS2 Neo.
slender iron
what does your git status show?
wide mantle
HEAD detached at 7.1.1
slender iron
and no files that are changed?
I have 8.4.0 of xtensa-esp32s2-elf-gcc here too
is there a reason you are doing 7.1.1 and not main?
wide mantle
there's the .mk that I changed, and a bunch more that I assume are side-effects from the build, maybe? or related to submodules.
slender iron
I'd be suspicious of the others
wide mantle
umm… yeah 🙂 I'd rather run a released version (hopefully tested too) rather than bleeding edge
slender iron
mind posting the first chunk of git status?
bleeding edge will generally be better
we haven't done anything majorly destabilizing
though we did update the idf
slender iron
ya, the new commits line is a submodules thing
try doing the make fetch-submodules in the top level again
wide mantle
I did run make fetch-submodules but the docs mention it before checking out the tag
do I need to re-run it after too? I wondered about that and didn't see it in the article
slender iron
yup, do it after you switch commits
wide mantle
ok… that makes a lot of sense. Thanks! I'll give it a shot. I suspect this might help with the other build issues I encountered with the firmware itself.
slender iron
hopefully
wide mantle
oh! but I had tried that. Every time I did the command output started with:
# This update will fail because the commits we need aren't the latest on the
# branch. We can ignore that though because we fix it with the second command.
# (Only works for git servers that allow sha fetches.)
git submodule update --init -N --depth 1 || true
fatal: not a git repository: ~/src/circuitpython-7.1/ports/stm/st_driver/../../../.git/modules/ports/stm/st_driver
Failed to clone 'ports/stm/st_driver'. Retry scheduled
BUG: submodule considered for cloning, doesn't need cloning any more?
Submodule path 'data/nvm.toml': checked out 'e5b149599d14a8841167fe552846ca36925b87a0'
Submodule path 'extmod/ulab': checked out 'a99e0b98787266369eaa33bdae271de761eca05b'```
and more errors.e.g. ```error: Your local changes to the following files would be overwritten by checkout:
modules/5.10.82+/kernel/net/netfilter/xt_DSCP.ko
modules/5.10.82+/kernel/net/netfilter/xt_HL.ko
Abortingst_driver was a git submodule and now it isn't
you can delete those files if they are in the way
since you haven't changed much, you can rely on git to pull files back in if it needs them
wide mantle
great, thanks
wide mantle
since you haven't changed much, you can rely on git to pull files back in if it ...
I got further and apparently close to a full build, but it failed to link build-unexpectedmaker_feathers2_neo/firmware.elf:
xtensa-esp32s2-elf-gcc: error: esp-idf/components/esp_wifi/lib/esp32s2/librtc.a: No such file or directory
make: *** [build-unexpectedmaker_feathers2_neo/firmware.elf] Error 1```
This feels like it could be a board-specific issue… maybe? The only commands I had run related to `esp-idf` were the `install.sh` for the toolchain and sourcing `export.sh` to add them to the path and set environment variables. The path itself where it's trying to find the files is correct, there are a bunch or `.a` files in there but not these two.does your git status show anything with esp-idf?
wide mantle
modified: esp-idf (modified content, untracked content)
slender iron
sometimes there are submodules in the idf that don't get updated
ya, change into esp-idf and do git submodule update .
(don't do that directly at the top level otherwise you'll download gigs of repo content)
wide mantle
I see. Thanks again! It clearly did update some files.
slender iron
🙂 when in doubt git status
wide mantle
aha! now I see these two .a files. I agree with you but I've not found the status output super clear with submodules, it often just says something like "modified content" and I'm not always sure what to do.
slender iron
when that's the case I usually cd into the submodule and rerun git status
wide mantle
Wrote 2642432 bytes to
build-unexpectedmaker_feathers2_neo/firmware.uf2
woohoo! thanks so much 🙂
slender iron
🎉
wide mantle
I'm always amazed at the size of .uf2 files. 2.5 MB for all this? 🤯
slender iron
uf2 doubles the binary size
because it encodes 256 bytes written to flash in 512 byte blocks to match usb mass storage write sizes
wide mantle
why can't it use the full 512 bytes if that's the amount that's fetched from the storage device? instead of only half of it.
slender iron
there is metadata in the other half
like the total number of block and what block number it is
wide mantle
just a few bytes though
slender iron
because it can't assume that blocks are written in order
ya, its nice to have a power of two 🙂
it should compress reasonably well if you are worried about the size
wide mantle
the waste is a shame, but it's even more impressive that CP takes such little space
slender iron
you probably download more browsing the web
wide mantle
definitely
slender iron
2.5MB isn't that much anymore
wide mantle
most web pages are way over this amount
slender iron
and those are our largest uf2s due to all of the networking code
the uf2s aren't actually stored on the device at that size
the uf2 filesystem is fake
wide mantle
yep I see it: 1,321,184 bytes for circuitpython-firmware.bin. crazy!
@slender iron actually, I just realized you might be the right person to ask about CIRCUITPY_DISPLAY_LIMIT in displayio. This is the reason why I'm building CP myself instead of using a pre-built image; I have two SSD1327 OLED screens connected and I can't use them with displayio without bumping this value to 2 (which I did in the .mk file for my board, this worked well). But I'm not sure why it's hardcoded like this. Is the idea to not waste space in extern primary_display_t displays[CIRCUITPY_DISPLAY_LIMIT];? This is clearly a good reason given that most users will have 0-1 screens, but it feels like this could probably be addressed by making it dynamic rather than fixed-size – linked list or re-allocated array of pointers or other. I found the constant itself on a GitHub issue where someone was complaining about it being set to 1, so I'm likely not the only one with this use case.
slender iron
@wide mantle ya it’s for the static allocation because display objects live after the vm
We could have one be static and the rest dynamic but that’d involve reworking it internally
wide mantle
right, that makes sense. I could see something like displayio.enable_extra_diplays(how many more) being useful.
manic glacierBOT
tulip sleet
@onyx hinge I am getting
../../supervisor/shared/translate.c:90:10: error: "compress_max_length_bits" is not defined, evaluates to 0 [-Werror=undef]
90 | #if (compress_max_length_bits <= 8)
on clean builds at the tip of main. I am confused because the PR should have picked this up.
tulip sleet
@onyx hinge the builds were actually failing in the PR builds, but for some reason the failure is being ignored, and the build continues. See for example: https://github.com/adafruit/circuitpython/runs/5207893901?check_suite_focus=true and expand the build step
onyx hinge
@tulip sleet yeah I saw it too, a fix is in the merge-1.18 branch. it also helps explain why I did it like I did
that symbol isn't defined yet during qstr generation, so it can't be used in a preprocessor directive.
I think things end up "fine" because it just prevents any qstrs in that file from being generated
tulip sleet
we should fix it so the qstr generation error causes the build to fail at that point
onyx hinge
that would be smart
tulip sleet
are you out at the moment?
onyx hinge
want me to look into that? I am a bit between things
done-ish with the 1.18 merge (pending review) and looking for a reason to postpone physically modifying a floppy drive
tulip sleet
since 1.18 is in process, I think it would be good to fix now
separate it from the 1.18 PR and apply now
onyx hinge
oh I can do that too
tulip sleet
i reverted it locally to do an unrelated build
onyx hinge
do you think the resulting builds are actually broken?
tulip sleet
I don't know - I was about to test one, but it's an english build
onyx hinge
okay
I suspect it would be broken independent of language, the diagnostic occured during the en_US build as well
tulip sleet
well, I am seeing error messages, etc.
still worth fixing, because it causes a confusing large build error locally
i would say
onyx hinge
yes I agree
tulip sleet
i mean the strings are working in the en build
oh, wait, I don't know if it works, because I reverted the fix, so my testing does not say
proven garnet
@tulip sleet when you get a chance I managed to get the asyncio documentation to build. Had to change a fix more asynchronous generator errors, so just a heads up. I don't have the hardware on me right now to run tests on the changes, but they're in the PR draft.
tulip sleet
<@329766224093249548> when you get a chance I managed to get the `asyncio` docu...
I will, sure, thanks!
@onyx hinge ok, I built en_US and fr from the tip of adafruit/main, and the error messages are still showing
onyx hinge
@tulip sleet So if the build printed this and stopped (the ellipsis is by me for efficiency of pasting in discord) that'd be good? ```../../supervisor/shared/translate.c:90:10: error: "compress_max_length_bits" is not defined, evaluates to 0 [-Werror=undef]
90 | #if (compress_max_length_bits <= 8)
| ^~~~~~~~~~~~~~~~~~~~~~~~
cc1: all warnings being treated as errors
Command '['arm-none-eabi-gcc', '-E', '-DNO_QSTR', ..., '../supervisor/shared/translate.c']' returned non-zero exit status 1.
make: *** [../../py/mkrules.mk:100: build-adafruit_feather_rp2040/genhdr/qstr.split] Error 1
yes, I think so, since in the future there may be more serious errors in the qstr build step and we should have those stop the build
onyx hinge
it makes sense, and it seems to have been an oversight in how I was using the multiprocessing facility
executor.map(maybe_preprocess, itertools.repeat(command), itertools.repeat(output_dir), check)
executor.shutdown()
Apparently this DOES wait for all of the works submitted to executor.map to complete but it DOESN'T raise any exceptions that occurred in the work. You have to actually iterate through the return value of executor.map for that to happen.
tulip sleet
got it, I thought this was just a make status check missing
I am surprised there is not an optional arg for that
onyx hinge
the return of executor.map is a generator, you have to try actually consuming the items in the generator before the exception will get thrown. shutdown must wait for everything but swallow the exceptions intead...?
idle owl
When you waste 5 minutes trying to put an ESP32-S2 board into the bootloader like it's an RP2040.... 🤦🏻♀️
blissful pollen
You mean you don't just randomly mash buttons until it is in bootloader mode?
idle owl
Depends on the board type, I guess.
blissful pollen
I rarely remember so a few random tries rarely hurts 🙂
idle owl
It's more that it never would have worked that way. I could have done it forever. Best I would have gotten is the ROM bootloader, which doesn't even mount anything, so I wouldn't have noticed 😄
idle owl
@slender iron How far did we get with CP on the micro:bit v2? Does it work?
slender iron
It used to work via BLE
slender iron
USB won't work due to the board design
idle owl
@proven garnet Are you around?
manic glacierBOT
proven garnet
Yup! Just grabbing food but I'll be back at my desk in like 5
idle owl
Nice, ping me then. No rush!
@proven garnet Are you planning to try to get your CP build environment up now? Or will that need to wait?
proven garnet
I was gonna do that now
idle owl
It probably takes about 10 minutes if everything goes properly. There's one part that takes most of that time.
idle owl
I was gonna do that now
Keen. Let me know if you have any questions!
I did it yesterday again, so I might actually remember answers.
proven garnet
I just finished fetching the submodules
idle owl
That's the long bit 😄
proven garnet
Sweeeeeet
idle owl
So, test by building for CPX before we make any changes.
When you're ready.
I think that's the example in the guide
Let me check
proven garnet
I did git status and I'm sitting here for a bit, is that normal?
I definitely meant to do git branch
idle owl
Sometimes it sits for a bit yeah.
But not ages...
And yeah, the example in the guide is conveniently CPX.
proven garnet
Sounds good, I'll get the python packages now
idle owl
Excellent
I have a build-circuitpython venv for it.
But don't go learning virtual environments simply for this if you haven't used them before.
proven garnet
Once or twice but not enough to really know them that well haha
onyx hinge
<@!426200547024961539> What language is biggest at the moment?
@tulip sleet was recently saying it was Russian now.
idle owl
<@!329766224093249548> was recently saying it was Russian now.
OK I thought I saw that go by. Thanks.
idle owl
Once or twice but not enough to really know them that well haha
Save it for another day. 🙂
Are you on MacOS? Or other..?
proven garnet
Windows, using MSYS2
idle owl
Ah ok
proven garnet
I've had issues with pre-commit on Windows so trying it this way
It's really struggling to get the cryptography library via pip...
idle owl
I don't have pre-commit going on my CircuitPython build. It did something locally yesterday that it didn't do remotely, so I removed it. Changing so few things that I am not concerned about the stuff pre-commit does
hmm
proven garnet
If I can avoid pre-commit, can I do windows? I don't know why it's struggling, it just keeps cycling though versions and none of them seem to sit well with it
idle owl
Once I'm actually submitting code, I'll add it.
You're not submitting code
so you don't need pre-commit yet
Pre-commit runs checks when you commit code.
We're going to be building locally only.
proven garnet
New plan, I'm gonna try to use my windows environment, just pulled my repo there to be current
idle owl
Yeah give it a try.
proven garnet
Traceback (most recent call last):
File "../py/makeversionhdr.py", line 132, in <module>
make_version_header(sys.argv[1])
File "../py/makeversionhdr.py", line 83, in make_version_header
git_tag, git_hash, ver = info
TypeError: cannot unpack non-iterable NoneType object
make: *** [../py/py.mk:253: build/genhdr/mpversion.h] Error 1
make: Leaving directory '/c/Users/adelaney/Documents/Github/circuitpython/mpy-cross'
Oof. @tulip sleet Can you assist?
proven garnet
I'm in the top level folder
idle owl
That's the right directory, yeah.
Which is the extent of my mpy-cross error troubleshooting. Dan will know better.
manic glacierBOT
tulip sleet
Traceback (most recent call last):
File "../py/makeversionhdr.py", line 132, i...
iT is not getting the version info properly. Are you running this in Windows proper or in WSL?
proven garnet
Proper
tulip sleet
give me a few minutes. But we almost never do builds in Windows, it's too hard to get it working properly
proven garnet
For it I can look into getting WSL up and running
tulip sleet
do you have a Linux machine or a Linux VM?
blissful pollen
For it I can look into getting WSL up and running
If you have questions I do run WSL. Probably forgot most of what I did though 🙂
tulip sleet
in the repo, could you run git rev-parse --short HEAD
proven garnet
Windows 10 but it seems I have WSL already installed I must have had it for something else a while ago
tulip sleet
if you have WSL1 installed you probably want to get rid of it and install WSL2. WSL1 is quite slow on disk io. The builds take a long time
proven garnet
in the repo, could you run `git rev-parse --short HEAD`
Ab037bd21
Looks like I've got WSL2 from looking up how to check
blissful pollen
Windows 11 does have a few nice feature upgrades to WSL as well. I just updated yesterday. But I ran fine in Win10 with it for a long time too
tulip sleet
what's probably happening is that get_version_info_from_git() in py/makeversionhdr.py is returning None for some reason. But I'd want you to put some print statements in there to check it all. If you want to switch to WSL2 it might be easier
proven garnet
Working on the latter option now!
proven garnet
Okay new error, maybe?
make: Entering directory '/home/adelaney/circuitpython/mpy-cross'
Use make V=1, make V=2 or set BUILD_VERBOSE similarly in your environment to increase build verbosity.
mkdir -p build/genhdr
GEN build/genhdr/moduledefs.h
QSTR updated
make: msgfmt: Command not found
make: *** [../py/py.mk:260: build/genhdr/en_US.mo] Error 127
make: Leaving directory '/home/adelaney/circuitpython/mpy-cross'
When trying to build mpy-cross
blissful pollen
What I found when I was setting up WSL was anytime I hit an error like msgfmt: command not found google it and figure out how to install it (usually apt get or pip install)
proven garnet
Got it thanks!
idle owl
Is any part of this likely to change in the future? ```import time
while True:
print("Hello, World!")
time.sleep(4)```Asking because I have the option to add it as a code snippet into Learn, which means it's not editable except by folks with Learn access, or I can put it on GitHub where it can be updated by anyone. I feel like no part of that will change, but I wanted a second opinion.
tulip sleet
Is any part of this likely to change in the future? ```import time
while True:
...
I can't imagine it changing
idle owl
I can't imagine it changing
Neither could I. Thanks.
proven garnet
Anyone know how to get what I think is the toolchain arm-none-eabi-gcc?
proven garnet
Oh it's in thr intro I must have missed it thank you!
tulip sleet
it is in the Linux part. you follow the initial WSL stuff, and then switch to Ubuntu Linux. I can make that clearer if it s not
slender iron
@onyx hinge @tulip sleet do we want MP 1.18 in CP 7.2?
tulip sleet
at this second I am writing a review sentence saying I want to defer until after 7.2.0
slender iron
haha, ok
proven garnet
New error, but I'll start a thread to declutter the chat. Is this the best channel?
onyx hinge
at this second I am writing a review sentence saying I want to defer until after...
That's fine with me
blissful pollen
@idle owl After talking earlier I will not admit how long I just spent clicking buttons on an UnexpectedMaker FeatherS2 to get it into boot mode 🤣
slender iron
@tulip sleet want me to grab one of the 7.2.0 bugs from you so we can get an rc out and branch it?
tulip sleet
<@!329766224093249548> want me to grab one of the 7.2.0 bugs from you so we can ...
Sure. I am just about done with the USB enumeration deep sleep one (#5935). How about 5872?
I am thinking that maybe we should revert the default HIGH (see #5931 above). The MagTag clicking is really distracting.
slender iron
sure! I'll look after I get back from a run
I don't think we need to revert it because we'll need a "special case this pin for a board" method either way
maybe a board specific reset hook that can override the default
it was changed to fix neopixels on the esp dev boards anyway
tulip sleet
maybe I will move 5931 to 7.2.0 then, and maybe you can take that one 🙂
slender iron
kk, I've got an idea on how to do it
tulip sleet
have a good run! It was 59 degrees here today
slender iron
I've been brainstorming a usb host api too
I'll try and braindump it today
that sounds nice! It's 46 here now...
gonna be a little chilly
idle owl
<@!330227457296957440> After talking earlier I will not admit how long I just sp...
😂 Fair!
Oof, it's dumping snow here at the moment. Poured rain yesterday. 🙄
proven garnet
Big thank you to Dan for the help! @idle owl I got the environment set up, but probably can't test things now. Feel free to leave any helpful tidbits for testing those changes (we can start a thread) and I also see the guide you sent shows how to freeze a module
idle owl
Sounds good!
idle owl
Testing a frozen module in CP
onyx hinge
yup
idle owl
Thanks
idle owl
TIL you can display a bitmap using only displayio. Also TIL you can't scale a bdf font. I mean you can... but it won't look right.
I was going to ping Foamyguy to find out whether the artifacting was a bug in the software, but was informed elsewhere that they're not meant to be scaled, and so weirdness is to be expected. So foamyguy escaped a useless ping.
tulip sleet
@slender iron ok, competing PR's; I thought you were going to do the pin one first 🙂
tulip sleet
so the status LED is off (mostly) when user code is running? I did an init and deinit
slender iron
it is when code.py is run
it may be white when in the repl
but not init
I don't think you should call init/deinit because the user may have used the pins/resources already
tulip sleet
okee, I'll close my PR
slender iron
lemme check the API doc to make sure it makes sense now
tulip sleet
we are calling init/deinit on our private object
people sometimes set brightness to zero in boot.py
tulip sleet
so if the API doc is OK, I'll close mine
slender iron
it doesn't make a ton of sense now
slender iron
so I'll update it
don't we have a value range checker now?
found it and updated the shared-bindings for it too
idle owl
@tidal kiln Examples incoming. Hoping to have the associated guide pages public tomorrow. Depends on review obvs. https://github.com/adafruit/Adafruit_Learning_System_Guides/pull/2014
Guide feedback was basically all "why is there no wifi or TFT examples in the guide" so... I imagine you're getting it too.
tidal kiln
@idle owl looks good. nice set of examples.
idle owl
Thanks! Foamyguy wrote a few of them for me. Super helpful.
jaunty juniper
can we resolve the QTPY UART pins issue before 7.2.0 ? 2 pins out of 13 are taken until it's fixed.
https://github.com/adafruit/circuitpython/issues/5904
slender iron
@tulip sleet I'd rather not change that line. Your version has three function calls on a single line. I think the current version is clearer
@jaunty juniper want to make a PR? I think you just need to wrap the #define DEBUG_UART_... in a #if DEBUG test for the board
I don't think we want to blanket disallow debug uart on boards
