i dont think update alone gets the submodules of idf
#circuitpython-dev
viscid pine
atomic summit
i dont think update alone gets the submodules of idf
The reboot fixed it. I guess 7x VSCode, 11x terminal windows/tabs open and MP, CP & IDF open in multiple wasn't ideal
Yeah, I'd already done an --init and made sure I had everything, and that the IDF was up to date.
atomic summit
have I mentioned I dislike git recently? 😉
viscid pine
submodules are painful
viscid pine
debug uart is taking them i think: https://github.com/adafruit/circuitpython/blob/main/ports/espressif/boards/adafruit_qtpy_esp32s2/mpconfigboard.h#L53-L54
jaunty juniper
yep
with what Scott mentioned in today's stream I lean towards a change he made for debugging that was accidentally left in
jaunty juniper
I don't think they should get claimed at all, the board just does not have debug serial pins broken out, enabling it in DEBUG builds even would preclude debugging the UART pins, it could be an option
lone axle
Has anything recently changed with socket.recv_into() in the core? This issue has cropped up from requests with the latest builds. https://github.com/adafruit/Adafruit_CircuitPython_Requests/issues/98
jaunty juniper
it's pyportal though, that would be with the ESP32SPI lib not the core ?
lone axle
Yeah I think that is right
jaunty juniper
lone axle
when I sent that originally I thought the issue existed starting on 7.1.1 or 7.2.0. But that turned out not to be the case, it goes back further so it does appear more likely related to esp32spi
jaunty juniper
there are no sockets in the core on pyportal anyway 😉
what I don't know is what that line did before recv_into was added to ESP32SPI
oh wait it's in the code, the lines just above it 🤦♂️
viscid pine
i'll take a look
atomic summit
i'll take a look
Thanks Michael
my code...
>>> import board
>>> import busio
>>> i2c = busio.I2C(board.SCL, board.SDA)
>>> while not i2c.try_lock():
... pass
...
>>> [hex(x) for x in i2c.scan()]
well, it does come back.... after 30+ seconds ?
actually, that time it took 77 seconds to come back... and didn't find any I2C devices plugged in... even though there is one and it's on.
viscid pine
@atomic summit what are the i2c pins?
viscid pine
most microscopic silkscreen ever with an LED shining in my eyes
yeah it seems to have locked up
atomic summit
hmm, same 7.2.0-alpha.1 on TinyS2 also locks up.
Not an S3 thing
will raise an issue
atomic summit
mien didn't reboot... just comes out, but finds nothing
what board did you test it on ?
atomic summit
you on github? what's your username?
viscid pine
@prplz
atomic summit
of course you are !!!
proven garnet
oh wait it's in the code, the lines just above it 🤦♂️
Catching up, is there something wrong with the implementation of recv_into I wrote for the ESP32SPI library?
atomic summit
hahahas
manic glacierBOT
jaunty juniper
Catching up, is there something wrong with the implementation of recv_into I wro...
foamyguy summed it up in the issue:
https://github.com/adafruit/Adafruit_CircuitPython_ESP32SPI/issues/154#issuecomment-1019039154
it's missing the optional length argument
(which is present in the core sockets and used by requests)
atomic summit
On a positive note though...
TinyS3 and a new re-vamped FeatherS3 production boards validated!!!!
proven garnet
Ahhh got it. Thanks! I can patch that.
jaunty juniper
(lol clicking on "shrug" when trying to put a thumbs up feels bad)
viscid pine
@atomic summit pullups?
atomic summit
<@!195765176035835904> pullups?
On the I2C slave, yes. Doesn't matter though... 70+ seconds to come back from a scan? somethink ain't right 😉
jaunty juniper
I broke my QTPY ESP, but earlier I did some test and I noticed I didn't get the "no pull ups" error even though I hadn't connected anything yet, and the scan hanged, it came back when I connected a thing, but that might have been a coincidence and the same issue
atomic summit
Hmm, ok, right so nothing plugged in could be the "no pullups' thing.
viscid pine
On the I2C slave, yes. Doesn't matter though... 70+ seconds to come back from ...
other ports throw errors when theres no pulls
jaunty juniper
yeah that's what it should do
viscid pine
added pullups, works now
atomic summit
and finds a device?
viscid pine
i unplugged it, one min
atomic summit
hmm, i just plugged a second device in... that has no pullups and it came back with RuntimeError: No pull up found on SDA or SCL; check your wiring immediately
viscid pine
and finds a device?
yeah it finds now
atomic summit
second time I scanned it found 1 device, and no pullup error
viscid pine
i had this with other ports too, sometimes it was ok without pullups near the board, sometimes not
atomic summit
ok, now it finds 2 devices.... one has pullups and one doesnt
['0x10', '0x1e']```if I take out the one with pullups and leave teh one without
scan now hangs again
but no error
so "code running from code.py" shows me a pullup error on this device
no, not true. failing with no error in code.py now
I've only seen the "no pullup error" once now, out of 20+ scans and connecting and disconnecting devices in various orders.
manic glacierBOT
proven garnet
Hotfix submitted for the ESP32SPI issue
viscid pine
I've only seen the "no pullup error" once now, out of 20+ scans and connecting a...
I guess because the pins are floating and these ones tend to float up
viscid pine
@atomic summit I solved it, the scan is using too great of a timeout, taking 1 second per address
editted the github comment above with the infos
atomic summit
<@!195765176035835904> I solved it, the scan is using too great of a timeout, ta...
Did you solve it AND fix it? 😉
viscid pine
i COULD i guess
atomic summit
So you know why it's stalling? A recent change?
viscid pine
I don't think so
viscid pine
trying to understand how other ports handle this case now
yep just got samd to stall too :)
but for samd i had to manipulate the sda/scl on purpose, the esp32 one is just annoying because it happens when you dont attach pullups
atomic summit
but it shouldn't take any longer if there are no pull-ups.
viscid pine
clock stretching maybe
when i tried it on the rp2040 port is raised an error about stretching too long
manic glacierBOT
crimson ferry
The extra 192k of internal RAM on the S3 is really nice for wifi code. We may want to consider increasing pystack and possibly also the max number of sockets.
pallid echo

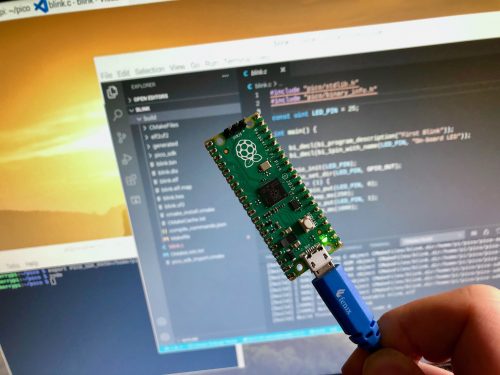

Waveshare sent me a few RP2040 boards for testing. I'm comparing the schematics with the Pi Pico. And so far they are pin compatible, as they claim. They use different Buck-Boost converters in the power circuit, looks fine. But he Pico has powersafe tied to GND (active) and a pin, and these Waveshare boards have them tied to VSYS (inactive) and that same pin... I have 2 questions: 1. Can I in the board definition initialise that pin as output and set it low by default, such that the default behaviour is more like the Pico? 2. Should I?
tulip sleet
Waveshare sent me a few RP2040 boards for testing. I'm comparing the schematics ...
so, the regulator on the original Pi Pico is pulled to ground, so it's "PFM (default, best efficiency)". The WaveShare RP2040-Plus (I'm guessing that's what you're looking at) uses a TPS63000. Yes, I see it's pulled high, which disables powersave. (I was confused by "powersafe"). I don't know why they did that.
You could force that pin to the other state in board.c for the board. But maybe we should just say this board is different. Its default startup is different, and they chose it that way. It really depends on whether the user case wants lower ripple or not.
s
And whether it deserves its own board definition
pallid echo
Yeah, I tend towards not doing its own definition for the plus. If it had VBAT tied to a voltage divider to an analogue pin, it would make sense. This powermode was the only difference... I'm currently working on the one with an LCD... That one does merit a definition. I'm first trying to get it to work with SPI and then move that to the board definition, like the Pimoroni and the Adafruit Macropad do.
pallid echo
so, the regulator on the original Pi Pico is pulled to ground, so it's "PFM (def...
Sorry for the confusion. I'm not a native speaker. Safe/save... Coming from Amsterdam those sound exactly the same.
But maybe we should just say this board is different
Should I still write a _board for circuitpython.org where I can point that out? There are differences that don't affect the circuitpython definition, like USB-C and the battery + charger... If so, how do I make the Download links point to the Pico firmare? By using the same board_id in the header of the markdown?
tulip sleet
Is this a board you are going to use?
It's fine to add more board definitions. Each one just lengthens the build time by a small amount
especially if there is going to be another one for the LCD board. Then it's kind of a family of boards.
I would be inclined NOT to override the default powersave setting, because that's how the board comes. We don't have to make the board act like the Pi Pico. It acts like itself.
pallid echo
The one with the LCD is exactly the same with an LCD attached to an SPI bus
tulip sleet
So that may not merit its own definitino.
it is like our ESP32-S2 board with or without a BME280
I take that back - I assume you want it to have a default display and show the REPL, like most other boards with displays
pallid echo
Yes. I think that's the most use friendly thing to do. Make it behave like the other similar boards.
dusk mauve
I'm diving into tackling a rather complex "missing typing" issue on a lib and can't for the life of me figure out the mypy arguments required to generate the same list in the ticket. Its not part of pre-commit or the CI actions as far as I can see and its not mentioned in the contributor learn guide(s) I've reviewed so far.
I know I had this in my notes while working on the APDS9960 refactor but somehow in the intervening weeks those notes have disappeared into the ether. 😂
Anyone have an example of a mypy command to make sure that things are properly typed?
jade urchin
cc @lone axle, the opener of said issues
lone axle
I'm diving into tackling a rather complex "missing typing" issue on a lib and ca...
We haven't added the mypy check to CI yet. I think the plan is to get the bulk of the libraries typing knocked out before we add it so that we don't have as much work to do in order to make sure everything is passing CI whenever we do add it.
So it is not necessarily strictly necessary to run mypy and eliminate all of the possible issues it can report. We are mainly focused on just adding the types for functions / arguments / returns at the moment. Other errors can be ignored for now. When the time comes there will likely be some community discussion to figure out what configuration we want to use with mypy which could factor in to which errors that it can raise we are actually interested in resolving.
I can get you the command I used that I made the issues with though.
dusk mauve
We haven't added the mypy check to CI yet. I think the plan is to get the bulk o...
That makes sense. I remember having this question a month or two ago but, of course, can't recall how I resolved it.
If you can find the command or argument combination used for the issue generation that'd be helpful, at least.
I'm looking at the adafruit_macropad lib and, well, its huge, so having the ability to check as I go would help a lot since there are some interesting decisions to make while type-safing it.
lone axle
This is the code that looked up the errors at the time the issues were created: https://github.com/FoamyGuy/missing_type_issue_maker/blob/main/find_missing_type_annotations.py essentially it runs:
mypy --disallow-untyped-defs
and then looks specifically for any lines that report "Function is missing a type annotation"
dusk mauve
This is the code that looked up the errors at the time the issues were created: ...
That should take care of it! 😄 Thanks the quick answer on a weekend.
lone axle
For sure! Thanks for helping tackle the typing info 😄
dusk mauve
For sure! Thanks for helping tackle the typing info 😄
For sure! Happy to help. Good typing hints make life easier for everyone.
torn geyser
Afternoon, I’m interested in in helping with an issue I submitted last night, and was hoping to get a pointer on the best place to start. Is there a guide or doc on developing/debugging circuitpython libraries?
torn geyser
https://learn.adafruit.com/creating-and-sharing-a-circuitpython-library
Yeah, I read through that earlier, but I’m still little fuzzy on the best way to test/debug outside of running GH actions…is it basically limited to running on-board using print statements and the REPL? Are there any additional tools to run/emulate using cPython, or maybe on an rpi or something?
jade urchin
Yeah, I read through that earlier, but I’m still little fuzzy on the best way to...
you can use blinka to run on a raspi https://learn.adafruit.com/circuitpython-on-raspberrypi-linux
torn geyser
Interesting…I came across a vscode docker devcontainer config for using https://marketplace.visualstudio.com/items?itemName=ms-python.devicesimulatorexpress , but seems like that extension has been discontinued
proven garnet
@lone axle and @jaunty juniper thanks for helping figure out the issue with the ESP32SPI socket implementation. I wrote my thoughts there but worth mentioning here. Basically CircuitPython's socket implementations have a default size argument of 0, which translates to trying to fill the buffer. This is different than CPython, a size of 0 should return nothing, and that's how I wrote ESP32SPI's recv_into().
I wanted to ask here if it's worth changing the socket implemetations to match CPython. It would technically be a breaking change if anyone ever wrote code that assumes size = 0 operates how CPython's size = None does, but would match convention. Easiest change though is to change ESP32SPI's implementation to match the other libraries.
Testing confirms that's the issue too 🙂 got the request's simple test to work
jaunty juniper
I wonder, if somebody calls recv_into(some_length) would they not expect it to return nothing if some_length is 0 ? like, it's a computed value from a header or something
so, I would assume the current behavior is a bug
worth looking around if explicitly calling it with 0 is done anywhere
proven garnet
worth looking around if explicitly calling it with 0 is done anywhere
Couldn't find anything in the Adafruit GitHub account. The Wiznet5k does have recv_into(self, buf, nbytes=0, flags=0) as the definition though, and that's how I helped determine the issue 😅
So at least to the best of my sleuthing, Adafruit doesn't seem to have code USING an explicit mention of nbytes=0, but no clue about user's codes.
Oops, I'm wrong! CPython does say nbytes = 0 should fill the buffer:
https://docs.python.org/3/library/socket.html#socket.socket.recv_into
low sentinel
😄 was just going to paste that link
proven garnet
My bad 😓
I could have sworn I read otherwise, but this is a classic example of late-night code writing haha
Or late-night reading I guess haha
low sentinel
oh we've all read late 🙂 thanks for insisting on semantics consistency!
jaunty juniper
ah well then !
proven garnet
Thanks again everyone, hotfix inbound!
torn geyser
I have to say…when I submitted that issue at like 9 o’clock last night I didn’t think it would even get a look until later in the weekend. It’s pretty awesome
proven garnet
🐛 🔨
tulip sleet
Afternoon, I’m interested in in helping with an issue I submitted last night, an...
also this will help: https://learn.adafruit.com/contribute-to-circuitpython-with-git-and-github/
viscid pine
@tulip sleet some ports don't seem to have any i2c timeout from what i can tell
tulip sleet
<@!329766224093249548> some ports don't seem to have any i2c timeout from what i...
https://github.com/adafruit/circuitpython/issues/3910 for Espressif. In other ports it's missing: https://github.com/adafruit/circuitpython/issues/2253
viscid pine
i suspect the timeouts in the espressif port are confusing freertos ticks for cpy ticks too
tulip sleet
Quite possible. If we can set a shorter I2C timeout on Espressif that works, then that would solve the problem for scan() and for other cases where I2C might hang for quite a while.
viscid pine
the problem i see is that it still needs to do 112 probes
tulip sleet
perhaps we need to fix the "I2C needs pullups" logic on the ESP boards; it works well on other ports
viscid pine
i dont think it can be fixed in this case. I have them floating so all bets are off
viscid pine
yeah, no pullups
the problem is that if an unsuspecting user leaves off their pullups, scan stalls for 112 seconds, not even responding to ctrl+c
tulip sleet
so if we make the timeout more like 1 msec or 10 msecs, it will stall for shorter
The current 1 sec timeout is way too long for I2C, would you agree?
for bus stretching
viscid pine
the probes is currently 1 sec on esp, other writes and reads are 10sec
i think they are accidentally 10x higher because of confusion between freertos tick vs cpy tick
tulip sleet
Limor has told me one second is an eternity for I2C clock-stretching
viscid pine
ok, shall i do another pr just trying to fix the esp problem?
tulip sleet
do those pins have pull-downs or no pulls at all
viscid pine
nothing, just floating
and they somehow pass the pull up test and timeout the probes
i know its weird but myself and @atomic summit both experienced it and thought it was a bug at first
tulip sleet
if you read them at all, quiescently, would they read high? I'm thinking about how better to do the pullup test.
I'm not saying you're wrong to add the timeout code, but it would be good to fix the pullup test as well
viscid pine
i tried on a samd21 and rp2040 board, both those fail the pullup test
atomic summit
But why is there a pull-up test at all?
viscid pine
i2c requires them, it's open-drive
atomic summit
I have boards here with no pullups that work perfectly in Arduino, and MP. but in CPY they wont work.
tulip sleet
because before we had the pullup test, we had a lot of support issues with unpowered breakouts, and things hanging because of that
(because we didn't have good timeouts, also, e.g. the nRF blocking I2c routines don't have any timeouts)
viscid pine
the test catches this issue on some boards but not on these esp boards
atomic summit
i2c requires them, it's open-drive
I understand the spec... I'm talking about the "check and block" in CPY.
viscid pine
the check isn't blocking, it's the scans timing out
tulip sleet
i was giving the motivation for adding the checks in the first place
atomic summit
the check isn't blocking, it's the scans timing out
No, the block saying, you cant use this boards because you have no pullups.
viscid pine
oh right
atomic summit
i was giving the motivation for adding the checks in the first place
Yup, that makes sense. But not allowing me to use the I2C bus anyway is my issue.
have a message saying "No pullups found, this might make your I2C comms unreliable"...
but it should let me do it anyway.
tulip sleet
we could add an override boolean. Are you using internal pullups? It's an accident your no-pullout breakouts are working, right?
atomic summit
No accident. They are not needed as it's my ESP32 -> a Tiny1606 that's an I2C slave. No pullups are required in that case.
that doesn't mean they shouldn't be there. they should, but it's not accident it works like this.
tulip sleet
Original motivation is here: https://github.com/adafruit/circuitpython/pull/719 We had stuck sensors that were pulling the buses low.
atomic summit
I agree the check should be there.... jut not one that blocks the device out completely. A bool override sounds like a good option
tulip sleet
why does your circuit work reliably? I don't understand why no pullups are requied? Is there something special about the circuitry on the Tiny1606?
atomic summit
I think the SW I2C Slave handles it internally, maybe with internal IO pullups. Not sure.
The problem I have is... I get the 120sec stalll... then no error about pullups and no devices found in CPY.
tulip sleet
So there are multiple issues here:
- would be nice to override the pullup check in some cases
- Some I2C impls have too-long bus-stretch timeouts
- Some I2C impls have no timeouts whatsoever
- Some ESP pins have no pulls, so the checking doesn't work
viscid pine
internal pullups are disable for some reason: CIRCUITPY_I2C_ALLOW_INTERNAL_PULL_UP
atomic summit
Seems so! I originally reported the issue, but @viscid pine did the digging to work out what's going on.
viscid pine
the option is there but only one board uses it
atomic summit
internal pullups are disable for some reason: `CIRCUITPY_I2C_ALLOW_INTERNAL_PULL...
Maybe they are too weak? not all IO are equal on the ESP32 - Some can be driven higher than others.
tulip sleet
a good pullup is 10k at least, some sensors require stronger pullups. nRF, for instance has 13-18k internal pulls, those are kinda ok for short runs. RP2040 has 60k-80k pulls, those are inadequate
viscid pine
the timeouts in the esp port are just in total freertos ticks, not stretching
tulip sleet
so maybe your TIny1606 impl doesn't have the pullups on full time?? If they are internal, it shouldn't matter, it's just an impedance on the bus
for the whole transaction?
tulip sleet
the timeouts in the esp port are just in total freertos ticks, not stretching
for the whole transaction?
atomic summit
I didn't write it... I have no idea. I'm sure it's teh same one Limor is using (Tiny Mega Core) for her Tiny SeeSaw stuff.
viscid pine
not sure about i2c_set_timeout
https://github.com/adafruit/circuitpython/blob/main/ports/espressif/common-hal/busio/I2C.c#L175 and other usages of i2c_master_cmd_begin
i know it's in freertos ticks because the parameter uses the freertos tick typedef
tulip sleet
i'm not objecting in principle, it just brings up the other issues. I think we'll discuss this internally on Monday (we have an internal mtg before the public one) and can also discuss it in the public Monday meeting. It can make sense to fix this for now, either in scan() or by setting shorter timeouts for ESP in particular, and then think about a more permanent fix
I just don't want to merge it before we discuss it a bit more.
atomic summit
That's fair!
tulip sleet
i am reading about reasonable clock-stretching timeouts now. In the spec, there is no timeout given, but there are well-behaved and badly behaved sensors. You don't want a bad sensor to drag your whole bus to a stop.
thanks for your inputs!
atomic summit
nps. thanks for looking into this more @tulip sleet 🙂
viscid pine
i see why it's not done yet, it's confusing with some ports having total timeouts and some having stretching timeouts
fringe ginkgo
Question about using the RST pin on the Feather M0 with LoRa radio module. I would like to have the ability to reset the M0 in software. Can I connect the RST pin to one of the analog pins and then pull that analog pin low in software to reset the M0?
tulip sleet
Question about using the RST pin on the Feather M0 with LoRa radio module. I wo...
sure, you can use an analog pin as a digital pin
fringe ginkgo
Thank you @tulip sleet. And connecting to the RST pin in this way is reasonable?
tulip sleet
i'm looking...
jade urchin
but if you are using circuitpython, microcontroller.reset() is a way to do it just from code
tulip sleet
oh, I thought you wanted to reset the LoRa module
yes, to reset the actual M0, you can use microcontroller.reset()
fringe ginkgo
@jade urchin Normally I am using circuitpython, but this particular example is arduino.
tulip sleet
you can call NVIC_Reset() from arduino, or something like that
fringe ginkgo
Thank you @tulip sleet. I will try the software reset.
tulip sleet
Thank you <@!329766224093249548>. I will try the software reset.
NVIC_SystemReset()
fringe ginkgo
Thank you again @tulip sleet. I tried another arduino reset command that just hung the M0. Do you know if NVIC_SystemReset() has been known to work on an M0?
tulip sleet
we use it in CIrcuitPython for exactly that purpose. It works on M0; I think it may not work on classic Arduino
fringe ginkgo
we use it in CIrcuitPython for exactly that purpose. It works on M0; I think it...
ok. My sketch compiles with it, so worth giving it a try. Thanks!
hidden oxide
It says I have a ping
??
When I search mentions: g3holliday: it doesn't say anything....
tulip sleet
or you are on @ circuitpythonistas
there are occasional pings to that for the weekly meeting docs
hidden oxide
Yeah.... I saw that Kattni pinned the notes doc - I think that's it
manic glacierBOT
manic glacierBOT
main furnace
Slow I2C on the Pi Zero W. Is this the same clock speed problem as the SPI issue?
tulip sleet
Slow I2C on the Pi Zero W. Is this the same clock speed problem as the SPI issue...
dunno, but please file an issue
small gull
Hi, is possible to use name "circuitpython" inside name of github repository if the readme file contains text about circuipython trademark and licence is MIT?
The funny part of this - the page about trademark is empty - https://circuitpython.org/trademarks
Is it possible to use some sort of - "CircuitPython is a trademark of Adafruit Industries"?
tulip sleet
Hi, is possible to use name "circuitpython" inside name of github repository if ...
CircuitPython is indeed a registered trademark of Adafruit's. But "Python" is a registered trademark of the Python Software Foundation, and you don't have to always say it's a trademark
so just use it. If you are forking CircuitPython for your own use, we may want you to call it something else. But if you are writing code for use with CircuitPython, don't worry about it
small gull
@tulip sleet thank you for the information
my first two libraries - https://github.com/peterbay/pb-circuitpython-libraries
tulip sleet
<@!329766224093249548> thank you for the information
my first two libraries - ht...
Looks great! We have a community bundle, if you want to contribute: https://learn.adafruit.com/creating-and-sharing-a-circuitpython-library, and re bundle: https://learn.adafruit.com/creating-and-sharing-a-circuitpython-library/sharing-in-the-community-bundle
slender iron
The extra 192k of internal RAM on the S3 is _really_ nice for wifi code. We may ...
Good idea! Can you file an issue to do this? Thanks!
proven garnet
@lone axle @jaunty juniper I figured out the bug in the ESP32 socket library - it was the implementation of figuring out how many bytes to read. Pushed the changes that got it to work with the request's test. Thanks for all the help!
Also, thanks @torn geyser for bringing it up! Since recv_into() was a new implementation for the library I didn't figure there was already code already waiting to take advantage of that
torn geyser
Lol…just “lucky” timing on my part…just happened to pull out my pyportal and update jt after letting it be for months
crimson ferry
Requests does some unexpected(?) things... some cases use recv_into if it exists, but other cases still use recv.
proven garnet
Requests does some unexpected(?) things... some cases use `recv_into` if it exis...
It might be cool to maybe switch them over to using recv_into first if possible, but I think one of the socket classes does not have it yet, but need to check
But it seems like it's not causing memory issues so it doesn't seem critical
crimson ferry
@proven garnet tannewt mentioned the possibility of incorporating an async-friendly requests, I wonder if that would also work in a non-async case and essentially replace the current requests
idle owl
The funny part of this - the page about trademark is empty - https://circuitpyth...
Thanks for pointing this out! We have a couple of PDFs that explain using Blinka, and it covers CircuitPython usage as well on some level. I'll see to it that we get this page updated.
proven garnet
<@!135415127879974912> tannewt mentioned the possibility of incorporating an asy...
That would be awesome actually. I have a project that would benefit directly from it too haha
idle owl
@lone axle How does after the CP Weekly today sound for going over running the meeting? We have an internal meeting before, so that won't work, though it seems like that would be better so you could immediately see everything in action. But I think you've seen it enough for that not to be a necessary factor. 🙂
proven garnet
But yeah using async if possible is like the perfect use case for it
lone axle
<@!382939733107408897> How does after the CP Weekly today sound for going over r...
Sounds good to me.
idle owl
Sounds good to me.
Excellent. Plan on a few minutes between, and then we can go over everything.
tulip sleet
<@!135415127879974912> tannewt mentioned the possibility of incorporating an asy...
I think the standard thing is aiohttp, perhaps we could make a subset-compatible library
low sentinel
Aiohttp is really good 😄
crimson ferry
that would be great, it's been my singular annual wishlist item to have requests not block
orchid basinBOT
lone axle
Anyone familiar with the Github CLI know how I change the remote branch that it's pulling PRs from? Generally one of the first times that I run commands on it there will be a prompt asking me to select which remote to use. I must have selected my own branch for this repo I'm working in now, but I want to switch it to adafruit so that gh pr list will show me PRs from the adafruit fork of the repo.
blissful pollen
Anyone familiar with the Github CLI know how I change the remote branch that it'...
Not an expert but will the git remote command work to change/add a remote?
idle owl
I'm not sure that's pulling from the remotes.... 😕
lone axle
Not an expert but will the `git remote` command work to change/add a remote?
it will and I can use git remote -v to see the different remotes. I could add/remove them. But I think the Github CLI tracks them seperately somehow. It doesn't rely specifically on the currently checked out branch. I.e. I could be on foamyguy/main in a repo and run gh pr list and it will show me the PRs on the Adafruit fork of that repo. (assuming I chose adafruit the first time when I got prompted)
idle owl
It must be in a .gitconfig or some such locally is my guess.
Because obviously it asks you the first time, and then doesn't ask again. So there has to be a config that it generates somewhere.
tulip sleet
you are talking about the gh default, is that right? If you just use git, is it "wrong"?
idle owl
@lone axle .git/config
I opened it on a repo where I've checked out a PR. There's some extra bits in there from the PR specifically.
Probably delete those lines, and it should ask you again when you try to check it out.
tulip sleet
lone axle
Perfect. Thank you both. Removing gh-resolved = base inside of .git/config did the trick next command I ran it asked me again.
tulip sleet
i just started learning gh. In general I have used hub (and just plain git), but getting the hub authentication set up is a nuisance.
idle owl
gh is pretty keen, I'm finding. Yeah you can use git but gh basically does the magic for you in one command.
I'm a fan of remembering less.
lone axle
I am steadily learning more helpful things gh can do, definitely love how easy it makes things. I started out with just pr checkouts like gh pr checkout 123 and now do pr list and basic reviews / issue responses with it. It's been super helpful for some of the automated sweeps I've done as well.
idle owl
You're way ahead of me there. I am still at the checking-out-PRs phase.
blissful pollen
I should take a look at gh, I've only ever used it for the PR checkout once or twice. After breaking my own PRs a couple times I think I finally have a vague idea what git is doing
idle owl
Interesting. On the TFT Feather, I ran a program that ends with deep sleep. Obviously, it was fake deep sleep because it was connected to USB. I then switched back to a basic data reading program. I noticed that the display is still showing the text from the board going into "deep sleep", and is no longer displaying the data read results. It's like the display was never reinitialised or something.
blissful pollen
Wonder if the fake deep sleep doesn't release the display so when it tries to start again it fails to allocate - or something like that
idle owl
CTRL+C/D doesn't fix it. Running I2C scan code now, still showing the sleep text.
tulip sleet
so no hard reset before running the other code?
blissful pollen
You could try a displayio.release_displays() right before the sleep to see if when it all starts again if it works. Wouldn't need that for the true deep sleep but maybe for the fake it would fix it
idle owl
You could try a `displayio.release_displays()` right before the sleep to see if ...
I'll try to remember to give this a try in a bit. In the middle of other things too.
blissful pollen
@idle owl Question since all the IS31 native changes I made are in for review was there any interest to add an example project using it to the guide? The example in the python library is pretty simple but I do have the code I used for my sports glasses that is simple but more useful. I could write something up if there is interest
proven garnet
@trim elm just a heads up that adafruit_circuitpython_vs1053 has a weird version of release.yml. I'll skip it for now, but let me know if I should replace/update it because I can complete the patch steps for it as is.
idle owl
<@!330227457296957440> Question since all the IS31 native changes I made are in ...
The guide for the matrix? Or the glasses guide? Maybe in the matrix guide. Glasses guide is already a bit odd because it's a combo guide for the driver board and the glasses panel. But if it's more glasses oriented, I'm sure we can find a spot for it in that guide. Short answer: yes. Long answer: see previous.
@blissful pollen Have you done any guide work for us yet? In the actual Learn system.
Unrelated - the display is now blank after running my I2C pin script.
¯_(ツ)_/¯
proven garnet
<@362023826105827340> just a heads up that `adafruit_circuitpython_vs1053` has a...
Same thing with the Monster Mask library
blissful pollen
<@!228322543507865601> Have you done any guide work for us yet? In the actual Le...
The project was aimed for the glasses (as it uses both the matrix and the rings) so not sure where it would be best. I could also start writing something and see what it looks like.
And second I have not done any guide work for Adafruit, just my own on hackster
idle owl
The project was aimed for the glasses (as it uses both the matrix and the rings)...
OK, yeah, we can add something to the glasses guide. There's a spot for "CircuitPython EyeLights Starter Projects" which is a list of CP programs for them. We can add it there.
lone axle
Would there be an interest in a Learn Guide for this: https://www.adafruit.com/product/5146. Right now it links directly to arduino github library repo. We have a CircuitPython driver now, it might be nice to have one of the product guides with pinouts and usage examples like many other products have.
idle owl
Would there be an interest in a Learn Guide for this: https://www.adafruit.com/p...
Email PT and Limor. It's not on my list, so if they are interested, it's up for grabs.
lapis hemlock
@tulip sleet Dan, do you think you would have 5 minutes for a short discussion either before or after the meeting?
tulip sleet
sure, right now we are having an internal meeting, so might be after
lapis hemlock
That's OK. Thanks!
slender iron
brb
idle owl
Also brb
tulip sleet
That's OK. Thanks!
ok, obviously, after
lapis hemlock
no problem.
idle owl
We do!
thorny jay
Sorry, skipping the meeting. No notes, but no CP activities. Group hug to the community.
onyx hinge
And thank you to those who comment on PRs who are not specificlly recognized by github as reviewers
If you want to move up to official review status, Kattni is your point of contact
idle owl
Absolutely!
idle owl
If I have to bail suddenly, it will be quick, but please take over for me in that case. Thanks!
trim elm
<@362023826105827340> just a heads up that `adafruit_circuitpython_vs1053` has a...
Oh thanks for letting me know! Gonna check that out in a sec
onyx hinge
oops sorry I was out of order ⏬
slender iron
np, I'm just following the notes doc
solar whale
That will be great -- SDCard access!
errant grail
solar whale
When will we get a paper tape reader? 😉
idle owl
@onyx hinge Let me know when you get that TFT Feather code going. I'll include it in the guide. 😄
slender iron
someone in the forums wanted to do punch cards
digital shoreBOT
adafruit
onyx hinge
https://www.ricomputermuseum.org/collections-gallery/small-systems-at-ricm/ibm-magcard-ii-selectric-typewriter haven't found much info on this but someone was telling me about a magnetic card the size of a standard punch card that would reproduce a whole typed page when you put it into a selectric. The person was saying how it was an incredible time saver for a law practice, because they would use it to type out a standard document such as a will, and then go back and fill in the varying data...
errant grail
someone in the forums wanted to do punch cards
I'm holding out for audio cassettes.
solar whale
I spent a lot of time hand "rewinding" paper tapes in my early programming days....
onyx hinge
will do
proven garnet
Nevermind, wrong thing.
lapis hemlock
See you!
proven garnet
Thanks!
errant grail
Thanks!
lone axle
@idle owl filling up water then brb.
gilded cradle
Thanks all
tulip sleet
@lapis hemlock ok, free now
lapis hemlock
@tulip sleet shall we move to another voice channel?
tulip sleet
sure
ember iris
Thanks all!
solar whale
>>> import board
>>> import digitalio
>>> b = digitalio.Di
DigitalInOut Direction
>>> b = digitalio.DigitalInOut(board.BUTTON)
>>> b.value
False
>>> b.value
False
>>>
>>> b.value
True
>>> b.value
True
>>>
@lone axle LMK when you're back!
lone axle
<@!382939733107408897> LMK when you're back!
Back now and ready.
manic glacierBOT
slender iron
is it correct that it's been 6 days since a bundle release? seems fishy
onyx hinge
@slender iron let me take a look
solar whale
last avaialbe is 0119
onyx hinge
https://github.com/adafruit/adabot/runs/4917311586?check_suite_focus=true "everything is already released" says adabot
I don't know how to debug it so I'll stop there.
slender iron
I think it may be right
I saw releases in my inbox today
so hopefully it'll be bumped in the next 24 hours
slender iron
Here is the notes document for Monday’s CircuitPython Weekly meeting. It is at the normal time of 11am Pacific / 2pm Eastern here on Discord. Everyone is encouraged to attend! Please add your hug reports and status updates even if you’ll be attending the meeting - it’s super helpful! If you are unable to attend but would still like to include updates, feel free to include them in the notes and we’ll read them off during the meeting. Hope to see you there! <@&356864093652516868> https://docs.google.com/document/d/1YU2kvEr3cFDF6GpmVm_l500xPcxhSu1ox3iXYrL_ZUo/edit?usp=sharing
solar whale
@lone axle I had some time today so I ran some tests on the bluefruitspi PR -- found an issue -- commented in the PR.
lone axle
<@!382939733107408897> I had some time today so I ran some tests on the bluefrui...
Thank you!
idle owl
@lone axle You land on two Tuesdays later in the year, but we'll be on a completely different cadence by then, so I wouldn't worry about it. Simply a heads up. As well, I can only add you to the calendar to "See all event details", not edit. So if you need changes made, let one of the Adafruit folks know to handle it.
lone axle
Thank you, will do.
idle owl
Please let me know whether you can see the calendar.
Or whether you need a link or something.
lone axle
Please let me know whether you can see the calendar.
I've followed the link in the invite and I see it in my Google Calendar now.
idle owl
Perfect!
@slender iron @tulip sleet @onyx hinge Foamyguy is going to start on 7 February 2021 - I'm hobbled next week and want to be available to help, so we're going to have him start the following week. I've updated the hosting calendar to include him, updated our cadence, and fixed the odd days. Foamyguy can't commit to Tuesdays, so if he ends up falling on one of the odd days, we'll have to swap it up. I didn't bother changing things for the end of the year because we'll be on a completely different cadence by then anyway.
onyx hinge
Okay!
tulip sleet
ok by me
idle owl
Let me know if anything seems wrong in the calendar. I'm fairly sure I got it right.
onyx hinge
I plan to put my own disruptions into the calendar as soon as it seems sensible to travel, so worrying about the specifics of the rotation later in the year is silly to me.
idle owl
Exactly.
onyx hinge
I wonder if there's a site or service to help us set & swap dates better, in the vein of meeting schedulers but nearly the opposite
idle owl
Eh, I'm our default scheduler, I guess. 😄
onyx hinge
thank you for wearing that hat.
idle owl
You're welcome 🙂
viscid pine
@slender iron In the esp i2c code, did you mean to specify those in cpy ticks or freertos ticks?
you have there 10 freertos ticks for probe (1 second) and 100 freertos ticks for write (10 seconds)
viscid pine
what i mean is, i think you mixed up cpy ticks and freertos ticks when you originally wrote it
so for the write timeouts you write 100, meaning 1 second, but freertos is on 100Hz so it ends up being 10 seconds
and for probe 10 ticks, meaning 1 second
slender iron
ya, that could be a problem too 🙂
viscid pine
- esp_err_t result = i2c_master_cmd_begin(self->i2c_num, cmd, 100 /* wait in ticks */);
+ esp_err_t result = i2c_master_cmd_begin(self->i2c_num, cmd, pdMS_TO_TICKS(1000));
@slender iron this ok? It's more robust in case you change the freertos rate in the future, also reduced that time by 10x
i know thats not the probe part, i want to change both
slender iron
sure 🙂
slender iron
@viscid pine want to mark as ready?
viscid pine
negative, having issues
something is very wrong, the probes are taking 1 second each
slender iron
because it's setup to give up control while the i2c transaction goes
viscid pine
wait_time = I2C_CMD_ALIVE_INTERVAL_TICK; // I2C_CMD_ALIVE_INTERVAL_TICK == 1 second
} else {
wait_time = ticks_to_wait - (wait_time - ticks_start);
if (wait_time < I2C_CMD_ALIVE_INTERVAL_TICK) {
wait_time = I2C_CMD_ALIVE_INTERVAL_TICK;
}
}```if i read correctly, it's capped to 1 second
viscid pine
i tried using esp's i2c_set_timeout instead, which is stretching timeout in apb cycles, but the timeout interrupt never fires
manic glacierBOT
idle wharf
Any Sphinx gurus around? A library I'm working to update has a Sphinx build error (in main) and I'm stumped.
error while formatting arguments for adafruit_azureiot.IoTCentralDevice: can only concatenate str (not "__qualname__") to str
idle wharf
It has something to do with the __all__, bug opened:
https://github.com/adafruit/Adafruit_CircuitPython_AzureIoT/issues/38
slender iron
@idle wharf a couple folks were looking at that earlier. I'm not sure what they found. @trim elm and @proven garnet I think
trim elm
Any Sphinx gurus around? A library I'm working to update has a Sphinx build erro...
Yeah that one stumped us. There were similar-ish issues on the sphinx github repo but none that seemed applicable
solar whale
@slender iron over in #help-with-circuitpython we found that on the microbit_v2 , ampy need’s binascii. I enabled it and it works ok. I was planning to put in a PR but wanted to check if there were other things that should be added as well.
Btw . Code.CIrcuitPython.org worked well with the microbit!
idle wharf
@slender iron and @trim elm OK, that's is good to hear from the sense that at least I know I'm not crazy. 😉
The next thing I was going to try is just removing all the docstrings and then adding them back one by one. But that won't be till later in the week probably.
But my fix for the actual functionality works which is good news.
slender iron
@solar whale I haven't looked at it in a while so I'm not aware of anything. Go ahead and add what you think needs to be added.
trim elm
<@!252717193496756235> and <@!362023826105827340> OK, that's is good to hear f...
Cool. Yeah thanks for taking that on. Was uncovered by a recent patch and it really stumped me
manic glacierBOT
slender iron
looks like the bundle did release today
manic glacierBOT
I just re-checked the S3 site for the Absolute Newest, and it appears to be the one I already tested, as mentioned in the Circuit Python version section above (CP 20220123-4d0e1d9):
Here is the screenshot from the Power Profiler Kit II, the deep sleep period visible at the right side of the trace:
idle wharf
Is there a specific docstring format standard we're using?
These docstrings in this library seem to be different than the Sphinx ones generated by the Python DocString VScode Extension (in Sphinx format)
https://marketplace.visualstudio.com/items?itemName=njpwerner.autodocstring
Which matches what I see in the Sphinx docs.
https://sphinx-rtd-tutorial.readthedocs.io/en/latest/docstrings.html
Key things...
In this library the docstrings use returns instead of return.
They are putting the type inline with the param and not on its own :type:
Might not be why there is an errors, but if there is some standard we should follow that would be a big help as I try to make changes.
timber mango
I am in the process of preparing NXP port to be merged into upstream.
For this purpose I started to develop Hardware-In-the-Loop python test.
So far I have tried the HIL-test with couple of boards.
The test works fine with Grand Central Metro M4 Express - atmel-samd port.
But failed with on different places with stm port.
There are number of issues the stm port suffers from.
Some of them are mere coding mistakes, but other are not so trivial.
The one which disconcerts me is filesystem failure in case SPI flash is used.
The spi_flash_read_data and spi_flash_write_data are re-configuring SPI each time when these functions are called. This causes toggling of SCK every time when SPI is being re-configured. That was the root check_fs failure here:
bsect = 0;
fmt = check_fs(fs, bsect); /* Load sector 0 and check if it is an FAT-VBR as SFD */
if (fmt == 2 || (fmt < 2 && LD2PT(fs) != 0)) { /* Not an FAT-VBR or forced partition number */
for (i = 0; i < 4; i++) { /* Get partition offset */
pt = fs->win + (MBR_Table + i * SZ_PTE);
br[i] = pt[PTE_System] ? ld_dword(pt + PTE_StLba) : 0;
}
i = LD2PT(fs); /* Partition number: 0:auto, 1-4:forced */
if (i != 0) i--;
do { /* Find an FAT volume */
bsect = br[i];
fmt = bsect ? check_fs(fs, bsect) : 3; /* Check the partition */
} while (LD2PT(fs) == 0 && fmt >= 2 && ++i < 4);
}
if (fmt == 4) return FR_DISK_ERR; /* An error occured in the disk I/O layer */
if (fmt >= 2) return FR_NO_FILESYSTEM; /* No FAT volume is found */```However the filesystem works fine as soon as SPI re-configuring takes place before CS is activated:
bool spi_flash_read_data(uint32_t address, uint8_t *data, uint32_t data_length) {
uint8_t request[5] = {CMD_READ_DATA, 0x00, 0x00, 0x00};
uint8_t command_length = 4;
if (flash_device->supports_fast_read) {
request[0] = CMD_FAST_READ_DATA;
command_length = 5;
}
common_hal_busio_spi_configure(&supervisor_flash_spi_bus, spi_flash_baudrate, 0, 0, 8);
// Write the SPI flash read address into the bytes following the command byte.
address_to_bytes(address, request + 1);
if (!flash_enable()) {
return false;
}
bool status = common_hal_busio_spi_write(&supervisor_flash_spi_bus, request, command_length);
if (status) {
status = common_hal_busio_spi_read(&supervisor_flash_spi_bus, data, data_length, 0xff);
}
flash_disable();
return status;
}
Do you mean SPI vs QSPI? As you've found, it's definitely possible there are bugs. But on an existing STM board, does it work? e.g. Feather STM32F405, or PyBoard?
timber mango
Do you mean SPI vs QSPI? As you've found, it's definitely possible there are bug...
It is SPI flash: spi_flash.c
I tested it with STM32F407VET6: https://stm32-base.org/boards/STM32F407VET6-STM32-F4VE-V2.0.html
Here is the logic analyzer capture of the problematic place. The marker #2 is the place where SPI re-configuring happens.
slender iron
Is there a specific docstring format standard we're using?
These docstrings in...
I think we're generally moving towards using type annotations for type info rather than a specific format in the comment itself.
timber mango
And here is the snapshot of SPI communication after I made the changes in spi_flash_read_data function:
tulip sleet
Here is the logic analyzer capture of the problematic place. The marker #2 is th...
Feel free to write this up as an issue. I don't know why common_hal_busio_spi_configure() would be called so often. Is this SPI bus shared with busio.SPI in general, or is it exclusive to the flash chip?
timber mango
Feel free to write this up as an issue. I don't know why `common_hal_busio_spi_c...
In my case it is flash dedicated SPI.
I just wonder how it works with other boards/chips.
tulip sleet
It would make sense to call the configure() just once then. I don't know why it's there. You might look at the GItHub "blame" listing to see whether it was added for some reason.
we don't usually use plain SPI, but rather QSPI
It would be worth looking at the impl on other ports
timber mango
It would be worth looking at the impl on other ports
spi_flash_read_data and spi_flash_write_data are part of common code base which is shared across all the ports. It might be of cause STM-specific behaviour.
tulip sleet
maybe there is a bug in the common-hal configure code for SPI?
timber mango
maybe there is a bug in the common-hal configure code for SPI?
Perhaps, but it's still a good idea to configure SPI before CS has been activated, right?
tulip sleet
Oh, yes, I see what you are saying. Yes, it's in a bad place.
but the configure is assuming that it's disabled when it happens?
timber mango
but the configure is assuming that it's disabled when it happens?
Not sure. I need to check it.
tulip sleet
It does seem like it's in the wrong order. try moving the configure to before flash_enable(). I am still not sure of the motivation, except that the SPI bus might be shared with other devices.
timber mango
It does seem like it's in the wrong order. try moving the configure to before `f...
Well. This is exactly what I have done to fix.
tulip sleet
and it works or it doesn't?
timber mango
It does seem like it's in the wrong order. try moving the configure to before `f...
With this change it works perfectly fine.
I am going to push this change in a separate PR soon. It will be easier to analyse the code then.
tulip sleet
I looked at the history, and it looks like it's always been that wrong (which does seem wrong).
manic glacierBOT
timber mango
I looked at the history, and it looks like it's always been that wrong (which do...
Right. That is why I was so perplexed about this.
tulip sleet
our code is not sacred 🙂 I myself have fixed some longstanding bugs recently and wondered why things ever worked the old way
timber mango
our code is not sacred 🙂 I myself have fixed some longstanding bugs recently an...
Fair enough! 👍
proven garnet
I'm realize my VS Code extension has them downloaded but how exactly does one download the type sheds for CircuitPython?
slender iron
it's in the circuitpython-stubs package in pypi
tidal kiln
@gilded cradle hey, this got merged, ok to make a new release?
https://github.com/adafruit/Adafruit_Python_PlatformDetect/pull/213
gilded cradle
<@!478616919721771019> hey, this got merged, ok to make a new release?
<https://...
Yes, please do.
tidal kiln
gilded cradle
Thank you
tidal kiln
np
idle wharf
@trim elm and @slender iron I was able to get the docs to build by rolling back Sphinx to 4.3.2 in my PR branch and I opened a bug in Sphinx to track this issue in their latest release 4.4.0.
lone axle
<@!362023826105827340> and <@!252717193496756235> I was able to get the docs to...
I would defer to Scott or Kattni ultimately but I think we could remove the type hint that is causing trouble instead of reverting to a different version of Sphinx for that library. Longer term I think we'll either need to have adafruit_logging published to PyPi or else use one of those more self contained "Protocol" definitions within AzureIoT library so that it isn't dependent on the logging lib. (unsure if that is the proper term though sorry).
It is odd that the previous versions of sphinx build it and the new ones don't, and they may still have some bug to chase related to that. But in this case I think the type was just something it wasn't expecting.
idle wharf
I tested it with Sphinx 3.5, 3.4.2 and they both worked ...
So I still think its a SPhinx issue, unless they purposefully want it to fail and if that's the case, the error is still not helpful.
lone axle
4.4.0 works as well when removing the logging type hint or changing it to Logger and manually "installing" adafruit_logging into the environment.
Totally agree though the error message is not helpful at all, I got kind of lucky guessing at which argument was troublesome.
idle wharf
My next worry... how many CP libraries that don't go to PyPi can we hit this with ?
idle wharf
`4.4.0` works as well when removing the `logging` type hint or changing it to `L...
Its skill, not luck ! 😉
lone axle
Well I think the root cause is 2 slightly different things... I think Logger is the correct type rather than logging ordinarily just changing or adding the import and using Logger would fix it. But I think the next issue will be that the actions container doesn't actually have access to adafruit_logging, which is where either publishing it to PyPi or else using one of those self containted definitions would resolve. Though I didn't actually test without adafruit_logging maybe I'm getting ahead of myself with that, possibly it can build with out it? I'll give it a try.
Yeah... actually it does complete without having adafruit_logging installed.
So just adding from adafruit_logging import Logger and changing the type hints to Logger should make actions pass I think.
idle wharf
OK.. I'll test and update my PR.
ty!
It will be later...
Have to go Release the Kraken first...
🦑 🏒 🥅
idle owl
I would defer to Scott or Kattni ultimately but I think we could remove the type...
@idle wharf We definitely do not want to revert a single library. That leads to problems moving forward. Is logging another one of those CP-subset-of-Python libraries? If it is, that's why it's not published to PyPI, because if someone were to try to use it on their computer with Python, they could simply use the Python version. That said, if we didn't design it as a drop-in replacement (i.e. no changes needed to code for Python version to work), then I'm fine with publishing it to PyPI. The ones we don't publish are drop in replacements that folks should be using the Python version for. Did I see that Patrick submitted a bug report to Sphinx? Or did I imagine that... because it sounds like something changed and if it was intentional, we need to work around it, if not, then we need to let them know a bug exists.
manic glacierBOT
idle owl
Basically, the decision as to whether or not to publish it should be based around whether the experience will be diminished when they install the CircuitPython version, when they should be using the Python version.
jaunty juniper
adafruit_logging has a difference with C python that actually threw me off when I tried to use it (and might deserve a breaking update ?)
addHandler(handler: adafruit_logging.LoggingHandler)
Sets the handler of this logger to the specified handler. NOTE this is slightly different from the CPython equivalent which adds the handler rather than replacing it.
not sure if that's relevant
idle owl
It is relevant, thank you.
lone axle
<@!624005998696333331> We definitely do not want to revert a single library. Tha...
There was an issue created with Sphinx and they may still have a bug related to it that they may want to chase. (since it has different behavior on different versions of Sphix).
But in our case it turned out that the type hint was also wrong. Changing to a different one allows the current version of Sphinx to build it successfully.
idle owl
There was an issue created with Sphinx and they may still have a bug related to ...
Brilliant! Thank you for digging into that.
lone axle
I think in the end we don't actually need it published to PyPi. I had assumed it would be, but it seemed like it worked fine without when I tried it.
idle owl
Ok, that's excellent. Keeping it as-is makes the most sense, in my opinion.
We can revisit it later if it turns out to be an issue.
proven garnet
There was an issue created with Sphinx and they may still have a bug related to ...
Oops
Do I need to update it?
Slash looking to see what I got wrong but don't see any recent merged PRs regarding typing
proven garnet
Also there other difference between it and CPython logging is that FileHandler is in an extension submodule but CPython has it in the init.py
The idea being the the primary use for CircuitPython is PrintLogger, and not to use memory loading FileHandler if not actually needed
lone axle
Root cause I think though is a type needs to be Logger (the class within a library module) but was previously logging (the module itself)
proven garnet
Root cause I think though is a type needs to be `Logger` (the class within a lib...
Ah got it
Thanks!
deft jay
@tulip sleet https://github.com/adafruit/Adafruit_CircuitPython_CharLCD/issues/67 << I see you're the assignee to this problem. I'm willing and set up to assist you in debugging this if you don't have the equipment to do so.
import time
import board
import adafruit_character_lcd.character_lcd_i2c as character_lcd
i2c = board.I2C() # uses board.SCL and board.SDA
lcd = character_lcd.Character_LCD_I2C(i2c, 16, 2)
lcd.blink = True
lcd.message = "Blinky cursor!"
time.sleep(5)
lcd.blink = False
yields:
Auto-reload is on. Simply save files over USB to run them or enter REPL to disable.
code.py output:
Traceback (most recent call last):
File "code.py", line 3, in <module>
File "adafruit_character_lcd/character_lcd_i2c.py", line 31, in <module>
File "adafruit_mcp230xx/mcp23008.py", line 16, in <module>
File "adafruit_mcp230xx/mcp230xx.py", line 16, in <module>
File "adafruit_mcp230xx/mcp23xxx.py", line 14, in <module>
File "adafruit_bus_device/i2c_device.py", line 14, in <module>
RuntimeError: maximum recursion depth exceeded
deft jay
@tulip sleet just curious if PCF8574 is going to be supported in circuitpy?
idle owl
Finally got to use my STEMMA QT to mini-grabbers cable. Worked like a charm. Soldering? Pfft. Who needs headers! I have grabbycables!
"Micro SMT test hooks" is the actual nomenclature.
tidal kiln
trying to remember...did something like simpleio.maprange get moved to some core or frozen module?
idle owl
trying to remember...did something like `simpleio.maprange` get moved to some co...
simple_math has it. But it should still be in simpleio. Or maybe it got moved.
solar whale
trying to remember...did something like `simpleio.maprange` get moved to some co...
it is in simplemath -- but not core https://github.com/adafruit/Adafruit_CircuitPython_SimpleMath/blob/755784b6acc8ba419a085bee2d2dc4374f0d0030/adafruit_simplemath.py#L27
which is in the frozen module list
tidal kiln
Adafruit CircuitPython 7.1.1 on 2022-01-14; Adafruit Feather M4 Express with samd51j19
>>> from adafruit_simplemath import map_range
Traceback (most recent call last):
File "<stdin>", line 1, in <module>
ImportError: no module named 'adafruit_simplemath'
>>>
so still need to copy over a lib?
solar whale
guess so -- not sure what boards have it frozen in.
tidal kiln
yah. that's all i'm trying to avoid.
using it once for something simple
no biggee. will let bundle fly turn it into necessary goo.
thanks!
solar whale
FYI -- it is also in simpelio...https://github.com/adafruit/Adafruit_CircuitPython_SimpleIO/blob/main/simpleio.py#L232
tulip sleet
<@!329766224093249548> just curious if PCF8574 is going to be supported in circ...
If you are using a PCF8574, you can use my library: https://github.com/dhalbert/CircuitPython_LCD
The minimal branch removes a bunch of features but is quite a bit smaller.
manic glacierBOT
onyx hinge
@tulip sleet from what you've learned about usb mass storage ... is "eject" something that applies to mass storage, and not the usb device generally? could we mount CIRCUITPY as writable from Python when an eject occurs? or would that cause some problem I'm not considering...
tulip sleet
eject is for mass storage, yes. Windows didn't use to actually unmount the drive when you "ejected" it, but it appears to me they may have just started doing that. I have to experiment more
we get callbacks when ejects happen, and we are tracking the eject state
Windows used to just write everything out so you could "safely remove" it
crimson ferry
the Primary Guide is linked from the QT Py ESP32-S2 non-uFL product page, but not from the uFL version product page
idle owl
@tidal kiln It's come up that Adafruit CircuitPython Nunchuk isn't published to PyPI, which apparently the guide suggests it is, so there's already an issue there. But I'm wondering why we decided not to publish it to begin with? I'm the one who made the library stop publishing, but I did not, evidently, make a note as to the why. It seems like it could be published to PyPI?
idle owl
Yeah. Do you have a way to test it? I actually don't know how to test it without publishing it and then using pip.
tidal kiln
there is a way. want to know? useful for troubleshooting libs on blinka setups.
idle owl
Yeah for sure.
idle owl
Where is PYTHONPATH?
tidal kiln
environment variable
export PYTHONPATH=/home/dir/repos/some_foo_lib
something like that
tidal kiln
exactly how will differ for OS's
idle owl
Right
tidal kiln
but yah, once set, just launch python as usual
idle owl
Right on. Thanks!
tidal kiln
that way you can just clone the repo and point python at it
idle owl
Do you have the hardware to test this?
tidal kiln
i do
idle owl
that way you can just clone the repo and point python at it
Right.. ok that makes sense
tidal kiln
i can test real quick if you want. or you can to see how?
tidal kiln
sure. np. give me a sec.
idle owl
I can get started on the repo update to publish it. Have to run it through cookiecutter again to get an up to date setup.py
tulip sleet
@tidal kiln @idle owl if you have cloned the repo, you can do pip3 install -e the_repo_dir, and it will install it from pip's point of view, but still point to the repo dir, where you can edit it and not have to reinstall. -e is for "editable".
idle owl
Huh. That's also excellent.
tulip sleet
don't have to mess with paths or anything
then when it's in pypi, you just pip3 install it like regular, and the editable version will get replaced with the pypi version
idle owl
Fancy! Thanks, Dan!
tidal kiln
(blinka) pi@raspberrypi:~ $ i2cdetect -y 1
0 1 2 3 4 5 6 7 8 9 a b c d e f
00: -- -- -- -- -- -- -- -- -- -- -- -- --
10: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
20: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
30: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
40: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
50: -- -- 52 -- -- -- -- -- -- -- -- -- -- -- -- --
60: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
70: -- -- -- -- -- -- -- --
(blinka) pi@raspberrypi:~ $ python3 nunchuk_simpletest.py
joystick = 127,128
accceleration ax=540, ay=528, az=769
joystick = 127,128
accceleration ax=144, ay=132, az=192
joystick = 255,128
accceleration ax=548, ay=521, az=768
button C
joystick = 0,255
accceleration ax=524, ay=512, az=769
joystick = 255,128
accceleration ax=552, ay=509, az=769
button Z
joystick = 127,255
accceleration ax=541, ay=541, az=765
joystick = 127,198
accceleration ax=545, ay=468, az=744
joystick = 127,128
accceleration ax=596, ay=596, az=692
Nice!
tidal kiln
@idle owl works fine. i say deploy. if there was a reason no to, we'll discover...
idle owl
<@!330227457296957440> works fine. i say deploy. if there was a reason no to, we...
For sure. Thanks!
Oof I just realised we duplicated a heading in all the READMEs. Sigh.
And cookiecutter was never updated for a thing in the README.
idle owl
OK, opinion time. In library READMEs would you
A. include the info on building documentation under the "Documentation" header which applies to a link to the API documentation? Or..
B. include info on building documentation under the "Contributing" header?
Ostensibly if folks are building docs, they're probably contributing, but that may not always be the case, perhaps?
Leaning towards Documentation. Might make the patch more difficult, but eh. Worth it if flows better.
Yeah that works.
Nevermind, Ladyada ninja'd it.
tidal kiln
indeed
idle owl
@lone axle Would you be up for a cookiecutter addition? There's something we forgot to add, but it has repo-specific info in it, and that starts to stretch my comfort zone in cookiecutter. I can do it, but I bet it would be easier for you.
lone axle
<@!382939733107408897> Would you be up for a cookiecutter addition? There's some...
Yeah, I'm up to give it a try at least. What is it?
idle owl
Yeah, I'm up to give it a try at least. What is it?
We added the API documentation link to the library READMEs. But not to cookiecutter.
I can outline it in an issue so it's clearer what I'm looking for.
It involves moving one section up a bit, and adding a repo-specific line to it.
idle owl
Yeah, I'm up to give it a try at least. What is it?
https://github.com/adafruit/cookiecutter-adafruit-circuitpython/issues/166 Ping me if anything is unclear when you get to it.
@proven garnet I have a mission for you, should you choose to accept it. 😄 Ping me when you're around.
tulip sleet
Is there a good place to get font files bdf's ?
./PyPortal_Quarantine_Clock/fonts/Helvetica-Bold-24.bdf
./PyPortal_EventCountup/fonts/Helvetica-Bold-24.bdf
in the Learning_System_Guides repo.
I often do find or grep in that repo (or the bundle repo) to find things
dusk mauve
Is there any provision in displayio core for displays that have a sleep mode, like the one on the MacroPad RP2040?
It looks like the higher level CircuitPython DisplayIO SH1106 driver [1] handles sleep/wake but in the MacroPad RP2040 board.c file [2] it doesn't look like there's any provision there for display sleep state. That's where I get a bit lost though since I'm new to the lower level displayio stuff 🙂
[1] https://github.com/adafruit/Adafruit_CircuitPython_DisplayIO_SH1106/blob/main/adafruit_displayio_sh1106.py
[2] https://github.com/adafruit/circuitpython/blame/main/ports/raspberrypi/boards/adafruit_macropad_rp2040/board.c
slender iron
@dusk mauve I don't think so. I meant to add native brightness control but never did. That code could have managed sleep as well.
dusk mauve
<@!253692424772124673> I don't think so. I meant to add native brightness contro...
Thanks for the info 🙂 Any background info/code I should look at before I spend a few hours diving in to learn enough to tinker in my own builds? I think I can grok it with enough time either way tho
slender iron
have you built CP locally already?
dusk mauve
yeah, last time I tinkered was with some of the RPi builds a few weeks back
Just never dove into the displayio subsystem(s)
slender iron
k. I think most of what you want is in shared-module/displayio
dusk mauve
Sounds good, thanks!
slender iron
idle owl
@lone axle https://forums.adafruit.com/viewtopic.php?f=60&t=187755 If no one else gets to it before you have a chance.
lone axle
<@!382939733107408897> https://forums.adafruit.com/viewtopic.php?f=60&t=187755 I...
Ah with a quick glance I think I know the issue. Will reply on the forum.
Does the Learn system "Download Project Bundle" thing automatically take the most recently released version of a Library? Or is it based on the Bundle and therefore new version wouldn't show up until the day after (since bundle gets auto generated at night)?
idle owl
Does the Learn system "Download Project Bundle" thing automatically take the mos...
Bundle.
idle owl
Does the Learn system "Download Project Bundle" thing automatically take the mos...
And actually, further, I think it might take another 24 hours to refresh. I'm uncertain about that.
lone axle
Thank you. I'll point them toward the release page to get the mpy for now. That project used some new features in the IconWidget. The PR for them was merged but no release made yet, so they would have gotten the older version without those features.
mental nexus
I'm trying to get my system back to build CircuitPython. I'm running MacOS 11.5.2.GEN build-pyportal/genhdr/devices.h Traceback (most recent call last): File "../../tools/gen_nvm_devices.py", line 2, in <module> import cascadetoml ModuleNotFoundError: No module named 'cascadetoml' make: *** [build-pyportal/genhdr/devices.h] Error 1
I get this "No module named 'cascadetoml'" even though it shows up on my pip3 list as cascadetoml 0.3.3 And click 7.1.2. Any suggestions?
idle owl
Thank you. I'll point them toward the release page to get the mpy for now. That ...
Ah yeah. Good catch. Thanks!
tulip sleet
I'm trying to get my system back to build CircuitPython. I'm running MacOS 11.5...
which board are you building?
if espressif, then it sets up its own python env
jaunty juniper
I get this "No module named 'cascadetoml'" even though it shows up on my `pip3 l...
I think you might want to check which python is run by the make command, I use pyenv to control what python is run from the command line, but I actually also create a venv to run my circuitpython builds from anyway, (and pip install -r requirements-dev.txt in it)
mental nexus
which board are you building?
Building for the pyportal. Let me check my Python version, per @jaunty juniper comment.
blissful pollen
Is there a way to build the docs local so I can ensure it works before pushing? I vaguely recall doing it before but cannot remember how
lone axle
Is there a way to build the docs local so I can ensure it works before pushing? ...
This page has the commands to build them locally: https://learn.adafruit.com/creating-and-sharing-a-circuitpython-library/sharing-our-docs-on-readthedocs#sphinx-2615853-1
blissful pollen
thanks!
mental nexus
I think you might want to check which python is run by the make command, I use p...
Ok, I was running an older python, now I have 3.9.4, but the same error about ModuleNotFoundError: No module named 'cascadetoml' .
Here's what I get for my python version.
Python 3.9.4```and you reinstalled the requirements in it, or in a virtual env ?
mental nexus
Just ran requirements but it failed on cryptography. Will try building again.
jaunty juniper
oh it fails ?
mental nexus
Yep, like this plus a lot of error message after this:
Building wheels for collected packages: cryptography
Building wheel for cryptography (PEP 517) ... error
ERROR: Command errored out with exit status 1:
command: /Users/Dad/.pyenv/versions/3.9.4/bin/python3.9 /Users/Dad/.pyenv/versions/3.9.4/lib/python3.9/site-packages/pip/_vendor/pep517/_in_process.py build_wheel /var/folders/0h/26vb29m50pj4vq1rbg5q8d080000gs/T/tmp3x5whgk5
cwd: /private/var/folders/0h/26vb29m50pj4vq1rbg5q8d080000gs/T/pip-install-s13rhs_0/cryptography
Just updated pip3 and now requirements work.
jaunty juniper
ah
slender iron
it's so nice having access to the whole ble host stack source
tulip sleet
@idle owl do you remember where we were talking about circup and/or "Download Project Bundle" overriding the builtin adafruit_bus_device, etc.? I've though about that a bit and how to prevent it. Or maybe it was the MatrixPortal MemoryError discussion.
idle owl
<@!330227457296957440> do you remember where we were talking about circup and/or...
I don't remember, no.
Not sure that was with me 🙂
tulip sleet
What I am thinking is that we should rename the builtin one to _adafruit_bus_device or something, and then change the library to import the builtin one if it's there, otherwise import the rest of the library. That would make it work in all case. I think naming a builtin module the same as a Python library is kind of a mistake.
OK, I'll try to find it.
my guess was wrong about who was discussing it, thanks anyway!
idle owl
I thought the idea was to be a drop in replacement?
Was the reason for the name anyway
I'm on board with renaming it though.
tulip sleet
yes, but now the project bundles and circup always add it. Hmm, I wonder which one actually gets imported
I will experiment
gotta make dinner anyway
idle owl
Ok!
idle wharf
Is there a lag between when a library is released and when RTD docs does its build?
specifically for https://github.com/adafruit/Adafruit_CircuitPython_AzureIoT/
release was 3 hours ago
slender iron
the project page will show the builds
@idle wharf looks like it's failing: https://readthedocs.org/projects/adafruit-circuitpython-azureiot/builds/
idle wharf
Thank you !
I can fix that.
slender iron
thank you!
idle owl
Is there a lag between when a library is released and when RTD docs does its bui...
The lag is very short. 5-10 minutes max. For your future information.
idle wharf
The lag is very short. 5-10 minutes max. For your future information.
I didn't think we could see the RTD admin... that was "the more you know moment".
Fix for this for the library and to cookiecutter waiting for review.
tulip sleet
I thought the idea was to be a drop in replacement?
The answer is that the builtin module is used in preference to the version in CIRCUITPY. E.g. I created a time.py that just printed something, and then did import time, and it imported the builtin module, not the fake one. So my solution is in search of a non-problem. I tested with adafruit_bus_device too: if the native version is present, the lib version is ignored.
mental nexus
Ok, I've got CP building again, targeting the standard pyportal. I build the latest and drag over the .UF2 file. It reboots and the screen goes black, with no CIRCUITPY drive, and three yellow flashes, I think safe mode. If I load the latest two "prime" versions from the CircuitPython downloads, it works fine. But the latest build from the website "S3" doesn't work. Am I broken or is everything broken?
Also, I tried to fallback and build a previous version, but came into an error. I tried git checkout 7.2.0-alpha.1 and then got an error:
../../extmod/ulab/code/numpy/fft/fft.c:93:23: error: 'MP_QSTR_ifft' undeclared here (not in a function); did you mean 'MP_QSTR_fft'?
I rebuilt mpy-cross but still that didn't clear it up. Suggestions welcome.
crimson ferry
Nice. The latest esp-idf used in CP main seems to have improved memory fragmentation, and also seems to allocate smaller blocks. Largest available block no longer cuts in half each time.
mental nexus
MP_QSTR issues are usually fixed by a clean and build
I did a clean and also redid pulling the submodules. Perhaps it needed an older submodule version. Now I can build 7.2.0-alpha.1! Thanks for yours, danh and neradoc's help.
proven garnet
<@!135415127879974912> I have a mission for you, should you choose to accept it....
I'm game!
Oh, late on the draw I see, thanks @lone axle!
crimson ferry
On the Feather TFT, is it intended for the board.TFT_BACKLIGHT PWM setting be sticky across reloads?
stuck elbow
I think so, you want the repl to work
crimson ferry
I think so, you want the repl to work
but if I set duty cycle to 0, that sticks, that wasn't intuitive to me
idle owl
The answer is that the builtin module is used in preference to the version in CI...
Great!
idle owl
<a:deal_with_it_parrot:410144057713491970>
You're not late to anything. The issue I wanted you to handle is related but different.
Eva said a patch won't work for the further rest of the issue, so she'd have to do it semi-manually, which means it's on hold for now. Because that usually takes her a couple of days to do and she's in the middle of guides.
I'm not sure I want you to do that part, Tekktrik, because Eva can push directly to repos, and I don't want you to put in 290 PRs for README issues. 😄
idle owl
I didn't think we could see the RTD admin... that was "the more you know moment...
We just moved to "3.x" deliberately. I'm confused about your cookiecutter PR?
idle wharf
We just moved to `"3.x"` deliberately. I'm confused about your cookiecutter PR?
It fails to build in RTD with that configuration.
There is a lengthier discussion from Dan on a preferred fix in the AzureIoT PR.
I'll come back to that when I have a gap in day-job stuff later today.
idle owl
Ok thanks!
proven garnet
I'm not sure I want you to do that part, Tekktrik, because Eva can push directly...
I could see that being a hassle haha
If there is anything I can help with let me know! This snowstorm means LOTS of time for coding haha
idle owl
If there is anything I can help with let me know! This snowstorm means LOTS of ...
The thing I would like you to look into is that I think there are a few libraries that don't have the API documentation linked in the README, because we forgot to add it to cookiecutter. Basically any library generated between the time we added the Read the Docs link to the READMEs and today does not have that link. If you could find the libraries without API documentation for this library can be found on Read the Docs. in the README, and add the proper info to those READMEs, I'd really appreciate it. Please organise it like the README found here: https://github.com/adafruit/Adafruit_CircuitPython_Nunchuk
proven garnet
So you actually want me to PR to the already cookiecut (grammer?) repos?
idle owl
So you actually want me to PR to the already cookiecut (grammer?) repos?
There should only be a few. You'd need to maybe initialise the entire bundle and grep for that line. If it's not found, add it. Otherwise, no action is needed.
proven garnet
Does that include community libraries?
idle owl
The other issue is a whole other thing that will have to be fixed across 250 libraries, so... that will wait. It's not damaging.
idle owl
Does that include community libraries?
No, because those folks are hosting their own documentation, and the link won't apply.
proven garnet
Got it, sounds good!
idle owl
Thank you!
Please see the lib I linked for how the end of the README should be organised.
The rest above the "Documentation" header is irrelevant to what you're doing.
proven garnet
Roger!
I assume I'll need to git clone --recursive-submodules [BUNDLEHERE] right?
In order to grep?
idle owl
Something like that yes. I don't remember the exact command.
idle owl
But you need to get all the repos in there before you can grep, yes. Cloning the bundle doesn't gather the data for each repo without explicit request to do so.
proven garnet
Got it, thank you!
proven garnet
Don't know GREP very well, but I do know glob! Got the list via Python, it's just 7 repos, I can PR those in couple hours when I have time!
idle wharf
But you need to get all the repos in there before you can grep, yes. Cloning the...
OK, I updated the PRs
You might want to include the .readthedocs.yaml change if you're touching the library repos. Any docs with the "3.x" are failing to build currently.
idle owl
OK, I updated the PRs
You might want to include the .readthedocs.yaml change if ...
Oof. Ok. I guess it's patch time. Will have to wait until next week though because Eva has a task for today.
idle wharf
this one has all the details about the why of it all
https://github.com/adafruit/Adafruit_CircuitPython_AzureIoT/pull/40
idle owl
I saw it go by, yeah.
@proven garnet Feel free to make that change in the lib PRs you submit.
So I have this example, and I'm not sure it's the best way to do the setup. Feedback is appreciated.
It's four of each type of pin, so I don't want to set each pin up individually.
But I can't remember if I'm doing this right.
idle wharf
It might be worth creating a new RTD Build Failure channel and sending RTD failures to that channel via the RTD webhook.
https://docs.readthedocs.io/en/stable/build-notifications.html#build-status-webhooks
I wish it was easy to to just have RTD open an issue in GH, but you'd need to run something between RTD and GH. Zapier, Azure Functions, AWS Lambdas etc...
proven garnet
Should I change all the places we now use "3.x", or just in .readthedocs.yaml?
tulip sleet
@idle wharf the ubuntu-20.04 thing is a nuisance, but that's the way it is, I guess. The version: 2 stuff says "This functionality is in beta.", but it also says version 1 is deprecated. A little early to do that, but oh well. https://docs.readthedocs.io/en/stable/config-file/v2.html#legacy-build-specification is the version 1 "legacy". Looks like we could use "3" in the legacy spec, but as long as you are changing, may as well look forward. I looked at issues in their repo, but didn't see a lot to worry about at the moment.
tulip sleet
Should I change all the places we now use `"3.x"`, or just in `.readthedocs.yaml...
"3.x" is correct in all the other places. RTD is just being idiosyncratic.
idle wharf
<@!624005998696333331> the `ubuntu-20.04` thing is a nuisance, but that's the wa...
"This functionality is in beta.", but it also says version 1 is deprecated. <-- I also found that very funny\strange.
Thank for your help in pushing this towards the best long-term fix!
tulip sleet
I feel like opening an issue asking them to support "3.x", but we need to fix it now anyway.
or perhaps it has to do with docker's arguments 🤷
idle wharf
I thought the .x was very odd when I saw it. I don't know where that comes from. I'm only used to the version specifiers
https://www.python.org/dev/peps/pep-0440/#version-specifiers
might be common in one of the many other languages RTD supports that I don't use....
slender iron
this might be a problem for nimble: https://github.com/apache/mynewt-nimble/issues/556
idle owl
So I have this example, and I'm not sure it's the best way to do the setup. Feed...
Anyone have a minute to tell me whether I'm doing this example the most sensible way?
blissful pollen
Anyone have a minute to tell me whether I'm doing this example the most sensible...
It looks good to me. Understandable for sure
idle owl
Thank you!
I couldn't remember if that was right. I had to do a few iterations before it worked, so I wanted to check.
tulip sleet
I agree, this looks fine. You could use len(...) instead of 4 in the last loop, but clear now anyway
idle owl
Ooh. Good idea. Because you can chain these boards.
proven garnet
Just making sure, .readthedocs.yaml should look like this now, correct?
# Required
version: 2
build:
tools:
python: "3"
python:
install:
- requirements: docs/requirements.txt
- requirements: requirements.txt
in cpython i'd write for led, button in zip(leds, buttons):, but i don't know if that's cool in circuitpython
proven garnet
zip is implemented! https://circuitpython.readthedocs.io/en/latest/docs/library/builtins.html
viscid pine
cool as in, gives you extra "pythonic" points
i guess that's not as important in circuitpython
proven garnet
I've found CircuitPython to be pretty Pythonic, that's why I love it.
For what it's worth enumerate is also implemented; that link I sent has all the builtins
viscid pine
zip might not be so cool for examples though
beginners will probably be more used to using indices
proven garnet
That's how it was with me, but after reading files enough times, using for line in file I lost the ability to think in indices haha
Convenience
proven garnet
Oooooh I realize we're talking about making examples, my bad I thought you were asking
Hm, I would still second zip, but that also requires you understand list comprehension
viscid pine
what's the performance like with zip, enumerate, etc compared to using a counter?
i'd assume worse because it has to create a zip object
proven garnet
Not sure what happens behind the scenes in CircuitPython for that one, but I imagine it's implemented in C
And my understanding is that CPython makes list comprehension faster than indexing, so idk if that magic juice is in CircuitPython or if it was implemented differently.
idle owl
List comprehensions are great when you're trying to make a massive example more concise, less so in simple examples because it means explaining list comprehensions to beginners 🙂
idle owl
in cpython i'd write `for led, button in zip(leds, buttons):`, but i don't know ...
This would absolutely work, but is less clear what's going on.
viscid pine
agree
tulip sleet
@onyx hinge re https://github.com/adafruit/circuitpython/pull/5854 is the ESP-IDF patch for the I2C crash. Looking at #5860 and #5928, I am thinking of implementing @slender iron's proposal to push write/read down into common-hal. I would revert #5854. Does the reversion make sense to you.
onyx hinge
@tulip sleet yes I don't like the idea of carrying a change relative to esp-idf that we don't need / can avoid. It was a hack fix that I made before I understood the issue better.
that said if the restructuring of shared-bindings is a pain as a result, it should also be possible to carry the transaction object from the write phase to the read phase, when stop=false...
tulip sleet
I am willing to do the new common-hal across all ports. It is more work but it's cleaner in the long run.
onyx hinge
Cleaner is good!
then I won't go into what I was proposing; I thought I had it in a branch but if I do it's on some other system.
tulip sleet
you were proposing your second paragraph above?
i think we can knock off several issues with this, and also maybe make future ports better (and maybe even other existing ones if they support write/read as well).
idle wharf
I feel like opening an issue asking them to support `"3.x"`, but we need to fix ...
I suggested to Sphinx that they add an ubuntu latest value for build.os.
https://github.com/readthedocs/readthedocs.org/issues/8861
tulip sleet
I suggested to Sphinx that they add an ubuntu latest value for `build.os`.
htt...
thank you!
warm stump
It would be great if CircuitPython's Audio System could work something like WebAudio's AudioWorkletProcessors: https://developer.mozilla.org/en-US/docs/Web/API/AudioWorkletProcessor
I gave it a test here: https://github.com/TheMindVirus/codeviz
It's very versatile, I've used it to make synths with over 100 custom wavetable oscillators.
I don't think there's much reason for CircuitPython Audio to work any differently,
apart from maybe being trimmed down to work on microcontrollers. What do you think?
(thanks Scott, watching the stream right now)
manic glacierBOT
proven garnet
@idle owl one of the repos that needs the repository is read-only, I assume I should just skip?
It's the LSM303, for reference
idle owl
<@!330227457296957440> one of the repos that needs the repository is read-only, ...
Yeah, that was archived because we turned it into multiple libraries, I think.
proven garnet
Got it, thanks!
idle owl
Or maybe not. Not sure. Link please?
proven garnet
proven garnet
Almost at the end, @tulip sleet - asyncio doesn't have documentation yet, correct? The current link is broken, so if one exists for RTD documentation, where could I find it?
tulip sleet
Almost at the end, <@!329766224093249548> - `asyncio` doesn't have documentatio...
it is here, and has the wrong name: https://circuitpython.readthedocs.io/en/latest/docs/library/asyncio.html. The MicroPython-supplied documentation needs to be reorganized to fit in more nicely with the other shared-bindings modules. Same for re, json, etc.
proven garnet
Thank you!
tulip sleet
ideally that doc should be moved into the the library as docstrings, since it's just Python code.
proven garnet
I can file an issue as a reminder for both updating the link and doing that if you want, while I'm poking around
Mostly because I'd be interested in tackling it
tulip sleet
sure! it's always good to write these things down
proven garnet
Alright issue filed, and those PRs have been submitted!
atomic summit
Hi folks. I can't remember if there is a build/workflow I am supposed to add my new boards to in the Adafruit CPY repo, to get them building by the CI?
I'm sure there was, but that was before Scott did that big redo of how the build system works. Or is it just tinyuf2 I needed to add my boards to the build workflow?
tulip sleet
Hi folks. I can't remember if there is a build/workflow I am supposed to add my ...
It figures out the boards dynamically now, which is great. There are no longer lists of board directories.
atomic summit
w00p! thanks @tulip sleet 🙂 Doing my PR now!
tulip sleet
i was looking for Scott's PR, but I can't find it now. In any case, it should just work 🙂
manic glacierBOT
manic glacierBOT
orchid basinBOT
slender iron
It would be great if CircuitPython's Audio System could work something like WebA...
Please file an issue with this idea and the links. That way we won't lose them
lone sandalBOT
manic glacierBOT
manic glacierBOT
viscid pine
"Why does connect keep returning False??" 🤦♂️
manic glacierBOT
manic glacierBOT
For reference, this is what my pinout diagrams look like...
And is how all of my boards have been ordered in the past.
atomic summit
Thanks @tulip sleet for checking on my PR pin order!
tulip sleet
np, we just had to edit a bunch to get it right, as I mentioned. So only double-checking!
uneven mango
I have a Sparkfun Qwiik sensor arriving on Monday that doesn't have CircuitPython support. I was thinking of releasing a community module if I can get it working. I've reviewed the learn guide but have a question about iteration.
When working on a module, do you find it's easier to work on a Pi with Blinka, a random board, or a RP2040 Trinkey with u2if?
tulip sleet
I have a Sparkfun Qwiik sensor arriving on Monday that doesn't have CircuitPytho...
I would pick a well-working board like a Feather M4 or RP2040 board. Not u2if, just plain CircuitPython. That way you don't have I2C idiosyncrasies, etc.
minor plume
Are there any Learn guides that talk about the structure of the CPY code base and what’s where? I submitted my first PR (so yay that!) but it took a LOT of use of find and grep to get there, and that seems a little inefficient. Also maybe daunting to newbies? I’m a command line girl from waaaay back, so I’m used to those tools, but not everyone is me. 😉
stuck elbow
there are some deep dives
blissful pollen
You're talking about a python library too and not a core change correct? Just want to be sure
uneven mango
there are some deep dives
The Friday YouTube streams with Scott Shawcroft (Tannewt) are where I've learned the most about core CircuitPython.
minor plume
I should go back and watch some of the older ones, maybe.
tulip sleet
https://circuitpython.readthedocs.io/en/latest/README.html see the "DESIGN and PORTING REFERENCE" sections in the left sidebar
blissful pollen
Are there any Learn guides that talk about the structure of the CPY code base an...
I was actually thinking about this while working on my day job (which has me document large systems too often).
tulip sleet
whatever you can use to make cross-reference tracking good is worth it. TAGS in emacs, Intellisense, etc. I still do a lot of grepping but I use ag or rg
