#circuitpython-dev
idle owl
tulip sleet
just type file something.wav, and it should tell you the sample rate
idle owl
low_fade.wav: RIFF (little-endian) data, WAVE audio, Microsoft PCM, 16 bit, mono 22050 Hz
Works on CPX and so on though. Or worked anyway.
idle owl
I don't know how to change that. I've never made my own wav files, always get them from JP
Do you have some?
tulip sleet
that I haven't debugged in detail yet; I was trying to prevent crashes and not playing at all and getting stuck
do you have the sox program?
tulip sleet
can install via homebrew
idle owl
Ok
manic glacierBOT
idle owl
@tulip sleet Then what do I do with it? Docs are... lacking.
tulip sleet
sox something.wav -r 16000 something-at-16k.wav converts something.wav to 16kHz sampling
idle owl
Ok thanks
tulip sleet
it is a messy CLI program
idle owl
Brew is doing brew things. So it's taking forever.
π of course.
This is why you never ever ever brew install python.
tulip sleet
brew is the opposite of instant iced tea
idle owl
We'll need to document this limitation on samplerate somewhere or somehow.
Because it means a bunch of files we've used previously won't work.
tulip sleet
oh yeah, yeah, we still need to experiment, and it still might be terrible
I've only fixed some things so far
idle owl
16k is still a bit crunchy. Hmm.
Seems so anyway.
Making 8s.
@tulip sleet So, it seems better than it was? Also weird, they each play once but not again.... Like the whole program stops responding. Or one plays once and then everything stops responding. No LEDs, no HID....
tulip sleet
well, I was hoping to fix that π¦
tulip sleet
that's one of a number of bugs
idle owl
I really need to stop assuming things are me.
The vectorio thing is a display rotation issue. It's also not me. π
idle owl
Testing now.
manic glacierBOT
idle owl
Here is a test program, and here are some test files:
Not getting anything from playing the files. I'm supposed to type out a filename in the serial console right? To play it?
tulip sleet
just type the number to the left of the files
tulip sleet
also those samples are mostly 1 sec. The woman playing the autoharp is slightly longer
idle owl
Including mine.
tulip sleet
I should try your program
marble sundial
~~Hey all, noob here, so apologize if I'm asking the wrong question or in the wrong way. Feel free to direct me to the right place. ~~
Moving to #help-with-circuitpython
idle owl
@marble sundial This is better suited to the #help-with-circuitpython channel. This is more for dev discussion.
You'll get excellent help there!
tulip sleet
~~Hey all, noob here, so apologize if I'm asking the wrong question or in the wr...
upload your program when you re-ask
use the + to the left
manic glacierBOT
idle owl
I should try your program
It's the braille keycaps code. I removed the HID commands from the first two macropad keys to test the wav files without sending HID
You have to update the file names in shortcuts.py if that's unclear
to test other files
@tulip sleet Here's the original files.
No idea if that's helpful but I figured it can't hurt to send them to you.
tulip sleet
thanks, I am going to fix the xosc bug first, then I will try those. Could you upload the prog too?
idle owl
Should be in the zip?
play_file_demo.py
change that to code.py
I had already renamed it to test your code, so I sent the renamed file to you as is.
Did I forget to include it?
Na it's in there.
manic glacierBOT
tulip sleet
Did I forget to include it?
oh, ok! I was just going by the name
@slender iron When we switched back to the raspberrypi/pico-sdk, I lost the XOSC oscillator fix by accident, so it's not in alpha.5. It's in there forpico-sdk builds, but we don't use the pico-sdk board files. Where do you think we might put pico-sdk-specific settings for boards? Putting them in sdk_config/pico/config_autogen.h doesn't seem right, but perhaps that could #include some kind of RP-specific config.h for an RP2040 build for us?? I don't know whether you've thought about this.
I can't remember if you have specific board settings for anything right now
that is pico-sdk-specific. I don't really want to #include "mpconfigboard.h" or something into the pico-sdk sources
EDIT: I have an idea about adding a pico.h to our board directories, which will be included by config_autogen.h. I think that's the simplest for now. No comment needed for now. Next step is a PR.
lone axle
I just noticed a small typo in the opening sentence of the CircuitPython day blog post:
the first date has 2020 instead of 2021. https://blog.adafruit.com/2021/07/12/announcing-circuitpython-day-2021-on-august-6-2021-circuitpythonday2021-circuitpython-python/
tulip sleet
I just noticed a small typo in the opening sentence of the CircuitPython day blo...
Fixed, thanks!
lone axle
It looks like all of the streams that are planned so far are in the afternoon. 1pm Eastern being the earliest one. I am going to plan on streaming a bit earlier in the day 11am Eastern (10am Central) which is the same time of day that I normally stream on Saturdays.
orchid basin
lone sandalBOT
tulip sleet
@slender iron @onyx hinge I started to create a team of "CircuitPython core reviewers", so you could request a review from anyone on the core team. I was going to include @analog bridge and @ionic elk . But it turns out you can't add "outside collaborators" to teams, only team members, and you have to buy a seat for a member. So I gave up on this. You can ignore the invitation to join the (now deleted) team. Nevertheless, perhaps we can add more people as reviewers whenever we do a PR if any of those people could give a review. It's hard to indicate AND vs OR in terms of reviews. We can assume OR unless otherwise specified.
manic glacierBOT
CircuitPython version
7.0.0 alpha 5
7.0.0 alpha 4
7.0.0 alpha 3
6.3.0 Does not have this issue
Code/REPL
No COM/serial presented to OS via USB
Behavior
I flash the mentioned 7.0.0 versions and when I plug the teensy back in, after about 3 minutes, all I get is this USB descriptor:
Description
No response
Additional i...
lone axle
@onyx hinge The barometric pressure example on this page: https://learn.adafruit.com/ulab-crunch-numbers-fast-with-circuitpython/filter-example-measuring-barometric-pressure#low-pass-filtering-measuring-barometric-pressure-with-a-bmp280-3057472-1 doesn't seem to run on the CLUE any more, I'm getting pystack exhausted consistently when I try to run it. Truthfully I quite understand all of the math that is occurring, but I noticed if I remove some of the values from the taps array that is able to run successfully again. Do you know if it would be worth making that change in order to get it back to running or does that mess up what it's trying to illustrate?
onyx hinge
@lone axle hum that's frustrating.
lone axle
I tested with 6.3.0 using the original script, and 7.0.0 alpha5 with the updates for new ulab names
onyx hinge
try splitting the big list, so arbitrarily break it into 2, 3 or 4 parts: ulab.array([...] + [...] + [...])
lone axle
try splitting the big list, so arbitrarily break it into 2, 3 or 4 parts: `ulab...
that seems to have worked π it runs now. Thank you!
main furnace
Where did you get the big list of coefficients? I'd like to try filtering other frequencies.
stiff pelican
https://en.wikipedia.org/wiki/Window_function#Hann_and_Hamming_windows
onyx hinge
@proper zodiac I think I may have generated them with scipy on a host computer: https://docs.scipy.org/doc/scipy-0.19.1/reference/generated/scipy.signal.hamming.html
lone axle
@onyx hinge on more question related to that example. I noticed that my filtered line seems to be pretty much straight horizontal, it doesn't appear to be "following" the jagged line from what I can tell. I also found in the code this import ulab.filter https://github.com/adafruit/Adafruit_Learning_System_Guides/blob/d83d646233c791fcab25f8888dda4128d819d6fd/ulab_Crunch_Numbers_Fast/cluebarometer.py#L7 that doesn't seem to get used for anything after importing. I didn't see anything analogous to that in the newest version of ulab so I've removed it. But now I'm questioning whether it was actually somehow responsible for making that filtered line get drawn correctly somehow even though it didn't seem to be used (to my untrained eye)
onyx hinge
no, I think it was just unused
if you raise or lower the sensor by 3 feet / 1 meter does the line move about 10 seconds later? Based on what I'm remembering/reading that's what you'd want to see.
the reading should be constant if the sensor is stationary and nothing interesting is happening in the weather
lone axle
I did experiment with raising it up and down a bit and the jagged line does seem to respond to that but the smooth line still stays exactly horizontal to my eye.
onyx hinge
that doesn't seem right, if you change it so the average of the jagged line is +.2 from what it was before then the smoothed line should also move up by +.2
it's a very complicated way to compute an average
exactly horizontal seems wrong
lone axle
during the boxed section I raised it up at arms height for about 10 seconds, and the section after is back on my desk.
onyx hinge
yeah it's not working
mind sending me the code as you have it right now? I'll see if I can't fix it.
or figure out more about what's going on
lone axle
okay, I'll keep going with the ulab rename changes. I did notice the behavior seems the same using the current code on 6.3.0 as it does with my updated / renames and 7.0.0 alpha 5
thorny jay
Maybe just a moving average of the last 10 values will be more "simple" than this big table and using ulab? π
lone axle
yep, I can do that.
onyx hinge
@thorny jay the purpose of the guide is to illustrate ulab, so no π
@lone axle you never know, maybe what was committed never worked
thorny jay
<@!681528999520108564> the purpose of the guide is to illustrate ulab, so no π
It is a convoluted way to introduce to ulab...
onyx hinge
I'm going to accept that as a pun and move on
thorny jay
pun intended
onyx hinge
data = np.roll(data, 1)
looks like you have to assign the result of calling roll, it's the same in numpy
perhaps ulab used to be different, and it was fixed to be more compatible
thorny jay
I am humming right now. It's a musical scipy.signal ...
onyx hinge
@lone axle ^ maybe this is the answer
lone axle
<@!382939733107408897> ^ maybe this is the answer
yep that seems to be it. The smoothed line does follow the jagged line with about 10 sec delay now. Thank you π. I'll include that fix in my PR.
lone axle
I think it's likely that it worked at some point because there is an image in the guide that depicts it with the graph following. But maybe it could have come from code that was modified after commit
thorny jay
Do you know if the intended use of the new ulab is not to do import ulab.numpy as numpy and then write the code using numpy.x?
onyx hinge
A lot of internet code writes import numpy as np. It is hoped that you can write code for a compatible subset of numpy and ulab by using import ulab.numpy as np. with a try/except clause, the theory is that it'll work on CP, MP, and py3
or maybe it's from ulab import numpy as np due to a MP limitation, I forget
lone axle
looks like both work.
onyx hinge
micropython (I have v1.15 handy) rejects import ulab.numpy as np but accepts from ulab import numpy as np
thorny jay
So that last form is the best I guess.
onyx hinge
It is not a goal of a CP guide on learn to be compatible with numpy or micropython, except that I think that guide has a section on numpy/ulab compatibility that needs to be updated
afk
ember iris
AMA On Reddit this friday alongside the rest of Circuit Python Day https://www.reddit.com/r/Python/comments/ove20j/join_us_for_an_ama_with_the_developers_of_circuit/
onyx hinge
AMA On Reddit this friday alongside the rest of Circuit Python Day https://www.r...
Please file an issue here with the contents of your CIRCUITPY drive:
https://education.ti.com/en/customer-support
``` Hey this was a nice gesture by the folks at TI: they fixed the bit where it said to report bugs toalso there are some strings in this file which strongly indicate that code I wrote now ships in TI calculators
ember iris
At pycon US I got to talk with someone who worked on that project at TI
onyx hinge
any tidbits you can share?
ember iris
Argh if only I could remember his name, but he talked about how much they pulled from circuit python and had to massage into the calculator
Biggest notes were they had to use a subset because all of the I/O pin related features weren't needed, which caused them a ton of headaches in the build because of library issues, but that it worked well once the massaging was done
The guy was a 'I've been using assembly guy' and he worked on the tests there, and wasn't overly fond of the experience, but was darn proud of the team to get it working, and really happy circuit python had put so much into making the code work
onyx hinge
it looks strongly like the firmware update for the main calculator (Python.8ek) embeds a UF2-like bitstream for the samd21 coprocessor where circuitpython runs
ember iris
it looks strongly like the firmware update for the main calculator (Python.8ek) ...
I'm still working to wrap my head around the lower level of how the circuit python core functions. What would it embedding the bitstream do past keeping it compressed?
onyx hinge
I'm guessing that the main calculator CPU can feed the UF2 to the samd21 coprocessor where circuitpython actually runs, but that's not based on actually disassembling anything
that's just how they can update the embedded circuitpython version
ember iris
That structure does sound like a 'lowest energy' solution to slapping circuit python into an already existing embedded program. That way their years of code and tests are still present and they don't need to build those back up from the ground up
onyx hinge
it's tempting to try to extract it from the 8ek file, and put it on a device I have like a qtpy..
manic glacierBOT
tulip sleet
also there are some strings in this file which strongly indicate that code I wro...
Yes, I find it weird that code I wrote can be purchased at Best Buy or Target (not yet CVS)
low sentinel
I'd like to make a breaking change to vectorio palette semantics.
Currently:
To color vectorio shapes correctly you have to pass in a palette with length 2. Palette[0] must be set transparent and palette[1] must be the color you want.
Proposed:
To color vectorio shapes correctly you pass in a palette with length >= 1. Palette[0] will be the color of the shape.
manic glacierBOT
versed lark
@idle owl @tulip sleet pm me if there's any need for another tester for crunchy audio issues on macropad - i've been getting them consistently in alpha5 with my 16 bit signed wav files using macropad.play_file. some files are always crunchy, some are inconsistent. sometimes truncated and sometimes going unresponsive as well. i'm not much help on the code side, but don't mind testing with my sound files.
going to try latest from s3 tomorrow to see if there's any changes.
lone sandalBOT
cunning galleon
Is there a way to deploy assets like .jpg and .wav files into a custom circuitpython build? I am successfully freezing python modules into the build. But I need some read-only assets too.
onyx hinge
@cunning galleon we don't do that, as far as I'm aware.
cunning galleon
roger roger. I may make byte-arrays for them in frozen python files then.
onyx hinge
I don't think that the mp3 decoder will accept anything that isn't a file on flash or sd π
onyx hinge
it would be nice if mp3s in particular took any object with a readinto/recvinto method but that has not been implemented yet.
right now I think what you'd have to do is freeze in a block of memory that is a FAT filesystem image, then you can mount that with the storage module..
(if you went "ugh" just now, I agree)
cunning galleon
Ugh, but if it works for now!
onyx hinge
I wrote this once for image creation but it ended up not being useful to anybody. https://github.com/jepler/mkfatimg
then I think you need to wrap it with an object that implements at least count and readblocks methods; not sure if the other two are needed. The implementation can be in C or in Python. https://github.com/adafruit/circuitpython/blob/98cd989c16ab82bff10002359b09d4027a198a97/shared-bindings/sdcardio/SDCard.c#L176
to have it happen at boot time everytime you could poke it into the supervisor, see filesystem_init -- but I'm not sure what the secondary effects are of wanting a second filesystem
of course you could just make this part of the initial CIRCUITPY filesystem when you program your device, too, and if a user breaks it they break it. This can go in the same uf2 file if you have a unified flash for program & CIRCUITPY (like non-express boards, esp32 boards, and pico boards) or you would need a second step at manufacture to load it...
afk for now
tulip sleet
<@!330227457296957440> <@!329766224093249548> pm me if there's any need for anot...
(@idle owl also) I am still debugging my PR that fixes some things. Kattni has a test example that uses macropad that causes it to stop playing. The difference between the MacroPad library and my test program is that the MacroPad library creates and destroys the PWMAudio object on each play: my test was not doing that. Stay tuned.
versed lark
(<@!330227457296957440> also) I am still debugging my PR that fixes some things....
OK thanks. I'm actually considering using one of the wav/ogg decoder boards if I actually finish this project - but it'll be nice to have it all in one place during development. I'm writing a set of baby/toddler games to entertain my grandkids.
cunning galleon
The current version of "adafruit_display_text" has a simple "display_text_simpletest" module. The code raises an exception from Label.py -- "Group full".
tulip sleet
which version of CircuitPython are you using?
cunning galleon
6
tulip sleet
The limitation on group size was removed in 7; the example should not fail, but try 7
cunning galleon
I modified the "BaseLabel" in the adafruit_display_text "init.py" to give a large "max_size" to groups. That seems to work.
cunning galleon
I'm not sure we can upgrade to 7 yet. But I'll check.
cunning galleon
The FREEZE process doesn't seem to pick up .mpy files in the target directory. I only have the version 6 libraries as mpy files (from the bundle).
Is there a link to the source for the version 6 libs?
tulip sleet
you can download a source bundle. You can also add the library you want as a git submodule. That is the way the current code is included, and is recommended so you can fix it to a specific version and update it easily.
cunning galleon
that's what I was trying when I got the "group full" error
I figured the source was already changed for version 7
tulip sleet
the source bundle for 6 and 7 is the same. we don't yet have a mechanism for including different library releases in the 6 and 7 bundles. The only difference is that they are compiled with different mpy-cross versions.
cunning galleon
OK. I dragged the "adafruit_display_text" source library from that folder to my board running version 6 circuitpython. I get the "group full" error.
I will modify my copy of that source to add "max_sizes" so we can get going.
The version 6 mpy files of that library work fine. But I can't freeze in mpy files.
tulip sleet
are you using the latest versions of the 6 .mpy files? There is no difference between the 6 .mpy and .py files except that they may have been updated recently
do not use the .mpy files just because they work
cunning galleon
understood. I don't know how to get the 6 .py files.
tulip sleet
they are in the bundle I circled in the image above. But if you have older versions, then that bundle is too new. So you can use an older bundle. Do you have the zip file for the bundle you are using? You can look at its timestamp in the bundle name
or just roll that particular library back
cunning galleon
how do i get an older bundle?
tulip sleet
for any paritcular library, go to its github release page and find the release you want
cunning galleon
so all i can get for version 6 is mpy files
tulip sleet
you can look at the PR's for a particular library to find when the group_size stuff was removed
the "py" bundle is the same for 6 and 7
the 6 and 7 .mpy bundles are both generated from the same py sources
main furnace
Anyone know why my boot_out.txt file is empty? Running yesterdays 7.0.0 on rpi 2040 pico.
tulip sleet
Anyone know why my boot_out.txt file is empty? Running yesterdays 7.0.0 on rpi 2...
there is a known bug: https://github.com/adafruit/circuitpython/issues/5062
main furnace
Okay thanks.
tulip sleet
@onyx hinge @analog bridge I tried making a DEBUG=1 ESP32-S2 build, but even if I turn off large modules (e.g. CIRCUITPY_ULAB = 0), I get something like:
[658/658] Generating ld/esp32s2.project.ld
/home/halbert/.espressif/tools/xtensa-esp32s2-elf/esp-2020r3-8.4.0/xtensa-esp32s2-elf/bin/../lib/gcc/xtensa-esp32s2-elf/8.4.0/../../../../xtensa-esp32s2-elf/bin/ld: build-adafruit_metro_esp32s2/firmware.elf section `.dram0.bss' will not fit in region `dram0_0_seg'
/home/halbert/.espressif/tools/xtensa-esp32s2-elf/esp-2020r3-8.4.0/xtensa-esp32s2-elf/bin/../lib/gcc/xtensa-esp32s2-elf/8.4.0/../../../../xtensa-esp32s2-elf/bin/ld: region `dram0_0_seg' overflowed by 2904 bytes
collect2: error: ld returned 1 exit status
do you have a suggestion? Thanks.
onyx hinge
Huh that's a ram section and not a flash section. Weird.
Not really, I was in the habit of turning off wifi but I haven't had to do that lately (build with debug)
slender iron
<@!426200547024961539> <@!747673663419187281> I tried making a `DEBUG=1` ESP32-S...
I made the tinyusb buffers smaller to get it to fit
tulip sleet
I made the tinyusb buffers smaller to get it to fit
thanks! I was wondering what was larger with DEBUG=1
onyx hinge
it seems like you could write some sort of script that figures out what grows, especially if we know how to get it to fit again right now (by reducing tinyusb buffer size) .. maybe some judicious comparisons of firmware.elf.map would help
analog bridge
<@!426200547024961539> <@!747673663419187281> I tried making a `DEBUG=1` ESP32-S...
I had to turn off almost all of the common-hal modules to get a DEBUG=1 build. Should I re-open the issue with a 7.x.x milestone?
tulip sleet
did you see the above about trimming the tinyusb buffers? Maybe tinyusb DEBUG=1 adds a bunch of stuff?
analog bridge
FYI, this was after idf-v4.3 update.
tulip sleet
was it exactly after? Or also tinyusb upgrade? I looked through the .ld stuff but could not find anything relevant or anything to adjust, which I was confused about
analog bridge
it is exactly the idf-v4.3 update commit
https://github.com/adafruit/circuitpython/pull/4195/commits/e0eecd2f76b5e77271ee2dd3bb8b14d5bb3efad2
tulip sleet
I looked for what DEBUG was doing
I think an issue would be good if we don't already have one
analog bridge
from esp32 forum
Because of some fixed RAM addresses used by the ESP32 ROM, there is a limit on the amount which can be statically allocated at compile time. Much more RAM is available at runtime via the heap (it is, as WiFive says, non-contiguous.)
There are some plans to work around this and allow more static allocation, but no ETA yet.
The best fix for the issue is to find a large statically allocated buffer in your program and change it to allocate dynamically (ie via malloc()).
i just wonder what DEBUG is causing to be allocated statically.
since we don't have the problem on regular builds
analog bridge
I think an issue would be good if we don't already have one
I'll re-open #4984
analog bridge
Someone tried increasing the dram_0_0seg section but that didn't help.
https://www.esp32.com/viewtopic.php?t=424
tulip sleet
I saw https://www.esp32.com/viewtopic.php?t=424 while doing some searching, but didn't see https://esp32.com/viewtopic.php?t=6699 (or didn't read it carefully).
manic glacierBOT
tulip sleet
?serverinfo
check #mods - we are testing there with equal failure
onyx hinge
on hn they're discussing the TI calculator with CircuitPython. Predictably, the conversation skews negative, but maybe there's something useful to be gleaned from it.. https://news.ycombinator.com/item?id=28023912
Hacker News
onyx hinge
hmmm there's loud work going on outside my house today. If it interferes with the meeting I may have to lean on someone else to be the host.
hopefully in a few hours they'll have moved from the part that is just outside my window to the part that's further down the back yard
onyx hinge
<@&356864093652516868> Reminder: our weekly meeting is in about 2 hours in this text channel and in the CircuitPython voice channel. Add your notes to the notes doc, and if you won't be speaking please note that so I can read your notes aloud. We look forward to seeing all of you there! https://docs.google.com/document/d/1fsekWWLvcaMb7w6lfiDHqOjYbM38JgLOOxEjGdwh3A0/edit
idle owl
<@!330227457296957440> <@!329766224093249548> pm me if there's any need for anot...
Dan's working on it, and apparently it might be something about the MacroPad library itself. Stay tuned π
tulip sleet
Dan's working on it, and apparently it might be something about the MacroPad lib...
unfortunately, not the library itself. I replicated it without the library. It's deeper than that
idle owl
unfortunately, not the library itself. I replicated it without the library. It's...
Well that makes me feel a little better. I figured I caused it.
modern wing
Happily lurking and drinking mid-afternoon coffee, because sleep? Who needs it. β
πͺ this helps with making split β¨οΈ , but it may or may not need some effort to make it work.
idle owl
We have a person here doing an estimate on a new AC, potentially plus a furnace. We have no AC at the moment. Sigh.
modern wing
We have a person here doing an estimate on a new AC, potentially plus a furnace....
I can't imagine not having AC anymore, and I'm in a more temperate climate of NJ. Which reminds me more of Florida with its humidity and heat each passing year.
Hopefully it's fixed quickly π
idle owl
I can't imagine not having AC anymore, and I'm in a more temperate climate of NJ...
Heh, yeah.
idle owl
Hopefully it's fixed quickly π
Me too, thanks.
idle owl
@opal crystal Will you be reading off your status update or are you text-only and would like the host to read it off?
opal crystal
<@!282251261485514753> Will you be reading off your status update or are you tex...
I will read them.
lone axle
idle owl
I will read them.
Excellent thanks! Simply wanted to make sure since you're lurking for hug reports.
opal crystal
I just have no hug reports because I wasnβt involved this week. π
idle owl
No worries!
lone axle
slender iron
are you using the app or in a browser?
opal crystal
It had worked in the pastβ¦
slender iron
hrm
idle owl
@lone axle I am happy to test that PR too! I'd rather be using vectorio, as it's simpler than displayio.Shape().
low sentinel
Oh hey so about vectorio
low sentinel
I am writing a draw protocol and removing VectorShape from the python-facing api
lone axle
My understanding of the distinction is community bundle = you intend to support mostly yourself, whereas circuitpython bundle = intended for multiple folks all helping support
low sentinel
Because the ergonomics of the current api are really bad. Iβm hoping to shoot out a draft this evening - having perennial troubles with transposition. Itβs simplifying a ton of stuff though so seems worth
modern wing
Woo, another quick yet awesome meeting. Thanks all! π
lone axle
I am writing a `draw` protocol and removing VectorShape from the python-facing a...
Nice, I'll keep an eye out for that. I'm excited to see improvements coming. I'll aim to work on displayio.Shape examples first and then get some put together for vectorio after the API is settled.
slender iron
11 pacific
opal crystal
Iβm not hearing anyone but kattni now but I suppose thatβs on my side too.
low sentinel
I.e., you make a Rectangle(pixel_shader=palette, width=10, height=20, x=24, y=42) and just stuck that in your displaygroup
idle owl
Iβm not hearing anyone but kattni now but I suppose thatβs on my side too.
I'm hearing everyone else. So something happened on your end, like you thought.
lone axle
Ooh, I like that. It took me a bit to figure out the current API with VectorShape at first.
thorny jay
Thanks.
modern wing
Nice job Jeff π
low sentinel
Yeah vectorshape is bad to expose to python. Itβs very useful in C but no reason to expose it (well, no reason if you have a draw protocol)
manic glacierBOT
hollow token
With https://github.com/adafruit/circuitpython/issues/5086 am I flashing the hex file on the downloads site wrong since it seems Lady Ada can get the CP drive to show up in relation to https://github.com/adafruit/circuitpython/issues/4020
manic glacierBOT
low sentinel

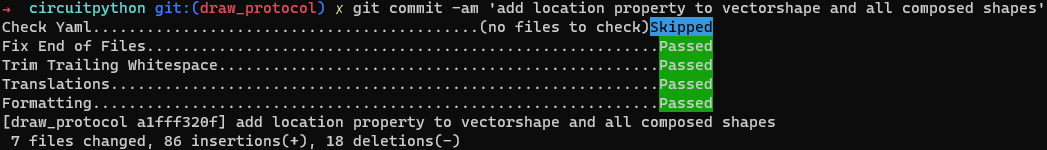

βοΈ draft pr I mentioned earlier. I struggled with the transposed screen presentations over the weekend and just do not have time to get deep on it this week π
manic glacierBOT
onyx hinge
the free lunch of flash space on esp32s2 is going to come to an end soon. 1329536 bytes used, 112256 bytes free in flash firmware space out of 1441792 bytes (1408.0kB).
tulip sleet
@slender iron Could I talk to you about ticks when you are free?
onyx hinge
well this'll be fun -- my new code crashes on esp32-s2, but it requires the camera, which uses the debug pins so I can't use the debugger π
@tulip sleet I should also confess to knowing about ticks (or background tasks, more to the point)
tulip sleet
i may ask you next π
slender iron
@tulip sleet Iβm pretty busy this morning. Meetings at 10 and 1 with a vet appointment at 11:30
I can let you know when I have time
tulip sleet
sure; there is some commented out code in RP2040 port.c re ticks. Trying to understand that. There are some other things to look at before that as well.
tidal kiln
what's the github setting thing when a group is not showing up as an option for a PR review?
tulip sleet
what's the github setting thing when a group is not showing up as an option for ...
what group, what PR?
you're not seeing CircuitPython Librarians when you expect it?
tidal kiln
well...it's an arduino repo TBH π
https://github.com/adafruit/Adafruit_ADXL345
can't add adafruit/arduino-librarians
tulip sleet
which repo? I can check on the group settings
tidal kiln
i have access too, just can't remember the what/where
did this once long ago when setting up CP libs
tulip sleet
looking at the settings...
tidal kiln
thanks. yah, i'm comparing to another repo where it works and not seeing any obvious diff.
tidal kiln
ah...thanks...that's probably it...the one place i didn't look π
tulip sleet
it took me a while to find it π
tidal kiln
@tulip sleet thanks. that was it.
slender iron
@tulip sleet I have some time now
solar whale
Anyone know why the library bundles on circuitpython.org have not updated since 7/31?
Have there just not been any releases since then?
idle owl
Have there just not been any releases since then?
Distinct possibility. But I'm not sure.
The Bundle repo thinks that's the latest
solar whale
ok -- just wanted to check -- I know there have been a lot of merged updates, I guess they just have not been released
idle owl
If any of the CircuitPython Librarians has a moment, here's a quick one. I ran Black, Pylint and Sphinx, and cleaned up as required. https://github.com/adafruit/Adafruit_CircuitPython_IS31FL3741/pull/1
idle owl
ok -- just wanted to check -- I know there have been a lot of merged updates, I ...
Not everyone knows to make a release or how to make a release. Dylan does weekly releases usually, but she's out of town at the moment and is working sporadically so I think it's not happening as consistently. circuitpython.org/contributing/library-infrastructure-issues says the following libraries have commits since last release: ``` Library has new commits since last release over a month ago
https://github.com/adafruit/Adafruit_CircuitPython_MCP230xx (99 days)
Library has new commits since last release within the last month
https://github.com/adafruit/Adafruit_CircuitPython_Simple_Text_Display (11 days)
Library has new commits since last release within the last week
https://github.com/adafruit/Adafruit_CircuitPython_SCD4X (7 days)
https://github.com/adafruit/Adafruit_CircuitPython_MacroPad (5 days)
https://github.com/adafruit/Adafruit_CircuitPython_SGP40 (5 days)
Looks like Dylan did releases a few hours ago.
So there should be an updated bundle tomorrow in theory.
solar whale
Thanks!
tulip sleet
@idle owl I fixed the keypad scanning problem in your test of macropad audio and pushed that. Now I am back to figuring out the scratchiness, but i have gotten more clues
idle owl
<@!330227457296957440> I fixed the keypad scanning problem in your test of macro...
Excellent!
Step by step.
idle owl
<@!330227457296957440> I fixed the keypad scanning problem in your test of macro...
So it wasn't an issue with the MacroPad library?
Dinner is ready! afk.
tulip sleet
no, a bug in the audio code was overwriting the list of keypad scanners, causing scanning to stop. The keypad list happened to be just after an array used by audio to record info about a play in progress, and something wrote past the end of that array, and smashed the keypad scanners list
idle owl
Huh good to know.
tulip sleet
it was an accident it broke keypad as opposed to something else
manic glacierBOT
idle owl
it was an accident it broke keypad as opposed to something else
Fair enough. At least we figured it out!
thorny jay
I now have a "MacroPad" (and a Hackaday keypad) and having that increase the frustration with poor support for non US QWERTY keyboard. I know this is not an issue of the core and the priority might be to get the 7.0.0 out. But getting a better solution for MacroPad user maybe should be put somewhere not too low in the priority list... if possible. π
jaunty juniper
I now have a "MacroPad" (and a Hackaday keypad) and having that increase the fru...
what are you looking for exactly ? keyboard layouts for adafruit_hid ?
might I interest you in this ?
https://github.com/Neradoc/Circuitpython_Keyboard_Layouts
I'm trying to get it started, though I want to integrate ways to layout.write "éà ç" etc. maybe the way it's done here: https://github.com/AngainorDev/Adafruit_CircuitPython_HID/blob/layouts/adafruit_hid/keyboard_layout_fr.py
and there's a dvorak layout that was proposed too
tulip sleet
I think just defining some classes that are collections of constants, like KeycodeFR, KeycodeDvorak, would be a good start.
jaunty juniper
the rework proposed in that PR would help I think ? https://github.com/adafruit/Adafruit_CircuitPython_HID/pull/61
thorny jay
My idea was that Adafruit should show the way a localisation should be done, with one example. And then people will be able to follow that and adapt for their own language. There was one PR for French keyboard and one PR for German keyboard. French was just a replacement library (if I remember well) that you use in place of adafruit_hid. German, I don't remember how it was done. But if there is one way, that would be the recommended way to do it, that is not inflating the size of the library (because that was an issue), and other people can provide their propose for their keyboard... then you have valuable input that will not be rejected. I started working on Belgian keyboard 12 or 18 month ago, but I would not invest time in a PR that will be rejected because it is not done in a way that make sense.
The same way other PR have been rejected later.
There was a similar issue with Joycon support.
There was a request from the community to support other Wii device, such as joystic, guitare, name it.
We had to do the PR 3 or 4 time before it got accepted and it was decided on the proper way to extend the libary that was Joycon only.
jaunty juniper
that's why I made the Circuitpython_Keyboard_Layouts repository, to get all the keyboard layouts in one place, also showing a way to make one, they can be downloaded from the Circuitpython_Keyboard_Layouts bundle, and soon installed individually with circup
thorny jay
I participated at that Wii I2C device effort. I gave up at the 2nd rejection...
thorny jay
that's why I made the Circuitpython_Keyboard_Layouts repository, to get all the ...
Ok, if that is the official way, and is recommended/approuved... then that is fine.
jaunty juniper
well it's not official by any means
the idea is to add third party bundle support to circup, and maintain the library
maybe once it's solid, move it to the circuitpython org if it can be agreed upon
thorny jay
I love it, the PR has a lot of French discussion. π
Let me dive in before having an opinion. π
jaunty juniper
the point is to make a repo that people can contribute layouts to, and as a bonus make it easy to install only one at a time
thorny jay
And this can go "in the weed" topic (it was already more than a year ago).
My message to Adafruit CP community was: "Ok, you made the translation a key differentiator of CircuitPython. Once weblate was in place the community was able to contribute, new language came, they get updated. So if you are serious about the language issue, you should also worry about keyboard".
Now my message to Adafruit could be: "Ok, so you made Keyboard thing a big part of your new development and product. That MacroPad in the Adabox is the peak of that evolution (even if Adabox is not shipped to Europe anymore), but if you only have EN-US keyboard support, you are excluding a lot of people (hint: customer). The same way you try to be an inclusive company (race/gender), you cannot be or stay US centric on your keyboard side. (I did fight some US centric learn guide that did temperature in FΒ° too)."
I wonder if I am good at lobbying companies. π
jaunty juniper
by the way, I want to look into automatically creating layouts (than can then be tweaked/fixed by hand fi needed) from OS layout configuration files, since I find it hard to find online references (like tables with keycodes/letter associations) though that could work too
thorny jay
by the way, I want to look into automatically creating layouts (than can then be...
Yeah, that would be great, I had that in mind because that would automatically deal with most keyboard. But that is too technically challenging for me. Something that use xmodmap(?) files or locale(?) files that describe the keyboard mapping.
manic glacierBOT
idle owl
Ok, if that is the official way, and is recommended/approuved... then that is fi...
I could be wrong, but I thought the plan was to create separate libraries for each keyboard layout. The issue is that we can't add more to the HID library at this point in time - it is frozen into certain builds, and there is not enough room. So, creating a separate module for each new layout means that folks who want to use them can, but they are not making it impossible for us to continue with some current situations. We can certainly discuss this in the weeds again. If this is the case, then I am happy to create repositories to get things started. MacroPad, for example, has plenty of space to handle many different layouts, so there's no concern there.
idle owl
that's why I made the Circuitpython_Keyboard_Layouts repository, to get all the ...
This is something I think Adafruit could also host if you would rather. But I would need to discuss it with the other devs before saying that for certain.
Or something like it anyway.
tulip sleet
i was going to have kattni re-test, but it seems better. I'll re-request reviews. We just got off Zoom watching a relative getting married in Italy
tulip sleet
@slender iron FYI, I instrumented the buffer filling by toggling pins, and it's yielding useful info
slender iron
nice!
tulip sleet
first buffer is loaded in the top spikes; second in the lower spikes. This is time spent in the "next block" routine
slender iron
that gap is concerning
tulip sleet
possibly, it's actually quite regular. I could easily turn off GC in that time
to check
and maybe I will add another pin to mark the DMA ISR routine
tulip sleet
disabling GC before the play does not change the glitch
slender iron
so it is something else
tulip sleet
it seems to be always at the same time. I need to double-check that. It may be a delay in reading the wav file. I am testing only with wav's at the moment, because that's the realistic test case
I did some testing with raw samples earlier just to vet the data
slender iron
ah, that would make sense
are you setting the pin for the duration of the block load?
would that include the file system read?
thorny jay
I could be wrong, but I thought the plan was to create separate libraries for ea...
Yes, that was the idea and reason for that solution. But devil is in the details and practical implementation help test the idea and detect flaw or problems.
I think someone need to bootstrap the work and show the first vetted alternate keyboard. Because writing the Nth rejected proposal is not fun. The other will follow. Maybe some keyboard/languages will have challenge, like dead key or diacritics (?).
jaunty juniper
they are rejected because they are made to the adafruit_hid repository, when the idea was that it should be a repository on its own, there's a guide for that, use cookiecutter, publish your library, do a PR to the community bundle
https://learn.adafruit.com/creating-and-sharing-a-circuitpython-library
idle owl
Exactly what Neradoc said. We need them submitted as separate libraries. What I'm saying is that I believe Adafruit is willing to host them, so they're "official" libraries, and do not need to be hosted by the author. But again, I would want to verify that.
jaunty juniper
or join me and contribute to my layout repository π
idle owl
or join me and contribute to my layout repository π
We'll battle for it! (I'm entirely kidding.) Your repository may end up being the better option in the end. π
jaunty juniper
wii stuff should still be contributed to the community bundle though
ember iris
what stuff does the wii stuff encompass?
idle owl
@tulip sleet I broke sending strings with the MacroPad library when I updated it to generate the HID object when called. I am not sure how to fix it. π
tulip sleet
did you compare the old and new versions? Could you send me those or point to them?
idle owl
Yeah hold on I can do that.
jaunty juniper
what stuff does the wii stuff encompass?
there is adafruit_nunchuk, but I don't think there is guitar hero guitars or other compatible stuff ? My information might be out of date
tulip sleet
idle owl
You're better at this than me.
tulip sleet
I am just using that to compare
onyx hinge
Here is the notes document for Mondayβs CircuitPython Weekly meeting. It is at the normal time of 11am Pacific / 2pm Eastern here on Discord. Everyone is encouraged to attend! Please add your hug reports and status updates even if youβll be attending the meeting - itβs super helpful! If you are unable to attend but would still like to include updates, feel free to include them in the notes and weβll read them off during the meeting. Hope to see you there! <@&356864093652516868> https://docs.google.com/document/d/1Q1Oonou_pZY-R81DYkik9YjksRHtEUHWdb5Fd9hVB9M/edit?usp=sharing
onyx hinge
Here is the notes document for Mondayβs CircuitPython Weekly meeting. It is at t...
h/t kattni who reminded me π
jaunty juniper
what stuff does the wii stuff encompass?
oh yeah I'm out of date, that's in the bundle https://github.com/jfurcean/CircuitPython_WiiChuck
tulip sleet
@idle owl:
self._keyboard_layout = KeyboardLayoutUS(self._keyboard) line 409 should be indented; it's being created fresh every time, though I don't see why that should break it; it should just slow it down
ember iris
oh yeah I'm out of date, that's in the bundle <https://github.com/jfurcean/Circu...
Awesome, I was going to take a look at the wii balance board after the sgp40 stuff is done, that'll help a lot!
idle owl
<@!330227457296957440>:
`self._keyboard_layout = KeyboardLayoutUS(self._keyboard...
I tried indenting it.... π
I'll try it again.
Nope.
No change.
That was the first thing I tried.
tulip sleet
in any case it and the comment should be indented. which test pgm is failing?
idle owl
It's failing when I import the shortcuts.py file because inside it is macropad.keyboard_layout.write("String")
Traceback (most recent call last):
File "code.py", line 13, in <module>
File "shortcuts.py", line 29, in <module>
AttributeError: 'property' object has no attribute 'write'
Code done running.```Feels like it's not creating the keyboard_layout object...
But I'm reaching here.
@tulip sleet
That's my drive including libraries. MacroPad code obvs.
macropad.keyboard_layout.write() used to work.
tulip sleet
from adafruit_macropad import MacroPad
macropad = MacroPad
should be macropad = MacroPad()
idle owl
omg.
Yes it should be.
I'm not sure how it ever worked.
Thank you.
Also it typed all of that out immediately. So I was doing it wrong anyway.
Should only contain the string.
@tulip sleet Thank you so much.
tulip sleet
yw!
idle wharf
Just an FYI.
https://github.com/adafruit/circup/issues/117
This issue in circup was opened, that was essentially a link back to their own project, but to which they added circup. Its a little spammy\self-linking imo, but I don't know if tldr-pages is a real thing or not... If anyone thinks its spammy and has GH Admin you can delete that issue if you like.
idle owl
Oi, now this Traceback (most recent call last): File "code.py", line 15, in <module> File "/lib/adafruit_macropad.py", line 113, in __init__ File "/lib/neopixel.py", line 130, in __init__ ValueError: NEOPIXEL in use
(β―Β°β‘Β°οΌβ―οΈ΅ β»ββ»
I think I know why.
tulip sleet
yah, you are creating a MacroPad() twice?
idle owl
yep
onyx hinge
@idle wharf it looks like tldr is a real thing, though I hadn't heard of it before. I wouldn't sweat it, though if you had any feedback on the proposed text you could probably suggest to change it.
idle owl
yah, you are creating a MacroPad() twice?
I have no idea how the Braille Keycaps code is working. I should go check it, it might not be anymore or something.
tulip sleet
i don't think its shortcuts.py did anything except define the lookup table
idle wharf
<@!624005998696333331> it looks like tldr is a real thing, though I hadn't heard...
kk. I'm just wary of people using the Adafruit "things" to link to themselves... π
idle owl
i don't think its shortcuts.py did anything except define the lookup table
Fair enough.
idle owl
@tulip sleet You requested changes on that PR, but thumbsupped it. Did you mean to approve?
tulip sleet
Do not eat while reviewing.
onyx hinge
Do not eat while reviewing.
I hate it when someone gets mustard on my pull requests
tulip sleet
lol
onyx hinge
>>> import usb_hid
Traceback (most recent call last):
File "<stdin>", line 1, in <module>
ImportError: no module named 'usb_hid'
``` can we enable usb_hid on esp32 for now? makefile comments indicate it was an endpoint shortage problem.@tulip sleet do you know ^ ?
tulip sleet
i'll look, i thought it was there, but the default devices weren't
tulip sleet
```Adafruit CircuitPython 7.0.0-alpha.5-97-ge73d49ad1-dirty on 2021-08-03; Kalug...
Ah, the board Kaluga board defs were not revised when dynamic USB was added
@onyx hinge If you are working on a PR anyway, you can remove these lines from both kaluga board mpconfigboard.mks:
# We only have enough endpoints available in hardware to
# enable ONE of these at a time.
CIRCUITPY_USB_MIDI = 1
CIRCUITPY_USB_HID = 0
CIRCUITPY_USB_VENDOR = 0
They should have been removed a while ago. I checked for others, and it's just those (it's also turned off for satellite boards, etc.)
onyx hinge
@tulip sleet OK, I can do that
tulip sleet
if not, we can just make a regular PR. Not a big deal.
onyx hinge
looks like the qr code PR is still open so I tacked it on
tomorrow I need to do & react to reviews, it sounds like
spiral elk
Yes, that was the idea and reason for that solution. But devil is in the details...
From experience, japanese keyboards will be a pain.
blissful pollen
I'm not even sure if this is an issue cause it seems so strange so I'll post something here first.
I have a FeatherS2 hooked via stemma to a PM25 air sensor hooked via stemma to an oled .91". in alpha 5 if I go to save the file more then once it resets.
If I disconnect any one device it works fine.
manic glacierBOT
thorny jay
Catching up on Show&Tell and noticed that the "Fidget mode" from kattni can also be useful for cats. π (I have not put a mention to avoid waking up her)
hollow token
For cats and/or Kats?
low sentinel
@tulip sleet fyi pre-commit is a sudo install on wsl2 (and maybe other distros idk). It installs happily without sudo and does absolutely nothing. (i.e., command not found, nothing obvious in the site package to put on PATH)
stiff pelican
<@!329766224093249548> fyi `pre-commit` is a `sudo` install on wsl2 (and maybe o...
Install it with pip instead of apt
pip install pre-commit
tulip sleet
Install it with `pip` instead of `apt`
`pip install pre-commit`
@low sentinel Yes, WSL2 with Ubuntu should be virtually identical to native Ubuntu. I'm not sure what the apt pre-commit package is. I don't see it at all:
halbert@tuna:~$ apt show pre-commit
N: Unable to locate package pre-commit
N: Unable to locate package pre-commit
E: No packages found
What does apt show pre-commit show on your WSL2 instance?
manic glacierBOT
onyx hinge
<@!158086876190736384> Yes, WSL2 with Ubuntu should be virtually identical to na...
@low sentinel https://packages.ubuntu.com/groovy/pre-commit Did you enable "universe"? OTOH I tend to install pre-commit with pip, I didn't even know it was packaged. (it is in debian testing "bullseye", as well)
ember iris
For the reddit post, are there any cool projects you'd like to share as an example of what can be done with circuit python?
low sentinel
Install it with `pip` instead of `apt`
`pip install pre-commit`
I installed it with pip3 (which aliases pip on my box)
low sentinel
<@!158086876190736384> Yes, WSL2 with Ubuntu should be virtually identical to na...
Did I write apt? I didnβt install it via apt, I used pip3 install pre-commit. Sorry for confusion!
tulip sleet
and then in the repo you must do pre-commit install for each repo for which you want pre-commit to work.
otherwise nothing will happen
low sentinel
Yeah what Iβm trying to say is:
pip install pre-commit does not install pre-commit in an executable location.
tulip sleet
what is in your $PATH?
something like /home/halbert/.local/bin: should be in your path
what does which -a pre-commit say?
low sentinel
$ pip install pre-commit
$ echo $?
0
$ pre-commit
Command not found
$ sudo pip install pre-commit
$ echo $?
0
$ pre-commit
<usage information>
Iβm away from that machine at work, canβt inspect path but iirc it put pre-commit in /use/bin when invoked via sudo.
And /usr/bin is on my path
Sry phone that should say /usr/bin
tulip sleet
basically never use sudo pip to install something, because it can mess up the system-installed commands that the system needs for its own purposes.
low sentinel
Yep
tulip sleet
there is an automatic way that ~/.local/bin gets added to your path. Let me find it.
this is in your .profile, which is only executed by a login shell:
# set PATH so it includes user's private bin if it exists
if [ -d "$HOME/bin" ] ; then
PATH="$HOME/bin:$PATH"
fi
# set PATH so it includes user's private bin if it exists
if [ -d "$HOME/.local/bin" ] ; then
PATH="$HOME/.local/bin:$PATH"
fi
Oh? I didnβt see that but if thatβs what is supposed to be on path I can easily put that in zshrc
Mm yes
low sentinel
Thanks for your help. I agree thisβll be it
tulip sleet
the gotcha is that if you install something with pip for the very first time, it creates ~/.local/bin, but it doesn't get added to your PATH, because that stuff above didn't see ~/.loca/bin when it was run at the beginning. So you have to log out and log back in, and then it's on your path. So it might be that if you exit the WSL2 shell and then go back in, it will just work.
this is very confusing, and has happened to me on fresh installs
low sentinel
Nah this actually persisted across a shut down and a startup.
This is very good to know. I basically never use pip installed tools by name like this
Unfamiliar with pip distribution of executables
tulip sleet
it could be that zsh doesn't run .profile?? or maybe you edited .profile. The distinction between login shells and regular shells is not obvious, and i don't know what happens when you create a WSL2 session
i find this all kind of a mess
low sentinel
I didnβt edit profile
tulip sleet
pylint and black are also best installed via pip, if you want recent versions. I always look in pip first if I know the thing is python-based
i think you will figure it out when you get home π
low sentinel
Agree
prime flower
FYI if Actions is stalled (or really slow) for anyone else, "Investigating - We are investigating reports of degraded performance for GitHub Actions.
Aug 5, 14:09 UTC"
idle owl
Catching up on Show&Tell and noticed that the "Fidget mode" from kattni can also...
Agreed regarding cats! I have one here that I have to close my laptop on my desk or he'll walk on it to get to the window. And, I appreciate your consideration! But, no worries - I don't get notifications over night π
idle owl
For the reddit post, are there any cool projects you'd like to share as an examp...
Hmm. There's so many, that's a tough one. Do you mean for getting started with it? Or more complicated than that?
ember iris
Hmm. There's so many, that's a tough one. Do you mean for getting started with i...
I'm thinking flash LEDs, moving things, that kind of stuff. The stuff that draws the eyes. This'll be for programmers so they're comfortable with the python side of it, but seeing just how much can be done beyond a computer I think will go a long way.
idle owl
I'm thinking flash LEDs, moving things, that kind of stuff. The stuff that draws...
OK I will think on it for a bit and come up with a shortlist.
@onyx hinge I need your brain for a moment. I have to rename a bunch of files that show up in a find search, and I bet you know how to do that not-manually.
onyx hinge
okay
you will want to tell git that you are renaming the files, which is the git mv command. You need to run it once for each thing that you find. Do you know, are there spaces in some of the filenames?
or other characters that give shells the willies
idle owl
All of the file names are main.py. The directories all appear to be letters with _
onyx hinge
it looks like in the learn system the filenames are all file for the simple technique, yay
idle owl
you will want to tell git that you are renaming the files, which is the `git mv`...
Run it once for each thing? So it's still kinda manual?
onyx hinge
There are lots of ways to to this, but here's one way I would do it
git ls-files "**/main.py" | while read fn ; do echo mv $fn ${fn%main.py}.code.py; done (or use your find instead of git ls-files, it's about the same)
this will print a sequence of 'mv' commands. you can either execute them by using copy & paste, or by modifying the line and removing "echo"
I can explain any of it you like, but it may not be worth the trouble; your goal is probably not to become an expert in bash shell
idle owl
I think I understand what it's doing?
onyx hinge
Probably? It's just stuff like, nobody knows until they learn it that "%" is removing a matching suffix from a variable, for instance...
oh except it's wrong
idle owl
Oops.
So need to run it again against .code.py ?
wait
I can stash and drop
and then rerun it.
onyx hinge
sure, that's a great alternative
do you see which "." to remove?
git ls-files "**/main.py" | while read fn ; do echo mv $fn ${fn%main.py}code.py; done
onyx hinge
after stash+drop?
onyx hinge
oh oops, two mistakes
idle owl
stash didn't make them untracked.
onyx hinge
git ls-files "**/main.py" | while read fn ; do echo git mv $fn ${fn%main.py}code.py; done
remember I said we needed to tell git that we were renaming? I left the git off of git mv
idle owl
Would this work? git ls-files "**/.code.py" | while read fn ; do echo git mv $fn ${fn%.code.py}code.py; done
onyx hinge
no, for a number of reasons
idle owl
ok
onyx hinge
git ls-files doesn't list untracked files
git ls-files -o might
but git mv won't want to move them, because they are untracked
onyx hinge
the original main.py files are what stash and drop put back, the untracked .code.py files we just want to delete, which git clean can help with
idle owl
ah they are back indeed.
OK it's not as bad as I thought then.
How can I use git clean then?
onyx hinge
try git clean -n "**/.code.py"
it should say it would remove all those files, change the -n to -f to do it
aren't you glad we automated this and saved time?
idle owl
ok branch is back to normal.
idle owl
aren't you glad we automated this and saved time?
llol
So back to this? git ls-files "**/main.py" | while read fn ; do echo git mv $fn ${fn%main.py}code.py; done
minus the echo to do it.
The commands look correct at least.
Hey! renamed: the whole lot!
That became the easy part. The hard part is going to be updating all the guides. π
manic glacierBOT
onyx hinge
@idle owl OK, onward
idle owl
<@!330227457296957440> OK, onward
Thanks so much!
@tulip sleet How would I go about making wav playback in the MacroPad library be non-blocking? I thought it was blocking by nature, but PhilB indicated it is not, in fact.
tulip sleet
<@!329766224093249548> How would I go about making wav playback in the MacroPad ...
don't do "while playing"; that's what's causing it to be blocking. But right now it gets messed up if you try to play something when something else is already playing
idle owl
don't do "while playing"; that's what's causing it to be blocking. But right now...
Ok, so for now it should stay as is?
tulip sleet
for now, yeah, it will just raise more issues until it's fixed
idle owl
Ok. Thank you.
tulip sleet
@slender iron btw I do not see the huge memory consumption when debugging LTO on say, SAMD51. I am using the gdb from the arm download
slender iron
what versions of gcc and gdb are you using?
tulip sleet
$ arm-none-eabi-gdb-py --version
GNU gdb (GNU Arm Embedded Toolchain 10-2020-q4-major) 10.1.90.20201028-git
$ arm-none-eabi-gcc --version
arm-none-eabi-gcc (GNU Arm Embedded Toolchain 10-2020-q4-major) 10.2.1 20201103 (release)
I have gdb 10.2 and gcc 10.3
tulip sleet
yeah, you are using the arch ones, I guess, you might try the ARM download
tulip sleet
i have seen gdb regress and then get fixed several times (e.g. tab completion has been horribly slow and then got fixed)
tulip sleet
the thing about the ARM release is that we know it's vetted
slender iron
tulip sleet
https://sourceware.org/bugzilla/show_bug.cgi?id=27754#c15 So, IIUC, this is a GNU ld bug, fixed in git.
tulip sleet
ah, they just updated the ARM download, as of July 29:https://developer.arm.com/tools-and-software/open-source-software/developer-tools/gnu-toolchain/gnu-rm/downloads
slender iron
nice!
tulip sleet
i can try that, but not right now π
slender iron
I've been using 10.3 so it should be ok to switch to
tulip sleet
the previous toolchain is using ld 2.35.1.20201028; the latest there is ld 2.36.1.20210621
ld is fixed in 2.37 according to https://sourceware.org/bugzilla/show_bug.cgi?id=27590
onyx hinge
i have seen gdb regress and then get fixed several times (e.g. tab completion ha...
I remember that problem, it was aaggggrrrrriiivvvaaaatiiiinnnggggg
slender iron
@onyx hinge can you review my PR today please?
onyx hinge
@slender iron shoot, yeah
slender iron
onyx hinge
what's -z,max-page-size=0x1000 ?
slender iron
that changes the section alignment in the elf file
onyx hinge
does it have to do with the bootloader problem?
slender iron
it defaults higher and as a result pyocd was clearing more flash than it should have
onyx hinge
and the tilegrid stuff?
slender iron
I was worried it was writing to uninitialized memory
onyx hinge
aha, so maybe not necessary but also not harmful?
slender iron
since write is called from serial_write
onyx hinge
nods
slender iron
*may speed things up I think
onyx hinge
oh what I wouldn't do for an accurate sense of how fast/slow my C code was π
was there a second thing you mentioned in the CE meeting you were waiting on me for?
slender iron
"dear sir, I'd like my python code to run as fast as C. k thx bye"
slender iron
I don't think so
slender iron
@tulip sleet looks like the ld update worked
tulip sleet
great! that is a lot less work than changing your debug workflow
slender iron
100%
tulip sleet
@idle owl should I blacken the macropad learning guide scripts?
there is no pre-commit action for the Learning Guide repo
manic glacierBOT
idle owl
<@!330227457296957440> should I blacken the macropad learning guide scripts?
You can, but it's not necessary. Sometimes it makes it less readable. We haven't enabled it yet.
tulip sleet
I will not bother, then, since it will churn the code something fierece.
onyx hinge
awwww that's the best use of the camera so far
ember iris
I think that post should have all the needed info, I'm going to keep track of it throughout the day to make sure things are running smoothly (and asking some questions as I think of them)
idle owl
I think that post should have all the needed info, I'm going to keep track of it...
Are you around? I have some ideas for guides to post.
ember iris
Just got a loaf of bread in the fridge, I'm free now
idle owl
This is an excellent getting started guide that has everything you can do with the Circuit Playground library and CPX and CPB. https://learn.adafruit.com/circuitpython-made-easy-on-circuit-playground-express
This is the CircuitPython LED Animations guide. LED Animations are tons of fun. https://learn.adafruit.com/circuitpython-led-animations
ember iris
Mind if I just directly use your description for the links?
idle owl
I can do better for the LED Animations π
idle owl
Use this: This guide covers much of what you can do with LED Animations in CircuitPython, and makes displaying animations super simple.
ember iris
Awesome! I'll have to look and see if I can embed an image easily in this as well
idle owl
Awesome! I'll have to look and see if I can embed an image easily in this as wel...
Excellent. Let me find a good MacroPad example as well.
lone axle
That is a really nice quality photo. I haven't played with any of the camera sensors yet but am pleasantly surprised by how that came out. Also quite the majestic kitty.
idle owl
@ember iris This one is new, and seems like it could be a fun one. Description: "This takes the MacroPad and turns it into a fun Dragon Drop game." https://learn.adafruit.com/dragon-drop-a-circuitpython-game-for-macropad
Anything else you can think of that might be worth including? I could grab a Bluetooth guide. I'll do that. I have one in mind.
I think that covers some of the flashy ideas you were looking for π
ember iris
Awesome! I think that should offer a variety of projects for users to get a sense of 'why embedded python'
idle owl
Agreed.
ember iris
And these capture the flashy side of it super well
idle owl
So this is definitely a super noob question, but is there a way to track the AMA thread other than refreshing the website? π
ember iris
Do you like the bluefruit? I've been eyeing it lately and after I'm done updating the VOC algorithm on the SGP40 I was thinking of picking one up
ember iris
So this is definitely a super noob question, but is there a way to track the AMA...
I don't think so?
idle owl
Maybe not as noob as I thought then.
ember iris
Usually AMAs are done by setting them up ahead of time, and by the time you stop by there are questions ready, it's not a feed like structure like discord
idle owl
Ah fair enough.
ember iris
Yeah reddit has been doing a ton to change their platform and I just can't keep up with everything.
idle owl
I won't worry about it until tomorrow sometime then. π
ember iris
Yeah I'll be checking frequently to make sure if there are bad comments, I can remove them before anyone see's them. At least making sure as best I can. Some can slip through but I don't want to let them last long
idle owl
I should really set up tonight for the stream tomorrow. And not wait until tomorrow morning to find out what isn't working. π
idle owl
Yeah I'll be checking frequently to make sure if there are bad comments, I can r...
I understand moderating. Thanks for doing that!
ember iris
Yeah if I didn't have the sgp40 setup by now I wouldn't be able to work on the code for it. My desk is a mess and doing anything more than that code, like streaming, would be crazy right now. I'm looking forward to tomorrows streams!
ember iris
I understand moderating. Thanks for doing that!
No problem! I don't know how long I'll be a moderator for, so I'm taking this time as a chance to talk with cool people and use reddit to do interesting things. It's been pretty fun and the python community is not a community that makes moderation stressful thankfully
idle owl
No problem! I don't know how long I'll be a moderator for, so I'm taking this ti...
That's excellent. It's generally pretty reasonable here as well. I joined r/python π I don't do much with Reddit, but figured that would be fine.
ember iris
This is a fantastic community, I've really enjoyed time on this server and seeing the encouragement and support from everyone. I hope the subreddit says fun and interesting, but the best I can hope for is try my best with judgement calls and field joe and the other mods for perspective when I'm on the fence. Past that I just get to see a ton of cool projects, news, and updates. It's not a bad deal at all
solar whale
That is a really nice quality photo. I haven't played with any of the camera sen...
Thanks! I was pleasantly surprised as well. I have the camera on a flexible cable that makes it much easier to point. Adding some light helped the image quality. That cat is well aware of being majestic !
tulip sleet
@ember iris I did answer the first q, should i have waited, maybe? Just wanted to show some activity.
ember iris
<@!459119350851567626> I did answer the first q, should i have waited, maybe? Ju...
Nah I think that's fine! As far as I'm concerned there's no proper way to do it, whatever you're comfortable with.
tulip sleet
π thanks!
ember iris
I just don't want you feeling obligated to stay online constantly. I'd like it to be a minimal time investment unless you're comfortable doing more
tulip sleet
i just checked it, was all, and it was a good q. I will drop in the same manner I would in discord. And I might point people to discord or the forums if they need extensive followup
ember iris
That sounds good to me
Let me double check with Joe before you link to the discord, I want to check on something
tulip sleet
yes, I hesitated on that, since there's a subreddit
ember iris
You're welcome to direct them here, I just don't know if posting a link on reddit, which can easily be scraped, would invite raid spam. I don't want to say go for it and then leave you to deal with spam that I could have prevented
tulip sleet
then I would just point to something that points to discord; i understand
ember iris
So I'm checking with Joe to see if the python discord gets raid spam
ember iris
then I would just point to something that points to discord; i understand
That was exactly my thought, "you can find a link to the discord on the circuit python main page"--something like this. Less likely to bring you unwanted spam that way
ember iris
Joe hasn't seen much of an issue for raids coming from the subreddit. But I'd imagine pointing to something that points to the discord might still be a better idea. I just wouldn't worry too much if you do directly link here
dapper parcel
And hereβs my first contribution to CircuitPython: https://github.com/adafruit/Adafruit_CircuitPython_MIDI/pull/38
manic glacierBOT
manic glacierBOT
manic glacierBOT
spiral elk
Have asked WeAct about PIDs for the STM32F401 blackpills, holding off on my PR to add the board definitions until I hear back from them.
jaunty juniper
what's the etiquette with the reddit AMA ? somebody asks for "any known fun-facts about where CircuitPython and MicroPython is used?" and I wanted to link to the PyCubed satellite thing
idle owl
what's the etiquette with the reddit AMA ? somebody asks for "any known fun-fact...
Go for it! You can definitely participate as well!
manic glacierBOT
ember iris
what's the etiquette with the reddit AMA ? somebody asks for "any known fun-fact...
anyone can answer π
I can also tag you as a part of it if you like as a Circuit Python Community Member in the post itself
manic glacierBOT
idle wharf
@stiff pelican Did you notice Scott's comment about using board.ID to store our usable name to link to the download page? I was curious if you understood his comment about the potential conflict with an "ID" pin. that didn't make sense to me.
https://github.com/adafruit/circup/issues/113#issuecomment-892838973
Oh.. if a board has a pin mapped to "ID" ...
We can look for that I bet
jaunty juniper
I don't understand what you want to do with the board module anyway
idle wharf
I'd like there to be someway for circup to direct a user to the board specific download page when there is a new version of CP available.
jaunty juniper
yeah, but that has nothing to do with board modules or os.uname
stiff pelican
<@!690965887167103008> Did you notice Scott's comment about using board.ID to s...
I assume he is allowing for the possibility of board having an ID pin or object but I don't know of one offhand.
jaunty juniper
we can't make circup connect to the board's serial REPL, interrupt the code, run print(board.ID) or anything
idle wharf
We're trying to find a place to that value... board.ID was suggested... as was os.uname() as was boot_out.txt
jaunty juniper
that's way too complicated (just finding the right serial port, if it even exists) and intrusive
idle wharf
If its defined in board.ID can the boot_out.txt generator (?) read it and write it ...
So its available both ways ?
jaunty juniper
it can in any case, it's a matter of having a define
stiff pelican
There was also a comment from Scott
I like the idea of making the board id available from CircuitPython. I did that somewhere once.... I'd like to see it available to Python code as well, not just boot_out.txt.
jaunty juniper
yeah sorry, I guess I just found it weird to have that conversation about board in a circup issue
idle wharf
I was assuming it would get added to board and then to boot_out.txt ...
Does that sound like a workable solution ?
jaunty juniper
for me the process would be to add the board ID somewhere as a define in the core, whether automatically generated or manually, then add it to the boot_out.txt which is as simple as adding the define name to this line: https://github.com/adafruit/circuitpython/blob/be2342f32f80a0a2ba6839333847b1fdb495b439/py/makeversionhdr.py#L110
adding it to board or uname is a completely independent process in my eye
idle wharf
That makes sense ..
I was just going looking for that boot_out stuff, thanks!
Not being able to search on GH is a pain .
jaunty juniper
ah the file says "This file was generated by py/makeversionhdr.py" I should have a look at that, it must be filling in the %s for the target before building
yeah I use silversearcher locally
what am I saying, I AM looking at makeversionhdr.py, I meant I should look how to add the board id to it π
idle wharf
Another angle is to enforce that MICROPY_HW_BOARD_NAME is the download URL path ...
https://circuitpython.org/board/unexpectedmaker_feathers2_prerelease/
cat /Volumes/CIRCUITPY/boot_out.txt
Adafruit CircuitPython 7.0.0-alpha.3-433-g5a4a80336 on 2021-06-25; FeatherS2 PreRelease with ESP32S2
jaunty juniper
it's supposed to be human readable like #define MICROPY_HW_BOARD_NAME "Adafruit ItsyBitsy RP2040"'
idle wharf
It could human readable and the URL is just replace spaces with underscores
Need more GUIDs ..
jaunty juniper
how do you like my new boot_out.txt ?
Adafruit CircuitPython 7.0.0-alpha.5-117-gbe2342f32-dirty on 2021-08-07; Adafruit QT Py M0 Haxpress with samd21e18
BOARD ID: qtpy_m0_haxpress
boot.py output:
Oooooo so lovely !
So the URL path is the port path ..
circuitpython/ports/atmel-samd/boards/qtpy_m0_haxpress/
circuitpython/ports/esp32s2/boards/unexpectedmaker_feathers2_prerelease/
I didn't realize that ...
Test sample of 2 ... might not be true
That does not appear to be guaranteed ... unless board id in the directions equates to the folder name in the path ...
https://github.com/adafruit/circuitpython-org#readme
To add a new board to the site:
Duplicate template.md to _board/<board id>.md.
Edit _board/<board id>.md according to the template's instructions.
It must mean the folder name ... there is not other value in the files in
circuitpython/ports/esp32s2/boards/unexpectedmaker_feathers2_prerelease/
which has that value they're using in the url path
jaunty juniper
as far as I know the only exceptions are alias boards as I mentioned in the issue
idle wharf
Got it !
manic glacierBOT
tough chasm
Can u use hx711 with circuitpython?
lone axle
Can u use hx711 with circuitpython?
I don't have experience with that device specifically so I can't be certian. But I don't believe there is a helper library written for that chip currently. It may be possible to use lower level communication techniques to make it work but it would be more complex / advanced than many of the examples / hardware that does have helper libraries.
analog bridge
looks like adafruit_proxlight_trinkey_m0 build is overflowing by just 8 bytes
onyx hinge
I wasn't going to work today, was I
spiral elk
looks like `adafruit_proxlight_trinkey_m0` build is overflowing by just 8 bytes
I'd have suspected german would fail before french.
ornate breach
Nonsense, donβt you know the French surrendering is a classic joke π
spiral elk
technical words in german are usually a mouthful
ornate breach
I know I was trying to be funny
timber mango
Does Metro 328 work with circuitpython?
crimson ferry
No. Here are the boards that do work with CircuitPython: https://circuitpython.org/downloads
timber mango
Thanks
slender iron
@solid blade hey, have you hacked a wii balance board over the uart? I see you worked on wiiuse
manic glacierBOT
i don't know what to tell you about pre-commit. It seems pretty weak at checking for mundane issues before commit.
lone axle
are there specific versions of the pip requirements from requirements-dev.txt to build the core? I'm noticing that today I'm getting this error when I try to build:
ModuleNotFoundError: No module named 'click._bashcomplete'
make: *** [../../supervisor/supervisor.mk:68: build-pyportal/genhdr/devices.h] Error 1
I just made a build a week or so ago and it went successful. I don't think I've changed anything in between but not 100%
jaunty juniper
yeah, it requires typer, which requires click 7.1.2, click 8 breaks compatibility with the completion, and circup switched to click 8
so if you updated circup to test the auto PR, and don't build Circuitpython in a virtual env, you need to do that and install click 7
lone axle
Ah, I see. Thank you
jaunty juniper
that's my guess
lone axle
I wonder if there are plans to change the core build to work with click 8 or if we should make that line click==7.1.2 int he requirements file
and yep, you are right. Downgraded to 7.1.2 and have successful build now.
jaunty juniper
yeah it's a long standing issue, typer does require click==7.1.2 but the requirement is not passed along when installing apparently, so some people get a lower version, so that was added to the build guide: pip3 install --upgrade click==7.1.2
on a side note, I would love a way to install a tool like circup in a virtual env, while still available from the path in any shell
main furnace
You should be able to create an alias using the full path to circup. Then you can run it without activating the virtual env.
jaunty juniper
@onyx hinge the traceback PR added Exception.__traceback__
onyx hinge
I overlooked that
opal crystal
on a side note, I would love a way to install a tool like circup in a virtual en...
As far as I know https://pypi.org/project/pipx/ does just that (I havenβt used it).
jaunty juniper
As far as I know https://pypi.org/project/pipx/ does just that (I havenβt used i...
ah nice thanks π
versed lark
@tulip sleet @idle owl @onyx hinge thanks for the CP chat on friday... just finished watching, and it's great to put faces to the names.
lone axle
does anyone know of a spot in the core, or any other example code that would show to create a list and append things to it? Specifically I'm looking to append another list that contains ints representing x,y pixel locations.
Fumbling through it a bit I found mp_obj_list_t and I think this might be what I need but I'm not sure how to properly append things to it, and then append it to another list.
low sentinel
Fumbling through it a bit I found `mp_obj_list_t` and I think this might be what...
You can mp_obj_t list = mp_obj_new_list(0, NULL); and add stuff to it. This method adds tuples from a backing array.
lone axle
Thank you!
low sentinel
np. Btw do consider just doing 0, NULL to start with. You'll segfault if you pass in the wrong length and then try to use it in python π¬
humble shadow
Hi, I've built circuit python for a custom board and have it working. I'm curious about Arduino though; are Arduino files created at the same time when you build CircuitPython? I think I remember reading somewhere that if you add a board to the CircuitPython repo, it'll have both CircuitPython and Arduino configs created for it.
lone axle
@crimson ferry do you happen to know if LED or L is preferred as a name for that pin? Or maybe both of them should be available?
crimson ferry
I think both... I believe we always want to match the silk for ease of use, and board.LED has recently become a standardized expectation iirc
crimson ferry
PyPortal is a good example, it had L originally, but LED was added more recently https://github.com/adafruit/circuitpython/blob/main/ports/atmel-samd/boards/pyportal/pins.c
so now there are three ways to address the LED
lone axle
Nice, I missed it on my first look, but Metro M0 and M4 do have LED already, I'll add one for L
atomic summit
Hi everyone... been absent for a while focusing on hardware production. So the neopixel library and it's use of the NEOPIXEL_POWER pin - and IO locking....
How is a user supposed to have control of the power of the neopixel, or if a user already has control of it, how is the lib supposed to work, when the IO is "in use" ?
All of my boards have the explicit ability for user control on the "thing" that enables or disables power for the RGB LED - but this IO locking thing prevents this from working, or if the IO is assigned by the user already, it prevents the lib from working.
I'm failing to understand how this is all supposed to work now that power control has been added to the neopixel library - I know it was done a little while ago, but it's causing code breaking changes for me π¦
is there a way to check if an IO is "in use" ? an attribute?
This is all with 7 alpha 5
Traceback (most recent call last):
File "code.py", line 8, in <module>
File "neopixel.py", line 123, in __init__
ValueError: NEOPIXEL_POWER in use```or is it reasonable to add a try/exception NEOPIXEL_POWER in use in the neopixel library to allow it to bypass the power pin control if the IO is already in use?
tulip sleet
@crimson ferry @lone axle As I mentioned, we don't really want to have both board.L and board.LED. board.LED is canonical. I won't remove the board.L's right now, but I don't want to add more either (despite the silk). (We don't have board.MO and board.MI either.)
crimson ferry
@lone axle sorry I steered you wrong, I thought the silk was a stronger signal
tulip sleet
np, this isn't really written down
lone axle
no worries here. I'm happy to get the practice modifying things and building the core.
low sentinel
yo @analog bridge thanks for the tip on uncrustify, that was the issue.
lone axle
I've worked out that I can get the length of a list in core code by having it set into a variable by mp_obj_list_get() is there a way to get the length without specifically getting an item out of the list? or is that the best way? Also is there any sort of resource to learn things like this about working in core code at this point or is looking around at existing core code the best thing to do to pick up things?
low sentinel
mp_obj_list_get doesn't get items out of the list. It just gives you a pointer to the raw vector of items and the length of that vector. That's the right way to get the length; it costs 1 extraneous pointer write though. You could add a function:
size_t mp_obj_list_get_length(mp_obj_t self_in) {
mp_obj_list_t *self = mp_obj_cast_to_native_base(self_in, &mp_type_list);
return self->len;
}
(untested)
lone axle
Ah, I need to probably read up some more on pointers honestly. I don't have any real prior experience with C or any other languages where they are not hidden to a larger degree. I used code like this to do what feels like getting an item out of the list (and the length):
mp_obj_t *current_point;
size_t list_length = 0;
mp_obj_list_get(fill_area, &list_length, ¤t_point);
mp_obj_print(current_point[0], PRINT_STR);
Thank you for pointing me toward Polygon inside of vectorio btw. I've only taken baby steps but even those I would not have been able to manage without that help.
manic glacierBOT
low sentinel
so you're printing fill_area[0] with that code. I think you should rename current_point to fill_area_content or something if fill_area_content[0] is actually the current_point but idk what this code actually is doing so maybe it makes sense :-p
Anyway good luck! Pointers are good.
lone axle
Thank you. I do think some renaming is in order. fill_area is a name left over from the python implementation that I am trying to move into the core. It's a "paint bucket" style fill into a bitmap.
