The best link I think I'll find is a discussion earlier here. I can explain it briefly if you prefer.
#circuitpython-dev
fossil gorge
In essence, pylint 2.7.0+ has an issue where it detects duplicate code, and that option cannot be disabled. So what we need to do, for the examples, is run pylint with the appropriate flags on each file individually
Just saw your comment on the PR, and makes sense.
I don't recall where I'd gotten that, but clearly it was a core library. Will update the patter
idle wharf
Because alot of samples have from foo import bar and then import foo sort of syntax importing twice I've seen this for I2C
?
fossil gorge
Yeah, that's what was blowing up on a PR Melissa submitted that started this bruhaha
or isolated the cause of it I guess
idle wharf
OK... I was hoping it was something easier like it didn't like the essentially blank sample file...
jaunty juniper
@idle wharf what replaces make test for circup ? Typing the whole:
pytest --random-order --cov-config .coveragerc --cov-report term-missing --cov=circup ?
idle wharf
<@!624005998696333331> what replaces `make test` for circup ? Typing the whole:
...
You can just run pytest I’m pretty sure.
jaunty juniper
ah ok
idle wharf
But I have this unread book on my desk
So I'm not sure yet 😉
@fossil gorge your last commit failed on the library with the comment I added. And then it showed the pylint --help many times
my test repo has 1 example
Actually it passed on the example and failed with all the help output on the library.
So much screen spew, sorry confusing.
Is this issue in a specific version of Pylint? We could specify and older one.
fossil gorge
From my understanding, it is
Though Kattni could say for sure.
I just made an update which should be slightly more... selective, in what it tests for library code
idle wharf
https://github.com/PyCQA/pylint/releases
Releases 8 hours, 3 days and then 8 days ago so my guess is that the last one broke us.
🧪 == Testing I've decided
fossil gorge
The problem though, even if it is the latest that broke us, we'd have to touch every repo that gets updated between now and [insert fixed date] to make builds succeed
idle wharf
That ran clean for me on my CircuitPython_Bloomsky library
fossil gorge
So this change is just one that had been planned, but more accelerated
idle wharf
Hurry up and break stuff... the normal way things are done everywhere
fossil gorge
That I know 😉
But yeah. I looked at the issue they were tying the seemingly related change to. So works on >=2 simultaneous jobs, but what about ==1?
idle wharf
I see what you did there types: [python] nice !
Let me know if you want me to try anything else.
I'll push to my library in GH too... I only tested locally
fossil gorge
I can't take full credit for it, but yeah, I thought that was a clever way they had of specifying file types
If you've looked it over, tried it and are satisfied, I'm happy with it. Seems good on my end too, so will let Kattni be the one to decide whether this is sufficient and well, or if something more would be required.
Thank you so much for your time, help and feedback @idle wharf. So very much appreciated!
idle wharf
Happy to help. Thanks for figuring out the fix!
mental nexus
I just pulled the lasted main CP version and am trying to build for the pyportal and get this message
supervisor/port.c: In function 'port_idle_until_interrupt':
supervisor/port.c:560:10: error: implicit declaration of function 'tud_task_event_ready' [-Werror=implicit-function-declaration]
560 | if (!tud_task_event_ready() && !hold_interrupt) {
| ^~~~~~~~~~~~~~~~~~~~
supervisor/port.c:560:10: error: nested extern declaration of 'tud_task_event_ready' [-Werror=nested-externs]
Any ideas what is going on? I ran the git submodule sync and git submodule update --init to no avail.
blissful pollen
I just pulled the lasted main CP version and am trying to build for the pyportal...
When I saw that it was the tinyusb module I think that wasn't updated but not sure
mental nexus
I ran this and it seemed update a lot of tinyusb files.
git submodule update --init --recursive
I redid make clean and then built and it worked. Thanks Mark!
blissful pollen
glad it worked. I'm pretty sure it was the recursive thing that fixed it for me too, just couldn't recall
tulip sleet
@blissful pollen @mental nexus I did this to verify what is needed:
$ git clone https://github.com/adafruit/circuitpython
$ cd circuitpython/
$ git submodule update --init # note no --recursive
$ cd ports/atmel-samd/
$ make BOARD=pyportal clean # (unnecessary first time)
$ make BOARD=pyportal
and it built without error. So there was some other problem. If you didn't do a make clean in advance it's possible that might have caused a problem, but I'm not sure
indigo pollen
I'm having trouble finding the issue for the rpi pico uart, I just wanted to check if there was an update available yet?
solar whale
@indigo pollen it is PR 4224 and it is still being worked on.
indigo pollen
it looks like there are some successful tests with gps chips
thats exciting
thanks for working on this
solar whale
I’m just doing some testing. Glad to be able to help that way.
mental nexus
I’m getting a Sphinx error error: Name 'bitmap' is not defined in my function definition string. This is for a new module that operates on bitmaps. Seems like it doesn’t recognize this bitmap data type. Is there a way to let Sphinx know about data types from other files? Or define bitmap as a type inside this file?
slender iron
@tulip sleet interesting MP work for asyncio ble: https://github.com/jimmo/micropython-lib/tree/lib-aioble/aioble
solar whale
@marble hornet @lone axle I ran some tests on the LC709203F and reproduced the issue with nrf52840 boards https://github.com/adafruit/Adafruit_CircuitPython_LC709203F/issues/3 I'm not sure where to go from here. Let me know if you have any suggestions or if you see anything helpful in the information posted.
@tulip sleet Just an observation -- I have been having a lot of Linux box (Ubuntu 20.04) crashes lately when disconnecting CP boards from the USB. It "seems" like the nRF52840 is particularly bad but that may just be because I have been working with them. It has been failing frequently with them. So much that I've moved back to using my Raspberry Pi instead (slow but steady...) I have not seen the same issue on the RPi.
still zephyr
@solar whale Same here, for me especially the ESP32S2 boards will freeze my Ubuntu. at the beginning I thought it was only me with my USB ports used and abused, but glad to know that I am not the only one having this problem
Another Thing, Dahn the instructions a little different from the guide, it is just in this particular case for Kmatch or this apply across the board for all builds? normally I used the instructions in the learning guide that are slightly different.
solar whale
@still zephyr I have had the same problem with ESP32S2 boards. You are not alone!
analog bridge
@solar whale thanks for all the testing support with pico uart... seems like I pushed the wrong version upstream... would like to give it another shot before I push again
solar whale
@analog bridge sure. It’ll be about 15 minutes before I can try it.
analog bridge
np... 🙂
solar whale
@analog bridge its is "better" but still not working -- I get characters, but they don't make sense. Something loks to be getting overrun ```Adafruit CircuitPython 6.0.0-alpha.3-2124-gefe6aab5f-dirty on 2021-02-24; Raspberry Pi Pico with rp2040
import gps_echotest
5Q-ÍÅÑbb
bbbbbbbbbRH ÕEµ%)25)ÿ
ooopss -- nevermind.... its is OK -- forgot to connect the GPS....
I am getting data grom the GPS now -- still trying to see if I am missing anything ... give me a few more minutes
@analog bridge Yay! got a fix and it all seems to be working !!!
Sorry about the False Alarm
analog bridge
nice! I'll rebase and push now... thanks! 👍
solar whale
You are welcome Thank you!
tulip sleet
Another Thing, Dahn the instructions a little different from the guide, it is ju...
the --recursive is not necessary in general. I don't know what state @mental nexus's repo was in that made that sequence of commadns work, but I don't believe it is inherently due to the --recursive. See the PR comment above. It may have been a missing make clean at some stage, but that's just a guess.
orchid basinBOT
tulip sleet
<@!329766224093249548> Just an observation -- I have been having a lot of Linux ...
I find that the REPL is slow to start up on nRF52840 boards. I haven't looked into this yet. I don't know whether it's related in any way to the crash when unplugging.
I think I have been avoiding these crashes, at least in some cases, by making sure the filesystem is quiescent before unplugging or resetting. That is, there's been no file write within the past few seconds or I did a sync. I just got a new-used dev machine that's 6 years newer, and I'll see whether any crashes show up.
solar whale
I have developed many schemes that seem to help for awhile -- then it comes back....
I'm getting more fond of my Raspberry Pi for board testing....
mental nexus
I’m getting a Sphinx error `error: Name 'bitmap' is not defined` in my function ...
I had to change the variable type to displayio.Bitmap and then Sphinx was happy. It built fine on my local machine without this, but I had to modify it this way to build in the PR autobuild system on GitHub.
idle owl
@fossil gorge !!!
idle owl
You deserve it! 😄
This is amazing, thank you
about to test it locally, but it looks great
fossil gorge
Awesome! Hopefully it works locally as expected for you too. You probably saw their comment, but Askpatrickw tested it on a library repo succesfully
🤞
idle owl
I did! Testing now. I need to make some errors first 😄
Finally! Every error I made was caught by Black at first, lol.
It works!
I'm so excited. Thank you so much!
@fossil gorge I'm impressed. Way to go!
I think we should remove bad-whitespace though. I'll comment on the PR. From Pylint 2.6 changelog: ```Other Changes
bad-continuation and bad-whitespace have been removed. black or another formatter can help you with this better than Pylint```
I imagine eventually it will return a "bad argument" failure with it included.
idle owl
😆 Something like that!
Now I can close my 50-tab-rabbit-hole of a Firefox window from yesterday 😂
fossil gorge
Now I can close my 50-tab-rabbit-hole of a Firefox window from yesterday 😂
Number sounds about right!
onyx hinge
<@!747673663419187281> its is "better" but still not working -- I get characters...
@solar whale @analog bridge looking at these junk results with no device connected, I wonder if the UART should enable a pull-UP or pull-down on the RX pin
prime flower
Could someone review https://github.com/adafruit/Adafruit_CircuitPython_MiniMQTT/pull/65 ? Thanks!
prime flower
I think we should remove `bad-whitespace` though. I'll comment on the PR. From P...
agreed!
orchid basinBOT
wicked fable
@tulip sleet I too was getting crashes with connecting/disconnecting MCU boards with Ubuntu 20.04 (Linux Mint 20). I changed to the 5.8 kernel and that fixed it
This was on a Dell XPS 15 9500 laptop
analog bridge
@slender iron should the following error be removed... it causes uart.read() to not function properly... the only other occurrence I found of this was on nrf where it is commented out
https://github.com/adafruit/circuitpython/blob/4cac412fac4353c94e684773948788576b99e879/ports/raspberrypi/common-hal/busio/UART.c#L208-L210
slender iron
ya, I think it makes sense to remove
read should block while filling the given buffer
analog bridge
yes either that or timeout
slender iron
iirc the timeout is reset when a new character is received
analog bridge
<@!343570430042308609> <@!747673663419187281> looking at these junk results with...
nice idea apart from this being not the standard approach with uart
I really want to see a workflow where pull and/or pin direction can be explicitly set from user code and an error is raised when it is conflicting with what a module is trying to do
analog bridge
iirc the timeout is reset when a new character is received
yes
slender iron
sounds like you are close!
analog bridge
ya almost done... need to update translations jerryn tested it with gps breakout and it is working now
slender iron
great!
manic glacierBOT
onyx hinge
I see that atmel-samd does specifically disable any pull up/down on the RX line. I find that odd. ``` if (have_rx) {
gpio_set_pin_direction(rx->number, GPIO_DIRECTION_IN);
gpio_set_pin_pull_mode(rx->number, GPIO_PULL_OFF);
it seems like rx should be pulled up, to me
analog bridge
it seems like rx should be pulled up, to me
ya an external pull-up is what I usually see
@slender iron if that error is removed... won't that cause a continuous loop if ringbuf is full and we keep receiving bytes
slender iron
ya, you need to copy out of the ringbuf in the loop
solar whale
@meager fog Sorry to ping you but This comes up occasionally and I don't know if there is anyone else beside you who can address it. If you have a chance, can you look at this Forum discussion https://forums.adafruit.com/viewtopic.php?f=8&t=175885 regarding use of CE0 for SPI CS with Blinka.
analog bridge
ya, you need to copy out of the ringbuf in the loop
ok...
slender iron
use ringbuf_get_n in the loop and reset start_ticks every time you get more than 0 bytes out of the ringbuf
solar whale
@onyx hinge @analog bridge to be fair, I got the noise when I had the GPS connected to TX/RX,/GND but power was disconnected. With everything disconnected, I am not getting any noise.
analog bridge
that makes sense... the wiring increases susceptibility to the noise
shell bolt
I feel like this is a FAQ but couldn't find a concrete answer, or glean from looking at code: can MicroPython ports be used out of the box with CP? With some effort? Or not possible due to reason x or y. Apologies if this has been overly answered...
slender iron
@shell bolt generally no because the hardware apis are different
what port are you looking at?
orchid basinBOT
shell bolt
<@!488724449277902859> generally no because the hardware apis are different
That's what I gleaned from the docs, makes sense.
shell bolt
what port are you looking at?
Zephyr, though it is more of an intellectual exercise at the moment.
slender iron
I think someone was just talking about maybe doing zephyr yesterday
mhelm has been doing a lot of the MP work for it
CP is more closely tied to tinyusb which might make it a bit more difficult
are you wanting it for a new platform?
solar whale
is the rtc module expected to be working on the RP2040 - pico now? it's there , but getting odd results
trying to use the gps_time_source.py example
analog bridge
@solar whale rtc was not being initialized properly, fixed in the uart PR... the fix is also in the uf2 I gave you earlier
solar whale
hmmmm -- not working for me
Adafruit CircuitPython 6.2.0-beta.2-48-g4cac412fa-dirty on 2021-02-24; Raspberry Pi Pico with rp2040
>>>
>>> import gps_time_source
Set GPS as time source
Fix timestamp: 00/00/0 17:36:55
RTC timestamp: 00/32/1985 32:08:16
Local time: 00/00/0 17:36:55
Fix timestamp: 02/24/2021 17:36:56
RTC timestamp: 00/32/1985 32:08:16
Local time: 02/24/2021 17:36:56
Fix timestamp: 02/24/2021 17:36:57
RTC timestamp: 00/00/16 32:08:16
Local time: 02/24/2021 17:36:57
Not specifically a platform, but we're using a several IoT protocols and security features. It would be ideal to implement them in one place, and create CP libraries on top.
solar whale
RTC timestamps are wrong.
analog bridge
RTC timestamps are wrong.
can you do a test with the following :-
import rtc
import time
r = rtc.RTC()
r.datetime = time.struct_time((2021, 2, 24, 15, 14, 15, 0, -1, -1))
while True:
print(r.datetime)
time.sleep(1)
Who knows Pulsein? Is it feasible or totally infeasible to make it work with pulses up to 800ms (instead of, what, up to 65ms now? are pulses in microseconds? it's not clear in the docs)
HW of the moment is samd51
this behavior was also a bit odd ... ```>>> p = pulseio.PulseIn(board.D5, maxlen=60)
p.popleft()
Traceback (most recent call last):
File "<stdin>", line 1, in <module>
RuntimeError: Input taking too long
p.popleft()
65535
p.popleft()
65535
p.popleft()
Traceback (most recent call last):
File "<stdin>", line 1, in <module>
IndexError: pop from empty PulseIn
That'd be neat! I'm always happy to guide any work folks want to do.
manic glacierBOT
Bitbangio I2C seems to go off the rails when it's trying to do a read. The writes look OK. Here are some Saleae screenshots. The clock pulses after the "Setup Read" are extra-long (9 us), and then something starts clocking SDA every clock cycle. I'm not sure if it's the RP2040 or the device.
By comparison, here is the same read when done from a Metro M4:
tidal kiln
^^ that's what i've seen as well. i've used it previously with oscope to confirm.
solar whale
@analog bridge that looks OK ```Adafruit CircuitPython 6.2.0-beta.2-48-g4cac412fa-dirty on 2021-02-24; Raspberry Pi Pico with rp2040
import rtc
import time
r = rtc.RTC()
r.datetime = time.struct_time((2021, 2, 24, 15, 14, 15, 0, -1, -1))
while True:
... print(r.datetime)
... time.sleep(1)
...
...
...
struct_time(tm_year=2021, tm_mon=2, tm_mday=24, tm_hour=15, tm_min=14, tm_sec=18, tm_wday=2, tm_yday=55, tm_isdst=-1)
struct_time(tm_year=2021, tm_mon=2, tm_mday=24, tm_hour=15, tm_min=14, tm_sec=19, tm_wday=2, tm_yday=55, tm_isdst=-1)
struct_time(tm_year=2021, tm_mon=2, tm_mday=24, tm_hour=15, tm_min=14, tm_sec=20, tm_wday=2, tm_yday=55, tm_isdst=-1)
struct_time(tm_year=2021, tm_mon=2, tm_mday=24, tm_hour=15, tm_min=14, tm_sec=21, tm_wday=2, tm_yday=55, tm_isdst=-1)
struct_time(tm_year=2021, tm_mon=2, tm_mday=24, tm_hour=15, tm_min=14, tm_sec=22, tm_wday=2, tm_yday=55, tm_isdst=-1)
struct_time(tm_year=2021, tm_mon=2, tm_mday=24, tm_hour=15, tm_min=14, tm_sec=23, tm_wday=2, tm_yday=55, tm_isdst=-1)
Traceback (most recent call last):
File "<stdin>", line 3, in <module>
KeyboardInterrupt:
solar whale
perhaps the issue is with setting the time source ```print("Set GPS as time source")
rtc.set_time_source(gps)
yes earlier this was giving random results
solar whale
Ah -- OK -- not a problem for me, just wanted to make sure it was a known issue.
analog bridge
perhaps the issue is with setting the time source ```print("Set GPS as time sour...
I don't know why this is not working though
can you file an issue for this
solar whale
sure -- thanks!
analog bridge
@slender iron I am pushing a couple more uart changes now... can you delay its review
uncut nexus
@slender iron or @onyx hinge - I am using an IRQ in my RP2040 pio program. All works fine; except that when I CRTL-C out of my script and then CTRL-D to reset; the interrupt handler is being called constantly. The deinit() function for the object is not getting called. Any thoughts?
slender iron
@uncut nexus deinit isn't called automatically unless you allocate the object with a finalizer
usually the reset_* function deinits everything
uncut nexus
I suspect that the object itself is going away; but the state machine program and interrupt are still going
slender iron
ya, I had a similar problem with audio_dma
uncut nexus
do we maybe need to add code to check for and clean up any state machines on a soft reset?
slender iron
ya, I think so
uncut nexus
OK, I'll look at that
slender iron
or does state machine do it already
are you using pio through the state machine internals?
uncut nexus
doesn't seem to - the SM is still running
using the rp2pio call to create the SM, nothing after that
uncut nexus
Is that in main? I may not have the latest merges.
slender iron
uncut nexus
OK, I'll see if putting that in helps. Thanks!
slender iron
both i2s and pdm free run though...
there is this bug too: https://github.com/adafruit/circuitpython/issues/4237
@tulip sleet do you want to look at rotaryio or can I do the rp2040 impl
tulip sleet
feel free to do it. I was going to revisit the algorithm to see why there's a dead spot. There's that PR about the dead spot but I need to look at it carefully.
I did the nrf impl, basically from first principles. Someone else did a similar one, I forget who (not you), and reworked that, though I wasn't sure it was as clear. It also has a dead spot.
I was thinking you could use PIO if you didn't want to do interrupts.
I think you could start with nrf and just change it for the port. It would have the same problem but it would work "as well".
i am still looking at gpio and DigitalInOut to see why bitbangio is not working right on the RP2040. I may try increasing the drive strength. I have tried a bunch of minor things
have to leave the house in one minute but I'll have my phone
slender iron
np, I'm about to take a break and then mu meeting
analog bridge
@slender iron uart pr updated
idle owl
@fossil gorge https://github.com/adafruit/Adafruit_CircuitPython_TestRepo/runs/1973242093?check_suite_focus=true That's running remotely on a repo with two identical examples. Thank you so much again!
fossil gorge
You're very welcome. Glad I could help out!
fossil gorge
_opens it in a tab_
More "I'll read it laters" are lost on a daily basis to abandoned and orphaned tabs than ships have been lost to the Bermuda Triangle.
idle owl
@fossil gorge Let me know when you're back around, I'd like you to take a look at the patch to make sure we didn't miss anything.
thorny jay
I am on a Pico, connected to pico demo that has PWM output on GP27 and GP28. I can make it beep one at a time, but when I try "stereo" the first "beep" is interrupted when the second start. I use the latest build "adafruit-circuitpython-raspberry_pi_pico-en_US-20210223-e41137c.uf2" and this kind of code: https://circuitpython.readthedocs.io/en/latest/shared-bindings/audiopwmio/index.html my test code is here: https://gist.github.com/dglaude/d20ebff34e225581f0c865690c603935
GP27/28 are left/right (or the opposite). What I mean is that it seems that I can only run one audiopwmio.PWMAudioOut at a time. I don't need stereo, I have never used audiopwmio.PWMAudioOut before. So maybe it is a bug and maybe it is a limitation.
fossil gorge
<@!361158808501747735> Let me know when you're back around, I'd like you to take...
I'm around and available now
idle owl
I'm around and available now
Wonderful. Here is the patch PR: https://github.com/adafruit/adabot/pull/207
fossil gorge
Looks right to me!
idle owl
Thanks!
fossil gorge
Just in case, I think it might be time to take that unplanned 48-72 internet & communication sabbatical!
idle owl
Just in case, I think it might be time to take that unplanned 48-72 internet & c...
So say we all 😆
slender iron
@tulip sleet meeting time
idle owl
@slender iron @onyx hinge ^^ I don't know what milestone to put it in. I'll leave that to your decision.
idle owl
@onyx hinge 32 samples is all over the place for magnitude.
@slender iron Re: the issue I filed. If that's expected behavior, how do I deal with it?
idle owl
Heading out. Will pick this up on Monday.
marble hornet
@onyx hinge or @slender iron what does hosting circuitpython weekly involve? Beyond what we see as attendees😅.
slender iron
@marble hornet the trickiest bit is recording I think. we do post the video to adafruit youtube too
before hand there is just grabbing stats and community news
manic glacierBOT
cobalt grail
@slender iron Check speeling of the first "direction" in https://github.com/adafruit/circuitpython/blob/main/ports/raspberrypi/common-hal/rp2pio/StateMachine.c#L429
cobalt grail
@slender iron A better wording would be "Out buffer elements must be max 4 bytes long"?
https://github.com/adafruit/circuitpython/blob/main/ports/raspberrypi/bindings/rp2pio/StateMachine.c#L476
thorny jay
I am on a Pico, connected to pico demo that has PWM output on GP27 and GP28. I c...
Still fighting with pico + pico demo that has an output jack on GP27+GP28.
dac0 = audiopwmio.PWMAudioOut(board.GP27, right_channel=board.GP28)
#code.py output:
#Traceback (most recent call last):
File "code.py", line 14, in <module>
#ValueError: Pins must share PWM slice
I have no clue what that "Pins must share PWM slice" mean... but that could explain that when I was firing a second output on GP27, the one on GP28 was stopping. You somehow cannot use both simultaneously (and that is unfortunate as this is what Pimoroni and/or Raspberry Pi foundation chosed.
thorny jay
<@!252717193496756235> A better wording would be "Out buffer elements must be ma...
I have been translating (or trying to translate) some of those into French. And my feeling was that it would not really help... If I was to receive my translation of the error message, what would I do? If it was in English, I could search the source to figure out where is that happening. But how does one "reverse translate" an error message back to the English, to then find where in CP code the problem is, to then maybe understand. Or how does you use the English version to "google" for help, or communicate with other likely using English version of CP?
analog bridge
I have been translating (or trying to translate) some of those into French. And ...
the English version of the error can be obtained from the respective language.po file in locale directory
thorny jay
So you get an error in Language X, you find the PO file, then find the error message in English, and then you can find the place in the code where it is used.
My feeling was that maybe those message would not be clear, and the user will not see the link between what he did in his code and the error reported.
Maybe it is not supposed to occurs and it is some kind of sanity check, or maybe someone doing PIO will know imediatly what it mean (at least in English).
Another language question... maybe there are very similar error message that should be the same. And if they are the same in English, then they will have the same translation and save space everywhere.
#: ports/atmel-samd/common-hal/sdioio/SDCard.c
#: ports/cxd56/common-hal/sdioio/SDCard.c shared-module/sdcardio/SDCard.c
msgid "Buffer length must be a multiple of 512"
msgstr "La longueur de la mémoire tampon doit être un multiple de 512"
#: ports/stm/common-hal/sdioio/SDCard.c
msgid "Buffer must be a multiple of 512 bytes"
msgstr "La mémoire tampon doit être un multiple de 512"
For me "Buffer must be a multiple of 512 bytes" and "Buffer length must be a multiple of 512" could be the same.
There might be other like that, but not obvious to find. Could be in different port (and then it is not a saving).
Except a saving in translation effort.
analog bridge
For me "Buffer must be a multiple of 512 bytes" and "Buffer length must be a mul...
ya I keep finding that kind similarity in error messages...
I think I know of an error where the meaning is same and the error is written in like 4 different forms
when I am writing an error I try to find a similar message but sometimes I just end up with message pairs like the following
"All UART peripherals in use"
"All UART peripherals are in use"
I am digging manually... and start to feel it need an AI to notice the "distance" between message and suggest them to human for review. 🙂
analog bridge
I am digging manually... and start to feel it need an AI to notice the "distance...
ooo... AI... that stuff is cool
thorny jay
Ok, maybe compression make this totally unsignificiant.
analog bridge
Ok, maybe compression make this totally unsignificiant.
living on the edge every byte counts
thorny jay
living on the edge every byte counts
To be efficient on this quest, maybe I need a list of the message for a specific port, and only with the module that are actually build in. If a board import ulab, then it has no space issue... Is there an easy way to generate a "short list" of all the english string for one specific fight for byte?
analog bridge
To be efficient on this quest, maybe I need a list of the message for a specific...
you can edit the included directories for strings in the makefile
https://github.com/adafruit/circuitpython/blob/main/Makefile#L43-L56
a subsequent make translate in the root directory will include only the strings from those directories
stiff pelican
Is there a guide on updating the .github/workflows directory for a repo.
I'm trying to get a PR to pass CI [https://github.com/adafruit/Adafruit_CircuitPython_GPS/pull/57] and I think the recent updates to cookiecutter from @fossil gorge may be the cure [https://github.com/adafruit/cookiecutter-adafruit-circuitpython/pull/109]
fossil gorge
Is there a guide on updating the .github/workflows directory for a repo.
I'm tr...
To the best of my knowledge, there isn't. I believe that some of those files, such as the ones in .github/workflows/* along with .pylintrc, .pre-commit-config.yml and several others, should remain pretty much static, at least for libraries.
As far as updating those, I know that Kattni ([@]kattni) was working [@]dherrada to get the changes in that PR applied across the existing repositories. You can see that in PR #207 in the "adabot" repository here: https://github.com/adafruit/adabot/pull/207
While it is possible to apply that .patch file to a branch in a repository, even the main one, I don't know what effect that would have on the automated mechanism, since it might run into a merge conflict.
Also, just to say, that's just me talking from my understanding of the various processes at work. I would defer to someone more knowledgeable with the process and in a more "official" position to confirm before making any final decision.
onyx hinge
ya I keep finding that kind similarity in error messages...
I think I know of a...
we should 100% fix these strings to be consistent when we notice stuff like this. reducing the total number of distinct strings helps translators, even if it's not a savings of flash space because we never have two of these similar strings in the same build (but probably we have that too)
stiff pelican
To the best of my knowledge, there isn't. I believe that some of those files, su...
Cheers Hugo. I'll hold off for a while. I don't want to mess with config files if a mass update is likely to be coming.
marble hornet
<@!368190919083556865> the trickiest bit is recording I think. we do post the vi...
Where can one grab the stats and news from?
manic glacierBOT
onyx hinge
@marble hornet we have a 12 page internal document on the process. I think the biggest "deal" is that since the post-meeting items involve putting a video up on the Adafruit youtube account, the person doing that has to have the credentials to do that. Otherwise, there's stuff like getting OBS set up just so. As an aside, I'm not sure how important it is that the host ALSO be the one doing the video recording & uploading, but that's just the workflow as it's done today.
The source of the statistics is https://adafruit-circuit-python.s3.amazonaws.com/index.html?prefix=adabot/bin/reports/ -- reports are generated daily which cover approximately 7 24-hour periods (a week to you and me)
slender iron
<@!252717193496756235> Check speeling of the first "direction" in https://github...
PR please!
analog bridge
suggestion needed regarding the wording of an error message
on the pi pico, a pin can only interact with a specific uart instance...
the question is when the uart instance for the given pin is already in use what error message should I raise... currently I have the following implemented
static uint8_t get_free_uart(uint8_t num) {
// Check if the requested uart is free.
if (uart_status[num] == STATUS_FREE) {
return num;
}
// Raise different error message based on whether the other instance is free or not.
else if (uart_status[!num] == STATUS_FREE) {
mp_raise_RuntimeError(translate("UART peripheral is in use"));
}
else {
mp_raise_RuntimeError(translate("All UART peripherals are in use"));
}
}
Where did they choose 27 and 28? 26 and 27 share a pwm slice
slender iron
To be efficient on this quest, maybe I need a list of the message for a specific...
When you find these, please make a PR to make them the same. We should share where we can.
slender iron
suggestion needed regarding the wording of an error message
on the pi pico, a pi...
I'd go with the version we already have
analog bridge
ok so just raise "All UART peripherals are in use"
cobalt grail
PR please!
You do realize I can't do PR's from inside of weblate? 🙂
slender iron
You do realize I can't do PR's from inside of weblate? 🙂
I do. 🙂
do we have an issue for the duplicate-code check?
I just ran into it with two examples in a library
tulip sleet
not a general issue, I think, just like https://github.com/adafruit/Adafruit_Blinka/pull/422
slender iron
ya, I saw that
I should probably wait for kattni to be back. I know she thought about it already
thorny jay
Where did they choose 27 and 28? 26 and 27 share a pwm slice
Not 100% sure. "pico demo" implement the reference design: https://datasheets.raspberrypi.org/rp2040/hardware-design-with-rp2040.pdf
slender iron
ah, they must use two slices. is there code for it?
26 and 27 should work
it's must easier to share a slice for stereo because you also share dma then
gloomy shuttle
do we have an issue for the duplicate-code check?
There was a PR to fix this in cookie cutter that I think was going to be applied to all the libraries at some point, but I don't know if there was an issue. https://github.com/adafruit/cookiecutter-adafruit-circuitpython/commit/0581192e3e12324c2fde5af2c44d138475475a5a
thorny jay
ah, they must use two slices. is there code for it?
https://github.com/raspberrypi/pico-playground is where some demo code for that take place.
@slender iron I don't want to sound too stupid... but I have no clue what I am talking about. I looked at the silk screen, I tested the simpletest code or those in the documentation from CP and it as working mono on GP28. I searched further and it was working on the "other side" for GP27. Then I decided to try both simultaniously and it failed. Then I discover it is possible to specify left and right and it also failed.
But I don't know what a slice is. 🙂
analog bridge
is this CI failure a network glitch?
https://github.com/adafruit/circuitpython/runs/1981142249#step:7:192
thorny jay
@slender iron next I could to try I2S / PCM. Strangely enough it reuse the same pin 28 and 27 but also 26.
tulip sleet
@slender iron have you successfully used the J-Link with the Pico? I have it wired up and it connects, but the stack traces are nonsense (usually only one level). Using V6.96 version of the J-Link sw
^ @onyx hinge you may also ahve tried
onyx hinge
@tulip sleet I have not tried
I get good tracebacks (at least excluding interrupt handlers; they don't trace back into "where did the interrupt occur from") with picoprobe
tulip sleet
i have not tried that - I'll look into it; thanks
onyx hinge
needs yet some other different fork of openocd, as it seems like each and every different microcontroller does in the present day 😕
but it was no trouble to build on linux
onyx hinge
is this `CI` failure a network glitch?
https://github.com/adafruit/circuitpytho...
E: Failed to fetch http://azure.archive.ubuntu.com/ubuntu/pool/universe/t/tipa/tipa_1.3-20_all.deb 403 Forbidden [IP: 52.147.219.192 80]
yup, I'd say it's network
analog bridge
that failure seems similar to the following one... @tulip sleet added apt-get update to fix it
https://github.com/adafruit/circuitpython/runs/1537429786#step:7:113
ok maybe not... I'll try a re-run
fossil gorge
> E: Failed to fetch http://azure.archive.ubuntu.com/ubuntu/pool/universe/t/tipa...
So is Azure, a Microsoft property, saying that GitHub, another Microsoft property, isn't allowed to connect? 🤨
onyx hinge
I am guessing it's a temporary capacity problem and that a 403 response isn't exactly .. correctly reflecting the circumstance. but who knows.
analog bridge
@onyx hinge it failed again with a new error https://github.com/adafruit/circuitpython/runs/1981342427#step:7:91
slender iron
<@252717193496756235> have you successfully used the J-Link with the Pico? I hav...
jlink flashing doesn't work afaik
so I load it with uf2 and debugged with jlink as normal
tulip sleet
aha, that would explain it - tnx!
tulip sleet
i guess they could hook into the bootloader, but that would be tricky
slender iron
I assume they will eventually
they also have to handle the case of blank flash where they setup the ssi
slender iron
<@!252717193496756235> next I could to try I2S / PCM. Strangely enough it reuse ...
that should work lrck and bck need to be consecutive
slender iron
There was a PR to fix this in cookie cutter that I think was going to be applied...
ooooh that's nice!
slender iron
<@!252717193496756235> I don't want to sound too stupid... but I have no clue wh...
looks like their example may be mono after all
@onyx hinge I think their openocd knows how to flash
thorny jay
looks like their example may be mono after all
At least I can get sound on one side or the other... but not simultaneously.
Not that I need stereo, just testing the water.
slender iron
a slice is a PWM portion that has two output channels that share a frequency (and duty cycle register)
thorny jay
Retrogaming can be mono, it is even better.
slender iron
@thorny jay changing to pins 26 and 27 or 28 and 29 should work with stereo
the slice number is (pin_number / 2) % 8
thorny jay
<@!681528999520108564> changing to pins 26 and 27 or 28 and 29 should work with ...
Changing? It is hardware, a product: https://shop.pimoroni.com/products/pimoroni-pico-vga-demo-base
slender iron
🤦
you could ask pimoroni about it
two separate PWMAudioOut objects would work too
just not be as efficient
thorny jay
And they just copied the reference design from Raspberry Pi...
thorny jay
two separate PWMAudioOut objects would work too
Is this two separated PWMAudioOut: https://gist.github.com/dglaude/d20ebff34e225581f0c865690c603935
That's what I did and when the second start... the first stop. Maybe I just make an issue?
thorny jay
I splitted everything to make sure there was no interaction I don't understand.
thorny jay
I played with WAVE file and I had the issue with the sound being bizarre from time to time when accessing the flash. And I was thinking... maybe I should put thing in memory and play from there. 🙂
slender iron
ya, flash is pretty agressive in turning things off while it does its thing
its hard to get right when code is loaded from flash on demand
analog bridge
@slender iron about MicroPython V1.14 merge, the CI currently fails at build unix port...
I'll be making a draft PR in order to get reviews regarding what should be kept before I start adapting the rest of the codebase to the changes.
slender iron
kk, a draft PR is a good way for us to provide feedback I think
did you run the style formatter over CP before starting the merge?
analog bridge
no... micropython had done this though since the last merge... so a lot changes are just formatting related
slender iron
right, the merge will be easier if you start by formatting circuitpython the same way
then you don't need to do it by hand
analog bridge
right, the merge will be easier if you start by formatting circuitpython the sam...
I think we can always do that in the future for consistency...
I have already addressed all of the conflicts and mostly kept the circuitpython changes like long lived gc, kw args etc.
slender iron
kk, ya. it'd be good for us to enforce the style with the 1.14 merge
slender iron
@analog bridge are you still up?
I think UART just needs the fifo cleared too
I do wonder if you can infinite loop the interrupt still though
I can test and fix it this afternoon
analog bridge
I am creating draft PR for mpy now
analog bridge
ya... you can take on the uart... thanks!
slender iron
👍 thank you!
slender iron
anyone around and want to review a few fixes I made on the UART PR?
@analog bridge fyi, I pushed to your branch a few more fixes
manic glacierBOT
manic glacierBOT
Found this quite quickly having wired up to test
thorny jay
Does such a Pico to Zero deserve a board definition in CP?
It has fixed mapping, is soldered and some pin have dedicated use like UART, I2C, SPI, ... and maybe the Pi Zero naming could be used. Something similar to what you would find on Blinka on a Pi Zero.
I think the main issue is the silk screen that is maybe confusing. ;-)
lone sandalBOT
manic glacierBOT
hoary moat
Used the excellent circup tool to upgrade libraries on my Feather M4 this morning (after UF2 3.13.0 and CP 6.1.0 updates). Very nice experience.
I was very pleasantly surprised to see the Wiznet5k WSGI server addition. Now I can stop reading Wiznet5k and ESP32 data sheets. Lol.
dense oasis
Hey ya'll! My name is Sruti and I just got referred to and joined in on this project. What would be a good place for me to start and familiarize myself with this?
tulip sleet
Hey ya'll! My name is Sruti and I just got referred to and joined in on this pro...
Welcome: here's an overview: https://learn.adafruit.com/welcome-to-circuitpython/. What are you aspirations here?
dense oasis
Welcome: here's an overview: <https://learn.adafruit.com/welcome-to-circuitpytho...
Thank you this is great! I am really here to use my python knowledge for a useful project and learn and contribute as much as I can. But I'll probably have more specific interests once I dive into it.
tidal kiln
hey, i'm putting together a list of displayio "helper" libraries. here's what i've got so far. any others?
Adafruit_CircuitPython_Display_Text
Adafruit_CircuitPython_Bitmap_Font
Adafruit_CircuitPython_Display_Shapes
Adafruit_CircuitPython_ProgressBar
Adafruit_CircuitPython_Display_Notification
Adafruit_CircuitPython_DisplayIO_Layout
@tulip sleet got time to chat? I have a problem I need to bounce off you
lone axle
@tidal kiln Adafruit_CircuitPython_Display_Button
also Adafruit_CircuitPython_ImageLoad
still zephyr
@dense oasis Hello there as a new person myself I would recommend to review the page that sent you. Then have an overview of the core modules. Today there is a live stream at 2 PT (GMT -8) with Scott talking about the development. And tomorrow at 11 am (GMT -5) another with foamyguy the discuss some developments in the libraries
lone axle
maybe Adafruit_Circuitpython_SlideShow I think of it as a displayio helper. But I could see it being judged as not really one.
still zephyr
@lone axle maybe display button?
lone axle
Yep agree'd, mentioned that one.
still zephyr
Thank you this is great! I am really here to use my python knowledge for a usefu...
Also you can take a look at the list of issues in the github repositories, and see what interests you.
tidal kiln
@lone axle thanks. added all 3 of those.
cedar moth
@dense oasis A few other thoughts from another new person, since you said you want to use your Python knowledge you will likely be contributing to the libraries. You can see what needs work at CircuitPython.org https://circuitpython.org/contributing/open-issues. There is also an outstanding tutorial on the overall CircuitPython Git / GitHub workflow at https://learn.adafruit.com/contribute-to-circuitpython-with-git-and-github/overview that has really helped me.
slender iron
<@776952548635967519> Hello there as a new person myself I would recommend to r...
2pm Pacific
(in 2.5 hours)
still zephyr
2pm Pacific
Corrected thanks I was thinking my timezone🙃
lone sandalBOT
tulip sleet
@slender iron the difference between the Arch arm gcc 10.2.0 and the official ARM release 10.2.1 is the software math library, which is substantially smaller on the Arch side:
00000132 __aeabi_f2d | 00000144 __aeabi_f2d
00000060 __aeabi_f2iz | 00000064 __aeabi_f2iz
00000046 __aeabi_f2uiz | 00000048 __aeabi_f2uiz
00000716 __aeabi_fadd | 00000828 __aeabi_fadd
00000040 __aeabi_fcmpun | 00000042 __aeabi_fcmpun
00000460 __aeabi_fdiv | 00000560 __aeabi_fdiv
00000484 __aeabi_fmul | 00000588 __aeabi_fmul
00000728 __aeabi_fsub | 00000860 __aeabi_fsub
00000128 __aeabi_i2f | 00000156 __aeabi_i2f
00000018 __aeabi_idivmod | 00000008 __aeabi_idivmod
00000024 __aeabi_llsl | 00000090 __aeabi_lmul
00000024 __aeabi_llsr | 00000132 __aeabi_ui2f
00000072 __aeabi_lmul <
00000116 __aeabi_ui2f <
00000018 __aeabi_uidivmod | 00000008 __aeabi_uidivmod
00000024 __ashldi3 <
00000146 __divsi3 | 00000460 __divsi3
00000074 __eqsf2 | 00000076 __eqsf2
00000046 __fixunssfsi | 00000048 __fixunssfsi
00000124 __gesf2 | 00000140 __gesf2
00000124 __gtsf2 | 00000140 __gtsf2
00000124 __lesf2 | 00000134 __lesf2
00000024 __lshrdi3 | 00000134 __ltsf2
00000124 __ltsf2 <
00000072 __muldi3 | 00000090 __muldi3
00000074 __nesf2 | 00000076 __nesf2
00000222 __udivmoddi4 | 00000406 __udivmoddi4
00000120 __udivsi3 | 00000266 __udivsi3
arch is left side. Also I'm not sure why some routines are not even present; I'm guessing they have been compiled inline
this is very interesting, and I wonder if these are written in C or assembler. If the former perhaps they were compiled with more optimization (or less! maybe arch is -Os instead of -O2 or -O3 for those libs). Otherwise perhaps there are at least two versions to choose form.
the numbers above are sizes in bytes
slender iron
interesting!
hoary moat
Got my relay working with rest api in Wiznet5k thanks to the wsgi example. Happy dance.
Now I need photo diodes to sense which led is active on the USB switch.
tulip sleet
Pico users: have you seen your REPL connections spontaneously close after a few minutes? I am seeing this on Linux.
hoary moat
And then write it up as a proper demo for Show and Tell.
blissful pollen
**Pico users**: have you seen your REPL connections spontaneously close after a ...
I have not seen it on windows and have had it idle for quite a while - not sure exactly how long but more then a few minutes
Wow I cannot type today. Sorry edited it a few times, but I have seen no problems on Windows 🙂
simple pulsar
I just downloaded latest and greatest adafruit-circuitpython-raspberry_pi_pico-en_US-20210226-2e6e91d.uf2 - the good news is this fixes a PWM issue, the bad news is CIRCUITPY no longer appears. Is that a known issue on Pi Pico?
manic glacierBOT
simple pulsar
**Pico users**: have you seen your REPL connections spontaneously close after a ...
I get no CIRCUITPY on absolute latest
tulip sleet
I get no `CIRCUITPY` on absolute latest
I don't see that normally, but I have found that Linux's USB ports can get stuck to a useless state with these errors and a reboot is necessary. Try that.
simple pulsar
I've been using REPL a fair but and haven't noticed anything unusual from Windows. I've had it briefly plugged into a Raspberry Pi 4 for MicroPython fiddling but I've spent most of my time fiddling with PWM and PIO code.
tulip sleet
I just tried the 2e6 build and it's showing CIRCUITPY for me
ah you say it's on Windows, I will try that
@simple pulsar well, 2e6 is showing CIRCUITPY for me on Windows as well.
simple pulsar
Interesting, I'll reboot later and see if that fixes it. It comes back for me when I go back to an older uf2.
tulip sleet
there were some TinyUSB fixes, but maybe there was a regression. See if it happens on the RPi 4 as well, maybe.
manic glacierBOT
manic glacierBOT
tulip sleet
Pico users: have you seen your REPL connections spontaneously close after a few minutes? I am seeing this on Linux.
After I posted the query above I tried some things. I just started using a new USB hub, and after switching to a different one, the problem has gone away. So this does not appear to be a CPy problem. Thanks for the comments.
still zephyr
Danh, I will test that, I come back to you if I find something.
manic glacierBOT
Foolishly, was trying to save a file to the internal storage of the Raspberry Pi Pico.
Upon running the following code:
import io
f = io.FileIO("/file.txt", "w+")
f.write("bye flash\n")
f.close()
I get this message:
Translation:
- USB Device not recognized
- The last USB device you've connected to your computer hasn't worked properly and W...
indigo pollen
I just grabbed the new uf2 with the uart fix for the pico, running a uart bluetooth dongle connected to the pico - bluetooth connection from my phone - sending commands controlling a pwm esc driving a motor and the pico driving a 180 degree servo. The uart is working flawlessly for my purpose.
thank you all who worked to get this in I appreciate you all
tidal kestrel
Hello! I'd like to contribute a en-uk translation for circuit python! I tried to start via the weblate system, and I got an error saying en-gb wasn't a valid option? When I went back to grab the exact error I was logged out for too much activity. I may also have requested a new translation in a random language, sorry!
simple pulsar
there were some TinyUSB fixes, but maybe there was a regression. See if it happe...
I can see CIRCUITPY drive from Raspberry Pi 4 but not from Windows. I have two Pi Picos, it turns out CIRCUITPY is ok on a "naked" Pi Pico but not on the Cytron Maker Pi Pico for adafruit-circuitpython-raspberry_pi_pico-en_US-20210226-2e6e91d.uf2 - I'll grab latest again, try that and log this as an issue
manic glacierBOT
manic glacierBOT

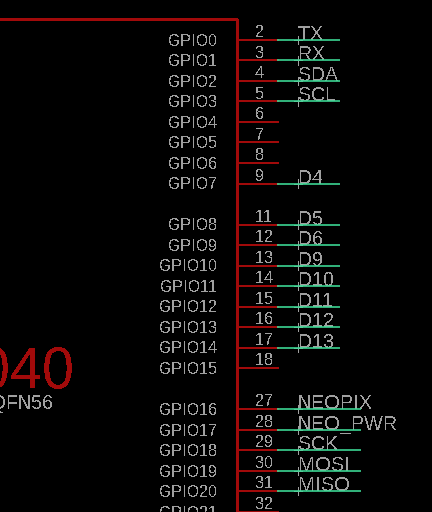

@tannewt this is a bit confusing, neither the old pins nor the new ones match what is in the PCB repo https://github.com/adafruit/Adafruit-Feather-RP2040-PCB:
D13 should be GPIO14 to match the github version, is it changed to GPIO13 in the production rev or is this a bug?
still zephyr
@tulip sleet you can see it live now in the stream 🙂
copper crescent
Is there a list of/are the defines you can use for boards documented anywhere (like SUPEROPT_VM for example)?
tulip sleet
Is there a list of/are the defines you can use for boards documented anywhere (l...
See py/mpconfig.h and py/circuitpy_mpconfig.mk and .h
copper crescent
See `py/mpconfig.h` and `py/circuitpy_mpconfig.mk` and `.h`
OK, thanks. I guess it's just following the trail then.
lone sandalBOT
fossil gorge
I was wondering, is there any general guidance or best practices when writing CP? Particularly for libraries and examples?
I figure for examples, the simple the better. But I was thinking about code structure, such as using intermediate variables, number of method calls, nested statements and conditions, etc?
tidal kestrel
Hello! I'd like to contribute a en-uk translation for circuit python! I tried to start via the weblate system, and I got an error saying 'Select a valid choice. en_GB is not one of the available choices. This list includes only basic languages. Please contact project maintainers for adding another one.' I may also have requested a new translation in a random language, sorry! So should I make a github issue or can someone just add en-uk to a list please? kudos to all CP folks btw, I'm hoping this will be the first but not last contribution...
tidal kestrel
I was wondering, is there any general guidance or best practices when writing CP...
I would also find this very helpful. In general, when beginning, I'd rather have a highly opinionated system and just learn how to use it, then gather better wisdom and confidence to carve my own path later on...
tulip sleet
@tidal kestrel could you create an issue? Thanks.
jaunty juniper
I have gamepad causing a hard crash on soft reboot on ESP32S2, but also I noticed that on 6.1.0 it falls into safe mode after the reset (making recovering easier), which 6.2 doesn't, should I make a separate issue for that ?
manic glacierBOT
jaunty juniper
also I believe that has been mentioned before but the drive mounting on macOS causes a code reload, making it a crash loop
lone axle
@fossil gorge and @tidal kestrel the closest thing to that I am aware of is this design guide: https://circuitpython.readthedocs.io/en/latest/docs/design_guide.html I'm not sure if it covers those specific details that you asked about though.
tidal kestrel
<@!361158808501747735> and <@!499222772283604995> the closest thing to that I am...
thanks @lone axle that's a nice and well written guide, if there are specific things missing you can identify @Hugo perhaps we can raise issue at next deep dive?
tulip sleet
@onyx hinge I had some ideas about speeding up multiple translation builds, but I don't know enough about how it works to see if they make sense. Do you have some time for an audio or video chat about this now or later?
onyx hinge
@tulip sleet I'm in Amelia. I'm at a different computer than usual so I dunno if audio will be wonky
onyx hinge
#define TRANSLATION(id, firstbyte, ...) if (strcmp(original, id) == 0) { static const compressed_string_t v = { .data = firstbyte, .tail = { __VA_ARGS__ } }; return &v; } else
make clean; make V=2; make TRANSLATION=fr V=2
jepler@rat:/tmp$ gcc -c -flto b.c
jepler@rat:/tmp$ gcc -c -flto -o ab.o a.o b.o
gcc: warning: a.o: linker input file unused because linking not done
gcc: warning: b.o: linker input file unused because linking not done
ld: a.o: plugin needed to handle lto object
ld: b.o: plugin needed to handle lto object
ld: warning: cannot find entry symbol _start; defaulting to 0000000000401000
jepler@rat:/tmp$ arm-none-eabi-gcc -O3 -c b.c
jepler@rat:/tmp$ arm-none-eabi-gcc -Wl,-r -flto -O3 -o ab.o a.c b.c
/opt/gcc-arm-none-eabi-9-2019-q4-major/bin/../lib/gcc/arm-none-eabi/9.2.1/../../../../arm-none-eabi/bin/ld: warning: incremental linking of LTO and non-LTO objects; using -flinker-output=nolto-rel which will bypass whole program optimization
jepler@rat:/tmp$ arm-none-eabi-gcc -O3 -flto -c a.c
jepler@rat:/tmp$ arm-none-eabi-gcc -r -flto -O3 -o ab.o a.c b.c
Contents of section .gnu.lto_fn.e092362af6141212:
tropic rain
jlink flashing doesn't work afaik
Is there a HW debug tool that does work for both debugging and flashing the QSPI flash. I just got my first Pico on Friday and am still waiting for DigiKey and Element14 to ship the ones I ordered from them. I've got a few things here that I can try (Olimex, Bus Pirate, Amstart, Jlink and JLink mini) but I'd rather find just use something that I know works. Is the flash programming part of the Debug tool or is it in OpenOCD? The Jlink can be used with the Segger firmware and also with openOCD (I think they are different but I'm not sure).
I've got a Raspberry Pi I can use. Is that working to debug and flash? If so, is there a way to use VSCode with that on my desktop with OCD listening on my RPI?
tulip sleet
git log |grep -i czech
onyx hinge
% Total % Received % Xferd Average Speed Time Time Time Current
Dload Upload Total Spent Left Speed
100 149M 100 149M 0 0 25.1M 0 0:00:05 0:00:05 --:--:-- 31.8M
8312c4c91799885f222f663fc81f9a31 -
jepler@rat:/tmp$ curl https://armkeil.blob.core.windows.net/developer/Files/downloads/gnu-rm/10-2020q4/gcc-arm-none-eabi-10-2020-q4-major-x86_64-linux.tar.bz2 | md5sum -
% Total % Received % Xferd Average Speed Time Time Time Current
Dload Upload Total Spent Left Speed
100 149M 100 149M 0 0 5305k 0 0:00:28 0:00:28 --:--:-- 6182k
8312c4c91799885f222f663fc81f9a31 -
arm-none-eabi-gcc (Arch Repository) 10.2.0
Copyright (C) 2020 Free Software Foundation, Inc.
onyx hinge
[for those wondering what in the world, all this is related to a chat we're having in Amelia about build sizes and times]
tulip sleet
@slender iron @onyx hinge and I are fairly certain that the libgcc.a for your 10.2.0 Arch arm-none-eabi-gcc was built with -Os, and the ARM 10.2.1 build was built with -O2, hence the size difference for _aeabi_fadd etc. So we could keep a different libgcc.a in our back pocket if we really needed the space.
turbid radish
?serverinfo
digital shoreBOT
adafruit
slender iron
I was wondering, is there any general guidance or best practices when writing CP...
This is all I can think of: https://circuitpython.readthedocs.io/en/latest/docs/design_guide.html
slender iron
Is there a HW debug tool that does work for both debugging and flashing the QSPI...
I used the rpi direct with their custom openocd to do it when needed
I only really need it when things get really hairy though
tropic rain
I used the rpi direct with their custom openocd to do it when needed
Thanks. I'm just getting set up with my Pico and am trying to make sure I've got everything covered. Once I get more than one board (the rest are coming from Digikey) I'll prob use a 2nd board for debug.
slender iron
Hello! I'd like to contribute a en-uk translation for circuit python! I tried to...
@onyx hinge usually sets up the newer translations
tulip sleet
Hello! I'd like to contribute a en-uk translation for circuit python! I tried to...
Go ahead and open an issue about this. @onyx hinge and I just talked about translations this morning. He revised the info on weblate about new translations, and I edited the standing open issue: https://github.com/adafruit/circuitpython/issues/1098
jaunty juniper
so, I noticed that, since 6.1 apparently, boards don't show the yellow status LED and wait for the safe mode reset press
testing on a QT PY I met 2 issues
- the reset reason seems to be
UNKNOWNwhen pressing reset (which exits early fromwait_for_safe_mode_reset) - even commenting that out the status LED does not light up during
wait_for_safe_mode_reset(but it does reset into safe mode)
tulip sleet
so, I noticed that, since 6.1 apparently, boards don't show the yellow status LE...
Could you open an issue? Thanks!
jaunty juniper
yes, I'm looking into it a bit to get an idea of the scope of the problem
marble hornet
Doing some reading of the W25Q128JV datasheet was curious if there was a reason the W25Q128JVSIM isn't supported but the W25Q128JVSIQ is? or just because is hasn't been added for support yet (iirc not every flash chip is able to work)?
referenced datasheet: https://www.winbond.com/resource-files/w25q128jv revf 03272018 plus.pdf
upbeat plover
how can i tell how many people actually use chinese pinyin?
i might stop translating if im only one, just tell me there are more then 1 download in past few months
tidal kestrel
how can i tell how many people actually use chinese pinyin?
Sorry @upbeat plover I don't know, but I would like to encourage you to continue! I believe strongly you are helping many more than 1!
tulip sleet
@upbeat plover I have the download log data. In January 2021 there were 1976 downloads of a pinyin build. By comparison there were 46490 downloads of an en_US build, downloads of de_DE, 2030 of fr, etc.
So a question is, how many of these downloads are real, and not some automated fetching? Little-used or empty translations show about 1300 downloads each, so it appears to me there were 700 downloads of pinyin over and above the noise downloads
this is across all boards
I am just doing a count like this: egrep '"GET.*pinyin-' 2021-01 |wc on the AWS S3 concatenated logs
tulip sleet
@onyx hinge I had a light-bulb moment 💡 on the issue of how to convert translate("some message") into an integer or an address. Instead of the huge if tree that gets optimized down, we can define a macro in each file that has translations. All it does is return a uniquized line-number that is a symbol name denoting the location.
#define translate(s) PREFIX_FOR_THIS_FILE ## _
##__LINE__
So each call to translate() generates just a name. The prefix would be something like shared__bindings__busio__I2C_, say, for that source file. So if line 345 is
mp_raise_valueError(translate("Invalid pin"));
gets converted into
mp_raise_valueError(shared__bindings__busio__I2C345)
A previous scanning step has scanned all the source files looking for translate( calls. It remembers them all, including the line numbers, deduplicates them, and converts the strings into compressed data. There's an integer (say) that represents that string, either an index into the the data of compressed strings, or, as as we discussed, an index into a table of indices. It produces a file to be included that is something like :
const uint16_t shared__bindings__busio__I2C_345 = 123;
const uint16_t shared__bindings__busio__I2C_677 = 543;
...
These could even be #ifdef-guarded to save time if we asked that each file with translations also define the prefix:
#define shared__bindings__busio__I2C
#define translate(s) shared__bindings__busio__I2C ## _
##__LINE__
Alternatively to integers, the definitions could be symbol names that get resolved by the linker, as we discussed.
The only restriction is that there be no more than one translate() per line.
Ideally the prefix would automatically be based on the filename. But __FILE__ has non-symbol-name characters int it, like / and ., and the cpp doesn't have enough functionality to substitute that stuff.
onyx hinge
@tulip sleet Interesting. It seems to require no more than one translate() call per physical line.
Here are some other things I thought about:
- the decompression routine itself can either be configured to use
uint8_toruint16_tfor some types, depending on whether the language includes values beyond unicode code-point 255 or not - the specific range of values used to name n-gram dictionary values differs, iirc it always starts at 128 but either stops at the first "used" character value in the 160..255 range or for 16-bit alphabets that don't use 160..255 can extend beyond that but to some other limit. So the decompressor code varies depending on the language.
it seems like there was something else that was complicating but I can't recall right now.
const uint16_t shared__bindings__busio__I2C_345 = 123 this ensures that two translate() calls with the same literal can share the storage of the translation, right?
tulip sleet
I am writing this up in an issue (should have done that first). Your comments there would be valuable.
tulip sleet
`const uint16_t shared__bindings__busio__I2C_345 = 123` this ensures that two tr...
Yes, all the, say, "Invalid pin" messages would share the same number. Also those const defs could be #defines too, I realized, when writing this up.
onyx hinge
I don't know that it makes a big difference, but it could.
tulip sleet
the main brainwave is that __LINE__ together with some prefix unique to the file gets you a unique name which you can use at compile time, once, across all translations.
QSTR's could be converted to something similar too, though that's not necessary right away.
tulip sleet
<@!329766224093249548> Interesting. It seems to require no more than one transla...
It seems to require no more than one translate() call per physical line.
Yes, that's a very minor restrction.
(forgot to answer this earlier)
onyx hinge
sometimes these things can happen from macro expansion and surprise everyone
tulip sleet
the translation preprocessor can flag such occurrences
onyx hinge
if(x < 0) ... translate("x is too small"); else if(x > 100) ... translate("x is too big")```so yeah just want to mention it, had it happen to me, still have the scars
tulip sleet
the translation preprocessor would need to do macro expansions if we put translate() calls inside cpp macros
actually, I guess it would need to do that anyway due to #if CIRCUITPY... which would remove/insert lines with translate() calls.
so it would operate on cpp -E output, and pay attention to # line directives
stuck elbow
wouldn't it be easier to do something similar to how qstr work, and name the macros after the contents of the string?
tulip sleet
wouldn't it be easier to do something similar to how qstr work, and name the mac...
I thought about using qstr syntax for all messages: that is certainly possible, but harder to read. I was trying to preserve the current message-as-key method
idle owl
I have four cap-touch buttons. One increases LED brightness, the next decreases it, the next cycles through a rainbow of colors. What should I make the fourth one do?
idle owl
Eh?
onyx hinge
(as opposed to one-step-per-press)
idle owl
Hmm
No I mean the third one only does once
you have to keep holding on it to cycle the whole rainbow
onyx hinge
so what if pressing #4 for however long does a complete rainbow cycle, making it different from #3 which cycles as long as it's held?
if there's more than one LED, can it cycle which LED you're changing?
tulip sleet
or just stop the whole thing until you press it again?
idle owl
It doesn't do anything when you're not touching 1-3
so "stopping" isn't necessary
Or you mean
tulip sleet
i thought it was running continuously - my mistake. So it could be a toggle to do 1-3 either continuously or just once
idle owl
I kind of like it as an enable/disable. Because it's easy to touch the other buttons when handling it
so you could get it where you want it and force it to stop there
until you touch 4 again perhaps?
tulip sleet
yes, toggle
stuck elbow
@tulip sleet I wonder if it would be somehow possible to generate qstr-like names from strings with a macro
not really familiar with the C preprocessor in such detail
tulip sleet
cpp has almost no functions; make has many more. It's fairly terrible. Basically is it just a string substituter, with a few features for concatenation and variable number of arugments
stuck elbow
or maybe we could add our own preprocessor somehow?
tulip sleet
then we have to compile the transformed source; that might confuse the debugger in terms of filenames (unless we can simulate the original filename). I was hoping to avoid that
If gcc had a an escape to run an arbitrary preprocessor over the input, that would be great, but i don't see that
stuck elbow
one more idea, can we use consecutive numbers per file, instead of line numbers?
onyx hinge
Using "#line" directives is traditionally the way to deal with such transformations -- a challenge to get right, however. https://en.cppreference.com/w/cpp/preprocessor/line
tulip sleet
i think we can't use consecutive numbers without using some weird recursive metaprogramming trick. The advantage of the line numbers is that any program looking at the source knows the line number; it doesn't have to be computed by counting
stuck elbow
sounds good then
tulip sleet
as I have thought about this more since this morning, there is more and more the translation preprocessor has to do. I am a bit worried its responsibilities may be too great or there will be an insurmountable stumbling block. But I like the original trick enough to keep thinking about it.
onyx hinge
@tulip sleet is anything about making release notes automatable?
tulip sleet
I do not want to. The summaries of each thing require thought. I looked at this and the PR titles were often not clear and needed to be re-written. It doesn't take a long time, given how many changes there are.
the contributors and the download counts is already semi-autoamted
onyx hinge
@ionic elk please add the adc note to https://learn.adafruit.com/adafruit-metro-esp32-s2/esp32-s2-bugs-and-limitations too -- I think this page is mirrored across several guides
slender iron
@onyx hinge here is the rotaryio work I've started: https://github.com/tannewt/circuitpython/tree/rp2040_rotaryio
onyx hinge
<@&356864093652516868> Meeting coming up in 15-ish minutes, sorry for the late notice. Notes doc: https://docs.google.com/document/d/1u7_1iSfVo1LGNRU6WGSMYAr9Dp6VvEqK8UMHlco8oVA/edit?usp=sharing
Remember, if you will speak or have notes to read, get them in the doc. If you're just listening in, no need to do anything in the doc or in the text channel. Scott is hosting today.
slender iron
modern wing
Good afternoon all you wonderful folks 🙂
onyx hinge
😀 I'm looking forward to catching up with everyone!
I'm also going to take a back-up recording today to see if I can resolve my volume level troubles
idle owl
brb.
idle owl
Check previous PRs if you're unsure how to submit to the newsletter! And we're happy help.
onyx hinge
modern wing
MakerMelissa is totally not a robot 🤖 😉
onyx hinge
some of my best friends are robots
solar whale
some of my best robots are friends
gilded cradle
modern wing
Low power, high thought.
ionic elk
@onyx hinge what is mystery board blog
onyx hinge
@ionic elk https://www.bunniestudios.com/blog/?p=6062
I don't know what it is but it's soooo pretty
ionic elk
yes, very colorful. My JLC stuff is all just black silver and green.
onyx hinge
@slender iron stream on thursday, did you say?
slender iron
yup!
thorny jay
Thermal camera will love that... I have 32x24 pixels out of MLX...
onyx hinge
I am pretty sure someone did work on a firmware updater, but I don't remember the name/url
lone axle
yep, will link after my turn.
idle owl
@lone axle I will take you up on that. I'll let you know.
lone axle
@thorny jay https://github.com/bcr/blinka-cli this tool allows upgrading firmware from a command line interface.
(as well as some other useful utilities)
thorny jay
<@!681528999520108564> https://github.com/bcr/blinka-cli this tool allows upgrad...
Thanks. I knew it existed! Just could not find the name.
onyx hinge
-10100001-000101001-000000110-000000010-001000010-000100000-
2021-03-01 19:51:00 dstinfo=0
-> 2021-03-01 13:51:00-06:00
One full minute of WWVB signal, the decoded version in UTC (GMT) time, and then translated into Central time...
ionic elk
@solar whale huh
I remember having some issues with the GPS way back last year but that's weird
tidal kiln
it's a hard lock for me when it happens
5.8.0-44-generic #50~20.04.1-Ubuntu SMP Wed Feb 10 21:07:30 UTC 2021 x86_64 x86_64 x86_64 GNU/Linux
fwiw
thorny jay
@slender iron has a very good PC with very good USB ports...
tidal kiln
my pc has a "Win7" sticker on the side to give a rough age of hw 🙂
slender iron
lspci can usually show the usb root hub
tidal kiln
$ lspci | grep USB
00:1a.0 USB controller: Intel Corporation 6 Series/C200 Series Chipset Family USB Enhanced Host Controller #2 (rev 04)
00:1d.0 USB controller: Intel Corporation 6 Series/C200 Series Chipset Family USB Enhanced Host Controller #1 (rev 04)
mine is an old -- mac-mini..
slender iron
probably intel as well
solar whale
00:14.0 USB controller: Intel Corporation 7 Series/C210 Series Chipset Family USB xHCI Host Controller (rev 04)
00:1a.0 USB controller: Intel Corporation 7 Series/C216 Chipset Family USB Enhanced Host Controller #2 (rev 04)
00:1d.0 USB controller: Intel Corporation 7 Series/C216 Chipset Family USB Enhanced Host Controller #1 (rev 04)
I've seen similar lock-ups on my AMD system with Debian ```02:00.0 USB controller: Advanced Micro Devices, Inc. [AMD] 400 Series Chipset USB 3.1 XHCI Controller (rev 01)
0b:00.3 USB controller: Advanced Micro Devices, Inc. [AMD] Matisse USB 3.0 Host Controller
yes
onyx hinge
haven't lately with kernel 5.4.0-0.bpo.2-amd64, knock on wood
solar whale
also of note - can happen with arduino and no CP firmware on board
onyx hinge
tinyusb core or arduino usb core?
tidal kiln
(so maybe bootloader?)
lone axle
I'm not sure if it helps narrow anything down any but fwiw I have never had this happen (knock on wood also) on my linux box. It's Pop_OS! which is built on top of Ubuntu if I understand correct.y
❯ lspci | grep USB
00:14.0 USB controller: Intel Corporation Comet Lake USB 3.1 xHCI Host Controller
I have not seen it with Arduino (don't use it much) or with Micropython..... yet
idle owl
@mental nexus We have a test repo available if you need something to hack on remotely in situ. Regarding the Sphinx exploration. You'll need to add some code and doc content, but basically it's there to do whatever is needed.
onyx hinge
@slender iron would "read bitmap from file" go in this module @mental nexus is talking about?
I keep starting but then stopping the implementation, it would probably speed font loading even more though
slender iron
I'd do a separate bmp one
mental nexus
<@!366059101203202052> We have a test repo available if you need something to ha...
I want use the inheritance-diagram feature on Sphinx, it requires graphviz to run, will need to see if that’s available. Can your sample sphinx library allow to explore that?
fossil gorge
Arrrrrrrr you sure about removing en_Pirate?
idle owl
@mental nexus Ooh, I have no idea! Depending on what goes into it, we can make changes to the test repo.
mental nexus
Ok, point me there and I’ll check it out.
fossil gorge
Is there a Weblate option to be notified when new translations are needed for a given language?
idle owl
We essentially included the pirate translation in the first place so folks who may only know English were able to contribute to translations and the core. It was a community thing.
solar whale
test as you fly, fly as you test....
onyx hinge
I need to step away for a few.
tulip sleet
I want use the `inheritance-diagram` feature on Sphinx, it requires graphviz to ...
graphviz should be available. it's an oldie but goodie
onyx hinge
Perhaps you discussed this idea while I wasn't listening, but if each adapting-board has a file that defines its mapping, you can import adafruit_picozero_board as board
mental nexus
Thanks Dan, I’ll submit something and see if it survives the gauntlet of black/pylint/Sphinx.
onyx hinge
and then the only change is to import redrobitics_picozero_board as board if you use the other product, etc.
tulip sleet
we do probably need to install graphviz; it may not be there by default
ok, it's not:
$ dot
Command 'dot' not found, but can be installed with:
sudo apt install graphviz
this is on a recently installed ubuntu system
mental nexus
Will I need to update one of the library files to be sure it gets installed before my run?
tulip sleet
we need to change the github actions .yml file
it's another package that will need to be installed
looks like right now all the library packages are pip3. But this is non-Python package that will need to be installed with apt
the standard libraries build.yml doesn't actually do any apt installs right now
onyx hinge
It's just 2 weeks until the US change to Daylight Saving ("Summer") time, be aware this shifts the meeting time by 1 hour if your locality follows a different rule.
mental nexus
Ok will take a try at it based on your comments. Thanks for the warning about apt vs pip
gilded cradle
Thanks
lapis hemlock
See you, all!👋
mental nexus
Thanks everybody!
thorny jay
Thanks.
fossil gorge
I'll write up the manual merge instructions this evening and have that over to you @idle owl
modern wing
Thanks!
lone axle
👋
still zephyr
Thanks everybody
tulip sleet
@mental nexus there are apt installs in the circuitpython build.yml: https://github.com/adafruit/circuitpython/blob/main/.github/workflows/build.yml#L36
apt-get is older, apt should work fine
doesn't matter
onyx hinge
OK, looks like my recording levels (of other people) came out much better this week, hopefully I can recreate the magic next week when it's time for me to run the meeting for reals.
lone axle
@onyx hinge I'm going to try to remember to run a "backup" recording during the meetings as well. I did the first one today and it seemed to go okay. So in the future we may have an extra chance in the event of anything going weird.
onyx hinge
I noticed that by carefully sizing my discord window, I can exclude the "server list" from the recorded area in obs but still fill the whole video area. Recorders might be interested in this if they feel other servers they belong to are "private" and don't belong in the recording.
jaunty juniper
you could record your mic and the discord to different channels and fix the balance afterwards if needed
lone axle
That is a good tip. I did realize part way through that I was resizing the window and clicking into other chats to look at something =x so I'll also have to try to get better about getting it set and leaving it alone.
onyx hinge
yeah you have to not do that stuff during a video that'll actually be used!
"oh what did my wife DM me on discord -> NOPE, you can't look for 90 minutes, hope it's not important" 😀
jaunty juniper
(have discord on your phone 😉 )
onyx hinge
yeah
lone axle
Yeah, I'm going to have to look into a way to get a second instance running or something
maybe it will let me do one application instance, and one browser instance.
onyx hinge
I have also wanted to have a recording instance separate from the instance I use, so that I can mute my mic in discord and have it muted in the final stream as well.
as the host
fossil gorge
Discord in a browser window for the channel?
slender iron
Here is the notes document for Monday’s CircuitPython Weekly meeting. It is at the normal time of 11am Pacific / 2pm Eastern here on Discord. Everyone is encouraged to attend! Please add your hug reports and status updates even if you’ll be attending the meeting - it’s super helpful! If you are unable to attend but would still like to include updates, feel free to include them in the notes and we’ll read them off during the meeting. Hope to see you there! <@&356864093652516868> https://docs.google.com/document/d/1Y9ornOqrwr6Mh6jEFjHN5tEXtb61Kwlf0WupEpcvkao/edit?usp=sharing
onyx hinge
@tulip sleet should this be removed, or should it stay for now? ```python
# Normally different language builds are all done based on the same set of compiled sources.
# But sometimes a particular language needs to be built from scratch, if, for instance,
# CFLAGS_INLINE_LIMIT is set for a particular language to make it fit.
clean_build_check_result = subprocess.run(
"make -C ../ports/{port} TRANSLATION={language} BOARD={board} check-release-needs-clean-build -j {cores} | fgrep 'RELEASE_NEEDS_CLEAN_BUILD = 1'".format(
port = board_info["port"], language=language, board=board, cores=cores),
shell=True, stdout=subprocess.PIPE, stderr=subprocess.STDOUT)
clean_build = clean_build_check_result.returncode == 0
there are still a few boards that need it; it's used to turn off terminalio for ko and another translation that doesn't have a good font
tulip sleet
I think there are one or two third-party boards that are still using it that could probably be cleaned up, but I wasn't sure what to remove for those if it didn't work, so I didn't pursue them
manic glacierBOT
tidal kiln
is this a bug? or just me not using correctly? here's code:
import time
import board
import pulseio
rx = pulseio.PulseIn(board.A3)
while True:
if rx.paused:
print(rx[0], rx[1])
rx.clear()
rx.resume()
time.sleep(0.1)
input is a hobby servo control signal
output:
20190 1764
20436 1518
1547 20404
20804 1193
20102 1853
20936 1038
note that the order gets swapped every now and then
still zephyr
is this a bug? or just me not using correctly? here's code:
```python
import tim...
Is this a esp32s2?
tidal kiln
ah, good question. board being used is a Qt Py.
Adafruit CircuitPython 6.1.0 on 2021-01-21; Adafruit QT Py M0 with samd21e18
>>>
I have seen this with pulseIn but for the ESP32S2, when you clear and resume
For the esp32s2 if you let it "be" it get sinchronized,
tidal kiln
per the docs:
At start and after resume the first recorded pulse will the opposite state from idle.
oh really? could you point me to that link? I have an issue regarding this
tidal kiln
still zephyr
But, anyway I did some tests, and restarting and clearing the pulsein, will give me not predictable results. I can try your code in a trinket, if you want me to test
tidal kiln
sounds like you are seeing something similar already?
still zephyr
So, let me point look for the issue. give me 30 secs,
Sorry for the delay my internet went down. So I was not aware of the beginning you get the opposite pulse. So durig the investigation I did something like you did in your script tryint to clear the buffer and restart, and pause, and you name it, I found out that sometimes the time get inversed, When I resume the PulseIn object
But In my M4 I did not have any issue with this, so I suspect is was just the esp32s2
I have no made any more test in other boards to see what is happening
tidal kiln
could be something mcu dependent. i'll try m4 and see what happens.
still zephyr
could be something mcu dependent. i'll try m4 and see what happens.
Let me know if you want me to test it in the trinket
