#circuitpython-dev
tulip sleet
are you testing a board with 16 or 64?
ivory yew
16
(the first config there is for some random chip that I put in there for debugging, not the 64)
tulip sleet
are you shipping boards with 64?
ivory yew
yup
onyx hinge
does that make possible_devices[] not match at all?
onyx hinge
if so it would be expected to pass that loop with a NULL flash_device (which has not been a well-detected problem in the past)
tulip sleet
i thought it would complain, it SHOULD
supervisor_flash_init() should return a boolean or go into safe mode or something
onyx hinge
I may be remembering a different thing, https://github.com/adafruit/circuitpython/issues/2338
it'd be easy to test, just load an unmodified qtpy with the haxpress version
ivory yew
yeah i think it behaved correctly in that case
okay it's setting the right flash device
tulip sleet
so it's still messing up on the 16/64 case, right?
ivory yew
yeah
It's messing up whenever there is more than one device in the mk file
it detects it correctly
so I'm unsure why it's hanging when writing
tulip sleet
I could try this on some other random board with a 64 to the list and see what happens.
ivory yew
doesn't seem to matter if it's the 64 or the 16
if there's more than one possible device it acts weird
tulip sleet
we have lots of these builds, though, like pyportal
ivory yew
like the build I'm running now has two possible flash devices configured: one that can't possible be there that's from a different manufacturer and the 64 which is definitely there. It checks for the 1st one, doesn't see it, checks for the second one, sees it, sets it correctly.
yeah which is why this is bananas to me
tulip sleet
but when you try to copy it spins?
ivory yew
I gotta go eat but I guess I'll try to peek into the writing routines when I get back.
yup
reading seems fine I guess??
tulip sleet
it is big honking button, right? It is using SPI_FLASH_FILESYSTEM, unlike our two-device boards with QSPI
ivory yew
So the situation is:
v1 board: works with just the config for 16, will hang on write if any other possible flash devices are configured
v2 board: works with just the config for 64, will hang if any other possible flash devices are configured.
tulip sleet
hallowing m0 express is similar
ivory yew
Oh hrm
ivory yew
there are definitely boards that have SPI_FLASH_FILESYSTEM and two possible flash devices
it's just a switch between SPI/QSPI
tulip sleet
yeah, and they have not been acting up for me, at least. If you have a metro m0, you could try plugging it in, but it should be fine
when does it spin? Are you copying a big file?
ivory yew
i think my only m0 boards are feather expresses
any file, any size
like try copying over a few libs
I don't have a metro m0, just some feathers. I can try with those in a bit.
tulip sleet
i'm just going to try GD25Q64C and 16C on a metro m0
ivory yew
cool
(thanks for your help)
hard to debug the write stuff because the usb disconnects looool
looks like it let me get away with copying some files <1kB, but try with a handful that's more than 5kB or so
tulip sleet
and messes up on both windows and Mac?
ivory yew
yup
tulip sleet
I have a Mac with Big Sur. I have lotsa windows and linux
@ivory yew i am unable to reproduce write problems with a 61k file on Mac or Linux. I tried the GD25Q16C and 64C in both orders in mpconfigboard.mk
tulip sleet
are you using the finder or the command line?
ivory yew
Like I was able to one by one copy a few files around ~10k then it barfs
both
hrm hrm hrm
tulip sleet
i think maybe the 1 vs 2 devices is a red herring. I am getting copying problems when copying a bunch of .wav files. Let me try one device. and I will storage.erase_filesystem() each time
ivory yew
okay
I think it's the autoreloader
interrupt the code and sit in the repl and copy files
strange pike
still will autoreload if you aren't at the repl prompt, right?
fossil gorge
I believe that this may be part of the reason the build has been failing. I know the "make translate" had a bad merge, because of.... my cats?
But there's also this in the build issues, with the German (de_DE) translations
Negative value for bytes free.
tulip sleet
I am fixing the overflowed builds; there's a PR to be merged soon
@ivory yew ok I am getting copying hangs with one device, so I think you may be on to something.
it is not the number of devices
ivory yew
@tulip sleet I just have the hello world script. When copying it saw it execute over and over
tulip sleet
It copied the first time fine, then I erased the filesystem and it reset, and then I copied again and it hung.
ivory yew
Since supervisor probes for each device, the number of devices could cause just enough delay when reloading to make matters worse.
tulip sleet
copying all these wav files:
rw-r----- 1 halbert halbert 32278 Aug 29 2018 hit.wav
-rw------- 1 halbert halbert 89134 Aug 29 2018 idle.wav
-rw-r----- 1 halbert halbert 61164 Aug 29 2018 off.wav
-rw------- 1 halbert halbert 75820 Aug 29 2018 on.wav
-rw-r----- 1 halbert halbert 43438 Aug 29 2018 swing.wav
cool, I have a similar set
tulip sleet
they are from some learn guide project
do you not see this on 5.3.1? could you ship with 5.3.1?
i don't know that it probes on reload; it may just probe on reset?
ivory yew
hrm yeah I"m not sure on that
Yeah I have no issues when programming boards with 5.3.1
I can't ship with 5.3.1 because it doesn't have the flash devices configured for v2
tulip sleet
you could make a custom build; i'm just thinking about how you are getting stuck
tulip sleet
it's obviously a significant issue, and it's reproducible, but not always. I can open an issue with a Metro M0 example.
ivory yew
Not that I can recall but I have to program some Sols soon so I'll let you know.
Workaround for now is to either put the device into the repl or disable autoreload while copying multiple files
with the repl open I can copy copy copy
tulip sleet
that is a great clue
ivory yew
It might be possible that we changed something and made autoreload's delay lower unintentionally
tulip sleet
yes, there are so many timing-related changes in 6.
tulip sleet
you're welcome; i'm sorry about this
ivory yew
oh friendo you've got nothing to apologize for
CircuitPython has my code in it too, it's equally my fault.
tulip sleet
we all work together to make it better, thanks
dull cobalt
Related:
import microcontroller
microcontroller.on_next_reset(microcontroller.RunMode.NORMAL)
microcontroller.reset()
resets into safe mode instead of normal mode 😦 why?
tulip sleet
Related:
```
import microcontroller
microcontroller.on_next_reset(microcontrolle...
Could you file an issue, stating which board and which version of CircuitPython? Thanks!
analog bridge
Related:
```
import microcontroller
microcontroller.on_next_reset(microcontrolle...
This is a know issue #3884
https://github.com/adafruit/circuitpython/issues/3884
dull cobalt
@analog bridge thanks for the reference! this seems slightly different from my issue
they are requesting BOOTLOADER mode but getting NORMAL Mode
i'm requesting NORMAL Mode but getting SAFE mode
i'll post there as well
will do thanks @tulip sleet
dull cobalt
@tulip sleet created the issue
manic glacierBOT
analog bridge
<@!747673663419187281> thanks for the reference! this seems slightly different f...
ya... the reason for both of them to not work properly is the same... I'll update your issue (#3988) with more info...
idle owl
we all work together to make it better, thanks
And on the flipside, we all work together to break it too 😉
onyx hinge
Thanks Dan
btw looking at that new errata doc you sent me for atmel sam .. none of the can stuff jumps right out at me, it all seems pretty advanced
tulip sleet
that's good 🙂
onyx hinge
oh. hmph.
tulip sleet
i did get it to work, sort of; that erratum has evolved from "do this tricky thing" to "it doesn't work"
same "doesn't work" was in previous rev of errata
slender iron
Generally either approach is fine. The pull just needs to be opposite what the button connects the pin to. ESP32-S2 has the pin alarm caveat where pull down is prefered so the pin goes high when pressed.
jaunty juniper
has anyone encountered a situation on macOS (Catalina) where you double click "code.py" on one circuit python drive but it opens the code.py from another ?
I often have multiple devices connected, usually with different drive names (CLUE, QTPY, etc). It happens with different apps, or using the open command line, but it does not happen when using the "open" dialog from within the apps.
tulip sleet
@slender iron Would you have time for a short talk re tick on/off mgmt and the problem Thea encountered yesterday (#3986)? I have a 12pm non-work mtg if 15 mins is too short. Could ping you after mtg
idle owl
@jaunty juniper Yes. Lately in Finder, only one CIRCUITPY drive out of many shows up.
And so it only opens the files from that drive if I'm opening through finder.
I've had to go through command line to find them, or go into /Volumes in Finder.
It was not always like that. Something changed.
jaunty juniper
let's say I have "BLUEREMOTE" (a feather nrf52) and "CIRCUITBLUE" (a CPB), typing open /Volumes/CIRCUITBLUE/code.py actually opens /Volumes/BLUEREMOTE/code.py
hmmmmm
jaunty juniper
well "open" is more like calling the Finder
tulip sleet
i vaguely remember some Mu issue(s) relating to multiple boards
jaunty juniper
I use BBEdit, and opening with bbedit /Volumes/CIRCUITBLUE/code.py works as expected
idle owl
I haven't used Mu in ages until the last few days or so, and it happens to me regularly.
jaunty juniper
but Sublime Text does the same if I switch the default or use open -a
and so does TextEdit with the boot_out.txt
idle owl
I use PyCharm, and haven't tried opening directly into PyCharm from command line. But anything through Finder seems dubious at best.
jaunty juniper
I don't remember seeing that before... I don't know super recently
idle owl
Unless I happened to have opened the first CIRCUITPY and had it open already, and then it mounts the second one, and that's the one that shows up as mounted, but I can still access the first one.
slender iron
<@!252717193496756235> Would you have time for a short talk re tick on/off mgmt ...
I'm free after 11am pacific
idle owl
@jaunty juniper I don't know if it's a CircuitPython change or a MacOS change. I don't remember when it started with reference to which thing was updated.
jaunty juniper
same
crimson ferry
@jaunty juniper I almost always have multiple CIRCUITPY drives (each renamed to something unique). macOS double-click in Finder will try to open it with the default editor for that file type, but most editors don't play well with multiple CIRCUITPY volumes, not sure why it would be any different than other kinds of mounted volumes.
I love BBEdit, but since it doesn't flush writes, I don't use it for direct editing on a CP device. Mu does handle multiple CIRCUITPY devices, but there is no UI indicator of which device the code applies to (I submitted an issue on this long ago). Mu doesn't keep up with macOS, so I've largely abandoned it in favor of Atom and more recently VSCode (which has its own quirks).
(both with CP add-ons)
Mu also gets confused with serial/plotter when there is not just one CIRCUITPY.
jaunty juniper
hmmm I don't think I have problems with flushing
crimson ferry
hmmm I don't think I have problems with flushing
maybe BBEdit does flush, haven't tried using it directly for a long time, it had other problems like you identified too, so I just moved on for direct editing on CIRCUITPY. It's still my go-to for offline editing.
tulip sleet
there are basically no flushing problems on Mac; MacOS flushes immediately, if that's what you're using
jaunty juniper
I don't know how anyone can use those other editors. I could rant for hours on how important it is to respect the platform's idioms, or to have an actual interface to change the syntax highlight colors (big part of accessibility)
jaunty juniper
i can't find USB keys lying around to see if the problem could show up with them too, I'm pretty sure it doesn't happen with my usual external drives
idle owl
Using pwmio to generate a tone. There does not appear to be a way to "stop" the tone. I set the frequency to 1, and it's inaudible, but that seems like an uberkludgy way to do it. Am I missing something, or is that the answer?
As soon as I initialise it, the tone starts and continues regardless of what other code is running if there's a loop present.
slender iron
Using `pwmio` to generate a tone. There does not appear to be a way to "stop" th...
Either 0 or 100% duty cycle would work temporarily. deinit will also stop it
manic glacierBOT
lapis hemlock
@slender iron Hi Scott, you work on a macintosh, don't you?
slender iron
I have in the past but I've moved to linux
lapis hemlock
You might still know how to shut up the compiler here: https://github.com/v923z/micropython-ulab/issues/284
I have seen in the past that the compiler on the mac is a bit particular about such things.
idle owl
@slender iron deinit makes it not work later when I need it.
slender iron
right
idle owl
I need it to beep repeatedly at one point in this code. I feel like changing the duty_cycle is less clear than changing frequency.
I guess I'll stick with my workaround.
slender iron
I think duty cycle is the best way to go
slender iron
@lapis hemlock the fixes in the issue seem right to me
lapis hemlock
@slender iron But it would be great, if we didn't have to override the makefile. One can, perhaps, add the line to the make fragment, but then that would be applied to all ports. At the moment, it is not clear to me, whether the issue is unix-related, or a generic one.
idle owl
@slender iron So I'm setting duty_cycle=0 in init, and then buzzer.duty_cycle = 2 ** 15, and then 0 in the loop with the pauses between to make it beep?
slender iron
@lapis hemlock isn't the issue that the unix port is using double instead of float
@idle owl yup!
lapis hemlock
@slender iron I think so. But the unix port uses doubles on linux, too, so I don't see, why the mac is special.
slender iron
it could be the compiler version
tulip sleet
@slender iron I have another non-work mtg in 6 mins, will contact you later
onyx hinge
@lapis hemlock It appears it is a clang-specific diagnostic. macs use clang by default, linux uses gcc. https://godbolt.org/z/8153vY
you could specify -Wno-double-promotion globally, you could add an explicit cast double x = (double)INFINITY; etc
I did not know that the floating point constants INFINITY and NAN were defined to have float type. interesting.
cobalt kestrel
@idle owl If possible / an option for you, disabling the device speaker will also stop the tone. Then re-enable when you want to continue the tone. This is my code for MagTag with CircuitPython
import time
import pulseio
import board
from digitalio import DigitalInOut, Direction, Pull
Enable the speaker
speaker_enable = DigitalInOut(board.SPEAKER_ENABLE)
speaker_enable.direction = Direction.OUTPUT
speaker_enable.value = False
pin = board.SPEAKER
pwm = pulseio.PWMOut(pin, duty_cycle=0x8000, frequency=131, variable_frequency=True)
Play the frequencies
for i, freq in enumerate([131, 147, 165, 175, 196, 220, 247]):
if i == 0:
speaker_enable.value = True
pwm.frequency = freq
time.sleep(0.25)
speaker_enable.value = False
idle owl
@cobalt kestrel That only works with built-in speakers where the board has SPEAKER_ENABLE as a pin. This is a piezo buzzer wired to a microcontroller, so it's not an option. Thanks though! I'll remember that for when it is an option.
cobalt kestrel
Good to know! Thanks.
lapis hemlock
you could specify -Wno-double-promotion globally, you could add an explicit cast...
This might be problematic, if you try to compile for a port that supports floats only. I believe, the ESP8266, and the pyboard are such.
What bugs me is the fact that MICROPY_FLOAT_CONST(...) does not shut up the compiler
onyx hinge
in micro/circuitpython context you'd explicitly cast to mp_float_t or whatever it's called, I wrote double for making a short example
lapis hemlock
Oh, sorry, so you meant this: mp_obj_float_t numpy_const_float_inf_obj = {{&mp_type_float}, (mp_float_t)INFINITY};
And the godbolt thingy is nifty.
manic glacierBOT
idle owl
In CircuitPython, we don't have threading. But we can still use things like time.monotonic() to have non-blocking input monitoring. What is that called? "Polling"? Does it even have a name?
slender iron
correct. ya polling is the best word
idle owl
Ok thanks
slender iron
aka "repeatedly reading a value until it changes"
idle owl
Excellent, thank you
idle owl
Did we ever fix the logging data directly to the flash issue? Nevermind, apparently we did.
idle owl
@slender iron If I’m using duty_cycle to control the piezo, is there any point in setting variable_frequency=True on object creation? The implication in the docs is that it is kind of necessary for tone generation. I don't change the frequency in this example, but folks might want to in other examples or to do a more advanced version of this example...
slender iron
I’d leave it so folks can change the pitch
idle owl
Thanks
onyx hinge
weeeeeeird, brew (the package installer) is available on github ubuntu ci runners
idle owl
If you create a variable and set it foo = False and then create a function that waits for a button press, and changes it to foo = True, is that considered changing the "state"? Or is there another word for that.
crimson ferry
Can another ESP32-S2 maker please check my thinking here, I'm seeing something I hadn't encountered before in the wifi module...
basic structure is an event handler in init, and connect in the radio module
connection retries are done in the event handler, but exception scenarios are handled in common-hal connect()
Retries in the event handler call the low-level IDF connect function. So I'm seeing something arise where an AP goes away after a connectionW (1564880) wifi: disconnected W (1564880) wifi: reason 200 0xc8 # BEACON_TIMEOUT I (1564880) wifi: Retrying connect. 4 retries remaining W (1566950) wifi: disconnected W (1566950) wifi: reason 201 0xc9 # NO_AP_FOUND the event handler stops retrying because it's essentially considered a fatal error if there's no AP, but we don't actually call common-hal connect() again, so the connection stays dead even if the AP comes back
thorny jay
If you create a variable and set it `foo = False` and then create a function tha...
That's a global variable, that you modify from a function? Yes it is a change of state, also not really recommended (but very useful) and require the use of global.
idle owl
Yeah I use global, I was questioning the nomenclature of the word "state" to explain what it was doing.
Thanks!
slender iron
@crimson ferry ya, that seems like what it's doing
crimson ferry
@slender iron do you see an obvious solution, or should I file an issue?
crimson ferry
but if the AP doesn't come back for a longer while, the code just goes into a weird socket exceptions state
thorny jay
I should really learn serious Python, pattern, setter/getter, lambda function, class, ... I feel like my level in Python is equivalent to when I was programming Basic or when I started to learn computer science. I know it is out there, I can see it from super well written and not simple learn guide, but I am not able to write code like that. This is disturbing and annoying. Not that this blocking me for doing anything I want to do in CP, but I feel I am missing a big part of Python. 😦
Not that I ever was a great programmer...
slender iron
it takes practice @thorny jay 🙂
thorny jay
I was in trouble with my MagTag... my feeling is that it started when I deleted code.py (and there was no other main.py). Tested various UF2, two latest and beta1. The CircuitPython would not appear, or only once every few power off/on. Windows was "Périphérique USB non reconnu" (that would mean "unrecognised USB device"). Maybe the file system was also a bit full (or almost full). Now that I made some space and manadged to rename a file to code.py, it seems to work. But it was very bizarre. Not sure I want to try to reproduce that.
thorny jay
On the MagTag, the pin in the STEMMA connector is A1 (as printed), A1 in the learn guide, AD1 on the schematic in the learn guide and board.AD1 in the firmware. So I have two A1 and two AD1. I need someone to vote for a tiebreak on this topic.
tulip sleet
@thorny jay I'll ask if there are any plans to change the board, but I think the CPy choice came from the schematic before the board art was done. We can add board.A1 as a synonym for board.AD1
prime flower
@thorny jay +1 vote for A1 since I often look at the board's silk while wiring, not the schematic.
hoary moat
Note to self: be careful what screw head size you use. Crushed the lens off my poor D13 led. Rest In Peace.
tulip sleet
we usually try to make the silk the "ground truth" for pin names, since that's what people have in hand
thorny jay
My eyes are not what they use to be... but I try to read the silk too.
hoary moat
Managed to get prototype code for latching relay working. Cannot wait for Ethernet wing tomorrow!!!
prime flower
@hoary moat nice, congrats!
hoary moat
It really is a joy to see the leds change state and hear the click. Simple pleasures. A lifetime of doing this for a living and still: happy dance
slender iron
@tulip sleet want to chat now?
tulip sleet
sure
crimson ferry
Anyone have a clue what this is referring to in the test Action?```Build mpy-cross
Build unix port
Test all
Print failure info
1 Run for exp in *.exp;
2 for exp in *.exp;
3 do testbase=$(basename $exp .exp);
4 echo -e "\nFAILURE $testbase";
5 diff -u $testbase.exp $testbase.out;
6 done
7 shell: /usr/bin/bash -e {0}
8 env:
9 CP_VERSION: 6.1.0-rc.0-176-gfcec243ec
10 pythonLocation: /opt/hostedtoolcache/Python/3.8.6/x64
11
12 FAILURE *
13 diff: *.exp: No such file or directory
14 diff: *.out: No such file or directory
15 Error: Process completed with exit code 2.```
last flame
@crimson ferry I know very little python but looking at the script appears to be some form of snapshot testing? diffing/comparing pre/post (file.exp > file.out)? strangely it looks to be treating the wildcard as a literal rather than a list of files? maybe 😬
probs no help but maybe it triggers an 'ah ha!' or a 🤦♂️ heh
if you look here you see a similar but more comprehensive script
https://github.com/adafruit/circuitpython/blob/main/tests/run-tests-exp.sh
so in short maybe its not finding any .exp files... i see above they have them in folders for tests
https://github.com/adafruit/circuitpython/blob/main/tests/import/import_override.py.exp
lunar crown
Thoughts about CircuitPython in 2021.
I would like to see a high end processor, such as a larger M7, with larger
on-board memory that would be a step above the introduction level processors,
to provide a growth path out of the LED blinkie world. I would like to to have
an Adafruit CircuitPython processor for some long term projects such as
monitoring many things, or logging multiple things, for weeks or months without restarting. I would rather spend my time fighting the problem at hand, rather
than the limitations of small memories on small processors.
Finish and deliver on one (or more) of the M7 processors that have been started.
Dual precision float: time_monotonic() is a time bomb waiting to go off.
The suggested time_monotonic_ns() replacement, is too fine, and using
the unlimited length integers to work with it, is too slow. Maybe this can only
be fixed on high power processors like the M7. A double precision float sounds
like a possible solution, but might be restricted to the higher end processors.
Threading, or at a minimum, a foreground/real-time-background processing
environment. Any of the multiple proposals would be an improvement.
I would challenge Adafruit with a business question: You are doing a great job
with your current mission of introducing and training beginners in electronic
and digital technologies. Then what? Do you want to be part of the next upward
step after that?
tulip sleet
@slender iron ^^
@lunar crown if you haven't done so could you also email the above to circuitpython2021@adafruit.com? That will make sure it gets listed. Thanks!
lunar crown
K
tulip sleet
@onyx hinge @slender iron I just did a PR, and the cached extensa builds are failing, maybe due to a corrupted or now-out-of-date cache. There is no UI way to clear the cache: https://github.com/actions/cache/issues/2. I am doing a re-run and if it fails too, I'll change the cache key 😦
onyx hinge
@tulip sleet thanks, that is something we've had to do in the past..
tulip sleet
the issue to clear the cache is 15 months old.
not sure why it's not on their high priority radar
manic glacierBOT
crimson ferry
@last flame Thanks, I poked around in the tests directory, nothing jumped out. I'm baffled how it relates to my change, but will dig deeper where you pointed.
manic glacierBOT
onyx hinge
@crimson ferry the real problem is the translations error. The "print failure info" step is intended to run when the immediate previous step fails, to show extended information about failures during "test all". but because of how the github actions are actually set up, it runs for any previous failure instead.
assuming we're talking about https://github.com/adafruit/circuitpython/runs/1700117418?check_suite_focus=true
Checking locale/circuitpython.pot
Missing message id. Please runmake translate
{'Unknown failure %d'}
make: *** [Makefile:251: check-translate] Error 255
Error: Process completed with exit code 2.
(if "test all" fails then the info under "print failure info" is potentially useful; if it's some other failing step then it's NOT useful and also ends up appearing to be a failure itself)
manic glacierBOT
crimson ferry
Thanks @onyx hinge, when I clicked into the errors, that was scrolled out of sight so I was focused on the red herring. I'll look into the translation issue when I get back.
orchid basinBOT
ionic elk
@lunar crown have you tried the STM32 H7 series? That's a very powerful M7 board, with up to a megabyte of SRAM. People have ported the original DOOM to it. We have basic support for both it and the F7 series.
crimson ferry
Is there a rule of thumb for raising exceptions in shared-bindings vs. common-hal?
tulip sleet
Is there a rule of thumb for raising exceptions in shared-bindings vs. common-ha...
If the common-hal might be called in a non-Python context because it's useful in other ways, then it should return an error code. But we do raise exceptions in common-hal. If you grep for uses in common-hal, a lot of it is port-specific argument validation. We have had bugs in the past where exceptions were raised in an interrupt routine or a critical section: those definitely don't work.
onyx hinge
quickly updates copyright year on his blog
manic glacierBOT
crimson ferry
@tulip sleet what non-Python contexts would use common-hal? I thought it was only to abstract port-specific stuff from the shared APIs
tulip sleet
some common-hal timing routines, and sometimes we call pin operations, etc.
crimson ferry
ah, ok, thanks that helps
manic glacierBOT
slender iron
Anyone have a clue what this is referring to in the test Action?```Build mpy-cro...
This usually happens when something earlier fails
tulip sleet
@onyx hinge or @slender iron this will fix recent broken builds: https://github.com/adafruit/circuitpython/pull/3997
something changed out from under the cached version
onyx hinge
@slender iron what do you think of removing from our ports/unix the stuff that we never build into any of our firmwares, like uzlib, axtls, etc? it would get rid of some submodules, otherwise no big benefit.
tulip sleet
would it break the unix build?
onyx hinge
no, it would mostly just be disabling modules
slender iron
that's fine with me
onyx hinge
for instance, axtls can maybe be used for tls but is also used for hash library functions we never enable in circuitpython firmwares (to the best of my knowledge)
.. we use mbedtls from esp-idf for tls if we use anything ..
tulip sleet
would we have to turn off some tests? I am just thinking about merging from upstream later
onyx hinge
it's true, it becomes a bigger delta from upstream. I think that for the most part tests say "try: import ... ; except: skip the whole test" so that works
tulip sleet
axtls is mentioned explicitly in the Unix makefile, for instance
onyx hinge
a pile of unneeded changes compared to upstream is a good reason for me not to touch it
tulip sleet
yeah, i think pulling those submodules is small potatoes compared to some other susbmodules. I agree it's noise.
uzlib: i will review and merge as soon as it builds fine
onyx hinge
thanks!
onyx hinge
@tulip sleet sure, but it looks like there are some conflicts in ble to resolve. Should I take the side that adds +0.5f to the timeouts for "rounding"? + uint32_t nrf_timeout = SEC_TO_UNITS(timeout, UNIT_10_MS) + 0.5f;
in fact I'm kinda finding the 6.0.x version of this change weird .. ```+
- if (nrf_timeout) {
nrf_timeout = BLE_GAP_SCAN_TIMEOUT_UNLIMITED;
}``` isn't this condition wrong?
tulip sleet
those changes should already be in main; I'm confused why they're in the diff, and that bug was fixed already
maybe just cherry-pick your one change; that would be easier; there shouldn't be anything in 6.0.x that's not already in main; I did the cross-ports of the fixes, I think all of them
onyx hinge
looks like main got "BLE fixes" and "Round BLE timing values; fix timeout check" while 6.0.x only got "BLE fixes"
tulip sleet
right; the newer fixes are going in 6.1.0, I'm not bothering to make a 6.0.2, because 6.1.0 is imminent
BLE fixes needed fixes
onyx hinge
OK, then it makes sense why there was a conflict, and it made sense for me to resolve it by taking the "main" more-bugs-fixed version
tulip sleet
because they are not the same commits there's all this noise in the diff?? it's confusing
onyx hinge
git gonna conflict
onyx hinge
@fossil gorge congratulations on being the one to file Issue #4000 on circuitpython! It's a milestone.
tulip sleet
i don't think circuitpython.pot needs a merge at all; could you just cherry pick the unix/Makefile one?
onyx hinge
"4000th issue filed" doesn't feel like something to celebrate, but since it's PRs + Issues I'm still kinda happy about it
lapis hemlock
"4000th issue filed" doesn't feel like something to celebrate, but since it's PR...
Then here is another one for you: https://github.com/v923z/micropython-ulab/releases/tag/1.7.0
onyx hinge
Yeah that was my mistake, I did not have submodules up to date when I regenerated circuitpython.pot.
@lapis hemlock what's new?
@tulip sleet check the PR again, it now has only the change you'd expect. I can do this as a cherry pick instead if we don't plan on more 6.0.x -> main merges though
lapis hemlock
@onyx hinge quashed a bug, added a function.
tulip sleet
np, I think it's now equivalent
onyx hinge
oh you merged my pr, thanks @lapis hemlock
lapis hemlock
@onyx hinge I basically backported a fix.
fossil gorge
<@!361158808501747735> congratulations on being the one to file Issue #4000 on c...
Errr, thanks? I think? Had I known, I would've made 4000 "Mark milestone of 4000th issue filed" and been meta, and report the year in 4001. Oh well, maybe for 5000, or 0x4000?
tulip sleet
i'm not sure whether the list of commits is confusing or not it seems weird
lapis hemlock
oh you merged my pr, thanks <@!676859171315908639>
Oh, sorry, I forgot to acknowledge that. Thanks a lot!
tulip sleet
Yeah, maybe just a cherry pick, it will be less confusing for the future
onyx hinge
it's been happening to me repeatedly that when I complete filing a PR it takes me to an "issues/####" URL which is 404'd, but reloading the page gets me to the pull request. weird.
tulip sleet
sometimes I click on a commit that isn't there
so we'll close #4003 and I'll kill those jobs?
onyx hinge
sure, if you prefer the cherry pick
tulip sleet
yes, I think so, the merges are confusing, and I know they were all better on the main side except for the unix fix
tulip sleet
@onyx hinge let's discuss what to put in 6.1.0-rc.1. Do you want #4005, #4004, #4002? I am willing to defer #3993. #4001 seems cheap and easy, and solves some support problems immediately.
it was ok with scott to defer 3993.
i would expect a 6.1.1 soon. I want to get 3993 in, and I want to fix the stalled CIRCUITPY write problem (no known fix for that yet).
tidal kiln
is #3940 in?
tulip sleet
yes, a week ago, np
onyx hinge
#4005 is the only user-facing one out of those three, the others can wait
tulip sleet
4001 also
onyx hinge
oh sorry, yes
tulip sleet
ok, great, if you approve that one, then I will move the 6.1.x branch commit to that merge, and then make another release. Scott thought it was easier to move the branch than do all kinds of backporting
onyx hinge
we'll appoint him our git philosopher then
he'll need to grow a beard and move to the top of Mt. Rainier though
tulip sleet
or we could switch to clearcase 🙂
onyx hinge
I've never had the pleasure. Couldn't be worse than RCS + a pile of elisp
tulip sleet
in clearcase you can pull arbitrary things from different trees. I worked for a place that did that. It was a nightmare.
onyx hinge
I'm sure you have better things to do than listen to IT horror stories from the before times, so I'll try not to start.
thorny jay
I was super afraid that @tulip sleet and @onyx hinge were trying a coup/putsch and making a release in the absence of @slender iron. I am reassure you are watching this.
thorny jay
You have all my support, as long as A1 is available as A1. 🙂
tulip sleet
that is the most important fix, obviously 🙂 (seriously, we should have spotted that a while ago)
@onyx hinge as long as I am waiting for builds... do you think I should avoid including the ulab 1.7.0 update? or it woudln't hurt
tulip sleet
@onyx hinge ulab stubs generation is failing in build
so we won't bother with this now
onyx hinge
@tulip sleet that's fine, I'll look into it soon
slender iron
@tulip sleet still on for joining the stream tomorrow? I'm going to post my regular blog post about it
tulip sleet
yup, sounds good!
slender iron
great!
crimson ferry
Is there a manual step when adding or changing strings? I have a PR failing in test, I think the key bit is "Missing message id. Please run make translate". (no results from a learn guide search for "translate")
slender iron
ya, you need to run make translate in the top level directory
it'll add the new strings to locale/circuitpython.pot
crimson ferry
locally? then commit that additional file?
slender iron
@crimson ferry yup!
crimson ferry
got it, thanks!
manic glacierBOT
fossil gorge
ya, you need to run `make translate` in the top level directory
Is this something that might be worth doing as part of the pre-commit hook? Make it easier to catch before it trips up the CI system.
I'm also thinking it's worth mentioning in a contribution guide. I'm looking for which would be best to add that in, since it's quite core/C specific of a step
tulip sleet
we actually just tried that in a PR, but had trouble getting it working, and reverted it
fossil gorge
I see. I was thinking in a developer's local pre-commit hook
So that it doesn't need to happen during the CI process. Then again, it's probably safe to assume not everyone has the pre-commit hooks installed or running locally
tulip sleet
i don't know of anyone who's done that, but it's a good idea.
fossil gorge
sheepishly raises hand
fossil gorge
One sec, I'll pull up the reference
tulip sleet
(I was always wondering why it was called "pre-commit"!)
fossil gorge
This is what I followed. I thought I remembered it being fairly simple, but at this time of day/night, I'm fairly simple myself, so...
https://pre-commit.com/#install
So now, whenever I run a "git commit", the hook/script runs
tulip sleet
we already have a .pre-commit-config.yaml in the code base, but for me it only runs when I push a commit to a PR. so I need pip3 pre-commit and also then pre-commit install, is that right?
fossil gorge
That sounds correct from what I remember
It takes that config that's in .pre-commit-config.yaml, which is what the Github Action uses as well
tulip sleet
as long as they don't have to be different
ah ha
halbert@salmonx:~/repos/circuitpython$ pre-commit install
pre-commit installed at .git/hooks/pre-commit
ok, i'll do something fake here
fossil gorge
ok, i'll do something fake here
Shhh, that's my day-job technique!
tulip sleet
OK!
fossil gorge
Success?
tulip sleet
halbert@salmonx:~/repos/circuitpython$ touch foo
halbert@salmonx:~/repos/circuitpython$ git add foo
halbert@salmonx:~/repos/circuitpython$ git commit -a -m "testing pre-commit"
Check Yaml...........................................(no files to check)Skipped
Fix End of Files.........................................................Passed
Trim Trailing Whitespace.................................................Passed
[throwaway 926a01d90] testing pre-commit
1 file changed, 0 insertions(+), 0 deletions(-)
create mode 100644 foo
yes! thank you! I never really read the pre-commit doc. someone else offered it to us, and we just added to the actions
tulip sleet
we should add this to the appropriate guide
fossil gorge
That's what I was thinking, and trying to figure which guide that would be.
At the same time, also mentioning that errors/text/strings should be wrapped in translate() for localization
tulip sleet
so the next q is what went wrong with our trying to move the translate check to pre-commit. (We also happened to end up with bad action cache at near the same time, and had to change the cache key.) may or may not be related
blissful pollen
So just pip install pre-comment and "pre-commit install" and it works? as someone new to the core that would be so nice (as evidenced by my 5 following commits fixing small problems)
fossil gorge
Correct @blissful pollen. And it will use the .pre-commit-config.yaml file that's currently in the CP repo
tulip sleet
could be added to this guide: https://learn.adafruit.com/contribute-to-circuitpython-with-git-and-github
fossil gorge
Also, it's called "pre-commit", but their docs mention that other git hooks are supported, like "commit", "post-commit", "push", etc.
tulip sleet
i was not really aware of these hooks; I thought it was strictly a github actions job thing
blissful pollen
awesome, installed just gotta have something to commit now
tulip sleet
ok, thank you so much, we'll bring it up with the team!
fossil gorge
touch foo && git commit -am "Test?"
blissful pollen
oh one thought for the guide, when I realized I should run the pre-commits manually to make sure I could push I had to install the tools the pre-commit ran I think, may want to make sure that doesn't trip others up
blissful pollen
`touch foo && git commit -am "Test?"`
True I'm a novice at git and then have to figure out how to roll a commit back
fossil gorge
the one part I'm not certain about is using it or configuring it in virtual environments.
blissful pollen
i did it in a throaway branch
Thanks, should have thought of that
@fossil gorge Worked great for me, that's really awesome
fossil gorge
Awesome! Hopefully it can help more long-term for local checks. Some like that idea someone had at some point to try compiling locally first 🤷
tulip sleet
@idle owl @onyx hinge @slender iron did you know you could run the pre-commit test locally? I was totally unaware, but maybe I'm out of it. See ^^
blissful pollen
Part of the reason I love following all this, I've been out of day to day dev for a while and nice to see what's out there to at least keep my knowledge up
slender iron
@tulip sleet yup! Sorry! One of those things you setup once and forget about doing it
tulip sleet
np, i'm happy
getting our library writers onto this would be a big help, given the extra commits for black, etc.
onyx hinge
agreed
orchid basinBOT
fossil gorge
Because I'm stubborn and had some no spare time, I was digging into why the pre-commit hook was failing in the manner described in #3985, and I have a theory...
I suspect that what was happening is that the shell command that created the locale/circuitpython.pot.tmp file didn't finish writing the file to disk, hadn't yet started, or started but the file was not flushed before the tools/check_translations.py got to problematic line.
HOWEVER, even if we did wait for the locale/circuitpython.pot.tmpfile to be fully written to disk, the call to pre-commit would still result in an error, since part of its checks, along with running the hooks, is to ensure that no files were changed (as determined through a call to git diff). And if there were any changed files, the pre-commit action fails, and we're back to where we started.
As an alternative to that method, however, my thinking is that perhaps there could be a separate workflow or similar process, which performs the operations which the pre-commit hook was intended to perform, and then adds a commit to the PR (or gently declines it) with the corrective measures. Perhaps something which could be performed by
(https://github.com/adafruit/adabot )?
tulip sleet
feel free to add this to closed pr, we can follow up on this, thanks!
fossil gorge
Ok, will do. I wasn't certain how acceptable commenting or adding to closed PRs was, so didn't want to raise anyone's ire. Thanks @tulip sleet!
tulip sleet
np, a comment germaine to the PR is always helpful. Sometimes it gets off track, and then we ask for a new issue, but if it has to do with the PR, great
hoary moat
It really helps if you pass WIZNET5K the actual MAC of your Ethernet Feather. 😉
Maybe we can expand the Feather Ethernet doc to include CircuitPython and not just Arduino.
marble hornet
@gilded cradle could you please go into a little more detail regarding'Dynamic Importing'? Reading your 2021 post I think I might know what you mean. I've done dynamic importing and "deimporting" of modules in cp before, what are you looking for?
manic glacierBOT
onyx hinge
@tulip sleet thank you for the release!
tulip sleet
yw, lotta waiting around 🙂
prime flower
Maybe we can expand the Feather Ethernet doc to include CircuitPython and not ju...
We have a guide for this wing, entirely in CircuitPython, here https://learn.adafruit.com/ethernet-for-circuitpython
Do you mean linking to this within the ethernet featherwing product guide? https://learn.adafruit.com/adafruit-wiz5500-wiznet-ethernet-featherwing/
lapis hemlock
@onyx hinge Jeff, thanks for catching the glitch in the stubs! Is it OK, if I remove release v.1.7.0, and create a new tag? (There was a small bug in frombuffer that I found, when writing the documentation, and backported the fix for the circuitpython version.)
onyx hinge
Tag and release 1.7.1?
lapis hemlock
Right.
onyx hinge
sounds good to me!
(I don't think it's customary to remove a release, though there may be good reasons for it sometimes)
lapis hemlock
OK, I can leave it. I have also released 2.1.2, that is master now. I commented out the compilation instructions for circuitpython. We can put them back later, once circuitpython decides to adopt the numpy-compatible interface.
onyx hinge
OK!
lapis hemlock
So, here is the tag: https://github.com/v923z/micropython-ulab/releases/tag/1.7.1. If you run into a bug, you should probably work from https://github.com/v923z/micropython-ulab/tree/legacy.
onyx hinge
excellent, thanks -- I'll upgrade that PR and hopefully that was the only speed bump. thanks as always for ulab and for quick responsiveness!
ionic elk
@onyx hinge @tulip sleet when either of you have a sec, do you think you could check out the CI error on my TCPServer PR? I'm not sure it's related to my code
onyx hinge
@ionic elk I think it's a problem that would be fixed if you merged in or rebased onto adafruit's main branch
tulip sleet
yes ^
actually just a job re-run might fix it, because it's doing a tentative merge
i will start a re-run
gilded cradle
@marble hornet I meant like if you wanted to automatically search for specific files in a folder and then import those files one by one like how Python does it with the __import__ function.
Or using importlib
I think implementing __import__ would be more applicable to CP though.
onyx hinge
``` isn't it there already?however, there's a comment that "import" (statement) doesn't invoke __import__, it invokes built-in logic; so you can't replace the behavior by replacing __import__ like you can in standard python3
hoary moat
Do you mean linking to this within the ethernet featherwing product guide? https...
Yes. I was referring to the product guide 🙂
manic glacierBOT
marble hornet
@gilded cradle I've been working on a way to import "apps" for the watch at runtime. If I can be of any help I'd be more than glad to work on module for importing at runtime/etc. Though if you know what you're looking for, some more fleshed out features/functionality would be great.
In the past i've used sys.modules in combination with __import__ or exec(f"import {module_name} as imported_module") to import modules in circuitpython. With some finagling, the modules can be freed and the memory can be re-used.
😅 and eventually some help with the release process
gilded cradle
Oh, so the __import__ function does already exist? Interesting. I'll have to look into that. I think I ended up taking a completely different approach anyways, but good to know for the next time I need something like that.
fossil gorge
@gilded cradle If you look at the code for the "MagTag Project Selector" in the learn guide (https://learn.adafruit.com/adafruit-magtag-project-selector/), it's how Dylan's running the selected project. Pretty slick stuff!
tidal kiln
what version of black is pre-commit using?
tidal kiln
@idle owl is it ok if i merge this? https://github.com/adafruit/Adafruit_CircuitPython_ATECC/pull/17
onyx hinge
@slender iron yeah https://github.com/WeblateOrg/weblate/issues/5051 which was closed recently (today)
there was also the support ticket I opened with github in which they concluded it was normal, pasted into https://github.com/adafruit/circuitpython/pull/3792#issuecomment-753234685
slender iron
ya, I know that
onyx hinge
something's weird but nobody's offering a solution
slender iron
and compare looks ok
onyx hinge
besides rebase
slender iron
weblate is doing weird things I think
usually before a PR you merge upstream into your feature branch
onyx hinge
If you can explain it better than I did maybe you can give better info to the weblate folks
slender iron
I'll reply. thanks for the link!
onyx hinge
weird, if I "compare" the branches, I don't see the other commits that appear in #4008. https://github.com/adafruit/circuitpython/compare/main...weblate:weblate-circuitpython-main
slender iron
right, so a PR must behave differently
onyx hinge
I'm baffled because everything except the github pull request reflects sensible information
and only for weblate
onyx hinge
thanks for following up
lone axle
@tidal kiln I think Kattni may have mentioned being out for a few days. I've been helping with those pre-commit and license reviews though. I had a quick look over that one and it does seem fine to merge to me. I'll be getting back to reviewing and merging them later on tonight.
manic glacierBOT
manic glacierBOT
gloomy shuttle
Last weekend I started work on a library for the wii classic controller. After thinking about it further, I came to the conclusion that it may be better to incorporate it into the existing adafruit_nunchuk library. This approach will allow for a better experience for the end user and the ability to easily add support for other extension controllers, such as the Guitar Hero device (https://wiibrew.org/wiki/Wiimote/Extension_Controllers).
Any feedback would be greatly appreciated.
Here is my current pull request - https://github.com/adafruit/Adafruit_CircuitPython_Nunchuk/pull/17
kind river
I heard there was some interest in a community STM32WB55 port. My WB55 Nucleo came in yesterday, so I'm available to help out.
thorny jay
Last weekend I started work on a library for the wii classic controller. After t...
I am very much interested by opinion and decision on this topic. Based on Nunchuk library and your library, I made a working library for the uDraw GameTablet (I may need to rename the button to be C an Z like for Nunchuck, and the pen pressure also act as a button whose name I need to decide). And I don't know the best way to publish that... I was planning to do exactly as you (separate library and try to get into the community bundle). I am not sure there is much to reuse between those library as it is pretty simple and very small. But sure, on Arduino side all the WiiMote attachement are together in the same library. Here is my proof of work: https://twitter.com/DavidGlaude/status/1350250736525959169?s=20
gloomy shuttle
I am very much interested by opinion and decision on this topic. Based on Nunchu...
I saw your fork and subsequent pull requests on my original community library attempt as well as your tweet about your uDraw work which was what made me rethink my approach. If you look at the new pull request, I pulled out the initialization, read_data, and read_register into a superclass (NunchukBase) and then have a subclass for each device (Nunchuk, ClassicController). I think your uDraw work could be incorporated by just creating another UDraw class.
thorny jay
Ok, I'll have a look. I believe it is possible to auto detect the accessory, but code should be minimal so ad-hoc import might be best... a separate detection could be done.
The other question is how to abstract the Joystick concept to have it to make CP game that work with various joystic (Wii, Button on the PCB, Wireless, ...) but this is another topic.
gloomy shuttle
Ok, I'll have a look. I believe it is possible to auto detect the accessory, but...
That was one of the things I wanted feedback on. For example, on the classic controller one provides output from (0,64) and the other provides (0,32). My thought was that these libraries should provide the raw sensor data, but a separate interface library could created to do what you suggest.
The nunchuck joystick provides output from (0,256). Should all the joysticks be mapped to the same range?
lone axle
I will be streaming for a bit this morning reviewing, and working on a few library PRs if anyone around is interested in watching along or hanging out for a bit. Very impromptu, partially just testing how everything is set up. I'll put links to Twitch and Youtube in the #livebroadcast channel in a moment.
tulip sleet
@analog bridge1 I'm trying to get TouchAlarm or TouchIn to actually detect touches. TouchIn.raw_value is always 65535 on the MagTag, Metro ESP32-S2, and FeatherS2. For TouchAlarm, it never triggers a wakeup, and when plugged into USB, I can't control-C the simulated sleep.
i'll file an issue unless you have an idea of what I might be doing wrong
thorny jay
Ok, now I am GitHub / git confused... I want to add another accessory for the WiiMote. The change would go in https://github.com/adafruit/Adafruit_CircuitPython_Nunchuk but it is an add-on to the PR of @gloomy shuttle . I can either wait for that one to be accepted... or propose a PR to that branch: https://github.com/jfurcean/Adafruit_CircuitPython_Nunchuk/tree/change-to-module . The final goal is Adafruit Library + @gloomy shuttle PR + my piece of code for uDraw GameTablet...
gloomy shuttle
I am not sure what the best approach is as I am new to using GitHub for collaborating on projects, but I am happy to merge it into the branch of my pull request if you do a PR on that.
thorny jay
I'll give that a try. And you included the mouse example correction in your own PR...
iron bloom
Did the Adafruit pIRKey ever make it into the store? https://learn.adafruit.com/adafruit-pirkey-python-programmable-infrared-usb-adapter
tulip sleet
there were software problems with the IR-reading code in CIrcuitPython
iron bloom
@tulip sleet Thanks. IR communication was suggested by some assistive technology teachers as an easy way to connect adaptive switches to devices. I’ve been interested in that product since it came out. I know it’s not ideal, but I’d be content with just Arduino support. But then you could use a trinket M0 and a separate IR. Just hoping for a simple Adafruit solution that teachers could use. No disrespect to teachers.
tulip sleet
@iron bloom There is this Arduino library, though it's quite old: https://github.com/adafruit/Arduino-IRremote and this Learn Guide: https://learn.adafruit.com/ir-sensor
iron bloom
@tulip sleet thanks I’ll take a look at that next. There is also this tutorial, that maybe I could work from. https://learn.adafruit.com/remote-control-tree-ornament-with-circuit-playground-express
tulip sleet
yes, try that. I think the main issue was how reliable the IR reading was
I pointed to the older Learn Guide above because it also has an Arduino example
blissful pollen
Git question that I hope makes sense. I have a draft PR with 4 commits. But my branch is behind the adafruit/main branch. If I rebase my local branch to adafruit/main I get a message that my local branch is now 270~ commits ahead and 4 behind.
Are those 4 the original 4 commits I made, that my rebase reapplied after all the latest adafruit ones? Would this be the proper time to use the git push with fast forward to bring my github branch all up to date?
I was able to do this with git pull then git push, but then I have an extra commit with a (seemingly?) useless git pull merge commit
(Which looking at my PR #3936 now is what I appeared to have done now that is has 221 commit ugh)
tulip sleet
@blissful pollen you don't need to catch up with main unless there's a merge conflict between your PR and main. Is that true?
Usually if I need to resolve a conflict I merge, not rebase, from upstream.
blissful pollen
The fixes to remove busdevice weren't in my branch and to re-enable it I needed those PRs. Specifically the frozen library ones
tulip sleet
I think you are 270 commits ahead of your github repo, not of adafruit/main. IS that the question? There have been many commits in the past few weeks.
I'm not sure if your rebase is easier or doing a merge and then undoing some of the things is easier. You could cherry-pick commits from the past.
In general I have seen much more damage done by rebase than by merge.
blissful pollen
I think that is what I ended up doing. I somehow did get all the previous commits into my PR so I think I can back out of that last push . Failing all this may be easiest if I just close that PR note what happened and I can easily create a new branch/PR
blissful pollen
I think you are 270 commits ahead of your github repo, not of adafruit/main. IS ...
Thanks, so it sounds like my best bet is to merge into my local branch from adafruit/main (which should put the missing changes in) and then edit those as I need and push.
tulip sleet
yes. I'm not sure whether the merge is going to give you a lot of conflicts to resolve or not. Have you use git mergetool before? I use it with kdiff3 or meld. (meld more recently because kdiff3 is broken for me in a few ways: most notably it doesn't display underscores)
blissful pollen
I haven't used it a lot. Somehow in reverting my last change I seem to have got the changes into my github branch too... so not 100% sure what I did. But I seem to have what I need now
thorny jay
<@329766224093249548> thanks I’ll take a look at that next. There is also this t...
I used IR a lot for my work with CircuitPython for sending on Trinked M0 with just an LED and a resistor and it worked fine to control LG TVs (that was more than a year ago, so much older CP version). Some success too with Circuit Playground Express too, both sending and receiving. On the receiving side, I acquired a Flirc that was working great to emulate keyboard and is customisable: https://flirc.tv/flirc-usb
manic glacierBOT
lone axle
Does anyone whose around happen to know if this is the correct way to handle multiple copyright authors when the list of names would be long enough that pylint complains the line is too long?
# SPDX-FileCopyrightText: 2020 Tony DiCola, James DeVito, for Adafruit Industries
# SPDX-FileCopyrightText: 2020 Melissa LeBlanc-Williams, for Adafruit Industries
basically just adding a second # SPDX-FileCopyrightText line. I wasn't sure if something automated would get broken if there are two of those.
crimson ferry
@hearty tapir Do you see any issue if https://github.com/adafruit/circuitpython/blob/6a76b60027aa163756aace389a5c9203594759ce/ports/esp32s2/common-hal/wifi/Radio.c#L75 calls start_station() instead, in (future) case of AP+STA?
analog bridge
<@!747673663419187281>1 I'm trying to get TouchAlarm or TouchIn to actually dete...
@tulip sleet Can you provide your test code. I am unable to reproduce this.
tulip sleet
>>> import touchio,board
>>> t = touchio.TouchIn(board.IO5)
>>> t.raw_value
pin choice is arbitrary
I'm seeing t.raw_value == 65535 all the time
analog bridge
Adafruit CircuitPython 6.1.0-rc.0-173-g90a6581ac on 2021-01-14; microS2 with ESP32S2
>>> import touchio,board
>>> t = touchio.TouchIn(board.IO5)
>>> t.raw_value
6135
>>>
i don't see that on Metro ESP32-S2 or MagTag or FeatherS2
o dpm
i don't have your board, sorry
analog bridge
i don't have your board, sorry
well... I am not providing shipping to US atm... also I am kinda out of stock on them.
tulip sleet
trying a bisect between beta.1 and beta.2, but running into compilation issues
i am starting with a fresh clone now
analog bridge
can you also do a adc test...
tulip sleet
Adafruit CircuitPython 6.1.0-rc.1 on 2021-01-15; Adafruit Metro ESP32S2 with ESP32S2
>>> import board,touchio,analogio
>>> t = touchio.TouchIn(board.IO5)
>>> t.raw_value
65535
>>> a = analogio.AnalogIn(board.A0)
>>> a.value # A0 grounded
317
>>> a.value # A0 to 3.3V
52090
this doesn't seem to be a board specific though...
TouchAlarm was working for David.G... although he had the following issue which I am unable to replicate as well
https://github.com/adafruit/circuitpython/issues/3926
I think he used MagTag
tulip sleet
i was originally testing TouchAlarm and MagTag and couldn't get it to trigger, so I tried simple touchio, and was surprised
analog bridge
this is strange...
tulip sleet
after some git bisect skips, I am getting something that builds, so I'll continue bisecting
analog bridge
reading issue #4014...
it worked for you in 6.1-beta.1...
can you grab the latest uf2 from s3 and test with it... just for similarity
tulip sleet
rc.1 above is very close to the latest, but it broke in beta.2, so I am bisecting between beta.1 and beta.2
just to save time
solar whale
FYI -- just tried on latest main ```Auto-reload is on. Simply save files over USB to run them or enter REPL to disable.
Press any key to enter the REPL. Use CTRL-D to reload.
Adafruit CircuitPython 6.1.0-rc.1-15-g6a76b6002 on 2021-01-17; FeatherS2 with ESP32S2
import touchio,board
t = touchio.TouchIn(board.IO5)
t.raw_value
65535
yes, I tested before and after the RGB revert, just in case it was that
but it was not
solar whale
whew!
tulip sleet
since it had to do with power mgmt
thorny jay
I think he used MagTag
Sorry, it was on FeatherS2. I made some attempt at TouchAlarm (or TouchIO) (when PinAlarm was not supported yet) on the MagTag and discovered that 3 out of the 4 button are on a touch capable pin. The button was sensing that I wanted to touch even before touching the button. The MagTag lack pin for testing, but one of the two JST3 connector is capable, but I failed to use it.
tulip sleet
i had tried on D10
thorny jay
It is totally possible that I did not use the same release for FeatherS2 and MagTag test as it was different days.
tulip sleet
i am getting close, 2 revisions left to test with bisect
iron bloom
@thorny jay thanks for the info. I look into that product as well. I got a CPExpress to work as an HID keyboard using IR. Simple one keyboard(space,enter) using code from different Adafruit tutorials. My next step is feedback from the teachers.
thorny jay
I am always hesitant to introduce issue, because I don't know if I made a mistake or if there is a bug. It is possible that I detected some of those touch issue and should have reported.
tulip sleet
@analog bridge this is the commit that goes from good to bad:
commit 048ca2a57003d6f122db57dfc93513222380cff0
Author: microDev <70126934+microDev1@users.noreply.github.com>
Date: Sun Nov 22 18:54:18 2020 +0530
get multiple touchpad working
ports/esp32s2/common-hal/touchio/TouchIn.c | 18 +++++++++++-------
1 file changed, 11 insertions(+), 7 deletions(-)
could you test on your board with GPIO5? Maybe the pin choice is not so arbitrary
solar whale
I tried several pins on the FeatherS2 ```Adafruit CircuitPython 6.1.0-rc.1-15-g6a76b6002 on 2021-01-17; FeatherS2 with ESP32S2
import touchio,board
t = touchio.TouchIn(board.IO5)
t.raw_value
65535
t3 = touchio.TouchIn(board.IO3)
t3.raw_value
65535
t11 = touchio.TouchIn(board.IO11)
t11.raw_value
65535
Not sure exactly what is your project, but is is very capable to receive signal from any old TV remote control. And Adafruit has those tiny smaller than credit card remote to play with. I you avoid bang&olufsen remote and some Sony that are "different" (38 vs 36) you should be good to go. I had no problem with LG that use RC5 protocol but more recent set top box we use at work are RC6 protocol and I gave up to write support for that.
analog bridge
<@!747673663419187281> this is the commit that goes from good to bad:
```
commit...
this guards touch_pad_fsm_start() from being called twice as calling it de-initializes previously set touch configuration
tulip sleet
maybe touch_inited gets smashed and the initialization never gets called? only a theory
lone axle
I will be streaming again for a bit this morning if anyone is interested. Working on some different PRs will post links in #livebroadcast in a moment.
tulip sleet
@analog bridge I am not sure exactly what the "Note" means.
tulip sleet
one interesting thing is that in the old code before the commit the _config is done beofre _set_fsm_mode and _fsm_start; in the new code the order is different
analog bridge
between boards
tulip sleet
aha
analog bridge
I have a 10ms delay
for this
it needs to be increased i think
that is a very subtle difference though
tulip sleet
but that is just after the construction. I am testing from the repl, so there are several seconds between TouchIn(board.x) and the .raw_value call. The delay there just causes the constructor to return slower
analog bridge
maybe it needs few seconds to reset... it all adds up
tulip sleet
i can call .raw_value many seconds later and it is still 65535.
analog bridge
I am confused
tulip sleet
like, I just did it with a 15 minutes delay
>>> import board,touchio,analogio
>>> t = touchio.TouchIn(board.IO5)
>>> t.raw_value
65535
>>> t.raw_value
65535
>>> t.raw_value # 15 minutes later
65535
because i was reading code
i am going to add some logging to make sure the init code is called
analog bridge
we went in the wrong direction with 10ms delay thing... that is for threshold setting and should not effect raw_value results
analog bridge
i am going to add some logging to make sure the init code is called
I just removed the init code... and got 65535
tulip sleet
@analog bridge
I (32674) touch.c: touch_inited: 0
but .raw_value is still 65535 in repl
i'm printing touch_inited at the beginning of peripherals_touch_init()
as expected, on second call to TouchIn, touch_inited is true
analog bridge
the difference between boards is bugging me here
tulip sleet
i know... did you try GPIO5?
analog bridge
yes... basically all of them
tulip sleet
are you using wrover?
analog bridge
no module
tulip sleet
could you just try erase_flash and then reload? I have occasionally had weirdnesses when part of flash was not erased
do you have psram?
analog bridge
could you just try `erase_flash` and then reload? I have occasionally had weirdn...
I ran the test with uf2
tulip sleet
are you using different clocking circuitry than the other boards
i am using all .bin
maybe the bootloader is setting something up
@analog bridge I have to stop for several hours, so you may go to sleep. I will try with .uf2 later. I haven't tried a kaluga or similar. If you have any other board that would be interesting to test
analog bridge
sure... I will do the test with .bin when I get a chance... its fun bug fixing specially the strange ones 🙂
tulip sleet
bye - thanks!
manic glacierBOT
crimson ferry
do we have a preference for bool for using true/false vs. 0/1, or don't care?
(sometimes it's both in the same file)
rapid vine
I would say lean towards true and false as that it makes reading statements like the_dog_is_sleeping = true more human readable, though I couldn't find anything specific at the PEP8 style guide
crimson ferry
@rapid vine thanks, I should have been more specific... I'm looking at the C code in the core
lone axle
I lean toward same thing they said for the same reason. But don't have any real claim to have an opinion on it.
(even though it's C code and not python)
atomic summit
Kinda off-topic, but kinda not... Anyone here using BigSur? Have you got esptool issues? I'm looking at finally installing BigSur on my Intel iMac and think esptool might be the last thing holding me back, and I cant lose the ability to be able to build and flash CP firmware.
crimson ferry
@atomic summit I've been building esp32s2 on Big Sur. I had a challenging learning curve, but then I'd never built circuitpython (or anything much really) before at all. I think my issues were mainly toolchain dependencies probably not done right at first. But YMMV.
@lone axle thanks, I tend to agree true/false is clearer, but the follow-up question is a tougher call I think... whether to change that (if we have a standard other than "don't care") when making nearby changes in the core... some risk.
atomic summit
@crimson ferry Oh, excellent. So esptool flashes your boards ok? No errors or permission issues? I'm hearing mixed messages about it.
crimson ferry
I haven't encountered any esptool flashing issues. there is at least one other person here using Big Sur... maybe jerryn?
crimson ferry
Is there a more-recent-than-6.1.0-rc.1 reason that would cause IO40 in use on Saola wrover? I don't see any pin changes.
solar whale
@atomic summit Just updated to current main and built/uploaded to feathers2 on My Mac with Big Sur using the latest version of esptool.py. I was having issues with esptool.py on Big Sur (some conflict with pyserial) , but it is working now that I upgraded to v3.0 (pip3 install --upgrade esptool)
thorny jay
@atomic summit as an alternative, the Web version of esptool worked great for me on Windows+Chrome. But I did not test on my Mac Mini, and for whatever reason I am not proposed to migrate to Big Sur (I don't know if I should be happy from that or if it mean I will not get any update anymore because my mini is too old).
solar whale
I just tried the Web Version https://learn.adafruit.com/adafruit-magtag/web-serial-esptool for the first time -- worked great on Big Sur (using Chrome).
ornate breach
@tulip sleet I’m wondering if the OS Errno 5 is due to busio
Someone in #help-with-circuitpython is using dotstar which is raising OS errno 5 and the common thread between mine and some others getting it seems to be busio
tulip sleet
@analog bridge hi - did you get any further with the touch problems, or do you not have any boards that exhibit the issue? tnx
analog bridge
I did a test with .bin after a complete flash erase and still unable to replicate the issue...
tulip sleet
@analog bridge do you have any other ESP32-S2 dev boards (not necessarily ours)?
If I have the same as you, I will try to duplicate, and then you can
i have one each of the ESP32-S2-SAOLA boards, one WROOM and one WROVER, and a couple of UnexpectedMaker FeatherS2's (the latter do show the problem, i have not tried the SAOLA yet).
analog bridge

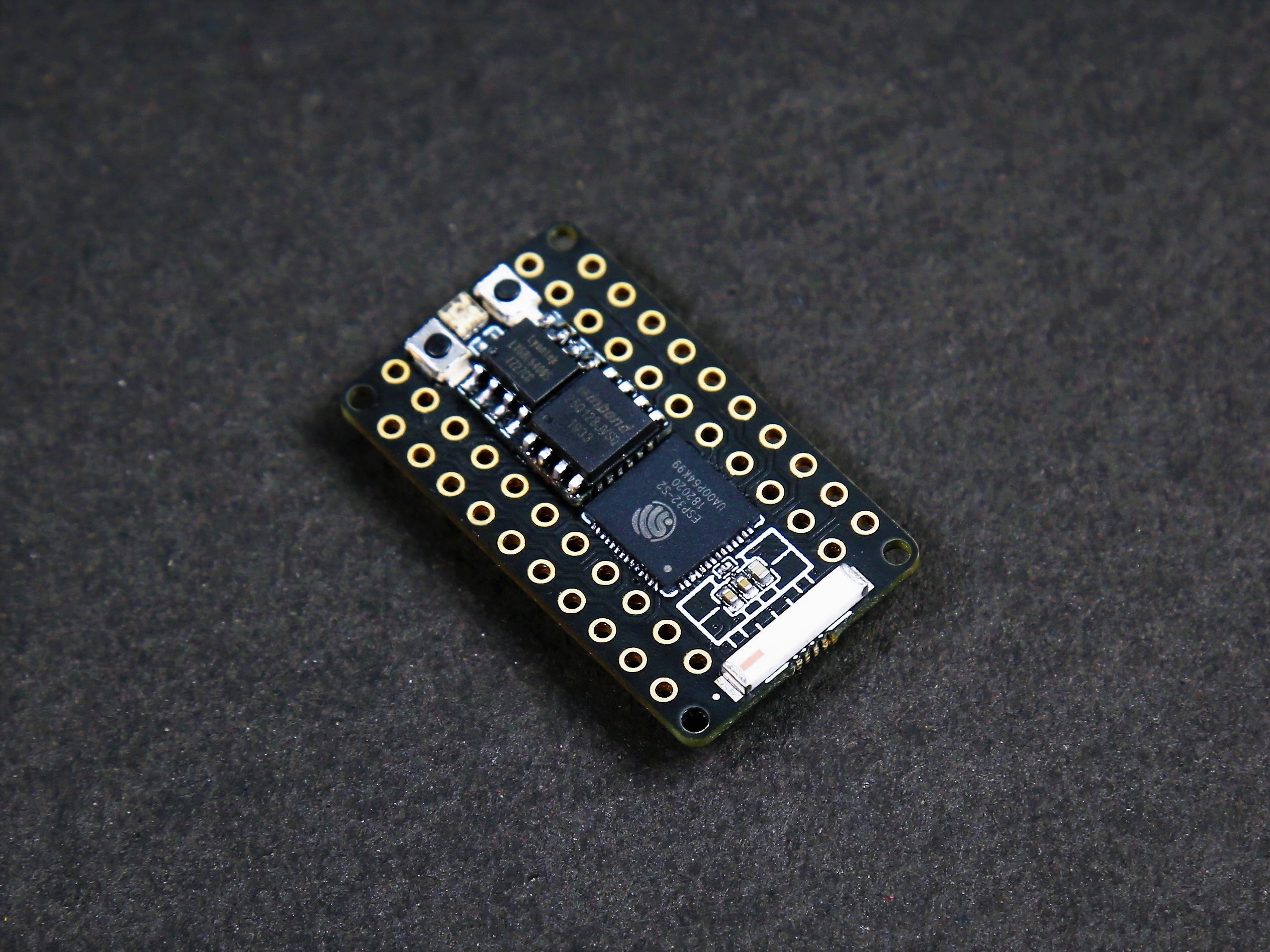

@tulip sleet only microS2's here...
tulip sleet
this is very peculiar 😦 I will take a look at your schematic vs the other boards
tulip sleet
i don't see your schematic
analog bridge
i don't see your schematic
I haven't yet uploaded it...
its based on the reference esp32s2 schematic... very similar to a wrover with different ram and flash chips
tulip sleet
tnx, i will look at the ref. same power supply arrangemetns?
tulip sleet
ok, i'll take a look! not sure I'm going to find anything. I wonder if the larger ram or flash are making a difference (rearrangement in linker map, etc.), but that would be some other underlying bug
actually maybe first thing to do is to try the SAOLA's and see what they do
analog bridge
can you try some different pins that aren't broken out... just touch the module itself
tulip sleet
right, the pin traces on your board are very short, like the module
analog bridge
yes that is what I am thinking
tulip sleet
the only pins not broken out for some purpose are IO45 or IO46, depending on the board. are those usable for touch? They seem to be special-purpose
tulip sleet
hmm, I will try up to IO14 on the FeatherS2: it has the shortest traces compared with the Metro or MagTag
no luck
analog bridge
even stranger thing here is that it worked for you before the touch_init commit which has nothing to do with how the touch sensors are read
tulip sleet
the code order was slightly different there: the pin was inited before the touch_pad initialization routines were called
ok, it's not the trace length, because in 6.1.0-beta.1, IO5 on the Metro ESP32-S2 works fine as touch:
>>> t = touchio.TouchIn(board.IO5)
>>> t.raw_value
12155
>>> t.raw_value
65535
untouched and touched above
analog bridge
can you do a test with touch_pad_config() called just after touch_pad_init() as it was before the commit
tulip sleet
Trying:
void peripherals_touch_init(const touch_pad_t touchpad) {
ESP_LOGI("touch.c", "touch_inited: %d", touch_inited);
if (!touch_inited) {
touch_pad_init();
}
touch_pad_config(touchpad);
if (!touch_inited) {
touch_pad_set_fsm_mode(TOUCH_FSM_MODE_TIMER);
touch_pad_fsm_start();
touch_inited = true;
}
}
the above would mess up on the second pin, maybe
Ha!
>>> import touchio,board
>>> ta = touchio.TouchIn(board.IO5)
>>> ta.raw_value
14382
>>> tb = touchio.TouchIn(board.IO6)
>>> tb.raw_value
11915
>>> ta.raw_value
14794
i am baffled about why it would be different FOR YOUR BOARD, though
analog bridge
i am baffled about why it would be different FOR YOUR BOARD, though
same here
analog bridge
Trying:
```c
void peripherals_touch_init(const touch_pad_t touchpad) {
ESP_L...
this is the same sequence of calls as in idf touch example
tulip sleet
maybe it does a calibration really early, but does it differently in the other order, and your short trace lengths make a difference. You could adding a "trace" to one of your pins with a longer wire
also maybe nearby ground plane makes a diff
analog bridge
I get smaller raw_values in 3000 range
tulip sleet
that makes sense, without a trace
have you mounted any of your boards on a carrier board (with a ground plane)
or if no ground plane, at least that's a test
i just mean a ground plane past the outside pins. E.g. attach a 4cm wire to to one pin, see the readings with the code in the newest order, and then add a ground plane under the wire (like a coin, etc.)
i have no idea if the ground plane makes a diff, just thinking about parastic capacitances
ideally i would like you to be able to reproduce the issue
analog bridge
yep, with a wire attached, I get 65535
@tulip sleet thanks for looking into this one strange bug... I think you can PR it since you already have the changes.
tulip sleet
i am going to look into the lower-level stuff to try to understand this in a little more detail. Thanks for the testing - it now all makes sense
i don't understand why the second pin should not be wrong, since it's set up after the other calls
onyx hinge
Good morning <@&356864093652516868> -- this is a friendly reminder that there is NOT a meeting today, as the US is observing Martin Luther King Jr. day. The meeting will be tomorrow, 24 hours after the usual time. We hope you'll join us!
turbid radish
?serverinfo
digital shoreBOT
adafruit
turbid radish
Yup! We'll need new graphics for that milestone
thorny jay
maybe it does a calibration really early, but does it differently in the other o...
@analog bridge I don't know if it is related, but in my test with using the MagTag button as touch pin, I had very different sensibility!
tulip sleet
@thorny jay I forgot that! I will try again on the MagTag with beta.1, and see what is different with my fix
tulip sleet
@thorny jay I just tried 6.1.0-beta.1 on the MagTag again. That is the original version of TouchIn(). On D10, the only pin that would work, even with nothing plugged in, I get 65535 for the raw_value.
There is a zener (and resistor) connected to the pin. That would add a lot of capacitance, I think.
So I am not sure why you saw touchio working on the magtag. The buttons work, for sure.
Adafruit CircuitPython 6.1.0-beta.1 on 2020-11-20; MagTag with ESP32S2
>>> import board,touchio
>>> t = touchio.TouchIn(board.D10)
>>> t.raw_value
65535
@thorny jay if you could test with beta.1 on your board, that would be great. I tried it with nothing plugged in and with a JST three-jumper assemblyu plug about 6" long
thorny jay
<@!681528999520108564> I just tried 6.1.0-beta.1 on the MagTag again. That is th...
I tested on the button pin... D15, D14, D12 and D11. One of them cannot be used because it is not touch capable. The sensiblilty on the 3 left was variable, some will react on touch, other will react just because your are close to the button. The fun part was for a button to react even before you click it. Those might be the only pin where touch is possible on the MagTag. 🙂
tulip sleet
ah, ok! I would not have expected you to try that. We were just talking about this with Limor and she hadn't planned anyone to use touch on the board. If you can hack it with the buttons, sure!
>>> t = touchio.TouchIn(board.BUTTON_B)
>>> t.raw_value
12698
I wanted to do wake on touch with button because wake on pin was not working for me. Wake on Pin was not working because I was not using the right syntax.
tulip sleet
in the sleep guide I am using an example on the Metro ESP32-S2 instead of the MagTag for touch sleep
thorny jay
The MagTag is a "PreCog" and know you want to press the button...
thorny jay
ah, ok! I would not have expected you to try that. We were just talking about th...
If a new version of a MagTag (or anything similar that could be plug on the Fridge) I would suggest to Limor to include a sensing mechanisme to know if this is attach to the fridge. That could be by having one of the feet to be a pin and assume that magnetic feet conductivity and assume the touchio will detect the difference (it will also detect when you touch the feet). Or maybe there is condictivity from one feet to the other across the metal of the fridge (but not all fridge are equal). I have the attached that I need to test on my fridge:
idle owl
@gilded cradle To be clear on this PR, the entire import section you removed is not used? https://github.com/adafruit/Adafruit_CircuitPython_PyPortal/pull/102/files
gilded cradle
@idle owl correct. The relevant code is already inside https://github.com/adafruit/Adafruit_CircuitPython_PyPortal/blob/master/adafruit_pyportal/peripherals.py
idle owl
Ah ok, excellent. I'll approve it then.
gilded cradle
thanks
idle owl
Pylint is complaining about my use of global. Google searching seems to indicate the solution is to write a class with init and so on, and objects in it to avoid using the global keyword. That seems..... like way too much for beginner code. Should I try to do the acrobatics needed to not use global or simply pylint: disable= ?
Also, the "things" available in a module, e.g. randint in random, are called functions? Or is there another word for that.
onyx hinge
random.randint is a function
idle owl
Excellent, thank you
onyx hinge
personally I favor judicious use of "global" in simple examples. It's not appropriate for "big programs", but that's a subjective judgement.
idle owl
Is random.randint(5, 10) considered an "object"?
onyx hinge
OTOH we do have that pylint diagnostic enabled in Learn, and most of those are intended to be simple beginner-appropriate programs
idle owl
Right
onyx hinge
The part of the program that says random.randint(5, 10) is a call to a function. The result of calling the function would just be a number or an int
idle owl
hmm ok
onyx hinge
(a "function call" I think people say more than "a call to a function")
idle owl
That's how I worded it.
Ok, I'll disable Pylint in this case.
Thank you for all of that!
onyx hinge
it's only opinions
idle owl
Still useful.
thorny jay
What, what? A year before your reminded me of that game of yours, I made a PR for the game. This is so long ago that I did not remember! https://github.com/deshipu/jumper-wire-displayio-pygamer/pull/1
stuck elbow
@thorny jay ah, sorry, I didn't see it, I get so much spam from github because of circuitpython libraries, that I often miss things :(
idle owl
@stuck elbow Do you use Gmail or some variation thereof?
stuck elbow
@idle owl no, I use mutt
thorny jay
I cannot confirm nor deny that this patch was working... and I am totally not offended that you did not react. 🙂
It is fire and forget. I guess I tested the game found a bug, fixed, had fun with the game, forgot. It is fire and forget.
idle owl
@stuck elbow I mean is your email address a Gmail address, or a Gsuite address. I ask because filtering GitHub is a HUGE pain, but I managed to do it pretty thoroughly, and I can share my filters with you, but you have to import them into Gmail on the web. Then they propagate to whatever client you use, or at least they did for me, but I'm using Apple Mail.
stuck elbow
@idle owl no, I have my own domain
idle owl
Ah ok. Figured if I could help, I would. The filters are ridiculous because of everything coming from the same address and so on. Took a lot of work, so I offer them up to anyone who could benefit from them.
stuck elbow
I do filter all github mails to a separate mail folder, but that doesn't help with missing pull requests
stuck elbow
thanks
stuck elbow
hmm, I can actually use different addresses, I wonder if I can set which one to use for which org
idle owl
Ooh. That might be handy.
tulip sleet
If a new version of a MagTag (or anything similar that could be plug on the Frid...
i passed that on!
manic glacierBOT
tulip sleet
@idle owl are you (or y'all, whoever) going to do a massive release party for the libraries due to all the Actions changes, or just wait until actual code needs to get changed to make a new release? I ask because I made a docs change in a library and could do a release to update the docs
idle owl
@tulip sleet That's on Dylan's plate to do. We have to do it for any of the library infrastructure checks to be valid, otherwise it shows literally all the libraries as having updates, so we'd miss ones that had critical updates. Release party is planned, yes. If the Actions updates have been merged on the lib you updated, please do a release on it. That would be greatly appreciated.
idle owl
It's a start!
manic glacierBOT
carmine girder
hi @gilded cradle ! About https://github.com/adafruit/Adafruit_CircuitPython_MiniMQTT/pull/56 , I am curious to know if there is a way to "version" a repo like Adafruit_CircuitPython_MiniMQTT, so things like the examples line up with API changes of other repos like Adafruit_CircuitPython_PyPortal/releases/tag/5.0.0. Any thoughts on that?
gilded cradle
Hi @carmine girder, I just usually put something in the release notes about which libraries to be sure are updated.
carmine girder
Hi <@!379823758007074817>, I just usually put something in the release notes abo...
So the release notes would be part of the https://github.com/adafruit/Adafruit_CircuitPython_MiniMQTT repo?
oh, maybe you are referring to what is listed under https://github.com/adafruit/Adafruit_CircuitPython_MiniMQTT/releases
gilded cradle
Right, the releases section
mental nexus
I'm trying to build CircuitPython on MacOS Big Sur and am running into trouble. This may be the same thing that @fiery silo and @marble hornet have fought, but not sure how to resolve it.
margaret@iMac atmel-samd % make V=1 BOARD=circuitplayground_express
GEN build-circuitplayground_express/genhdr/mpversion.h
Creating build-circuitplayground_express/frozen_mpy.c
CC build-circuitplayground_express/frozen_mpy.c
CC ../../supervisor/shared/workflow.c
../../supervisor/shared/workflow.c: In function 'supervisor_workflow_connecting':
../../supervisor/shared/workflow.c:39:12: error: implicit declaration of function 'tud_connected'; did you mean 'tud_connect'? [-Werror=implicit-function-declaration]
39 | return tud_connected() && !tud_suspended();
| ^~~~~~~~~~~~~
| tud_connect
../../supervisor/shared/workflow.c:39:12: error: nested extern declaration of 'tud_connected' [-Werror=nested-externs]
cc1: all warnings being treated as errors
make: *** [build-circuitplayground_express/supervisor/shared/workflow.o] Error 1
I get the same error when trying to build on the ATMEL-SAMD or the ESP32-S2. I am on the 6.1.x version of CP.
Here's my info on gcc:
margaret@iMac atmel-samd % brew info gcc
gcc: stable 10.2.0 (bottled), HEAD
GNU compiler collection
https://gcc.gnu.org/
Not installed
From: https://github.com/Homebrew/homebrew-core/blob/HEAD/Formula/gcc.rb
License: GPL-3.0-or-later with GCC-exception-3.1
==> Dependencies
Required: gmp ✘, isl ✘, libmpc ✘, mpfr ✘
==> Options
--HEAD
Install HEAD version
==> Analytics
install: 129,947 (30 days), 297,882 (90 days), 1,220,682 (365 days)
install-on-request: 62,789 (30 days), 140,465 (90 days), 576,080 (365 days)
build-error: 0 (30 days)
And here is my arm version:
margaret@iMac atmel-samd % arm-none-eabi-gcc --version
arm-none-eabi-gcc (GNU Arm Embedded Toolchain 10-2020-q4-major) 10.2.1 20201103 (release)
Copyright (C) 2020 Free Software Foundation, Inc.
This is free software; see the source for copying conditions. There is NO
warranty; not even for MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.
Based on this page, for compiling 6.1x, this should be the right ARM toolchain:
https://learn.adafruit.com/building-circuitpython/linux
dry axle
Hello, has anyone successfully done quaternion multiplication in CircuitPython? If so, how?
I ask because I’m looking to translate orientation data from a BNO085 to gimbal Euler angles for a robot arm.
mental nexus
I haven’t figure out how to downgrade my compiler. I thought the latest tool chain was the right one for building CircuitPython 6.1. And I thought I saw in your conversation from last week that someone was using the same gcc version as I’m running. Did I miss some important detail from that conversation?
I think it was @glossy pecan that said he got it to compile.
tulip sleet
@mental nexus did you update the submodules? The gcc version should be fine.
it looks like you don't have the latest tinyusb, for example
git submodule sync --quiet --recursive && git submodule update --init
i have that as an alias
mental nexus
Thanks Dan, that did the trick. Looking back at the the instructions I see that I overlooked this step. Thanks for the quick help! Sorry for not following the instructions close enough.
manic glacierBOT
hearty tapir
<@!586300798980587537> Do you see any issue if <https://github.com/adafruit/circ...
I don't see any issue with that. I'm currently caught up with work and some other issues, thus the late response.
simple pulsar
Hello ESP32-S2 crowd. I'd be interesting if any of you have feedback on that new Nordic power meter. I was thinking of getting one but there's a discussion in Nordic forums querying how it behaves wrt prior version: https://forums.adafruit.com/viewtopic.php?f=58&t=174161 (I meant to put that in CircuitPython forum as that seems to be where the low power stuff is going on at the moment).
carmine girder
Hello ESP32-S2 crowd. I'd be interesting if any of you have feedback on that new...
hi @simple pulsar I'm not sure if this helps, but @slender iron did an awesome talk on Nordic Power Profiler II on his Dec/17/20 Deep Dive: https://youtu.be/aOWp1GwT7Fs?t=3249
idle owl
@gilded cradle Hey! Any chance you can take notes for today's meeting? I might have a conflict pop up in the middle of it.
gilded cradle
Sure @idle owl. Thanks for reminding me. I almost forgot about the meeting.
idle owl
@gilded cradle So did Jeff and he's running it 😄 Thank you so much!
gilded cradle
yw
onyx hinge
<@&356864093652516868> We're looking forward to seeing you in the weekly meeting which is moved to TODAY about 75 minutes from now. If you have notes for me to read, please add them to the shared document at https://docs.google.com/document/d/1ot6JhwSdWspo-Do-nZko8hasQn_gIGYaRAQNkfpLQdo/edit?usp=sharing. If you plan to speak, please add your name as a placeholder (and ask to be added to <@&356864093652516868> if you haven't been already) OR let me or @gilded cradle know and we can add you to the document. Otherwise, if you're not in the document I'll assume you're just listening in. See you in the CircuitPython voice channel a bit before 2PM ET for mic checks -- remember to check that your mic is muted after joining, and keep it muted except when you're actively speaking.
analog bridge
I am trying to figure out how a MESH module would with be implemented...
since there are several different ways to setup a mesh network ble-mesh, wifi-mesh, zigbee-mesh...
all of these have similar functionality but defer when it comes to setup parameters... any ideas?
idle owl
I wrote code, but I'm struggling to explain it. And also, wondering why another iteration of it works. Actually, as I'm typing this out, I think it's starting to gel. I think it's a form of debounce in essence.
onyx hinge
@idle owl I'll be prepared to do the state of the libraries if you are otherwise occupied. The main thing is, the 226 pull requests were mostly .. what exactly? CI improvements?
I don't know your spiel about contributing, though, so that part will be lackluster 🙂
idle owl
@onyx hinge Appreciate it. We updated Black to the latest, and updated the licensing format. The Black update was the most important part of that. Folks should update their local Black if they were running an earlier version.
import board
import digitalio
pir = digitalio.DigitalInOut(board.D10)
pir.direction = digitalio.Direction.INPUT
initial_value = pir.value
while True:
pir_value = pir.value
if pir_value:
if not initial_value:
print('Motion detected!')
initial_value = pir_value
``` The bit I'm struggling to explain is the need for `initial_value` and checking the comparison. Why is it needed? But am I right in thinking it's basically debounce? To keep the serial console from spamming the message for the entire time the signal line is triggered?I would say that it helps you react only to the "rising edge" of the signal from the PIR sensor.
onyx hinge
when the value goes from False to True or True to False is an 'edge', which makes sense when you draw the signal over time as a graph like _____|‾‾‾‾‾‾‾|______
idle owl
Right
onyx hinge
if you printed just when pir_value, then you would print the whole time the signal is high, but this way it prints just once
onyx hinge
debounce is different than this, so I wouldn't use that term here
idle owl
I don't think I would have used it, but I was trying to grasp it. I think I use "debounce" to mean keep things from spamming responses. Which probably isn't right.
onyx hinge
debounce helps get just one "action" when the value changes rapidly, like ____|‾|_|‾‾‾‾‾‾‾‾|_____
idle owl
Ahhhhhh
onyx hinge
the small period of being False gets filtered out when you "debounce". "Bounce" happens especially in mechanical switches.
onyx hinge
happy to help! I hope someone else would interject if I was not using the terms accurately
Feel free to join the voice channel for mic checks, I'm hanging out and finishing up the notes doc
manic glacierBOT
simple pulsar
Some guides cover debounce: https://learn.adafruit.com/make-it-switch/debouncing and https://learn.adafruit.com/debouncer-library-python-circuitpython-buttons-sensors - it's becoming more relevant as boards get faster and code which seemed ok on CP on SAMD21 now misbehaves a bit when users press buttons
analog bridge
I am trying to figure out how a `MESH` module would with be implemented...
since...
making this an into-the-weeds topic... though I won't be able to stay till the end
modern wing
Good afternoon -- happily lurking, notes doc updated.
slender iron
@tidal kiln did you do the tides project? https://forums.adafruit.com/viewtopic.php?f=60&t=174180
