i think that has the right emphasis
#circuitpython-dev
idle owl
is the reason I considered but did not choose it as the first.
Yeah I thought that too
Ok
Pin Names it is. Thank you.
blissful pollen
Pin Names sounds good to me, when I was learning more I am almost certain I googled that term before when I was trying to find out is A2 = D2 or something (not knowing it didn't really matter)
idle owl
Thank you for the feedback! Working for someone like you is what really matters with this.
@atomic summit Are you perhaps around?
@tulip sleet I want to include a sentence explaining why the pin names changed. Can it be summed up in a sentence or is that a whole thing in itself?
tulip sleet
the long answer is that we don't want to support our own Board Support Package on Arduino, and theirs uses the GPIO names which can't be changed. The short answer is probably that the names match the Arduino names.
idle owl
I mean a few sentences would also be fine. But I don't want to head down a rabbit path.
alright
I'll go with the short answer there then.
The four people who ask for the long answer, we can just tell them.
And the use of IO instead of D? To fit with standard ESP pin naming? or?
tulip sleet
or to say, the names match the Arduino NUMBERs. We are not using names starting with D because they would be in different possitions from the standard Metro/Arudino shaped boards, and that would be really confusing. Or you could just say that the "IO" prefix matches the ESP32-S2 standard (removing "GP" to save space)
idle owl
Or because it's a different map than previous metros so we wanted it to be clear so we changed the API.
ok
Got it.
I think I can work with that.
Might still have you preview it when I'm done.
tulip sleet
calling it the "API" is a stretch, I wouldn't use that name. It's "like" an API.
manic glacierBOT
solar whale
How often to the 6.0.x updates get merged into main?
onyx hinge
@solar whale not on a particular schedule.
solar whale
@onyx hinge Thanks!
lone sandal
idle owl
@slender iron Does the J-Link work with the ESP32-S2?
slender iron
the debug plug is a JTAG port (not SWD)
idle owl
oh
slender iron
it doesn't work with JLink software but you can use OpenOCD with JLink hardware to connect
idle owl
Alright
slender iron
the debug plug is the same physically but the pins are for JTAG instead of SWD. SWD is an ARM CPU specific thing
idle owl
Wait, the connectors are called SWD though. The ones that solder into that space.
oh
I see
slender iron
the connector itself is just 2x5 1.27mm pitch
slender iron
ya, same connector
on the left you can see the "SWD pinout" but the / show the alternative use for JTAG
idle owl
ah
idle owl
ok
tulip sleet
@slender iron are you suggesting PR 3639 would fix the SSL hanging problem, or just that it needs to be tested?
tulip sleet
sorry, not hanging failing
slender iron
it should reduce the memory footprint of SSL connections
blissful pollen
@slender iron I could rename the busdevice library, but is there a way to handle the fact I2CDevice is now not in a separate file (adafruit_busdevice.i2c_device.I2CDevice where i2c_device.py existed)?
If its possible I can look into how to do it just don't want to chase the impossible by accident
slender iron
@blissful pollen ah! take a look at microcontroller.pin. it is possible internally
tulip sleet
@solar whale I am confused about what canonical examples I should be using on ESP32-S2 to test requests. Are you using ones that you cooked up, or are there some examples floating around? Thanks.
@slender iron same q could be addressed to you, if you have some examples. The ones in examples in the requests library are not suitable, it appears, even the "cpython" ones, because they use socket.
slender iron
you can convert any esp32spi examples to the s2 pretty easily
tulip sleet
but they are mostly using the legacy API, right?
solar whale
this ahs been my usual test ```mport ipaddress
import wifi
import socketpool
import time
import adafruit_requests
import ssl
#import espidf
#import gc
#print("cp mem free", gc.mem_free())
#print("idf total mem", espidf.heap_caps_get_total_size())
#print("idf mem free", espidf.heap_caps_get_free_size())
#print("idf largest block", espidf.heap_caps_get_largest_free_block())
for network in wifi.radio.start_scanning_networks():
print(network, network.ssid, network.rssi, network.channel)
wifi.radio.stop_scanning_networks()
print(wifi.radio.connect("ssid", "password"))
print("ip", wifi.radio.ipv4_address)
ipv4 = ipaddress.ip_address("8.8.4.4")
print(ipv4)
print("ping", wifi.radio.ping(ipv4))
pool = socketpool.SocketPool(wifi.radio)
requests = adafruit_requests.Session(pool, ssl.create_default_context())
response = requests.get("http://wifitest.adafruit.com/testwifi/index.html")
print(response.status_code)
print(response.text)
response = requests.get("https://httpbin.org/get")
print(response.status_code)
print(response.json())
print()
response = requests.get("http://worldtimeapi.org/api/ip")
print(response.status_code)
print(response.json())
print()
response = requests.get("https://api.github.com/repos/adafruit/circuitpython")
print(response.status_code)
print("circuitpython open issues", response.json()["open_issues_count"])
print("circuitpython stars", response.json()["stargazers_count"])
print("done")
ya, but the new requests api isn't that different, it's just on an object
pool = socketpool.SocketPool(wifi.radio)
requests = adafruit_requests.Session(pool, ssl.create_default_context())
that's the critical bit
solar whale
the last one used to take a very long time -- 60 seconds or more -- but getting much better -- just about to test PR3639
tulip sleet
ok, thanks! I thought https was not working at all
solar whale
I was , but has not been working for me lately
tulip sleet

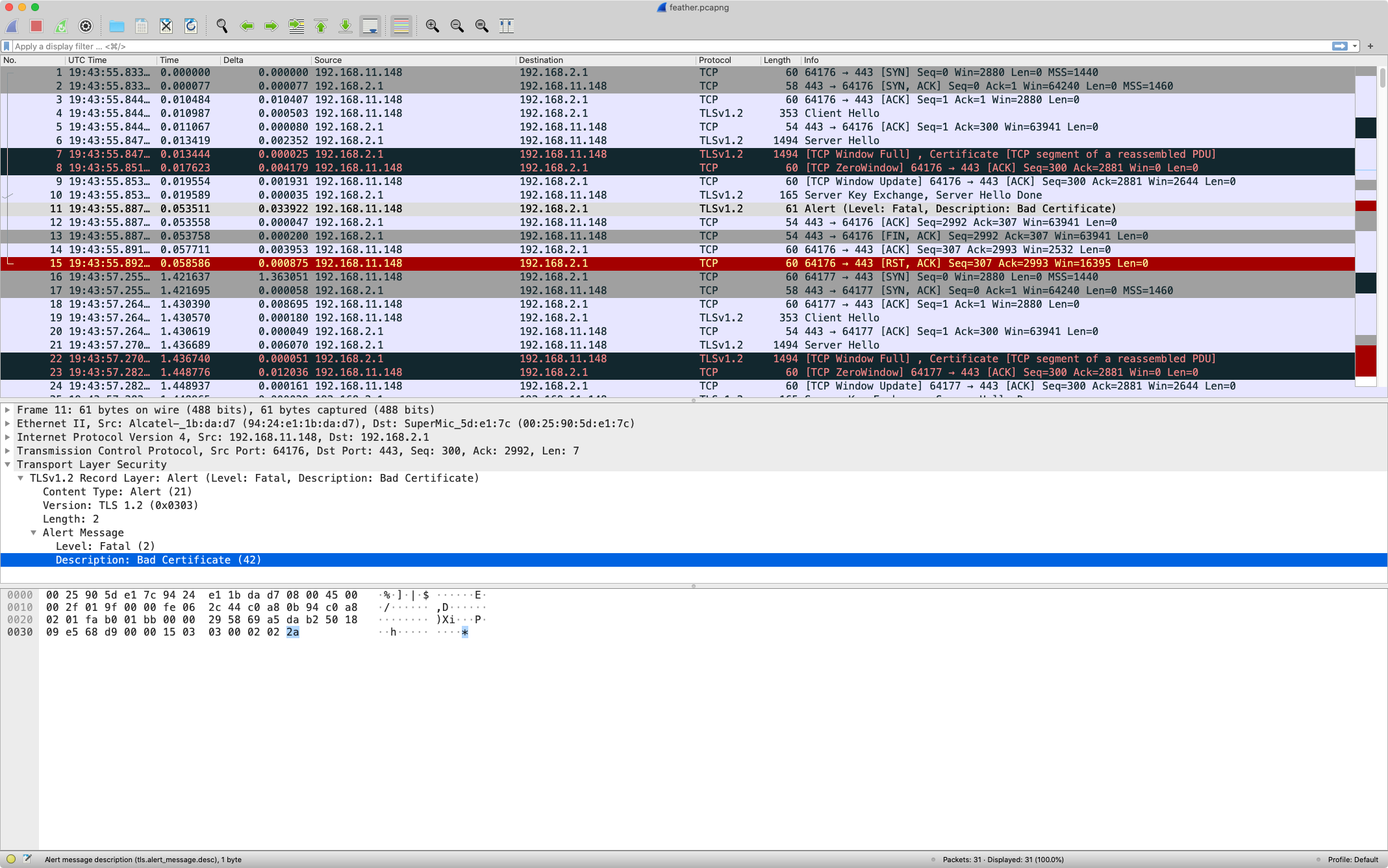

eg. I am getting "Failed SSL handshake"
solar whale
welcome to the club
tulip sleet
so mayb 3639 fixes that or maybe not, and I can try Scott's idea of setting the date/time to something reasonable.
solar whale
somee https work -- seom don't ```ress any key to enter the REPL. Use CTRL-D to reload.
Adafruit CircuitPython 6.1.0-alpha.0-185-g7441344c6 on 2020-11-03; Metro ESP32S2 with ESP32S2
import wifi_test
<Network> Needell Airport -57 6
<Network> Needell Airport -47 1
<Network> WYZE_FBAB62DE71811B38 -68 11
<Network> central2.4 -80 8
<Network> 31A -81 8
None
ip 10.0.0.30
8.8.4.4
ping 0.055
200
This is a test of Adafruit WiFi!
If you can read this, its working :)
200
{'url': 'https://httpbin.org/get', 'headers': {'User-Agent': 'Adafruit CircuitPython', 'Host': 'httpbin.org', 'X-Amzn-Trace-Id': 'Root=1-5fa19b3e-20a0aede2bda0b7b3b22cc46'}, 'args': {}, 'origin': '73.61.89.123'}
200
{'timezone': 'America/New_York', 'utc_datetime': '2020-11-03T18:02:40.067080+00:00', 'raw_offset': -18000, 'client_ip': '73.61.89.123', 'dst_from': None, 'unixtime': 1604426560, 'utc_offset': '-05:00', 'datetime': '2020-11-03T13:02:40.067080-05:00', 'week_number': 45, 'abbreviation': 'EST', 'day_of_year': 308, 'day_of_week': 2, 'dst': False, 'dst_offset': 0, 'dst_until': None}
Traceback (most recent call last):
File "<stdin>", line 1, in <module>
File "wifi_test.py", line 53, in <module>
File "adafruit_requests.py", line 555, in get
File "adafruit_requests.py", line 535, in request
File "adafruit_requests.py", line 429, in _get_socket
File "adafruit_requests.py", line 425, in _get_socket
OSError: Failed SSL handshake
failing on this one ```response = requests.get("https://api.github.com/repos/adafruit/circuitpython")
this used to work with an older requests library
So I don't think it isthe certificates.
umbral dagger
Any low level folks have input on (erase_filesystem freezing) https://forums.adafruit.com/viewtopic.php?f=59&t=171373&p=837044#p837044
slender iron
@tulip sleet can you do download counts for the new release or need me to?
slender iron
I think two weeks would be fine. I also have the s3 files from rc.0 so I may not have too much to download
tulip sleet
I will download and concat the previous months. It's nice we're on a month boundary almost
slender iron
๐
solar whale
these https requests all work with PR3639 ```TEXT_URL = "https://httpbin.org/get"
JSON_GET_URL = "https://httpbin.org/get"
JSON_POST_URL = "https://httpbin.org/post"
print("Fetching text from %s" % TEXT_URL)
response = https.get(TEXT_URL)
print("-" * 40)
print("Text Response: ", response.text)
print("-" * 40)
response.close()
print("Fetching JSON data from %s" % JSON_GET_URL)
response = https.get(JSON_GET_URL)
print("-" * 40)
print("JSON Response: ", response.json())
print("-" * 40)
response.close()
data = "31F"
print("POSTing data to {0}: {1}".format(JSON_POST_URL, data))
response = https.post(JSON_POST_URL, data=data)
print("-" * 40)
json_resp = response.json()
Parse out the 'data' key from json_resp dict.
print("Data received from server:", json_resp["data"])
print("-" * 40)
response.close()
json_data = {"Date": "July 25, 2019"}
print("POSTing data to {0}: {1}".format(JSON_POST_URL, json_data))
response = https.post(JSON_POST_URL, json=json_data)
response = https.post(JSON_POST_URL, json=json_data)
print("-" * 40)
json_resp = response.json()
Parse out the 'json' key from json_resp dict.
print("JSON Data received from server:", json_resp["json"])
print("-" * 40)
response.close()
solar whale
hmmm if I run this request first -- it works response = requests.get("https://api.github.com/repos/adafruit/circuitpython") print(response.status_code) print("circuitpython open issues", response.json()["open_issues_count"]) print("circuitpython stars", response.json()["stargazers_count"]) ```Press any key to enter the REPL. Use CTRL-D to reload.
Adafruit CircuitPython 6.1.0-alpha.0-185-g7441344c6 on 2020-11-03; Metro ESP32S2 with ESP32S2
import wifi_x
<Network> Needell Airport -58 6
<Network> Needell Airport -44 1
<Network> WYZE_FBAB62DE71811B38 -71 11
<Network> central2.4 -84 8
<Network> 31A -84 8
None
ip 10.0.0.30
8.8.4.4
ping 0.037
200
circuitpython open issues 336
circuitpython stars 1886
done
when it was third, it failed with SSL handshake error ...
Order makes a big difference -- now after some https requests succeed I get ```Traceback (most recent call last):
File "<stdin>", line 1, in <module>
File "wifi_test.py", line 47, in <module>
File "adafruit_requests.py", line 555, in get
File "adafruit_requests.py", line 535, in request
File "adafruit_requests.py", line 440, in _get_socket
espidf.MemoryError:
This is with PR 3639
idle wharf
Watched the deep dive last night, great overview of the NTP stuff @slender iron. When we were talking about it in the github issue, I didn't realize you were thinking about NTP being added to core vs updating the adafruit_ntp library which I had in my original description. I should have asked about that earlier. Is your UDP branch suitable for trying out with the new NTP changes, or do you have more work to go there?
solar whale
@slender iron I'm pretty confused.... Now that I am getting very different behavior depending on the order in which I do https requests, should I be posting to the issue under PR 3639 or the Request Library ... or somplace else.
slender iron
@idle wharf I haven't even tried to compile my udp branch. I'm hoping to hand it off and try and focus
but getting sucked into esp32spi debugging today
@solar whale the PR or a new issue
idle wharf
@slender iron That's what I needed to know. It failed to build for me, but if you've not gotten that far, then I should wait.
manic glacierBOT
atomic summit
@idle owl I'm here now (6am here)
idle owl
@atomic summit Oi! I had the wrong country entirely. I was wondering how you did your fancy pinouts diagram for your FeatherS2.

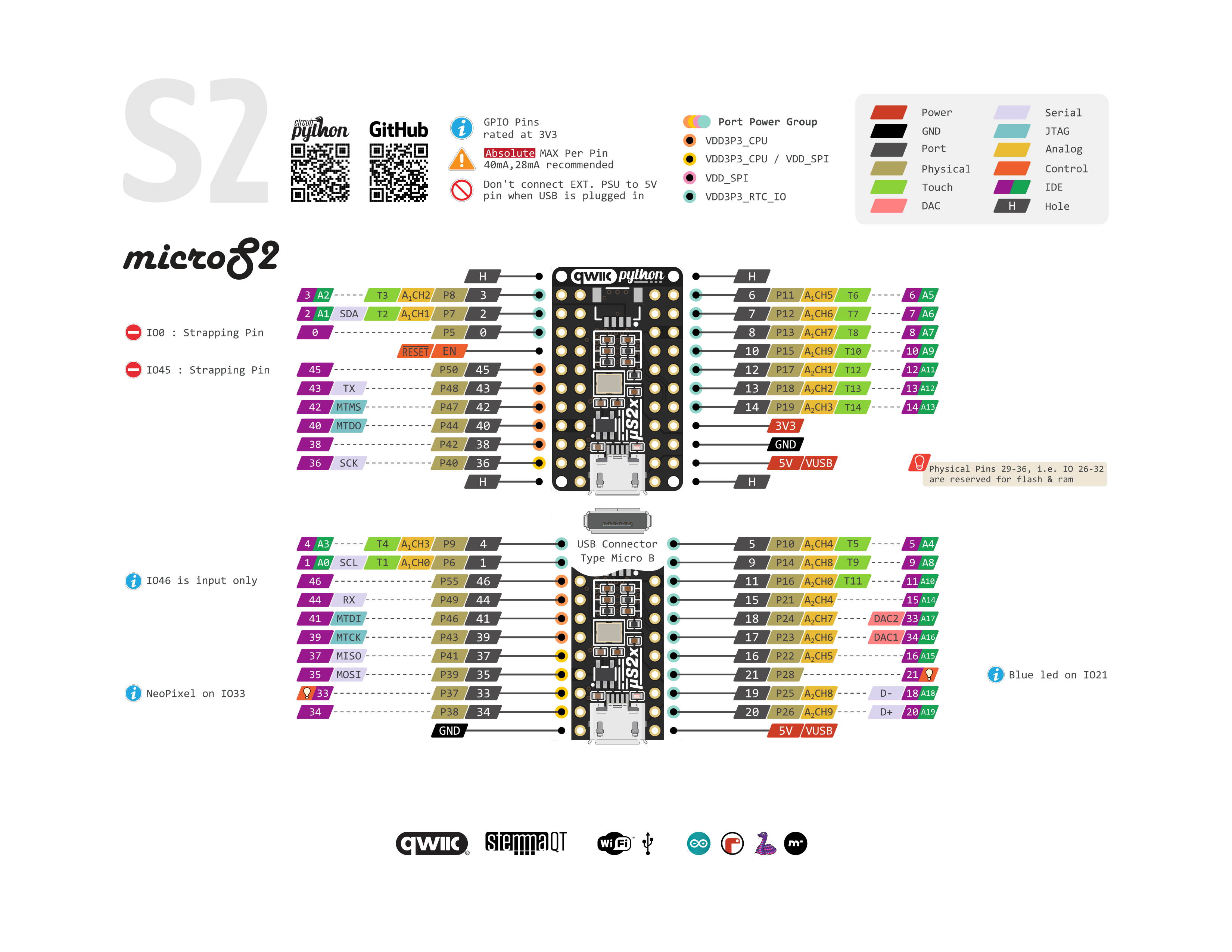

atomic summit
I make them by hand in Affinity Designer, which is a vector app for Mac and Windows.
idle owl
Wow. Ok. Well done, you, then ๐
I feel less bad that I've been doing this one by hand then.
atomic summit
I wish there was an app for it, or an easier way, but there isn't ๐ฆ
idle owl
I thought you might have some kind of automation or program that did it for you.
atomic summit
Nope ๐ฆ
idle owl
I don't know how to do vector stuff, so I'm in photoshop. ๐
It actually doesn't look half bad, but yours is way better.
atomic summit
Ok. Issue with doing it as a bitmap is it wont scale/resize properly. Like if you want to go from screen DPI to print etc.
idle owl
Yeah I know. I realise that.
This isn't meant to be a full diagram, it's meant to show the CircuitPython pin names.
atomic summit
Though Photoshop does have some basic vector tools, so try to use those for shape primitives if you can. That will help.
idle owl
I started with the SVG from the Fritzing I made for it and then went from there.
So that was the size I began with. Because I also don't know how to export an SVG other than whatever size Illustrator decided it was.
This is super basic. Rectangles and text.
thorny jay
you can convert any esp32spi examples to the s2 pretty easily
@slender iron @tulip sleet Here is the ministry of silly creative idea... is it possible to connect an AirLift Feather Wing to a ESP32S2 Feather and alternatively use build-in Wifi or AirLift Wing Wifi to compare the behaviour? (feel free to discard)
atomic summit
Ok. I'm happy to do a pass over it once you have the info in place ๐
idle owl
@atomic summit I'm not quite finished yet but here's what I have so far.
slender iron
@thorny jay ya, you should be able to connect both
idle owl
Need to add the I2C, SPI and UART singletons next to their respective pins.
atomic summit
That looks great! well done!
idle owl
Thanks! I really appreciate that.
Downside is that screenshot is 100% the size, so no zooming. But like I said, it's not meant to be one of the giant diagrams.
Learned about linking layers though. Figured that out on my own. So I levelled up my Photoshop skills today I guess. ๐
@atomic summit Anyway, thanks. I'll ping you when it's done for another set of eyes, though Limor will give it a look as well.
@tulip sleet Are these boxes three different colors to you?
thorny jay
I am sure there are "filter" to check how various colorblindness see colourfull image. There is more than one kind of this.
idle owl
I know. The color combos are endless and managing to compare them to all possible concepts is difficult. I usually ask Dan regardless.
thorny jay
Are you still using MISO and MOSI?
idle owl
Yes, but when spelled out we use something like Microcontroller In/Serial Out or Sensor Out depending on the situation.
thorny jay
Ok
crimson ferry
@thorny jay yes https://twitter.com/anecdat/status/1279504611792031746
thorny jay
I just noticed how MISO/MOSI look like a mirror when looked reverse way:
@thorny jay yes
@crimson ferry Maybe you need some of this https://www.adafruit.com/product/4254
crimson ferry
I have a few ๐
idle owl
@slender iron I know the I2C, UART, SPI "pins" in CircuitPython are singletons, but is there another less jargony name for them? Or is that simply what they are and we should be explaining it that way.
slender iron
I don't know of one. the idea is that the object is created the first time you access it and then returned forever more
idle owl
Ok. Thanks
ionic elk
@slender iron I've been crash coursing on UDP/IP this morning, but I'm still pretty new to the python end of things. If I were to try and think about how to test your UDP code, where would I start?
Do we have any examples for Socketpool yet I can try?
tulip sleet
@idle owl I canโt see the difference between the blue and purple at all really. I am red insensitive so the addition of red in the purple doesnโt change much. More people are green insensitive
idle owl
Fair enough.
slender iron
@ionic elk this is the example I'd try: https://github.com/tannewt/Adafruit_CircuitPython_NTP/tree/raw_ntp
ionic elk
so that was all from 2019? How does that work?
slender iron
I don't know what you mean.
ionic elk
or I guess only the UDP part is this year, sorry, I'm just trying to figure out where in the process I'm jumping in
I mean we didn't have any ESP32 in circuitpython last year so I'm confused as to when and why this was written
slender iron
when what was written?
ionic elk
The NTP library.
slender iron
it was originally done for ESP32SPI
ionic elk
ah
ionic elk
So have you already modified this code to work with native UDP on the ESP32-S2?
or does that all need to be modified in
slender iron
I modified it to use UDP in CPython
ionic elk
ok
slender iron
manic glacierBOT
bronze shadow
I'm advertising an nrf52840 device as both a uart device, and a hid device. The name advertises correctly on the HID, but the name on the uart advertisment is None. Is this just an unsupported configuration, or is this a possible bug?
slender iron
def _get_socket(self, host, port, proto, *, timeout=1):
key = (host, port, proto)
if key in self._open_sockets:
sock = self._open_sockets[key]
if self._socket_free[sock]:
self._socket_free[sock] = False
return sock
if proto == "https:" and not self._ssl_context:
raise RuntimeError(
"ssl_context must be set before using adafruit_requests for https"
)
addr_info = self._socket_pool.getaddrinfo(
host, port, 0, self._socket_pool.SOCK_STREAM
)[0]
retry_count = 0
sock = None
while retry_count < 5 and sock is None:
if retry_count > 0:
if any(self._socket_free.items()):
self._free_sockets()
else:
raise RuntimeError("Out of sockets")
retry_count += 1
try:
sock = self._socket_pool.socket(addr_info[0], addr_info[1], addr_info[2])
except OSError:
continue
connect_host = addr_info[-1][0]
if proto == "https:":
sock = self._ssl_context.wrap_socket(sock, server_hostname=host)
connect_host = host
sock.settimeout(timeout) # socket read timeout
try:
if not sock.connect((connect_host, port)):
sock = None
except MemoryError:
sock = None
self._open_sockets[key] = sock
self._socket_free[sock] = False
return sock
@bronze shadow you should be able to do a single combined advertisement
bronze shadow
I'll see if that works in my codebase, but I was unaware. Thanks!
I've stopped advertising HID and am only using UART. Example code is
self._ble.name = 'test'
for adv in self._ble.start_scan(ProvideServicesAdvertisement, timeout=20):
print('Scanning')
if UARTService in adv.services and adv.rssi > -70:
print(adv.__dict__)
That print is returning {'data_dict': {6: b'\x9e\xca\xdc$\x0e\xe5\xa9\xe0\x93\xf3\xa3\xb5\x01\x00@n', 1: b'\x06'}, '_rssi': -58, 'connectable': True, 'mutable': False, 'address': <Address REDACTED>, 'flags': <AdvertisingFlags object at 20027300>, 'scan_response': False, 'adv_service_lists': {2: <BoundServiceList object at 20027900>}}
Advertising side looks like this
self._ble.name = 'test'
self._uart = UARTService()
advertisement = ProvideServicesAdvertisement(self._uart)
self._ble.start_advertising(advertisement)
Devices do connect, but I don't see a name in the __dict__ and it returns None as you would expect.
lapis hemlock
@onyx hinge Jeff, I have just realised that for the circuitpython checks on github, we would have to set the NUMPY_COMPATIBILITY constant to 0. Is it OK, if I modify the workflow file? https://github.com/v923z/micropython-ulab/blob/ecd24e9702801f53244627362800a6318fdfde46/code/ulab.h#L30
analog bridge
@idle owl I can help you with the pinout diagram for the metro... would like to point you to the pinout diagram that I created for my microS2.
idle owl
@analog bridge I just finished doing up the one I was doing ๐ That does look lovely though. How did you do it?
I managed to scale it properly so now it's at least huge and zoomable.
analog bridge
I am using Inkscape and Adobe Illustrator
idle owl
@atomic summit @tulip sleet If you could give this a look for accuracy, I would appreciate it. LMK if you need a bigger version.
@analog bridge I am completely lost when it comes to Illustrator. I can edit things fairly well, but creating new things is a massive struggle for me.
analog bridge
Are you working with svg ?
idle owl
The board image was an SVG, I exported it as a PNG so I could use it in Photoshop.
So this all started in Illustrator. It did not continue there. ๐
idle owl
It's the SVG used for the Fritzing object.
For what it's worth, this will work for our current needs. I wouldn't want to do a full pinouts diagram like this though. This was simply to show the CircuitPython pin naming scheme we chose.
analog bridge
@analog bridge I am completely lost when it comes to Illustrator. I can edit things fairly well, but creating new things is a massive struggle for me.
@idle owl I feel it.
I think I made mine too huge... would be reducing dpi used for png export.
idle owl
This is also massive now that I figured out scaling the original SVG. Will need to bring it down for export as well.
Otherwise I imagine the Learn system might choke on it. ๐
topaz schooner
Got lucky enough to grab a couple QT-Py's. One needed a code reload - the neopixel was cycling, and I could get the BOOT directory, but the CIRCUITPY directory would not come up, nor would it connect with Mu (even though logs say Mu saw it). So I went to download the latest .uf2 and 6.0.0 Beta was the only one listed on the QT-Py page. That went fine, but I lost the demo code that comes with it. Anyone know if that demo code is available somewhere?
tulip sleet
@topaz schooner it's a bug that only beta is on the download page. I'll check on that, sorry.
you can get it from https://adafruit-circuit-python.s3.amazonaws.com/index.html?prefix=bin/qtpy_m0/
faint delta
hi. is it okay to make and sell end-user products with circuitpython ?
onyx hinge
@lapis hemlock I think we'd like the CI steps to be the most like building ulab inside circuitpython as possible
tulip sleet
@topaz schooner I am seeing 6.0.0-rc.1 on the download page: https://circuitpython.org/board/qtpy_m0/
@faint delta are you selling a development board, or a purpose-built thing (like a thermostat or something)? It's open-source software, liberally licensed, so you can do what you want with it. We have some requests about how you'd use the nam CircuitPython if you were make that name visible.
lapis hemlock
@lapis hemlock I think we'd like the CI steps to be the most like building ulab inside circuitpython as possible
@onyx hinge That's OK, but we still have to set theNUMPY_COMPATIBILITYflag. If you'd like, we can have a separateulab.hheader file forcircuitpython. That is a clean solution.
By the way, sorry for hijacking the "In the weeds" section yesterday. I didn't realise how long it went.
onyx hinge
@lapis hemlock why not do it the way we do for many other things, #if !defined(SYMBOL) #define SYMBOL (DEFAULT_VALUE) #endif so that we can add our preferences as -DSYMBOL=OUR_VALUE in CFLAGS?
faint delta
@tulip sleet it's for the next version of a product that's already out on the market. my dad is asking me to build it. his previous version didn't have a microcontroller. he's adding one and asking me to write the code, so i am trying to make sure it's alright. couldn't find a FAQ or anything about this, but i get this feeling like it can't be this easy ?
tulip sleet
well, if you expose CIRCUITPY, then someone could mess with the code you're writing, etc. Depends on the product, but it might be too easy to break. Or, if it's user-servicible, then maybe making it easily accessible is good.
idle owl
@tulip sleet @slender iron I finished the CircuitPython Pin names diagram so the documentation Limor expected to accompany our decision is thorough and completed ๐
lapis hemlock
@lapis hemlock why not do it the way we do for many other things,
#if !defined(SYMBOL) #define SYMBOL (DEFAULT_VALUE) #endifso that we can add our preferences as-DSYMBOL=OUR_VALUEin CFLAGS?
@onyx hinge we could do this. But won't it get long? I mean, if you want to define all your symbols on the command line, then it might become a nightmare...
onyx hinge
apparently our CFLAGS are about 3.5kB, for some atmel-samd board
faint delta
that's what im thinking, @tulip sleet , the latter (user serviceable). i want the users to have as much freedom as possible, which circuitpython gives me, even over Arduino IDE approach (which suffers the same "gut feeling" i mentioned). I think as long as I can deliver working solution without risking security, and the customer (my dad in this case) is ok with the ability for competitors to look at the code, then there is no problem. would this be correct?
tulip sleet
Yes, it's fine. You could use a custom build of CircuitPython that doesn't expose CIRCUITPY (and doesn't act as an HID keyboard, etc.), but leave the bootloader there, with a reset button. If your code needs to be updated, someone could load a regular version of CircuitPython via UF2, expose CIRCUITPY, put in the new code, and then put back the non-CIRCUITPY version
lapis hemlock
@onyx hinge I really don't want to convince you, but we could just include a separate header, if CIRCUITPY is defined. Either way is fine with me.
tulip sleet
or if it's not meant to plug into USB most of the time, then it doesn't matter
faint delta
@tulip sleet i love that idea. yes it's not meant to even be plugged into USB, but curious users can tap into a usb port inside (not sure 100% on new hardware, but you get the idea) with simple instructions and play around. i appreciate the answer!
bronze shadow
If you only need to prevent modification to the code, and not hide the code, you could also use boot.py to mount it as read only (so the device itself can write to disk) but the host OS couldn't.
onyx hinge
@lapis hemlock a #if CIRCUITPY section is fine for us too
if we ever decide we DO want to vary some things on a per-board basis, though, we'd need to be able to do it via CFLAGS. We can deal with that when the need arises.
lapis hemlock
if we ever decide we DO want to vary some things on a per-board basis, though, we'd need to be able to do it via CFLAGS.
@onyx hinge This is actually a good point.
faint delta
interesting, circuitpython sounds so flexible. so we're okay to ship products with it. what an amazing future if our devices could just be plugged in and there's the code, in python ๐
tulip sleet
"The right to repair (or hack)"
If/when you do come out with something, let us know and we'll put it in the newsletter, etc.
faint delta
will do, he's in a hurry, so will be soon. i wish the NFC feature was implemented on the itsybitsy nrf52840
but ill find another way to pair a pair of those securely i guess
i figured if i can get this authorization, the USB access to the code.py is indeed an out of band place to share a secret ๐
ionic elk
@analog bridge paused from my other work and gave gpio_reset_pin a spin on a couple of basic tests. Would welcome any testing help if you're interested.
slender iron
@tulip sleet have you built nina recently?
when I run make firmware it's prompting me to set a bunch of configuration
tulip sleet
@slender iron I built it to build the 1.7.1 release. I had various issues like that when the env was not set up perfectly, I think.
slender iron
the two IDF variables seem right
tulip sleet
i have a python2 virtualenv set up, and before I do a build, I source this script for myself:
export IDF_PATH=$HOME/bin/esp/esp-idf
export PATH=$HOME/bin/esp/xtensa-esp32-elf/bin:$PATH
source ~/bin/py2/bin/activate
PS1="(esp) $PS1"
ah, my python was 3.8
tulip sleet
the esp-idf is 3.3.1. Both this and the ESP32-S2 build put stuff in ~/.espressif
not sure if they conflict
~/bin/py2 is my virtualenv for python2
sounds like you may have it. This was a big headache to get right
tulip sleet
I set up the virtualenv, then I ran the install script in esp-idf to pip stuff into that py2 virtualenv
slender iron
@tulip sleet ok, trying it again with a python2 venv but still getting the config thing
tulip sleet
i start with make clean, let me try that. Might have to do make menuconfig, for no good reason.
blissful pollen
@slender iron If I rename the busdevice to match the existing library should I change all the filenames, etc. to be "adafruit_bus_device" too?
(I think I have to but still not 100% sure how all this QSTR stuff works yet!)
tulip sleet
@slender iron it worked for me after I sourced my script above and did a make clean
slender iron
@blissful pollen yes please. it'll work without but it's clearer if they match
@tulip sleet looks like it's going after a make menuconfig
tulip sleet
๐คท I find it bizarre
tulip sleet
yah, I submitted a PR for that
slender iron
kk
tulip sleet
miniesptool, right?
slender iron
yup
tulip sleet
also I put the md5sum in the release notes
slender iron
gonna use it now
tulip sleet
why don't we just calculate the md5sum in miniesptool? There's hashlib
we could calculate it on the fly
tulip sleet
hashlib is batteries included; doesn't need to be installed
I"ll open an issue for that
tulip sleet
oh, sorry, I didn't realize that
i thought it was a substitute for esptool.py, not the passthrough
well, i created the branch without making a PR. Just made a PR
analog bridge
@ionic elk I can start tests on interrupt and touch based modules.
orchid basin
manic glacierBOT
silent cove
I added a french layout for Adafruit_CircuitPython_HID with an example
https://github.com/usini/Adafruit_CircuitPython_HID/tree/fr
Test : https://twitter.com/m4dnerd/status/1323997253007278081
Twitter
onyx hinge
@silent cove neat! I hope you'll make a pull request for it
manic glacierBOT
balmy stirrup
@prime flower will there be updated adafruit_io_mqtt and adafruit_io_simpletest.py with examples to work with the esp32-s2 rather than just the adafruit_esp32spi? Thanks in advance.
thorny jay
I added a french layout for Adafruit_CircuitPython_HID with an example
https://github.com/usini/Adafruit_CircuitPython_HID/tree/fr
Hey @tulip sleet after the German keyboard, you now have a France-French keyboard that want to get into HID. You even have a PR for that. I believe it is time to open the gate or find the proper way to accept such internationalisation. It should be easy for me to do a Belgian-French keyboard (yes there is such a thing) https://github.com/adafruit/Adafruit_CircuitPython_HID/issues/53 (Merci beaucoup monsieur @silent cove)
cursive condor
hello here. I'm studying the best way to animate shapes. say a mix between display_shapes and led_animation. So I read the source code and I see a way, but I need advice on the viability of the solution. If I make a subclass of Rect with all the _pixbuffer methods (and internal maths to translate that to the palette and bitmap of the shape), and then pass it to any led_animation object, will it work ? is there any other more obvious way to do something like that ?
manic glacierBOT
prime flower
@balmy stirrup There should be, I may put time aside today or tomorrow to test with an ESP32-S2 Metro
cursive condor
(I'd love the outline of a rect to be animated like a circular RGB strip...)
balmy stirrup
@prime flower sounds great if you get some working code and would like me to test I can help.
I have my Metro ESP32-S2 ready to go.
manic glacierBOT
slender iron
@gilded cradle is this the json bug you fixed yesterday? https://forums.adafruit.com/viewtopic.php?f=60&t=171427
gilded cradle
Let me check what's on 378
@slender iron It's a different error that I fixed yesterday
slender iron
haha, great!
ionic elk
@slender iron is there an issue with having peripherals files have the same name as a HAL source file? when including the .h it requires using the peripherals/src.h name. But on other ports, HAL files tend to have a prefix (hdl_adc.h, nrfx_adc.c, stm32fxxxxxx_adc.c), so this is a new case
I named the peripherals/rmt file rmt.c and it didn't impact compilation. Is there a best practice here?
manic glacierBOT
slender iron
@ionic elk I think the rmt.c style is fine
manic glacierBOT
idle owl
@slender iron What's the UF2 for the ESP32-S2 on circuitpython.org?
gilded cradle
@slender iron, I just ran into this on absolute latest for CircuitPython:
You are in safe mode: something unanticipated happened.
CircuitPython core code crashed hard. Whoops!
MicroPython NLR jump failed. Likely memory corruption.
Is that a known issue?
That's on a Feather M4 Express.
I don't know, nothing seems corrupt, so maybe nothing to worry about. I think it came about because I2C wasn't being reset on reload and I think I recall an open issue for that.
slender iron
@slender iron What's the UF2 for the ESP32-S2 on circuitpython.org?
@idle owl We don't have a single file for that yet. It's on my TODO list for this week
idle owl
Fair enough.
slender iron
@slender iron, I just ran into this on absolute latest for CircuitPython:
You are in safe mode: something unanticipated happened. CircuitPython core code crashed hard. Whoops! MicroPython NLR jump failed. Likely memory corruption.Is that a known issue?
@gilded cradle I've seen reports of this with dual exceptions happening
@idle owl I've been sucked into ESP32SPI/Requests issues
idle owl
@lone axle Do you have a Feather Sense?
lone axle
I do
idle owl
Actually it doesn't matter. @lone axle Are you up for updating another lib folder screenshot for me? it's lsm6ds again.
lone axle
Yep for sure.
idle owl
https://learn.adafruit.com/adafruit-feather-sense/feather-sense-circuitpython-libraries The final screenshot and info isn't up to date.
I think we made you an editor so you can edit all guides, yes?
lone axle
Yep that is true. Just double checked as well and it does let me get to the editor. I can update that tonight with a new screenshot and info
idle owl
Great! Thank you so much!
slender iron
@tulip sleet you around?
tulip sleet
@slender iron I am here but am just about to eat dinner. I'll be back in 15 minutes or so
slender iron
k, np
tulip sleet
@slender iron all done
slender iron
I was going to ask you to build a new nina for me but I think I have a workaround
the ssl connections don't close automatically on failed write
write has no similar check
so the new requests leaks memory
tulip sleet
is that a bug? or are you allowed to retry? does a non-ssl connection do anything similar?
tulip sleet
interesting comment here: https://github.com/arduino/nina-fw/issues/30#issuecomment-665712900 (not ssl)
given the low number of issues in the repo, maybe people are just doing very simple things, and are not recovering on error
slender iron
ya, that's my guess too
tulip sleet
you are not using WifiSSLCLient.cpp, is that right? So this is a behavior difference between SSL and non-SSL in the firmware? Should we be filing a bug on esp-idf??
slender iron
I'm debugging ESP32SPI so I am using it
tulip sleet
ah ok, I thought this was the ESP32S2 requests library issue. So does our Python library need to do the same thing?
slender iron
it is possible our native code has the same issue
but I can only debug so much at once ๐
tulip sleet
why would be getting write errors in the typical case, though? (and why did you see it?)
slender iron
they happen when we try to reuse an old socket
reusing sockets is new in requests 1.7
tulip sleet
got it
slender iron
the old version would just close right away
tulip sleet
i also don't understand why you are having build troubles. maybe at some point we can exchange local repo trees and compare
slender iron
I did manage to build but it didn't seem to work correctly
tulip sleet
@slender iron Did you mean you had a comment on https://github.com/adafruit/circuitpython/pull/3624 about how I'm checking for USB? I couldn't find a comment, but I must be looking in the wrong place.
slender iron
ah, it's pending
tulip sleet
@slender iron missed your msg above. Too tired to talk sleep ๐ ๐ค but will catch you tomw
lone axle
How does the PyPortal Pynt build get made? it's listed on the downloads page but seems to be missing from ports/atmel-samd/boards/
tulip sleet
@lone axle it is just an alias for the PyPortal build. The UF2's are identical.
lone axle
Ah, thank you
manic glacierBOT
haughty holly
Matrix portal
meager fog
@ionic elk hihi
slender iron
@gilded cradle you around today and want to test my requests/esp32spi changes?
gilded cradle
thanks, I'll give it a try as soon as I finish up the guide I'm working on.
cursive condor
so ... I managed to have a rect as argument for a led_animation blink()... it's very rough, but my new class make a rect behave (enough) like a neopixel stripe ๐
no question here (for now), just a public hurray before I test the other animations. ๐
ionic elk
@meager fog Hi, what's up?
ionic elk
D:
ornate breach
I've been waiting to use that GIF for a long time
ornate breach
lol
I'm sure she just has another grand quest for you
๐
(lucky! ๐ )
hehe...
ionic elk
Discord is tough for me because I have lots of non-work friend message traffic on it, so I don't want to enable it on my phone, but I also miss work messages sometimes which is no good
ornate breach
it's too bad you can't mute those conversations and have notifications for specific people available
ionic elk
well, it's also just the temptation. I keep pretty strict device hygiene.
ionic elk
You should try my off-work project lol. It's a box that makes you check out your distraction devices and screeches at you if you don't return them on time
ornate breach
hahaha, sounds like something my whole house needs
analog bridge
does autoreload on save call module specific deinit functions ?
ionic elk
@analog bridge typically no, just module-wide reset_all
Almost no functionality I've encountered calls a de-init, I've only ever seen it in user code
They aren't required for soft reboots because the entire heap is reset
(unless they have a never_reset, of course. You'd have to poke Scott or Dan about the details, I'm a little fuzzy)
idle wharf
Since the libraries and tools don't show up here, thought I'd mention that the combo of PRs for Circup #40 & #41 look good to go.
I wanted to ask about something else circup related.
I was playing around on my brand new MetroS2 and which did not have a /Volumes/CIRCUITPY/lib folder. Without that folder, circup install fails... we could fix that in circup, but I wonder if CP builds should create an empty lib folder since the general guidance is to put libraries in that place.
slender iron
@idle wharf I think the lib folder should be auto-created. there is a bit of weirdness with the flash though that is also causing some folks to see NO NAME
my guess is that they're related issues
lone axle
I noticed that my Metro ESP32-S2 shows up with the storage space as it's name
as opposed to
bronze shadow
It's not shown on all linux file explorers. If you check with command line tools, they are still correct on Linux as a heads p.
idle wharf
I see CIRCUITPY on my mac... with the MetroS2
I'll do a PR to circup so install won't fail if people delete /lib
gilded cradle
@onyx hinge was it you who wrote sdcardio?
onyx hinge
@gilded cradle yup, what's up?
gilded cradle
I'm trying to use it on PyPortal, but am getting spi in use (probably due to the display). Do you know a workaround?
onyx hinge
you mean with the pyportal lib?
gilded cradle
Um, no. I was trying to use it outside of it. Perhaps I'm doing it wrong?
onyx hinge
oh right because the board constructs the display automatically
what code would you write to use the adafruit_sdcard?
gilded cradle
I was just trying to mount it.
import sdcardio
import storage
sdcard = sdcardio.SDCard(board.SPI(), board.SD_CS)
vfs = storage.VfsFat(sdcard)
storage.mount(vfs, "/sd")
is the error when you call board.SPI() ?
maybe separate it out to 2 lines for clarity
gilded cradle
Ok, I think it's because PyPortal is already mounting it. I think you pointed me in the right direction.
Thanks
onyx hinge
https://github.com/adafruit/Adafruit_CircuitPython_PyPortal/blob/4ffb7bfe11c1e514d25177b1752da4e429e64d99/adafruit_pyportal.py#L70 looks lke current pyportal version is using sdcardio if available, adafruit_sdcard otherwise
gilded cradle
Yeah, I see the code now. I just missed it in the huge amount of code. Thanks
Probably should have searched first
onyx hinge
you're un-stuck? good!
gilded cradle
yeah, I believe so
I'm just going to use it through the library.
Yeah, totally unstuck
onyx hinge
weirdly another friend of mine just asked me a pyportal question. I really wish I could get them to join this discord and get help in #help-with-circuitpython !
but you know how it is when you're someone's personal support ๐
simple pulsar
@idle owl For the images of file system trees for libraries in the guides, has there been any discussion on generating those with some javascript magic? That would make it easier and quicker to update them - it could generate both Mac and Windows look
onyx hinge
I'm seeing weirdness on my metro esp32s2 ... it doesn't actually import an import, and then it reboots itself. ```
Adafruit CircuitPython 6.0.0-rc.1 on 2020-11-03; Metro ESP32S2 with ESP32S2
import adafruit_ahtx0
adafrui_ahtx0
Traceback (most recent call last):
File "<stdin>", line 1, in <module>
NameError: name 'adafrui_ahtx0' is not defined
import adafruit_ahtx0
[tio 16:03:16] Disconnected
and now it's made my host computer's usb lock up
the NameError was a typo on that run but even if I get the name "right" it's a NameError
adafruit_ahtx0.mpy is from the latest 6.x bundle, as is adafruit_busdevice. I didn't copy adafruit_register so maybe an importerror is occurring but is being obscured?
tulip sleet
@onyx hinge maybe try erasing the filesystem and recopying, in case there is some corruption (people are not seeing CIRCUITPY but some unnmaed drive).
@slender iron we could discuss deep sleep sometime in the next few hours if you're available
slender iron
@tulip sleet how about in 15 minutes? Just wrapping a late lunch
onyx hinge
no change with a fresh filesystem (storage.erase_filesystem()) and if I make sure adafruit_register is copied (not sure if important). ```Press any key to enter the REPL. Use CTRL-D to reload.
Adafruit CircuitPython 6.0.0-rc.1 on 2020-11-03; Metro ESP32S2 with ESP32S2
import adafruit_ahtx0
adafruit_ahtx0
Traceback (most recent call last):
File "<stdin>", line 1, in <module>
NameError: name 'adafruit_ahtx0' is not defined
import adafruit_ahtx0
[tio 16:15:59] Disconnected
[tio 16:16:01] Connected
Auto-reload is on. Simply save files over USB to run them or enter REPL to disable.
Press any key to enter the REPL. Use CTRL-D to reload.
it's not entering safe mode either, it's rebooting in normal mode
tulip sleet
@slender iron sure, ping me. I am going to get a 3d print started
slender iron
Kk
tulip sleet
just reading the relevant issues
lone axle
@simple pulsar do you mean creating "fake" ones that look like file browsers but are actually HTML / CSS rendered pages?
Or something more like seeing the real list of files but inside of a web browser or and then screenshot it?
I'm thinking must be the former the more I think about it. That is a nifty idea. It could parse a JSON list and generate the folder / file icon automatically based on whether that item has .mpy at the end.
Is there any functional difference (or preference within our code style) between importing things with uppercase letters on the module?
from adafruit_lsm6ds.LSM6DSOX import LSM6DSOX
vs.
from adafruit_lsm6ds.lsm6dsox import LSM6DSOX
I would have expected only the latter to work since the name of the file is lsm6dsox.py but it seems that both do work correctly.
onyx hinge
@lone axle FAT filesystem is case insensitive, but you should try to use the way the filename appears on GitHub or on a host computer
cursive condor
Everything is working ... I'm quite proud XD
you draw a rect and use it like a neopixel strip.
I plan to make the whole kit of shapes, with lines also.
and I hope it can be integrated to the matrixportal object, like the scrolling text label to animate everything smoothly
lone axle
This looks awesome! thank you for sharing it. I am going to play around with it here in a little bit.
cursive condor
there is a lot of work left to do, but the PoC is here ๐
thorny jay
there is a lot of work left to do, but the PoC is here ๐
@cursive condor I still need to study your code to understand that, but this seems great. I am interested in using palette to do something similar. Basically you draw an image, but you use each palette index as a neopixel and change it's color.
I am using that to make a number of big square each with individual addressable color: https://github.com/dglaude/CircuitPython_ContactScanner/blob/main/not_as_scanner_clue_wip.py
cursive condor
yes I use the palette, because my shape is an indexed BMP, after all. my goal was to be able to animate the ball or the goal of my maze game for matrixportal, so the object used must be a tilegrid I can add to a displayio group
long story short, here you have animated shapes (anisha), any help is welcome ๐
and I must say a lot of the code is copied from various libs from adafruit. I just made the links between 2 of them
lone axle
@cursive condor do you know what could be causing the "No more color available" error?
I get that from comet, rainbow_sparkle, and chase. Not with blink though that one is working.
cursive condor
you can set the colors argument when you initialize the Arect object
with 128 colors it's ok for all the animations of the full example
lone axle
I am trying to run it through my PyGameDisplay for Blinka_Displayio (admittedly outside the scope of what you've built it to run on ๐) I am getting that error even with color=128
there must be something different about how Blinka_Displayio is handling the colors or something
cursive condor
try 256
cursive condor
of course
lone axle
I notice the all of the prints except index 0 and 1 are the same. They are all:
106 : {'transparent': False, 'rgb888': 0, 'rgba': (0, 0, 0, 255)}
0 and 1 are like this:
0 : {'transparent': True, 'rgb888': 0, 'rgba': (0, 0, 0, 0)}
1 : {'transparent': False, 'rgb888': 16384, 'rgba': (0, 64, 0, 255)}
strange ... so the problem is that self._palette_index() does not find the color when it search the palette
but it can find it when it's not initialised (return 0 == 0x000000 == BLACK)
lone axle
Could be a difference in python possibly as well. I am running with CPython 3.8.5 I'll poke around the _palette_index() and see if I can figure out why it's not finding the colors.
cursive condor
if the palette object behave differently, perhaps is there a method to get the index from color directly ?
lone axle
Is this how the its supposed to look?
cursive condor
not exactly ๐ฆ
lone axle
I'm thinking something in my matrix configuration may have gotten out of whack or something.
it should be full unbroken rectangle right?
cursive condor
how a Rect (without the A) is showing with the same dimensions ?
yes it should be a square, 30x30 stroke=2
lone axle
Alright now it's okay
my matrix portal had gotten slightly unplugged. The 2x8 was not as snug as it should be.
This is really cool!
cursive condor
yeah, but I dont like the corners when stroke > 1
I'm sure I can do better (reminds me of the turtle lib, on several sides)
lone axle
some of these would make really great "frames" to use around the edge of the display with other information inside.
lone axle
oooh nice
cursive condor
I see also "loading bars" or "waiting animations"
lone axle
Thank you for creating this and sharing it ๐
cursive condor
among an infinity of possibilities
๐
did you see you can use the whole rect as a "line" of pixels, (with animation_mode args to horizontal or vertical) instead of being circular ?
not tested yet, but I don't see why this would not work
punching off, good night ! TY @lone axle for the test ๐
lone axle
see ya. and you bet, thanks again for sharing!
slender iron
@tulip sleet https://lowpowerlab.com/guide/currentranger/
solar whale
Does the feather_m0_basic ship with a UF2 bootloader?
stuck elbow
I have some that shipped with the bossa bootloader, but they are old
in fact, I bricked one trying to switch the bootloader to uf2
solar whale
That is my concern -- trying to respond to a Forum question
lone axle
This may be a good 'in the weeds' topic. A lot of new folks who are new to displayio are getting some of their earliest experiences with a Matrix Portal now instead of PyPortal, PyGamer etc.. devices with more traditional screens.
Many of the existing examples for displayio in guides and library repos use board.DISPLAY which won't work on the Matrix Portal.
Are there any thoughts on whether we want to include extra examples tweaked to work with Matrix Portal, or keep them in the same file with comment/uncomment chunks? Or is there some other generalized technical approach that could allow examples to work on both without the end user having to worry about it if they don't want to?
tidal kiln
the guide talks about built-in vs. external displays, but that's separate from the examples
maybe look at updating the guide to better explain that? add boiler plate for RGB matrix?
using the Matrix Portal library, it's pretty easy
from adafruit_matrixportal.matrix import Matrix
matrix = Matrix( stuff )
display = matrix.display
I have a week off next week, in second wave confinement... and I was checking if I could revive my work on PM25. I would like a review of https://github.com/adafruit/Adafruit_CircuitPython_PM25/pull/8 and know if something is expected from me in this PR.
I am a bit lost on what is the status.
tulip sleet
@slender iron a master's thesis, in Flemish, on power meters: https://www.kuleuven.be/campussen/campus-brugge/bestanden/masterproeven/ict/mp-b3175v-u0080670-0674157-declerck-stijn-55365593.pdf
btw, Monsoon meter is discontinued
thorny jay
Flemish. I am Belgian, I might be able to partially understand that!
tulip sleet
Google Translate is my friend :). I have been translating select pieces
The most interesting thing about it at the moment is the list above, which is more comprehensive than anything else I've seen
the Nordic device is quite nice for the price, but unfortunately the first three devices only go to < 100ma, and the ESP32S2 can draw much more than that, especially when transmitting wifi
cursive condor
So I have my shape animated. now I'm testing the group animations, turn out I can manage 4 shapes, with around 10 animations for each. more animations give a memory error. And the rainbow* ones requires the most memory...
but they are not sync, as I only supported "direct write" to the shapes, and I wonder how I can mimic the write() behaviour...
double buffering seems wasting a lot of memory...
tidal kiln
@lone axle are the examples being used the ones shown in the displayio guide? or from somewhere else?
lone axle
@tidal kiln in this case it was an issue filed referencing an example in the display_text library: https://github.com/adafruit/Adafruit_CircuitPython_Display_Text/issues/95
there are similar examples in display_shapes, adafruit_imageload, adafruit_progressbar and perhaps some others.
cursive condor
mmmmm progressbar ? I missed that
tidal kiln
i think it would be good to update the displayio guide
for the examples, it's tricky. a trade off of keeping the example clean vs. a bunch of commented out stubs for all possible scenarios
similar issue with sensors that can be I2C / SPI and hardware/software versions of each
probably should at least add code comments to those examples though
# example for use with board with built in display
or some such
lone axle
Yeah, I think I like seperate files for them instead of the comment chunks.
thorny jay
I have a week off next week, in second wave confinement... and I was checking if I could revive my work on PM25.
@thorny jay Thank you to @lone axle that found one more learn guide that depend on PM25.
lone axle
I can work on adding comments to the existing ones and making matrix portal versions of the ones that make sense on that size screen.
tidal kiln
ok. i'll take a look at updating the displayio guide.
could maybe have a new dedicated page that discusses display setup for various hardware configs
lone axle
I wonder if it's worth making up a single page that covers generally "how to convert code from built-in display to matrix portal"
tidal kiln
it could be more general
like how to create the display instance
then the rest of the code should (hopefully) just work
lone axle
Yeah, I think it will help out if we can try to consistently use a display variable in examples. It can be set to board.DISPLAY for devices with built-in.
tidal kiln
yah, that could help also
lone axle
isntead of referencing board.DISPLAY directly throughout the example. I am definitely guilty of this. But with a variable it will make it much easier to swap back and forth.
tidal kiln
yep. and easier to understand.
display =
the right hand side needs to be whatever for your setup (guide would cover that)
gilded cradle
@slender iron let me know when you're back online and we can work on testing/debugging requests and esp32spi.
tidal kiln
but then can just use display in same general way in rest of code
# use built in display
# see guide (url maybe?) for setting up external displays
display = board.DISPLAY
yep. Nice! I like the idea of linking it there in the examples.
tidal kiln
or even more informative?
# use built in display (PyPortal, PyGamer, PyBadge, CLUE, etc.)
# see guide for setting up external displays (TFT / OLED breakouts, RGB matrices, etc.)
want to bring this up at the next in-the-weeds? suggest above. see if there is general consensus, etc.
lone axle
@tidal kiln yep will do. I'll add it to the notes doc in a moment.
slender iron
@gilded cradle I'm at my desk now
gilded cradle
Cool, me too @slender iron ๐
slender iron
@gilded cradle do we want esp32spi to work on its own?
the OSError 23 will cause a retry with the newest requests
gilded cradle
Do you know if there are any instances where it doesn't use requests?
gilded cradle
Yeah, possibly. It would be nice if the esp32spi still worked with requests 1.6.0 until we have a solid fix in place.
I haven't tested it out, so it may work at the moment.
slender iron
it may be the change of RuntimeError("No sockets available") to OSError(23)
if the calling code only tests for RuntimeError
gilded cradle
Yeah, that was my concern with backwards compatibility.
gilded cradle
Like can we have newer versions of requests set a flag that causes it to return an OSError and just return a RuntimeError otherwise? Then when we have a solid fix in place, we can remove the flag.
slender iron
ya, I suppose we could
gilded cradle
I see a new pr you just submitted. I'll give that a try.
slender iron
those are the requests changes
gilded cradle
yeah
I want to see how well these work together. If they seem to be reliable then we probably don't need to worry about the flag option.
Ok, it's getting hung up on a content length missing error (for images). I'm thinking something was fixed and the error is in the pyportal library. Let me see if I can figure out a workaround, but this is looking promising.
@slender iron are the headers getting cleared between calls?
Cause it's returning a json header for the image url.
slender iron
it should be separate response objects
want to screen share with me? I don't have a ton of context about what you are testing with
manic glacierBOT
gilded cradle
Sure, just a sec... as soon as I figure out how.
meager fog
@tidal kiln @ionic elk hihi either of you here?
tidal kiln
@meager fog here now
ionic elk
@meager fog you still on?
manic glacierBOT
thorny jay
"Thanks for the note! We are not currently offering "As seen on show and Tell" Stickers." ๐ฆ
Why is the MagTag (4800) logo (and all the picture from the product) Black and white if that is Grey Scale eInk screen??? The FeatherWing (4777) has an Adabot logo that is grey scale and this is clear in all the picture!
manic glacierBOT
hearty tapir
Tried to figure out what is wrong and now came here to find my own message. ๐ Great! ๐
timber mango
Working on the AdaBox 016 Weather display output ... Had problems with that 'Failed to send' ... Watched Deep Dive yesterday & saw the Request code update ... Loaded fix to my Display & viola, ran all night & still running ... Thanks Scott ... Actually beginning to follow what y'all R talking about in the chat ... (Last coding I did was back n the '80's ... Stopped coding B4 C & follow-ons ... Circuit Python has got me interested again but this Septuagenerian brain is struggling 2 keep up with you young 'whipper-snappers' ! ... lol)
manic glacierBOT
manic glacierBOT
Sorry to hear that you now have the same issue, @jerryneedell, but I think I figured out what is going wrong.
I got lured into believing it is a socket issue, but it is not.
It simply has to do with what the ESP32S2 or CircuitPython believes is a valid TLS certificate. I used my server, that I can reach internally via a different FQDN than external and t...
lime trellis
Hey CP team! Wanted to let you know your hard work is appreciated and does make a difference โค๏ธ At least FOUR spacecraft ๐ฐ๏ธ running CircuitPython (5.4.1) via "PyCubed" boards are launching next month! ๐ ๐
All hardware AND software repos will be public as soon as I get NASA's blessing. In the meantime, here's a teaser pic I put together
manic glacierBOT
manic glacierBOT
manic glacierBOT
lone axle
Is it possible to add print statements in C code in the core and see them get printed out in the serial console?
stuck elbow
yeah, see mp_printf()
lone axle
Thank you
How do I get the value of variables to print? I have code like this:
mp_printf(&mp_plat_print, "setting hidden %s - %s\n", i, hidden);
but print statements turn out like this:
setting hidden ร ร - ร ร
setting hidden ร - ร ร
ah, I see %d fixes the i one I probably need something for booleans on the last one.
stuck elbow
iirc booleans are ints
lone axle
Ah nice, yeah that prints the boolean values for me. Thank you.
I noticed it's much faster to make a build if I don't delete the old build-pyportal (or whatever device) folder. And it does seem that the new UF2s are containing my changes. Is there any reason that I should be deleting that and starting fresh each time? or is it okay to leave it around to cut the build time down
cursive condor
as a long time gentoo user, so compiling a lot, keeping the old build / cache data indeed speeds up the next compilation, and I only know some versions of PHP that were a pain in the *** with make clean mandatory if you change something in the config. so I would say : keep it unless unexpected results occur.
cobalt grail
I was checking out issue 3336 when I discovered this behaviour.
Adafruit CircuitPython 6.0.0-rc.1 on 2020-11-03; FeatherS2 with ESP32S2
>>> import adafruit_bitbangio
>>> import adafruit_bitbangio
Traceback (senaste anrop):
Fil "<stdin>", rad 1
SyntaxError: ogiltig syntax
>>> import adafruit_bitbangio
[Disconnected]
[Connected]```Second attempt to import something already imported gives a nonsense error message, and the third attempt crashes CircuitPython.
manic glacierBOT
lone axle
@idle owl, @slender iron, or @onyx hinge I just realized that I accidentally created and pushed to a branch in the adafruit/circuitpython repo insteado f my own. Very sorry. To the best of my knowledge I did not touch anything in any important branches.
slender iron
@lone axle no worries! We have branch protections enabled for the ones we care about (main and *.x)
hoary hill
Hope this is a correct place to ask: does Sparkfun's Artemis board have CircuitPython support yet, I seem can't find it over circuitpython.org? If not yet, are there plans or anyone working on it? Thank you.
bronze shadow
If you can't find a download, it likely isn't. I don't believe that any ARM M4F boards can run Circuitpython, though porting is of coruse possible.
onyx hinge
@hoary hill The Artemis does not have USB host support, so CircuitPython will not be available for it. (I'm bummed too)
@lone axle do you need one of us to delete that branch for you?
lone axle
I think I can delete it but didn't want to touch anything else until I was sure that is what should be done
Yep, got it deleted with no issue.
blissful palm
Sorry forgive me I haven't been following the UF2 stuff (been tied up in board design), will that bootloader enable CP and Arduino (or C - RTOS) to be booted into from the same Flash on ESP32-S2 ports?
tulip sleet
If you can't find a download, it likely isn't. I don't believe that any ARM M4F boards can run Circuitpython, though porting is of coruse possible.
@bronze shadow The SAMD51 and nRF52840 and other chips we support are ARM M4F.
onyx hinge
If you see JTAG errors (โฆall ones/โฆall zeroes) please check your connections, whether no other signals are connected to JTAG besides ESP32-S2โs pins, and see if everything is powered on.
This is exactly what's I'm seeing. I've got a Kaluga and the only pins connected are 19/20 for native USB. Both built in USB ports are connected (power and usb) and the device works normally (circuitpython on native USB) Any advice?
Open On-Chip Debugger v0.10.0-esp32-20200709 (2020-07-09-08:54)
Licensed under GNU GPL v2
For bug reports, read
http://openocd.org/doc/doxygen/bugs.html
Info : Listening on port 6666 for tcl connections
Info : Listening on port 4444 for telnet connections
Info : ftdi: if you experience problems at higher adapter clocks, try the command "ftdi_tdo_sample_edge falling"
Info : clock speed 20000 kHz
Error: JTAG scan chain interrogation failed: all ones
Error: Check JTAG interface, timings, target power, etc.
sacred moth
Hello all, wondering if you could help a NOOB here get started. I don't seem able to get past square 1! I have a Circuit Playground Bluefruit attached now to a TFT Gizmo from Adafruit. Copying in their code from a tutorial and loading, I get absolutely nothing. CIRCUITPY mounts into when connected, but using "Mu" for the code and even when I click on "Serial" to access the REPL, it says cannot find an attached device.
tidal kiln
@sacred moth can try and help, but let's move to #help-with-circuitpython channel
idle owl
@simple pulsar There has been no discussion to that end. I personally have no idea how to do it. I haven't done anything with javascript. It wouldn't even need to have both Windows and Mac, it simply needs to look like a file explorer - we don't put both in when we create them, we put in the OS of whomever generated the screenshot. If this is something you could put together as a proof of concept, I'd be willing to look into it. It would have to be simple enough for folks who aren't programmers first to be able to do it. Many of our more crafty folks put together guides with those images in them. So if it involves a crazy environment setup or something, it's kind of out.
onyx hinge
Hi <@&356864093652516868> -- the weekly meeting is coming up in a bit. Please add your notes to the doc if possible. We'll be with you shortly!
modern wing
Good afternoon all you wonderful folks -- happily lurking. Notes doc updated accordingly. Lapsang Souchong tea also updated accordingly.
trim elm
lurking
solar whale
@sterile shuttle -- I think you are new here -- Do you want to be able to speak during the meeting?
balmy stirrup
Yes
thorny jay
lurking (notes up to date)
tidal kiln
lurking (but may decloak for in the weeds)
turbid radish
Lurkin'
modern wing
๐
thorny jay
morning?
onyx hinge
Meeting times are also available in iCal format using the following link: https://raw.githubusercontent.com/adafruit/adafruit-circuitpython-weekly-meeting/master/meeting.ical for use with standard calendar applications or in your browser: https://open-web-calendar.herokuapp.com/calendar.html?url=https://raw.githubusercontent.com/adafruit/adafruit-circuitpython-weekly-meeting/master/meeting.ical
onyx hinge
gilded cradle
Adafruit parts also make great gifts
turbid radish
old smelt
Lurking
modern wing
@gilded cradle I quickly read that as "Adafruit parts also make great gifs", and I was nodding in agreement.... "Yep, she's right about that."
gilded cradle
๐
modern wing
Thanks @lone axle ๐
turbid radish
Yay 60 boards!! Yay @gilded cradle
idle owl
@cobalt grail Feel free to join the meeting, but please mute your mic. ๐
cobalt grail
Sorry, didn't find the button. ๐
idle owl
No worries, it's always something.
onyx hinge
discord UI has a few surprises no matter how long you've used it
idle owl
Yep!
thorny jay
I am thinking about a CP project will write the timestamp acting as a keyboard... Maybe one button to reset to 00:00 and one buton to send the timestamp + space. Could be the Clue to have button and screen.
onyx hinge
@thorny jay yeah it could be useful!
.. maybe all libs should be packages even if it doesn't seem like they need to be.
(what a lot of work that would be)
idle owl
and extra space taken up?
onyx hinge
true
idle owl
Bus device to the core! sounds like an 80's exclamation.
turbid radish
Like a sci fi movie
blissful pollen
@idle owl lol! now I'll be thinking of that the whole time I finish it ๐
idle owl
@blissful pollen Then I have done what I came to do.
onyx hinge
I don't see it in the community bundle, maybe someone can reach out to Arudinne -- @thorny jay ?
I think you're not the only one who would like that -- I think Erin St. Blaine wanted to switch between slideshow and other mode.
solar whale
ssssecrets
onyx hinge
credentials.json
inland tusk
How about usr_secrets.py
onyx hinge
I think it only works with the built in font type
I think/thought all loaded fonts all use one bitmap per glyph
modern wing
Nice!
lone axle
โค๏ธ auto bed leveling
modern wing
I just picked up a low-end XVICO X3S 3D Printer. It had a bunch of features that even my Prusa Mk2s doesn't have, and the pricing was right for an impulse purchase. Plus -- 10 minute build time vs 6-12hr build time for a Prusa.
ionic elk
@idle owl that includes non esp boards?
gilded cradle
@idle owl we basically have something like that on circuitpython.org
That's true ๐
ionic elk
Neat
turbid radish
Something Ladyada has asked for
thorny jay
I don't see it in the community bundle, maybe someone can reach out to Arudinne -- @thorny jay ?
@onyx hinge I wanted to write the support for the Unicorn HD... then hopefully I searched the internet first! I am not 100% satisfied with the code as it make 256 3 bytes SPI write. I can try contacting the author.
ionic elk
cool!
lone axle
Sounds like a great resource. We definitely see folks in the #help-with-circuitpython that could get use out of that.
thorny jay
Go go Mag Tag!
idle owl
@lone axle Exactly
ionic elk
@idle owl would love to help contribute some of the pros/cons of STM32/i.MX boards
idle owl
@ionic elk I would love to have help ๐
idle owl
I'll let you know when I get to a page that includes them.
thorny jay
@idle owl I think I proposed something like that in the weed some time ago. It could be just a table with feature: Wifi, BLE, Screen, Formfactor, ...
idle owl
@thorny jay Data matrices are extremely difficult to maintain. There are entirely too many products for us to have a reasonable matrix. We discussed it. We don't have software to do it automatically yet, so it's not something we're going to do.
inland tusk
@gilded cradle Is that the return code errors?
gilded cradle
@inland tusk You mean for Requests/ESP32SPI?
thorny jay
@idle owl Not maintained anymore, only my board, but I made this: https://gist.github.com/dglaude/61e5922a6023b8c784083581d31a7cd0
tidal kiln
ill let @lone axle talk
inland tusk
Requests (ie 404 )
tidal kiln
# use built in display (PyPortal, PyGamer, PyBadge, CLUE, etc.)
# see guide for setting up external displays (TFT / OLED breakouts, RGB matrices, etc.)
display = board.DISPLAY
There were a variety of issues. The latest one we were working on was Failed to send 3 bytes (sent 0)
The PyPortal HTTP error handling was more like 404
inland tusk
Okay Low level
gilded cradle
yeah
inland tusk
understood
gilded cradle
It had to do with the connection being closed and the ESP32SPI not handling it correctly.
thorny jay
Right now, a lot of example are with alternate wiring commented out, like all the AirLift example.
tidal kiln
@lone axle i'll take care of guide update (displayio guide) if you want to deal with libraries?
thorny jay
is31fl3731 is also like that with a lot of comment.
tulip sleet
MatrixPortal is the new board that requires 6.0.0. MagTag is kind of early, and we expect more versions that will fix ESP32S2 issues.
lone axle
ah, if pasted a \t maybe it would try to use it for completion
onyx hinge
This is the issue I had on nRF: https://github.com/adafruit/circuitpython/issues/3152 -- random characters in the middle of a paste were dropped unpredictably
thorny jay
QT-Py is also 6.0.0
onyx hinge
I modified my terminal program to "fix" it
lone axle
unrelated to this issue, but curious if anyone knows while folks are around. Are there different requirements needed in order to build esp32s2 ports?
idle owl
Yes.
onyx hinge
@lone axle yes, there are steps for setting up the esp-idf
it installs a bunch o'stuff
ionic elk
@lone axle I wrote a big 'ol readme in the port
tulip sleet
it's quite complicated, depends on which python versions are installed
thorny jay
MagTag is grey scale too...
ionic elk
@tulip sleet it shouldn't be too bad?
lone axle
Oh nice, gotta get used to scrolling on those repo pages.
cobalt grail
My MagTag is due for wednesday.
ionic elk
or did you mean something else
thorny jay
My MagTag is due for wednesday.
@cobalt grail Thursday for me.
tulip sleet
it's not bad, but it's complicated. (You need a python, so you need python-is-python3 etc.
cobalt grail
@thorny jay Whoohooo! ๐
ionic elk
most of the stuff should be done by the IDF itself though
lone axle
Ooh, I have no python2 currently I'm sure I can get it figured out though
can set up a venv if needed.
lone axle
Ah, I misread that
ionic elk
IDF should do everything else, once you set the environmental variables, which should also be pretty easy if you follow the readme
lone axle
I have python on my system but it does run python3 Found this page now. Thanks for writing this up!
ionic elk
Don't install the IDF elsewhere either, that's kind of confusing if you go 100% off the IDF docs - when you have a local version like the one in Circuitpython you don't need a global install in your user folder
modern wing
Thanks all ๐
ionic elk
IDF actually makes its own virtual environment which it uses privately, so you can't use your own
or the two will conflict and it'll explode
analog bridge
Thanks! ๐
idle owl
@atomic summit Just broke out my Feather S2 to test esptool for a guide. Came right up as CIRCUITPY and played perfectly well with esptool. Great experience!
gilded cradle
Thanks
onyx hinge
thanks all!
thorny jay
I'll work on the CLUE board timestamp encoder. ๐
gilded cradle
It's really helpful for podcasts
modern wing
Snakes. Why does it have to be snakes....
solar whale
ha -- never knew that was there...
tulip sleet
solar whale
life on the cutting edge
idle owl
@lone axle Did you get a chance to go through the MONSTERM4SK repo to find the references to MonsterM4sk?
slender iron
solar whale
Have a good week ๐
lone axle
@idle owl I did. I think I got them all fixed in in a PR that is open on it.
modern wing
I didn't know that either -- thanks ๐
idle owl
@lone axle Ah! ok, will check
modern wing
Kattni's Pro-Tip of the Week ๐
onyx hinge
whoops I left myself in the audio channel. hope I didn't miss something.
modern wing
We discussed the "ultimate question of life, the universe, and everything" -- and bootloaders on the ESP32-S2. And by "we", I mean I listened in like a fly on the wall while others discussed it ๐
slender iron
Here is the notes document for Mondayโs CircuitPython Weekly meeting. It is at the normal time of 11am Pacific / 2pm Eastern here on Discord. Everyone is encouraged to attend! Please add your hug reports and status updates even if youโll be attending the meeting - itโs super helpful! If you are unable to attend but would still like to include updates, feel free to include them in the notes and weโll read them off during the meeting. Hope to see you there! <@&356864093652516868> https://docs.google.com/document/d/1NB-7IQR3F-1zPFHavBUUrmbg8uErFVLULn5Z59d6tPo/edit?usp=sharing
slender iron
Here is the notes document for Mondayโs CircuitPython Weekly meeting. It is at t...
olive abyss
Has anyone looked at watchdog support for the esp32s2 port? Seems like it's not too awful with esp-idf, I just don't have a feel for how the TaskHandles jives in with everything else yet. This is the first time I've been in this section of the esp-idf programming guide though so maybe it's not too bad, but I didn't want to start messing with it if someone has already found dead ends here
slender iron
@olive abyss I haven't heard of anyone looking at it. We do have an existing watchdog API
olive abyss
@slender iron yeah I was perusing that one, I saw the NRF boards had it exposed. I'll probably take a look at it soon, would be nice to have to clean up after wifi/radio fails or other stuff. found myself wanting it for a RFM69 hangup this morning
slender iron
๐
@mental nexus did you see rpi 400? could be one of the first self contained cp board
brazen cedar
What's timeframe on the 6.0 GA release?
slender iron
@brazen cedar we talked about it in the meeting today. basically we have one issue with an OLED I need to test
if it's minor we'll make rc.1 the stable release this week
brazen cedar
nice! sorry I should have checked the meeting notes first I guess?
hearty tapir
@slender iron I'll need to give up for today. I see log outputs now on console, but can't even get to CPY any more.
slender iron
@hearty tapir thanks for the help! what timezone are you in?
hearty tapir
It will probably best for me to start over fresh tomorrow (actually later today)
slender iron
I'll have more time to dig into it tomorrow
slender iron
๐ thanks!
gilded cradle
@slender iron do you know if there's a way to provide a string to import in CircuitPython? Looks like there's a couple ways in Python, but none of them worked with CP for me.
slender iron
@gilded cradle not that I know of
gilded cradle
Ok thanks, I'll just make a big if block
slender iron
what are you doing?
manic glacierBOT
analog bridge
Hi @olive abyss I am working on watchdog implementation for the esp32s2. I would love to collaborate with you on this. ๐
thorny jay
I don't know who will take the timestamp of next weekly meeting. And I don't want to ping if it is still early in USA. So here is my code for CLUE to send to keyboard by clicking the B button. To reset the timer, user the A button: https://gist.github.com/dglaude/75b90856b7fbab4632788a63f2694f82
I seems to be loosing click, I have tried another approach but it is not perfect yet. But if you Click not too fast, that is working OK.
Also, it is for US keybard... ๐
onyx hinge
What's the closest equivalent of breaking on HardFault_Handler in esp32s2?
Thread 1 received signal SIGTRAP, Trace/breakpoint trap.
0x4008dab4 in mp_unary_op (op=MP_UNARY_OP_HASH, arg=0x72666164)
at ../../py/obj.h:171
171 { return ((((mp_int_t)(o)) & 3) == 0); }
``` oh maybe it just did it automatically#2 0x4008eca0 in mp_map_rehash (map=0x3ffd0afc <mp_state_ctx+108>) at ../../py/map.c:136
136 mp_map_lookup(map, old_table[i].key, MP_MAP_LOOKUP_ADD_IF_NOT_FOUND)->value = old_table[i].value;
(gdb) x/24c old_table
0x3fd8bc10: 105 'i' 109 'm' 112 'p' 111 'o' 114 'r' 116 't' 32 ' ' 97 'a'
0x3fd8bc18: 100 'd' 97 'a' 102 'f' 114 'r' 117 'u' 105 'i' 116 't' 95 '_'
0x3fd8bc20: 97 'a' 104 'h' 116 't' 120 'x' 48 '0' 0 '\000' -40 '\330' 63 '?'
``` well that's not a very good "old table" is it@onyx hinge Do you feel the protomatter update is worth an rc.2?
onyx hinge
@tulip sleet again, there are workarounds that are totally fine (display an empty group)
tulip sleet
i am just worried about having to put these workarounds in Learn Guides, etc.
Perhaps more appropriately, we can release 6.0.0 and then follow up with 6.0.x's with various fixes
onyx hinge
yeah
I'm chagrined, I thought we had taken the fix for this in CircuitPython but I dropped the ball after PRing it in protomatter
tulip sleet
don't worry about it; maybe wait for Scott to get up so we can have a final consult about this
onyx hinge
(gdb) c
Continuing.
esp32s2: Target halted, PC=0x40084A60, debug_reason=00000002
Thread 1 received signal SIGTRAP, Trace/breakpoint trap.
vstr_ins_char (vstr=0x3ffdbea0, char_pos=0, chr=97) at ../../py/vstr.c:212
212 *s = chr;
(gdb) p s
$32 = 0x3fd8bc10 "~\001"
(gdb) p &mp_state_ctx.thread.dict_globals.map.table[0].key
$33 = (mp_obj_t *) 0x3fd8bc10
(gdb) where
#0 vstr_ins_char (vstr=0x3ffdbea0, char_pos=0, chr=97) at ../../py/vstr.c:212
#1 0x400a80ec in readline_process_char (c=97) at ../../lib/mp-readline/readline.c:242
#2 0x400a84df in readline (line=0x3ffdbea0, prompt=0x3f013138 "81\001?") at ../../lib/mp-readline/readline.c:482
#3 0x400ab982 in pyexec_friendly_repl () at ../../lib/utils/pyexec.c:455
#4 0x4009e60f in run_repl () at ../../main.c:443
#5 0x4009e687 in main () at ../../main.c:510
``` readline_process_char is somehow reading the line into the globals table, but no guarantee that this is the first thing that went wrong$36 = 0x3fd8bc10 "~\001"
(gdb) p mp_state_ctx.thread.dict_globals.map.table
$37 = (mp_map_elem_t *) 0x3fd8bc10
>>> adafruit_bus_device
Traceback (most recent call last):
File "<stdin>", line 1, in <module>
NameError: name 'adafruit_bus_devada' is not defined
``` is it imports at the repl vs in a program?@analog bridge just saw your message and the new PR; I'm excited to try it out, I'll try to find some time today to do a test build!
analog bridge
๐
onyx hinge
components/esp_common/include/esp_task.h:#define ESP_TASK_MAIN_STACK (CONFIG_ESP_MAIN_TASK_STACK_SIZE + TASK_EXTRA_STACK_SIZE)
